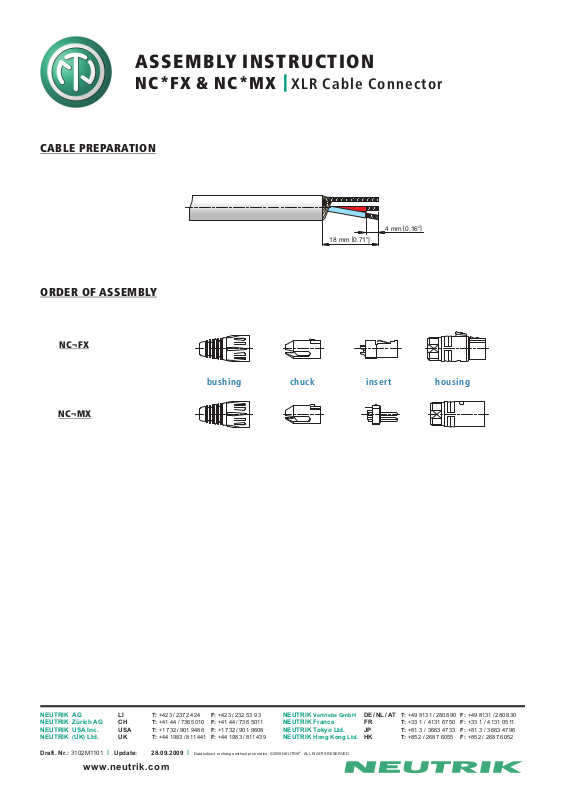

ASSEMBLY INSTRUCTION
NC*FX & NC*MX
CABLE PREPARATION
ORDER OF ASSEMBLY
NC FX¬
|
XLR Cable Connector
[
4 mm 0.16
[
18 mm 0.71
]
”
]
”
NC MX
¬
bushing chuck insert housing
