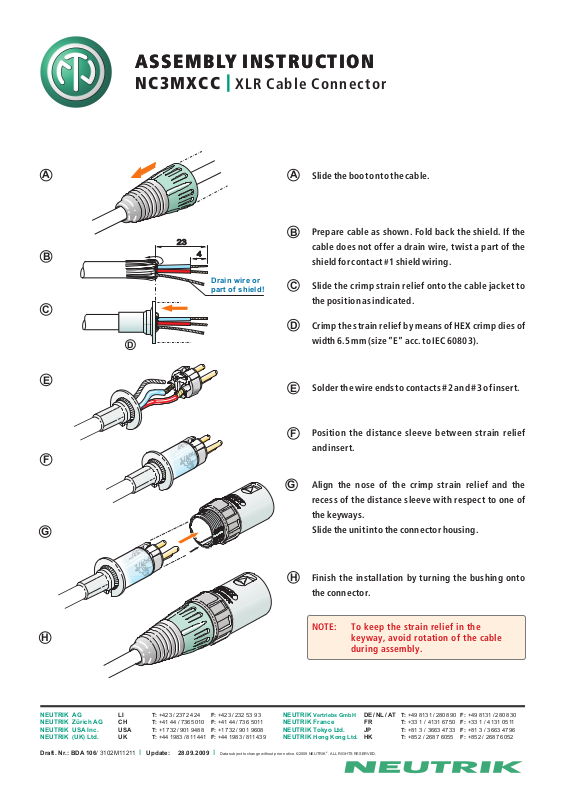

ASSEMBLY INSTRUCTION
ASSEMBLY INSTRUCTION
NC3MXCC
A
23
B
4
|
XLR Cable Connector
A

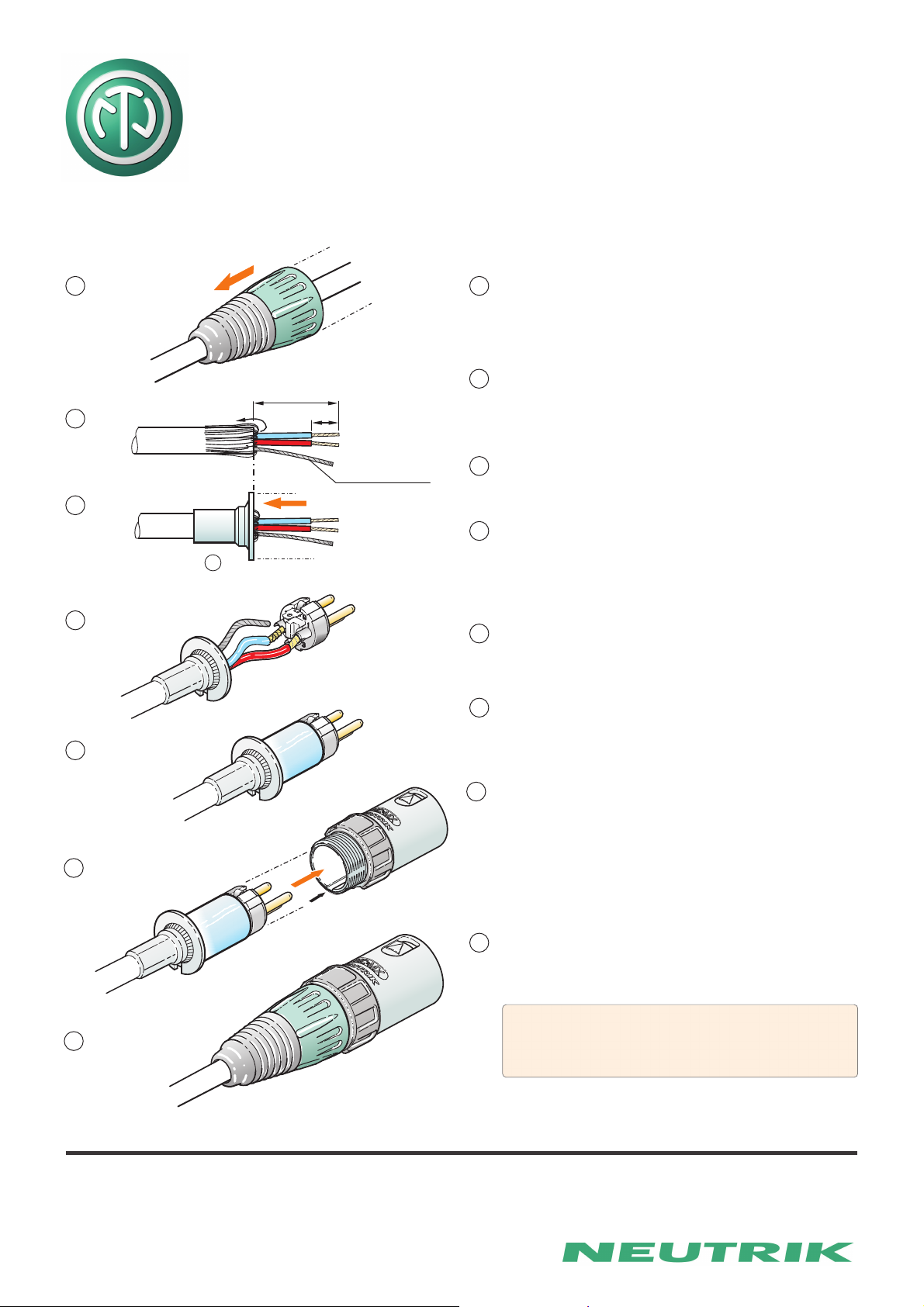

Slide the boot onto the cable.
Prepare cable as shown. Fold back the shield. If the
B
cable does not offer a drain wire, twist a part of the
shield for contact 1 shield wiring.
Drain wire or
part of shield!
C
Slide the crimp strain relief onto the cable jacket to
#
the position as indicated.
C
D
Crimp the strain relief by means of HEX crimp dies of
D
width 6.5 mm (size ”E” acc. to IEC 60803).
G
H
E
Solder the wire ends to contacts #2 and #3ofinsert.
E
Position the distance sleeve between strain relief
F
and insert.
F
G
Align the nose of the crimp strain relief and the
recess of the distance sleeve with respect to one of
the keyways.
Slide the unit into the connector housing.
H
Finish the installation by turning the bushing onto
the connector.
NOTE: To keep the strain relief in the
keyway, avoid rotation of the cable
during assembly.
