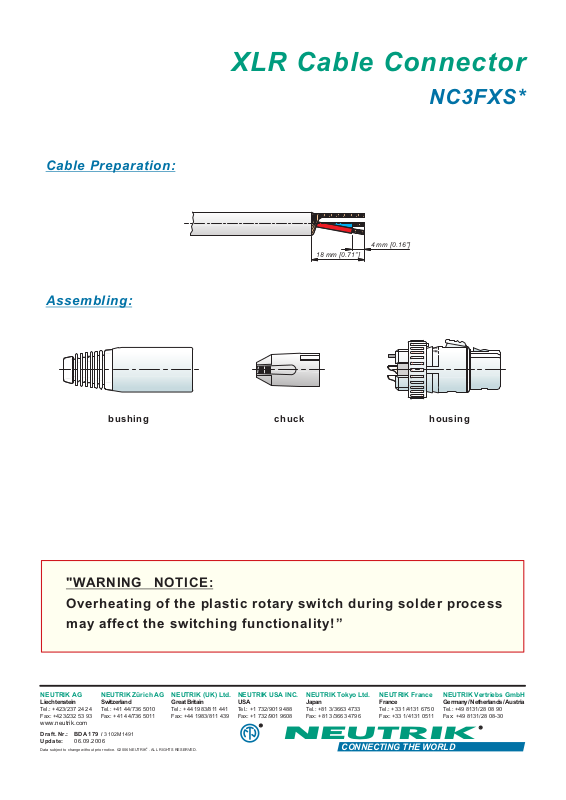

Cable Preparation:
XLR Cable Connector
NC3FXS*
Assembling:
bushing chuck housing
18 mm[0.71”
4mm[0.16”
]
]
OFF
"WARNING NOTICE:
Overheating of the plastic rotary switch during solder process
may affect the switching functionality!”
