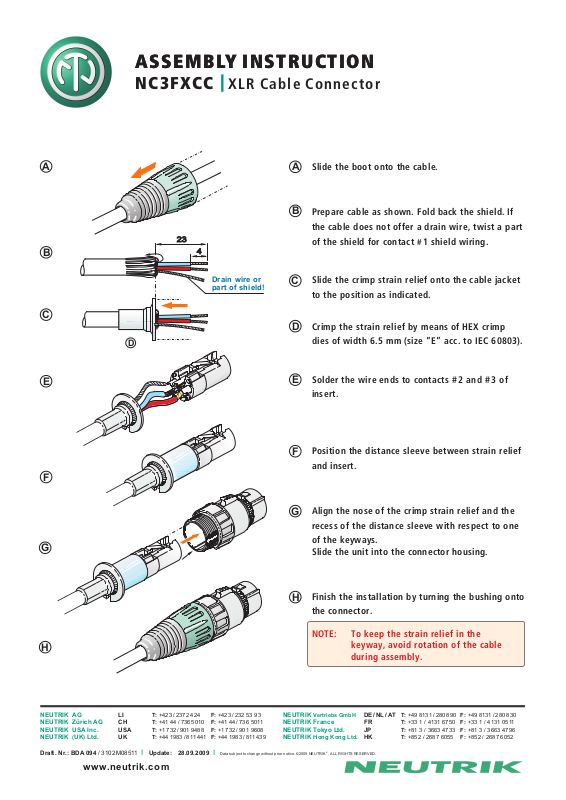

ASSEMBLY INSTRUCTION
ASSEMBLY INSTRUCTION
NC3FXCC
A
|
XLR Cable Connector
A
Slide the boot onto the cable.
B
Prepare cable as shown. Fold back the shield. If
the cable does not offer a drain wire, twist a part
23
B
4
Drain wire or
part of shield!
of the shield for contact 1 shield wiring.
Slide the crimp strain relief onto the cable jacket
C
#
to the position as indicated.
C
Crimp the strain relief by means of HEX crimp
D
D
dies of width 6.5 mm (size ”E” acc. to IEC 60803).
G
H
Solder the wire ends to contacts # 2 and # 3 of
E
E
insert.
Position the distance sleeve between strain relief
F
and insert.
F
Align the nose of the crimp strain relief and the
G
recess of the distance sleeve with respect to one
of the keyways.
Slide the unit into the connector housing.
Finish the installation by turning the bushing onto
H
the connector.
NOTE: To keep the strain relief in the
keyway, avoid rotation of the cable
during assembly.
