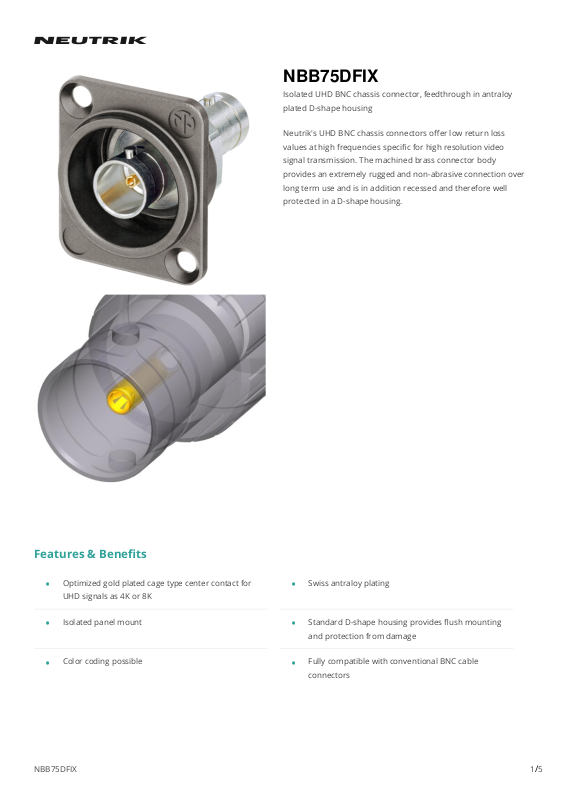

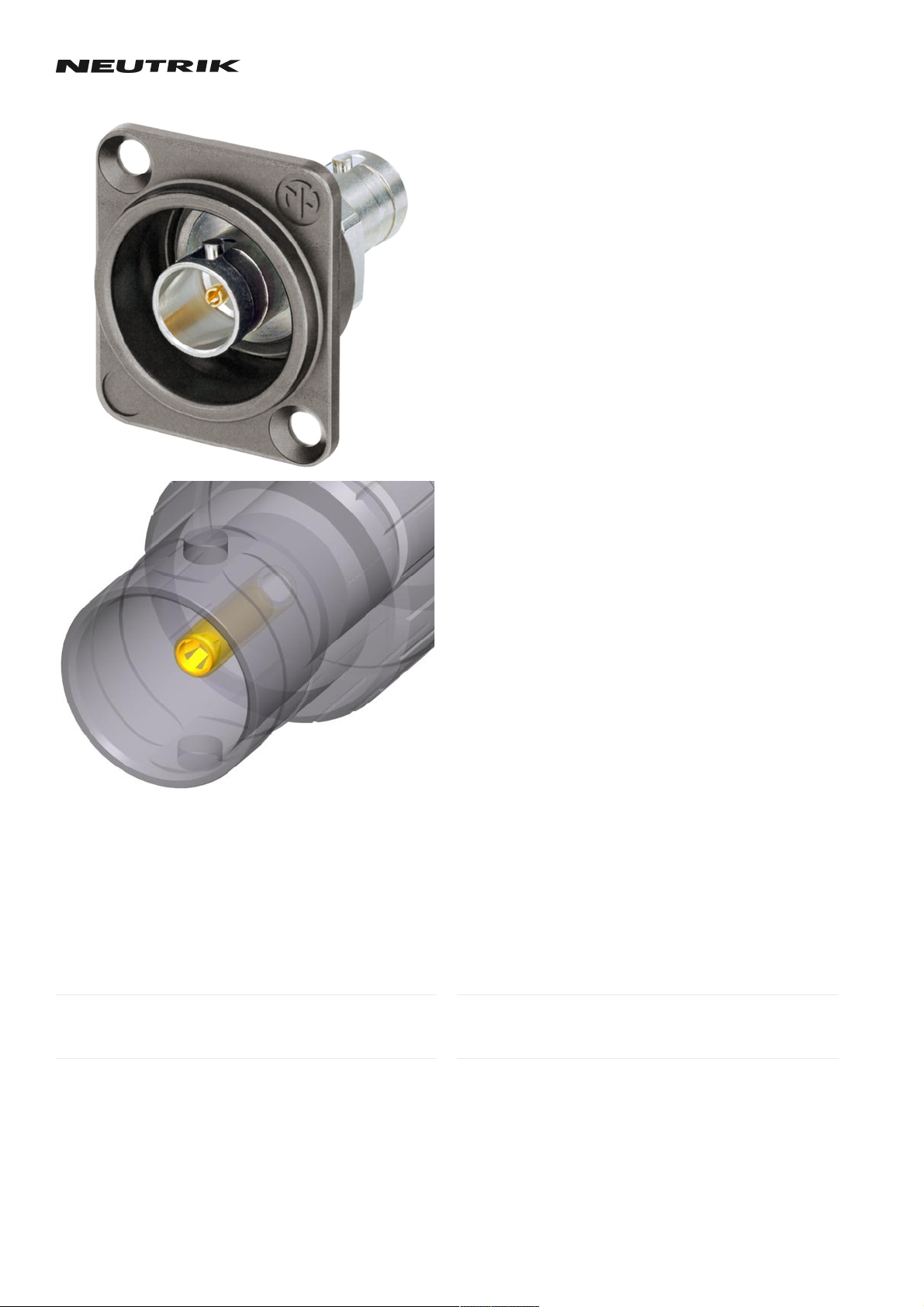

NBB75DFIX
Isolated UHD BNC chassis connector, feedthrough in antraloy
plated D-shape housing
Neutrik's UHD BNC chassis connectors offer low return loss
values at high frequencies specific for high resolution video
signal transmission. The machined brass connector body
provides an extremely rugged and non-abrasive connection over
long term use and is in addition recessed and therefore well
protected in a D-shape housing.
Features & Benefits
Optimized gold plated cage type center contact for
UHD signals as 4K or 8K
•
Swiss antraloy plating
•
Isolated panel mount
•
Standard D-shape housing provides flush mounting
and protection from damage
•
Color coding possible
•
Fully compatible with conventional BNC cable
connectors
•
NBB75DFIX 1/5
Page 2

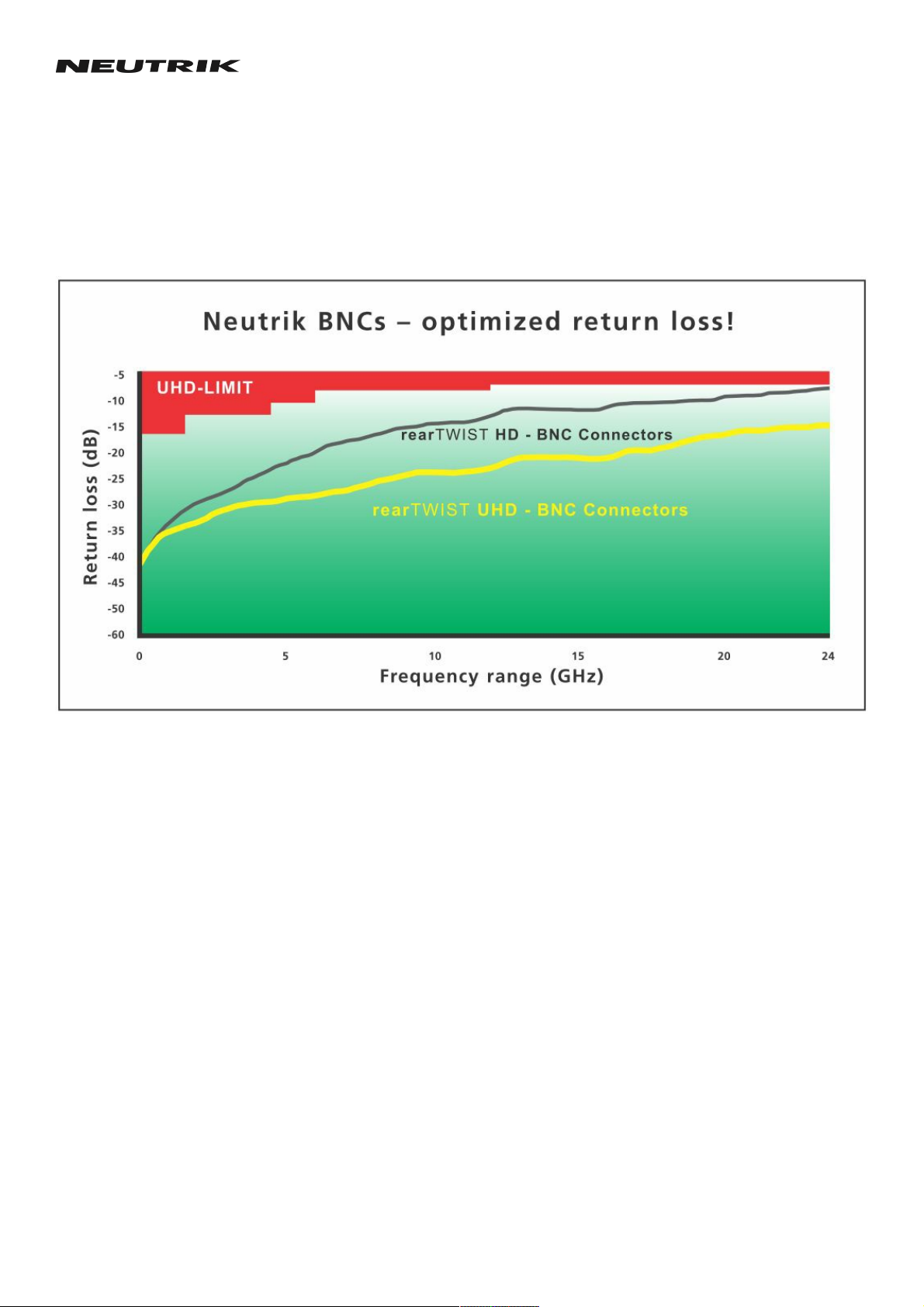

Optimized Return Loss
Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom
compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations
resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
For more details see Neutrik UHD BNC White Paper.

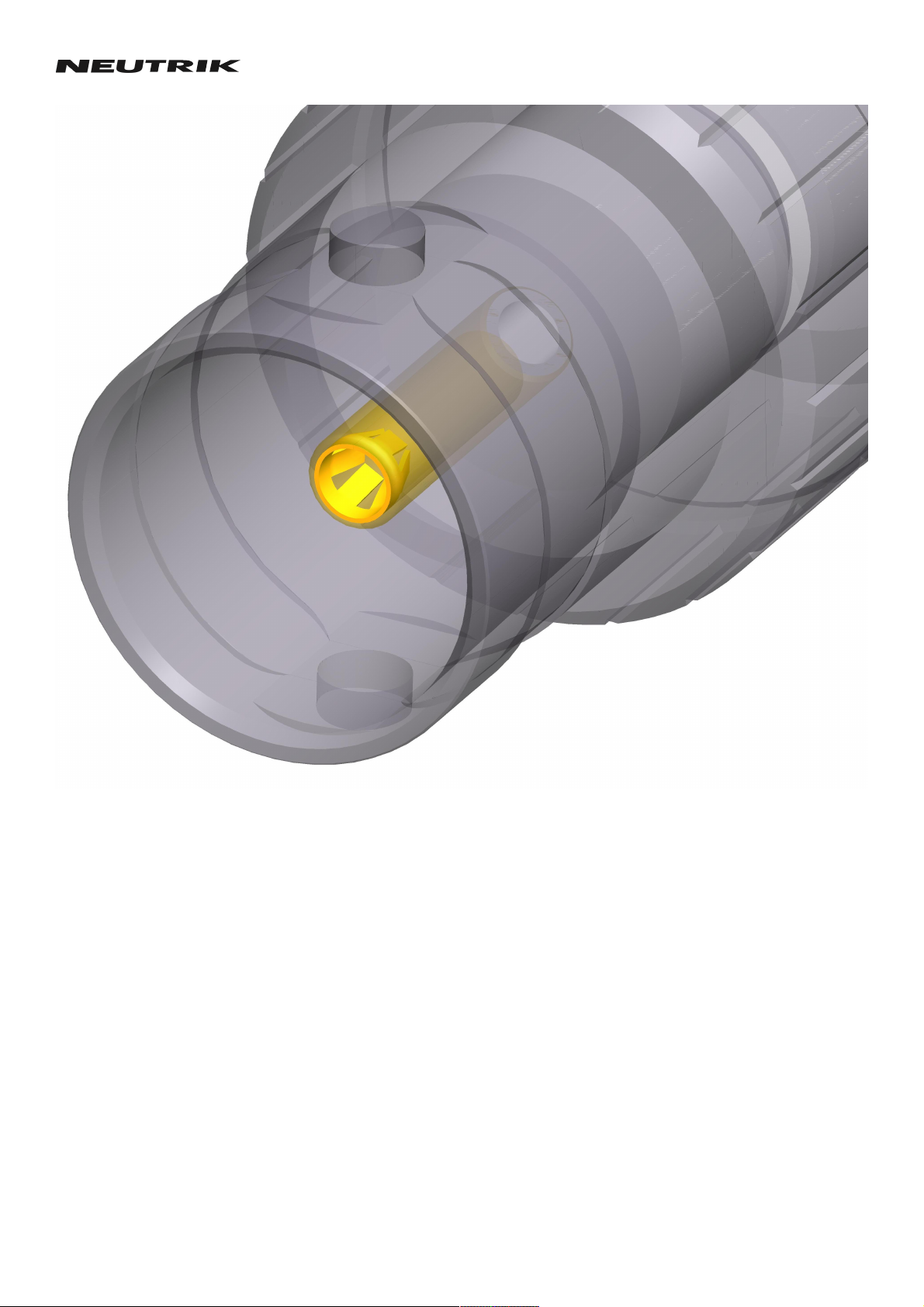

New cage type contact
Closed contact design - extremely robust
Gold plated cage type clip - best possible shielding and lowest contact resistance
•
•
NBB75DFIX 2/5
Page 3
NBB75DFIX 3/5
Page 4
Technical Information
Product
Title NBB75DFIX
Connection Type BNC 75 Ω
Gender female
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1.5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage < 50 V
VSWR ≤1.06 / >30 dB up to 6 GHz
≤1.13 / >24 dB up to 12 GHz
≤1.22 / >20 dB up to 18 Ghz
Signal type UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH,
RGBHV
Mechanical
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Mounting direction Front mounting
Chassis shape D
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Insert PTFE
Shell Polyacetal (POM) (insulation shell)
Shell plating Antraloy
D-shape housing Zinc diecast (ZnAl4Cu1)
NBB75DFIX 4/5
Page 5
Environmental
Temperature range -30 °C to +85 °C
