Data Connectors
83
Data Connectors
Content Page
Fiber Optic:
opticalCON ADVANCED ................................................ 86
opticalCON DUO - Cable Connector Assembly ............... 88
opticalCON DUO - Chassis Connector ........................... 88
opticalCON QUAD - Cable Connector Assembly ............ 89
opticalCON QUAD - Chassis Connector ......................... 89
®
opticalCON MTP
opticalCON MTP
opticalCON Breakout Boxes & Coupler .......................... 91
opticalCON D-shape Z-panels ....................................... 91
opticalCON powerMONITOR ......................................... 92
opticalCON Acceccories & opticamSWITCH .................... 93
Network Interconnections:
etherCON
etherCON
etherCON
etherCON
etherCON - Technical Data ........................................... 98
etherCON - Ordering Information ................................. 99
etherCON - Accessories .................................................. 99
etherCON
etherCON
etherCON
- Cable Connector Assembly .............. 90
®
- Chassis Connector ........................... 90
- Cable Carrier ............................................. 95
- Receptacles ............................................... 96
- Receptacle Shield & Lighted ........................ 97
- Feedthrough .............................................. 97
- CAT6 ........................................................ 100
- CAT6 - Technical Data ................................ 101
- CAT6 - Ordering Information ...................... 101
Introduction
Neutrik’s data connector range copes with the increasing demand of digital connections in the professional audio, broadcast and entertainment industry.
Networking and computerized controls have to be
equipped with reliable and rugged interconnection
systems, since conventional data connectors can not
meet the demanding requirements of live / rental or
broadcast applications. Neutrik early understood this
trend and realized a range of ruggedized connection
systems based on standard digital interconnection
products like fiber optic and network interconnections
as well as Digital Interfaces like USB, Firewire and now
as well HDMI.
Digital Interfaces (USB / IEEE / HDMI / D-SUB):
USB Patch Cable .......................................................... 102
USB Receptacle ............................................................ 102
Technical Data USB Receptacle and Patch Cable ............ 103
Ordering Information USB Receptacle and Patch Cable .. 103
HDMI Receptacle ......................................................... 104
HDMI Patch Cable ........................................................ 104
Firewire Receptacle ...................................................... 105
D-SUB Receptacle ......................................................... 105
Technical Data Firewire, HDMI, D-SUB .......................... 106
Ordering Information Firewire, HDMI, S-BUB ................. 106
84
innovative solutions I superior quality
NEUTRIK®, opticalCON®, neutriCON®, miniCON®,
nanoCON®, powerCON®, Profi®, speakON®, silentPLUG®,
crystalCON®, etherCON®, rearTWIST®, XIRIUM®, DIWA®
are registered trademarks of Neutrik AG.
opticalCON
opticalCON
Fiber Optic
Some years ago fiber optic has been used
for speciality cabling like HD broadcast
cameras only. Meanwhile digital signal
and network applications in Pro Audio,
Broadcast and Touring / Rental spring
up like mushrooms which opens a wide
range of fiber optic use. The application
depth is multiple, some examples are:
• Network (Audio, Data or DMX) trans-
missions with >70 m (mobile) or >100 m
(installation) length, based on Pro Equip ment (e.g. Mixers) offering fiber optic
connections or using a fiber optic switch
• Digital HD video transmissions > 15 m
(e.g. DVI, HDMI or KVM projection)
using fiber optic media converters
• Future prove installations eliminating
bandwidth limitations
• Noise and EMI protection on Audio or
Video (LED walls) applications
• Increased bandwidth especially on
broadcast applications
• Signal embedding to minimize cabling
efforts especially on broadcast applica tions with help of Pro Equipment or
media converters
The trend to use connectors out of the
Datacom / Computer industry for Pro
Audio and Broadcast applications (RJ45
connectors) did also not stop short of fiber
optic connectivity. Conventional Datacom
fiber optic connectors like ST, SC or LCs
are optimized for one time permanent
connection but can not meet the rough
requirements of mobile applications and
high mating cycles as required for the
entertainment industry. By necessity used
military connectors have been expensive
and showed either high attenuation and
return loss or no dust protection.
Design Criteria
Neutrik as connectivity specialist for
rough entertainment applications
solved these problems when launching
the opticalCON DUO fiber optic connection system in 2005. The reliable and
simple concept has proven its ruggedness and low maintenance which led to
a wide acceptance in the pro audio and
broadcast industry.
The opticalCON system is based on LC
connectors but eliminates its weakness
and guarantees a safe, dust protected
and rugged connection. Being compatible to conventional LC connectors the
opticalCON DUO offers the choice of
using cost effective LC cables or the
rugged opticalCON mobile cable assembly. This final user flexibility choosing a
cost effective LC for system integration
or a rugged cable for mobile applications is appreciated by OEMs.
opticalCON QUAD and opticalCON
®
are based on the proven optical-
MTP
CON DUO conzept but are, with 4 or
respectively 12 fiber channels, focused
to POINT-TO-POINT interconnections.
These systems copes with the increasing need for fiber optic channels. opticalCON is more than a connector, the
optimized connection system includes
a variety of customized rugged cables,
drums, breakout and pulling solutions.
Well-known equipment manufacturers
of pro equipment as well as key users
in broadcast and rental / touring trust in
the opticalCON. It is our goal to turn it
to an industry standard comparable to
the widely used etherCON series.
www.neutrik.com
85
opticalCON
opticalCON
•
MOBILE USE
•
RUGGED
•
LOW MAINTENANCE
•
SIMPLE INTEGRATION
•
COST EFFECTIVE
Lockable, O-ring sealed
metal protection cap
Ratched lock bushing
Custom color coding
opticalCON DUO
opticalCON QUAD
Color coding wiring
opticalCON MTP
Protective rubber coating
Ergonomic anti-kink boot
for various cable O.D.
®
86
innovative solutions I superior quality
ADVANCED
opticalCON DUO
protection boot
sealing shutter
spring loaded push
pull locking mechanism
ruggedized
metal housing
opticalCON QUAD
protection boot
ruggedized
metal housing
HYBRID
4 copper contacts
2 fibers
heavy duty
cable retention
heavy duty
cable retention
Standard LC
connector
compatibility
sealing shutter
sealing shutter
colored
sealing gasket
big solder
cups (AWG 18)
colored
sealing gasket
sealing shutter
spring loaded push
pull locking mechanism
opticalCON MTP
spring loaded push
pull locking mechanism
ruggedized
metal housing
protection boot
sealing shutter
4 fibers
Standard LC
connector
MULTICHANNEL
compatibility
®
®
MT
P
12 fibers
heavy duty
cable retention
sealing shutter
colored
sealing gasket
Standard
®
connector
MTP
compatibility
MULTICHANNEL
www.neutrik.com
87
166 [6.5"]
Ø27.6 [1.1"]
166 [6.5"]
Ø27.6 [1.1"]
opticalCON DUO
Rugged metal
housing
NKO2S-A*
Cable drum Rubber coated
protection cover
NKOY*
SPLIT Cable
• Ruggedized and dirt-protected 2-channel fiber optic
connection system
• Waterproof acc. to IP 65 in mated condition
• Color-coded cable connector comes pre-assembled with a
choice of mobile field cables
• Accommodates standard optical LC-Duplex connectors
• Cable connector features rugged all metal housing and
heavy duty cable retention
• Excellent dust and dirt protection due to automatic sealing
shutter with silicone gasket
• Reliable Push-Pull locking mechanism
• Easy to clean, no tools required
• Cable packed in case, on drum or air spool
• Field repairable
• Hybrid assembly available
• Custom split cable assembly
Rear LC connection Sealing shuttersChassis with
transceiver adapter
Chassis ConnectorCable Connector Assembly
NO2-4FDW-A with SCDP-0
• Suggested OEM equipment connectors due to LC front
compatibility
• Accommodates standard LC connectors on the rear for
simple installation
• Designed as feedthrough with automatic sealing shutter
• Shutter with silcone gasket protects optical connection
from dust and dirt
• Waterproof acc. to IP 65 ingress protection in mated condition
• Rubber sealing gasket (black, blue, green to identify fiber
mode)
• Connection on the front side either by rugged opticalCON
or standard LC connector
NKO2*
88
Ø33.0 [1.3"]
178 [7.0"]
innovative solutions I superior quality
NO2-4FDW-A
166 [6.5"]
Ø27.6 [1.1"]
166 [6.5"]
Ø27.6 [1.1"]
opticalCON QUAD
Colour Coding
Sealed and rugged
housing
NKOP8*
POWER-SPLIT CableNKO4S-A*
• Ruggedized and dirt protected 4 channel fiber optic
connection system
• For POINT-TO-POINT multichannel routing
• Innovative shutter guarantees low maintenance
• Dust and water resistant according to IP 65 in mated
condition
• Color-coded cable connector comes pre-assembled with a
choice of mobile field cables
• Up to 12-channel custom SPLIT cables
• opticalCON X-TREME cable for demanding applications like
touring / rental or outdoor broadcast offering a cut-proof
and rodent resistant double jacket glass yarn armoured
cable construction
• POWER SPLIT 4 or 8 channel cable combines multi-fiber and
power in one cable
• Field repairable
Sealing shutter Sealed housing Rear LC connection
Chassis ConnectorCable Connector Assembly
NO4FDW-A with SCDP-0
• Rugged 4 channel POINT-TO-POINT multi-channel routing
solution
• Laser protective metal shutter seals dust proof with two-
component rubber gasket
• Waterproof acc. IP 65 in mated condition
• Accommodates standard LC connectors on the rear for
cost effective and simple installations
• Rubber sealing gasket (black, blue, green to identify fiber
mode)
Ø33.0 [1.3"]
178 [7.0"]
NO4FDW-ANKO4*
Find more details in the opticalCON Guide and on www.neutrik.com.
www.neutrik.com
89
166 [6.5"]
Ø27.6 [1.1"]
166 [6.5"]
Ø27.6 [1.1"]
opticalCON MTP
®
opticalCON
Rugged metal
Spherical shutter
housing
®
MT
P
NKO12S*
• Ruggedized and dirt-protected 12 channel fiber optic
connection system
• For POINT-TO-POINT multichannel routing based on
®
MTP
technology
• Cable connector features rugged all-metal housing and
heavy-duty cable retention
• Innovative shutter guarantees low maintenance
• Dust and water resistant according to IP 65 in mated
condition
• Enhanced maintenance
• Reliable Push-Pull locking mechanism
• Color-coded cable connector comes pre-assembled with a
choice of mobile field cables
Rubber sealing
gasket
Rear MTP®
connection
Chassis ConnectorCable Connector Assembly
®
MT
P
NO12FDW-A with SCDP-0
• Ruggedized and dirt-protected 12 channel fiber optic
connection system
• For POINT-TO-POINT multichannel routing
• Laser protective metal shutter seals dust proof with two-
component rubber gasket
• Dust and water resistant according to IP 65 in mated
condition
• Accommodates standard MTP
simple installation
• Rubber sealing gasket (black, blue, green to identify fiber
mode)
®
connectors on the rear for
NKO12*
90
Ø33.0 [1.3"]
178 [7.0"]
innovative solutions I superior quality
NO12FDW-A
Couplers
®
Frame with
opticalCON
Individual frame applicationColour coding DUO, QUAD & MTP
19" Z-Panel & PlatesBreakout Boxes & Coupler
NZPF1RU
NAO2S-H1W-ANO4SABB4D-A
• Breakout boxes are used to split multichannel connections
as the opticalCON QUAD and MTP to either dual or single
channels
• Dust and waterproof according to IP 65 in mated condition
• Weatherproof opticalCON DUO, QUAD and MTP
®
coupler
(adapter) for cable extensions
NO4SABB4D-A
NZPF3RU equipped with frame plates
• Space saving design, ideal for cramped rack applications
such as OB truck I/O panels
• Frame plate can be loaded with opticalCON DUO or QUAD
and E2000 or ST or SC
• Frames can be equipped with frame plates (D-shape) or
blind plates
• Best cable bend protection
• 1 RU or 3 RU frame
NZPF1RU
NZPF3RU
Find more details in the opticalCON Guide and on www.neutrik.com.
www.neutrik.com
91
opticalCON opticalCON
Breakout Box with
powerMONITOR
3RU frame
with up to 9
powerMONITORs
1RU rack mount Robust rear
powerMONITOR
NO4S-4F-2R-PM
The opticalCON powerMONITOR is a cost-saving, purposebuilt measurement (monitoring) device for professional fiber
optic broadcast, audio and video applications.
With simultaneous monitoring of attenuation for up to 4
transmission channels, powerMONITOR provides an immediate,
"on air" view into fiber optic signal strength. Visual and
audible alarms can be set individually for each fiber channel,
based on each channel's power budget. powerMONITOR
provides clear status information, delivers early warnings for
potential problems, and assists with maintenance scheduling.
connection
• On-air monitoring of fiber optic transmission quality
• Simultaneous power measurement (+0.0 / -0.1 dB measure-
ment accuracy) of up to 4 channels
• Programmable threshold alarms
• Rack mount and mobile units
• Operates on rechargeable battery power or on mains power
with fail-safe battery backup in case of unexpected mains
power interruption
• Low loss (0.5 dB maximum split loss)
• Wavelength selectable: multimode 850 nm or 1'300 nm,
single mode 1'310 nm, 1'550 nm or WDM (wave division
multiplexing)
• External output for alarm signal
NO4S-4F-2R-PM-A
44 [1.73“]
92
133 [5.24“]
118 [4.65“]
108 [4.25“]
147 [5.8“]
25 [.98“]
innovative solutions I superior quality
19" x 1 1/2 RU Rack
unit
Ergonomic panel Wieland rear
connection
Accessories & opticalSWITCH
Coupler NAO4MW-A Breakout Cable opticalCON Field
assembly
NAOBOCAS-FOMDopticamSWITCH CAS-FOCD-ADV
The opticamSWITCH is the ultimate solution for fiber optic
camera routing within broadcast studios. The device allows
switching of unlimited camera positions between several studios and control rooms, eliminating the need for high-maintenance, risky matrix patch fields using SMPTE patch cables.
The device works on trendsetting, silica-based PLC (planar
lightwave circuits) equipped with TO (thermo optic) switches.
The innovative design guarantees rugged and safe non-blocking fiber plus camera power switching without any moving
parts. The LAN-based remote control software simplifies work,
shows switching and camera status, and enables broadcast
production automation.
• Thermo Optic PLC Switch
• Non Blocking Structure
• Intelligent Power Working Circuit
• LAN Remote Control
• Rugged couplers to extend two opticalCONs
• Breakout cables
• NAOBO Kit – for flexible chassis mounting solution
• Assembly Tools:
- Case for opticalCON field assembly
- Fiber Optic Cleaning Devices (CAS-FOCD-ADV)
• Transceiver adapter connects opticalCON chassis and
multi / singlemode transceivers
• Color coding
• Sealing covers
Find more details in the opticalCON Guide and on www.neutrik.com.
www.neutrik.com
93
etherCON etherCON
etherCON
Ruggedized RJ45 Data
Connector
etherCON provides solutions for data transfer in harsh and
demanding applications. These connectors are especially applicable for Ethernet networking in audio, commercial, entertainment, live stage production, DMX lighting, industrial and
outdoor internet access environments.
Example of etherCON RJ45 Data Connector.
etherCON chassis overview
Class D CAT 5e CAT 6
Fastethernet Gigabit 10 Gigabit
10/100 Base-T 1000 Base-T (IP65)
PCB mount NE8FAV
NE8FBV
NE8FDV
NE8FAH
NE8FBH* NE8FDH-C5E
IDC NE8FAV-Y*
NE8FDV-Y* NE8FDY-C6
The etherCON series offers male cable carriers, assembled
female receptacles, feedthrough jacks, cable coupler and
shielded versions with or without illumination possibilities by
LEDs. The male cable end offers a rugged diecast metal shell as
a carrier for pre-assembled RJ45 plugs, which does not require
the re-termination of the cable assembly.
Female chassis receptacles are based on the current Neutrik
“A & B” series as well the “D” series of XLR receptacles with
secure latching system – a feature not found on other RJ45
receptacles. Terminations include horizontal and vertical PCB
mount or IDC. Colour coding is available for both the cable
carriers and the receptacles for ease of identification.
Ingress protection of IP 54 is achived on the CAT 5 version by
assembling the waterproof kit SE8FD while CAT 6 versions are
IP 65 rated as standard.
Neutrik etherCON receptacles comply with CAT 6, CAT 5e
(IDC versions) or Class D (PCB versions), shielded or unshielded
according to TIA / EIA 568B and ISO / EC 11801 standard.
Feedthrough NE8FDP
NE8FF
94
innovative solutions I superior quality
Rugged diecast shell Colored coding
Bushing
etherCON – Cable Carriers
NE8MC
NE8MC-1 + BSE2
• The RJ45 system for harsh and demanding environment
• Cable connector carrier accepts the most common RJ45 plugs
• Cable connector carrier has rugged diecast shell and unique chuck type strain relief
• NE8MC-1 version with weatherproof Collinox plating and O-ring gasket
• Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of
the fragile components of standard RJ45 connectors
• Cable connector carrier does not include RJ45 plug
NE8MC NE8MC-1
www.neutrik.com
95
etherCON etherCON
Horizontal PCB Vertical PCB IDC Terminals NE8FDV-SE – Vertical PCB receptacle combined
with waterproof kit
etherCON – Receptacles
NE8FAV + ACRF-2 NE8FBH NE8FAV-YK NE8FDV NE8FDV-Y110-B
• "A / B" and "D" sized receptacles available in vertical and
horizontal PCB or IDC terminations
• Accommodates NE8MC carriers or any standard RJ45 Plug
• D-versions with unified metal flange equal to “D” series-
XLR, speakON, powerCON and BNC Bulkhead
• Receptacles comply with Class D (PCB versions) or CAT 5e (IDC
versions and NE8FDH-C5E) according to TIA / EIA 568B and
ISO / IEC 11801 standard
• D-version mountable from the front or rear of the panel
• Version with screw domes to fix connector onto PCB securely
(NE8FAV-SD)
NE8FDH-C5E
NE8FAV
NE8FAV-SD
NE8FBH
NE8FAV-YK
NE8FAV-Y110
NE8FDV
96
innovative solutions I superior quality

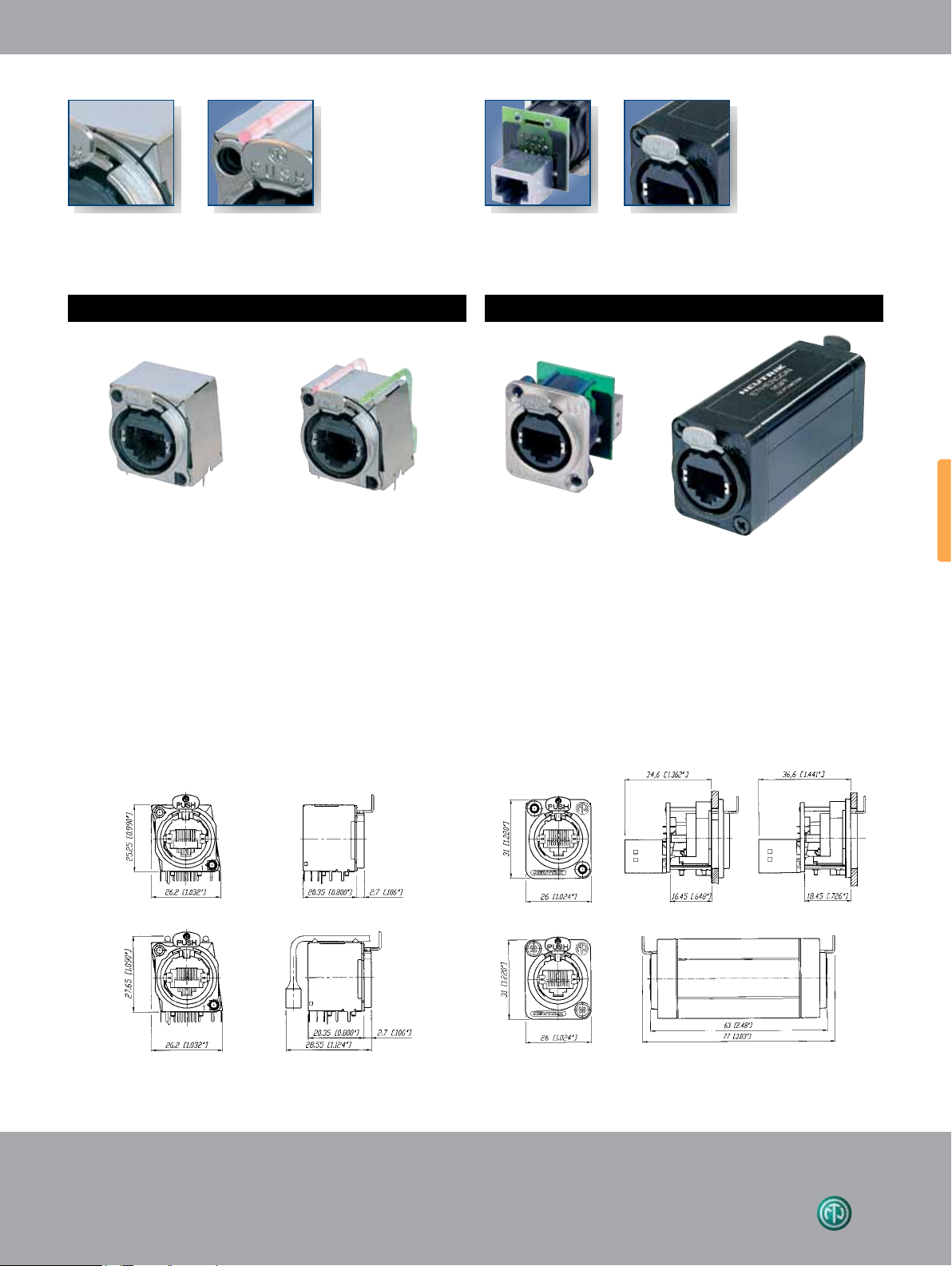

Completely closed
housing
NE8FDP rear sideLight pipe Locking latch
FeedthroughShielded & Lighted
NE8FBH-S NE8FBH-LED
• Comprehensive shielding granted by completely closed
metal housing
• Improves EMC performance of appliance even in unmated
condition
• Lighted version offers in addition various illuminating indi-
cation possibilities by means of two separate light pipes
• Light pipes illuminated by standard 3 mm LEDs – to be
mounted on PCB by customer
NE8FBH-S
NE8FBH-LED
NE8FDP
NE8FF
• Feedthrough as panel mount receptacle and as cable
coupler
• NE8FDP feedthrough connector in D series housing for use
in patchfields – rear side accommodates standard RJ45
plug
• NE8FF coupler (adapter) for cable to cable mating – use
with NE8MC carriers or any standard RJ45 plugs
NE8FDP
NE8FF
www.neutrik.com
97
Technical Data
Specification NE8MC* NE8FA/B* NE8FD*
Cable Con. (A + B Series) (D Series)
Electrical
Number of contacts
Rated current per contact
Rated voltage < 50 V ac -
Contact resistance
Insulation resistance
Dielectric strength
Frequency bandwidth
Transmission class acc. TIA / EIA 568B or IEC 11801 - CAT 5e -
Class D
Mechanical
<
1.5 A -
<
10 mΩ -
>
500 MΩ -
>
1`000 V ac rms -
1 - 100 MHz
1)
8 8
1)
1)
1)
1)
1)
1)
-
1)
- 1) PCB Versions PCB Versions
NE8FDH-C5E
Retention method latch lock
Life time (mating cycles
)
Insertion / withdrawal force
>
1`000 mating cycles
>
200 mating cycles - - SE8FD
≤
20 N
Cable O.D. range 3.5 - 8 mm
Wire size AWG 26 – 20 -
Panel thickness max. 3 mm / 0.12" -
Material
Housing PBT D202G30 -
- -
1)
NE8*-Y* NE8*-Y*
4 mm / 0.16"
Zin c diecast ( ZnAICu1, gal Ni / bl Cr / Collinox) - -
B / D-flange Zinc diecast (ZnAICu1, gal Ni / bl Cr) -
Strain relief clamp POM
- -
CuZn35Pb2, Tin plated - NE8*-Y* NE8*-Y*
Contacts Bronze (CuSn6) -
Contact surface Au (gal 0.2 µm over Ni plating) -
Locking Element Ck 67 steel, treated -
Bushing Polyamide (PA 6 15% GR)
Boot Polyamide (PA 6)
1)
1)
- -
- -
Sealing gasket EPDM - - SE8FD
Environment
Operating Temperature -30 °C to +80 °C
-20 °C to +60 °C - - SE8FD
Protection class IP 54 - - SE8FD
Flammability UL94V-0 UL94 HB
Solderability complies with IEC 68-2-20 - PCB Version PCB Version
Mating screw - A screw E screw
Color coding BSE-* / BSX-* ACRF-* DSS-*
1)
: Specs depend on type of RJ45 plugs used
98
innovative solutions I superior quality
Ordering Information
Ordering Information
Cable Connector
NE8MC Cable housing with chuck and bushing (two antikink boots, one up to 5 mm and one up to 8 mm cable O.D.
(
NE8MC-B Black chromium housing with chuck and bushing (two antikink boots, one for 5 mm and one for 8 mm cable O.D.)
(
NE8MC-1 Cable housing with chuck and X-series bushing, Collinox plating and O-ring gasket (perfect for waterproof applications)
NE8MC-B-1 Black chromium housing with chuck and X-series bushing
(
IMPORTANT: Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end-user!
standard bushing in black, 9 different coding colours on request
standard bushing in black, 9 different coding colours on request
(
standard bushing in black, 9 different coding colours on request
standard bushing in black, 9 different coding colours on request
)
)
)
)
)
Receptacle A-shape (all plastic) B-shape (Nickel ring) D-shape
Horizontal PCB NE8FAH NE8FBH
Vertical PCB NE8FAV NE8FBV NE8FDV / NE8FDV-SE*
Vertical PCB with additional screw domes NE8FAV-SD**
IDC terminals NE8FAV-YK ** NE8FDV-YK **
IDC 110 punch down terminals NE8FAV-Y110 ** NE8FDV-Y110 **
Horizontal PCB with metal housing (shielded) NE8FBH-S
Horizontal PCB in CAT5e NE8FDH-C5e
Horizontal PCB with metal housing and light pipe NE8FBH-LED
** ... includes 2 mounting screws; * ... NE8FDV with SE8FD Waterproof kit
Feedthrough
NE8FDP Receptacle (includes 2 mounting screws)
NE8FF Coupler

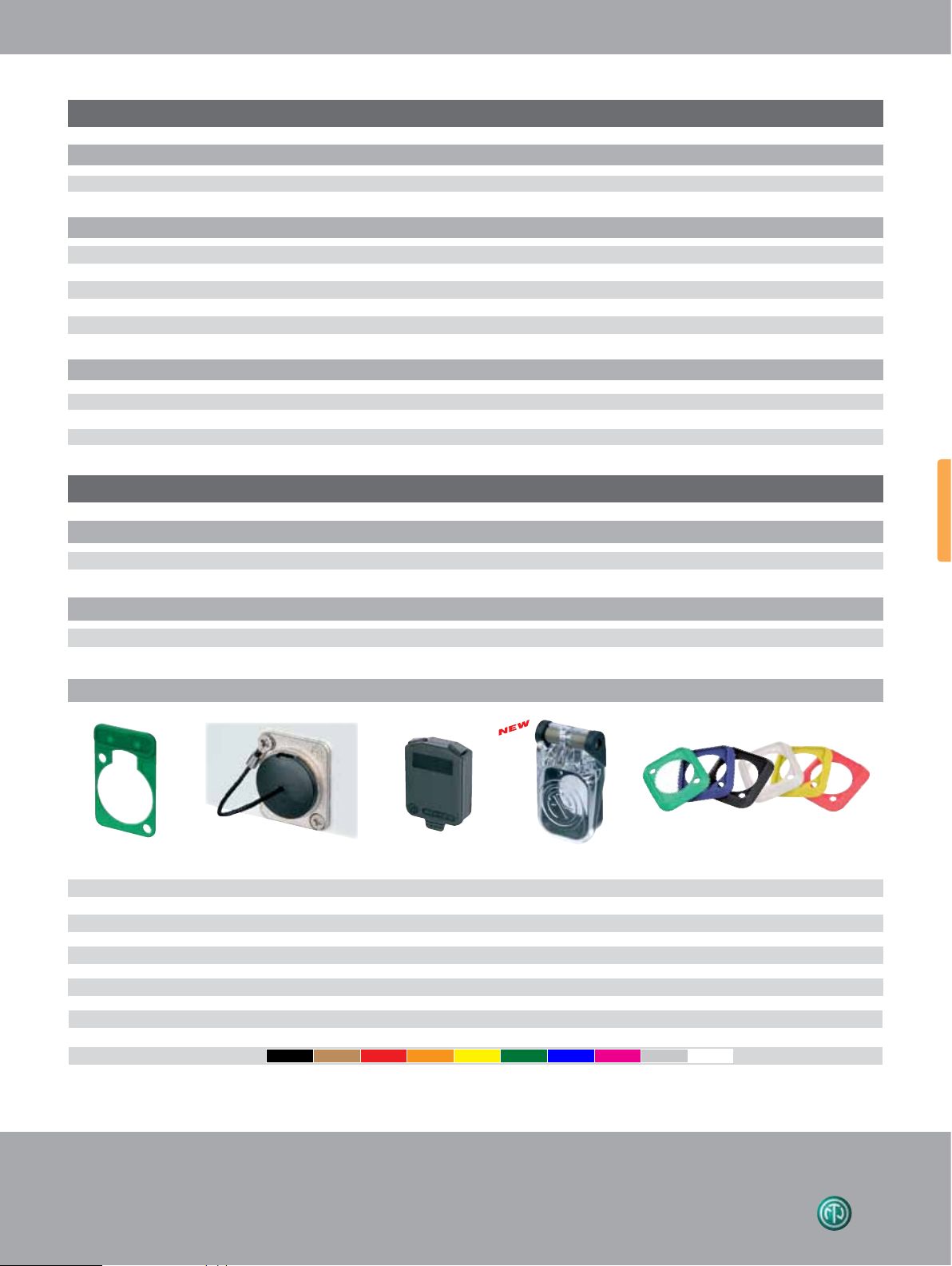

Accessories
A-Screw Mounting screw for A / B -shape
E-Screw Mounting screw for D-shape
E-Screw-Ni Mounting screw for D-shape
ACRF-* Colored coding rings for A-shape receptacles (Box of 100 pcs.)
BSE-* Colored boot for cable connector carrier (Box of 100 pcs.)
BSX-* Colored bushing for NE8MC-1 and NE8MC-B-1 cable connectors
DSS-* Lettering plate for D series, colored plastic
NZP1RU Panel1RU D-shape housing
SCDP-* D-Size sealing gaskets, color coding
SCDX Hinged cover seals D-size chassis connectors, IP 42 rated
SCCD-W Spring-loaded cover to seals for D-size chassis connectors,
IP 65 rated
*: 0 - Black, 1- Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Grey, 9 - White
(
black self-tapping PLASTITE® screw 2.9 x 8, panhead
(
black self-tapping PLASTITE
(
Nickel self-tapping PLASTITE® screw 2.9 x 12, countersunk
(*: 0- black, 2- red, 4- yellow, 5- green, 6- blue, 9- white)
®
screw 2.9 x 12, countersunk
)
Waterproof kit for etherCON D-Series
SE8FD Waterproof kit, IP 54, consists of push, gasket, frontplate
Suitable for all NE8FD*, perfect in combination with
NE8MC-1 (with Collinox plating and sealing gasket)
A screw E screw E screw Nickel
)
)
ACRF-* BSE-*
SCDX SCCD-W
Waterproof assembly kit - SE8FD
DSS-*
BSX-*
SCDP-*
www.neutrik.com
99
l
alt
l
l
alt
etherCON CAT6
condition
D-shape metal shellPush Pull locking Closed shieldingIP65 in mated
CAT6 Patch Cable CAT6 Receptacles
NKE6S-* NE8MC6-MO
• CAT6 compliant – data rate up to 10 GBit/s
• Dust and water resistant according IP 65 in mated condition
• Push Pull mating design provides secure locking system
• Shielded system – high noise immunity and EMI protection
• IDC contacts offer gas-tight termination
• Ready made patch cables with rugged diecast cable carrier and unique chuck-type strain relief
NE8FDY-C6
NE8FDY-C6-B
NKE6S-*
NE8MC6-MO
100
NE8FDY-C6
l
innovative solutions I superior quality
etherCON CAT6
Design Criteria
The ruggedized RJ45 CAT6 connection system, provides solutions for high bandwidth data transfer in harsh and demanding
environments. This series offers additional headroom for high performance Fast Ethernet 100BaseT and Gigabit Ethernet
1000BaseT connectivity in audio, lighting, live stage and industrial environments and even guarantees to be prepared for
future 10 Gbit applications (true CAT6). The etherCON CAT6 series offers a D-shape panel connector with metal housing
and secure latching system. Tool-free IDC termination makes cable assembly easy and fast. The preassembled CAT6 patch
cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system. Integrated
sealing rings make the system dust and waterproof to IP 65 rating.
Features & Benefits:
•
CAT6 performance – fast data transmission and high bandwidth applications
•
CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
•
Shielded system – high noise immunity and EMI protection
•
Push Pull mating – secure and proven locking system
•
D-shape metal panel connector
•
Ground lead jumper on panel connector with selectable grounding option
•
IDC termination without tool
•
Ready made patch cables with rugged cable carrier and unique chuck-type strain relief
•
Dust and waterproof according IP 65
Technical Data
Electrical
Number of contacts 8 8
Rated current per contact 1.5 A 1.5 A
TIA / EIA rating CAT6 CAT6
Input to output resistance
Insulation resistance
Dielectric strength 1 kV dc 1 kV dc
NEXT (250 MHz) 48.7 dB 48.7 dB
Attenuation (250 MHz) 0.1 dB
Receptacle Patch cable Materials Receptacle Patch cable
Housing Zinc diecast Zinc diecast
Adapter Polyamide PA 6 Polyamide PA 6
Strain relief clamp - POM
<
200 mΩ
>
500 MΩ
<
200 mΩ
>
500 MΩ
Contacts Bronze CuSn Bronze CuSn
Contact surface Gold Gold
Bushing - PU / PA
Mechanical Environmental
Retention method Push-Pull
Life time (mating cycles)
Wire size 0.5 – 0.65 mm (AWG 24 - AWG 22)
Stranded wire AWG 26 / 7 – 22 / 7
>
1`000
Operating temperature -10 °C to +60 °C
Storage temperature -40 °C to +70 °C
Flammability UL94HB
Protection class IP 65
Ordering Information
Cable Connector
NE8MC6-MO Cable plug carrier offering a robust metal shell with Push-Pull locking system
Patch Cable
NKE6S-* Standard lengths: 0.5, 1, 2, 3, 5, 10, 30 m
NKE6S-*-WOC Equipped on one side with metal shell, standard lengths: 1, 2, 3, 5, 10, 30 m
Custom length in meter steps on request.
Receptacle
NE8FDY-C6 etherCON CAT6 with Nickel D-shell
NE8FDY-C6-B etherCON CAT6 with Black Chrome D-shell
Accessories see page 99 / 104 / 106
www.neutrik.com
101

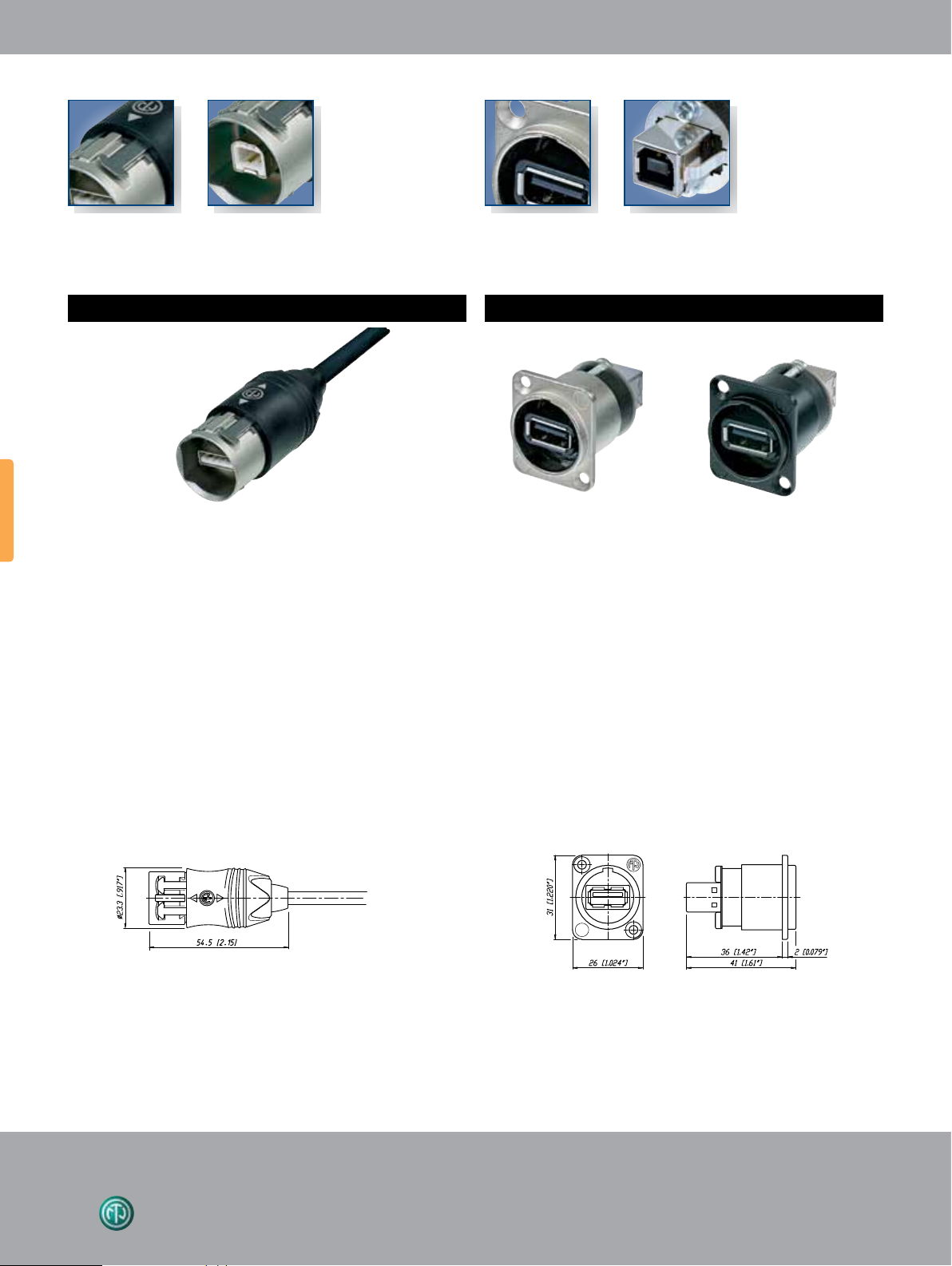

USB Adapter
Push Pull locking USB type B
USB Patch Cable
• USB 2.0 compliant – data rate up to 480 MBit/s
• Dust and water resistant sealing in combination with
NAUSB-W*
• Push Pull mating design provides secure locking system if
mated with NAUSB-W*
• Shielded connection – high noise immunity and EMI
protection
• Ready made patch cables (1 m, 3 m and 5 m) with
removable rugged diecast cable carrier
• Mates with conventional USB receptacles if cable carrier is
removed
D-shape metal
housing
USB type B
USB Receptacle
NAUSB-W NAUSB-W-BNKUSB-*
• USB 2.0 gender changer type A-B (B-A)
• Ideal for audio networking and integration of
computerbased equipment into audio systems
• Lockable connection and water protection if mated with
Neutrik USB cable NKUSB-*
• Optional screen to chassis grounding
• Reversible insert offering type A or B on front or rear end
• Universally accepted standard D-shape housing
102
NAUSB-WNKUSB
innovative solutions I superior quality
USB Adapter
Technical Data
Mechanical and Electrical
Conform with USB 2.0 Standard
Material
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel or black Chrome Nickel
Insert PBTP 15% GR PVC
Contacts Brass (CuZn39Pb3)
Contact finish Gold
Environmental
Operating temperature -25 °C to +85 °C
Flammability UL94 V-0
Protection class IP 65
Receptacle Patch Cable
Ordering Information
Chassis
NAUSB-W USB A – USB B Adapter (reversible), sealing ring, optional grounding, nickel housing
NAUSB-W-B USB A – USB B Adapter (reversible), sealing ring, optional grounding, black housing
Patch Cable
NKUSB-* USB 2.0 cable with overmolded flex relief and metal cable carrier, standard lengths: 1, 3, 5 m
Accessories
SCDP-*SCCD-WSCDXSCMDSS-*
DSS-** Lettering plate for D series, colored plastic
SCM Plastic sealing cover to protect the Firewire connectors against dust and moisture.
SCDP-* D-Size sealing gaskets, color coding
SCDX Hinged cover seals D-size chassis connectors, IP 42 rated
SCCD-W Spring-loaded cover seals for D-size chassis connectors, IP 65 rated
NZP1RU-8 Panel1RU housing with 8 D-shape cutouts
NZP1RU-12 Panel1RU housing with 12 D-shape cutouts
**: 0 - Black, 1- Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Grey, 9 - White
(*: 0- black, 2- red, 4- yellow, 5- green, 6- blue, 9- white)
www.neutrik.com
103
HDMI Adapter
®®
Push Pull locking HDMI 1.3a HDMI 1.3a
D-shape metal
housing
receptacle
HDMI ReceptaclesHDMI Patch Cable
NAHDMI-WNKHDMI-*
• HDMI 1.3a – data rate up to 3.5 GBit/s
• Push Pull mating design provides secure locking system if
mated with NAHDMI-W*
• Shielded connection – high noise immunity and EMI
protection
• Ready made patch cables (1 m, 3 m and 5 m) with
removeable rugged diecast cable carrier
• Mates with conventional HDMI receptacles if cable carrier
is removed
• Dust and water resistant sealing in combination with
NAHDMI-W*
• Audio / Video interface to transmit any digital TV and PC
Video format including high-definition video (HDTV).
• HDMI 1.3a feedthrough adapter with 19 pole HDMI
receptacle at both ends
• Optional screen to chassis grounding
• Universally accepted standard D-shape housing
104
NAHDMI-WNKHDMI-*
innovative solutions I superior quality

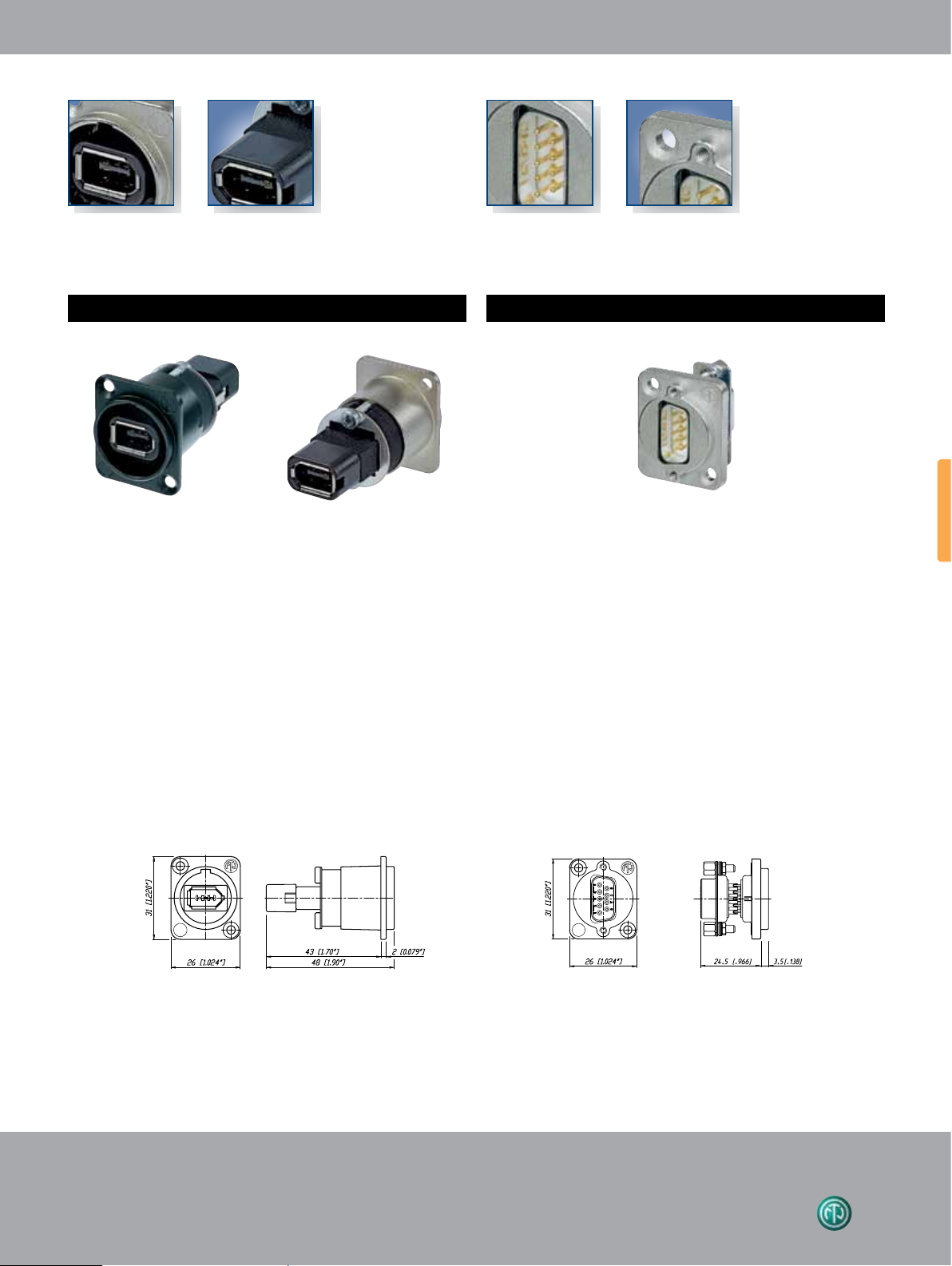

Firewire Adapter
D-shape metal
housing
IEE 1394 receptacle
Firewire Receptacle D-SUB Feedtrough
NA1394-6-W NADB9MFNA1394-6-W-B
• Ideal for audio networking and integration of digital
equipment into audio systems
• Firewire feedthrough adapter with 6 pole IEEE 1394
receptacle at both ends
• Optional screen to chassis grounding
• Universally accepted standard D-shape housing
D-SUB data
connector
D-shape metal
housing
• Ideal for audio networking and integration of
equipment into video systems
• 9- & 15 pole D-SUB feedtrough version
• Universally accepted standard D-shape housing
NA1394-6-W NADB9MF
www.neutrik.com
105
HDMI and Firewire Adapter
Technical Data
Mechanical and Electrical
Conform with Standards HDMI 1.3a HDMI 1.3a IEEE -
Material
Shell Zinc diecast (ZnAl4Cu1)
Shellplating Nickel or black Chrome
Insert ABS Nickel PBTP 15% GR Steel, tin plated
- PVC - PBT
Contacts Brass (CuZn39Pb3)
Contact finish Gold
Environmental
Operating temperature -25 °C to +85 °C
Flammability UL94 V-0
Protection class IP 65
HDMI Receptacle HDMI Patch Cable Firewire D-SUB
Ordering Information Firewire
NA1394-6-W 6 pole Firewire Adapter (IEEE 1394), sealing ring, optional grounding, nickel housing
NA1394-6-W-B 6 pole Firewire Adapter (IEEE 1394), sealing ring, optional grounding, black housing
Ordering Information HDMI
Chassis
NAHDMI-W HDMI – HDMI Adapter, sealing ring, optional grounding, nickel housing
NAHDMI-W-B HDMI – HDMI Adapter, sealing ring, optional grounding, black housing
Patch Cable
NKHDMI-* HDMI 1.3a cable with overmolded flex relief and metal cable carrier, standard lengths: 1, 3, 5 m
Ordering Information D-SUB
NADB9MF 9 pole D-SUB feedthrough, D-shape nickel housing
NADB9MF-B 9 pole D-SUB feedthrough, black D-shape housing
NADB15MF 15 pole D-SUB feedthrough, D-shape nickel housing
NADB15MF-B 15 pole D-SUB feedthrough, black D-shape housing
Accessories
SCDP-*SCCD-WSCDXSCMDSS-*
DSS-** Lettering plate for D series, colored plastic
SCM Plastic sealing cover to protect the Firewire connectors against dust and moisture.
SCDP-* D-Size sealing gaskets, color coding
SCDX Hinged cover seals D-size chassis connectors, IP 42 rated
SCCD-W Spring-loaded cover seals for D-size chassis connectors, IP 65 rated
NZP1RU-8 Panel1RU housing with 8 D-shape cutouts
NZP1RU-12 Panel1RU housing with 12 D-shape cutouts
**: 0 - Black, 1- Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Grey, 9 - White
(*: 0- black, 2- red, 4- yellow, 5- green, 6- blue, 9- white)
106
innovative solutions I superior quality
Loading...
