Circular Connectors
109
Page 2
C o n t e n t P a g e
powerCON Series ...................................................... 112
Ordering Information ................................................ 113
Accessories
powerCON 32 Amp Series ......................................... 114
Ordering Information ................................................ 114
nanoCON Series
Ordering Information .............................................. 116
miniCON Series ......................................................... 117
Ordering Information ................................................ 118
neutriCON Series ....................................................... 119
Ordering Information ................................................ 120
Technical Data
Assembly Tools .......................................................... 122
.
............................................................... 113
.
....................................................... 115
.
......................................................... 121
110
look for the logo
Page 3
Introduction
The Neutrik® circular connector program is a range of metal,
multi-pole connectors specifically designed for industrial
applications. These series provide a variety of male and female cable connectors and receptacles that can be terminated
by soldering and crimping or to printed circuit boards. An
easy to use and reliable quick-lock system ensures a perfect
connection and cannot be released accidentally. The circular
connectors offer Neutrik
®
unique chuck type strain relief and
reinforced housing for robust dependability.
The Neutrik
®
industrial connector range also features a unique power connector for single phase applications up to 32
Amps.
Further features are:
- Number of contacts is 1 to 12
- Self-locking system
- Robust all-metal housing
- Front or rear mounting
- Chuck and crimp type strain relief
- Gold plated contacts
- Solder or crimp termination
- Printed circuit board mounting
- Excellent shielding (crimp type strain relief)
The main areas of applications are in the measurement, test
and control, automotive and machine tool industry as well as
medical technique.
www.neutrik.com
111
Page 4
p o w e r C O N p o w e r C O N
New quick lock Neutrik hologram 3/16" flat tabs Coupler for linking
cables
p o w e r C O N - L o c k i n g 3 P o l e P o w e r C o n n e c t o r s
NAC3FCA NAC3MPA-1 NAC3FCB NAC3MPB-1
●
Lockable 3 pole equipment (AC) connector with contacts for
line, neutral and premating safety ground
●
High current capacity, rated at 20A / 250V ac
●
Colour coded for easy identification, powerCON offers power-in
(blue) and power-out (grey) versions with different keying to
avoid the possibility of intermating
●
Fast and easy locking system
●
Extremely robust and reliable
●
Excellent cable retention
●
UL, cUL recognized components (file no. E 135070)
VDE certified (Reg. No. 6360),
SEV approved (No. 96.1 10096)
●
New latch design for easier handling and secure locking
●
Branded with unique hologram - guarantees genuine and
authentic Neutrik product
●
Coupler for linking cables (couples NAC3FCA to NAC3FCB)
NAC3FCA(B)
NAC3MPA(B)
NAC3MM
NAC3MM-1
112
look for the logo
Page 5
O r d e r i n g I n f o r m a t i o n
NAC3FCA Cable connector, quick lock with securing lever, A-type for power inlet, screw terminals
NAC3MPA-1 Air tight chassis connector, A-type for power inlet, flat tab terminals
NAC3FCB Cable connector, quick lock with securing lever, B-type for power outlet, screw terminals
NAC3MPB-1 Air tight chassis connector, B-type for power outlet, flat tab terminals
NAC3MM-1 Coupler for linking cables (couples NAC3FCA to NAC3FCB)
A c c e s s o r i e s
NDL NLFASTON SCL SCDR Example: NAC3MPA + SCDR SCDX SCDP-*
NDL dummyPLUG for powerCON 20 A chassis connector
NLFASTON FASTON® receptacle for tabs with "positive lock" for use with NL4MP, NL4MPR, NL8MPR, Pack of 100 pcs.
SCL Plastic sealing cover to protect the connectors against dust and moisture
SCDR Rear end protection cover for D-size chassis connectors
SCDP-* D-Size sealing gaskets, colour coding (*: 0- black, 2- red, 4- yellow, 5- green, 6- blue, 9- white)
SCDX Hinged cover seals D-size chassis connectors, IP42 rated
KEYWAYS
With the two non-interchangeable types of connectors (A type and B type) it is impossible to produce a short circuit. Mating
connectors (combination) are identified by mechanical keyways and by color.
NAC3MPA
NAC3MPB
NAC3FCA
NAC3FCB
AT TE N TI ON
The technical data of the powerCON connectors refer to connectors without breaking capacity, meaning connecting devices not to
be engaged and disengaged in normal use when live or under load.
www.neutrik.com
113
Page 6
p o w e r C O N n a n o C O N
Robust metal
Screw-type terminals
housing
p o w e r C O N 3 2 A m p C o n n e c t o r s
NAC3FC-HC NAC3MP-HC
●
Locking single phase AC appliance coupler
●
High current capacity (32 A rated)
●
Fast and easy locking system
●
Excellent cable handling and protection
●
Extremely robust and reliable
●
250 V ac, 32 Amp single-phase (for ambient temperatures
up to 35°C)
●
Premating contact for protective earth
●
Locking system to prevent unintentional disengagement
●
Cable O.D. Range: 8 - 20 mm
●
Wiring with screw-type terminals for wires 2.5 to 6.0 mm
(AWG 14 - 10)
NAC3FC-HC
NAC3MP-HC
2
O r d e r i n g I n f o r m a t i o n
NAC3FC-HC Cable connector, quick lock with securing lever, screw terminals
NAC3MP-HC Fast and easy locking system, screw-type terminals
114
look for the logo
Page 7
Connector locking PCB receptacle
n a n o C O N - 3 P o l e S u b m i n i a t u r e C o n n e c t o r s
NP3F-H NSC3F NR3M-S
●
World's smallest circular lockable multipole connector
●
Robust metal housing with gold plated contacts
●
Male and female receptacles for vertical or horizontal PCB
mount or solder termination
●
Cable connector and receptacle with interchangeable male
and female inserts
●
Reliable and versatile in applications like medical equipment,
control systems, sensors or audio applications such as
miniature and wireless microphones and portable mixers
●
Pre-mating contact 1
NSC3F(M)
NR3F(M)-S
M 1:1
NP3F(M)-H
www.neutrik.com
115

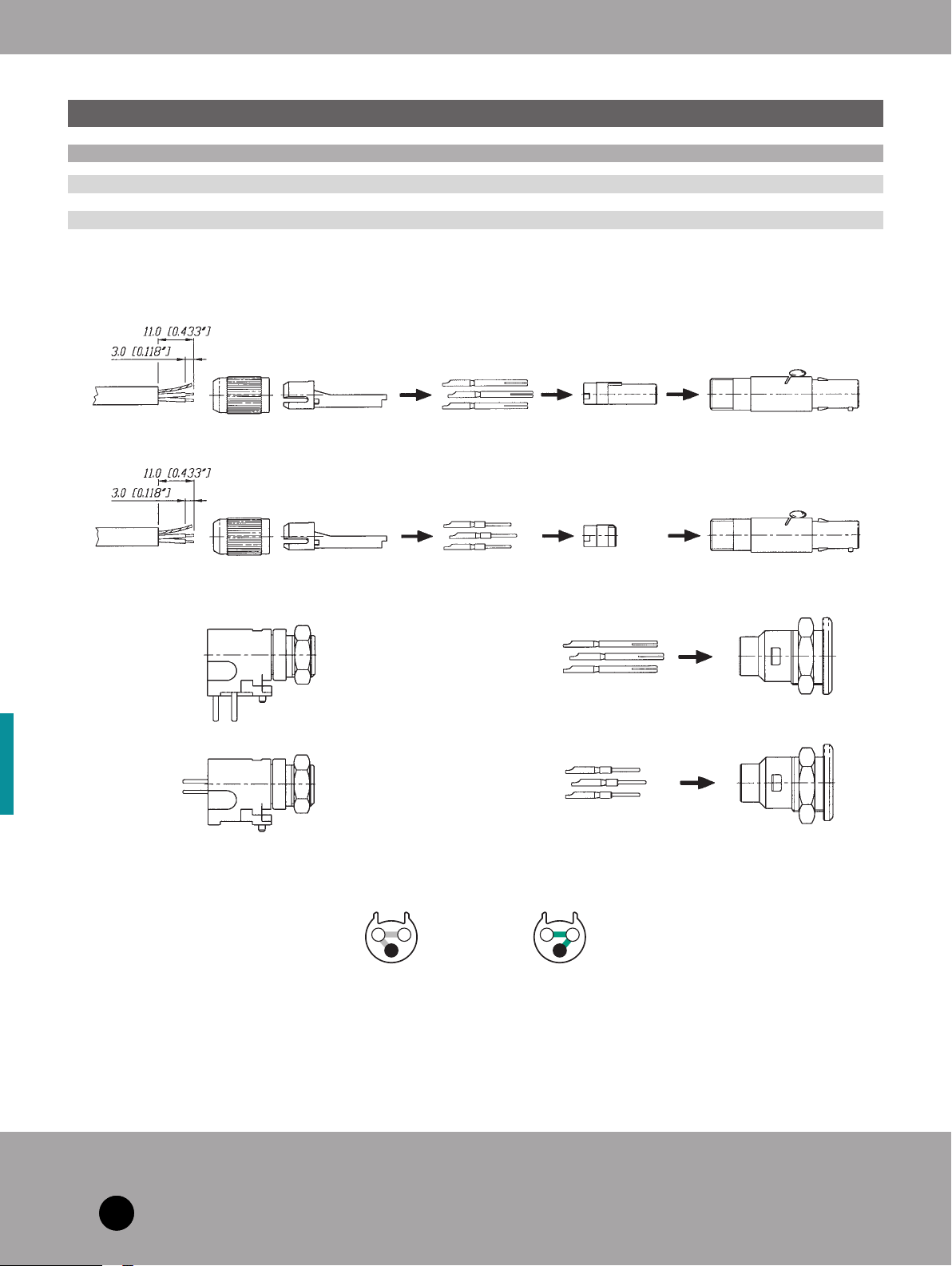

Page 8
n a n o C O N m i n i C O N
O r d e r i n g I n f o r m a t i o n
Female Male
NSC3F Cable connector, chuck principle, solder contacts NSC3M Cable connector, chuck principle, solder contacts
NR3F-S Receptacle panel mount, solder contacts NR3M-S Receptacle panel mount, solder contacts
NP3F-H Receptacle horizontal PCB mount NP3M-H Receptacle horizontal PCB mount
NP3F-V Receptacle vertical PCB mount NP3M-V Receptacle vertical PCB mount
NSC3F
NSC3M
NP3F-H
NP3M-H
NP3F-V
NP3M-V
NR3F-S
NR3M-S
Contact Arrangement
Stecker Buchse
2 3
G
G
23
116
look for the logo
Page 9
Push Pull locking Gold solder contacts
m i n i C O N - 1 2 P o l e M i n i a t u r e C o n n e c t o r s
MSCM12 MRF12 MMC* (modular system)
●
Up to 12 pole miniature connector
●
Complete set or modular system
●
Push-pull self-locking system
●
Precisely machined, rugged all metal design
●
Fully loaded male and female receptacles for horizontal or
vertical PCB mount
●
Gold plated contacts, crimp or solder, velour chromium
housing
●
Special crimp type strain relief establishes an ideal coaxial
connection of the cable shield to the connector shell for best
EMC shielding
●
Easy assembly: contact soldering in disassembled condition
avoids awkward wiring of wight density contacts
●
Interchangeable insert (male-female)
MPF(M)12-V
MRF(M)12
MSCF(M)12 (+MSRC)
MPF(M)12-H
www.neutrik.com
117
Page 10
m i n i C O N n e u t r i C O N
O r d e r i n g I n f o r m a t i o n f o r c o m p l e t e m i n i C O N s e t
Complete set (consisting of housing, insert, 12 contacts and chuck for cable connector)
Female Male
MSCF12 Cable connector, chuck principle, solder contacts MSCM12 Cable connector, chuck principle, solder contacts
MRF12 Receptacle panel mount, solder contacts MRM12 Receptacle panel mount, solder contacts
MPF12-H Receptacle horizontal PCB mount MPM12-H Receptacle horizontal PCB mount
MPF12-V Receptacle vertical PCB mount MPM12-V Receptacle vertical PCB mount
MPF(M)12-V MPF(M)12-HMSCF(M)12
O r d e r i n g I n f o r m a t i o n f o r m o d u l a r m i n i C O N s y s t e m
MPC
MPS
MBC
MBS
MBC
MBS
MMI
MFI
MPC
MPS
Housing and insert pre-assembled, contacts must be ordered separately.
MRMMRF MSRC
Reduction
ferrule 1
Reduction
ferrule 2
MSC
MMC
Modular system
Female Male
MFI Insert for cable connector MMI Insert for cable connector
MBC Crimp contacts for cable connector and receptacle MPC Crimp contacts for cable connector and receptacle
MBS Solder contacts for cable connector and receptacle MPS Solder contacts for cable connector and receptacle
MRF Receptacle housing and insert pre-assembled MRM Receptacle housing and insert pre-assembled
MMC Cable connector extension, incl. chuck (for male and female)
MSC Cable connector housing, incl. chuck (for male and female)
MSRC Set of strain relief crimp version (consisting of crimp ferrule & reduction ferrule 1 + 2, tools see page 122)
118
look for the logo
Page 11
Push Pull locking All metal housing
n e u t r i C O N - V e r s a t i l e C i r c u l a r C o n n e c t o r s
ORP8F-Ni OSC8F ORP8M
●
Complete set or modular system for any desirable configuration
●
Contact configuration can be selected from 1 to 8 contacts
●
Special crimp type strain relief establishes an ideal circum-
ferential connection of the cable shield to the connector shell
as required by best EMC working practice
●
Precise and robust all metal housing absorbs vibration forces
and protects contact inserts
●
Easy, fast and screwless assembly
●
Push-pull self-locking system
OSC8F / OSC8M
MODULAR SYSTEM
Po la r iz a ti on
Housing: Two variants of metal polarizing guides (90° and 180°).
Coding 90°
Coding 180°
Insert: The male and female insert can be assembled in all three
housings.
MC8 + SR8A/B + insert
ORP8F / ORP8M
www.neutrik.com
119
Page 12
n e u t r i C O N T e c h n i c a l D a t a
O r d e r i n g I n f o r m a t i o n f o r c o m p l e t e n e u t r i C O N s e t
Complete set (consisting of housing, insert, 8 contacts and chuck for cable connector)
OSC8F Female cable connector, chuck principle, black housing, solder contacts
OSC8F-Ni Female cable connector, chuck principle, nickel housing, solder contacts
OSC8M Male cable connector, chuck principle, black housing, solder contacts
OSC8M-Ni Male cable connector, chuck principle, nickel housing, solder contacts
ORP8F Female panel mount receptacle, black housing, solder contacts
ORP8F-Ni Female panel mount receptacle, nickel housing, solder contacts
ORP8M Male panel mount receptacle, black housing, solder contacts
ORP8M-Ni Male panel mount receptacle, nickel housing, solder contacts
O r d e r i n g I n f o r m a t i o n f o r m o d u l a r n e u t r i C O N s y s t e m
Cable Connector:
Receptacle:
Modular system
Female Male
FI8 Insert for cable connector and receptacle MI8 Insert for cable connector and receptacle
BS1 Solder contact PS1 Solder contact
BC1 Crimp contact PC1 Crimp contact
BP1 PCB contact PP1 PCB contact
SC8 Cable housing, black coated, 180° coding MC8 Mating cable housing, black coated, 180° coding
SC8-Ni Cable housing, nickel coated, 180° coding MC8-Ni Mating cable housing, nickel coated, 180° coding
SC81 Cable housing, black coated, 90° coding MC81 Mating cable housing, black coated, 90° coding
SC81-Ni Cable housing, nickel coated, 90° coding MC81-Ni Mating cable housing, nickel coated, 90° coding
SC8W Cable housing, black coated, 180° coding, waterproof multipin connector according IP54
RP8 Receptacle, black coated, 180° coding
RP8-Ni Receptacle, nickel coated, 180° coding
RP81 Receptacle, black coated, 90° coding
RP81-Ni Receptacle, nickel coated, 90° coding
SR8 Bushing and chuck type strain relief (standard)
SR8A Crimp type strain relief for cable O.D. 3 - 3.8 mm (Hex crimp 5.41 mm acc. IEC 803, see also page 122)
SR8B Crimp type strain relief for cable O.D. 6 - 7 mm (Hex crimp 7.01 mm acc. IEC 803, see also page 122)
SR8W Bushing and chuck type strain relief for waterproof solution IP54
BSP-* Coloured boot, available in 10 resistor colours
* color coding: 0 - Black, 1- Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Grey, 9 - White
120
look for the logo
Page 13
Specification powerCON 32 A powerCON nanoCON miniCON neutriCON
Series Series Series Series Series
E l e c t r i c a l
Number of contacts: 2 + PE 2 + PE 3 12
(1-12 modular system)
8
(1-8 modular system)
Rated current per contact: 20 A rms 32 A rms 2 A 3 A 7.5 A (solder), 5 A (crimp)
Rated voltage: 250 V ac 250 V ac 50 V ac 50 V ac 50 V ac
Dielectric strength: 4000 V dc 4000 V dc 1000 V dc 1000 V dc 1500 Vdc
Contact resistance:
Insulation resistance after
damp heat test (IEC 68-2-30):
M e c h a n i c a l
≤
3 mΩ
>
100 MΩ
≤
3 mΩ
>
100 MΩ
≤
12 mΩ
>
1 GΩ
≤
8 mΩ
>
500 MΩ
≤
5 mΩ
>
500 MΩ
Retention method: Quick lock Quick lock latch Push-pull Push-pull
Cable O.D. range: 5 - 15 mm 8 - 20 mm 3.4 mm max. 3 - 5 mm (grey chuck) 3 - 7 mm
5 - 7 mm (white chuck) 3 - 3.8 mm (SR8A)
2.5 - 6 mm 6 - 7 mm (SR8B)
(crimp version MSRC)
Wiring:
2.5 mm
4.8 x 0.5 mm or soldering for stranded wire for crimp for crimp
Solderability complies with IEC 68-2-20:
M a t e r i a l
Cable: screw type screw type terminals
terminals or soldering 2.5-6 mm2 / 14-10 AWG for solid wire
2
/ 14 AWG
0.2 mm2 / 24
AWG
0.5 mm2 / 20
for solder
AWG
1.0 mm2 / 18
AWG
for solder
Chassis: flat tabs for FASTON® 0.14 mm2 0.22 mm2 0.14 - 0.34 mm
26
AWG
24
AWG
22 - 26
AWG
2
Housing cable connector:
PA 6 30% GR PA 6 30% GR CuSn4Pb4Zn4 ZnAl4Cu1 / CuZn39Pb3 ZnAl4Cu1
gal Ni or black chrome
Housing receptacle: PA 6.6 30% GR PA 6.6 25% GR CuZn39Pb2 ZnAl4Cu1 ZnAl4Cu1,
gal Ni or black chrome
Insert: PA 6 30% GR PA 6.6 25% GR PETP PA 6.6 PBTP 15% GR
Contacts: CuZn39Pb3 / CuZn39Pb3 / CuZn35Pb2 CuZn35Pb2 (solder) CuZn35Pb2 (solder)
CuNi1Si0.2 CuSn0.2 CuZn39Pb3 (crimp) CuZn39Pb3 (crimp)
CuSn6
Contact surface: 4 µm / 2 µm Ag plated 4 µm Ag 0.5 µm Au 0.2 µm AuCo 0.3 µm Au hard
alloy over 2 µm Ni
Chuck POM:
E n v i r o n m e n t a l
Flammability UL 94 HB: Flammability UL 94 V-0:
Temperature range: -30°C to +80°C
socket housing + plug insert
plug housing
UL 94 V-0 UL 94 V-0
- - -
Protection class (mated): IP 20 IP 2X unmated IP 40 IP 5X IP 5X
Safety Requirements EN/IC61984:
FASTO N
®
is a tradema rk of AMP Inc.
- - -
www.neutrik.com
121
Page 14
A s s e m b l y T o o l s
C r i m p t o o l
Crimptool HX-CONTACT
DMC crimptool AFM8
acc. M22520/2-01
MPOS-*
Modified DMC positioner (K155) Contact
positioner helds contact in position when
crimping.
C o n t a c t a n d c o n n e c t o r a s s e m b l y
®
Crimptool HX-R-BNC DIE-R-BNC-*Neutrik
n e u t r i C O N - O r d e r i n g I n f o r m a t i o n A s s e m b l y To o l s
Cable O.D. / Wire Crimptool Die/Positioner HEX-Size/Standard
SR8A Strain relief 3 - 3.8 mm HX-R-BNC DIE-R-BNC-PJ 5.41 mm / IEC 803
SR8B Strain relief 6 - 7 mm HX-R-BNC DIE-R-BNC-PS 7.01 mm / IEC 803
BC1 Female crimp contact AWG 22 -26 HX-CONTACT MPOS-BC1 No. 5 / M22520/2-01
PC1 Male crimp contact AWG 22 -26 HX-CONTACT MPOS-PC1 No. 5 / M22520/2-01
HEX crimptool Neutrik® DIE's for various HEX sizes.
m i n i C O N - O r d e r i n g I n f o r m a t i o n A s s e m b l y To o l s
Cable O.D. / Wire Crimptool Die/Positioner HEX-Size/Standard
MSRC Crimp ferrule only 4.5 - 6 mm HX-R-BNC DIE-R-BNC-PDC* 6.47 mm / IEC 803
MSRC Crimp ferrule & reduction ferrule 1 3.3 - 4.4 mm HX-R-BNC DIE-R-BNC-PDC* 6.47 mm / IEC 803
MSRC Crimp ferrule & reduction ferrule 2 2.5 - 3.2 mm HX-R-BNC DIE-R-BNC-PDC* 6.47 mm / IEC 803
MBC Female crimp contact 24 AWG/0.22 mm2 HX-CONTACT MPOS-MBC No. 5 / M22520/2-01
MPC Male crimp contact 24 AWG/0.22 mm2 HX-CONTACT MPOS-MPC No. 5 / M22520/2-01
* DIE-R-BNC-PJ or PS also possible
122
look for the logo
Loading...
