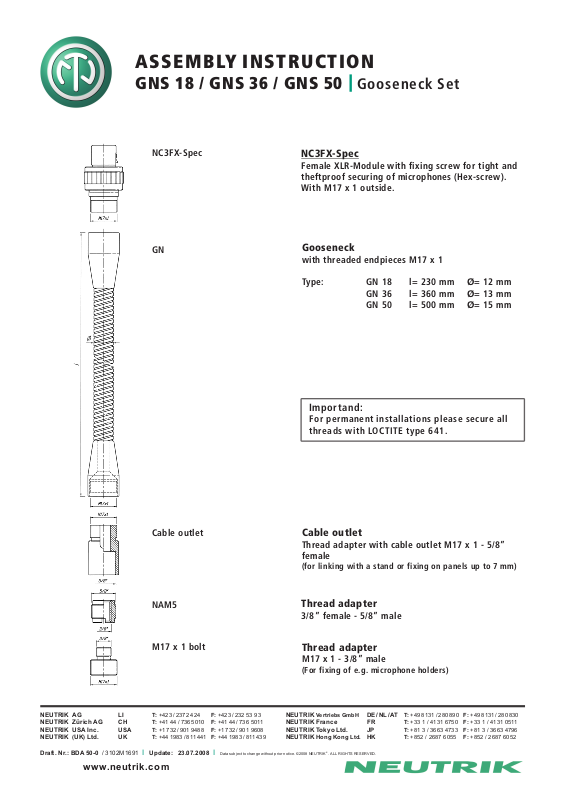

ASSEMBLY INSTRUCTION
GNS 18 / GNS 36 / GNS 50
NC3FX-Spec
GN
NC3FX-Spec
Female XLR-Module with fixing screw for tight and
theftproof securing of microphones (Hex-screw).
With M17 x 1 outside.
Gooseneck
with threaded endpieces M17 x 1
Type: GN 18 l= 230 mm = 12 mm
|
Gooseneck Set
Ø
GN 36 l= 360 mm = 13 mm
GN 50 l= 500 mm = 15 mm
Ø
Ø
Cable outlet
NAM5
M17 x 1 bolt
Importand:
For permanent installations please secure all
threads with LOCTITE type 641.
Cable outlet
Thread adapter with cable outlet M17 x 1 - 5/8”
female
(for linking with a stand or fixing on panels up to 7 mm)
Thread adapter
3/8” female - 5/8” male
Thread adapter
M17x1-3/8”male
(For fixing of e.g. microphone holders)
