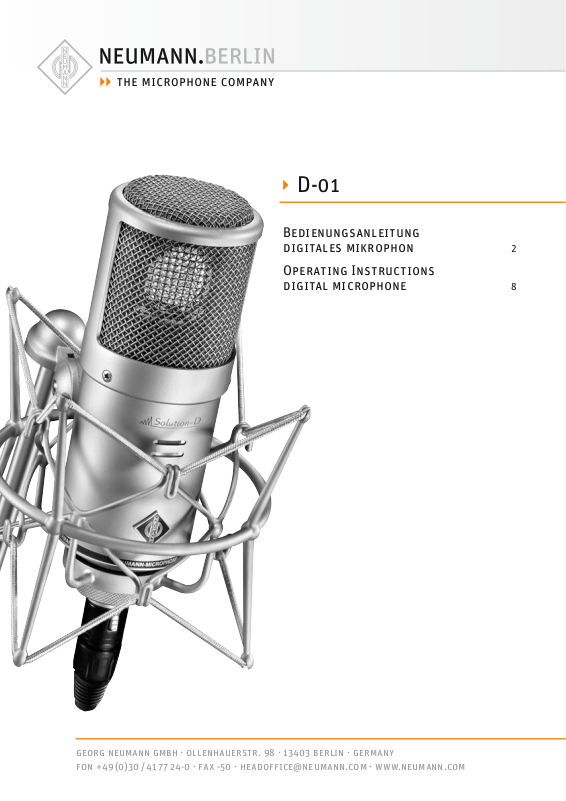

Neumann D-01 User Manual

Page 1
D-
B  
O I  
   · .  ·   ·    () /   - ·  - · @. · ..
Page 2
1. Einleitung
In dieser Anleitung fi nden Sie alle wichtigen Infor­mationen für den Betrieb und die Pfl ege des von Ihnen erworbenen Mikrophons. Lesen Sie diese Anleitung und die der dazugehörigen Geräte bitte sorgfältig und vollständig, bevor Sie es benutzen. Bewahren Sie die Anleitung bitte so auf, dass sie für alle momentanen und späteren Nutzer jeder­zeit zugänglich ist.
Weitergehende Informationen, insbesondere auch zu den verfügbaren Zubehörteilen und den Neumann-Servicepartnern, fi nden Sie auf unserer Website www.neumann.com. Die Servicepartner können Sie auch telefonisch unter +49 (0) 30 / 41 77 24 – 0 erfragen.
Auf unserer Website www.neumann.com fi nden Sie in der Rubrik Downloads ergänzend folgende PDF-Dateien:
• Hinweise zur Pfl ege des Mikrophons
• Bedienungsanleitung DMI-2 (Digitales Mikro­phon-Interface)
• Bedienungsanleitung RCS (Remote Control Software)
• Kurzbeschreibung des Standards AES 42
Weitergehende Informationen zur Schnittstelle digitaler Mikrophone fi nden Sie bei w ww.aes.org/ standards unter „AES 42-2006: AES standard for acoustics – Digital interface for microphones“.
Zum weltweiten Erfahrungsaustausch unter Neumann-Anwendern bieten wir das Neumann Online-Forum an, das sich durch die integrierte Archivfunktion zu einem umfangreichen Know­How-Pool entwickelt hat.
Registrieren Sie bitte Ihr System auf der Website www.my-Solution-D.com, um jederzeit über Up­dates informiert zu werden!
2. Sicherheitshinweise
Der bestimmungsgemäße Gebrauch dieses Mi­krophons ist die Wandlung akustischer in digitale elektrische Signale.
Schließen Sie das Mikrophon nur an Mikrophon-
eingänge und Speisegeräte an, die eine Phantom speisung nach AES 42 liefern.
(Das Mikrophon wird jedoch nicht beschädigt, falls es versehentlich kurzzeitig an einen analogen Mikrophoneingang mit 48 V-Phantom speisung an-
geschlossen wird. Das D-01 ist gegen Überspan­nung geschützt und verträgt kurzzeitig bis +55 V.)
• Reparatur- und Servicearbeiten dürfen nur von erfahrenem und autorisiertem Fachpersonal durchgeführt werden. Wenn Sie das Mikrophon eigenmächtig öff nen oder umbauen, erlischt die Gewährleistung.
• Verwenden Sie das Mikrophon nur in dem in den technischen Daten angegebenen Leis­tungsbereich.
• Lassen Sie das Mikrophon auf Umgebungstem­peratur akklimatisieren, bevor Sie es einschal­ten.
• Nehmen Sie das Mikrophon nicht in Betrieb, wenn es beschädigt ist .
• Verlegen Sie Kabel stets so, dass niemand dar­über stolpern kann.
• Halten Sie Flüssigkeiten vom Mikrophon und dessen Anschlüssen fern.
• Verwenden Sie zum Reinigen keine Lösungs­mittel oder aggressiven Reinigungsmittel.
• Entsorgen Sie das Mikrophon nach den Bestim­mungen Ihres Landes.
3. Beschreibung
Das D-01 ist ein Studio-Kondensatormikrophon mit digi talem Ausgang g emäß dem internat ionalen Standard AES 42. Dieser basiert auf dem in Stu­diogeräten üblichen Standard AES 3 (AES/EBU) für digitale Audiosignale, erweitert um die Phan­tomspeisung für das Mikrophon, um Fernsteuer­und Synchronisationsdaten sowie um User-Bits zum Empfang von Mikrophon-Steuerdaten.
Das D- 01 ist ein Großmembranmik rophon mit um­schaltbarer Richtcharakteristik, von Kugel, breite Niere, Niere, Hyperniere bis Acht, sowie 10 wei­teren Zwischenstellungen.
Die Einsprechr ichtung des Mikrophons is t seitlich, die Vorderseite wird durch das Neumann-Emblem gekennzeichnet.
Bei der im Mikrophonkorb elastisch gelagerten Großmembrankapsel handelt es sich um die eben ­falls neu entwickelte Kapsel K 07.
Die K 07 im Zusammenhang mit der Mikrophon­Eingangsschaltung und der neuartigen Wandler­technologie ist das erste Doppelmembransystem, das einen Ersatzgeräuschpegel von nur 8 dB-A bietet.
Der Kapseldurchmesser beträg t 30 mm, die Dicke des Kapselsystems 4,5 mm. Beide Membranen liegen dicht an der Kapsel-Oberfl äche, um inter­ne Laufzeiten des Schalls, seine Wege um das Kapselsystem herum sowie Refl exionen an den Membran-Spannringen zu minimieren.

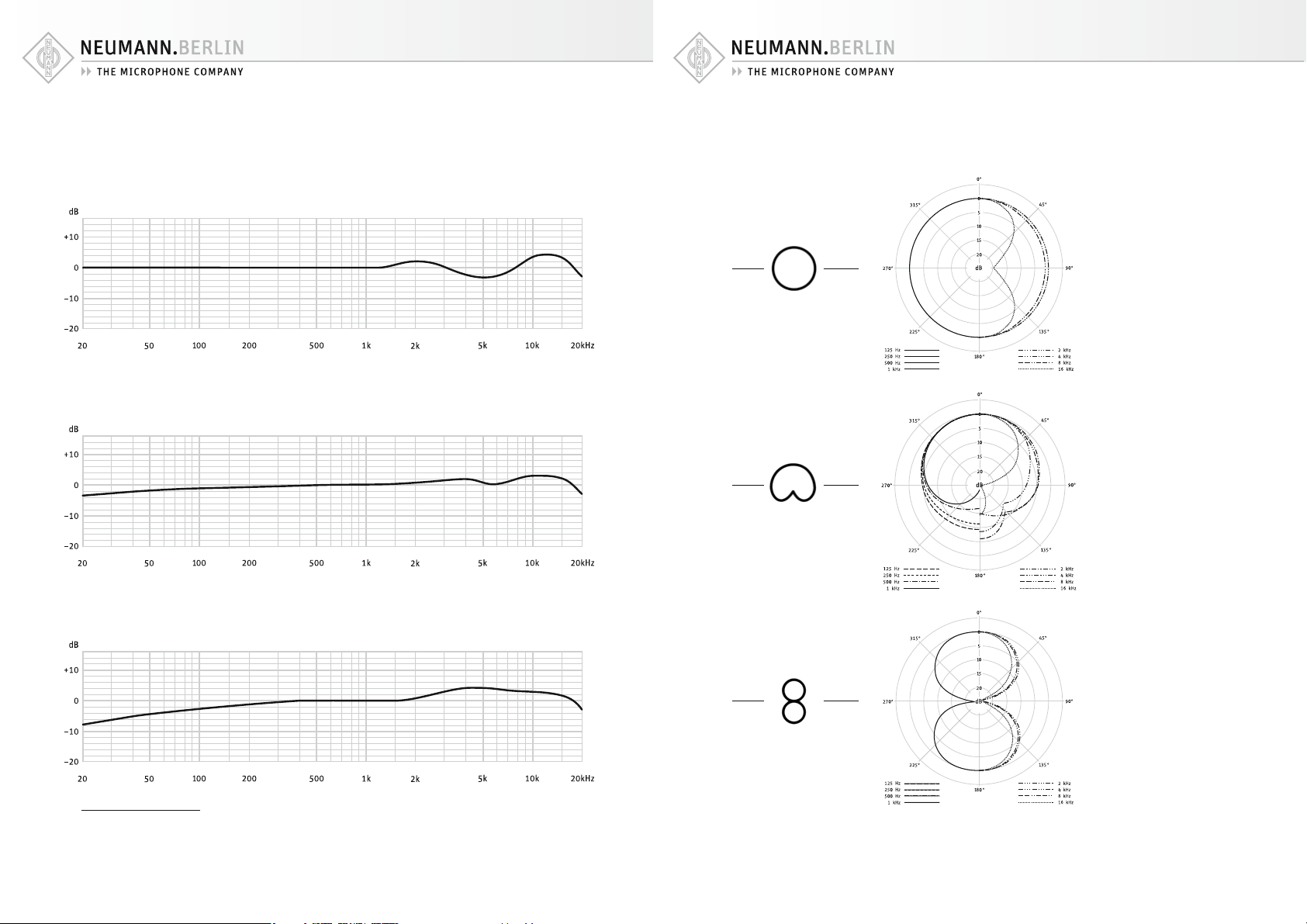

Das Ergebnis sind sehr fl ache, ausgeglichene Fre­quenzgänge für alle 15 im Mikrophon D-01 wähl­baren Richtcharakteristiken.
Im oberen Formantbereich ab 3 kHz ist die Kapsel breitbandig etwa 2 dB empfi ndlicher als in den La­gen darunter. Dies gibt ihr einen frischen, off enen Klang ohne Verfärbungen.
Die K 07 arbeitet mit einem besonders kleinen Membranabstand. Dieser sorg t für eine wirksame, rein akustische Bedämpfung des Systems. Da zum Erreichen der Mikrophoneigenschaften keine Re­sonanzwirkungen genut zt werden, ist das Impuls­verhalten des Mikrophons ausgezeichnet, und es vermag alle Ausgleichsvorgänge in Musik und Sprache unverfälscht zu übertragen.
Die Kapsel ist zum Schutz gegen Körperschallü­bertragung el astisch gelagert. Durch den bis unter 20 Hz l inear ve rlaufend en Fr eque nzgang des D -01 können auch extrem niederfrequente Signale unverfälscht übertragen werden. Andererseits ist das Mikrophon dadurch auch empfi ndlich für tieff requente Störsignale wie Körperschall, Popp­und Windgeräusche. Bei eventuellen Störungen empfi ehlt es sich daher, entweder den Frequenz­gang im unteren Bereich zu beschneiden (siehe Abschnitt 4.2, Software-Funktionen) und/oder einen Popschirm PS 20 a oder einen Windschutz WS 47 zu verwenden (siehe Zubehör, Kapitel 7).
Die Richtcharakteristik der Kapsel kann über die RCS-Software in 15 Stufen verändert und das Mi­krophon damit besonders feinfühlig den Aufnah­megegebenheiten angepasst werden.
Der 3-polige XLR-Ausgang des Mikrophons ist nach AES 42 beschaltet und mechanisch kompati­bel zu der bekannten analogen Anschlusstechnik. Dies hat den Vorteil, dass analoge Mikrophonka­bel bis zu einer mittleren Entfernung von etwa 100 m eingesetzt werden können. Bei versehent­lichem Aufstecken auf einen phantomgespeisten analogen Mikrophoneingang ist das D-01 durch eine Überspannungsschutzschaltung gegen Be­schädigung geschützt.
Das Mikrophon zeichnet sich aus durch beson­ders saubere und verfärbungsfreie Klangüber­tragung bei sehr niedrigem Eigengeräuschpegel und gleichzeitig höchster Aussteuerbarkeit. Es verwendet zur Digitalisierung ein von Neumann entwickeltes und patentiertes A/D-Wand lungs­verfahren. Dadurch ist sichergestellt, dass der gesamte Dynamikumfang der Kapselsignale in die digitale Ebene überführt wird. Mit der inte­grierten digitalen Signalverarbeitung bietet das Mikrophon außerdem Funktionen, die bisher nur im Mischpult oder zusätzlichen Geräten realisiert werden konnten. Diese Funktionen werden im Ka­pitel Technische Daten beschrieben.
Steht zum Anschluss des Mikrophons kein AES 42­Eingang (z. B. am Mischpult) zur Verfügung, bietet Neumann das zweikanalige Digitale Mikrophon­Interface (DMI-2) mit der dazugehörigen Steuer­software RCS zur Fernsteuerung aller Mikrophon­eigenschaften an (siehe auch Kapitel Technische Daten).
4. Inbetriebnahme
Mikrophon einrichten
Befestigen Sie das Mikrophon auf einem ausrei­chend stabilen und st andfesten Stativ. Verwende n Sie ggf. eine elastische Aufhängung, um die Über­tragung von Körperschallgeräuschen mechanisch zu unterdrücken. Setzen Sie dafür das Mikrophon von oben in den Innenkorb ein und schrauben Sie es mit der Rändelmutter am Innenkorb fest. Zur Dämpfung von Wind- oder Popgeräuschen verwenden Sie bei Bedarf einen Wind- oder Pop­schutz aus unserem Zubehörprogramm.
Mikrophon anschließen
Vorsicht: Eine falsche Versorgungsspannung
kann das Mikrophon beschädigen!
Schließen Sie das Mikrophon nur an Mikrophon­eingänge und Speisegeräte an, die eine Phantom­speisung nach AES 42 liefern. Siehe auch Kapitel „Sicherheitshinweise“.
Vorsicht: Sehr hohe Signalpegel können Ihr
Gehör und Ihre Laut sprecher schädigen!
Reduzieren Sie an den angeschlossenen Wieder­gabegeräten die Lautstärke, bevor Sie das Mikro­phon anschließen, auch wegen der Gefahr der akustischen Rückkopplung.
2
D
3
D
Page 3
Verbinden Sie das Mikrophon über ein XLR-Kabel mit dem AES 42-Mikrophoneingang Ihres Digi­talen Mikrophon-Interface DMI-2 (siehe auch die Anleitungen für DMI-2 und RCS) oder eines ander­weitigen Audiogerätes nach AES 42.
Eine blaue LED im Mikrophon zeigt bei korrekter Speisung die Betriebsbereitschaft an. Sie leuch­tet beim Einschalten zunächst schwach und nach kurzer Zeit mit der voreingestellten Helligkeit. Diese kann bei Verwendung des Digitalen Mikro­phon-Interfaces DMI-2 mit der Remote Control Soft ware in vi er Stu fen var iier t und ausge schalt et werden.
Achten Sie beim Anschließen von Kabeln auf die korrekte Verriegelung der Steckverbinder.
Lange Kabel und mehrfache Steckverbindungen führen zu einem Spannungsabfall der Sp eisespan­nung und zu einer Verschlechterung des Jitter­Verhaltens insbesondere bei hohen Abstastraten. Verwenden Sie dahe r möglichst durchgehen de Ka­belverbindungen zwischen Mikrophon und Folge­gerät und bei größeren Distanzen ausschließlich AES/EBU-Kabel (Wellenwiderstand 110 Ohm).
Achten Sie darauf, dass das Mikrophon und alle Geräte der digitalen Signalkette synchronisiert sind. Wird das Digitale Mikrophon-Interface von Neumann verwendet, sollten die angeschlossenen Mikrophone immer im Synchronmode (Mode 2) betrieben werden, unabhängig davon, ob in der nachfolgenden Signalkette Sample Rate Conver­ter im Einsatz sind. Auf diese Weise wird im DMI eine sehr eff ektive Jitterunterdrückung wirksam. Auch ist die Ausgabe zweier Mikrophonsignale in einem AES 3-Stereosignal nur möglich, wenn die Mikrophone untereinander synchron laufen.
Parameter, die über die AES 42-Schnittstelle ferngesteuert werden können
Richtcharakteristik: Die Umschaltung der Richt­charakteristik wird durch Veränderung der Pola­risationsspannung der hinteren Kapselhälfte rea­lisiert. Während des Umladens ist das Mikrophon kurzzeitig stumm geschaltet.
Low Cut: Der Low Cut bietet gemäß AES42-Stan­dard die vier Einstellungen: off , 40 Hz, 80 Hz und 160 Hz.
Vordämpfung: Die Vordämpfung wird durch Reduktion der Kapselspannung realisiert. Bei Aktivierung wird der Dynamikbereich um den entsprechenden Wert zu höheren Schalldrücken
verschoben. Während des Umladens ist das Mi­krophon kurzzeitig stumm geschaltet.
Gain: Die Verstärkung erfolgt ausschließlich auf der digitalen Ebene und führt damit nicht zu der aus der analogen Signalbearbeitung bekannten Rauschaddition und zu möglichen Klangbeein­fl ussungen. Das Schalten erfolgt knackfrei.
Peak-Limiter: Der sehr schnelle Peak-Limiter hat eine einstellbare Ansprechschwelle und verhin­dert Übersteuerungen bzw. Clippen des Audiosig­nals im Signalweg.
Kompressor/Limiter: Weiterhin ist ein vollständig parametrisierbarer Kompressor/Limiter imple­mentiert. Dieser kann breitbandig oder als Hoch­tonkompressor/Limiter (De-Esser) in einem von drei wählbaren Frequenzbereichen arbeiten. Alle wichtigen Parameter sind einstellbar.
Außerdem lassen sich die Abtastrate, der Syn­chronisationsmodus, Testsignale, die Polarität und Stummschaltung des Ausgangssignals und die LEDs fernsteuern.
Die Software im Mikrophon kann über das Neu­mann DMI-2 aktualisiert werden, so dass Erwei­terungen der Software auch bestehenden Kunden zur Verfügung stehen. Zu Details des Updates le­sen Sie bitte die RCS-Anleitung.
5. Außerbetriebnahme und Aufbewahrung
Ziehen Sie beim Lösen von Kabeln stets nur an den Steckverbindern und nicht am Kabel.
Mikrophone, die längere Zeit nicht verwendet werden, sollten bei normalem Umgebungsklima staubgeschützt aufbewahrt werden. Verwenden Sie hierfür einen nicht fusselnden, luftdurchläs­sigen Staubschutzbeutel oder die Originalverpa­ckung des Mikrophons.
6. Technische Daten
Zulässige klimatische Verhältnisse:1)
Betriebstemperaturbereich .............. 0 °C … +40 °C
Lagerungstemperaturbereich ...... –20 °C … +70 °C
Feuchtebereich ......................0 % … 99 % rel. hum.
0 % … 95 % rel. hum.
Akust. Arbeitsweise ................... Doppelmembran-
Richtcharakteristik ................Kugel...Niere... Acht,
Übertragungsbereich ......................20 Hz...20 kHz
Feldübertragungsfaktor
Ersatzgeräuschpegel,
4)
CCIR
............................................................... 19 dB
Ersatzgeräuschpegel,
A-bewertet4) ..................................................8 dB-A
Geräuschpegelabstand3),
CCIR4) ............................................................... 75 dB
Geräuschpegelabstand3),
A-bewertet4) ...................................................86 dB
Grenzschalldruckpegel
bei 0 dBFS ............................................. 138 dBSPL
Dynamikumfang4) .........................................1 30 dB
A/D -Wandlung ........................Neuma nn-Verfahre n
Digitale Signalverarbeitung ...... Fixpoint, variable
Abtas traten ...................................... 44,1 /48/88 ,2/
Ausgangsdatenformat ...........24 Bit nach AES/EBU
Bei 0 dB Vordämp fung und 0 dB Gain.
1)
Alle Wer te für nicht-k ondensier ende Feuchti gkeit.
2)
bei 1 kHz , 0 dB Verstärk ung und 94 dB SPL
3)
be zogen auf 94 dB SPL
4)
nach IEC 60268-1;
CCIR-Bew ertung nach CCIR 468-3, Qua si-Spitzenwert; A-B ewertung na ch IEC 61672-1 , Eff ektivwert
Druckgradientenempfänger
insgesamt 15 Stellungen
2)
....................... –44 dBFS
(patentiert), 28 Bit
interne Wortbreite
interne Wortbreite,
96/176,4/192 kHz
bei +20 °C
bei +60 °C
28...60 Bit
(AES 3)
Fernsteuerbare Funktionen
Vordämpfung .............................. 0/–6/–12/–18 dB
Hochpassfi lter ........................... Off /40/80/160 Hz
Digitale Signalverstärkung .......................0...63 dB
Testsignal ............................ Off , 1 kHz (–48 dBFS),
Kompre ssor/Limiter ......................................On /Off
Untere Grenzfrequenz
des Arbei tsberei chs ........... Flat /1 kHz/ 2 kHz/4 kHz
Max. Dämpfung (gain reduction):
fl at mode ....................................................... > 63 dB
1 kHz/2 kHz/4 kHz ........................................ > 20 dB
Ratio ............................................... 1,2 :1/1, 5:1/ 2:1/
Threshold .........................–63 dBFS..–10...0 dBFS,
Attack time ..............0/0,1/0,3/1/3/10/30/100 ms
Release time .................. 0,05/0,1/0,2/0,5/1/2/5 s
(bezo gen auf eine Peg eländeru ng von ca. 10 dB )
Peak-Limiter...................................................On/Off
Attack time ...................................–160 µs (negativ)
Release time ............................. ca. 50 ms...1 50 ms
Thresh old ........................................Off : 0 dBFS fest
Mute ................................................................On/O ff
Phase (Polarität) ......................................... 0, 180°
Anzeige .............................LED 1 (rot), LED 2 (blau),
Abtas traten ....... 44, 1/48/88 ,2/9 6/176,4/19 2 kHz
Latenzzeit:
44,1/48 kHz .......................................... 52 Samples
88,2/96 kHz .......................................... 61 Samples
176,4/192 kHz ......................................121 Samples
Synchronisation: asynchroner Betrieb (freilaufend),
Frequenz-Grundgenauigkeit .................... ± 25 ppm
synchroner Betrieb,
Ziehbereich ....................................min. ± 100 ppm
Stromversorgung (Phantomspeisung gemäß AES 42)
Speise spannung .................................. +6 ...+10,5 V
Stromau fnahme .................................. max. 220 m A
Steckv erbinder ............................................ XLR 3 M
Abmessungen ...............................Ø 63,5 x 185 mm
Gewic ht ...........................................................700 g
in 1 dB-Schritten, knackfrei
rosa Rauschen (–35 dBFS),
weißes Rau schen (– 43 dBFS)
3:1/4:1/6:1/8:1/>100:1
in 1 dB Stufen
(signalabhängig)
On: –15 dBFS...0 dBFS,
in 1 dB-Stufen
Helligkeit einstellbar
4
D
5
D
Page 4

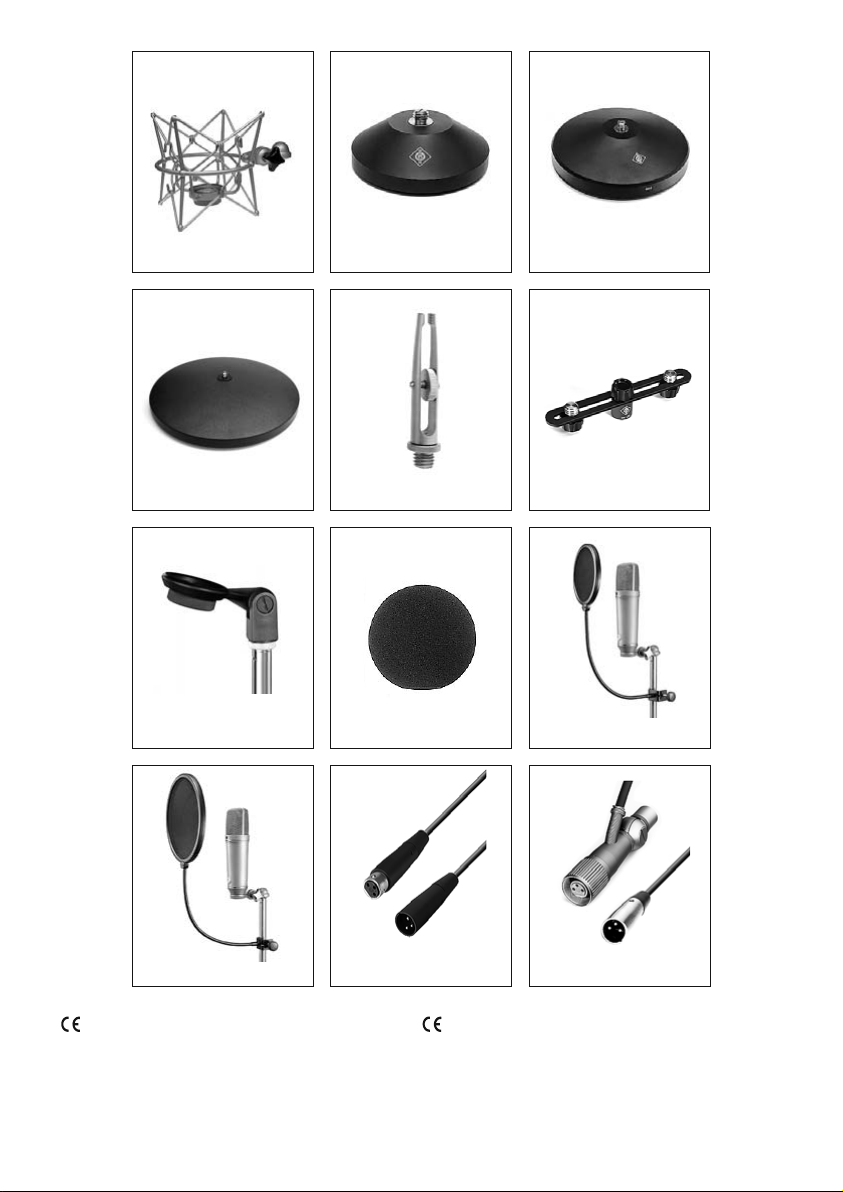

7. Zubehör* (Fotos im Anhang)
Elastische Aufhängung
EA 2 ..........................ni ................ Best .-Nr. 00843 2
Tisch- und Fußbodenständer
MF 3 .........................sw ............... Best.-Nr. 007321
MF 4 .........................sw ............... Best.-Nr. 007337
MF 5 .........................gr ................Best.-Nr. 008489
Mikrophonneigevorrichtung
MNV 87 ....................ni ................ B est.-N r. 006804
Stativgelenke, weitere mechanische Adapter
DS 120 .....................s w ...............Be st.-Nr. 007 343
SG 1 ..........................sw ............... Bes t.-Nr. 008445
Schaumstoff windschutz
WS 47 .......................sw ............... Best.- Nr. 006826
Popschutz
PS 15 .......................sw ...............Best.-Nr. 008472
PS 20 a ...................sw ............... Best.-Nr. 008488
Anschlusskabel
IC 3 mt .....................sw ............... Best.-Nr. 006543
IC 4 ..........................ni ................ Best. -Nr. 006547
Bedeutung der Farbcodierungen: ni = nickel, sw = schwarz, gr = grau
* Ausführliche Beschreibungen und weitere Artikel fi nden Sie
in unserem Zubehörkatalog oder unter www.neumann.com
8. Lieferumfang
Mono-Set Stereo-Set Mikrophon
Mikrophon D-01 2 Mikrophone D-01 Mikrophon D-01 Ela st. Aufhäng ung EA 2 2 Elast . Aufhängun gen EA 2 Interface DMI-2 Interface DMI-2 Adapter USB 485 Adapter USB 485 Bedienungsanleitungen Bedienungsanleitungen Bedienungsanleitung Aluminiumkoff er Aluminiumkoff er Holzetui Kabel IC 3 2 Kabel IC 3 Kabel RJ 45 Kabel RJ 45 Kabel BNC Kabel BNC Kabel USB Kabel USB Netzkabel Netzkabel
9. Fehlercheckliste*
Fehler
Keine Funktion / Keine Signal­übertragung
Ton verzerrt / schlechte Signalqualität
* Weiter e Fehlermög lichkeiten si nd in der Bedie nungsanl eitung zum DMI -2 erläuter t.
Mögliche Ursachen
Speisespannung fehlt Überprüfen Sie das Speisegerät und ggf. die
Das Mikrophon ist nicht mit einem AES 42-Eingang verbunden
Das Mikrophon ist nicht mit dem richtigen Kanal verbunden
Der Kanal ist gemutet Deaktivieren Sie Mute in der AES 42-Fernsteuerung. Zu hohe Schalldrücke im
aufzunehmenden Tonsignal Übersteuerung durch tief-
frequente Störgeräusche (Trittschall, Wind)
Abhilfe
zugehör igen Software-Einstellungen (RCS -> System -> MicPWR).
Verwenden Sie einen AES 42–Eingang.
Überprüfen Sie den Signalweg. Aktivieren Sie ggf. den entsprechenden Eingang auf
dem zugeordneten Kanalzug des Mischpults.
Vergrößern Sie den Aufnahmeabstand oder aktivieren Sie die Vordämpfung in Ihrer AES 42-Fernsteuerung.
Benutzen Sie einen geeigneten Windschutz (Zubehör). Aktivieren Sie die Vordämpfung in Ihrer AES 42-Fern­steuerung.
Benutzen Sie einen geeigneten Popschutz (Zubehör). Aktivieren Sie die Vordämpfung in Ihrer AES 42-Fern­steuerung.
6
D
7
D
Page 5
1. Introduction
This manual contains essential information for the operation and care of the microphone you have purchased. Please read these instructions and those of the connected devices carefully and completely before using the product. Please keep this m anua l whe re it w ill b e acc essible a t all time s to all current and future users.
Additional information, in particular concern­ing available accessories and Neumann service partners, can be found on our website: www.neu­mann.com. Information about service partners can also be obtained by telephone: +49 (0) 30 / 41 7 7 24 - 0.
The following related fi les are available in PDF format in the Downloads section of our website www.neumann.com:
Some Remarks on Microphone Maintenance
• DMI-2 Digital Microphone Interface Operating
• Manual
RCS Remote Control Software Operating Man-
• ual
Short description of the AES 42 standard
Additional information concerning the digital mi­crophone interface can be found on the website: www.aes.org/standards “AES 42-2006: AES stan­dard for acoustics – Digital interface for micro­phones”.
Our Neumann online forum enables Neumann users worldwide to share their experiences. Through its integrated ar chive function, the forum has developed into an extensive knowledge pool.
Please register your system on the website www. my-Solution-D.com, to be informed whenever up­dates are available!
2. Safety instructions
The microphone has the intended purpose of converting acoustic signals into digital electrical signals.
Connect the microphone only to microphone
inputs and to equipment which supplies phan­tom power in accordance with AES 42.
(But the microphone will not be damaged if it is accidentally connected to an analog microphone input with a phantom power of 48 V for a short period. The D-01 has overvoltage protection and
can handle a voltage of up to +55 V for a short pe­riod.)
Repairs and servicing are to be carried out only
• by experienced, authorized service personnel. Unauthorized opening or modifi cation of the microphone shall void the warranty.
Use the microphone only under the conditions
• descr ibed in the Technical Data.
Allow the microphone to adapt to the ambient
• temperature before switching it on.
Do not operate the microphone in a damaged
• condition.
Always run cables in such a way that there is no
• risk of tripping over them.
Ensure that liquids are kept at a safe distance
• from the microphone and its connections.
Do not use solvents or aggressive cleansers for
• cleaning purposes.
Dispose of the microphone in accordance with
• the regulations applicable to the respective country.
3. Description
The D- 01 is a studio condenser microphone with a digital output that complies with the internation­al standard AES 42. Based upon the usual AES 3 (AES/EBU) standard for digital audio signals in studio equipment, this standard has been extend­ed to include phantom power for the microphone, remote control and synchronization data, and user bits for receiving microphone control data.
The D-01 is a large diaphragm microphone with switchable polar pattern: omni, wide cardioid, cardioid, hypercardioid, fi gure-8, as well as 10 intermediate settings.
The microphone is addressed from the side. The front side is designated by the Neumann logo.
The capsule is the newly developed K 07 large di­aphragm capsule. It is elastically mounted inside the microphone head grille.
The K 07, together with the microphone input cir­cuitry and the new A/D conversion technology, is the fi rst double diaphragm system to provide an equivalent self noise level of only 8 dB-A.
The capsule diameter is 30 mm, and the thick ness of the capsule system is 4.5 mm. Both diaphragms lie very close to the capsule surface in order to minimize internal and external path lengths, and
to reduce refl ections from the rings tensioning the diaphragm.
The resulting frequenc y responses of the D-01 mi­crophone are very fl at and smooth for all 15 avail­able polar patterns.
In the upper formant range above 3 kHz the cap­sule is more sensitive by approximately 2 dB. This ensures a fresh, open sound character without coloration.
The K 07 operates with an especially small dis­tance between diaphragms and electrodes. This provides for an effi cient, purely acoustical damp­ing of the system. As the microphone character­istics are obtained without resorting to correc­tive resonance eff ects, the impulse response of the microphone is excellent, and it transmits all transient signals in music and speech without any coloration.
The capsule is mounted elastically to attenuate vibration noise. Since the frequency response of the D-01 is linear down to below 20 Hz, even very low frequency signals can be transmitted without coloration. However this implies that the micro­phone is also sensitive to low frequency noise sig­nal s suc h as struc ture -bor ne, p op and wind noise. To avoid interference it is therefore advisable to use the microphone low cut fi lter (see Section 4.2 ”Sof tware Functions“) and/or to use a PS 20 a pop screen or a WS 47 windscreen (see Section 7 ”Ac­cessories“).
The directional characteristic of the capsule can be set to any of 15 polar patterns via RCS-soft­ware, allowing a particularly fi ne adjustment of the microphone to recording conditions.
The 3-pin XLR output of the microphone is confi g­ured according to AES 42-2001 and is mechani­cally compatible with the similar connections of analog microphones. This has the advantage of allowing analog microphone cables to be used for runs of up to approximately 100 m. Over-voltage protection prevents damage to the D-01 in the event that it is inadvertently connec ted to a phan­tom-powered analog microphone input.
The microphone features exceptionally clean sound transmission which is free of coloration, with ver y low self-noise and an extensive dynamic range. Digitization is performed by an A/D con­version process developed and patented by Neu­mann. This ensures that the full dynamic range
of the capsule signal is transferred to the digital domain. The integrated digital signal processing also provides functions which were previously available only via a mixing console or additional studio equipment. These functions are described in the “Technical data” section.
If there is no microphone input according to AES 42 standard available Neumann provides the two-channel Digital Microphone Interface (DMI-2) with the accompanying RCS control software for remote controlling all microphone characteristics (see also the “Technical data” section).
4. Setup
Mounting the microphone
Attach the microphone to a stable, sturdy stand. Use an elastic suspension, if necessary, for the mechanical suppression of structure-borne noise. For this purpose set the microphone into the inner cage from above, and secure it to the inner cage with the threaded nut. If required, use a wind­screen or popscreen from our range of accesso­ries in order to suppress wind or pop noise.
Connecting the microphone
Caution: An incorrect supply voltage can dama-
ge the microphone!
Connect the microphone to microphone inputs and to equipment which supplies phantom pow­er in accordance with AES 42. See also chapter “Safety Instructions”.
Caution: Very high signal levels can damage
loudspeakers and your hearing!
Reduce the volume of connected playback equip­ment before connecting the microphone. This is also advisable in order to avoid acoustic feed­back.
Connec t the microphone by means of an X LR cable to the AE S 42 microphone input of the DMI-2 Digi­tal Microphone Interface (see also DMI-2 and RC S manuals) or to other audio equipment complying with the AES 42 standard.
With a correct power supply, a blue LED on the mi­crophone indicates that the microphone is ready to operate. After switching on, the LED at fi rst glows dimly, and after a short time shines with the preset brightness. When the DMI-2 Digital Mi­crophone Interface is used with the Remote Con-
EN
88
99
EN
Page 6
trol Sof tware, the LEDs can be set to four diff erent brightness levels or switched off .
When connecting the cables, ensure that the con­nectors are locked correctly.
Long cables and multiple connectors lead to a drop in the supply voltage and to a deterioration in jitter behavior, particularly in the case of high sampling rates. Therefore, to the greatest extent possible, use continuous cable between the mi­crophone and subsequent equipment, and for longer distances use AES/EBU cable exclusively (with an impedance of 110 ohms).
Ensure that the microphone and all equipment in the digital signal chain are synchronized. If the Neumann Digital Microphone Interface is used, the connected microphones should always be op­erated in synchronous mode (Mode 2), whether or not sample rate converters are used in the subse­quent signal chain. This will ensure very eff ective jitter suppression in the DMI. Also, the output of two microphone signals as one AES 3 stereo sig­nal is possible only if the microphones are syn­chronized with one another.
Parameters which can be remote controlled via the AES 42 interface
Polar pattern: Switching the polar pattern is achieved by varing the polarization voltage of the rear capsule half. During the reloading process the microphone is temporarily muted.
Low Cut: Acccording to AES42 there are four set­ting for the low cut: off , 40 Hz, 80 Hz and 16 0 Hz.
Pre-attenuation: Pre-attenuation is achieved by reducing the capsule voltage. If pre-attenuation is activated, the dynamic r ange is shifted by the cor­responding value to higher sound pressure levels. During the reloading process the microphone is temporarily muted.
Gain: Gain is carried out exclusively in the digital domain, thus avoiding the additional noise and possible eff ects on the sound which can occur in analog processing. The switching process is click­less.
Peak limiter: The very fast peak limiter has an ad­justable threshold, and prevents overloading or clipping of the audio signal in the signal path.
Compressor/Limiter: As well, a compressor/lim­iter with completely adjustable parameters is provided. It can function over a broad frequency range, or as a high-frequency compressor/limiter
(de-esser) in one of three selectable frequency ranges. All important parameters are adjustable.
In addition, the sampling rate, the synchroniza­tion mode, test s ignals, the polarit y and muting of the output signal and the LEDs can be controlled remotely.
The software in the microphone can be updated via the Neumann DMI-2. Therefore software up­dates are also available to existing customers. Please refer to the RCS manual for details con­cerning the updates.
5. Shutdown and Storage
When disconnecting a cable, always pull only on the connector and not on the cable itself.
Microphones which are unused for prolonged periods should be stored under normal ambient atmospheric conditions, and should be protected from dust. For this purpose, use a lint-free, air­permeable dust cover or the or iginal packag ing of the microphone.
6. Technical data
Permissible atmospheric conditions1)
Operating temperature range .......... 0 °C to +40 °C
Storage temperature range ...........–20 °C to +70 °C
Humidity range .....................0 % to 99 % at +20 °C
Acoustical op. principle ............Double diaphragm
Directional
pattern .......................... Omni...cardioid...fi gure-8,
Frequency range ............................ 20 Hz to 20 kHz
Sensitivity
Equivalent noise level, CCIR
2)
............................................. –44 dBFS
4)
............................................................... 19 dB
Equivalent noise level,
A-weighted4) ..................................................8 dB-A
Signal-to-noise ratio3),
CCIR4) ............................................................... 75 dB
Signal-to-noise ratio3),
A-weighted4) ................................................... 86 dB
Maximum SPL
at 0 dBFS3) ............................................. 138 dBSPL
Dynamic range
including capsule4) .......................................1 30 dB
A/D conversion ...........................Neumann process
Digital signal processing ..... Fixed-point, variable
Sampling rates .................................44,1/48/88,2/
Output data format ............................24 bits as per
At 0 dB pre -attenua tion and 0 dB ga in.
1)
All valu es are for non -conden sing humidit y.
2)
at 1 kHz, 0 d B gain, and 94 db S PL
3)
re 94 dB SPL
4)
accord ing to IEC 6026 8-1;
CCIR-weighting acccording to CCIR 468-3, quasi peak; A-wei ghting acc ording to IEC 6167 2-1, RMS
0 % … 95 % at +60 °C
pressure gradient transducer
15 patterns in total
(patented), 28-bit
internal word length
internal word length
28 bits to 60 bits
96/176,4/192 kHz
AES/EBU (AE S 3)
Remote controlled functions
Pre-attenuation .......................... 0/–6/–12/–18 dB
High-pass fi lter ..........................Off /40/80/160 Hz
Digital gain .................................................0...63 dB
Test signal s .......................... Off , 1 kHz (–48 dBFS),
Compre ssor/Limite r ......................................On/Off
Lower cut-off frequency
of the working range ..........Flat/1 kHz/2 kHz/4 kHz
Max. gain reduction:
Flat mode ...................................................... > 63 dB
1 kHz/2 kHz/4 kHz ........................................ > 20 dB
Compression ratio ..........................1.2:1/1.5:1/2:1/
Threshold .........................–63 dBFS..–10...0 dBFS,
Attack time ..............0/0.1/0.3/1/3/10/30/100 ms
Release time .................. 0.05/0.1/0.2/0.5/1/2/5 s
Peak limiter ....................................................On/Off
Attack time .................................–160 µs (negative)
Release time .................. approx. 50 ms to 150 ms
Thresh old ......................................O ff : 0 dBFS fi xed
Mute ................................................................On/O ff
Phase (polarity) ......................................... 0°, 180°
Signal light ......................LED 1 (red), LED 2 (blue),
Sampling rates .. 44.1/48/88.2/96/176,4/192 kHz
Latency:
44.1/48 kHz ...........................................52 samples
88.2/96 kHz ........................................... 61 samples
176,4/192 kHz ......................................121 samples
Synchronization Asynchronous operation (free-running),
frequency stability ................................... ± 25 ppm
Synchronous operation,
pulling range ..................................min. ± 100 ppm
Power supply (phantom power complying w ith AES 42)
Supply voltage range ...................... +6 V to +10.5 V
Current consumption .........................max. 220 mA
Connec tor ..................................................... XL R 3 M
Dimensions ...................................Ø 63.5 x 185 mm
Weight ............................................................. 700 g
in steps of 1 dB, clickless
pink noise (–35 dBFS),
white noise (–43 dBFS)
3:1/4:1/6:1/8:1/>100:1
in steps of 1 dB
(for a leve l change of appr ox. 10 dB )
(signal-dependent)
On: –15 dBFS to 0 dBFS,
in steps of 1 dB
brightness adjustable
EN
1010
1111
EN
Page 7
7. Accessories* (see photos in appendix)
Elastic Suspensions
EA 2 ..........................ni ..................Cat. No . 008432
Table and Floor Stands
MF 3..........................blk ................Cat. No . 0 073 21
MF 4 ......................... blk ................C at. No. 007 337
MF 5 .........................gry ................Cat. No. 008489
Auditorium Hanger
MNV 87 ....................ni ..................C at. No. 006804
Stand Mounts, Misc. Mechanical Adapters
DS 120 .....................b lk ................Ca t. No. 00734 3
SG 1 ..........................blk ................Cat. No. 008445
Foam Windscreens
WS 47 .......................blk ................ Cat. No. 006826
Popscreen
PS 15 .......................blk ................Cat. No. 008472
PS 20 a ...................blk ................Cat. No. 008488
Connecting Cables
IC 3 mt ....................blk ................Cat. No. 006543
IC 4 ...........................ni ..................Cat. No . 006 547
Meaning of color codes: ni = nickel, blk = black, gry = grey
* Detailed descriptions and additional articles can be found
in our acc essorie s catalog or a t: www.ne umann.com
8. Scope of delivery
Mono set Stereo set Microphone
D-01 microphone 2 D-01 microphones D-01 microphone EA 2 elast. suspension 2 EA 2 elast. suspensions DMI-2 interface DMI-2 interface USB 485 converter USB 485 converter Operating manuals Operating manuals Operating manual Aluminium case Aluminium case Wooden case IC 3 cable 2 IC 3 cable RJ 45 cable RJ 45 cable BNC cable BNC cable USB cable USB cable AC line cable AC line cable
9. Troubleshooting*
Problem
Microphone not operating / No signal transmission
Distorted sound / bad signal quality
* Please s ee also the ma nual of the DMI-2 f or further t roulesho otings.
Possible causes
Supply voltage not activated Check the power supply device and if necessary
The microphone is not connected to an AE S 42 inp ut
The microphone is not connected to the correct channel
The channel is muted Deactivate the mute in the AES 42 remote control. Excessive sound pressure of the
signal to be recorded Overload due to low-frequency
interference (e.g. impact sound or wind)
Solution
the assoc iated s oftware setting s (RCS - > System -> MicPWR).
Use an AES 42 input.
Check the signal path. If necessary, activate the appropriate input on the
corresponding channel of the mixing console.
Take a more distant microphone position or activate the pre-attenuation in the AES 42 remote control.
Use an appropriate windscreen (accessory). Activate the pre-attenuation in the AES 42 remote control.
Use an appropriate popscreen (accessory). Activate the pre-attenuation in the AES 42 remote control.
EN
1212
1313
EN
Page 8
10. Frequenz- und Polardiagramme
10. Frequency responses and polar patterns
gemessen im freien Schallfeld nach IEC 60268-4, Toleranz ±2 dB measur ed in free- fi eld c ondition s (IEC 60268 -4), toleran ce ±2 dB
1414
15
15
Page 9
EA 2
MF 3
MF 4
MF 5
SG 1
PS 20 a
Konformitätserklärung
Die Geo rg Neumann GmbH erklär t, dass diese s Gerät die anwendbaren CE-Normen und -Vorschrif ten erfüllt.
Neumann ist in zahlreichen Länder n eine eingetragene
®
Marke der Georg Neumann GmbH.
MNV 87
WS 47
DS 120
PS 15
IC 4IC 3 mt
Declaration of Conformity
Georg N eumann GmbH hereby declares that this dev ice conforms to the applicable CE standards and regulations.
Neumann is a registered trademark of the
®
G eorg Neumann GmbH in certain countr ies.
Irrtümer und technische Änderungen vorbehalten • Errors excepted, subject to changes
Printed in Germany • Publ. 10/07 514790/A02
Loading...
