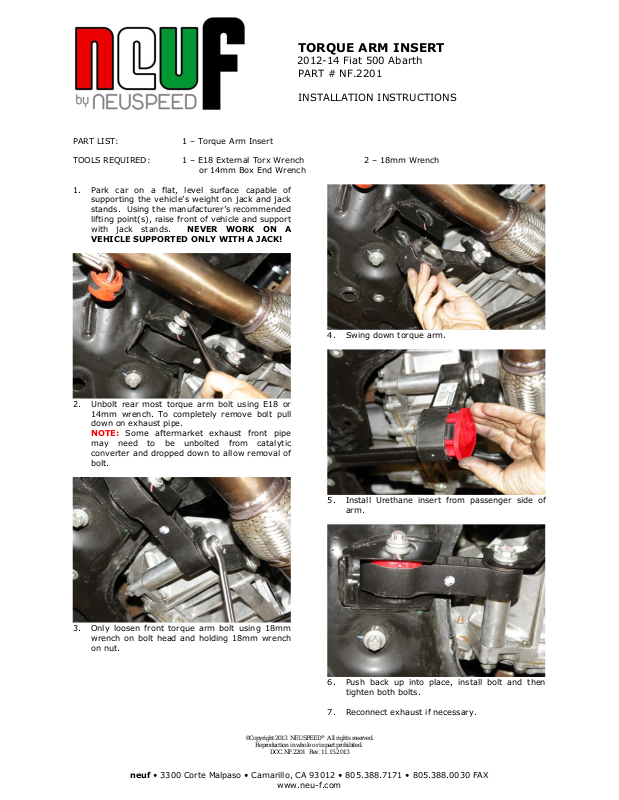

Neu-F NF.2201 User Manual

TORQUE ARM INSERT

2012-14 Fiat 500 Abarth
PART # NF.2201

INSTALLATION INSTRUCTIONS

PART LIST: 1 – Torque Arm Insert

TOOLS REQUIRED: 1 – E18 External Torx Wrench 2 – 18mm Wrench
or 14mm Box End Wrench

1. Park car on a flat, level surface capable of

supporting the vehicle’s weight on jack and jack
stands. Using the manufacturer’s recommended

lifting point(s), raise front of vehicle and support
with jack stands. NEVER WORK ON A
VEHICLE SUPPORTED ONLY WITH A JACK!

2. Unbolt rear most torque arm bolt using E18 or

14mm wrench. To completely remove bolt pull
down on exhaust pipe.

NOTE: Some aftermarket exhaust front pipe

may need to be unbolted from catalytic
converter and dropped down to allow removal of
bolt.

3. Only loosen front torque arm bolt using 18mm

wrench on bolt head and holding 18mm wrench
on nut.

©Copyright 2013 NEUSPEED® All rights reserved.

Reproduction in whole or in part prohibited.

DOC.NF.2201 Rev. 11.15.2013

neuf • 3300 Corte Malpaso • Camarillo, CA 93012 • 805.388.7171 • 805.388.0030 FAX

www.neu-f.com

4. Swing down torque arm.

5. Install Urethane insert from passenger side of

arm.

6. Push back up into place, install bolt and then

tighten both bolts.

7. Reconnect exhaust if necessary.
