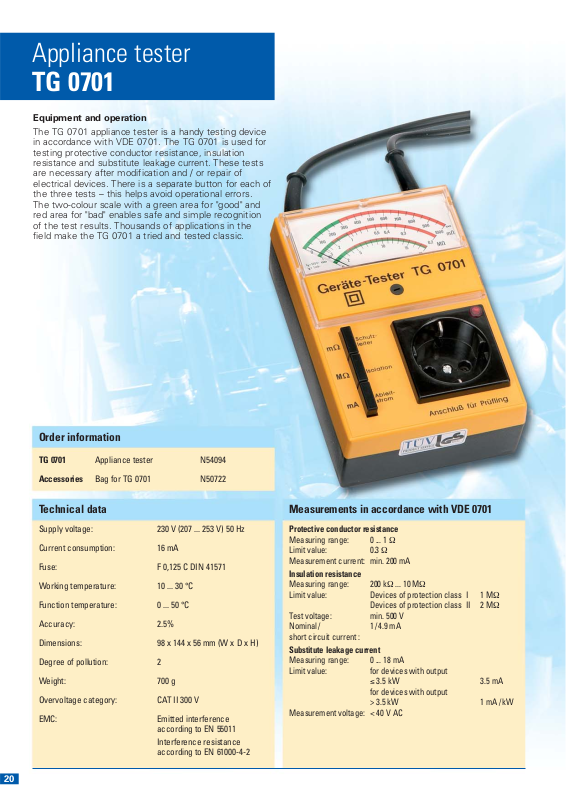

Equipment and operation

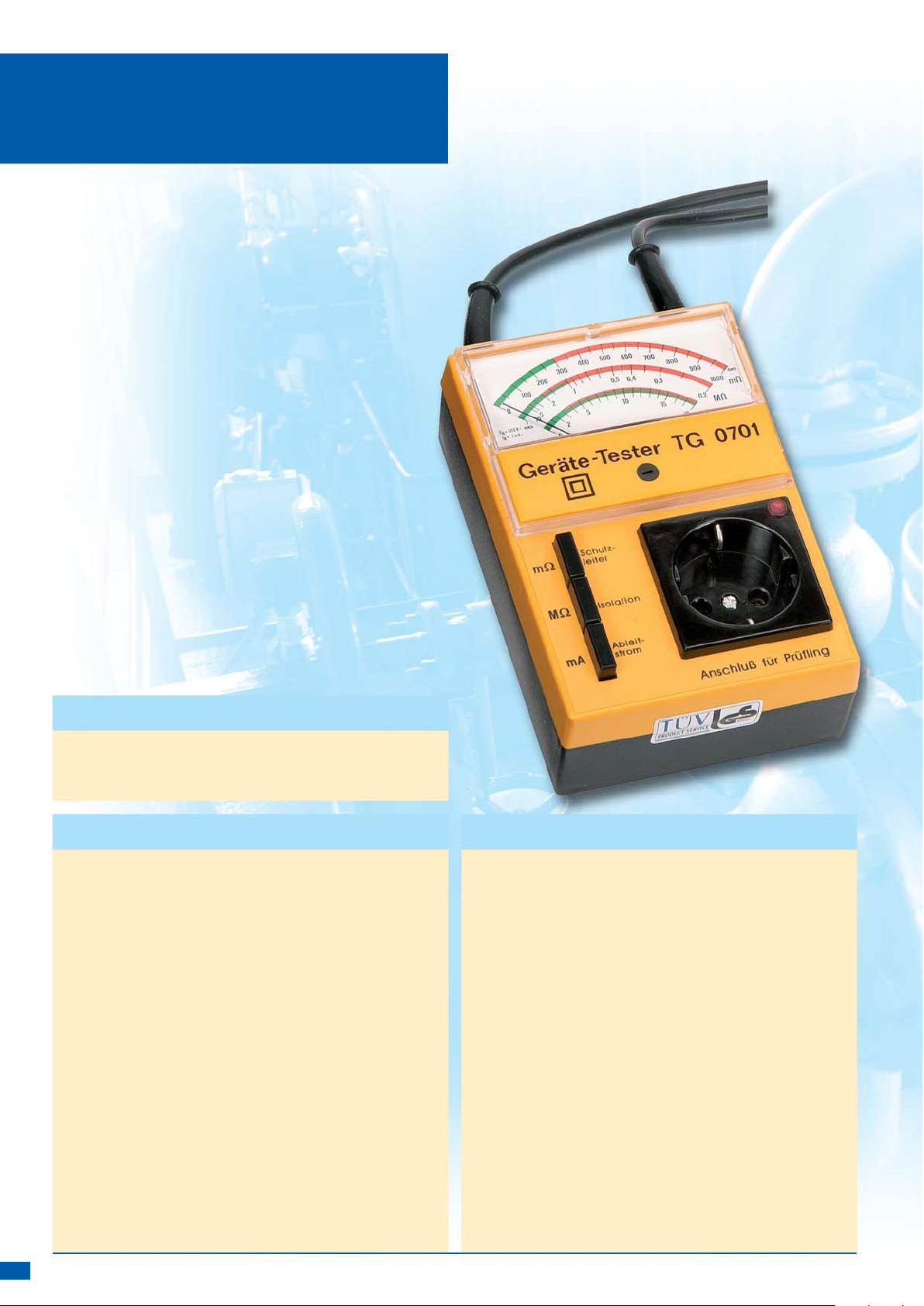

The TG 0701 appliance tester is a handy testing device
in accordance with VDE 0701. The TG 0701 is used for
testing protective conductor resistance, insulation
resistance and substitute leakage current. These tests
are necessary after modification and / or repair of
electrical devices. There is a separate button for each of
the three tests – this helps avoid operational errors.
The two-colour scale with a green area for "good" and
red area for "bad" enables safe and simple recognition
of the test results. Thousands of applications in the
field make the TG 0701 a tried and tested classic.
Technical data
Supply voltage: 230 V (207 ... 253 V) 50 Hz
Current consumption: 16 mA
Fuse: F 0,125 C DIN 41571
Working temperature: 10 ... 30 °C
Function temperature: 0 ... 50 °C
Accuracy: 2.5%
Dimensions: 98 x 144 x 56 mm (W x D x H)
Degree of pollution: 2
Weight: 700 g
Overvoltage category: CAT II 300 V
EMC: Emitted interference
according to EN 55011
Interference resistance
according to EN 61000-4-2
Measurements in accordance with VDE 0701
Protective conductor resistance
Measuring range: 0 ... 1 Ω
Limit value: 0.3 Ω
Measurement current: min. 200 mA
Insulation resistance
Measuring range: 200 kΩ ... 10 MΩ
Limit value: Devices of protection class I 1 MΩ
Devices of protection class II 2 MΩ
Test voltage: min. 500 V
Nominal / 1 / 4.9 mA
short circuit current :
Substitute leakage current
Measuring range: 0 ... 18 mA
Limit value: for devices with output
≤ 3.5 kW 3.5 mA
for devices with output
> 3.5 kW 1 mA / kW
Measurement voltage: < 40 V AC
Order information
TG 0701 Appliance tester N54094
Accessories Bag for TG 0701 N50722
Appliance tester
TG 0701
