Network Technologies ST-xU User Manual

NODEMUX®Series

ST-xUO

Universal KVM Switch

Installation and Operation Manual

MAN064 Rev Date 9/4/2008

TRADEMARK

NODEMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries

COPYRIGHT

Copyright © 1998, 2008 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.

i

TABLE OF CONTENTS

INTRODUCTION ...............................................................................................................................................................................1

MATERIALS ......................................................................................................................................................................................2

FEATURES AND FUNCTIONS .........................................................................................................................................................3

RACKMOUNTING INSTRUCTIONS..................................................................................................................................................4

To Mount to a Rack........................................................................................................................................................................4

INSTALLATION .................................................................................................................................................................................5

OPERATION......................................................................................................................................................................................9

Front Panel Control........................................................................................................................................................................ 9

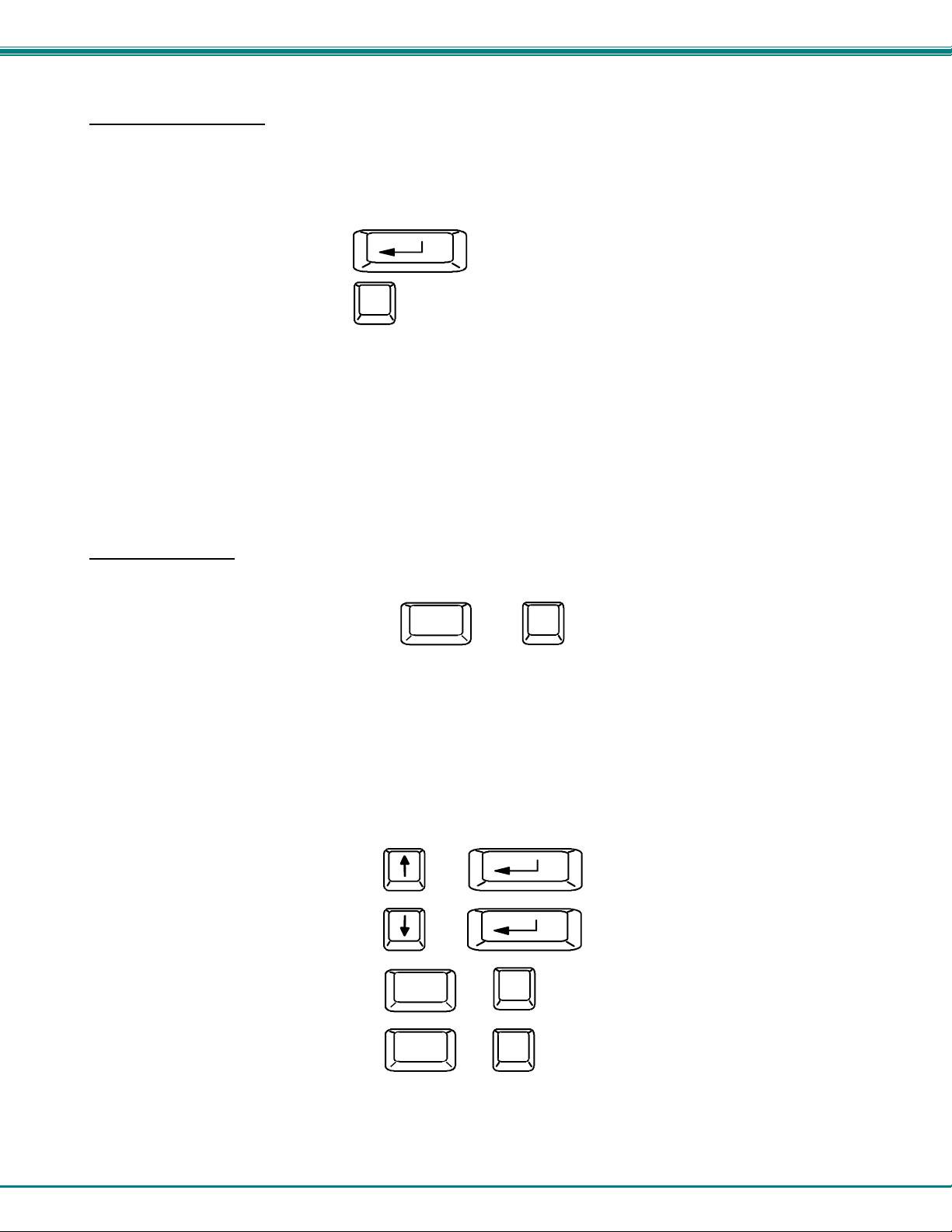

Keyboard Control...........................................................................................................................................................................9

OSD...................................................................................................................................................................................................9

Security Option ..............................................................................................................................................................................9

Enabling the Security Feature...................................................................................................................................................... 10

User Login Mode ......................................................................................................................................................................10

Additional Modes Available With Security....................................................................................................................................11

Administration Mode ................................................................................................................................................................. 11

Switch Configuration.................................................................................................................................................................11

Administrator Password............................................................................................................................................................12

User Name List.........................................................................................................................................................................12

System Access List...................................................................................................................................................................13

User Access Functions ................................................................................................................................................................13

Command Mode ....................................................................................................................................................................... 13

Scan Mode ...............................................................................................................................................................................15

Broadcast Mode........................................................................................................................................................................15

Normal Mode ............................................................................................................................................................................ 15

Edit Mode .................................................................................................................................................................................16

Search Mode ............................................................................................................................................................................17

Maintenance Mode ...................................................................................................................................................................18

Help Mode ................................................................................................................................................................................19

OSD TOUCH SCREEN SUPPORT ................................................................................................................................................. 19

Touch Maintenance Mode ...........................................................................................................................................................19

Reset Default Values ................................................................................................................................................................ 20

Align The Cursor....................................................................................................................................................................... 20

OSD Entry Method....................................................................................................................................................................20

RS232 CONTROL ........................................................................................................................................................................... 21

RS232 Connections and Configuration........................................................................................................................................21

Remote Connection.................................................................................................................................................................. 21

Configuration ............................................................................................................................................................................ 21

Baud Rate ............................................................................................................................................................................. 21

Loop Back ............................................................................................................................................................................. 22

Unit Address .........................................................................................................................................................................22

Exit Switch Configuration Mode ............................................................................................................................................22

Command Protocol ................................................................................................................................................................... 23

NTI Switch Control Program For Windows 9X, NT, 2000, XP and Vista...................................................................................... 25

SerTest- RS232 Interface Test Program...................................................................................................................................... 25

Main Options ............................................................................................................................................................................25

Switch Operations.....................................................................................................................................................................25

Setup Options...........................................................................................................................................................................26

KEYBOARD-TO-CPU TRANSLATION............................................................................................................................................27

NON-OSD TOUCH SCREEN SUPPORT ........................................................................................................................................ 28

AUDIO SUPPORT ........................................................................................................................................................................... 28

TROUBLESHOOTING..................................................................................................................................................................... 29

INDEX.............................................................................................................................................................................................. 29

WARRANTY INFORMATION ..........................................................................................................................................................29

ii

TABLE OF FIGURES

Figure 1- Secure rackmount ears to switch........................................................................................................................................4

Figure 2- Secure switch to rack .........................................................................................................................................................4

Figure 3- Connect the monitor ...........................................................................................................................................................5

Figure 4- Connect a PS/2 keyboard and mouse ................................................................................................................................ 5

Figure 5- Connect a SUN keyboard/mouse .......................................................................................................................................6

Figure 6- Connect a PS/2 CPU..........................................................................................................................................................6

Figure 7- Connect a SUN CPU .......................................................................................................................................................... 7

Figure 8- Connect a touch-screen monitor to an ST-8U-TS-R...........................................................................................................7

Figure 9- Connect a PS/2 CPU to an ST-8U-TS-R ............................................................................................................................ 8

Figure 10- Administration Mode menu............................................................................................................................................. 11

Figure 11- Switch Configuration Mode screen ................................................................................................................................. 11

Figure 12- Administrator password change .....................................................................................................................................12

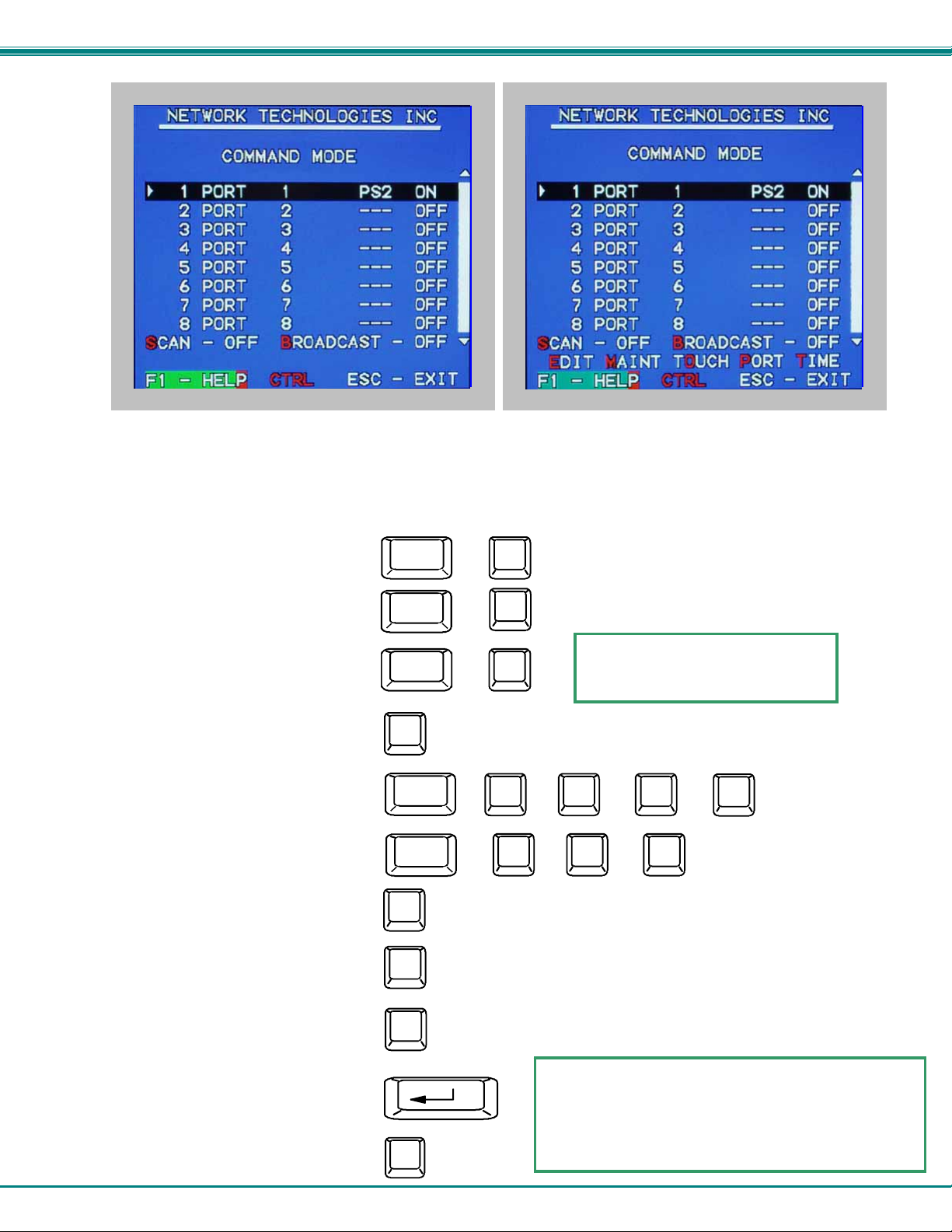

Figure 13- Command Mode menus .................................................................................................................................................14

Figure 14- Video and Device connections identified with port numbers........................................................................................... 15

Figure 15- Edit Mode .......................................................................................................................................................................16

Figure 16- Search Mode ..................................................................................................................................................................17

Figure 17- Maintenance Mode ......................................................................................................................................................... 18

Figure 18- Command Mode-Touch Enabled....................................................................................................................................19

Figure 19- Touch Maintenance Mode ..............................................................................................................................................20

Figure 20- Cursor Alignment menu..................................................................................................................................................20

Figure 21- Switch Configuration Mode screen ................................................................................................................................. 21

Figure 22- Daisy chain configuration with Matrix-Y-1 cable .............................................................................................................22

Figure 23- RS232 connection with Matrix-Y-1 cable........................................................................................................................ 22

Figure 24- Pinout of Matrix-Y-1 cable ..............................................................................................................................................23

Figure 25- Keyboard key layouts .....................................................................................................................................................27

Figure 26- Support present for touch screen monitor on ST-8U-TS-R............................................................................................. 28

iii

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

INTRODUCTION

The NTI ST-xUO UNIVERSAL KVM switch (NODEMUX) allows the user’s keyboard, monitor, and mouse to directly control any
legacy PC or SUN CPU connected to the switch (up to 32 CPUs as a single switch). These CPUs can be file servers, network
managers, etc. Through the connection made by the NODEMUX, the user is able to control any one CPU connected to the
system. The microprocessor driven circuitry in the NODEMUX allows all CPUs to boot simultaneously without keyboard error.

Note: A VGA multi-scan monitor must be used with this product.

Features:

Operating voltage of 100-240VAC @ 50 or 60Hz
Built-in RS232 Control support
Built-in OSD (On Screen Display) menus for easy user control

Available Options:

• NON-OSD Touch Screen support- Built-in serial port for use with touch screen monitors. Add "TS" to the part number (i.e.
ST-xUO-TS)

• OSD Touch Screen support- Built-in serial port for use with 3M MicroTouch touch screen monitor with EX
Controller. Add "TSO" to the part number (i.e. ST-8UTSO (available in 8-port model only))

• Audio support- to enable user to connect stereo speakers to receive audio signals from connected CPUs- add "-A" to the
part number (i.e. ST-xUO-A)

Note: OSD Touch Screen support option is only compatible with a 3M MicroTouch touch screen monitor with EX
8000SR Controller.

Supported Devices

CPUs

• Supports PS/2-compatibles, including laptops, RS6000, SGI and HP9000.

• Supports SUN, including ULTRAs™, SUN Blade™ 100, SUN Blade 1000, SUN Fire™ 280R, SUN Fire V20z and SUN

Ray™.

• USB-enabled PC or SUN computers may be connected by using a USB-PS2 or USB-SUN adapter.

Monitor

• Multiscan VGA monitor

• Crisp & clear 1900x1200 resolution.

• Bandwidth is 150 MHz.

Keyboard

• PS/2 or SUN.

• SUN startup keys are supported on SUN and PS/2 input devices.

• SUN US/English keyboards are supported across all platforms. Non-US SUN keyboards are supported on SUN-only

computers.

Mouse

• PS/2 mouse connects to "Y" adapter cable with PS/2 keyboard.

• Microsoft Intellimouse®, the wheel acts like a 3rd button for SUN.

• SUN 3-button mice.

See our catalog, visit our website at http://www.networktechinc.com
RGB-TECH) or 330-562-7070 for more details.

, or contact an NTI sales representative at 800-742-8324 (800-

II 8000SR

II

1

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

MATERIALS

Materials Supplied:

• NTI ST-xUO UNIVERSAL KVM Switch

• IEC Line cord, country specific

• Rack mount kit (4 and 8 port models only)

• CD with a pdf file of this manual

Materials Not Supplied, but REQUIRED:

• A set of 2 cables for each CPU being connected to the switch:

• PS/2

CPU to Switch

- VEXT-xx-MM for video

- VKTINT-xx-MM for keyboard and mouse

OR

• SUN

CPU to Switch

- VEXT-xx-MM for video

- 13W3M-15HDF (adapter for 13W3 to 15HD)

- SKTINT-xx-MM for keyboard/mouse

• One of the following cables must be used to connect the input devices (keyboard and mouse):

• PS/2

keyboard & mouse

- VKTINT-1

OR

None needed. SUN keyboard plugs directly in.

• SUN

keyboard/mouse

Where:
xx is the length of the cable in feet.
MM indicates male-to-male connector, and

interface

interface

interface

interface

Cables can be purchased from Network Technologies Inc by calling 800-RGB-TECH (800-742-8324) or (330)-562-

7070.

2

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

FEATURES AND FUNCTIONS

NTI

Network Technologies Inc

R

12345678

1

NETWORK TECHNOLOGIES INC Tel:[phone] Danne r Dr, Aurora, OH 44202 www.nti1.com

CPU 8

R
S
2
3
2

CPU 7

CPU 4 CPU 3 CPU 2 CPU 1

8107

1. Power ON/OFF switch

2. Mode LEDs- for visual indication of switch mode status

3. CPU Status LEDs- for visual indication of connection between the user and a specific CPU.

4. CPU Select Switches- push to manually switch to a specific CPU

5. VIDEO-x Video connectors- for connecting video cables from CPUs

6. MONITOR- for connection of the user video monitor

7. 120V IEC Connector for power cord attachment

8. CPU x- 8 pin miniDIN female connectors- for connection of device cable(s) from CPU(s)

9. DEVICES- 8 pin miniDIN female connector- for connection of input device(s) (keyboard/mouse)

10. RS232- DB9 female connector- for connecting RS232 serial control cable

3

Front View of NODEMUX

5678

4

Rear View of NODEMUX

CPU 6 CPU 5

DEVICES

MONITOR

9

6

2

Broadcast

Command

Scan

5

8 4 7 3 6 2 5 1

VIDEOVIDEO

NODEMUX

TM

3

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

RACKMOUNTING INSTRUCTIONS

This NTI switch was designed to be mounted to a rack or to set on a desktop. It includes rackmount ears to make attachment to
a rack easy, and rubber feet to be applied to the bottom of the case if it will instead sit on a flat surface. If this will sit on a flat
surface, simply apply the rubber feet to the bottom of the case in each of the 4 corners.

To Mount to a Rack

1. Attach the ears to the switch using the 6-32x3/16" flat Phillips-head screws (6) provided as shown in the illustration below.

The holes in the ears should line up with pre-threaded holes in the sides of the NTI switch. Tighten the screws securely.

Figure 1- Secure rackmount ears to switch

2. Install 4 captive nuts (not provided) to the rack in locations that line up with the holes in the mounting ear on the NTI switch.

3. Secure the NTI switch to the rack using four 3/16" diameter screws (not provided). Each screw should be of sufficient length

to go completely through the NTI mounting ear, rack frame and fully engage all threads in the captive nut. Be sure to
tighten all mounting screws securely.

4. Attach all cables securely to the switch and where necessary supply adequate means of strain relief for cables.

Figure 2- Secure switch to rack

Front of Switch

NTI Switch

3/16" Diameter Screws

(not provided)

NTI Switch

6-32x3/16"
Flat Head
Screws
(Provided)

Rackmount Ear

Rack

Captive Nuts

(not provided)

4

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

INSTALLATION

1. Turn OFF power to all CPUs that will be connected to the NODEMUX before connecting or disconnecting any cables to or
from them.

WARNING! DAMAGE MAY OCCUR TO THE CPU IF POWER IS NOT DISCONNECTED BEFORE CONNECTING OR

!

DISCONNECTING CABLES.

2. Connect the monitor to the port labeled MONITOR on the rear of the NODEMUX.

NETWORK TEC HNOLOGIES INC Tel: [phone] Danner Dr, A urora, OH 4420 2 www.nti1.com

Rear View of NODEMUX

CPU 2 CPU 1

DEVICES

MONITOR

CPU 8 CPU 7 CPU 6 CPU 5

R
S
2

CPU 4

CPU 3

3
2

8 4 7 3 6 2 5 1VIDEOVIDEO

MONITOR

15HD Female
Video Connector

15HD Male
Video Connector

Figure 3- Connect the monitor

3. Connect the input devices (keyboard/mouse) to the port labeled DEVICES on the rear of the NODEMUX following one of the

methods detailed below:

• PS/2 keyboard and mouse- attach the 8-pin male end of a VKTINT-1 to the NODEMUX at the DEVICES port. The
keyboard will plug into the 6-pin purple female connector with the keyboard symbol on it (see Fig. 4a), and the mouse will
plug into the 6-pin green female connector with the mouse symbol on it (see Fig. 4b).

8 Pin miniDIN Male

Connector

6 Pin miniDIN Male
Connector

NETWORK TECHNOLOGIES IN C Tel:[phone] Danne r Dr, Aurora , OH 44 202 www.nti1 .com

8 Pin miniDIN Female

Connector

DEVICES

Rear View of NODEMUX

CPU 6 CPU 5

DEVICES

MONITOR

CPU 8

CPU 7

R
S
2

CPU 4CPU 3CPU 2CPU 1

3
2

8 4 7 3 6 2 5 1

VIDEOVIDEO

VKTINT-1

(GREEN)

(PURPLE)

Figure 4- Connect a PS/2 keyboard and mouse

5

VGA

Multi-Scan

Monitor

PS/2 Keyboard

Keyboard Symbol

Fig. 4a

PS/2

Mouse

Mouse Symbol

Fig. 4b

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

• SUN keyboard/mouse- plug the SUN keyboard directly into the DEVICES port.

NETWORK TECHNOL OGIES

8 Pin miniDIN Female

Connector

DEVICES

Rear View of NODEMUX

CPU 6 CPU 5

Tel:[phone] Danner Dr, Aurora, OH 44202 ww w.nti1.com

DEVICES

MONITOR

CPU 8

R
S
2

CPU 4 CPU 3 CPU 2 CPU 1

3
2

INC

CPU 7

8 4 7 3 6 2 5 1

VIDEOVIDEO

Figure 5- Connect a SUN keyboard/mouse

4. For each CPU:

a. Connect the appropriate NTI keyboard cable (see the chart below) from the input devices port (keyboard/mouse)

of the CPU to a CPU x port of the NODEMUX. Note the port’s number. (See Figs. 6 and 7.)
b. Connect a VEXT-xx-MM video cable and video adapter, if needed (see the chart below), from the video port of the CPU to
the VIDEO x port of the NODEMUX with the same port number as the keyboard (see Figs. 6 and 7).

CPU Keyboard Cable Video Cable Video Adapter

PS/2 VKTINT-xx-MM VEXT-xx-MM None needed
SUN SKTINT-xx-MM VEXT-xx-MM 13W3M-15HDF

Note: Make sure the CPU is connected to a CPU x port and a VIDEO x port with the same number.

• PS/2 CPU- Connect a PS/2 CPU video port using a VEXT-xx-MM cable between a VIDEO x port on the ST-xU and the

CPU. Connect the PS/2 CPU keyboard and mouse ports using a VKTINT-xx-MM cable between a CPU-x port on the ST-xU and
the CPU.

ATTACH FIRST CPU TO PORT 1

(SHOWN HERE IS A PS/2 CPU)

Rear View of NODEMUX

NETWORK TECHNOLOGIES

8 Pin m iniDIN Male

Connecto r

CPU 8CPU 7CPU 6CPU 5

R
S
2

CPU 4CPU 3CPU 2CPU 1

3
2

INC

Tel:[phone] Danner Dr, Aurora, OH 44202 www.nti1.com

DEVICES

MONITOR

15HD Male
Video Connector

8 4

7 3 6 2 5 1

VIDEOVIDEO

VEXT-xx-MM

Figure 6- Connect a PS/2 CPU

8 Pin miniDIN Male

Connector

VKTINT-xx-MM

6

PS/2 CPU

SUN Keyboard / Mouse

(PURPLE-KEYBOARD)

(GREEN-MOUSE)

6 Pin miniDIN Male
Connector

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

• SUN CPU- Connect a SUN CPU video port using a VEXT-xx-MM cable with a 13W3M-15HDF adapter between a VIDEO x port

on the ST-xU and the CPU. Connect the SUN CPU keyboard/mouse port using an SKTINT-xx-MM between a CPU-x port on the

ST-xU and the CPU.

8 Pin miniDIN Male

Connector

NETWORK TECHNOLOGIESINC Tel:[phone] Danner Dr, Aurora, OH 44202 www.nti1.com

R
S
2
3
2

SKTINT-xx-MM

SUN CPU

Figure 7- Connect a SUN CPU

5. For Units with Touch-screen support (-TSO option)

a. Connect the 15HD cable from the user monitor to the MONITOR port on the NODEMUX.
b. Connect the 9D serial cable from the user monitor to the SERIAL port on the NODEMUX.
c. Connect a keyboard and mouse using one of the methods described on page 5.

NTI

R

NETWORK
TECHNOLO GIES
INCORPORATED

1275 Danner Dr
Aurora, OH 44202

Tel:[phone]
Fax:[phone]

www.nti1.com

Rear View of ST-8UTSO-R

5VDC
2A

CPU 8 CPU 7 CPU 6 CPU 5 CPU 4 CPU 3 CPU 2 CPU 1

+

-

Figure 8- Connect a touch-screen monitor to an ST-8UTS0-R

d. Connect an MMEXT-xx cable between the serial port on a PS/2 CPU and a SERIAL-x port on the NODEMUX.
e. Connect a VEXT-xx-MM between the video port on a PS/2 CPU and a VIDEO-x port of the same number as the SERIAL-

x port just connected to.

f. Connect a VKTINT-xx-MM between the keyboard and mouse ports on the PS/2 CPU and a CPU-x port of the same

number as the SERIAL and VIDEO ports just connected to.

g. Connect additional PS/2 CPUs to additional SERIAL-x, VIDEO-x, and CPU-x ports in the same manner.

ATTACH A SECOND CPU TO PORT 2

(SHOWN HERE IS A SUN CPU)

Rear View of NODEMUX

CPU 8 CPU 7 CPU 6 CPU 5

CPU 4

CPU 3

CPU 2 CPU 1

DEVICES

MONITOR

13W3M-15HDF

DEVICES

S
E
R
I
A
L
8

V
I
D
E
O

8

S

S

E

E

R

R

I

I

A

A

L

L

6

7

V

V

I

I

D

D

E

E

O

O

6

7

8 4

7 3 6 2 5 1

VEXT-xx-MM

Sun 13W3 Male
Video Connector

S

S

E

E

R

R

I

I

A

A

L

L

4

5

V

V

I

I

D

D

E

E

O

O

5

4

7

VIDEOVIDEO

S

S
E
R
I
A
L

V
I
D
E
O

3

S
E
R
I
A
L
2

V
I
D
E
O

2

S

E

E

R

R

I

I

A

A

L

L

1

M

V

O

I

N

D

I

E

T

O

O
R

1

15HD Male

Video Connector

15HD Male
Video Connector

Serial Connector

VGA

Multi-Scan

Touch-Screen

Monitor

9D Female

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

R

NETWORK
TECHNOLO GIES
INCORPOR ATED

NTI

5VDC
2A

CPU 8 CPU 7 CPU 6 CPU 5 CPU 4 CPU 3 CPU 2 CPU 1 DEVICES

+

-

1275 Danner Dr
Aurora, OH 44202

Tel:[phone]
Fax:[phone]

www.nti1.com

Figure 9- Connect a PS/2 CPU to an ST-8UTS0-R

6. If the Touch-Screen Support option is installed, turn power ON to the monitor next. This will enable the NODEMUX to
initialize communications with the monitor and enable touch-screen support options when power is applied to NODEMUX in
step 7.

7. Turn power ON to the NODEMUX. The LED above button 1 on the front panel of the NODEMUX should illuminate. If

it doesn’t, see TROUBLESHOOTING.

Note: If the NODEMUX has the Touch Screen option installed, perform the "Reset Default Values" procedure as
described on page 20 before powering on attached CPUs.

8. Turn ON power to any or all CPUs connected to the NODEMUX.

FYI: If upon startup the monitor immediately displays a USER LOGIN menu requiring a USER NAME and PASSWORD,
then the administrator has already setup the system and enabled the OSD Security feature. Contact the administrator
for a login name and password. Then see page 10 for “User Login Mode” instructions.

Rear View of ST-8UTSO-R

S

S

E

E

R

R

I

I

A

A

L

L

8

7

V

V

I

I

D

D

E

E

O

O

8

7

VKTINT-xx-MM

S
E
R
I
A
L
6

V
I
D
E
O

6

S

S

E

E

R

R

I

I

A

A

L

L

4

5

V

V

I

I

D

D

E

E

O

O

5

4

S

S
E
R
I
A
L

V
I
D
E
O

3

S
E
R
I
A
L
2

V
I
D
E
O

2

S

E

E

R

R

I

I

A

A

L

L

1

M

V

O

I

N

D

I

E

T

O

O
R

1

PS/2 CPU

MMEXT-xx

VEXT-xx-MM

8

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

OPERATION

Control over the CPUs attached to the NODEMUX is achieved through operation of the NODEMUX. Once the NODEMUX is
properly connected, the NODEMUX will enable a connection to be made between the CPUs attached to its "VIDEO x" and "CPU
x" ports and the keyboard, monitor, and mouse attached to the "MONITOR" and "DEVICES" ports. The LEDs on the control
panel of the NODEMUX will illuminate depending on which port (and subsequent associated CPU) is being connected to the
keyboard, monitor, and mouse. The choice of which CPU a keyboard, monitor, and mouse will be connected to is determined by
controlling the Universal KVM switch either through either of 3 methods:

• front control panel

• keyboard control through an On Screen Display (OSD) menu

• RS232 control

Front Panel Control

There is a touch-switch and LED on the front panel of the NODEMUX for each CPU the switch will connect the keyboard, monitor,
and mouse to. Pressing any touch-switch on the front panel of the NODEMUX will connect the selected CPU to the keyboard,
monitor, and mouse.
Holding down any front panel touch-switch for more than 2 seconds will cause the NODEMUX to cycle through all modes of
operation including COMMAND, SCAN, BROADCAST, and NORMAL (described on page 15). The three mode LEDs on the front
panel indicate which mode is selected. Release the touch-switch when the LEDs indicate the desired mode. When no mode
LEDs are illuminated the user is in Normal Mode controlling directly the CPU to which the user is connected through the
NODEMUX.

Keyboard Control

A user has Keyboard control of the NODEMUX using Command Mode through on screen display (OSD) menus superimposed
onto the monitor. By pressing <Ctrl> + <`> (accent key), the user can enter Command Mode. Once in Command Mode, typing
a series of commands will cause the NODEMUX to connect the user to any one CPU connected to the switch. Pressing the
<Esc> key will exit Command Mode.

OSD

OSD superimposes a menu system on the user’s video screen with a list of all connected CPUs. OSD allows CPUs to be named
(with up to 12-character names). OSD then allows selection of CPUs by that name. Connected CPUs can be listed by name or
by port number. OSD Search Mode enables the user to type in the first few characters of the CPU's name and the OSD will locate
it. Help screens assist with many OSD functions.

Security Option

The security option in the OSD menu enables an administrator to control access to the CPU ports for each user. Up to 24 users
can be created. These users have controlled access to any CPU. Only the administrator can activate or deactivate the security
features. Security can be activated from the Maintenance Mode menu (page 18) with a successful administrator login for
verification purposes. Furthermore, the administrator can set a maximum idle time value after which the current user will be
logged out and the login screen displayed. This time out does not function while the OSD is active. The current security status,
idle time out, and scan dwell time are all saved and will be restored whenever power to the switch is cycled OFF, then ON.

9

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Enabling the Security Feature

To enable the security feature the administrator must first enter Command Mode from the keyboard using the sequence <Ctrl> +
<`> (accent key). The OSD menu will automatically appear on the monitor in addition to illuminating the Command Mode indicator
LED on the KVM switch. This provides a visual way to control the NODEMUX switch using the keyboard, monitor, and mouse.

The administrator , when setting the NODEMUX up for the first time, may want to proceed directly to the ADMINISTRATION

Mode by typing <CTRL> + <M> , then <A>, and then <Y>.

The factory settings are:

• user name = ADMINISTRATOR (not case sensitive)

• password = administrator (must be lowercase, do not use Shift

key)

FYI: The user name for administrator cannot be changed from "ADMINISTRATOR"

Once logged-in, follow the instructions on page 12 for setting up users and changing the password. Once the password is setup,
if it is lost or forgotten, the administrator will have to contact NTI for assistance on clearing the password and set it up again.
Within the ADMINISTRATION Mode the administrator can setup each of the users and the limitations of their use of the individual
CPUs on the system.

When a standard user powers up the system a security screen may appear as setup by the administrator. The user will
need to login to the system by following the instructions below for the USER LOGIN. If the user does not know the appropriate
user name and password (setup by the administrator), contact the system administrator for this information. Once logged-in a
user can follow the Command Functions described on page 13 to control the system of CPUs within the limitations as set by the
administrator.

User Login Mode

User Login Mode requires a user to login with a user name and password from the list created by the administrator. Access to
the functions of the NODEMUX will not be allowed until a user has logged in.

Function: Keystroke:

Adds a character to the
user name/password

Removes previous character
from the user name/password

Submit user name/password

Exit User Login Mode and return
to previous mode. This function
is only available if security is
not currently active.

A-Z

(Type any alphabetical or numeric character)

0-9

Backspace

Enter

If the password submitted is incorrect, the user will not be
able to proceed.

Esc

If the password submitted is correct, the user will proceed
to the maintenance menu for additional feature options.

10

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Additional Modes Available With Security

Note: The three modes that follow are only available if the administrator is logged in.

Administration Mode

Administration Mode allows the administrator to use the following functions:

Function: Keystroke:

Configure switch- for application
and RS232 communication
(not found in legacy NODEMUX)

Change the administrator’s
password

Enter User Name List Mode

Disable security

Figure 10- Administration Mode menu

Selects the idle time in seconds

Exit Administration Mode and
return to previous mode

Switch Configuration

Switch Configuration enables the administrator to configure the NODEMUX to be used as a stand alone switch or as one of the
switches in a cascaded system.

Note: Cascading is no longer supported in this switch. Be careful not to change this field to anything except “STAND
ALONE SWITCH”.

Switch Configuration is also used to setup the communication settings for RS232 communication with a remotely connected
terminal through the RS232 port. For the Switch Configuration Mode menu, press <W> from the Administration Mode menu
(above).

W

C

U

S

T

Esc

(0-2)

-

x

(0-9)

-

x

-

(xxx from 000 to 255. ie. t002

(0-9)

would set the time-out period

x

for 2 seconds. 000 will disable it)

Be careful with
this field. If
changed to
“SLAVE”, OSD
will not work after
power cycling.

Figure 11- Switch Configuration Mode screen

11

In the event the setting is changed
from "stand alone" to "slave", when
the switch is power cycled the OSD
menu will no longer work. To restore
the setting back to "stand alone",
factory default settings must be
restored via a terminal connected to
the RS232 control port. See the
RS232 Command "CF" on page 24 to
restore default settings.

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Administrator Password

To change the administrator password press <C> from the
Administration Mode menu.

The administrator is able to change the administrator
password as needed (see Fig. 12). Two edit fields are
available, one for password, the other for verify password.
The password can be up to 13 characters in length.

Note: The default password for the administrator is

administrator.

Figure 12- Administrator password change

Function: Keystroke:

Add character to password string
or verify password string

Delete previous character in
edited string

Save new password.

Move to next field to be edited

Return to Administration Mode

A-Z

0-9

Backspace

Enter

Tab

Esc

or

Shift

(If Password string and Verify Password string
are different, this command will have no effect,
enabling the administrator to correct the password)

+

A-Z

alphabetical or numeric character)

(Type any upper or lower case

User Name List

The User Name List displays the list of users and provides control for adding new users, changing or assigning user passwords,
and changing access rights for any given user. User names may be up to 12 characters long, may not contain spaces, and are
not case sensitive. Passwords may be up to 15 characters long, may not contain spaces, and are case sensitive.

Function: Keystroke:

Edit the highlighted user’s
System Access rights

Enter Edit Mode to add/change/
remove users

Change the highlighted user’s
password

Exit the User Name List and
return to previous mode

Ctrl

Esc

Ctrl

Ctrl

+

+

+

A

E

P

12

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

System Access List

The System Access List displays a list of numbers representing the ports so the administrator can change access rights to the
ports for the selected user. The user’s name is displayed at the top of the access list. The mouse is used to change access rights
by clicking on a given number to toggle a port’s status. A user that has access to a port can connect to that port and control the
CPU connected to that port when in Normal Mode.

Function: Keystroke:

Save the changes to the access
list and return to previous mode

Exit the System access list without
saving and return to previous mode.

Enter

Esc

User Access Functions

Introduction

The OSD menu enables a user to name the CPUs connected to the NODEMUX and connect to them using that name from a
single keyboard and mouse. The OSD is positioned on the user's monitor, displaying 8 CPU names at a time. The screen can be
used for switching as well as editing the CPUs’ names. Through the OSD menu, the user can control the NODEMUX to cycle

through all modes of operation: COMMAND, SCAN, BROADCAST and NORMAL. Three LEDs on the front panel indicate
when these modes are enabled.

Command Mode

In order to control the NODEMUX with the keyboard connected, Command Mode must be enabled. To enter Command Mode
from the keyboard:

The On Screen Display menu will automatically appear on the monitor in addition to illuminating the indicator LEDs on the KVM
switch. This provides a visual way to control the NODEMUX using the keyboard, monitor, and mouse.

With Touch Screen support (optional), the OSD menu can be entered by tapping 3 times on the monitor.

The list below describes the Command functions available from the keyboard within the OSD menu after entering into Command
Mode and while the COMMAND LED is illuminated:

Function: Keystroke:

Select the previous port

Select the next port

Enable/disable Scan Mode

Enable/disable Broadcast Mode

Press

Ctrl

Ctrl

Ctrl

+

+

+

+

+

Enter

Enter

S

B

13

~

`

`

(ACCENT

KEY)

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Figure 13- Command Mode menus

Command Mode (Cont’d)

Function: Keystroke:

Enter Edit Mode

Enter Maintenance Mode

Enter Touch Maintenance
Mode (only if the Touch Screen
option is installed)

Display Help Menu (available with
every control mode)

Sets scan time-out on
each port (in seconds)

Selects a specific port

Selects the first port on the switch

Selects the last port on the switch

Enters Search Mode and adds a character
to search string and selects the CPU’s
name that matches best.

Switch to a selected port

Exit Command Mode

Ctrl

Ctrl

Ctrl

F1

Home

End

A-Z

0-9

Esc

E

+

M

+

See Touch Screen Support option

O

+

Ctrl

Ctrl

Enter

+

+

(Type any alphabetical or numeric character)

T

-

P

on page 19 for more on Touch
Maintenance Mode

(0-2)

-

x

(0-9)

-

x

Note: The user must exit Command Mode to type to a
CPU.

To exit Command Mode, either hold down any touch­switch on the front panel for more than 2 seconds, OR
press <ESC>.

(0-9)

-

x

(0-9)

-

(Pxx would be P01, P02, etc.)

x

(xxx from 002 to 255. ie. t002

(0-9)

would set the time-out period

x

for 2 seconds)

14

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

FYI: If the Touch Screen Support option is present, the user can also exit the Main Command mode menu by tapping
once on "ESC-EXIT" on the screen, or by using a finger to align the cursor with a port number and removing the finger.
Aligning the cursor with a port and removing the finger will connect the user with the selected port in addition to exiting
Command Mode.

The mouse can also be used to control Command Mode. The mouse cursor can be moved to the Scan, Help, and Exit fields
where the user can then click on the left mouse button to perform that function. Ports listed on the screen can be selected by
moving the cursor onto that port and clicking. Clicking twice on a selected port will switch to that port and exit Command Mode.
To change the displayed ports on the screen simply click on the up and down arrows located to the right of the port names
displayed.

Note: The “port” mentioned in the command functions of Command Mode refers to the combination of the video (VIDEO
x) and device (CPU x) connections of like numbers that a CPU is connected to (i.e. the CPU that is connected to VIDEO
1 and CPU 1 will be identified as PORT 1 or P01). See Fig. 14.

Port Assignments

(Rear View of NODEMUX)

NETWORK TECHNOLOG IES INC Tel:[phone] Danner Dr, Auro ra, OH 44202 www.nti1.com

CPU 8

R
S
2

CPU 4

3
2

CPU 7

CPU 3

CPU 6 CPU 5

CPU 2 CPU 1

DEVICES

PORT 4

MONITOR

8 4

7 3 6 2 5 1

VIDEOVIDEO

PORT 1

Figure 14- Video and Device connections identified with port numbers

Scan Mode

When in Command Mode, press <Ctrl>-<S> to toggle Scan Mode ON/OFF. The Command Mode main menu will indicate with
“SCAN-ON” or “SCAN-OFF”.

When in Scan Mode the switch scans to each port with a CPU powered-ON. (The SCAN LED on the front panel will illuminate and
remain ON while in Scan Mode. Also, the Command Mode main menu will show “SCAN - ON”. ) The port with the CPU powered­ON remains active while in use. When the switch becomes idle for the configured time-out period (default time-out period is 5
seconds) the switch will connect to the next powered-ON CPU port. See Command Mode section above for configuring the scan
time-out period.

Note: The keyboard and mouse must remain idle for the full scan time-out period before the switch will connect to the
next active port.

Broadcast Mode

(use with extreme caution or commands intended for one CPU will be sent to all CPUs)

When in Command Mode, press <Ctrl>-<B> to toggle Broadcast Mode ON/OFF. The Command Mode main menu will indicate
with “BROADCAST-ON” or “BROADCAST-OFF”.

Broadcast Mode allows the operator to send keystrokes to all active CPUs simultaneously (even those CPUs the user cannot
connect to due to lack of security access). Broadcast Mode is indicated by the illumination of the BROADCAST LED on the front
panel, and by “BROADCAST – ON” in the Command Mode main menu. The BROADCAST LED will remain ON while in
Broadcast Mode. However, Broadcast Mode has some critical requirements:

• BROADCAST LED must be OFF when booting any attached CPUs.

• BROADCAST LED must be ON and COMMAND LED must be OFF for keystrokes to reach attached CPUs.

Broadcast Mode is not supported by any ports that have MAC CPUs attached.

Normal Mode

When all of the NODEMUX mode LEDs are OFF the user is in Normal Mode, controlling the CPU to which the user is connected
through the NODEMUX.

15

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Edit Mode

Edit Mode allows the user to modify the names of the CPUs connected to the switch. Names of CPUs can be up to 12 characters
in length. When in Edit Mode, multiple keystroke combinations are not valid (<SHIFT>+<P>, <CTRL>+<P>, <ALT>+ <P>, and <P>
will all type a “P” to the display - lower case letters cannot be typed). After changes have been made the user will be prompted by
the menu to save the changes. Answer "Y" to save changes and answer "N" to continue using previously entered port names.

Function: Keystroke:

Move cursor one position
to the right

Move cursor one position
to the left

Previous port

Next port

Selects the first port on
the switch

Figure 15- Edit Mode

Selects the last port on
the switch

Toggles between insert
and overstrike

Erase current character

Erase previous character

When finished making changes in Edit Mode, press <Enter> and a prompt will appear to press either <Y> to save the changes or
<N> to continue making changes without saving the changes just made. If the <ESC> key is pressed instead of <Enter>, all
changes made will be cancelled and the display will return to the previous menu.

Home

End

Insert

Delete

(The character either gets inserted and the remainder of the name
gets shifted to the right, OR the current character gets overwritten.)

Backspace

16

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Search Mode

Search Mode allows the user to enter and maneuver through a list of CPU names. As the user types, the best matching CPU
name is selected. The list of CPUs may also be searched for a specific (or similar) name. The following commands are valid
when the search option has been invoked from Command Mode.

Function: Keystroke:

Erase previous character
in search name

Move cursor one position to
the right in search name

Move cursor one position to
the left in search name

Select previous port

Select next port

Figure 16- Search Mode

Add a character to the search
string and select the best
matching CPU name

Exit Search Mode, return to
Command Mode

Switch to selected port

Backspace

A-Z

(Type any alphabetical or numeric character)

0-9

Esc

Enter

17

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Maintenance Mode

Maintenance Mode allows a user to customize the On Screen Display to their requirements

Function: Keystroke:

Reset all of the port names

Toggle between numeric and
alphabetic listing of ports

Move On Screen Display (OSD)
window up on monitor

Move OSD window down on
monitor

Move OSD window to the right

Move OSD window to the left

Figure 17- Maintenance Mode

Make OSD window taller

Make OSD window shorter

Change user password.
(Present only when a standard
user is logged in.)

Log current user out and return
to User Login Mode.

Activate security features

Present only when security is
available but not active.

Enter Administration Mode.
Option present only when administrator
is logged in.

Save OSD window parameters
for the port

Return to Command Mode

.

R

L

T

S

P

Q

A

Esc

NOTE: If activating security features, the user will
be prompted for a “Y” (yes) or “N” (no) to confirm
the menu choice, at which point the user will be
asked for a username and password before
continuing. Only the administrator can activate the
security features.

Enter

18

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Help Mode

This mode displays a list of commands with a short explanation of their function. These lists are organized in pages for each
mode (i.e. COMMAND, EDIT, SEARCH, and HELP). The following options allow the user to quickly obtain information on any
command.

Function: Keystroke:

View the previous page of help
if available

View the next page of help
if available

Exit HELP and return to previous
mode

Page
Up

Page
Down

Esc

OSD TOUCH SCREEN SUPPORT

(Optional)

OSD Touch Screen support enables the user to connect a 3M MicroTouch touch screen monitor with EX
the NODEMUX and control the connections to the CPUs attached to the NODEMUX by pressing a finger, pencil, or any other

small object to the screen of a touch-screen monitor. To configure the NODEMUX to use a touch screen monitor the user must
first use Touch Maintenance Mode.

II 8000SR Controller to

Touch Maintenance Mode

Touch Maintenance Mode is available from the Command Mode
menu if the touch screen support option has been built into the
NODEMUX. Touch Maintenance Mode is used to communicate the
operating values of the connected touch screen monitor to the
NODEMUX, and to synchronize the cursor position between the
monitor and each connected CPU.

Figure 18- Command Mode-Touch Enabled

Touch Maintenance Mode is accessible from the Command Mode main menu by pressing <Ctrl> + <O> provided the touch
screen monitor is installed as described in step 7 on page 8. The Touch Maintenance Mode menu (see Fig. 22) includes the
following selections:

A- Align the cursor
R- Reset the NODEMUX to the default values

L- OSD entry method

IT IS EXTREMELY IMPORTANT
monitor connected each time a new touch screen monitor is connected to the NODEMUX for the first time,

!

BEFORE the connected CPUs are powered ON, even if the monitor changed is the same model number as the
monitor it replaces. Once these values are reset, the procedure for aligning the cursor for each host (CPU) will need to
be followed in order to use the touch screen feature with each connected CPU (see "Align The Cursor" on page 20).

to reset the NODEMUX to the default operating values of the Touch Screen

19

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Reset Default Values

The default operating values of the connected touch screen monitor
must be communicated to the NODEMUX before any connected
CPUs are powered up.

To reset default values,

1. Press <Ctrl> + <`> (accent key) to enter Command Mode

2. Press <Ctrl> + <O> to enter Touch Maintenance Mode

3. Press <R> to reset default values. The user will be
prompted to with the question "Are You Sure?". Press <Y> to
complete the procedure. The word "Working" will be
displayed until the NODEMUX is updated.

4. Press <Esc> once to return to Command Mode, or press
<Esc> twice to exit Command Mode.

Figure 19- Touch Maintenance Mode

Align The Cursor

In order to synchronize the touch screen monitor with the NODEMUX and the attached CPUs, the user must align the cursor on
the screen. From Command Mode press <Ctrl> + <O> to bring up the Touch Maintenance menu, then press <A> to bring up
the Alignment menu. The Alignment menu has 6 steps for aligning the cursor.

• Steps 1 and 2 establish the outer limits of the screen to the NODEMUX. This only needs to be done once for the

monitor connected. If the monitor is changed, it must be repeated for the new monitor.

• Steps 3 and 4 establish the location of the OSD menu when the CPU connected to the selected port is not

powered ON

• Steps 5 and 6 establish the location of the OSD menu when the CPU connected to the selected port is powered

ON but the video is disconnected.

To perform the alignment select an option from the keyboard and
follow the on-screen directions provided.

Notes:

Steps 3-6 must be repeated any time the OSD menu is
moved to a different position on the monitor using the
Command Mode maintenance menu (page 18).

Steps 3 and 4 will not work if the CPU connected to the
selected port is powered ON.

Steps 5 and 6 will not work if the CPU connected to the
selected port is powered OFF.

Figure 20- Cursor Alignment menu

OSD Entry Method

The user can configure the location on the monitor where tapping will bring up the OSD menu. By pressing <L>
at the Touch Maintenance menu the user can toggle between configuring the program to respond one of two ways to activate the
OSD menu:

¾ respond to tapping 3 times anywhere on the monitor screen
¾ respond to tapping 3 times in just the upper left hand corner (approx. 1 inch from the corner)

20

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

RS232 CONTROL

RS232 Connections and Configuration

Remote Connection

The RS232 Interface is designed to meet the RS232C standard and can be controlled from any terminal (CPU or other controller
with an RS232 communications port.). The pin-out for the DB-9 connector on the unit is as follows:

RS232 Connector (DB-9 FEMALE)

PIN SIGNAL FUNCTION

1 CD Carrier Detect

2 TXD Transmit data (RXD at host)

3 RXD Receive data (TXD at host)

4 DTR Data terminal ready

5 GND Signal ground

6 DSR Data set ready

7 RTS Request to send

8 CTS Clear to send

9 - No connection

Note: Security must be disabled or user access granted on the port(s) to be selected by RS-232 control.

On the DB-9 female connector, pins 1 (DCD), 4 (DTR), and 6 (DSR) are shorted and pins 7 (RTS) and 8 (CTS) are shorted.
Therefore, host handshaking is bypassed and TXD and RXD are the only active signals. A straight through DB-9 cable (not null
modem) will work for most CPUs. To daisy chain multiple units, a Matrix Y-1 cable is used (see page 24) for each NODEMUX in
the chain. The last unit will have no connection on its output port and should have DIP switch 1 ON (see table under "Unit
Address and Loop Back" on page 21).

Configuration

Baud Rate

In order for a terminal to communicate with the NODEMUX, the terminal and NODEMUX must each be configured for the same
baud rate.

Press <W> from the Administration Mode menu (page 11) to enter Switch Configuration mode. (Fig. 25)
Press <Tab> once to move the cursor bar to highlight "RS232 BAUD RATE". The default setting is 9600.
Press < > (up arrow) or < > (down arrow) to change the selected baud rate to 300,600,1200,2400,4800, or back to 9600.

Be careful with
this field. If
changed to
SLAVE, OSD will
not work after
power cycling.

Figure 21- Switch Configuration Mode screen

In the event the setting is changed
from "stand alone" to "slave", when
the switch is power cycled the OSD
menu will no longer work. To restore
the setting back to "stand alone",
factory default settings must be
restored via a terminal connected to
the RS232 control port. See the
RS232 Command "CF" on page 24 to
restore default settings.

21

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Loop Back

In order for an RS232 command and a response to the command to be viewed at the terminal screen, the NODEMUX must have
its Loop Back feature enabled.

More than one NODEMUX may be connected to a terminal at a time. To do so, a Matrix-Y-1 cable (available from NTI) must be
used. (See Fig. 22). For each additional NODEMUX connected, another Matrix-Y-1 cable will be required.

If the NODEMUX is one of two or more switches being controlled via RS232, and if the NODEMUX is not that last switch in the
series of switches controlled, then this setting should be changed to "DISABLED".

If the NODEMUX is the only device controlled via RS232 , or if it is the last
this setting should remain "Enabled". (See Figure 21)

To enable or disable loop back, from the
Switch Configuration mode menu (pg. 21),

CPU

(terminal)

RS232
Serial Port

press <Tab> until the cursor bar
moves to highlight "LOOPBACK".

RS232

Press < > (up arrow) or < > (down arrow) to
enable or disable loop back as needed for the
application.

NODEMUX

SWITCH

First Unit

Disable Loopback Disable Loopback Enable Loopback

Figure 22- Daisy chain configuration with Matrix-Y-1 cable

device in a series of devices being controlled, then

Matrix-Y-1

NODEMUX

SWITCH

Second Unit

Matrix-Y-1 Matrix-Y-1

RS232 RS232

NODEMUX

SWITCH

Last Unit

Unit Address

In order for a terminal to communicate with one or more NODEMUX switches, each switch must have a unique address. The
NODEMUX will only respond to commands from a terminal if its address is embedded in the command. Up to 15 NODEMUX
switches can be connected in a "daisy chain" to a terminal, each with its own unique address.

To set the address of the NODEMUX, from the Switch Configuration mode menu (Fig. 21 on page 21),
press <Tab> until the cursor bar moves to highlight "RS232 UNIT ADDRESS".
press < > (up arrow) or < > (down arrow) until the desired address (1-15) is selected.

Exit Switch Configuration Mode

Once changes are made to the Switch Configuration menu, press <Enter> and <Y> to save them.

To exit without saving
saving the changes made. .

Changes made will take effect the next time the NODEMUX is power cycled.

Note: In order to connect multiple NODEMUX units together a Matrix-Y-1 cable must be used. (See Fig. 27.) See Fig. 28
for the pinout of the Matrix-Y-1 cable.

CPU

, press <Esc>, then <N>, then <Esc> again. The menu will return to the Administration Mode without

RS232
Serial Port

RS232

NTI

SWITCH

First Unit

Matrix-Y-1

Matrix-Y-1 Matrix-Y-1

RS232

NTI

SWITCH

Second Unit

RS232

NTI

SWITCH

Last Unit

Figure 23- RS232 connection with Matrix-Y-1 cable

22

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Figure 24- Pinout of Matrix-Y-1 cable

Wiring Schematic of Matrix-Y-1 cable

9D Female9D Male 9D Male

(Unit #1)

23

33

555

(Source)

(Unit #2)

Not connected to
source connector

22

7

Jumper

8
1

Jumpers

4
6

Command Protocol

CPU controller commands supported by the unit are defined below. All commands should be terminated with a <CR> (carriage
return). When a command is sent, the entire string is echoed back along with a response from the addressed unit . All characters
in the command string should be upper case, and all numbers below 10 should have a leading 0 (ex: 1 = 01). As command
strings are sent, the inner character delay cannot exceed 500 milliseconds.

Note: To use this command protocol, the user is required to write a program that will send an entire command string all
at once, not character by character. Programs that send one character at a time (such as HyperTerminal) cannot be used
to control the NODEMUX. Alternatively, the user may use the NTI Switch Control Program or SerTest to control the
NODEMUX via RS232 (see page 25).

Terminal control commands supported by the NODEMUX are defined below.

RS - reset unit(s) to default power-up switch connections
FORMAT: RS AA<CR>
RS = "reset unit" command followed by at least one space
AA = unit address; if 00, all units on the bus will be reset and no response will be
returned
RESPONSE: *<CR> if command received and executed OK

-OR-

?<CR> if syntax or transmission error occurred

Note: The RS command does not change the switch configuration, it changes CPU-to-user connection settings.

CS - change single USER channel

FORMAT: CS AA,XX,YY<CR>

CS = "change single output" command followed by at least one space

AA = unit address

XX = input/CPU to connect

YY = output/USER to change

RESPONSE: *<CR> (command received and executed OK)

-OR-

?<CR> (syntax or transmission error occurred)

23

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

CA - change all output channels

FORMAT: CA AA,XX<CR>
CA = "change all outputs" command followed by at least one space
AA = unit address
XX = input /CPU to connect to all outputs/USERS
RESPONSE: *<CR> (command received and executed OK)
?<CR> (syntax or transmission error occurred)

FYI: In this NODEMUX switch, the CA command will have the same effect as the CS command above.

RO - read single USER channel

FORMAT: RO AA,YY<CR>

RO = "read output" command followed by at least one space

AA = unit address

YY = output/USER to read

RESPONSE: *<CR> (command received and executed OK)

XX<CR> (XX = input/CPU connected)

-OR-

?<CR> (syntax or transmission error occurred)

RU - read unit size

FORMAT: RU AA<CR>

RU = "read unit size" command followed by at least one space

AA = unit address

RESPONSE: *<CR> (command received and executed OK)

XX,YY<CR> (XX = # of CPU’s, YY = # of USERS)

-OR-

?<CR> (syntax or transmission error occurred)

RV- read unit software version

FORMAT: RV XX,00
RV= "read software version" command followed by at least one space
AA= unit address
00= command for the address location in memory of the software version

RESPONSE: *<CR> (command received and executed OK)

RevIsion x.xx ST-8UV-DRW[000] <CR>

-OR-

?<CR> (syntax or transmission error occurred)

CF - reset all connected units, regardless of address, to factory default configuration settings

WARNING: THIS COMMAND WILL RESET ALL RS232 DAISY CHAIN CONNECTED NODEMUX SWITCHES TO
FACTORY DEFAULT SETTINGS. IF OTHER SWITCHES ARE DAISY CHAINED VIA RS232, DISCONNECT THEM BEFORE
SENDING THIS COMMAND.

FORMAT: CF 00

RESPONSE: (After 10-20 seconds)

COMMAND OK
RESET SWITCH CONFIGURATION IS COMPLETE
PLEASE RESET SWITCH POWER
FOR CHANGES TO TAKE EFFECT

24

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

NTI Switch Control Program For Windows 9X, NT, 2000, XP and Vista

The NTI Switch Control Program is an easy and powerful graphical program that controls NTI switches through an RS232
interface. The NTI Switch Control Program is included on the CD packaged with the NODEMUX. The NTI Switch Control
Program is downloaded by clicking on the link "Download NTI Switch Control Program" found on the webpage that opens when
you insert the instruction manual CD into your CD ROM drive.

To install the NTI Switch Control Program after downloading

1. Locate the Setup.exe in the directory the program was downloaded to and double-click on it

2. Follow the instructions on the screen

The NTI Switch Control Program performs best on monitors set to a screen resolution of at least 800 X 600. Instruction for using
the NTI Switch Control Program is available by opening "MSCP Help" in the "NTI" program group once the program has been
installed and is open on the screen.

To open "MSCP Help" from the Windows desktop

1. Click on START

2. Click on PROGRAMS

3. Click on NTI

4. Click on MSCP Help

SerTest- RS232 Interface Test Program

This software allows a user to test the functions of an NTI server switch, matrix switch or Multi-user/Multi-platform switch RS232
interface. The program SERTEST along with the NTI Switch Control Program (above) is installed from the CD packaged with
this switch. SERTEST generates a main menu with the 4 selections described below:

Main Options

• Switch Operations

• Ethernet Operations

• Setup Options

• About SerTest

Switch Operations

Key Selection Description

1) Connect Output/User to an Input/CPU - connect an output to an input

2) Connect All Outputs/Users to an Input/CPU - connect all outputs to an input

3) Connect Audio Output/User to an Input/CPU - connect an output to an input (audio ports only)

4) Connect All Audio Outputs/Users to an Input - connect all outputs to an input (audio ports only)

5) Change Mute Status for Audio Output/User (not

applicable to this unit)

6) Change Volume for Audio Output/User (not

applicable to this unit)

7) Read Connection for Output/User -read the connection of the user

8) Read Connection for Audio Output/User -read the connection of a specific audio output

9) Read Mute and Volume for Audio Output/User - read the volume and the mute status of the specified audio output
a) Save I/O Connections into Unit Memory -save the connections into switch memory bank
b) Restore I/O Connections from Unit Memory -restore the connections from switch memory bank
c) Change All Units Baud Rate (9600/COM1:) -change RS-232 Baud rate of all switches

d) Reset Unit - send a reset command to the switch

e) Reset All Units - send an internal reset command to all switches
f) Read Unit Size - read the switch size (number of inputs and outputs)
g) Read Unit Version/Revision String -read a string containing the switch version, type, and size
h) Save All Units I/O Connections into Units Memory -save the connections into switch memory bank, command for all

i) Restore All Units I/O Connections from Units

Memory

Selections in the "Key" column that are gray are not applicable to this product.

- send commands to the unit.

- set Ethernet connection variables (not applicable to the model)

- set COM port, baud rate, and unit address

- display the program version

- mute or un-mute the Audio port output

- change Audio port output volume

-the current baud rate and serial port are displayed in parentheses

- the current unit address is displayed in parentheses

switches

-restore the connections from switch memory bank, command for all
switches

25

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

Setup Options

Key Selection Description

1) select Com port current:

(COM1:)

2) select Baud rate current:

(9600)

3) set unit Address current:

(1)

For any selection that requires user input, the user is prompted. When commands are sent to the NODEMUX, the command
string and NODEMUX responses are echoed to the screen. All commands generated by the program are formatted according to
the information provided in sections above. If any transmission problems are detected, an error message is displayed.

Press <Esc> or <Enter> to back out to the main menu and press again to exit.

- select PC serial port

- the current PC serial port is displayed in parentheses

- select PC serial port baud rate

- the current baud rate is displayed in parentheses

- select the unit address

- the current address is displayed in parentheses

26

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

KEYBOARD-TO-CPU TRANSLATION

The NTI NODEMUX enables the mixture of otherwise incompatible devices and CPUs to control each other. It accomplishes this
by performing keyboard-to-CPU translations automatically (i.e. connect a SUN keyboard and mouse to a PS/2 type CPU). The
chart below shows the key commands that will be recognized and translated for the different types of CPUs. Following the chart
below, find the character desired to type or function to be performed, then follow the row across for the key or series of keys to
press on the keyboard currently in use.

PS/2 101 Windows SUN Keyboard

L-Ctrl L-Ctrl L-Ctrl
L-Alt L-Alt L-Alt
R-Ctrl R-Ctrl Compose
R+Alt R+Alt/Aplcn Alt-Graph
SB+Alt Logo Meta
SB+RT Arrow SB+RT Arrow Power
SB = Space Bar
L and R = Left and Right keys when two keys are marked the same on a keyboard.

SB = Space Bar

Figure 25- Keyboard key layouts

Esc

Tab

Caps Lock

Shift

Ctrl Alt

Help

Again

Stop

Undo

Props

Front

Copy

Open

Paste

Find Cut

Esc

Tab

Caps Lock

Shift

Ctrl Alt

Backspace

Enter

Shift

Alt

Ctrl

Typical Windows Keyboard

Backspace

Enter

Shift

Com-

Alt

pose

Graph

SUN Keyboard

PS/2 SUN

Extras

SB + F1 Stop (L1)
SB + F2 Again (L2)
SB + F3 Props (L3)
SB + F4 Undo (L4)
SB + F5 Front (L5)
SB + F6 Copy (L6)
SB + F7 Open (L7)
SB + F8 Paste (L8)
SB + F9 Find (L9)
SB + F10 Cut (L10)
SB + F11 Help
SB + UP Arrow Vol +
SB + DN Arrow Vol ­SB + LF Arrow Mute
SB + RT Arrow POWER

Num
Lock

Enter

Power
key

Num
Lock

Enter

Keyboard Replacement

If the keyboard is being replaced with one from the SAME PLATFORM, it can be hot-swapped without powering-down.

To change the keyboard configuration from one platform to another, simply unplug the old keyboard, plug in the new keyboard,
and power cycle the NODEMUX once.

27

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

NON-OSD TOUCH SCREEN SUPPORT

(Optional-4 and 8 port models only)

NON-OSD touch screen support allows a single touch-screen monitor, and SUN or PS/2 mouse and keyboard to
communicate directly with any PS/2 workstations connected to the switch.
The NTI ST-xU-TS includes serial cable connection ports in addition to the video and keyboard/mouse ports. The Serial ports
may be used for the data communications (DATA I/O) from a VGA multi-scan monitor with touch-screen features if the monitor
has touch-screen features. The keyboard/mouse ports may alternatively be used for the data communications (DATA I/O) if a
keyboard and mouse are present. At least one set of DATA I/O ports must be used, either the Serial ports, the Keyboard/mouse
ports, or both. If a VGA multi-scan monitor with touch-screen features is used, then a keyboard and mouse are not necessary.
If a keyboard and mouse are going to be used, then a standard VGA multi-scan monitor without touch-screen features can be
used. It is also possible to use both the monitor with touch-screen features and a keyboard with mouse.

Rear View of ST-8U-TS-R

R

NETWOR K
TECH NOLOGI ES

NTI

5VDC
2A

-

INCO RPORAT ED

CPU 8 CPU 7 CPU 6 CPU 5 CPU 4 CPU 3 CPU 2 CPU 1

+

1275 Danner Dr
Aurora, OH 44202

Tel:[phone]
Fax:[phone]

www.nti1.com

DEVICES

DAISY

OUT

DAISY

IN

S
E
R

I
A
L
8

V

I
D
E
O

8

S

S

E

E

R

R

I

I

A

A

L

L

6

7

V

V

I

I

D

D

E

E

O

O

6

7

S

S

E

E

R

R

I

I

A

A

L

L

4

5

V

V

I

I

D

D

E

E

O

O

4

5

S

S

E

E

R

R

I

I

A

A

L

L

2

V

V

I

I

D

D

E

E

O

O

2

3

Figure 26- Support present for touch screen monitor on ST-8U-TS-R

AUDIO SUPPORT

(Optional)

Audio support provides the following additional features:

• Audio signals from the same CPU that keyboard, mouse, and video signals are from can be received by the user.

• Audio inputs accept any standard line level audio (4Vp-p).

• Audio outputs are capable of driving self-powered speakers or headphones.

Audio signals are switched along with the keyboard, mouse and video signals using the buttons on the UNIMUX switch.

S

S

E

E

R

R

I

I

A

A

L

L

1

M

V

O

I

N

D

I

E

T

O

O
R

1

28

NTI NODEMUX SERIES UNIVERSAL KVM SWITCH

TROUBLESHOOTING

PROBLEM:
SOLUTION:

PROBLEM:
SOLUTION:

PROBLEM:
SOLUTION:

PROBLEM: Monitor shuts down while working with OSD menu

GENERAL NOTE: Verify that the port 1 LED (on the front panel of the KVM switch) illuminates when the power switch is
turned ON. If it doesn’t, call NTI for assistance.

Turn ON power to the NODEMUX first, then to the CPUs.

Always turn power ON in this sequence.

Keyboard Errors
Check cable connections on each CPU and the switch.
NOTE: If the cable from a CPU’s keyboard port is disconnected from the NTI Universal KVM switch while
power is ON, turn the power OFF to the CPU before plugging the cable back in.

No Video

• Check cable connections on each CPU and the switch.

• Verify that the keyboard and video cables are connected from each CPU to matching ports. After

reconnecting, the CPU may need to be re-booted in order to sense that the monitor is connected.

No Mouse Movement

• Check cable connections of mouse to keyboard

• Verify that mouse driver was loaded. (If you are unsure how to do this, contact your system

administrator.)

• Verify the Broadcast Mode is not enabled (OFF)

• Disengage or increase time setting of CPU monitor’s “sleep” mode from the BIOS and/or control panel

display settings. The CPU does not sense activity while in the OSD menu.

INDEX

Administration Mode, 11
Audio support, 28

baud rate, 21
Broadcast Mode, 15
cables needed, 6
change password, 12

Command Mode, 13
command protocol, 23
Control options, 9

Edit Mode, 16
front panel control, 9
keyboard translations, 27
Maintenance Mode, 18
materials supplied, 2

OSD control, 9

Passwords, 10

rack mounting, 4
RS232 Control, 21
Scan Mode, 15
Search Mode, 17
Security option, 9
SERTEST, 25
supported devices, 1
Switch Control Program, 25
System Access List, 13
touch-screen support, 6, 7, 19, 28
unit address, 22
User Access, 13
User Name List, 12

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at [phone] (800-RGB-TECH) or [phone] or visit our website at

http://www.networktechinc.com/return-policy.html

is required for all repairs/returns.

for information regarding repairs and/or returns. A return authorization number

Man064 Rev 9/4/08

29
