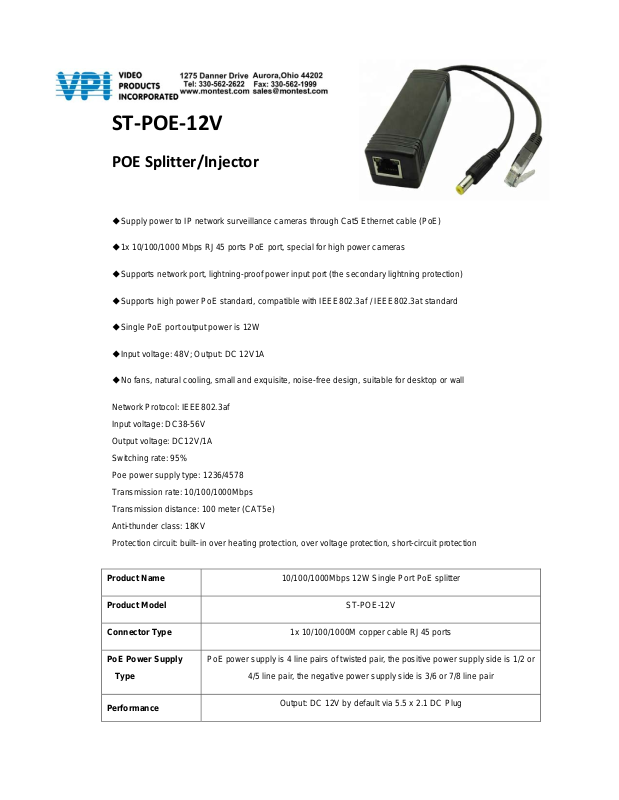

ST‐POE‐12V
POESplitter/Injector
◆ Supply power to IP network surveillance cameras through Cat5 Ethernet cable (PoE)
◆ 1x 10/100/1000 Mbps RJ45 ports PoE port, special for high power cameras
◆ Supports network port, lightn i ng -p roof power in pu t port (the seco nd a ry light n i ng prot ec tio n )
◆ Supports high power PoE standard, compatible with IEEE802.3af / IEEE802.3at sta nda rd
◆ Single PoE port output power is 12W
◆ Input voltage: 48V; Output: DC 12V1A
◆ No fans, natural cooling, small and exquisite, noise-free design, suitable for desktop or wall
Network Protocol: IEEE802.3af
Input voltage: DC38-56V
Output voltage: DC12V/1A
Switching rate: 95%
Poe power supply type: 1236/4578
Transmission rate: 10/100/100 0M bp s
Transmission distance: 100 meter (CAT5e )
Anti-thunder class: 18KV
Protection circuit: built–in over heati ng protec t i on, over volt ag e pro tect i on, sho r t- ci rcuit protec ti o n
Product Name
Product Model
Connector Type
PoE Power Suppl y
Type
PoE power supply is 4 line pairs of twisted pair , the positive power supply side is 1/2 or
4/5 line pair , the nega t ive pow e r supply side is 3/6 or 7/8 line pair
10/100/1000Mbps 12W Single Port PoE splitter
ST-POE-12V
1x 10/100/1000M copper ca ble RJ45 ports
Performance
Output: DC 12V by default via 5.5 x 2.1 DC Plug
Page 2
Specifications
Network Protocols
and Standards
Input voltage: 48V
Working Speed:10/100Mbps
MTBF: 190,000 hours
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE
802.1af DTE Power via MDI
IEEE802.3af / IEEE802.3at standard
LEDs Indicator
Dimension
Weight
Poe Standard
Power
Working Enviro nment
PoE working status
LxWxH: 90x32x28mm+210mm(line)
56g
IEEE802.3af/at
PoE Port Output Power:12W
Working Tempera ture: 0°～ 55°C, Storage Temperature: -20°～ 75°C,
Working Humidity: 10%～90%, non-condensing,
Storage humidity:10%～95%,non-condensing
