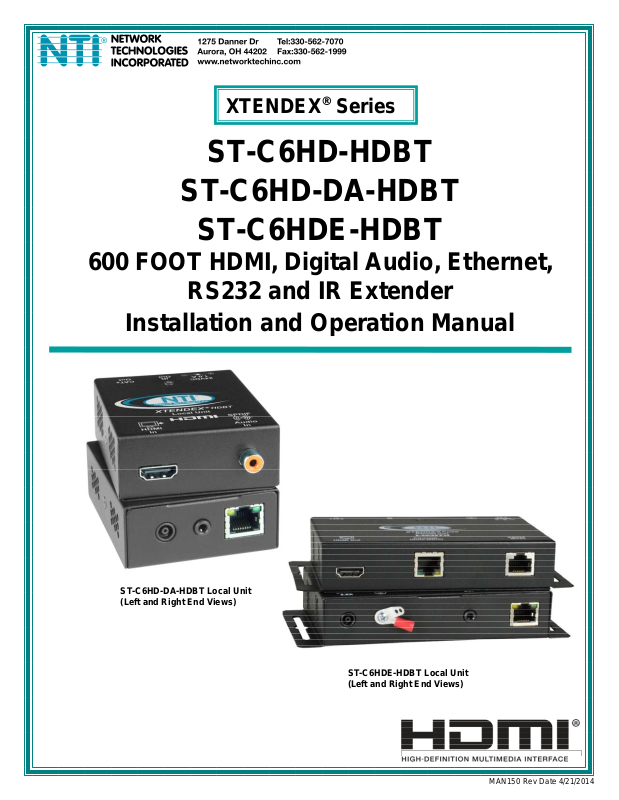

Page 1
®
XTENDEX
Series
ST-C6HD-HDBT
ST-C6HD-DA-HDBT
ST-C6HDE-HDBT
600 FOOT HDMI, Digital Audio, Ethernet,
RS232 and IR Extender
Installation and Operation Manual
ST-C6HD-DA-HDBT Local Unit
(Left and Right End Views)
ST-C6HDE-HDBT Local Unit
(Left and Right End Views)
MAN150 Rev Date 4/21/2014
Page 2
TRADEMARK
XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries.
COPYRIGHT
Copyright © 2008,2014 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.
Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products
should not be run underground, outdoors or between buildings.
WARNING: Outdoor or underground runs of CATx cable could be dangerous and will void the warranty.
i
Page 3
TABLE OF CONTENTS
Introduction......................................................................................................................................................................1
Materials..........................................................................................................................................................................2
Connectors and LEDs.....................................................................................................................................................3
Limitations .......................................................................................................................................................................4
Preparation for Installation ..............................................................................................................................................4
Installation .......................................................................................................................................................................5
Installing The Remote Unit ..........................................................................................................................................5
Installing The Local Unit ..............................................................................................................................................6
Connect the CATx Cables...........................................................................................................................................6
Plug-in and Boot Up.....................................................................................................................................................7
Infrared Control ...............................................................................................................................................................8
100BaseT + RS232 Support...........................................................................................................................................9
Technical Specifications................................................................................................................................................10
Interconnection Cable Wiring Method...........................................................................................................................11
Troubleshooting.............................................................................................................................................................12
Warranty Information.....................................................................................................................................................12
TABLE OF FIGURES
Figure 1- Connect the extended components to the Remote Unit.....................................................................................................5
Figure 2- Installation with DVI-only monitor .......................................................................................................................................5
Figure 3- Connect the XTENDEX Local Unit to the source................................................................................................................6
Figure 4- Connect CATx cable...........................................................................................................................................................6
Figure 5- Connect the AC adapter to either the Remote Unit or the Local Unit .................................................................................7
Figure 6- Connect IR Emitter and Receiver.......................................................................................................................................8
Figure 7- Connections for Ethernet and RS232 Support....................................................................................................................9

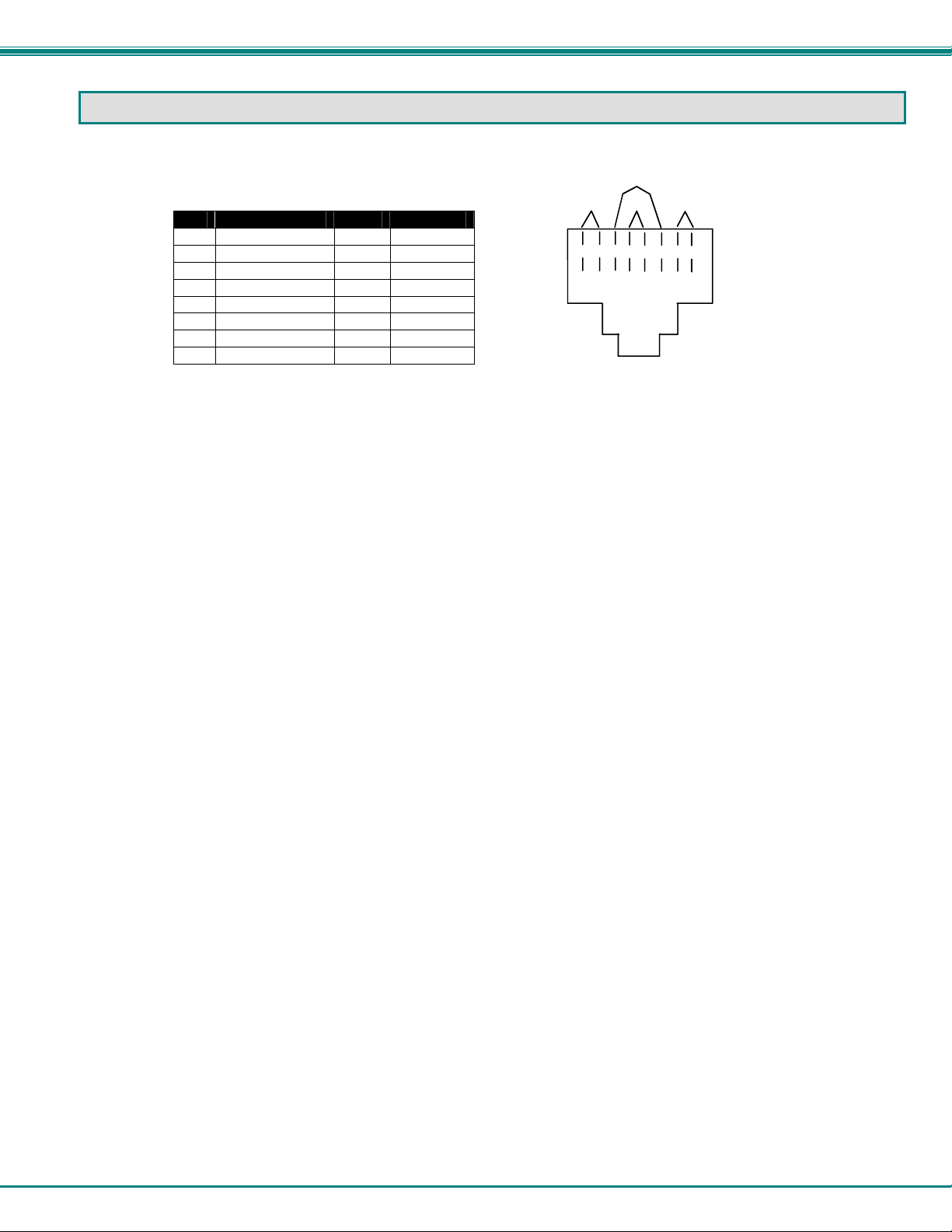

Figure 8- View looking into RJ45 female..........................................................................................................................................11
ii
Page 4
NTI XTENDEX 600 Foot HDMI and IR Extender
INTRODUCTION
The XTENDEX Series ST-C6HD-HDBT HDMI HDBase-T Extender transmits uncompressed digital HDMI signal, IR, and optional
SPDIF digital audio up to 600 feet over a single CAT6a/7 23AWG cable (or up to 450 feet with solid CAT5e/6) using HDBase-T
technology. Each video extender consists of a local unit that connects to an HDMI source and IR emitter; and a remote unit that
connects to an HDMI display, IR receiver, and optional SPDIF speakers.
The XTENDEX Series Extender is extremely simple to install and has been thoroughly tested to insure reliable performance.
Through the use of CAT5e/6/6a/7 (CATx) cable it is possible to economically increase the flexibility of an entertainme nt system.
Here are some of the features and ways this can benefit you:
• Transmits an uncompressed high speed HDMI signal over one CATx cable.
• Supports HDTV resolutions to 1080p and video resolutions to 1920x1200.
o Extend 1080p up to 5,600 feet when combined with NTI's ST-FOHDMI-LC HDMI Extender via Fiber Optic
Cable.
• HDMI features supported:
o 1920x1200 resolution
o x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
o Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
o Bandwidth up to 154 MHz (3.76Gbps)
o Support for CEC (consumer electronic control) compatible devices.
o Lip Sync
• HDCP compliant.
• Supports the DDC2B protocol.
• High quality, rugged steel construction with durable powder coat finish.
• Only one power supply is necessary. (Power supply can be connected to either the local or remote unit.)
• Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
Options:
Available with optional SPDIF Digital Audio support. (order ST-C6HD-DA-HDBT)
Available with Ethernet port for 100BaseT extension to support a Local or Wide Area Network (LAN/WAN) connection + an
RS232 port for serial devices such as Touch Screen monitors (order ST-C6HDE-HDBT).
Available with “12VDC 2A” power rating (order ST-C6HD-HDBT-12VNPS)- 2.1 x 5.5mm power jack, AC adapter sold separately
1
Page 5
NTI XTENDEX 600 Foot HDMI and IR Extender
MATERIALS
Materials Included with ST-C6HD-HDBT kit:
9 NTI XTENDEX Local Unit
9 NTI XTENDEX Remote Unit
9 1-HD-3-MM 3 foot male-to-male HDMI video cable
9 1-RCA-3-MM 3 foot male-to-male RCA cable (ST-C6HD-DA-HDBT only)
9 1-100VAC to 240VAC at 50 or 60Hz-24VDC/1.0A AC Adapter (NTI#PS4202) (NOT included with ST-C6HD-HDBT-12VNPS)
9 1- Power Cord- country specific (NOT included with ST-C6HD-HDBT-12VNPS)
9 3 Foot IR-EMITTER (IR-EMTR-3)
9 3 Foot IR-RECEIVER (IR-RCVR-3)
9 2.1x.5.5mm DC Plug with 36” Lead (ST-C6HD-HDBT-12VNPS only)
9 This manual
Additional Materials Included with ST-C6HDE-HDBT kit:
9 CT6182 DB9 Female-to-RJ45 Female adapter
9 CT6488 DB9 Male-to-RJ45 Female adapter
9 2-CB4352 5 foot RJ45-to-RJ45 CAT5 patch cable

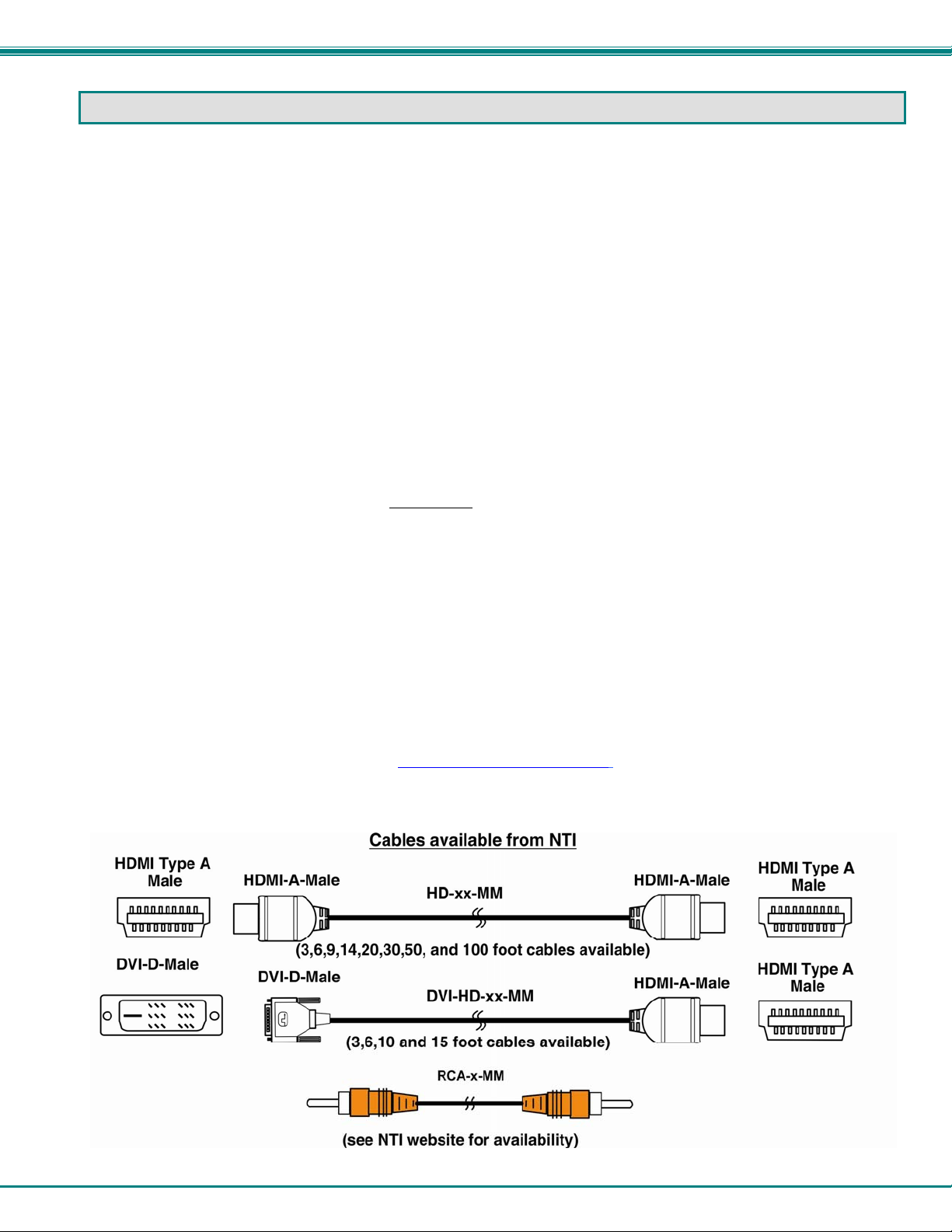

Additional materials may be required but are not supplied:
¾ CAT5e solid UTP ; 6/6a solid UTP; CAT6a solid UTP 23AWG; /CAT7 solid STP 23AWG (CATx) twisted-pair cables
terminated with RJ45 connectors wired straight thru- pin 1 to pin 1, etc. (see page 11 for proper EIA/TIA 568 B wiring method)
¾ HDMI male-male cable to connect a HDMI source or display (Order NTI # HD-xx-MM where xx=3, 6, 9,14,20,30, 50 and 100
foot cable).
¾ DVI-D male to HDMI-A male single link cable to connect a DVI source or display (Order NTI # DVI-HD-xx-MM where xx=3, 6,
10, or 15 foot cable)
¾ RCA male-male cable to connect the SPDIF digital audio to a audio output device (Order NTI # RCA-x-MM – see website for
available lengths)
Always use the shortest possible cable for best performance.
Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-RGB-TECH (800-742-8324) in US & Canada
or 330-562-7070 (Worldwide) or at our website at http://www.networktechinc.com
and we will be happy to be of assistance.
2
Page 6
NTI XTENDEX 600 Foot HDMI and IR Extender

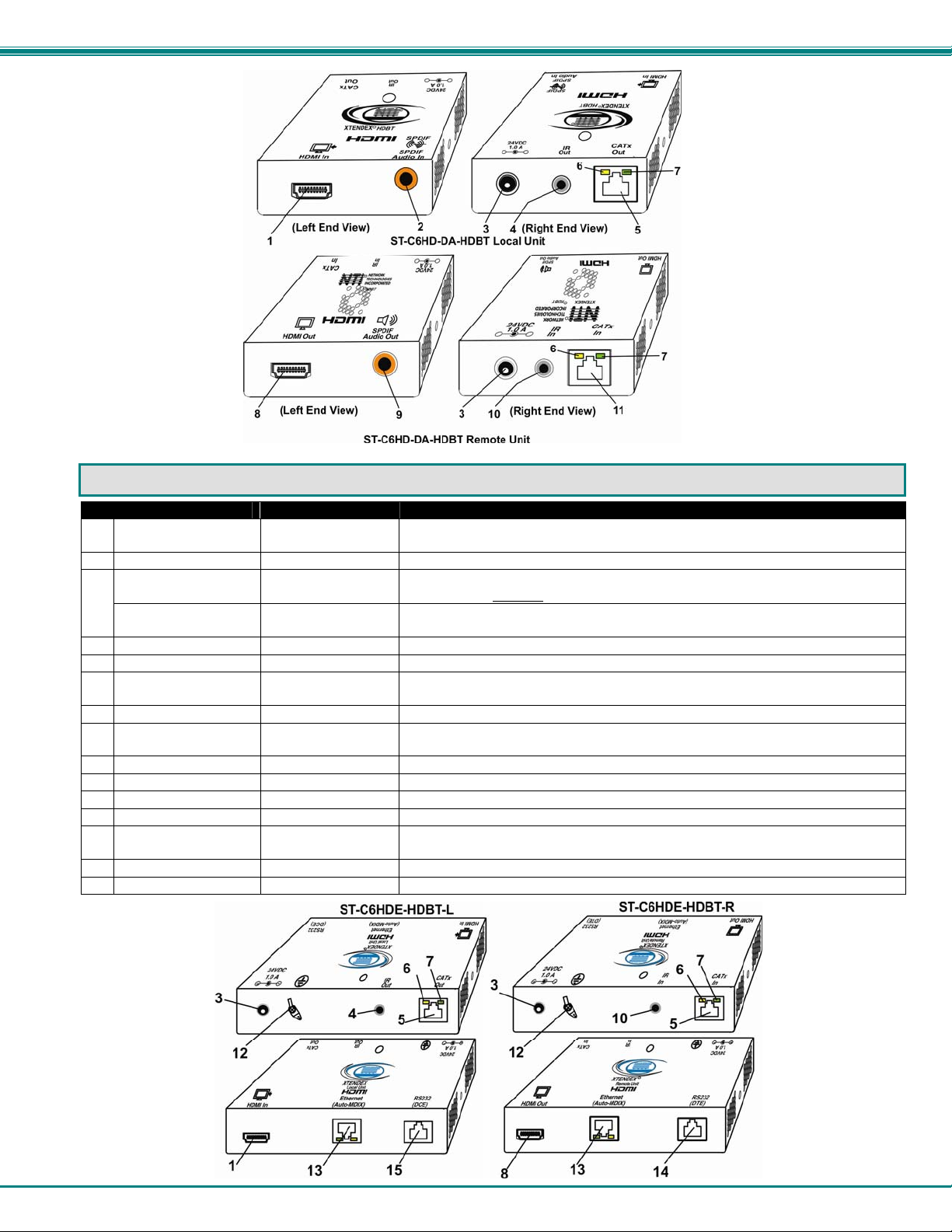

CONNECTORS AND LEDS
#
LABEL CONNECTOR DESCRIPTION
1 HDMI In
2 SPDIF Audio In
3 24VDC- 1.0A
12VDC- 2.0A
4 IR Out
5 CATx Out
6 Yellow LED -- traffic indicator- illuminates when there is communication between the local
7 Green LED -- power indicator- illuminates when power has been supplied to the unit
8 HDMI Out
9 SPDIF Audio Out
10 IR In
11 CATx In
12 Ground
13 Ethernet
14 RS232 (DTE)
15 RS232 (DCE)
HDMI female video
connector
RCA Jack
1.0mm Power Jack connection jack for the AC adapter (only the Local or the Remote Unit needs to
2.1X5.5mm Power
Jack
3.5mm Stereo Jack for connecting the IR Emitter
RJ45 connector for connecting the CAT5e/6/6a/7 cable between the Local and Remote units
HDMI female video
connector
RCA Jack
3.5mm Stereo Jack for connecting the IR Receiver
RJ45 connector for connecting the CAT5e/6/6a/7 cable between the Local and Remote units
Ground terminal for connecting external ground wire
RJ45 connector for connecting cable to either the LAN or an extended Ethernet connected
RJ45 connector for connecting serial cable to touchscreen Monitor
RJ45 connector for connecting serial cable from CPU
for connecting an HDMI cable between the Local Unit and the video source
For connecting SPDIF digital audio source (ST-C6HD-DA-HDBT only)
be powered, not both) (Not applicable to ST-C6HD-HDBT-12VNPS)
connection jack for the 12V AC adapter (only the Local Unit) (ST-C6HDHDBT-12VNPS model only)
and remote units.
for connecting the remote display device
For connecting SPDIF digital audio device (ST-C6HD-DA-HDBT only)
device (model with 100BaseT support only)
3
Page 7
NTI XTENDEX 600 Foot HDMI and IR Extender
LIMITATIONS
• The use of CAT5e or of any stranded cabling will reduce the maximum distance and resolution.
PREPARATION FOR INSTALLATION
• Locations should be chosen for the monitor that also has space to connect the Remote unit within the distance provided by
the cables. If extension cables are needed, contact NTI for the cables required.
• The CATx cables must be run to the locations where the Remote and Local units will be connected. Be careful to route the
cables away from any sources of magnetic fields or electrical interference that might reduce the quality of the video signal
(i.e. AC motors, welding equipment, fluorescent lighting, etc.).
• All cables should be installed in such a way that they do not cause stress on their connections to the equipment. Extended
lengths of cable hanging from a connection may interfere with the quality of that connection. Secure cables as needed to
minimize this.
• Properly shut down and disconnect the power from the video source and monitor to be separated. If other equipment is
involved whose connections are being interrupted, be sure to refer to the instruction manuals for that equipment for proper
disconnection and reconnection procedures before proceeding.
• Be very careful not to obstruct the air vents on the Remote Unit in its installed location.

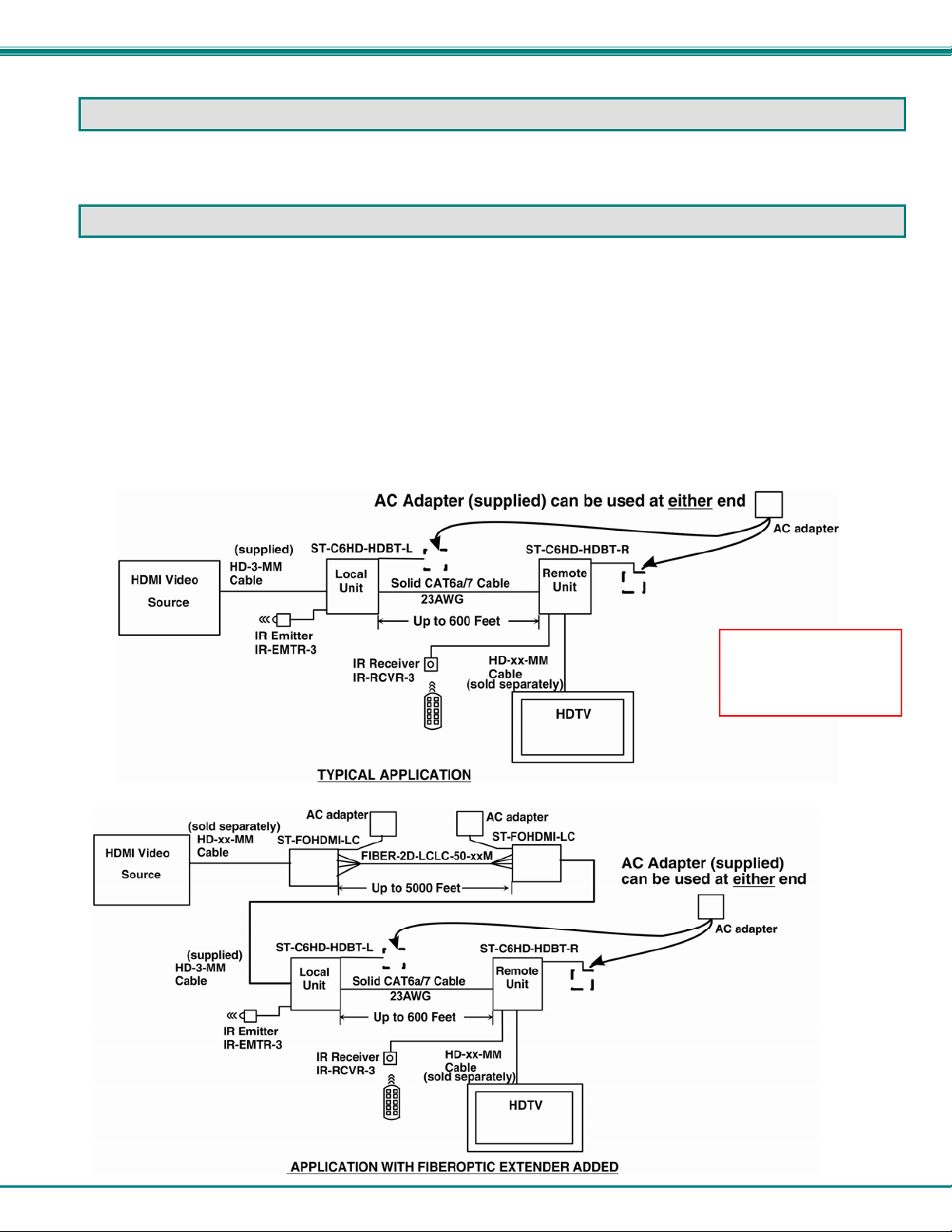

12V model is powered
at the Local Unit only.
Power supply sold
separately.
4
Page 8
NTI XTENDEX 600 Foot HDMI and IR Extender
INSTALLATION
Installing The Remote Unit
1. Position the Remote Unit such that the CATx cable, the monitor cable(s), and audio cables (if applicable) can each
reach the Remote Unit without putting strain on the cables.
2. Connect a HD-xx-MM (or DVI-HD-xx-MM cable depending upon what connector your display will acc ept) to the
female HDMI video connector labeled "HDMI Out" on the Remote Unit.
3. Connect the RCA cable (optional) between the audio device and the “SPDIF Audio Out” on the Remote Unit.
Note: The audio signal will be present at the “SPDIF Audio Out” connector if an audio source is connected to the “SPDIF
Audio In” connector on the Local Unit.
Note: Be very careful that the installed location does not obstruct the air vents in Remote Unit case.

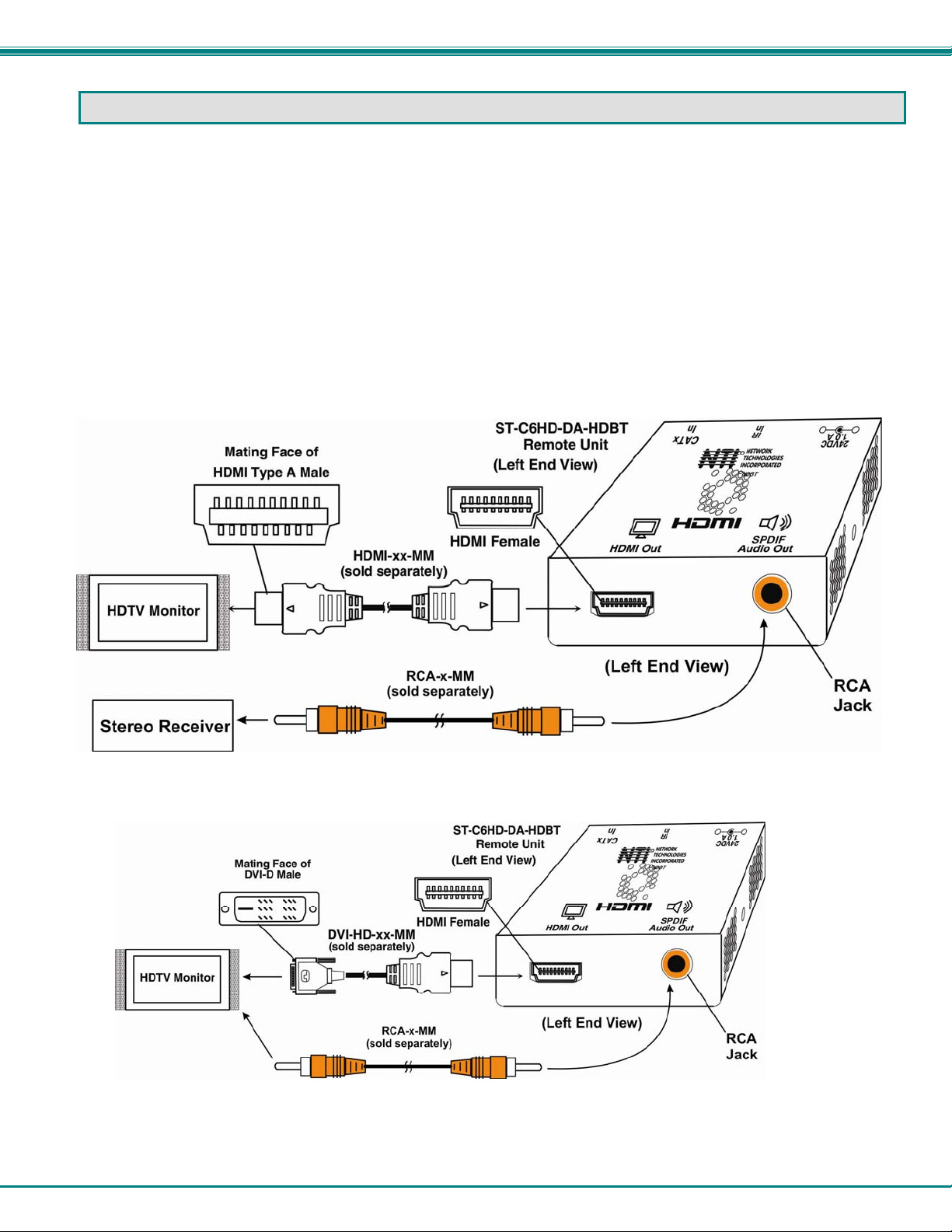

Figure 1- Connect the extended components to the Remote Unit
Figure 2- Installation with DVI-only monitor
5
Page 9
NTI XTENDEX 600 Foot HDMI and IR Extender
Installing The Local Unit
1. Connect an HD-3-MM (supplied) or DVI-HD-xx-MM cable (page 2) between the video source and the "HDMI In" connector on
the Local Unit.
2. Con nect a RCA-3-MM (supplied) between an audio out port on the audio source and the “SPDIF Audio In” connector on the
Local Unit (model ST-C6HD-DA-HDBT only).

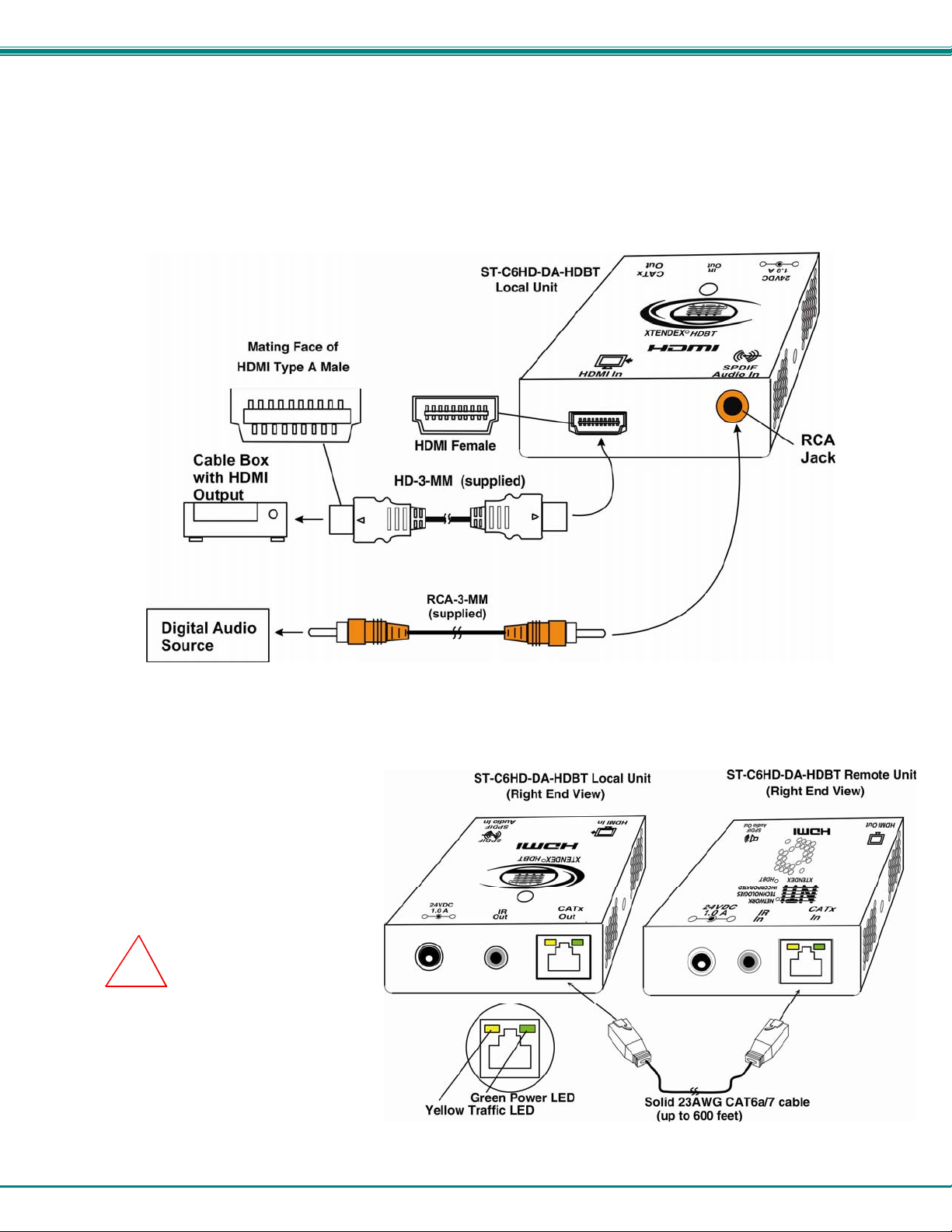

Figure 3- Connect the XTENDEX Local Unit to the source
Connect the CATx Cables
Connect the CATx cable between the
“CATx” ports on the Local and Remote Unit.
(See Figure 4) When properly inserted the
cable ends should snap into place.
!
WARNING: Never connect
the XTENDEX to an Ethernet card,
Ethernet router, hub or switch or other
Ethernet RJ45 connector of an Ethernet
device. Damage to devices connected
to the Ethernet may result.
Figure 4- Connect CATx cable
6
Page 10
NTI XTENDEX 600 Foot HDMI and IR Extender
Plug-in and Boot Up
1. Plug the power cord from the monitor into the power outlet.
2.
Connect an AC adapter power connector to the 24VDC port on either the Remote Unit or the Local Unit. Plug the AC
adapter into a power outlet. The green LED on the RJ45 connector of both the Remote and Local Units should illuminate,
indicating that a proper power connection has been made to them. (See Figure 5)
3. Turn ON the video source and monitor. The yellow LED on both the Local and Remote Units should illuminate. The video
source and monitor should each react as if directly connected to each other.
NOTE: The ST-C6HD-HDBT-12VNPS is powered by a 12VDC 2A power supply (sold separately) and at the Local Unit
only. The Remote Unit is powered by the Local Unit through the CATx cable.
The AC adapter can be
connected to either
Local Unit OR the
Remote Unit to make the
XTENDEX function
the

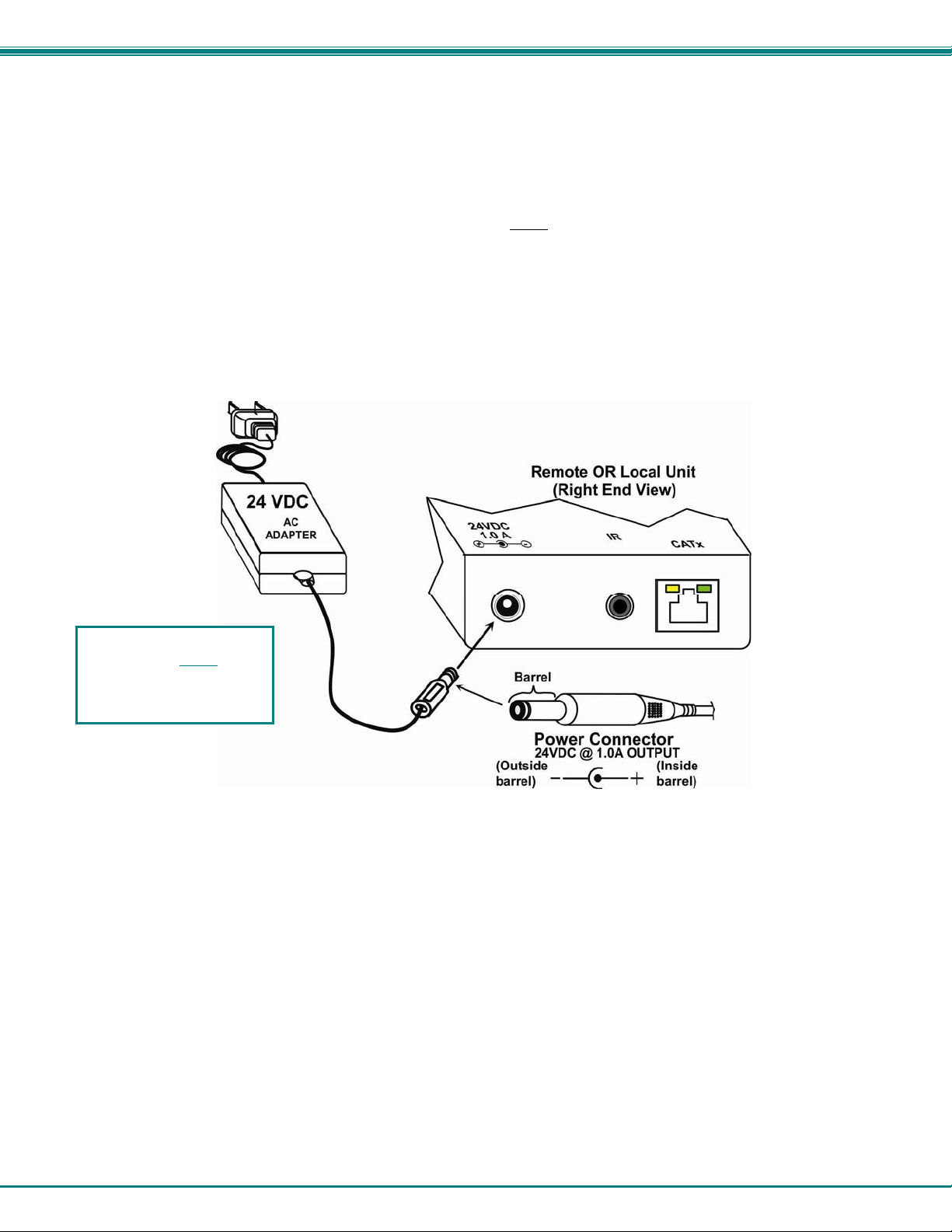

Figure 5- Connect the AC adapter to either the Remote Unit or the Local Unit
7
Page 11
NTI XTENDEX 600 Foot HDMI and IR Extender

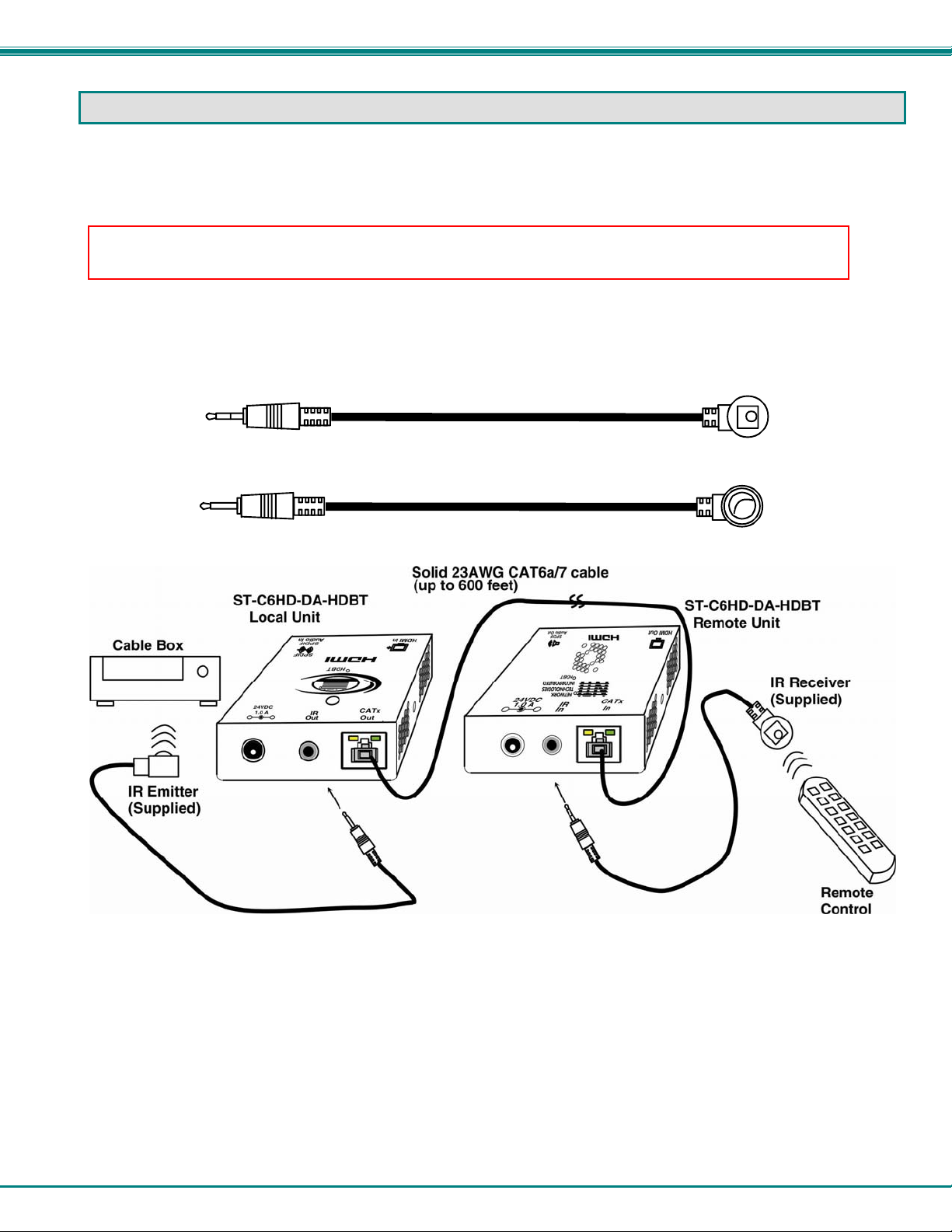

INFRARED CONTROL
The XTENDEX includes ports for connecting an infrared emitter and receiver (included) to work in conjunction with the IR remote
control used to operate the signal source. Connect the receiver to the “IR IN” port on the Remote Unit and the emitter to the “IR
OUT” port on the Local unit. Position the end of the receiver such that the signal from the remote control can easily reach the IR
sensor. Position the end of the emitter such that the extended signal can be sent to the signal source.
Note: The IR Emitter and Receiver work within a frequency range of 30-50kHz. Check the
specifications for the device you are extending to make sure the XTENDEX will work with it.
3.5MM Stereo Plug
3.5MM Mono Plug
IR Receiver
IR-RCVR-3
IR Emitter
IR-EMTR-3
Figure 6- Connect IR Emitter and Receiver
8
Page 12
NTI XTENDEX 600 Foot HDMI and IR Extender
100BASET + RS232 SUPPORT
If you have purchased the STC6HDE-HDBT, then your unit includes additional support for 100BaseT and RS232 extension.
With the 100BaseT support option, the “Ethernet Port” can be used to extend a Local or Wide Area Network (LAN/WAN)
connection. The Local or Remote unit can be used to connect a modem, Blu-Ray player, router or switch or a network device
(PC, printer, hub etc) If the network device is connected at the Local Unit, then the LAN/WAN connection must be at the Remote
Unit, and visa versa.

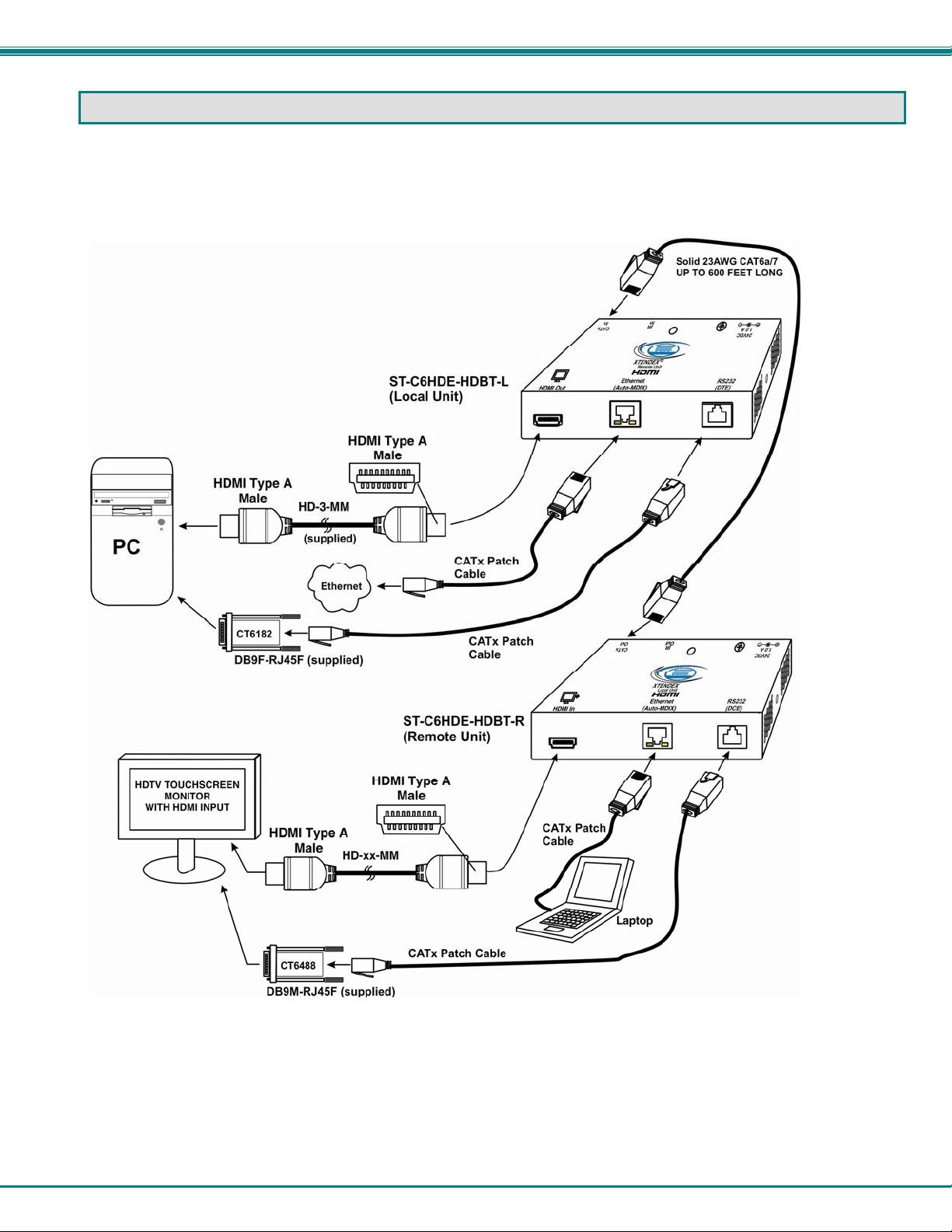

Figure 7- Connections for Ethernet and RS232 Support
Additionally, RS232 extension provides support for serial device communication, like touchscreen monitors as shown in the
figure above.
• Connect the DB9F to RJ45 adapter (supplied) to the CPU and a CATx patch cable between the adapter and the “RS232”
port on the Local Unit.
• Connect the DB9M to RJ45 adapter (supplied) to the monitor and a CATx patch cable between the adapter and the
“RS232” port on the Remote Unit.
9
Page 13
NTI XTENDEX 600 Foot HDMI and IR Extender
TECHNICAL SPECIFICATIONS
Video
Video Compatibility 1900x1200 resolutions/ HDTV resolution up to 1080p @60Hz
Video Connectors HDMI Type A Female
Input Video Signal TMDS
Bandwidth 154 MHz (3.76Gbps)
HDMI Version HDMI 1.2
DVI Support DVI 1.0
DDC Support DDC2b
HDCP Version HDCP 1.2
Audio (where supported)
Audio Format LPCM,Dolby Digital (AC3)(Plus),DTS,DSD, Dolby TrueHD,DTS-HD Master Audio
IR
Input/Output 3.5mm Stereo Jack
Signal Type TTL, 0-5VDC
Input Impedance 1.5 kohm
Output Impedance 33 ohm
Maximum Input/Output Level 5.0 Vp-p
Center Carrier Frequency 36kHz
Frequency Range 30-50kHz
Maximum Distance (from receiver) 10 feet, straight; 5 feet at 45 degree angle
Ethernet (where supported)
Input/Output RJ45 Female
Speed 100BaseT
RS232 (where supported)
Input/Output RJ45 Female
General
Interconnect Cable CAT5e solid UTP; CAT6/6a Solid UTP; CAT7 Solid STP EIA/TIA 568 B wiring with
CATx Cable Range 450 ft maximum (with Solid CAT5e/6 patch cable)
Operating Temperature 0-50º C
Operating Humidity Range 5 to 90% non-condensing RH
Power
Enclosure type Electro-galvanized steel black powder coated
Size (In.) WxDxH 2.54x3.08x1.08 (ST-C6HD-(DA)-HDBT)
Compliance Certifications CE, RoHS
male RJ45 connectors
600 ft maximum (with Solid CAT6a/7 23AWG cable)
ST-C6HD(-DA)-HDBT- 100V to 240VAC at 50 or 60Hz-24VDC/1.0A via AC Adapter
(Included) (for Remote or Local, not both)
ST-C6HD-HDBT-12VNPS- 12VDC/ 2.0A via AC Adapter (sold separately) (Local Unit
only)
6.06x3.05x1.08 (ST-C6HDE-HDBT only)
10
Page 14
NTI XTENDEX 600 Foot HDMI and IR Extender
INTERCONNECTION CABLE WIRING METHOD
The CATx connection cables between the Remote and Local are terminated with RJ45 connectors and must be wired according
to the EIA/TIA 568 B industry standard. Wiring is per the table and drawing below.
Pin Wire Color Pair Function
1 White/Orange 2 T
2 Orange 2 R
3 White/Green 3 T
4 Blue 1 R
5 White/Blue 1 T
T
1
+
6 Green 3 R
7 White/Brown 4 T
8 Brown 4 R
Figure 8- View looking into RJ45 female
Pair 3
Pair 2 Pair 1
T
R
R
3
2
4
-
+
-
Pair 4
T
5
+
R
R
T
8
6
7
+
-
-
11
Page 15
NTI XTENDEX 600 Foot HDMI and IR Extender
TROUBLESHOOTING
Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. W e
make every effort to insure trouble-free installation and operation of our products. If problems are experienced while i nstalling this
product, please look over the troubleshooting chart below to see if perhaps we can answer any questio ns that arise. If the
answer is not found in the chart, a solution may be found in the knowledgebase on our website at
http://information.networktechinc.com/jive/kbindex.jspa or please call us directly at (800) 742-8324 (800-RGB-TECH) or (330)
562-7070 and we will be happy to assist in any way we can.
Problem Cause Solution
Power LED does not
illuminate
Power LED illuminates
on one end, and not the
other
No Video on monitor
Video Picture is noisy
Monitor flashes or goes
blank for a second or two
• Power supply is not connected or
plugged-in.
• CATx cable not properly
connected
• One or more video cables is loose
or disconnected.
• No power to Remote Unit.
• CATx cable is not connected.
• CATx cable is too long
• HDMI/DVI cable is too long
• All Video Cables are not firmly
seated.
• CATx /HDMI/DVI cable is too long
• The CATx cable is not properly
connected.
• CATx cable is poor quality for the
length of cable used
• CATx cable is installed near noisy
equipment
• Electrical power system is very
noisy, particularly the ground.
• The CATx cable is not properly
connected.
• CATx cable is too long
• HDMI/DVI cable is too long
• Make sure outlet is live and AC adapter is plugged-in.
• Make sure 24VDC jack is fully connected
• Check the CATx cable connection at both ends.
• Check all video cable connections
• Make sure “Power” LED is illuminated on local and
remote. If not, see solutions for first problem above.
• With all the cables properly connected, power cycle the
video/audio source. Make sure “Traffic” LED on local
and remote is illuminated.
• Make sure they are snapped-in properly and completely
and reboot.
• Switch to shorter cable or lower resolution
• Check all connections. Make sure all cables are fully
seated.
• Switch to shorter cable or lower resolution
• Check cable connections. Make sure they are snapped-
in properly and completely.
• Install a higher quality CATx cable.
• Relocate run of CATx cable away from other electrical
equipment
• Make sure the interconnection cable is not near any
power lines.
• Check cable connections. Make sure ends are snappedin properly and completely.
• Switch to shorter cable or lower resolution (maximum
length is 600 feet).
• Switch to shorter cable
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at
http://www.networktechinc.com/return-policy.html
is required for all repairs/returns.
Manual 150 Rev. 4/21/14
for information regarding repairs and/or returns. A return authorization number
12
Loading...
