SM-8X8-C64KR-POE-HDBT
4K2K 8x8 HDMI Matrix over CAT5e/6/7
Operation Manual
Operation Manual
Page 2
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 20/05/14 Preliminary Release
RDV2 19/09/14 Add RS-232 Command
Page 3
CONTENTS
1. Introduction ....................................................................1
2. Applications
3. Package Contents
4. System Requirements
5. Features
6. Operation Controls and Functions
6.1 Front Panel
6.2 Rear Panel
6.3 Side Panel
6.4 Remote Control
6.5 IR Cable Pin Assignment
6.6 RS-232 Pin Assignment
6.7 RS-232 & Telnet Commands

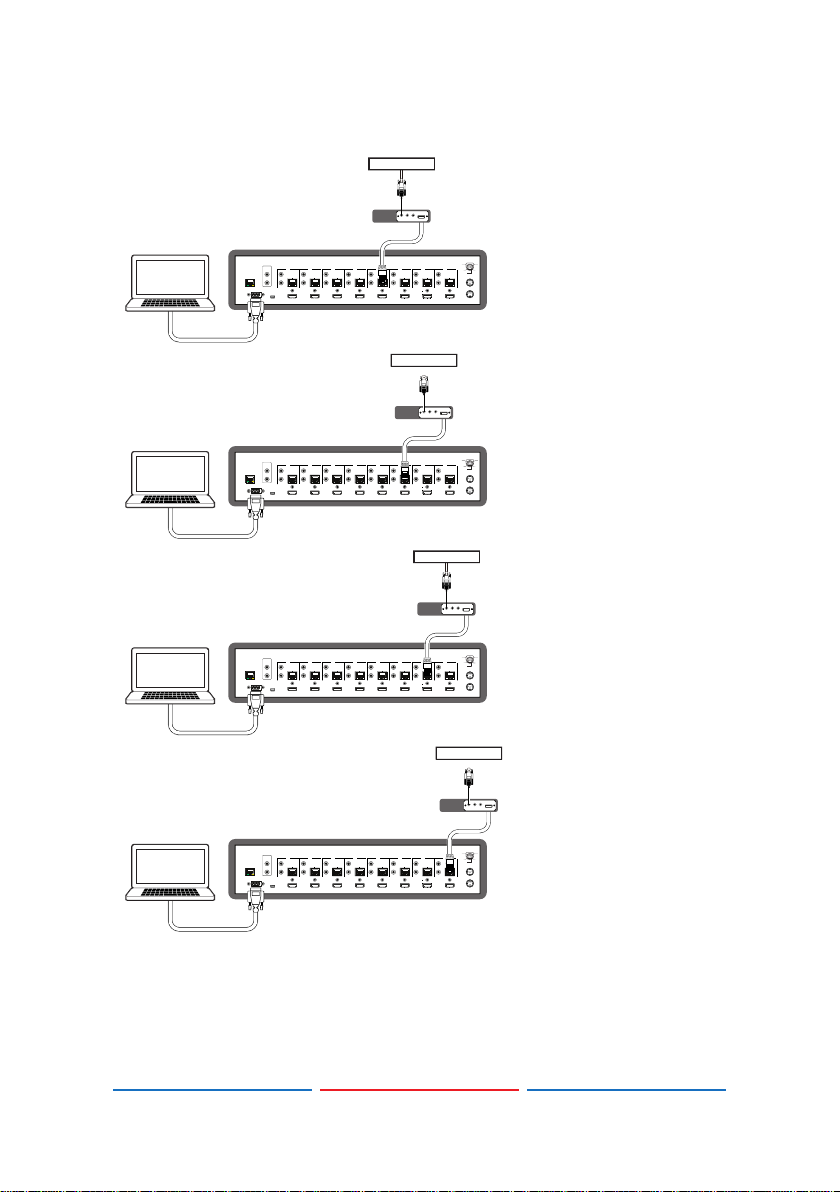

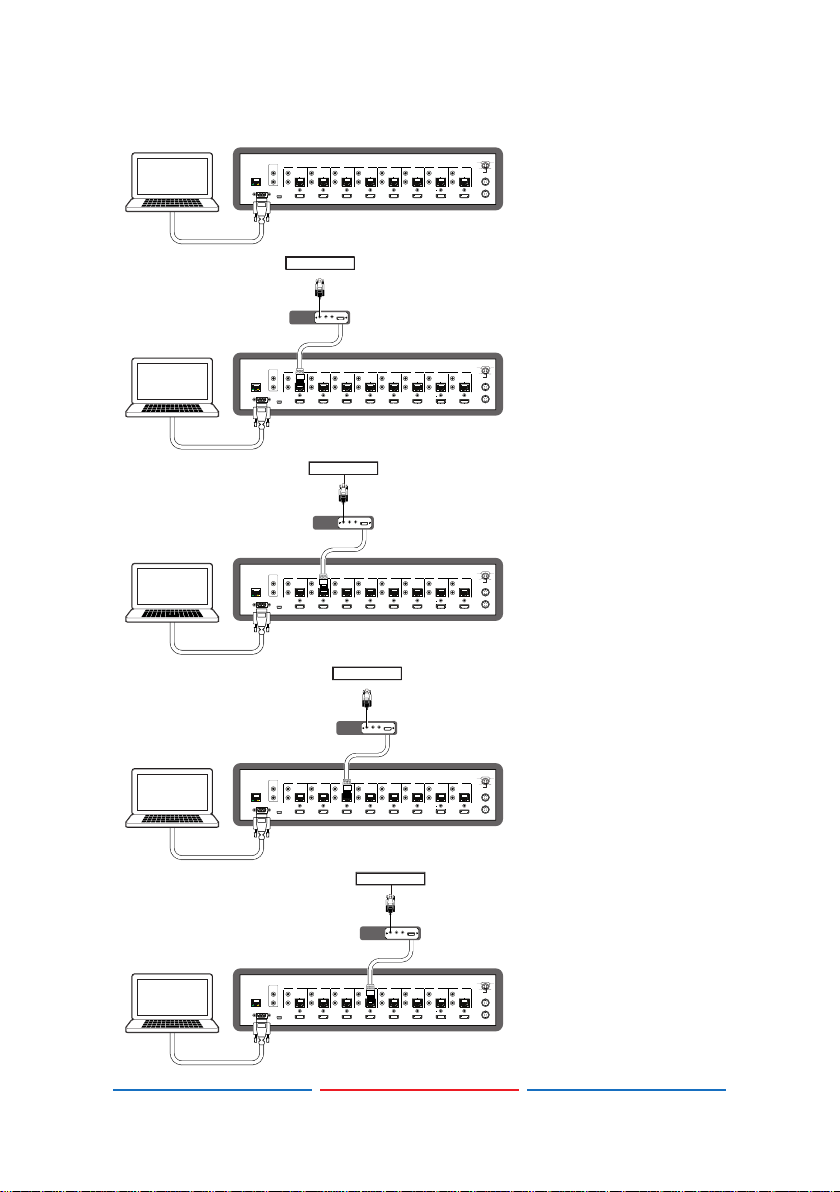

6.8 RS-232 UART Command Illustration Diagram

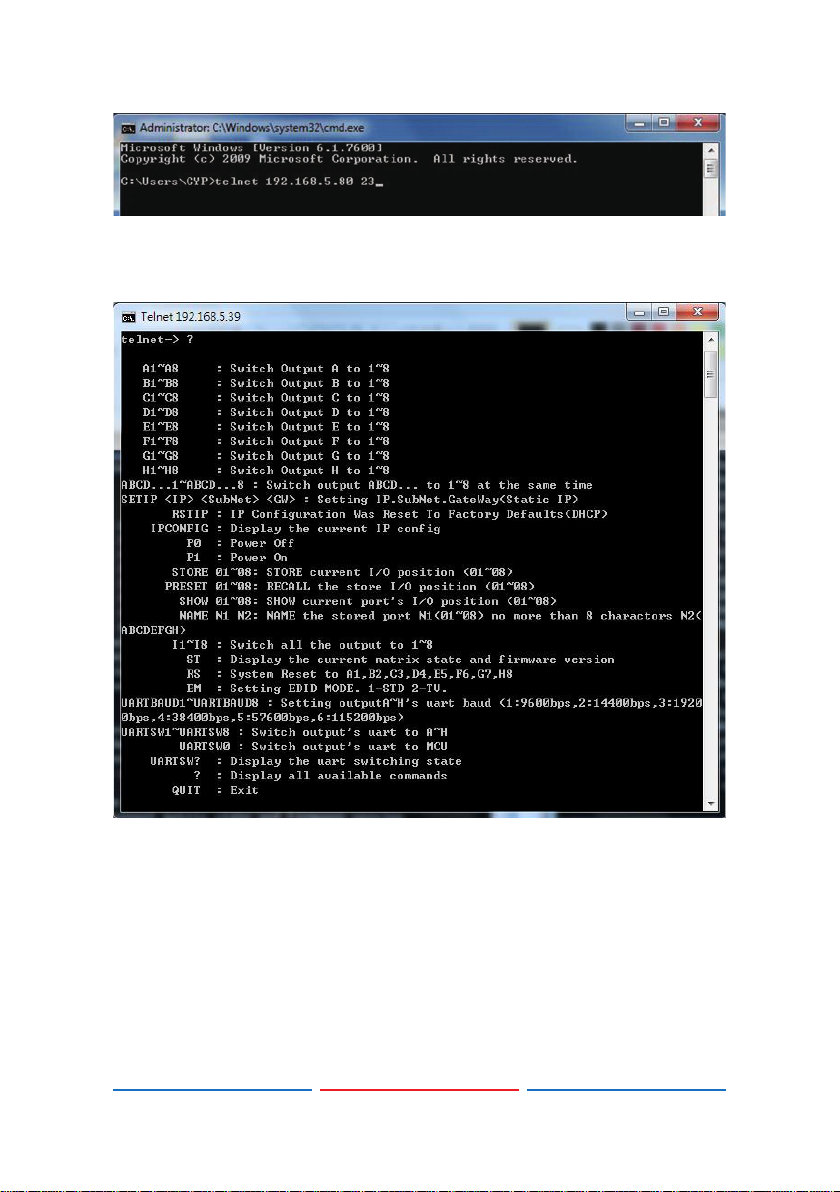

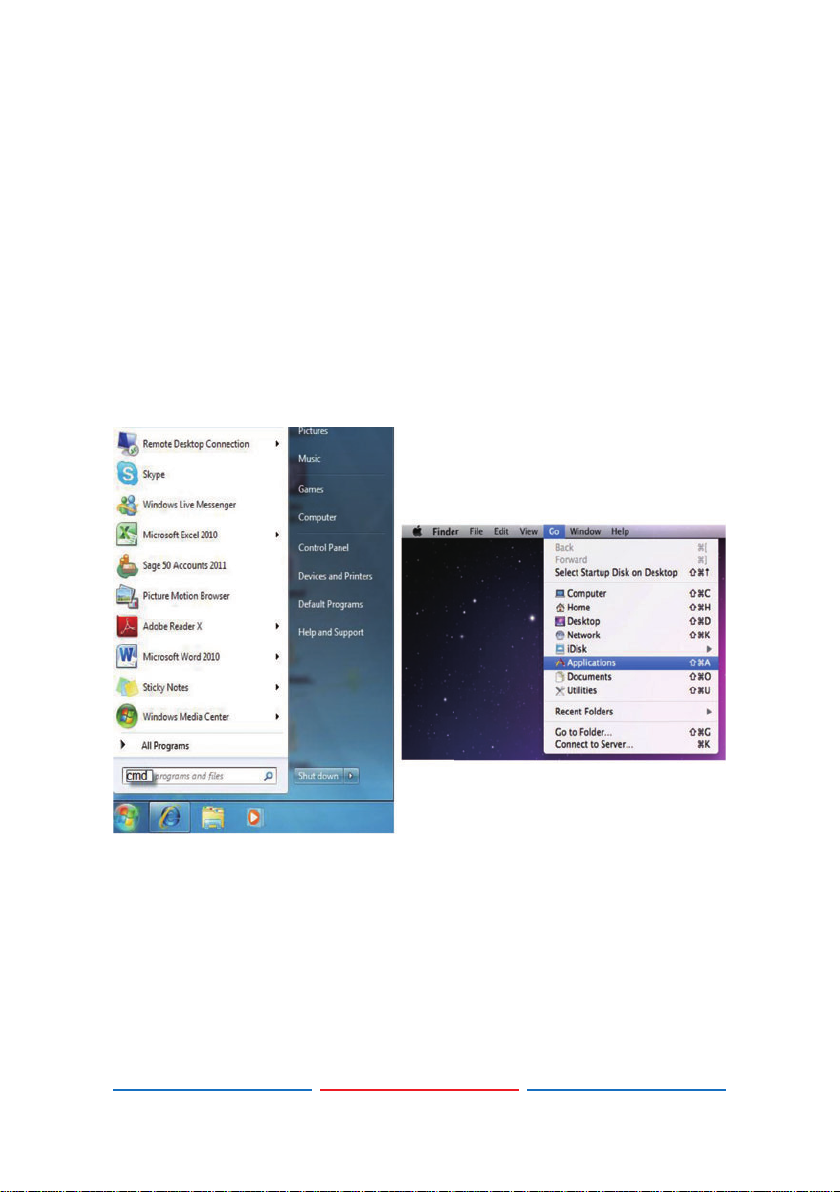

6.9 Telnet Control

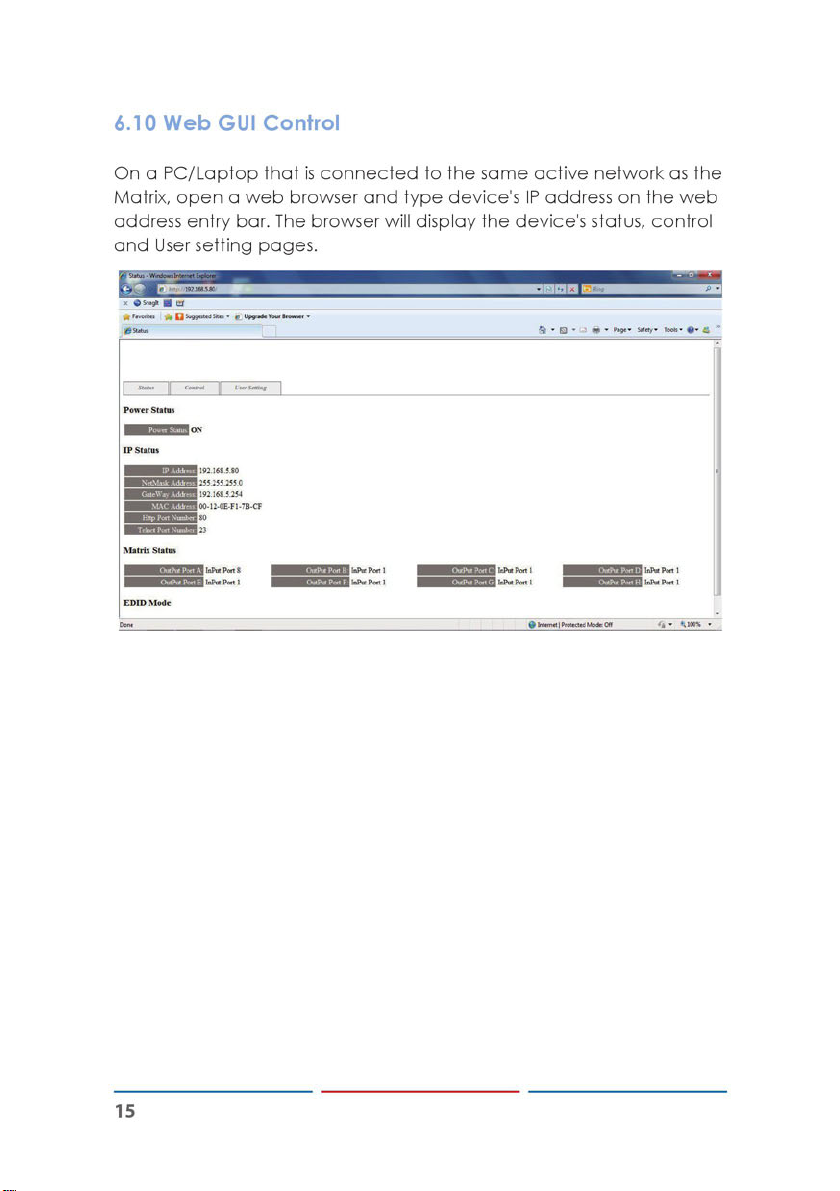

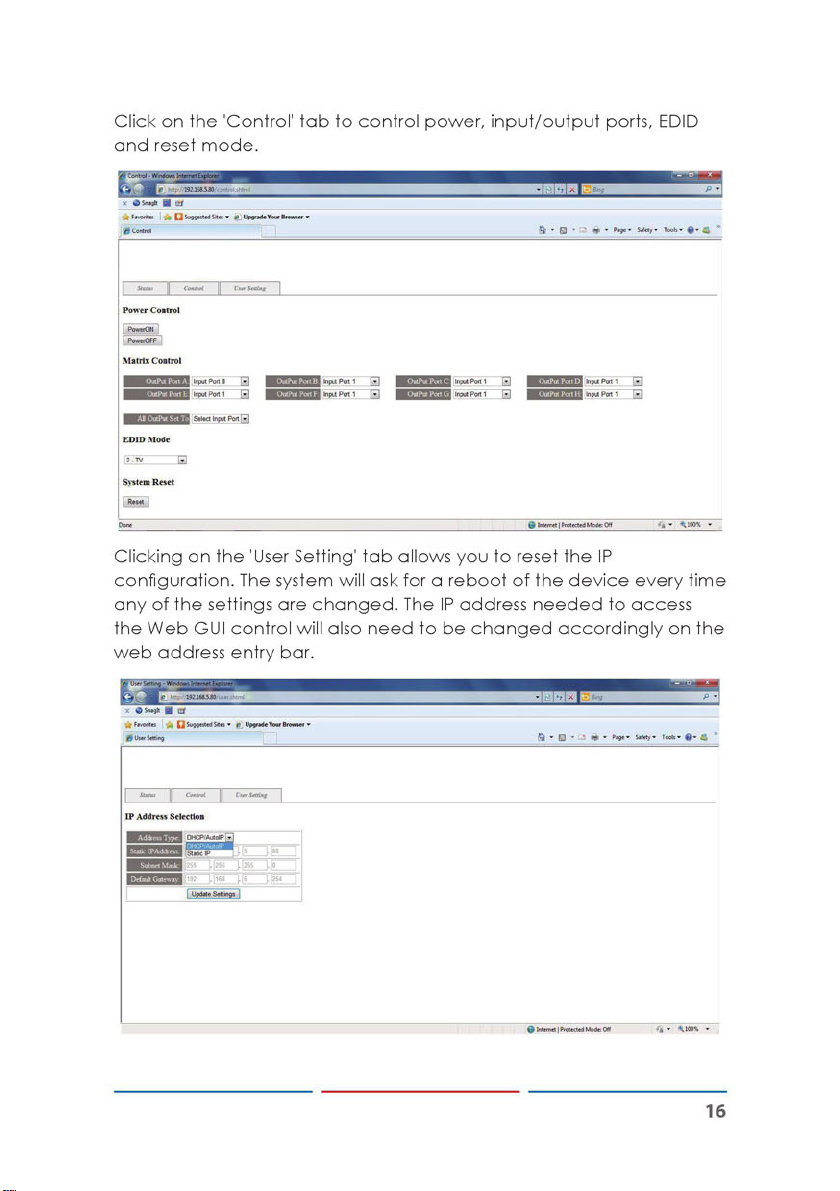

6.10 Web GUI Control

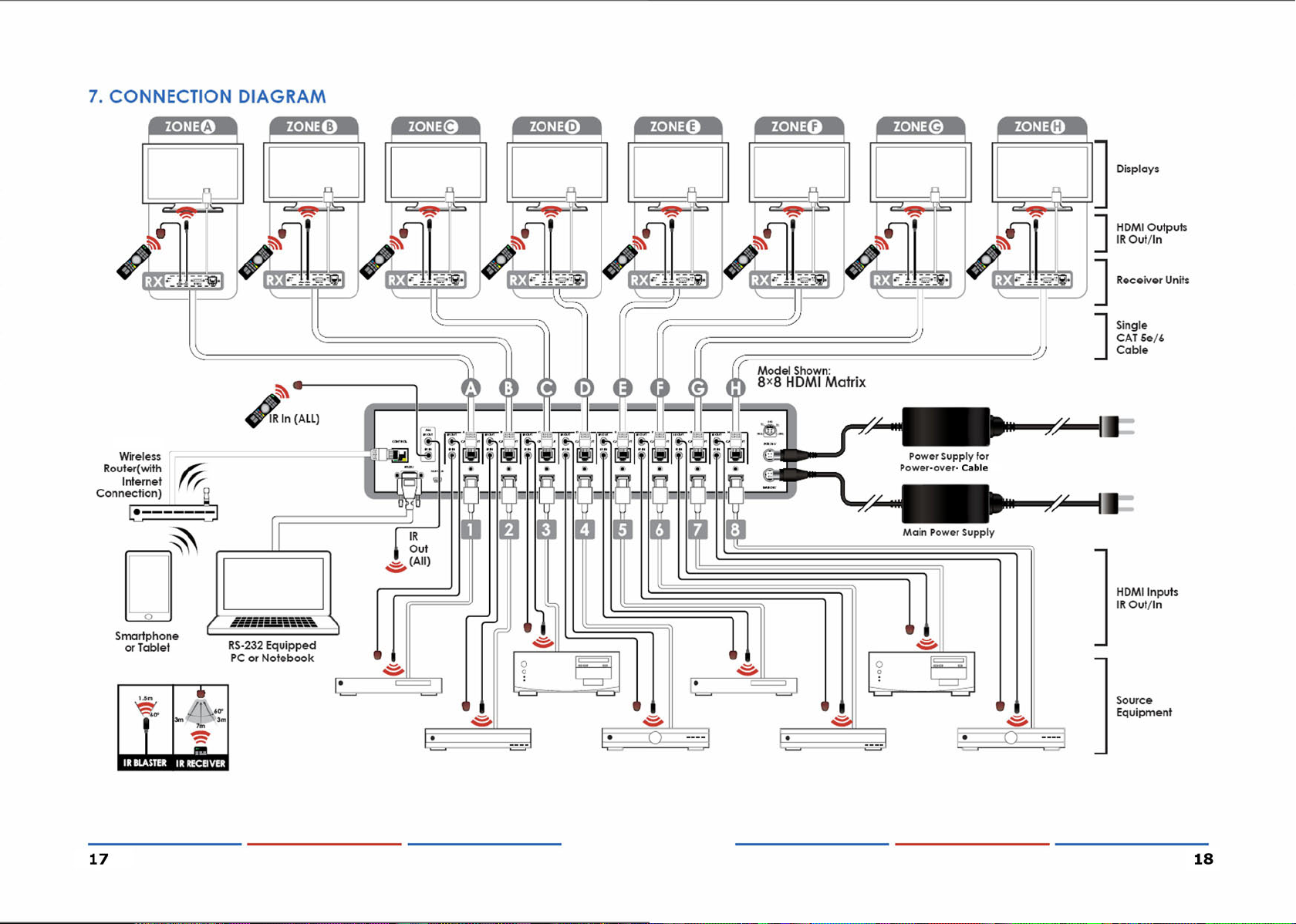

7. Connection Diagram
8. Specications
8.1 CAT5e/6/7 Cable Specication

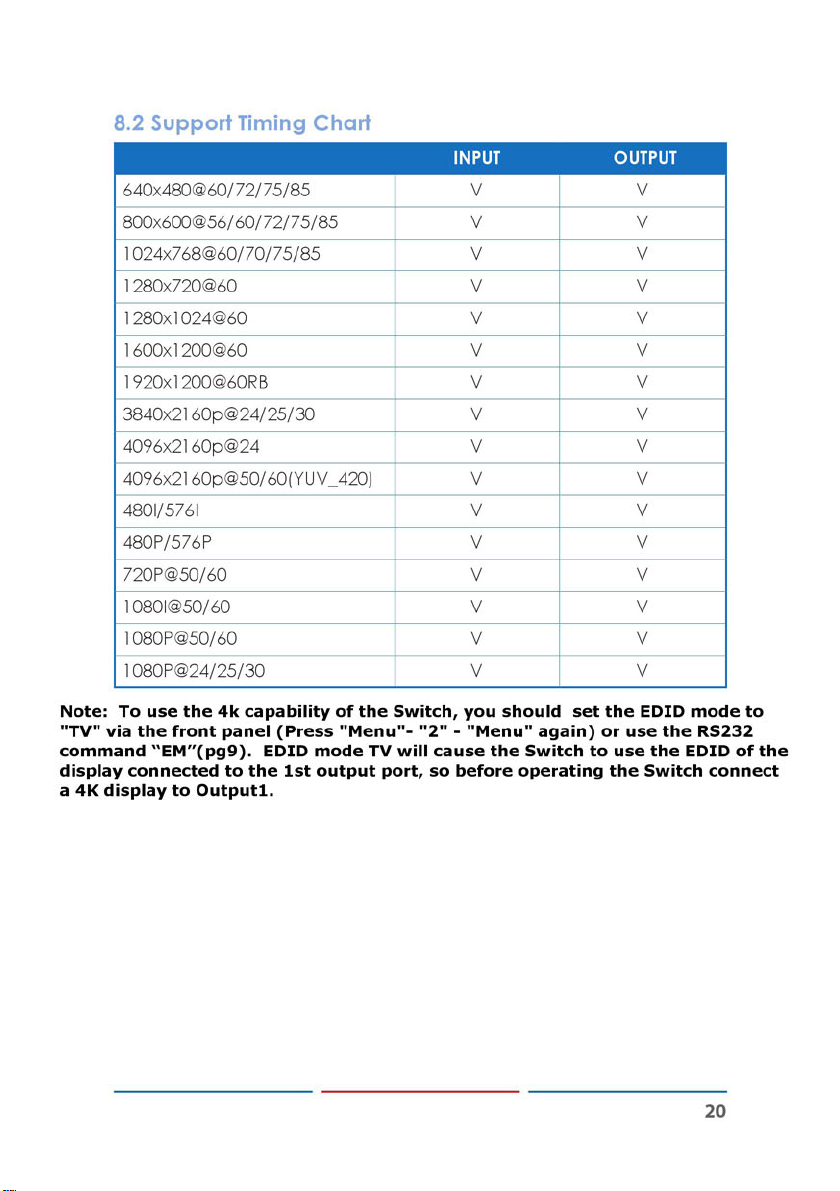

8.2 Support Timing Chart
9. Acronyms
...................................................................1
........................................................1
....................................................2
..........................................................................3
...............................4
................................................................4
.................................................................5
.................................................................6
........................................................7
..........................................7
.............................................8
....................................9
......11
.........................................................13
..................................................15
..................................................17
..............................................................19
...........................19
.............................................20
.....................................................................21
Page 4
1. INTRODUCTION
The 4K2K 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission
of video (resolutions up to 4K2K Full HD), multi-channel digital
audio and control via IR, RS-232, Telnet or Web GUI from eight high
denitionsources to eight outputs over a single CAT5e/6/7 cable (up
to 100m) for each output.
It supports high resolution digital audio formats such as LPCM 7.1CH,
Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as
3D content that can be displayed when connecting a 3D TV and 3D
source.
Additionally, the LAN connectivity will allow a 100BaseT network to be
served to smart TVs or games consoles. The Power over Cable (PoC)
function can power compatible receivers, providing greater exibility
in installations.
2. APPLICATIONS
• HDMI Matrix System
• Video/TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University lecture hall, display and control
• Retail sales and demonstration
3. PACKAGE CONTENTS
• 4K2K 8×8 HDMI Matrix over CAT5e/6/7
• 2×IR Extender
• 2×IR Blaster
• 2×24 V/6.25 A DC Power Adaptor (1 for PoC)
• 2×Power Cord
• 1×IR Remote Control with battery
• 1×Left and Right Ear Rack Set
• Operation Manual
1
Page 5
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables
• Industry standard CAT5e/6/7 cables
• HDBaseT™ Receivers
2
Page 6
5. FEATURES
• HDMI, HDCP 1.1 and DVI compatible
• Supports resolutions VGA~WUXGA, 4K2K@24/25/30 & YUV_420 and
480i~1080p dependent upon the output display’s EDID settings
• Supports distances up to 100 meters through CAT6/7 cables
• Supports 3D signal display dependent upon the output display EDID
settings
• Supports PoC (Power over Cable) on compatible receivers only
• Supports HDMI input up to 15 meters at 8-bit resolution
• Supports bi-directional IR from input and output locations
• Supports RS-232, remote control, on-panel control and IP Control
(Telnet & Web GUI)
• Supports LAN serving function through the LAN port
• 2U size design
• Supports external and internal EDID settings
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
Note:
1. The PoC function is designed for powering compatible receiver units
only—non-PoC receivers will need their own power supply. Receivers
of another brand may not be compatible.
2. Do not connect the LAN port to CAT outputs of this device or to CAT
inputs or receiver. Doing so may demagethe unit.
3. Do not connect more than one Ethernet/network link within the
Matrix system, doing so may tigger the device to shoot down.
3
Page 7
6. OPERATION CONTROLS AND FUNCTIONS
2 3 4 5 61
1
2
3
4
5
6

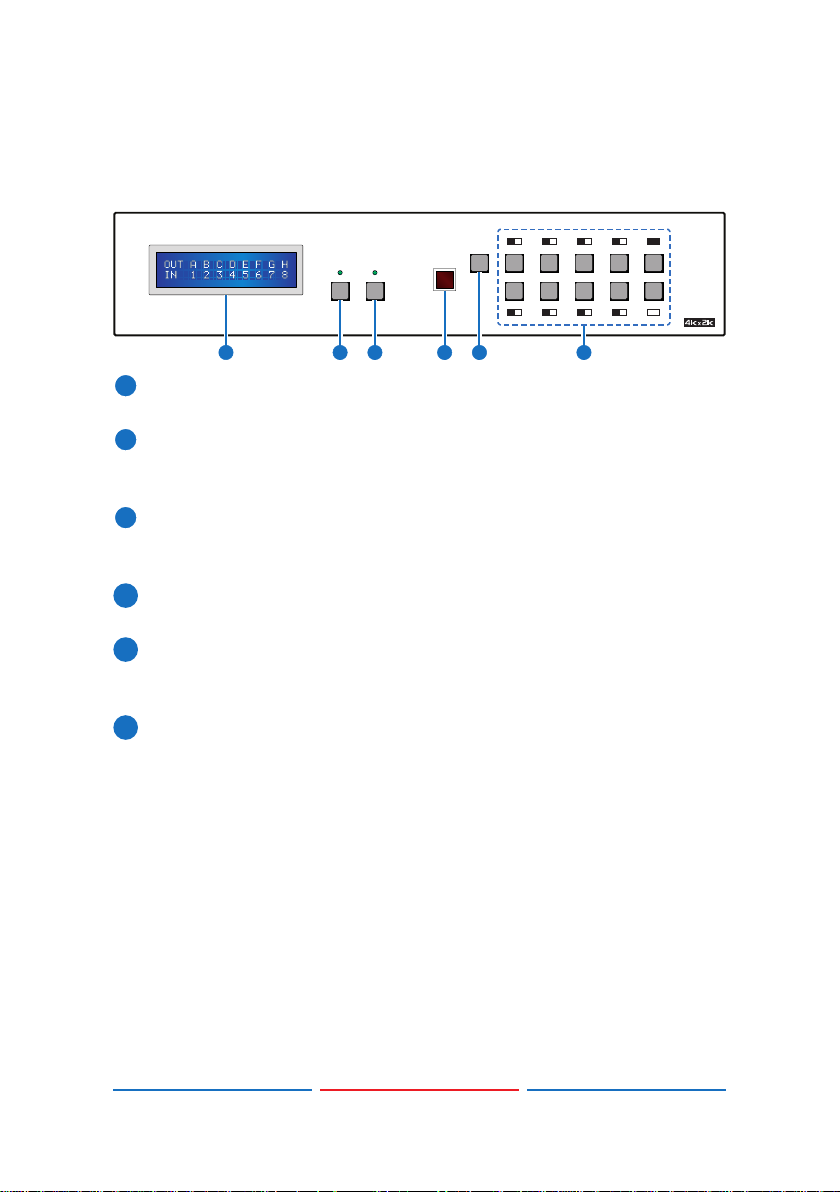

6.1 Front Panel
1B2C3D4
MENU OUTA
POWER LOCK
8X8 HDMI MATRIX over CAT5e/6 CMPRO-U8H8CVE
5F6G7H8
E
IN
UHD
LCM : Displays the setting information of each input and output
setting.
POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
LOCK: Press this button for 3 seconds to lock all the buttons on the
panel; press again for 3 seconds to unlock. The LED will illuminate
green when locked.
IR: IR Receiver window (accepts the remote control signal of this
device only).
MENU: Press this button to access the LCM menu system, from
here EDID settings can be managed and IP system settings are
displayed.
1~8/A~H and In/Out: Press the Out or In button to select the output
or input mode and then press the required number button to make
the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of
button presses need to be performed:
Press: Out →A→B→C→D→In→1→Menu,
and then press: Out→E→F→G→H→In→2→Menu.
Note: If the menu button is not pressed the selection will not be
changed.
4
Page 8

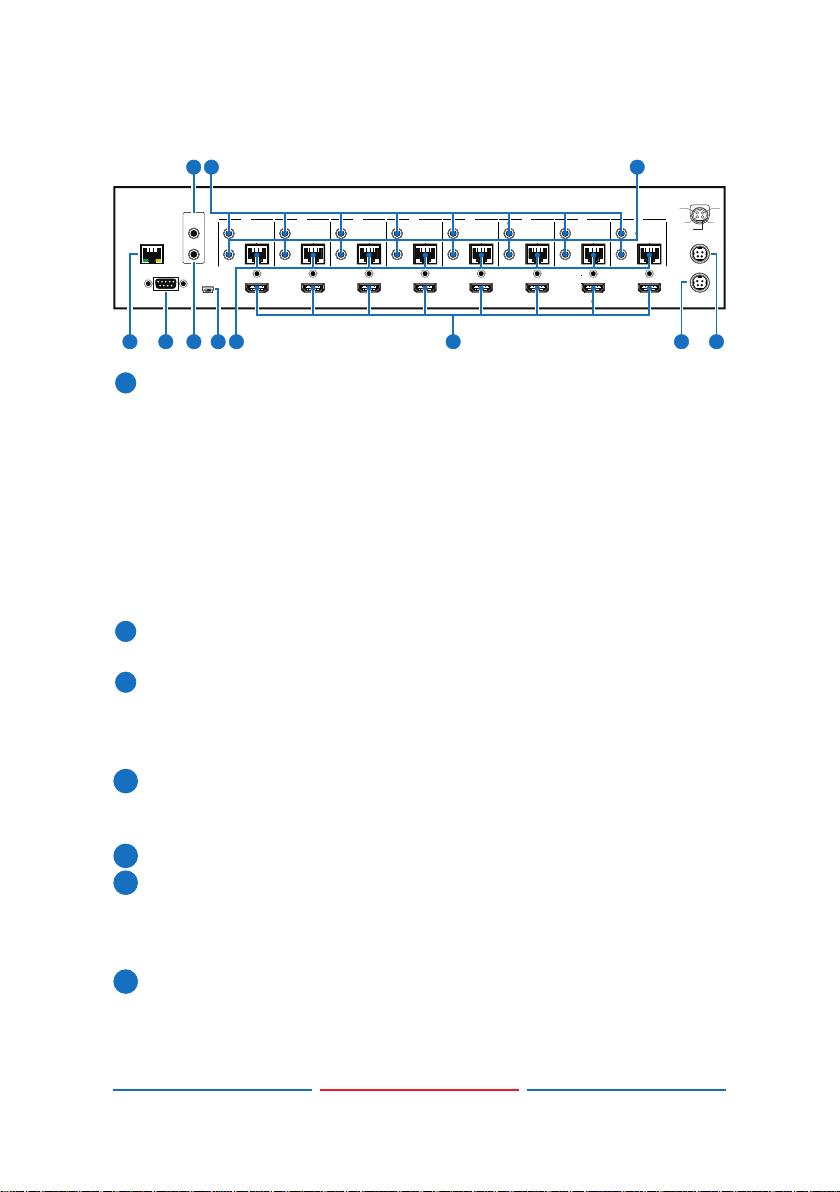

6.2 Rear Panel
6
7
1
2
3
4
5
6
7
ALL
A B C D E F G H
IR OUT
LAN
RS232
IR OUT
CAT5e/6 OUT
IR IN
IR IN
SERVICE
IR OUT
IR OUT
IR IN
1
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
CAT5e/6 OUT
IR IN
IR OUT
CAT5e/6 OUT
IR IN
CAT5e/6 OUT
IR IN
IR OUT
CAT5e/6 OUT
IR IN
IR OUT
CAT5e/6 OUTCAT5e/6 OUT
IR IN
7
HDMI IN8HDMI IN
GND
GND
1
2
4
3
V+
V+
GND
POE 24V
MAIN 24V
2 435 10 111
8
9
LAN: Connect to an active network for LAN serving and Telnet and
Web GUI control (refer to Sections 6.8 and 6.9).
When the Matrix or any compatible LAN equipped receivers are
connected to a network, this allows the network access (including
internet access if available) to be shared between the Matrix and
all connected receivers. Connect any Ethernet equipped device
e.g. a Smart TV or games console to the LAN port of a receiver for
that device to share the network/internet access.
Warning: Please do not connect more than one active Ethernet link
within the Matrix system.
RS-232: Connect to a PC or control system with D-Sub 9-pin cable
for the transmission of RS-232 commands.
ALL IR OUT: Connect to the IR blaster for IR signal transmission to
the source side. Place the IR blaster in direct line-of-sight of the
equipment to be controlled for it will blaster out all signal received
from the IR IN at the receiver sides.
ALL IR IN: Connect to the IR extender for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
extender for it will send out the signal to all receiver's IR OUT.
SERVICE: Manufacturer use only.
IR OUT 1~8: Connect to the IR blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled for it will blaster out the IR signal received from the
receiver side choosen by input selection.
IR IN 1~8: Connect to the IR extenders for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
extender for it will send out the IR signal to the selected receiver's
IR OUT.
5
Page 9
8
CAT5e/6/7 OUT 1~8: Connect from these CAT outputs to the CAT
9
10
11
1
1
input port of the receiver units with a single CAT5e/6/7 cable for HDMI
Audio/Video and IR/RS-232 control signal transmission.
Warning: Please do not connect the CAT5e/6/7 cable into the
receiver's LAN port.
HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit
and connect the adaptor to an AC outlet.
PoC 24V: Plug the 24 V PoC power supply into the unit and connect
the adaptor to an AC outlet. This unit will power PoC (Power over
Cable) capable receiver units.

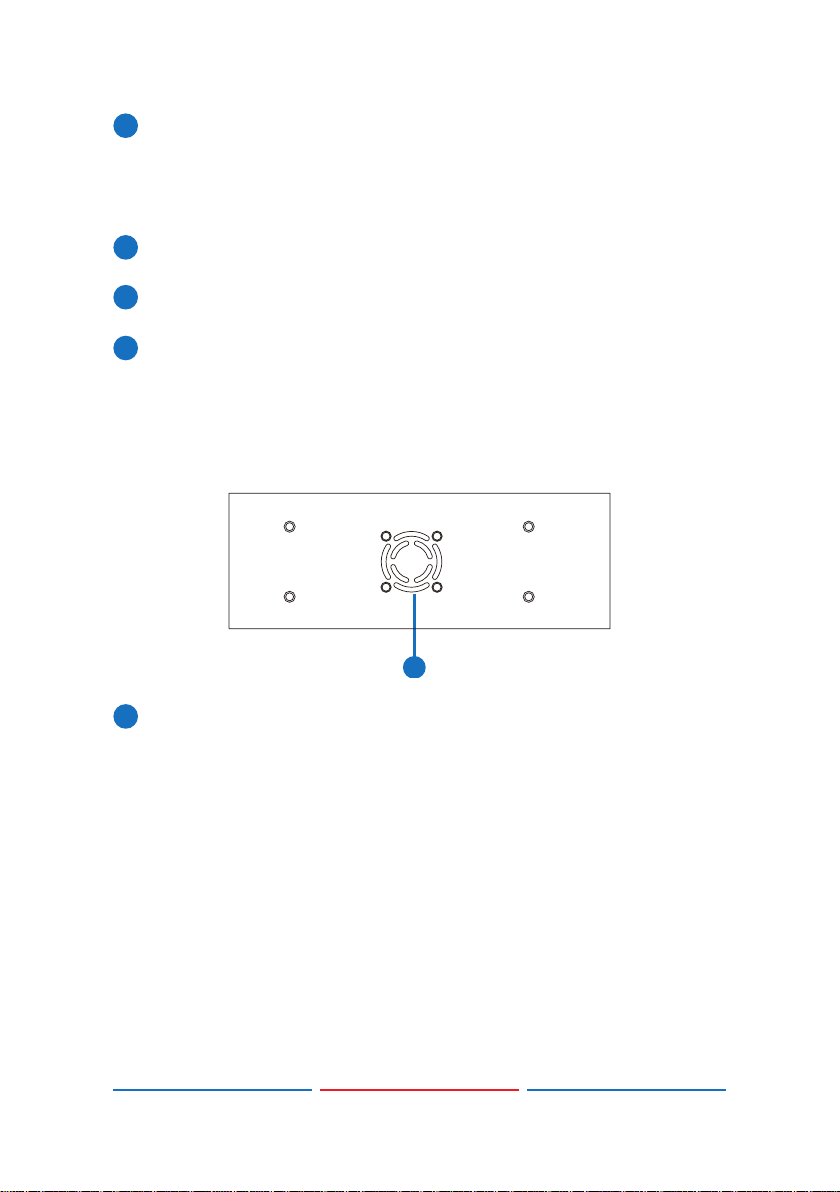

6.3 Side Panel
Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.
6
Page 10

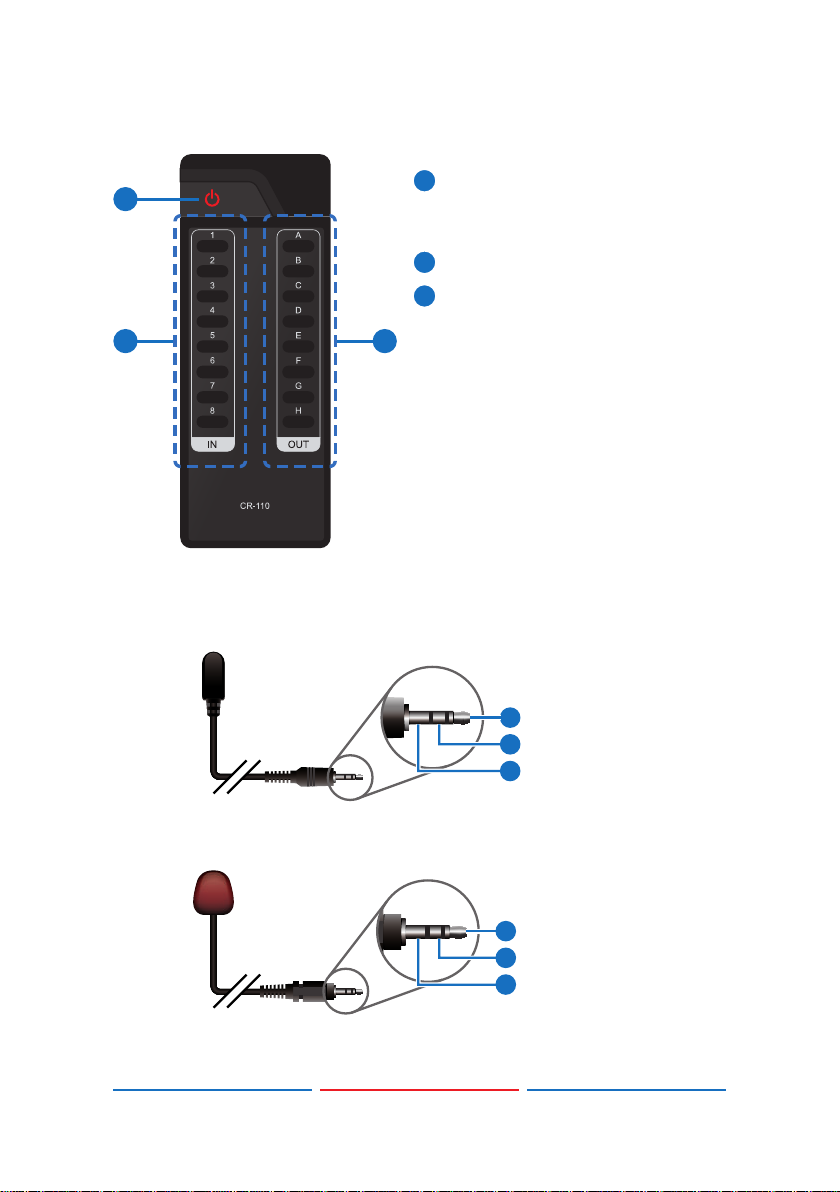

6.4 Remote Control
1
2
3
1
2
3
6.5 IR Cable Pin Assignment
IR Blaster
POWER: Press this button to
switch on the device or set it to
standby mode.
IN: Input ports selection 1~8.
OUT: Output ports selection A~H.
1
Power
2
IR Blaster Signal
3
NC
IR Receiver
1
IR Signal
2
Power
3
Grounding
7
Page 11
6.6 RS-232 Pin Assignment
CMPRO-U8H8CVE
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data bit: 8 bits
Parity: None
Stop Bit: 1
Flow Control: None
Remote Control Console
8
Page 12
6.7 RS-232 & Telnet Commands
Command Description
A1~A8 Switch Output A to 1~8
B1~B8 Switch Output B to 1~8
C1~C8 Switch Output C to 1~8
D1~D8 Switch Output D to 1~8
E1~E8 Switch Output E to 1~8
F1~F8 Switch Output F to 1~8
G1~G8 Switch Output G to 1~8
H1~H8 Switch Output H to 1~8
ABCD...1~ABCD...8 Switch Output A B C D... to 1~8 at the
same time
SETIP <IP> <SubNet> <GW> Setting IP. SubNet. GateWay (Static IP)
RSTIP IP Conguration Was Reset To Factory
Defaults <DHCP>
IPCONFIG Display the current IP cong
P0 Power OFF
P1 Power ON
STORE 01~08 Store current I/O position(01~08)
PRESET 01~08 Recall current I/O position(01~08)
SHOW 01~08 Show current I/O position(01~08)
NAME N1 N2 Name the stored port N1 (01~08)
no more than 8 charactors, N2
(ABCDEFG)
I1~I8 Switch all the Output to 1~8
ST Display the current matrix status and F/
W version
RS System Reset to A1, B2, C3, D4, E5, F6,
G7, H8
EM Setting EDID MODE. 1-STD 2-TV
9
Page 13
Command Description
UARTBAUD1~8 Set output A~D’s uart baud rate from
1~6
1: 9600bps
2: 14400bps
3: 19200bps
4: 38400bps
5: 57600bps
6: 115200bps
UARTSW1~8 Switch output’s UARTto A~H and
allow Matrix to send commands to
Receiver's connected RS-232 device.
UARTSW0 Switch output's UART to MCU.
Restoring RS-232 control to the
Receiver output back to Matrix.
UARTBAUD? Display all the outputs UART baud
UARTSW? Display the UART switching state
? Display all the available commands
Quit Exit(for telnet only)
Note: Any commands will not be executed unless followed by a
carriage return. Commands are case insensitive.
10
Page 14
6.8 RS-232 UART Command Illustration Diagram
Note: This command
GND
GND
1
2
4
UARTSW 0
ALL
A B C D E F G H
IR OUT
LAN
IR IN
RS232
IR OUT
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
SERVICE
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN7HDMI IN8HDMI IN
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
IR IN
IR IN
1
IR OUT
IR OUT
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
IR IN
IR IN
3
V+
V+
IR OUT
GND
CAT5e/6 OUT
CAT5e/6 OUTCAT5e/6 OUT
POE 24V
IR IN
allows RS-232 to control
MAIN 24V
the Matrix.
UARTSW 1
UARTSW 2
UARTSW 3
UARTSW 0
RS-232 Equipped Device
UARTSW 1
IR1 Extender
HDMI Out
IR2 Blaster
RS232 Out
RX
ALL
A B C D E F G H
IR OUT
IR OUT
CAT5e/6 OUT
LAN
IR IN
IR IN
RS232
SERVICE
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN7HDMI IN8HDMI IN
ALL
A B C D E F G H
IR OUT
IR OUT
CAT5e/6 OUT
LAN
IR IN
IR IN
RS232
SERVICE
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN7HDMI IN8HDMI IN
ALL
A B C D E F G H
IR OUT
IR OUT
CAT5e/6 OUT
LAN
IR IN
IR IN
RS232
SERVICE
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN7HDMI IN8HDMI IN
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
IR IN
1
RS-232 Equipped Device
UARTSW 2
IR1 Extender
RS232 Out
RX
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
IR IN
1
RS-232 Equipped Device
RX
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
IR IN
1
IR OUT
CAT5e/6 OUT
IR IN
HDMI Out
IR2 Blaster
IR OUT
CAT5e/6 OUT
IR IN
UARTSW 3
RS232 Out
IR OUT
CAT5e/6 OUT
IR IN
IR1 Extender
RS-232 Equipped Device
IR OUT
CAT5e/6 OUT
IR IN
IR OUT
CAT5e/6 OUT
IR IN
HDMI Out
IR2 Blaster
IR OUT
CAT5e/6 OUT
IR IN
UARTSW 4
Note: This command
IR OUT
CAT5e/6 OUT
IR IN
GND
CAT5e/6 OUTCAT5e/6 OUT
CAT5e/6 OUT
POE 24V
IR IN
IR IN
the RS-232 device
MAIN 24V
connected to output
allows RS-232 to control
GND
GND
1
2
4
3
V+
V+
IR OUT
IR OUT
A's Receiver.
Note: This command
IR OUT
CAT5e/6 OUT
IR IN
GND
CAT5e/6 OUTCAT5e/6 OUT
CAT5e/6 OUT
POE 24V
IR IN
IR IN
the RS-232 device
MAIN 24V
connected to output
allows RS-232 to control
GND
GND
1
2
4
3
V+
V+
IR OUT
IR OUT
B's Receiver.
Note: This command
IR OUT
CAT5e/6 OUT
IR IN
GND
CAT5e/6 OUTCAT5e/6 OUT
CAT5e/6 OUT
POE 24V
IR IN
IR IN
the RS-232 device
MAIN 24V
connected to output
allows RS-232 to control
GND
GND
1
2
4
3
V+
V+
IR OUT
IR OUT
C's Receiver.
11
UARTSW 4
RX
ALL
A B C D E F G H
IR OUT
LAN
IR IN
RS232
IR OUT
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
SERVICE
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN7HDMI IN8HDMI IN
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
IR IN
IR IN
1
IR1 Extender
HDMI Out
IR2 Blaster
RS232 Out
IR OUT
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
IR IN
Note: This command
allows RS-232 to control
GND
GND
1
2
4
3
V+
V+
GND
CAT5e/6 OUTCAT5e/6 OUT
POE 24V
IR IN
the RS-232 device
MAIN 24V
connected to output
D's Receiver.
Page 15
RS-232 Equipped Device
UARTSW 5
e
UARTSW 6
UARTSW 7
ALL
A B C D E F G H
IR OUT
IR OUT
IR OUT
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
LAN
IR IN
IR IN
IR IN
IR IN
RS232
SERVICE
1
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN7HDMI IN8HDMI IN
ALL
A B C D E F G H
IR OUT
IR OUT
IR OUT
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
LAN
IR IN
IR IN
IR IN
IR IN
RS232
SERVICE
1
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN7HDMI IN8HDMI IN
ALL
A B C D E F G H
IR OUT
IR OUT
IR OUT
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
LAN
IR IN
IR IN
IR IN
IR IN
RS232
SERVICE
1
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN7HDMI IN8HDMI IN
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
IR OUT
CAT5e/6 OUT
IR IN
IR OUT
CAT5e/6 OUT
IR IN
IR OUT
CAT5e/6 OUT
IR IN
UARTSW 5
IR1 Extender
IR2 Blaster
RS232 Out
RX
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
RS-232 Equipped Device
UARTSW 6
RX
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
RS-232 Equipped Device
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
HDMI Out
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
IR IN
IR1 Extender
HDMI Out
IR2 Blaster
RS232 Out
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
IR IN
UARTSW 7
RS232 Out
RX
IR OUT
IR OUT
CAT5e/6 OUT
IR IN
IR IN
RS-232 Equipped Devic
CAT5e/6 OUTCAT5e/6 OUT
CAT5e/6 OUTCAT5e/6 OUT
CAT5e/6 OUTCAT5e/6 OUT
IR1 Extender
Note: This command
allows RS-232 to control
GND
GND
1
2
4
3
V+
V+
GND
POE 24V
the RS-232 device
MAIN 24V
connected to output
E's Receiver.
Note: This command
allows RS-232 to control
GND
GND
1
2
4
3
V+
V+
GND
POE 24V
the RS-232 device
MAIN 24V
connected to output
F's Receiver.
HDMI Out
IR2 Blaster
Note: This command
allows RS-232 to control
GND
GND
1
2
4
3
V+
V+
GND
POE 24V
the RS-232 device
MAIN 24V
connected to output
G's Receiver.
UARTSW 8
UARTSW 8
ALL
A B C D E F G H
IR OUT
IR OUT
LAN
IR IN
IR IN
RS232
SERVICE
IR OUT
IR OUT
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
1
HDMI IN2HDMI IN3HDMI IN4HDMI IN5HDMI IN6HDMI IN7HDMI IN8HDMI IN
CAT5e/6 OUT
IR IN
IR IN
IR IN
IR1 Extender
HDMI Out
IR2 Blaster
RS232 Out
RX
IR OUT
IR OUT
IR OUT
IR OUT
CAT5e/6 OUT
CAT5e/6 OUT
CAT5e/6 OUT
IR IN
CAT5e/6 OUTCAT5e/6 OUT
IR IN
IR IN
IR IN
Note: This command
allows RS-232 to control
GND
GND
1
2
4
3
V+
V+
GND
POE 24V
the RS-232 device
MAIN 24V
connected to output
H's Receiver.
12
Page 16
6.9 Telnet Control
Before attempting to use the telnet control, please ensure that both
the Matrix (via the 'LAN port) and the PC/Laptop are connected to
the active networks.
To access the telnet control in Windows 7, click on the 'Start' menu
and type "cmd" in the Search eld then press enter.
Under Windows XP go to the 'Start' menu and click on "Run", type
"cmd" with then press enter.
Under Mac OS X, go to Go→Applications→Utilities→Terminal
See below for reference.
Once in the command line interface (CLI) type "telnet", the IP address
of the unit you wish to control and "23", then hit enter.
Note: The IP address of the Matrix can be displayed on the device's
LCM monitor by pressing the Menu button twice/three times.
13
Page 17
This will bring us into the device which we wish to control. Type "HELP"
to list the available commands.
Type “IPCONFIG” To show all IP congurations. To reset the IP,
type “RSTIP” and to use a set static IP, type ”SETIP” (For a full list of
commands, see Section 6.7).
Note: Any commands will not be executed unless followed by a
carriage return. Commands are not case-sensitive. If the IP is changed
then the IP Address required for Telnet access will also change
accordingly.
14
Page 18
Page 19
Page 20
Page 21
8. SPECIFICATIONS
Video Bandwidth 300 MHz/9 Gbps
Input Ports 8×HDMI, 9×IR Extender,
1×RS-232, 1xLAN, 1×Mini USB-B type (for
rmware update only)
Output Ports 8×CAT5e/6/7, 9×IR
ESD Protection Human-body Model:
± 8kV (Air-gap discharge)
± 4kV (Contact discharge)
Power Supply
Dimensions
Weight 4402g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity
Power Consumption 65 W Tx (Main), 56 W Rx (PoE)
24 V/6.25 A DC (US/EU standards, CE/FCC/
UL certied)
438 mm (W)×235 mm (D)×88mm (H)/Jacks
Excluded
438 mm (W)×249 mm (D)×93mm (H)/Jacks
Included
20~90 % RH (non-condensing)
8.1 CAT5e/6/7 Cable Specication
Cable
Type
CAT5e/6/
CAT 7
19
Range Pixel clock
rate
100 m <=225 MHz <=5.3 Gbps
Video Data
Rate
(HD Video)
Supported Video
Up to 1080p, 60 Hz,
Page 22
Page 23
9. ACRONYMS
ACRONYM COMPLETE TERM
CLI Command Line Interface
DTS Digital Theater System
DVI Digital Visual Interface
EDID
GUI Graphical User Interface
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television
LCM Liquid Crystal Module
USB Universal Serial Bus
VGA Video Graphics Array
WUXGA Widescreen Ultra Extended Graphics Array
Extended Display Identication Data
21
Loading...
