Page 1
XTENDEX®Series
ST-C5HDMI-300
300 FOOT HDMI DIGITAL VIDEO/AUDIO
EXTENDER
Installation and Operation Manual
MAN020 Rev Date 6/4/2008
Page 2
TRADEMARK
XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries.
COPYRIGHT
Copyright © 2008 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.
CE Statement
The ST-C5HDMI-300 has been tested to the European Standards EN55022:1998+A1:2000+A2:2003 and
EN55024:1998+A1:2001+A2:2003 has been found to be in compliance with the council EMC directive 89/336/EEC.
Federal Communications Commission Radio Frequency Interference Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that might cause undesired operation.
This device complies with Part 15 of the FCC rules. This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment.
Warning: This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
i
Page 3
TABLE OF CONTENTS
Introduction...................................................................................................................................................................... 1
Materials .......................................................................................................................................................................... 1
Features and Functions................................................................................................................................................... 2
Limitations ....................................................................................................................................................................... 3
Preparation for Installation ..............................................................................................................................................3
Installation ....................................................................................................................................................................... 4
Installing The Remote Unit .......................................................................................................................................... 4
Installing The Local Unit ..............................................................................................................................................4
Connect the CAT5 Cables ........................................................................................................................................... 5
Plug-in and Boot Up..................................................................................................................................................... 5
Technical Specifications.................................................................................................................................................. 6
Interconnection Cable Wiring Method .............................................................................................................................6
Troubleshooting............................................................................................................................................................... 7
Warranty Information....................................................................................................................................................... 7
TABLE OF FIGURES
Figure 1- Connect the extended video display to the Remote Unit .................................................................................................... 4
Figure 2- Connect the XTENDEX Local Unit to the source................................................................................................................ 4
Figure 3- Connect CAT5 cables......................................................................................................................................................... 5
Figure 4- Connect the AC adapter to the Remote Unit ......................................................................................................................5
Figure 5- LEDs on Remote Unit.........................................................................................................................................................5
Figure 6- View looking into RJ45 female............................................................................................................................................6
ii
Page 4
NTI XTENDEX HDMI Video/Audio Extender
INTRODUCTION

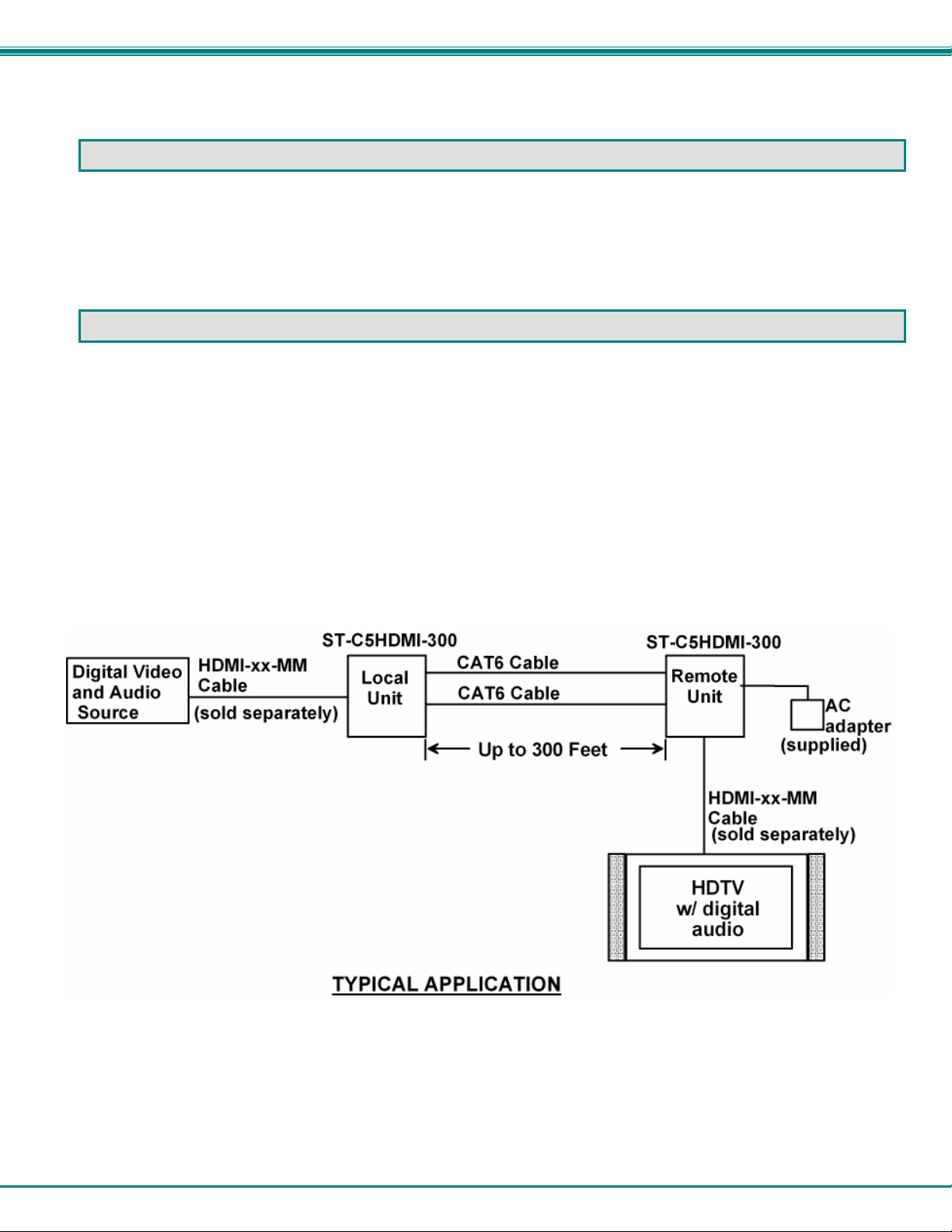

The XTENDEX Series CAT5 HDMI Digital Video / Audio Extender (XTENDEX) is designed to enable the video and audio output
from one digital video/audio source to be viewed and heard by a remote user. The remote HDMI video/audio device can be
located as much as 300 feet away from an HDMI video/audio source via Category 6 twisted-pair cable.
The XTENDEX Series Extender is extremely simple to install and has been thoroughly tested to insure reliable performance.
Through the use of CAT5/5e/6 (CAT5) cable it is possible to economically increase the flexibility of a computer system. Here are
some of the features and ways this can benefit any workplace:
• Allows the placement of an HDMI-enabled monitor in a location where only these parts are needed without having the
video/audio source there too, taking up valuable space
• Allows digital video/audio to be viewed and heard by a remote user (up to 300 feet away)
• Provides crisp and clear computer resolution to 1920 x 1200 and HDTV resolutions to 1080i (see page 6 for more
details)
• Transmits HDMI signal over two CAT5 cables.
• Only one power supply is necessary to power both the Local and Remote units.
• Supports an HDMI or DVI monitor.
• Supports 480i/p, 576i/p, 720i/p, and 1080i, video formats
• HDCP Compliant
• Supports the DDC2B protocol.
• Supports digital audio format, such as LPCM/Dolby-AC3/DTS7.1/DSD
MATERIALS
Materials Included with this kit:
9 NTI XTENDEX Local Unit
9 NTI XTENDEX Remote Unit
9 120VAC or 240VAC at 50 or 60Hz-5VDC/2.0A AC Adapter
9 CD containing a pdf of this owner's manual
Additional materials may be required but are not supplied:
¾ CAT5 unshielded twisted-pair cables terminated with RJ45 connectors wired straight thru- pin 1 to pin 1, etc. (see pg. 6 for
proper EIA/TIA 568 B wiring method)
¾ HDMI male-male cable to connect the monitor to the Remote unit (Order NTI # HDMI-xx-MM where xx=3, 6, 9,or 14 foot
cable).
¾ DVI-D male to HDMI-A male single link cable to connect a DVI source or display (Order NTI # DVI-HDMI-xx-MM where xx=3,
6, 10, or 15 foot cable)
Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-RGB-TECH (800-742-8324) in US & Canada
or 330-562-7070 (Worldwide) or at our website at http://www.networktechinc.com and we will be happy to be of assistance.
1
Page 5
NTI XTENDEX HDMI Video/Audio Extender
2
(Left End View)
4
(Left End View) (Right End View)
21
(Right End View)

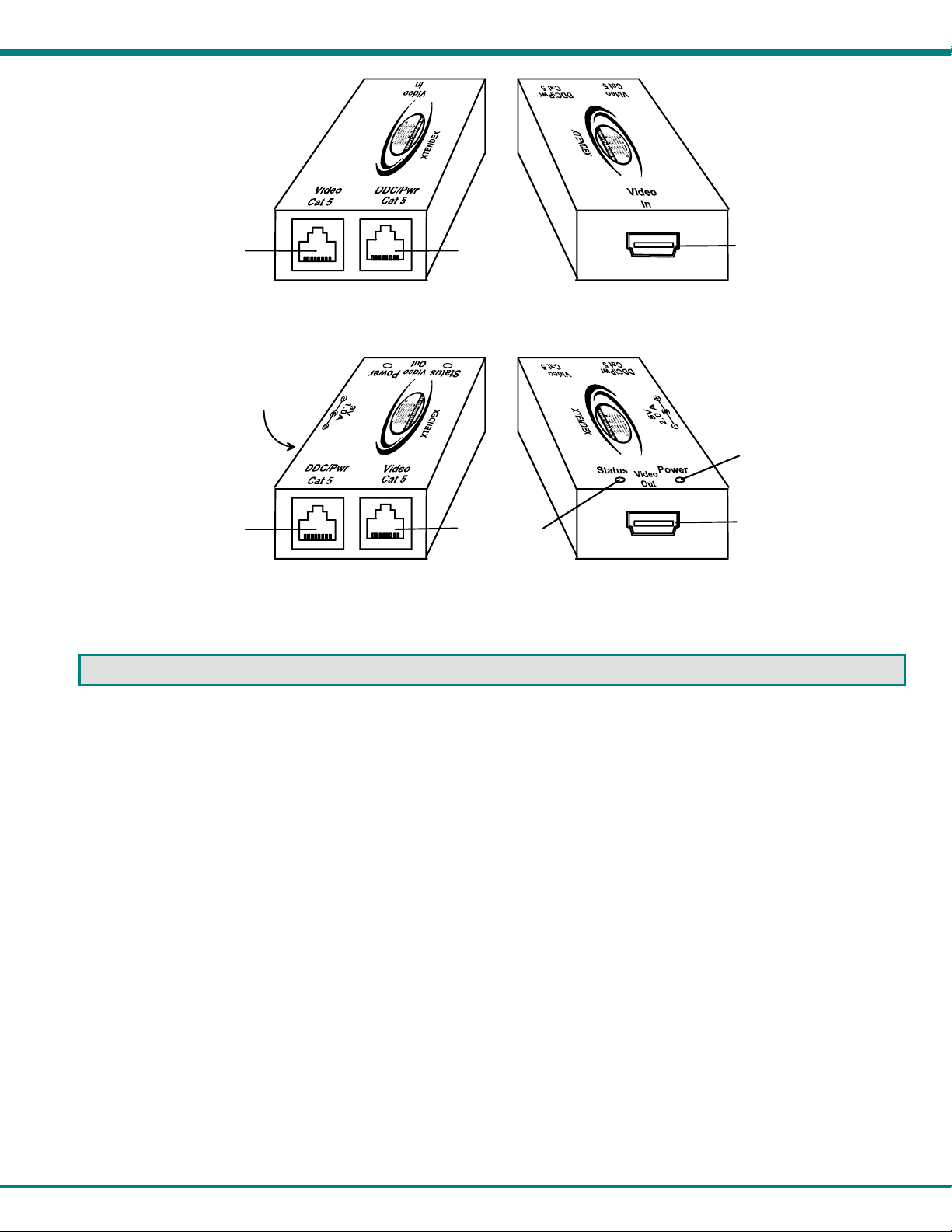

ST-C5HDMI-300 Local Unit
1
5
ST-C5HDMI-300 Remote Unit
3
6
7
FEATURES AND FUNCTIONS
1. Video Cat5- RJ45 connector- for connecting the CAT5 cable to carry the video signal between the Local and Remote units
2. DDC/Pwr - RJ45 connector- for connecting the CAT5 cable between the Local and Remote units to carry DDC data from the
remote video display and to carry power to the Local unit.
3. Video In- HDMI female video connector- for connecting an HDMI cable between the Local Unit and the video source
4. 5VDC- 2.0A- connection jack for the AC adapter
5. Status LED- blue status indicator- illuminates blue when connection has been made with the video/audio source
6. Power LED- red power indicator- illuminates when power has been supplied to the unit
7. Video Out- HDMI female video connector- for connecting the remote HDMI display device
2
Page 6
NTI XTENDEX HDMI Video/Audio Extender
LIMITATIONS
• Hot-plugging of monitors is supported provided monitors were originally connected at power-up.
• The use of CAT5 stranded cabling will reduce the maximum distance and resolution.
PREPARATION FOR INSTALLATION
• Locations should be chosen for the monitor that also has space to connect the Remote unit within the distance provided by
the cables. If extension cables are needed, contact NTI for the cables required.
• The CAT5 cables must be run to the locations where the Remote and Local units will be connected. Be careful to route the
cables away from any sources of magnetic fields or electrical interference that might reduce the quality of the video signal
(i.e. AC motors, welding equipment, fluorescent lighting, etc.).
• All cables should be installed in such a way that they do not cause stress on their connections to the equipment. Extended
lengths of cable hanging from a connection may interfere with the quality of that connection. Secure cables as needed to
minimize this.
• Properly shut down and disconnect the power from the video source and monitor to be separated. If other equipment is
involved whose connections are being interrupted, be sure to refer to the instruction manuals for that equipment for proper
disconnection and reconnection procedures before proceeding.
3
Page 7
NTI XTENDEX HDMI Video/Audio Extender
INSTALLATION
Installing The Remote Unit
1. Position the Remote Unit such that the CAT5 cable and the monitor cables can each reach the Remote Unit without
putting strain on the cables.
2. Connect the HDMI-enabled monitor cable to the female HDMI video connector labeled "Video Out" on the Remote
Unit.

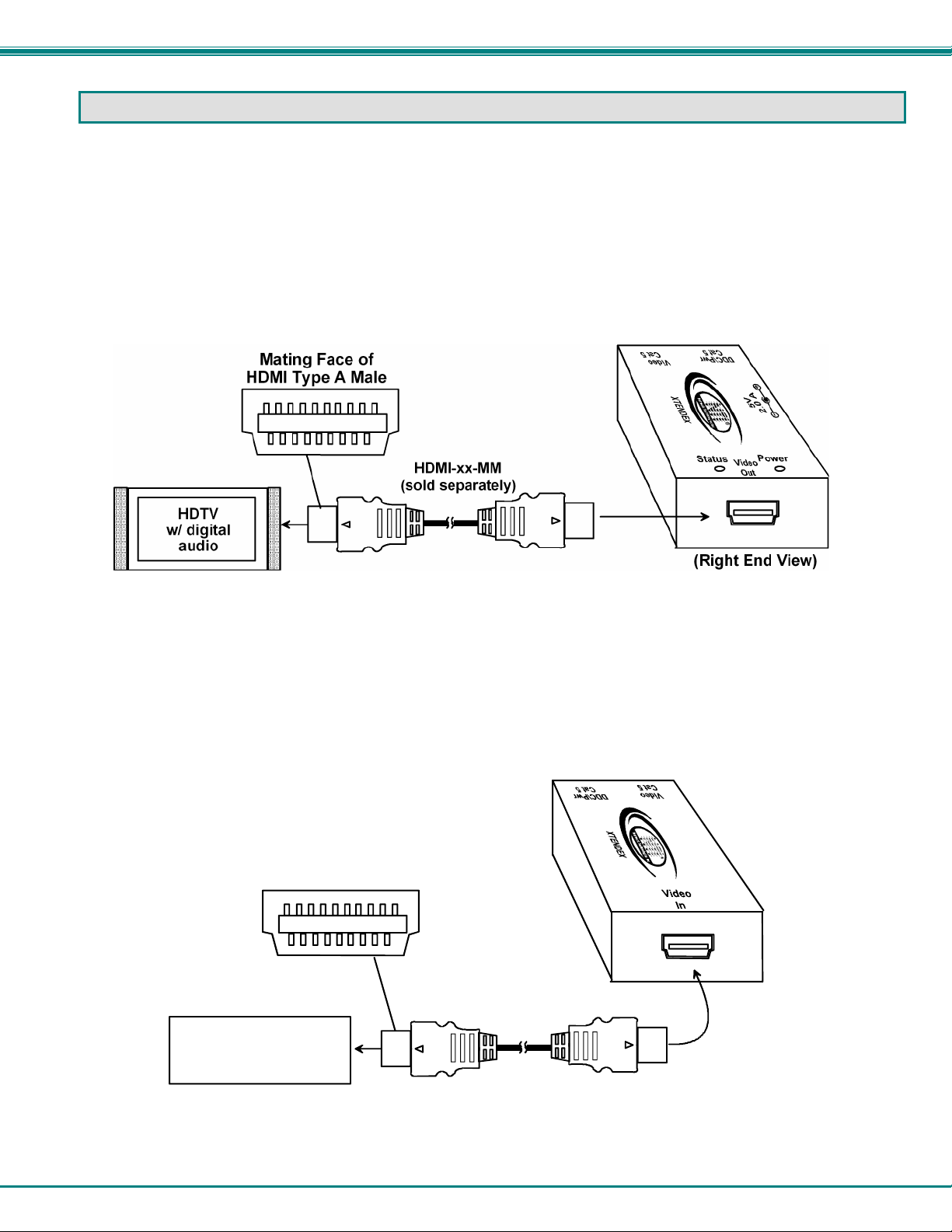

Figure 1- Connect the extended video display to the Remote Unit
Installing The Local Unit
Connect an HDMI cable between the video source and the "Video In" connector on the Local Unit.
Digtal Video and Audio
Source
Mating Face of
HDMI Type A Male
HDMI-xx-MM
(sold separately)
(Right End View)
Figure 2- Connect the XTENDEX Local Unit to the source
4
Page 8
NTI XTENDEX HDMI Video/Audio Extender
Connect the CAT5 Cables
Connect the CAT5 cables between the “Cat5” ports on the Local and Remote Unit. (See Fig. 3.) When properly inserted the
cable ends should snap into place. Be sure to connect the cable from the Remote Unit "Video Cat5" port to the "Video Cat5"
port on the Local Unit and to connect the cable from the Remote Unit "DDC/PWR Cat5" port to the "DDC/PWR Cat5" port on
the Local Unit. DO NOT get them mixed up or damage to the unit may occur.
Note: The two cables must be connected to like ports at each end of the cables. Powering the unit with the cables
crossed may damage it.
!
WARNING: Never connect the
XTENDEX to an Ethernet card,
Ethernet router, hub or switch or other
Ethernet RJ45 connector of an
Ethernet device. Damage to devices
connected to the Ethernet may result.
ST-C5HDMI-300 Local Unit
(Left End View)
CAT5/5e/6 cable
(up to 300 feet)
ST-C5HDMI-300 Remote Unit
(Left End View)

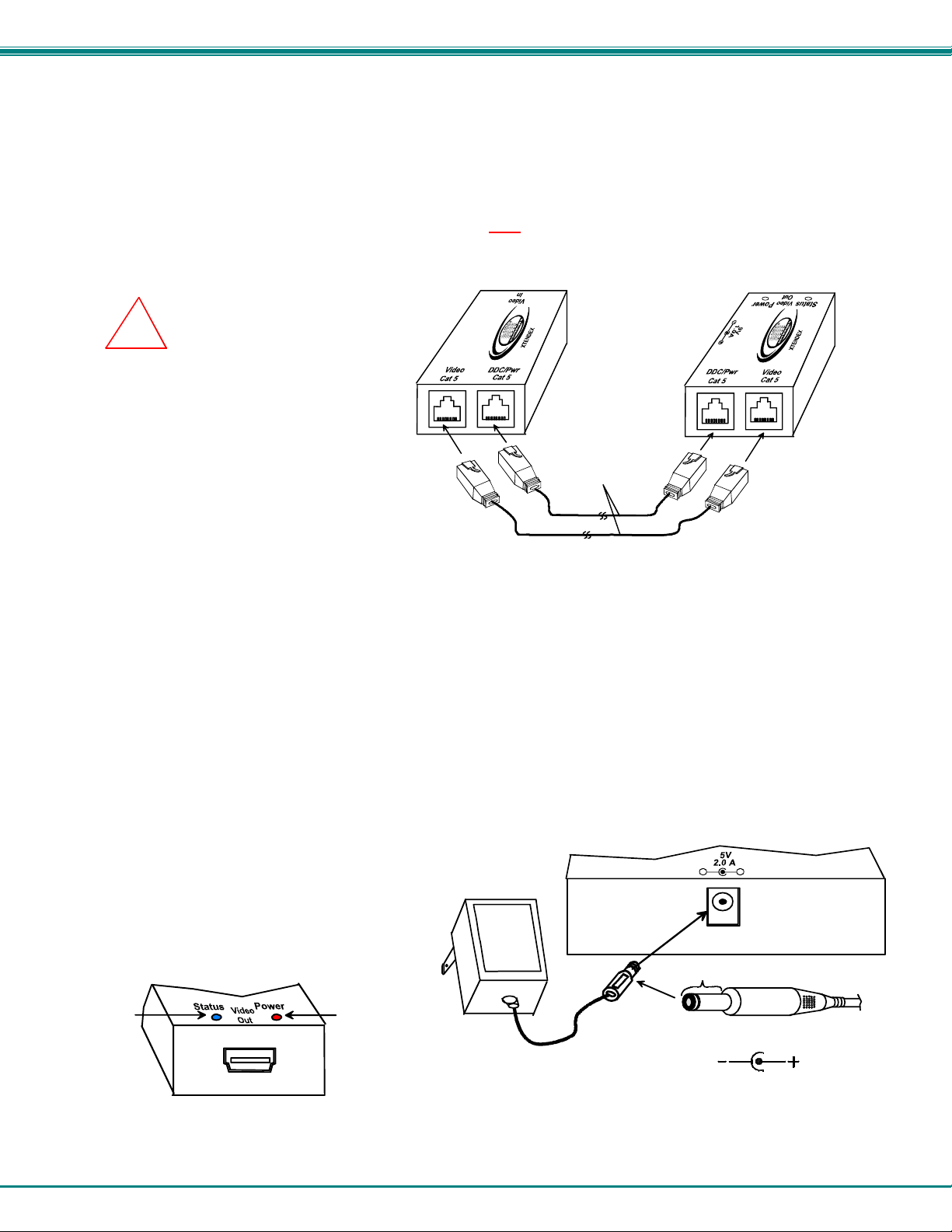

Figure 3- Connect CAT5 cables
Plug-in and Boot Up
1. Plug the power cord from the monitor into the power outlet.
Connect the AC adapter power connector to the 5VDC port on the Remote Unit. Plug the AC adapter into a power outlet.
2.
The red “Power” LED on the Remote Unit should illuminate, indicating that a proper power connection has been made to it.
(See Figs. 4 and 5.)
3. Turn ON the Video/Audio source and Video device. The source and device should each react as if directly connected to each
other.
Note: The blue “Status” LED on the Remote will illuminate when input video is available from the source. (See Fig. 5)
FYI: In many cases, the AC adapter can be
omitted. The AC adapter is only needed when
the signal source has insufficient strength to
power the XTENDEX.
Status
LED
Figure 4- Connect the AC adapter to the Remote Unit
(Remote Unit-Right End View)
Power
LED
5 VDC
Adapter
ADAPT ER
(Rear View of Remote Unit)
+
-
Barrel
Power Connector
5VDC @ 2.0A OUTPUT
(Outside
barrel)
2.1 mm x 5.5 mm Female
(Inside
barrel)
Figure 5- LEDs on Remote Unit
5
Page 9
NTI XTENDEX HDMI Video/Audio Extender
TECHNICAL SPECIFICATIONS
Video
Video Compatibility PC Resolution up to 1920x1200 @60Hz / HDTV resolution up to 1080i
Video Connectors HDMA Type A Female
Input Video Signal 5 volts p-p (TTL)
Video Color Format Deep color 24bit/36bit
HDMI Version HDMI 1.3
HDCP Version HDCP 1.3
Audio
Audio Format LPCM,Dolby-AC3,DTS7.1,DSD
General
Interconnect Cable CAT5/5e/6 Solid UTP EIA/TIA 568 B wiring with male RJ45 connectors
Operating Temperature -5 to +55º C
Operating Humidity Range 5 to 90% RH (no condensation)
Remote Unit Power 110V or 220VAC at 50 or 60Hz-5VDC/2.0A via AC Adapter
Local Unit Power powered by Remote Unit through CAT5 cable or by Video/Audio source
Enclosure type Electro-galvanized steel black powder coated
Size (In.) WxDxH 1.8x3.3x0.9
Distances and Resolutions for CAT5,CAT5e and CAT6 Cables
Solid Unshielded (UTP) and Shielded (STP) Twisted Pair Resolutions
CABLE
CAT5
(UTP)
CAT5e
(UTP)
CAT6
(UTP)
CAT6
(STP)
DISTANCE
(FEET)
200
150
100
250
200
150
100
275
250
200
100
300
200
100
MAXIMUM PC
RESOLTUTIONS
1024 x 768 at 60Hz
1280 x 1024 at 60Hz
1920 x 1200 at 60Hz
800 x 600 at 60Hz
1024 x 768 at 60Hz
1280 x 1024 at 60Hz
1920 x 1200 at 60Hz
800 x 600 at 60Hz
1024 x 768 at 60Hz
1280 x 1024 at 60Hz
1920 x 1200 at 60Hz
800 x 600 at 60Hz
1024 x 768 at 60Hz
1280 x 1024 at 60Hz
1920 x 1200 at 60Hz
CABLE
CAT5
(UTP
CAT5e
(UTP)
CAT6
(UTP)
CAT6
(STP)
DISTANCE
(FEET)
200
150
100
250
200
150
100
275
250
200
100
300
200
100
MAXIMUM HDTV
RESOLTUTIONS
480p
720p
1080i
480p
1080i
480p
1080i
480p
1080i
INTERCONNECTION CABLE WIRING METHOD
The CAT5 connection cables between the Remote and Local are terminated with RJ45 connectors and must be wired according
to the EIA/TIA 568 B industry standard. Wiring is per the table and drawing below.
Pin Wire Color Pair Function
1 White/Orange 2 T
2 Orange 2 R
3 White/Green 3 T
4 Blue 1 R
5 White/Blue 1 T
T
1
+
6 Green 3 R
7 White/Brown 4 T
8 Brown 4 R
Figure 6- View looking into RJ45 female
6
Pair 3
Pair 2 Pair 1
T
R
R
3
2
4
+
-
-
Pair 4
T
5
+
R
R
T
8
6
7
+
-
-
Page 10
NTI XTENDEX HDMI Video/Audio Extender
TROUBLESHOOTING
Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We
make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this
product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise. If the
answer is not found in the chart, please check the FAQs (Frequently Asked Questions) on our website at
http://www.networktechinc.com or contact us directly for help at 1-800-742-8324 (800-RGB-TECH) in US & Canada or 1-330-5627070 worldwide. We will be happy to assist in any way we can.
Problem Cause Solution
Remote Unit red power
LED does not illuminate
No Video on monitor
Video Picture is noisy,
lines on pixels out of
position on wiring color
• Power supply is not connected or
plugged-in.
• One or more video cables is loose
or disconnected.
• No power to Remote Unit.
• CAT5 cable is not connected.
• CAT5 cable is too long
• All Video Cables are not firmly
seated.
• CAT5 cable is too long.
• The CAT5 cable is not properly
connected.
• Make sure outlet is live and AC adapter is plugged-in.
• Make sure 5VDC jack is fully connected
• Check all video cable connections
• Make sure red “Power” LED is illuminated on remote. If
not, see solutions for first problem above.
• With all the cables properly connected, power cycle the
video/audio source. Make sure blue “Status” LED on
remote is illuminated.
• Make sure they are snapped-in properly and completely
and reboot.
• Switch to shorter cable or lower resolution (see table on
page 7)
• Check all connections. Make sure all cables are fully
seated.
• Switch to shorter cable or lower resolution (see table on
page 7)
• Check cable connections. Make sure they are snapped-
in properly and completely.
Monitor sometimes loses
sync, causing it to go
blank for a second or two
• Electrical power system is very
noisy, particularly the ground.
• The CAT5 cable is not properly
connected.
• CAT5 cable is too long
• Make sure the interconnection cable is not near any
power lines.
• Check cable connections. Make sure they are snapped-
in properly and completely.
• Switch to shorter cable or lower resolution (see table on
page 6)
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at
http://www.networktechinc.com/return-policy.html
is required for all repairs/returns.
Manual 020 Rev. 6/4/08
(800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at
for information regarding repairs and/or returns. A return authorization number
7
Loading...
