Page 1

SPLITMUX

Series

SPLITMUX-DVI-4RT

Quad Screen Video Splitter

Installation and Operation Manual

MAN157 Rev Date 8-10-12

Page 2

TRADEMARK

SPLITMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries.

Copyright © 2007, 2012 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical , photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 127 5 Danner Drive, Aurora, Ohio 44202.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.

FIRMWARE VERSION

1.0a

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit ou r website at

http://www.networktechinc.com for information regarding repairs and/or returns. A return authori zation n umber is

required for all repairs/returns.

MAN157 Rev Date 8-10-12

Page 3

TABLE OF CONTENTS

INTRODUCTION 1

FEATURES 1 TECHNICAL SPECIFICATIONS 3 SAFETY GUIDELINES 4 HARDWARE 5

- FRONT PANEL 5

- LED indicators 5

- Buttons 6

- Additional button functions 7

- REAR PANEL 9

- Power / Ports 9

INSTALLATION 11

CONNECTING UNIT TO POWER 11 CONNECTING CONSOLE (MONITOR, KEYBOARD, MOUSE, TOUCH SCREEN, TRACKBALL) 11 CONNECTING SOURCES / COMPUTERS 12 CONNECTING USB DEVICES 12 POWERING UP THE SYSTEM 12 CONNECTING AUDIO 13

ON SCREEN DISPLAY 14

OSD - OVERVIEW 14 OSD - MAIN MENU WINDOW 16 OSD - NAVIGATION 17 OSD SYSTEM - HDCP 18

- HOTKEY 19

- HOTMOUSE 20

- QUAD MODE 21

- WIN MODE 22

- OSD POSITION 23

- OSD LANGUAGE 23

- SECURITY 24

- DISABLE CHANNEL 27

- CONTROL - DCP control 28

- Example of DCP control 29

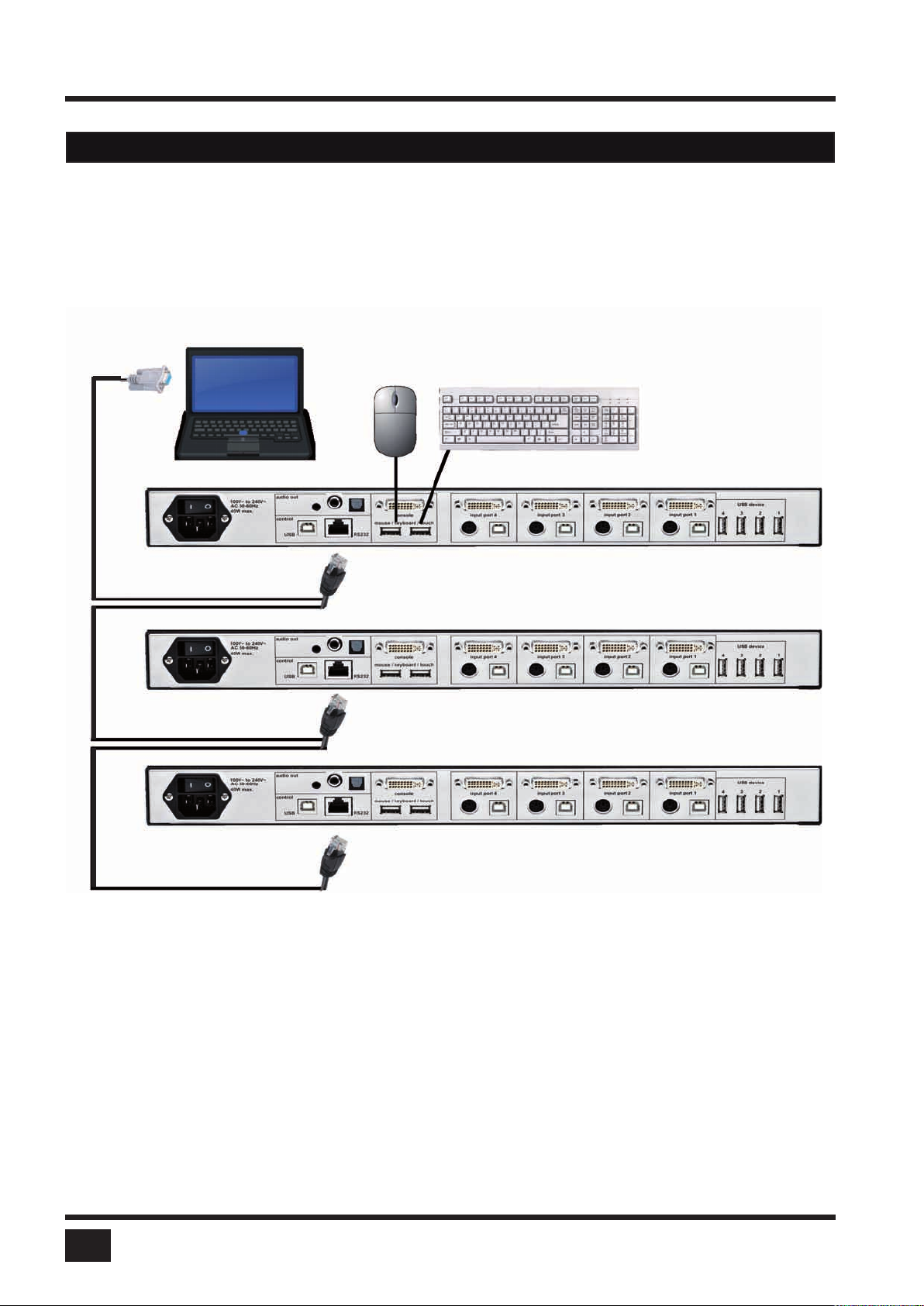

- DCP synchronize 29

- Example of DCP synchronization 30

- Security Levels 31

OSD MODE - CURRENT 32

- START 32

- PIP 33

- WIN 37

- TEST PATTERN 38 OSD CONFIGURATION - BACKUP 39

- RECALL 39

SPLITMUX - Installation and Operation Manual

III

Page 4

TABLE OF CONTENTS

- FACTORY RESET / DEFAULTS 40 OSD CONSOLE - VIDEO OUTPUT 42

- KEYBOARD 43

- TOUCH SCREEN 44

- FADE 47

- MULTI MONITOR 48

- BACKGROUND 49

- EDID 50

OSD VIDEO - INPUT STATUS 51

- DVI/VGA 52

- ROTATION 53

- CROPPING 54

- BRIGHTNESS / CONTRAST 55

- HORIZONTAL/VERTICAL POSITION 56

- SCREEN WIDTH 57

- PHASE 57

- FORMAT 58 OSD COMPUTER - CHANNEL MAPPING 60

- AUDIO 61

- NAME 1-4 62

- KEYBOARD 63

- MOUSE 64

- RESET PS/2 65

- EDID/DDC 65 OSD USB DEVICE 1-4 - USB PORT STATUS 69

- SWITCHING MODE 70

- CHANGE DEVICE NAME 71

OSD HELP - ABOUT/HOTKEY/CONTACT 72

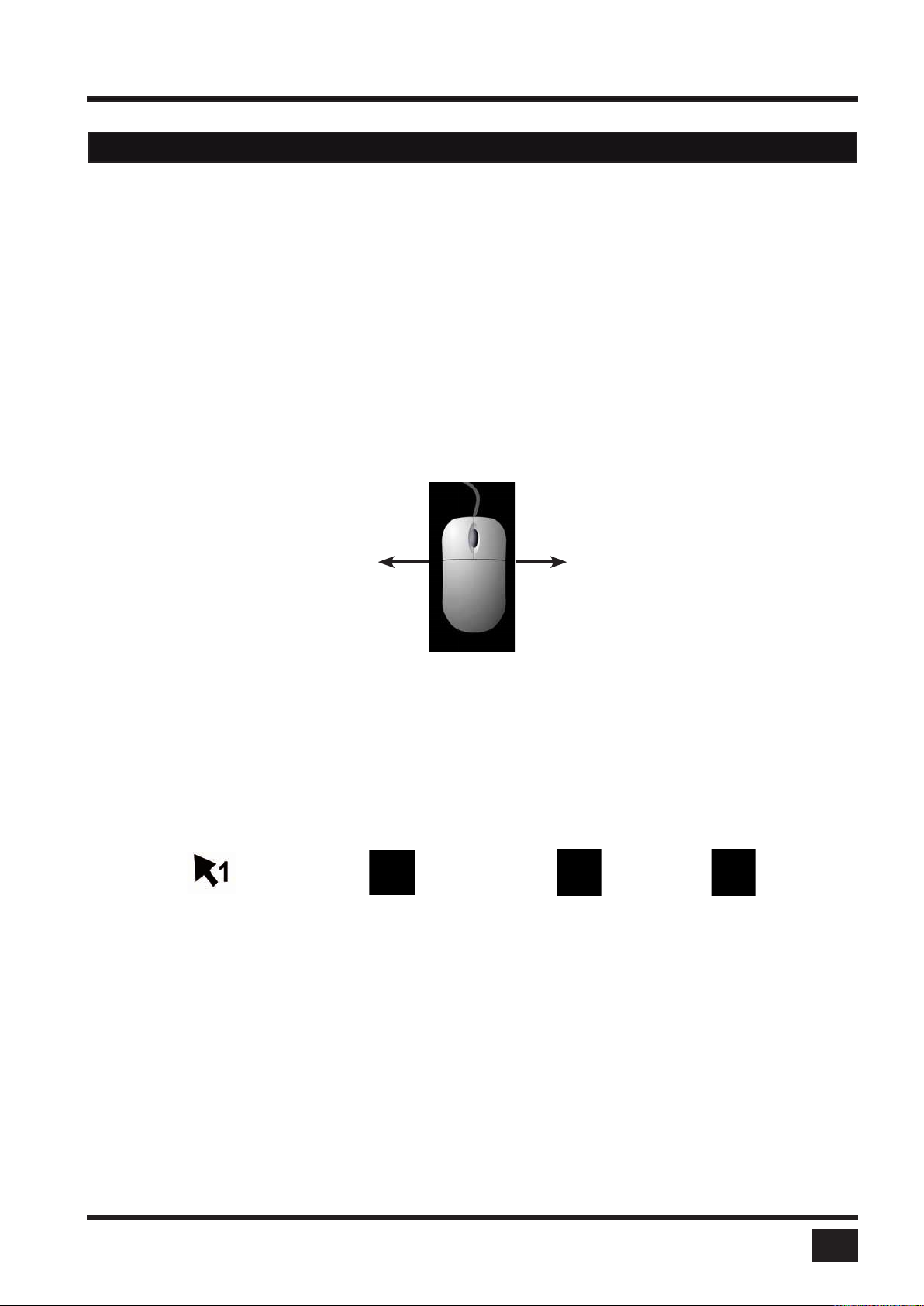

HOTMOUSE 73

ACTIVATING HOTMOUSE CURSOR 73 HOTMOUSE CURSOR IN FULLSCREEN MODE / QUAD MODE 74 HOTMOUSE CURSOR IN PIP MODE 75 HOTMOUSE CURSOR IN WIN MODE 77 HOTMOUSE MENU - ACTIVATING / OPERATING 79

- MODE - QUAD 80

- FULL 80

- PIP 81

- WIN 82

SERVICE 83

MAINTENANCE AND REPAIR - TECHNICAL SUPPORT 83

SPLITMUX - Installation and Operation Manual

Page 5

TABLE OF CONTENTS

ANNEX 84

DECLARATION OF CONFORMITY 84 FCC DECLARATION 85 KEYBOARD COMMANDS 86 DEVICE CONFIGURATION PROGRAM 89 FIRMWARE UPDATE 93 SERIAL CABLE 95 DCP-XML REMOTE CONTROL 96

SUPPORTED TOUCH SCREEN CONTROLLER 97 SUPPORTED VIDEO INPUT 98 SUPPORTED VIDEO OUTPUT 99 CASCADING 100

BOX CONTENTS 101

SPLITMUX - Installation and Operation Manual

Page 6

INTRODUCTION

FEATURES

Thank you for choosing SPLITMUX-DVI-4RT from NTI. This product represents the latest state-of-the-art technology in keyboard-video-mouse (KVM) switching. The key advantage of the SPLITMUX-DVI4-RT (SPLITMUX)over onventional KVM switches is that it allows you to simultaneously display and manage 4 computers on a single con- sole. It combines key features of a high-end KVM switch and a digital multiviewer, scaling and converting videos at both inputs and output.

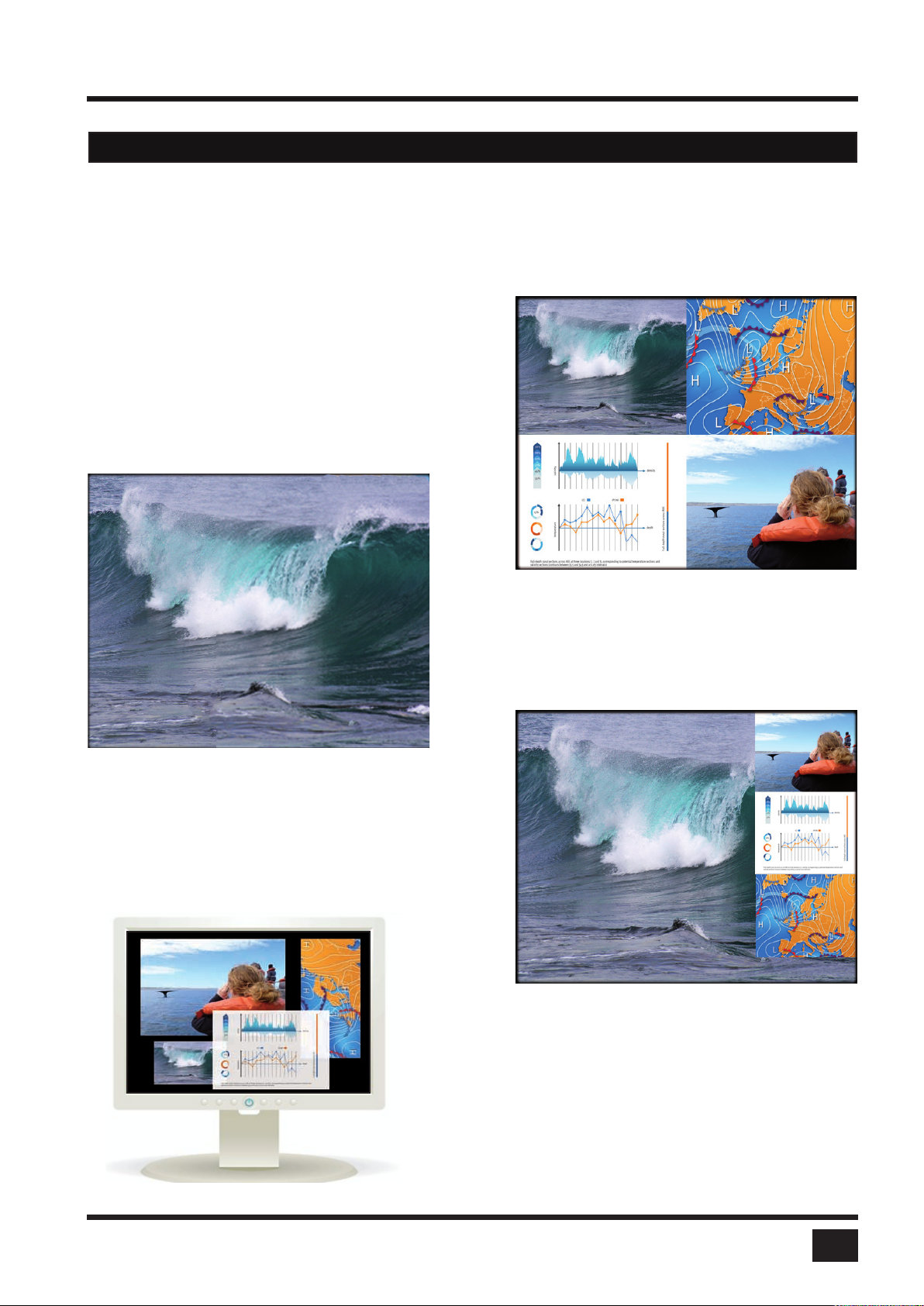

DISPLAY MODES

Quad mode u

In this mode, the screen is split into four fields of equal size; each displaying the entire screen contents of one source.

t Fullscreen mode

In Fullscreen mode, one of the four sources is displayed in full screen size and maximum resolution.

PiP mode (Picture in Picture) u

Using this feature, the full screen display of one of the four video sources is accompanied by one to three small images (thumbnails) of the other video sources which are displayed on the right hand side of the screen allowing simultaneous monitoring.

t Win mode

In Win mode each video source is displayed in its own separate, detached window. Each of these windows can be freely positioned and their height and width can be adjusted. Transparency can be set. Positioning is done using either the Hotmouse function, the front panel or the touch screen. Presets of the window positioning can be saved.

SPLITMUX - Installation and Operation Manual

Page 7

INTRODUCTION

FEATURES

DVI & VGA

SPLITMUX supports resolutions of up to 1920 x 1200 @ 60 Hz for both DVI and VGA.

Any combination of VGA and DVI at all standard resolutions is possible at inputs and output. Analog video input is converted to digital. If an analog display is connected, SPLITMUX converts the digital signal to analog at the output. Internally, SPLITMUX processes video purely digital guaranteeing superior digital image quality.

USB & PS/2 for keyboard / mouse / touch screen / trackball

Use either PS/2 or USB ports on the computer to connect keyboard and mouse to SPLITMUX. It supports

any combination. To connect the console, SPLITMUX features two USB ports for mouse, keyboard, touch screen or trackball connection.

Transparent USB 2.0

SPLITMUXfeatures a transparent high speed USB 2.0 matrix: USB 2.0 devices (e.g. printer, external

memory, memory stick,webcam, 3D mouse, finger printer) can be switched to computers connected.

Operation

There are six ways to operate SPLITMUX, switch channels, and select display modes:

1. Using the buttons on the front of the unit

2. Using configurable hotkeys

3. Using the unit’s external configuration software on a remote computer

4. Via a serial port using the protocol DCP XML

5. Using mouse functions (Hotmouse)

6. Using a touch screen

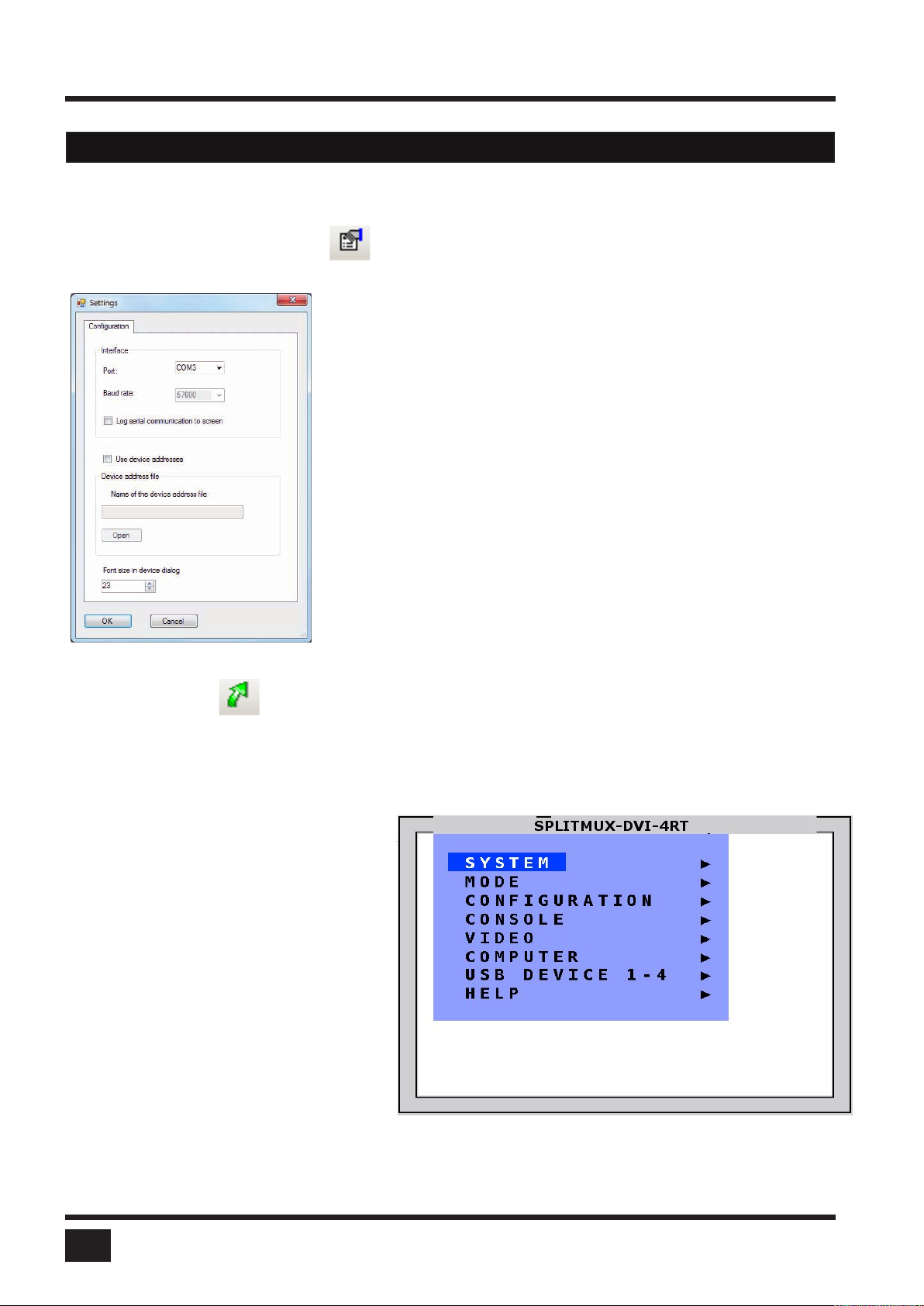

The configuration of SPLITMUX is carried out by means of an On Screen Display (OSD) that can be

opened and navigated either with keyboard commands, front panel buttons or remotely via ConfDev on an

external PC. The LEDs on the front panel indicate the unit’s current status. Use the serial (RS232) or USB port for remote control and firmware updates.

SPLITMUX - Installation and Operation Manual

Page 8

INTRODUCTION

TECHNICAL SPECIFICATIONS

Casing: Desktop or 19“, black (RAL 9005) Dimensions WxDxH: 43.6 x 23.4 x 4.4 cm Weight: 2.9 kg Operating controls: Front panel: 4 channel selection buttons, 1 Fullscreen mode button, 1

Quad mode button, 1 PiP mode button, 1 Win mode button Rear panel: One Power On/Off switch

Indicators: Four active channel indicator LEDs, 1 Fullscreen mode LED, 1 Quad mode LED, 1 PiP mode LED, 1 Win mode LED

Computer ports: 4 DVI-I (analog and digital), 4 PS/2, 4 USB Console ports: 1 DVI-I, 2 USB for keyboard and mouse USB 2.0 ports: 4 transparent high-speed USB 2.0 Audio: 3,5mm analog stereo jack, digital cinch connector, TOSLINK optical audio Maximum distance: Video (DVI / VGA) up to 20 meters; keyboard / mouse up to 5 meters Input and

output resolution: up to 1920 x 1200 @ 60 (DVI and VGA) * EDID adjustments: EDID at each input port customizable Supported

keyboard layouts: German, English, French, Italian, Spanish, Japanese OSD languages: German, English, Spanish Power supply: Internal AC adapter, 100 to 240V 50/60 Hz Power consumption: 40 watts Operating temperature: 5 to 45°C Storage temperature: -10 to 60 °C Rel. humidity: 5 to 65% non-condensing

*(at WUXGA: reduced blanking only - WUXGAr)

SPLITMUX - Installation and Operation Manual

Page 9

INTRODUCTION

SAFETY GUIDELINES

WARNING:

To avoid risk of electric shock do not open the device or remove any part of the casing. Please contact our technical support if the device requires servicing.

Please read this manual carefully before putting the device into operation. Observe all warnings and instructions on the device and in the operation manual. Keep this user manual for

future reference.

Power supply: Only connect the device to a grounded power supply.

Installation: Ensure that the device is disconnected from the mains before performing any installation work.

Unplug the device or disconnect the power supply. Cables:

Only use the cables supplied by NTI with the device. Damage resulting from the use of third-party cables is not covered by warranty. Beware of tripping hazards when laying cables.

Location: Electronic devices should never be placed on the ground between the cables.

Never obstruct any vents the device may have. Ensure adequate ventilation.

Maintenance: This device is maintenance-free.

Never open the casing. No settings can be made inside the device.

SPLITMUX - Installation and Operation Manual

Page 10

INTRODUCTION

HARDWARE

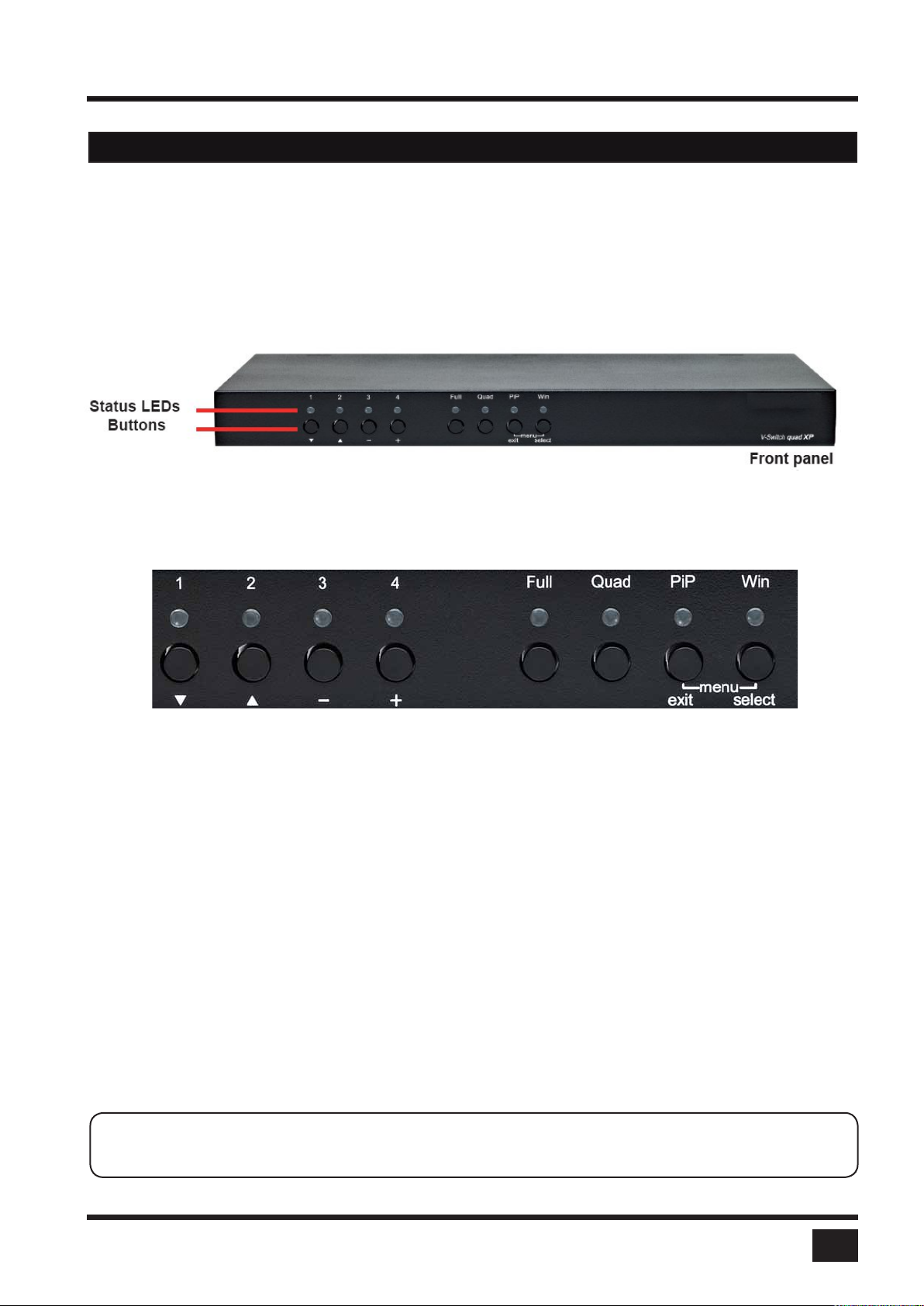

FRONT PANEL

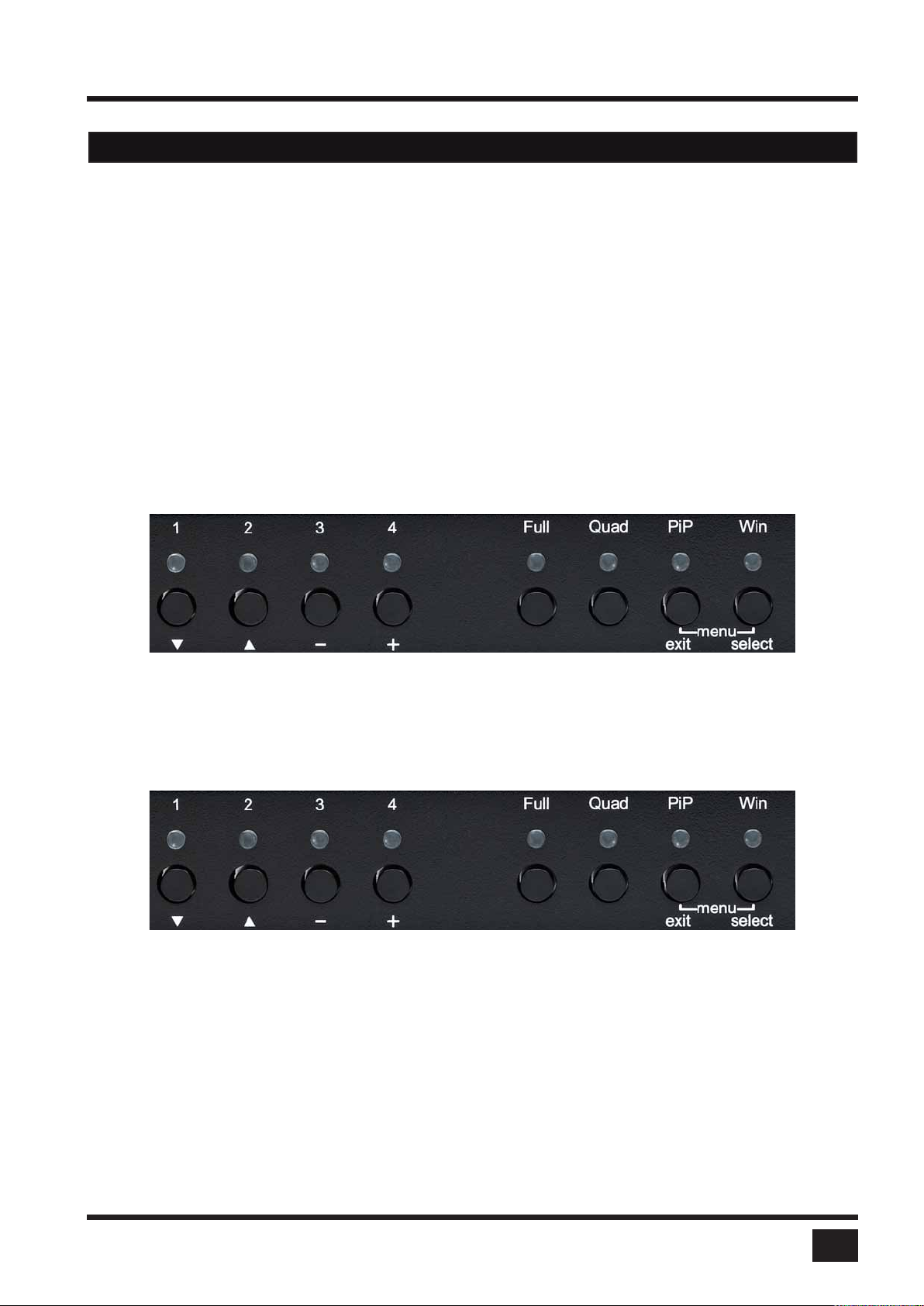

The SPLITMUX front panel has eight status indicators (LEDs) and eight buttons. Buttons 1 to 4 switch between channels, LEDs 1 to 4 indicate the status of the individual channels. Full, Quad,

PiP and Win buttons LEDs are used to switch and indicate display modes and other functions, e.g. opening the OSD menu.

Status LEDs

Buttons

Front panel

LED indicators

- LEDs 1 to 4: When these LEDs light up green, the corresponding channel (computer port) has been selected and is available for keyboard and mouse access. When a LED flashes green, there is no signal at the video input of the selected channel.

An LED lights up yellow when there is a signal at the video input, but another channel

has been selected.

When the LED is dark, there is no signal at the video input and another channel has

been selected.

The LEDs light up blue when Win Mode preset window configuration is being selected.

- LED Full: This LED lights up green when the unit is in Fullscreen mode.

- LED Quad: This LED lights up green when the unit is in Quad mode.

- LED PiP: This LED lights up green when the unit is in PiP mode.

- LED Win: This LED lights up green when the unit is in Win mode.

Note: While the OSD menu is open, the active computer can still be operated by mouse or touch screen.

SPLITMUX - Installation and Operation Manual

Page 11

INTRODUCTION

HARDWARE

FRONT PANEL (continued)

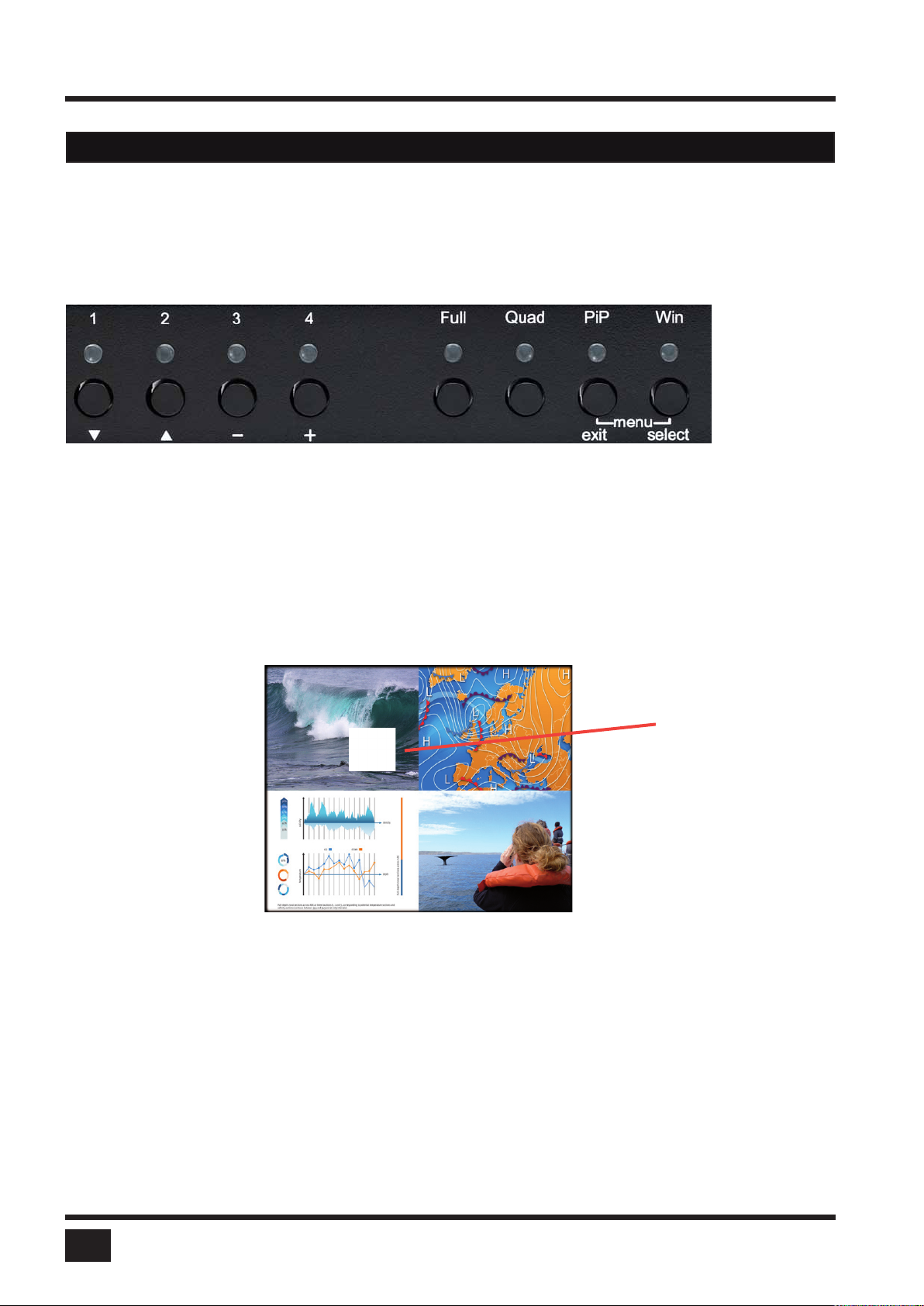

Buttons

- Buttons 1 to 4: These buttons activate the corresponding channel (computer port).

- Full button: Press to switch to Fullscreen mode.

- Quad button: Press to switch to Quad mode.

- PiP button: Press to switch to picture in picture mode (PiP).

- Win button: Press to switch to Win mode.

You can also select the active channel using hotkey and the arrow keys.

Selector

The selection window closes once the channel selection timeout period has expired.

The channel selection timeout is configured in the OSD under SYSTEM > QUAD MODE.

Use the “Time out of channel selection:” menu item to define how long the selector is to be displayed.

SPLITMUX - Installation and Operation Manual

Page 12

INTRODUCTION

HARDWARE

FRONT PANEL - Additional button functions

Setting output resolution to safe output modes

To set output resolution to 640 x 480 pixel @ 60 Hz simultaneously: Press and hold buttons 1 and 2 for 2 seconds. Use of this feature is recommended when you cannot use the OSD (on screen display dark or illegible)

because the output resolution setting is not supported by the monitor. After setting the correct output resolution (640x480@60), you can choose a resolution the connected monitor supports in the OSD. Alternatively, hold buttons 1 and 2 again to cycle through the following video modes: VGA 640x480@60, SVGA 800x600@60, XGA 1024x768@60, UXGA 1600x1200@60, and the preferred video resolution found in the monitor EDID.

LEDs 1 to 4 and FULL indicate the selected mode in blue.

Hardware Reset

Press and hold buttons 3 and 4 simultaneously for 5 seconds in order to reset the unit completely (video + mouse + keyboard)

SPLITMUX - Installation and Operation Manual

Page 13

INTRODUCTION

HARDWARE

FRONT PANEL - Additional button functions

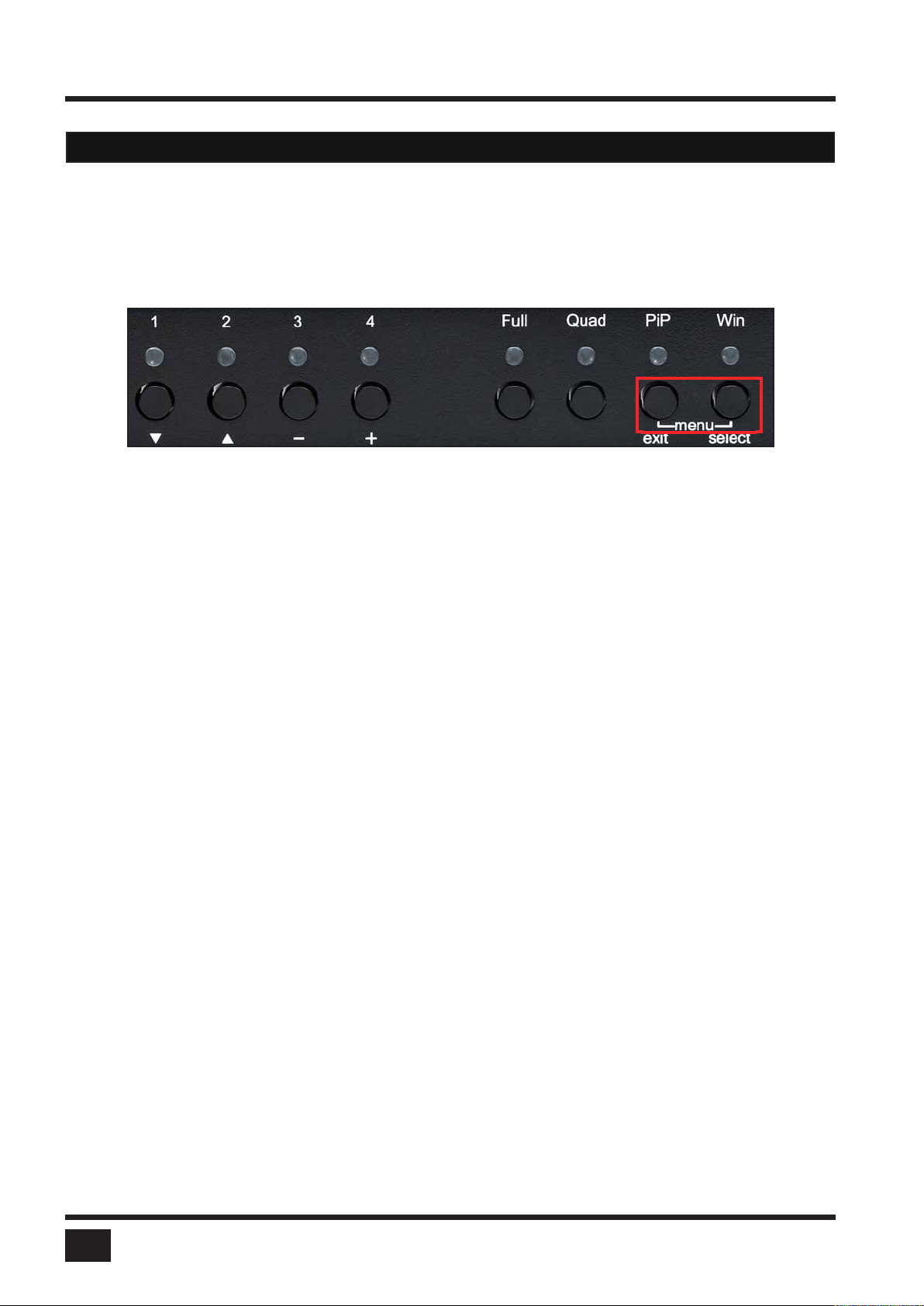

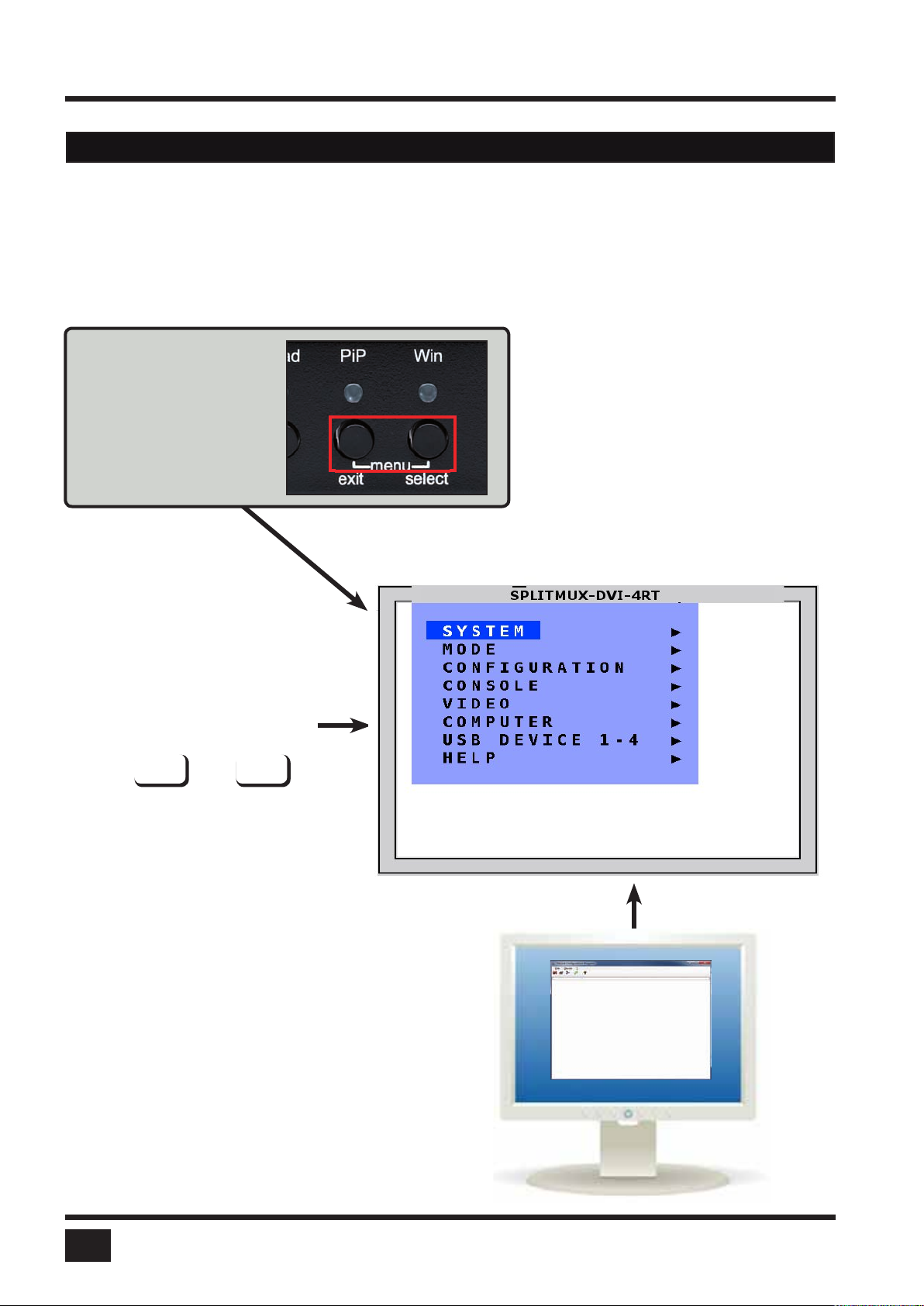

Calling up OSD Press and hold PiP and Win buttons simultaneously for 2 seconds to open the OSD menu.

Note: While the OSD menu is open, the active computer can still be operated by mouse and touch

screen.

SPLITMUX - Installation and Operation Manual

Page 14

INTRODUCTION

HARDWARE

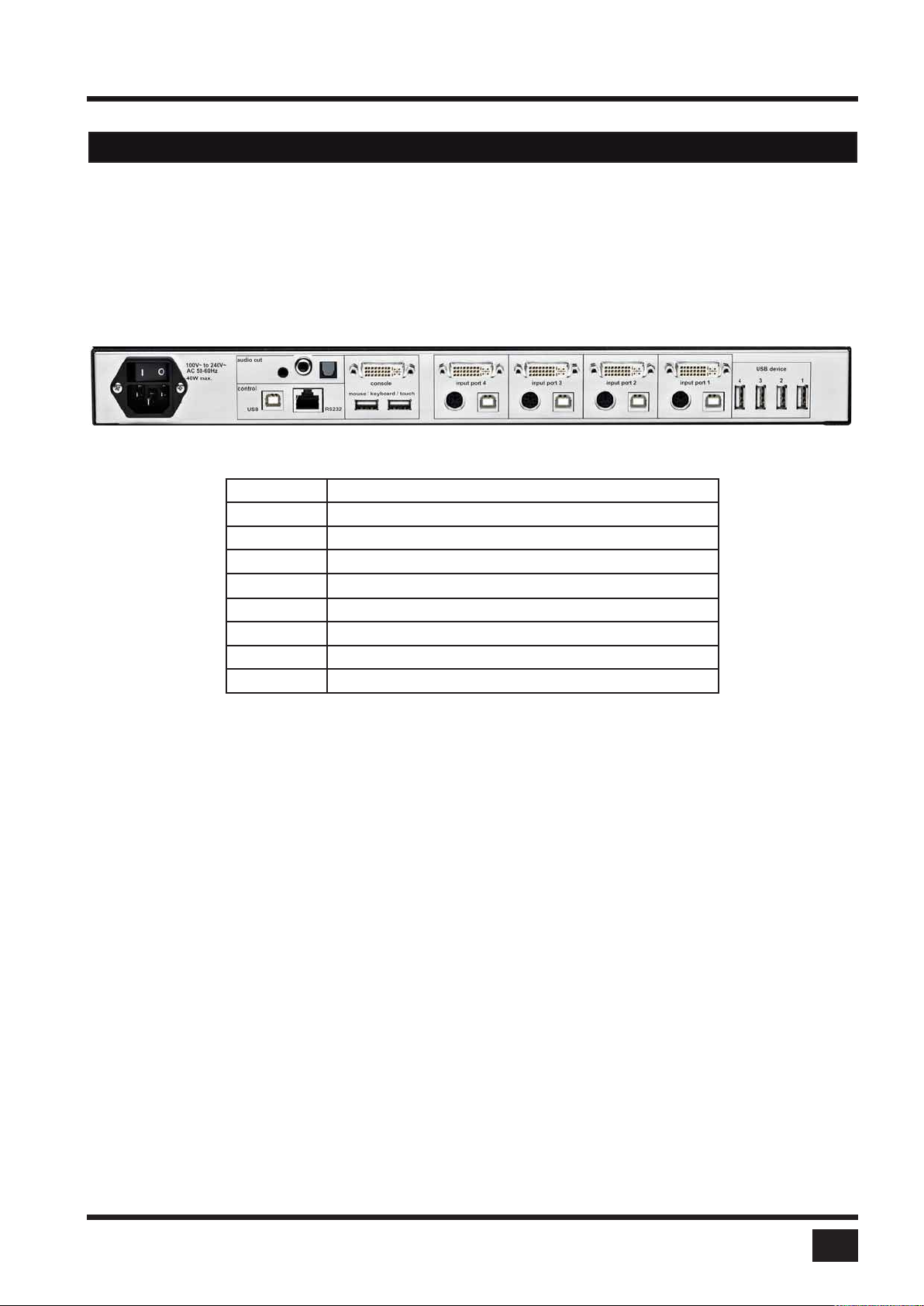

REAR PANEL

The rear panel of SPLITMUX features three audio ports, four input source/computer ports, the console port (KVM), the USB control port, the serial RS232 control port, four transparent high-speed USB 2.0 device ports, the power connection.

1 2 3 4

5 6 7 8 9

1 Power 2 Audio ports 3 Monitor / DVI-I output 4 Four DVI-I inputs 5 6 RS232 / RJ45 control port 7 USB for keyboard, mouse, touch or trackball (console) 8 USB or PS2 keyboard and mouse (computer) 9 Four transparent high-speed USB 2.0 ports

1. Power

USB control port

Plug for enclosed power cable.

2. Audio ports

Connect external speakers or headphones to the 3,5mm analog stereo jack or digital cinch connector. The TOSLINK optical audio connection enables digital audio output.

3. Monitor / DVI-I output

Analog or digital displays connect to this port.

4. DVI-I inputs

Analog or digital video signal of your up to four sources connect to these four DVI-I ports.

5. USB control port

External USB control devices connect to this port to operate SPLITMUX remotely. Execute firmware updates or manage the device using ConfDev by means of the control ports.

SPLITMUX - Installation and Operation Manual

Page 15

INTRODUCTION

HARDWARE

REAR PANEL (continued)

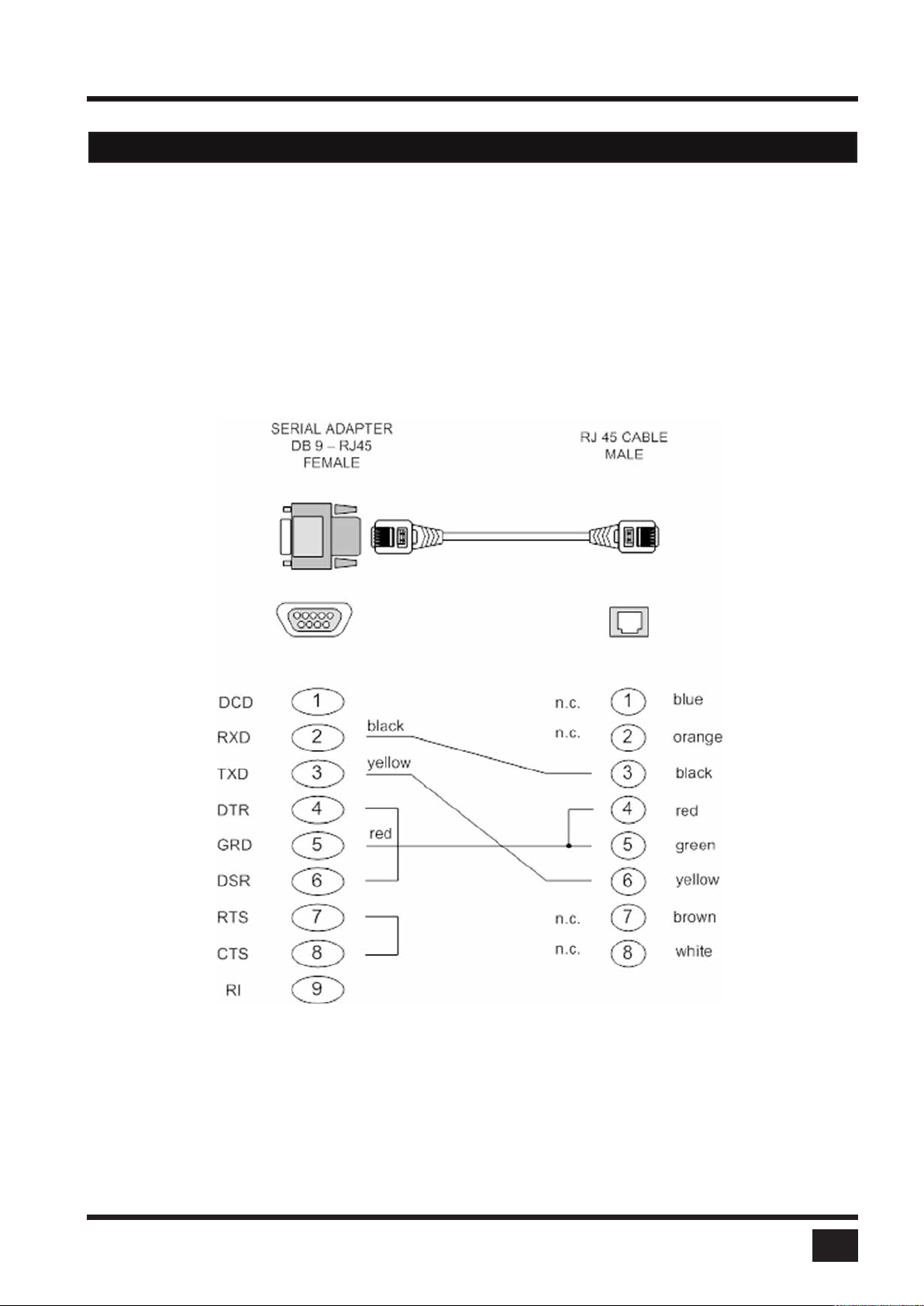

6. RS 232 / RJ45 control port

Connect external serial control devices to this RJ-45 port to operate SPLITMUX remotely, e.g. connect to this port to access the OSD menu from a computer using the ConfDev device configuration tool (see page 89).

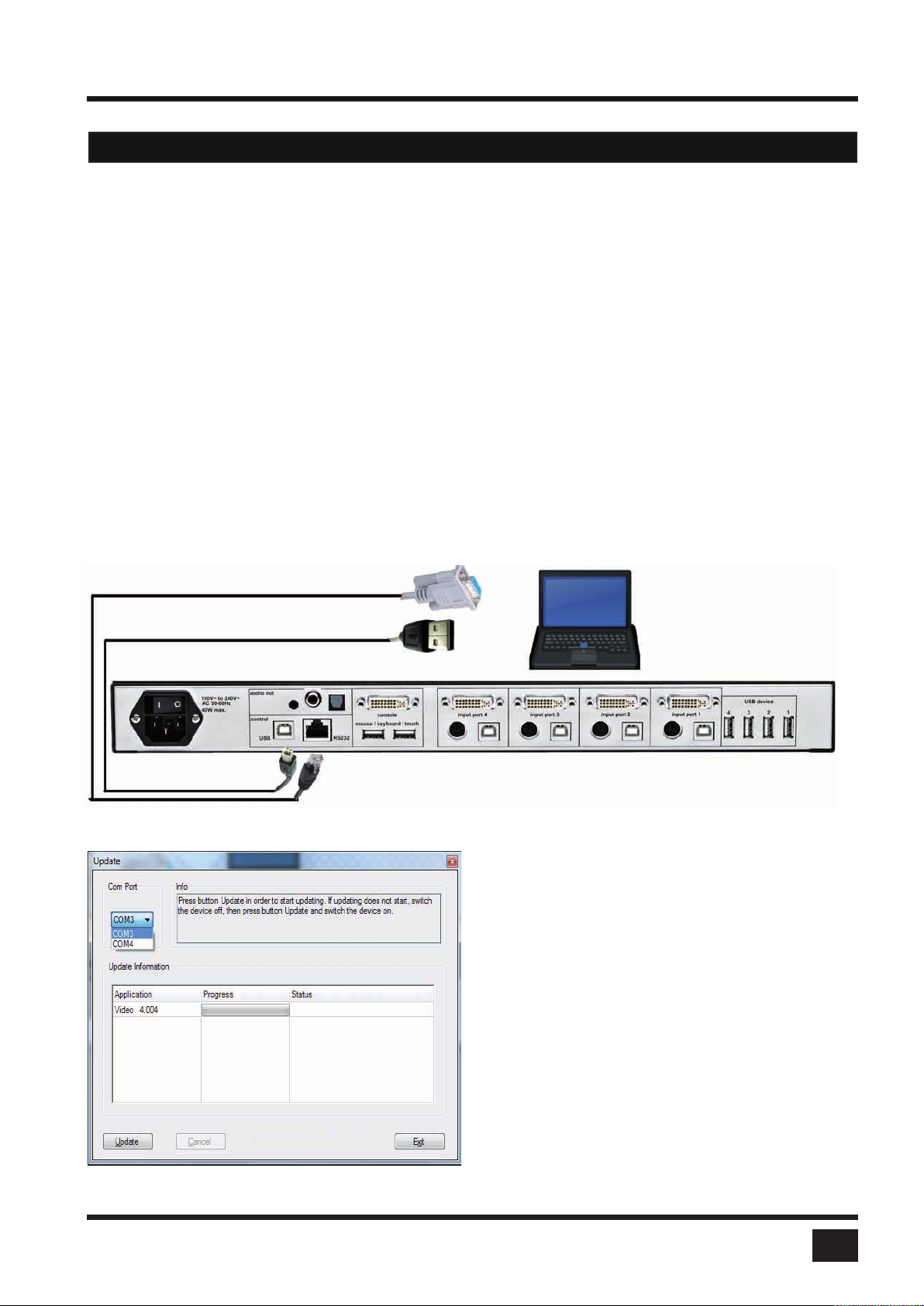

The serial RS 232 port is also used for firmware updates (see page 93).

7. USB for keyboard, mouse, touch or trackball (console)

Two USB ports allow connecting keyboard, mouse, touch screen or trackball. Using a USB-Hub, you can connect multiple keyboards and mice.

They will work in share mode with an inactivity timeout of 3 seconds.

8. USB or PS2 keyboard and mouse (computer)

Each computer can be connected with PS/2 or USB-B for keyboard and mouse.

9. Four transparent high-speed USB 2.0 ports

USB devices (printer, memory stick, finger printer, 3D mouse) are connected to the four transparent USB ports. This transparent USB 2.0 matrix switches USB 2.0 periphals to computers connected to SPLITMUX.

SPLITMUX - Installation and Operation Manual

Page 16

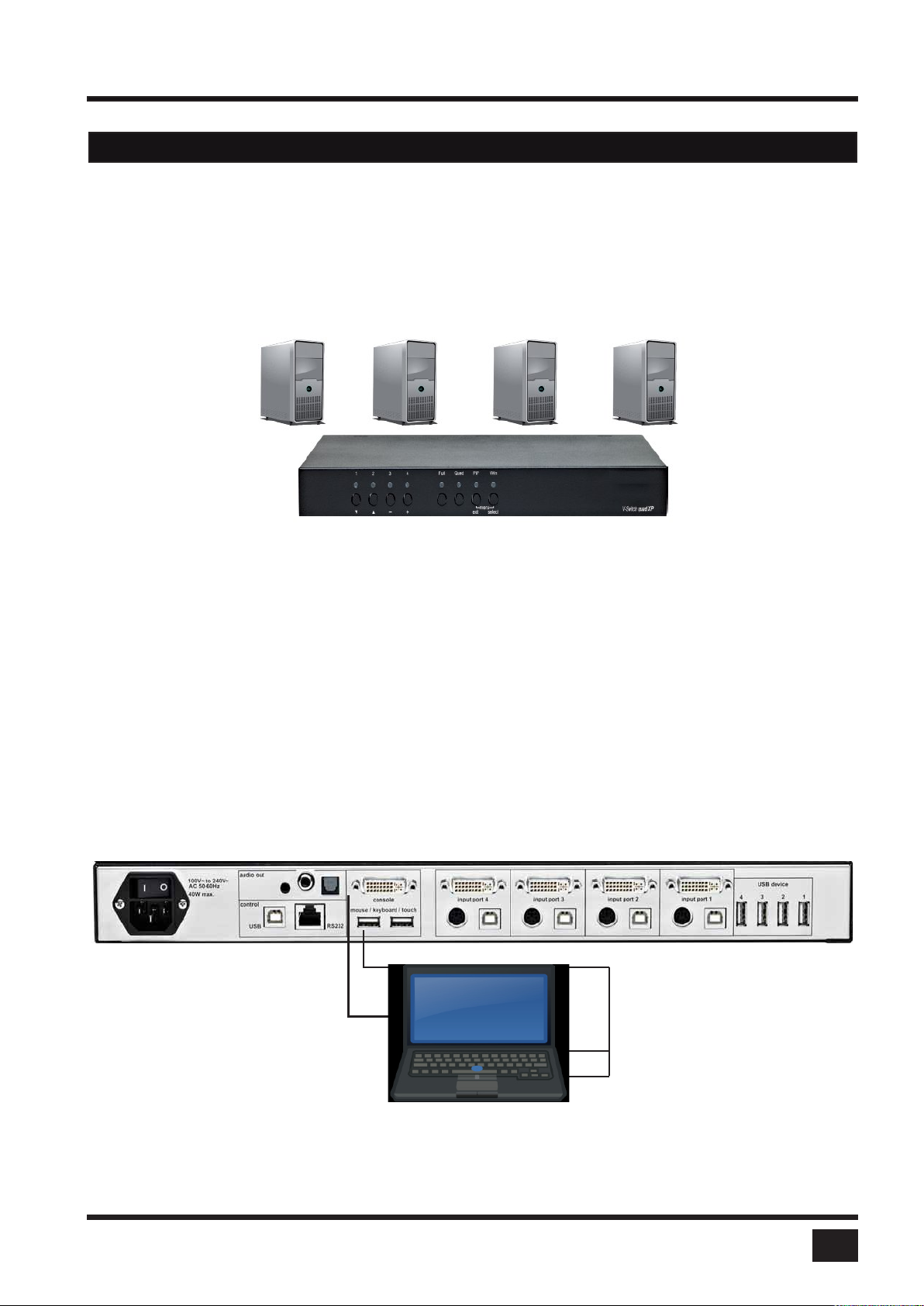

INSTALLATION

To reduce the need for long cables, SPLITMUX is best placed as close as possible to its video sources. By default, SPLITMUX is delivered as desktop version. Using the rack mount kit supplied, it may also be mounted in a 19” rack.

Keyboard, monitor, mouse (console) and USB devices are connected to SPLITMUX using the corresponding cables (DVI, USB or PS/2). KVM extenders will allow you to work remotely via CAT5, fiber optic or Ethernet connection.

CONNECTING THE UNIT TO POWER

Plug the power cable into the power plug located on the rear panel of SPLITMUX, but do not turn the power on

CONNECTING CONSOLE (MONITOR, kEYBOARD, MOUSE, TOUCH SCREEN, TRACkBALL)

Connect your monitor to the monitor port of SPLITMUX via VGA-DVI cable (analog) or DVI cable (digital) up to 20 meters. For greater distances use a DVI or VGA extender.

Connect your USB mouse and keyboard to the USB-A ports on the console up to 5 meters. For greater distances use a KVM or USB extender.

PS/2 mouse and keyboard can be connected to SPLITMUX using a PS/2-USB adaptor. Connect your touch screen to the DVI-I port and the USB-A port (for calibration see page 44)

Connect the kVM console with digital or analog monitor, USB mouse and USB keyboard

Note:

Maximum cable length for video (DVI / VGA) is up to 20 meters. Maximum cable length for USB / PS2 keyboard and mouse is up to 5 meters. For greater distances SPLITMUX supports most KVM extenders, video (DVI / VGA) extenders, and USB extenders.

SPLITMUX - Installation and Operation Manual

Page 17

INSTALLATION

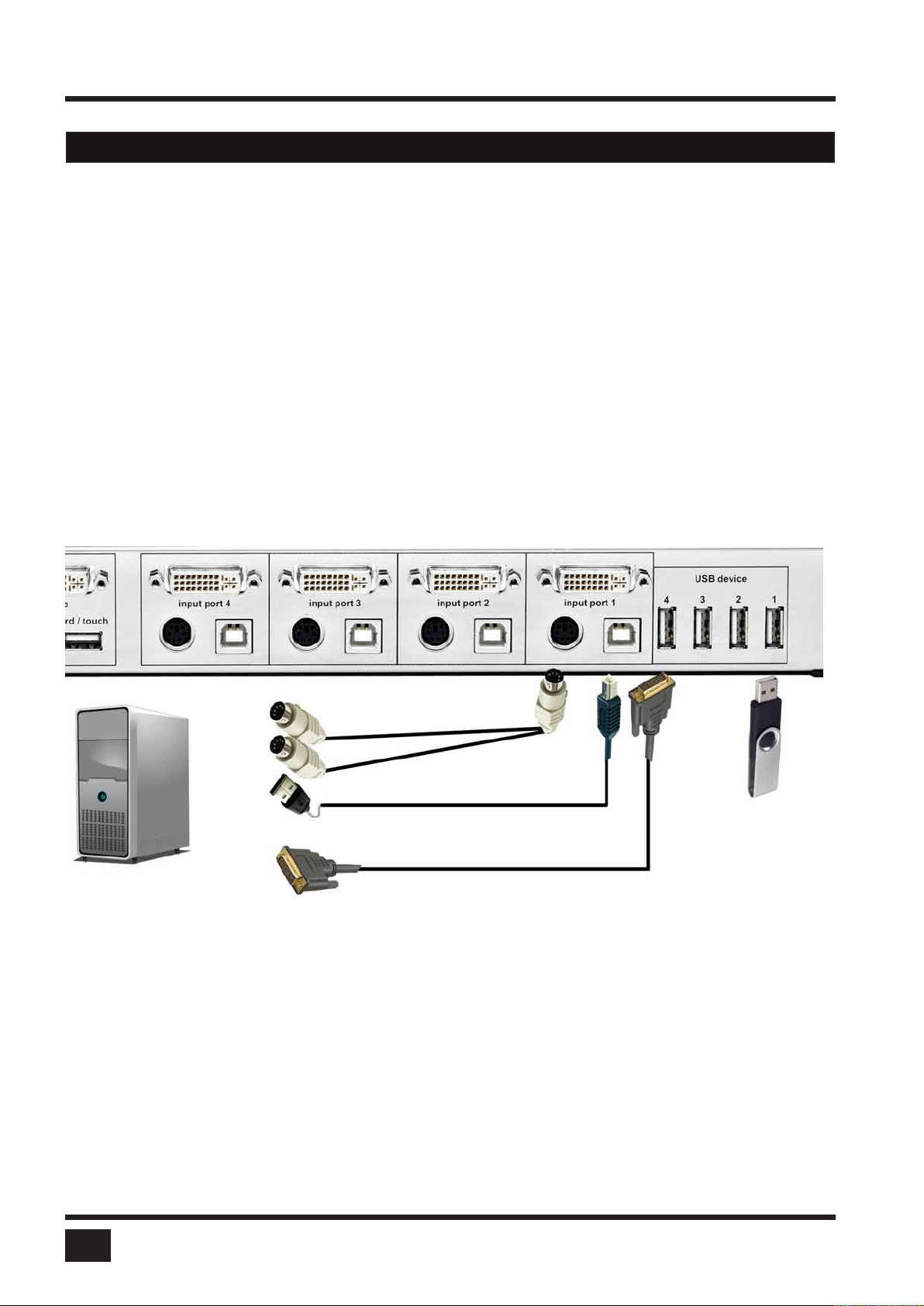

CONNECTING VIDEO SOURCES / COMPUTERS

Switch off the computer and disconnect the keyboard, monitor and mouse. Connect keyboard and mouse ports of SPLITMUX to the computer ports either with a single USB cable

or via the PS/2 interface (use the Y cable) up to 5 meters. For greater distances use a KVM or USB extender. To connect an analog video / computer source (VGA) to SPLITMUX, use a VGA-DVI cable. Digital video

sources are connected via a DVI cable up to 20 meters. For greater distances use a DVI or VGA extender.

CONNECTING USB DEVICES

Connect a USB device to one of the four transparent USB ports to switch it to computers connected to SPLITMUX.

SPLITMUX supports transparent USB devices such as printer, external memory, 3D mouse, and finger

printer.

keyboard

Mouse

keyboard & mouse

Digital or analog

POWERING UP THE SYSTEM

Switch on SPLITMUX with the power switch on the rear panel. All front panel LEDs light up briefly indicating that SPLITMUX is ready for operation. SPLITMUX is now in Quad mode (default).

Power up all connected computers. SPLITMUX recognizes all input video sources automatically and displays them on your monitor screen.

To select another display mode, use the relevant keyboard commands (see page 86) or buttons on the front panel (page 6).

PS/2 - Y cable

USB cable (A-B)

DVI-I -HD15 or DVI cable

Connect

USB devices

SPLITMUX - Installation and Operation Manual

Page 18

INSTALLATION

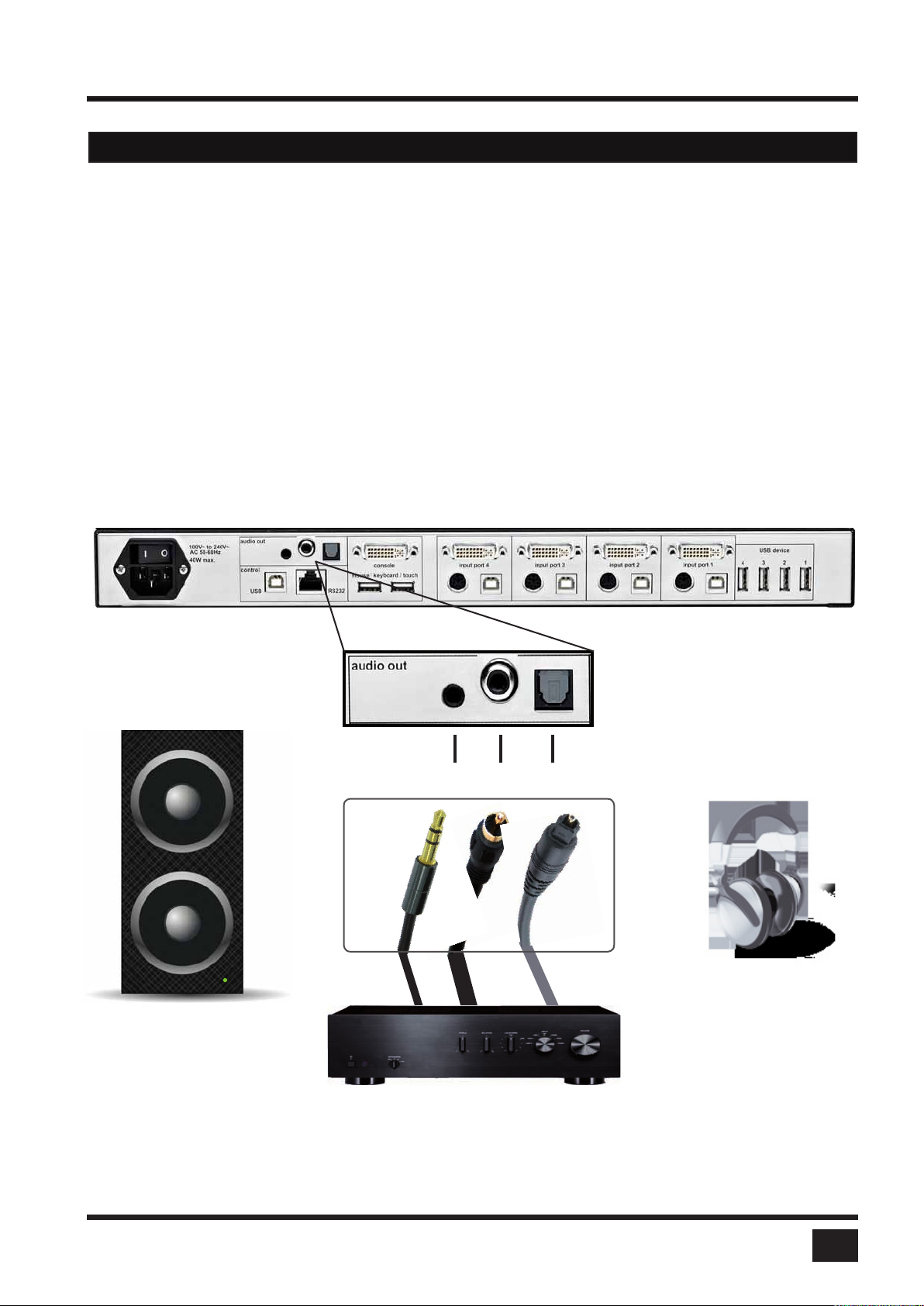

CONNECTING AUDIO

The SPLITMUX can be connected to external, powered speakers or audio devices in order for sound coming from the four connected sources to be played back.

Three different connection options are made available (see graphic):

1) 3,5mm analog stereo jack

2) Digital cinch connector

3) TOSLINK optical audio jack

After the speakers have been physically connected to the SPLITMUX

- Open the OSD and navigate to COMPUTER > AUDIO

- Enable audio output

- Select the audio source and adjust the volume.

Powered

speakers

A variety of device options are available to connect to SPLITMUX for audio output

2 31

Headphones

Amplifier

Note: Powered speakers or headphones can also be connected directly to SPLITMUX,

eliminating the need for an amplifier.

SPLITMUX - Installation and Operation Manual

Page 19

ON SCREEN DISPLAY

OSD - OVERVIEW

SYSTEM HDCP HDCP status HOTKEY Multiple Hotkey / Double Click Hotkey

HOTMOUSE Hotmouse Recognition, Hotmouse Timeout QUAD MODE Channel Selection Timeout WIN MODE Appearance settings for windows OSD POSITION Position of OSD window OSD LANGUAGE German / English / Spanish SECURITY Set security level DISABLE CHANNEL Deactivate unused channels CONTROL Device control via DCP-XML protocol (RS232)

MODE CURRENT Set the current channel and mode START Set the channel and mode in which the device should boot

CONFIGURATION BACKUP Save configuration settings RECALL Restore last saved configuration FACTORY RESET Reset to factory default settings

CONSOLE VIDEO OUTPUT Video resolution and frequency KEYBOARD Keyboard layout TOUCH SCREEN Calibration / Mouse key emulation / Enlarge on touch FADE Indicate use of smooth transitions MULTI MONITOR Assign mouse/keyboard to video BACKGROUND Select background type EDID Display of EDID monitor data

VIDEO INPUT STATUS Display computers’ video input resolutions DVI / VGA Choose input signal: DVI/VGA - DVI - VGA ROTATION Rotate the screen display at different degrees CROPPING Crop the display of video sources BRIGHTNESS Set brightness of analog input signal CONTRAST Set contrast of analog input signal HORIZ POSITION Horizontal screen position VERT POSITION Vertical screen position SCREEN WIDTH Set screen width of analog input signal PHASE Adjust phase of analog input signal FORMAT Fit input format to screen

SPLITMUX - Installation and Operation Manual

Page 20

ON SCREEN DISPLAY

OSD - OVERVIEW (continued)

COMPUTER CHANNEL MAPPING Assign an input port to a channel

AUDIO Enable audio output / Audio source selection / Volume NAME 1-4 Assign computer names KEYBOARD Display type of keyboard (PC1, PC2, PC3 or USB) MOUSE Display type of mouse (PS/2, PS/2 Wheel or USB) Set USB mouse positioning (absolute / relative) RESET PS/2 Reset PS/2 mouse and keyboard EDID / DDC Program input EDID

USB DEVICE 1-4 USB PORT STATUS Shows USB 2.0 matrix status and allows USB ports to be assigned to a device

HELP ABOUT Firmware / hardware version, serial number, etc HOTKEY List of keyboard commands CONTACT Contact information

SPLITMUX - Installation and Operation Manual

Page 21

ON SCREEN DISPLAY

OSD - MAIN MENU WINDOW

There are three ways to open the OSD main menu (figure):

use keyboard command „hotkey“ + „O“

• simultaneously press front panel buttons „PiP“ + „Win“ for longer than one second

• remotely open the OSD via ConfDev program on an external PC with serial or USB connection

•

Call the OSD by pressing buttons „PiP„ + „Win„ simultaneously for longer than one second

On Screen Display (OSD)

The OSD pops up in the center of the screen (on top of the video image).

Press Hotkey + O on your computer keyboard

HK O

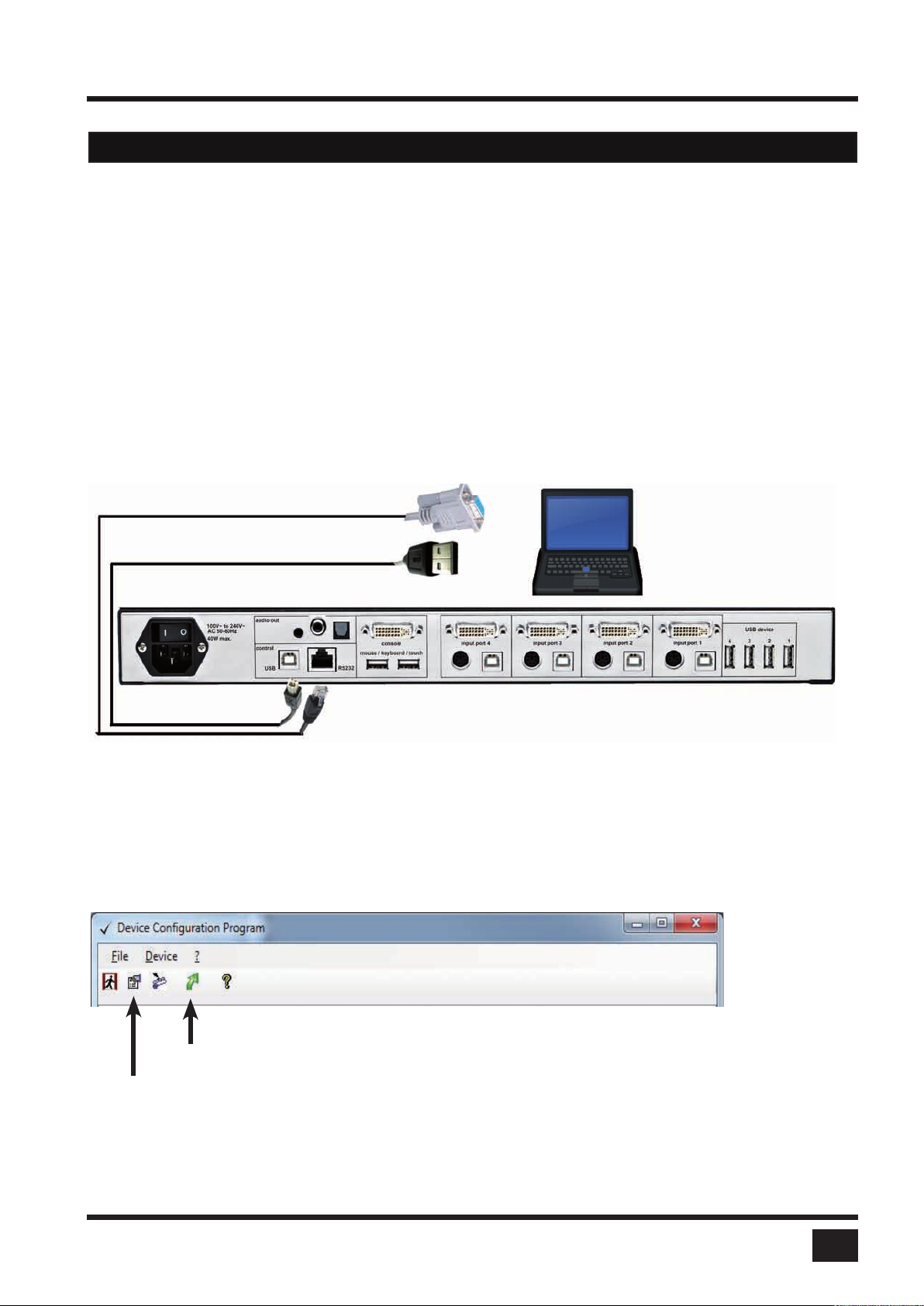

Use a serial or USB connection from a PC to SPLITMUX to remotely open the OSD using ConfDev.

SPLITMUX - Installation and Operation Manual

Page 22

ON SCREEN DISPLAY

OSD - NAVIGATION

To navigate the On Screen Display (OSD) either use the buttons on the front panel or your keyboard.

Navigation with keyboard

To navigate from one field to the next in the OSD menu use the UP and DOWN arrow keys or TAB/SHIFT-TAB keys. Use the LEFT and RIGHT arrow or + (PLUS) and – (MINUS) keys to change the value in the current field. Press ENTER to select a menu item.

Press ESC to return to the previous window (higher menu level) or exit the OSD. Changes in parameters are saved automatically.

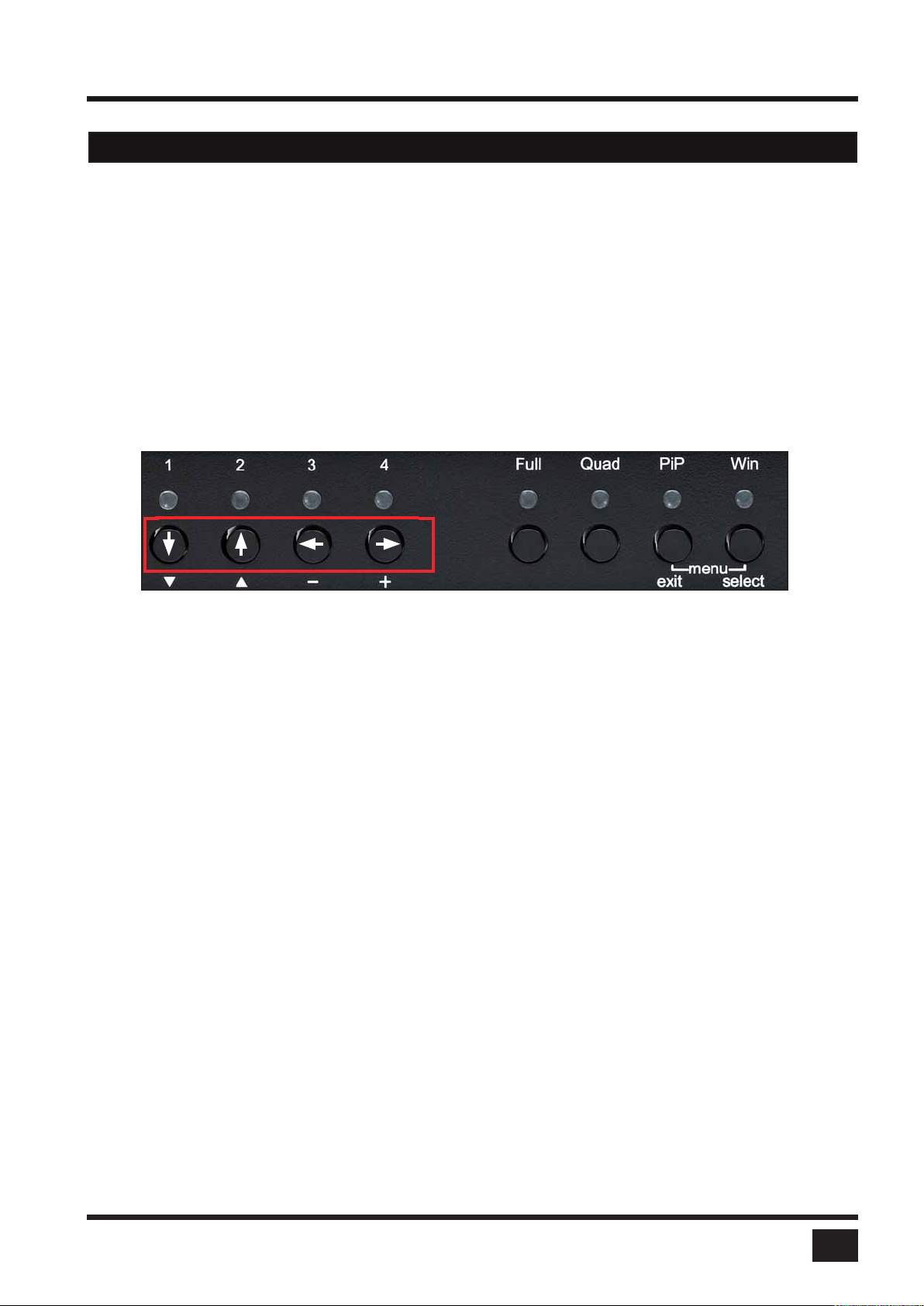

Navigation using the buttons on the front panel

Corresponding keys on console keyboard

Navigation using the buttons on the front panel is analogous to using the console keyboard. Buttons 1 and 2 correspond to the UP and DOWN arrow keys and buttons 3 and 4 to the LEFT and RIGHT arrow keys or +/- keys. Confirm your entry by pressing the Win / select button.

Press the PiP / exit button to return to the previous page (higher menu level) or exit the OSD. Changed settings are saved automatically.

Note: Hotkey commands are possible while the OSD window is open.

SPLITMUX - Installation and Operation Manual

Page 23

ON SCREEN DISPLAY

OSD - SYSTEM - HDCP

HDCP STATUS

Use the arrow keys to navigate in the SYSTEM menu to the entry HDCP and press ENTER/ SELECT to open the HDCP window.

The SYSTEM / HDCP window displays the status of HDCP input and output encoding. HDCP (High-bandwidth Digital Content Protection) is an encoding system used to secure and transmit audio and video.

In the upper part of the window, the HDCP status of the four input signals is displayed. When a checkbox is marked, the source is transmitting an HDMI signal with HDCP encoding.

SPLITMUX displays this signal only when HDCP encoding is capable of being activated on the output device as well.

The lower portion of the window displays the HDCP status of the output. The first line shows whether the monitor connected supports HDCP.

When checked, the next line indicates whether the signal proceeding from SPLITMUX is protected by HDCP. If the output signal is HDCP encoded, SPLTIMUX puts out neither analog video signal nor any separate audio signal.

SPLITMUX - Installation and Operation Manual

Page 24

ON SCREEN DISPLAY

OSD - SYSTEM - HOTkEY

HOTkEY

Navigate with the arrow keys in the SYSTEM menu to the entry HOTKEY and press the ENTER/SELECT key to open the HOTKEY window.

Two different hotkey modes are available:

- For multiple hotkey commands you can define one to four keys which are pressed simultaneously to enter the command mode. Selectable keys are: STRG, SHIFT, ALT and WINDOWS.

- For double click hotkey commands you can choose one key, which is double clicked to enter the command mode. Selectable keys are: STRG, SHIFT, ALT and SCROLL.

To change the hotkey mode or select another hotkey, navigate with the TAB or ARROW UP/DOWN keys to the respective field and use the ARROW LEFT/RIGHT or the +/- keys to change the setting.

The command mode is indicated by LED flashing on the console keyboard.

Default setting: Multiple Hotkey: CTRL + ALT

For a list of hotkeys to operate SPLITMUX, see Annex page Keyboard Commands.

Multiple keys

Double click hotkeys

SPLITMUX - Installation and Operation Manual

Page 25

ON SCREEN DISPLAY

OSD - SYSTEM - HOTMOUSE

HOTMOUSE FUNCTION

Navigate with the arrow keys in the SYSTEM menu to the entry HOTMOUSE and press ENTER/SELECT to open the HOTMOUSE window.

Hotmouse is an exclusive function that comes with NTI SPLITMUX. It works with your standard mouse or trackball.

To activate Hotmouse operation:

- Navigate to “Enable Hotmouse”

- Change the setting to “Yes”.

There are two modes of Hotmouse operation: Hotmouse Cursor and Hotmouse Menu. While Hotmouse Cursor supports only a limited set of operations, Hotmouse Menu allows execution of all

switch operations and display mode settings. While the Hotmouse function is activated, the active computer can still be operated by keyboard. For a detailed description of Hotmouse, Hotmouse functionalities, and Hotmouse Menu please see chapter

HOTMOUSE.

SPLITMUX - Installation and Operation Manual

Page 26

ON SCREEN DISPLAY

OSD - SYSTEM - QUAD MODE

QUAD MODE

Use arrow keys to navigate in the SYSTEM menu to the entry QUAD MODE and press ENTER/SELECT to open the QUAD MODE window.

Channel selection timeout defines the period (1 to 30 seconds) after which the selector will close automatically. Default setting is 5 seconds.

To open the active channel in Quad mode Press hotkey ‘Q’

The yellow border indicates the active channel (mouse and keyboard enabled). Alternatively, press front button "Quad”.

To switch the selector from an active channel to another Press hotkey + arrow key After the selector timeout has expired, the selector closes.

SPLITMUX - Installation and Operation Manual

Page 27

ON SCREEN DISPLAY

OSD - SYSTEM - WIN MODE

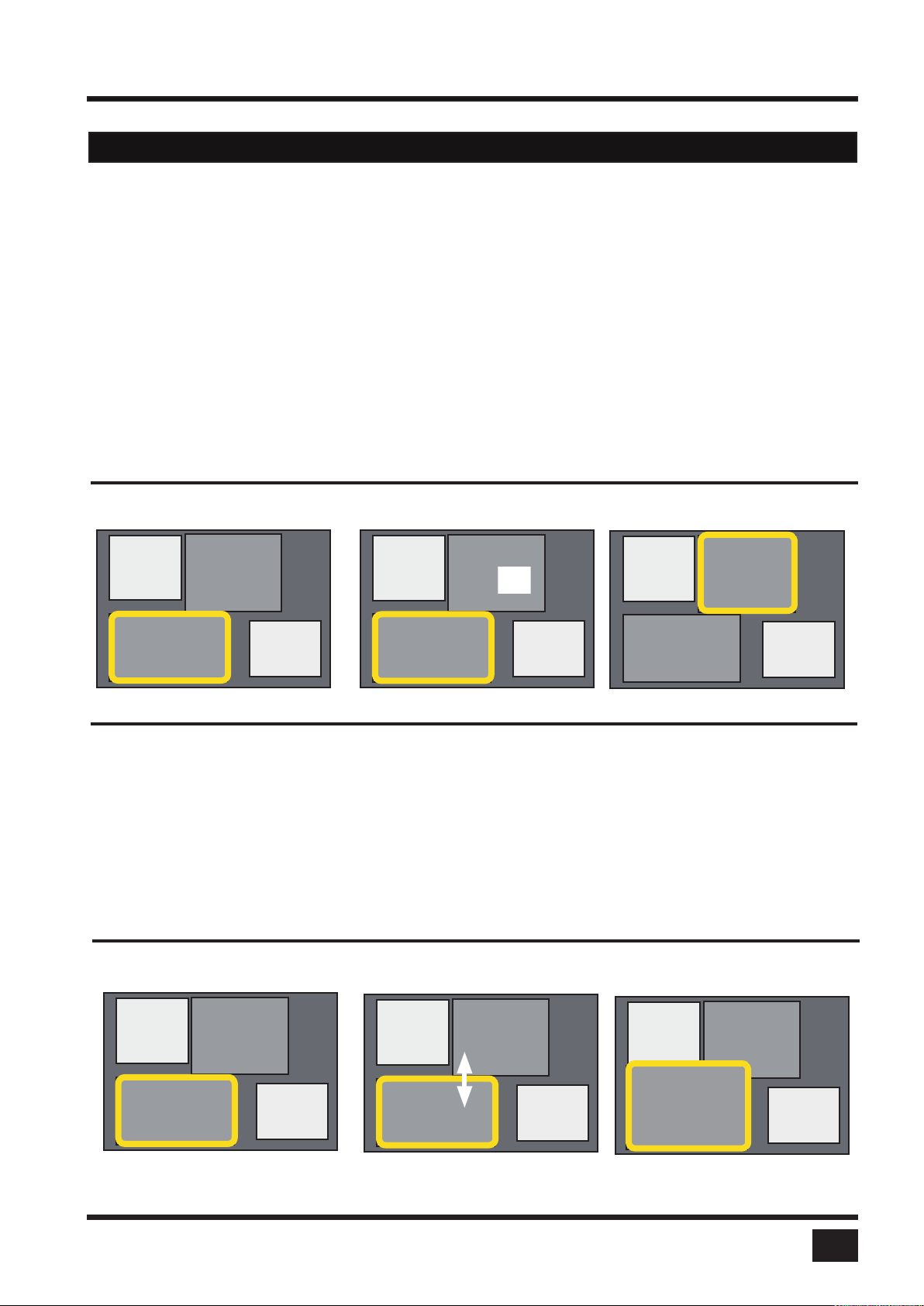

WIN MODE

Navigate with the arrow keys in the SYSTEM menu to the entry WIN MODE and press ENTER/SELECT to open the Win mode window.

Border width: Set the width of the borders, which are drawn around the signals in Win mode. When the border width is zero, no borders are shown.

Border colors:

- Active channel: Press enter /select to open the SELECT COLOR menu and set the color for the active channel.

- Inactive channels: Press enter /select to open the SELECT COLOR menu and set the color for the inactive channels.

Pop Up Buttons

Selector

In Win mode, use hotkey ‘1-4’ to select a channel or window. (Alternatively, the hotmouse function or front panel buttons 1-4 can be used to select a channel or window as well.) When a channel has been selected, a colored border will appear around the window of the active channel. The selector will also be visible. Alternatively, press front button "Win” and select a preset.

After the expiration of the selector timeout, the selector closes.

Move the hotmouse cursor to the top right corner of the signal window, and the following buttons will appear:

= Open OSD hotmouse context menu

= Swap signal windows. After this is selected, the other window is clicked.

= Toggle aspect ratio locking for current window

SPLITMUX - Installation and Operation Manual

Page 28

ON SCREEN DISPLAY

OSD - SYSTEM - OSD POSITION / OSD LANGUAGE

OSD POSITION

Navigate with the arrow keys in the SYSTEM menu to the entry OSD POSITION and press ENTER/SELECT to open the OSD POSITION window.

Use this function to move the OSD window to any position on the screen.

OSD LANGUAGE

Navigate with the arrow keys in the SYSTEM menu to the entry OSD LANGUAGE and press ENTER/SELECT to open the OSD LANGUAGE window.

Set OSD LANGUAGE to either English (default), Deutsch (German) or Español (Spanish).

SPLITMUX - Installation and Operation Manual

Page 29

ON SCREEN DISPLAY

OSD - SYSTEM - SECURITY

SECURITY LEVELS

Navigate with the arrow keys in the SYSTEM menu to the entry SECURITY and press ENTER/SELECT to open the SECURITY window.

The SECURITY feature allows you to reduce the functional range of SPLITMUX. Eight security levels are available for this purpose.

By default, all functions are enabled (security level 0). To change the security level, you must first enter a predefined password. This six-digit password is enclosed separately with the deliverables of SPLITMUX and should only be accessible to authorized persons (administrators etc.).

After entering the password on the keyboard or front panel (password is not displayed in password field), the SECURITY window opens.

Enter the desired security level (0 to 8) under “Select security level”.

Note: Before changing the security level, please set the configuration you wish to work with to the higher security level, under MODE > START. This configuration will be maintained when SPLITMUX is reset, in case of power failure, or when power is turned off and on again.

SPLITMUX - Installation and Operation Manual

Page 30

ON SCREEN DISPLAY

OSD - SYSTEM - SECURITY

SECURITY LEVEL 0

This is the default setting of SPLITMUX. All settings are allowed and all functions are enabled.

SECURITY LEVEL 8

Security level 8 allows you to work only on one channel (computer) in a predefined display mode (Quad, Fullscreen or PiP mode). No settings can be changed, apart from the SECURITY menu item, where you can change the security level.

SYSTEM SECURITY

SECURITY LEVEL 7

As security level 7, but you can open OSD windows that only show display modes and device settings.

SYSTEM HDCP CONSOLE VIDEO OUTPUT/EDID VIDEO INPUT STATUS COMPUTER NAME 1-4/ KEYBOARD / MOUSE / EDID/DDC HELP HOTKEY / ABOUT / CONTACT

SECURITY LEVEL 6

As security level 6, with the following additional operations: SYSTEM CONTROL

CONSOLE FADE

- Setting of active channel using front panel buttons, Hotkeys or Hotmouse

- Selecting channel with PiP button in Quad mode

- Changing the directly selectable PiP channel in PiP mode single direct

SECURITY LEVEL 5

As security level 5, with the following additional operations:

- Setting of display mode (Quad / Fullscreen / PiP) using front panel buttons, Hotkeys or Hotmouse.

SYSTEM TEST PATTERN CONSOLE BACKGROUND

SPLITMUX - Installation and Operation Manual

Page 31

ON SCREEN DISPLAY

OSD - SYSTEM - SECURITY

SECURITY LEVEL 4

As security level 4, with the following additional settings in the OSD:

SYSTEM OSD POSITION / WIN MODE MODE PIP / START CONFIGURATION RECALL COMPUTER AUDIO VIDEO FORMAT

- Modify display mode settings in Hotmouse Menu

- Changing both channels in Dual mode

- Changing the fixed PiP channel in PiP mode single fixed

SECURITY LEVEL 3

As security level 3, with the following additional settings in the OSD:

SYSTEM OSD LANGUAGE VIDEO BRIGHTNESS / CONTRAST / HORIZ POSITION / VERT POSITION SCREEN WIDTH / PHASE USB DEVICE 1-4

SECURITY LEVEL 2

As security level 2, with the following additional settings in the OSD: SYSTEM HOTKEY / HOTMOUSE / QUAD MODE

CONSOLE KEYBOARD / Touch screen

SECURITY LEVEL 1

As security level 1, with the following additional settings in the OSD:

SYSTEM DISABLE CHANNEL CONSOLE MULTIMONITOR / VIDEO OUTPUT VIDEO DVI/VGA / ROTATION / CROPPING COMPUTER CHANNEL MAPPING / MOUSE / RESET PS/2

- Switch video output to VGA (using hotkey ‘V’ or front panel buttons 1+2)

SPLITMUX - Installation and Operation Manual

Page 32

ON SCREEN DISPLAY

OSD - SYSTEM - DISABLE CHANNEL

DISABLE CHANNEL

Navigate with the arrow keys in the SYSTEM menu to the entry DISABLE CHANNEL Press ENTER/SELECT to open the DISABLE CHANNEL window.

If two or three computers or video sources are connected to SPLITMUX, use the DISABLE CHANNEL feature to ensure that for the unused channels:

a) message "no signal input x" is not shown in Quad mode b) PiP images are not displayed on screen c) these channels are not selectable in Fullscreen mode For example, if you have connected three computers (channel 1 to 3) to SPLITMUX, use the arrow keys

to navigate to the number 3 and confirm by pressing ENTER/SELECT.

Note: To use the “DISABLE CHANNEL” feature, computers/video sources must be connected to SPLITMUX in ascending order from channel 1 to 4.

Example in Quad mode: All four channels enabled Three channels enabled Two channels enabled

mid-height

SPLITMUX - Installation and Operation Manual

Page 33

ON SCREEN DISPLAY

OSD - SYSTEM - CONTROL

CONTROL

Navigate with the arrow keys in the SYSTEM menu to the entry CONTROL Press ENTER/SELECT to open the CONTROL window.

SPLITMUX can be controlled via DCP (Device Control Protocol), an XML-based protocol (see Annex). There are two DCP modes: DCP control, which allows external control of the display mode. DCP synchronize, which keeps several SPLITMUX's in the same display mode. Default setting is “off”, which prevents any external CONTROL.

Use a serial or USB cable to connect a control unit to the RS 232 port (RJ 45) on the SPLITMUX rear panel. To synchronize several devices, special Y cables are required.

Settings for the connection are: Transfer rate 57600 baud, 8 data bits, no parity, 1 stop bit, no flow control The two control modes operate as follows:

DCP control

This mode allows direct control of a single SPLITMUX by means of a control device, e.g. a computer.

The control device can query and change the mode of SPLITMUX.

SPLITMUX responds to each DCP message sent by the control device with a DCP reply. This reply includes the values of all settings queried or set by means of the last message. If the message sent by the control unit contains errors, the SPLITMUX will reply by sending an error message.

SPLITMUX - Installation and Operation Manual

Page 34

ON SCREEN DISPLAY

OSD - SYSTEM - CONTROL

Example of DCP control

A SPLITMUX is controlled via DCP-XML by a computer connected by serial cable or USB.

USB or COM

ports

For an introduction to the DEVICE CONTROL PROTOCOL please Annex.

DCP synchronize

Use this mode to keep several SPLITMUX devices in the same mode.

Every change in settings initiated in the first SPLITMUX by hotkeys, hotmouse, front panel buttons or controlling devices synchronizes the modes of all connected devices via DCP messages.

Computer controls DCP-XML

Rear Panel

Use special Y-cables for the synchronization.

Important: Each time you restart a SPLITMUX set to synchronize, it will send all its settings to the next connected device. This process also takes place after activating synchronize in the OSD menu.

When starting a chain of devices, always start by first switching on the device at the end of the chain. When the device has completed its startup phase and sent its DCP messages, switch on the next device in the chain.

Finally, switch on the first device in the chain, which synchronizes the settings of all other devices in the chain with its own settings as it starts up.

SPLITMUX - Installation and Operation Manual

Page 35

ON SCREEN DISPLAY

OSD - SYSTEM - CONTROL

Example of DCP synchronization

SPLITMUX 2 and 3 are synchronized with SPLITMUX 1.

Serial Y Cable

Control unit

Console

Mouse

Console

keyboard

SPLITMUX 1

SPLITMUX 2

To synchronize, SPLITMUX 1 sends every change in settings as a DCP message via the serial Y to the RX input of SPLITMUX 2.

SPLITMUX 2 adopts the settings and sends a DCP message via TX output over the Y cable to the RX input of SPLITMUX 3.

The synchronization chain can have any length. Do not connect the last device in the chain to the first device (i.e. do not create a loop).

SPLITMUX - Installation and Operation Manual

SPLITMUX 3

Page 36

ON SCREEN DISPLAY

OSD - SYSTEM - CONTROL

SECURITY LEVELS

The security level settings in the OSD menu previously described also apply to control via DCP messages. Queries are possible up to security level 7.

The table below shows the maximum security levels for simple element settings. These settings may be changed via DCP up to the specified protection level.

Maximum security level for:

CONSOLE CHANNEL 6 VIDEO CHANNEL 6 VIDEO LAYOUT 5 PIP LAYOUT 4 PIP HEIGHT 4 PIP OFFSET 4 PIP ZOOM 4 PIP CHANNEL 4 DUAL CHANNELS (L/R) 6 PIP SCAN TIME 4

SPLITMUX - Installation and Operation Manual

Page 37

ON SCREEN DISPLAY

OSD - MODE - CURRENT/START

CURRENT

Defines the current mode in which the device should run.

Choose from Fullscreen, Quad Mode, PiP, Win Mode or Test Pattern.

START

Sets the mode in which the device should boot.

This feature allows you to define the start configuration, i.e. the display mode (Fullscreen, Quad, PiP, Win or Test Pattern), active channel, and PiP settings which SPLITMUX uses after a reset or when the system is powered up.

When the START menu is called up, the current start configuration is displayed. To modify your start configuration, change parameters in the channel, mode, and PiP fields. Press ESC to save the new parameters and exit the START menu.

Choose “Use current mode” to adopt the current settings as start mode. Use arrow keys to navigate to “Use current mode” and confirm by pressing ENTER.

The factory default start mode is Quad-mode with active channel 1. See OSD - MODE - CURRENT/START - PiP for details on setting PiP mode to boot. See OSD - MODE

- CURRENT/START - WIN for details on setting Win mode to boot. See OSD - MODE - CURRENT/START -

TEST PATTERN for details on setting a test pattern to boot.

SPLITMUX - Installation and Operation Manual

Page 38

OSD - MODE - CURRENT/START - PiP

PiP

Use this section to define the current mode in which the device should run.

ON SCREEN DISPLAY

In the PIP window you can configure PiP size, position, and display mode.

PiP Display Mode

Select the option TRIPLE to show 3 additional screens in PiP Mode. Select SINGLE to display only one other screen. If SINGLE is selected. Use the option PiP CHANNEL to define which channel should appear in the single window.

See the section Display Modes for details.

PiP size

Adjust the size of PiP images to your requirements. 12 (single mode) or 9 (triple mode) different sizes are available:

Single: 3 % - 5 % - 7 % - 10 % - 15 % - 20 % - 25 % - 28 % - 33 % - 38 % - 44 % - 50 % Triple: 3 % - 5 % - 7 % - 10 % - 15 % - 20 % - 25 % - 28 % - 33 %

50 % equals the size of one quad screen (one quarter of a full size screen).

Note: All settings also possible via Hotmouse Menu, see page 46.

SPLITMUX - Installation and Operation Manual

Page 39

ON SCREEN DISPLAY

OSD - MODE - CURRENT/START - PiP (continued)

PIP zoom factor

Use this option to zoom the center of the PiP images by a factor of 2.

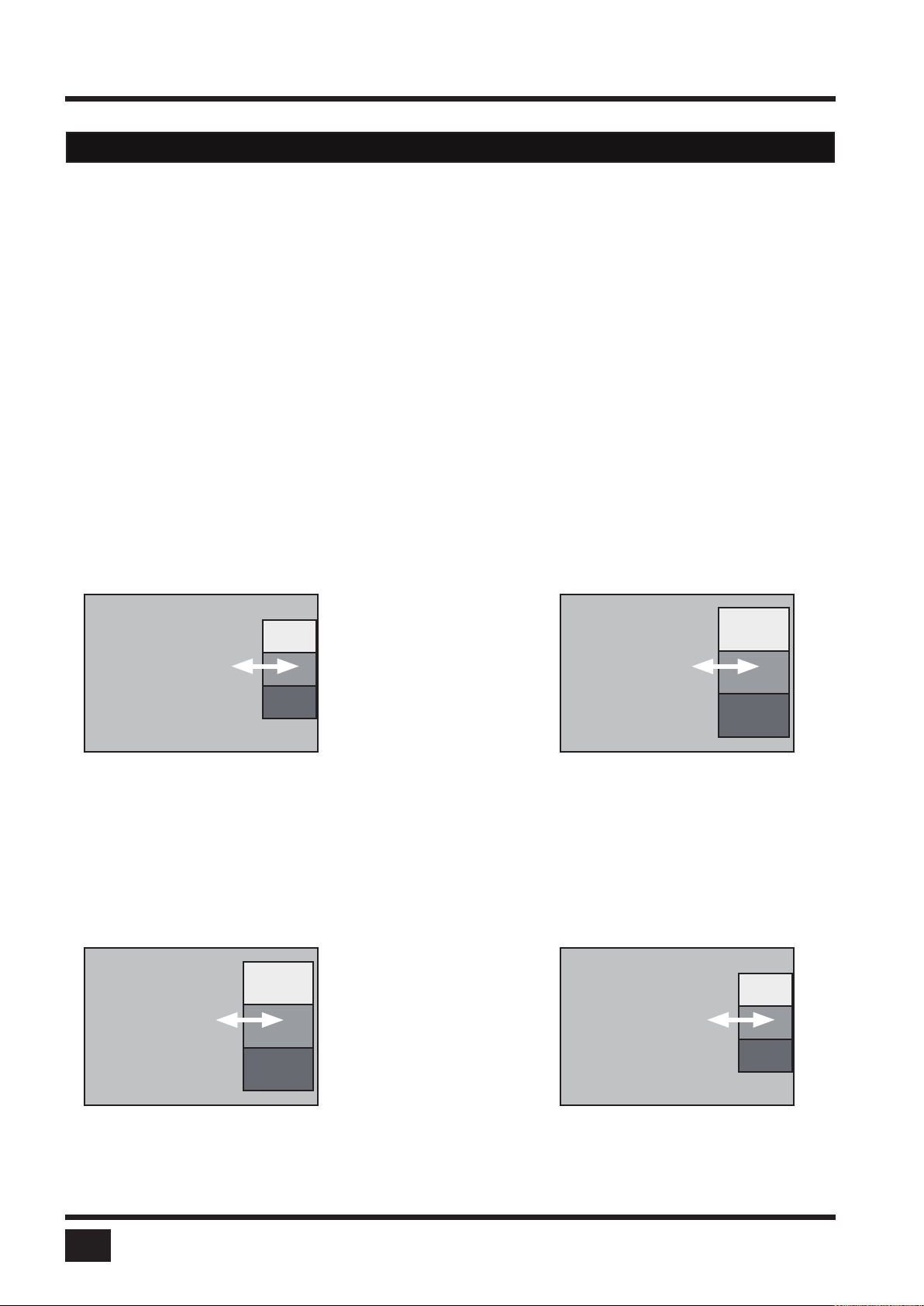

Offset from top

Use this option to change the position of PiP images. PiP images can be moved vertically to any position on the screen’s right hand margin.

Note: All settings also possible via Hotmouse Menu, see page 46.

SPLITMUX - Installation and Operation Manual

Page 40

ON SCREEN DISPLAY

OSD - MODE - CURRENT/START - PiP

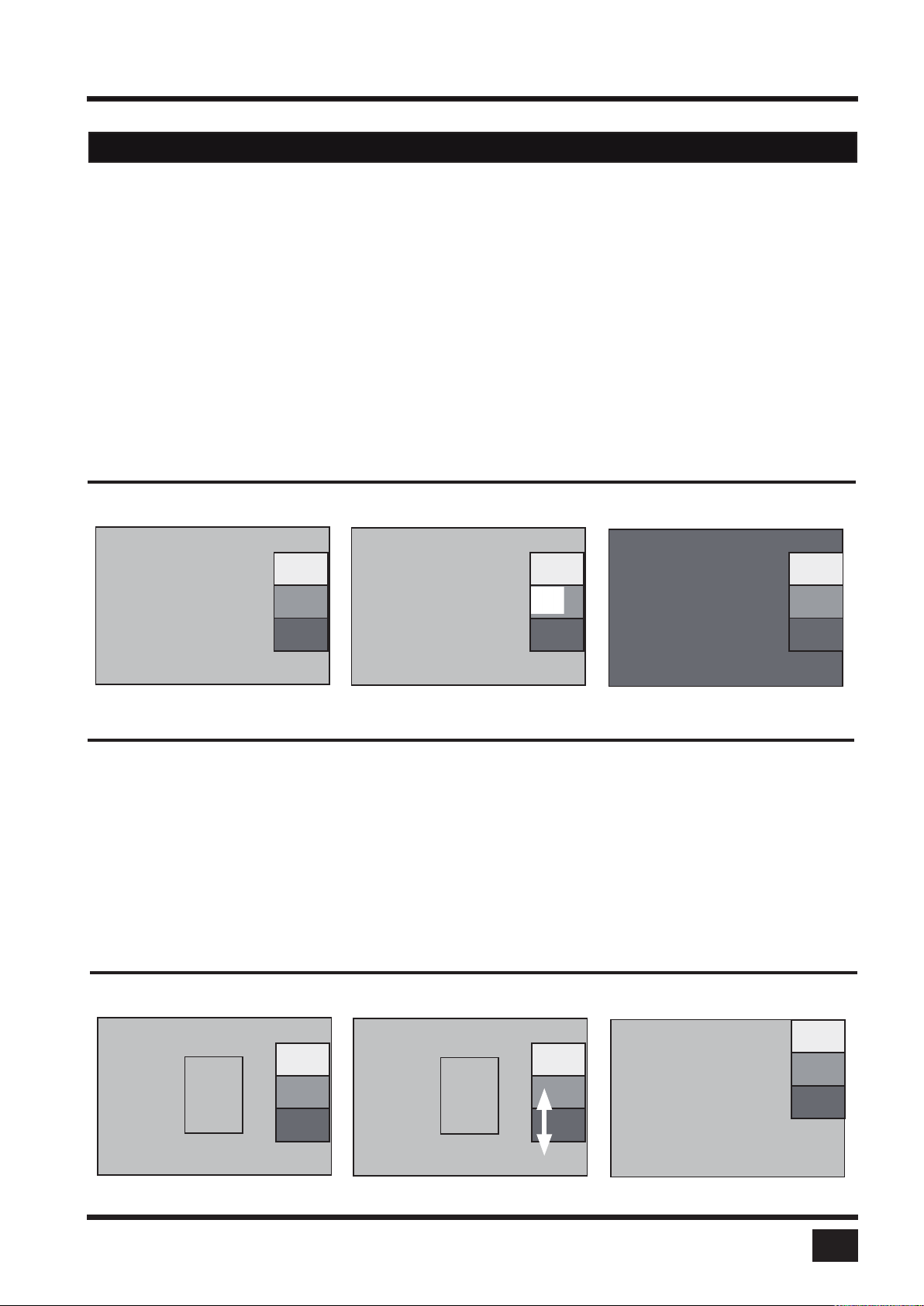

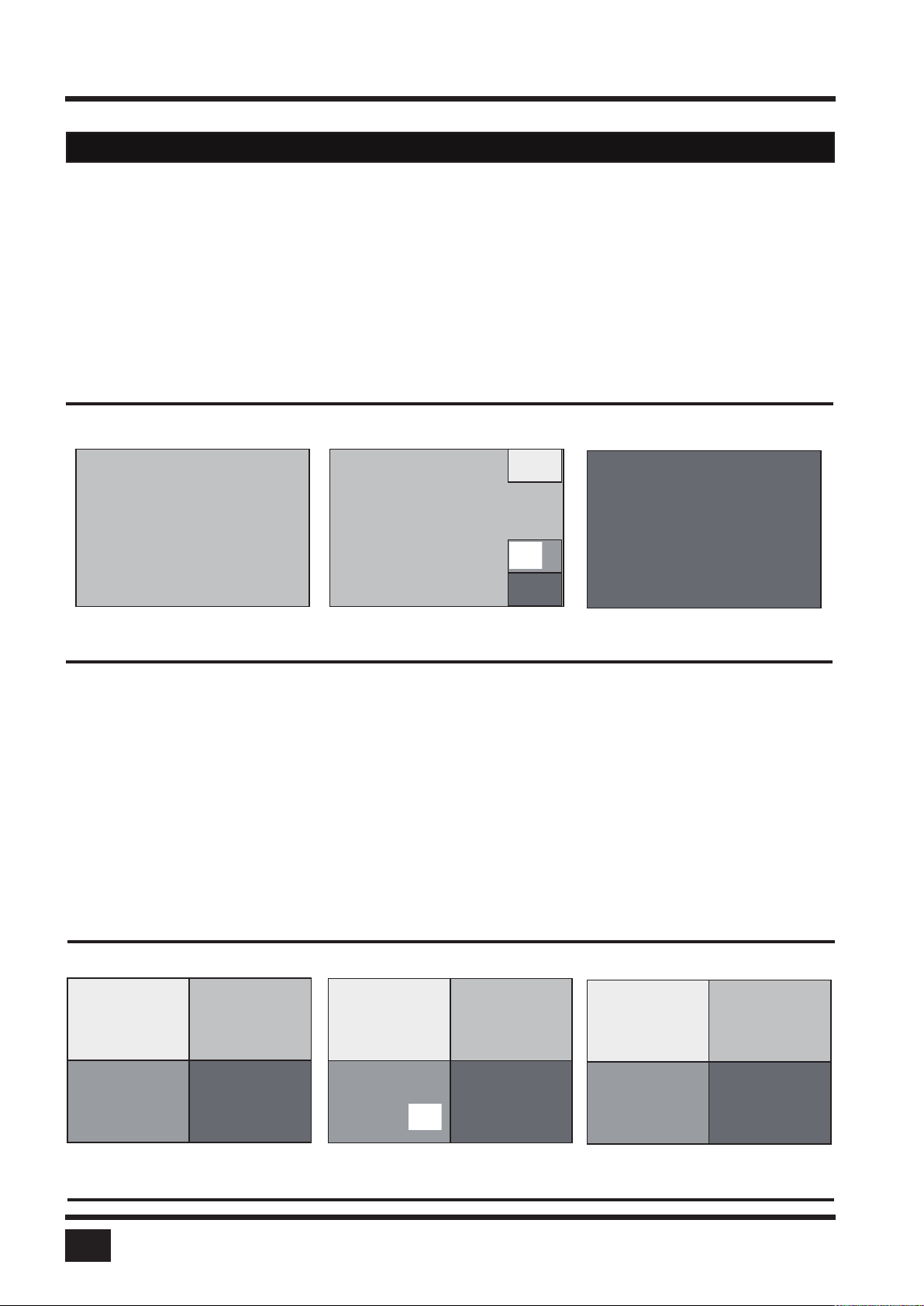

PIP Display Modes

SPLITMUX offers the following PiP modes:

PIP display mode triple: All other video sources are displayed (three PiP images)

Triple gap: PiP images are displayed

with a gap in place of the active channel.

Triple no gap: PiP images are displayed

without a gap.

Triple tile:

The size of the main image and the PiP images is optimized so that the main image and the PiP images are shown as large as possible without overlapping.

SPLITMUX - Installation and Operation Manual

Page 41

ON SCREEN DISPLAY

OSD - MODE - CURRENT/START - PiP

PIP Display Modes (continued)

PIP display mode single: One PiP image is displayed. You can choose between different

display modes:

Single fixed: One channel is selected to be displayed as permanent PiP

image. Only the active channel (full image) can be switched. Press front panel buttons 1, 2, 3, or 4 to switch the full image.

Single direct:

One channel is selected to be displayed as permanent full image (active channel).

Only the PiP can be switched. Press front panel buttons 1, 2, 3, or 4 to switch the full image.

Single scan: Within a PiP image, the three other video sources are displayed

one after the other; the delay can be set to between one and nine seconds.

SPLITMUX - Installation and Operation Manual

Page 42

OSD - MODE - CURRENT/START - WIN

WIN MODE

Navigate with the arrow keys in the MODE menu to the entry WIN Press ENTER/SELECT to open the WIN MODE window.

ON SCREEN DISPLAY

Select the channel, window mode, position and window size in the window WIN MODE. The arrows can be used to select the horizontal or vertical position or size of the windows.

Activate the checkbox ASPECT RATIO to retain the aspect of the video source.

SPLITMUX - Installation and Operation Manual

Page 43

ON SCREEN DISPLAY

OSD - MODE - CURRENT/START - TEST PATTERN

TEST PATTERN

Navigate with the arrow keys in the MODE menu to the entry TEST PATTERN Press ENTER/SELECT to open the TEST PATTERN window.

Use the Test Pattern feature to check monitor quality (pixel errors, contrast, changes etc) or the functionality of the video output of the SPLITMUX.

It is recommended to use all available test patterns for the test procedure. To exit TEST PATTERN mode, use the OSD, the front panel buttons (Full, Quad, PiP or Win) or hotkey

commands accordingly.

Color gradient Rhombus Crosshairs

Rectangle Stripes 1/8 Stripes 1/4

Stripes 1/2

SPLITMUX - Installation and Operation Manual

Page 44

ON SCREEN DISPLAY

OSD - CONFIGURATION - BACkUP / RECALL

BACkUP

Navigate with the arrow keys in the CONFIGURATION menu to the entry BACKUP Press ENTER/SELECT to open the BACKUP window.

This function saves the current device settings, including the start mode set in MODE START. Additionally, EDID data from the 4 inputs is also saved.

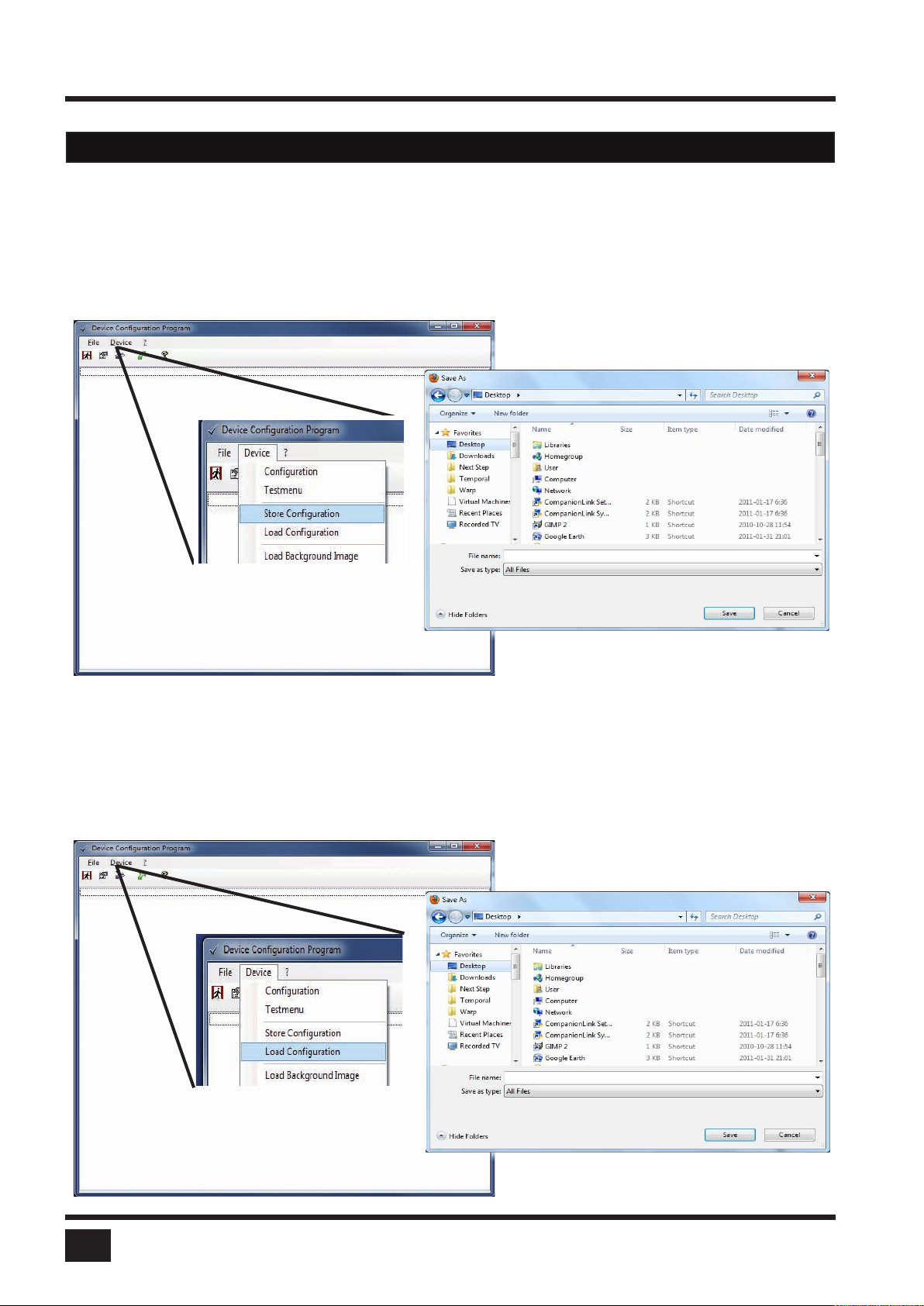

For details on creating an external backup to a file, see the section "Device Configuration Program”.

RECALL

CONFIGURATION menu to the entry RECALL Press ENTER/SELECT to open the RECALL window. Use this feature to replace the current settings with the last configuration saved using the BACKUP command.

SPLITMUX - Installation and Operation Manual

Page 45

ON SCREEN DISPLAY

OSD - CONFIGURATION - FACTORY RESET

FACTORY RESET

Navigate with the arrow keys in the CONFIGURATION menu to the Factory Reset Press ENTER/SELECT to open the DEFAULTS window.

Use this function to reset the current settings of SPLITMUX to the factory default configuration. All four input EDIDs are also reseted to their default values.

If necessary, save your current settings before using the DEFAULTS command. Execution of this command results in a complete reset and reboot of SPLITMUX with factory defaults.

FACTORY DEFAULTS:

SYSTEM

HOTMOUSE = ON / Hotmouse timeout = 5 sec. QUAD MODE = Channel selection timeout = 5 sec. WIN MODE = Border width = 0 sec. Active channel= 255,255,0 Active channel= 255,136,0 OSD POSITION = centered OSD LANGUAGE = English SECURITY = None (security level = 0) DISABLE CHANNEL = All four channels are active CONTROL = Off

MODE

START = Active channel = 1, quad > PIP Size = 15 % Zoom factor = 1 Display mode = triple Active channel = gap; Offset from top = 0 % >WIN = Channel: 1, Mode:win1, Position settings depend on the source, Aspect ratio: enabled

HOTKEY = Multiple Hotkey / Hotkey = Ctrl + Alt

CURRENT = Active channel = 1, quad

SPLITMUX - Installation and Operation Manual

Page 46

ON SCREEN DISPLAY

OSD - CONFIGURATION - FACTORY RESET

FACTORY DEFAULTS (continued):

CONSOLE VIDEO OUTPUT = auto

KEYBOARD = English TOUCH SCREEN = Mouse emulate right click / FADE = Off MULTI MONITOR = Monitor 1 --> Channel 1; Monitor 2 --> Channel2; Monitor 3 --> Channel 3; Monitor 4 --> Channel4; BACKGROUND = Color / 0,0,0

VIDEO DVI/VGA = DVI / VGA (all channels) ROTATION = 0 CROPPING = no cropping BRIGHTNESS = +0 (all channels) CONTRAST = 56 % (all channels) HORIZ POSITION = auto (all channels) VERT POSITION = auto (all channels) SCREEN WIDTH = +0 (screen-width correction of all channels) PHASE = +0 (all channels) FORMAT Fit to screen = No (all channels)

COMPUTER CHANNEL MAPPING = Positioning = relative (all channels) AUDIO = Enable audio output / Select active channel / Switch channel on audio activity = off NAME 1-4 = Computer 1-4 respectively KEYBOARD = USB MOUSE = positioning realtive RESET PS/2” = Channel 1 selected EDID / DDC 1600x1200@60, 1920x1200@60, digital

USB DEVICE 1-4 = Off / manual switching w. warning / name: Device 1 (-4)

SPLITMUX - Installation and Operation Manual

Page 47

ON SCREEN DISPLAY

OSD - CONSOLE - VIDEO OUTPUT

VIDEO OUTPUT

Navigate with the arrow keys in the CONSOLE menu to the entry VIDEO OUTPUT Press ENTER/SELECT to open the VIDEO OUTPUT window.

Use the VIDEO OUTPUT menu to choose an output resolution supported by your monitor.

Press ENTER/SELECT to enter the selection menu.

Use arrow keys to select the desired line in the list shown on the right and press ENTER/SELECT for the new video format.

The new output mode is visible for 10 seconds. Within this time you can either accept the new setting

by pressing ENTER/SELECT or return to your original setting by pressing ESC/EXIT.

When the output mode is set to ‘auto’, SPLITMUX chooses a resolution by reading the connected monitor’s EDID data. Choose the EDID menu item to check whether the connected monitor provides this data.

If the monitor does not offer this data, SPLITMUX sets VGA mode (640x480@60Hz) as default and activates Sync on Green.

Sync on Green can be deactivated on SPLITMUX.

SPLITMUX - Installation and Operation Manual

Page 48

ON SCREEN DISPLAY

OSD - CONSOLE - kEYBOARD

kEYBOARD

Navigate with the arrow keys in the CONSOLE menu to the entry KEYBOARD Press ENTER/SELECT to open the KEYBOARD window. Set the keyboard layout to the desired language, English, Deutsch (German), Español (Spanish), Français

(French), Italiano (Italian) or Japanese.

SPLITMUX - Installation and Operation Manual

Page 49

ON SCREEN DISPLAY

OSD - CONSOLE - TOUCH SCREEN

TOUCH SCREEN

SPLITMUX enables the user to use a touch screen to control and switch between four computers as well as change display modes.

SPLITMUX supports a great number of USB touch screens with commonly integrated touch controllers. For a list of supported touch screens, please see Annex on page 97.

To control SPLITMUX using a touch screen, connect the touch screen to SPLITMUX by connecting the VGA or DVI cable from the SPLITMUX monitor port to the input of the touch screen. Connect the USB port of the touch screen to the SPLITMUX console USB port. Please see page 9 for a description of the SPLITMUX ports.

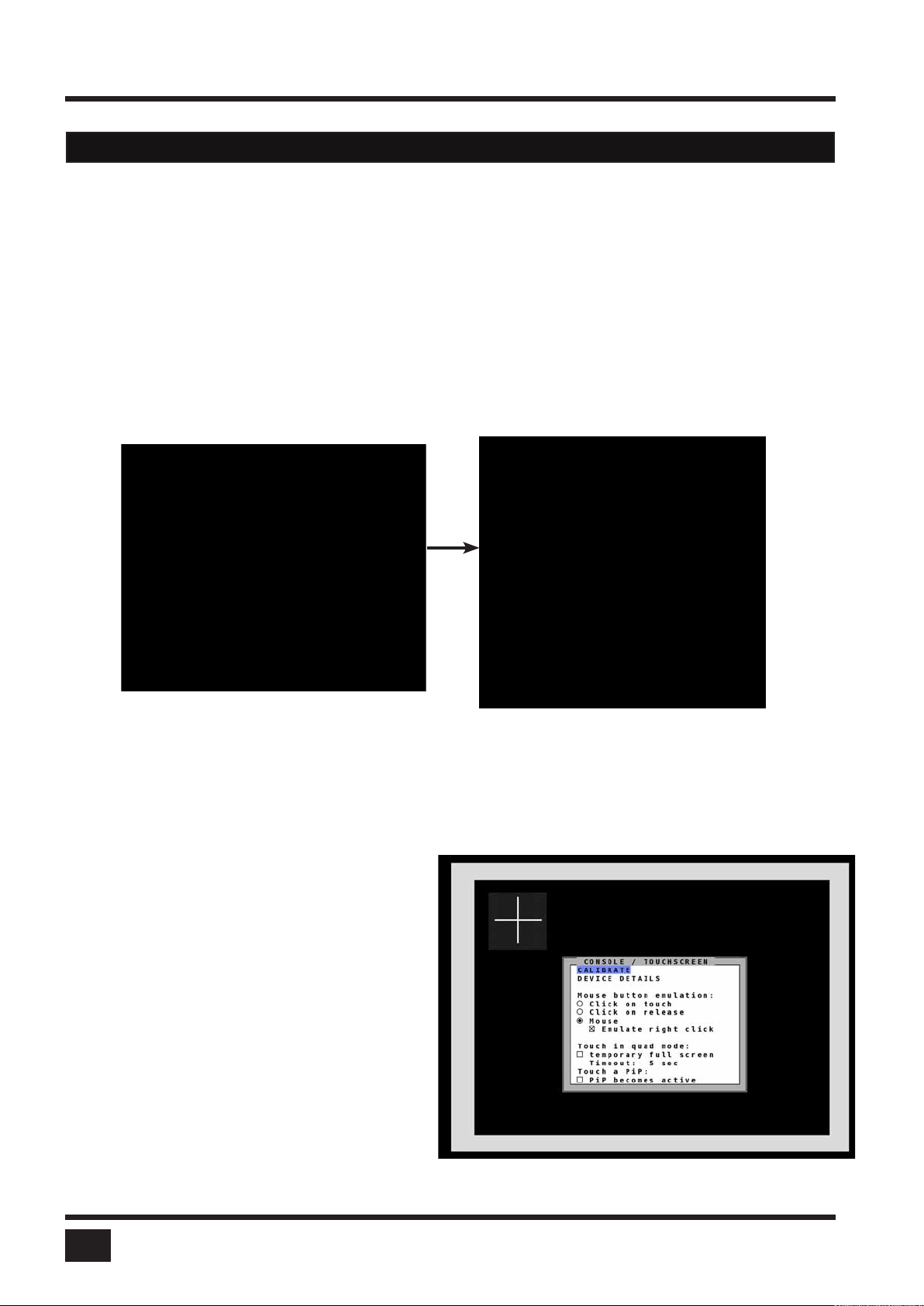

Calibration

After connecting a touch screen to SPLITMUX for the first time, calibrate the touch screen.

Open CONSOLE u TOUCH SCREEN menu, choose CALIBRATE, and press ENTER/SELECT. Four markers will be displayed in the corners of the touch screen. The diagram shows the first marker in the top left

corner of the screen. Touching the center of the markers as accurately as

possible yields best calibration results.

Then repeat for the other three markers to complete calibration.

Device Details

Select this option to display touch screen information such as the manufacturer ID and product ID.

SPLITMUX - Installation and Operation Manual

Page 50

ON SCREEN DISPLAY

OSD - CONSOLE - TOUCH SCREEN

Mouse button emulation

SPLITMUX offers three modes of interpreting the user input as mouse clicks.

1. Mouse: When touching the touch screen, the mouse button is pressed. When the finger is released from the touch screen, the mouse button is released. This mode can be used for drag and drop operations.

2. Click on touch: When touching the touch screen, a mouse click is generated at the position of the touch.

3. Click on release: When the finger is released from the touch screen, a mouse click is generated at the last position of the finger.

By default, "mouse” is set as mode. You could use your finger on the touch screen similarly to using your

mouse. “Click on touch” and “click on release” are suited for kiosk applications or environments where touch screens are used instead of keyboards and mice, such as in medical industries for hygienic reasons, in industrial production and automation for operation with gloves, or in vehicles and aircraft where robust components are required.

Touch in quad mode:

Check this box to switch a quadrant from Quad mode temporarily to full screen when touching the quadrant. This activates keyboard and mouse of that quadrant and allows operating the computer in full screen. The other sources are not visible during this time. After a timeout of 5 seconds without keyboard/mouse activity, SPLITMUX automatically switches back to Quad mode. The timeout can be set to values between 1 and 10 seconds.

Touch a PiP:

Check this box to activate keyboard and mouse on a computer shown as PiP. When touching a PiP, keyboard and mouse become active in this PiP. This activated channel now remains a little PiP and does not switch to full image. In this PiP you can operate the computer with keyboard and mouse.

When unchecked (by default), a PiP is switched to full image as soon as it is touched. The full image gets exchanged with the other sources remaining visible as PiPs.

SPLITMUX - Installation and Operation Manual

Page 51

ON SCREEN DISPLAY

OSD - CONSOLE - TOUCH SCREEN

Right mouse button

Press and hold your finger on the touch screen to emulate the right mouse button. This only works in "mouse”

emulation mode, not in “click on touch” or “click on release”. By default „Emulate right click” is set in order

to perform a right mouse click. Some touch controller models do not support right mouse click. Using touch

screens with such controllers requires unchecking the box "Emulate right click”.

Hotmouse and Hotmouse Menu

To open the Hotmouse Menu, tap the screen twice, and leave your finger pressed on the touch screen after the

second tap (tap – hold, like a double click without lifting the finger on the second click), until the Hotmouse Menu

opens.

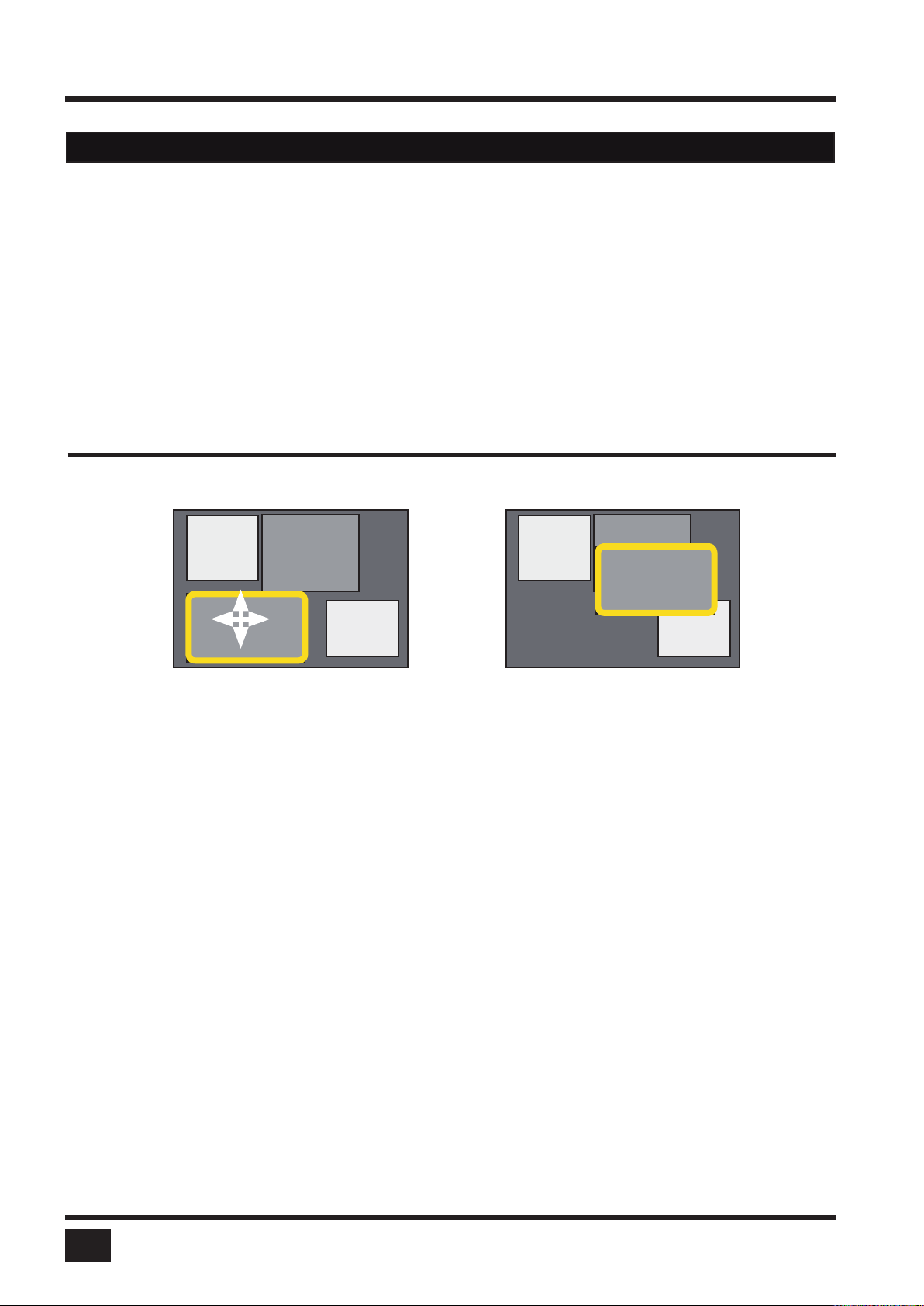

By clicking outside the Hotmouse Menu, you can open the Hotmouse Cursor to enlarge and reposition PiPs

(only in PiP mode), resize and move windows in Win mode, and switch channels (see description of the

Hotmouse function).

After you are finished using the Hotmouse Cursor, the Hotmouse Menu will reopen.

Mouse position

Absolute mouse position

SPLITMUX works best together with touch screens when using absolute mouse positioning mode with

the connected computers. To enable absolute mouse positioning mode, use the menu COMPUTER u MOUSE

in the OSD.

This mode works when a computer is connected via USB, and with most modern operating systems.

Relative mouse position

When using relative mouse positioning, please check the configuration of the computers connected to ensure

that mouse acceleration is switched off and mouse scaling is set to 1:1.

Resetting the mouse position: When using relative positioning mode, the actual position of the mouse cursor

and the position of your finger on the touch screen may not match in certain cases when a computer switches

resolution or changes the mouse position (e.g. when the system is configured to place the mouse pointer over

the ‘OK’ button of a window). In these cases, to reset the mouse position, either switch to a different channel,

and back again, or tap the touch screen three times, and leave your finger pressed on the touch screen after the

third tap (tap – tap – hold), until the mouse cursor moves to the top left corner of the screen.

SPLITMUX - Installation and Operation Manual

Page 52

ON SCREEN DISPLAY

OSD - CONSOLE - FADE

FADE

Use arrow keys to navigate in the CONSOLE menu to the entry FADE and press ENTER/SELECT to open the FADE window.

Fade Through Black is an elegant visual effect for presentations: When switching channels or display modes, the previous image fades to black, and the next image is faded in smoothly.

To enable fade through black, select the transition speed under “Smooth transitions”. The “Speed” setting controls the speed of the transition, with 1 being the slowest, and 3 the fastest transition.

SPLITMUX - Installation and Operation Manual

Page 53

ON SCREEN DISPLAY

OSD - CONSOLE - MULTI MONITOR

MULTI MONITOR

Use arrow keys to navigate in the CONSOLE menu to the entry MULTI MONITOR and press ENTER/SELECT

to open the MULTI MONITOR window.

Multi Monitor is used if computers with multiple video output are connected to SPLITMUX but only one

keyboard and mouse to operate the computer. If you use graphics cards with multiple video outputs, you must

assign the computer’s mouse and keyboard to the corresponding video output (channels 1-4).

Example:

If a computer with quad-head graphics card is connected to SPLITMUX, and keyboard and mouse are

connected to channel 1, you must assign console „channel 1” to all video channels („Monitor 1 - 4”).

SPLITMUX - Installation and Operation Manual

Page 54

ON SCREEN DISPLAY

OSD - CONSOLE - BACkGROUND

BACkGROUND

Use arrow keys to navigate in the CONSOLE menu to the entry BACKGROUND and press ENTER/SELECT to open the BACKGROUND window.

Use the window BACKGROUND to select either a solid color or an image for the background area of the screen on which windows are displayed. Note: The background is shown only in Win mode. Default color for the other modes is black.

Use BACKGROUND > COLOR to set the color of the background. Enter the desired color in 24 bit color red, green and blue values. A preview of the color will appear in the field COLOR.

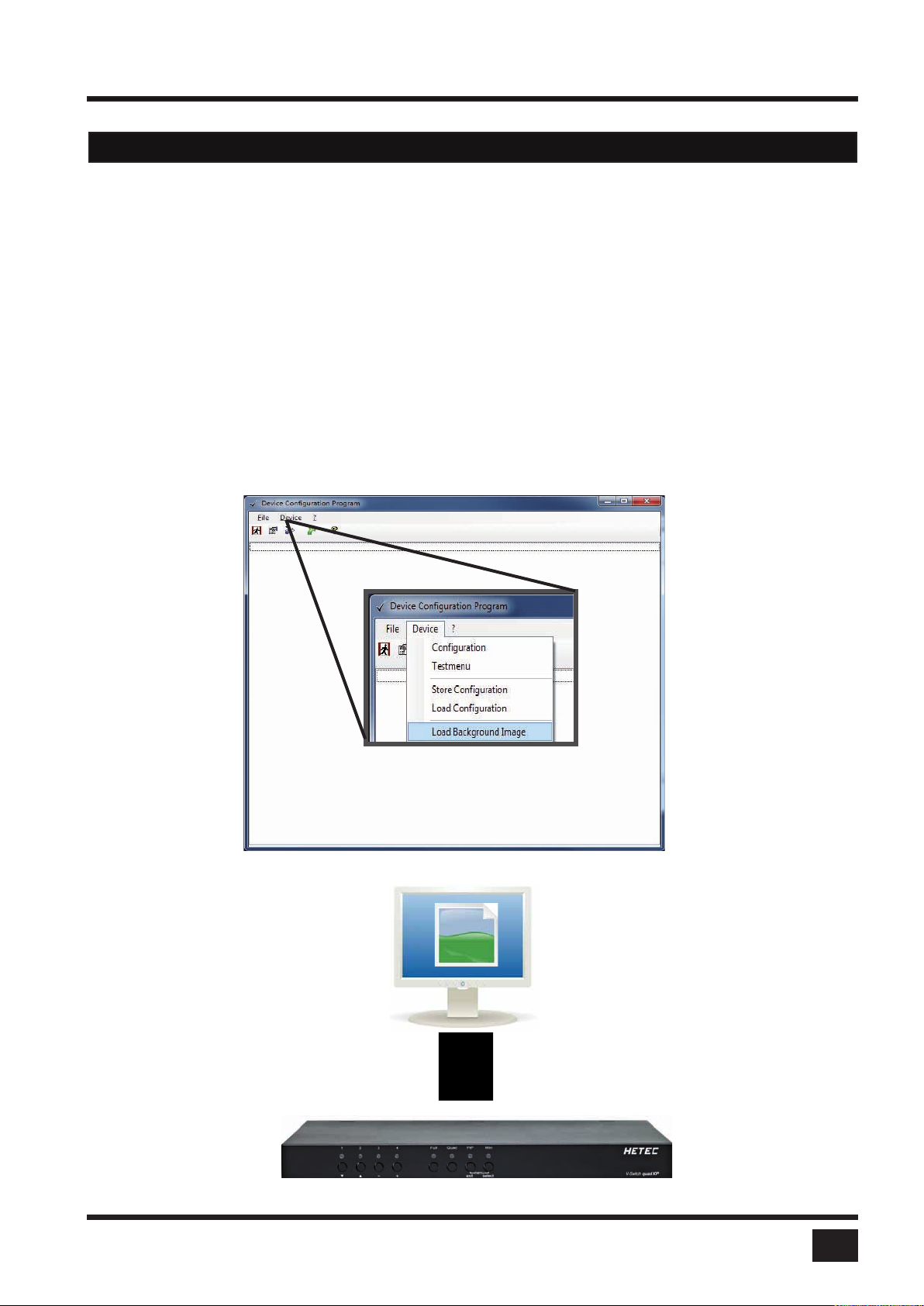

After selecting BACKGROUND > IMAGE, the background area of the screen will be filled with the image that has been previously selected in the utility ConfDev under DEVICE > LOAD BACKGROUND IMAGE. If no image has been loaded, this option will not appear.

SPLITMUX - Installation and Operation Manual

Page 55

ON SCREEN DISPLAY

OSD - CONSOLE - EDID

EDID (display of monitor data)

Use arrow keys to navigate in the CONSOLE menu to the entry EDID and press ENTER/SELECT to open the

EDID window.

Use the EDID command to read and display monitor data (manufacturer, monitor name, serial number etc.) from the monitor’s EDID memory. If VIDEO OUTPUT is set to “auto”, SPLITMUX uses the optimum output resolution offered by the EDID.

EDID (Extended Display Identification Data) is a VESA standard data format that contains basic

information about a monitor and its capabilities. This information is stored in the monitor by the

manufacturer and can be read by SPLITMUX or graphics card via a monitor cable’s Display

Data Channel (DCC) interface.

Note: EDID information can be copied to the four inputs and are then available for the connected sources. See COMPUTER > EDID/DDC.

SPLITMUX - Installation and Operation Manual

Page 56

ON SCREEN DISPLAY

OSD - VIDEO - INPUT STATUS

INPUT STATUS (Display Video Formats)

Use arrow keys to navigate in the VIDEO menu to the entry INPUT STATUS and press ENTER/SELECT to open the INPUT STATUS window.

Resolutions at the four video inputs are shown under INPUT STATUS. Resolution recognition at the four video inputs is automatic. Some analog input resolutions may not correctly be detected.

See Annex for a list of video formats supported by SPLITMUX.

S Signal a = analog d = digital g = sync on green c = composite sync

SPLITMUX - Installation and Operation Manual

Page 57

ON SCREEN DISPLAY

OSD - VIDEO - DVI/VGA

DVI/VGA

Use arrow keys to navigate in the VIDEO menu to the entry DVI/VGA and press ENTER/SELECT to open the

DVI/VGA window.

Go to “Select input signal” and define which video signal (VGA or DVI) is to be displayed.

If the setting „DVI/VGA” is selected, SPLITMUX will first check the digital input.

If there is no signal at this input, the analog signal input will be checked.

This function can be used to connect e.g. 8 sources (4x VGA + 4x DVI) via Y-cables to SPLITMUX.

SPLITMUX - Installation and Operation Manual

Page 58

ON SCREEN DISPLAY

OSD - VIDEO - ROTATION

ROTATION

Use arrow keys to navigate in the VIDEO menu to the entry ROTATION and press ENTER/SELECT to open the ROTATION window.

Select the degrees to which you would like to rotate your display. Choose from 0. 90, 180 and 270. Once the rotation degrees have been selected, all of the channel are rotated to the same degree.

Note: Once the degrees have been chosen, it may take a few seconds for the display to rotate.Once the degrees have been chosen, it may take a few seconds for the display to rotate.

Rotation limitation at 90° and 270°: If the channels overlap, the monitor display should have a total of lines no higher than 2028. If the aspect ratio is not locked in Win mode, size reduction and enlargement cannot both be used simultaneously for each channel. There may be further restrictions not known at the time print.

Example with 90 degree setting:

SPLITMUX - Installation and Operation Manual

Page 59

ON SCREEN DISPLAY

OSD - VIDEO - CROPPING

CROPPING

Use arrow keys to navigate in the VIDEO menu to the entry CROPPING and press ENTER/SELECT to open the

CROPPING window.

In the window VIDEO/CROPPING, enter a value from 0-999 for the left, right, top and bottom side of the

channel to be cropped.

Use the arrows to increase or decrease the value either in single digits or in increments of 30. Alternatively, the

right and left arrows of the keyboard may be used to adjust these values.

Note: The smallest possible size of each area is 10% of the input signal.The smallest possible size of each area is 10% of the input signal.

SPLITMUX - Installation and Operation Manual

Page 60

ON SCREEN DISPLAY

OSD - VIDEO - BRIGHTNESS / CONTRAST

BRIGHTNESS – CONTRAST (with analog input only)

Use arrow keys to navigate in the VIDEO menu to the entry BRIGHTNESS or CONTRAST and press ENTER/ SELECT to open the BRIGHTNESS or CONTRAST window.

Use this feature to adjust the brightness or contrast of analog video input signals.

SPLITMUX - Installation and Operation Manual

Page 61

ON SCREEN DISPLAY

OSD - VIDEO - HORIZONTAL & VERTICAL POSITION

HORIZ / VERT POSITION (horizontal / vertical position of computer screen) (with analog input only)

Use arrow keys to navigate in the VIDEO menu to the entry HORIZ POSITION or VERT POSITION and press ENTER/SELECT to open the HORIZ POSITION or VERT POSITION window.

In case of incorrect horizontal position of a computer screen, use this feature to adjust the computer screen manually. Use the arrow keys to navigate to the AUTO/MAN field and set MAN for manual. Use the “+” or “-” keys in the value field to adjust the vertical position between –20 and +20, and the horizontal position between –63 and +63.

SPLITMUX - Installation and Operation Manual

Page 62

ON SCREEN DISPLAY

OSD - VIDEO - SCREEN WIDTH / PHASE

SCREEN WIDTH (with analog input only)

Use arrow keys to navigate in the VIDEO menu to the entry SCREEN WIDTH and press ENTER/SELECT to open the SCREEN WIDTH window.

Normally, screen width (number of horizontal pixels) is defined by the VESA standard. If the screen appears blurred, change this setting to improve screen quality.

PHASE (with analog input only)

Use arrow keys to navigate in VIDEO menu to the PHASE line and press ENTER/SELECT to open the PHASE window.

Incorrect phase (sampling time of pixel color value) may result in blurring, bad contrast, or poor legibility. Use this setting to adjust phase.

SPLITMUX - Installation and Operation Manual

Page 63

ON SCREEN DISPLAY

OSD - VIDEO - FORMAT

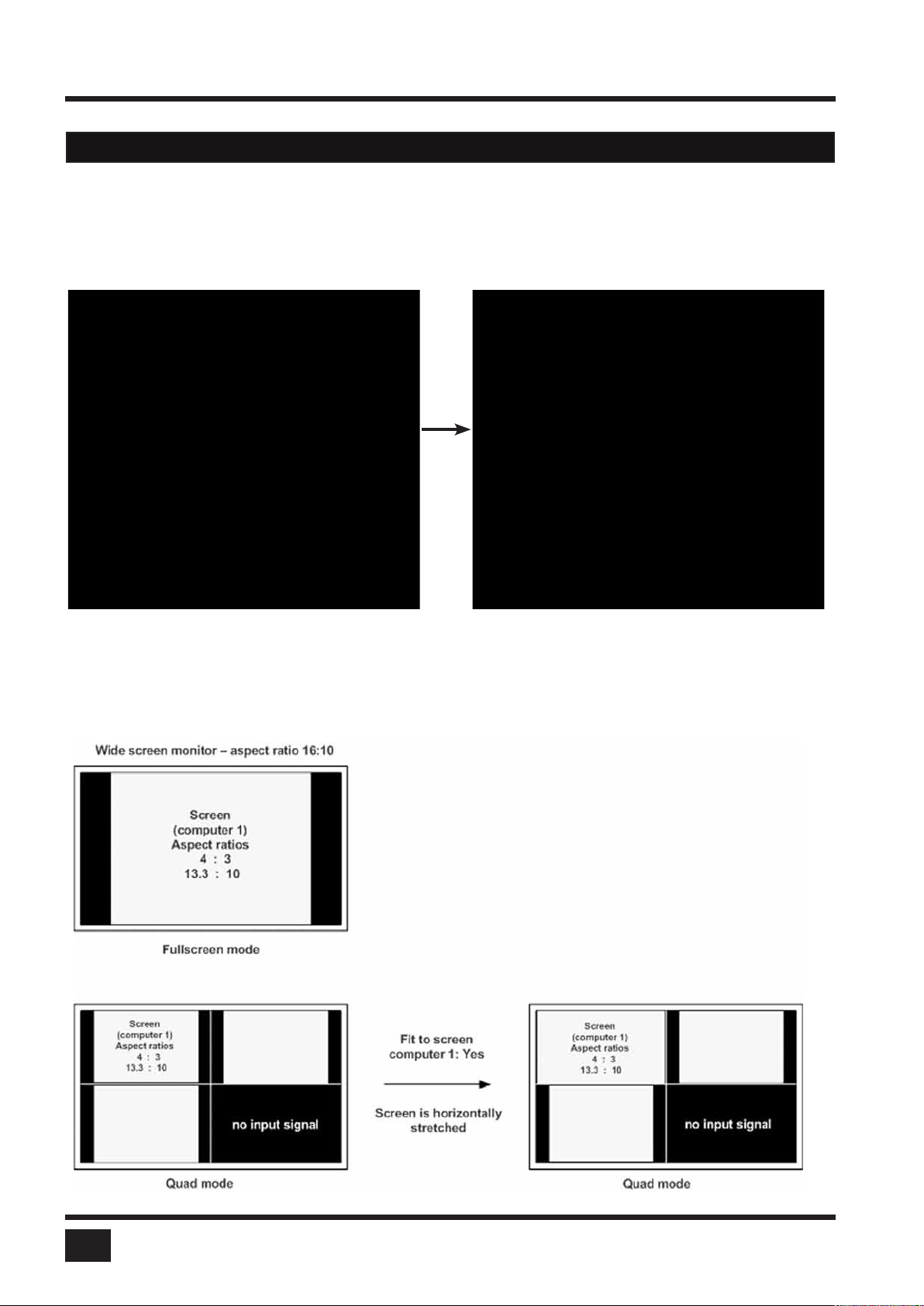

FORMAT

Use arrow keys to navigate in the VIDEO menu to the entry FORMAT and press ENTER/SELECT to open

the FORMAT window.

When using a wide-screen monitor (aspect ratio 16:10) in Quad mode, a video input with a different aspect

ratio is normally displayed with black borders to the left and right. If „fit to screen” is enabled, the image is

resized to fill the entire quadrant in Quad mode.

By default, "fit to screen” is disabled to display each source in its native aspect ratio in display modes (Quad,

PiP, Full) of SPLITMUX.

SPLITMUX - Installation and Operation Manual

Page 64

ON SCREEN DISPLAY

OSD - VIDEO - FORMAT

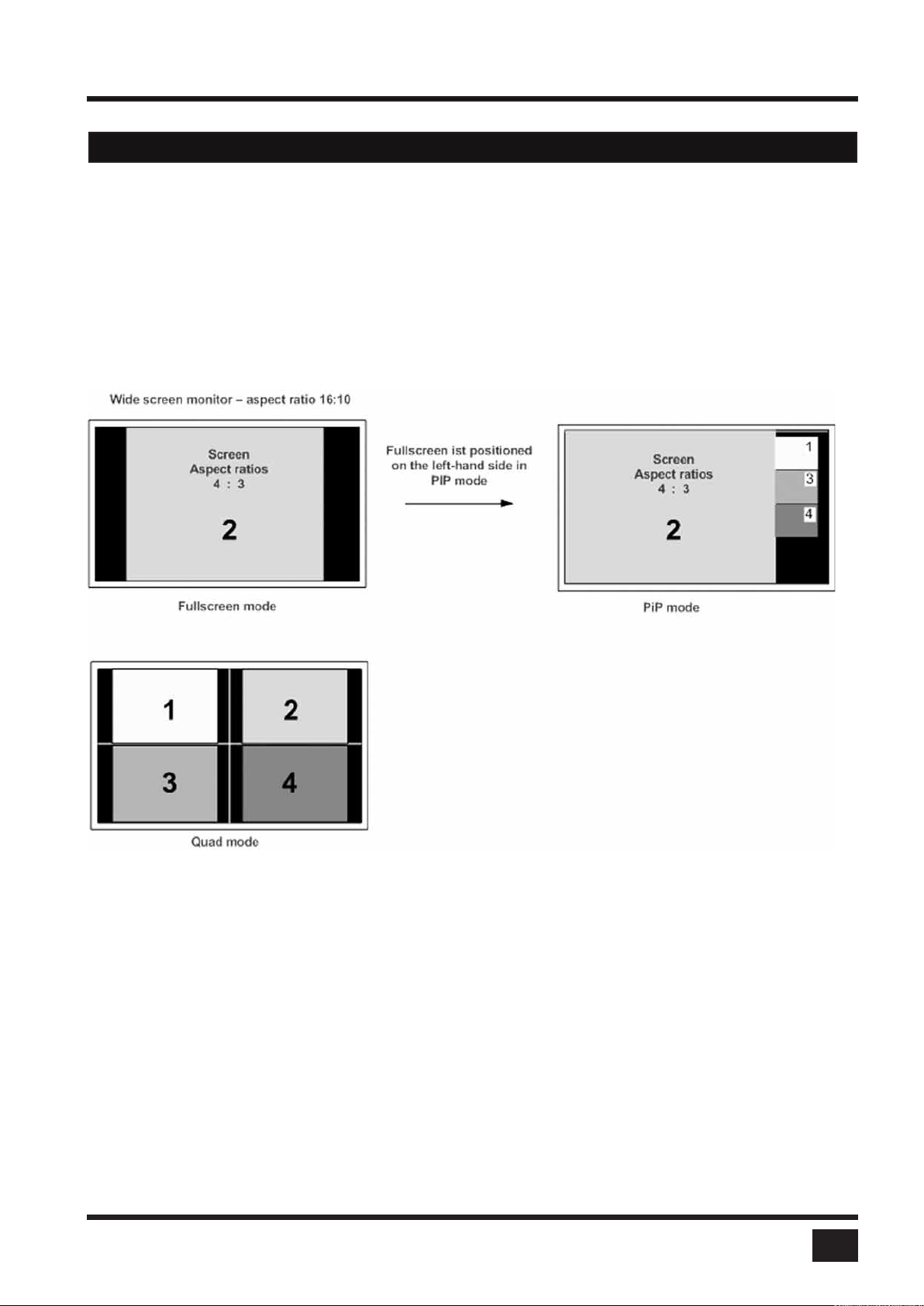

FORMAT (continued) PiP mode for wide-screen monitors

If you use a wide-screen monitor (for example with an aspect ratio of 16:10) and the active channel does not have a wide-screen aspect ratio (e.g. 4:3), PiPs are placed aside the full image of the active channel in the black bar on the right side. The full image of the active channel is displayed left-aligned on the screen resulting in a black bar on the right side. Provided appropriate PiP size (20%) is set, PiP images are thus placed entirely outside the full screen channel. No screen content is overlapped. All content of all souces is visible.

SPLITMUX - Installation and Operation Manual

Page 65

ON SCREEN DISPLAY

OSD - COMPUTER - CHANNEL MAPPING

CHANNEL MAPPING

Use arrow keys to navigate in the COMPUTER menu to the entry CHANNEL MAPPING and press ENTER/

SELECT to open the CHANNEL MAPPING window.

In the CHANNEL MAPPING menu, assignment between physical input ports and logical channels can be

changed. This can be useful, for instance, if computer needs to be shown on another position on the quad

screen without having to swap the connectors at the inputs.

Use arrow and “+/-“ keys to navigate to the physical port that you would like to connect to the channel

mentioned on the upper line. Press enter / select to change the connection.

SPLITMUX - Installation and Operation Manual

Page 66

ON SCREEN DISPLAY

OSD - COMPUTER - AUDIO

AUDIO

Use arrow keys to navigate in the COMPUTER menu to the entry AUDIO and press ENTER/SELECT to open the AUDIO window.

“Enable audio output”: To enable or disable the audio output, activate or deactivate the check box “Enable audio output”.

Selecting audio source: Select the audio source from the list. To ensure that the audio source is the computer being currently operated, select “active channel” from the list. For a fixed audio source select one of the computers from the list.

Switch channel on audio activity: With this setting enabled, SPLITMUX automatically switches to a channel on which an audio signal is detected.

Volume

To adapt the volume of the audio sources navigate to VOLUME and press enter/select.

Use this window to adjust the volume for the audio sources in 2 db steps.

Change the volume of each channel with + and -

Note: This window can also be opened with the hotkeys HK + -/+.This window can also be opened with the hotkeys HK + -/+.

SPLITMUX - Installation and Operation Manual

Page 67

ON SCREEN DISPLAY

OSD - COMPUTER - NAME 1-4

NAME 1-4

Use arrow keys to navigate in the COMPUTER menu to the entry NAME 1-4 and press ENTER/SELECT

to open the NAME 1-4 window.

Use the section NAME to assign a name to each of the four windows displayed when HOTMOUSE is in use.

Move the cursor in the edit window using arrows on your keyboard. Press ENTER/SELECT to choose a letter. Press BACKSPACE/FULL to erase.

SPLITMUX - Installation and Operation Manual

Page 68

ON SCREEN DISPLAY

OSD - COMPUTER - kEYBOARD

kEYBOARD

Use arrow keys to navigate in the COMPUTER menu to the entry KEYBOARD and press ENTER/SELECT to open the KEYBOARD window.

Use this display feature to identify which keyboard type (USB, PC1, PC2 or PC3) has been recognized at which computer port.

SPLITMUX - Installation and Operation Manual

Page 69

ON SCREEN DISPLAY

OSD - COMPUTER - MOUSE

MOUSE

Use arrow keys to navigate in COMPUTER menu to the MOUSE line and press ENTER/SELECT to open the MOUSE window.

The upper half of the MOUSE window shows which mouse type (USB, PS/2 or PS/2 wheel) has been recognized at which computer port.

USB – mouse positioning

For USB ports, you may specify absolute or relative mouse positioning. Choose absolute mouse positioning if a device is connected to the console that supports absolute coordinates,

such as graphic trays, screen pads or KVM extenders.

SPLITMUX - Installation and Operation Manual

Page 70

ON SCREEN DISPLAY

OSD - COMPUTER - RESET PS/2 / EDID/DDC

RESET PS/2

Use arrow keys to navigate in the COMPUTER menu to the entry RESET PS/2 and press ENTER/SELECT to open the RESET PS/2 window.

Use arrow keys t u or “+” and “-” keys to select the channel (1 to 4) you wish to reset and confirm by pressing ENTER/SELECT.

EDID/DDC This window presents an overview of the status of the input EDIDs and the display EDID and allows editing of

these.

SPLITMUX - Installation and Operation Manual

Page 71

ON SCREEN DISPLAY

OSD - COMPUTER - EDID/DDC (continued)

EDID/DDC (continued)

Use arrow keys to select the channel EDID information.

Select a video mode for the channel using the arrow keys. Press ENTER/SELECT to confirm selection.

Press ENTER/SELECT to open the window with detailed settings for this EDID.

SPLITMUX - Installation and Operation Manual

Page 72

OSD - COMPUTER - EDID/DDC (continued)

EDID/DDC (continued)

Two freely selectable video modes can be programmed in the input EDID visible to the connected computer at the input port.

It is recommended to program the preferred video modes for the connected signal source.

SPLITMUX also uses these entries to distinguish between confusable analog input video signals. The following groups of analog input signals are difficult to distinguish automatically:

WUXGA 1920x1200 60 Hz UXGA 1600x1200 60Hz UXGA 1600x1200 60Hz with reduced blanking

WUXGA 1920x1200 50 Hz UXGA 1600x1200 50Hz UXGA 1600x1200 50Hz with reduced blanking

ON SCREEN DISPLAY

SXGA+ 1400x1050 60Hz WSXGA 1680x1050 60Hz

XGA 1024x768 60Hz WXGA 1280x768 60Hz WXGA 1360x768 60Hz

If you experience problems with the automatic input detection of an analog input signal in these groups you can ovewrite the automatic detection by programming the expected video signal into the input EDID.

Use arrow keys to navigate to the first video mode entry and press ENTER/SELECT to open the window with a list of selectable video modes.

In this window use arrow keys to select the desired line in the list shown on the right and press ENTER/ SELECT for the video format.

Use arrow keys to navigate to the second video mode entry and press ENTER/SELECT to open the window with a list of selectable video modes.

Use arrow keys to navigate to “Signal“ and press ENTER/SELECT to switch between analog or digital. This setting specifies whether the EDID should identify the SPLITMUX as an analog or digital device. Usually it is safe to leave this setting at “digital”.

Use arrow keys to navigate to the following write options:

WRITE save the changes in the current input EDID. WRITE TO ALL INPUTS save the changes to all four input EDIDs.

Alternatively, the EDID data of the connected display can be used. To do this, navigate to SAME AS DISPLAY EDID and press ENTER/SELECT

SAME AS DISPLAY EDID write the contents of the display EDID to the current input EDID. Press ENTER/SELECT to start the selected write option and wait until “successful” is displayed in the bottom

status line. At this point, the EDID data can be written to one or all of the four channels.

Note: If the EDID data of the connected video source is used, the switch behaves as if the display

is connected directly to the source.

SPLITMUX - Installation and Operation Manual

Page 73

ON SCREEN DISPLAY

OSD - COMPUTER - EDID/DDC

EDID/DDC (continued)

Note:

Please keep in mind that this setting will overwrite the automatic analog input mode detection. If you connect a different video source, or change the video mode from the PC, you may need to change this setting again to get correct results. For the detection of digital input signals this setting has no effect.

Alternatively, the display EDID data can be copied to the inputs:

An overview of the contents of the display EDID is seen above.

It has the following write options:

WRITE TO INPUT 1 write the monitor EDID to input 1 WRITE TO INPUT 2 write the monitor EDID to input 2 WRITE TO INPUT 3 write the monitor EDID to input 3 WRITE TO INPUT 4 write the monitor EDID to input 4 WRITE TO ALL INPUTS write the monitor EDID to all inputs

Note: The content of the input EDIDS can be reset to default by the OSD function CONFIGURATION / FACTORY RESET.

SPLITMUX - Installation and Operation Manual

Page 74

ON SCREEN DISPLAY

OSD - USB DEVICE 1-4

USB Device 1-4

SPLITMUX supports and switches transparent USB 2.0 devices such as printer, camera, 3D mouse, finger printer, and external memory. (Example: Connect a memory stick to copy data from one computer to the stick, and from the stick to another computer connected to SPLITMUX: Data can be copied between computers without being networked.)

Use arrow keys to navigate in the OSD menu to the entry USB DEVICE 1-4 and press ENTER/SELECT to open the window.

Status display of the transparent USB 2.0 switch. Connections from USB port to computer

are shown.

OFF: Port is not switched to a computer. A USB device may be connected, but it is not switched to a computer.

Computer (1-4): Port is switched to one of the computers.

To change port and switch settings use arrow keys to select one of the four USB ports and open its submenu by pressing ENTER/SELECT.

Device 1 switch to: Off by default. To manually switch this USB port to one of the four computers, use arrow keys to select one of the four computers and press ENTER/SELECT.

SPLITMUX - Installation and Operation Manual

Page 75

ON SCREEN DISPLAY

OSD - USB DEVICE 1-4 - SWITCHING MODE

USB Device 1-4 (continued)

The following options can be selected for the USB port: Manual switching, change switching mode, change USB device name.

Switching mode:

By default, switching mode is "manual switching with warning”. To change the switching mode use the arrow keys to navigate to "CHANGE SWITCHING MODE” and press ENTER/SELECT.

Use arrow keys to chose one of the following modes to change the switching mode:

1. Manual switching with warning: This mode allows switching the USB port manually by selecting one of the computers connected. But before the switch is executed the following warning message is displayed: "In order to prevent data loss, stop the USB device before switching!” To switch, press ENTER/SELECT. This switching mode is recommended for USB devices with risk of data loss (e.g. USB stick, printer, external memory)

2. Manual switching without warning: This mode allows switching the USB port manually by selecting one of the computers connected. The switching is executed immediately. This switching mode is recommended for USB devices without risk of data loss.

3. Automatically with active channel: In this mode, the USB device/port is always switched automatically with the active channel. When switching channel/computer this USB device/port will automatically be switched to the activated channel/computer.

Note: After power on, all USB devices are disconnected from computers except devices with switching

mode “automatically with active channel”.

SPLITMUX - Installation and Operation Manual

Page 76

ON SCREEN DISPLAY

OSD - USB DEVICE 1-4 - CHANGE NAME

USB Device 1-4 (continued)

Change device name:

In the „USB DEVICE. / USB DEVICE” menu chose „Change device name” and press ENTER/SELECT to change the name of the connected USB device.

Use the keyboard to rename the USB device or use the front panel buttons (as described in the OSD). Exit the menu. The new name will automatically be saved and displayed in the other menus.

Note: Use hotkey + „u” (by default: hotkey = Ctrl + Alt) to quickly access the USB DEVICE 1-4 menu. This allows quick access to this menu when switching manually. To directly open the switching menu of e.g. USB device/port 1 use hotkey + „F1” (by default: hotkey = Ctrl + Alt).

SPLITMUX - Installation and Operation Manual

Page 77

ON SCREEN DISPLAY

OSD - HELP - HOTkEY / ABOUT / CONTACT

Use arrow keys to navigate in the HELP menu to the desired line and press ENTER/SELECT to open the

corresponding window.

HELP > ABOUT displays the current revision levels hardware and firmware.

HELP > HOTKEY provides a guide to hotkey shortcuts.

HELP > CONTACT window contains information on how to contact NTI support.

SPLITMUX - Installation and Operation Manual

Page 78

HOTMOUSE

HOTMOUSE - ACTIVATING HOTMOUSE CURSOR

Hotmouse

Hotmouse is an exclusive function offered by NTI SPLITMUX. It works with your standard mouse or trackball and touch screens. Similar to using hotkeys on your keyboard, Hotmouse is a quick and comfortable way to operate SPLITMUX simply with your standard mouse, trackball, or touch screen. No software or additional hardware is required.

When activated, your mouse cursor becomes hotmouse cursor - a numbered arrow - that allows performing all hotmouse functions.

Activating the hotmouse cursor

To activate hotmouse cursor move your mouse on the console four times in a rapid horizontal shaking motion or with hotkey + M.

The hotmouse cursor can also be activated via touch screen: tap the screen twice, and leave your finger pressed on the touch screen after the second tap (tap – hold, like a double click without lifting the finger on the second click), until the hotmouse menu opens. Now click outside the hotmouse menu to open the hotmouse cursor.

Close the hotmouse by double clicking or with hotkey + M. The hotmouse cursor changes its look depending on its position on the screen (arrows in vertical or horizontal

direction, and number of channel).

Housemouse

cursor

Use the hotmouse cursor to perform the following functions:

in Fullscreen mode: in Quad mode: - Select another active channel (keyboard, mouse) in PiP mode: - Modify position and size of PiP images

- Change active channel in Win mode: - Select mode for resize, channel select, and select options (hotmouse menu)

- Modify position and size of Windows

- Change active channel

- Switch to another fullscreen channel

Vertical positioning of

PiP images / Resize in

Win mode

Resize

window or PiP

Move

window

SPLITMUX - Installation and Operation Manual

Page 79

HOTMOUSE

HOTMOUSE CURSOR IN FULLSCREEN MODE / QUAD MODE

Hotmouse Cursor in fullscreen mode

When you activate the hotmouse cursor in Fullscreen mode, PiP images of the other channels are temporarily

displayed to allow you to switch to another channel.

Switching to another fullscreen channel

Activate hotmouse cursor. Move the hotmouse cursor over the PiP image of the channel that you wish to

activate and click the left mouse button.

Example: Switch from channel 2 to channel 3

2 3

Channel 2 is active Channel 3 is selected. Channel 3 is active.

Hotmouse cursor in Quad mode

Switching active channel (mouse, keyboard)

Activate Hotmouse Cursor. To change the active channel (switching mouse and keyboard), position the

Hotmouse Cursor in the respective channel field (1 to 4) and press the left mouse button.

Note: When you move into another channel field, the channel number in the Hotmouse Cursor changes.

Example: Switch active channel from 1 to 3

3 4

active

Channel 1 is active

2 4

SPLITMUX - Installation and Operation Manual

Channel 3 is selected. Channel 3 is active.

2 4

active

2 43

Page 80

HOTMOUSE

HOTMOUSE CURSOR IN PIP MODE

Hotmouse Cursor IN PIP MODE

Change active channel

Enable Hotmouse Cursor. Move the Hotmouse Cursor to the PiP-image of the channel you wish to activate and press the left mouse button.

Note: When the Hotmouse Cursor moves over a PiP-image, its appearance changes (arrows, channel number).

Example: Switch from channel 2 to channel 3

Channel 2 is active Channel 3 is selected. Channel 3 is active.

Vertical positioning of PiP images

Activate Hotmouse Cursor. Move the Hotmouse Cursor to the PiP-image area, hold down the left mouse button and drag the PiPs to the desired vertical position.

Note: As soon as the Hotmouse Cursor moves over a PiP image, its appearance changes (arrows pointing in vertically).

Example: Move PiP images upward

3 4

2 4

SPLITMUX - Installation and Operation Manual

3 4

2 4

Page 81

HOTMOUSE

HOTMOUSE CURSOR IN PIP MODE

Hotmouse Cursor in PIP MODE (continued)

Modify size of PiP images

Activate Hotmouse Cursor and move to the left edge of the PiP image area until horizontal arrows appear in the

Hotmouse Cursor. Hold down the left mouse button and drag the Hotmouse Cursor to the left to increase PiP

image size, or to the right to reduce PiP image size.

Note: As soon as the Hotmouse Cursor moves to the left edge of the PiP image area, its appearance changes (horizontal arrows, channel number).

Scaling PiP images up

Scaling PiP images down

3 4

Hold left mouse button

3 4

SPLITMUX - Installation and Operation Manual

Page 82

HOTMOUSE

HOTMOUSE CURSOR IN WIN MODE

Hotmouse Cursor in Win MODE

Change active channel

Enable Hotmouse Cursor. Move the Hotmouse Cursor to the window of the channel you wish to activate and press the left mouse button.

Note: When the Hotmouse Cursor moves over a window, its appearance changes (arrows, channel number).

Note: To close the Hotmouse Cursor, left double click or use hotkey + M in Win mode.

Example: Switch from channel 2 to channel 3

Channel 2 is active Channel 3 is selected. Channel 3 is active.

Resizing of windows

Activate Hotmouse Cursor. Move the Hotmouse Cursor to the window area, hold down the left mouse button and drag the window to the desired size.

Note: As soon as the Hotmouse Cursor moves over a window, its appearance changes (arrows pointing vertically or horizontally).

Example: Resizing windows

Channel 2 is needs to be

resized.

SPLITMUX - Installation and Operation Manual

The edge of channel 2 is

selected for vertical resizing.

Channel 2 is resized.

Page 83

HOTMOUSE

HOTMOUSE CURSOR IN WIN MODE

Hotmouse Cursor in Win MODE (continued)

Repositioning windows

Enable Hotmouse Cursor. Move the Hotmouse Cursor to the window that you wish to move and press the left mouse button.

Note: When the Hotmouse Cursor moves over a window, its appearance changes (arrows pointing up, down, left and right.).

Example: Repositioning the windows

Channel 2 is active and the

hotmouse is activated

Move the hotmouse cursor to the top right corner of the signal window, and the following buttons will appear:

= Open OSD hotmouse context menu

= Swap signal windows. After this is selected, the other window is clicked.

= Toggle aspect ratio locking for current window

Channel 2 is moved to a new

location on the screen..

SPLITMUX - Installation and Operation Manual

Page 84

HOTMOUSE

HOTMOUSE MENU - ACTIVATING / OPERATING

Hotmouse Menu - ACTIVATING

Activate Hotmouse Cursor and press the right mouse button to open the Hotmouse Menu. The Hotmouse Menu can also be opened via touch screen: tap the screen twice, and leave your finger pressed on the touch screen after the second tap (tap – hold, like a double click without lifting the finger on the second click), until the Hotmous Menu opens.

By clicking outside the Hotmouse Menu, you can open the Hotmouse Cursor to enlarge and reposition PiPs (only in PiP mode), switch channels and modify Win Mode. After you are finished using the Hotmouse Cursor, the Hotmouse Menu will reopen. Menu appearance varies depending on display mode (Full / Quad / PiP / Win). This menu allows you to carry out switching operations and change display mode settings.

Hotmouse Menu - OPERATING

The Hotmouse Menu allows you to carry out switching operations and to enter PiP settings by mouse click (left mouse button).

Click Help on the Hotmouse Menu for information on the individual symbols.

Hotmouse Menu in PiP-mode

Click with the left mouse button on the arrow symbols to either increase or decrease the values in question. Clicking on the outer arrow symbols sets the minimum or maximum value.

After having completed the settings, click on CLOSE to close the Hotmouse Menu window and exit the Hotmouse Function.

Click on HELP to open the HOTMOUSE HELP window.

SPLITMUX - Installation and Operation Manual

Page 85

HOTMOUSE

Hotmouse Menu - MODES

The individual modes can be set as follows:

Hotmouse Menu - QUAD MODE

Use the mouse to navigate to a channel in the Hotmouse Menu and click the left mouse button to activate it.

You can also switch to a different mode with the left mouse button.

Quad mode Hotmouse Menu in Quad mode

Hotmouse Menu - FULLSCREEN MODE

Use the mouse to navigate to a channel in the Hotmouse Menu and click the left mouse button to activate it.

You can also switch to a different mode with the left mouse button.

2 4

Hotmouse Menu in Fullscreen mode

SPLITMUX - Installation and Operation Manual

Fullscreen mode

Page 86

HOTMOUSE

Hotmouse Menu - MODES

Hotmouse Menu – MODES (continued)

Hotmouse Menu – PIP MODE

Use the mouse to navigate to a channel in the Hotmouse Menu and click the left mouse button to activate it. Change position and size of PiP images, and PiP zoom. Change PiP mode (triple / triple gap / single fixed / single direct / single scan) and scan time.

Triple gap: PiP images are displayed with a gap in place of the active channel.

Triple no gap: PiP images are displayed without a gap.

3 4

Triple tile: The size of the main image and the PiP images is optimized so that the main image and the PiP ima ges are shown as large as possible without overlap ping.

SPLITMUX - Installation and Operation Manual

Page 87

HOTMOUSE

Hotmouse Menu - MODES

Hotmouse Menu – PIP MODE (continued)

Single fixed: One selected PiP image is permanently displayed.

Single direct: Press the front panel buttons 1, 2, 3, or 4 to directly select the PiP channel you want.

Hotmouse Menu – Win Mode

Use the section "Mode" in the hotmouse menu in WIN mode to save the position of your channel windows. Four different configuration sets can be saved under win1, win2, win3 or win4.

1. Enter Win Mode

2. Position and/or resize your channel windows as desired.

3. Activate the hotmouse menu.

4. Select one of the win slots

5. Click "Save" at the bottom of the hotmouse menu

SPLITMUX - Installation and Operation Manual

Single scan: Cycles through the PiP

images at a set interval.

Page 88

SERVICE

SERVICE INFORMATION

MAINTENANCE AND REPAIR

SPLITMUX does not contain any user-serviceable parts. Please report any malfunction or deviation from the functionality described in this manual during operation to NTI’s Technical Support Department.

If we cannot solve your problem by phone and find that the fault is due to the unit, we will repair your unit free of charge during our warranty period. Please pack the device carefully, if possible in its original packaging, and send it to:

Network Technologies Inc 1275 Danner Drive Aurora, Ohio 44202 USA

TECHNICAL SUPPORT

If you cannot identify the cause of a problem, please contact NTI, Technical Support. Call telephone number below to obtain Return Authorization number before returning this product to NTI.

Telephone 330-562-7070 or 1-800-RGB-TECH (1-800-742-8324) Mondays through Fridays 08:00 AM to 5:00 PM (EST)

SPLITMUX - Installation and Operation Manual

Page 89

ANNEX

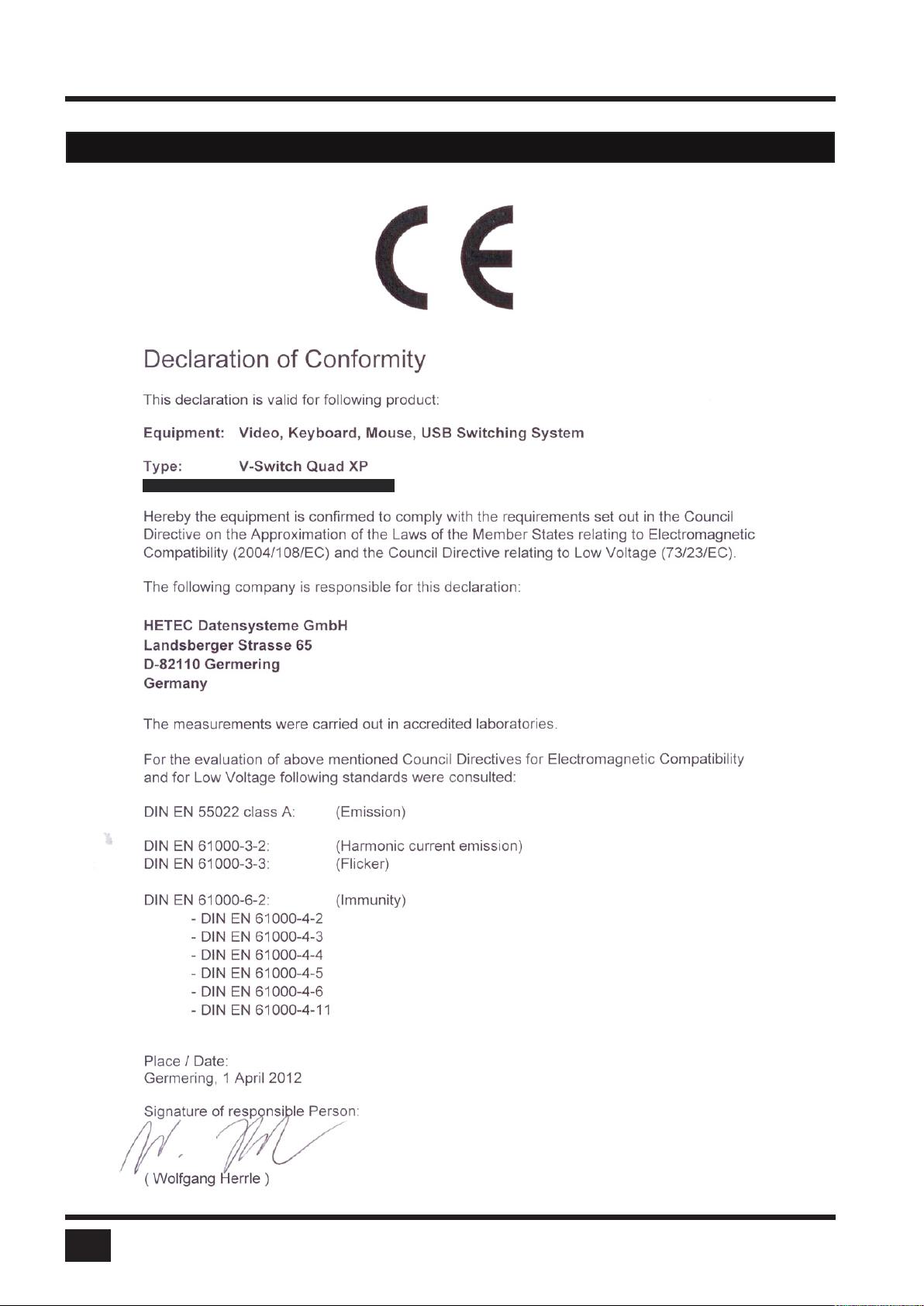

DECLARATION OF CONFORMITY

SPLITMUX - Installation and Operation Manual

Page 90

ANNEX

FCC DECLARATION

FEDERAL COMMUNICATIONS COMMISSION

AND

INDUSTRY CANADA

RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.

SPLITMUX - Installation and Operation Manual

Page 91

ANNEX

kEYBOARD COMMANDS

SPLITMUX supports two types of hotkey: "multiple keys” and "double click”. By default, SPLITMUX is set to "multiple keys”. Use the OSD menu to choose the hotkey type and keys (see page 14).

Multiple keys: Press multiple keys plus command key.

COMMAND = Hotkey and together

The following hotkeys are available for selection:

Ctrl

By Default: HOTKEY = +

Further examples: = + +

= +

Double click key: Double click one key (=hotkey) and immediately press the command key within 2 seconds.

Shift

Alt

Command Key

Win

Ctrl

Alt

Win

Shift

Alt

COMMAND = Hotkey and in sequence

As double click hotkey you can choose one of the following keys:

Examples: HOTkEY =

Note:

In command mode (hotkey is activated) LED flashing on the keyboard. In double click hotkey mode, pressing an invalid key leaves the command mode.

While OSD is open hotkey =

SPLITMUX - Installation and Operation Manual

Ctrl

Shift

Ctrl

Alt

Command Key

Scroll

Scroll Scroll

Ctrl

Page 92

kEYBOARD COMMANDS

Selecting display mode

ANNEX

HK HK

HK W

Selecting active channel in Fullscreen / Quad / PiP / Win mode

You can also use hotkey and the arrow keys to switch the active channel. In Quad and Win mode, you can select the channel on the right using the 1, 2, 3, or 4 keys on the numeric keypad.Switch the active channel with hotkey and the arrow keys. In PiP mode, the active channel automatically is displayed as full image.

+ +

F P

+ +

Quad mode

Fullscreen mode

PiP mode

Win mode

Computer 1

Computer 2

Computer 3

Computer 4

Open USB device switch menu

HK F4

+ +

Open USB device/port 1 switch menu

Open USB device/port 2 switch menu

Open USB device/port 3 switch menu

Open USB device/port 4 switch menu

SPLITMUX - Installation and Operation Manual

Page 93

ANNEX

kEYBOARD COMMANDS

Other commands

HK O

HK U

HK V

HK I

Hotkeys for Win mode

HK HK

HK Z

+ + + +

+ +

+/-

R T

Open OSD

Directly open OSD USB Device 1-4

Safe output mode

Directly open OSD PiP menu (In the background display mode switches to

PiP as long as menu is open)

Open/Close the Hotmouse Adjust volume menu

Save current win mode to eeprom.

Restore current win mode from eeprom and loose all changes.

Toggle transparent status of current win mode.

Undo up to ten previous actions.

HK Y

HK W

Redo up to ten previous actions

Select Win mode

1,2,3,4

SPLITMUX - Installation and Operation Manual

Page 94

DEVICE CONFIGURATION PROGRAM

Installation of Device Configuration Program (CONFDEV)

The Device Configuration Program allows you to remotely operate the OSD of SPLITMUX on an external Windows computer via serial connection.

To install the device configuration software CONFDEV, you need

• A Windows computer with a free USB or RS 232 COM-port

• Your SPLITMUX

• The installation CD containing the confdevEn.exe program

• The enclosed "serial cable” (RJ45-DB9 adaptor + RJ45 CAT5 cable)

ANNEX

USB or COM

ports

Rear Panel

Use the serial cable to connect the COM port of the Windows computer with the serial port of your SPLITMUX. .

Insert the installation CD into the CD-ROM drive and start the confdevEn.exe program. The Device Configuration Program (CONFDEV) window opens:

Click to open the OSD (device configuration) remotely.

Click to change settings (Eg. COM port)

SPLITMUX - Installation and Operation Manual

Page 95

ANNEX

DEVICE CONFIGURATION PROGRAM

Settings

Click the „device configuration” button to open the SETTINGS window. It allows you to set the font size for the OSD window, log parameters, and the COM port SPLITMUX is connected to.

Remote OSD operation

Click the green arrow to open the On Screen Display (OSD) of SPLITMUX remotely on your external Windows computer.

Now, the main OSD menu is open and ready for navigation.

Navigation

Use arrow keys on the keyboard of your remote Windows computer to navigate to the desired line in the OSD menu and confirm by pressing ENTER.

Use the ESC key to return to the previous menu.

SPLITMUX - Installation and Operation Manual

Page 96

ANNEX

DEVICE CONFIGURATION PROGRAM - UPLOADING A BACkGROUND IMAGE

UPLOADING A BACkGROUND IMAGE

A background image can be uploaded to the SPLITMUX and will be displayed behind windows when in Win Mode. To upload an image to the SPLITMUX , use the ConfDev menu DEVICE > LOAD BACKGROUND IMAGE.

IMPORTANT: Only 256 color bitmaps are supported for background images. The file used should have a maximum size of 2 MB. The maximum resolution will be that of the monitor connected.

If an image of another format needs to be used, it must first be converted into a bitmap. There are free tools available like Gimp or Paint.NET to do this conversion. MS paint available in Windows also supports this conversion. Due to the limited color count in the bitmap format, the quality of the image may be reduced.

For downloading a compression algorithm is used. If the image cannot be compressed well, the download can take up to 30 minutes.

A 256 color bitmap is uploaded from the user PC to SPLITMUX using the ConfDev utility.

SPLITMUX - Installation and Operation Manual

Page 97

ANNEX

DEVICE CONFIGURATION PROGRAM - STORING AND LOADING A CONFIGURATION

STORING A CONFIGURATION

ConfDev can also be used to store device configurations to a file on your PC. Open the ConfDev menu DEVICE > STORE CONFIGURATION. The Save As dialog will appear and you can save the configuration to the desired location.

LOADING A CONFIGURATION

ConfDev can be used to load device configurations from a file on your PC. Open the ConfDev menu DEVICE > LOAD CONFIGURATION. The Open dialog will appear from which you can select the configuration file to be loaded.

SPLITMUX - Installation and Operation Manual

Page 98

ANNEX

FIRMWARE UPDATE

Update firmware of SPLITMUX

To execute a firmware update, you need:

a computer with serial or USB port

•

the enclosed "serial cable” (RJ45-DB9 adaptor + RJ45 CAT5 cable) or a USB cable (USB-A/USB-B)

•

the current executable firmware file

•

1a. Use the serial cable to connect the COM port of your computer to the RS232 port on SPLITMUX. OR 1b. Use the USB cable to connect the USB port of your computer to the USB port on SPLITMUX. Note: the virtual com port USB driver can be downloaded from the Future Technology Devices

International Ltd. website at www.ftdichip.com/Drivers/VCP.htm

COM

or USB

Rear Panel

2. Start the executable firmware file.

3. Set the desired COM port

4. Press "Update”.

LEDs 1-4 on the front panel of SPLITMUX flash (blue) during the update.

SPLITMUX - Installation and Operation Manual

Page 99

ANNEX

FIRMWARE UPDATE (CONTINUED)

Update firmware of SPLITMUX (continued)

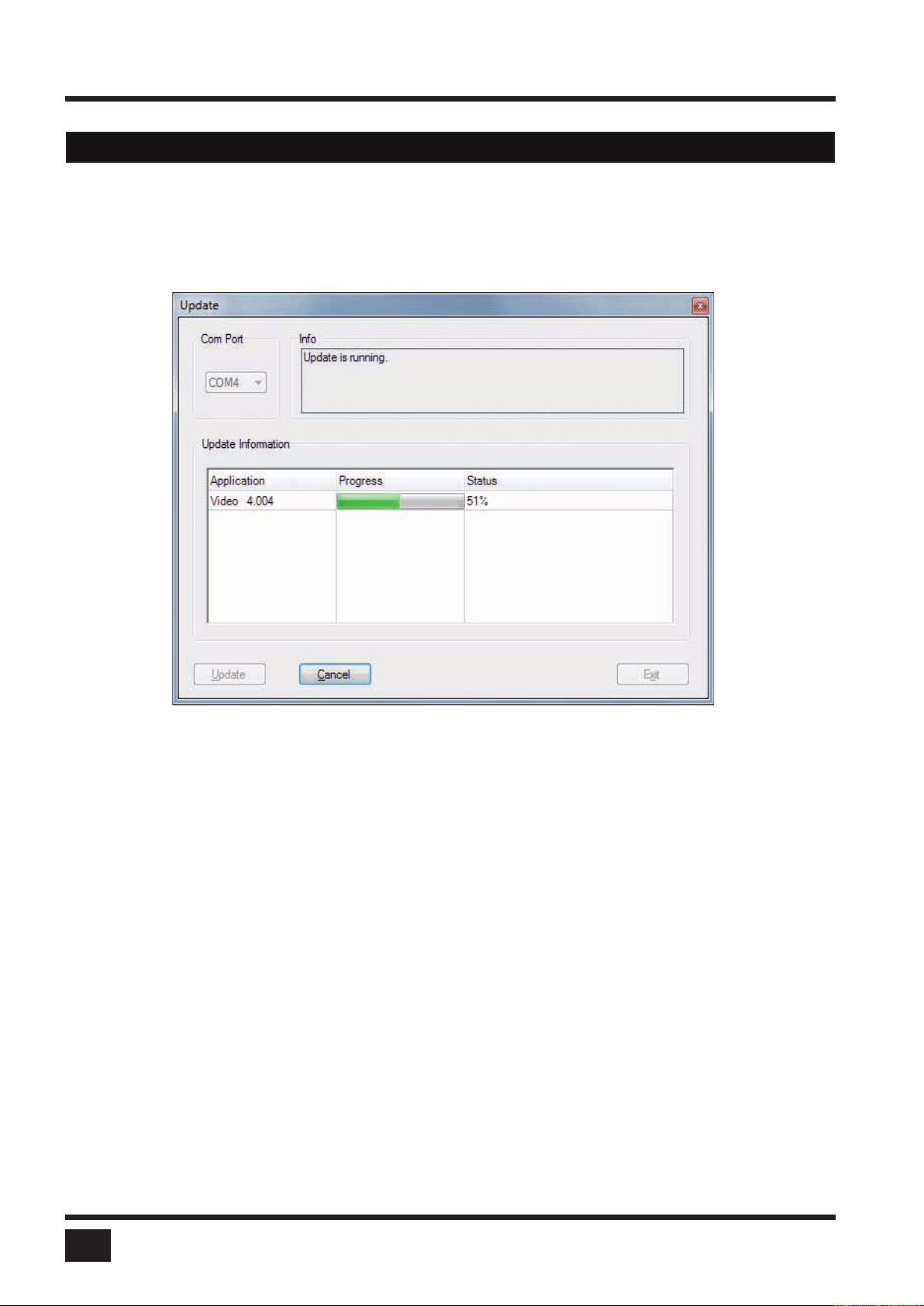

Additionally, the upgrade process is indicated by an OSD window on your remote computer.

After successful update, SPLITMUX restarts without changing configuration.

SPLITMUX - Installation and Operation Manual

Page 100

ANNEX

SERIAL CABLE

For serial remote control, SPLITMUX requires a special adaptor to connect a CAT5 cable to the serial RJ45 port at the rear panel of SPLITMUX. This adaptor is connected to your external serial control device (e.g. computer). To the adaptor any CAT5 cable can be connected. The CAT5 cable again is connected to the RJ45 port of SPLITMUX. The adaptor (plus a standard CAT5 cable (in green)) is supplied with SPLITMUX.

Serial cable = NTI adaptor + standard CAT5 cable

SPLITMUX - Installation and Operation Manual
