INTRODUCTION
The SPLITMUX-4K6GB-4LC HDMI 4x1 Multi-viewer supports four UHD individual screen segments with seamless
switching. The multi-viewer can display 4 UHD digital video signals on the same screen in a variety of viewing formats with
seamless switching. The multi-viewer can be controlled using a panel button or IR control.
Features
Materials Supplied
Supports 4 x HDMI input, 1 x HDMI output
Supports 4-channel HDMI signal screen segmentation; Four frames can be displayed using thirteen
different modes
Supports 4-channel s e a m l e s s HDMI signal switching
Supports Audio Switching
Supports maximum audio sampling rate of 48kHZ
Resolutions up to 4K30Hz YUV4:4:4
Supports IR control and Panel Button Control
HDMI 4x1 M ulti-viewer
12VDC AC Adapter
Remote Controller
URL Slip with path to this manual
Mounting ears- 1 pair.
1
Page 3

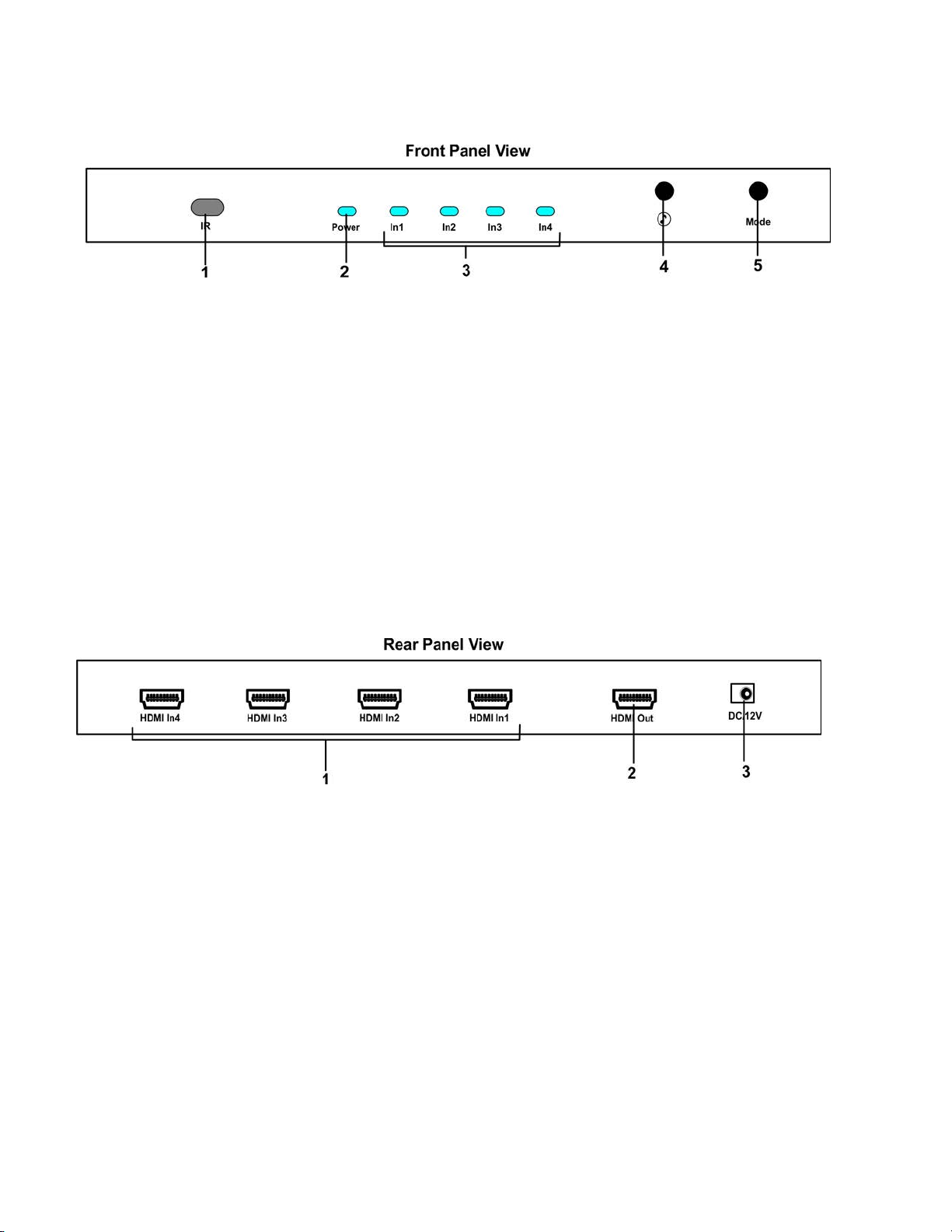

FEATURES AND FUNCTIONS
1)
IR Receiver
2)
Power LED light
3)
Input LED light
4)
Audio Switch button
5)
Mode Switch button
1)
HDMI Inputs(1-4)
2)
HDMI Output
3)
DC/12V Power Jack
2
Page 4

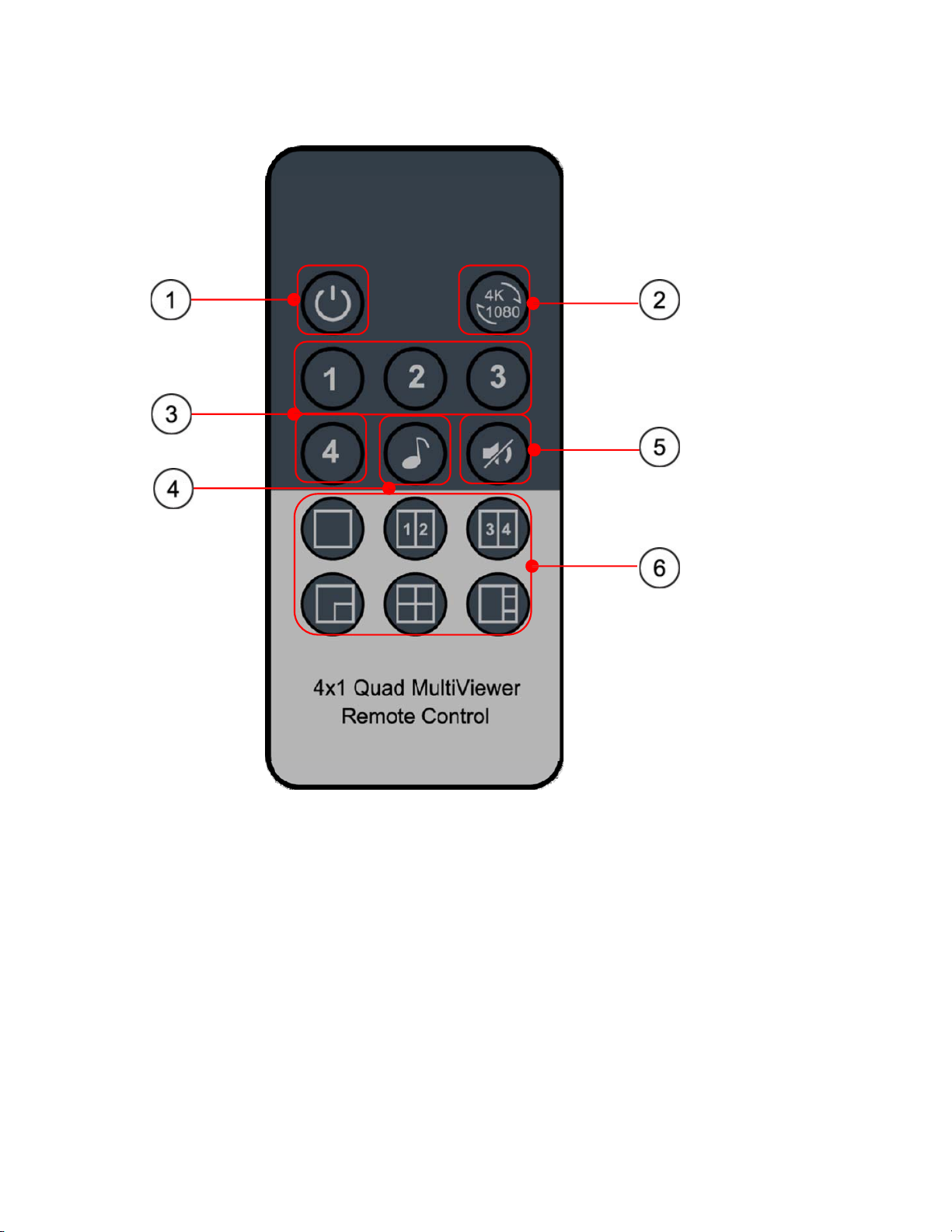

REMOTE CONTROL
Functions:
1- Power/Standby
2- 4K30/1080P Switch
3- Outputs 1-4
4- Audio Switch
5- Mute
6- V ide o Mode Buttons
3
Page 5
N

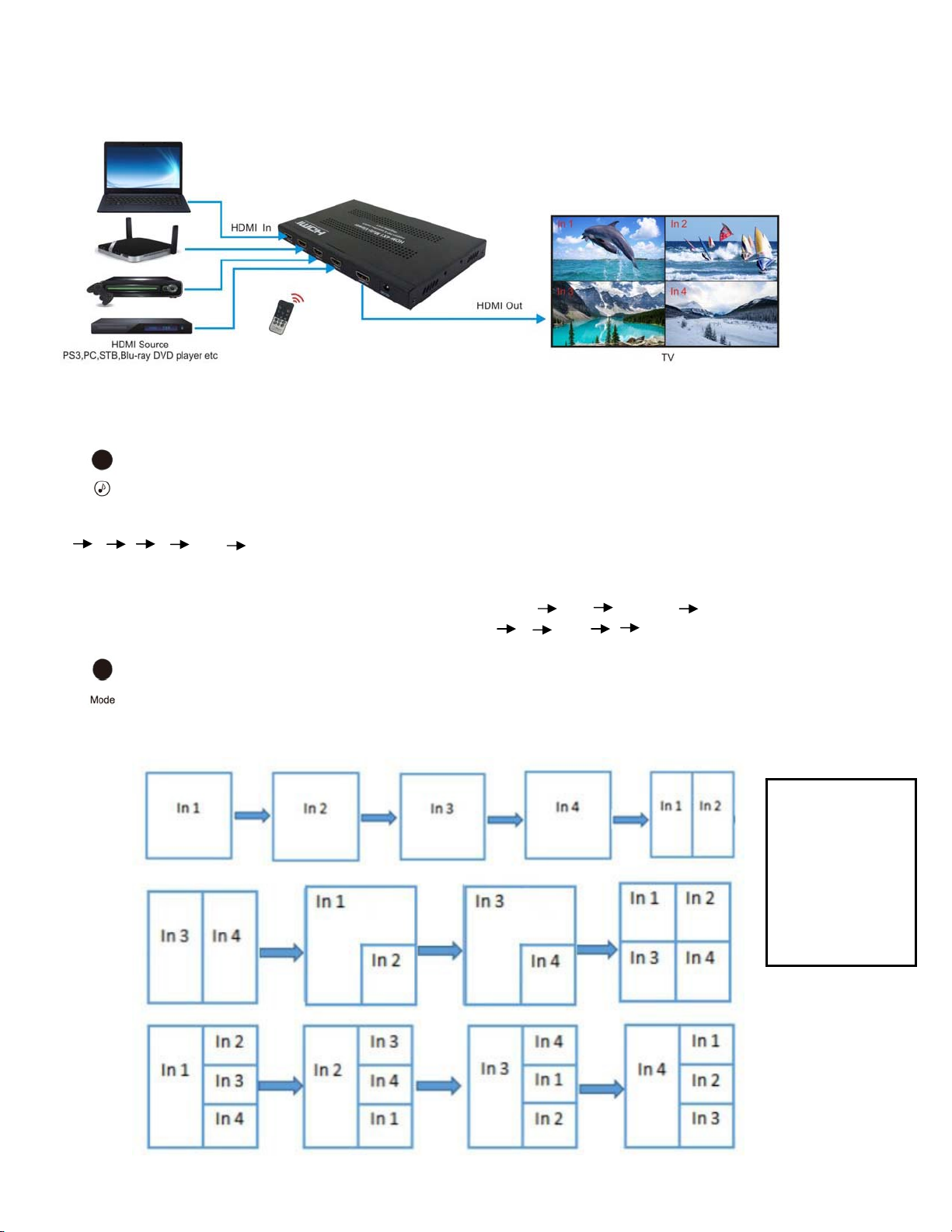

CONNECTION DIAGRAM
Panel Buttons
Press the audio switch button on the front panel and switch between the audio channels as follows:
1 2 3 4 mute 1... ...
Note: The audio will only switch between the channels being displayed.
There are 13 different screen segmentation modes supported, switched in the following order :
---Audio mode switching
For example:
If only one channel is displayed, the button will switch Channelx mute Channelx mute
If Channels 3 and 4 are displayed, audio will switch from 3 4 mute 3 4 mute, etc.
---Video mode switching
ote: If the
SPLITMUX is
powered-OFF,
the last mode
selected will be
the mode the
SPLITMUX is in
when poweredON again.
4
Page 6
SPECIFICATIONS
Operating Temperature Range
Operating Humidity Range 5 to 90% RH (Non-Condensing)
Bandwidth frequency 6.75Gbps
Input ports 4xHDMI(female)
Output ports 1xHDMI outputs(female)
TV
resolution
Dimensions (WxDxH) (In.) 7.5x4.45x0.67 (190.4x113x17mm)
Power consumption 12VDC, 8W(MAX)
0 to 40˚C (32 to 104˚F)
50Hz 576i; 576P; 720P; 1080i; 1080P
60Hz /59.94Hz
30/29.97/24/25Hz 720P; 1080P; 4K/3840x2160
480P; 720P; 1080P
Transmission Distance
Net Weight
VESA Resolutions
Rate Resolution Supported
60Hz
See Chart on next page for NTI cables that can be used
484g
640x480 √
800x600 √
1024x768 √
1280x768 √
1280x1024 √
1680x1050 √
1920x1080 √
1280x720 √
1360x768 √
1920x1200 √
1280x1024
30Hz 3840x2160P √
5
√
Page 7
Use NTI HDMI Cables for Input and Output cables
Available Cables Supported Resolution
HD-xx-MM
Where x=3,6,10,15,20, 30 and 50 ft
HD-xx-MM (Active)
Where xx- 75 and 100ft
HD-ACT-50-MM Yes Yes
HD-ACT-100-MM Yes
HD4K18GB-FO-100M-MM Yes Yes
1080p@60Hz 3840x2160@30Hz
Up to 50 ft Max. 20 ft-Input
Max. 30 ft- Output
75 & 100 ft on Output
only
No
100 ft on Output only
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact
Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit ou r website at
http://www.networktechinc.com
required for all repairs/returns.
for information regarding repairs and/or returns. A return authorization number is
MAN360 11/29/19
