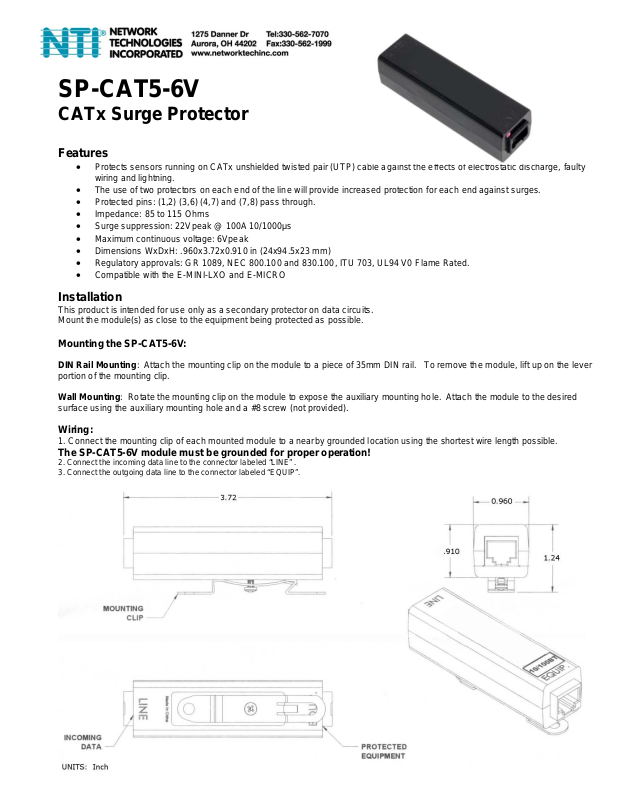

SP-CAT5-6V
CATx Surge Protector
Features
Protects sensors running on CATx unshielded twisted pair (UTP) cable against the effects of electrostatic discharge, faulty
wiring and lightning.
The use of two protectors on each end of the line will provide increased protection for each end a gainst surges.
Protected pins: (1,2) (3,6) (4,7) and (7,8) pass through.
Impedance: 85 to 115 Ohms
Surge suppression: 22Vpeak @ 100A 10/1000μs
Maximum continuous voltage: 6Vpeak

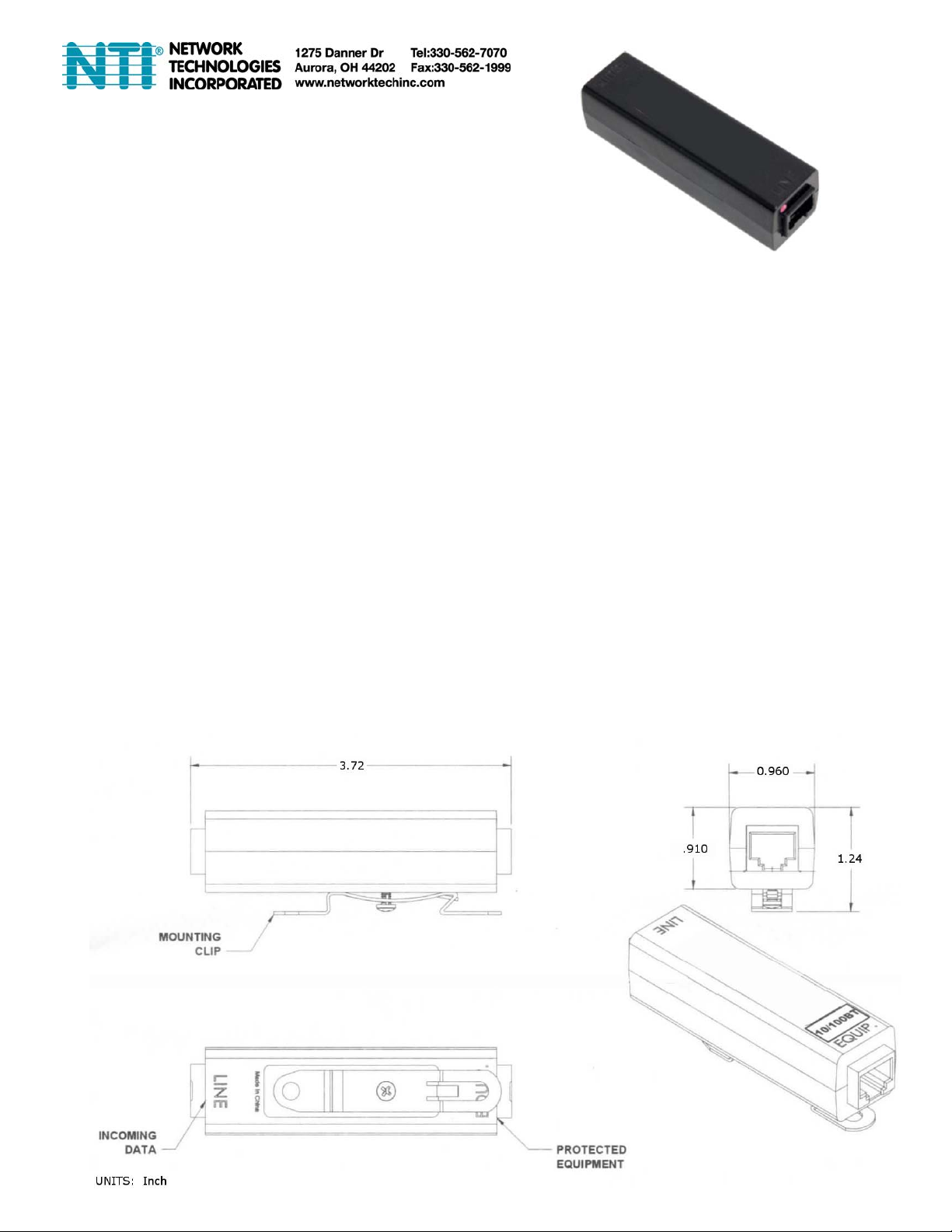

Dimensions WxDxH: .960x3.72x0.910 in (24x94.5x23 mm)
Regulatory approvals: GR 1089, NEC 800.100 and 830.100, ITU 703, UL94 V0 Flame Rated.
Compatible with the E-MINI-LXO and E-MICRO
Installation
This product is intended for use only as a secondary protector on data circuits.
Mount the module(s) as close to the equipment being protected as possible.
Mounting the SP-CAT5-6V:
DIN Rail Mounting: Attach the mounting clip on the module to a piece of 35mm DIN rail. To remove the module, lift up on the lever
portion of the mounting clip.
Wall Mounting: Rotate the mounting clip on the module to expose the auxiliary mounting hole. Attach the module to the desired
surface using the auxiliary mounting hole and a #8 screw (not provided).
Wiring:
1. Connect the mounting clip of each mounted module to a nearby grounded location using the sh ortest wire length possible.
The SP-CAT5-6V module must be grounded for proper operation!
2. Connect the incoming data line to the connector labeled “LINE” .
3. Connect the outgoing data line to the connector labeled “EQUIP”.

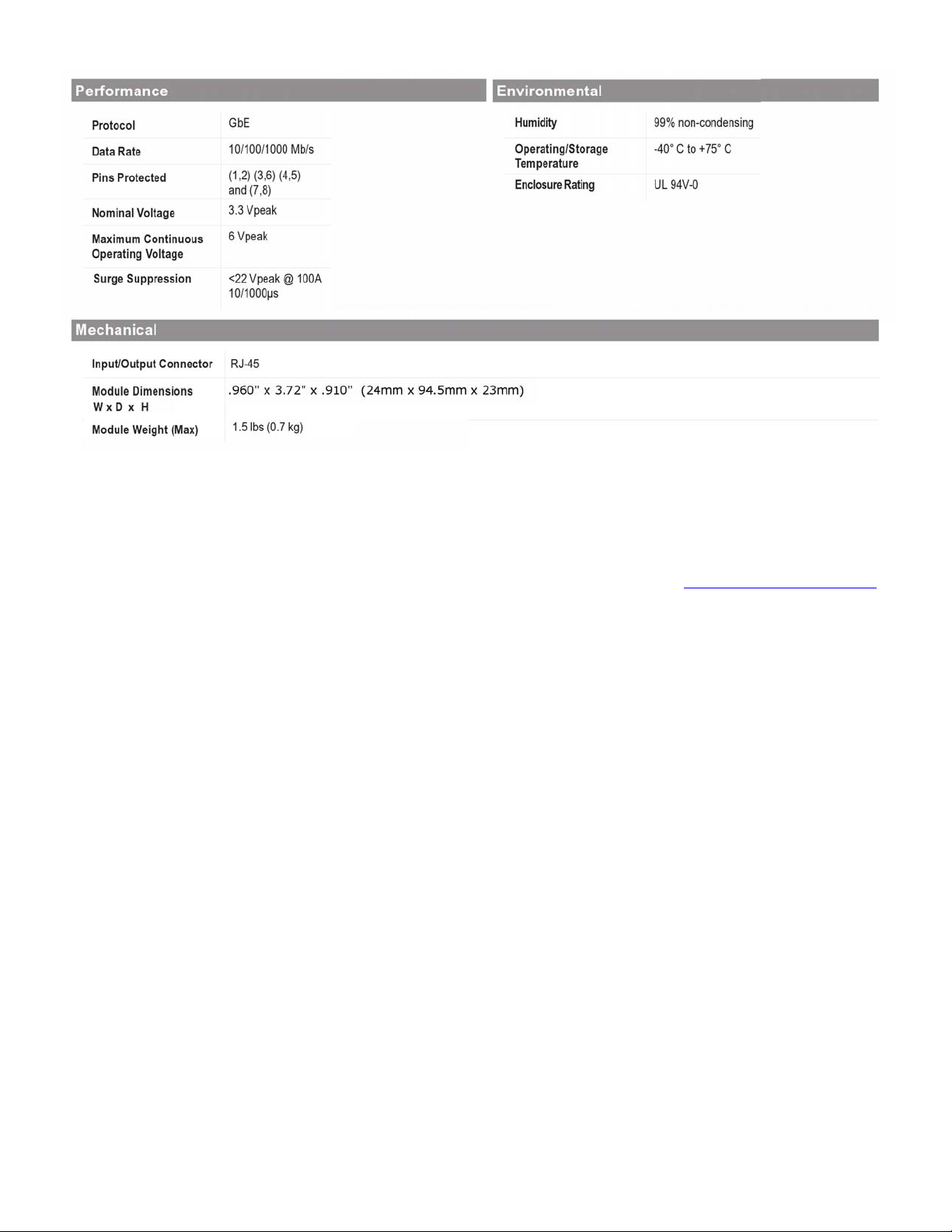

Page 2
NOTE: This product is not compatible with the E-16D/5D/2D ENVIROMUX models.
Warranty Information
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com
information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
