Network Technologies SM-nXm-C5AV-LCD User Manual
VEEMUX®Series
SM-nXm-C5AV-LCD
Audio/Video Matrix Switch via CAT5
Installation and Operation Manual
Used with NTI ST-C5VA-600 (XTENDEX
TM
) (NOT INCLUDED)
MAN050 Rev 10/30/12
TRADEMARK
VEEMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries
COPYRIGHT
Copyright © 2003, 2012 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.
SOFTWARE VERSION
Ethernet Control Software Version 1.19
Note: Shielded CAT 5,5e, or 6 cable must be used to connect to LOCAL and REMOTE units in order to meet CE emission
requirements.
i
TABLE OF CONTENTS
INTRODUCTION.............................................................................................................................................................1
Materials ......................................................................................................................................................................1
Default User Name and Passwords ............................................................................................................................2
FEATURES AND FUNCTIONS.......................................................................................................................................2
VEEMUX Features and Functions...............................................................................................................................2
XTENDEX Features and Functions.............................................................................................................................3
XTENDEX INSTALLATION.............................................................................................................................................4
Audio Compatibility......................................................................................................................................................4
The Local Unit..............................................................................................................................................................4
The Remote Unit..........................................................................................................................................................6
Plug-in and Boot Up.....................................................................................................................................................7
VEEMUX INSTALLATION...............................................................................................................................................8
USING THE VEEMUX SWITCH ...................................................................................................................................10
Front Panel Interface Overview.................................................................................................................................10
Keypad Control..........................................................................................................................................................11
Configuration Menu.................................................................................................................................................11
Set Serial Address..................................................................................................................................................12
Set Serial Speed.....................................................................................................................................................12
Set IP Address........................................................................................................................................................12
Set Subnet Mask.....................................................................................................................................................12
Set Default Gateway...............................................................................................................................................12
Set Wserver Timeout..............................................................................................................................................13
Adjust Contrast .......................................................................................................................................................13
Video Adjustment....................................................................................................................................................13
Show Size...............................................................................................................................................................13
Displaying Audio Level (Digital VU-Meter) .............................................................................................................13
RS232 Interface.........................................................................................................................................................14
Matrix Switcher's Control Program For Windows 9X, NT, 2000 and XP................................................................15
Telnet Interface-Port 2000.........................................................................................................................................16
Telnet Interface-Port 2005.........................................................................................................................................17
Command Summary...............................................................................................................................................17
Command Detail.....................................................................................................................................................17
RU-Read Unit Size..............................................................................................................................................17
RO-Read Connection for Output Port .................................................................................................................17
CS- Connect Output Port to Input Port................................................................................................................18
CA- Connect All Output Ports to Input Port.........................................................................................................18
SS_01- Enable Auto Status Mode.......................................................................................................................18
SS_00- Disable Auto Status Mode......................................................................................................................19
SX- Examine connections ...................................................................................................................................19
Terminate telnet session .....................................................................................................................................19
Web Interface................................................................................................................................................................20
Enter the Password ................................................................................................................................................20
Main Menu.................................................................................................................................................................21
Switch Page............................................................................................................................................................21
Setup Pages ...........................................................................................................................................................23
User Management ..................................................................................................................................................24
Add User..............................................................................................................................................................24
Edit User..............................................................................................................................................................25
Video Input Names..............................................................................................................................................26
Video Output Names...........................................................................................................................................26
Outputs Scanning Sequences.............................................................................................................................27
Update Firmware.................................................................................................................................................28
Change Password Page......................................................................................................................................29
Help Page............................................................................................................................................................29
Update Web Server.............................................................................................................................................29
Logout Page ........................................................................................................................................................30
ii
DEVICE DISCOVERY TOOL........................................................................................................................................31
INTERCONNECTION CABLE WIRING METHOD .......................................................................................................32
CAT5 Cable...............................................................................................................................................................32
Serial Cables .............................................................................................................................................................32
TROUBLESHOOTING..................................................................................................................................................33
APPENDIX ....................................................................................................................................................................34
INDEX............................................................................................................................................................................36
WARRANTY INFORMATION........................................................................................................................................36
TABLE OF FIGURES
Figure 1- Connect the Local Unit to the CPU.....................................................................................................................................4
Figure 2- Connect Local User Components to Local Unit..................................................................................................................5
Figure 3- Connect the Extended Components to the Remote Unit....................................................................................................6
Figure 4- Connect the AC adapters ...................................................................................................................................................7
Figure 5- Attach ST-C5VA-600 Local Unit to VEEMUX.....................................................................................................................8
Figure 6- Attach ST-C5VA-600 Remote Unit to VEEMUX.................................................................................................................8
Figure 7- Maximum total CAT5 cable length cannot exceed 600 feet................................................................................................9
Figure 8- Connect VEEMUX to LAN..................................................................................................................................................9
Figure 9- Connect user terminal to VEEMUX ....................................................................................................................................9
Figure 10- Front panel Interface LCD and keypad...........................................................................................................................10
Figure 11- VEEMUX start-up message on LCD...............................................................................................................................10
Figure 12- Connections screen on LCD, displays 8 sets at a time...................................................................................................10

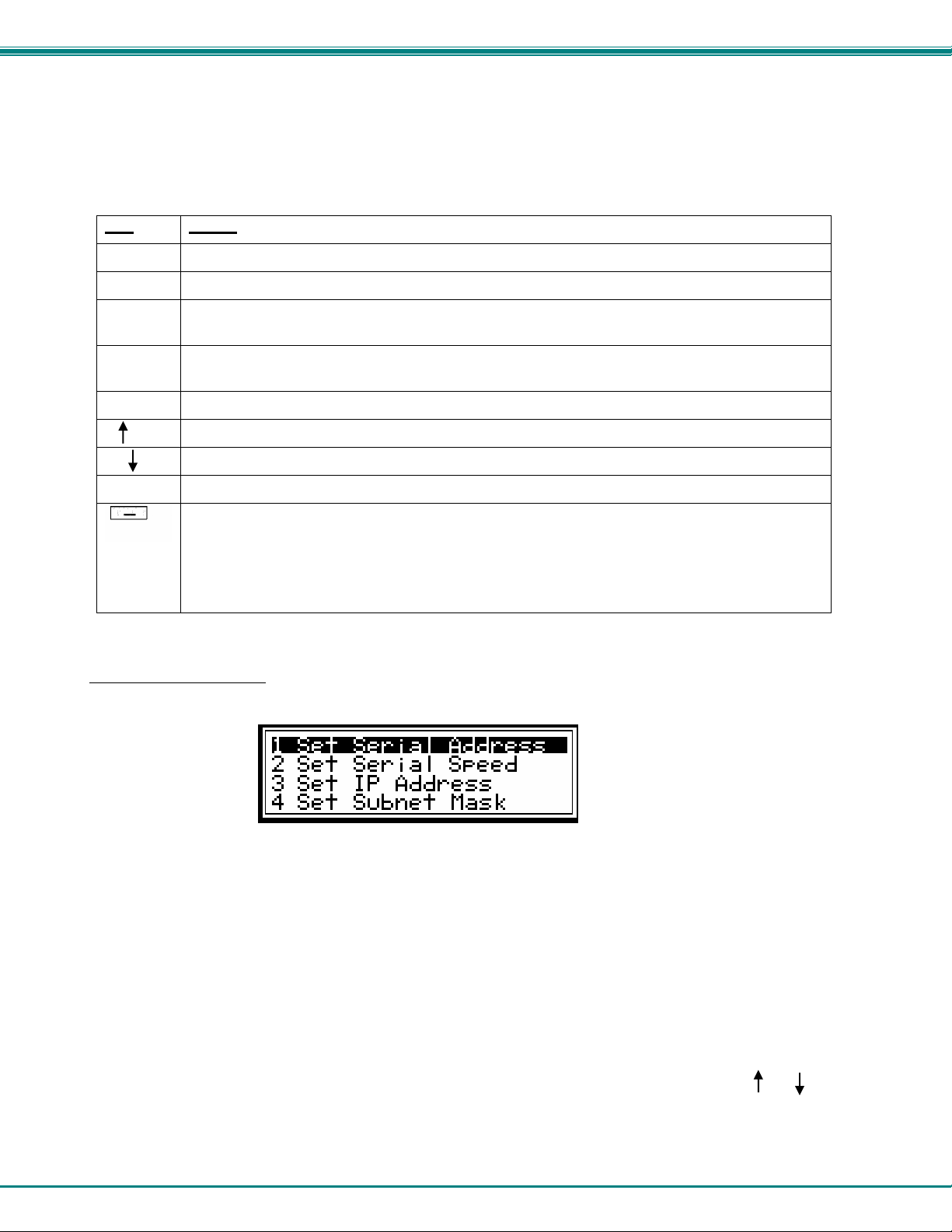

Figure 13- Configuration menu on LCD...........................................................................................................................................11
Figure 14- Set Serial Address from LCD and keypad......................................................................................................................12
Figure 15- Set baud rate from LCD and keypad..............................................................................................................................12
Figure 16- Set IP Address from LCD and keypad............................................................................................................................12
Figure 17- Wserver Timeout Period.................................................................................................................................................13
Figure 18- Adjust LCD contrast........................................................................................................................................................13
Figure 19- View Output audio level..................................................................................................................................................13
Figure 20- Web interface Welcome page.......................................................................................................................................20
Figure 21- Web interface Login Prompt...........................................................................................................................................20
Figure 22- Web interface Switch page.............................................................................................................................................21

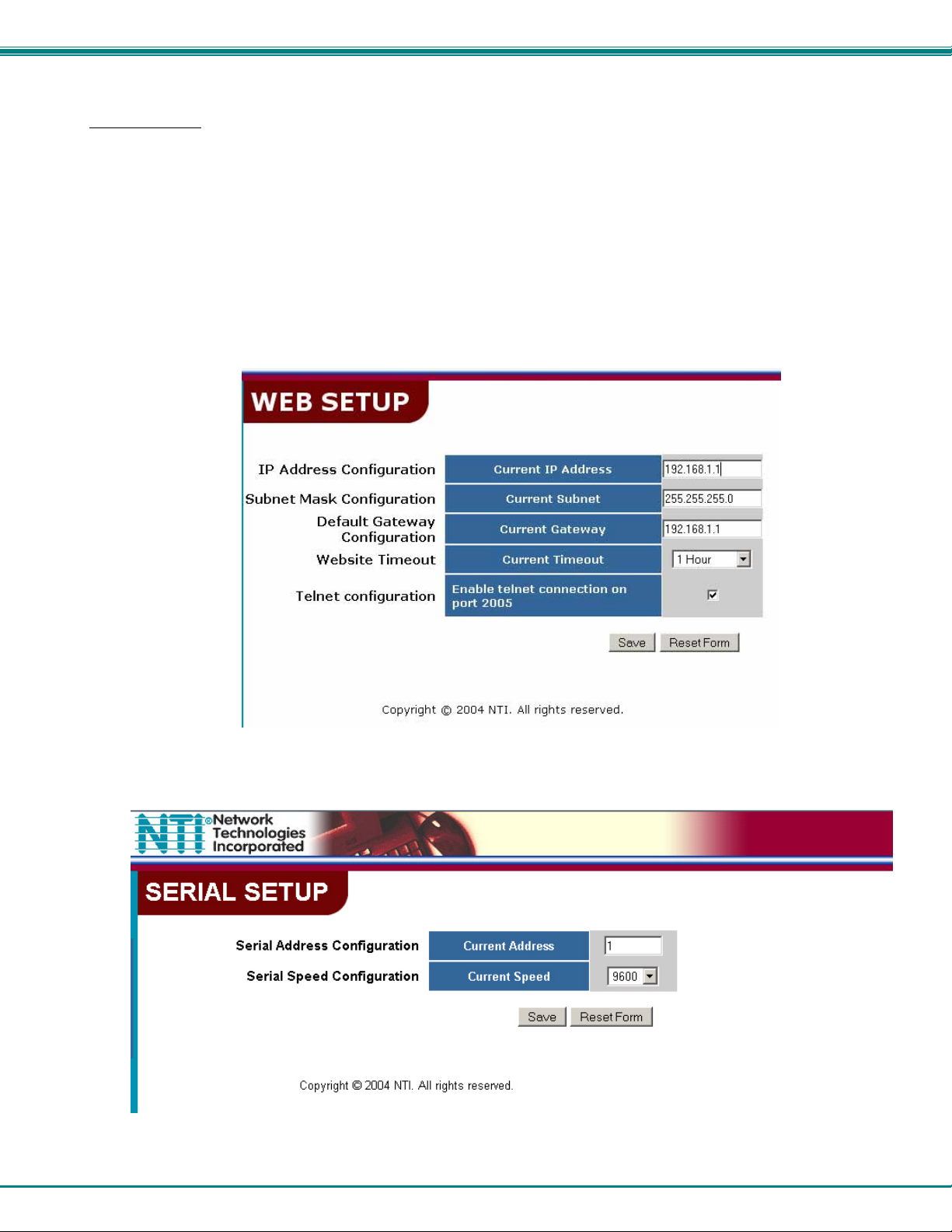

Figure 23- Web interface Setup page..............................................................................................................................................23
Figure 24- Web interface Serial Setup page....................................................................................................................................23
Figure 25- Administration menu.......................................................................................................................................................24
Figure 26- Add User page................................................................................................................................................................24

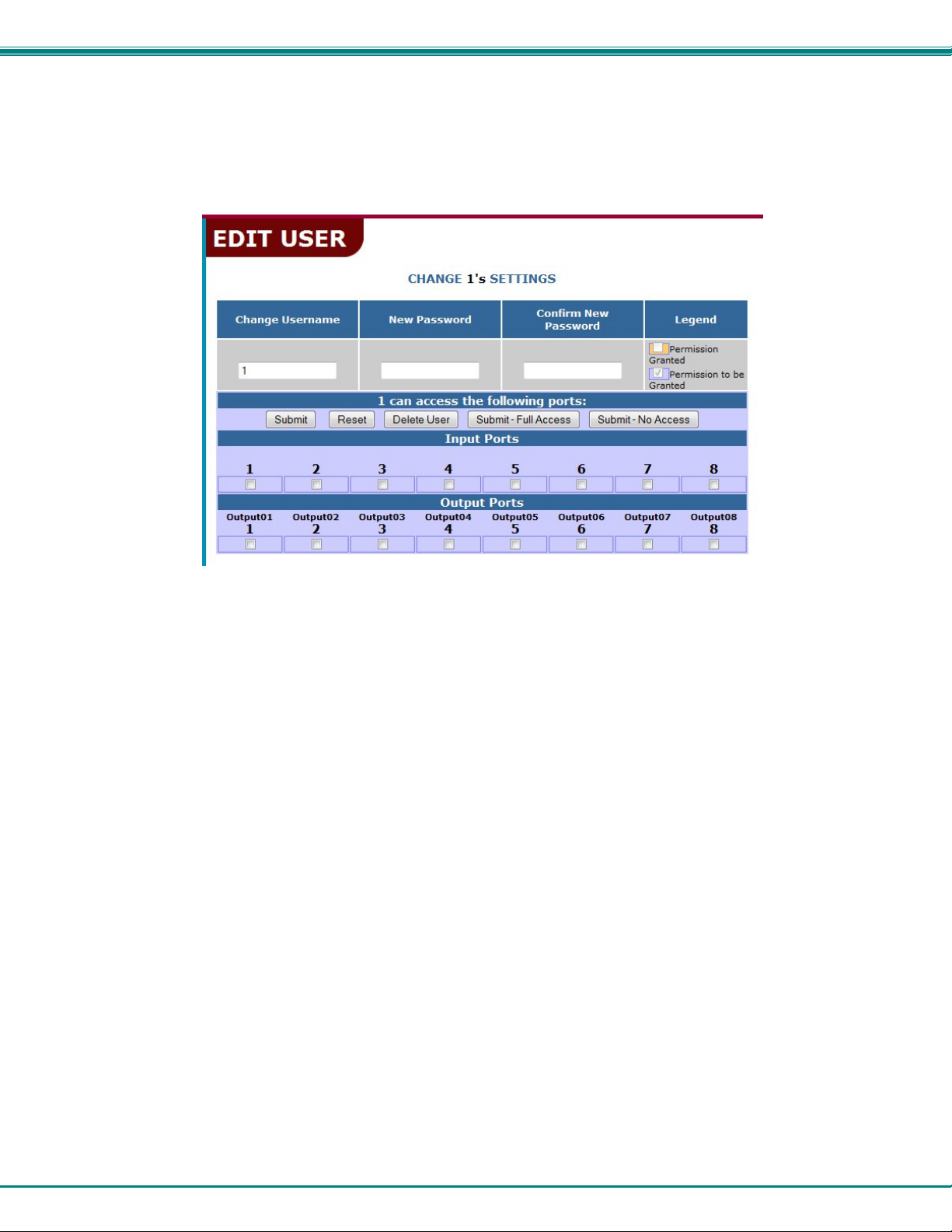

Figure 27- Edit User settings ...........................................................................................................................................................25

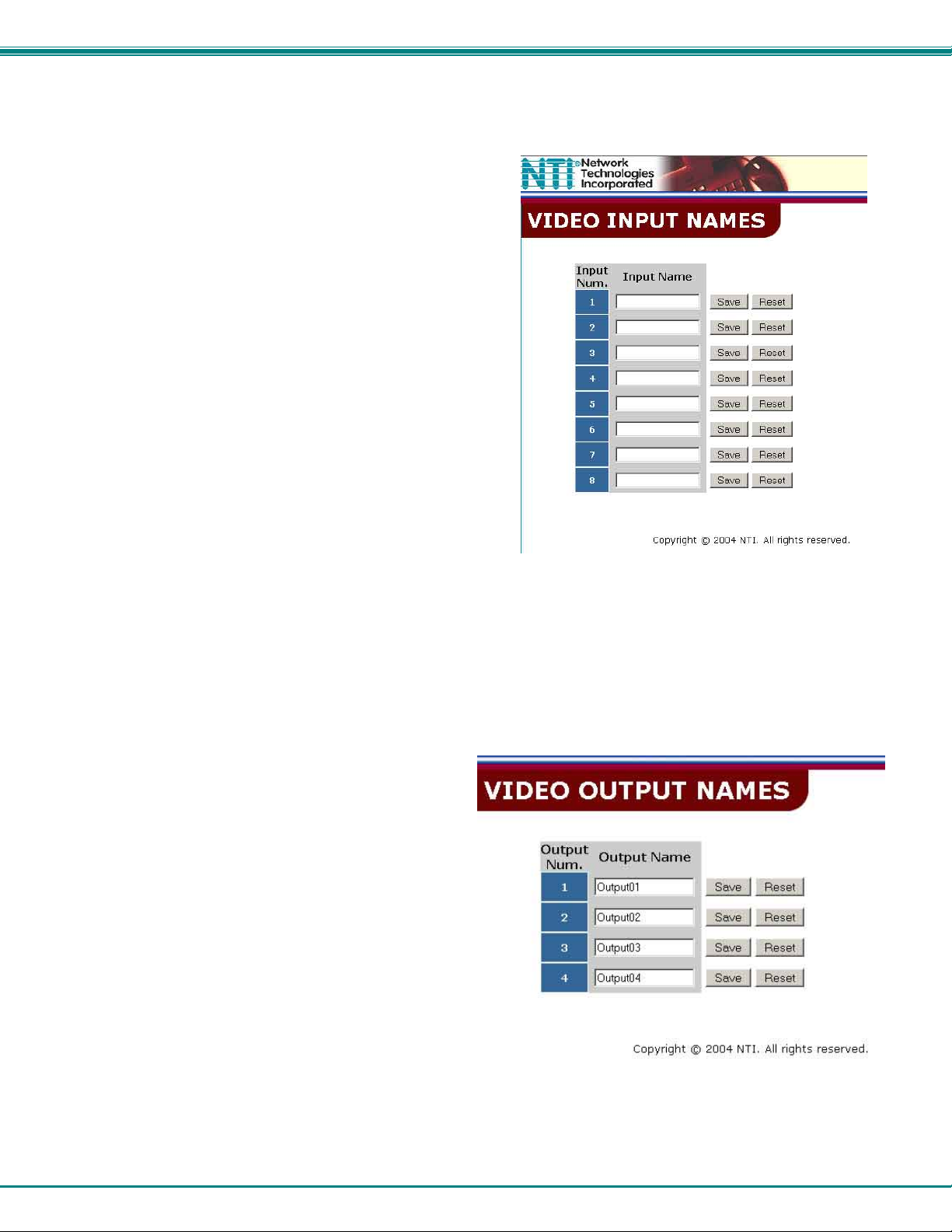

Figure 28- Web interface Video Input Names page.........................................................................................................................26
Figure 29- Web interface Video Output Names page ......................................................................................................................26

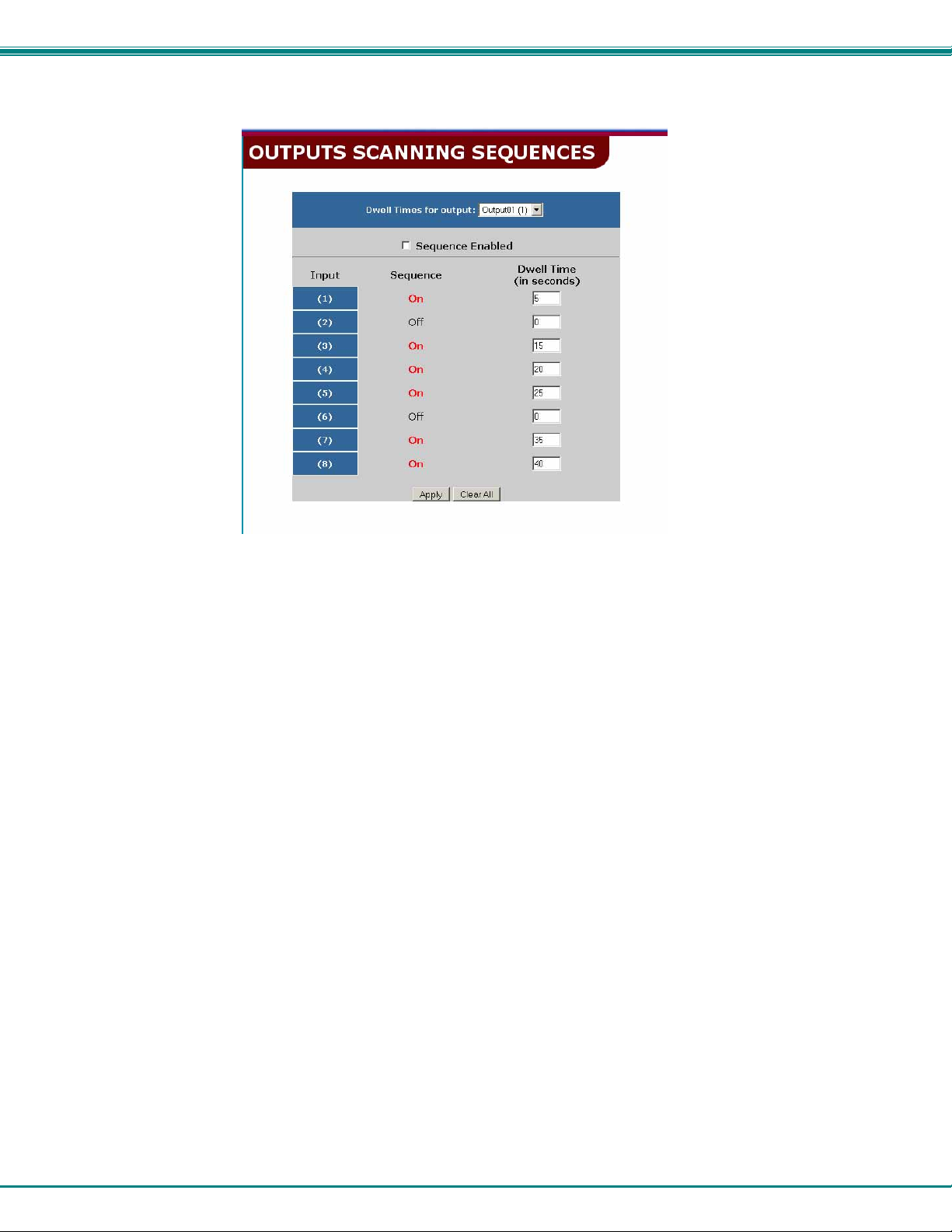

Figure 30- Outputs Scanning Sequences page ...............................................................................................................................27
Figure 31- Web interface Update Firmware page............................................................................................................................28
Figure 32- Web interface Password page ........................................................................................................................................29
Figure 33- Updating the Web Server ...............................................................................................................................................29
Figure 34- Web interface Logout page.............................................................................................................................................30
Figure 35- Device Discovery Tool page...........................................................................................................................................31
Figure 36- View looking into RJ45 female........................................................................................................................................32

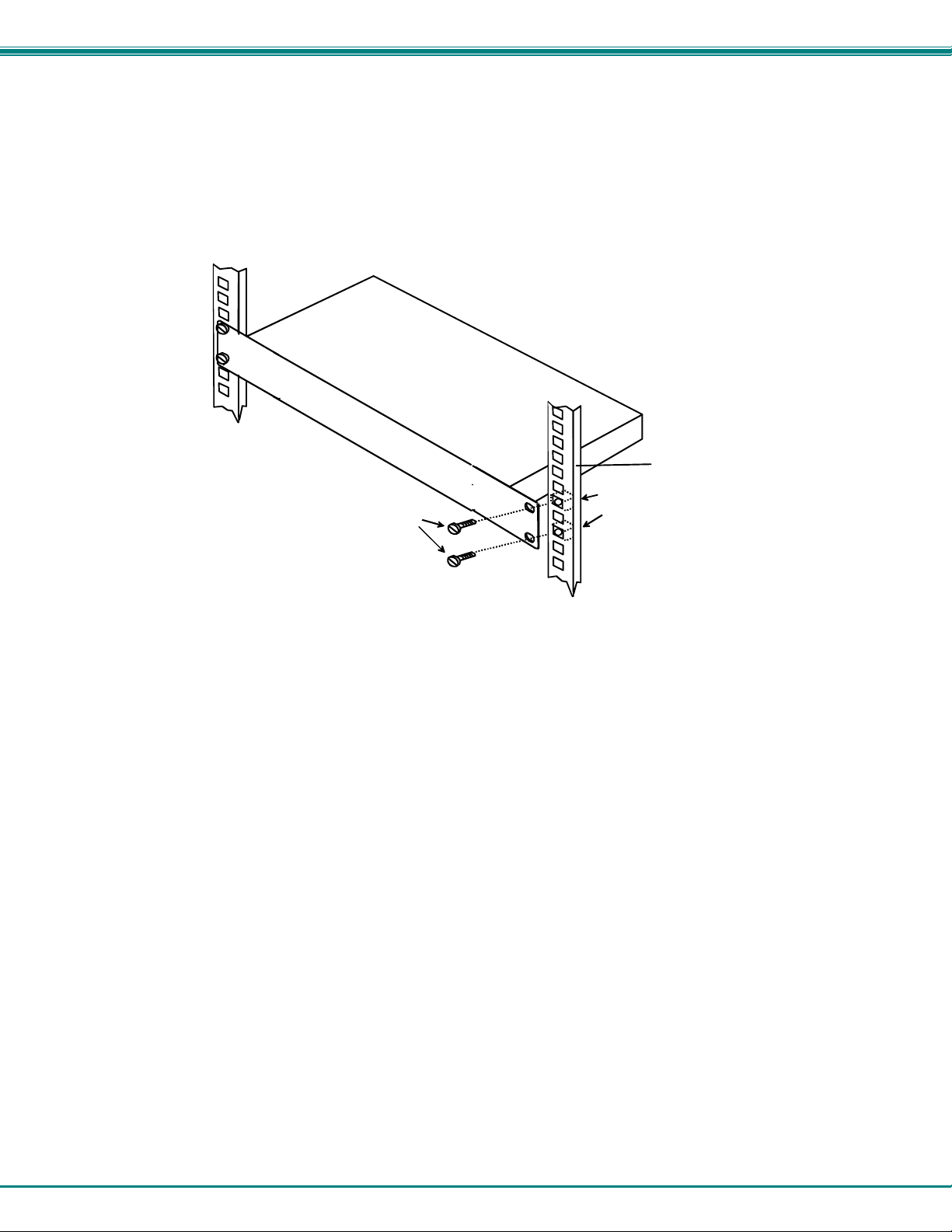

Figure 37- Mount Switch to a Rack..................................................................................................................................................35
APPENDICES
Appendix A- Default Settings...........................................................................................................................................................34
Appendix B- General Information.....................................................................................................................................................34
Appendix C- Distances and Resolutions for CAT5/CAT5e and CAT6 Cables.................................................................................34
Appendix D- Product Dimensions....................................................................................................................................................34
Appendix E- Rack mounting Instructions.........................................................................................................................................35
iii
NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
INTRODUCTION
The SM-nXm-C5AV-LCD (VEEMUX) is an Audio/Video Matrix switch via CAT5 designed to work in conju nction with the
NTI ST-C5VA-600 or ST-C5SVA-600 CAT5 Audio/Video Extender (XTENDEX). Up to 32 audio/video so urces can be connected
to the VEEMUX via XTENDEX Local Units (n), each accessible by up to 16 audio/video displays connected via XTENDEX
Remote Units (m).
The VEEMUX enables connections from any single XTENDEX Local Unit to any or all of the connected XTENDEX
Remote Units, creating a matrix of possible CAT5 audio/video connections. Audio/video displays can be located up to 6 00 feet
away from the connected source.
The available models are:
SM-8X8-C5AV-LCD SM-16X8-C5AV-LCD SM-32X8-C5AV-LCD
SM-8X16-C5AV-LCD SM-16X16-C5AV-LCD SM-32X16-C5AV-LCD
Features
• Up to 16 audio/video displays may be connected to up to 32 audio/video sources (via ST-C5VA-600 Extenders)
• Multiple methods of user setup and control:
Front Panel Interface with LCD and keypad
Web Interface with multiple pages with secure socket layer (SSL) encryption to provide secure access between the client
browser and central server. Supports SSLV3/TLSV1 protocol.
Telnet Interface
RS232 Interface
Multi-user support- up to 16 users (including the administrator) can have controlled Ethernet access to the VEEMUX
• Digital VU-Meter that displays the stereo audio levels for the currently selected port (displayed by LCD).
• Automatic video quality adjustment, with additional manual control, assures maximum video quality at lengths of up to 600
feet.
• All connections between local sources and remote displays can be made using CAT5, CAT 5e, or CAT6 UTP cable.
• Ethernet connection speed is 10/100baseT
• A monitor can only be connected to one audio/video source at a time.
.
Supported Web Browsers:
Most modern web browsers should be supported. The following browsers have been tested:
• Microsoft Internet Explorer 6.0 or higher
• Netscape 7.0 or higher
• Mozilla FireFox 0.9.2 or higher
Set your browser to always check if there is a newer version of the page than the version stored in cache. This action will ensure
that it will display the most up-to-date information.
Materials
Materials Supplied with this kit:
• NTI SM-nXm-C5AV LCD Audio/Video Matrix switch via CAT5
• IEC Line cord, country specific
• 4-#10-32 x 3/4" pan head screws and 10-32 cagenuts (server cabinet mounting hardwar e)
• CD with: a pdf file of this owner's manual
the NTI Discovery Tool
the Matrix Switcher's Control Program
Materials Not Supplied, but REQUIRED:
¾ XTENDEX Local and Remote Units with either CAT5 Unshielded Twisted Pair (UTP) cable, CAT5e cable, or CAT6 cable.
Cable(s) must be terminated with appropriate RJ45 connectors wired straight thru- pin 1 to pin 1, etc. (see pg. 32 for proper
EIA/TIA 568 B wiring method)
¾ A serial cable with DB9 connectors on each end wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc.) will be required for
RS232 connection to a remote terminal. See page 32 for cable pinouts.
Cables can be purchased from Network Technologies Inc by calling 800-RGB-TECH (800-742-8324) or (330)-562-7070 or visit
our website at www.networktechinc.com.
1
NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
Default User Name and Passwords
The default Telnet password is admin (lower case letters only) . For instruction on using Telnet, see page
16.
The default Web Interface user name
is Administrator (upper case letter for "A" only).
The default Web Interface password
is admin (lower case letters only). For instruction on using the Web
Interface, see page 20.
FEATURES AND FUNCTIONS
NTI
Network Technologies Inc
R
R
F
U
S
E
S
ETHERNET
S
2
3
2
43
765
2
Out
Esc
In
Menu
6
7890
1 2 3
1
Front View of SM-1 6X16-C5 AV-L CD
5
4
Rear V ie w o f SM-16X 16-C5AV -LCD
AV OUT
AV OUT910111213141516
910111213141516
AV IN
ENTER
TM
C5
VEEMUX
*
12345678
5678
4
123
9
8
VEEMUX Features and Functions
1. Keypad- for manual user control of connections and switch programming
2. LCD- for visual indication of connections and audio level indication
3. Power switch- used to power the VEEMUX On/Off
4. IEC Power Connector- for attachment of power cord
5. Fuseholder- for replaceable 2A 250V overcurrent protection fuse (fuses mounted inside case on some models)
6. RS232- DB9 female- for connecting a serial cable for a user terminal
7. Ethernet- RJ45 female- for connecting the VEEMUX to a network.
8. AV OUT- RJ45 female- for connection of CAT5 cables from CAT5 Extender Remote Units
9. AV IN- RJ45 female- for connection of CAT5 cables from CAT5 Extender Local Units
2
NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
2
5
+
-
9
XTENDEX
NTI
Network Tech nologies Inc
R
1
3
4
XTENDEX
Network Technologies Inc
NTI
R
+
-
6
7
(Front View) (Rear View)
ST-C5VA-600 Local Unit (VGA plus Audio)
(not included)
XTENDEX Features and Functions
1. Green LED- power indicator- illuminates when power has been supplied to the unit
2. Yellow LED- communication indicator- blinks when there is valid communication between the local and remote units
3. Cat 5- RJ45 female- for connecting the CAT 5 cable
4. Video Connector- 15HD female- for connecting the local user's monitor
5. Audio Jack- 3.5mm stereo audio jack- for connecting to local speakers
6. Video Connector- blue 15HD male- for connecting to the video port on the CPU or KVM switch
7. Audio Plug- 3.5mm stereo audio plug- for connecting to CPU audio line out
8. Audio Jack- 3.5mm stereo audio jack- for connecting to remote speakers
9. 9VDC- 1.0A- connection jack for the AC adapter
10. Video Connector- 15HD female- for connecting the remote user's monitor
11. AC Adapter- to power the Remote and Local Units (1 for each required)
2
8
+
-
9
XTENDEX
NTI
Networ k Tec hnologi es In c
R
1
3
10
XTENDEX
Network Technologies Inc
NTI
R
+
-
(Front View) (Rear View)
ST-C5VA-600 Remote Unit (VGA plus Audio)
(not included)
3
9 VDC
ADAPTER
AC
11
NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
XTENDEX INSTALLATION
(XTENDEX not included)
Audio Compatibility
• The audio input of the ST-C5VA-600 Audio/Video Extender is compatible with the following standard CPU audio outputs:
• Line out - typically lime green in color
• Speaker out- typically orange in color
• Headphone out- typically located on the CD-ROM (audio extension cable would be needed)
• The audio output of the ST-C5VA-600 Audio/Video Extender is compatible with self-powered stereo sp eakers.
The Local Unit
1. Plug the cables of the Local Unit into the back of the CPU. (See Fig. 1.)
a) Connect the blue 15HD cable end to the VGA port on the back of the CPU.
b) Connect the black 3.5mm stereo plug into the "line out", "spkr", or "headphones" jack on the
back of the CPU or other audio/video source (i.e. VCR, DVD player, etc.).
Notes:
If all 3 jacks are available, use the jack marked "line out".
The "line out" jack is typically lime green and may be marked with this symbol
The "spkr" jack is typically orange, and may be marked with this symbol
The "headphones" jack may be marked with this symbol
VIDEO
CONNECTOR
15HD Female
Video Connector
AUDIO CONNECTOR
ONE WILL BE MARKED "line
out" ,"spkr", "headphones"
OR WITH THIS SYMBOL
line
out
CPU
3.5mm Stereo Plug
Figure 1- Connect the Local Unit to the CPU
15HD Male
Video Connector
(BLUE- VIDEO)
(BLACK- AUDIO)
R
NTI
Network Tech nologies Inc
XTENDEX
ST-C5VA-600 Local Unit
(Front View)
+
-
4
NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
2. Make connections for a Local User (see Fig. 2)
a) Connect the cable from the local user's VGA monitor to the female 15HD port on the Local Unit.
b) Connect the cable from the local speakers into the 3.5mm jack on the local unit.
ST-C5VA-600 Local Unit (Front and Rear View)
Front View of
Local Unit
XTENDEX
NTI
Network Tech nologies Inc
R
-
+
Green Power LED
Yellow Communication LED
CAT5 Cable to
VEEMUX
Figure 2- Connect Local User Components to Local Unit
3. Connect the CAT5 cable to the “Cat 5” port on the Local Unit. (See Fig. 2.) When properly inserted
the cable end should snap into place.
Note: If an RJ45 wall outlet is being used, connect the other end of the extension cable to the
RJ45 wall outlet.
!
WARNING: Never connect the ST-C5VA-600 Extender to an Ethernet card, Ethernet router, hub or switch or
other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.
Rear View of Local Unit
Local User's Monitor and Speakers
5
VGA
Multi-Scan
Monitor
15HD Female
Video Connector
NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
The Remote Unit
1. Position the Remote Unit such that the CAT5 cable, the monitor cable, speaker cable, and the AC
adapter power connector can each reach the Remote Unit comfortably.
2. Connect the monitor cable to the female 15HD video connector on the Remote Unit.
3. Connect the speakers to the 3.5mm jack on the Remote Unit (see Fig. 3).
ST-C5VA-600 Remote Unit (Front and Rear View)
Front View of
Remote Unit
XTENDEX
NTI
Network Tech nologies Inc
R
+
-
CAT5 Cable to
VEEMUX
Figure 3- Connect the Extended Components to the Remote Unit
4. Connect the CAT5 cable to the “Cat 5” port on the Remote Unit. (See Fig. 3.) When properly inserted the CAT5 cable end
should snap into place.
Note: If an RJ45 wall outlet is being used, connect the other end of the extension cable to the RJ45
wall outlet.
!
WARNING: Never connect the ST-C5VA-600 Extender to an Ethernet card, Ethernet router, hub or switch or
other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.
Rear View of Remote Unit
Multi-Scan
Remote User's Monitor and Speakers
6
VGA
Monitor
15HD Female
Video Connector
NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
Plug-in and Boot Up
1. Plug the power cord from the monitor into the power outlet.
Connect each AC adapter power connector to the 9VDC ports on the Remote and Local Units. Make sure the power
2.
connectors go into each port all the way. Plug each AC adapter into a power outlet. The green LED on the RJ45 connector
of both the Remote and Local Units should illuminate, indicating that a proper power connection has be en made to them.
(See Fig. 4.)
Figure 4- Connect the AC adapters
Note: The yellow LED on each RJ45 connector will blink anytime data traffic is passing between the Local and
Remote Units, indicating proper CAT5 cable connection and communication. (See Fig. 4)
9 VDC
ADAPTER
AC
Barrel
Rear View of Remote/Local Unit
9VDC
1A
-
+
Yellow Communication LED
Cat 5
Monitor
Green Power LED
Power Connector
9VDC @ 1.0A OUTPUT
(Outside
barrel)
2.1 mm x 5.5 mm Female
(Inside
barrel)
7
NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
VEEMUX INSTALLATION
1. Connect an ST-C5VA-6 00 Local Unit to an audio/video source as described on pages 4-5.
2. Connect a CAT5 cable (wired as specified on page 27) between the ST-C5VA-600 Local Unit and VEEMUX connector
"AV IN 1".
R
ETHERNET
F
S
U
2
S
3
E
2
S
AC Adapter
CAT5 Cable
Figure 5- Attach ST-C5VA-600 Local Unit to VEEMUX
3. Connect a CAT5 cable (wired as specified on page 27) between an ST-C5VA-600 Remote Unit and VEEMUX connector
"AV OUT 1".
Note: Shielded
CAT 5,5e, or 6 cable must be used to connect to LOCAL and REMOTE units in order to meet CE emission
requirements.
4. Connect a monitor and stereo speakers to the ST-C5VA-600 Remote Unit as described on page 6.
5. Connect the powercord as shown in Fig. 6.
R
ETHERNET
F
S
U
2
S
3
E
2
S
IEC
Connector
Power Cord
AC Adapter
CAT5 Cable
Figure 6- Attach ST-C5VA-600 Remote Unit to VEEMUX
Rear View o f SM-16X16-C5AV- LCD
141516
13
ST-C5VA-600 Local Unit
9 VDC
AC
ADAPTER
Rear View of SM-16X16-C5AV-LCD
141516
13
ST-C5VA-600 Remote Unit
9 VDC
AC
ADAPTER
(Rear View)
R
-
+
AV OUT9101112
AV OUT
910111213141516
AV IN
(Rear View)
R
+
-
AV OUT9101112
AV OUT
910111213141516
AV IN
XTENDEX
Network Technologies Inc
NTI
8
5678
4
5678
4
XTENDEX
Network Technologies Inc
NTI
RJ45 Male Connector
5678
5678
RJ45 Male Connector
123
123
RJ45 Male Connector
Audio/V ideo Sourc e
(CPU, VCR, DVD
Player, etc)
4
4
123
123
RJ45 Male Connector
Stereo
Speakers
VGA
Multi-Scan
Monitor
Loading...
