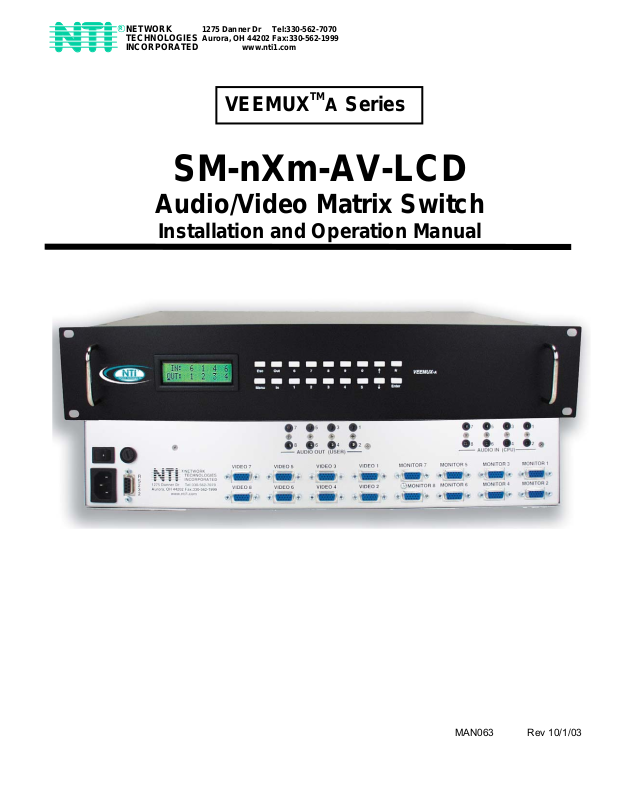

Network Technologies SM-nXm-AV-LCD User Manual

NTI

NETWORK TECHNOLOGIES INCORPORATED

SM-nXm-AV-LCD

Audio/Video Matrix Switch

Installation and Operation Manual

1275 Danner Dr Aurora, OH 44202

www.nti1.com

VEEMUX

Tel:330-562-7070 Fax:330-562-1999

A Series

MAN063 Rev 10/1/03

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is one (1) year from the date of purchase. Please contact Network Technologies Inc at (800) RGB-TECH (800-742-8324) or (330) 562-7070 for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.

Copyright © 2003 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. For more information please contact Network Technologies Inc at (800) RGB-TECH (800-742-8324) or (330) 562-7070.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.

Table of Contents

Introduction ........................................................................................................................................................................................ 1

Specifications..................................................................................................................................................................................... 1

Cables................................................................................................................................................................................................2

Basic Operation ................................................................................................................................................................................. 2

Features and Functions .....................................................................................................................................................................3

Installation.......................................................................................................................................................................................... 4

Control Options..................................................................................................................................................................................5

Front Panel Keypad Control...........................................................................................................................................................6

Making Connections ..................................................................................................................................................................6

Volume Control ..........................................................................................................................................................................7

Memory Functions ..................................................................................................................................................................... 7

Serial Menu................................................................................................................................................................................ 7

RS232 Control ................................................................................................................................................................................... 8

Remote Connection .......................................................................................................................................................................8

Baud Rate......................................................................................................................................................................................8

Unit Address .................................................................................................................................................................................. 8

Command Protocol ........................................................................................................................................................................9

RS-232 Command Protocol Quick Reference ...............................................................................................................................9

RS-232 Command Protocol Full Specification ............................................................................................................................... 9

CC - Save Matrix Connections Into Memory Bank..................................................................................................................... 9

RC - Restore Matrix Connections From Memory Bank.............................................................................................................. 9

CB - Change Baud Rate For All Switches................................................................................................................................ 10

RS - Internal Reset ..................................................................................................................................................................10

RV - Read NTI Version String.................................................................................................................................................. 10

RU - Read Unit Size.................................................................................................................................................................10

CS - VIDEO Connect One Output/User Port To Input/CPU Port .............................................................................................10

CA - VIDEO Connect All Outputs/Users Port To Input/CPU Port............................................................................................. 10

RO - VIDEO Read Connection For Output/User Port ..............................................................................................................11

AS - AUDIO Connect One Output/User Port To Input/CPU Port .............................................................................................11

AA - AUDIO Connect All Outputs/Users Ports To Input/CPU Port ........................................................................................... 11

AO - AUDIO Read Connection For Output/User Port ..............................................................................................................11

AM - Set Mute State For Output/User Port ..............................................................................................................................11

AV - Set Volume Level For Output/User Port........................................................................................................................... 12

AR - Read Mute, Volume For Output/User Port....................................................................................................................... 12

RS232 Interface Test Program .................................................................................................................................................... 12

Main Options............................................................................................................................................................................ 12

Matrix Switcher's Control Program For Windows 9X, NT, AND 2000 .......................................................................................... 13

Infrared Control (Optional) ............................................................................................................................................................... 14

Battery Replacement ................................................................................................................................................................... 14

Specifications............................................................................................................................................................................... 14

Troubleshooting ...........................................................................................................................................................................14

DDC Support (Optional)...................................................................................................................................................................15

Safety Statements ...........................................................................................................................................................................15

Rack mounting Instructions.............................................................................................................................................................. 16

Table of Figures

Figure 1- Install Audio and Video Source Cables ...........................................................................................................4

Figure 2- Install Monitors and Speakers .........................................................................................................................5

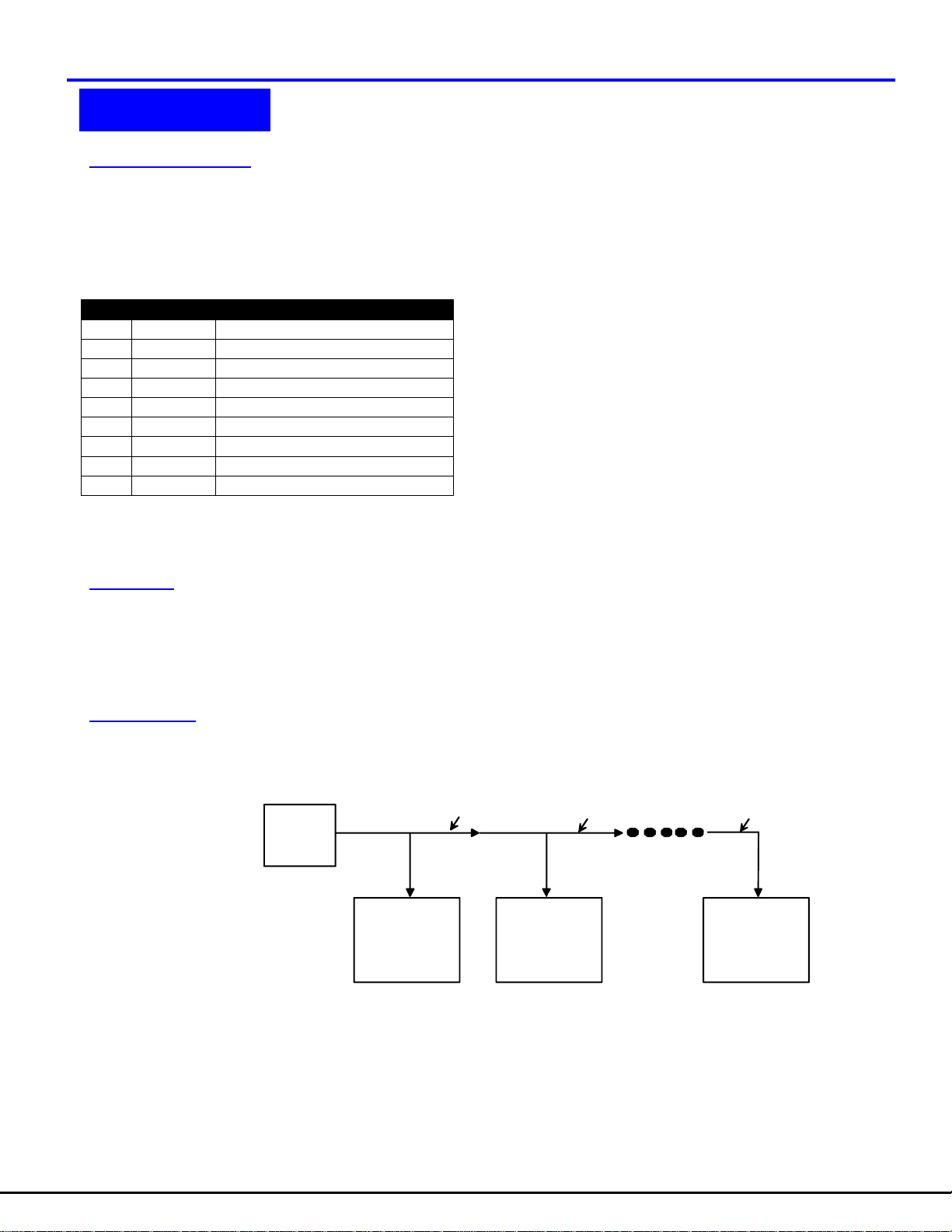

Figure 3- RS232 Connections for Daisy-chain................................................................................................................ 8

Introduction

The SM-nXm-AV-LCD Audio/Video Matrix switch (VEEMUX-A) allows up to 32 audio/video sources (n) to be connected to up to 16 destinations (m). Different destinations can even be connected to the same source. Video resolution up to 1920x1200@85Hz is supported with no degradation – guaranteed. Stereo audio is supported, as well as volume control and separate audio/video switching. An LCD on the front panel indicates the current connections. The VEEMUX-A can be controlled by three methods: Front Panel Keypad, RS-232 interface, or optional Infrared Remote.

Specifications

Video

Bandwidth ............................ 200 MHz, fully loaded

Maximum Resolution ........... 1920 x 1200 @ 85Hz

Video Input

Signal type ........................... RGBHV, RGsB, RGBS

Connectors........................... 15 Pin HD Connector

Maximum input level ............ 1 Vp-p RGB, TTL for sync

Impedance ........................... 75 Ohm

Video Output

Signal type ........................... RGBHV, RGsB, RGBS

Connectors........................... 15 Pin HD Connector

Maximum input level ............ 1 Vp-p RGB, TTL for sync

Impedance ........................... 75 Ohm

Audio

Frequency response ............ 20Hz to 20kHz, +/- 0.5dB

THD + N............................... 0.01% @ 1kHz

S/N ....................................... > 90 dB

Crosstalk .............................. > 85 dB @ 1kHz

Audio Input

Signal type ........................... Stereo unbalanced

Connectors........................... 3.5mm jack

Impedance ........................... 10kOhm

Maximum input level ............ 1Vrms or 2.5Vp-p

Audio Output

Signal type ........................... Stereo unbalanced

Connectors........................... 3.5mm jack

Gain adjustment................... -20dB to +10dB

Impedance ........................... < 0.1 Ohm

General

Power................................... 110 or 220 VAC at 50 or 60 Hz, internal

Rack mount.......................... Yes – available on all sizes

Enclosure type ..................... Metal

Dimensions .......................... 19"W x 10/12"D x 3.5/5.25/7/8.75"H (depends on model)

Ordering Information

The SM-nXm-AV-LCD Audio/Video Matrix switch (VEEMUX-A) can be ordered in many sizes and with several control options. The base unit includes a user keypad and an RS232 port to make up a complete system, with an option for an infrared control. The infrared option is purchased separately, allowing for maximum user satisfaction in each unique configuration.

The VEEMUX-A Audio/Video Matrix switch is built to a specific size ranging from 8 to 32 inputs and 2, 4, 8, 12, or 16 outputs. Simply order a VEEMUX-A-nXm where the “n” in the part number represents the number of inputs and the “m” in the part number represents the number of outputs.

SM-nXm-AV-LCD

Replace the “n” with 8,16, or 32

Replace the “m” with 2,4,8,12, or 16

The following list represents the available sizes that can be ordered:

SM-8x2-AV-LCD SM-16x2-AV-LCD SM-32x2-AV-LCD SM-8x4-AV-LCD SM-16x4-AV-LCD SM-32x4-AV-LCD

SM-16x8-AV-LCD SM-32x8-AV-LCD SM-16x12-AV-LCD SM-32x16-AV-LCD SM-16x16-AV-LCD

Optional Features

• DDC Support (see page 15)- to order, add "D" to the part number (i.e. SM-nXm-AVD-LCD)

• Infrared Control (see page 14)- to order, add "IR" to the part number (i.e. SM-nXm-AV-LCD-IR)

Cables

All cables are sold separately. The following table lists the available stocked cables with their length in feet. All of the 15HD and BNC input and output connectors on VEEMUX-A are female. Custom cables are available – contact NTI for pricing and distance / resolution limitations.

VGA

VEXT-3/6/10/15/25/35/50/75/100-MM

VEXT-3/6/10/15/25/35/50/75/100

VINT-5B-6

Multi-coax high resolution VGA or SVGA video cable. Connectors are 15HD male-male (used for INPUTS)- 3 thru 100 feet

Multi-coax high resolution VGA or SVGA video cable. Connectors are 15HD male-female (used for OUTPUTS)- 3 thru 100 feet

Multi-coax high resolution VGA to BNC cable. Connectors are 15HD male to 5 BNC’s- 6 feet long

AUDIO

SA-6/10-MM

SA-6/10-MF

Basic Operation

The VEEMUX-A allows any source to be connected to any destination at any time with no restrictions or limitations.

• Audio and Video connections can be made concurrently or separately (i.e. user 1 can view video from port 3

and hear audio from port 11).

• Video inputs accept any RGBHV, RGBS, or RGsB signal.

• Video outputs are compatible with any RGBHV or RGBS monitor, regardless of input. (RGsB monitor requires

RGsB input)

• Audio inputs accept any standard line level audio (1Vrms or 2.5Vp-p).

• Audio outputs are capable of driving an 8 Ohm speaker load with 200mW of continuous RMS power.

• The Audio output volume of the AV matrix is adjustable for each output port.

Audio Interface Cable- Connectors are 3.5mm male-male - 6/10 feet long

Audio Extension Cable- Connectors are 3.5mm male-female- 6/10 feet long

F E A T U R E S A N D F U N C T I O N S

F r o n t V i e w o f V E E M U X - A

7 8

N T I

N e t w o r k T e c h n o l o g i e s I n c

R e a r V i e w o f V E E M U X - A

N E T W O R K

T E C H N O L O G I E S

N T I

1 2 7 5 D a n n e r D r A u r o r a , O H 4 4 2 0 2

R S 2 3 2

I N C O R P O R A T E D

T e l : 3 3 0 - 5 6 2 - 7 0 7 0 F a x : 3 3 0 - 5 6 2 - 1 9 9 9

w w w . n t i 1 . c o m

V I D E O 7

V I D E O 8

E S C

O U T

I N

1 2 3

M E N U

E N T E R

V E E M U X

T M

1 1

D D C

A U D I O O U T ( U S E R )

V I D E O 5

V I D E O 6

V I D E O 3

V I D E O 4

V I D E O 1

V I D E O 2

M O N I T O R 7

M O N I T O R 8

M O N I T O R 5

M O N I T O R 6

1 0

A U D I O I N ( C P U )

M O N I T O R 3

M O N I T O R 4

M O N I T O R 1

M O N I T O R 2

Features and Functions

1. LCD Display- for visual indication of connection between the user and a specific CPU.

2. Keypad- buttons for user control over switch functions

3. Audio IN- for connection of audio cables from audio sources

4. Audio OUT- for connection of audio cables to audio output devices (speakers)

5. Fuse Holder- holder for replaceable overcurrent protection fuse

6. Power ON/OFF switch

7. IEC Power Connector- for attachment of power cord (not available on all units)

8. RS232 In/Out - for attaching RS232 interface cable from a CPU to control the functions of one or more switches

9. VIDEO x- 15HD female connectors- for attachment of video cables from video sources

10. Monitor x- 15HD female connectors- for connection of user monitors

11. DDC button- for manual update of DDC information between the monitor and the CPU(s) attached (optional)
