Page 1
V
®
EEMUX
Series
SM-8X4-HDA
Audio/HD Video Matrix Switch
Installation and Operation Manual
MAN066 Rev Date 5/19/2008
Page 2
TRADEMARK
VEEMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries.
COPYRIGHT
Copyright © 2005, 2008 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
SOFTWARE VERSIONS
Front Panel LCD Software Version 1.2 Ethernet Control Software Version 1.16
i
MAN066 Rev Date 5/19/2008
Page 3
TABLE OF CONTENTS
Introduction.................................................................................................................................................................... 1
Materials ...................................................................................................................................................................... 1
Cables.......................................................................................................................................................................... 1
Default User Name and Passwords ............................................................................................................................1
Features and Functions................................................................................................................................................ 2
Installation...................................................................................................................................................................... 3
Connect the Sources ................................................................................................................................................... 3
Connect the Devices.................................................................................................................................................... 4
Connect RS232 ...........................................................................................................................................................5
Connect to the Ethernet............................................................................................................................................... 5
Power Up ..................................................................................................................................................................... 6
Control Options ............................................................................................................................................................. 7

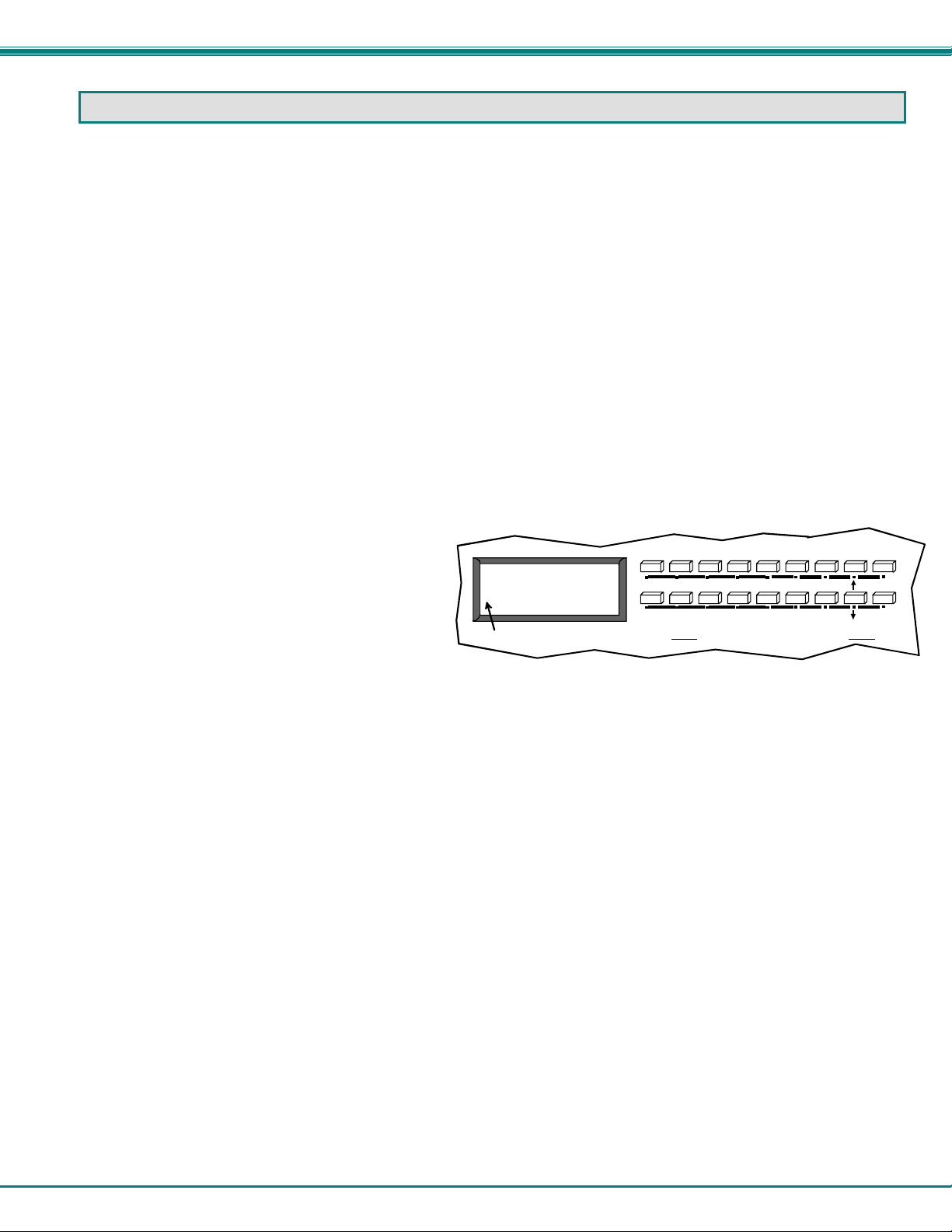

Front Panel LCD with Keypad Control......................................................................................................................... 7
Volume Control ......................................................................................................................................................... 8
Memory Functions .................................................................................................................................................... 8
Menu Button.............................................................................................................................................................. 8
Scan Mode................................................................................................................................................................9
RS232 Control.............................................................................................................................................................. 10
Remote Connection ................................................................................................................................................... 10
Baud Rate ............................................................................................................................................................... 10
Unit Address ...........................................................................................................................................................10
Command Protocol ....................................................................................................................................................11
Autostatus............................................................................................................................................................12
Matrix Switcher's Control Program For Windows 9X, NT, 2000 AND XP ................................................................. 13
SerTest- RS232 Interface Test Program ................................................................................................................... 13
Main Options...........................................................................................................................................................13
Matrix Operations....................................................................................................................................................13
Ethernet Operations................................................................................................................................................ 14
Setup Options ......................................................................................................................................................... 14
Ethernet Control .......................................................................................................................................................... 14
Telnet Interface-Port 2000 .........................................................................................................................................14
Telnet Interface-Port 2005 .........................................................................................................................................16
Command Summary...............................................................................................................................................16
Command Detail ..................................................................................................................................................... 17
RU-Read Unit Size ..............................................................................................................................................17
RO-Read Connection for Output Port .................................................................................................................17
CS- Connect Output Port to Input Port................................................................................................................17
CA- Connect All Output Ports to Input Port ......................................................................................................... 17
SS_01- Enable Auto Status Mode....................................................................................................................... 18
SS_00- Disable Auto Status Mode......................................................................................................................18
SX- Examine connections ...................................................................................................................................18
AO-Read Audio Connection for Output Port .......................................................................................................19
AS-Connect Audio Output Port to Input Port....................................................................................................... 19
AA-Connect All Audio Outputs to Input Port........................................................................................................ 19
AV- Set Audio Volume for Output Port ................................................................................................................ 20
AM- Mute/Unmute Audio Output Port.................................................................................................................. 20
Terminate telnet session .....................................................................................................................................20
AR- Read Mute and Volume for Audio Output Port ............................................................................................21
Web Interface ............................................................................................................................................................22
Enter the Password ................................................................................................................................................22
Video Switch Page ..............................................................................................................................................23
Audio Switch Page ..............................................................................................................................................24
Setup Pages ........................................................................................................................................................ 25
Input Names ........................................................................................................................................................ 26
Output Names......................................................................................................................................................27
Outputs Scanning Sequences.............................................................................................................................27
ii
MAN066 Rev Date 5/19/2008
Page 4
Update Firmware ................................................................................................................................................. 29
Change Password Page...................................................................................................................................... 30
Help Page............................................................................................................................................................30
Update Web Server .............................................................................................................................................30
Logout Page ........................................................................................................................................................ 30
Device Discovery Tool................................................................................................................................................31
Infrared Control ........................................................................................................................................................... 32
Features And Functions............................................................................................................................................. 32
Keypad....................................................................................................................................................................32
LCD Display ............................................................................................................................................................ 32
How To Use The IRT ................................................................................................................................................. 33
Change the Switch.................................................................................................................................................. 33
Change Output Port................................................................................................................................................34
Change Input Port................................................................................................................................................... 34
Set Configuration .................................................................................................................................................... 35
Battery Replacement ................................................................................................................................................. 36
Specifications............................................................................................................................................................. 36
Troubleshooting the IRT ............................................................................................................................................ 36
RS232 Upgrade Of the Front Panel LCD Firmware..................................................................................................37
RS232 Connection Cables.......................................................................................................................................... 39
Pinout of RS232 port on VEEMUX-A ........................................................................................................................39
Specifications for Straight-Through Serial Cable for CPU connection ...................................................................... 39
Pinout for Matrix Y-1 Cable........................................................................................................................................40
Rack Mounting Instructions .......................................................................................................................................40
Specifications .............................................................................................................................................................. 41
Troubleshooting .......................................................................................................................................................... 42
Safety Statements ....................................................................................................................................................... 42
Index ............................................................................................................................................................................. 43
Warranty Information .................................................................................................................................................. 43
TABLE OF FIGURES

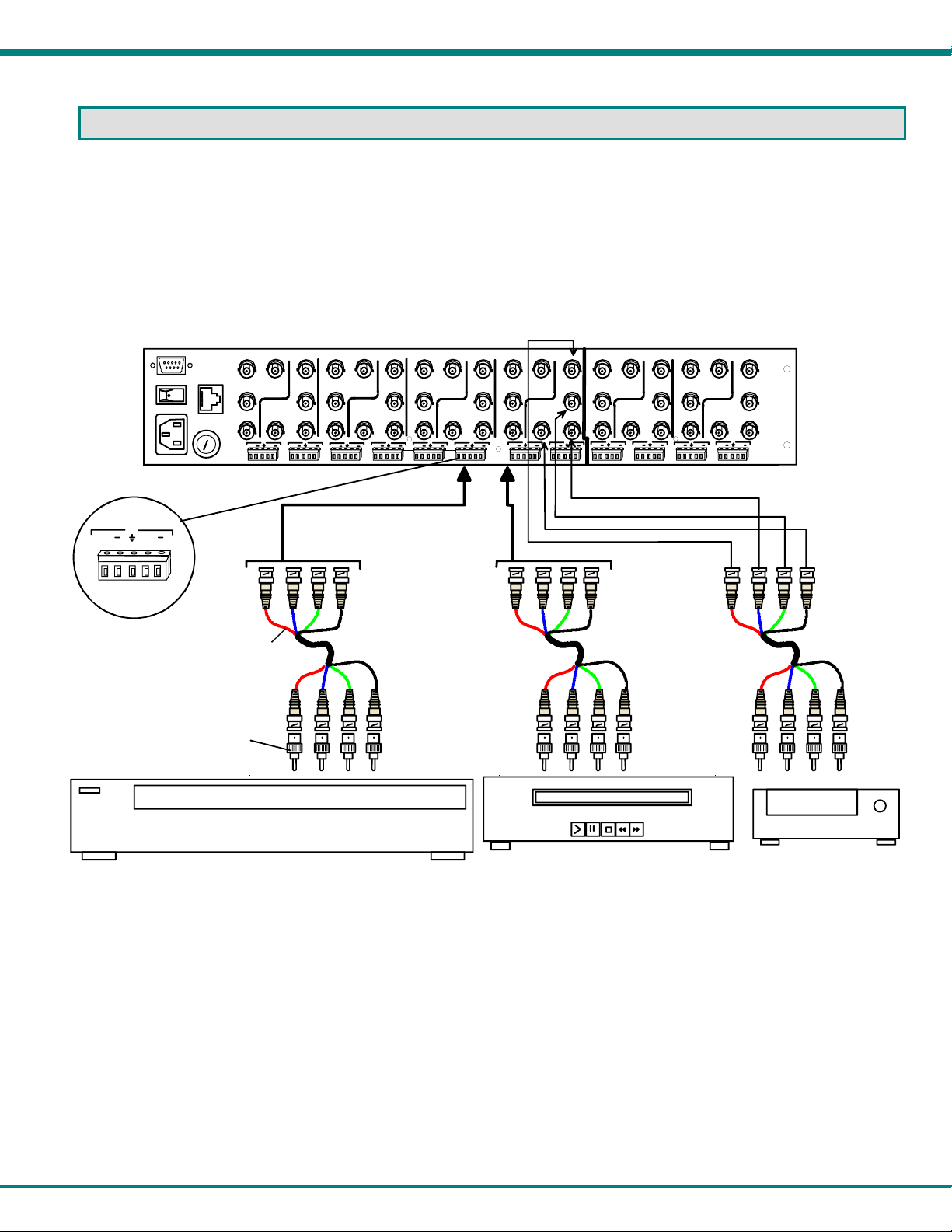

Figure 1- Connect sources to the VEEMUX-A ...................................................................................................................................3
Figure 2- Stereo audio connection block............................................................................................................................................4

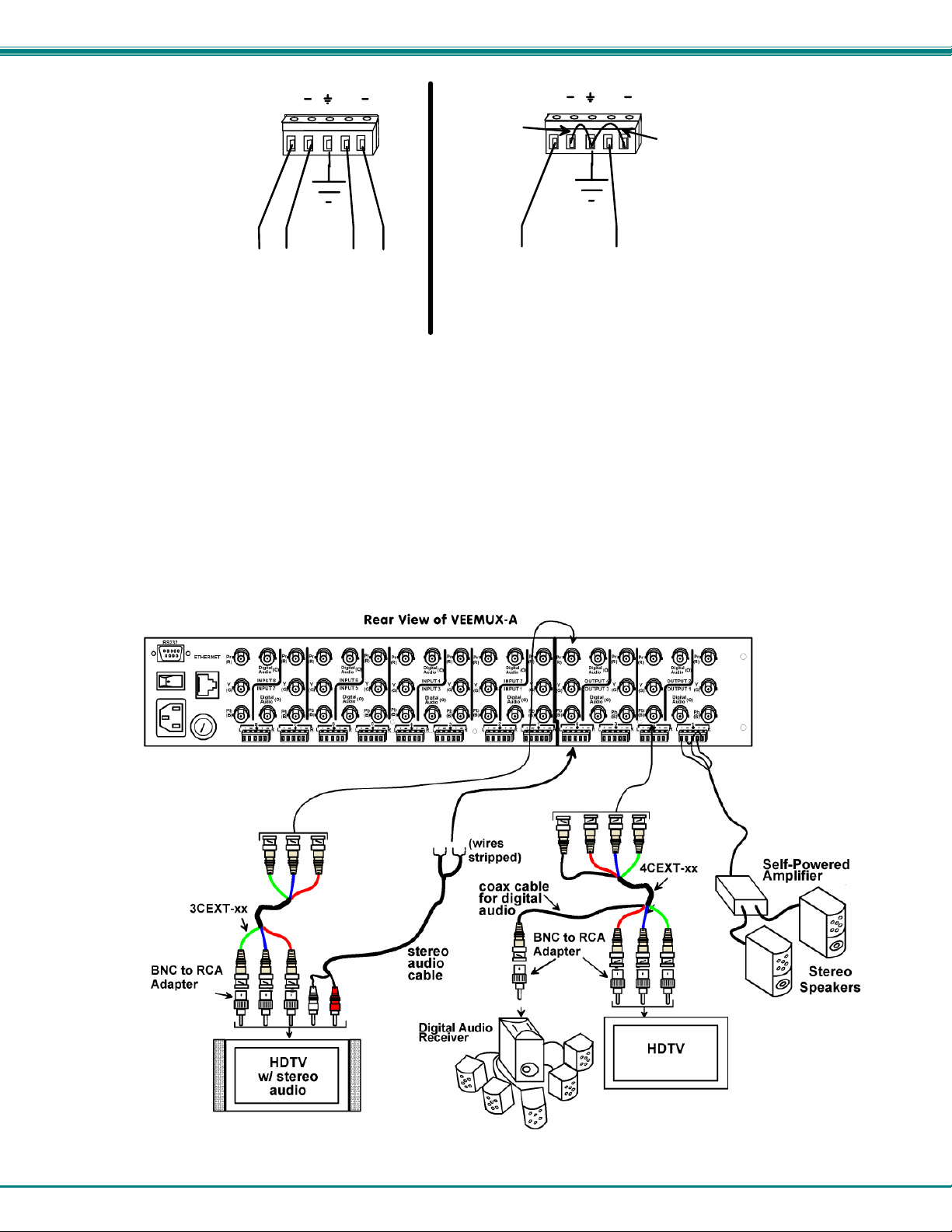

Figure 3- Connect devices, audio and video......................................................................................................................................4

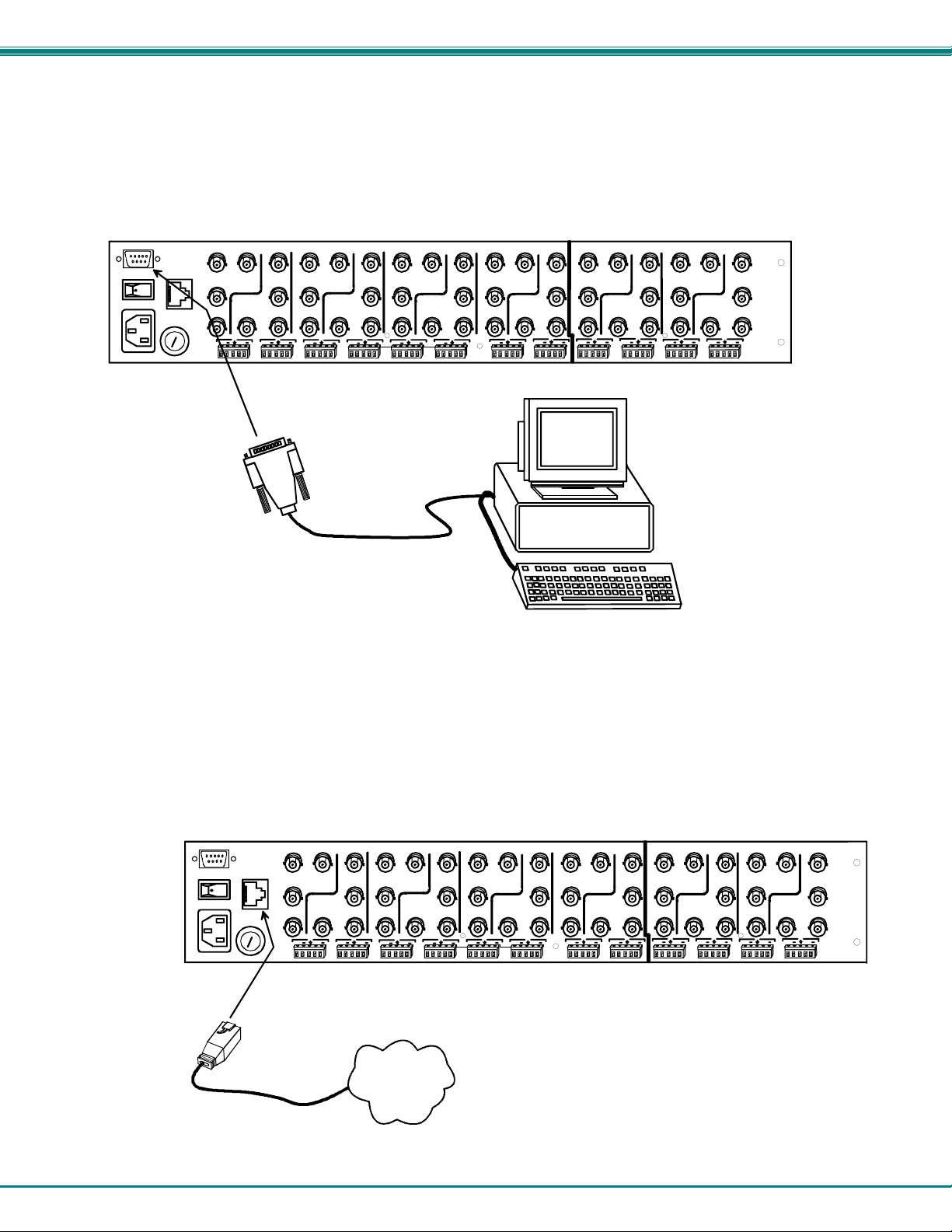

Figure 4- Connect cable for RS232 control........................................................................................................................................5
Figure 5- Connect the VEEMUX-A to the Ethernet ............................................................................................................................5
Figure 6- Plug in and power up.......................................................................................................................................................... 6
Figure 7- RS232 connection with Matrix-Y-1 cable..........................................................................................................................10
Figure 8- Web interface Welcome page.......................................................................................................................................... 22
Figure 9- Web interface Login Prompt ............................................................................................................................................. 22
Figure 10- Web interface Video Switch page...................................................................................................................................23
Figure 11- Web interface Audio Switch page...................................................................................................................................24
Figure 12- Web interface Setup page .............................................................................................................................................. 25
Figure 13- Web interface Serial Setup page ....................................................................................................................................26
Figure 14- Web interface Input Names page ................................................................................................................................... 26
Figure 15- Web interface Output Names page ................................................................................................................................27
Figure 16- Web interface Scan Mode page .....................................................................................................................................27
Figure 17- Web interface Update Firmware page ............................................................................................................................29
Figure 18- Web interface Password page........................................................................................................................................ 30
Figure 19- Updating the Web Server ...............................................................................................................................................30
Figure 20- Web interface Logout page.............................................................................................................................................30
Figure 21- Device Discovery Tool page ...........................................................................................................................................31
Figure 22- Pinout for Matrix Y-1 Cable.............................................................................................................................................40
Figure 23- Mount the VEEMUX-A to a rack ..................................................................................................................................... 40
iii
MAN066 Rev Date 5/19/2008
Page 5
NTI AUDIO/HD VIDEO MATRIX SWITCH
INTRODUCTION
The VEEMUX SM-8X4-HDA (VEEMUX-A) is a versatile multi-input audio/video matrix switch that independently switches eight sets of incoming YPbPr component video and analog/digital audio signals to any or all of the four outputs. Each input and output has YPbPr component video, L/R analog audio (balanced/unbalanced), and digital audio on coax (S/PDIF).
Video resolution up to 1920x1080@60Hz is supported with no degradation – guaranteed. An LCD on the front panel indicates the current connections. The VEEMUX-A can be controlled by four methods: Front Panel LCD with Keypad, RS232 interface, Ethernet, or optional Infrared Remote. The SM-8X4-HDA is the ideal solution for many applications, such as mission critical command centers, sports facilities and entertainment venues.
Features
• Supports High Definition and Standard Definition YPbPr component video, S-Video or composite video.
• Audio can be unbalanced analog stereo, balanced analog stereo or digital S/PDIF.
• Supports S/PDIF, DTS Digital Surround™, and Dolby Digital™ 5.1 digital signals.
• Supports 480i (interlaced), 480p (progressive), 720i, 720p, 1080i, and 1080p formats.
• Features break-away audio- allowing audio to be switched independent of video.
• Equipped with volume control: -80dB to 10dB, in 1dB steps.
• Control the switch through Ethernet, RS232, front panel buttons or optional IR remote.
Optional Feature
• Infrared Control (see page 32)- to order, add "IR" to the part number (i.e. SM-8X4-HDA-IR)
Materials
Materials Supplied with this kit:
• NTI SM-8X4-HDA Audio/HD Video Matrix switch
• IEC Line cord, country specific
• 10-32 x 3/4" pan head screws and 10-32 cagenuts (server cabinet mounting hardware)
• CD with a pdf file of this owner’s manual
the NTI Discovery Tool the Matrix Switcher's Control Program
Cables
All cables are sold separately. The following table lists the available stocked cables with their length in feet. Custom cables are available – contact NTI for pricing and distance / resolution limitations.
NTI NAME DESCRIPTION
VGA and AUDIO
4CINT-6 3CINT-6 4CEXT-xx 3CEXT-xx
Matrix-Y-1 or see page 40 for alternative cables
RGBS Video 4 mini coaxes in one jacket- 6 feet long RGBS Video 3 mini coaxes in one jacket- 6 feet long RGBS Video 4 mini coaxes in one jacket- up to 250 feet long RGBS Video 3 mini coaxes in one jacket- up to 250 feet long
RS232
RS232 Interface Cable- Connectors are 9D male- female-female 12" long (also see alternative cable specifications on page 40)
Default User Name and Passwords
The default Telnet password is admin (lower case letters only) . For instruction on using Telnet, see page
14. (No username is required in order to use Telnet. You will only be prompted for a password.)
The default Web Interface user name
The default Web Interface password Interface, see page 22.
is Administrator (upper case letter for "A" only).
is admin (lower case letters only). For instruction on using the Web
1
Page 6
NTI AUDIO/HD VIDEO MATRIX SWITCH

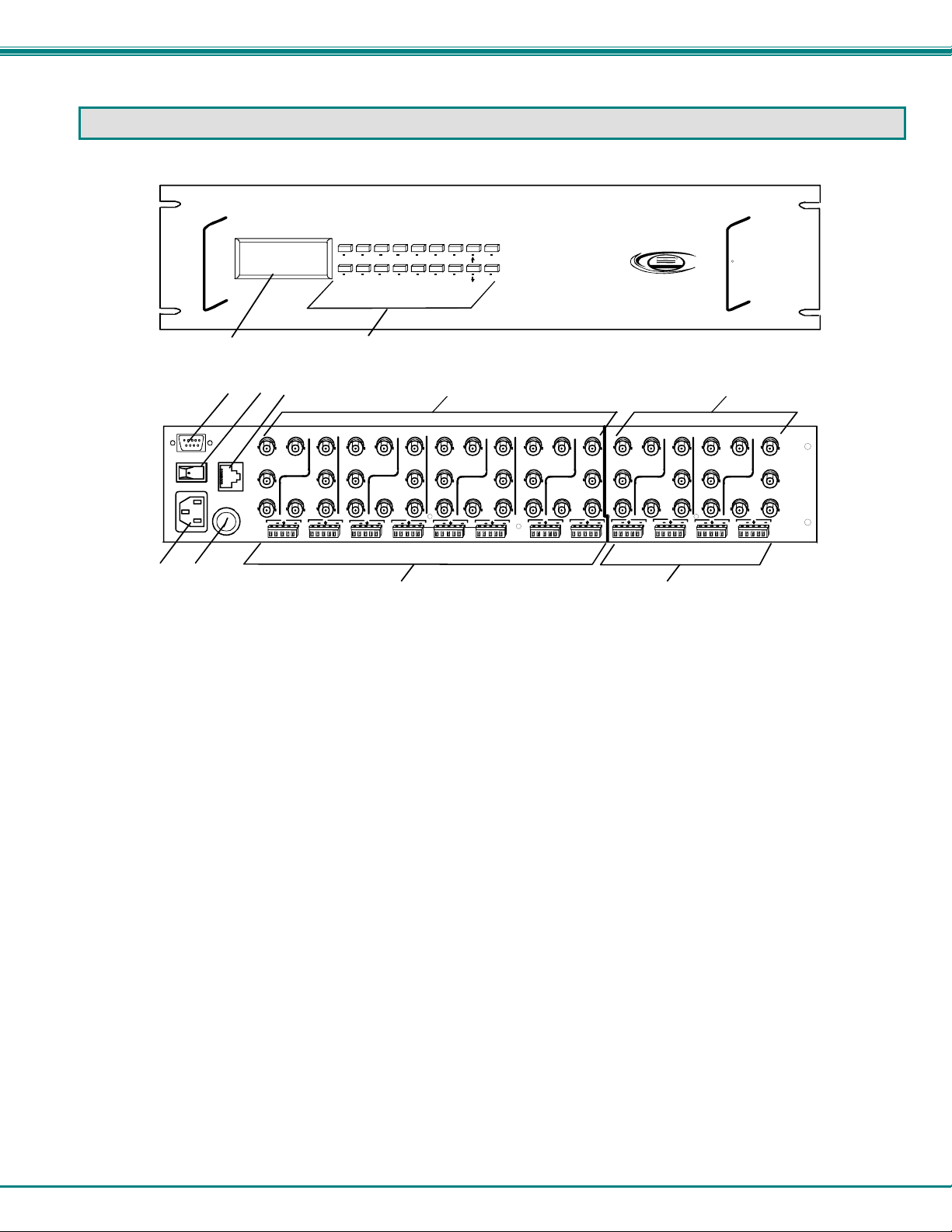

FEATURES AND FUNCTIONS
ESC
MENU
1
7
6
5
2
RS232
ETHERNET
Pr
Pr
(R)
Digital Audio
INPUT 8
Y
INPUT 7
(G)
Digital Audio
Pb
(B)
8
+ +
L
Pr
(R)
(R)
(O)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
7
+ +
+ +
R
L
L
R
3
4
1. LCD Display- for visual indication of input-to-output connections and for configuration of the VEEMUX-A.
2. Keypad- buttons for user control over switch functions
3. IEC Power Connector- for attachment of power cord
4. Fuse Holder- holder for replaceable overcurrent 2A 240VAC Fast-blo protection fuse
5. RS232 In/Out - 9D female connector- for attaching RS232 interface cable from a user terminal
6. Power ON/OFF switch
7. Ethernet- RJ45 female connector- for connection of CAT5 cable to LAN for WEB interface
8. INPUT- BNC connectors- for video and digital audio input from audio/video sources
9. INPUT- terminals- for connection of analog (balanced or unbalanced) stereo audio signals from analog audio sources
10. OUTPUT-BNC connectors- for video and digital audio output to audio/video devices
11. OUTPUT- terminals- for analog (balanced or unbalanced) stereo audio signal output to analog audio devices
Front View of VEEMUX-A
OUT
6
789
123IN
0 R
4 5
Rear View of VEEMUX-A
8
Pr
Pr
(R)
(R)
(O)
Y
(G)
(O)
Pb
(B)
5
+ +
L
INPUT 4
Y
INPUT 3
(G)
Pb
(B)
43
+ +
R
Digital Audio
Digital Audio
R L
L
6
Digital Audio
INPUT 6
INPUT 5
Digital Audio
R
9
ENTER
(O)
(O)
+ +
R
NTI
VEEMUX
*
Network Technologies Inc
A
10
Pr
Pr
(R)
(R)
Y
Y
(G)
(G)
Pb
Pb
(B)
(B)
R
+ +
2
Digital Audio
INPUT 2
INPUT 1
Digital Audio
Pr
Pr
(R)
(R)
(O)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
1
+ +
+ +
R L
R
L
Pr
Pr
(R)
Digital Audio
OUTPUT 4
OUTPUT 3
Digital Audio
43
R L
(R)
(O)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
+ +
R
L
Pr
(R)
Digital
(O)
Audio
OUTPUT 2
Y
OUTPUT 1
(G)
Digital
(O)
Audio
Pb
(B)
21
+ +
+ +
R L
L
R
11
2
Page 7
NTI AUDIO/HD VIDEO MATRIX SWITCH
INSTALLATION
Connect the Sources
1. Turn OFF power to all video sources (inputs) that will be connected to the VEEMUX-A before connecting or
disconnecting any cables.
2. Connect each video source to the VEEMUX-A using 4CEXT-xx BNC cables. The groups of terminals are labeled INPUT1-8. and colored cables attach to terminals as follows: green (Y), blue (Pb) and red (Pr). If necessary, use BNC to RCA adapters to connect the cables to the video sources (see Fig. 1). If the cables used do not have BNC connectors on them but have RCA connectors instead, use an RCA-to-BNC adapter on each to connect to the VEEMUX-A.
RS232
ETHERNET
Pr
(R)
Y
(G)
Pb
(B)
3
+ +
L
R
Terminal block for line-level stereo audio connections
4CEXT-xx
BNC to RCA ADAPTER
Receiver w/Digital Audio
L
+ +
8
Digital
(O)
Audio
INPUT 8
INPUT 7
Digital
(O)
Audio
R
L
Pr
(R)
Y
(G)
Pb
(B)
+ +
Rear View of VEEMUX-A
+ +
Pr
Pr
(R)
Digital Audio
INPUT 6
INPUT 5
Digital Audio
6
R
(R)
(O)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
5
+ +
R
L
Pr
(R)
Y
(G)
Pb
(B)
7
R
L
coax cable for digital audio
+ +
Pr
Pr
(R)
(O)
(O)
+ +
(R)
Y
Y
(G)
(G)
Pb
Pb
(B)
(B)
3
R
Digital Audio
INPUT 4
INPUT 3
Digital Audio
4
L
R L
+ +
2
Digital Audio
INPUT 2
INPUT 1
Digital Audio
R L
Pr
(R)
(O)
Y
(G)
(O)
Pb
(B)
1
+ +
R
L
DVD Player
Pr
(R)
Digital
(O)
Audio
OUTPUT 4
Y
OUTPUT 3
(G)
Digital Audio
Pb
(B)
43
+ +
+ +
R L
L
Pr
Pr
(R)
(R)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
+ +
R
Pr
(R)
Digital
(O)
Audio
OUTPUT 2
Y
OUTPUT 1
(G)
Digital
(O)
Audio
Pb
(B)
21
+ +
R L
R
L
Cable Box
Figure 1- Connect sources to the VEEMUX-A
3. Audio connections can either be digital or analog (stereo). A connector marked "DIGITAL" is provided in each INPUT group for digital audio cable connection. A terminal block for the connection of a line-level stereo audio cable is located below each connector group. (See Fig. 1) The VEEMUX-A supports balanced line-level audio signals, as well as unbalanced. Figure 2 shows the proper cable connection method for each.
3
Page 8
NTI AUDIO/HD VIDEO MATRIX SWITCH
+ +
L
Gnd
L+ L-
R+ R-
Connections for balanced stereo audio
R
Jumper Wire
Connections for unbalanced stereo audio
L
L
+ +
Gnd
R
Jumper Wire
R
Figure 2- Stereo audio connection block
Connect the Devices
1. Connect each of the video display devices to the VEEMUX-A using 3CEXT-xx or 4CEXT-xx cables. The groups of terminals are labeled OUTPUT1-4. Use BNC to RCA adapters (as shown in Fig. 3) to connect the BNC cables to the devices. Connectors on the VEEMUX-A are labeled green (Y), blue (Pb) and red (Pr) to correspond with the colors on the BNC cables.
2. Connect each digital audio device to an OUTPUT connector labeled "DIGITAL". If the audio device is a stereo type device, connect it to an OUTPUT terminal block. Connections to the terminal block should be made as shown in Fig. 3 for devices that are compatible with balanced or unbalanced stereo audio.
Note: Stereo audio devices can not be used to listen to digital audio sources, and digital audio devices can not be used to listen to stereo audio sources.
Figure 3- Connect devices, audio and video
4
Page 9
NTI AUDIO/HD VIDEO MATRIX SWITCH
Connect RS232
RS232 control can be achieved using a separate user terminal or CPU with a terminal program. To make a terminal connection, connect a serial cable (specifications on page 39) between the user terminal and the 9 pin DIN female connector on the VEEMUX-A labeled "RS232". (See Fig. 4)
Rear View of VEEMUX-A
RS232
ETHERNET
Pr
Pr
(R)
Digital Audio
INPUT 8
Y
INPUT 7
(G)
Digital Audio
Pb
(B)
8
+ +
L
Pr
(R)
(R)
(O)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
7
+ +
+ +
R
L
L
R
9D-male RS232 connector
Pr
Pr
(R)
Digital Audio
INPUT 6
INPUT 5
Digital Audio
65
R
(R)
(O)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
+ +
R
L
Pr
(R)
Digital
(O)
Audio
INPUT 4
Y
INPUT 3
(G)
Digital
(O)
Audio
Pb
(B)
43
+ +
+ +
R L
L
Pr
(R)
Y
(G)
Pb
(B)
+ +
R
Pr
Pr
(R)
(O)
(O)
L
Y
(G)
Pb
(B)
+ +
Multi-Scan
(R)
Y
(G)
Pb
(B)
R
VGA
Monitor
Digital Audio
INPUT 2
INPUT 1
Digital Audio
21
R L
Pr
(R)
Digital
(O)
Audio
OUTPUT 4
Y
OUTPUT 3
(G)
Digital
(O)
Audio
Pb
(B)
43
+ +
+ +
R L
L
Pr
(R)
OUTPUT 2
Y
OUTPUT 1
(G)
Pb
(B)
21
+ +
R L
R
Digital Audio
Digital Audio
L
(O)
(O)
+ +
Pr
(R)
Y
(G)
Pb
(B)
R
User Terminal
Figure 4- Connect cable for RS232 control
Connect to the Ethernet
If the Telnet Interface (page 14) or Web Interface (page 22) will be used, an Ethernet connection to the Local Area Network (LAN) must be made using CAT 5 cable with RJ45 connectors wired straight through (pin 1 to pin 1, pin 2 to pin 2, etc). Connect a CAT 5 cable between the connector labeled "ETHERNET" and the LAN (see Fig. 5).
RJ45 male connector
RS232
ETHERNET
Pr
Pr
(R)
Digital Audio
INPUT 8
Y
INPUT 7
(G)
Digital Audio
Pb
(B)
8
+ +
L
Pr
(R)
(R)
(O)
Y
(G)
(O)
Pb
(B)
7
+ +
R
L
Digital Audio
INPUT 6
Y
INPUT 5
(G)
Digital Audio
Pb
(B)
6
+ +
L
R
R
L
LAN
Rear View of VEEMUX-A
(O)
(O)
Pr
(R)
Y
(G)
Pb
(B)
+ +
Pr
(R)
Y
(G)
Pb
(B)
5
+ +
R
Pr
(R)
Digital
(O)
Audio
INPUT 4
Y
INPUT 3
(G)
Digital
(O)
Audio
Pb
(B)
43
+ +
L
R L
Pr
Pr
(R)
Digital Audio
INPUT 2
Y
INPUT 1
(G)
Digital Audio
Pb
(B)
2
+ +
R
R L
Pr
(R)
(R)
(O)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
1
+ +
+ +
R
L
Pr
Pr
(R)
(O)
(O)
+ +
(R)
Y
Y
(G)
(G)
Pb
Pb
(B)
(B)
R
L
Digital Audio
OUTPUT 4
OUTPUT 3
Digital Audio
43
L
R L
Pr
(R)
Digital
(O)
Audio
OUTPUT 2
Y
OUTPUT 1
(G)
Digital
(O)
Audio
Pb
(B)
21
+ +
+ +
R
L
R
Figure 5- Connect the VEEMUX-A to the Ethernet
5
Page 10
NTI AUDIO/HD VIDEO MATRIX SWITCH
Power Up
1. Connect the IEC power cord to the VEEMUX-A and plug the cord into an AC power outlet.
2. Turn ON power to the VEEMUX-A using the switch above the IEC socket.
3. Turn ON power to the video and audio sources, and the video and audio devices connected to the VEEMUX-A, if they are not already ON.
Rear View of VEEMUX-A
RS232
ETHERNET
Pr
Pr
(R)
Digital Audio
INPUT 8
Y
INPUT 7
(G)
Digital Audio
Pb
(B)
8
+ +
L
Pr
(R)
(R)
(O)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
7
+ +
L
R
+ +
L
R
IEC Line Cord
6
Digital Audio
INPUT 6
INPUT 5
Digital Audio
R
L
(O)
(O)
Pr
(R)
Y
(G)
Pb
(B)
+ +
Pr
(R)
Y
(G)
Pb
(B)
5
R
Pr
(R)
Digital
(O)
Audio
INPUT 4
Y
INPUT 3
(G)
Digital
(O)
Audio
Pb
(B)
43
+ +
+ +
L
R L
Pr
Pr
(R)
Digital Audio
INPUT 2
Y
INPUT 1
(G)
Digital Audio
Pb
(B)
2
+ +
R
R L
Pr
(R)
(R)
(O)
Y
Y
(G)
(G)
(O)
Pb
Pb
(B)
(B)
1
+ +
+ +
R
L
Pr
Pr
(R)
(O)
(O)
+ +
(R)
Y
Y
(G)
(G)
Pb
Pb
(B)
(B)
R
L
Digital Audio
OUTPUT 4
OUTPUT 3
Digital Audio
43
L
R L
Pr
(R)
Digital
(O)
Audio
OUTPUT 2
Y
OUTPUT 1
(G)
Digital
(O)
Audio
Pb
(B)
21
+ +
+ +
R
L
R
Figure 6- Plug in and power up
6
Page 11
NTI AUDIO/HD VIDEO MATRIX SWITCH
CONTROL OPTIONS
The VEEMUX-A video matrix switch has four methods of control:
• Front Panel LCD with Keypad
• Directly via an RS232 Interface
• Remotely via Ethernet (web interface)
• Infrared Remote (optional)
Every unit comes standard with the Front Panel LCD with Keypad, RS232, and Ethernet connection built-in. If desired, the Infrared option must be requested at the time of the order. The Infrared option requires the purchase of a separate remote control device (Infrared transmitter) as well as an Infrared receiver to be installed in the VEEMUX-A. No software is involved (see Infrared Control on page 32). With the RS232 option, there are no external devices to be purchased. NTI provides software commands as well as a test program to ensure the RS232 functions properly (see page 13 – RS232 Control).
Front Panel LCD with Keypad Control
The front panel LCD and keypad allow the user to monitor switch status and route any display to any video source on the switch. When the unit is powered up, each monitor is automatically connected to the video source of its equal number (i.e. monitor 1 to source 1, monitor 2 to source 2, monitor 3 to source 3, etc.). Along with the routing of the inputs (video sources) to the outputs (monitors) the keypad and LCD allow the users to configure the RS232 control interface. The keypad buttons perform the following functions.
ESC Escape back to the main display.
0 – 9 Used to enter numbers. ( # )
OUT The output user number can be entered
(2 digits or 1 digit and ENTER or IN)
OUT: 1 2 3 4
V
IN: 1 2 3 4
LCD WILL CYCLE TO DISPLAY A "v" FOR ALL VIDEO INPUTS FIRST, THEN A "a" FOR ALL AUDIO INPUTS .
ESC
MENU
OUT
IN
6
7890
1 2 3
5
4
followed by the input
IN Used following single digit output entries
ENTER Used following single digit entries
Display next 4 outputs and their inputs
Display previous 4 outputs and their inputs
MENU The RS232 menu is displayed. This allows the baud rate to be set at 9600, 2400, 1200 or 300 baud and the unit
address to be set to 1 - 15. See RS232 control later in this chapter.
* Activate Memory Function - 10 memory locations 0 – 9, 0 is the power on default.
to Save current connections ( * ) ( OUT ) ( # ) ( ENTER )
to Recall connections from ( * ) ( IN ) ( # ) ( ENTER )
To set all outputs to one input ( * ) + ( # ) + (ENTER)
The following examples show various methods of routing output 3 to input 5. Inputs and Outputs can be entered as a two digit number or a one digit number followed by IN or ENTER.
(OUT) 3 (IN) 5 (ENTER) (OUT) 3 (ENTER) 5 (ENTER (OUT) 03 05 03 05
*
ENTER
7
Page 12
NTI AUDIO/HD VIDEO MATRIX SWITCH
Volume Control
The volume level can be adjusted on each output port.
• To increment <▲> or decrement <▼> the volume, use the following command: <OUT>, <▼>, Double digit output port number, <▲> increment or <▼> decrement, <ENTER>
Ex 1: <OUT> <▼> 03 <▲> <▲> <▲> <ENTER>
This will increment the volume by +3dB (1dB/ step).
Ex 2: <OUT> <▼> 14 <▼> <▼> <ENTER>
This will decrement the volume by -2dB.
• To Mute, use the command: <OUT>, <▼>, Double digit output port number, the <0> key, <ENTER>
Ex: <OUT> <▼> 03 0 <ENTER> This will mute output 3
• To Un-mute, use the instruction: <OUT>, <▼>, Double digit output port number, the <1> key, <ENTER>
Ex: <OUT> <▼> 03 1 <ENTER> This will un-mute output 3
Memory Functions
There are 100 memory locations(0-99) available to save connection configurations. Location 0 is the power-ON default).
• Saving Connections To save all current connections, use the following command: <*>, <OUT>, Memory location, <ENTER> Ex: <*> <OUT> 5 <ENTER>
• Restoring Connections To restore connections from memory, use the following command: <*>, <IN>, Memory location, <ENTER> Ex: <*> <IN> 5 <ENTER>
Note: If the current switch configuration includes assigned Scan Mode dwell time values (pg. 9), to save the current configuration be sure to assign a memory location to it. Otherwise, when the VEEMUX-A is powered OFF, all dwell time values will be erased. Also, saving the configuration as memory location 0 will cause it to be the power-ON default configuration.
Configurations that are saved into memory locations via the keypad can be recalled via the web interface (page 23) and vice versa.
Menu Button
The Menu button is used to configure the RS232 port.
• The baud rate is selected from the “Baud Rate Menu” . To access this menu, use the command: <MENU>, the <1> key
Next, press the keypad number corresponding with the desired baud rate: <1> – 9600 <2> – 4800 <3> – 2400 <4> – 1200
Ex: <MENU> 1 1 This will select 9600 baud
• To set the switch address, use the following instruction: <MENU>, the <2> key, Double digit address (from 01 to 15- the default address is 01)
Ex: <MENU> 2 03 This will set the address at 03
8
Page 13
NTI AUDIO/HD VIDEO MATRIX SWITCH
Scan Mode
Scan Mode causes output ports (audio and video) to automatically switch from one audio and video input port to the next consecutive audio and video input port after a specified period of time (referred to as the dwell time). Audio and video port switching will continue indefinitely and no ports will be skipped, whether there are audio or video sources connected to them or not. If desired, the VEEMUX-A can be configured to skip the scanning of specific ports using the RS232 Command Protocol (page 11) or Telnet (page 14) .
Dwell time settings can be any value from 0 seconds (000) to 255 seconds. A setting of 000 seconds (the default setting) disables Scan Mode for that output port. If Scan Mode is disabled for a specific port number, then the video or audio to that output port number will only change as decided by the administrator.
Note: While Scan Mode is enabled, audio and video ports of the same number will switch together. Independent control of video and audio ports will be disabled. I.e., when video output 1 switches from input 1 to input 2, audio output 1 will also switch from input 1 to input 2.
To configure Scan Mode from the front panel LCD
Press MENU, the following lines will be displayed:
1) Set Baud Rate
2) Set Unit Addr
Press MENU again, the following line will be displayed:
3) Set Scan Mode
Press 3 to select that menu item. The following request will be displayed:
Select Port
Select the output to be programmed using the numeric keys, then press ENTER. The display will show the current Dwell Time value for that output and ask for a new value.
Current Time: 16 New Time:
Using the numeric keys, enter a value between 0 and 255 and press ENTER. Leading zeros are allowed (000) but the number should not exceed 3 digits. The Scan Mode dwell setting value 0 will disable Scan Mode for that output port.
Scan Mode dwell time settings can also be configured through the RS232 Command Protocol (page 11), Telnet commands (page
14), or through the Web Interface (page 27).
NOTE: Scan Mode configuration settings can only be saved if they are assigned a memory location via the Keypad Control (page 8). Otherwise when the power is cycled to the VEEMUX-A, all Scan Mode settings will be erased.
TIP: If the Scan mode settings are stored as memory location 0, they will be loaded each time the VEEMUX-A is powered ON.
:
NOTE: If Outputs Scanning Sequences (page 27) Is enabled, Scan Mode as configured at the LCD front panel will be disabled.
The disabled front panel Scan Mode feature will be indicated by the message “SCAN SEQUENCE IS ACTIVE” on the LCD display.
9
Page 14
NTI AUDIO/HD VIDEO MATRIX SWITCH
RS232 CONTROL
RS232 enables the VEEMUX to be remotely controlled via RS232. To control the VEEMUX via RS232 the user has three options:
• write a program that runs on a PC using the Command Protocol (page 11)
• use the Matrix Switcher's Control Program (page 13) provided on the CD
• use the SerTest program (page 13) provided on the CD
Remote Connection
The RS232 Interface is designed to control the switch via serial (RS232) daisy chain connection from any host computer or other controller with an RS232 communications port.
The pin outs for the DB-9 connector on the unit are as follows:
RS232 Connector (DB-9 FEMALE)
PIN SIGNAL FUNCTION
1
None no connection
2 TXD Transmit Data (RXD at host) 3 RXD Receive Data (TXD at host) 4 DSR Data Set Ready 5 GND Signal Ground 6 DTR Data Terminal Ready 7 CTS Clear to Send 8 RTS Request to Send 9
none no connection
On the DB-9 female connector, pins 4 (DSR) and 6 (DTR) are shorted and pins 7 (CTS) and 8 (RTS) are shorted. Therefore, host handshaking is bypassed and TXD and RXD are the only active signals. A straight through DB-9 cable (not null modem) will work for most CPUs. To daisy chain multiple units, use NTI Matrix-Y-1 "Y" cables, except for the last unit connected. (see Fig 6). For a pinout of the Matrix-Y-1 cable, see page 40. For straight through cable pinouts applicable to various terminal types, see page
39.
Baud Rate
The unit powers up with a default baud rate of 9600 and a fixed data protocol of 8 data bits, no parity and 1 stop bit. The baud rate can be changed by pressing the MENU button on the front panel keypad. Then select 1 for SET BAUD RATE and select the desired baud rate of 9600, 2400, 1200 or 300. A data protocol of 8 data bits, no parity, and 1 stop bit is used for communications.
Unit Address
To allow multiple units to be controlled from a single CPU port, the RS232 control interface is designed to allow "daisy chaining" up to 15 units using the NTI Matrix-Y-1 "Y" cables (sold separately- pin out is on page 40). By setting the appropriate unit address with the keypad, each unit can be given a unique address (1-15). Then the unit will only respond to commands on the bus if its address is embedded in the command. To set the unit address select MENU on the front panel keypad. Then select 2 for SET UNIT ADDRESS and then type the address number (1-15) and (ENTER).
CPU
RS232 Serial Port
RS232
NTI
SWITCH
First Unit
Matrix-Y-1
Matrix-Y-1 Matrix-Y-1
RS232
NTI
SWITCH
Second Unit
RS232
NTI
SWITCH
Last Unit

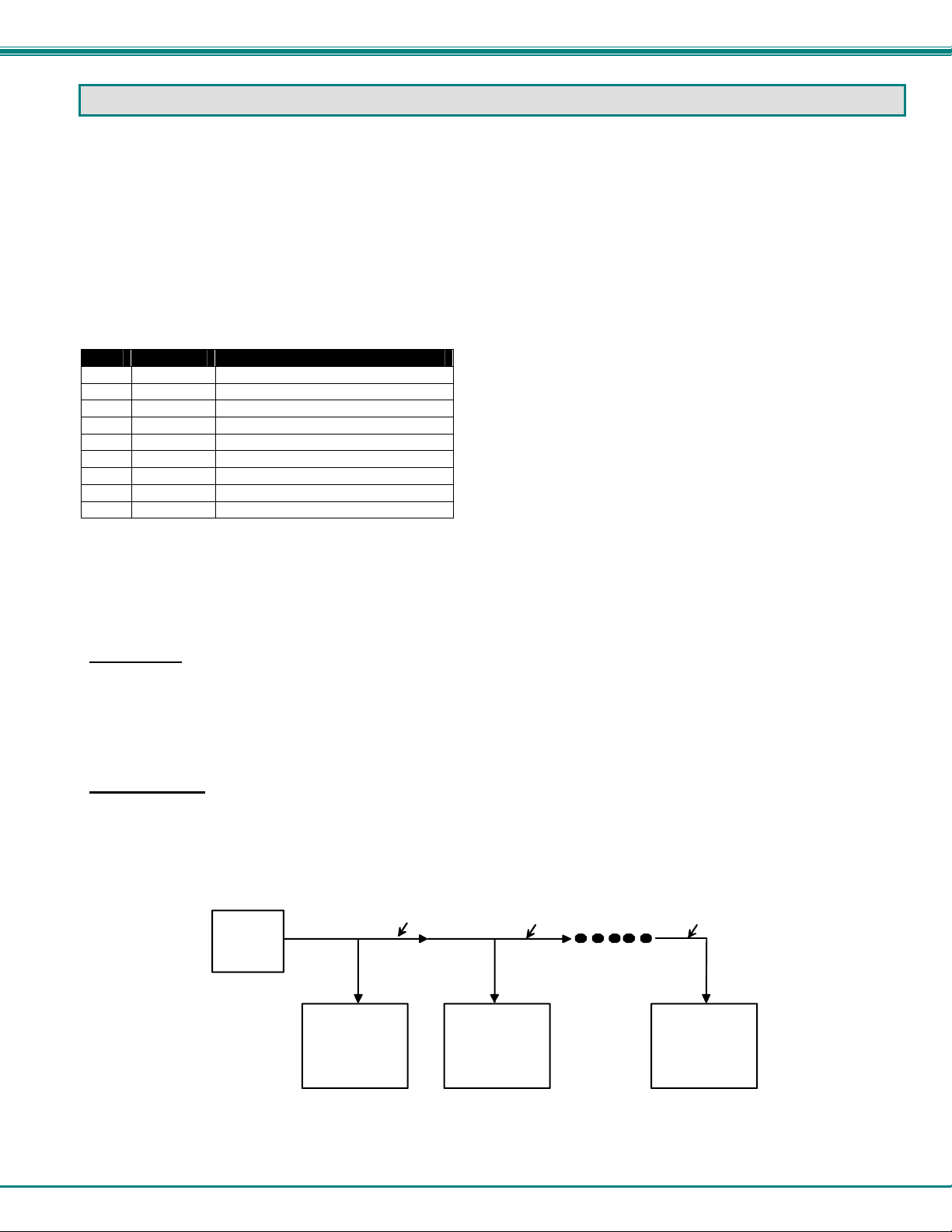

Figure 7- RS232 connection with Matrix-Y-1 cable
10
Page 15
NTI AUDIO/HD VIDEO MATRIX SWITCH
Command Protocol
CPU controller commands supported by the unit are defined below. All commands must be terminated with a <CR> (carriage return). When a command is sent, the entire string is echoed back along with a response from the addressed unit as shown in the Command Definitions table (below). All characters in the command string are case sensitive (see Command Definitions table), and all numbers below 10 must have a leading 0 (ex: 1 = 01).
NOTE: For units with one output or user port, use 01 for the output select.
Legend: (All numbers must be two digits)
SW : Switch (01-15) MM : Save Into Memory Bank (00-09) BR : Baud Rate Code (12,24,48,96) LL : Load From Memory Bank (00-09) OP : Output Port (01-MAXOUTPUTS) <CR> : Carriage Return (Hex 0xD) IP : Input Port (01-MAXINPUTS) ip
Command Definitions
Command
Good Response Description
String
CS SW,IP,OP *<CR> VIDEO Connect One Output/User Port To Input/CPU Port CA SW,IP *<CR> VIDEO Connect All Output/User Ports To Input/CPU Port RO SW,OP *<CR>IP<CR> VIDEO Read Connection For Output/User Port AS SW,IP,OP *<CR> AUDIO Connect One Output/User Port To Input/CPU Port AA SW,IP *<CR> AUDIO Connect All Output/User Ports To Input/CPU Port AO SW,OP *<CR>IP<CR> AUDIO Read Connection For Output/User Port AM SW,OP,MU *<CR> Set Mute State For Output/User Port AV SW,OP,VV *<CR> Set Volume Level For Output/User Port
See chart on page 10 for values
AR SW,OP *<CR>MU,VV<CR> Read Mute, Volume For Output/User Port
MU is 00 if the port is UNMUTED, MU is 01 if the port is MUTED. VV is a value between 00 to 99 (see chart page 12)
CC SW,MM *<CR>MM<CR> Save Matrix Connections Into Memory Bank xx
Xx=00-09 RC SW,LL *<CR>LL<CR> Restore Matrix Connections From Memory Bank CB 00,BR None Change baud rate of serial line, BR=12(00),24(00),48(00),96(00)
Factory default is 9,600 RS SW *<CR> Internal Reset RV SW,00 *<CR>string\0<CR> Read NTI Version String RU SW *<CR>IP,OP<CR> Read Unit Size EA SW,ip *<CR> Set the IP address, ip is in xxx.xxx.xxx.xxx format,
number of digits is minimum 1 and maximum 3 for each field
Leading zeroes are accepted EM SW,ip *<CR> Set the Subnet mask, ip is in xxx.xxx.xxx.xxx format,
number of digits is minimum 1 and maximum 3 for each field.
Leading zeroes are accepted EG SW,ip *<CR> Set the default gateway, ip is in xxx.xxx.xxx.xxx format,
number of digits is minimum 1 and maximum 3 for each field
Leading zeroes are accepted ET SW,timeout *<CR> Set the website timeout; timeout = numeric string of timeout in seconds.
Values: 60, 300, 600, 900, 1800, 3600, 7200, 18000, 28800 RA SW * <CR>ip<CR> Read the IP address, ip is in xxx.xxx.xxx.xxx format,
number of digits is minimum 1 and maximum 3 for each field
Leading zeroes are accepted RM SW * <CR>ip<CR> Read the Subnet mask, ip is in xxx.xxx.xxx.xxx format,
number of digits is minimum 1 and maximum 3 for each field
Leading zeroes are accepted RG SW * <CR>ip<CR> Read the default gateway, ip is in xxx.xxx.xxx.xxx format,
number of digits is minimum 1 and maximum 3 for each field
Leading zeroes are accepted RT SW * <CR>timeout<CR> Read the website timeout; timeout = numeric string of timeout in
seconds.
Values: 60, 300, 600, 900, 1800, 3600, 7200, 18000, 28800
11
: IP address
Page 16
NTI AUDIO/HD VIDEO MATRIX SWITCH
Command Definitions (Continued)
Command String Good Response Description
SS SW,00 *<CR> Disable Autostatus feature (see below) SS SW,01 *<CR> Enable Autostatus feature (see below)
GO SW,OP *<CR>go
SW,OP,IP<CR>
GM SW,00 *<CR>go SW,OP,IP (all
ports)<CR>
GA SW,OP *<CR>go
SW,OP,AP<CR>
GB SW,00 *<CR>go SW,OP, AP
(all ports)<CR>
Ss SW,OP,dwt *<CR> Set value of Scan Mode dwell time (see page 9) for specific Output
Gs SW,OP *<CR>
DWT<CR> Sa SW,OP *<CR> Set scan list of individual output to all inputs Sc SW,OP *<CR> Clear scan list of individual output
S+ SW,OP,IP *<CR> Add individual input to Scan List of output
S- SW,OP,IP *<CR> Remove individual input from Scan List of output
Sx SW,OP *<CR>oooxoxxxooooxx
x<CR>
If the first field is not a known command (as listed above) or SW field is different from the serial address programmed in the switch memory, the command will be ignored. If the SW field corresponds to the serial address, but the syntax is wrong after this field, the switch will answer with a bad response ?<CR>.
Read connection of a Video Output Port to Video Input Port
Read connection matrix of all Video Output ports
Read connection of a Audio Output Port to Audio Input Port
Read connection matrix of all Audio Output ports
dwt = 000-255 (seconds) 000= disable Scan Mode
Read scan mode dwell time setting for an Output port
DWT values: 000-255 000= scan is disabled for the port
Inspect the Scan List of individual output (o=skip x=don't skip)
Set Volume Level For Output/User Port (for command string AV SW,OP,VV in chart on page 11)
This command will set the volume of the specified AUDIO output/user port from a scale of 00 to 99, which represents a logarithmic volume.
Serial Data (VV) Audio Volume Serial Data (VV) Audio Volume
90-99 +10dB 40 -40dB 80 0dB 30 -50dB 70 -10dB 20 -60dB 60 -20dB 10 -70dB 50 -30dB 0 -80dB
Autostatus
When Autostatus is enabled, any output-to-input connection change in the VEEMUX-A will cause an Autostatus message to be sent via RS232 to the administrator. The format of the message would be "pc SW,OP:IP<CR>"
Example of an Autostatus message:
pc 01,01:04<CR>
which means "At the switch with unit address 01, the output (01) has changed connection to input 04."
Notes: Message to the administrator will be delayed by any RS232 traffic being received by the switch from the administrator. Autostatus must be disabled before using SerTest or the Matrix Switcher's Control Program (page 13).
By default, Autostatus is disabled and must be manually enabled. Autostatus is also disabled any time the power to the VEEMUX-A is interrupted.
12
Page 17
NTI AUDIO/HD VIDEO MATRIX SWITCH
Matrix Switcher's Control Program For Windows 9X, NT, 2000 AND XP
The Matrix Switcher's Control Program is an easy and powerful graphical program that controls NTI matrix switches through an RS232 interface. The Matrix Switcher's Control Program is included on the CD packaged with the VEEMUX-A. The Matrix Switcher's Control Program is downloaded by clicking on the link "Download Matrix Switcher's Control Program" found on the web page that appears when you insert the instruction manual CD into your CD ROM drive.
To install the Matrix Switcher's Control Program after downloading
1. Locate the Setup.exe in the directory the program was downloaded to and double-click on it
2. Follow the instructions on the screen
The Matrix Switcher's Control Program performs best on monitors set to a screen resolution of at least 800 X 600. Instruction for using the Matrix Switcher’s Control Program is available by opening "MSCP Help" in the "NTI" program group once the program has been installed and is open on the screen.
To open "MSCP Help" from the Windows desktop
1. Click on START
2. Click on PROGRAMS
3. Click on NTI
4. Click on MSCP Help
Note: While in Scan Mode, the video and audio radio buttons shown on the Switch page of the Matrix Switcher’s Control Program may not be in sync with the connection changes within the VEEMUX. Connections will change without updating the image on the screen.
SerTest- RS232 Interface Test Program
This software allows a user to test the functions of an NTI server switch, matrix switch or Multi-user/Multi-platform switch RS232 interface. The program SerTest along with the Matrix Switcher's Control Program (above) is installed from the CD packaged with this switch. SerTest generates a main menu with the 3 selections described below:
Main Options
• Matrix Operations
• Ethernet Operations
• Setup Options
• About SerTest
Matrix Operations
Key Selection Description
1) Connect Video Output/User to an Input/CPU - connect an output to an input
2) Connect All Video Outputs/Users to an Input/CPU - connect all outputs to an input
3) Connect Audio Output/User to an Input/CPU - connect an output to an input (audio ports only)
4) Connect All Audio Outputs/Users to an Input - connect all outputs to an input (audio ports only)
5) Change Mute Status for Audio Output/User - mute or un-mute the Audio port output
6) Change Volume for Audio Output/User - change Audio port output volume
7) Read Connection for Video Output/User -read the connection of a specific video output
8) Read Connection for Audio Output/User -read the connection of a specific audio output
9) Read Mute and Volume for Audio Output/User - read the volume and the mute status of the specified output
a) Save I/O Connections into Unit Memory -save the connections into switch memory bank b) Restore I/O Connections from Unit Memory -restore the connections from switch memory bank c) Change All Units Baud Rate (9600/COM1:) -change RS232 Baud rate of all switches
d) Reset Unit - send a reset command to the switch
e) Reset All Units - send an internal reset command to all switches f) Read Unit Size - read the switch size (number of inputs and outputs) g) Read Unit Version/Revision String -read a string containing the switch version, type, and size h) Save All Units I/O Connections into Units Memory -save the connections into switch memory bank, command for all
i) Restore All Units I/O Connections from Units Memory -restore the connections from switch memory bank, command for
- send commands to the matrix unit.
- set Ethernet connection variables
- set COM port, baud rate, and unit address
- display the program version
(audio ports only)
-the current baud rate and serial port are displayed in parentheses
- the current unit address is displayed in parentheses
switches
all switches
13
Page 18
NTI AUDIO/HD VIDEO MATRIX SWITCH
Ethernet Operations
Key Selection Description
1) Set Unit IP Address - enter the desired IP address in xxx.xxx.xxx.xxx format
- number of digits is minimum 1 and maximum 3 for each field. Leading zeroes are accepted
2) Set Unit Subnet Mask
3) Set Unit Default Gateway - enter the desired default gateway
4) Set Unit Website Timeout - set the website timeout; timeout = numeric string of timeout in seconds
5) Read Unit IP Address - read the unit IP address in xxx.xxx.xxx.xxx format
6) Read Unit Subnet Mask - read the unit subnet mask in xxx.xxx.xxx.xxx format
7) Read Unit Default Gateway - read the unit default gateway in xxx.xxx.xxx.xxx format
8) Read Unit Website Timeout - read the current website timeout period in seconds
- enter the desired IP address in xxx.xxx.xxx.xxx format
- number of digits is minimum 1 and maximum 3 for each field. Leading zeroes are accepted
- number of digits is minimum 1 and maximum 3 for each field. Leading zeroes are accepted
- Values: 60, 300, 600, 900, 1800, 3600, 7200, 18000, 28800 0 = no timeout
- Values: 60, 300, 600, 900, 1800, 3600, 7200, 18000, 28800 0 = no timeout
Setup Options
Key Selection Description
1) Select Com port current: (COM1:)
2) Select Baud rate current: (9600)
3) Set unit Address current: (1)
For any selection that requires user input, the user is prompted. When commands are sent to the matrix unit, the command string and matrix unit responses are echoed to the screen. All commands generated by the program are formatted according to the information provided in sections above. If any transmission problems are detected, an error message is displayed.
Press <Esc> or <Enter> to back out to the main menu and press again to exit.
- select PC serial port
- the current PC serial port is displayed in parentheses
- select PC serial port baud rate
- the current baud rate is displayed in parentheses
- select the unit address
- the current address is displayed in parentheses
ETHERNET CONTROL
Telnet Interface-Port 2000
The Telnet Interface enables the user to control the switch using telnet client through an Ethernet connection. The telnet server listens on ports 2000 and 2005. Port 2000 is for an operator telnet session while port 2005 (must be enabled) is intended for a software control type session (see page 16). For operator telnet control using the telnet interface and the current IP address, type the following in a command shell:
telnet 192.168.1.30 2000
The VEEMUX-A will prompt the user for a password. The user must enter the password followed by <Enter>.
The factory default password is "admin".
With a proper password sent the VEEMUX-A will respond with:
Password Successful Connection Established
14
Page 19
NTI AUDIO/HD VIDEO MATRIX SWITCH
The following commands are now available:
Command Reply Description
H(elp) or
h(elp)
CS nn,mm *<CR> Connect One Output nn To Input mm
CA nn *<CR> Connect All Outputs To Input nn
RO nn *<CR>mm<CR>
CC nn *<CR>nn<CR>
RC nn *<CR>nn<CR>
CB nn *<CR>
RV 00 *<CR>string<CR> Read NTI Version String
RU *<CR>nn,mm<CR>
RS *<CR> Reset Unit
Displays the list of commands Help
Read Connection For Output. Returns the number of the input mm connected to output nn
Save Matrix Connections Into Memory Bank nn nn should be between 00 and 99
Restore Matrix Connections From Memory Bank nn nn should be between 00 and 99
Change baud rate of serial line, nn=12(00),24(00),48(00),96(00) Factory default is 9600.
Read Unit Size Returns the number of inputs mm and the number of outputs mm
AS nn,mm *<CR> Connect audio input mm to output mm
AA nn *<CR> Connect audio input nn to all outputs
AO nn *<CR>nn<CR> Read audio connection for output nn
AM nn,mu *<CR>
AV nn,vv *<CR>
Set mute state for output nn mu(te State) = (00=UNMUTE, 01=MUTE)
Set volume level for output nn vv is a value between 00 to 99 (see chart page 12) Read mute, volume for output nn
AR nn *<CR>MU,VV<CR>
MU is 00 if the port is UNMUTED, MU is 01 if the port is MUTED. VV is a value between 00 to 99 (see chart page 12) Set value of Scan Mode dwell time (see page 9) for specific Output
Ss nn,dwt *<CR>
(nn) dwt = 000-255 (seconds) 000= disable Scan Mode
Gs nn
*<CR> dwt<CR>
Read set Scan Mode dwell time value (dwt) for specific Output (nn) in seconds (see also "Scan Mode" on page 9)
Sa nn,mm *<CR> Set scan list of individual output nn to all inputs mm
Sc nn *<CR> Clear scan list of individual output nn
S+ nn,mm *<CR> Add input mm to Scan List of output nn
S- nn,mm *<CR> Remove input mm from Scan List of output nn
Sx nn *<CR>oooxoxxxooooxxx<CR> Display the Scan List of output nn (o=skip x=don't skip)
CP
<Ctrl>-<X> (see note 4 below)
User is prompted to introduce the password twice
Good Bye. Connection to host lost.
Change password- five (5) characters minimum
Quit telnet session
Notes:
1. The commands must be typed exactl
2. If a mistake is made, the user must backspace to the beginning and completely retype the command.
y as shown in the chart. The commands are case sensitive.
3. If a command is sent that the VEEMUX-A does not recognize or exceeds the configuration of the switch, the
reply "?" may be received. Check the command syntax and try again.
4. To quit the telnet session, press the keyboard keys <Ctrl><X>.
15
Page 20
NTI AUDIO/HD VIDEO MATRIX SWITCH
Telnet Interface-Port 2005
For a software control type of telnet interface session (versus operator telnet control through port 2000 as described on page 14), connect to the VEEMUX through the current IP address at port 2005. To do this, a connection to port 2005 must first be enabled (see Web Setup on page 25). Then, with port 2005 enabled, use the command set below to control and acquire information from the VEEMUX.
Notes:
• If Port 2005 connection is idle for 10 seconds it will disconnect
• Up to 2 active connections are allowed at the same time
• After establishing the connection, the unit will answer with *<CR>. If the connection fails or there are already 2
connections established, it will answer with ?<CR>
Legend: (All numbers must be two digits)
OP : Output Port (01-MAXOUTPUTS) IP : Input Port (01-MAXINPUTS) <CR> : Carriage Return (Hex 0xD)
Command Summary
Command String Good Response Description
RU<CR> ru OP,IP<CR> Read unit size
RO OP<CR> pc OP,IP<CR> Read connection for OP
CS OP,IP<CR> *<CR> Connect OP to IP
CA IP<CR> *<CR> Connect all outputs to IP
SS 01<CR> *<CR> Enable auto-status mode
SS 00<CR> *<CR> Disable auto-status mode
SX<CR> See details Examine connections
AO OP<CR> ac OP,IP<CR> Read audio connection for OP
AS OP,IP<CR> *<CR> Connect audio OP to IP
AA IP<CR> *<CR> Connect all audio outputs to IP
AV OP,VV<CR> *<CR> Set audio volume for OP
AM OP,MM<CR> *<CR> Set audio mute status for OP
AR OP<CR> ar OP:MM,VV<CR> Read mute and volume for OP
XX<CR> *<CR> Close connection
A <CR> (carriage return, 0x0D) is considered to be the end of the command string. If a string exceeds 16 characters, an end of string will be inserted automatically to avoid buffer overflow. An eventual <LF> (line feed, new line, 0x0A) after a <CR> will be ignored. A bad string will always be responded to with the ASCII character ‘?’ followed by a <CR>.
16
Page 21
NTI AUDIO/HD VIDEO MATRIX SWITCH
Command Detail
RU-Read Unit Size
Command:
Byte 1 Byte2 Byte3
‘R’
(0x52)
‘U’
(0x55)
<CR>
(0x0D)
Response:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘r’
(0x72)
‘u’
(0x75)
Space
(0x20)
Output – 1st digit
(0x30…0x32)
Output-2nd digit
(0x30…0x39)
‘,’
(0x2C)
This command will read the size of the unit. The response returns the number of inputs and the number of outputs in two-digit, ASCII code format. If the numbers are smaller than 10, the 1st digit is ‘0’.
Input – 1st digit
(0x30…0x32)
Input – 2nd digit
(0x30…0x39)
<CR>
(0x0D)
RO-Read Connection for Output Port
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6
‘R’
(0x52)
‘O’
(0x4F)
Space
(0x20)
Response:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘p’
(0x70)
‘c’
(0x63)
Space
(0x20)
This command will read the connection of an output port. The response returns the output port that is connected to the input port.
Output – 1st digit
Output – 1st digit
(0x30…0x32)
(0x30…0x32)
Output-2nd digit
(0x30…0x39)
Output – 2nd digit
(0x30…0x39)
‘,’
(0x2C)
Input – 1st digit
(0x30…0x32)
<CR>
(0x0D)
Input – 2nd digit
(0x30…0x39)
<CR>
(0x0D)
CS- Connect Output Port to Input Port
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘C’
(0x43)
Response:
‘S’
(0x53)
Space
(0x20)
Output – 1st digit
(0x30…0x32)
Output – 2nd digit
(0x30…0x39)
(0x2C)
‘,’
Input –1st digit
(0x30…0x32)
Input –2nd digit
(0x30…0x39)
<CR>
(0x0D)
Byte 1 Byte 2
‘∗’
(0x2A)
This command connects the specified input port to the specified output port.
<CR>
(0x0D)
CA- Connect All Output Ports to Input Port
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6
‘C’
(0x43)
‘A’
(0x41)
Space
(0x20)
Response:
Byte 1 Byte 2
‘∗’
(0x2A)
This command connects all output ports to the specified input port.
<CR>
(0x0D)
Input – 1st digit
(0x30…0x32)
Input - 2nd digit
(0x30…0x39)
17
<CR>
(0x0D)
Page 22
NTI AUDIO/HD VIDEO MATRIX SWITCH
SS_01- Enable Auto Status Mode
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6
‘S’
(0x53)
Response:
‘S’
(0x53)
Space
(0x20)
‘0’
(0x30)
‘1’
(0x31)
<CR>
(0x0D)
Byte 1 Byte 2
‘∗’
(0x2A)
Auto status mode is disabled by default whenever the connection is established, and this command must be entered to enable it. When auto status mode is enabled, a message will be sent whenever an input/output connection changes from any source. The format of this message is given in the table below. The first two numeric digits are the output port number and the two after the colon are the number of the input port that is now connected to it.
<CR>
(0x0D)
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘p’
(0x70)
‘c’
(0x63)
Space
(0x20)
Output – 1st digit
(0x30…0x32)
Output – 2nd digit
(0x30…0x39)
‘:’
(0x3A)
Input – 1st digit
(0x30…0x32)
Input – 2nd digit
(0x30…0x39)
<CR>
(0x0D)
SS_00- Disable Auto Status Mode
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6
‘S’
(0x53)
Response:
Byte 1 Byte 2
‘S’
(0x53)
Space
(0x20)
‘0’
(0x30)
‘0’
(0x30)
<CR>
(0x0D)
‘∗’
(0x2A)
This command disables auto status mode.
<CR>
(0x0D)
SX- Examine connections
Command:
Byte 1 Byte 2 Byte 3
‘S’
(0x53)
Response: Multiple lines, one line for each output:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘p’
(0x70)
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘p’
(0x70)
Last line:
Byte 1 Byte 2
‘X’
(0x58)
‘c’
(0x63)
‘c’
(0x63)
<CR>
(0x0D)
Space
(0x20)
Space
(0x20)
Output – 1st digit
(0x30…0x32)
Output – 1st digit
(0x30…0x32)
Output – 2nd digit
(0x30…0x39)
Output – 2nd digit
(0x30…0x39)
‘:’
(0x3A)
‘:’
(0x3A)
Input – 1st digit
(0x30…0x32)
Input – 1st digit
(0x30…0x32)
Input – 2nd digit
(0x30…0x39)
Input – 2nd digit
(0x30…0x39)
<CR>
(0x0D)
<CR>
(0x0D)
‘∗’
(0x2A)
<CR>
(0x0D)
18
Page 23
NTI AUDIO/HD VIDEO MATRIX SWITCH
AO-Read Audio Connection for Output Port
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6
‘A’
(0x41)
Response:
‘O’
(0x4F)
Space
(0x20)
Output – first digit
(0x30…0x32)
Output – second digit
(0x30…0x39)
<CR>
(0x0D)
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘a’
(0x41)
This command will read the connection of the desired audio output port. The response returns the audio input port that is connected to that audio output port.
‘c’
(0x63)
Space
(0x20)
Output – 1st digit
(0x30…0x32)
Output – 2nd digit
(0x30…0x39)
‘,’
(0x2C)
Input – 1st digit
(0x30…0x32)
Input – 2nd digit
(0x30…0x39)
<CR>
(0x0D)
AS-Connect Audio Output Port to Input Port
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘A’
(0x41)
Response:
‘S’
(0x53)
Byte 1 Byte 2
Space
(0x20)
Output – 1st digit
(0x30…0x32)
Output – 2nd digit
(0x30…0x39)
‘,’
(0x2C)
Input – 1st digit
(0x30…0x32)
Input – 2nd digit
(0x30…0x39)
<CR>
(0x0D)
‘∗’
(0x2A)
This command connects the specified audio input port to the specified audio output port.
<CR>
(0x0D)
AA-Connect All Audio Outputs to Input Port
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6
‘A’
(0x41)
Response:
Byte 1 Byte 2
‘∗’
(0x2A)
This command connects all audio output ports to the specified audio input port.
‘A’
(0x41)
<CR>
(0x0D)
Space
(0x20)
Input – first digit
(0x30…0x32)
Input – second digit
(0x30…0x39)
<CR>
(0x0D)
19
Page 24
NTI AUDIO/HD VIDEO MATRIX SWITCH
AV- Set Audio Volume for Output Port
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘A’
(0x41)
Response:
‘V’
(0x65)
Byte 1 Byte 2
Space
(0x20)
Output – 1st digit
(0x30…0x32)
Output – 2nd digit
(0x30…0x39)
‘,’
(0x2C)
Volume – 1st
digit
(0x30…0x32)
Volume – 2nd
digit
(0x30…0x39)
<CR>
(0x0D)
‘∗’
(0x2A)
This command sets the volume specified audio output port to the specified level (00 – 99).
<CR>
(0x0D)
AM- Mute/Unmute Audio Output Port
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘A’
(0x41)
Response:
‘M’
(0x4D)
Space
(0x20)
Output – 1st digit
(0x30…0x32)
Output – 2nd digit
(0x30…0x39)
‘,’
(0x2C)
‘0’
(0x30)
Mute Status
(0x30 or 0x31)
<CR>
(0x0D)
Byte 1 Byte 2
‘∗’
(0x2A)
This command sets or clears the mute status of the specified audio output port. A mute status of 00 indicates that the port is not muted, while a status of 01 indicates that the port is muted.
<CR>
(0x0D)
Terminate telnet session
Command:
Byte 1 Byte 2 Byte 3
‘X’
(0x58)
Response:
‘X’
(0x58)
<CR>
(0x0D)
Byte 1 Byte 2
‘∗’
(0x2A)
The unit will respond with ‘*’<CR> and close the connection, terminating the telnet session. The unit is then available for future connections.
<CR>
(0x0D)
20
Page 25
NTI AUDIO/HD VIDEO MATRIX SWITCH
AR- Read Mute and Volume for Audio Output Port
Command:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6
‘A’
(0x41)
Response:
Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9
‘a’
(0x61)
Byte 10 Byte 11 Byte 12
Volume – 1st digit
(0x30…0x32)
This command will read the volume and mute status of the desired audio output port. The response returns the audio output port and its mute status and volume.
‘R’
(0x52)
‘r’
(0x72)
Space
(0x20)
Space
(0x20)
Volume – 2nd digit
(0x30…0x39)
Output – first digit
(0x30…0x32)
Output – 1st digit
(0x30…0x32)
Output – 2nd digit
<CR>
(0x0D)
Output – second digit
(0x30…0x39)
(0x30…0x39)
‘,’
(0x2C)
<CR>
(0x0D)
‘0’
(0x30)
Mute Status
(0x30 or 0x31)
‘,’
(0x2C)
21
Page 26
NTI AUDIO/HD VIDEO MATRIX SWITCH
Web Interface
A user may control the connections of the VEEMUX-A using a Web Interface via any web browser (see page 1 for web supported browsers). With the VEEMUX-A connected to a LAN through an Ethernet cable, a user can access the web interface controls inside the VEEMUX-A.
FYI: To quickly locate a VEEMUX-A on the LAN and edit the IP address settings, use the Device Discovery Tool (page
31).
To access the web interface, type the current IP address into the address bar of the web browser. Address
To open an SSL-encrypted connection, type: Address
You will be prompted to accept a certificate. Accept the NTI certificate.
A "Welcome Page" will appear.
Figure 8- Web interface Welcome page
http://192.168.1.30
https://192.168.1.30
Enter the Password
Click on a link to the left to be prompted for a username and password. To change the password, see page 30.
User Name = Administrator (upper case letter for "A" only) Password = admin (lower case letters only)
Note: The browser must be configured to accept cookies in order for the user to successfully make use of the web interface.
Figure 9- Web interface Login Prompt
As described on the following pages, each link will enable different areas of control for the VEEMUX-A.
22
Page 27
NTI AUDIO/HD VIDEO MATRIX SWITCH
Video Switch Page
The Video Switch page (right) displays the active connections (shown in orange) and enables the user to control the audio and video connections of the VEEMUX-A, or just the video. (To change audio connections separately, see page 24.) Up to 100 different connection configurations can be saved and later recalled by any connection method.
Note: Configuration 0 will be automatically loaded when the VEEMUX-A is powered up.
To change a connection
with circle in the center) that intersects the input and output columns. A black dot will be placed in the circle to indicate the selection. Then press the Submit button. The display will be reloaded with the selections changed to orange to indicate they are now active. Multiple connections can be changed simultaneously.
To quickly clear the selected radio buttons Changes button. This will only work if the Submit button has not
already been pressed with the selections made.
To quickly connect all outputs to a single input, choose the desired input from the "Set all Outputs to Input" drop-down list and press the Submit button.
, click on the radio button (square image
press the Clear
Figure 10- Web interface Video Switch page
Note: If radio buttons are selected in addition to using the "Set all Outputs to Input" option, the selections made by the "Set all Outputs to Input" will take precedence when the Submit button is pressed. Selections that conflict with it will be ignored.
To save a configuraton
(numbers 0-99) to save the active
The webpage configuration that loads after a Save is the configuration that was actually saved.
To load a saved configuration
desired configuration. Then press the Load button. The VEEMUX-A will make the connections and the screen will refresh to show the connections associated with that configuration selection.
, from the Stored Configurations user interface, use the drop-down list to select the desired slot
configuration into and press the Save button.
Note: This will save the currently active VEEMUX-A. If changes have been made in the web interface without first pressing the Submit button, those changes will not yet be part of the active
Note: If changes to the active another user prior to saving the current connection selections, the changes made by the other user will be saved as the configuration.
, from the Stored Configurations user interface, use the drop-down list to select the
configuration.
configuration have been made by
configuration on the
23
Page 28
NTI AUDIO/HD VIDEO MATRIX SWITCH
To change video only, or audio and video, either
leave the "Video + Audio" block empty (to effect only video) or use the mouse to place a check in the box shown to the right (to effect audio and video connections). With a change of status, press Save to have it take effect.
To change audio connections only, the Audio Switch page (below) enables the user to control the audio connections independently of the video connections.
Audio Switch Page
Using the same methods of control described for the Video Switch page (page 23) the user can separately control the audio connections made between ports on the VEEMUX-A. Additionally, the user can mute any output port or raise and lower the volume at each output port.
Figure 11- Web interface Audio Switch page
Using the chart on page 25, apply the value for the desired level of volume for each output port.
24
Page 29
NTI AUDIO/HD VIDEO MATRIX SWITCH
Serial Data (VV) Audio Volume Serial Data (VV) Audio Volume
90-99 +10dB 40 -40dB 80 0dB 30 -50dB 70 -10dB 20 -60dB 60 -20dB 10 -70dB 50 -30dB 0 -80dB
Place a checkmark in the Mute box for any output port where no volume is desired.
Setup Pages
These settings enable the user to configure the VEEMUX-A web interface connection. This change will take a few seconds and automatically redirect the user to the IP address specified.
Note: Since the webserver will be restarting, all active connections will be logged out.
The Website Timeout option controls how long an inactive web connection will stay logged in. Any change to the Website Timeout configuration takes effect immediately.
The “Telnet configuration” block enables the VEEMUX to receive commands on port 2005 in addition to port 2000. For more on telnet use, see “Telnet Interface- Port 2000” on page 14.
Figure 12- Web interface Setup page
25
Page 30
NTI AUDIO/HD VIDEO MATRIX SWITCH
Figure 13- Web interface Serial Setup page
Changes to the Serial Address and Serial Speed (Fig. 13) do not require a reset and will take effect immediately.
Input Names
Figure 14- Web interface Input Names page
The Input Names pages (Video and Audio) enable the Administrator to change the names of the video and audio input ports displayed on the Switch page. To change an input port name, enter the name of the port for the desired input port number, and press "Save".
Note: Only the changes to the port directly to the left of the Save button will be saved. All other changes to ports without pressing the port's respective Save button will be discarded. All port names must be no more than 12 characters in length and only alphanumeric characters may be used.
26
Page 31
NTI AUDIO/HD VIDEO MATRIX SWITCH
Output Names
From the Administration menu, the Video or Audio Output Names page can be displayed. (Selected separately from the menu.) These pages enable the Administrator to change the names of the output ports displayed on the Switch page. To change an Output Name, enter the name of the port for the desired output port number, and press "Save".
Note: Only the changes to the port directly to the left of the Save button will be saved. All other changes to ports without pressing the port's respective Save button will be discarded. All port names must be no more than 16 characters in length and only alphanumeric characters may be used.
Figure 15- Web interface Output Names page
Outputs Scanning Sequences
Figure 16- Web interface Scan Mode page
The Outputs Scanning Sequences page displays the configuration of an automatic switching sequence from input (video source) to input for each output (monitor).
The page displays:
output number being configured  the Scanning Sequence function status for that output  the Scan Mode status of each input (ON/OFF)  the length of time in seconds (dwell time) that each input will be viewed when connected
27
Page 32
NTI AUDIO/HD VIDEO MATRIX SWITCH
The output selection at the top of the page can be changed to any output to display the Scan Sequence Input selections and dwell times for that output.
The inputs and the amount of time that each will be viewed (0-32000 seconds) can be set to cycle sequentially for each connected output. If an input is set to 0 seconds, the sequence status will display “OFF”, and the input will be omitted from the scanning sequence. To include an input in the sequence, enter a dwell time period from 1-32000 seconds, and press Apply.
To quickly clear all dwell time settings, press the Clear All button at the bottom of the page. All sequence settings will change to “OFF” and all dwell time settings will change to 0.
To enable the scanning sequence for the output shown, place a checkmark in the “Sequence Enable” block.
Tip: To quickly enable the scan sequence for multiple outputs, use the “Sequence Enable” blocks found on the Switch Page (page 23).
Note: If only 1 input is set to Sequence “ON”, then the output connection to that input will not change when the Scanning Sequence is enabled.
Note: If the scanning sequence for an output is enabled through the web interface, then the Scan Mode for that output
as configured through the LCD menu (page 9) will be disabled.
Example of using Outputs Scanning Sequences
Problem: A synchronous scan is desired for all outputs with a dwell time of 30 minutes per input, and no two outputs should be
looking at the same input at any given time.
Solution:
1. Set the dwell time for all inputs listed in each output at 180 seconds (30 minutes). Press “Apply”.
2. Go to the Video Switch page (page 23) and set each output to an input of the same number (1 to 1, 2 to 2, 3 to 3, etc..). Click on “Submit” at the bottom of the Video Switch Page to submit selections and establish a connection and starting point for the scanning sequence. (Blocks shown in yellow in the third image indicate connections made.)
3. Click on the “Sequence Enable” box for each output (from the Video Switch Page).
4. Click on “Submit” again to begin the scanning sequence for each output.
From the moment the configuration is submitted, a synchronous scan will begin on all outputs. Each output will connect to its respective input for 30 minutes. After 30 minutes, the outputs will each switch to the next consecutive input and remain connected for 30 minutes. This cycle will continue indefinitely until sequencing is disabled.
Step 1- setup dwell times
Step 4- Click on “Submit” to begin
Step 2- setup starting point for scan and click “Submit”
Step 3- enable the scanning sequence
28
Page 33
NTI AUDIO/HD VIDEO MATRIX SWITCH
Update Firmware
Figure 17- Web interface Update Firmware page
The Update Firmware page (found in the main menu under "ADMINISTRATION") shows the current version of the firmware for the Web interface (Fig-17-upper) and for the Front panel (Fig-17-lower) and enables the Administrator to update the firmware of the VEEMUX-A.
WARNING: Failure to carefully follow these directions can permanently damage the VEEMUX-A. Please read these
directions in full before continuing. Do not, under any circumstances, reset or power-down the VEEMUX-A while the firmware is being updated. Do not attempt to update the firmware if a power-failure is likely.
Note: The Firmware can only be updated from the non-secure (http) website. If you attempt to access this page from the secure (https) website, you will be automatically redirected to the non-secure site.
To update the firmware:
1. Contact NTI for the latest firmware file and copy it to your computer.
2. On the Update Firmware page, browse to the firmware file.
3. Press Update Firmware (for the Ethernet Control) or Update Front Panel Firmware (for the LCD).
Note: If an update is attempted using the wrong firmware for the section an error message will be received. No update will occur.
4. Wait for the following message to appear (may take several minutes):
Upload Succeeded Flash of new image completed: The system will automatically restart.
5. The VEEMUX-A will restart itself in 10 seconds, logging out all connections. After approximately 40 seconds,
the VEEMUX-A will be ready to resume operation.
If a message appears stating that the Upload has failed, or that a non-fatal error has occurred:
1. Ensure that the file being uploaded is the NTI firmware file.
2. Repeat the process from step 2 above.
Note: The following message does not indicate that damage to the product has occurred.
If a message appears stating that there has been a fatal error:
1. DO NOT RESET OR POWER-DOWN THE VEEMUX-A.
2. Repeat the update process from the first step 2 above.
3. If you get another Fatal Error message, call NTI tech-support at 1-800-742-8324 or 330-
562-7070.
FYI: The VEEMUX-A should continue to run normally unless it is reset. However, damage may have occurred to the web server firmware that will prevent the product from starting up correctly.
For updating the Ethernet Control, use this section and insert the file v1_x.bin
For updating the Front Panel LCD, use this section and insert the file rmtlcd_va_1_x. hex
29
Page 34
NTI AUDIO/HD VIDEO MATRIX SWITCH
Change Password Page
Use this page to change the password for accessing the web interface. (This password is also used for the telnet interface.) Be sure to make note of the new password exactly as it is case sensitive. The password must be between 5 and 16 characters in length and can be alphabetical or numeric.
Figure 18- Web interface Password page
Help Page
This page explains the purpose of each of the other pages in the VEEMUX-A web interface.
Update Web Server
Click on this selection to globally update the Web Server to any settings that have been changed though Telnet, the RS232 interface, or via the front panel of the VEEMUX-A. All users presently connected will be disconnected and must log back in after using this command.
Figure 19- Updating the Web Server
Logout Page
This page will enable the user to end the session and close the web interface connection. Click on the "Press Here to Continue Logout" button to exit the VEEMUX-A web interface.
Note: The connection will timeout automatically after a preset period of inactivity, configurable on the Web Setup page.
Figure 20- Web interface Logout page
30
Page 35
NTI AUDIO/HD VIDEO MATRIX SWITCH
DEVICE DISCOVERY TOOL
In order to easily locate the VEEMUX-A on a network, and change the IP settings, the NTI Device Discovery Tool may be used. A link to the Discovery Tool is provided on the web page that appears when you insert the instruction manual CD provided into your CD ROM drive. Click on the link or browse the CD and click on the file discover.html . This will open your browser and display the Device Discovery Tool page.
Note: The Device Discovery Tool requires the Java Runtime Environment to operate. A link to the web page from which it can be downloaded and installed is provided on the CD.
Note: The computer using the Device Discovery Tool and the VEEMUX-A must be connected to the same physical network in order for the Device Discovery Tool to work.
Figure 21- Device Discovery Tool page
Use the Device Discovery Tool to display all NTI VEEMUXs on your network, along with their network settings. Follow the instructions on the Device Discovery Tool page to use the tool and to change the device settings if so desired.
31
Page 36
NTI AUDIO/HD VIDEO MATRIX SWITCH
INFRARED CONTROL
(Optional)
The IRT-64X32 (or IRT) is an infrared remote transmitter that enables the user to control up to four (4) NTI VEEMUX-A Video Matrix switches via an infrared receiver from up to 50 feet away (with an unobstructed view). The IRT is battery-powered and always ready to use. The IRT will have a blank display unless an action is being selected by the user. The IRT enables the user
to make connections between any input (video source) and any output (display device) on up to four (4) separate switches
Note: Multiple switches that are located close to each other and are to be individually controlled must be pre-configured (by NTI) to be identified by the IRT as switches #1, #2, #3, or #4. Please ask your salesperson to have switches configured accordingly at time of order. Unless otherwise specified, by default, all IRT-enabled switches will be configured as switch #1.
Materials included:
• IRT-64X32 Infrared Remote Transmitter for video matrix switches
• (2) AA Cell Batteries- installed
NTI
Network Technologies Inc
R
.
Features And Functions
Keypad
¾ Buttons Numbered 0-9 – Used for port selection
¾ OUT – Pressed to validate and transmit the Output selection
SW
12 3
45 6
78 9
OUT IN
Lo Batt
0
SYS
¾ IN – Pressed to validate and transmit the Input selection
¾ SYS – Pressed to choose the switch to be controlled or to configure the maximum
IRT-6 4X32
number of inputs/outputs
LCD Display
¾ The first digit of the LCD will display the number of the switch to be controlled followed by the decimal point. This way the
user will always know which switch will be effected by the IRT.
¾ The last two digits in the LCD represent 1) the desired input or output port to be connected or 2) the desired switch to be
controlled when changing switches.
¾ The "Lo Batt" decimal point will illuminate when the user should change the batteries.
¾ The LCD will automatically power-down after 30 seconds of non-use and power-up with the press of any button.
Represents switch to be controlled
Represents Input or Output
Lo BattSW
32
Page 37
NTI AUDIO/HD VIDEO MATRIX SWITCH
How To Use The IRT
The IRT-64X32 enables the user to control the connections of up to 32 input ports and 16 output ports on up to four (4) separate NTI video matrix switches. When any key is pressed, the IRT will power ON. A number key should always be pressed first unless a change to the configuration is desired (see "Set Configuration" on page 35). When a number key is pressed the LCD will display that number blinking. What to press next depends on what action is desired;
• change the switch to be controlled
• change the output port
• change the input port
Note: The user must always change or confirm the output port first and the input port second
If the "SYS", "IN" or "OUT" key is pressed first, the LCD will display the current switch followed by the decimal point and an error signal "EE". The error signal will display because there is no number to be displayed. A number key must always be pressed before a "SYS", "IN" or "OUT" key is pressed.
Exception: The "SYS" key is pressed first when setting the configuration. (See page 35)
Power ON with SYS, IN or OUT keys Power ON with "2" key
Change the Switch
Press the number of the switch to be controlled. The number selected will be blinking in the last digit.
FYI: If the user realizes that an invalid number has been introduced before buttons, a correction can be made by pressing the correct number. If the correct number is a single digit, it must be preceded by a "0" to make the correction.
Press the "SYS" key. The blinking number will become blank and the switch number will update.
Note: If the number entered is larger than 4, when the "SYS" key is pressed the LCD will display the current switch and the error signal "EE".
33
pressing either the "SYS", "IN", or "OUT"
Page 38
NTI AUDIO/HD VIDEO MATRIX SWITCH
Change Output Port
Press the desired port number. If there is no change in the desired output port, the output port must still be selected. As the digits are selected, the last number entered will blink. The LCD will also display the current switch number followed by the decimal point.
With the desired port number selected, point the IRT at the switch/receiver and press the "OUT" button to transmit the selection and make the change. The blinking number in the LCD will stop blinking. An LED on the receiver will illuminate.
FYI: If the switch did not receive the data the LED will not illuminate. The user can re-send the same data by pressing the "OUT" button again. The LED at the receiver will illuminate to indicate a completed transmission from the IRT..
Note: If the number introduced is larger than the maximum number of outputs the IRT is configured for, then once the "OUT" key is pressed the LCD will display the current switch and the error signal "EE".
Change Input Port
Press the desired port number. As the digits are selected, the last number entered will blink. The LCD will also display the current switch number followed by the decimal point.
With the desired port number selected, point the IRT at the switch/receiver and press the "IN" button to transmit the selection and make the change. The blinking number in the LCD will stop blinking. The LED at the receiver will go OFF.
FYI: If the switch did not receive the data the LED will not go OFF. The user can re-send the same data by pressing the "IN" button again. The illuminated LED on the receiver will go OFF when the received data is complete.
Note: If the number introduced is larger than the maximum number of inputs that the IRT is configured to control, then once the "IN" key is pressed the LCD will display the current switch and the error signal "EE".
34
Page 39
NTI AUDIO/HD VIDEO MATRIX SWITCH
Set Configuration
The IRT-64x32 factory default setting is 32 inputs and 16 outputs. When the batteries are changed the setting will return to the default value. At the default setting the IRT has the ability control any matrix switch with up to 32 inputs and 16 outputs without changing the configuration. However, when controlling smaller switches without changing the configuration it is up to the user to press valid number(s). To avoid confusion, it is recommended to configure the IRT to communicate with the largest switch to be controlled.
To change the maximum number of inputs or outputs:
1. From power-down state (blank LCD) press and hold the "SYS" button for at least 3 seconds. The LCD will first display an
error message but after 3 seconds the letter "c" will display:
2. Enter the number of inputs or outputs. As the digits are entered, they will be displayed and the last one entered will blink.
Note: Only the inputs OR the outputs may be configured each time the configuration function is used. To perform another configuration operation the user must start again at "Set Configuration" step 1.
3. Accept the choice by pressing the "IN" button for setting inputs, or the "OUT" button for setting the outputs. The LCD will not
blink anymore and will display “i” (for inputs) or "o" (for outputs) and the number.
Notes:
- The maximum number of inputs and outputs that can be entered is 32 and 16 respectively. If the user introduces a
number larger, the display will show an error signal ("c.EE") and the maximum number will remain at the last valid value configured.
- If more than one switch is being controlled, the IRT should be configured for the largest switch. It is up to the user
to introduce valid numbers to the smaller switches when making selections.
35
Page 40
NTI AUDIO/HD VIDEO MATRIX SWITCH
Battery Replacement
The IRT has a low-battery indicator to let the user know when it is time to change the batteries. The right-hand decimal point in the LCD display will illuminate (see illustration below). This will stay illuminated while the IRT is in use until the batteries are changed or the battery charge is too low for the IRT to operate.
To Change The Batteries:
1. Remove slide cover on rear of unit.
2. Remove old batteries carefully.
3. Insert (2) new “AA” cell batteries.
4. Replace slide cover on unit.
SW
Lo Batt
5. Reset the configuration if a range other than the default setting is desired.
Specifications
• 50 feet maximum operating range between the transmitter and the front of the NTI switch / infrared
receiver.
Note: Line of sight between IRT and receiver must be unobstructed.
• Select up to 16 outputs
• Select up to 32 inputs
• Operates with (2) “AA” batteries.
• "Lo Batt" decimal point in LCD will illuminate to indicate a low battery when the battery voltage drops to approximately 2.25
volts.
Troubleshooting the IRT
PROBLEM SOLUTION
IRT is not selecting output
IRT is not selecting input
• Check battery
• Make sure you are using the correct IRT for the switch. (Check model number
on the front of the IRT.)
• The IRT may be configured to control the wrong switch or the wrong size of switch (see "Set Configuration" on page 28)
• Check battery
• The IRT may be configured to control the wrong switch or the wrong size of
switch (see "Set Configuration" on page 28)
36
Page 41
NTI AUDIO/HD VIDEO MATRIX SWITCH
RS232 UPGRADE OF THE FRONT PANEL LCD FIRMWARE
The firmware in the front panel LCD can be upgraded to include the latest features available using either the RS232 port (below) or Ethernet Control (page 22). Follow the procedure below to use the RS232 method to update the Front Panel LCD firmware in the VEEMUX-A. To prepare, first download the rmtlcd_va_1_x. hex file (x= the current firmware version) from the NTI Video Matrix Switch website http://www.networktechinc.com/vmtx.html
The following will be needed:
1 PC running HyperTerminal (or other terminal program) equipped with a 9 pin or 25 pin serial port
o
o A VEEMUX-A made to use the Firmware Upgrade feature
o 1 serial cable wired straight through to connect your PC's serial port to the “RS232” port on the VEEMUX-A
(see cable specifications on page 32)
o A firmware file for a VEEMUX-A downloaded from www.networktechinc.com
Procedure:
1. Power OFF the VEEMUX-A.
2. Connect the null modem cable between the serial port on the PC and the “RS232” port on the VEEMUX-A.
. Update front panel firmware
3. Use HyperTerminal to prepare to connect to the VEEMUX-A (using settings 9600 baud, 8-N-1 no flow). Make sure
HyperTerminal has been configured for connection through the correct COM port on the PC.
4. With the HyperTerminal window open, hold the spacebar and apply power to the VEEMUX-A. A command menu and the Command prompt (>) should appear.
Copyright 2006 Network Technologies Inc
Flash Loader Utility v1.0
H Display this help menu
C Clear flash
L Load flash with .hex file
Command>
Note: Commands are not case-sensitive (for example, 'h' or 'H' will execute the help command), and the <Enter> key is not required to execute a command.
If the Flash Loader Utility menu does not appear, the VEEMUX-A you have may have been made prior to the release of this product change. To verify this, with the VEEMUX-A powered ON, at the HyperTerminal window enter the following command:
RV 01 (be sure to include the space)
The following revision string will appear:
$date: 2006/04/17
If the date shown is before
20:20:59 $$revision: 1.1 $$IN: 08 $$OUT: 04 $
2006/04/17, then the VEEMUX-A firmware cannot be upgraded using this procedure.
37
Page 42
NTI AUDIO/HD VIDEO MATRIX SWITCH
5. Press <L> to load the firmware (hex) file. This will prepare the file for transfer to the VEEMUX-A.
If the file fails to load, press the <C> key to clear the old firmware, and press <L> to load it again.
6. When the message “Start sending file via Xmodem protocol..”' appears, the VEEMUX-A is waiting for the Firmware file to
be uploaded.
A box or some other characters may be displayed repeatedly on the line below this message while the VEEMUX-A waits; this is normal.
7. Click “Transfer” > “Send File...” from the HyperTerminal menu bar
8. Select “Xmodem” from the Protocol drop-down menu,
9. Click “Browse”. Go to the directory containing the firmware to load into the VEEMUX-A. Select to highlight the hex file, click “Open”, then click “Send”.
10. A window will appear displaying information about the upload operation, including the upload process. It may take a few
seconds for the upload to begin.
DO NOT DISRUPT POWER while the firmware is uploading to the VEEMUX-A.
11. When the upload is completed, the command prompt will return. Power the VEEMUX-A OFF, then ON again. Upgrading
is complete, and the VEEMUX-A is ready to use.
38
Page 43
NTI AUDIO/HD VIDEO MATRIX SWITCH
RS232 CONNECTION CABLES
Pinout of RS232 port on VEEMUX-A
The VEEMUX-A RS232 serial port is a DB-9F (female) connector configured as a DCE (data communication equipment) port. The RS232 port interface signals are listed below, including equivalent CCITT V.24 identification, and signal direction:
DB-9F
pin #
1 N/a N/a N/a No connection -­2 TxD BA 103 Transmit Data Output 3 RxD BB 104 Receive Data Input 4 DSR CC 107 Data Set Ready Input 5 SG AB 102 Signal Ground – 6 DTR CD 108.2 Data Terminal Ready Output 7 CTS CB 106 Clear To Send Input 8 RTS CA 105 Request To Send Output 9 N/a N/a N/a No connection --
Common
name
EIA
name
CCITT
name
Function Direction
Specifications for Straight-Through Serial Cable for CPU connection
VEEMUX-A to PS2 or SUN CPU (9-PIN) VEEMUX-A to MAC (25 PIN)
VEEMUX PS/2 or SUN CPU VEEMUX MAC CPU
9 pin Signal 9 pin 9 pin Signal 25 pin
Function Pin # Direction Pin # Function
RxD 3 3 TxD RxD 3 2 TxD TxD 2 2 RxD TxD 2 3 RxD CTS 7 7 RTS CTS 7 4 RTS RTS 8 8 CTS RTS 8 5 CTS DSR 4 4 DTR DSR 4 20 DTR DTR 6 6 DSR DTR 6 6 DSR SG 5 5 SG SG 5 7 SG
VEEMUX
9 PIN
DTE
9 PIN
DTE
PS/2 or SUN CPU
1
2345
6
8
7
9
Mating Face of a 9D Male
1
14 15
2
Function Pin # Direction Pin # Function
9 PIN
VEEMUX
345
17
16
18
6
19 20
7
DTE
89
10
21 22 23 24 25
25 PIN DTE
13
1211
Mating Face of DB25 Male
MAC CPU
39
Page 44
NTI AUDIO/HD VIDEO MATRIX SWITCH
Pinout for Matrix Y-1 Cable
Arrows indicate signal direction.
Wiring Schematic of Matrix-Y-1 cable
(Unit #1)
23
33
555
9D Female9D Male 9D Male
(Source)
(Unit #2)
Not connected to source connector
22
7
Jumper
8 1
Jumpers
4 6
Figure 22- Pinout for Matrix Y-1 Cable
RACK MOUNTING INSTRUCTIONS
This NTI switch was designed to be directly mounted to a rack. It includes a mounting flange to make attachment easy. Install 4 cage nuts (supplied) to the rack in locations that line up with the holes (or slots) in the mounting flange on the NTI switch. Then secure the NTI switch to the rack using four #10-32 screws (supplied). Be sure to tighten all mounting screws securely.
Do not block power supply vents in the NTI switch chassis (if provided) . Be sure to enable adequate airflow in front of and behind the NTI switch.
Attach all cables securely to the switch and where necessary supply adequate means of strain relief for cables.
10-32
Rack Screws
(supplied)
Cage Nuts
(supplied)
Rack
Figure 23- Mount the VEEMUX-A to a rack
40
Page 45
NTI AUDIO/HD VIDEO MATRIX SWITCH
SPECIFICATIONS
DESCRIPTION SPECIFICATION Video
Video Connectors BNC Maximum Resolution 1920X1080@ 60Hz Supported Signals Component video, S-video, Composite video Input/Output Impedance 75 ohm Maximum Input / Output Levels 1.7Vp-p, no DC offset Gain Unity DC offset (output) +/- 15mV; no input offset Bandwidth 160MHz)
Stereo Audio
Signal Type Stereo Audio, analog, left / right Connectors (Unbalanced) RCA: Red = Right; White = Left; or BNC (customer defined) Connectors (Balanced) Detachable Screw Terminals Maximum Input Level 2.5Vp-p Input Impedance 10K ohms Output Impedance 50 ohms Frequency Response +0.15/-1.65dB; 20Hz – 20kHz THD +N 0.15% @ 1kHz S/N 90dB Stereo Channel Separation -80dB Output Gain -80dB to 10dB
Digital Audio
Signal Type S/PDIF Connectors RCA (Orange); or BNC (customer defined) Input Impedance 75 ohms Output Impedance 75 ohms Resolution 16 to 24 bit Sampling Rate 32 to 96 kHz
RS232 Control
RS232 Connector DB9 female, 1200-9600 bps Supported Signals Tx, Rx; RTS wired to CTS; DTR wired to DSR and CD Flow Control None Parity None Handshaking None
Ethernet Control
Ethernet Connector RJ45 female Connection Speed 10 / 100 Mbps; half-duplex and full-duplex support Security SSL Supported Protocols Http, https, telnet
General Specifications
Available Sizes 8x4, 8x2, 4x4, 4x2 Power 110~240VAC; 50 or 60Hz Power Connector IEC Female Fuse protection 2A 240VAC Fast-blo Operating Temperature 10° - 40° C Enclosure Type Metal, Rack, 2RU Enclosure Dimensions 19”x10”x3.5” Standard Case 2RU Rack Mount
Compliance Certifications
CE Mark Complies with EN55022 ESD Protection Complies with EN61000-4-2 Specification UL UL Listed E238791 FCC Part 15
41
Page 46
NTI AUDIO/HD VIDEO MATRIX SWITCH
TROUBLESHOOTING
Problem Solution
No Video - Check power – power ON, power cable connected
- Check video cabling – make sure cables are secured
- Check connections – make sure you’re connected to an active input
No Audio - Check power – power ON, power cable connected
- Check audio cabling – make sure BNC cables are secured (for digital audio),
- make sure screw terminals are secure (for analog audio).
- Check connections – make sure you’re connected to an active input
- Check volume – make sure the output you are checking is un-muted and turned up to an audible
level.
SAFETY STATEMENTS
Grounding
These products have protective earth ground terminals and are built with full attention to consumer safety. There must be an un­interruptible safety earth ground between the main power source and the product's power cord or supplied power cord set. If ever the possibility exists for the grounding protection to have been reduced in any way, disconnect the power supply until the grounding connection has been fully restored.
Servicing
NTI products are not intended to be serviced in the field and contain no user-serviceable parts. In the event repair is needed, all servicing must be performed by factory trained and authorized service personnel. Only those items specifically identified in this manual (if any) may be adjusted by the user of this product and adjusted only as instructed in this manual.
42
Page 47
NTI AUDIO/HD VIDEO MATRIX SWITCH
INDEX
address, 10 Audio Switch, 25 batteries, 37 baud rate, 10 cables, 40 change the batteries, 37 control_options, 7 default username and password, 1 Device Discovery Tool, 32 Ethernet, 5, 15 firmware update, 30, 38 fuse, 2, 42 grounding, 43 help, 31 HyperTerminal, 38 infrared control, 33 infrared remote transmitter, 33 IP address, 26 IRT, 33 keypad control, 7 LAN, 5 Matrix Switcher's Control Program, 14 Matrix-Y-1, 10 memory, 8
methods of control, 7 mount to a rack, 41
password, 1 RS232 control, 5, 10
safety statements, 43 Scan Mode, 9 Scanning Sequences, 28 serial cable, 5 serial setup, 27 Sertest, 14 servicing, 43 setup, 15 Software control, 17 Telnet, 15 Telnet password, 1 Telnet-Port 2005, 17 unit address, 10 Update front panel firmware, 30 user name, 1 username and password, 23 video resolution, 1 Video Switch, 24 volume, 12
web interface, 23
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
MAN066 Rev. 5/19/08
43
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
