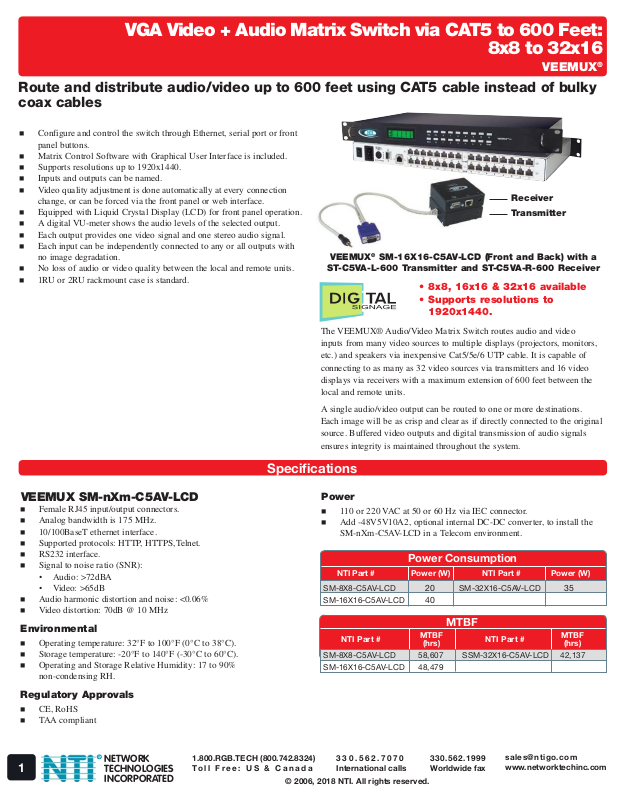

VGA Video + Audio Matrix Switch via CAT5 to 600 Feet:
8x8 to 32x16
VEEMUX®
Route and distribute audio/video up to 600 feet using CAT5 cable instead of bulky
coax cables
Configure and control the switch through Ethernet, serial port or front
panel buttons.
Matrix Control Software with Graphical User Interface is included.
Supports resolutions up to 1920x1440.
Inputs and outputs can be named.
Video quality adjustment is done automatically at every connection
change, or can be forced via the front panel or web interface.
Equipped with Liquid Crystal Display (LCD) for front panel operation.
A digital VU-meter shows the audio levels of the selected output.
Each output provides one video signal and one stereo audio signal.
Each input can be independently connected to any or all outputs with
no image degradation.
No loss of audio or video quality between the local and remote units.
1RU or 2RU rackmount case is standard.

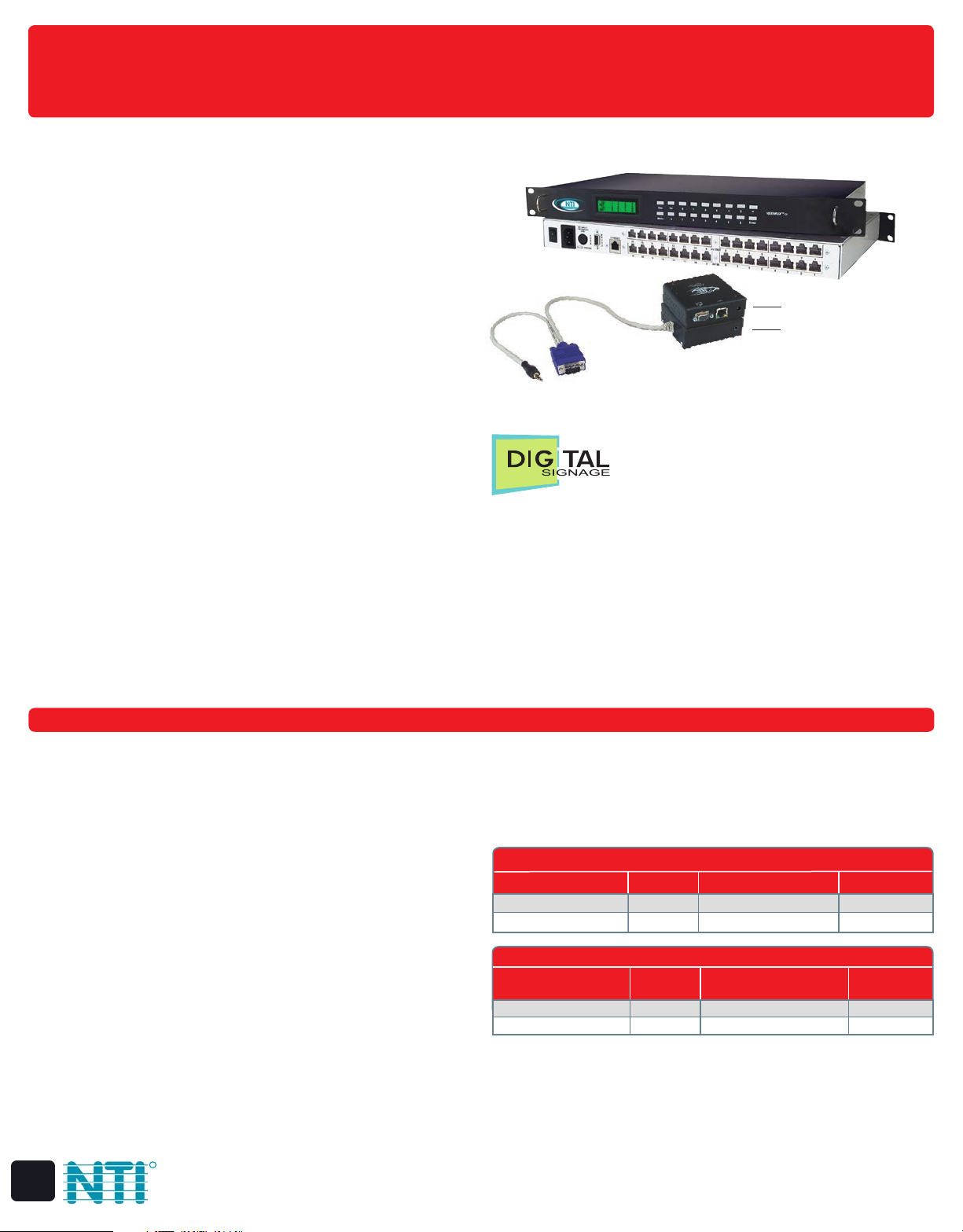

VEEMUX® SM-16X16-C5AV-LCD (Front and Back) with a
ST-C5VA-L-600 Transmitter and ST-C5VA-R-600 Receiver
•8x8, 16x16 & 32x16 available
•Supports resolutions to
1920x1440.
Receiver
Transmitter
VEEMUX SM-nXm-C5AV-LCD
Female RJ45 input/output connectors.
Analog bandwidth is 175 MHz.
10/100BaseT ethernet interface.
Supported protocols: HTTP, HTTPS,Telnet.
RS232 interface.
Signal to noise ratio (SNR):
• Audio: >72dBA
• Video: >65dB
Audio harmonic distortion and noise: <0.06%
Video distortion: 70dB @ 10 MHz
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C).
Storage temperature: -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 to 90%
non-condensing RH.
The VEEMUX® Audio/Video Matrix Switch routes audio and video
inputs from many video sources to multiple displays (projectors, monitors,
etc.) and speakers via inexpensive Cat5/5e/6 UTP cable. It is capable of
connecting to as many as 32 video sources via transmitters and 16 video
displays via receivers with a maximum extension of 600 feet between the
local and remote units.
A single audio/video output can be routed to one or more destinations.
Each image will be as crisp and clear as if directly connected to the original
source. Buffered video outputs and digital transmission of audio signals
ensures integrity is maintained throughout the system.
Specifications
Power
110 or 220 VAC at 50 or 60 Hz via IEC connector.
Add -48V5V10A2, optional internal DC-DC converter, to install the
SM-nXm-C5AV-LCD in a Telecom environment.
NTI Part # Power (W) NTI Part # Power (W)
SM-8X8-C5AV-LCD 20 SM-32X16-C5AV-LCD 35
SM-16X16-C5AV-LCD 40
NTI Part #
(hrs) (hrs)
SM-8X8-C5AV-LCD 58,607 SSM-32X16-C5AV-LCD 42,137
SM-16X16-C5AV-LCD 48,479
Power Consumption
MTBF
MTBF
NTI Part #
MTBF
Regulatory Approvals
CE, RoHS
TAA compliant
R
1
NETWORK
TECHNOLOGIES
INCORPORATED
1.800.RGB.TECH (800.742.8324)
Toll Free: US & Canada
© 2006, 2018 NTI. All rights reserved.
330.562.7070
International calls
330.562.1999
Worldwide fax
[email protected]
www.networktechinc.com
Page 2
VGA Video + Audio Matrix Switch via CAT5 to 600 Feet:
8x8 to 32x16
Route and distribute audio/video up to 600 feet using CAT5 cable instead of bulky
coax cables
Specifications (Continued)
VEEMUX®
VEEMUX®
Local Unit (Transmitter)
Video
VGA transmitter:
• Male 15-pin HD connector for input connection.
• Female 15-pin HD connector for local monitor.
• Supports resolutions to 1920x1440.
Input impedance: 75 Ohms.
Maximum input levels: 1.45Vp-p.
Supports Separate and Composite TTL level sync.
Input Sync frequency ranges:
• Horizontal: 15 kHz to 130 kHz.
• Vertical: 30 Hz to 150 Hz.
Video is DC coupled.
Audio
VGA video + audio transmitter: 3.5mm stereo audio plugs for input
connection and 3.5mm stereo audio jack for local speakers.
Input impedance: 10k Ohms.
Maximum input levels: 3.1Vp-p (line level).
CD quality audio output.
Power
110 or 220 VAC at 50 or 60 Hz via AC adapter.
Power consumption: 10W
Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power
converter to install the local unit in a Telecom environment.
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C).
Storage temperature: -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing
RH.
Regulatory Approvals
CE, FCC, RoHS
TAA compliant
Remote Unit (Receiver)
Video
VGA receiver:
• Female 15-pin HD connector.
• Supports resolutions up to 1920x1440.
Video quality adjustment for different lengths of CAT5/5e/6 cable is
done automatically.
• When using CAT6, some degradation may be experienced,
depending on the length of the cable.
Output impedance: 75 Ohms.
Maximum output level: 1.45Vp-p.
Audio
VGA video + audio receiver: 3.5mm stereo audio jack.
Frequency response: 20 Hz to 20 kHz, ±1.5dB.
Signal-to-Noise Ratio (SNR): 72 dBA.
Total Harmonic Distortion and Noise (THD+N): 0.017%
Stereo crosstalk: -70 dB.
Maximum output levels: 3.1Vp-p (line level).
Line level output; supports multimedia speakers.
• CD quality audio output.
Requires powered speakers.
Power
110 or 220 VAC at 50 or 60 Hz via AC adapter
Power consumption: 10W
Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power
converter to install the remote unit in a Telecom environment.
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C).
Storage temperature: -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing
RH.
Regulatory Approvals
CE, FCC, RoHS
TAA compliant
MTBF
NTI Part #
(hrs) (hrs)
ST-C5VA-L-600 84,189 ST-C5CMPSA-L-600 77,426
MTBF
R
NETWORK
TECHNOLOGIES
INCORPORATED
NTI Part #
1.800.RGB.TECH (800.742.8324)
Toll Free: US & Canada
MTBF
© 2006, 2018 NTI. All rights reserved.
NTI Part #
(hrs) (hrs)
ST-C5VA-R-600 82,214 ST-C5SVA-R-600 86,077
330.562.7070
International calls
MTBF
MTBF
330.562.1999
Worldwide fax
NTI Part #
[email protected]
www.networktechinc.com
MTBF
2
Page 3
VGA Video + Audio Matrix Switch via CAT5 to 600 Feet:
8x8 to 32x16
VEEMUX®
Route and distribute audio/video up to 600 feet using CAT5 cable instead of bulky
coax cables
Specifications (Continued)
Compatible NTI Products
Combine NTI’s extenders, switches, and converters for complex
applications.
• VGA/Component Video to HDMI Converter (VGACMP-HD)
Use with VGA Receiver ST-C5VA-R-600 to convert the video
and audio output into a single HDMI signal with embedded
audio.
Requires SAM-2RCAM-xx audio cables (not included).
• Ultra Low-Cost VGA + Audio to HDMI Converter Cable
(VGAA-HD-ULC)
Requires USB power from a compatible display or PC
Built-In Control Methods
Web Server
• Security is ensured by password and user
configurable timeout.
• Up to 25 users can access the web page at one time.
• The user can access the following pages:
Switch page: allows the user to connect any input to any
output, save and recall up to ten connections.
Administration pages: administrator can access setup pages,
port setting page and update firmware page. Assign names to
video and audio inputs and outputs.
Password page: allows the user to change the password for
accessing the web interface.
Help page: documentation on the usage of the
web interface.
Update Web Server page: globally update the web server to
any settings that have been changed.
Logout page: view currently active connections and logout of
the web interface.
Ethernet Control
Configuration and control can be done over the Internet via web page
or telnet.

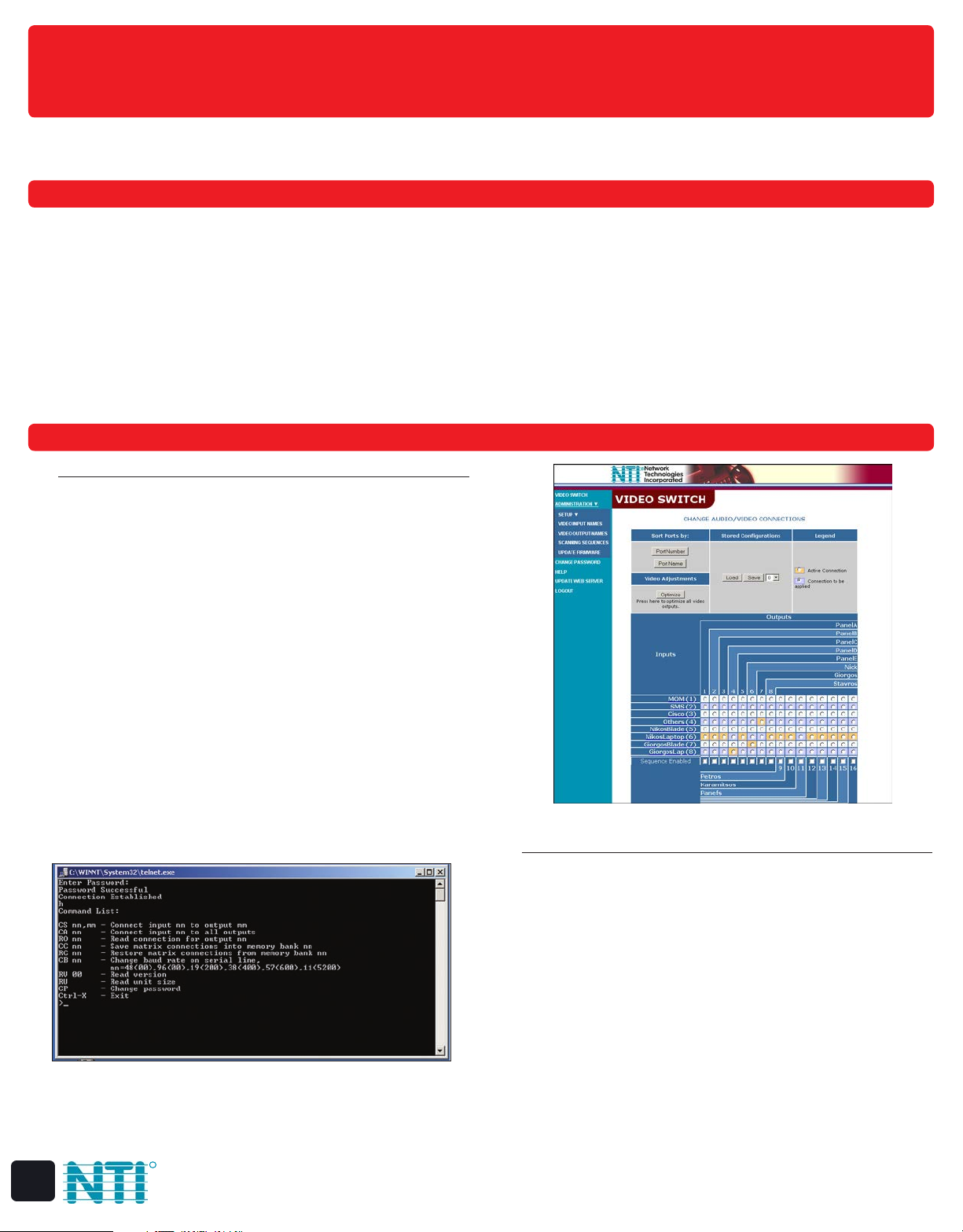

Screenshot of the telnet interface
R
3
NETWORK
TECHNOLOGIES
1.800.RGB.TECH (800.742.8324)
Toll Free: US & Canada
INCORPORATED
Screenshot of the web server interface
Telnet
• Security is ensured by password.
• Commands are similar to RS232 commands.
• The telnet server listens on ports 2000 and 2005.
Port 2000 is for an operator telnet session.
Port 2005 is intended for a software control type session.
330.562.7070
International calls
© 2006, 2018 NTI. All rights reserved.
330.562.1999
Worldwide fax
[email protected]
www.networktechinc.com
Page 4
VGA Video + Audio Matrix Switch via CAT5 to 600 Feet:
8x8 to 32x16
VEEMUX®
Route and distribute audio/video up to 600 feet using CAT5 cable instead of bulky
coax cables
Built-In Control Methods (Continued)
RS232 Control
Configuration and control can be done through the serial port.
Control the switch using Matrix Control Software with Graphical User
Interface (GUI control) via RS232.
Selectable baud rate: 1200 through 9600.
• Baud rate is set via the main menu, serial command, telnet or web
page.

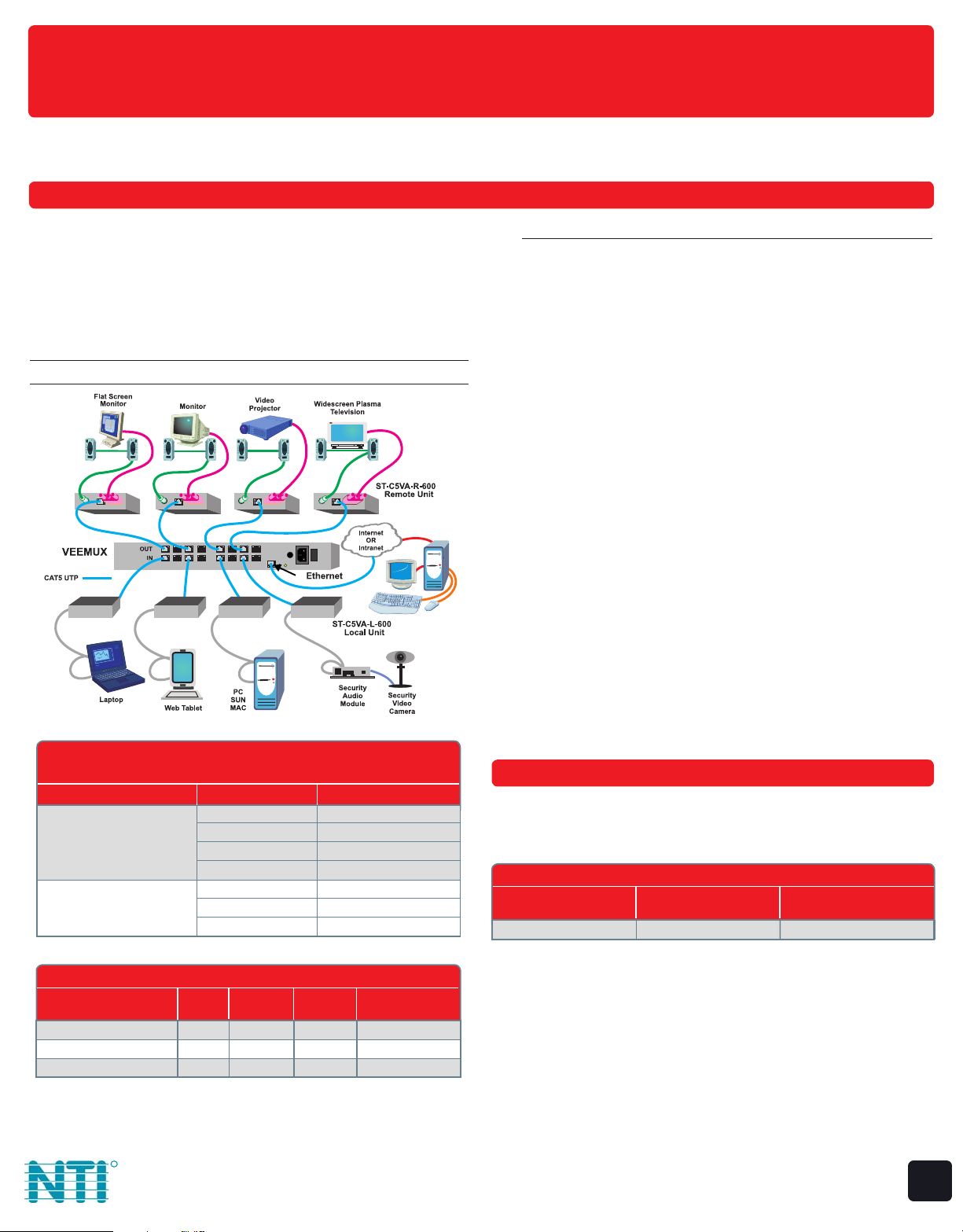

Configuration and Cable Illustration
Resolutions Using VGA
Transmitters and Receivers
Cable Distance (feet) Resolution
600 1024x768 at 60Hz
400 1280x1024 at 60Hz
CAT5/CAT5e (UTP)
100 1920x1440 at 60Hz
CAT5/CAT5e (STP),
CAT6 (UTP)
100 1920x1440 at 60Hz
300 1600x1200 at 60Hz
300 1024X768 at 60Hz
200 1280x1024 at 60Hz
Commands
• CS–causes INx/OUTx connection to occur.
• CA–causes all inputs to connect to specified output.
• RO–reads what input is connected to specified output.
• CC–save matrix.
• RC–recall matrix.
• CB–change baud rate.
• RV–version information.
• RU–reads size of matrix, reports number of inputs and number of
outputs on specified switch.
• EA–set the IP address.
• EM–set the IP mask.
• EG–set the default gateway.
• ET–set the webserver timeout.
Front Panel Interface
Liquid Crystal Display (LCD) can display all current connections.
Locally change input and output selections with front
panel buttons.
Digital VU-Meter displays the audio levels for the currently selected
port.
Configuration and control can be done using the front panel buttons.
Main menu allows the user to:
• Set serial address.
• Set serial speed.
• Set IP address.
• Set Subnet Mask.
• Adjust contrast.
• Force compensation.
• Show size.
Cables
Use CAT5, CAT5e or CAT6 solid straight through cable for TIA/EIA-
568B wiring terminated with standard RJ45 connectors. Cables not
included.
Transmitter and Receiver Models
Supported Transmitters Receivers
Features NTI Part # NTI Part #
VGA + audio ST-C5VA-L-600 ST-C5VA-R-600
CAT5 A/V Matrix Switch Models
NTI # of # of Rack Size
Part # Inputs Outputs Units WxDxH (in)
SM-8X8-C5AV-LCD 8 8 1RU 19x12x1.75
SM-16X16-C5AV-LCD 16 16 1RU 19x12x1.75
SM-32X16-C5AV-LCD 32 16 2RU 19x12x3.5
