CRYSTALMON
TM
Series
CM-RK17
CM-WL17
CM-DT17
TFT/LCD MONITOR
Installation and Operation Manual
MAN058 Rev Date 12/5/2008
TRADEMARK
CRYSTALMON is a trademark of Network Technologies Inc in the U.S. and other countries.
COPYRIGHT
Copyright © 2005, 2008 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.
Federal Communications Commission Radio Frequency Interference Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) this device must accept any interference received, including interference that might cause undesired operation.
This device complies with Part 15 of the FCC rules. This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Warning: This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
CE Compliance Statement
We, Network Technologies Inc, declare under our sole responsibility that the CM-RK17, CM-WL17, and CM-DT17 is in conformity
with European Standard EN55022.
i
MAN058 Rev Date 12/5/2008
TABLE OF CONTENTS
Introduction.................................................................................................................................................................... 1
Overview...................................................................................................................................................................... 1
Features....................................................................................................................................................................... 1
Materials......................................................................................................................................................................... 2
Precautions.................................................................................................................................................................... 3
Cleaning....................................................................................................................................................................... 3
Features and Functions................................................................................................................................................4
Installation...................................................................................................................................................................... 6
Mounting ...................................................................................................................................................................... 6
Rack Mount............................................................................................................................................................... 6
Wall Mount- with Arm................................................................................................................................................ 6
Wall Mount- Direct-To-Wall....................................................................................................................................... 7
Desktop Mount.......................................................................................................................................................... 7
Power Supply Bracket ..............................................................................................................................................8
Cable Connections ......................................................................................................................................................8
Connect the CRYSTALMON to a Video Source....................................................................................................... 8
Power Up .....................................................................................................................................................................9
Display Functions .......................................................................................................................................................10
Standard Controls......................................................................................................................................................10
OSD Control Menu ....................................................................................................................................................11
OSD Main Menu .....................................................................................................................................................11
Brightness/Contrast Menu ...................................................................................................................................... 11
Setup Menu............................................................................................................................................................. 12
Specifications .............................................................................................................................................................. 13
LCD............................................................................................................................................................................13
Display Controller ......................................................................................................................................................13
OSD Control Board....................................................................................................................................................13
Enclosure ................................................................................................................................................................... 13
General Specs ...........................................................................................................................................................13
Compliance Certifications .......................................................................................................................................... 13
Dimensions ..................................................................................................................................................................14
Troubleshooting ..........................................................................................................................................................15
Index ............................................................................................................................................................................. 15
Warranty Information .................................................................................................................................................. 16
ii
MAN058 Rev Date 12/5/2008
TABLE OF FIGURES
Figure 1- Mount CM-RK17 to a rack ............................................................................................................................... 6
Figure 2- Mount CM-WL17 to an arm or bracket ............................................................................................................7
Figure 3- Secure cables to power supply bracket........................................................................................................... 8
Figure 4- Connect VGA and/or DVI video sources .........................................................................................................8
Figure 5- Connect the AC adapter .................................................................................................................................. 9
Figure 6- CRYSTALMON Controls ...............................................................................................................................10
iii
MAN058 Rev Date 12/5/2008
NTI CRYSTALMON TFT/LCD MONITOR
INTRODUCTION
Overview
The CRYSTALMON series TFT/LCD monitors provide the industrial or commercial user with superior picture
quality, multiple video formats, and a sturdy industrial enclosure. It also offers several mounting options, as well as
the ability to integrate with existing NTI products. The CRYSTALMON monitor can be ordered with provisions for
rack, wall, or tabletop mounting. They support true plug-and-play functionality and do not require any additional video
drivers or interface adapters.
Models Available:
CM-RK17- Standard 17" TFT/LCD monitor for rack mount
CM-WL17-
CM-DT17- Standard 17" TFT/LCD monitor with desktop stand
Standard 17" TFT/LCD monitor for wall or arm mounting
Features
• An industrial 17" TFT/LCD flat panel monitor.
• Support of multiple video formats-VGA,SVGA, and XGA
• On Screen Display (OSD).
• Crisp and clear 1280x1024 video resolution.
• Wall / VESA Mount (CM-WL17)
• Keyholes for mounting to a wall.
• Compliant to VESA 75mm and 100mm mounting hole patterns.
• Compatible with NTI's LCD arms.
• Rack Mount (CM-RK17)
• Designed to fit in a standard 19" rack/cabinet.
• Space-saving. Extra rackmounting space available behind the monitor.
• 7RU (12.25") high.
• Tabletop (CM-DT17)
• Adjust height, tilt and rotation of monitor for best viewing position.
• Power Supply Carriage
• Supports multiple languages
1
NTI CRYSTALMON TFT/LCD MONITOR
MATERIALS
Materials supplied with this kit:
9 NTI CRYSTALMON TFT/LCD Monitor
9 120 or 240VAC at 50 or 60Hz-12VDC/5A via AC Adapter
9 Power Supply Holder
9 2- Cable clamps
9 4- #4-40 x 3/16” black Phillips-panhead screws
9 6 foot VGA cable-VEXT-6-MM (15HD male-male connectors)
9 6.5 foot DVI video cable-DVI-DS-2M-MM (DVI-D single link male-male connectors)
9 Desktop stand (provided with CM-DT17 only)
9 CD with a pdf file of this owner's manual
Additional materials may need to be ordered, depending upon the configuration :
¾ Wall Mount Arm Bracket- for mounting the CRYSTALMON (CM-WL17) to a wall- several configurations are
available. See our website at http://www.networktechinc.com for details.
Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-742-8324 (800-RGB-TECH) in
US & Canada or 330-562-7070 (Worldwide) or at our website at http://www.networktechinc.com
to be of assistance.
and we will be happy
2
NTI CRYSTALMON TFT/LCD MONITOR
PRECAUTIONS
• Do not apply pressure to the display portion of the CRYSTALMON because the LCD panel and backlight can be
easily damaged.
• Do not cover or block the vent holes in the case.
• Be sure to turn OFF the power supply before connecting and disconnecting video source cable(s).
• Be careful not to drop the CRYSTALMON. Handle it carefully.
• Do not store or install the CRYSTALMON where it can come in contact with moisture as moisture may damage
the CRYSTALMON.
• Store the CRYSTALMON in an environment within a temperature range of 0ºC to 40ºC and where humidity will
not exceed 90% relative humidity. Excessive temperature and humidity may reduce the performance of the
CRYSTALMON.
• Install the CRYSTALMON in a clean environment as dust and oil may cause electrical shorts or otherwise
damage the CRYSTALMON.
• FOR INDOOR USE ONLY. DO NOT INSTALL OUTDOORS.
• The CRYSTALMON contains mercury (Hg). Dispose of the CRYSTALMON in accordance with local
ordinances.
Cleaning
• Use a soft cloth (such as microfiber) without chemicals for cleaning. The display surface of the CRYSTALMON
is very soft and easily scratched.
• Do not apply excessive pressure to the display screen surface when cleaning. Excessive pressure may damage
the LCD panel and backlight.
3
NTI CRYSTALMON TFT/LCD MONITOR
FEATURES AND FUNCTIONS
NTI
CRYSTALMON
TM

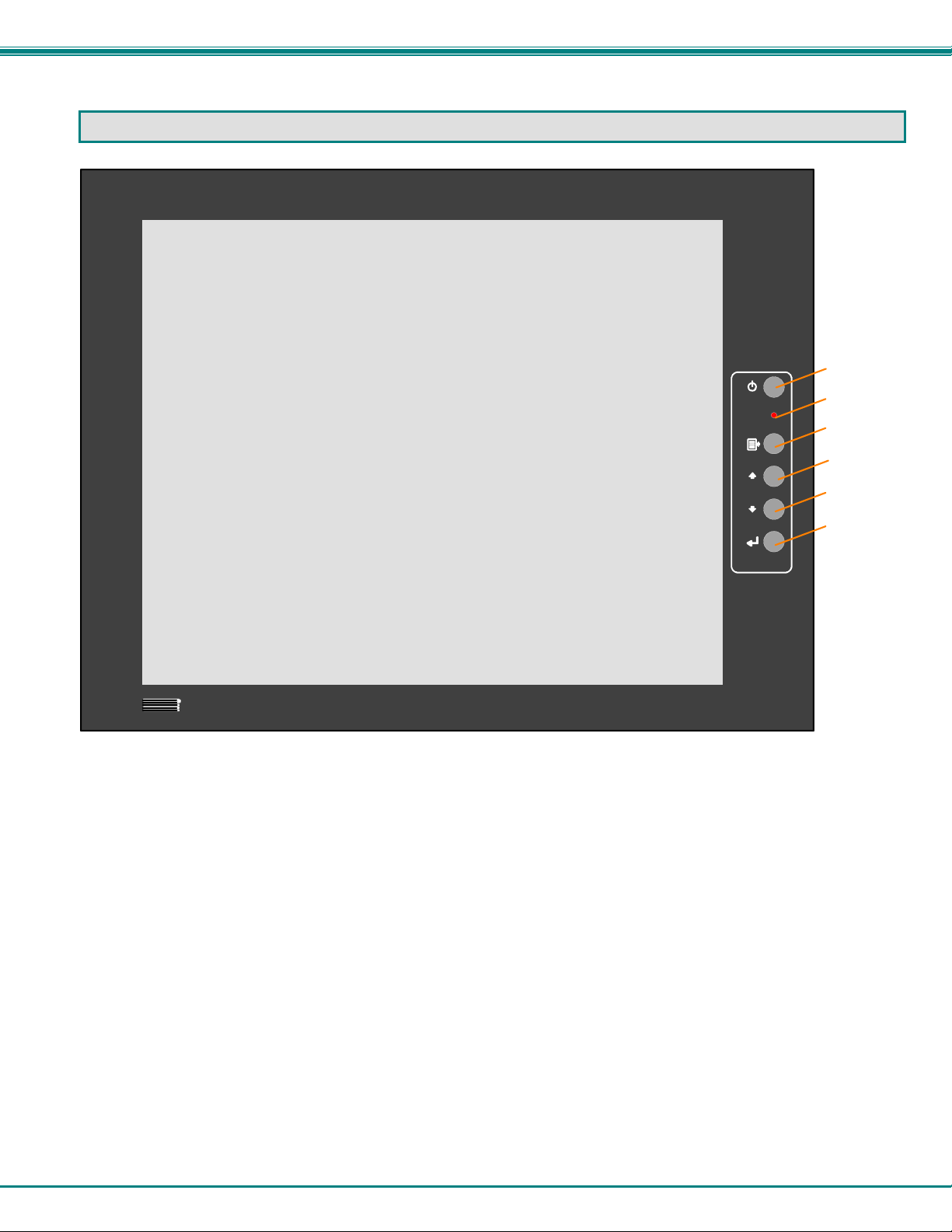

Main Controls
1. Power Button- to turn the LCD and backlight ON and OFF.
2. Power LED- to indicate the power status of the monitor Green= Power On, Video Input OK
Red= Suspend/Standby, or Input Out of Range
3. Menu Button- to open OSD menu (when OSD menu is OFF)
4. Arrow Up Button- to move the selection cursor in the OSD menu up in the list
5. Arrow Down Button- to move the selection cursor in the OSD menu down in the list
6. Select Button- to select a menu item (when OSD menu is ON) or press to auto adjust the video quality (when
OSD menu is OFF)
4
1
2
3
4
5
6
NTI CRYSTALMON TFT/LCD MONITOR
REAR VIEW OF CRYSTALMON
R
10
NTI
Aurora, OH 4420 2
www.networktechinc.com
12VDC
5A
-
+
NETWORK
TECHNOLOGIES
INCORPORATED
Tel:330-562- 70701275 Danner D r
Fax:330-562 -1999
DVI VGA
78 9
7. 12VDC Power Jack- for connection of AC adapter
8. DVI Video Port
- DVI-D female- for connecting DVI type video source
9. VGA Video Port- 15HD female- for connecting VGA type video source
10. Power Supply Holder - for supporting the power supply (when desktop or rack-mounted)
5
NTI CRYSTALMON TFT/LCD MONITOR
INSTALLATION
Mounting
Mount the CRYSTALMON as intended for the application.
Rack Mount
Secure the CRYSTALMON (model CM-RK17) to a rack using appropriate hardware through the holes provided (see
Fig. 1). Mount using at least two screws on each side.
Front View of CM-RK17
Figure 1- Mount CM-RK17 to a rack
Wall Mount- with Arm
Mount the selected Wall Mount LCD Arm or bracket assembly to the wall. Attach the VESA mounting bracket from
the selected Wall Mount LCD Arm to the four holes located in the back of the CRYSTALMON using the M4 x 10mm
screws (4) provided. A set of holes is provided for either the 100mm bracket, or the 75mm bracket, whichever is
needed (see Fig. 2). (The 75-100mm mounting adaptor that is sometimes provided will not be necessary.) Follow
the instructions that came with the mounting arm or bracket to complete the assembly.
6
NTI CRYSTALMON TFT/LCD MONITOR

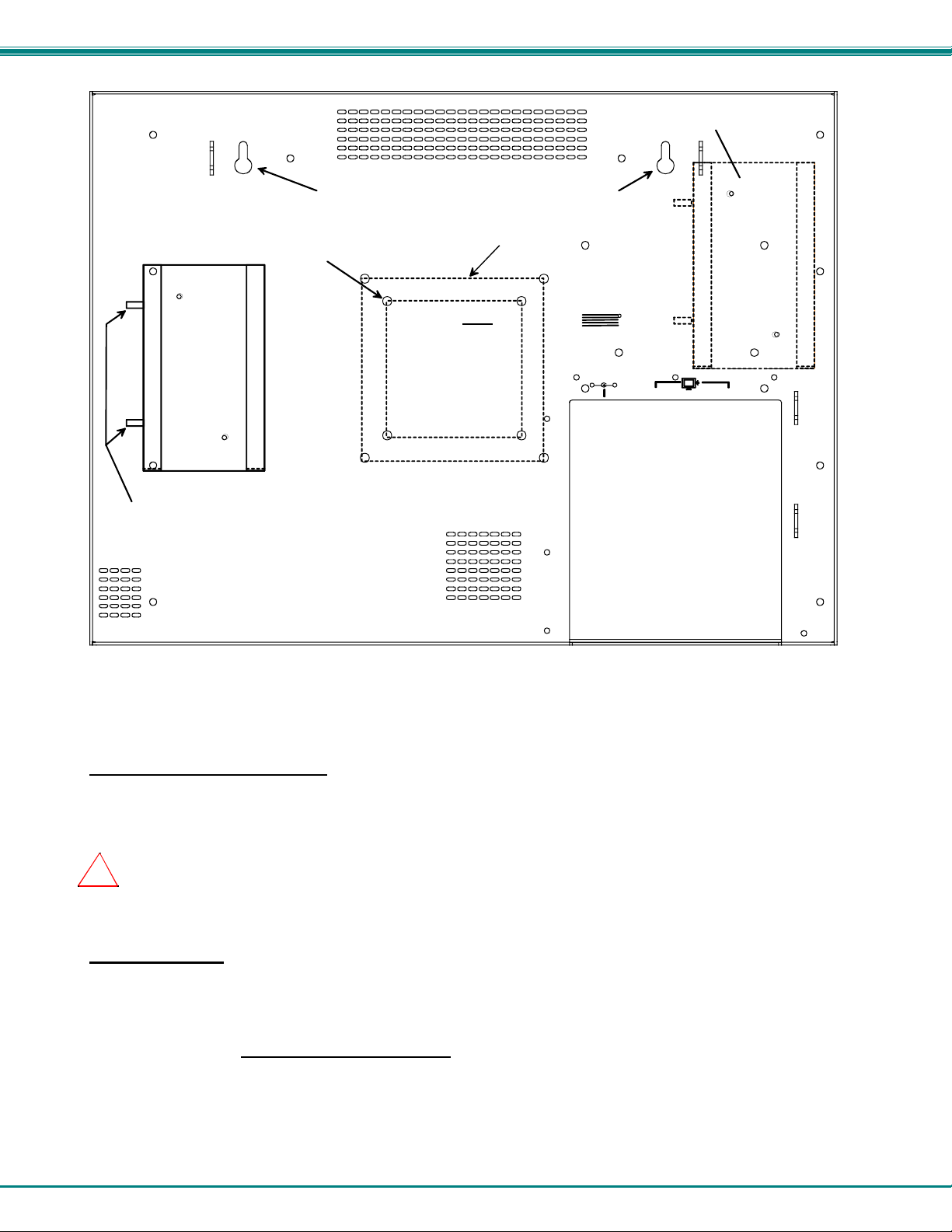

Keyholes for mounting directly to the wall
Hole pattern for 75mm mounting
Power Supply
Bracket
cable restraint posts
Rear View of CRYSTALMON
Hole pattern for 100mm mounting
Note: Use only
M4 x 10mm
screws (provided)
in 75mm or
100mm mounting
holes. Use of longer
screws may damage
the CRYSTALMON.
Alternate Power Supply
Bracket location
R
NETWORK
TECHNOLOGIES
INCORPORATED
NTI
Tel:330-562-70701275 Danner Dr
Fax:330-562-1999
Aurora, OH 44202
www.n etworkte chinc.c om
12VDC
5A
+
-
DVI VGA
Figure 2- Mount CM-WL17 to an arm or bracket
Wall Mount- Direct-To-Wall
If it is desired to mount the CRYSTALMON directly to the wall (model CM-WL17), two keyhole slots have been
provided on the back of the CRYSTALMON for this purpose (see Fig. 2).
CAUTION: Each fastener used for direct wall mounting must be rated for an object weighing at least 24
!
pounds.
Desktop Mount
If the CM-DT17 has been purchased, a desktop stand with installation instructions has been included. If using a
different desktop stand, secure the stand to the CRYSTALMON using either the 75mm or 100mm mounting holes,
as appropriate for the stand that has been purchased. The holes on the CRYSTALMON are intended for use with
M4 x 10MM screws. Use only M4 x 10mm screws
instructions that come with the stand to complete the assembly.
(provided) for attachment to the CRYSTALMON. See the
7
NTI CRYSTALMON TFT/LCD MONITOR
Power Supply Bracket
A power supply bracket has been supplied for the convenient mounting of the power supply for the CRYSTALMON.
This bracket can be directly mounted to the CRYSTALMON. Two possible mounting locations are shown in Fig. 2 on
Page 5.
Two #4-40 x 3/16” black screws have been supplied to secure the bracket to the back of the CRYSTALMON. Two
more #4-40 x 3/16” screws and cable clamps have been supplied to secure the cables to cable restraint posts on the
power supply bracket (see Fig. 3.)
Power Supply
Cable to Monitor
+
Cable Clamp
(supplied)
3/16" x 4-40
Screw
(supplied)
+
Power Cord
Side View
Power Supply
Bracket
Figure 3- Secure cables to power supply bracket
Cable Connections
Connect the CRYSTALMON to a Video Source
The CRYSTALMON is provided with two different connectors for direct connection to video sources. A video
source of each type may be connected individually or both at the same time. The sources can be either VGA
or DVI. See Fig. 4 for illustration of each type of cable to be connected.
To Digital
Video Source
To VGA Video
Source
DVI-D Male
Video Connector
DVI-DS-2M-MM
(supplied)
15HD Male
VIEW OF CONNECTIONS ON CRYSTALMON
DVI-D Female
(Digital Video)
DVI-D Male
VEXT-6-MM
(supplied)
15HD male
Video Connector
15HD Female
(VGA,XGA,SXGA)
Figure 4- Connect VGA and/or DVI video sources
8
NTI CRYSTALMON TFT/LCD MONITOR
Power Up
1. Connect the AC adapter to the power jack on the CRYSTALMON. Make sure the power connector is fully
inserted.
2. Plug the AC adapter into a power source and press the power button to power up the CRYSTALMON.
3. If the video source(s) are not yet ON, apply power to them at this time.
(Outside
barrel)
Barrel
Power Connector
12VDC @ 5A OUTPUT
2.5 mm x 5.5 mm Female
(Inside
barrel)
REAR VIEW OF CRYSTALMON
R
NETWORK
TECHNOL OGI ES
NTI
INCORPORATED
Tel:330-5 62-70 701275 Danner Dr
Aurora, OH 44202
Fax:330-562 -1999
www.networktechinc.com
12VDC
5A
+
-
DVI VGA
UNDERSIDE VIEW OF CRYSTALMON
12 VDC
AC
ADAPTER
IEC Connector
IEC Power Cord
Power
Button
View of the control
buttons for the
CRYSTALMON
Figure 5- Connect the AC adapter
9
NTI CRYSTALMON TFT/LCD MONITOR
DISPLAY FUNCTIONS
The CRYSTALMON 17” monitor supports resolutions up to SXGA (1280x1024) with a refresh rate at between 55 and
76Hz. The quality of the image on the LCD monitor is adjustable using an On Screen Display (OSD) menu using
the control buttons on the CRYSTALMON.
Standard Controls
• The CRYSTALMON has 5 standard control buttons and a power LED. The 5 standard control buttons operate
as follows:
• The Power button turns the CRYSTALMON LCD and backlight ON and OFF as desired.
• The Power LED located immediately below the Power button is
a dual color LED. It will illuminate with a green color when the
CRYSTALMON is powered ON and working properly. It will
illuminate with a red color if the CRYSTALMON is powered ON
but there is no input signal detected. The LED will illuminate
red only momentarily just before turning OFF.
• The Menu button is used to bring up the OSD menu where the
various settings of the LCD display can be adjusted.
Once the OSD screen is displayed, the Menu button is used
to make selections within the menus. See "OSD Control Menu"
on page 11 for more on LCD display settings.
• The Up and Down Arrow buttons are used to navigate through the
menus. Move the cursor up or down as desired to highlight
an item for selection. Once an item is highlighted, pressing the
Menu button will select it.
Power
ON/OFF
Power LED
Menu
Up Arrow
Down Arrow
Select/
Auto Adjust
Controls for the
OSD Menus
Figure 6- CRYSTALMON Controls
Note: When the OSD Menu is OFF, the Up Arrow is used to toggle between a “PC” (VGA) and “Digital” (DVI)
input source.
• The Select button is used to make selections within the OSD menus when the OSD menu is ON. When the
OSD menu is OFF, the Select button will act as an Auto Adjust button to keep the user from having to use the
menus to adjust the quality of the image on the monitor.
Note: In order to display the OSD Menu, the CRYSTALMON must first be connected to a video source (see
“Connect the CRYSTALMON to a Video Source” – page 8).
Note: If the message “NO SIGNAL” appears when the monitor is powered-ON, the monitor may be set for a
“PC” (VGA) input source. Press the Up Arrow button on the monitor to toggle the monitor input source
setting to “Digital” (DVI).
10
NTI CRYSTALMON TFT/LCD MONITOR

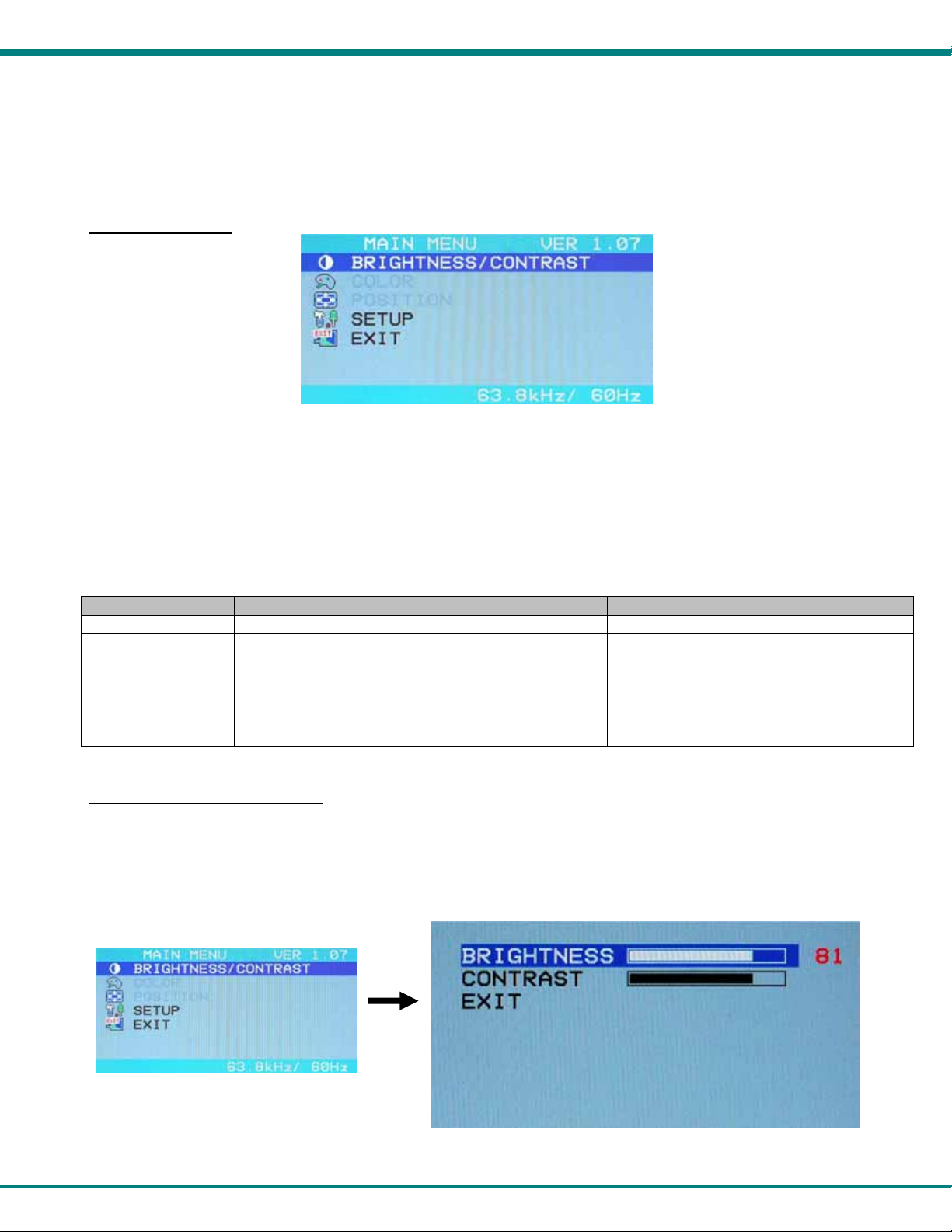

OSD Control Menu
The OSD (On Screen Display) Menu enables the user to select the desired characteristics of the LCD display. To
activate the OSD Menu, press the Menu button (above). To turn the Menu back OFF, either select "EXIT" from
the main menu or just wait 10-60 seconds and it will automatically be cleared from the screen. Any changes made
before exiting the menu will be saved.
OSD Main Menu
Note: In order to display the OSD Menu, the CRYSTALMON must first be connected to a video source (see
“Connect the CRYSTALMON to a Video Source” – page 8).
Note: If menu does not appear when the Menu button is pressed, the monitor may be connected to a DVI
input source but set for a “PC” (VGA) input source. Press the Up Arrow button on the monitor to switch it
to a “Digital” (DVI) input source.
Selection Purpose Range
Brightness/Contrast Increase/decrease panel brightness/contrast level 1-100
Setup
Exit Exit from the OSD control menu
• Control OSD Image position on screen
• Set time OSD will stay on screen before auto
shutoff
• Select the language of the OSD menu
• Select Input Source to display
• 0-4
• 10 to 60 seconds
• English, Spanish, Deutsch, Italian, or
French
• Digital or PC
Brightness/Contrast Menu
Selecting the Brightness/Contrast menu will bring up a screen in which the user can adjust the brightness and
contrast levels of the LCD display. Using the Up or Down arrows to navigate the menu, highlight either the
BRIGHTNESS or CONTRAST sections and press the Select button to choose the option to adjust. Then use the
Up or Down Arrow to adjust the setting.
Select EXIT when finished to return to the Main Menu.
11
NTI CRYSTALMON TFT/LCD MONITOR

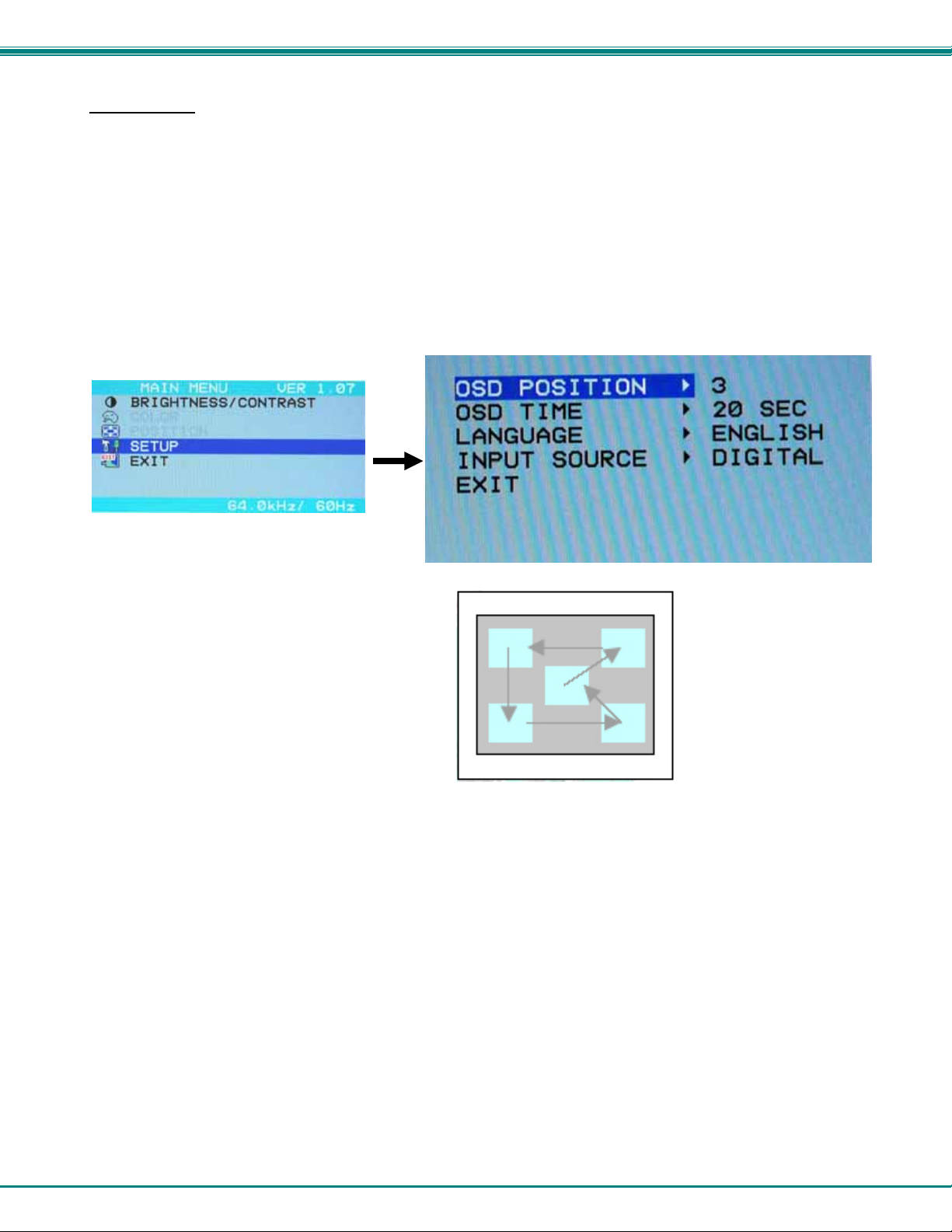

Setup Menu
Selecting the Setup menu will bring up a screen in which the user can adjust
OSD POSITION-the position of the OSD menus on the LCD display (positions 0-4)
OSD TIME-the length of time the user can be idle before the OSD menu automatically exits
(adjustable from 10 to 60 seconds)
LANGUAGE-the language that the OSD menus will be presented in
INPUT SOURCE- the type of signal that is coming from the input source, either Digital (DVI) or PC
(VGA)
With the item highlighted, (use the Up or Down arrow to move between them), press the Select button to choose
the option to adjust. Then use the Up or Down Arrow to adjust the setting as needed. Select EXIT when finished
to return to the Main Menu.
OSD Image can be moved
to different points on the
display
12
NTI CRYSTALMON TFT/LCD MONITOR
SPECIFICATIONS
LCD
Display area………………………………..337.92mm (W)x270.336 (H) (17 inch diagonal)
Panel Type…………………………………TFT Active
Number of Pixels .....................................1280 (H)x1024 (V)
Number of Colors ....................................16.2 Million (6 bits + FRC)
Pixel Pitch................................................0.264(H)x0.264(V)
Color Pixel Arrangement.........................RGB Vertical Stripe
Brightness................................................300cd/m
Response Time .......................................5.5ms
Viewing Angle..........................................Horizontal: 140º; Vertical: 130º (Typ.)
Optimum Viewing Direction .....................6 o’clock
Backlight Unit………………………………CCFL, 4 Tables, Edge-Light (2 Top/2 Bottom)
Operating Lamp Life................................40,000-50,000 hrs
Contrast Ratio……………………………..500:1
2
(Nits)
Display Controller
Connector…………………………………15HD, DVI-D, female
Video Format...........................................VGA,SVGA, XGA, SXGA
Signal Input (from Video Source)……….Analog RGB (15HD), Digital TMDS (DVI)
Sync Range.............................................H: 31 ~ 80KHz, V: 55 ~ 76Hz
OSD Control……………………………….Menu, Up, Down, Select, Power (5 keys)
Plug and Play ..........................................VESA DDC 2B Ver1.3
OSD Control Board
OSD Control ............................................5 Keys
Power Key ...............................................Power ON/OFF
Menu Key ................................................Activates Menu
Up, Down Keys........................................Navigation Control
Select Key ...............................................Select (when in Menu); Auto Adjust (not in menu)
LED..........................................................Indicates Operation Status
..........................................................Green = Power-ON, Video Input OK
..........................................................Red = Suspend / Stand-by, or Input Out of Range
Enclosure
Material....................................................Electro-galvanized steel black powdercoated
CM-RK17 Dimensions (WxDxH)…….…. 19 x 3.7 x 12.25 (7RU)
CM-WL17 Dimensions (WxDxH).............16.5 x 3.7 x 12.2
CM-DT17 Dimensions (WxDxH) .............16.5 x 3.7 x 12.2
General Specs
Power Supply …………………………… .120 or 240VAC at 50 or 60 Hz-12VDC/5A via AC Adapter
Operating Temperature ...........................0-40˚C
Weight………………………………………12 lbs
Compliance Certifications
CE Mark...................................................Complies with EN55022
FCC .........................................................Part 15 (Class A Digital Device)
13
NTI CRYSTALMON TFT/LCD MONITOR

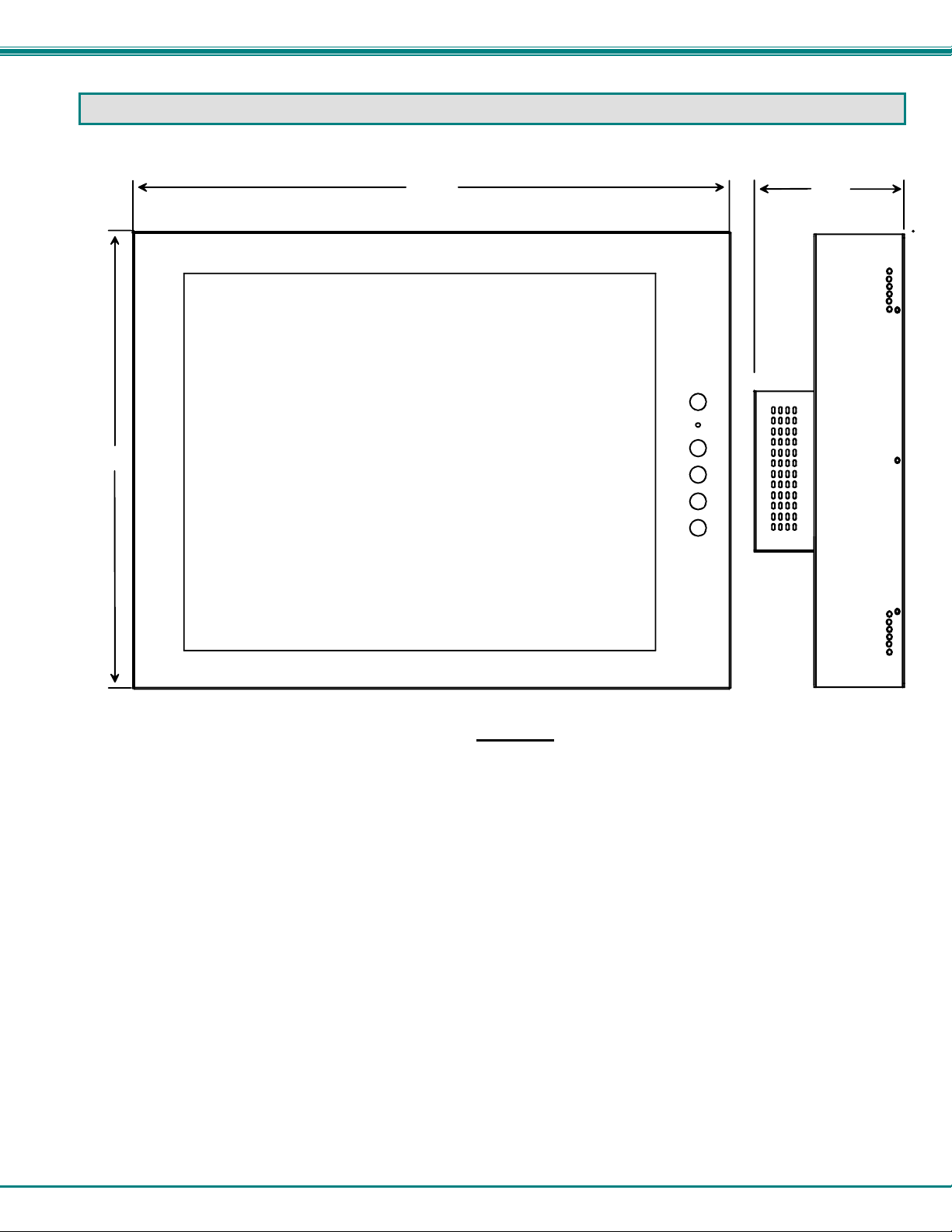

DIMENSIONS
12.2"
16.5"
3.7"
FRONT VIEW
CM-WL17
(ALSO APPLIES TO CM-DT17 WITHOUT DESKTOP STAND SHOWN)
SIDE VIEW
14
NTI CRYSTALMON TFT/LCD MONITOR
12.25"
19"
FRONT VIEW
3.7"
SIDE VIEW
CM-RK17
TROUBLESHOOTING
Problem Solution
Power LED is OFF Check to see if AC adapter is fully inserted
Power LED is red Check connections of video source cables
Make sure video sources are switched ON
Power LED is green, but there's no picture Check to see if Horizontal Sync is out of range. Also
check brightness and contrast controls in OSD menu
(see page 11)
INDEX
CE, i
cleaning, 3
Control buttons, 10
Dimensions, 14
Display functions, 10
FCC, i
mounting instruction, 6
OSD Controls, 10
OSD Menu-DVI, 11
source button, 4
Specifications, 13
Troubleshooting, 15
15
NTI CRYSTALMON TFT/LCD MONITOR
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com
for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
MAN058 Rev. 12/5/2008
16
Loading...
