Multi rate 3GHD-SDI
Distribution Amplier
Rev. 3
Flashlink User Manual
DA-3GHD
Page 2
DA-3GHD Rev. 3
network-electronics.com | 2
Network Electronics AS
P.O. Box 1020
N-3204 Sandefjord, Norway
Phone: +47 33 48 99 99
Fax: +47 33 48 99 98
Email:
www.network-electronics.com
Support Phone: +47 90 60 99 99
Revision history
Current revision of this document is the uppermost in the table below.
Rev.
Repl.
Date
Sign
Change description
3 2 2009-03-13
NBS
Added information on inverting outputs to back plane
drawing.
Added power consumption to specifications chapter.
2 1 2008-10-13
SHH
Corrected fault in manual; output 6 changed to noninverting and output 7 changed to inverted.
1 0 2008-07-15
AS
Added Declaration of Conformity.
0 B 2008-01-28
SHH
Release revision
Page 3
DA-3GHD Rev. 3
network-electronics.com | 3
Contents
1 Product overview ..................................................................................................... 4
2 Specifications .......................................................................................................... 5
3 Configuration ........................................................................................................... 6
3.1 Configuration Examples................................................................................................... 7
4 Connections ............................................................................................................. 8
5 Operation ................................................................................................................. 9
General environmental requirements for Network Electronics equipment ................ 10
Product Warranty ...................................................................................................... 11
Appendix A Materials declaration and recycling information..................................... 12
EC Declaration of Conformity ................................................................................... 13
Page 4
DA-3GHD Rev. 3
network-electronics.com | 4
1 Product overview
The Flashlink DA-3GHD is a multi bit-rate distribution amplifier module providing high
performance media distribution for various signal formats from 19.4Mbps up to 2970Mbps.
The unit can be configured to do cable equalizing and reclocking of SMPTE 424M, SMPTE
292M and SMPTE 259M signal formats.
The input typically provides an automatic cable equalizer for up to 70 meters of cable
(Belden 1694A at 2970Mbps) with 8 re-clocked outputs. The DA-3GHD will detect HD and
SD rates and automatically switch to correct output slew-rate. The re-clocker supports the
bit-rates 270Mbps, 1483.5Mbps, 1485Mbps 2967Mbps and 2970Mbps. For other rates, the
re-clocker automatically switches to bypass mode, and the DA-3GHD will work as a nonreclocking distribution amplifier with cable equalizer. The DA-3GHD also supports reclocking
of DVB-ASI at 270Mbps; enabling all possible rates including empty transport streams with
only K28.5 padding packets. 4 of the outputs are non-inverting and suitable for DVB-ASI.
The DA-3GHD is designed for all distribution purposes in studio, duplication and Broadcast
applications.

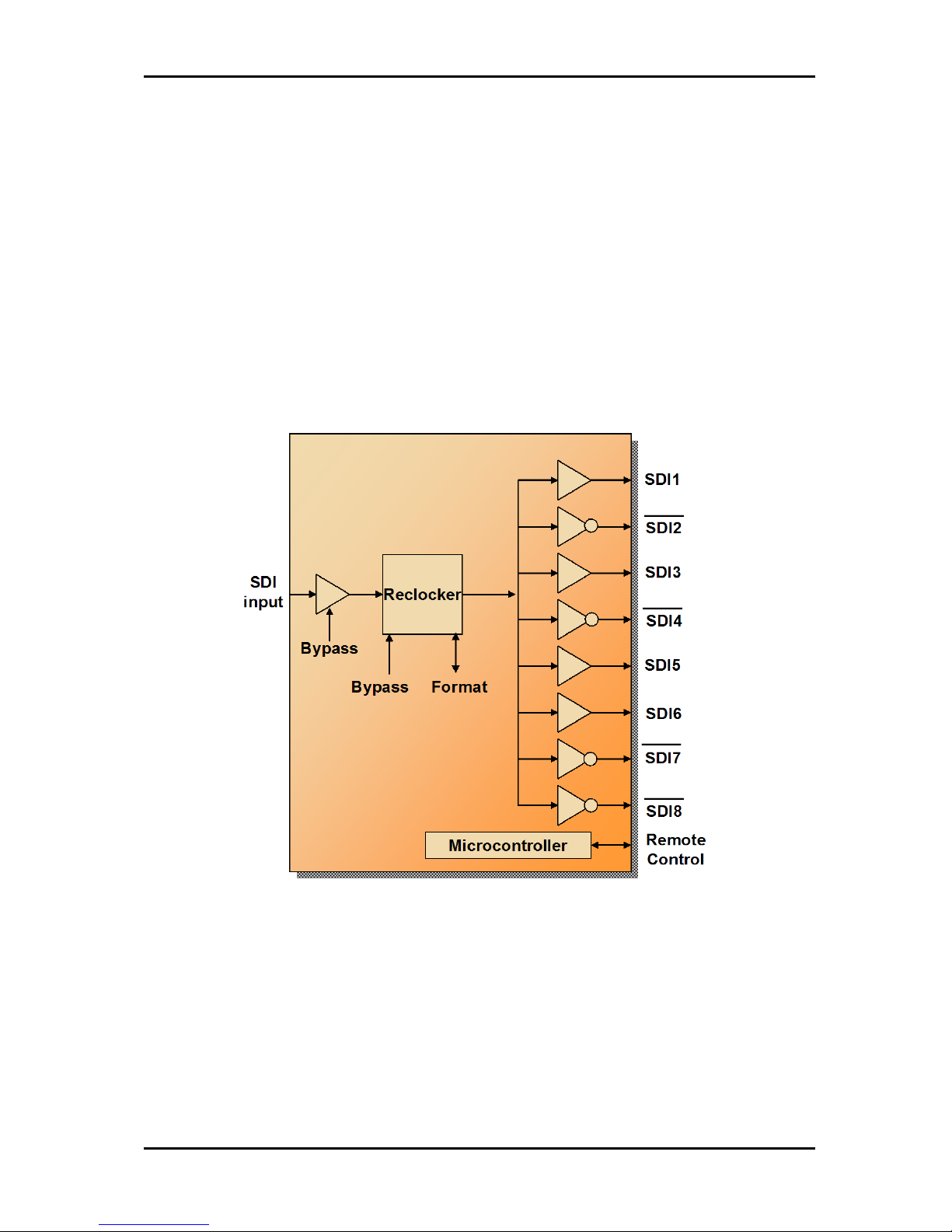

Figure 1: DA-3GHD block diagram
Page 5
DA-3GHD Rev. 3
network-electronics.com | 5
2 Specifications
Electrical Outputs
Connectors
75 Ohm BNC
Output Return loss
- < -15dB, 5MHz -1.5GHz
- < -10dB, 1.5GHz - 3GHz
Output signal level
800mV +/- 10%
Output signal rise / fall time
20% - 80%
- SD limit: [0.4ns – 1.5ns]; <0.5ns rise/fall var.
- HD limit: < 270ps, <100ps rise/fall var.
- 3G HD limit: <135ps, <50ps rise/fall var.
Amplitude overshoot
<10%
Polarity
- Output 1,3 5 & 6: Non inverting electrical
- Output 2, 4, 7 & 8: inverting electrical
Output timing jitter
- SD: <0.2 UI
- HD: <1 UI
- 3G HD: <1UI
Output alignment jitter
- SD: <0.15 UI
- HD: <0.15 UI
- 3G HD: <0.2UI
Electrical Inputs
Connectors
75 Ohm BNC
Input Cable Eq. @270Mbps
>300m w/Belden 8281, with BER < 10E-12
Input Cable Eq. @1485Mbps
>100m w/Belden 1694A, with BER < 10E-12
Input Cable Eq. @2970Mbps
>70m w/Belden 1694A, with BER < 10E-12
Input Return loss
- < -15dB, 5MHz -1.5GHz
- < -10dB, 1.5GHz - 3GHz
Jitter tolerance
- SD limit:
- 10Hz-1kHz: >1 UI
- 10kHz – 5MHz: >0.2 UI
- HD limit:
- 10Hz-100kHz: >1 UI
- 100kHz–10MHz: >0.2 UI
- 3G HD limit:
- 10Hz-100kHz: >2 UI
- 100kHz–10MHz: >0.3 UI
Features
Re-clocking:
Automatic SD/ HD detection
Automatic output slew rate adjustment according to SMPTE259M and SMPTE-292M/ SMPTE424M
Selectable loop bandwidth
- Low: 3GHD = 3.5Mhz, HD = 1.5MHz, SD = 0.32MHz
- High: 3GHD = 7MHz, HD = 3.5MHz, SD = 0.64MHz
Supported clock rates:
270, 1483.5, 1485, 2967, 2970Mbps
Input equalizer:
Eq. bypass for non-video formats or low bit rates
Supported standards
SMPTE:
SMPTE424M, SMPTE292M, SMPTE259M, SMPTE305M,
SMPTE310M
DVB-ASI:
EN50083-9 (on non-inverting outputs)
General
DC power consumption:
+5V / 2.5W
Page 6
DA-3GHD Rev. 3
network-electronics.com | 6
3 Configuration
The DA-3GHD supports a number of different formats. The correct configuration can either
be set with a DIP switch or with the GYDA Control System. The layout of DA-3GHD is shown
in the drawing below with the DIP switch to the upper left position.

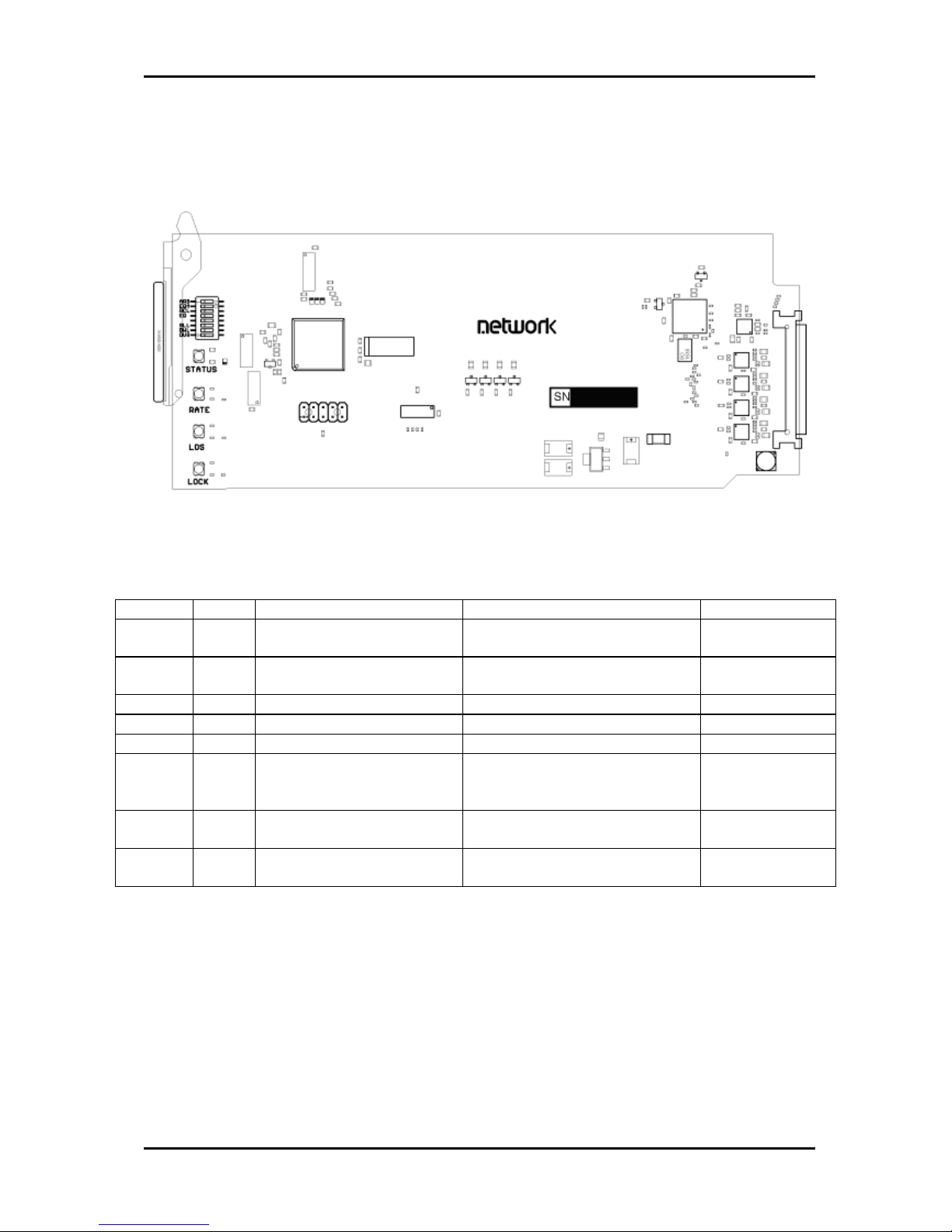

Figure 2: DA-3GHD module layout
DIP switch configuration must be set according to the table below:
Table 1: DA-3GHD DIP switches
Switch #
Label
Function DIP=OFF
Function DIP=ON
Comment
1
ARB
Output muted when
reclocker not in lock
Automatic Reclocker Bypass.
Output never muted
Output mute
2
EQM
Equalizer forced not to
mute
Automatic muting of equalizer
when signal strength is to low
Input mute
3
RCL
Reclocker Bypass
Reclocker ON
Reclocker mode
4
EQ
Cable equalizer Bypass
Cable equalizer ON
Equalizer mode
5
Not used
Not used
6
SLL
Slew-rate override. Always
high rate selected
Slew-rate limitation
automatically adjusted. SMPTE
292M and 259M
Slew-rate select
7
BWL
Reclocker loop-bandwidth
high
Reclocker loop-bandwidth low
Loop bandwidth
select
8
OVR
GYDA control
Config. with GYDA
Override GYDA control
Config. with DIP switch
Select GYDA
config. mode
All DIP switches are off when pointing towards the release handle.
When the default setting is selected, all clock rates for HD-SDI, SDI and DVB-ASI are
automatically configured by the module itself.
Page 7
DA-3GHD Rev. 3
network-electronics.com | 7
3.1 Configuration Examples
Typical configurations for DA-HDSDI:

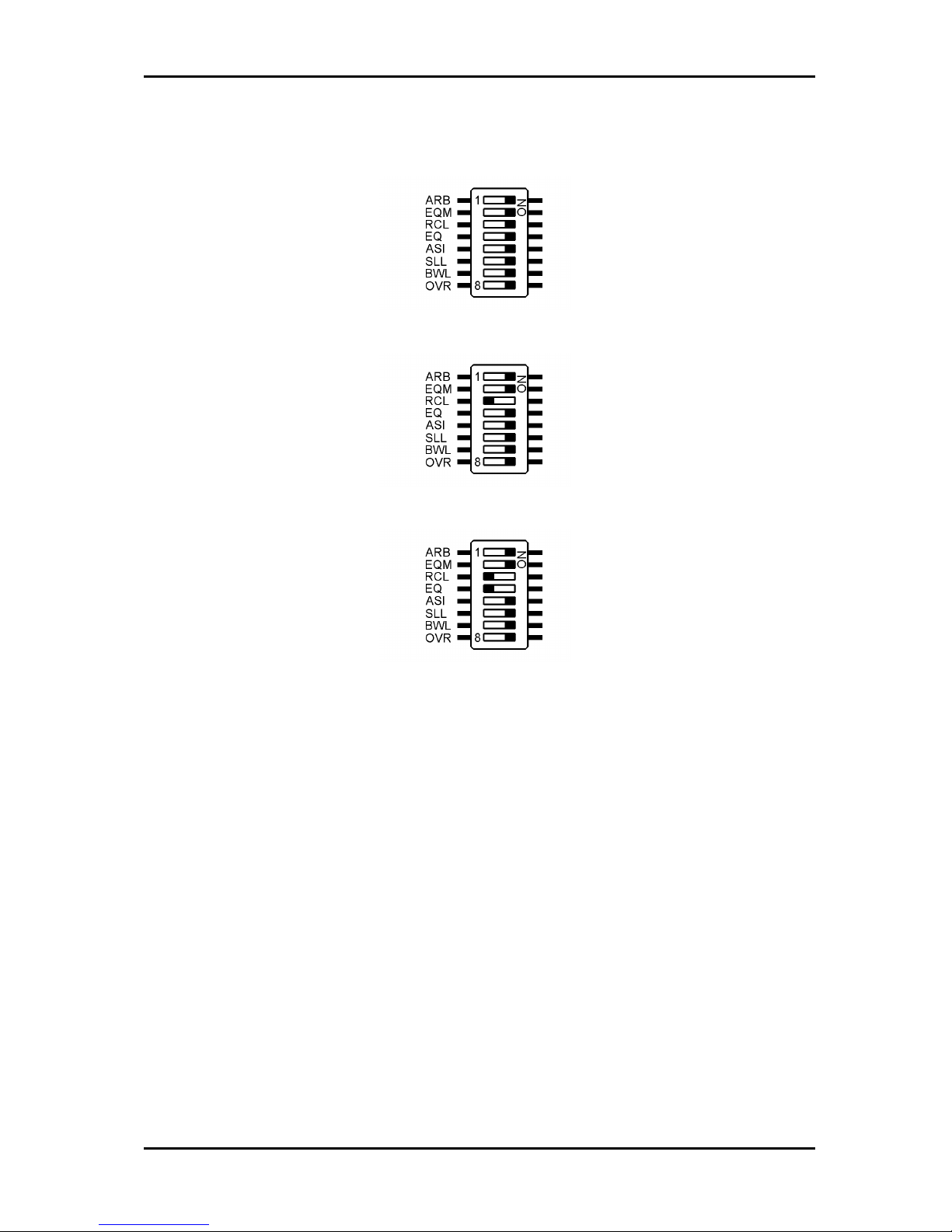

Figure 3: Default; HD-SDI, SDI and DVB-ASI
Figure 4: Transparent mode with equalization and no reclocking
Figure 5: AES3id compatible and Transparent mode without equalization and reclocking
Page 8
DA-3GHD Rev. 3
network-electronics.com | 8
4 Connections
The DA-3GHD has a dedicated connector module: DA-3GHD-C1. This module is mounted at
the rear of the sub-rack. The module is shown in Figure 2.

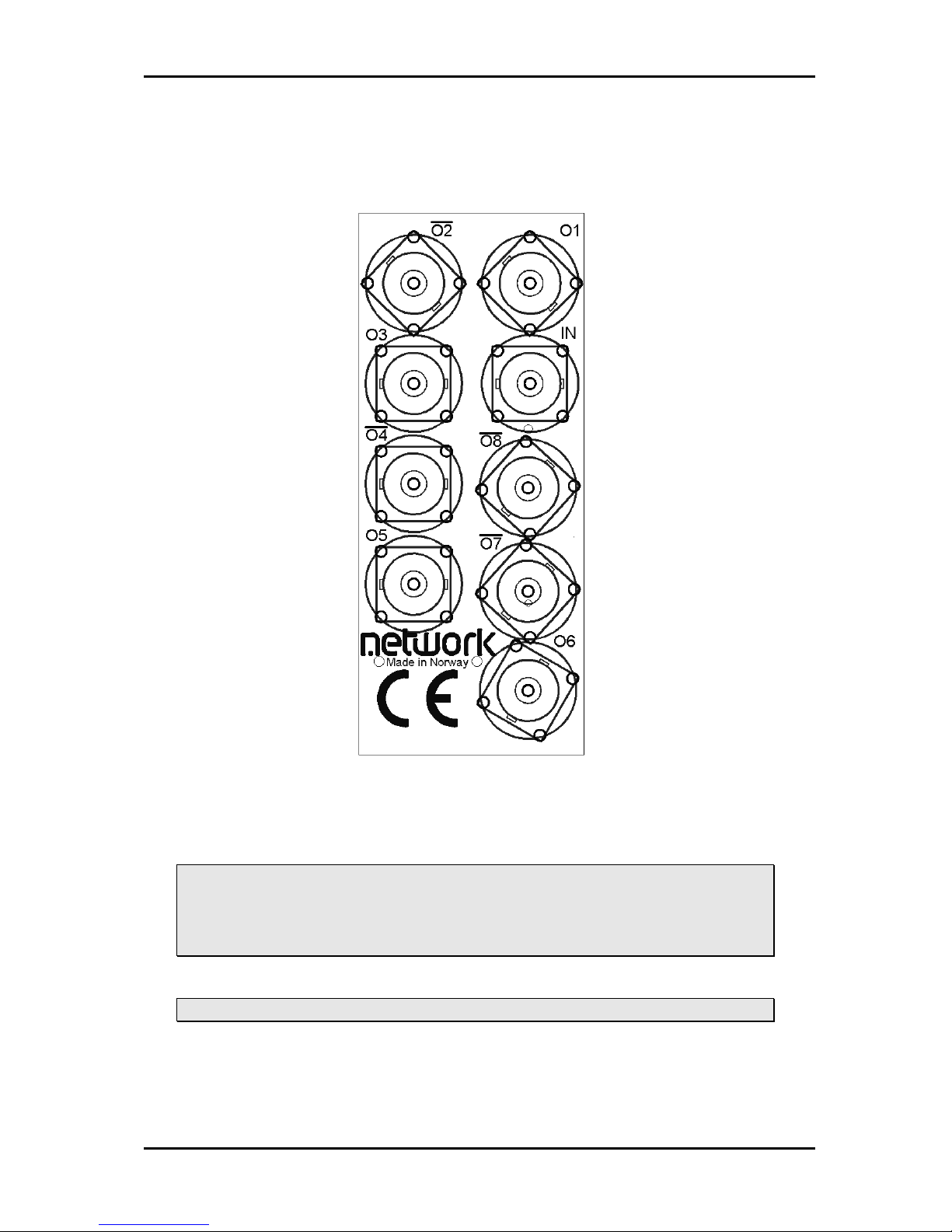

Figure 6: Overview of the DA-3GHD-C1 connector module
The electrical input signal is connected to the IN BNC and the electrical outputs are
connected to the O1 to O8 BNCs.
Please note that O2, O4, O7 and O8 have inverted signals, so DVB-ASI cannot
be used on these outputs.
The dashes above the inverted signals are only printed in the manual; they are
not printed on the backplanes.
Unused outputs should be terminated with 75 ohm.
Page 9
DA-3GHD Rev. 3
network-electronics.com | 9
5 Operation
The status of the module can be easily monitored visually by the LEDs at the front of the
module. The LEDs are visible through the front panel as shown in Figure 7 below.

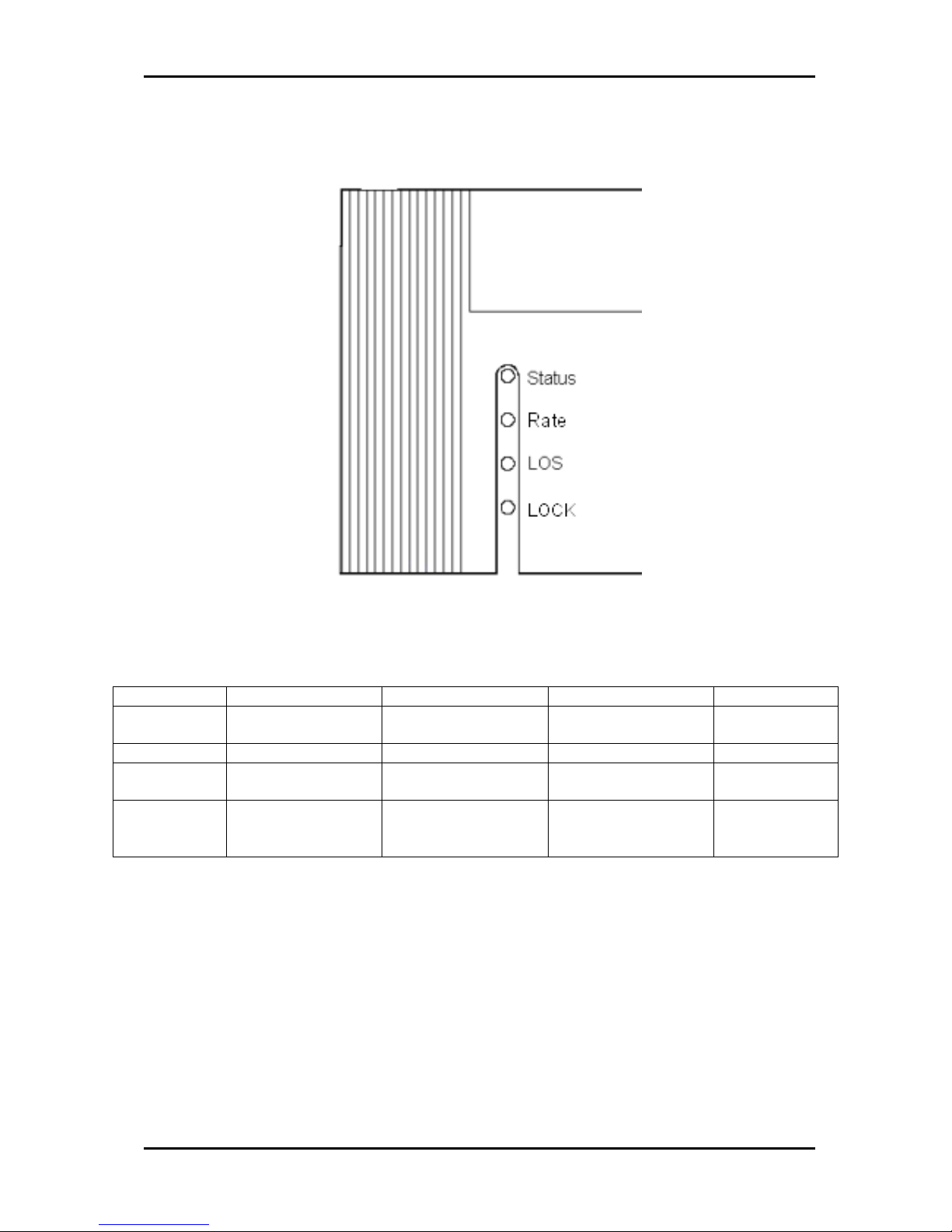

Figure 7: Panel indicator overview for DA-HDSDI (Text not printed on the front panel).
The functions of the different LEDs are described in Table 2.
Table 2: LED status description
Diode \ state
Red LED
Yellow LED
Green LED
No light
Status Module is faulty
Module is OK
Module power is OK
Module has no
power
Rate
Rate not detected
SD rate found
HD rate found
LOS Loss of signal
No input signal.
LOS detection de-
activated (EQM=off)
Input signal present
LOCK
Re-clocker is out of
lock
Re-clocker switched
off
Re-clocker is in lock
on a supported signal
format
Page 10
DA-3GHD Rev. 3
network-electronics.com | 10
General environmental requirements for Network Electronics
equipment
1.
The equipment will meet the guaranteed performance specification under the following
environmental conditions:
-
Operating room temperature range:
0°C to 50°C
-
Operating relative humidity range:
<90% (non-condensing)
2.
The equipment will operate without damage under the following environmental
conditions:
-
Temperature range:
-5°C to 55°C
-
Relative humidity range:
<95% (non-condensing)
Page 11
DA-3GHD Rev. 3
network-electronics.com | 11
Product Warranty
The warranty terms and conditions for the product(s) covered by this manual follow the
General Sales Conditions by Network Electronics AS. These conditions are available on the
company web site of Network Electronics AS:
www.network-electronics.com
Page 12
DA-3GHD Rev. 3
network-electronics.com | 12
Appendix A Materials declaration and recycling information
A.1 Materials declaration
For product sold into China after 1st March 2007, we comply with the “Administrative
Measure on the Control of Pollution by Electronic Information Products”. In the first stage of
this legislation, content of six hazardous materials has to be declared. The table below
shows the required information.
組成名稱
Part Name
Toxic or hazardous substances and elements
鉛
Lead
(Pb)
汞
Mercury
(Hg)
镉
Cadmium
(Cd)
六价铬
Hexavalent
Chromium
(Cr(VI))
多溴联苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
DA-3GHD O O O O O O
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for
this part is below the limit requirement in SJ/T11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous
materials used for this part is above the limit requirement in SJ/T11363-2006.
This is indicated by the product marking:
A.2 Recycling information
Network Electronics provides assistance to customers and recyclers through our web site
http://www.network-electronics.com. Please contact Network Electronics’ Customer Support
for assistance with recycling if this site does not show the information you require.
Where it is not possible to return the product to Network Electronics or its agents for
recycling, the following general information may be of assistance:
− Before attempting disassembly, ensure the product is completely disconnected from
power and signal connections.
− All major parts are marked or labeled to show their material content.
− Depending on the date of manufacture, this product may contain lead in solder.
− Some circuit boards may contain battery-backed memory device.
Page 13
DA-3GHD Rev. 3
network-electronics.com | 13
EC Declaration of Conformity
MANUFACTURER
Network Electronics AS
P.B. 1020, N-3204 SANDEFJORD, Norway
AUTHORISED REPRESENTATIVE
(Established within the EEA)
Not applicable
MODEL NUMBER(S)
DA-3GHD
DESCRIPTION
Multi Rate 3GHD-SDI Distribution Amplifier
DIRECTIVES this equipment complies with
LVD 73/23/EEC
EMC 2004/108/EEC
HARMONISED STANDARDS applied in order to
verify compliance with Directive(s)
EN 55103-1:1996
EN 55103-2:1996
TEST REPORTS ISSUED BY
Notified/Competent Body
Report no:
Nemko
E08463.00
TECHNICAL CONSTRUCTION FILE NO
Not applicable
YEAR WHICH THE CE-MARK WAS AFFIXED
2008
TEST AUTHORIZED SIGNATORY
MANUFACTURER
AUTHORISED REPRESENTATIVE
(Established within EEA)
Date of Issue
2008-07-15
Place of Issue
Not applicable
Sandefjord, Norway
Name
Thomas Øhrbom
Position
Quality Manager
(authorised signature)
