Network Devices ND-70M-HDBT-HVD User Manual

Multi format HDBT switcher

User Manual

Introduction

The ND-70M-HDBT-HVD is multi-format switcher with HDMI, VGA and Display Port inputs to
HDBT output. The audio port is independent and could be embedded into any of the video signal
and send it to the far end. The product support web server and it could be controlled by the
button, lan, Rs232, contact closure, IR and Rs232 can pass through.

Package Contents

 1×ND-70M-HDBT-HVD
 1×24V 1A DC power adapter
 1×User manual
 2×Wall mounting bracket

Features:

◆ Transmit Audio/Video/Control up to 70m over one Cat 6/Cat 6A/Cat 7 cable;

◆ Support VGA with WUXGA resolution;

◆ Support HDMI 4K x 2K and 3D;

◆ Support DP1.2 with 4K@30Hz;

◆ Support Auto/Manual switching;

◆ Support EDID management;

◆ Support field FW upgrade;

◆ Support Web Server for management, monitor and configuration;

◆ HDCP 1.4 Compliant;

◆ IR and RS-232 pass through;

◆ LAN for local control and Web Server access;

◆ Control switching through Button/RS232/ Contact Closure or Web Server;

◆ Independent audio input;

◆ Remotely or Locally Powered;

◆ Status LED for all connections on front.

2 5 4 3

8 7

Panel Description

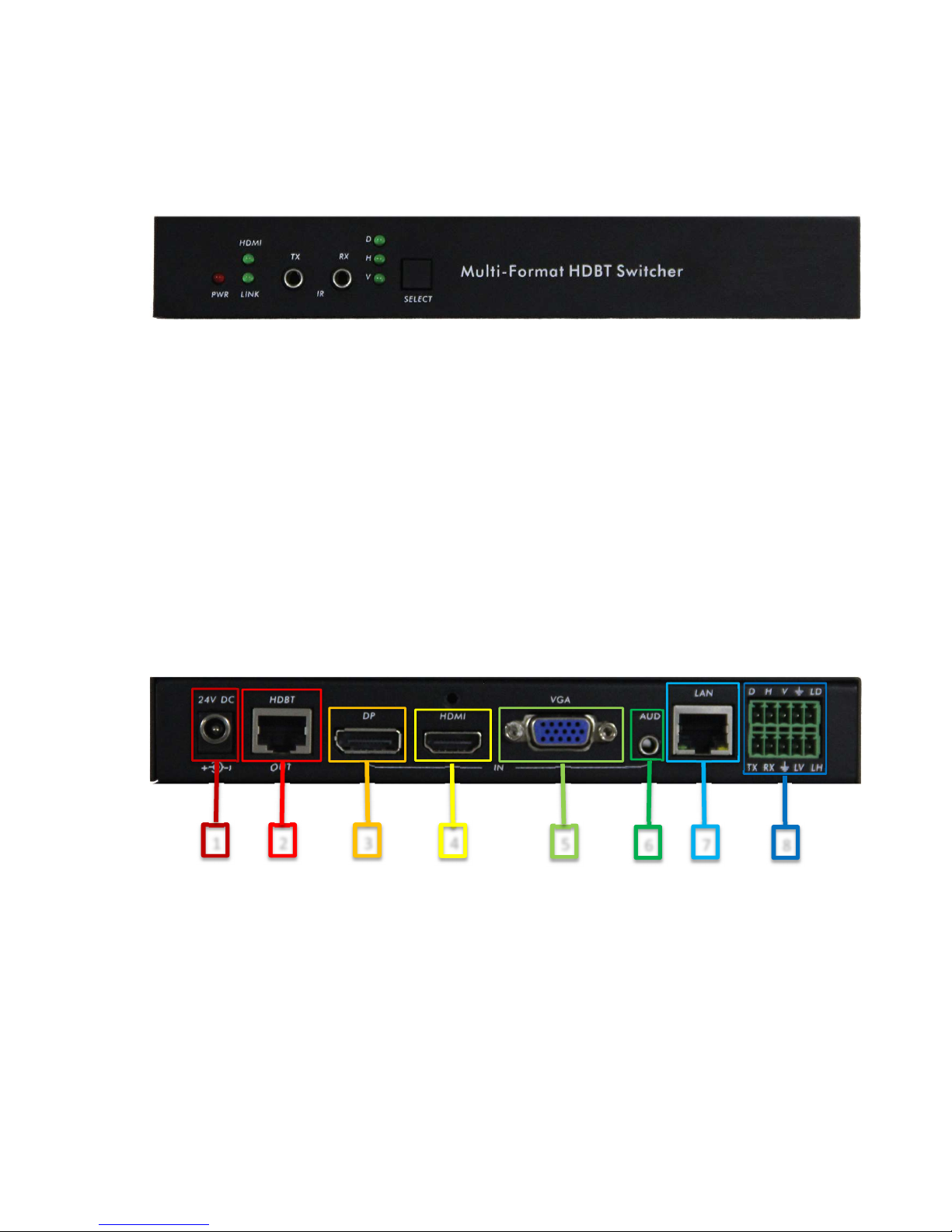

Front Panel

1. PWR: Solid red when power on;

2. HDMI: Led solid when with HDCP, flashing when without HDCP;

3. Link: flashing when HDBT connected without video signal, solid when video presented;

4. D:LED solid when DP selected, flashing when signal presented, off mean no input signal;

5. H:LEDsolid when HDMI selected, flashing when signal presented, off mean no input signal;

6. V:LED solidwhen VGA selected, flashing when signal presented, off mean no input signal;

7. IR Tx:IR emitter port;

8. IR Rx: IR sensor port;

9. SELECT: Button for switching input signal. If hold for 3-5 second, it will execute the preset
rs232 command listed in the “Button”. If hold for 20second or more, it will reset the product
to the factory default setting.

Rear Panel

1. Power:24V DC Power;

2. HDBT Out:HDBT output

3. DP: Display Port input;

4. HDMI:HDMI input;

5. VGA:VGA input;

6. AUD:Independent audio input;

7. LAN:Lan for local control or web serve access;

8. Phoenix Port: RS232 and Contact Closure with LED indicator.

1

6

Connection and Installation

Specification

Video

HDMI Compliance HDMI 1.4, 3D, 4K
VGA Compliance VESA
DP Compliance DP 1.2
HDCP Compliant HDCP 1.4
Distance Up to 70m
Max Resolution Up to 4K x 2K@30Hz

Control

Control RS232，IP，IR, Contact Closure
Mechanical
Dimensions 190 x103 x 29 mm (L/W/H)
Gross Weight 880g
Power
Power Supply 24V 1A DC
Power Consumption 12W
Environmental
Operation Temperature 14~131°F [-10~55°C]
Relative Humidity 5~95% RH [no condensation]

Web Server

The factory default IP : 192.168.2.175

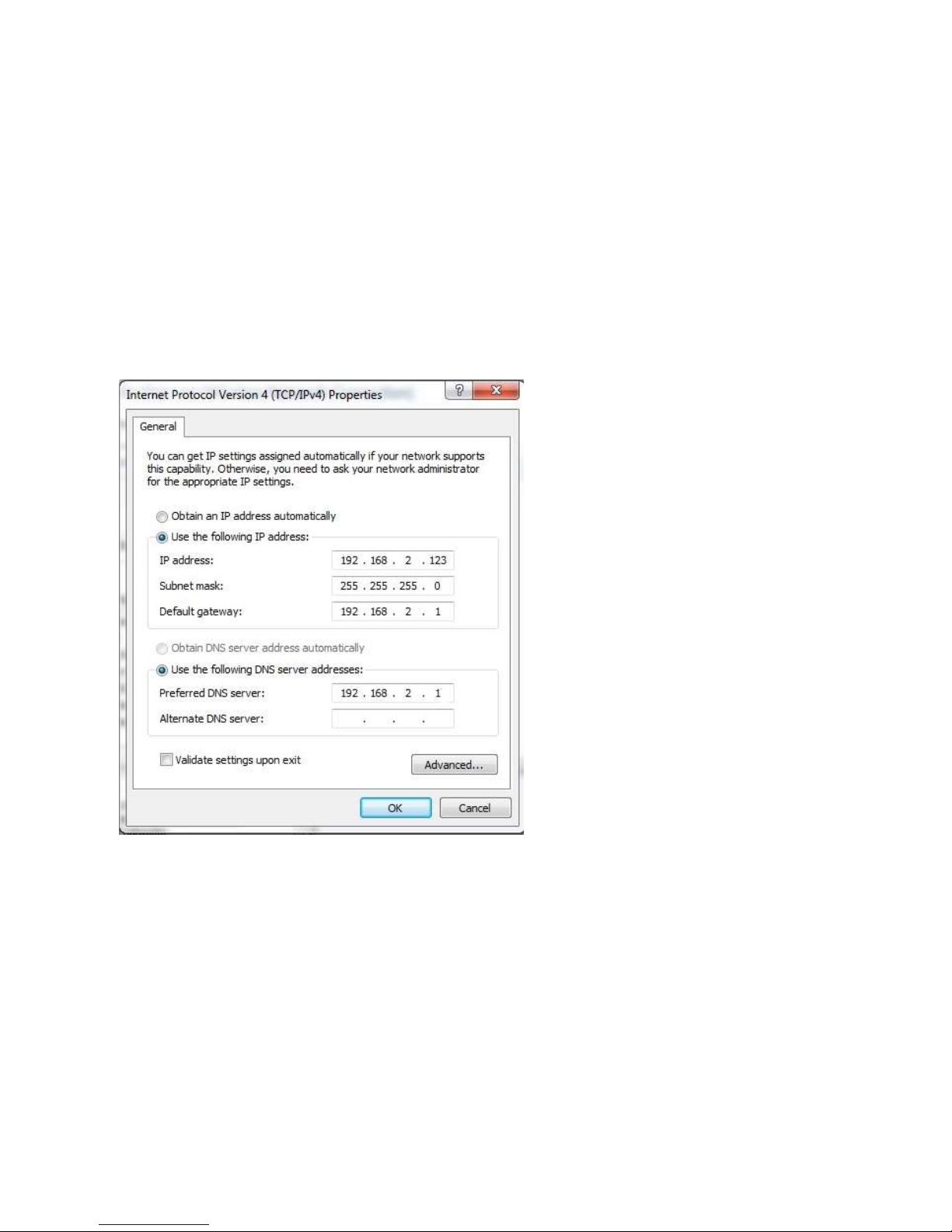

To access to the product web server, user could direct connect the PC LAN port to the MVE-HPVlan
port with a straight RJ45 cable. After making the connection, go to network connection of the PC and
revised the IP property to static IP as below. Once done, open a web brower and enter the

192.168.2.175 to access to the web server.

For the ND-70M-HDBT-HVD connected to the local area network, please update the ND-70M-HDBT­HVD product IP to match the lan network setting from the web server.

For example if the lan IP is set as 192.168.88.xxx, then please revise the product to 192.168.88.1xx.
Once the IP is set, then you could access to the device from any PC in the same network.

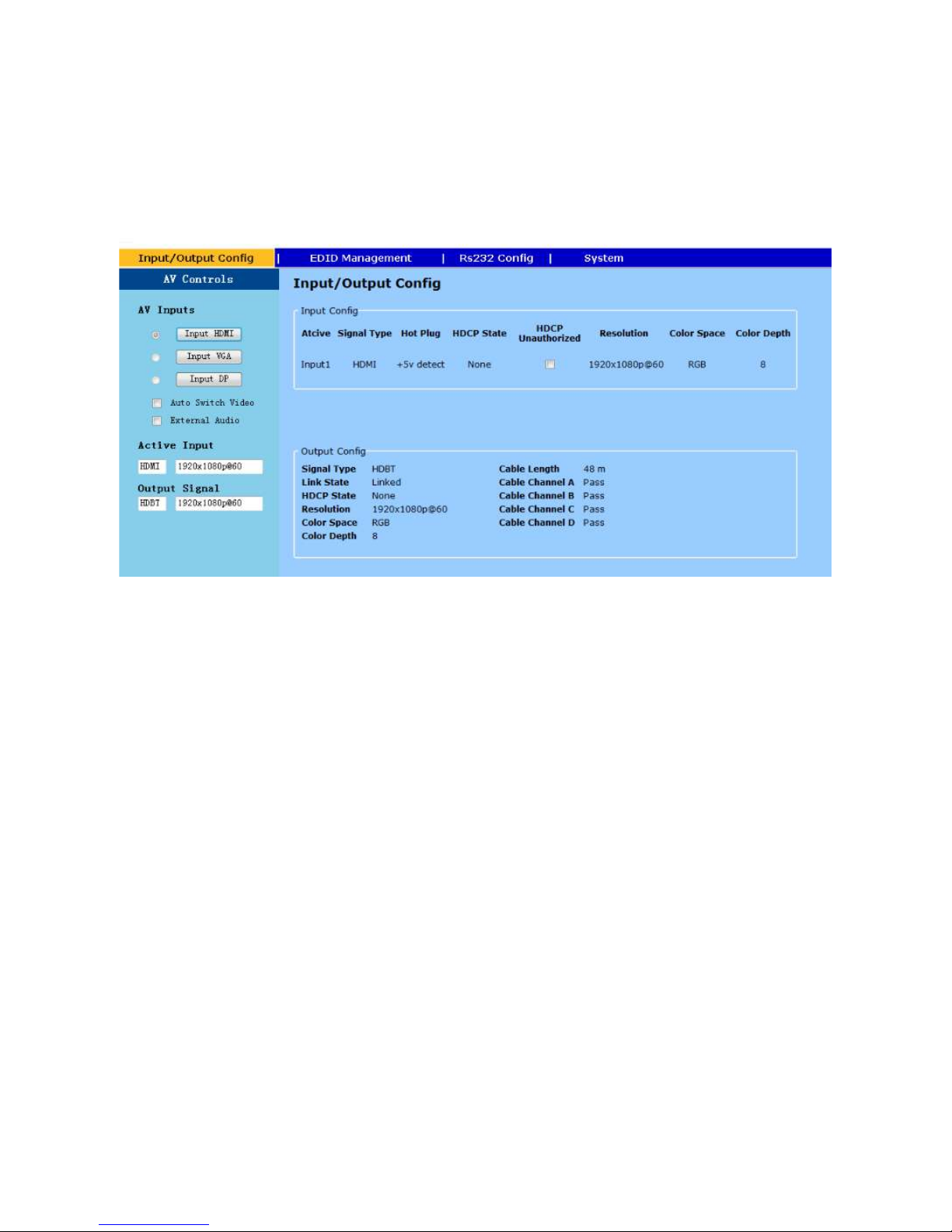

Input/Output Config

The page provided the switching and also the connection input signal information and hdbt output
connection status.

AV Inputs – Select to switch the input

Auto Switch Video – If check, the device is set in auto switching mode else in manual mode

External Audio – If check, the 3.5mm audio input is embedded to the input video.

Input config – Input port information

Output Config – HDBT connection status

Active Input – Showing the Input signal format and resolution

Active Output – Showing output signal format and resolution

HDCP Unauthorized- When check, MVP-HPV will request none HDCP compliant source.

EDID Management

The page provided switching and EDID management. this page.

Follow Output – EDID from Display

Network Devices – Internal Preload EDID

Rs232 Config

Rs232 –Local Rs232 setting to control the MVE-HPV

HDBT Rs232 – Set the far end Rs232 baud rate.

Rs232 Preset

Command1 – When detect active signal, send the Rs232 command in the preset timing
Command2 – When no active signal present, send the command in the preset timing
Button – Press and hold the button for 3-5 second, send the preset command

To set the preset RS232, please click the program button to program the code to the unit.

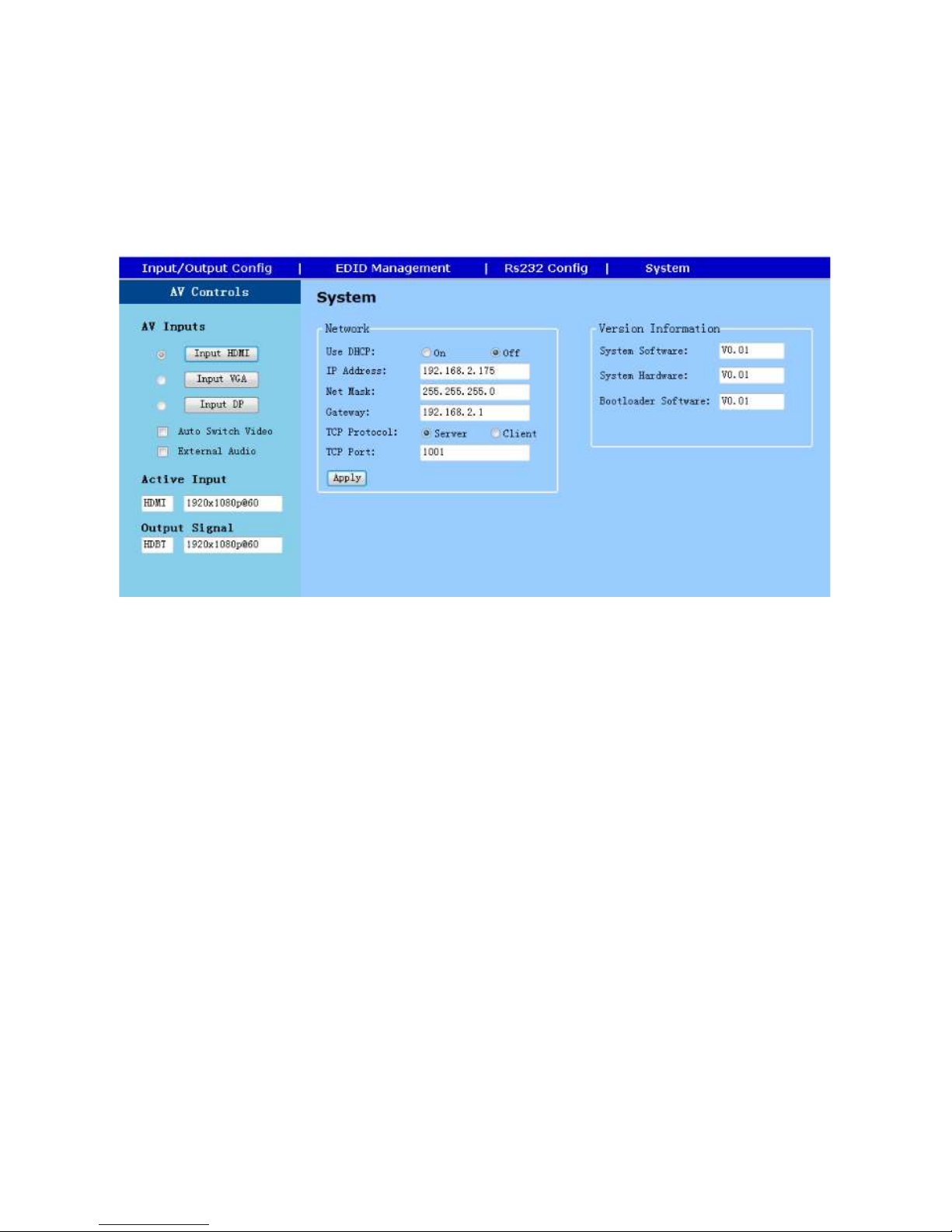

System

System and fw info. User could modify the IP setting on the page. Please remember to click on Apply
for the changes.

RS232 Command Table

Rs232 Setting Protocol Command Example

Baud Rate >MBaud:115200<0D 0A> #MBaud<0D 0A>

Data Bits >MDBits:8<0D 0A> #MDBits<0D 0A> Support 8 & 9
Stop Bits >MSBits:1<0D 0A> #MSBits<0D 0A> Support 1 & 2
Parity Bits >Mparity:None<0D 0A> #MParity<0D 0A> Support 0DD, Even, None

Network Setting
DHCP >DHCP:ON<0D 0A> #DHCP<0D 0A>
IP >IP:192.168.2.175<0D 0A> #IP<0D 0A>

Net Mask

Gateway

TCP Protocol

TCP Port >Tcp Port:1001<0D 0A> #Tcp Port<0D 0A>
TCP Host IP >HsIP:192.168.2.200<0D 0A> #HsIP<0D 0A>

Video Switching
Siwtching >C2to1<0D 0A> #C 1:DP 2:HDMI 3:VGA
Output Port >V0<0D 0A> 1:Output On 0:Output Mute
Query
Resolution
Switching Mode >M0 1:Auto 0:Manual

Audio Setting 0: Mute 1: Vol Up 2:Vol Down
Audio >A1 0:Internal Audio 1:External Audio

Pass through
command
(Rs232 to Lan or
vice versa)

>Mask:255.255.255.0<0D
0A>
>Gate:192.168.2.175<0D
0A>
>Tcp Protocol : Server<0D
0A>

#R

>RS1TX05Hello<0D 0A>

Ex : passing command
through Rs232 port for 5
character "Hello"

Query Command
Ex

#Mask<0D 0A>

#Gate<OD OA>

#Tcp Protocol<0D
0A>

Note:

Support 9600, 19200, 38400, 115200
(default)

Command pass through (control port) :
1:Rs232 2:Lan

Note: The default baud rate 115200.

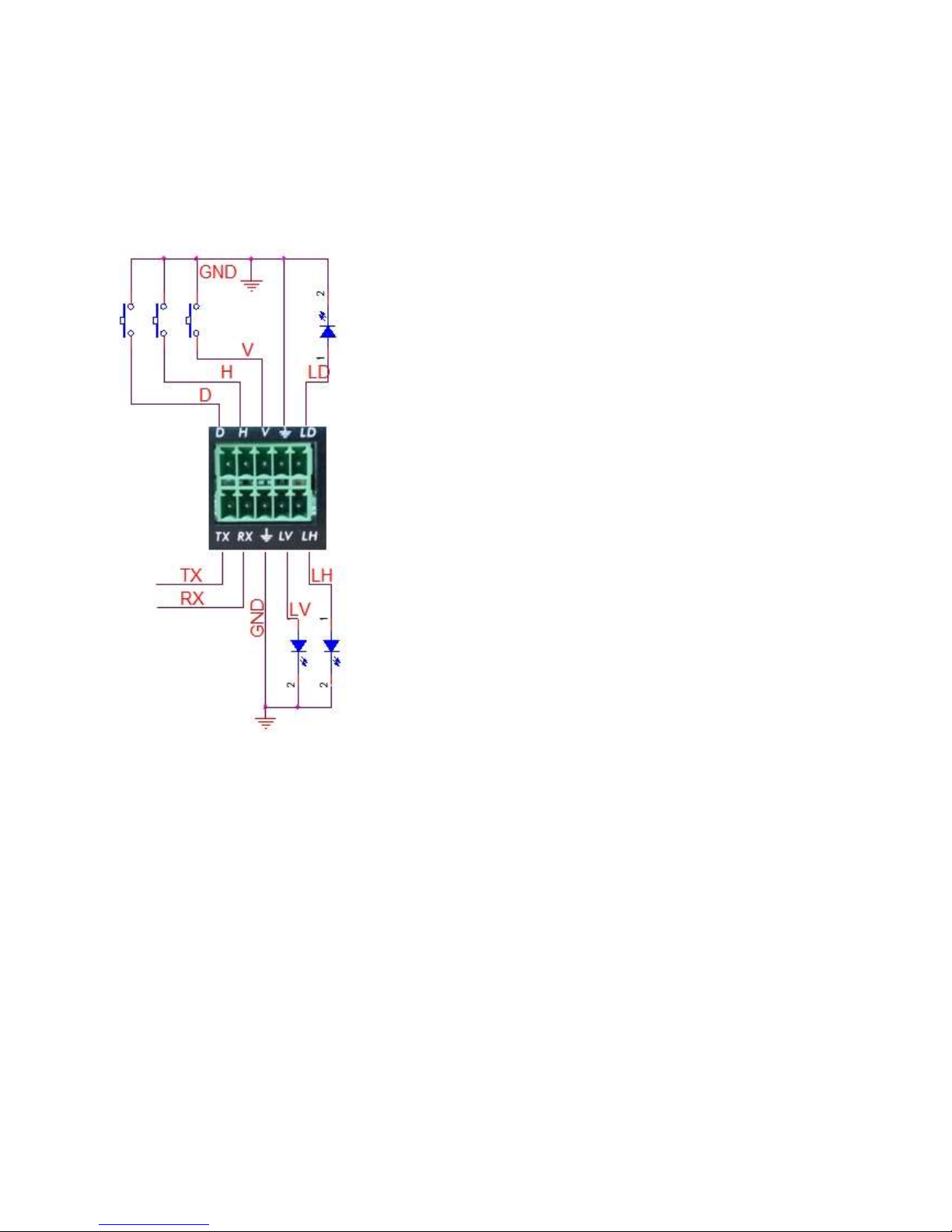

Phoenix contact connection diagram

Note:
V : VGA Input LV: LED indicator for VGA
D: DP Input LD: LED indicator for DP
H: HDMI Input LH: LED indicator for HDMI

TX: Rs232 Tx
RX: Rs232 Rx
GND: Ground
