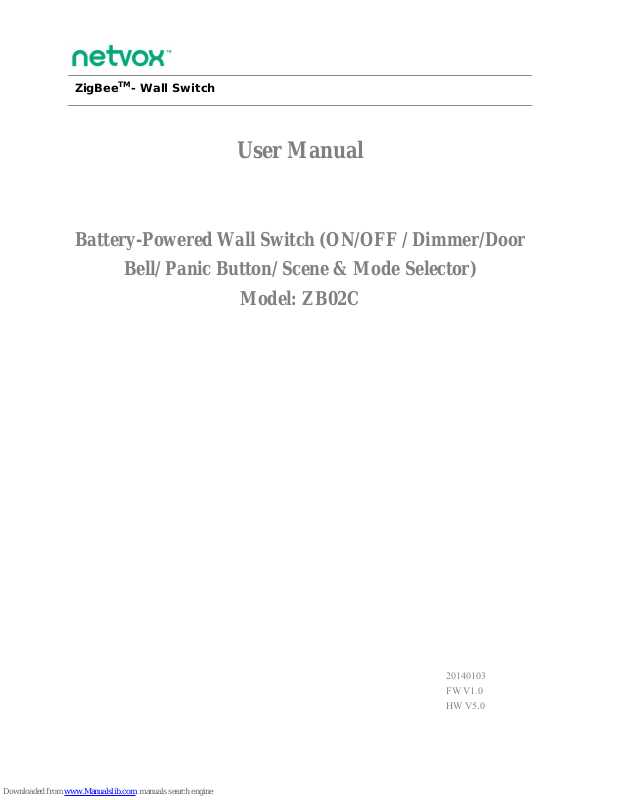

Zig
BeeTM- Wall Switch
User Manual
Battery-Powered Wall Switch (ON/OFF / Dimmer/Door
Bell/ Panic Button/ Scene & Mode Selector)
Model: ZB02C
20140103
FW V1.0
HW V5.0
2
1. Introduction
Netvox ZB02C, a battery-powered wall switch, acts as an End Device in ZigBee network. It does not perform
permit-join function as a coordinator or a router for other devices to join the network. It can be bound with the
On/Off devices such as ZigBee enabled power plugs or power outlets.
What is ZigBee?
ZigBee is a short range wireless transmission technology based on IEEE802.15.4 standard and supports multiple
network topologies such as point-to-point, point-to-multipoint, and mesh networks. It is defined for a
general-purpose, cost-effective, low-power-consumption, low-data-rate, and easy-to-install wireless solution for
industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation
and home automation, etc.
3

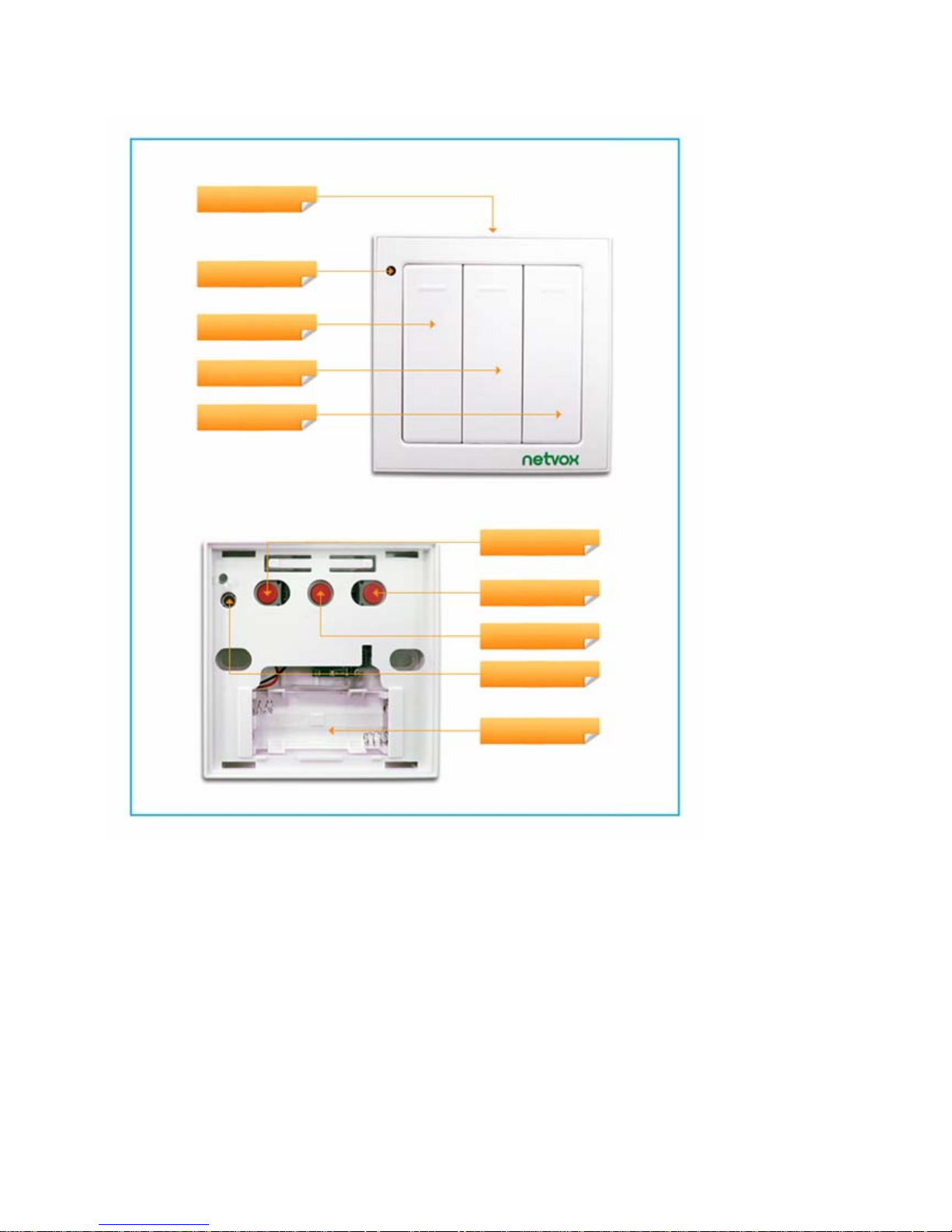

2. Product Appearance
3. Specification
y Fully IEEE 802.15.4 compliant
y Utilizes 2.4GHz ISM band; up to 16 channels
y Power supply: 2 x AAA batteries.
y Operating consumption: ≤ 40mA
y Standby consumption: ≤ 1uA
y Up to 70 meters wireless transmission range in non-obstacle space
y Easy installation and configuration
Opening
Indicator
Button 2
Binding Key
Battery Holder
Button 1
Button 3
Button 2
Button 1
Button 3
4
4. Installation Diagram
5. Setting up ZB02C
5-1. Turn On ZB02C
For power saving, ZB02C is designed to get into sleeping mode when there is no activity for 2 minutes.
To manually turn on ZB02C, press the Binding Key once.
y When ZB02C is first time used or after resetting → it will try to join the network.
y When ZB02C is in a ZigBee network → it will send out the device data, like IEEE address/Network
address, and the indicator will flash 5 times. ZB02C will be activated for 2 minutes.
y When ZB02C was in a ZigBee network, but by any change it is offline → it will start to rejoin the
ZigBee network.
Insert the batteries
Install the cover
5
5-2. Join the ZigBee Network
After ZB02C is turned on, it will search for an existing ZigBee network and send a request to join the network
automatically. While ZB02C is under the coverage from a coordinator or a router whose permit-join feature
is enabled, ZB02C will be permitted to join the network.
Step1. Enable the permit-join function (valid for 60 seconds) of a coordinator or a router (please refer to
the user manual of the coordinator or the router to enable the permit-join feature).
Step2. Turn on ZB02C. It will start to search and join the network.
Step3. The indicator will flash 5 times after it is joined successfully. Otherwise, the indicator will not
flash.
ZB02C will try to join the network for 1 minute. Please try step1~3 again when it is failed to join the network.
5-3. Binding
ZB02C can be bound with the On/Off device such as Netvox Z801RX.
Step1. Press and hold the Binding Key for 3 seconds. The indicator will flash orange once.
Step2. Release the Binding Key and then press the Binding Key N times (N = the number of the button)
within 5 seconds. For example, press the Binding Key 3 times when you would like to bind Button 3.
The indicator will flash N times.
Step3. Enable the binding feature of the On/Off device.
Step4. The indicator flashes 5 times after the binding is completed; otherwise, it will flash 10 times.
5-4. Sleeping Mode
ZB02C is designed to go into sleeping mode for power-saving in some situations:
A. While the device is in the network → the sleeping period is 5 minutes; it will wake up every 5
minutes to keep online.
B. When it doesn’t find a network to join → ZB02C will go to sleeping mode. It will wake up every 15
minutes to search a network to join.
C. Once ZB02C was joined to a network and by any chance the network is no longer existed or the
device is out of the network → ZB02C will wake up every 15 minutes to find the network it joined
before.
It never keeps in sleeping mode and continues to find out a network every 15 minutes. This condition would
consume up to 30 times power spending compared to normal-operating status. To prevent this unwanted power
consumption, we recommend that users remove the batteries to power off the device.
6
5-5. Battery
When the operating voltage is lower than 2.4V, the indicator will flash once. ZB02C will send a low-power
report to the ZigBee network.
5-6. Restore to Factory Setting
To restore it to factory setting, please follow the steps:
Step1. Remove the batteries to power off ZB02C.
Step2. Press and hold the Binding Key, then power on ZB02C.
Step3. The indicator will generate flashes, and the restore is completed.
6. Important Maintenance Instructions
• Please keep the device in a dry place. Precipitation, humidity, and all types of liquids or moisture can
contain minerals that corrode electronic circuits. In cases of accidental liquid spills to a device, please
leave the device dry properly before storing or using.
• Do not use or store the device in dusty or dirty areas.
• Do not use or store the device in extremely hot temperatures. High temperatures may damage the device or
battery.
• Do not use or store the device in extremely cold temperatures. When the device warms to its normal
temperature, moisture can form inside the device and damage the device or battery.
• Do not drop, knock, or shake the device. Rough handling would break it.
• Do not use strong chemicals or washing to clean the device.
• Do not paint the device. Paint would cause improper operation.
Handle your device, battery, and accessories with care. The suggestions above help you keep your device
operational. For damaged device, please contact the authorized service center in your area.
7
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device
must a
ccept any interference r
eceived, including interference that may cause undesire
d
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in a
ccordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not o
ccur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the r
eceiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment
.
