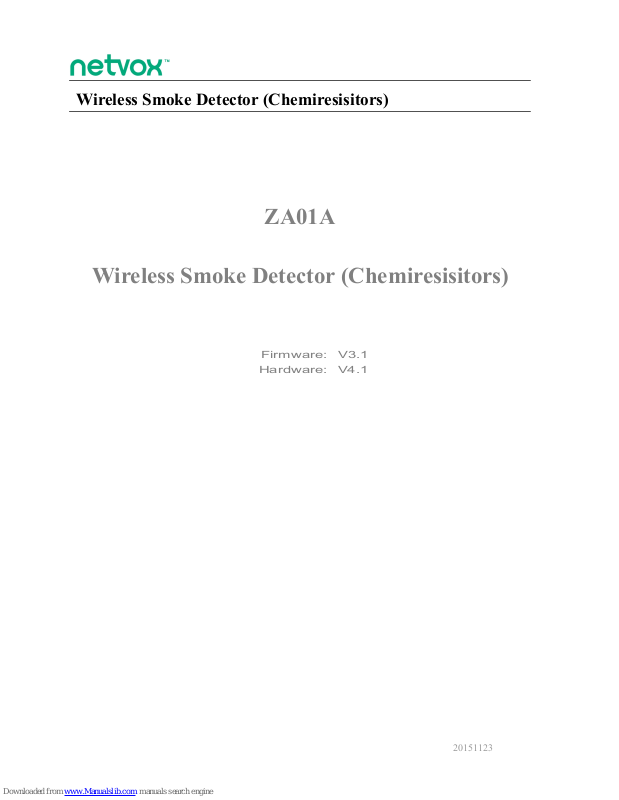

Wireless Smoke Detector (Chemiresisitors)
ZA01A
Wireless Smoke Detector (Chemiresisitors)
Firmware: V3.1
Hardware: V4.1
20151123
1
Table of Contents
1. Introduction.............................................................................................................................................................. 2
2. Product Appearance.................................................................................................................................................3
3. Specification.............................................................................................................................................................. 4
4. Installation.................................................................................................................................................................4
5. Setting up ZA01A.....................................................................................................................................................5
5-1. Join the ZigBee Network................................................................................................................................5
5.2. Enroll in the ZigBee Security System.............................................................................................................5
5-3. Permit-Join......................................................................................................................................................5
5-4. Alert Test.........................................................................................................................................................5
5-5. Air Pollution Sensing......................................................................................................................................6
5-6. Announce........................................................................................................................................................ 6
5-7. Reboot............................................................................................................................................................. 6
5-8. Restore to Factory Setting...............................................................................................................................6
6. Home Automation Clusters for ZA01A................................................................................................................. 7
9. Important Maintenance Instructions.....................................................................................................................9
2
1. Introduction
Netvox ZA01A, a ZigBee air pollution sensor, acts as a Router Device in ZigBee network. ZA01A is featured to
play a role of the sensor (Zone device) in the ZigBee security system. It can detect NH3, NO2, Ethanol (EtOH),
SO2, and smoke. When the air quality goes below a specified level, ZA01A would generate the sound to alert users.
ZA01A will also notify the central security unit, CIE (Control and Indicating Equipment) device, to send
commands to a siren device to trigger an alarm.
What is ZigBee?
ZigBee is a short range wireless transmission technology based on IEEE802.15.4 standard and supports multiple
network topologies such as point-to-point, point-to-multipoint, and mesh networks. It is defined for a
general-purpose, cost-effective, low-power-consumption, low-data-rate, and easy-to-install wireless solution for
industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation
and home automation, etc.
3
2. Product Appearance
Binding Key
Test Key
LNIndicator
Sensor Mounting
4
3. Specification
Fully IEEE 802.15.4 compliant
Utilizes 2.4GHz ISM band; up to 16 channels
Power supply: 100~240VAC; 50/60Hz
Power consumption: 31mA@220VAC
Up to 70 meters wireless transmission range in non-obstacle space
Easy installation and configuration
4. Installation
This device is NOT truly waterproof/ resistant and is for indoor use.
5
5. Setting up ZA01A
5-1. Join the ZigBee Network
After ZA01A is turned on, it will search for an existing ZigBee network and send a request to join the network
automatically. While ZA01A is under the coverage from a coordinator or a router whose permit-join feature
is enabled, ZA01A will be permitted to join the network.
Step1. Enable the permit-join function (valid for 60 seconds) of a coordinator or a router (please refer to
the user manual of the coordinator or the router to enable the permit-join feature).
Step2. Turn on ZA01A. It will start to search and join the network.
Step3. The indicator will stay green after it is joined successfully. Otherwise, the indicator stays red.
5.2. Enroll in the ZigBee Security System
ZA01A is a Zone device in the ZigBee security system. Right after ZA01A join the ZigBee network, it will
automatically find out a CIE (Control and Indicating Equipment) device (i.e. Netvox Z201B) and send a
registration request to the CIE device to enroll in the security system. The enrollment has these 3 situations:
A. There is no CIE device or no compatible CIE device in the network → the indicator flashes red twice.
B. There is a compatible CIE device in the network, but it is failed to enroll → the indicator flashes red 4
times. Users can press and hold the Test Key for 3 seconds to initiate the registration.
C. The enrollment is completed → the indicator flashes red 6 times.
NOTE: Users had better NOT enroll multiple Zone devices at the same time to prevent registration failure.
5-3. Permit-Join
ZA01A is designed to work as a router. To allow other devices to join the ZigBee network, users could enable
the Permit-Join feature using the tips:
A. Press the Binding Key to enable the Permit-Join feature.
B. The default Permit-Join period of time is 60 seconds.
5-4. Alert Test
To test the alert feature of ZA01A, press the Test Key once.
A. ZA01A is not in a network → it generates alert sound for 5 seconds. The indicator flashes 5 times.
B. ZA01A is enrolled in the network and in the Security System → it sends notification to the CIE device
and generates alert sound. The indicator keeps flashing.
D. ZA01A is not enrolled in the Security System → it sends the enrollment request. After the enrollment is
6
successful, it will generate an alert sound.
5-5. Air Pollution Sensing
When the air quality goes below a specified level, ZA01A would generate the sound to alert users. It will also
send the notification to CIE device or to the device which is bound using Cluster ID (0x0500). ZA01A works
as a temperature sensor as well. It alerts when the temperature is higher than 60 degrees.
Sensing range: 10-1000ppm.
The sensing feature is ready after ZA01A is powered on for 5 minutes.
After ZA01A is powered on for 48 hours, it will reach the best sensitivity.
5-6. Announce
Press and hold the Test Key for 3 seconds to announce.
5-7. Reboot
Press and hold the Test Key for 10 seconds to reboot ZA01A.
5-8. Restore to Factory Setting
To restore it to factory setting, please follow the steps:
Step1. Press and hold both Binding Key & Test Key for 5 seconds. The indicator will flash red once.
Step2. After releasing both keys, the indicator will flash 20 times to show restore completed.
Step3. If the indicator stays red after restoring, it means device does not join in the network.
7
6. Home Automation Clusters for ZA01A
A cluster is a set of related attributes and commands which are grouped together to provide a specific function. A
simple example of a cluster would be the On/Off cluster which defines how an on/off switch behaves. This table
lists the clusters which are supported by ZA01A.
1.End Point(s)：0x01
2.Device ID：HA IAS ZONE（0x0402）
3.EndPoint Cluster ID
Cluster ID for ZA01A
Server side Client side
EP 0X0A (Device ID: 0x0402)
Basic(0x0000) None
Identify(0x0003)
Commission（0x0015）
IAS Zone(0x0500)
Diagnostics Information(0x0B05)
This lists the attributes of the basic information.
Identifier Name Type Range Access Default
Mandatory
/ Optional
0x0000 ZCLVersion Unsigned
8-bit integer
0x00 – 0xff Read only 0x03 M
0x0001 ApplicationVersion Unsigned
8-bit integer
0x00 – 0xff Read only 0x1F O
0x0002 StackVersion Unsigned
8-bit integer
0x00 – 0xff Read only 0x33 O
0x0003 HWVersion Unsigned
8-bit integer
0x00 – 0xff Read only 0x29 O
0x0004 ManufacturerName Character string 0 – 17 bytes Read only netvox O
0x0005 ModelIdentifier Character string 0 – 17bytes Read only ZA01AE3R O
0x0006 DateCode Character string 0 – 17 bytes Read only 2014.05.09 O
0x0007 PowerSource 8-bit
Enumeration
0x00 – 0xff Read only 0x04 M
8
Identifier Name Type Range Access Default
Mandatory
/ Optional
0x0010 LocationDescription Character string 0 – 17 bytes Read/write O
0x0011 PhysicalEnvironment 8-bit
Enumeration
0x00 –0xff Read/write 0x00 O
0x0012 DeviceEnabled Boolean 0x00 –0 0x01 Read/write 0x01 M
9
9. Important Maintenance Instructions
Please keep the device in a dry place. Precipitation, humidity, and all types of liquids or moisture can contain
minerals that corrode electronic circuits. In cases of accidental liquid spills to a device, please leave the device
dry properly before storing or using.
Do not use or store the device in dusty or dirty areas.
Do not use or store the device in extremely hot temperatures. High temperatures may damage the device or
battery.
Do not use or store the device in extremely cold temperatures. When the device warms to its normal
temperature, moisture can form inside the device and damage the device or battery.
Do not drop, knock, or shake the device. Rough handling would break it.
Do not use strong chemicals or washing to clean the device.
Do not paint the device. Paint would cause improper operation.
Handle your device, battery, and accessories with care. The suggestions above help you keep your device
operational. For damaged device, please contact the authorized service center in your area.
