1U LCD Keyboard Drawer
17”, 19” Screen Size
Model
NVP700 / 900 Series
- Use of a true optical mouse
- 1U 17”, 19” screen size
Model
NVP1617 / 1619 Series
-1U 17”, 19” screen size
-Desktop size Keyboard
Page 2
NVP700-900 / NVP1617-1619 User Manual
Contents
Chapter 1 Getting Started
1.1 Important Safeguards..........................................................1
1.2 Regulatory Notice................................................................2
1.3 Package Contents...............................................................3-4
1.4 Before Installation................................................................5
1.5 Unpacking............................................................................5
1.6 Optional Accessories...........................................................5
1.7 Peripheral Products.............................................................6
1.8 Structure Diagram...............................................................7
1.9
1.10
1.14 NVP700 / 900 (Single console)
1.15 NVP700 / 900 (Single console)
1.16 NVP700 / 900 (Single console)
1.17 NVP700 / 900 (Single console)
Chapter 2 Operation

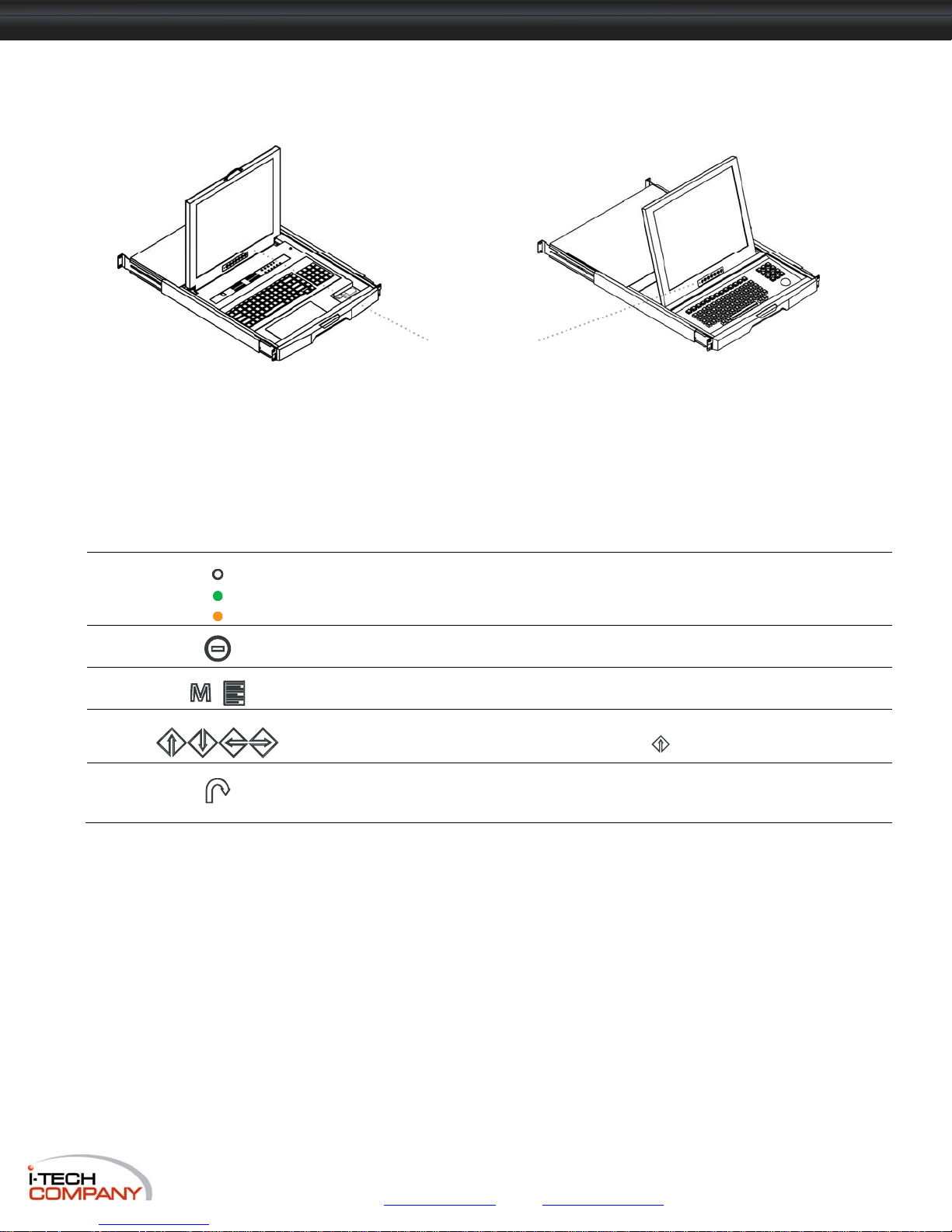

2.1 On-screen Display Operation.............................................13

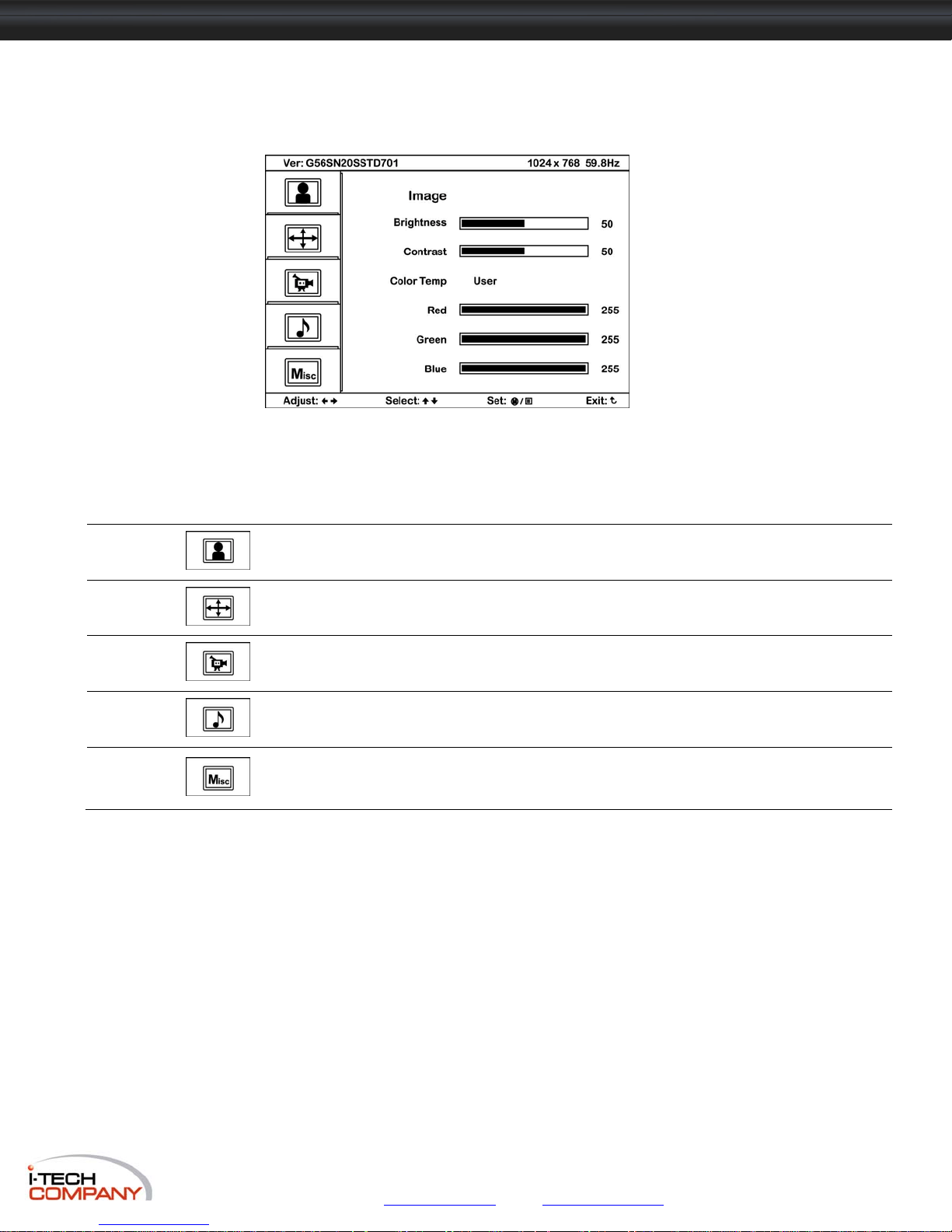

2.2 On-screen Menu................................................................14
Chapter 3 Standard Specification
3.1 Specifications....................................................................15
3.2 Keyboard & Mouse..............................................................16
How to Install “One Man” Installation Slides
How to Use the Slides........................................................................10
- Use NE-6 to connect to server via PS/2 interface
- Use NE-6 to connect to KVM via PS/2 interface
- Use NE-6 to connect to server via USB interface...........................................12
- Use NE-6 to connect to KVM via USB interface............................................12
................................8-9
...........................................11
............................................11
Page 3
NVP700-900 / NVP1617-1619 User Manual
Contents
Chapter 4 Optional Specification
4.1 KVM Options.....................................................................17
4.2 DVI-D Input Option............................................................17
4.3 BNC + S-Video Option.......................................................17
4.4 Audio Option......................................................................18
4.5 Touchscreen Options...............................................................19
4.6 DC power Options.............................................................19
Chapter 5 Troubleshooting...............................................................................................20
Chapter 6 Dimensions........................................................................................................21
Page 4
1.1 Important Safeguards Chapter 1
NVP700-900 / NVP1617-1619 User Manual
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modified or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fluctuation or failure.
□ Use of supplies or parts not meeting our specifications.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Page 5
NVP700-900 / NVP1617-1619 User Manual
1.2 Regulatory Notice Chapter 1
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the
correctness of the contents. The information in this document is subject to change without notice. We are not liable for
any injury or loss that results from the use of this equipment.
Safety Instructions
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned enviro-
nment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■ When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and
the power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage
and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be
higher than the one listed on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to
the power supply or on other hardware may cause damage, fire or electrical shock.
■ Only qualified service personnel should open the chassis. Opening it yourself could damage the equip ment and invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service
personnel.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a85
circuit different from that to which the receiver is connected.
Page 6
NVP700-900 / NVP1617-1619 User Manual
1.3 Package Contents Chapter 1

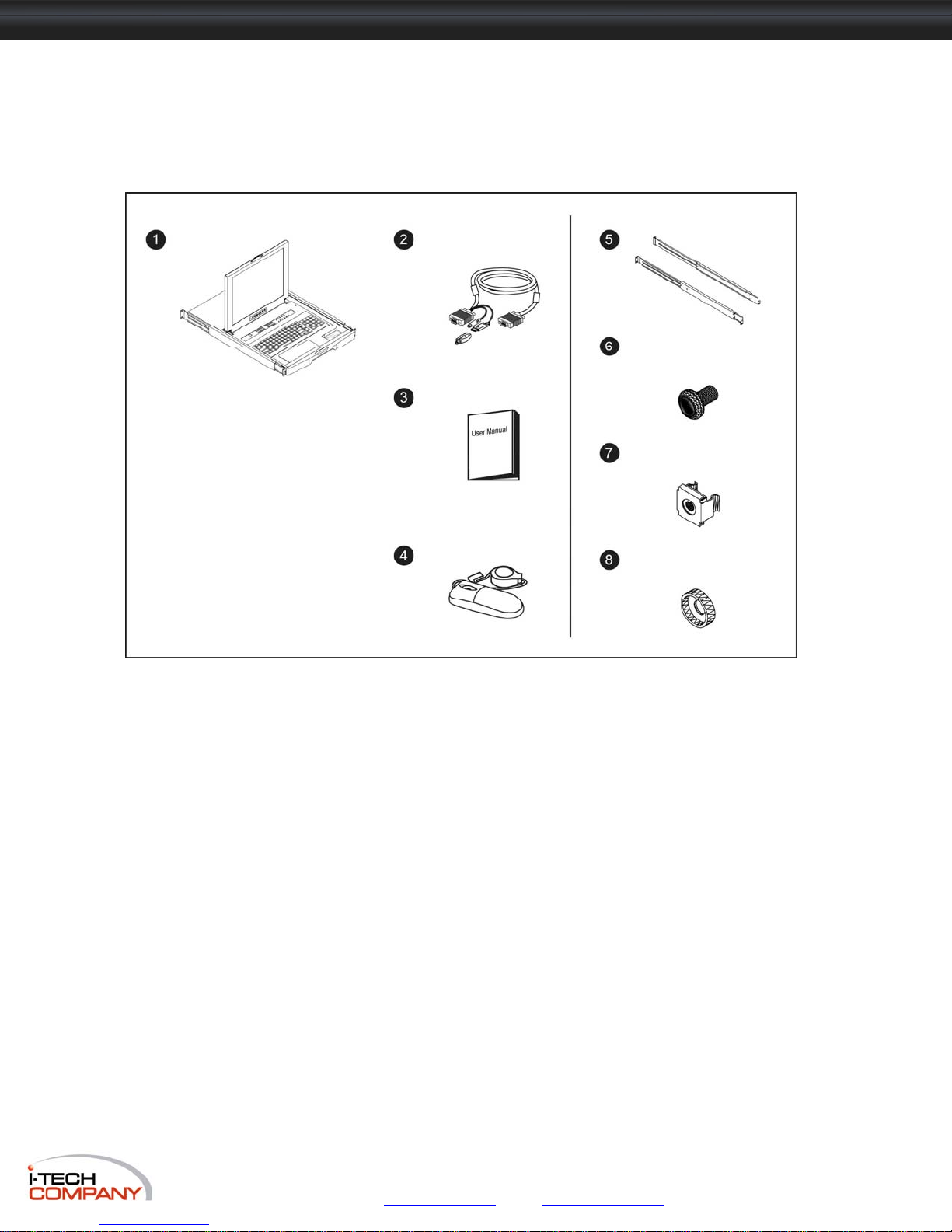

For NVP700 / 900 Series
1
LCD keyboard drawer x 1 pc
2 NE-6
3
4 WOM-01
5
6
7
8
Combo 4-in-1 KVM cable x 1 pc
User manual x 1 pc
Mini USB optical mouse x 1 pc
Mounting bracket x 2 pcs
M6*15mm screw x 8 pcs
M6 cage nut x 8 pcs
Cup washer x 8 pcs
Page 7
NVP700-900 / NVP1617-1619 User Manual
1.3 Package Contents Chapter 1
For NVP1617 / 1619 Series

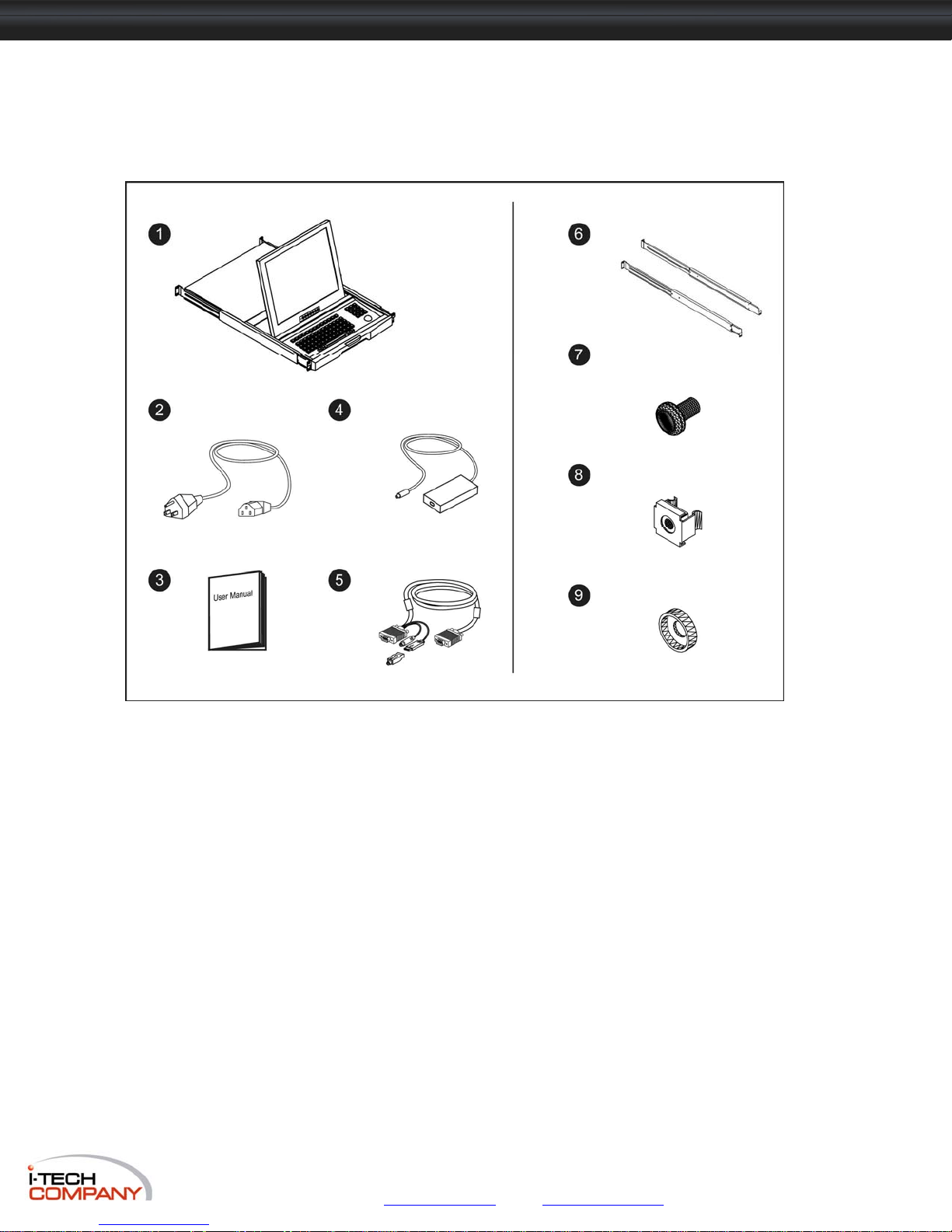

1
LCD keyboard drawer x 1 pc
2
Power cord x 1 pc
3
User manual x 1pc
4
Auto switch power adapter x 1pc
5 NE-6
6
7
8
9
Combo 4-in-1 KVM cable x 1 pc
Mounting bracket x 2 pcs
M6*15mm screw x 8 pcs
M6 cage nut x 8 pcs
Cup washer x 8 pcs
Page 8
NVP700-900 / NVP1617-1619 User Manual
1.4 Before Installation Chapter 1
■ It is very important to locate the LCD Keyboard Drawer in a suitable environment.
■ The surface for placing and fixing the LCD Keyboard Drawer should be stable and level or mounted into a
suitable cabinet.
■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt,
heat, water, moisture and vibration.
■ Position LCD Keyboard Drawer with respect to related facilities.
1.5 Unpacking
they are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

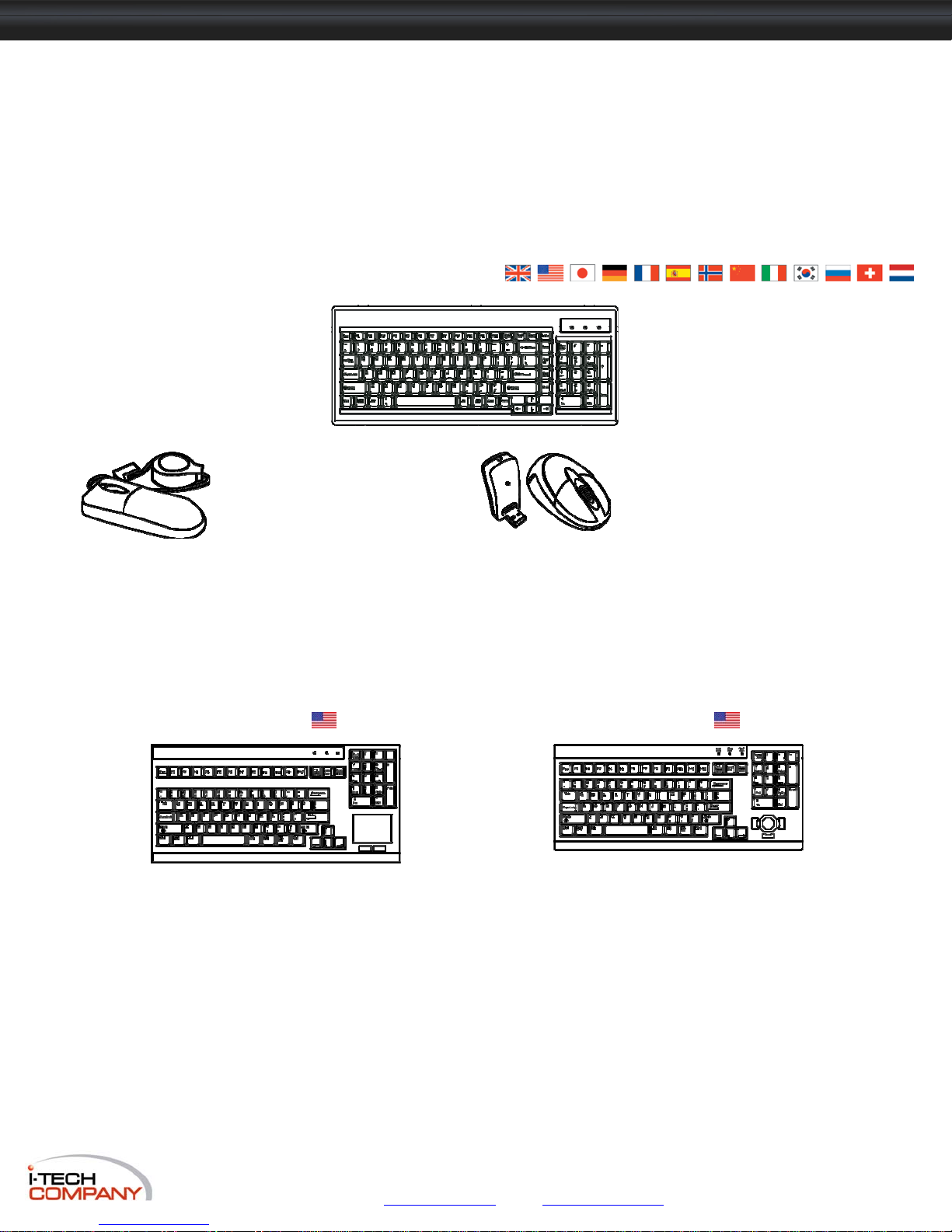

1.6 Optional Accessories
The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure

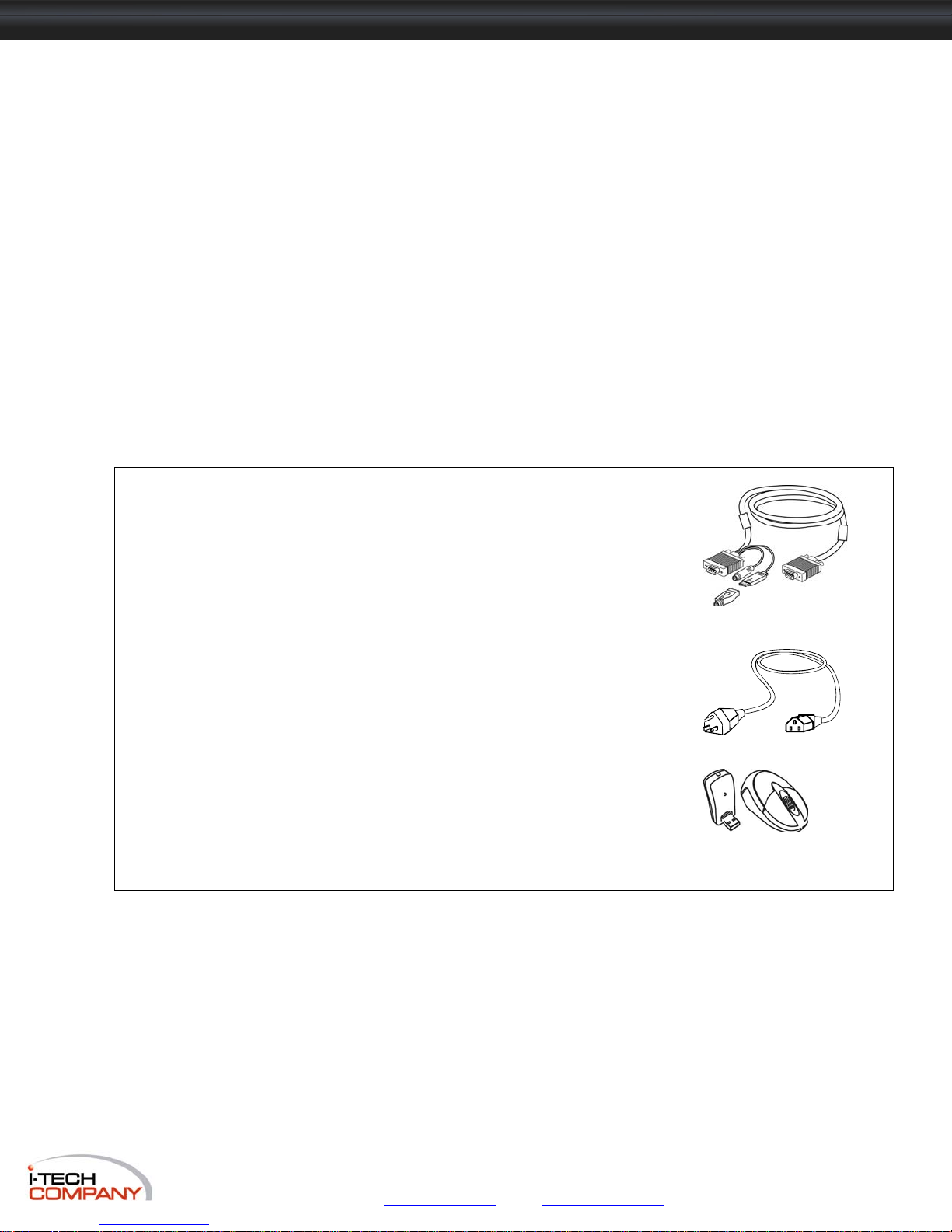

1. Combo 4-in-1 KVM cable
1.1 NE-6 6 feet
1.2 NE-10 10 feet
1.3 NE-15 15 feet
Power Cord
3.
3.1 IEC power cord
3.2 NEMA 5-15 power cord (US)
3.3 BS 1363 power cord (UK)
3.4 CEE 7/4 power cord (German)
3.5 AS 3112 power cord (Australia)
Wireless USB optical mouse
3.
3.1 WOM-02
Remarks:
■ WOM-02 is for NVP700 / 900 series only.
Page 9
NVP700-900 / NVP1617-1619 User Manual
1.7 Peripheral Products Chapter 1
Item Model No. Description
Matrix Cat6 KVM
Matrix DB-15 KVM
Combo Cat6 KVM
Combo DB-15 KVM
PS/2 DB-15 KVM
MC0116 / MC0216 / MC0316
MC1116 / MC1216 / MC2116
MC0132 / MC0232 / MC0332
MC1132 / MC1232 / MC2132
Matrix Cat6 16 port KVM
Matrix IP Cat6 16 port KVM
Matrix Cat6 32 port KVM
Matrix IP Cat6 32 port KVM
M018/ M028 / M038
M118 / M128 / M218
M0116 / M0216 / M0316
M1116 / M1216/ M2116
Matrix DB-15 8 port KVM
Matrix IP DB-15 8 port KVM
Matrix DB-15 16 port KVM
Matrix IP DB-15 16 port KVM
NVC800 / NVCCE800 / NVCIP800
NVC1600 / NVCCE1600 / NVCIP1600
NVC3200/ NVCCE3200 / NVCIP3200
Combo Cat6 8 port KVM
Combo Cat6 16 port KVM
Combo Cat6 32 port KVM
NVS801 / NVCE800 / NVIP-802
NVS1601 / NVCE1600 / NVIP-1602
Combo DB-15 8 port KVM
Combo DB-15 16 port KVM
NV401A / NV801A / NV1601A 4 / 8 / 16 port PS/2 DB-15 KVM
Page 10
NVP700-900 / NVP1617-1619 User Manual
Chapter 1

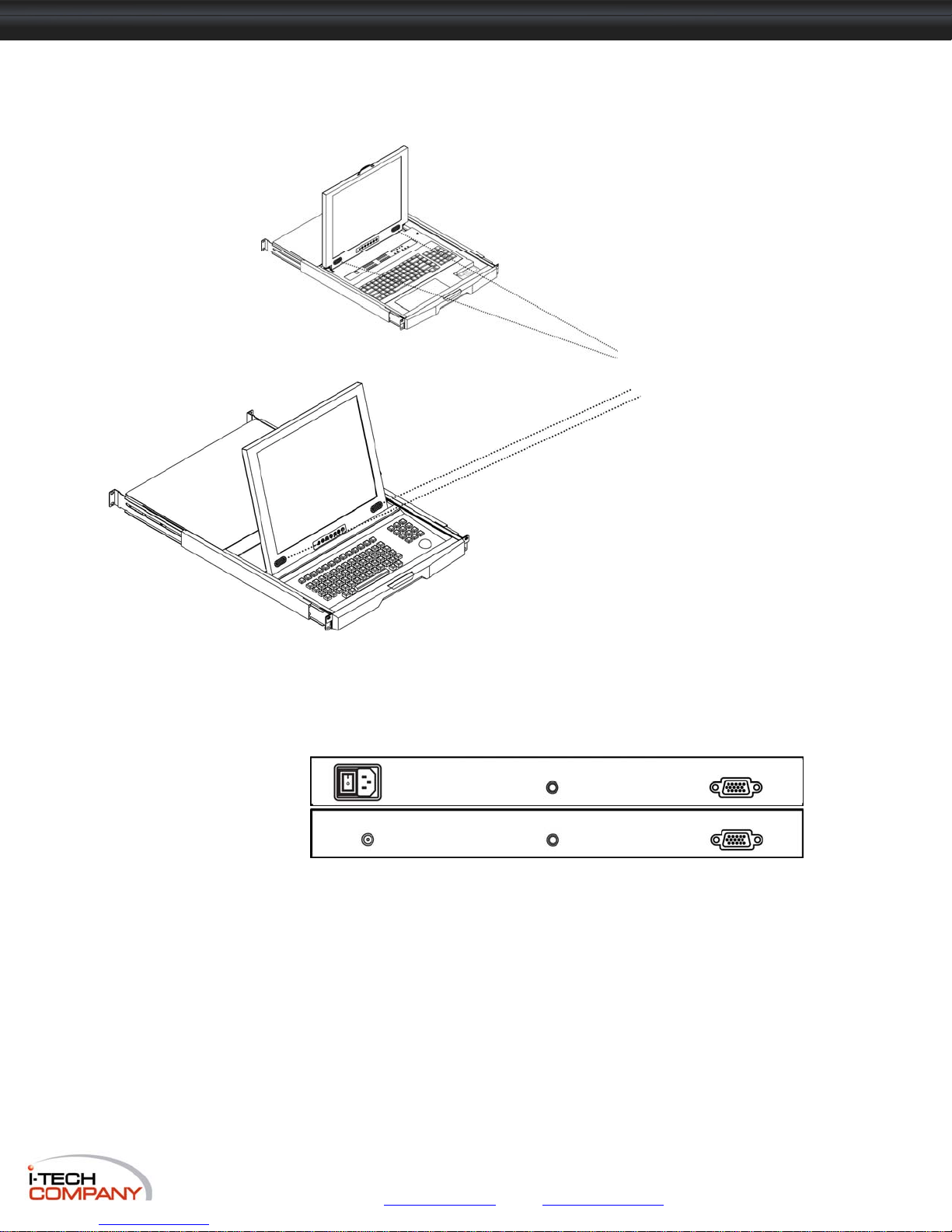

1.8 Structure Diagram

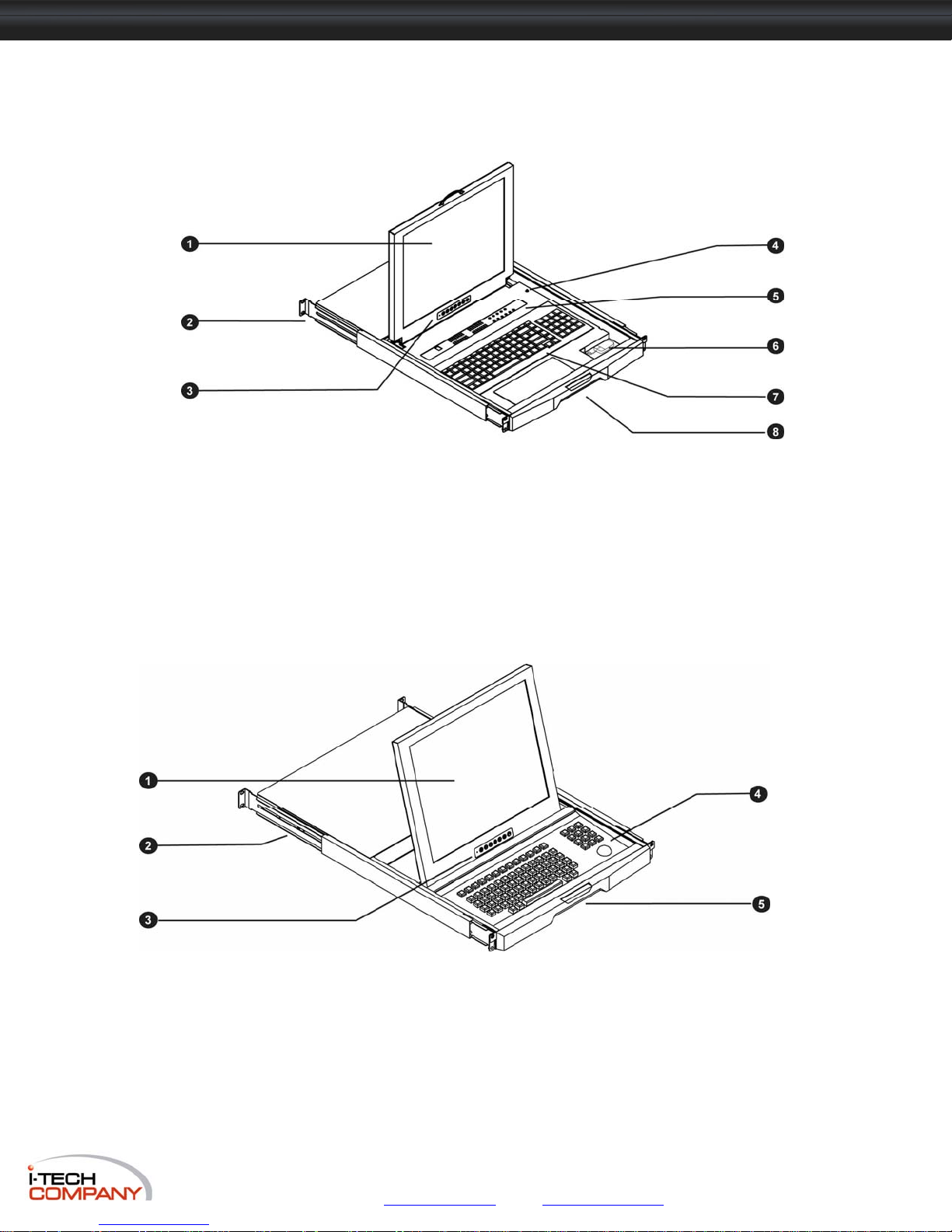

For NVP700 / 900 Series
For NVP1617 / 1619 Series
1
LCD interchangeable module kit
2
“One Man” Installation Slides
3 LCD membrane
4 Microswitch 8 Carry handle to release the 2-pt lock
1
LCD interchangeable module kit
2
“One Man” Installation Slides
3 LCD membrane
5
Membrane switch (KVM option)
6
Mini USB optical mouse
7
104 key notepad keyboard with full numerical pad
4
Full “Unix style” keyboard with numerical pad
5
Carry handle to release the 2-pt lock
Page 11
NVP700-900 / NVP1617-1619 User Manual
1.9 How to Install "One Man" Installation Slides Chapter 1

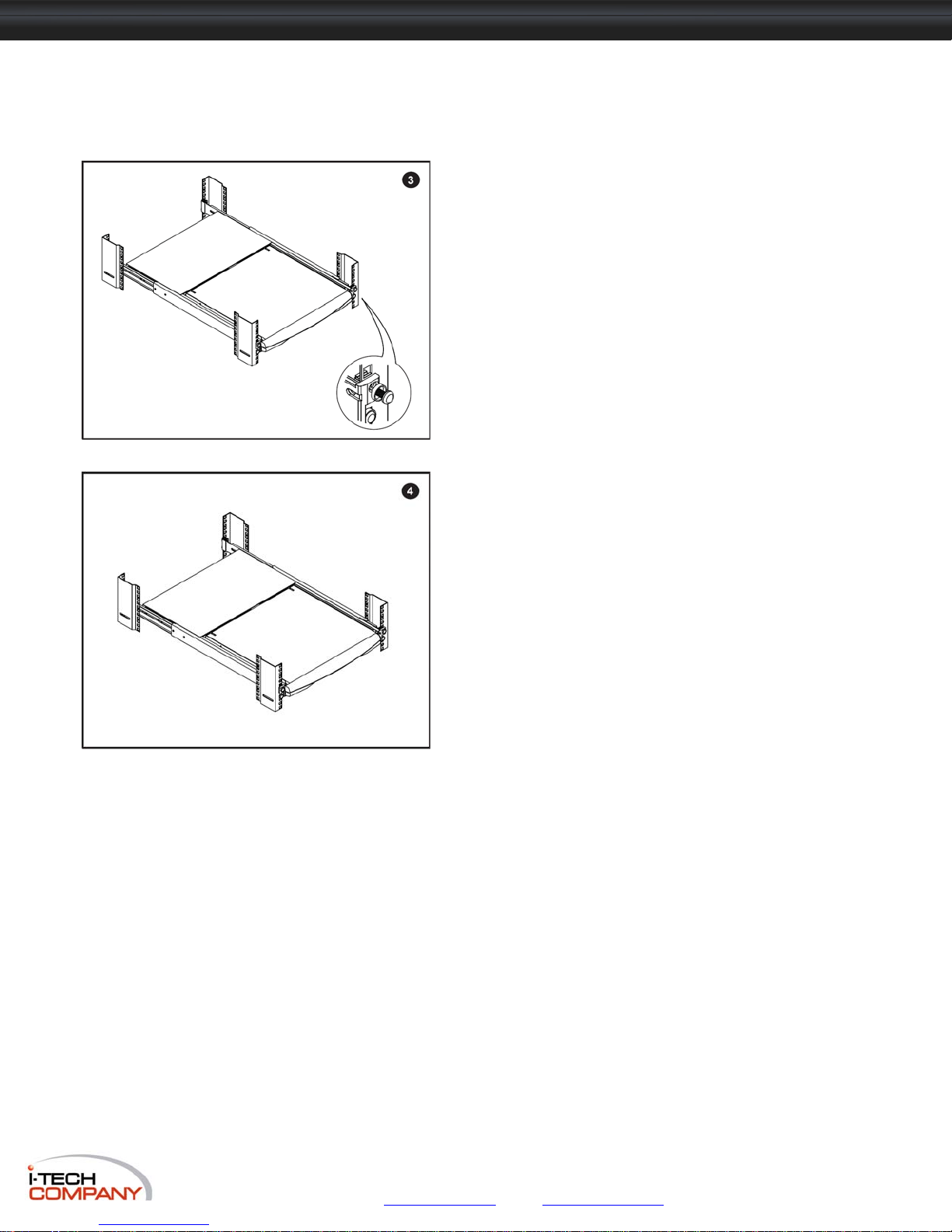

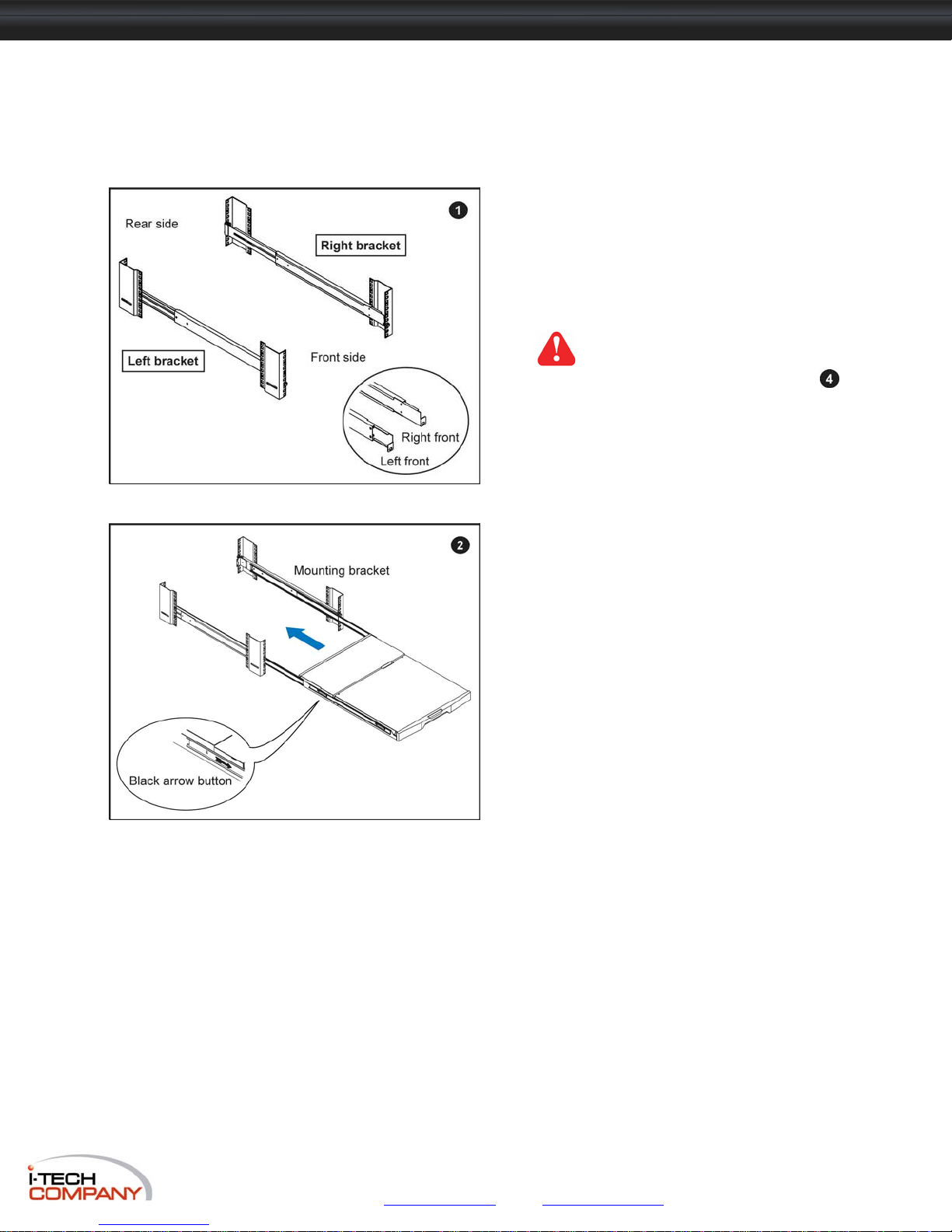

Install into rack
■ Attach the left and right mounting bracket to
rack 19” mounting rails.
■ Adjust the rear mouting bracket to fit your rack.
■ M6 screw and cup washer x 6 pcs included.
Caution:
until you complete the installation in step
■
Pick up the LCD keyboard drawer.
■
Insert the LCD keyboard drawer into the
mounting bracket.
■
Pull and hold the left & right black arrow buttons
on the rails.
■
Return the LCD keyboard drawer to park position.
Leaving the screws slightly loose,
Page 12
NVP700-900 / NVP1617-1619 User Manual
1.9 How to Install "One Man" Installation Slides Chapter 1
■ Attach front left and right mounting ears of the LCD
keyboard drawer to vertical mounting rails.
■ M6 screw and cup washer x 2 pcs included.
Complete the installation
■ Tighten all 8 pcs of M6 screw to complete the installation.
Page 13
NVP700-900 / NVP1617-1619 User Manual
1.10 How to Use the Slides Chapter 1
Figure 1
Figure 2
Figure 3

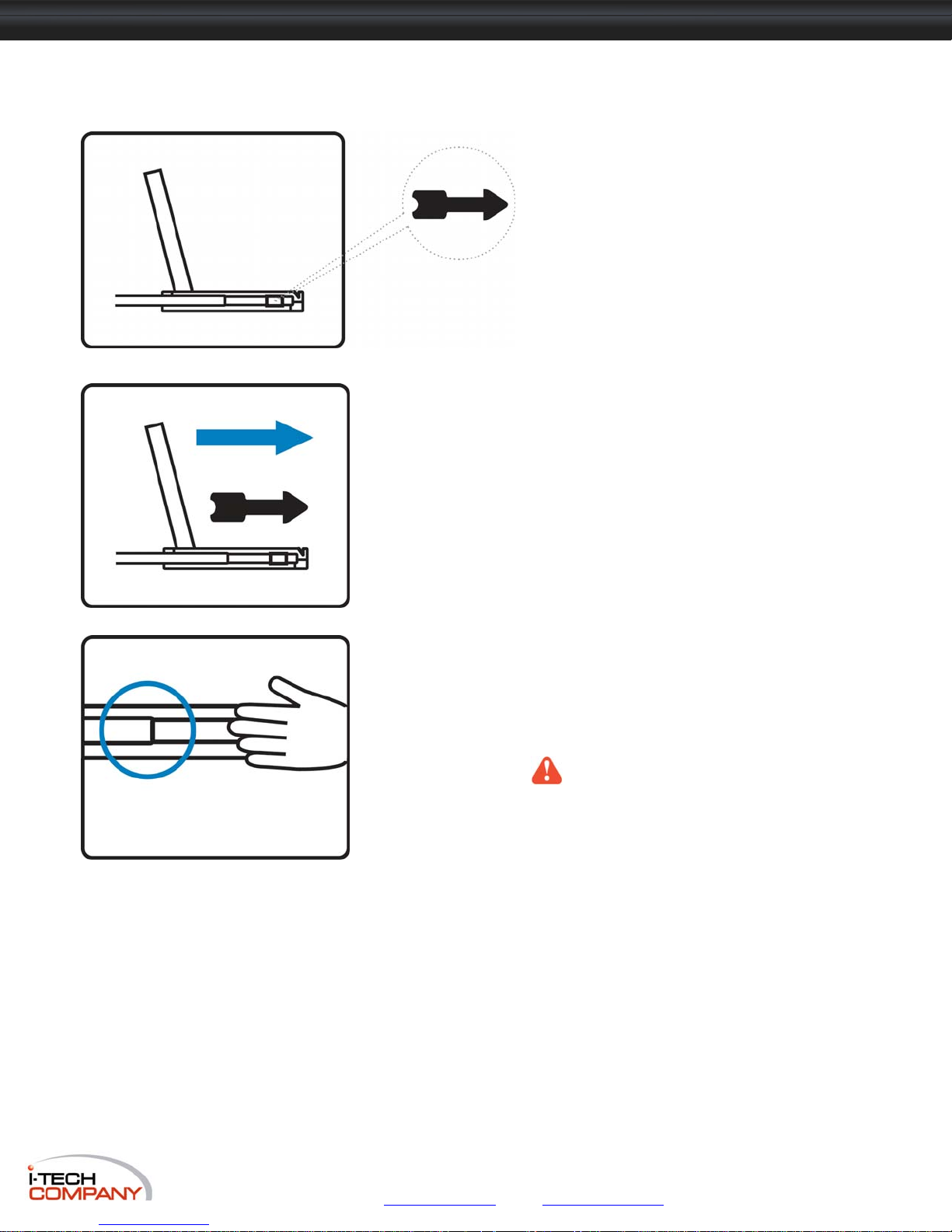

■ A black arrow release button is located on the
outside of each slide. (shown in
■ Pull and hold the black arrow button on either side
of the LCD keyboard drawer to unlock. (shown in
Figure 2
■ Push the LCD keyboard drawer into the rack.
).
(shown in
Figure 3
Caution : Keep your fingers away from the slide top
).
Figure 1
).
Page 14
NVP700-900 / NVP1617-1619 User Manual
1.11 NVP700 / 900 (Single console) Chapter 1

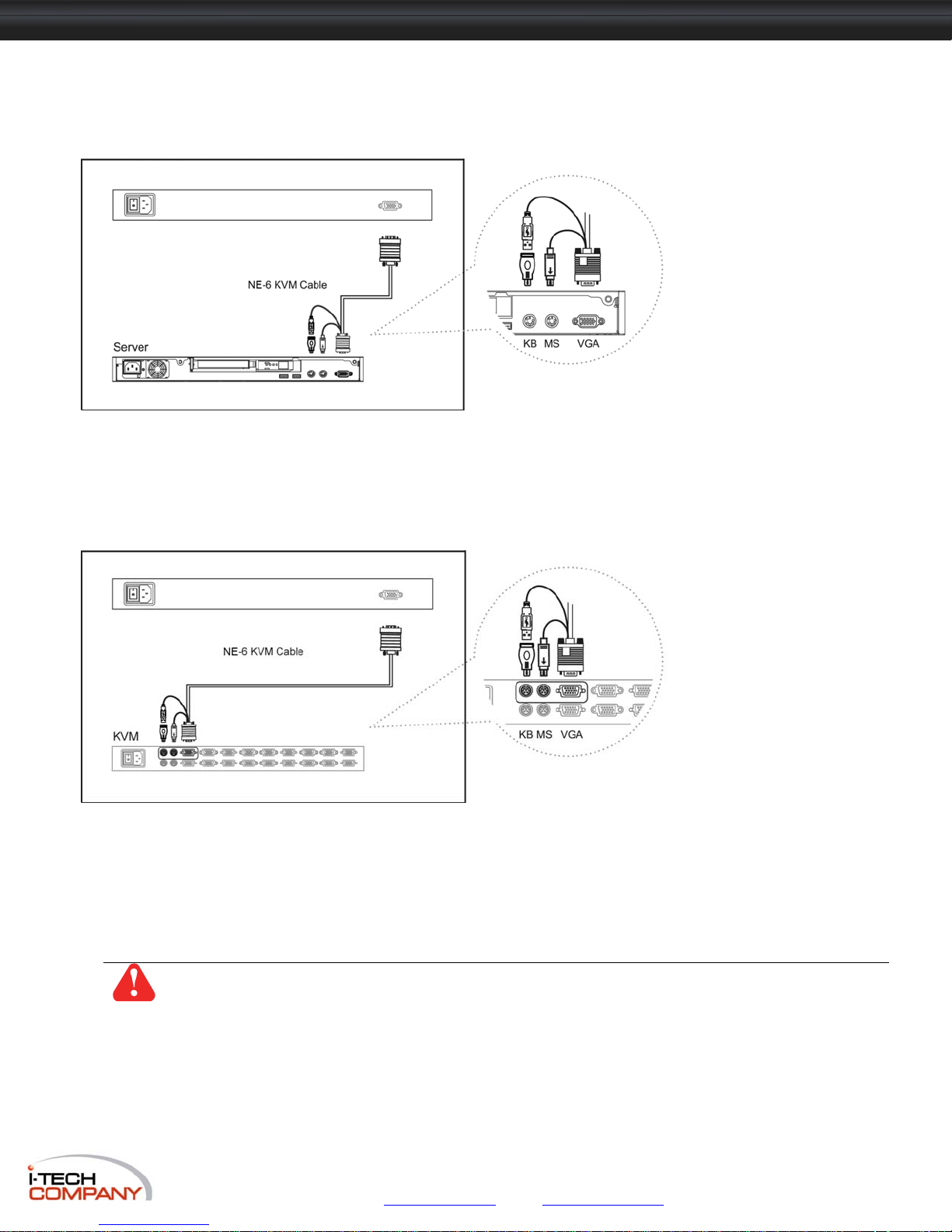

- Use NE-6 to connect to server via PS/2 interface
Figure 4.
1.12 NVP700 / 900 (Single console)
- Use NE-6 to connect to KVM via PS/2 interface
Figure 5. Example of connecting NE-6 4-in-1 Combo KVM cable to KVM via PS/2 interface
Remarks:
■ NVP1617 / 1619 series are external power versions only.
■ The above connection is only for the LCD keyboard without KVM switch built-in.
■ For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.
Example of connecting NE-6 4-in-1 Combo KVM cable to server via PS/2 interface
Caution:
servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and
KVM are powered on may cause irreversible damage to the servers, KVM and LCD keyboard drawer.
Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to
all devices before connecting them. Apply power to connected devices again only after the LCD
The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the
Page 15
NVP700-900 / NVP1617-1619 User Manual
1.13 NVP700 / 900 Series (Single console)
- Use NE-6 to connect to server via USB interface
Figure 6.
1.14 NVP700 / 900 Series (Single console)
- Use NE-6 to connect to KVM via USB interface
Figure 7.
Remarks:
■ NVP1617 / 1619 series are external power versions only.
■ The above connection is only for the LCD keyboard without KVM switch built-in.
■ For the LCD keyboard drawer with KVM switch built-in, please refer to attached KVM switch user manual.

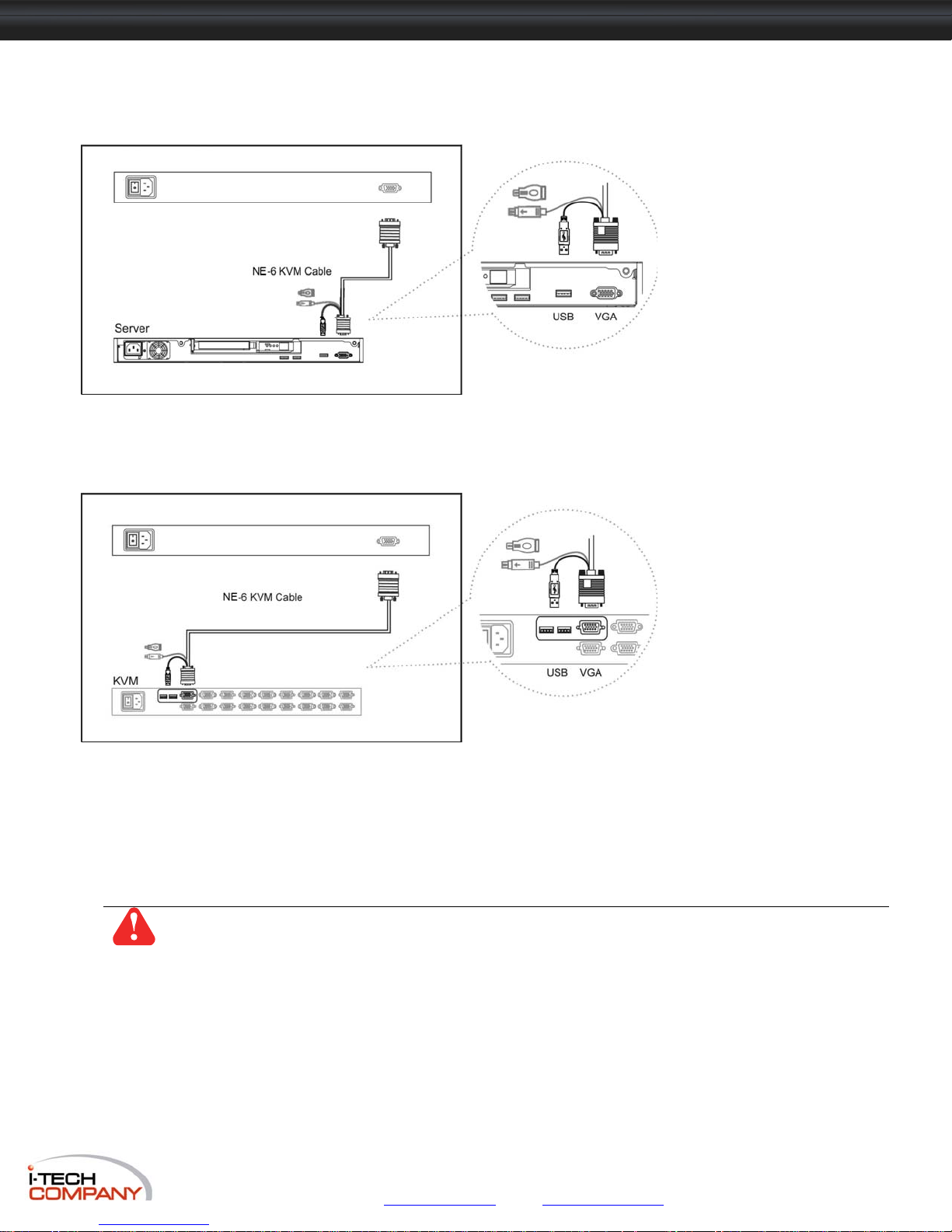

Example of connecting NE-6 4-in-1 Combo KVM cable to server via USB interface
Example of connecting NE-6 4-in-1 Combo KVM cable to KVM via USB interface
Caution:
servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and
KVM are powered on may cause irreversible damage to the servers, KVM and LCD keyboard drawer.
Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to
all devices before connecting them. Apply power to connected devices again only after the LCD
The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the
Chapter 1
Page 16
NVP700-900 / NVP1617-1619 User Manual
2.1 On-screen Display Operation Chapter 2
NVP700 / 900 NVP1617 / 1619
LCD membrane
Membrane Switch Function
Power light
Green = On
Orange = Power saving
Power on / off LCD
Display the OSD menu
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button
for 5 seconds)
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
Page 17
NVP700-900 / NVP1617-1619 User Manual
2.2 On-screen Menu Chapter 2
OSD Configuration Page
Image:
To enter into the brightness, contrast, colour temp, red, green, and blue
Geometry:
To enter into the auto adjust, H position, V position, phase and clock
Video:
To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
To enter into volume, bass, treble, balance, AVL and mute
Misc:
To enter into the language, OSD position, graphic mode, OSD time, ratio,
reset and timer
Page 18
NVP700-900 / NVP1617-1619 User Manual

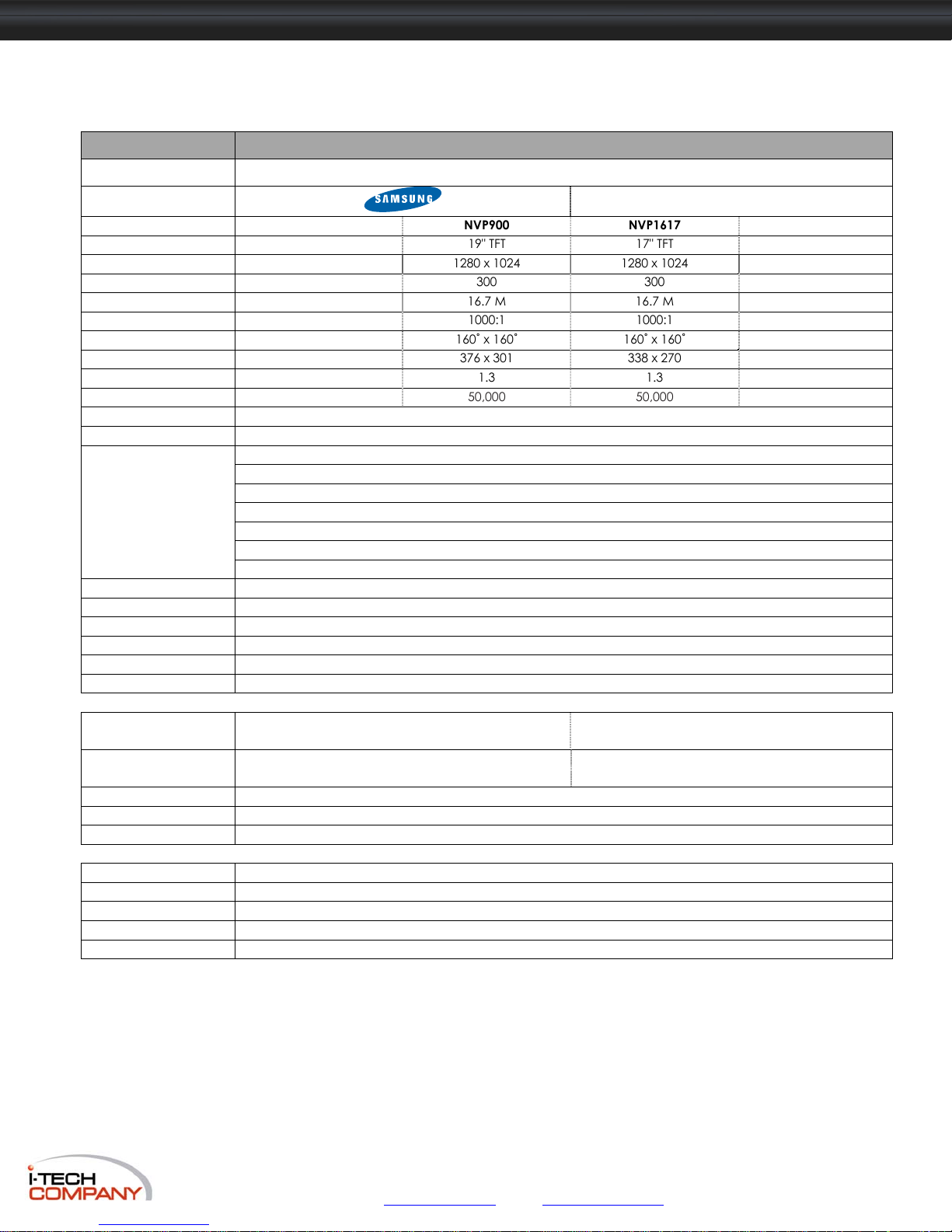

3.1 Specifications Chapter 3
Item Description
Form Factor
LCD Manufacturer
Series NVP700 NVP900 NVP1617 NVP1619
Diagonal Size 17" TFT 19" TFT 17" TFT 19" TFT
Max. Resolution 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024
Brightness (cd/m²) 300 300 300 300
Color Support 16.7 M 16.7 M 16.7 M 16.7 M
Contrast Ratio (typ.) 1000:1 1000:1 1000:1 1000:1
Viewing Angle (H/V) 160˚ x 160˚ 160˚ x 160˚ 160˚ x 160˚ 160˚ x 160˚
Display Area (mm) 338 x 270 376 x 301 338 x 270 376 x 301
Tr Response Time (ms) 1.3 1.3 1.3 1.3
LCD Panel MTBF (hrs) 50,000 50,000 50,000 50,000
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
Resolution
Plug & Play DDC EDID 1.3
Console Port (Combo) DB-15 connector for VGA / keyboard / mouse (Combo interface)
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption Max. 48 Watt, Standby 5 Watt
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs.
Regulation Approval FCC, CE
Options
KVM Integration
Keyboard & mouse
Graphic Input DVI-D, S-Video & BNC input
DC Power DC power input with 12V, 24V, 48V selection
Touchscreen Resistive & capacitive
Environmental
Operation 0˚ to 50˚C Degree
Storage -5˚ to 60˚C Degree
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
1U rack mounting on slide-out rails
-
720 x 400, 70 Hz
640 x 480, 60 / 70 / 72 / 75 Hz
800 x 600, 60 / 70 / 72 / 75 Hz
1024 x 768, 60 / 70 / 75 Hz
1152 x 864, 60 / 70 / 75 Hz
1280 x 720, 60 / 70 / 75 Hz
1280 x 1024, 60 / 70 / 72 / 75 Hz
Matrix & combo KVM with IP console and
2-console selection
Full size keyboard built-in
touch-pad / trackball
-
Desk top size keyboard with touchpad / trackball
Page 19
NVP700-900 / NVP1617-1619 User Manual
3.2 Keyboard & Mouse Chapter 3
For NVP700 / 900 series
■ Standard :
■ Optional :
■ Multiple keyboard language selections
Options:
WOM-01
Wire mini USB optical mouse
For NVP1617 / 1619 series
WOM-01
WOM-02
Wire mini USB optical mouse
Wireless optical mouse
Supporting layouts
t
Compact keyboard integrated
with touch-pad mouse
only
Supporting layouts
“e” Keyboard
WOM-02
Wireless USB optical mouse
Supporting layouts
d
Compact keyboard integrated
with trackball
only
Page 20
NVP700-900 / NVP1617-1619 User Manual
4.1 KVM Options Chapter 4
Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions:
■ For KVM operation, please refer to "Integrated LCD KVM Switch" user manual
■ Option with Multiple consoles Matrix KVM
■ Option with high density & cost efficient Combo KVM integration with either 8 / 16 / 32 ports
■ Option with low cost PS/2 KVM
■ Please ask your supplier for full KVM details
Remarks:
■ KVM options are for NVP700 / 900 only.

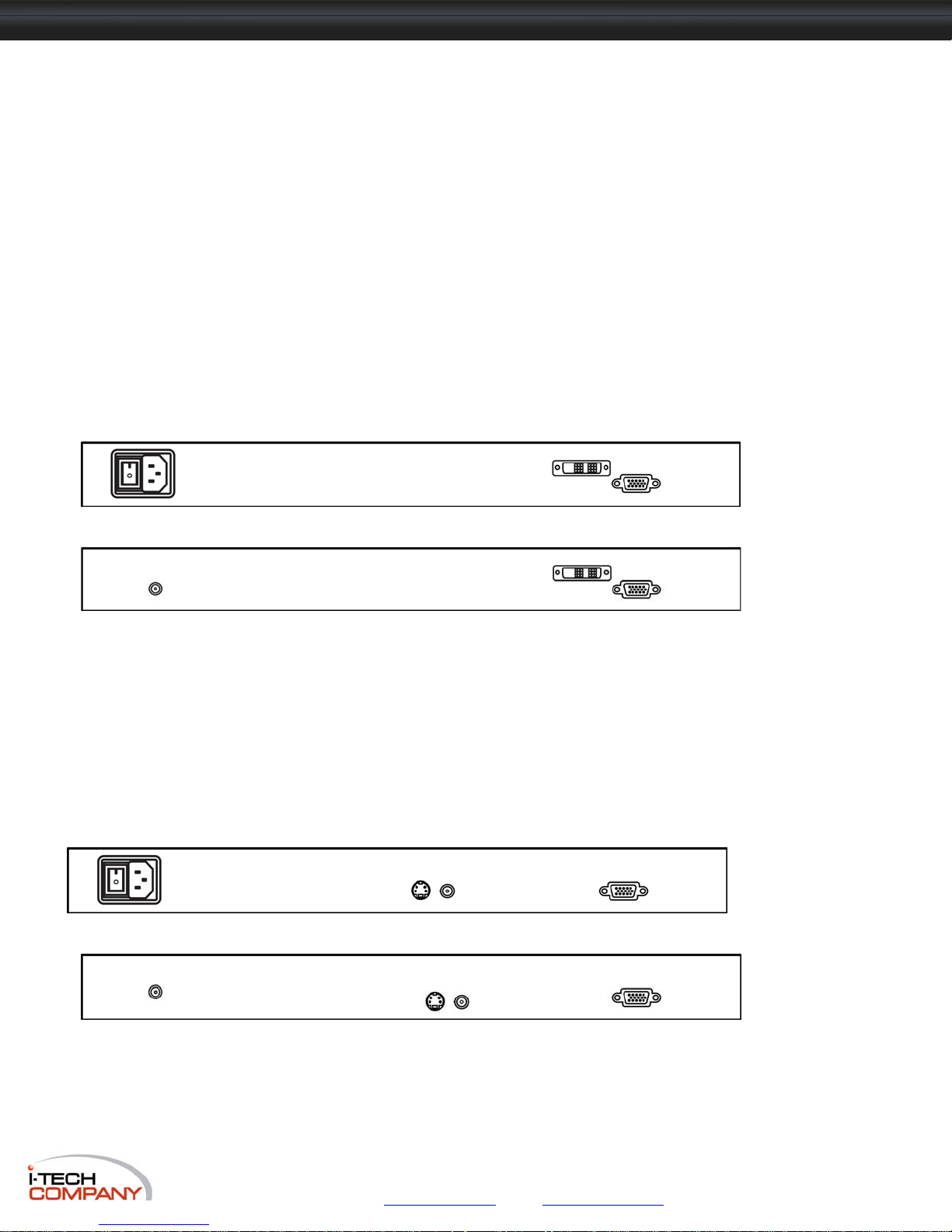

4.2 DVI-D Options
NVP700 / 900 DVI-D
NVP1617 / 1619
Remarks:
■ Package includes 1 x 6ft DVI-D cable
■ The depth will be extended from 700mm ( 27.6” ) to 750mm ( 29.5” )
4.3 BNC + S-Video Option
NVP700 / 900 S-Video BNC
NVP1617 / 1619
Remarks:
■ Package includes 1 x 6ft S-Video cable
3-in-1
VGA KB mouse
console port
3-in-1
VGA KB mouse
console port
Page 21
NVP700-900 / NVP1617-1619 User Manual
4.4 Audio Options Chapter 4
NVP700 / 900 Speaker
NVP1617 / 1619
Power Audio
NVP700 / 900
NVP1617 / 1619
Remarks:
■ Audio input is 35mm audio plug
3-in-1 VGA KB mouse
console port
Page 22
NVP700-900 / NVP1617-1619 User Manual
4.5 DC Power Options
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Chapter 4
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Efficiency 84% 85% 85%
Remarks:
■ Package does not include 1 x power cord and 1 x AC power adapter
■ The depth of NVP1617 / 1619 series will be extended from 700mm ( 27.6” ) to 750mm ( 29.5” )
4.6 Touchscreen Options
e-Resistive
Model -17TRB / -17TRS -19TRB / -19TRS
Screen size 17" 19"
Interface
Optical transmittance 80%±3%
Surface hardness ≥3H (JIS K5400)
USB / Serial
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
e-Capacitive
Model -17TCB / -17TCS -19TCB / -19TCS
Screen size 17" 19"
Interface
Optical transmittance 93%±2%
USB / Serial
Surface hardness >9H Surface hardness, withstand over 300 million touches
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
Remarks:
■ The height NVP700 / 900 & NVP1617 / 1619 will be increased from 1U to 1.5U
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ Serial touchscreen package includes 1 x 6ft serial cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touchscreen unit is not made of toughened glass, please handle it carefully.
■ Touchscreen in other brands are available on request
Page 23
NVP700-900 / NVP1617-1619 User Manual
5.1 Troubleshooting Chapter 5
1. How do I adjust the resolution?
To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution
in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter-
mined by the display card in your computer.
2. Is interference signal appeared on LCD normal when shutting down the computer?
In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is
considered normal. The image quality can be improved by adjusting the phase or pixel rate automatically or
manually.
3. The membrane power light is not ON
Press the power On / Off on LCD membrane to check if the monitor is in the ON mode.
Check the power cord is properly connected to the LCD keyboard drawer and power outlet.
4. Screen image is not centered or sized properly
Press the
Adjust the H-position and V-position settings via On-screen menu.
5. Is the LCD keyboard drawer hot-pluggable?
The LCD keyboard drawer is hot-pluggable, but components of connected devices, such as the servers and KVMs,
may not be hot-pluggable. We suggest turning off the power to all devices before connecting them. Apply power to
connected devices again only after the LCD keyboard receives power.
button for two seconds to automatically adjust the image.
Page 24
NVP700-900 / NVP1617-1619 User Manual
6.1 Dimensions Chapter 6
Model
NVP700 series
Product Dimension
(W x D x H)
442 x 650 x 44 mm
17.4 x 25.6 x 1.73"
NVP900 series
NVP1617 series
NVP1619 series
442 x 700 x 44 mm
17.4 x 27.6 x 1.73"
442 x 700 x 44 mm
17.4 x 27.6 x 1.73"
442 x 700 x 44 mm
17.4 x 27.6 x 1.73"
The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this
publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2009 i-Tech Company LLC. All rights reserved.
Packing Dimension
(W x D x H)
589 x 826 x 168 mm
23.2 x 32.5 x 6.6"
589 x 856 x 168 mm
23.2 x 33.7 x 6.6"
589 x 856 x 168 mm
23.2 x 33.7 x 6.6"
589 x 856 x 168 mm
23.2 x 33.7 x 6.6"
Net Weight
17 kg
37 lb
18 kg
40 lb
18 kg
40 lb
19 kg
42 lb
Gross Weight
23 kg
51 lb
24 kg
53 lb
24 kg
53 lb
25 kg
55 lb
Loading...
