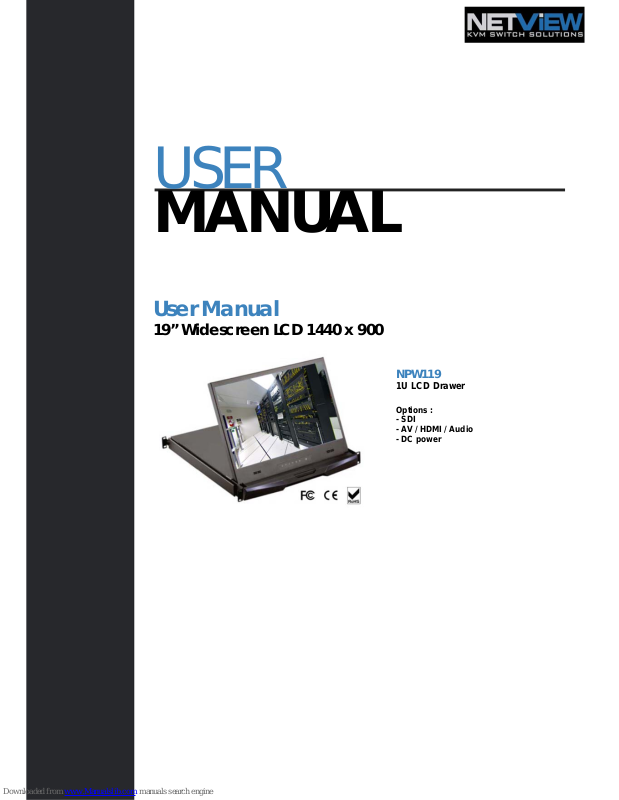

USER
MANUAL
User Manual
19” Widescreen LCD 1440 x 900
NPW119
1U LCD Drawer
Options :
- SDI
- AV / HDMI / Audio
- DC power
Contents
< Part. 1 > NPW119
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
P. 1
P.1 - 2
P. 3
< Part. 2 > Specifications / OSD
2.1 Product Specifications
2.2 On-screen Display Operation ( OSD )
P.4 - 5
P.6 - 7
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 HDMI, S-Video + BNC & Audio
3.3 48V, 24V or 12VDC power
P. 8 P.
9
P.10
User Manual
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of
excessive dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1 Disconnect the power cord.
2 Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1 Disconnect the power cord.
2 Spray a small amount of non-abrasive cleanser on a microfiber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfiber cloth first, not directly on the parts you are cleaning.
3 Gently wipe the surface. Use as little pressure as possible.
4 Wait until your monitor is completely dry before plugging it in and powering it up.
User Manual
<Part 1 >
< 1.1 > Package Content
NPW119
NPW119 unit X 1
- 6ft VGA cable X 1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the pure model ( VGA and DVI-D only ).
It varies with options such as SDI, HDMI, AV, audio & DC power.
< 1.2 > Structure Diagram
P.1
User Manual
< 1.2 > Dimension
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
NPW119
441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73"
590 x 687 x 120 mm
23.2 x 27 x 4.7”
13 kg
28.6 lb
17 kg
37.4 lb
The weight is only for the pure models. It varies with accessories & options
such as SDI, HDMI, AV, audio & DC power.
P. 2
User Manual
< 1.3 > Installation - How to install Installation Slides
NPW119
Step 1 1
■ Insert the left and right rear mounting bracket
into the display drawer.
Step 2 2
■ Measure the depth of the front and rear mounting
rails.
■ Align each rear mounting bracket to a suitable
length.
Step 3 3
Complete the installation
■ Fix the display drawer into the rack.
M6 screw, cage nut & cup washer x 8 are provided.
P. 3
User Manual
<Part 2 >
< 2.1 > Product Specifications
LCD
Panel
Manufacturer
Samsung
Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD
Display pixel ( dots x lines )
1440 x 900
Brightness ( typ. ) 250
Contrast Ratio ( typ. )
1000:1
Color
16.7 M
Viewing Angle ( L/R/U/D )
80/80/80/80
Response Time ( ms ) 5
Dot pitch ( mm )
0.2835
Display Area ( mm )
408.24H x 255.15V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs )
30,000
Video
Connectivity
Digital
HDMI HDMI 1.1, CEA-861-D
DVI DVI-D, TMDS single link
Analog VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio
Connectivity
Audio Input Connector 3.5mm stereo jack
Impedance / Power level
30kQ / 750mV
Audio Output Connector 3.5mm stereo jack
Resistance / Power level
30kQ / 2.8V
Speaker Output Power
2 x 2W
*When the audio output is connected, speaker output is OFF
Power
Power Supply Range
Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption Screen display ON 25W or less
Power saving mode 4W or less
Power button OFF 1W or less
P. 4
Regulatory
Safety Approval cUL, FCC & CE, RoHS
User Manual
NPW119
Environmental
Conditions
Operating Temperature 0 to 50°C degree
Humidity 20~90%, non-condensing
Storage Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Physical
Specifi cation
Product ( W x D x H )
441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch
Packing ( W x D x H )
590 x 687 x 120 mm
23.2 x 27 x 4.7 inch
Net Weight 13 kgs / 28.5 lbs
Gross Weight 17 kgs / 37.4 lbs
Applicable
Format
DVI-D / VGA Input PC Signal 1440 x 900 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
P. 5
User Manual
< 2.2 > On-screen Display Operation ( OSD )
P. 6
User Manual
< 2.2 > On-screen Display Operation ( OSD ) NPW119
P. 7
User Manual
<Part 3 >
< 3.1 > Options : 3G / HD / SD-SDI input
iTech’ SDI input is an ideal solution for the broadcast-grade
video and high resolution CCTV market.
Designed for use with NetView Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, iTech provides a SDI
input module without using additional space or power and it
comes standard with a 2-year warranty.
For SDI option, casing depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" )
P. 8
INPUT
3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance
Video
SMPTE 425M / 274M / 296M / 125M ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Video
Format
3G-SDI
1080p @60 / 50Hz,
4:2:2 1080p @30 / 25 / 24Hz,
4:4:4 1080i @60 / 50Hz,
4:4:4 720p @60 / 50Hz, 4:4:4
HD-SDI
1080p @30 / 25 / 24Hz,
4:2:2 1080i @60 / 50Hz,
4:2:2 720p @60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio
Format
3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI
48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized / Asynchronized
Video
Max. Transmission
Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
User Manual
< 3.2 > Options : NPW119
HDMI ( HDMI 1.1, CEA-861-D )
AV ( S-Video + Composite, BNC )
Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
( 1 ) Either HDMI or DVI-D can be selected.
( 2 ) For the above options, casing depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" )
P. 9
User Manual
< 3.3 > Options : DC Power
Model
12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Efficiency
84% 85% 85%
*** For DC power option:
( 1 ) Option excludes 1 x power cord and 1 x AC power adapter.
( 2 ) Casing depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" )
P.10
