NetUP Streamer HD v2 8-24x
User manual
20 March 2019
1/7, Ulofa Palme str., Moscow, Russia
+7 (495)510-1025 | info@netup.tv | http://netup.tv
NetUP Streamer HD v2 8-24x. User manual
Contents
Introduction ............................................................................ 3
Appearance and illustration ................................................................................................... 3
Specifications ......................................................................................................................... 5
Installation guide ..................................................................... 6
Device’s installation flow chart .............................................................................................. 6
Packing list check ................................................................................................................... 6
Safety instructions ................................................................................................................. 6
Environment requirement ..................................................................................................... 7
Grounding requirement ......................................................................................................... 7
WEB NMS Operation ............................................................... 8
Login ....................................................................................................................................... 8
Summary → Status ................................................................................................................. 9
Parameters → Module 1-6 ..................................................................................................... 9
Parameters → TS Config ...................................................................................................... 10
Parameters → IP Stream ...................................................................................................... 12
Parameters → OSD .............................................................................................................. 13
System → Network .............................................................................................................. 15
System → Password ............................................................................................................. 15
System → Configuration ...................................................................................................... 16
System → Firmware ............................................................................................................. 16
System → Date | Time ......................................................................................................... 17
System → Log ....................................................................................................................... 17
Troubleshooting .........................................................................................18
2
NetUP Streamer HD v2 8-24x. User manual
Reset key
ASI output port (Optional)
Data port indicator
5
DATA Port (one GE port and one FE for IP stream output)
6
NMS/CAS
Introduction
NetUP Streamer HD v2 8-24x is a professional HD audio & video encoding and multiplexing device. It
has 12 HDMI (8/16/20/24 HDMI optional) video input interfaces, supporting MPEG-4 video encoding
and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 12(8/16/20/24 HDMI
optional) channel HD audio & video; moreover, it has an IP output port can support 1MPTS and
12SPTS (8/16/20/24 SPTS) IP out. In conclusion, its high integration and design make the device
widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite
digital TV broadcasting etc.

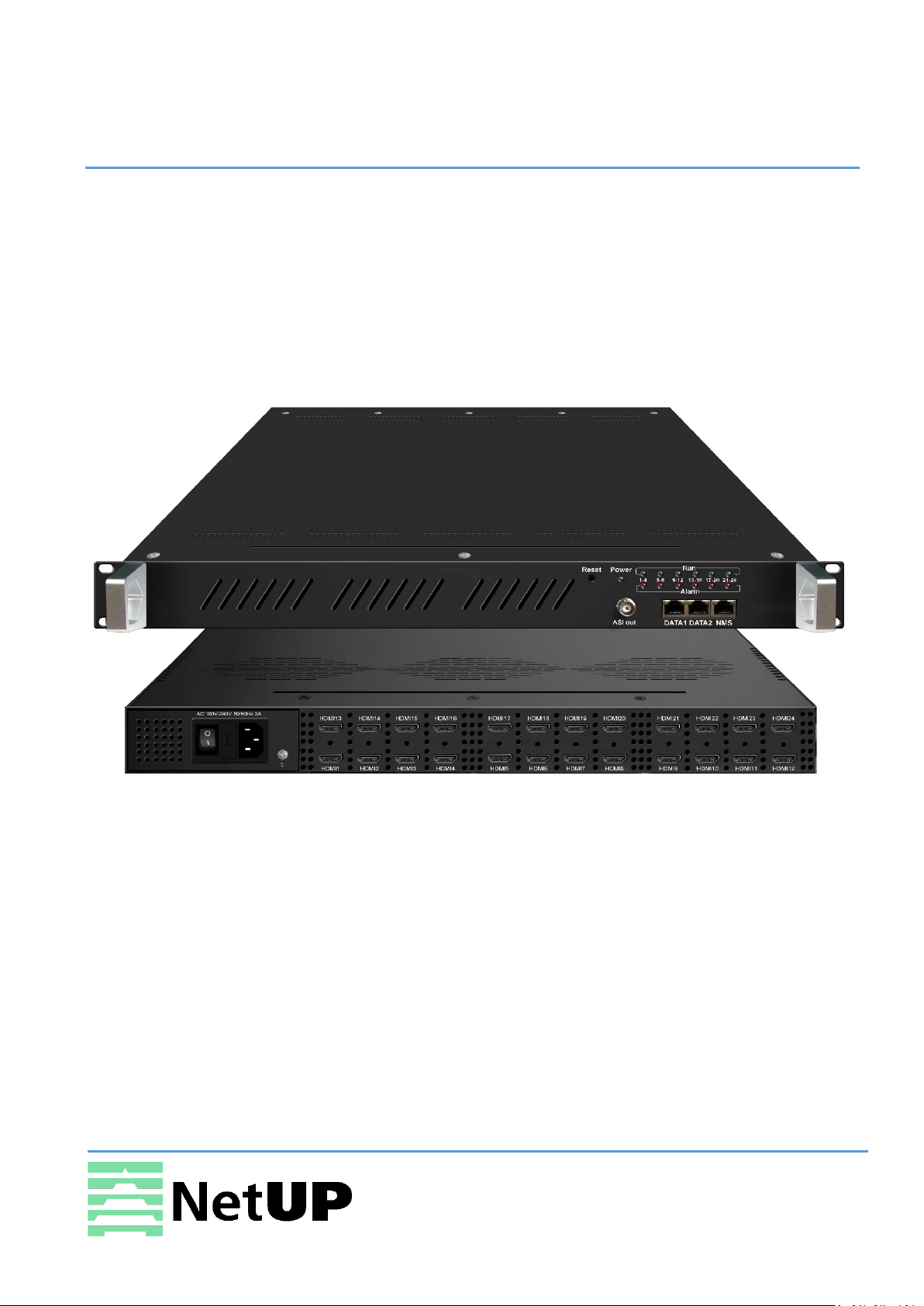

Appearance and illustration

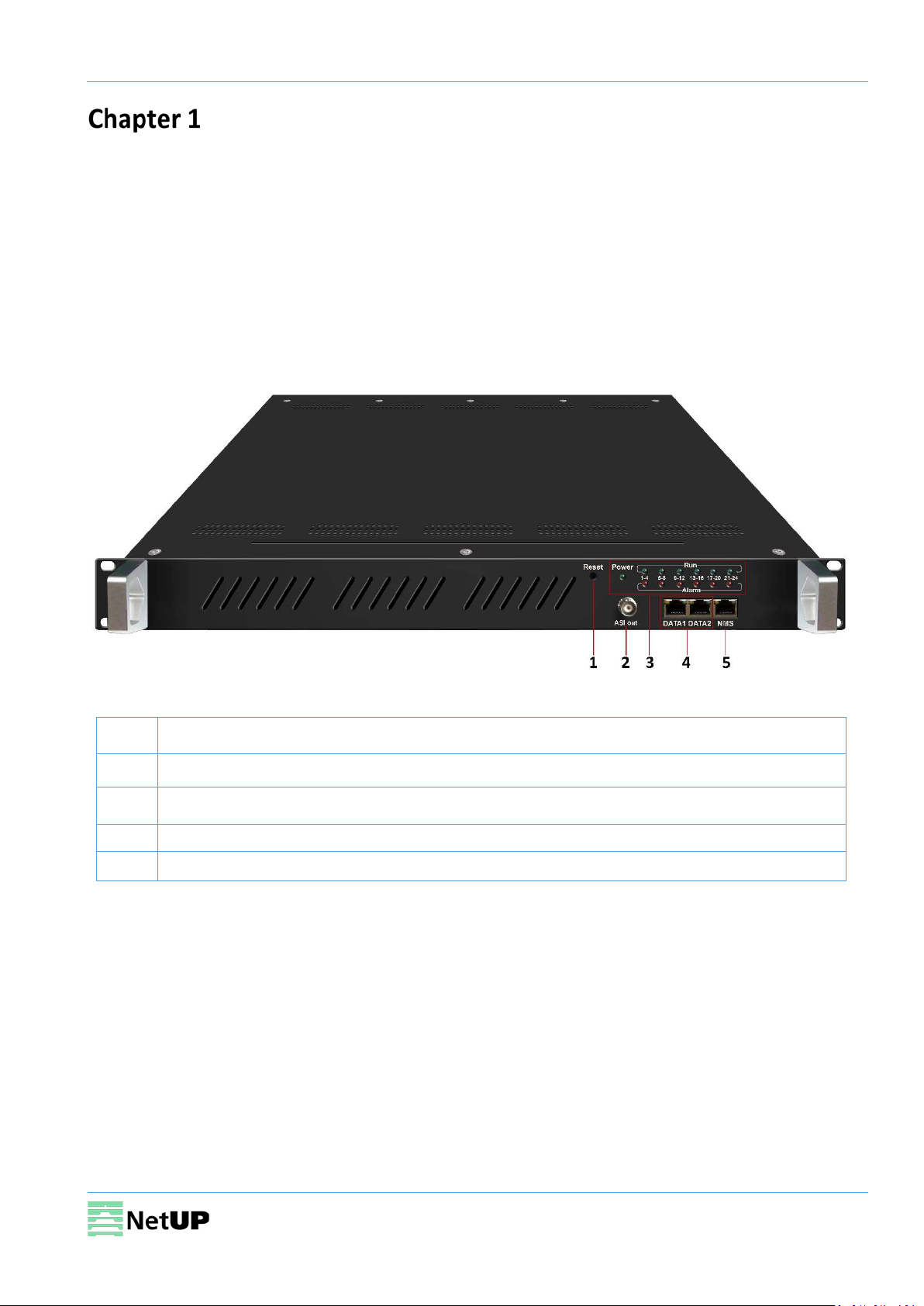

Front panel:
1
3
4
3
NetUP Streamer HD v2 8-24x. User manual

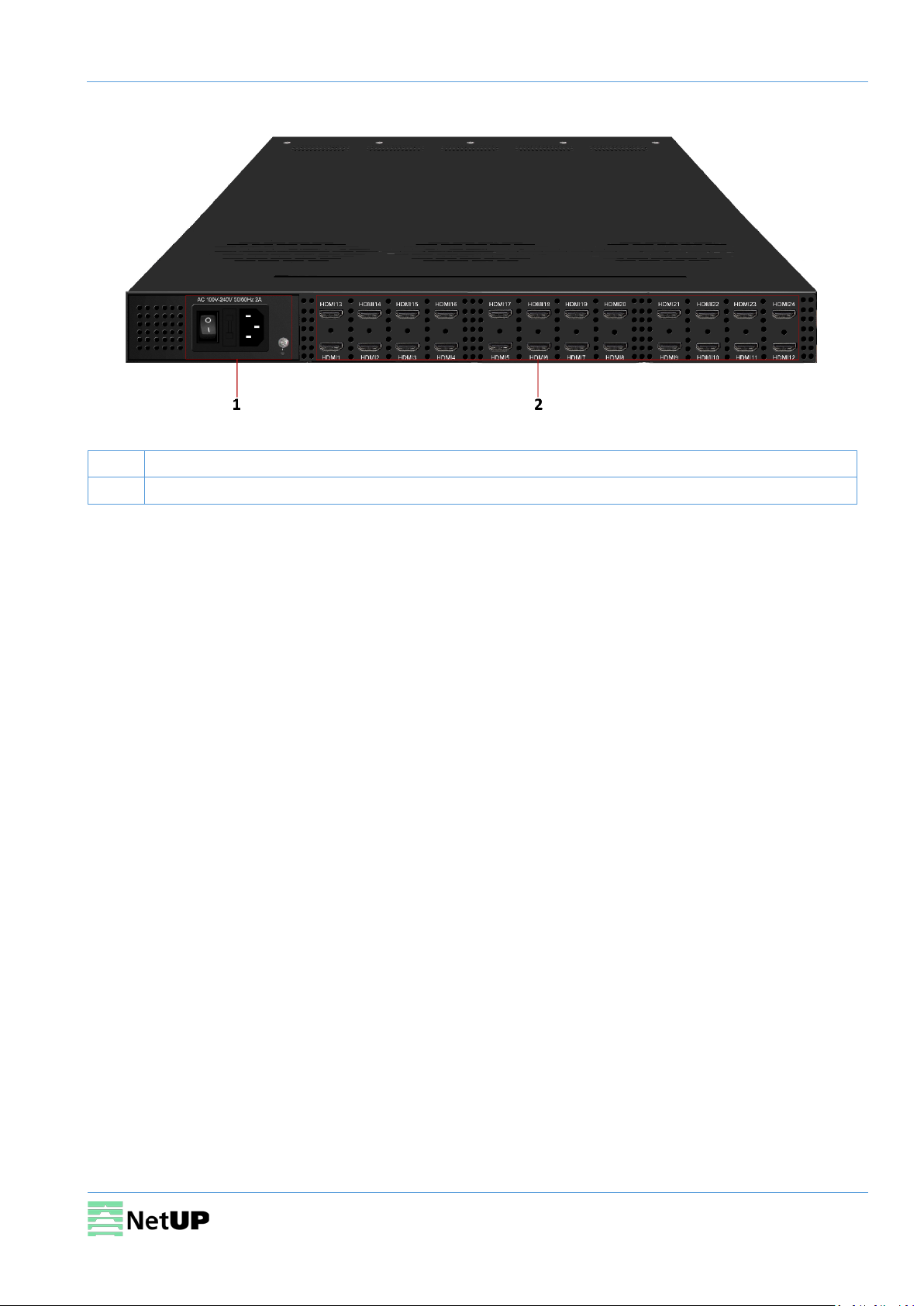

Rear panel:
1
Power switch, fuse, power socket and grounding pole
2
24 HDMI input
4
NetUP Streamer HD v2 8-24x. User manual
Encoding
MPEG-4 AVC/H.264
Resolution
input
1920×1080_60P, 1920×1080_60i,
output
1920×1080_30P, 1920×1080_25P,
Bitrate
1Mbps~13Mbps (each channel)
Rate control
CBR/VBR
GOP Structure
IP…P (P Frame adjustment, without B Frame)
Encoding
MPEG-1 Layer 2
Sample rate
48KHz
64kbps, 128Kbps, 192kbps, 224kbps, 256kbps,
Maximum PID Remapping
180 input per channel
PID remapping (automatically or manually)
Accurate PCR adjusting
Generate PSI/ SI table automatically
12×SPTS IP or 1MPTS output over UDP/RTP, 1×1000 Base-T Ethernet interface
Dimension (W×L×H)
482mm×410mm×44mm
Approx. weight
8kg
Temperature
0~45℃ (work); -20~80℃ (storage)
Power requirements
AC 100V-220V±10%, 50/60Hz
Power consumption
70W
Specifications
Input 12 HDMI inputs (8/12/16/20/24 input optional)
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720×576_50i,720×480_60i
Video
1280×720_30P, 1280×720_25P,
720×576_25P,720×480_30P
Audio
Resolution 24-bit
Bitrate
Multiplexing
Function
Output
ASI output (optional) as copy of MPTS
Network management (WEB)
System
Ethernet software upgrade
Other
parameters
320kbps, 384kbps
5
NetUP Streamer HD v2 8-24x. User manual
Installation guide
Device’s installation flow chart
Packing list check
Installing
device
Before installing and connecting the device, carefully read the environment and
grounding requirements, as well as safety instructions for the sake of your safety and for
the safety of the device
Packing list check
Check items according to packing list. Normally it should include the following items:
• NetUP Streamer HD v2 8-24x
Connecting
grounding
wire and
power cord
Connecting
signal cable
Setting
parameter
Running
device
• Power Cord
• HDMI cable
Safety instructions
• Before installing and connecting the device make sure that the device was not damaged during
delivery.
• Install the device in an appropriate place. The device is designed to work in a clean and dry room.
It must be operated and maintained free of dust.
• Before switching on the device make sure that it is adjusted to the mains voltage you intend to
use. Make sure that you keep within the specifications – AC 100V-220V±10%, 50/60Hz.
• Check that all the cables are connected properly. Connect cables only to a device that is turned
off.
6
NetUP Streamer HD v2 8-24x. User manual
Item
Requirement
Room space
When installing a rack in the room, make sure the distance between two
Room floor
Electric isolation. Dust free. The volume resistivity of ground anti-static
Environment
5~40℃ (sustainable), 0~45℃ (short time).
Relative temperature
20%~80% (sustainable); 10%~90% (short time).
Pressure
86~105KPa
Door & window
Install rubber strip for sealing door-gaps and dual level glasses for windows
Walls
Can be covered with wallpaper or dark paint.
Fire protection
Fire alarm system and extinguisher.
Power
The device requires AC 100V-220V±10%, 50/60Hz.
Environment requirement
rows of racks is 1.2~1.5m and the distance to the wall must be at least 0.8m.
material: 1×107~1×1010 Ω. Grounding current limiting resistance: 1M (Floor
bearing should be greater than 450Kg/m2).
temperature
Installing air-conditioning is recommended.
Please carefully check before running.
Grounding requirement
• Connect the ground wire to the grounding hardware on the device. Ground resistance should be
no more than 1 Ω
Grounding is essential for device’s functionality, surge and electronic interference
protection
• Keep proper contact with the metal housing of the device
• Grounding wire must be made out of copper and as thick and short as possible
• Make sure the two ends of grounding wire conduct electricity and are not rusty
• It is prohibited to use any other devices as a part of grounding electric circuit
• All racks should be connected with a protective copper strip. Ground loops should be avoided
• Grounding wire’s contact area with the rack should be no less than 25mm
2
7
NetUP Streamer HD v2 8-24x. User manual
WEB NMS Operation
Use the Web interface to control NetUP Streamer HD v2 8-24x.

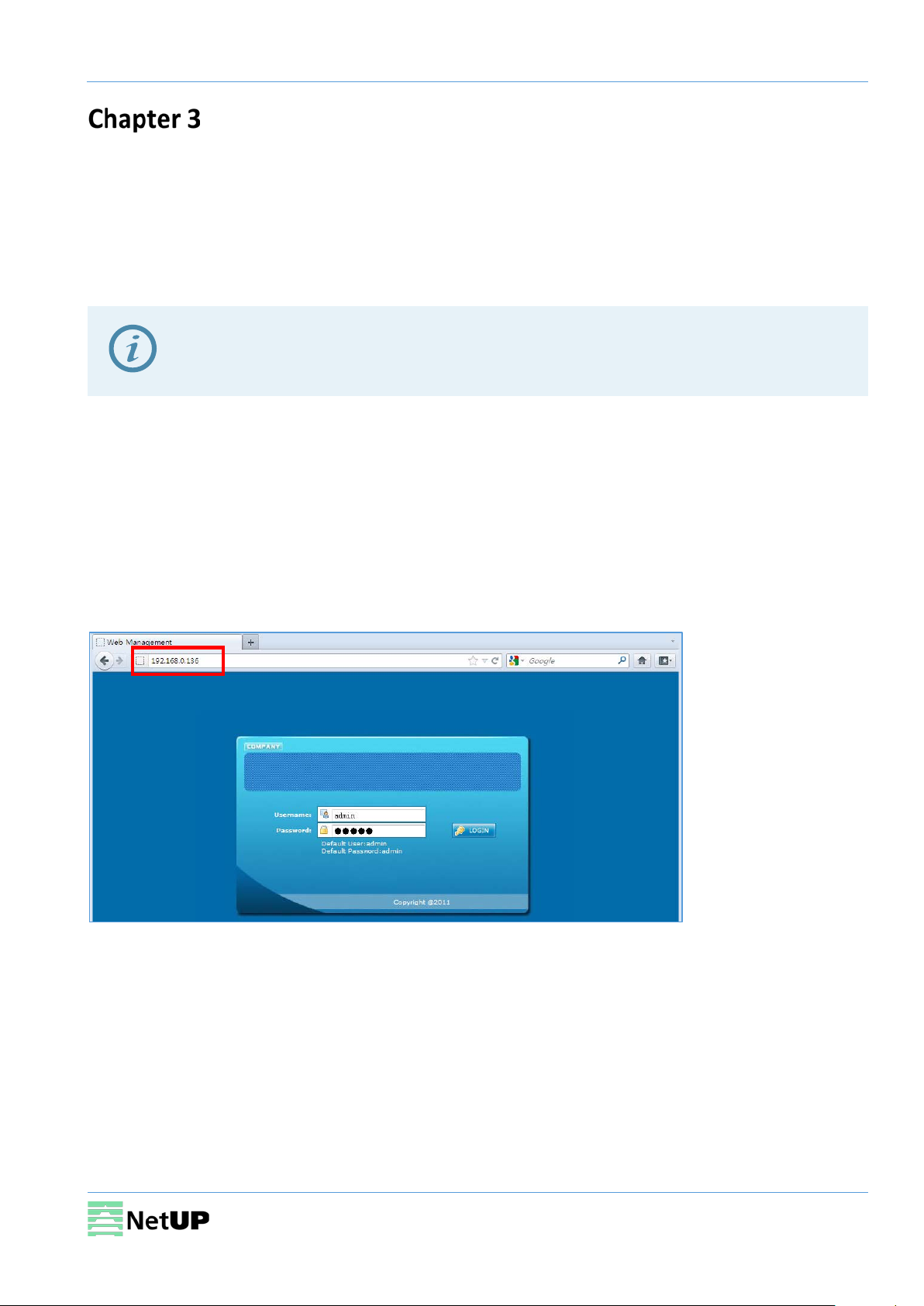

Login
Connect a personal computer and the device with net cable, and use ping command to confirm they
are on the same network segment.
Make sure that the computer’s IP address is different from the device’s IP address;
otherwise, it would cause an IP conflict
The default IP address of NetUP Streamer HD v2 8-24x is 192.168.0.136. Thus, set the computer’s IP
address to 192.168.0.X, where X can be from 0 to 255, except 136. Open a web browser, enter the
device’s IP address in the browser address bar and press Enter. If the network is configured correctly,
you will see the login interface (Figure 1).
Enter username and password and click LOGIN to enter the web interface. Default username is
“admin”, default password is “admin”.
Figure-1
8
NetUP Streamer HD v2 8-24x. User manual
System information
Use this menu to
Set
Select a channel
Confirm changes

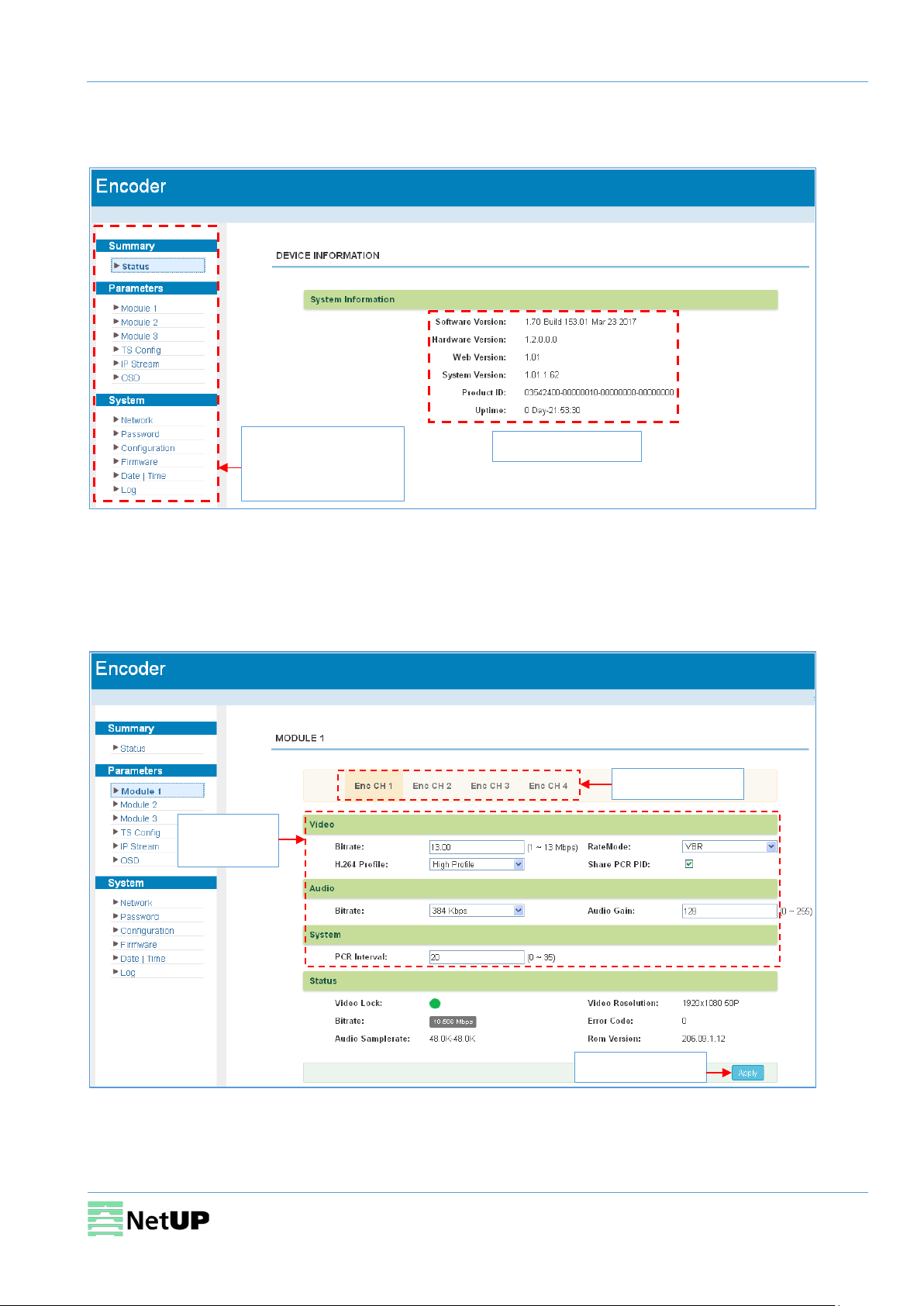

Summary → Status
After login, you will get the Status page which displays the current system status (Figure-2).
navigate between the
interface pages
Figure-2
Parameters → Module 1-6
This encoder supports up from 2 to 6 modules with 8/12/16/20/24 HDMI input. Use the Module 1-6
page to set coding parameters for each channel (Figure-3).
parameters
Figure-3
9
NetUP Streamer HD v2 8-24x. User manual
TS overflow status. Red means that TS is overflowing and
you need to decrease number of channels
Input area
Output area
Parameters → TS Config
Use the TS Config page to configure the TS output parameters and select one of the following tabs:
Stream Select, General or PID Bypass.

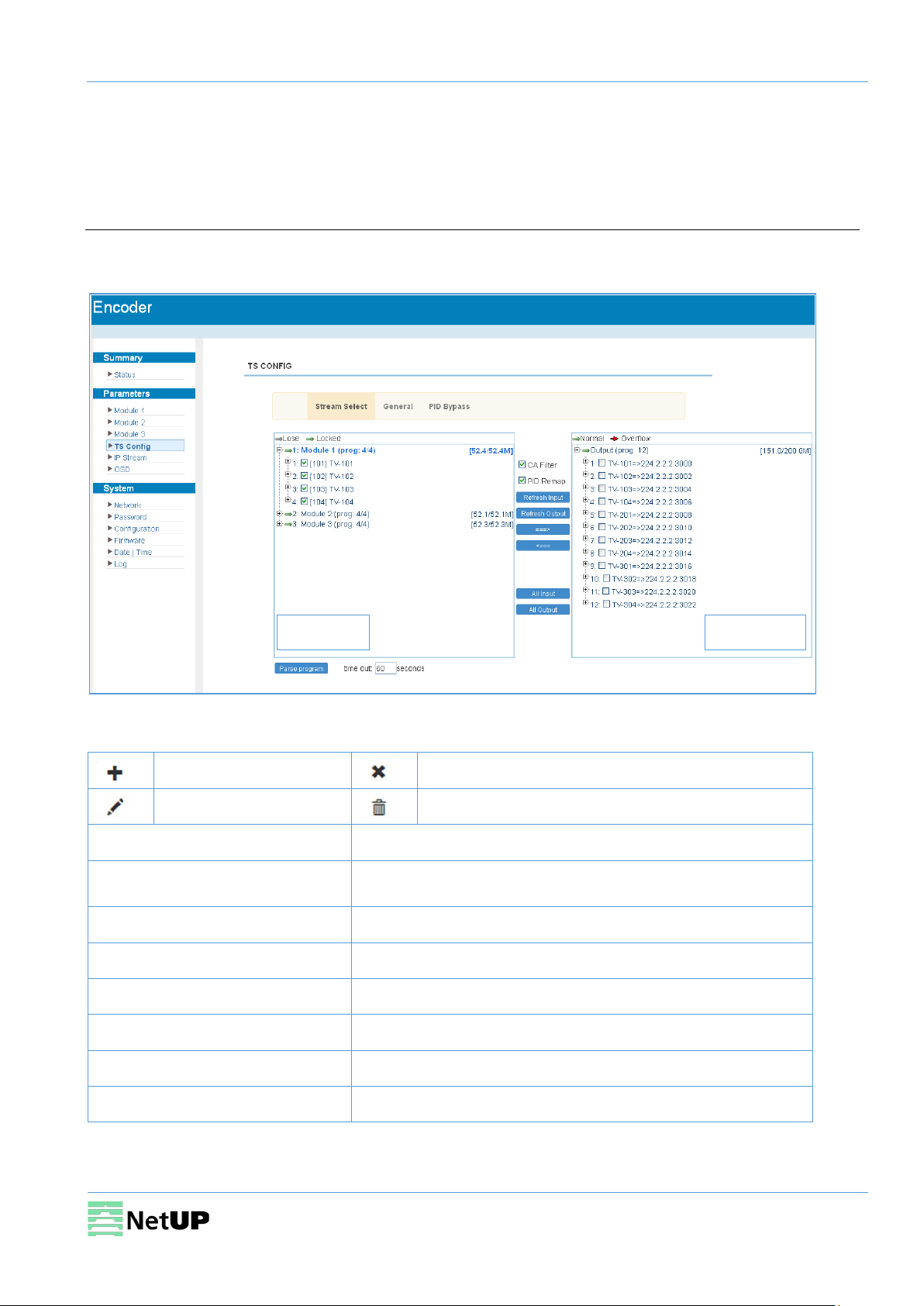

Stream Select
Select the Stream Select tab to select streams that should be sent to Mux out and to modify program
info (Figure-4).
Figure-4
Configure input and output streams with following buttons:
add an input channel
edit an input channel
delete an input channel
delete all input channels
Lose / Locked input signal lock. Green means signal is present
Normal / Overflow
CA Filter filter or not filter the source CA information
PID Remap enable or disable PID remapping
Refresh input / output refresh an input or an output
===> / <=== move programs between the input and the output areas
All input / output select all input or output programs
Parse program parse programs with a time limit
10
NetUP Streamer HD v2 8-24x. User manual

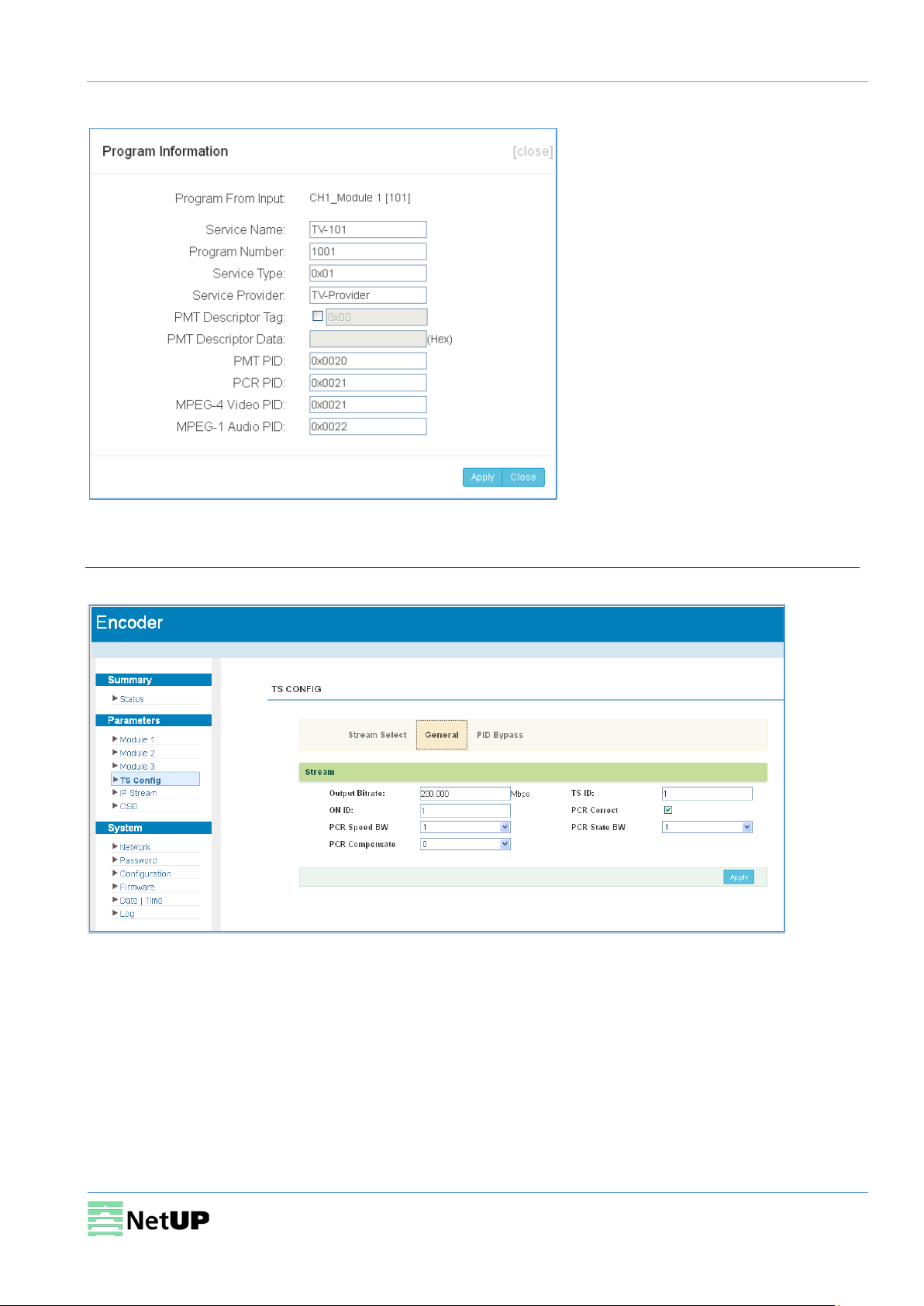

Click on a program in the output area to open the Program information window (Figure-5):
Figure-5
General
Select the General tab to edit common parameter for output streams (Figure-6).
Figure-6
11
NetUP Streamer HD v2 8-24x. User manual
Quick config
Channel config

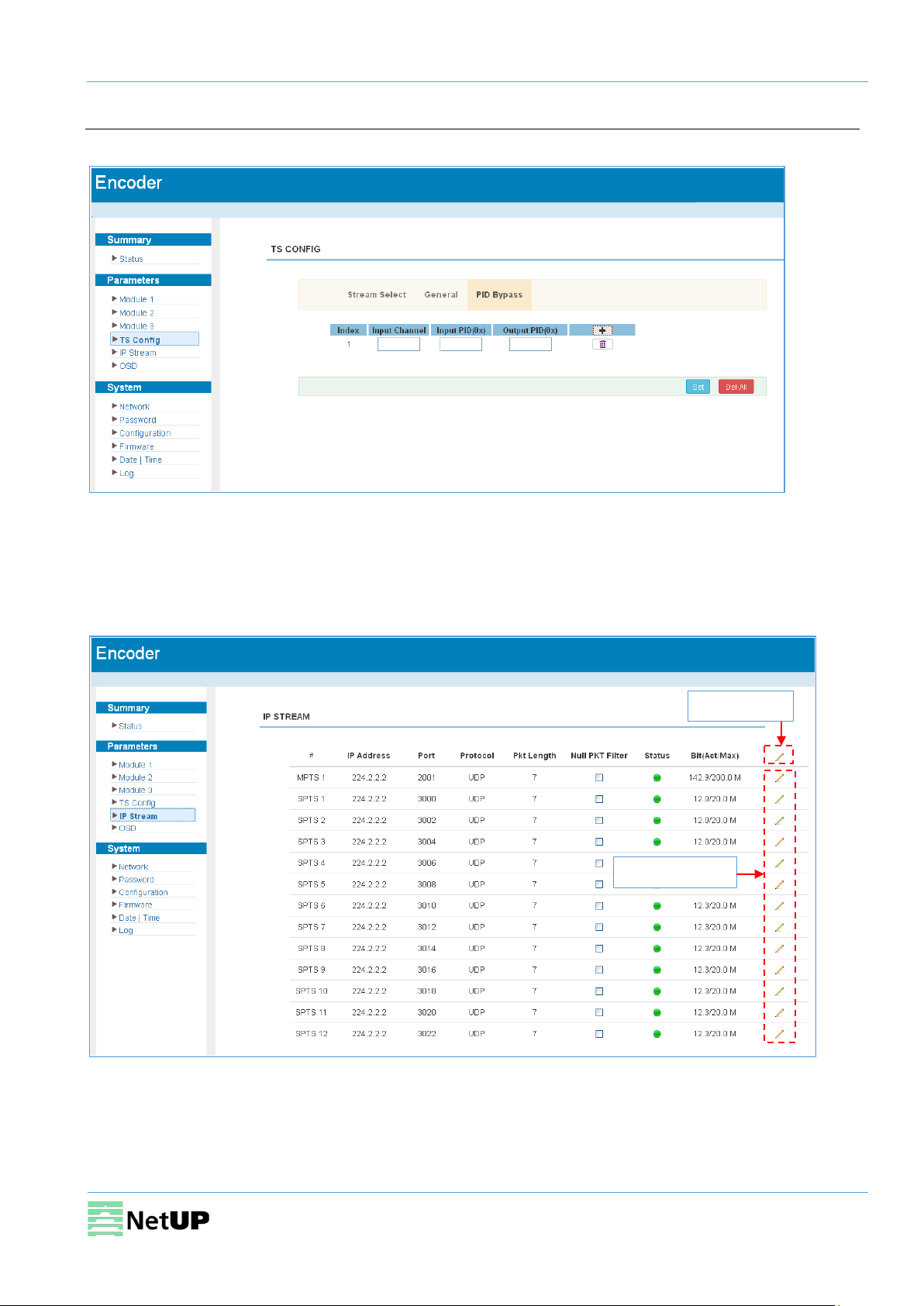

PID Bypass
Select the PID Bypass tab to edit the list of PIDs that should pass through (Figure-7).
Figure-7
Parameters → IP Stream
NetUP Streamer HD v2 8-24x supports TS to output in IP format through the DATA1 and DATA2 port.
Use the IP Stream page to set IP out parameters (Figure-8).
Figure-8
12
NetUP Streamer HD v2 8-24x. User manual
Select a tab
Select a module and a

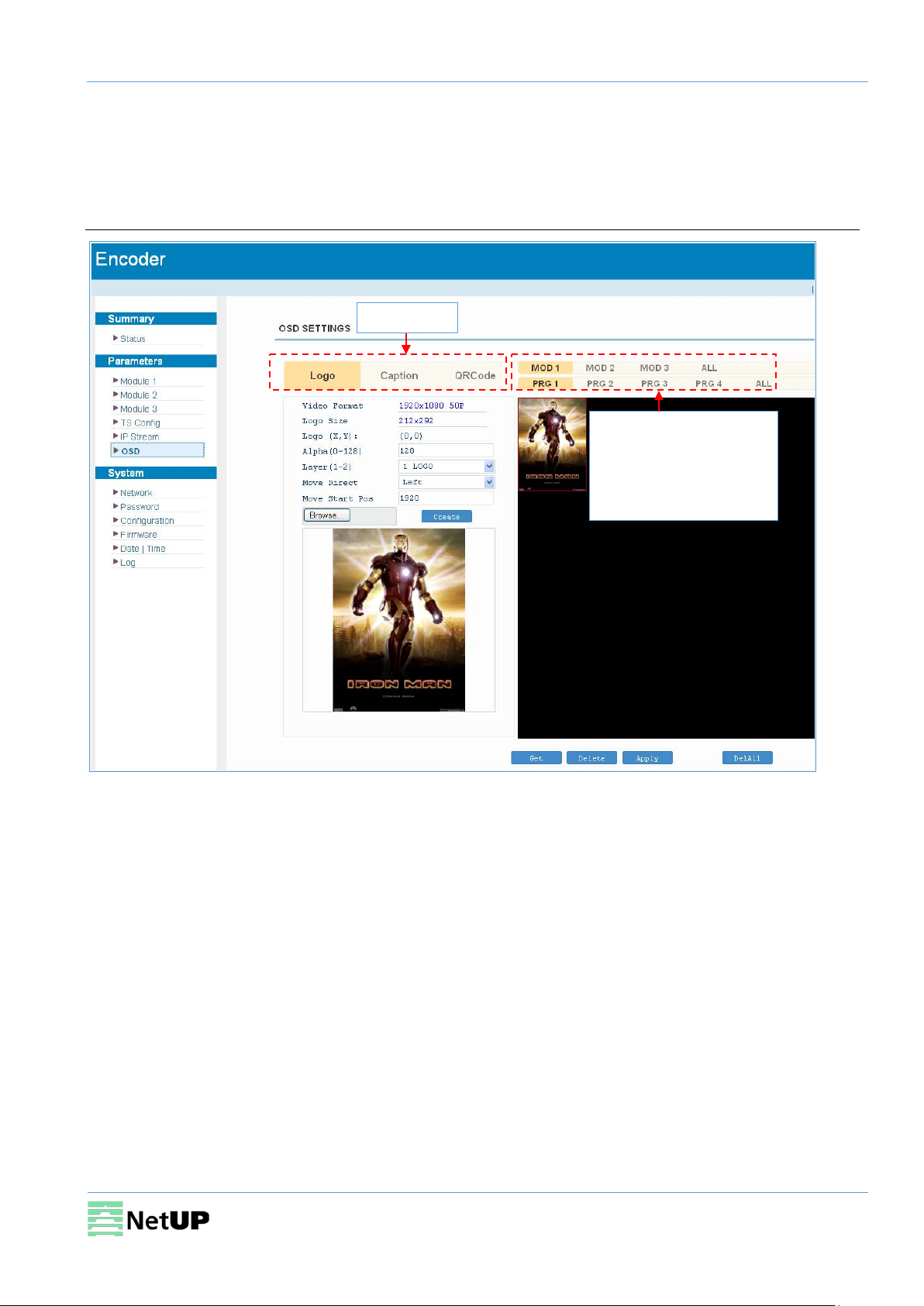

Parameters → OSD
Use the OSD page to configure the OSD parameters and select one of the following tabs: Logo,
Caption or QRCode.
Logo
program for applying a
logo or select “ALL” to
apply the logo to all
programs and all modules
Figure-9
13
NetUP Streamer HD v2 8-24x. User manual

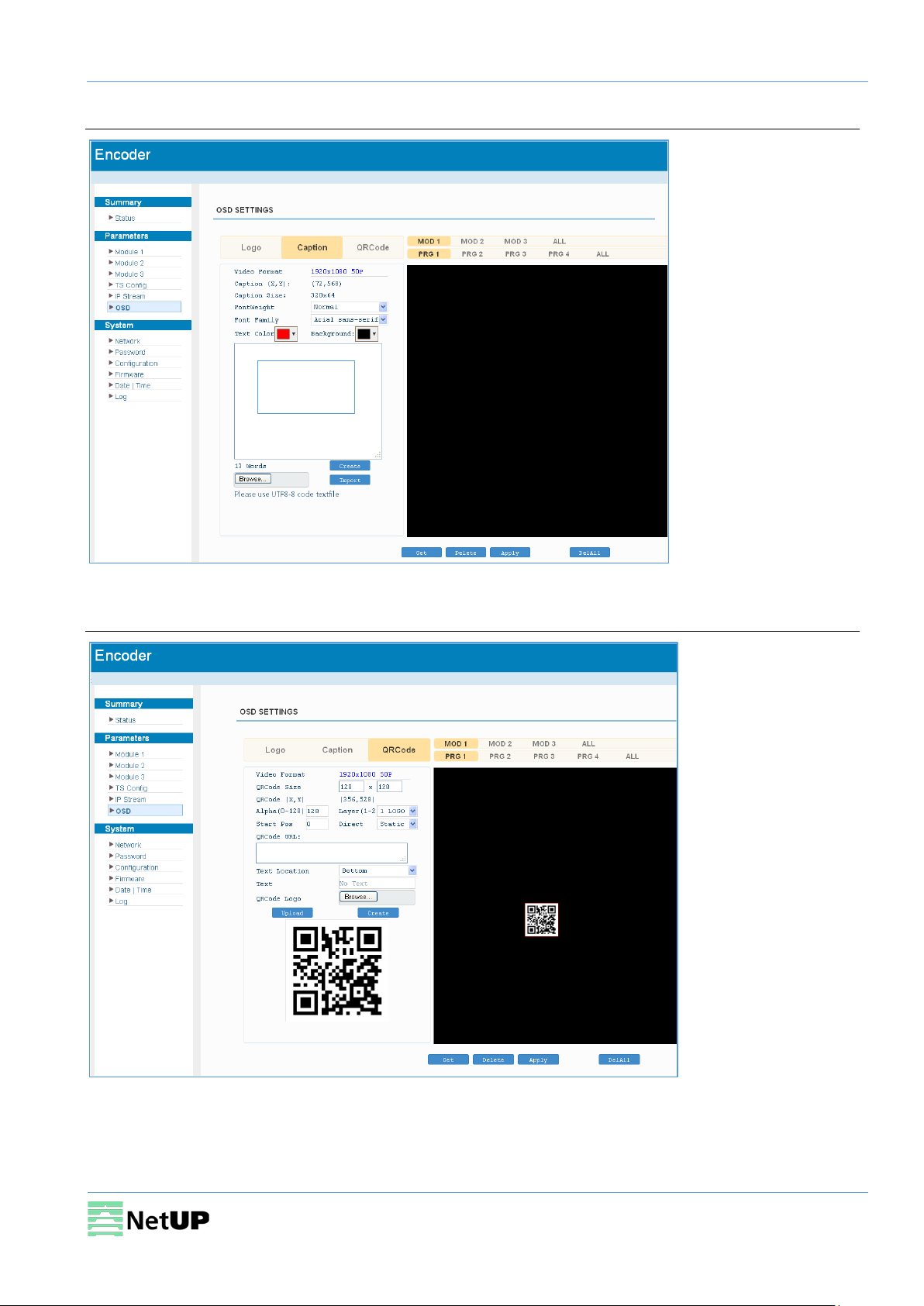

Write your
Caption
text here
Figure-10
QRCode
Figure-11
14
NetUP Streamer HD v2 8-24x. User manual
Confirm changes
Confirm changes

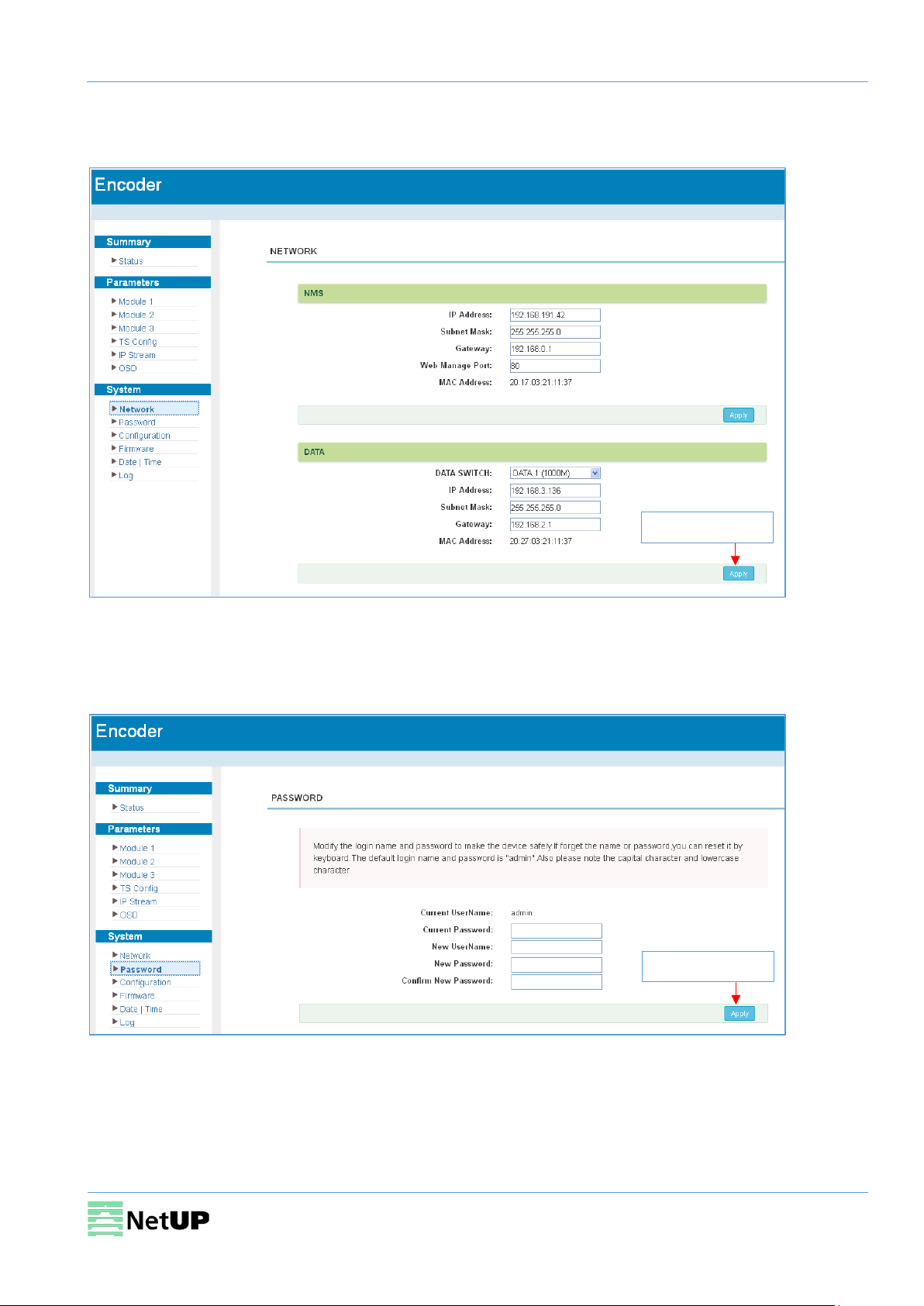

System → Network
Use the Network page to edit networking parameters (Figure-12).
Figure-12
System → Password
Use the Password page to change current password and username (Figure-13).
Figure-13
15
NetUP Streamer HD v2 8-24x. User manual

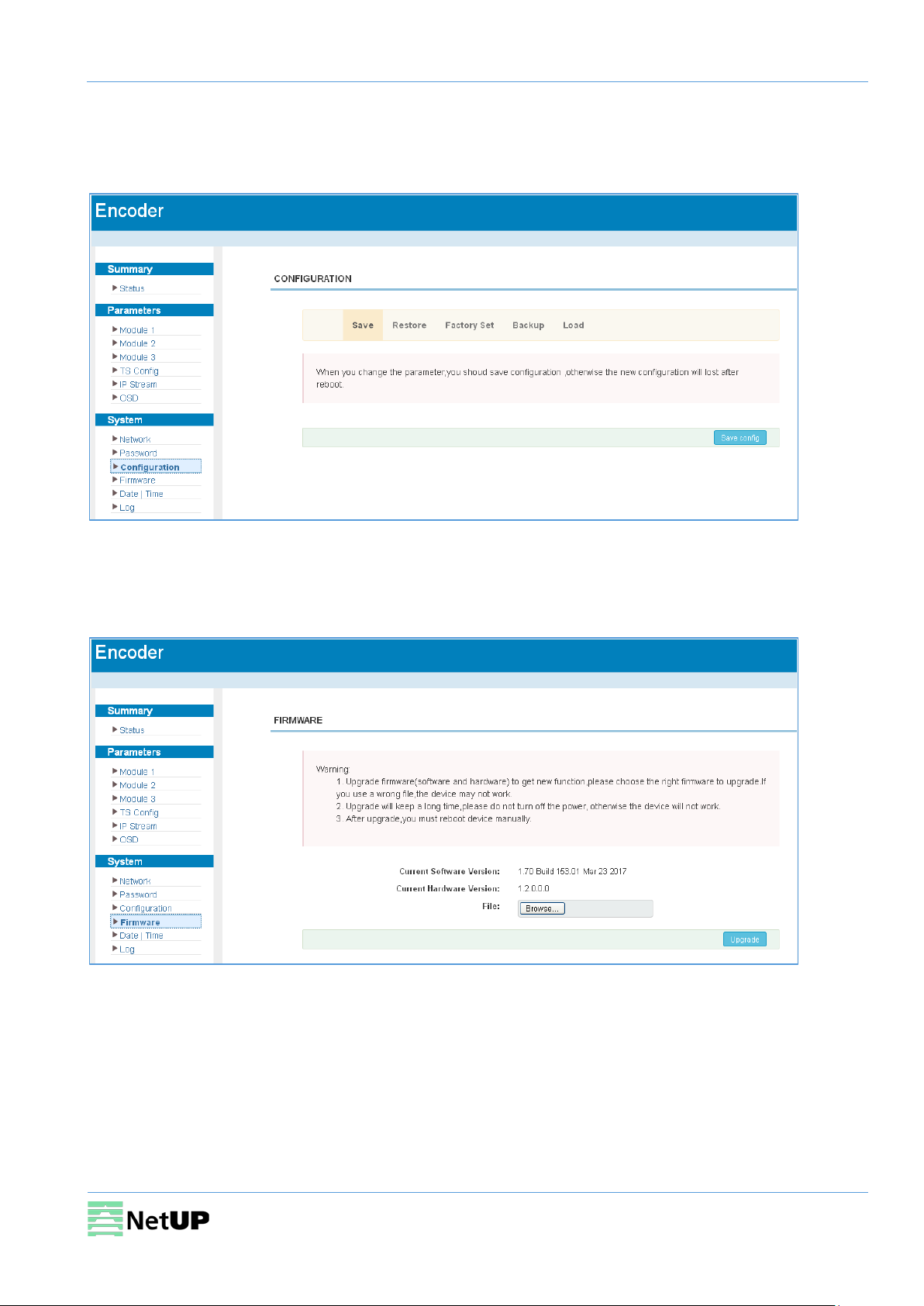

System → Configuration
Use the Configuration page to save or restore the system configuration, to work with backups, to
return to the factory settings and to load the configuration file (Figure-14).
Figure-14
System → Firmware
Use the Firmware page to update firmware for the device (Figure-15).
Figure-15
16
NetUP Streamer HD v2 8-24x. User manual

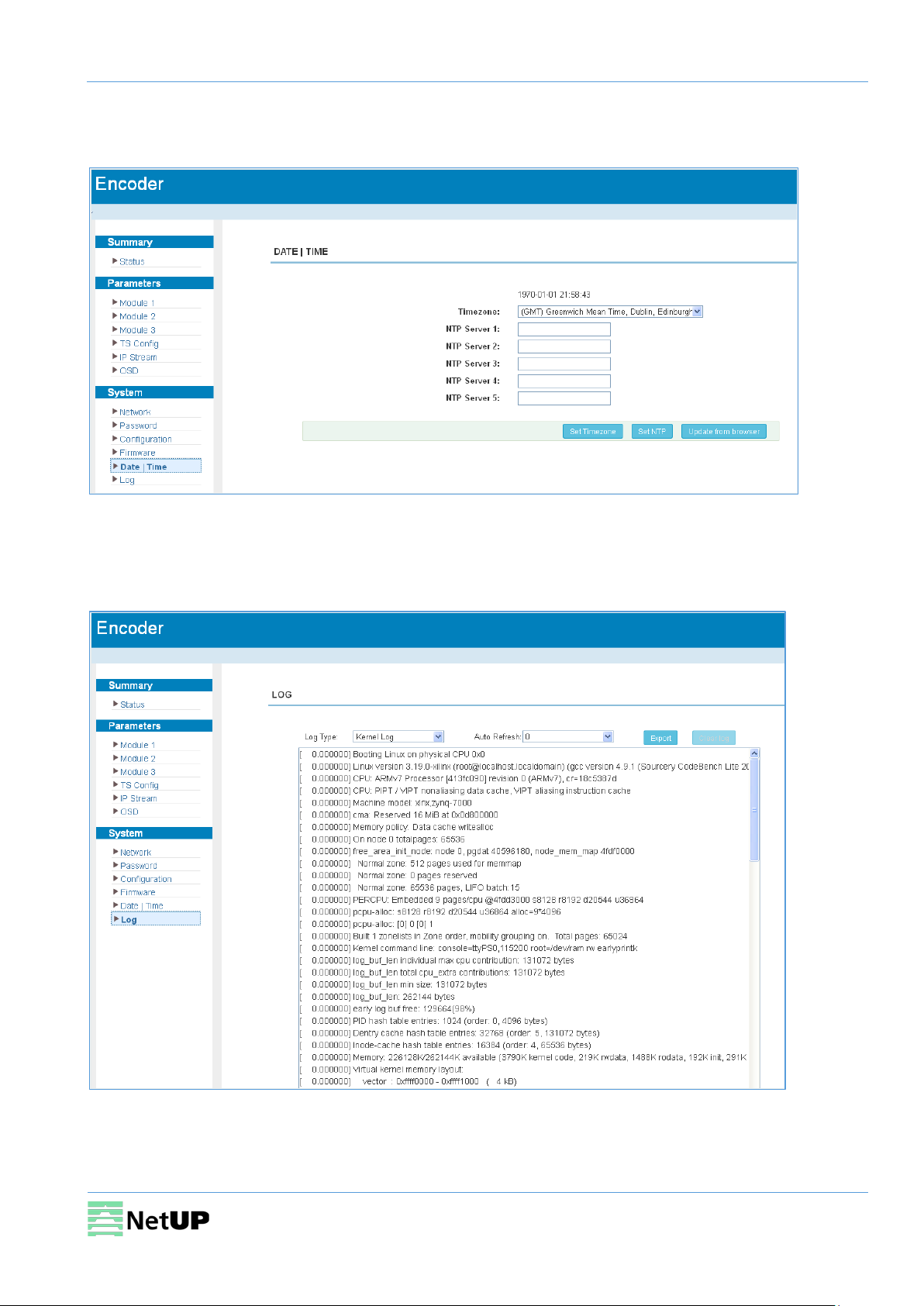

System → Date | Time
Use the Date | Time page to set date and time for the device (Figure-16).
Figure-16
System → Log
Use the Log page to see system logs (Figure-17).
Figure-17
17
NetUP Streamer HD v2 8-24x. User manual
Troubleshooting
Check the following before troubleshooting:
• Whether the server room is well ventilated and hot air from the back panel of the device is
effectively removed?
• Does the supply voltage meet the power requirements of the device?
• Are all cables connected correctly?
Turn off the device and unplug the power cord in the following cases:
• The power cord or socket is damaged.
• A liquid is splashed on the device.
• A short circuit has occurred.
• The device is in damp environment.
• The device suffered from physical damage.
• Longtime idle.
• After switching on and restoring to factory setting, device still cannot work properly.
• Maintenance needed.
Frequent on and off switching is prohibited; the interval between switching the device on
and off must be more than 10 seconds
18
Loading...
