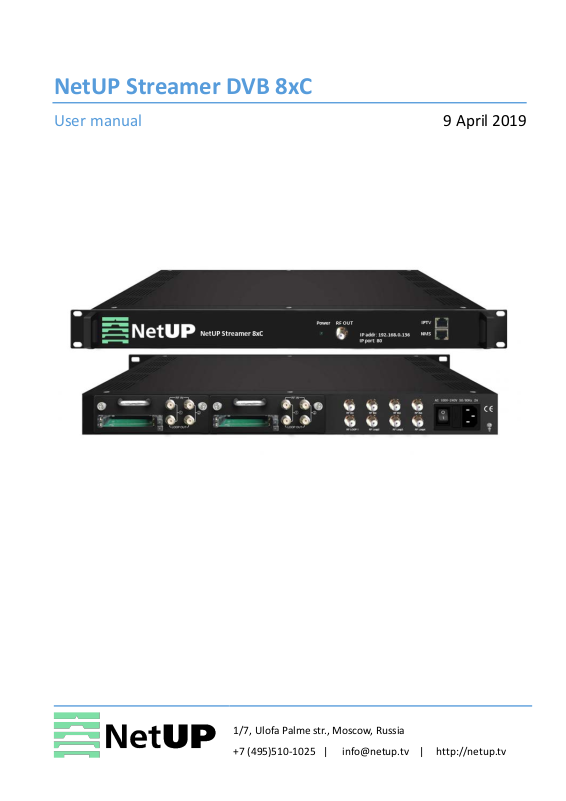

NetUP Streamer DVB 8xC User Manual

NetUP Streamer DVB 8xC

User manual

9 April 2019

1/7, Ulofa Palme str., Moscow, Russia

[phone] | [e-mail] | http://netup.tv

NetUP Streamer DVB 8xC. User manual

Contents

Introduction ............................................................................ 3

Appearance and illustration ................................................................................................... 3

Specifications ......................................................................................................................... 4

Installation guide ..................................................................... 5

Device’s installation flow chart .............................................................................................. 5

Packing list check ................................................................................................................... 5

Safety instructions ................................................................................................................. 5

Environment requirement ..................................................................................................... 6

Grounding requirement ......................................................................................................... 6

WEB NMS Operation ............................................................... 7

Login ....................................................................................................................................... 7

Summary → Status ................................................................................................................. 8

Parameters → Tuner .............................................................................................................. 8

Parameters → CI Card ............................................................................................................ 9

Parameters → TS Config ........................................................................................................ 9

Parameters → Modulator .................................................................................................... 12

Parameters → IP Stream ...................................................................................................... 13

System → Network .............................................................................................................. 13

System → Configuration ...................................................................................................... 14

System → Firmware ............................................................................................................. 14

System → Date | Time ......................................................................................................... 14

System → Log ....................................................................................................................... 15

Troubleshooting .........................................................................................16

2

NetUP Streamer DVB 8xC. User manual

Power Indicator
2

RF output interface

3

DATA port and NMS port for network management connection

Rear panel:

1

Module 1: 2 CAMs /Smart card slots and 2 RF signal input and loop-through

2

Module 2: 2 CAMs /Smart card slots and 2 RF signal input and loop-through

3

4 FTA tuner input interface

4

Power switch, fuse, power socket

5

Grounding pole

Introduction

NetUP Streamer DVB 8xC is a high performance and cost-effective DVB-C modulator. It has 8 DVB-S2
tuner inputs, after multiplexing and modulating process, then it gives 4 RF output. To meet
customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output
over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed.
Moreover, the four CAMs/CIs accompanied can descramble the programs input from 8 Tuner inputs.
NetUP Streamer DVB 8xC can be upgraded and controlled through network system.

Appearance and illustration

Front panel:

1

3

NetUP Streamer DVB 8xC. User manual

Input

8×DVB-S2; 128×IP(SPTS/MPTS) over UDP and RTP;

Tuner

DVB-S

Input frequency

950-2150MHz

Symbol rate

2-45Msps

Signal strength

-65~-25dBm

FEC Demodulation

1/2, 2/3, 3/4, 5/6, 7/8 QPSK

Input frequency

950-2150MHz

DVB-S2

Input frequency

950-2150MHz

Symbol rate

QPSK 1~45Mbauds;

Code rate

8PSK 2~30Mbauds

Constellation

1/2, 3/5, 2/3, 3/4, 4/5, 5/6,

Descrambling

CAM/CI Quantity

4

Multiplexing

Maximum PID

256 per input channel

Function

PID Remapping

Accurate PCR adjusting

Generate PSI/SI table automatically

Modulation

DVB-C

Standard

J.83A (DVB-C), J.83B,

MER

≥43dB

RF frequency

30~960MHz, 1KHz step

RF output level

-25~ -1dbm (77~97 dbµV),

Symbol rate

5.000~7.000Msps

RF Out

4×DVB-C adjacent carriers

J.83A

Constellation

16/32/64/128/ 256 QAM

Bandwidth

8M

Output

4×MPTS over UDP and RTP (RJ45, 1000 М /100 М Unicast/Multicast)

Other parameters

Operate and update

Network management software (NMS)

Dimension (W×L×H)

482 mm × 300 mm × 44,5 mm

Approx. weight

3,7 kg

Temperature

0-45℃ (operation); -20-80℃ (storage)

Power requirements

AC 100V; 220V±10%, 50/60Hz

Power consumption

25W

Specifications

RJ45, 1000 М /100 М Unicast/Multicast

8/9, 9/10

Remapping

0.1db step

adjustable

combined output

4

NetUP Streamer DVB 8xC. User manual

Installation guide

Device’s installation flow chart

Packing list check

Installing

device

Before installing and connecting the device, carefully read the environment and
grounding requirements, as well as safety instructions for the sake of your safety and for
the safety of the device

Packing list check

Check items according to packing list. Normally it should include the following items:

• NetUP Streamer DVB 8xC

Connecting
grounding
wire and
power cord

Connecting
signal cable

Setting
parameter

Running
device

• Power Cord

• RF Input/Loop Cables

Safety instructions

• Before installing and connecting the device make sure that the device was not damaged during

delivery.

• Install the device in an appropriate place. The device is designed to work in a clean and dry room.

It must be operated and maintained free of dust.

• Before switching on the device make sure that it is adjusted to the mains voltage you intend to

use. Make sure that you keep within the specifications – AC 100V-220V±10%, 50/60Hz.

• Check that all the cables are connected properly. Connect cables only to a device that is turned

off.

5

NetUP Streamer DVB 8xC. User manual

Item

Requirement

Room space

When installing a rack in the room, make sure the distance between two

Room floor

Electric isolation. Dust free. The volume resistivity of ground anti-static

Environment

5~40℃ (sustainable), 0~45℃ (short time).
Relative temperature

20%~80% (sustainable); 10%~90% (short time).

Pressure

86~105KPa

Door & window

Install rubber strip for sealing door-gaps and dual level glasses for windows

Walls

Can be covered with wallpaper or dark paint.

Fire protection

Fire alarm system and extinguisher.

Power

The device requires AC 100V; 220V±10%, 50/60Hz.

Environment requirement

rows of racks is 1.2~1.5m and the distance to the wall is at least 0.8m.

material: 1×107~1×1010 Ω. Grounding current limiting resistance: 1M (Floor
bearing should be greater than 450Kg/m2).

temperature

Installing air-conditioning is recommended.

Please carefully check before running.

Grounding requirement

• Connect the ground wire to the grounding hardware on the device. Ground resistance should be

no more than 1 Ω

Grounding is essential for device’s functionality, surge and electronic interference

protection

• Keep proper contact with the metal housing of the device

• Grounding wire must be made out of copper and as thick and short as possible

• Make sure the two ends of grounding wire conduct electricity and are not rusty

• It is prohibited to use any other devices as a part of grounding electric circuit

• All racks should be connected with a protective copper strip. Ground loops should be avoided

• Grounding wire’s contact area with the rack should be no less than 25mm

2

6

NetUP Streamer DVB 8xC. User manual

WEB NMS Operation

Use the Web interface to control NetUP Streamer DVB 8xC.

Login

Connect a personal computer and the device with net cable, and use ping command to confirm they
are on the same network segment.

Make sure that the computer’s IP address is different from the device’s IP address;

otherwise, it would cause an IP conflict

The default IP address of NetUP Streamer DVB 8xC is 192.168.0.136 or 10.0.0.103. Thus, set the
computer’s IP address to 192.168.0.X or 10.0.0.X, where X can be from 0 to 255, except 136 or 103.
Open a web browser, enter the device’s IP address in the browser address bar and press Enter. If the
network is configured correctly, you will see the login interface (Figure 1).
Enter username and password and click LOGIN to enter the web interface. Default username is
“admin”, default password is “admin”.

Figure-1

7

NetUP Streamer DVB 8xC. User manual

Use this menu to

System information

Select a tuner and

Summary → Status

After login, you will get the Status page which displays the current system status (Figure-2).

navigate between

the interface pages

Figure-2

Parameters → Tuner

Use the Tuner page to configure the input tuner parameters to receive satellite signals (Figure-3).

click Edit to set
satellite signals
parameters

Figure-3

8

NetUP Streamer DVB 8xC. User manual

CI TS Mode

You can apply one CI card to descramble programs from the two Tuner

CI Max Bitrate

CI Max Bitrate options range from 48 to 108Mbps. Select a value in

CI Card Error Check

You can decide whether to enable the card error check function by

Set config

Apply the input data

Set program

Parse programs from the channel selected in “Input Source”. The

Set descramble

Descrambler programs. The descrambled program quantity depends

Select a card

Descramble area

List of available programs.

Parameters → CI Card

NetUP Streamer DVB 8xC supports 4 CI cards to descramble programs from Tuner input. Use the CI
Card page to configure the available CI cards (Figure-4).

Click "+" to view program
information

Figure-4

input signal sources.
“Skip CI card” means to skip the card which is used for FTA stream

the list as principle:

actual input bitrate ≤ max bitrate ≤ CI max decrypting capacity

checking the box

available programs will be listed in the “Descramble area”

on the CAM/CI performance you apply to

Parameters → TS Config

Use the TS Config page to configure the TS output parameters and select one of the following tabs:
Output TS, Stream Select, General, PID Bypass.

9

NetUP Streamer DVB 8xC. User manual

Select a tab

Input area

Output area

Operation area

Parse programs

Output TS

Select the Output TS X tab to open the list of available TS channels. Click one of the channels to select
it (Figure-5).

Figure-5

Stream Select

Select the Stream Select tab to select streams that should be sent to Mux out (Figure-6).

Figure-6

10

NetUP Streamer DVB 8xC. User manual

Confirm

Operation area:

CA Filter

PID Remap

Refresh input / output

===> / <===

All input / output

filter or not filter the source CA information

enable or disable PID Remapping

refresh an input or an output

move programs between the input and the output areas

select all input or output programs

General

Select the General tab to edit common parameter for output streams (Figure-7).

Figure-7

changes

11

NetUP Streamer DVB 8xC. User manual

Quick config

Channel config

PID Bypass

Select the PID Bypass tab to edit the list of PIDs that should pass through (Figure-8).

Figure-8

Parameters → Modulator

Use the Modulator page to edit RF output parameters (Figure-9).

Figure-9

12

NetUP Streamer DVB 8xC. User manual

Parameters → IP Stream

NetUP Streamer DVB 8xC supports TS IP output (4×MPTS) via the DATA port. Use the IP Stream page
to set IP output parameters (Figure-10).

Figure-10

System → Network

Use the Network page to edit networking parameters (Figure-11).

Figure-11

13

NetUP Streamer DVB 8xC. User manual

Select a tab

System → Configuration

Use the Configuration page to save or restore system configuration, to revert to factory settings, to

work with backups or to load configurations (Figure-12).

Figure-12

System → Firmware

Use the Firmware page to update firmware for the device (Figure-13).

Figure-13

System → Date | Time

Use the Date | Time page to set date and time for the device (Figure-14).

Figure-14

14

NetUP Streamer DVB 8xC. User manual

System → Log

Use the Log page to see system logs (Figure-15).

Figure-15

15

NetUP Streamer DVB 8xC. User manual

Troubleshooting

Check the following before troubleshooting:

• Whether the server room is well ventilated and hot air from the back panel of the device is

effectively removed?

• Does the supply voltage meet the power requirements of the device?

• Is the RF output level vary within the tolerant range?

• Are all cables connected correctly?

Turn off the device and unplug the power cord in the following cases:

• The power cord or socket is damaged.

• A liquid is splashed on the device.

• A short circuit has occurred.

• The device is in damp environment.

• The device suffered from physical damage.

• Longtime idle.

• After switching on and restoring to factory setting, device still cannot work properly.

• Maintenance needed.

Frequent on and off switching is prohibited; the interval between switching the device on

and off must be more than 10 seconds

16
