Page 1
MOBILE FAMILY
USER MANUAL
NETTI 4U CED
NETTI 4U CEDS
NETTI 4U CED XL
My-Netti.com
4U FAMILY
COMFORT
This product conforms to 93/42/EEC
for medical products.
UM0002 UK 2019-01
Page 2
2 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
CONTENTS
1. INTRODUCTION 4
1.1 Areas of use/indications for Netti 4U CED 5
1.2 Contraindications 5
1.3 Quality and durability 5
1.4 The environment and waste disposal 5
1.5 Information for re-use 6
1.6 About this manual 6
1.7 Vital measures 7
2. QUICK REFERENCE 8
3. DESCRIPTION 9
4. FEATURES OF NETTI 4U CED 10

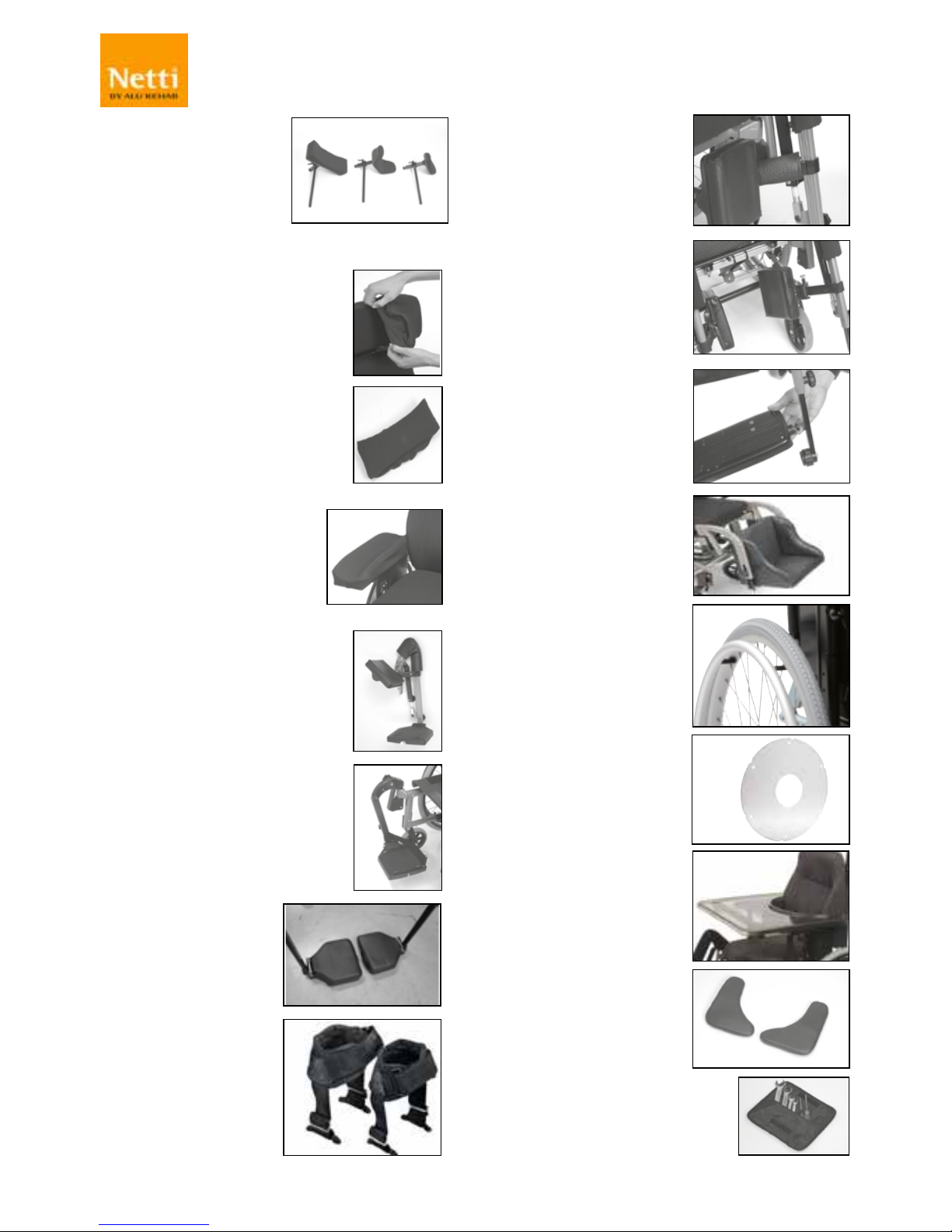

5. ACCESSORIES 11
5.1 Assembly of Hip-Belt 13
6. ASSEMBLING AND ADJUSTMENT 13
6.1 Unpacking 13
6.2 Main wheel 14
6.3 Front castors 14
6.4 Seat height adjustment 14
6.5 Back rest 15
6.6 Seat depth adjustment at the rear 16
6.7 Seat depth adjustment in front 16
6.8 Anti tip 17
6.9 Seat cushion 17
6.10 Back rest cushion 17
6.11 Adjusting velcro back 18
6.12 Leg support 18
6.13 Head support 20
6.14 Arm support 22
6.15 Adjusting the brakes 22
6.16 Push bow 24
Page 3
My-Netti.com 3
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
7. SEAT ANGLE - TILT AND BACK ANGLE - RECLINE 24
7.1 Seat angle 24
7.2 Backrest angle 24
7.3 Keywords regarding tilt and recline 24
7.4 Decrease the possibility of sliding, shear and pressure sores 25
7.5 Operating the tilt handle 25
7.6 Operating the recline handle 25
8. MANEUVERING THE WHEELCHAIR 26
8.1 General about driving and parking 26
8.2 Driving techniques - Step up 26
8.3 Driving techniques - Step down 26
8.4 Driving techniques - Slope 27
8.5 Driving techniques - Up stairs 27
8.6 Driving techniques - Down stairs 28
8.7 Transfer 28
8.8 Lifting the wheelchair 29
8.9 Push rim 29
9. TRANSPORT 30

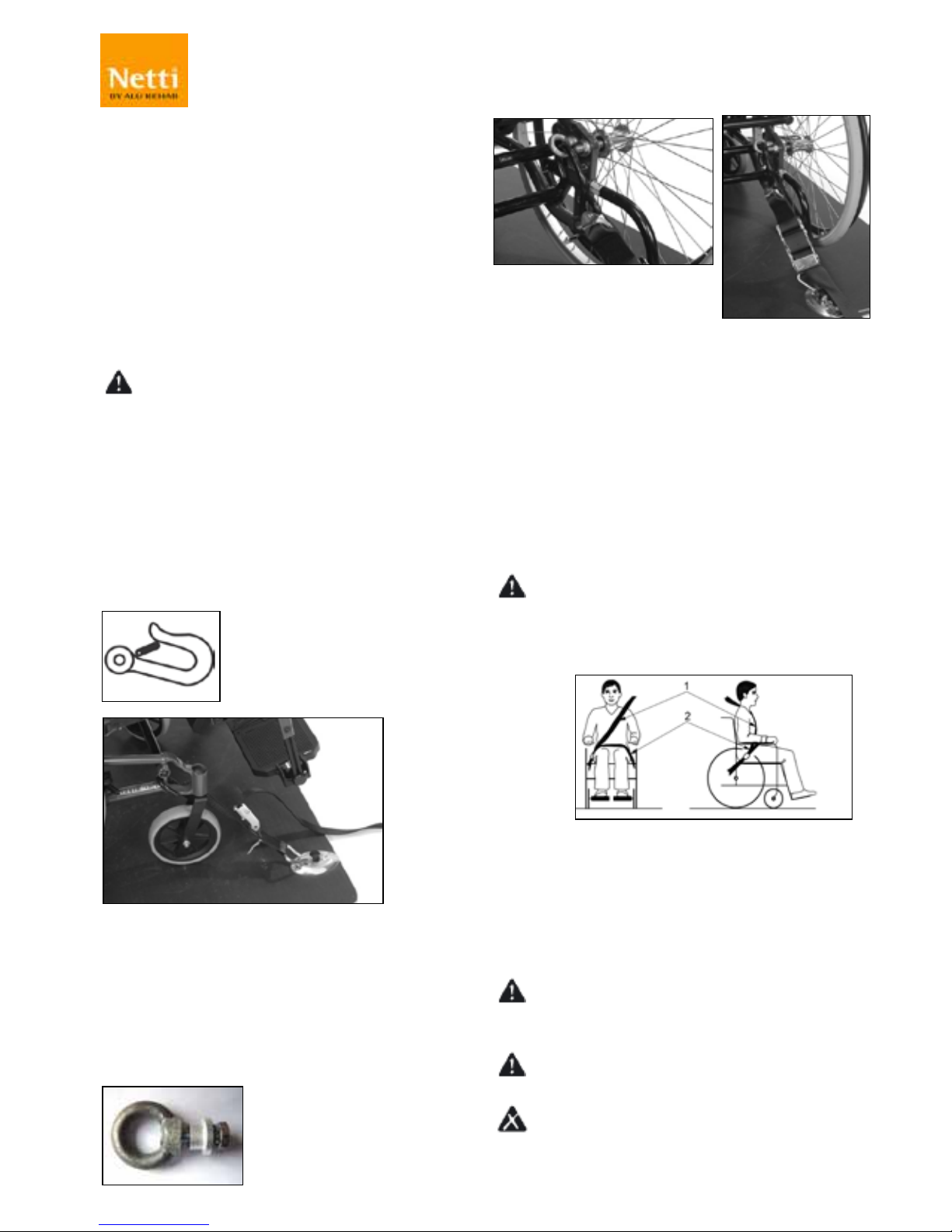

9.1 Transport in a car 30
9.2 Folding for transport 31
9.3 Transport in airplane 31
9.4 Travelling on public transport 31
10. MAINTENANCE 32
10.1 Maintenance instructions 32
10.2 Cleaning and washing instructions 32
10.3 Long time storage 33
11. TROUBLESHOOTING 34
12. TESTS & WARRANTY 35
12.1 Tests 35
12.2 Guarantee 35
12.3 Claim 35
12.4 Netti Customized, Individual adaptations 36
12.5 Combination with other products 36
12.6 Service and repair 36
13. MEASURES & WEIGHT 37
Page 4
4 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

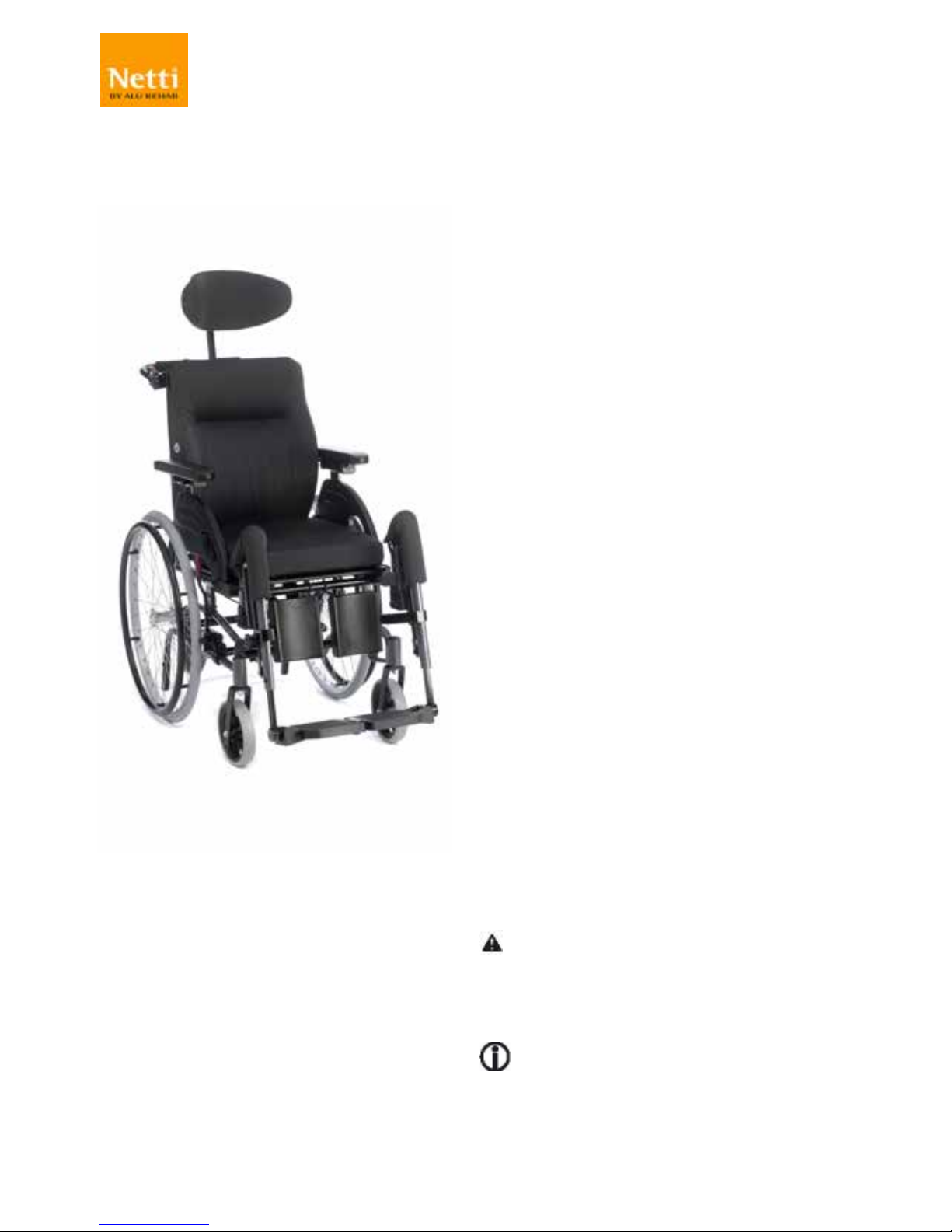

1. INTRODUCTION
Netti 4U CED, CEDS and CED XL
are comfort wheelchairs meant for
both indoor and outdoor use. They
are tested to DIN EN 12183:2014.
The tests were carried out by TÜV
SÜD Product Service GmbH in
Germany.
In Alu Rehab we believe that wheelchairs
should be chosen based on a thorough
assessment focusing on the needs of the
user and demands from the environment.
Therefore, it is important to know about
the possibilities and restrictions of the
wheel-chair. Netti 4U CED, CEDS and CED
XL are wheelchairs designed for users
with the need for comfort and relief. The
combination between the seating system
and the ergonomical solutions in the frame
construction, offers many possibilities for
adaptation and adjustments.
The wheelchairs are constructed for indoor
and outdoor use, and offers the possibility to
vary the sitting position from activity to rest
using tilt and recline functions.
Netti 4U CED is available in 3 versions:
Max user weight: 160 kg:
- Netti 4U CED with standard seat depths.
- Netti 4U CED XL with seat widths 550 and
600 mm
Max user weight: 130 kg:
- Netti 4U CEDS with shorter seat depth
When mounting accessories such as
power kit etc, the weight of the accessories
must be subtracted from the max user
weight.
Specifications varies between
countries.
Page 5
My-Netti.com 5
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
1.1 AREAS OF USE/
INDICATIONS FOR NETTI 4U
CED, CEDS AND CED
Netti 4U CED, CEDS and CED XL are multifunction wheelchairs for partially or fully
immobile youth and grown up persons
with physical and/or mental disabilities.
These disabilities may have multiple
causes. Netti 4U CED, CEDS and CED XL
have an adjustable seat and back angle,
thus facilitating for the user change of
position, mobilisation or posture correction
(stabilisation), wherever the following
functional impediments with their multiple
possible causes are present:
• limited or lacking mobility
• limited or lacking muscle power
• limited movement range
• lacking or limited trunk and body stability
• hemiplegia
• rheumatic-type disorders
• craniocerebral injuries
• amputations
• other neurological or geriatric disorders.
1.2 CONTRAINDICATIONS
Netti 4U CED, CEDS and CED XL are
not suited for persons with a strongly
enhanced muscular spasticity. In this case
we recommend the Netti Dynamic System,
which offers a frame construction that
follows the movement pattern of the user.
Ignoring this advice could in unfavorable
circumstances lead to the deformation
or fracture of metal parts in the area of
the back tube, the leg support or the arm
support.
1.3 QUALITY AND
DURABILITY
Netti 4U CED, CEDS and CED XL
wheelchairs are tested at TÜV SÜD
Product Service GmbH in Germany,
following the European Standard DIN EN
12183:2014.
As manufacturer, Alu Rehab A.S
evaluates the test to be equal to 5-6
years of normal use of the chair. The
disability of the user as well as the level
of maintenance done foremost decides
the durability of the wheelchair. Thus, the
durability will vary depending on these
two factors.
1.4 THE ENVIRONMENT AND
WASTE DISPOSAL
Alu Rehab and its suppliers wish to
protect the environment.
This means:
• That we avoid using environmentally
harmful substances and processes to
the greatest extent possible.
• That Alu Rehab’s products are ensured
a long service life and a high degree of
flexibility - to benefit the environment
and economy.
• That all packaging can be recycled.
• That the wheelchair was designed to be
separated into its component materials
- to make recycling easier.
Contact your local recycling agent to
get correct information how to handle in
you area.
Netti 4U CED wheelchairs are designed for temperature range from -10°C
to +40°C
Page 6
6 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
1.5 INFORMATION FOR RE-USE
All products from Alu Rehab are designed
to give years of maintenance-free service.
All products can be adapted for re-use by
an authorised dealer. In order to guarantee
performance and safety, Alu Rehab
recommends the following tests prior to any
re-use.
Please examine the following components
for function, integrity etc. and replace parts
as necessary:
• Wheels (tyre tread)
• Wheelchair frame
• Front castors and quick release
• Hubs
• Brake function
• Directional stability of wheels
• Bearings: test for wear andlubrication.
• Cushions
• Leg supports
• Arm supports
• Recline/tilt function
• Push bar / handles
• Anti tip
Please also note the content of chapter 10.2
Cleaning and care.
For hygienic reasons: please replace the
head support for a new user.
Anti-tip
Correctly fitted, the anti-tip will secure the
chair from tipping backwards. We strongly
recommend use of the anti-tips.
1.6 ABOUT THIS MANUAL
In order to avoid damages while using
the Netti 4U CED, CEDS and CED XL
wheelchairs, please read this manual
carefully before starting to use the chair.
Symbol of forbidden actions. No
warranty can be claimed whenever these
actions are implemented.
Symbol of warning. Whenever this
symbol is used, caution has to be taken.
Symbol for important information.
Symbol for useful tips.
Symbol for tools.
7
°
Symbol for parking brake safe
slope.
Max.
135
kg
Symbol for max user weight.
Please note that this manual is updated
according to the year and date stated on
each page.
User Manual on web
For enhanced readability ( advantageous for users with visibility challenges)
please find our user manual om our web
page: www.My-Netti.com - manuals - user
manual - Netti 4U CED.
Latest user manual updates, product
safety notes, addresses and other product
information like recalls etc. will be published on our web page.
Page 7
My-Netti.com 7
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
1.7 VITAL MEASURES
Netti 4U CED, CEDS and CED XL are
comfort wheelchairs designed for both
outdoor and indoor use. Min. dimensions
in the table refer to seat width 350mm.
Max. dim refers to seat width 600mm.
Specifications varies between
countries.
Total weight: 29 Kg
(450 mm width chair)
Seat width:
CEDS: 350, 400, 430 mm
CED: 350, 400, 430, 450,
500 mm
CED XL: 550 & 600 mm
Seat depth: (From back rest cushion
to front of seat plate)
CED and CED XL:
425, 450, 475, 500 mm
CEDS 375, 400, 430 mm
Seat height: (From floor to top seat
plate using 24” main wheels in upper hole
position).
465 mm*
*By changing position of main wheels, it is
possible to achieve seat height of 500 mm.
whewheel
Backrest height:
500 mm*
* Using back rest extender gives backrest
height of 600 mm
Specification min. max.
Overall length with leg
support
1160 mm 1160 mm
Overall length without
leg support
960 mm 960 mm
Overall width 530 mm 780 mm
Height without headrest 1100 mm 1100 mm
Folded length 610 mm 645 mm
Folded width ex wheels 530 mm 780 mm
Folded height ex wheels 570 mm -
Total mass 28 kg 32 kg
Mass heaviest part -frame 18 kg -
Static stability uphill 0 28°
Seat plane angle -5° 20°
Effective seat depth CED
CEDS
425 mm
375 mm
500 mm
500 mm
Effective seat width CED
+ CED XL CEDS
330 mm
330 mm
580 mm
480 mm
Seat surface height at
front
465 mm 500 mm
Backrest angle 90° 135°
Backrest height 480 mm -
Foot plate to seat
distance
280 mm 560 mm
Leg to seat surface angle 98° 176°
Arm support to seat
distance
265 mm 365 mm
Front location of arm
support structure
265 mm 355 mm
Push rim diameter 24” 535 mm 535
Horizontal axle location 70 mm 100 mm
Parking brake safe slope 0° 7°
Minimum turning radius,
vertical leg supports
R860 mm -
Netti 4U CED and Netti 4U CEDS are
identical chairs except for the shorter seat depth
by Netti 4U CEDS.
Netti 4U comfort CED, CEDS, CED XL
Page 8
8 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
2. QUICK
REFERENCE
The content of this page is a summary
of the whole manual. It gives a brief
introduction to the use and care of
the Netti 4U CED, CEDS and CED XL
wheelchair.
The quick reference is not a
replacement for the manual, only a
reminder/check list.
• Unpack the wheelchair (Chapter 6.1)
• Mount the main wheels (Chapter 6.2)
• Mount the front castors (Chapter 6.3)
• Put the back rest back, and mount the
recline gas strut to the back rest using
the locking bolt. (Chapter 6.5)
• Mount the arm supports. (Chapter 6.11)
• Mount the seat cushion (Chapter 6.9)
• Mount the leg supports (Chapter 6.10)
• Mount the head support (Chapter 6.11)
• Set anti-tip in active position (Chapter
6.7)
• Mount accessory. (See chapter 5 for more
information. Mounting descriptions will
follow the accessory.)
Adjust the wheelchair to the user: Adjust
seat depth and eventually the wheelchair
balance, leg support height, armsupport
height, head support height and depth,
chair back cushion height.
For more information about adapting
the wheelchair to the user, please see: MyNetti.com Knowledge centre.
For troubleshooting, see chapter
10. For mounting and adjustments see
chapter 6.
Announcements to product safety
and eventually product recalls will be
published on our home page www.MyNetti.com
Drive carefully!
Be aware that friction against push
rims can create a warm surface.
Salt water can increase risk of
corrosion. Further precautions related to
environmental conditions not needed.
When the chair is tilted rearwards, the
anti tips and brakes should always be in
use.
Be sure to lock all handles properly.
The anti-tips should always be used for
the safety of the user.
Surface temperature of metal parts
in frame structure might increase when
exposed to direct sunlight.
Watch out for pinching danger when
folding and unfolding, tilting, reclining and
all other adjustment movements.
Never stand on the leg supports due
to risk of tipping forwards.
Never lift the wheelchair by the leg
supports, arm supports or head support.
Product configuration may vary
between different countries.
For visually impaired people,
manuals and catalogues can be
downloaded at www.My-Netti.com
If in doubt - contact your dealer!
Page 9
6 5
4
3
7
1
8 2
19
9
18
12 17
16
10 11 15
13 14
My-Netti.com 9
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

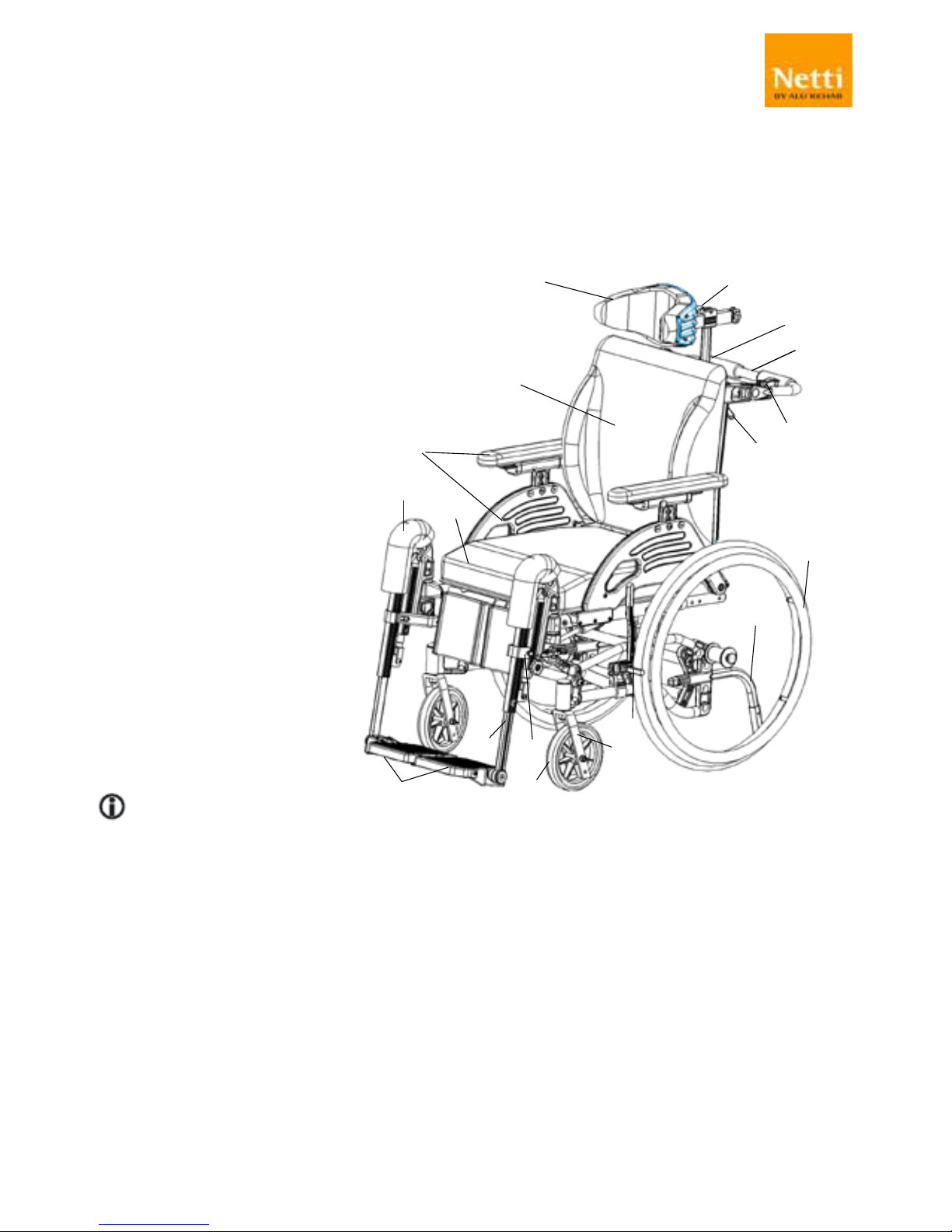

3. DESCRIPTION
Standard version*
1. Lock for push bow
2. Release handle
3. Push bow
4. Head support bracket
5. Angle and depth adjustment for
head support
6. Head support
7. Back rest
8. Arm support with pad
9. Seat cushion
10. Angle adjustable leg support
11. Calf support bracket
12. Calf support
13. Foot plate
14. Front castors
15. Front fork
16. Brakes
17. Anti-tip
18. Main wheel
19. Knee upholstery
If any of these parts are missing,
please contact your dealer.
* Product configuration may vary
between different countries.
Netti 4U CED, CEDS and CED XL are
identical chairs except for the shorter
seat depth by Netti 4U CEDS.
Page 10
10 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
STANDARD
SEAT
• Pressure distributive cushion Netti Uno
• Tilt -5° to +20°
• Adjustable depth of 75 mm
WHEELS
• 24 x 1 3/8” puncture proof main wheels
with quick release axle
• Push rim: Aluminium
• 7” Puncture proof front castors with
quick release axle
* Standard main wheels may vary between
countries.
PUSH BOW
• Angle adjustable push bow
BRAKES - User brakes
ANTI-TIP - Upward swingable
BACKREST
• Angle: 92° to 137°
• Height: 500 mm
• Netti Uno Back with 3D cover
LEG SUPPORT
• Angle adjustable leg support
• Height- and angle adjustable foot plates
• Removable
ARM SUPPORT
• Height and depth adjustable
• Revolvable
HEAD SUPPORT
• A - Height, depth and angle adjustable
• Removable
ACCESSORIES
BELTS
•
Hip belts (See chapter 5)
SEAT
• Pressure distributive cushions
WHEELS
• Puncture proof PU wheels 12”, 16” and 24x1”
with drumbrake (See chapter 5)
• Puncture proof PU 22 x 1” & 24 x 1”
• 6” & 7” puncture proof front castors with
quick release axle
• Pneumatic wheels
PUSH HANDLE
• Height and angle adjustable push handles
BRAKES - Drum brakes
BACKREST
• Back rest extender (See chapter 5)
• Lumbar support and wedge (See chapter 5)
• Different backrest cushions
LEG SUPPORT
• Universal leg support
• Amputation support
• Upholstery for foot supports
ARM SUPPORT
• Hemi cushions (See chapter 5)
HEAD SUPPORT
• Different head support models (See chapter
5)
4. FEATURES OF NETTI 4U CED /CEDS / CED XL
Page 11
My-Netti.com 11
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

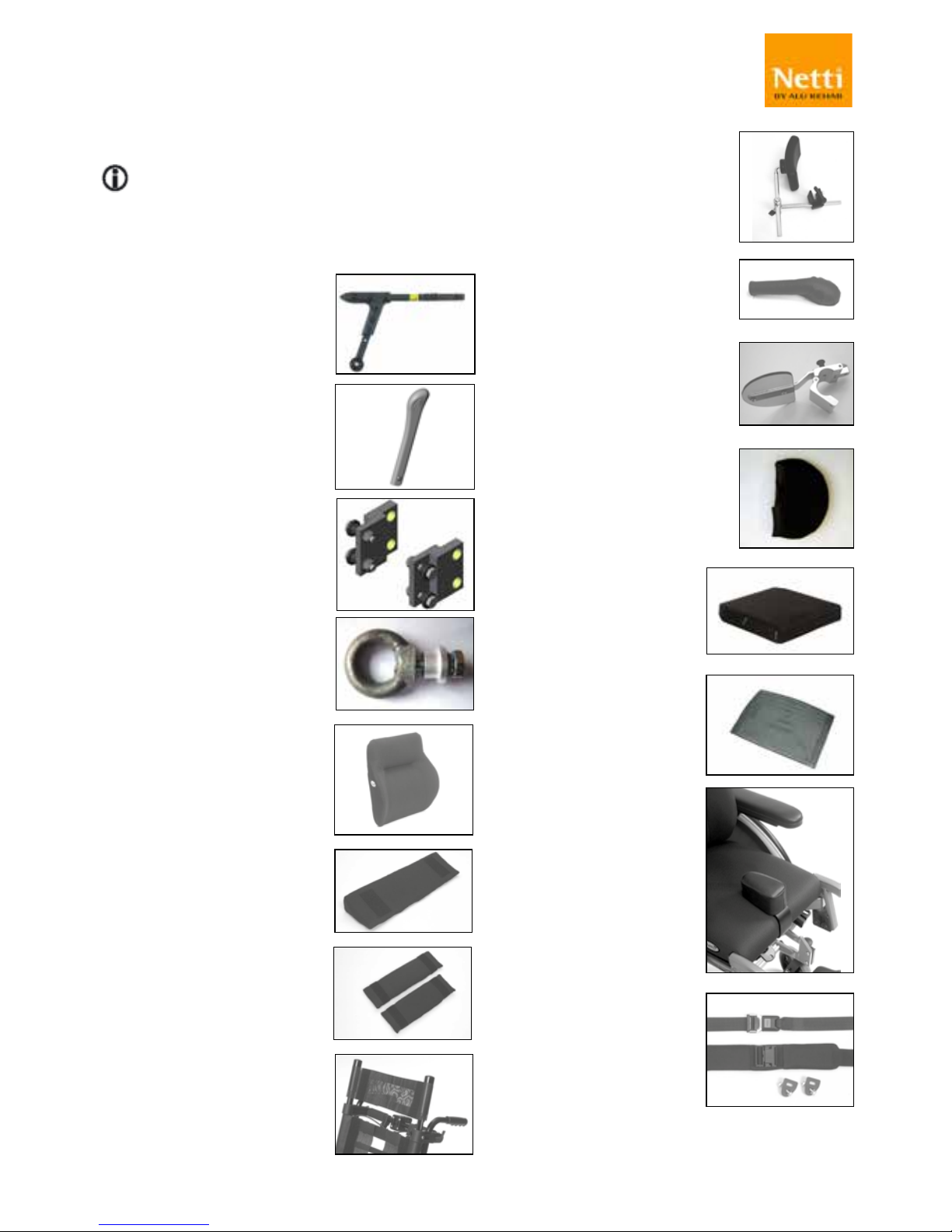

5. ACCESSORIES
The anytime updated complete
accessory and spare part catalogue can
be downloaded from our home page
www.My-Netti.com order forms.
FRAME
Anti-tip
with tramp pedal
Brake extender
long 310 mm
Frame extender
Increases distance
between main wheels
and front castors.
Reduces tipping risk.
Eye bolt set
for fixing wheelchair in a car
BACK
Backrest Cushions
Several models. Please
contact your dealer.
Wedge
Increases side support.
Lumbar support
Increases lumbar curvature.
Backrest extender
12 cm extender. To be used
together with 60 cm back
rest cushion. Watch out
that the chair does not
become unstable when the
back is reclined.
Side support Correction
Meant for correction of
bad postures in the upper
trunk.
Pad for side support
Side support Stable
Meant for users with
decreased stability of the
upper trunk. For optimal
function use together
with Stable cushion.
Pad for side support Stable
SEAT
Seat Cushions
Many to choose from.
Please contact your
dealer.
Vital Base Integral
Pelvic stabilizer.
Abduction block
The block reduces
abduction.
Small: 80 mm width
Medium: 110 mm width
Large: 140 mm width
BELTS AND
HARNESSES
Several models: Hip
belts with or without
upholstery and with
plastic lock or car lock.
(chapter 5.1 for
mounting)
Page 12
12 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
HEAD SUPPORT
Support C Large.
Support A Side support
Support B Small
Support D pressure
distribution
Support E side support adjustable
Support F with cheek support
Hygiene cover
Protects the core of the
head support.
Head cushion Comfort
Cushion with Kospoflex
filling to pull onto head rest.
ARM SUPPORT
Hemi arm support
An accommodating
support for hemiplegic
users.
LEG SUPPORT
Angle adjustable
Universal
Adjustable in fixed positions
between 33° to 105° using
an adjustment wheel.
Foot board
upholstery
Ankle huggers
Upholstery for calf
support bracket
Reduces pressure.
Calf pad hinged
The user doesn’t have to
lift the leg when mounting
or dismounting the foot
supports.
Foot board with lock
The foot support can be
swung to the side like
standard foot supports.
Foot box
Upholstered. Grandis foot
box when used as seat
in a car.
WHEELS
Main wheels
12”, 16”, 22” and 24” with
drum brake
Front castors 6” and
7”-175x45 Flexel
Spoke protectors
For 20”, 22” and 24”.
Transparent.
TRAYS etc.
2 models:
Swingable and lockable
Upholstery for tray
Offers a soft base for the
arm resting on the tray.
Tool set
Page 13
My-Netti.com 13
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

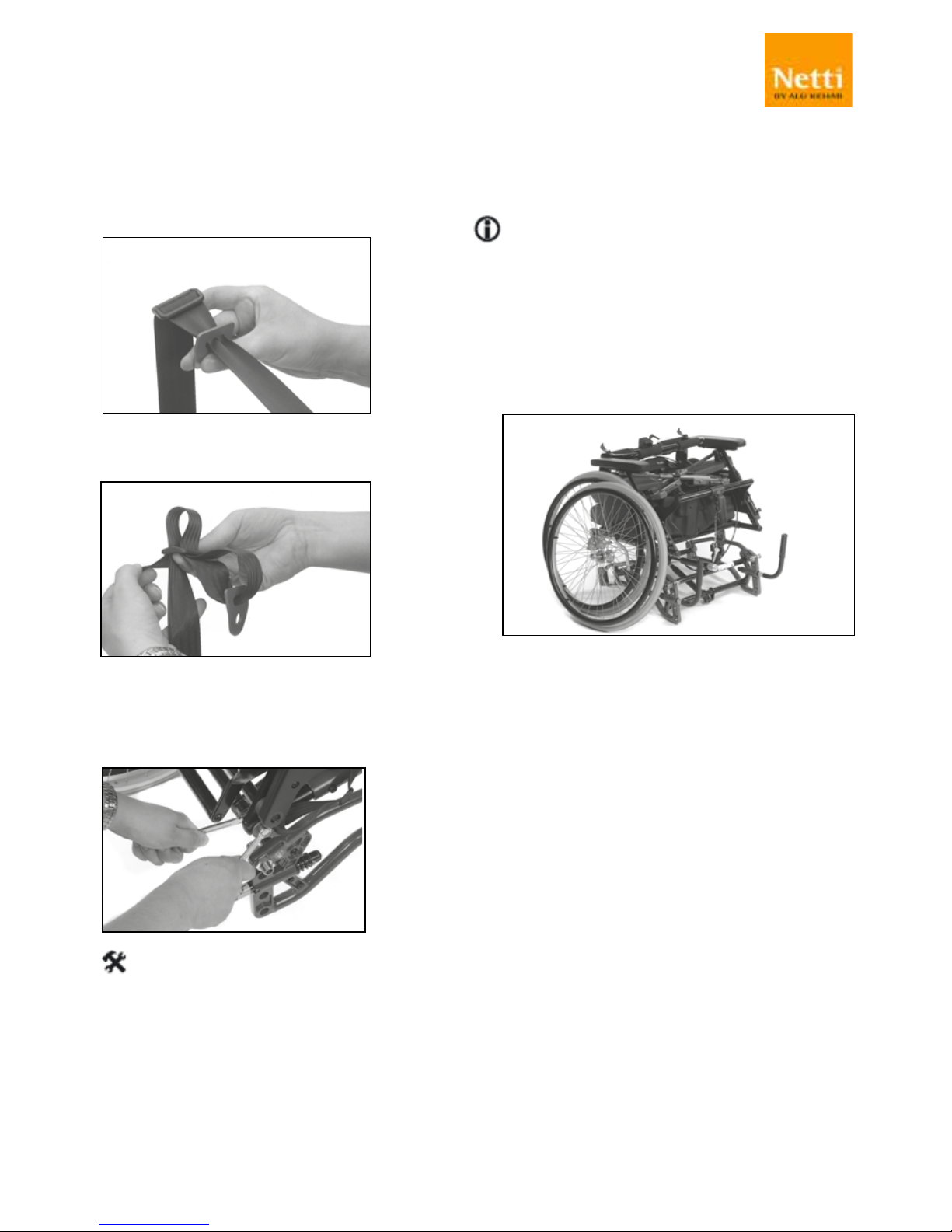

5.1 ASSEMBLING OF HIP
BELT
• Pull the belt through the hole in the
hip belt bracket.
• Thread the belt back through the belt
clamp.
• Fix the hip belt bracket to the back
rest hinge in the rearmost hole, using
the enclosed screws and nut
2pcs 13 mm open-end spanner.
6. ASSEMBLING AND
ADJUSTMENT
For information about adapting the
wheelchair to the user, please see: My-Netti.com
Knowledge center.
Tools needed are described under each
chapter. Accessories described in chapter 5 is
a presentation of options and will be delivered
with separate mounting descriptions.
6.1 UNPACKING
1. Unpack all the parts, and check that
everything is there according to the packing
list.
2. Mount the main wheels (Chapter 6.2)
3. Mount the front castors (Chapter 6.3)
4. Check and adjust the seat dept (Chapter 6.7)
5. Mount the back rest (Chapter 6.5)
6. Mount the seat cushion (Chapter 6.9)
7. Mount the leg supports (Chapter 6.10)
8. Mount the head support (Chapter 6.11)
9. Mount any accessories (Chapter 5).
Weight of components (450 mm chair width):
Main wheels: 1,9 kg each
Anti tip: 0,1 kg each
Front castors: 0,8 kg each
Leg support angle adj.: 2 kg each
Seat cushion: App. 1 kg
Head support A: 1 kg
Head support C: 0,9 kg
Page 14
24”main
wheel
24"
12" main
wheel
24", 16" and
12" main wheel
24" main wheel
16"
14 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

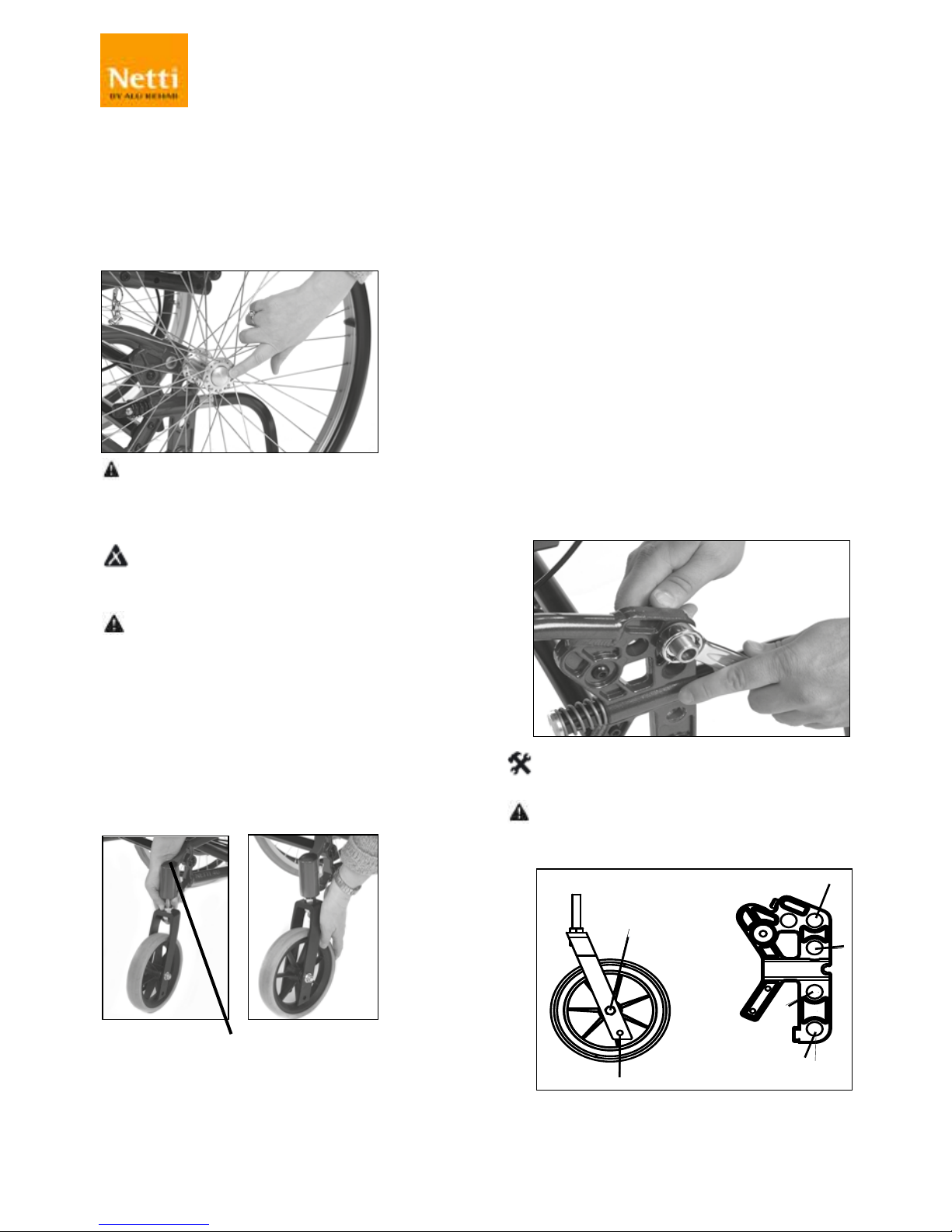

6.2 MAIN WHEEL
To mount the main wheel remove the quick
release bolt from the hub bushing, lead it
through the center of the main wheel and into
the hub bushing while pressing the knob in
center.
To check that the main wheel is properly
attached to the hub, remove the finger from
the central knob and pull at the main wheel.
If the main wheel does not lock, do not
use the wheelchair but contact your dealer.
Sand and sea water (salt used for gritting
in the winter) can damage the bearings of
the main wheels and front castors. Clean the
wheelchair thoroughly after exposure.
6.3 FRONT CASTORS
Are equipped with quick release axle.
To take off
• Press the release button on the front fork.
New version: on top of the front fork bearing
house.
To mount
• Lead the quick release axle into the bearing
house. Pull the fork slightly to ensure that
the fork is fully locked.
6.4. SEAT HEIGHT
ADJUSTMENT
The seat height at the rear depends on:
• Size of main wheel.
• Position of main wheel.
• Using 24” main wheels in the upper
hole, the seat height is 465 mm from
the floor to the seating plate. Using 24”
main wheels in the next lower position,
the height will measure 500 mm to the
seating plate.
If it is required to change position of the
main wheels or to change to a different
size of main wheels, unfix the hub bushing
including washer and nut. Remove the
hub bushing and mount it in the required
position.
2 pcs 24 mm open-end spanners
Make sure that the nut on inside of
frame totally wreathes the wheel bushing.
Main wheels and front castors should be
mounted according to the description
below.
Page 15
My-Netti.com 15
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

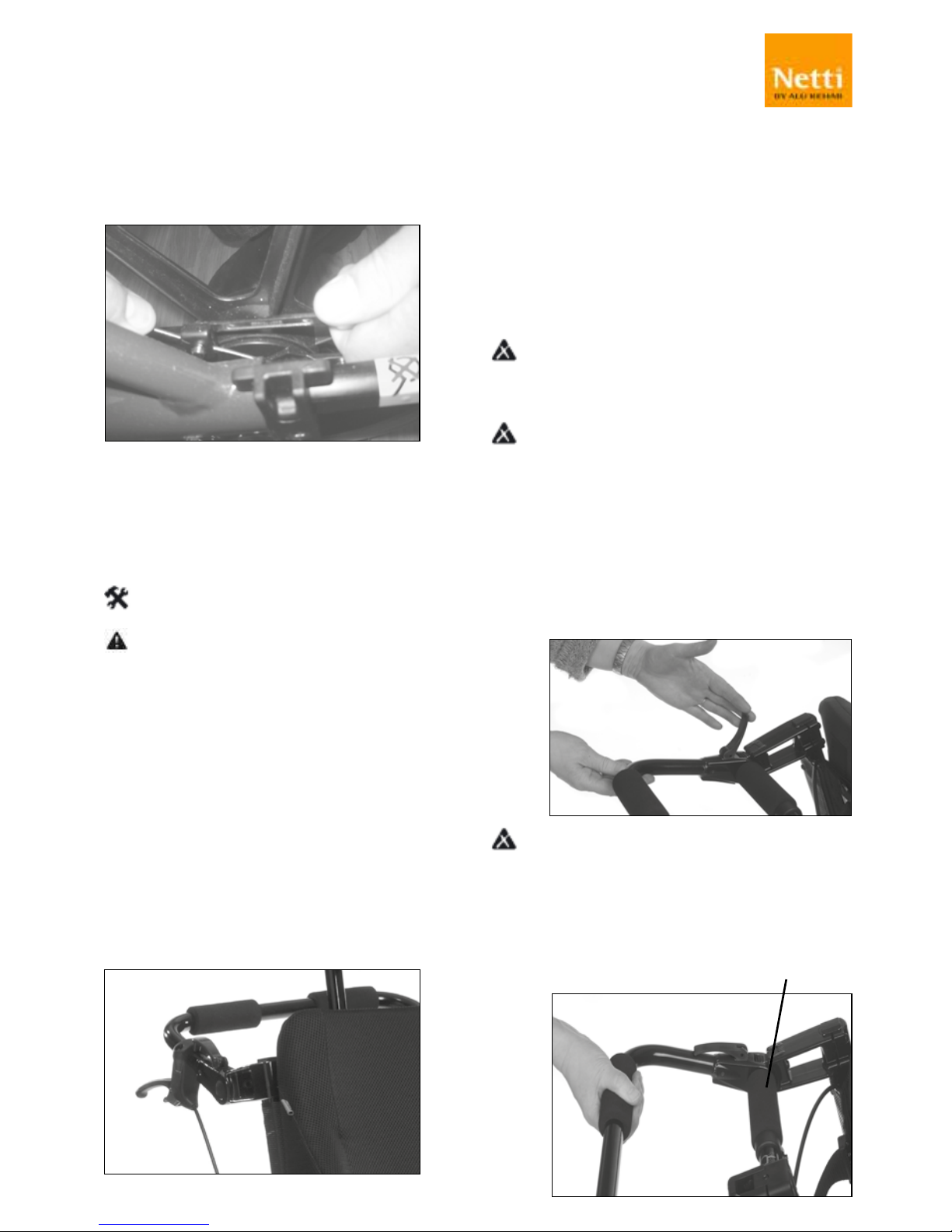

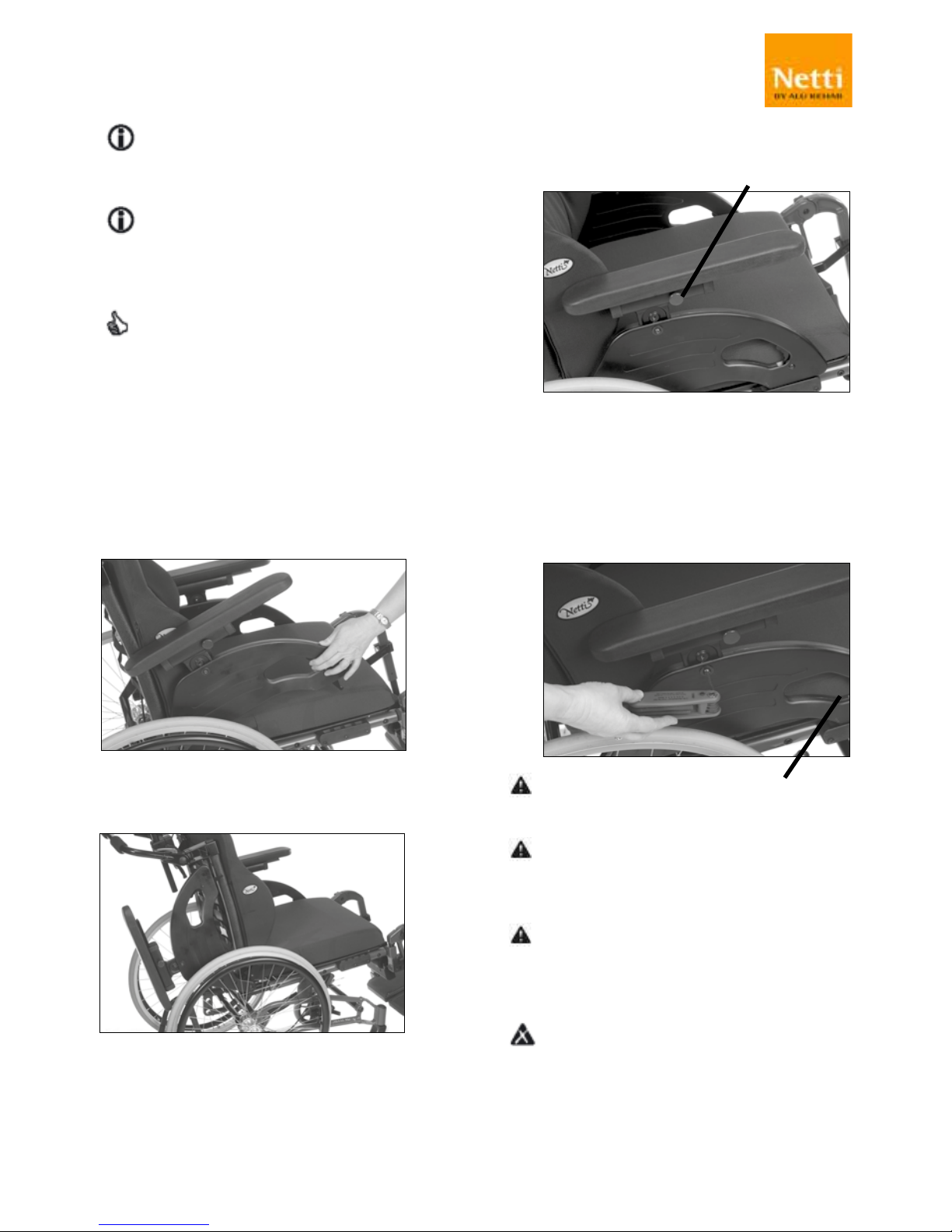

To check that the back rest is locked,
grip the push bow and press the back rest
forward. If the back rest falls forward repeat the locking procedure or contact
your local dealer.
• The wheelchair is set to a standard seat
depth, and the plastic bracket has 4 holes
of which three are temporarily blocked with
plastic plugs.
• The back rest hinge has 4 holes. The hole
positions are in accordance with the holes
in the plastic bracket. If the locking head
of the gas spring is mounted in the inner
hole of the plastic bracket, the back rest
hinge should also be mounted in the inner
hole etc.
When the seat height is changed ensure:
• that the front castors are positioned so that
the front castors bearing houses stands
vertical to the ground. This is vital to have
good wheelchair driving characteristic.
Check the position of the anti-tip and
readjust the brakes after mounting the main
wheels or changing the main wheel position.
6.5 BACKREST
• To mount the gas spring, lift the push bow with
one hand, and lead the gas spring locking head
into the plastic bracket with the other.
• Check that the hole in the locking head is
aligned with the open holes in the plastic
bracket.
• Lock the backrest by pushing the locking
bolt through the plastic bracket and gas
spring locking head.
If the gas spring seems to be too long
it must be compressed. Press the horizontal
lower back tube towards the end of the gas
spring while you pull the handle for the back
recline. The gas spring will be compressed
and fit into the plastic bracket.
Page 16
16 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
6.8 ANTI-TIP
The anti-tips should be mounted
according to the mounting description
which is enclosed with the chair upon
arrival.
Use of the anti-tip
• Pull the anti-tip out
• Turn it up or down 180°.
• Lock it in position
Adjusting the height of the anti-tip
The anti-tip can be adjusted in two fixed
positions. The short position is for 12” &
16” main wheels and 24” in upper position.
The long position is for 24” main wheels in
lower position.
• Unfix the screw in the adjustable
extension piece as shown in picture
below.
• This extension piece has two holes. Place
it in the required position and tighten the
screw.
5 mm Allen key
The anti-tip should always be used for
the safety of the user.

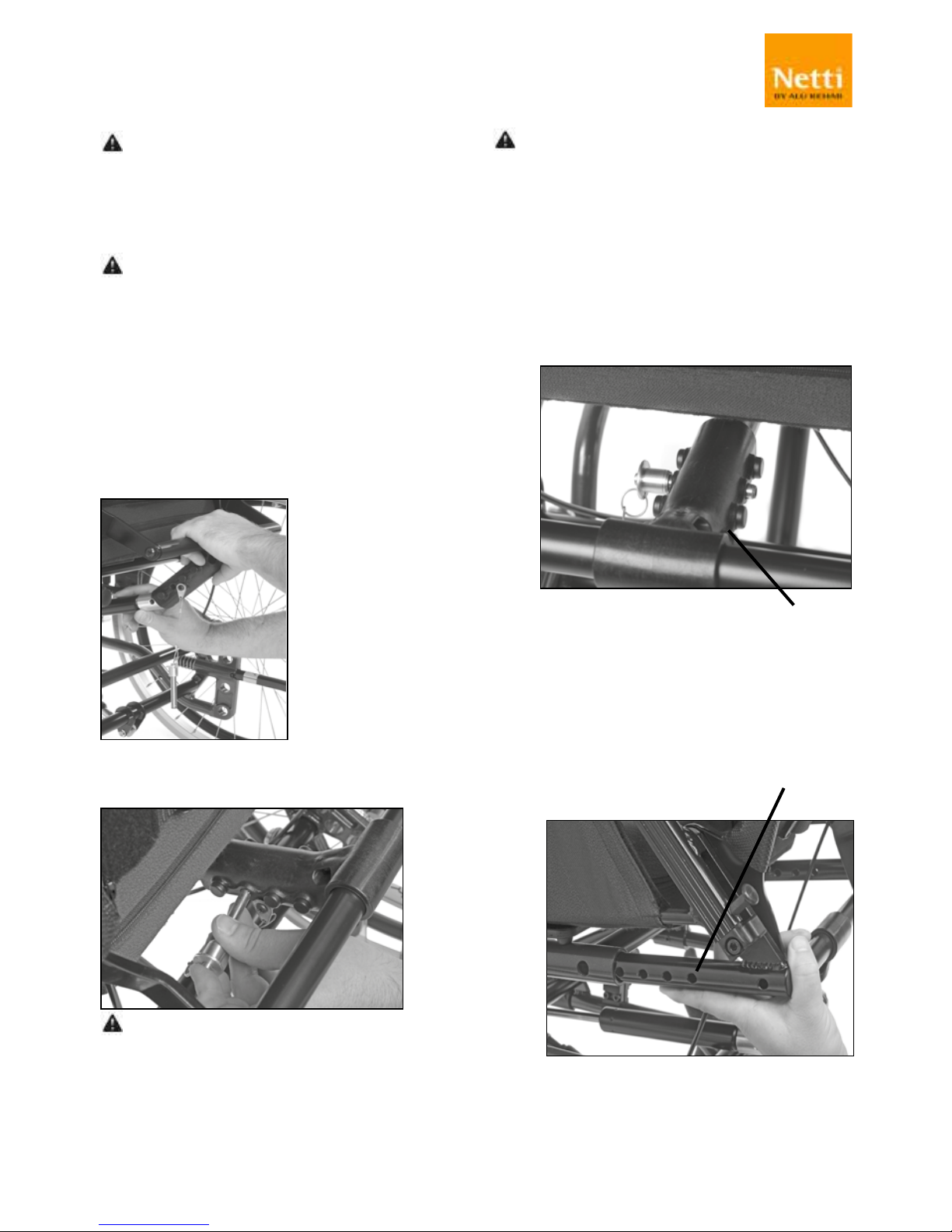

6.6 SEAT DEPTH ADJUSTMENT
AT THE REAR
• If the seat depth should be adjusted at the
rear, loosen the locking bolt in the plastic
bracket.
• Find the required position for the locking
head in the plastic bracket, and remove the
plastic plug from this hole.
• Lock the back rest by pushing the locking
bolt through the plastic bracket and the gas
spring locking head.
• After changing the hole position in the
plastic bracket, the hole position in the
back rest hinge must be changed into the
corresponding position.
Check that the hole in the back rest
hinge and the plastic bracket are mounted
into the same hole position.
6 mm Allen-key
6.7 LEG SUPPORT PIVOT
POINT AND SEAT DEPTH
ADJUSTMENT IN FRONT
It is possible to adjust the seat depth with
up to 100 mm in front to get the knees pivot
point align with the leg support pivot point.
Do the following.
• Unscrew the screws in the adjustment piece
• Place the adjustment piece in the wanted
position
• Replace and tighten the screws
6 mm Allen-key
If the user has spastic tendencies the
adjustment piece should not be pulled out
more than 50 mm.
Page 17
My-Netti.com 17
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

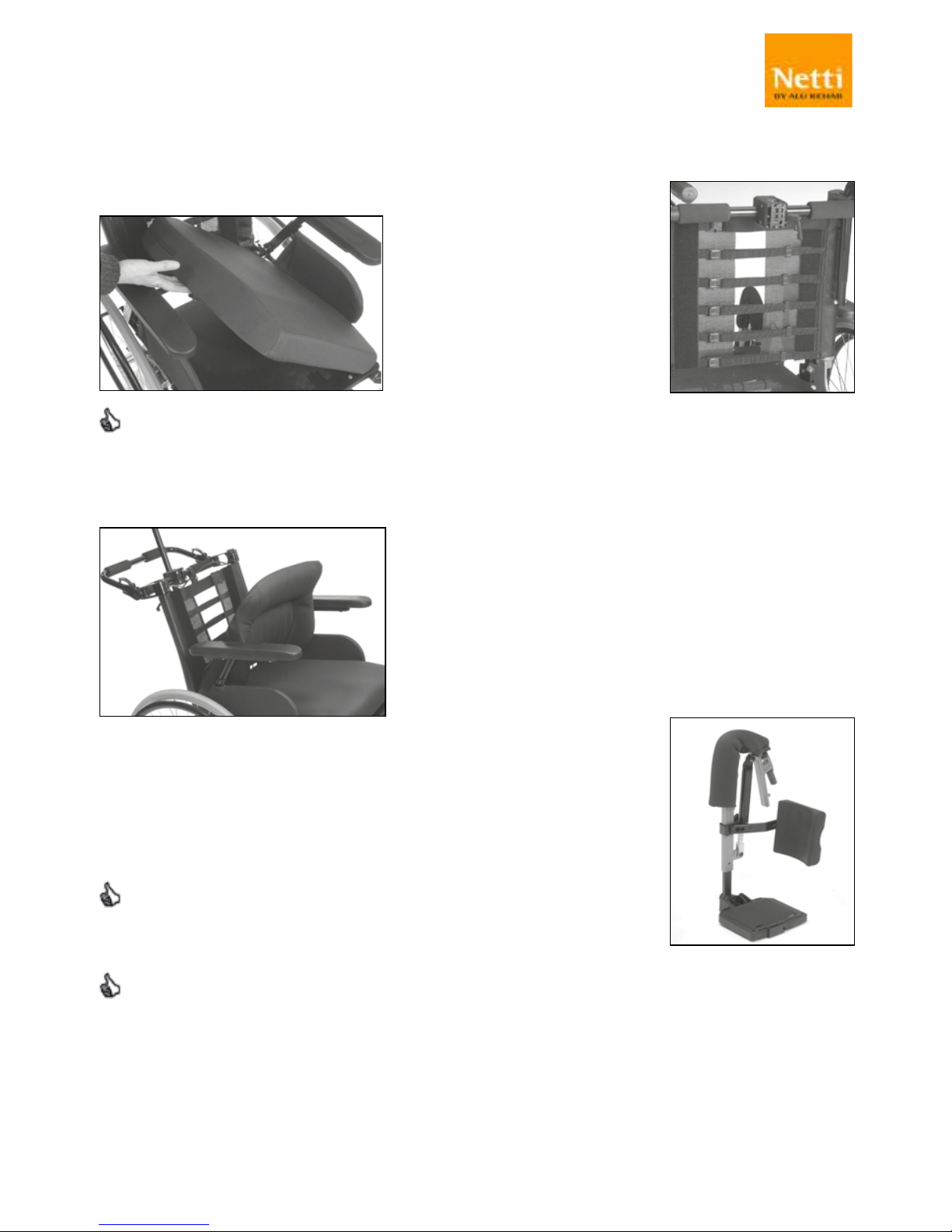

6.9 SEAT CUSHION
The seat cushion is fixed on the wheelchair
with velcro.
It is very important to place the cushion
in the wheelchair before use.
6.10 BACKREST CUSHIONS
Backrest cushions are fixed and adjusted
onto the wheelchair using the Velcro.
Backrest cushions are attached with a
Velcro system.
It is imperative to correctly set-up the
cushion in order to ensure good seating
comfort.
The cushion covers are washable and
thereby reusable. Follow the instruction
on the back of the cushion for correct
maintenance and washing of the cushion.
6.11 ADJUSTING THE
VELCRO BACK
• Loosen the straps and place the back rest
cushion so that the user gets room for
the bottom and the integrated lumbar
support in correct position.
• Tighten the straps so that they follow the
curvature of the spine and gives a little
extra support at the top of the sacrum.
6.12 LEG SUPPORTS
Angle adjustable leg support
The angle adjustable leg support is freely
adjustable in angle. It is also swingable and
removable. The foot plates are foldable
and can be angled in fixed positions. It is
delivered with height and depth adjustable
calf support.
Page 18
18 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

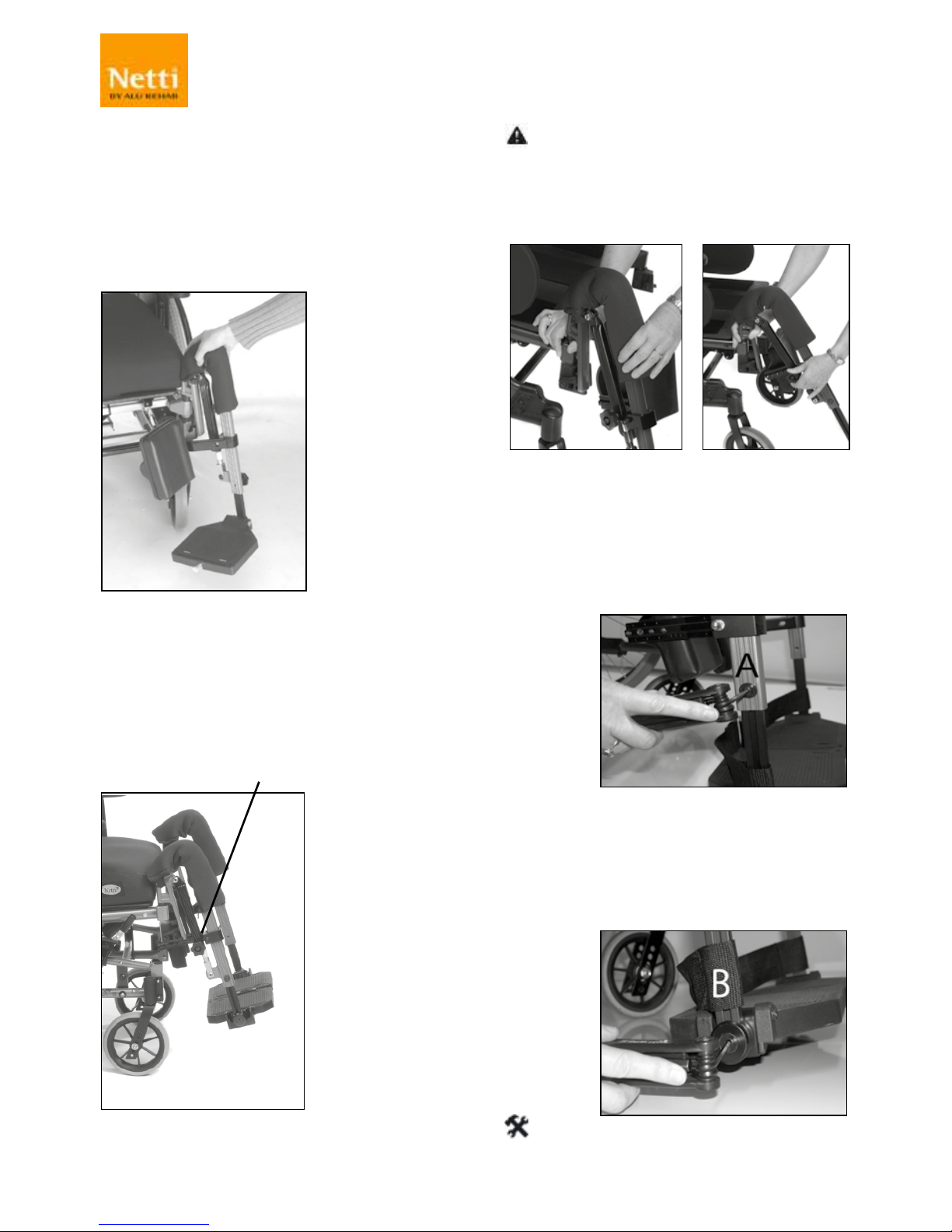

Mounting of leg support
• Grip the leg support in the hinge point.
Hold it in an angle of app. 20° to the
side frame. Put it into the plastic lock
attached to the extractable adjustment
bar. Swing it in and push down.
Adjusting the angle
• The angle of the leg support can be
adjusted using the star wheel.
• Loosening this star wheel enables you
to adjust the leg support to the required
angle.
• Fix the angle by tightening the star
wheel.
Squeeze hazard. When adjusting leg
supports in angle, do not put the fingers
in the adjusting mechanism between the
moving parts.

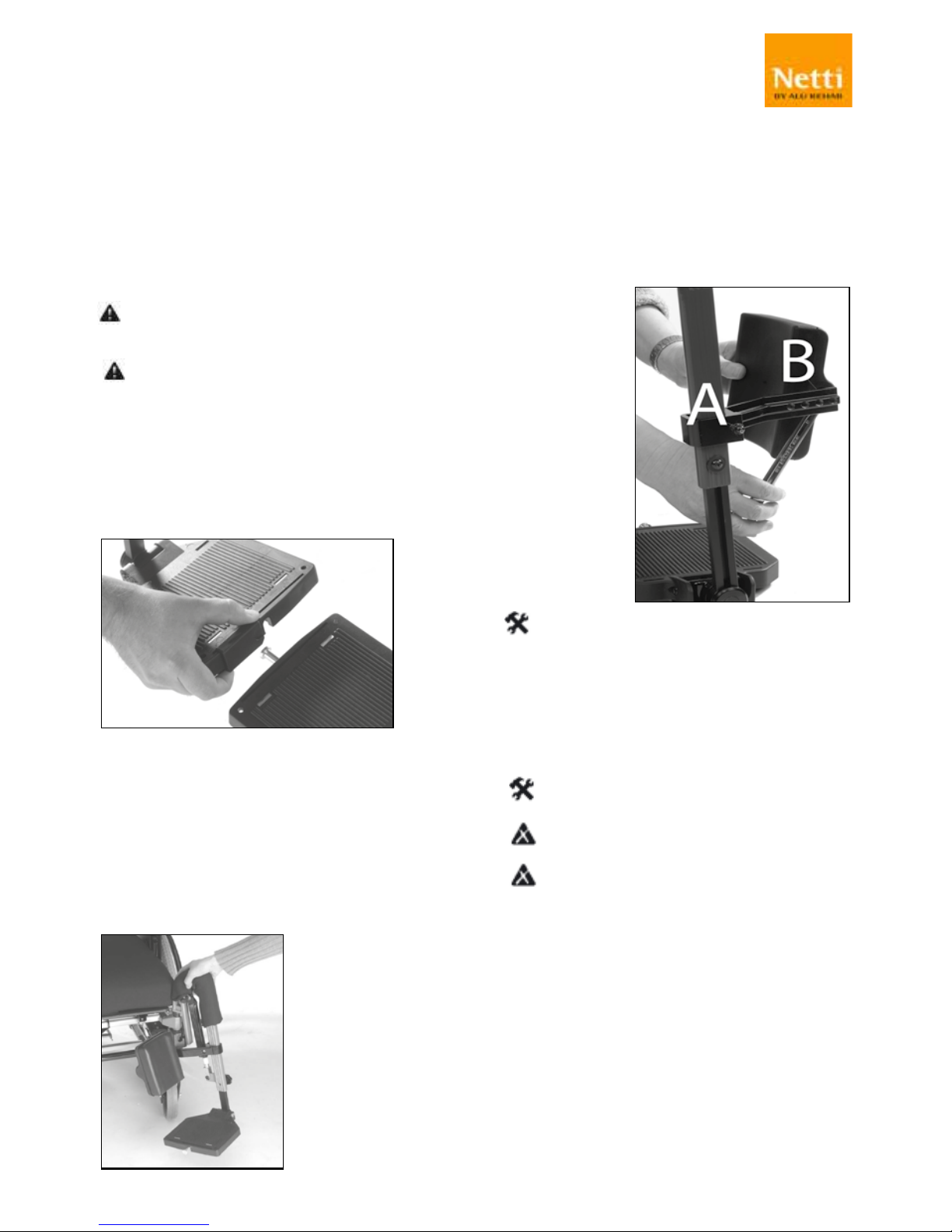

Adjusting the length of the leg
support
• Untighten the screw (A) to make the
adjustment tube move
• Adjust the leg support in required
position and fix the screw properly.
Adjusting the angle of the footplate
• The foot plates angle can be adjusted.
• Untighten the screw (B) and adjust the
foot plate to the required angle. Fix the
screw properly.
5 mm Allen key.
Page 19
My-Netti.com 19
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
Locking and releasing the foot plates
• The foot plates come with a locking
mechanism which makes the plates stronger
• To lock the foot plates, pull the plastic lock
on the right foot plate and place the lock
over the bolt on the left foot plate.
• To release the foot plate pull the plastic lock
and lift the right foot plate up.
While making the adjustment there must
be no load on the foot plates.
For outdoor use, there should be a
clearance of 40-50 mm between the foot
plate and the ground. Indoor 20-30 mm is
sufficient.
Removing the leg support:
• Pull the plastic lock on the foot plate
rearwards, to release the pin and the foot
plate can be folded up.
• Raise the leg support a few degrees.
• Release the leg support by pulling it slightly
straight up.
• Swing the leg support outwards.
• Lift and remove the leg support.
Adjusting the calf support
The calf support is height and depth
adjustable. To adjust height unfix the
nut on the outside of the calf support
bracket, find the required height and fix
the nut again (Ill. A).
10 mm open-end spanner
To adjust in depth, the calf pad is
removed from the bracket by using an
open-end spanner between the pad and
the bracket. Find the required position
and refix it (Ill.B)
13 mm open-end spanner
Never stand on the foot plates!
Never lift the wheelchair by the leg
supports.
Page 20
20 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

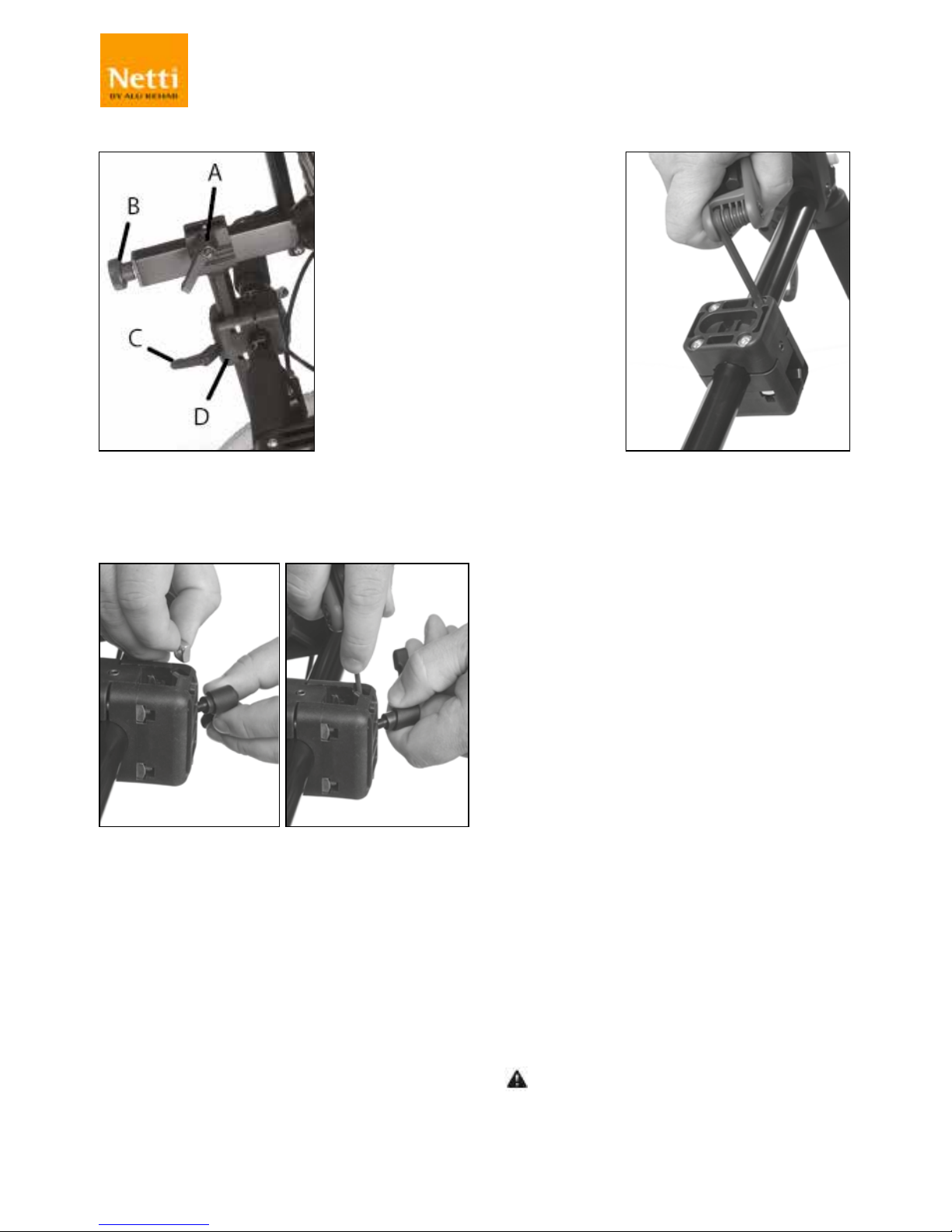

6.13 HEAD SUPPORT
A - Lever for depth adjustment
B - Wheel for angle adjustment
C - Lever for height adjustment
D - Head support bracket
• Place the squared nut in the slot of the
head support bracket as shown above.
• Place the head support in the head support
bracket.
• The height and the depth of the head
support is set to the required positions and
tightened.
• The head support bracket is fixed by
tightening the four screws two by two
diagonally so the bracket is fixed with the
same strength divided on the four screws.
Adjusting the head support in depth:
• Release the locking lever on top of the
vertical bar (A).
• Adjust the head support and fix it in
required position.
Adjusting the head support in height:
• Release the locking lever on the head
support adapter (C).
• Adjust the head support and fix it in
required position.
Adjusting the head support in angle:
• Release the adjustment wheel at the
rear of the horizontal bar (B).
• Adjust the head support and fix it in
required position.
Adjusting the head support sideways:
• The head support adapter can be
moved both to the right and left, giving
the possibility to accomodate special
needs for head support.
• Untighten the four screws holding the
adapter together.
• Move the adapter to the required
position and fix the adapter by
tightening the screws diagonally.
Remember to release the levers when
adjusting the head support.
Page 21
A
My-Netti.com 21
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
If the head support stand does not
fit the bracket perfectly the bracket is
probably fixed too tight or unevenly.
After fitting the head support fix it
properly by tightening the little set screw
in the centre on top of the head support
bracket using an Allen key.
If the head support seems to short in
height, it can be turned 180° by releasing
the adjustment wheel at the rear of the
horizontal bar (B)

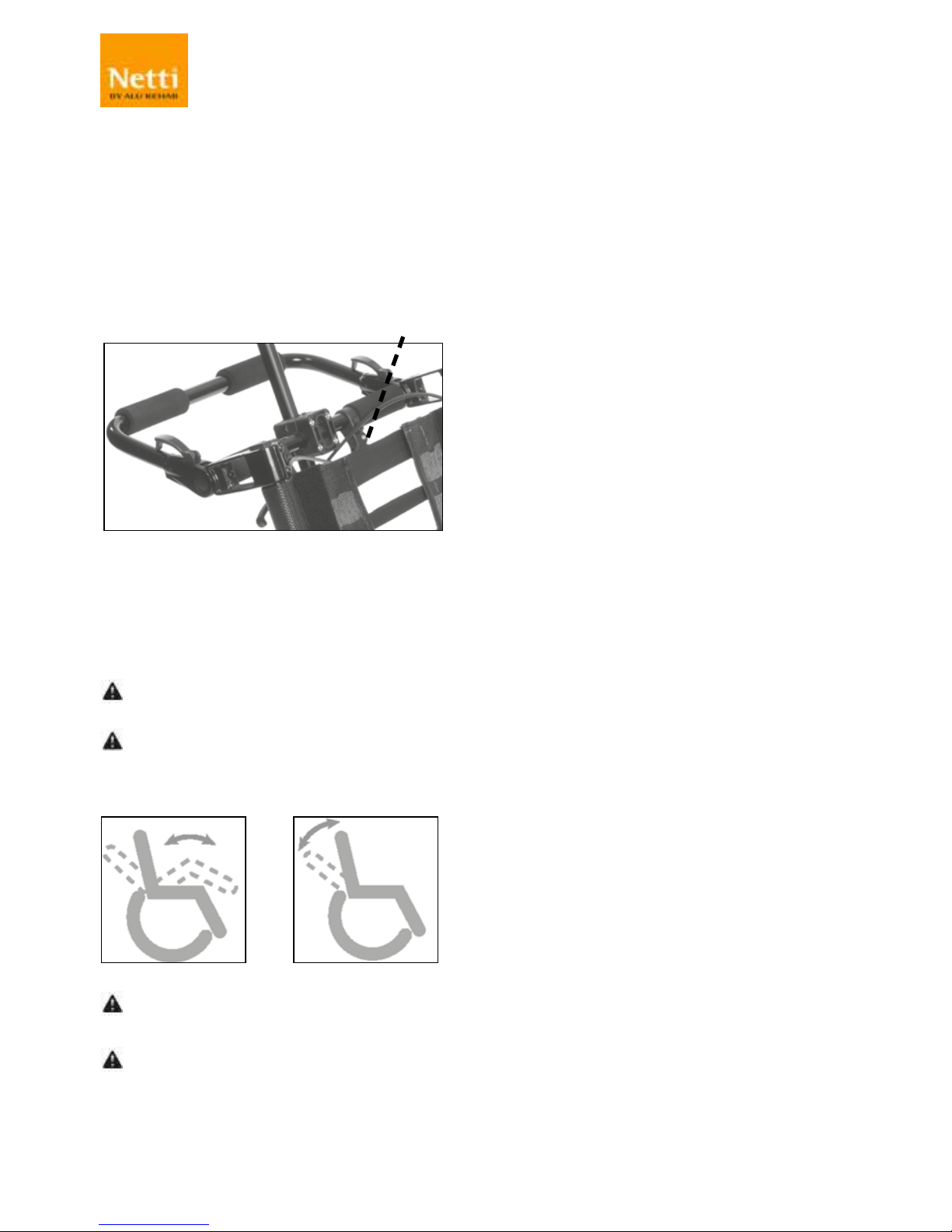

6.14 ARM SUPPORT
• The arm support can be swung backwards
• Press the red handle to release the arm
support for to swing it backwards.
Adjusting the depth of the arm support
• Press the red knob for to adjust the
depth of the arm support.
Adjusting the height of the arm support
• Untighten the screw on the arm
support using a 4 mm Allen key.
• Raise or lower stem
• Tighten the screw
Be aware of the arm support lock
(A) when locking the arm support.
When a side support is mounted on
the wheelchair, it will not be possible to
revolve this arm support.
Be aware of potential squeeze
hazard between arm support and the
top frame tube when locking the arm
support.
Never lift the chair holding onto the
arm supports.
Page 22

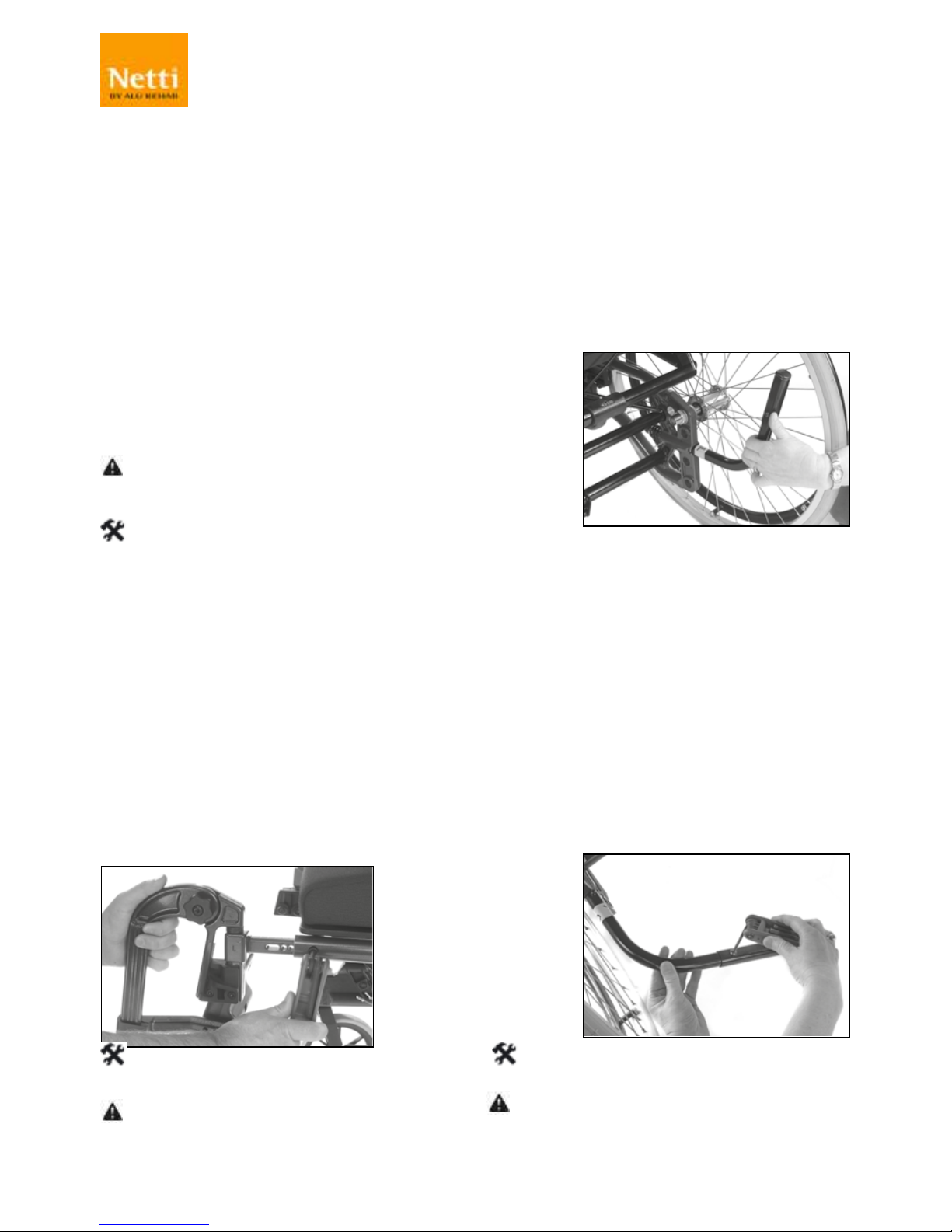

22 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
• For fine adjustment, loosen the upper
screw on the inside of the brakes
• Adjust the brake position and tighten
the screws.
5 mm Allen key
Check that the brakes are correctly
adjusted by activating the brakes and be
sure that the wheelchair does not move.
The brakes are constructred as
parking brakes and shall not be used as
driving brakes.
Be aware of potential squeeze
hazard between brake and tyre.

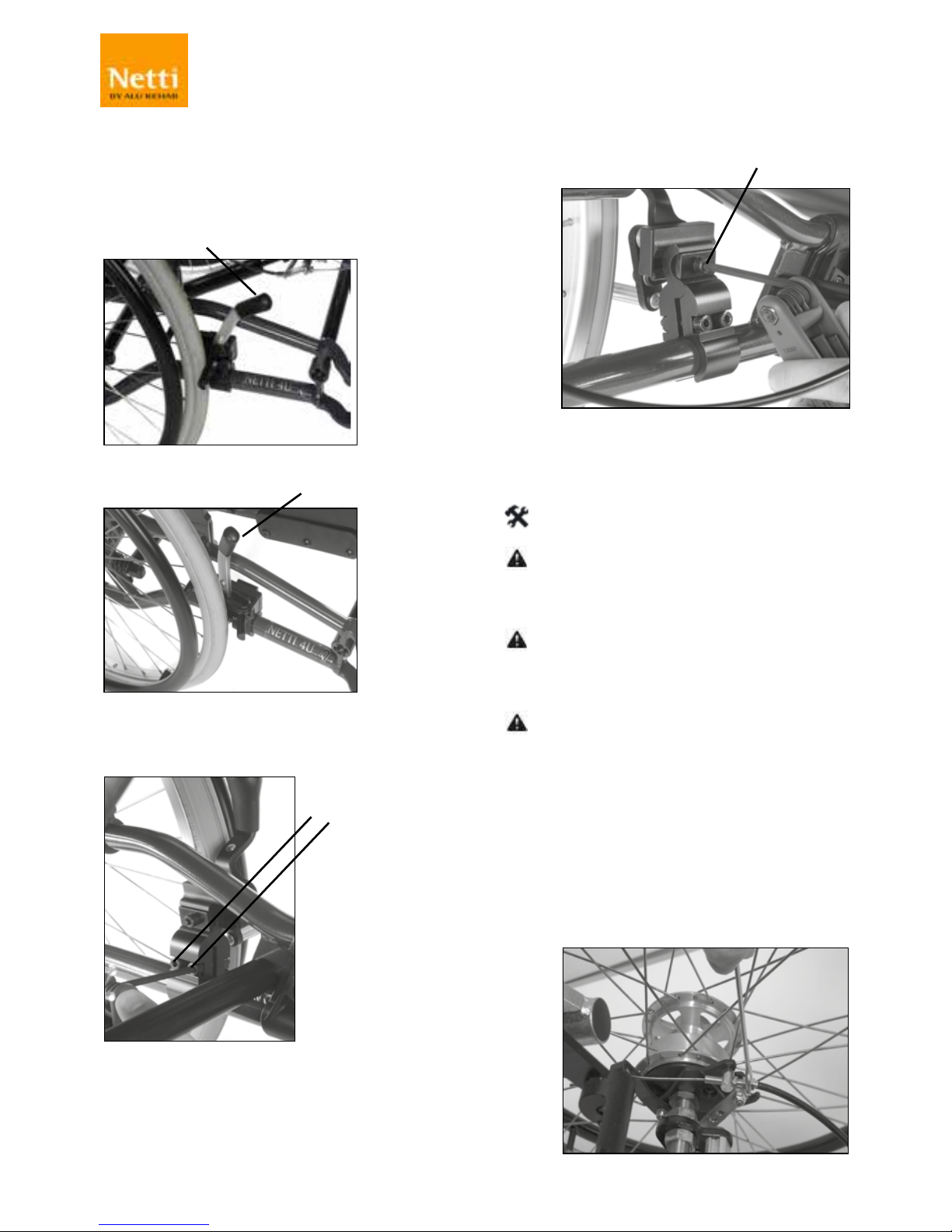

Drum brake
If the wheelchair is mounted with 12” or
16” main wheels, these will be equipped
with drum brakes. 22” and 24” wheels
can also have drum brakes.
6.15 ADJUSTING THE PARKING
BRAKES
• The parking brakes are freely adjustable
along the frame tube.
• To activate the brake, push the handle
forward.
• To release the brake, pull the handle
rearwards.
• To reposition the brake, loosen the two
screws on the inside of the brake clamp
• Adjust the brake position and tighten the
screws.
Page 23
My-Netti.com 23
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
1
2
• For to activate and lock the parking
brake (2) press the lever (1) against the
pushhandle and lock the parking brake
with the finger. Be sure that both parking
brakes are locked.
• The parking brake will be released when
you press the lever (1) against the push
handle. It is locked with a spring and this
is thereby released.
It is extremely important that the
parking brakes are locked when the user is
left sitting in the wheelchair.
Never leave the user alone in the wheel
chair without activating the parking brake.
6.16 PUSH BOW
The push bow is angle adjustable.
• Open the handle for to change the angle
of the push bow.
• Lock the handle after placing the push
bow in the required position.
Never lift holding on to the push bow!
• Always hold on to the crossbar when
lifting the wheelchair.
If the brake doesn’t brake properly:
To adjust the wire on one or both sides,
adjust the foot screw 2-4 rounds out. Then
re-check the brakes.
If the wire is too loose:
Adjust the foot screw all the way in. Tighten
the wire by loosening the wire clamp before
pulling the wire further through it. Tighten
the wire clamp, and adjust the foot screw
out again
1 pc 8 mm open-end spanner
To ensure the correct functions of the
wire, these must never be taut.
Operating and applying the brake
The wheelbase with drum brake is fitted with
hand operated hub brakes to allow regulation of speed on hills and whilst travelling
along. These are located on the push bar.
• To apply the brakes, pull the brake levers
(1) evenly and smoothly towards bar and
bring the wheelchair to a stop.
Page 24
24 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

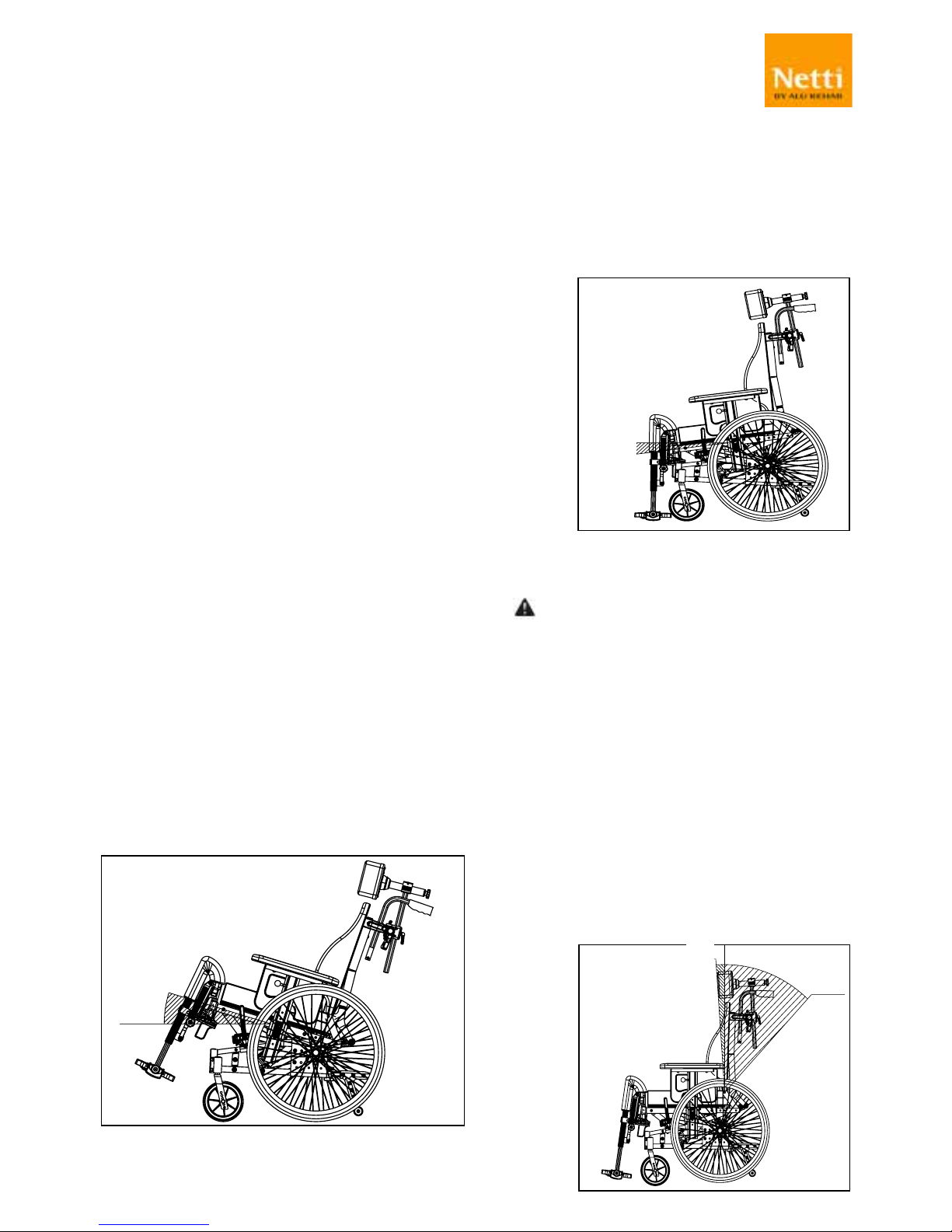

7. SEAT ANGLE / TILT
AND BACK ANGLE /
RECLINE
7.1 SEAT ANGLE
The seat angle is regulated using the release
handle mounted on the push bar. The seat
unit can be tilted from -5° to +20°.
7.2 BACKREST ANGLE
The backrest angle is regulated using the
release handle mounted on the push bar.
The angle can be regulated from 92° to 137°
backwards.
To ensure correct function of the wires,
these must never be taut.
The seat and back-rest angle must not be
adjusted without using the anti-tips.
The release handles has each on of the
following label:
Tilt Recline
Risk for tipping. Check the position of
anti-tip.
When chair back extension is mounted,
the tipping risk increases. If necessary it
should be improved by moving the main
wheels further back. Always use anti-tippers
when recline and tilt functions are being
activated.
7.3 KEY WORDS REGARDING TILT
AND RECLINE OF STATIC COMFORT WHEELCHAIRS, AND COMMON FEATURES OF DYNAMIC
WHEELCHAIRS
Tilt and recline are the basic benefits of a
comfort wheelchair. It allows for varying
seating positions during the time in the
wheelchair.
We have reviewed the clinical evidences regarding tilt and recline, and found there are
several studies or best practice guidelines
suggesting that the tilt and recline sequence
is important to reduce shear and sliding: First
tilt then recline afterwards. When bringing
the client upright again, the sequence should
be recline first then tilt. It would seem that
the most shear would be induced when going
upright from a recline and tilted position.
7.4 DECREASE THE POSSIBILITY
OF SLIDING, SHEAR AND
PRESSURE SORES:
Only use the tilt angle to achieve variation of the seating position for the user. It is
common knowledge that recline should not
be adjusted after the back angle is accommodated to the user’s best seating position.
The muscle tone of the neck and back should
be as low as possible for the user to prevent
sliding, and a change of the recline angle
from the original position will interrupt and
destroy the correct body position, and cause
an increased muscle tone in the neck.
If the recline function is used during a transfer situation or other situations, it is very
important that the recline angle is adjusted
back to the correct, original position when
the user is back to a normal seating position.
Wrong usage of recline causes an increased
possibility of sliding, and this means an increased danger of shear (vertical and horizontal forces) and pressure sores.
Page 25
0° - 16°
0° - -9°
90° - 133°
90°- 86°
Vinkelrett til setet
-5° à 0
92°
My-Netti.com 25
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
0° à 20
137°
ASSURE THAT THE USER IS SAFE WHEN
THE TILT OR RECLINE FEATURES ARE
GOING TO BE ADJUSTED:
The tilt and recline functions of all Netti
comfort wheelchair models is a «one
hand operation», including the dynamic
wheelchair models. This is a great benefit
for the user. The care giver is able to
establish eye contact with the user when
the tilt or recline function is going to
be used. The care giver is also able to
communicate with the user before the tilt
or recline function is used. The user will feel
more safe when he/she is aware that the tilt
or recline function is going to be used.
7.5 OPERATING TILT HANDLE:
TILTING THE SEATING UNIT
Press the left handle on the push bar and
put pressure to the push bar to tilt the seating unit with one of your hands, while you
have eye contact with the user and put the
other hand on the arm support.
The correct relative angle between the
body parts remain the same when the
seating unit is tilted.
Wherever you let the handle loose, the
seating unit will stay in this position. To
bring the seating unit up, press the handle
and the tilt cylinder will assist you lifting the
seating unit up.
A backward tilted seat unit gives a steeper seating angle in relation to the surface,
and prevent sliding of the wheelchair
user. A forward tilted seat unit brings the
user in a positon where activities - for instance by a table or by standing up from
the wheelchair, are supported.
The tilt handle and the tilt sign is on the
push bar - shown on the previous page.
Risk of sliding forwards - Do not leave
the user in the wheelchair when it is tilted
forward.
7.6 OPERATING RECLINE HANDLE:
RECLINING THE CHAIR BACK
Press the right handle and put pressure to
the push bar to recline the back with one
of your hands, while you have eye contact with the user and put the other hand
on the arm support. Wherever you let
the handle loose, the chair back will stay
fixed and locked.
Page 26
26 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

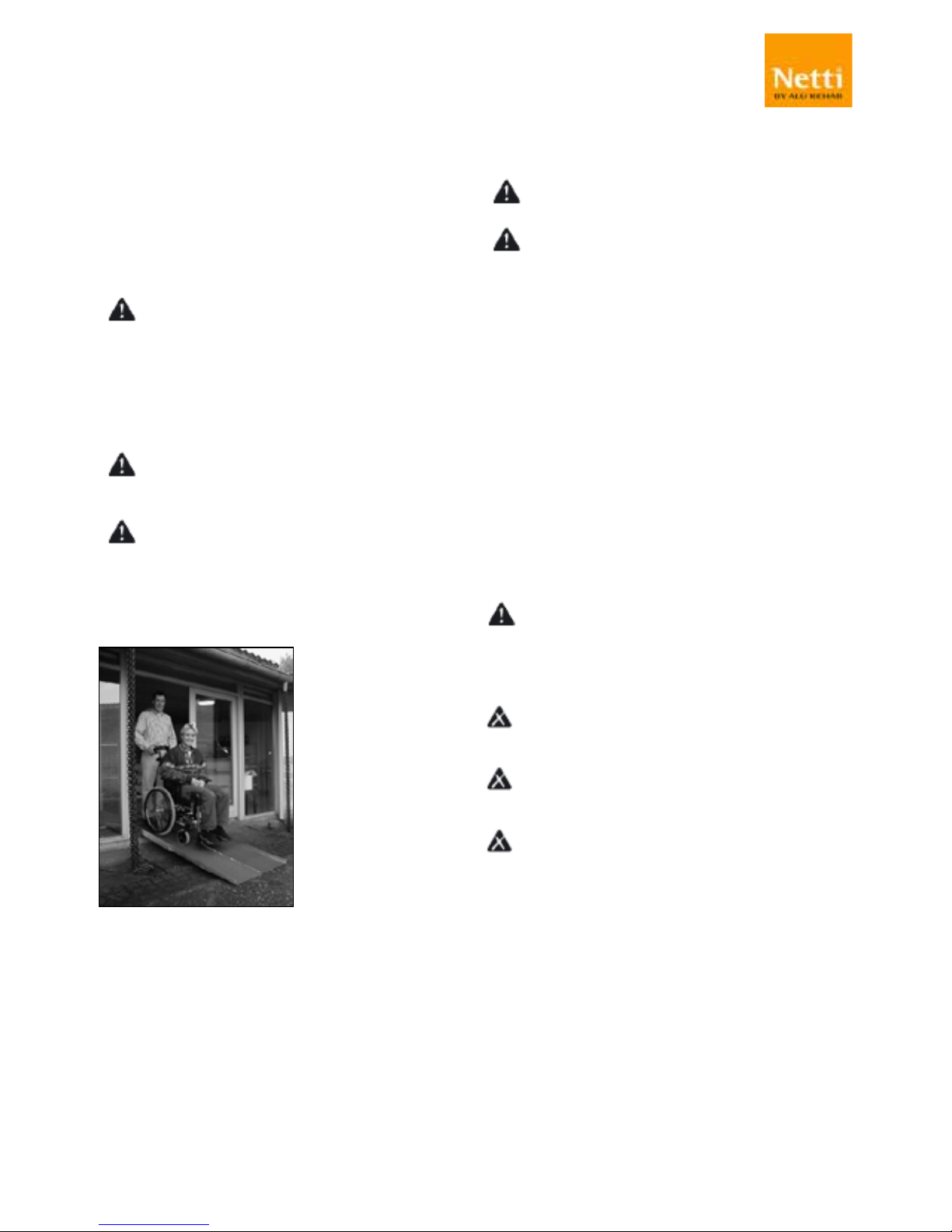

8. MANOEUVRING
8.1 GENERAL TECHNIQUES
Manoeuvring and chair balance:
The weight and balance of the chair influences the manoeuvring qualities of the wheelchair. The weight, size and sitting position of
the user are influencing factors. The position
of the wheels will in addition influence the
manoeuvring qualities. The more weight
placed over the main wheels, the easier it is
to manoeuvre. If heavy weight is placed over
the front castors, the chair will be heavy to
manoeuvre. See page 16 - seat depth adjustment - for balancing the chair.
Step approach:
Always approach the step in slow motion
preventing the front castors to hit the step
with force. The user could fall out of the chair
by the impact. The front castors could be
damaged.
Driving down steps / sidewalks
Be cautious that you do not drive down steps
higher than 30 mm. The leg supports may hit
the ground first. Thereby you may lose steering control and the leg supports may brake.
Driving on soft, rough or slippery
ground can make safe manoeuvring more
difficult as the wheels may loose traction
and it is difficult to control the wheelchair.
Parking:
Increase the footprint and the support of the
wheelchair by moving the chair about 100
mm rearwards making the front castors turn
forward.
EMERGENCY ESCAPE ROUTES: Netti 4U
CED with seat width 550 mm and more, has
an overall width exceeding 700 mm and may
have difficulties passing emergency escape
routes.
Companion:
If the user is left alone in the wheelchair,
always lock the brakes and check that the
anti-tips are turned down.
8.2 DRIVING TECHNIQUES
- Step up-
Companions, drive up a step forwards:
• Check that the anti-tips are turned up. Angle the wheelchair backwards.
• Balance the chair on the main wheels and
push it forward until the front castors are
on the step.
• Lift holding on to the crossbar while pushing the chair onto the step.
Turn the anti-tip downwards.
Users, drive up a step backwards:
This technique is only useful if the step is
very low. It also depends on the clearance
between the foot plates and the ground.
• Check that the anti-tips are turned up.
• Drive the chair backwards towards the step.
• Make a firm grip on the push rims and move
the body forward while pulling.
Turn the anti-tip downwards.
Companions, drive up a step backwards:
• Check that the anti-tips are turned up.
• Pull the chair backwards next to the step
• Angle the wheelchair backwards by pushing down on the crossbar, moving the front
castors slightly up in the air.
• Pull the wheelchair up the step holding on
to the crossbar, and go backwards until you
can to put down the front castors on the
step.
Turn the anti-tip downwards
8.3 DRIVING TECHNIQUES
- Step down-
Companions, drive down a step
forwards:
• Check that the anti-tips are turned up.
• Angle the wheelchair backwards by pushing down on the crossbar, moving the front
castors slightly up in the air.
• Drive carefully down the step and angle the
wheelchair forward putting the front castors back on the ground.
Turn the anti-tip downwards.
Page 27
My-Netti.com 27
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
Companions, drive down a step
backwards:
• Check that the anti-tips are turned up.
• Move the wheelchair backwards to the step.
• Drive carefully down the step holding
on to the crossbar and move the wheelchair backwards on the main wheels until
the front castors an be put down on the
ground.
Turn the anti-tip downwards.
8.4 DRIVING TECHNIQUES
- Slope -
Important advise for driving down and up hill
avoiding the risk of tipping.
Avoid turning the wheelchair in the
middle of a slope.
Always drive as straight as possible. It is
better to ask for assistance than taking risks.
Driving uphill:
Move the upper part of the body forwards in
order to maintain the balance of the chair
Driving downhill:
Move the upper part of the body backwards
to maintain balance of the chair. Control the
speed of the chair by clutching the push rims.
Do not use the parking brakes. The companion may use the drum brakes if mounted.
8.5 DRIVING TECHNIQUES
- Up stairs -
Always ask for assistance.
Never use escalators, even if assisted by
an companion.
With assistance, backwards.
• Check that the anti-tips are turned up.
• Pull the wheelchair backwards to the first
step of the stairs.
• Angle the wheelchair backwards on the
main wheels by pushing down on the cross
bar.
• Pull the wheelchair slowly up the stair holding on to the crossbar, one step at the time
keeping the balance on the main wheel.
• Reaching the top of the stair, pull the
wheelchair backwards far enough to put
the front castors safely down on the floor.
Turn the anti-tips downwards.
If two companions are present, one person
can assist lifting in the front of the frame.
Do not lift the wheelchair holding onto
the leg supports.
Do not lift the wheelchair holding onto
the arm supports.
Do not lift the wheelchair holding onto
the push bow - use the crossbar.
The companions should use the strength in
their legs carrying the chair, avoiding unnecessary stress on the back.
Page 28
28 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
8.6 DRIVING TECHNIQUES
- Down stairs -
Never use escalators, even if assisted by
a companion.
With assistance, forwards
• Check that the anti-tips are turned up.
• Drive the wheelchair forward to the first
step of the stair.
• Angle the wheelchair backwards on the
main wheels.
• Have a firm grip on the crossbar, and keep
the balance on the main wheel taking one
step at the time
• Reaching the bottom of the stair, put the
front castors safely down on the floor.
Turn the anti-tips downwards.
If two companions are present, one person
can assist lifting in the front of the frame.
Do not lift the wheelchair holding onto
the leg supports.
Do not lift the wheelchair holding onto
the arm supports.
Do not lift the wheelchair holding onto
the push bow - use the crossbar.

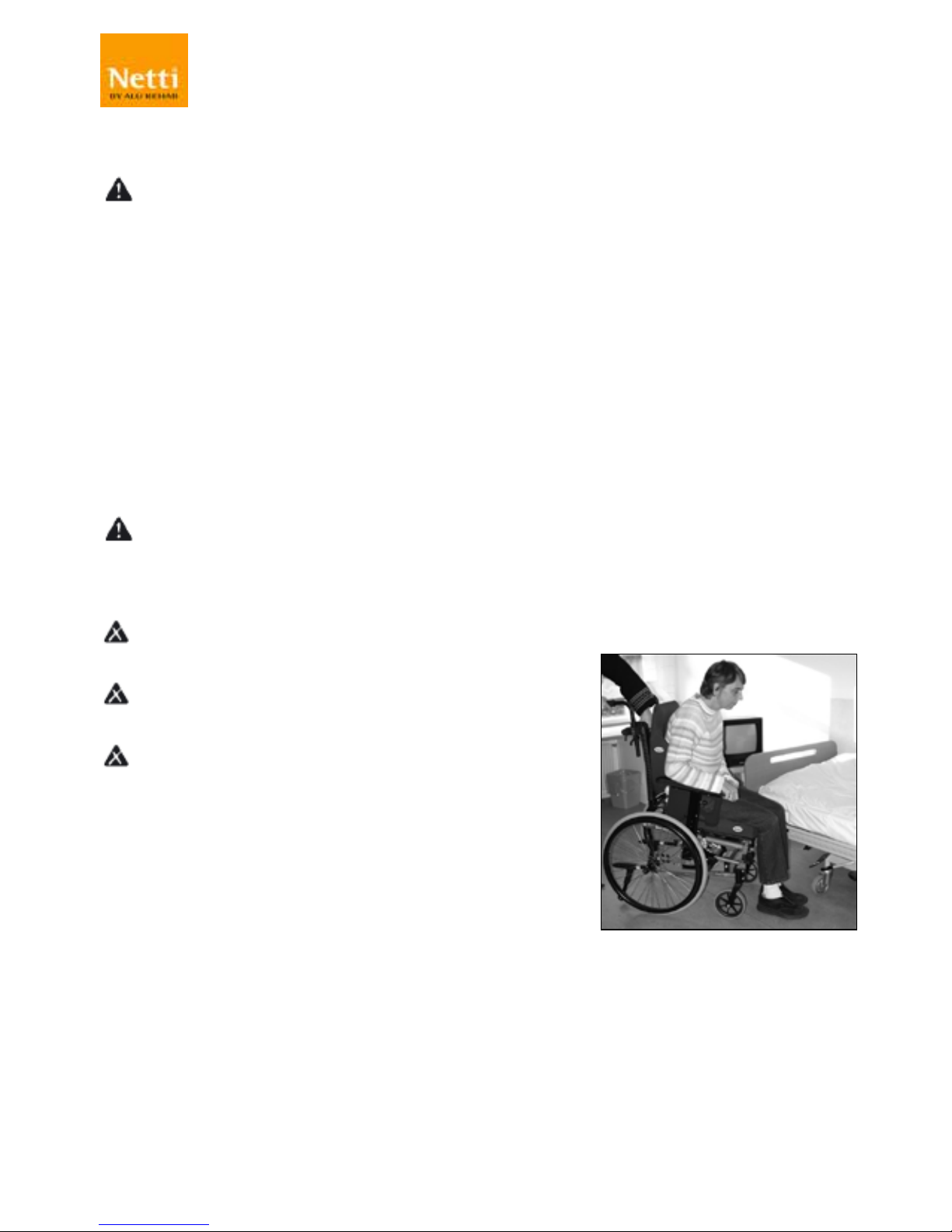

8.7 TRANSFER
Techniques for transferring to/from the
wheelchair should be practiced well with the
persons involved. Here, we give some important advice for preparation of the chair:
With or without companion - sideways.
Before transfer:
• The wheelchair should be placed as close
as possible to the destination of the transfer.
• Pull the wheelchair backwards 50-100 mm
in order to make the front castors turn
forward.
• Lock the brakes
• Remove leg support and arm support on
the side of the transfer.
With or without companion – forwards.
Before transfer:
• The wheelchair should be placed as close
as possible to the destination of the transfer.
• Pull the wheelchair backwards 50-100 mm
in order to make the front castors turn
forward.
• Lock the brakes.
• Tilt chair forward
Page 29
Main courante
My-Netti.com 29
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01

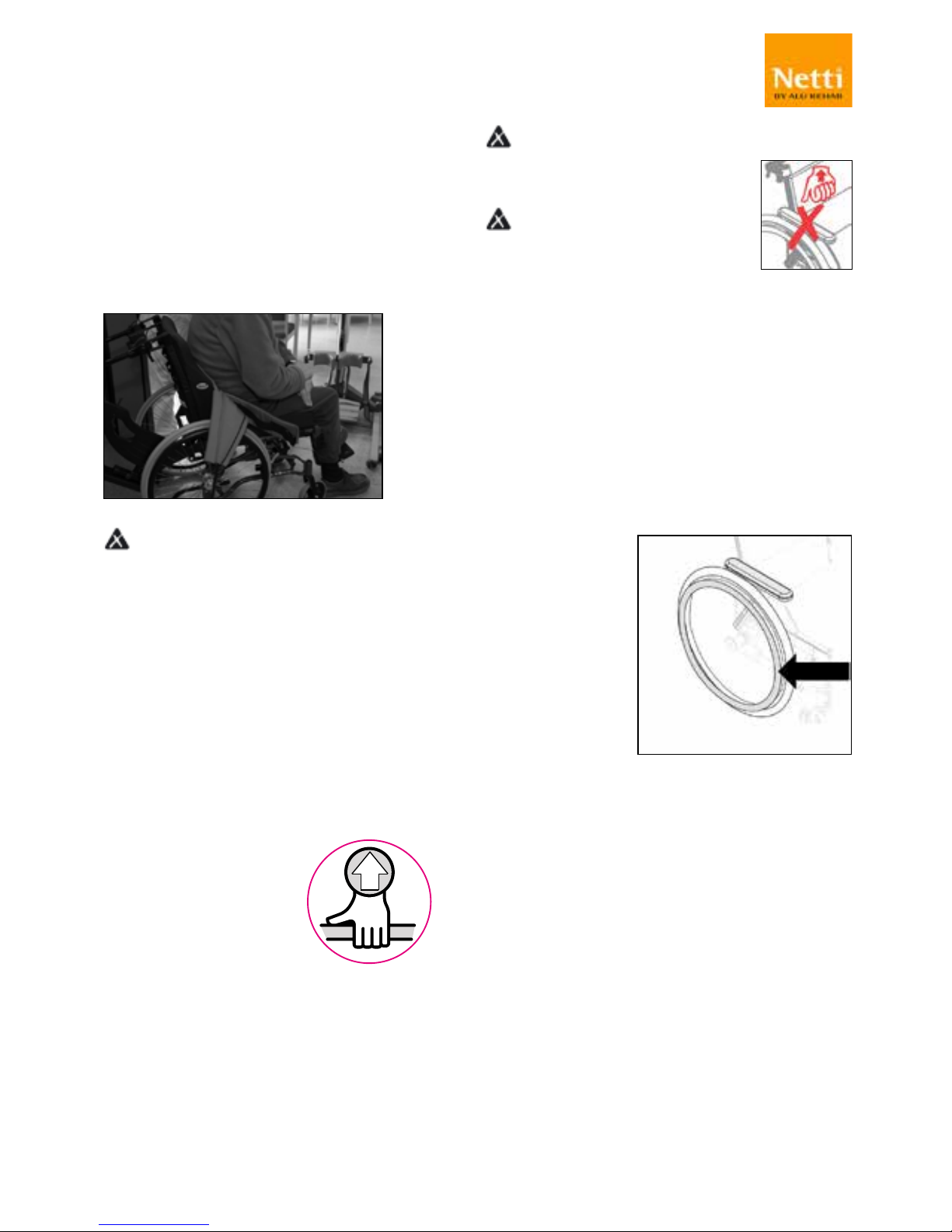

Using a lift:
Before transfer to chair:
• Tilt the chair back
• Remove the head support
• Remove the leg supports
• Open the back rest angle slightly
• Replace the components when transfer is
finished.
Never stand on the foot plates due to
the risk of tipping the chair forwards.
8.8 LIFTING THE WHEELCHAIR
• The wheelchair should be lifted in the
frame, and crossbar only.
• Lifting points are marked with this sign:
Never lift the wheelchair by the
leg supports, arm supports or
push bow.
Do not lift the wheelchair
with a user in it.
8.9 PUSH RIM
Netti 4U CED, CEDS and CED XL are delivered with aluminium push rims as standard.
The material and distance to the main wheel
influences the ability of the user to grip.
Contact your dealer to get information about
alternative push rims that fit your chair.
Alternative push rims may give a better grip,
but the friction may increase. When using
the hands to stop the chair, the risk for burning of the hands increases.
A squeezing and trapping hazard of the
fingers may occur when passing through
narrow passages and if the fingers come
between the spokes. To avoid this risk, we
recommend spoke protectors as accessory.
If you want/need to change push rims or
increase/decrease the distance between
the push rims and the wheel, please contact
your dealer
Page 30
30 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
The angle of the straps
should be close to 45°
REMOVE accessories:
Netti 4U CED, CEDS and CED XL has been
crash tested without any power assistant device. If, at a later point of time power assisting
devices, stair climber etc. are mounted you
need to check if your power assistance device
has been crash tested and approved for wheelchairs being used as seat in vehicle. If it is not
approved, the power assisting device has to
be dismounted - and secured elsewhere, if the
wheelchair is used as a seat in a vehicle.
Securing the user -Always use the
occupant restraint belts in the car for the
wheelchair user. The corrective harnesses
used in a wheelchair are not safety belts.
Make sure that the safety belt lays tightly
across the body of the user and not across
arm supports, wheels etc.
If the head support is mounted correctly it is
very stable but does not replace the need for
an external neck support mounted in the car.
For users taller than 1.85 m, please
install backrest extender when the chair is
being used as a seat in a vehicle.
Always use Netti Cushions when the
wheelchair is used as a seat in a vehicle.
Never use the wheelchair as a seat in a
car if it has been involved in an accident with
impact.
9. TRANSPORT
Netti 4U CED, CEDS and CED XL are tested
and approved to crash test ISO 7176-19. Max
user weight when use as a seat in a car:136 kg
9.1 TRANSPORT IN CAR
When Netti 4U CED, CEDS and CED XL are
used as a seat in a car, all accessory parts that
may detach in a crash has to be removed and
secured in a suitable location like a trunk.
Always use approved wheelchair and
occupant restraint system (ISO 10452:2012)
for fixing the wheelchair in the vehicle.
Netti 4U CED, CEDS and CED XL are been
successfully tested according to the requirement of ISO 7176-19 using a combined wheelchair and occupant restraint system W120/
DISR developed by Unwin Safety Systems. For
further information: www.unwin-safety.com
The chair is marked with
stickers, showing where to
fix the straps
In front: Use hook or strap attachment.
In the rear:
Mount “eye-bolts” in one of the holes in the main
wheel frame bracket, one by each main wheel.
Hook on a hook/carabine hook in the “eye-bolt”.
Item no: for a pair of eye bolts with bushing: 21074
Page 31
My-Netti.com 31
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
c) Each article is made of material that will
not fragment.
d) Each article was manufactured in accordance to quality standard which is approved by the responsible national authority
e) It is proven and shown that the article
relives its pressure by means of a fire degradable seal or other pressure relief device
such that the article will not fragment and
the article does not rocket.
9.4 TRAVELLING ON PUBLIC
TRANSPORT
The wheelchair should be put in a special
area for wheelchairs. The wheelchair should
face opposite the direction of travel. The
back of the wheelchair must be located
against a fixed object such as a row of
seats or a partition. Make sure the user can
easily reach any hand rails or handles.
Netti 4U CED with seat width 550
mm and more, exceed the max width of
700 mm spesified in PRM-TSI and have
influence on the possibility for train
transport.
9.2 FOLDING FOR TRANSPORT
When the wheelchair is unoccupied, fold it
as described below. Put the wheelchair in the
trunk or back seat. When placed in the back
seat, secure all parts and the frame using
safety belts.
• Remove the head support (Chapt. 6.10)
• Turn the anti-tips upwards (Chapt. 6.7)
• Remove the arm supports (Chapt. 6.11)
• Remove the leg supports (Chapt. 6.9)
• Unlock and fold down the push bow.
• Pull out the locking bolt for the back rest,
and place the back rest forward in the seat
(Chapt. 6.5)
• Remove the main wheels (Chapt. 6.2)
• Remove the front castors (Chapt. 6.3)
9.3 TRANSPORT IN AIR PLANE
Netti 4U CED, CEDS and CED XL wheelchairs
may be transported in air plane without any
restrictions. Netti 4U CED, CEDS and CED XL
wheelchairs are equipped with 2 gas springs.
These are however not classified as dangerous goods.
Contrary to general dangerous goods instruction UN3164, the IATA-DGR ( special regulation A114) rules that the goods that contain
gas and are determined to function as shock
absorbers ( including energy-absorbing devices or pneumatic springs) are NOT subject
to the transport instructions i.e. they are
indemnified from the following requirements:
a) each article has a gas volume which does
not exceed 1,6 l and a charge pressure not
exceeding 250 bar, where the product of the
capacity expressed in litres and charge pressure expressed in bars doesn’t not exceed 80.
b) Each article has a minimum burst pressure
of 4 times the charge pressure at +20 degree
Celsius for products not exceeding 0,5 l gas
space capacity.
Page 32
32 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
Frequency Weekly Monthly
Check defects/
damages. E.g.
breakage/missing parts
X
Washing of wheelchair X
Oiling of bearings* X
Washing of cushions X
Check anti tip function X
Check brake
adjustment
X
Check function of QRaxels - see chapter 6.2
X
Check tyre wear X
10.2 CLEANING AND WASHING
1. Remove seat cushion before washing the
wheelchair.
2. Clean cushion and cover according to
instructions printed on cushions.
Cushion cleaning procedures
CORE
Washing Hand wash 40ºC
Disinfection Virkon S
Auto clave 105ºC
Drying Squeeze
Air dry standing edgewise
OUTER
COVER
Washing Machine wash 60ºC
Drying Tumble dry max 85ºC
3. Clean frame using water and a rag.
4. We recommend using soft soap.
5. Rinse the wheelchair well using clean water to
remove all the soap.
6. Use methylated spirit to remove any dirt left.
10. MAINTENANCE
10.1 MAINTENANCE
INSTRUCTIONS
The Netti chairs are built of modules. Alu
Rehab carries stock of all parts and is
ready to supply these on short notice.
Necessary instructions for mounting will
follow the parts. Parts to be handled by
user are defined in spare part catalogues
that can be downloaded at www.My-Netti.
com. These parts can, if needed, also
be removed and sent to manufacutrer/
distributor upon request.
Parts related to wheel frame construction
must be handled by manufacturer or
authorized sercvice facility.
If defects or damages occur, please
contact your dealer.
Check/re-adjust screws and nuts at
regular intervals.
Sand and sea water (salt used for
gritting in the winter) can damage the
bearings of the front castors and main
wheels. Clean the wheelchair thouroughly
after use.
You can order original paint from
Alu Rehab to repair scratches and minor
damages to the paint: Please contact your
dealer to order.
As a rule of thumb, use oil on
movable parts and all bearings. Alu Rehab
recommends use of ordinary bicycle oil.
Page 33
My-Netti.com 33
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
DISINFECTION OF THE
WHEELCHAIR
Remove cushions (See separate washing
instructions).
Use a soft rag, wetted with Hydrogenperoxide or technical alcohol (Isopropanol)
and wipe the whole chair clean. Hydrogenperoxide recommended: NU-CIDEX
“Johnson & Johnson”
10.3 LONG TIME STORAGE
If the wheelchair is put away for longer
period (more than 4 months) no special
actions are needed. We recommend that
the wheelchair is cleaned before it is
stored. Before starting using it again, the
maintenance instructions must be followed.
Page 34
34 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
11. TROUBLESHOOTING
Symptom Reason/Action Reference
in manual
The wheelchair is
going askew
• The main wheel hubs might be incorrectly mounted
• One of the brakes might be too tight
• The user is sitting very askew in the chair
• The user might be stronger on one side than the other
6.2
6.15
The wheelchair is
heavy to manoeuver
• The main wheel hubs might be incorrectly mounted
• Clean the front castors and forks for dirt
• Too much weight over the front castors
6.2
The wheelchair is
hard to turn
• Check that the front castors are not fixed too hard
• Clean the front castors and forks for dirt
• Check, that the front castors are placed in correct
position.
• Too much weight over the front castors, adjust the
balance of the chair.
6.3
6.3
The main wheels
are difficult to take
off and put on.
• Clean and grease the quick release
• Adjust hub bushing further out from the frame
6.2
6.4
The front castors
wobbles and the
wheelchair feels
”shaky”
• The front forks are not properly fixed
• Adjust the front fork angle.
• Too much weight over the front castors, adjust the
balance of the chair
• Tighten all screws
The brakes are not
functioning well
• Adjust the brake
• Check the distance between wheels and brakes
6.15
The push bow is
lose
• The fixing mechanism is defect due to lifting by the
push bow. Order new parts to replace the defect part
6.16
Please contact your dealer for information about authorized service facilities that can
give support if solution is not reached in this form.
When in need of spare parts, please contact your dealer.
When making changes affecting frame construction, contact dealer / manufacturer for
confirmation ahead of the fixing.
Page 35
My-Netti.com 35
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
Alu Rehab is not responsible for any
damage resulting from inappropriate or
unprofessional installation and/or repairs,
neglect, wear from changes in wheelchair
assemblies by institutions not approved
by Alu Rehab or by use of spare parts
delivered or produced by third parties.
In such cases, this warrant shall be
considered null and void.
This warranty is only valid when
the user use, maintain and handle the
wheelchair as described in the user manual.
12.3 CLAIM
If a product has developed a fault during
the warranty period as a result of a defect
in design or manufacturing, you may
forward a warranty claim.
• Claims are to be forwarded as soon as a
defect is discovered and not later than 2
weeks after the defect is discovered.
• Claims are to be addressed to the sales
agent of the wheelchair. Please note
that sales documentation has to be
filled in and signed correctly with serial
number and eventually NeC number in
order to document time and place of the
purchase of the specific wheelchair.
• The sales agent and Alu Rehab are to
decide whether a defect is covered
by the warranty. The claimer will be
informed about the decision as soon as
possible.
• If the claim is accepted, the sales agent
and the Alu Rehab representative are to
decide if the product will be repaired,
replaced or the customer is entitled to a
reduced prize.
• If a warranty claim is judged to be invalid
- after careful inspection of the defect
by an Alu Rehab technical specialist
(defect due to wrong use and/ or lack
of required maintenance) you are free
to decide if you want to have the defect
product repaired ( if possible) at your
expense, or if you want to purchase a
new product.
Normal wear, incorrect use or
incorrect handling is not a reason for
claims.
12. TESTS &
WARRANTY
12.1 TESTS
Netti 4U comfort CED, CEDS and CED XL
are tested and has been approved for usage
both indoors and outdoors. The chairs are CE
marked.
Netti 4U CED and CED XL:
Maximum user weight: 160 kg
Netti 4U CEDS: Maximum user weight: 130 kg
Netti 4U CED, CEDS and CED XL have been
tested by TÜV SÜD Product Service GmbH
according to DIN EN 12183: 2014.
Netti 4U comfort CED, CEDS and CED XL
have been crash tested at Millbrook Proving
Ground, Bedford UK, according to ISO 717619:2008
Max user weight when used as a seat in a car
is 136 kg, for CEDS: 130 kg.
< 136 kg <
The Seating system is tested for fire
resistance according to: EN 1021-2:2014
12.2 WARRANTY
Alu Rehab is providing you with a 5-year
warranty on all frame components and on
the cross-tube assembly. There is a 2-year
warranty on all other CE labelled components
except batteries. For batteries a 6 month
warranty is provided.
Page 36
36 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
PRODUCT RESPONSIBILITY
Netti 4U CED, CEDS and CED XL with
different configurations of Netti equipment
have been tested /risk evaluated by Alu
Rehab. Any alterations or substitutions
must not be made to the wheelchair
securement points or to structural and
frame parts without consulting the
wheelchair manufacturer Alu Rehab.
Substitutions or alterations of components
from third part suppliers to Netti 4U
CED, CEDS and CED XL requires the risk
evaluation and acceptance of the product
responsibility and safety for use of the
wheelchair from the manufacturer that is
performing the substitution or alteration.
12.6 SERVICE AND REPAIR
Information about service and repair
services in you area, please contact your
local dealer.
A unique identification number/serial
number is to be found on the bottom
frame on left side of the chair.
A spare part catalogue for the
wheelchair can be obtained through your
local dealer or downloaded at www.MyNetti.com
A refurbishment manual for the
wheelchair can be obtained through your
local dealer or downloaded at www.MyNetti.com
Information about product safety and
eventually recalls are found on our home
page www. My-Netti.com
12.4 NETTI CUSTOMIZED /
INDIVIDUAL ADAPTATIONS
Netti Customized / individual adaptations
are defined as all adjustments that are
not included in this manual. Individual
adaptations made by Alu Rehab are labelled
with a unique NeC number for identification.
Wheelchairs that are especially adjusted/
adapted for the customer cannot keep the
CE mark given by Alu Rehab A.S Norway.
If the adjustments are performed by other
than Alu Rehab approved dealers, the
warranty given by Alu Rehab A.S Norway
will not be valid.
If there are any uncertainty about special
fitting and adaptations, please contact Alu
Rehab A.S.
If you have different needs than what
our standard wheelchair program can
cover, please take contact with customer
service for eventually special adjustments
or individual solutions.
12.5 COMBINATIONS WITH
OTHER PRODUCTS
Combinations of Netti and other products
not manufactured by Alu Rehab A.S:
Generally in these cases, the CE mark
of all the products involved will not be
valid. However, Alu Rehab A.S has made
agreements with some manufacturers
about some combinations. By these
combinations the CE-mark and guarantees
are valid.
For further information, please contact
your dealer or Alu Rehab A.S Norway
directly.
Page 37
My-Netti.com 37
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
13. MEASURES & WEIGHT
Seat
width*
Seat depth**
CED
Seat depth**
CEDS
Back rest
heigh ***
Total
width
Transport
width
Weight
350 mm 425-500 mm 375-450 mm 480(600) mm 530 mm 460 mm 28,0 kg
400 mm 425-500 mm 375-450 mm 480(600) mm 580 mm 510 mm 28,5 kg
430 mm 425-500 mm 375-450 mm 480(600) mm 610 mm 530 mm 29,0 kg
450 mm 425-500 mm 375-450 mm 480(600) mm 630 mm 540 mm 29.0 kg
500 mm 425-500 mm 375-450 mm 480(600) mm 680 mm 610 mm 29,5 kg
550 mm 425-500 mm 480(600) mm 730 mm 680 mm 31,5 kg
600 mm 425-500 mm 480(600) mm 780 mm 710 mm 32,0 kg
* Measured between skirt guards.
** Measured from front of seat plate to back rest hinge without cushion. Using standard
Uno back rest cushion subtract app. 30 mm. Seat depth adjustable by 25 mm per step.
*** Measured from seat plate to top of back rest Velcro.
Wheelchairs with Seat Width of 550 mm and 600 mm are Netti 4U CED XL model.
The weight is including main wheels, front castors, leg supports and arm supports.
No cushions.
Max user weight is 160 kg for CED and CED XL. Max user weight is 130 kg for CEDS.
When mounting accessories such as power kit etc, the weight of the accessories must
be subtracted from the max user weight.
Max user weight is 136 kg when Netti 4U CED and CED XL are being used as a seat in
a vehicle.
< 136 kg <
For Netti 4U CEDS max user weight when used as seat in a car is 130 kg.
Recommended inflation pressure using air tyres is: 60-65 PSI.
Page 38
38 My-Netti.com
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
Dealer:
Serial no.:
Date supplied:
Dealer stamp:
Page 39
My-Netti.com 39
Model: NettI 4U CED, CEDS and CED XL
Language: English Version: 2019-01
Page 40
FEEL FREE TO CONTACT US:
MANUFACTURER:
Alu Rehab AS
Bedriftsvegen 23
4353 Klepp Stasjon
NORWAY
T: +47 51 78 62 20
[email protected]
IN DIALOGUE WE CREATE SIMPLE
SOLUTIONS AND ENABLE JOY OF
LIFE
UM0002UK
2019-01
This product conforms to 93/42/EEC for medical products.
DISTRIBUTION:
Alu Rehab ApS
Kløftehøj 8
DK-8680 Ry
T: +45 87 88 73 00
F: +45 87 88 73 19
[email protected]
Loading...
