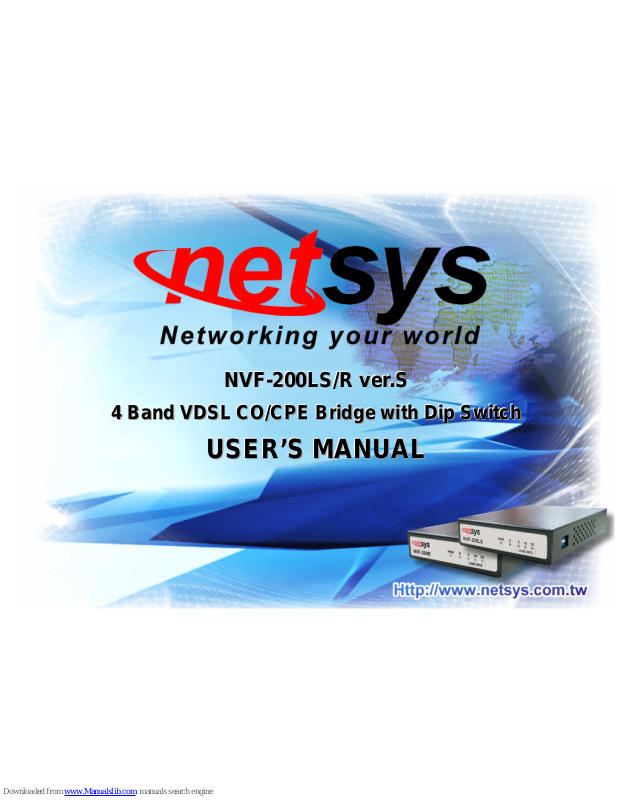

NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
1
Copyright
Copyright © 2011 by National Enhance Technology Corp. All rights reserved.
Trademarks
NETSYS is a trademark of National Enhance Technology Corp.
Other brand and product names are registered trademarks or trademarks of their respective holders.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect
to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the
device, National Enhance Technology Corp. hereby disclaims any and all warranties and liabilities of any kind, including without
limitation warranties of non-infringement of intellectual property rights of any third party.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to make changes to
the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or
application of the product(s) or circuit layout(s) described herein.
Maximum signal rate derived form IEEE Standard specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual
data throughput rate. Netsys does not warrant that the hardware will work properly in all environments and applications, and makes
no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness
for a particular purpose. Make sure you follow in line with the environmental conditions to use this product.
Page 3
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
2
Foreword: VDSL Point to Point Solution
Attention:
Be sure to read this manual carefully before using this product. Especially Legal Disclaimer, Statement
of Conditions and Safty Warnings.
The NVF-200LS/R ver.S works as Ethernet to/from VDSL subscriber-site conversion bridge. The NVF-200LS/Rver.S uses
QAM-based 4-band VDSL technology which supports max distance 1.9km (6333 ft.) at 5M/5M or 1.3km (4333 ft.) at 15M/15M, or
800m (2666 ft.) at 25M/25M symmetrical data service. The NVF-200R ver.S also works with NVF-800S/NVF-2400S VDSL IP
DSLAM, together to form a cost-effective solution for services such as remote lecturing, telemedicine, video conferencing,
Video-on-Demand (VOD), IP-TV, Internet access, and various high-speed data applications.
The front-panel provides LED indicators of system and interface status. The built-in POTS/ISDN splitter allows a standard POTS
phone or ISDN device to be connected. Full or half-duplex mode of LAN operations is automatically sensed and configured. VDSL
link rates are configured by local bridge or IP DSLAM over auto speed or fix speed function.
Therefore, NVF-200LS/R ver.S supports plug & play operations on the subscriber-site and can do auto and manual selection of the
data speed. An ideal solution for delivering cost-effective, high-performance broadband/multimedia services to Multi-Dwelling Units
(MDU) and Multi-Tenant Units (MTU) such as hotels, campuses and hospitals environments.
Page 4
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
3
Caution:
The NVF-200 is for indoor applications only. This product does not have waterproof protection. We do not recommend for harsh
environments. If user insist to install it for industrial applications (-20°C ~ 70°C (-4°F ~ 158°F)), please do not use the included
commercial-grade power supply. Please use of industrial-grade power supply for industrial applications.
Page 5
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
4
Safety Warnings
For your safety, be sure to read and follow all warning notices and instructions before using the device.
DO NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other
risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information.
Use ONLY the dedicated power supply for your device. Connect the power cord or power adaptor to the right supply voltage
(110V AC used for North America and 230V AC used for Europe).
DO NOT use the device if the power supply is damaged as it might cause electrocution. If the power supply is damaged,
remove it from the power outlet. DO NOT attempt to repair the power supply. Contact your local vendor to order a new power
supply.
Place connecting cables carefully so that no one will step on them or stumble over them. DO NOT allow anything to rest on
the power cord and do NOT locate the product where anyone can work on the power cord.
DO NOT install nor use your device during a thunderstorm. There may be a remote risk of electric shock from lightning.
DO NOT expose your device to dampness, dust or corrosive liquids.
DO NOT use this product near water, for example, in a wet basement or near a swimming pool.
Connect ONLY suitable accessories to the device.
Make sure to connect the cables to the correct ports.
DO NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.
DO NOT place items on the device.
DO NOT use the device for outdoor applications, and make sure all the connections are indoors. There may be a remote risk
of electric shock from lightning.
Be careful when unplugging the power, because the transformer may be very hot.
Keep the device and all its parts and accessories out of children’s reach.
Clean the device using a soft and dry cloth rather than liquid or atomizers. Power off the equipment before cleansing it.
This product is recyclable. Dispose of it properly.
Page 6
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
5
Table of Contents
COPYRIGHT ........................................................................................................................................................ 1
FOREWORD: VDSL POINT TO POINT SOLUTION............................................................................................. 2
SAFETY WARNINGS...........................................................................................................................................4
CHAPTER 1. UNPACKING INFORMATION.........................................................................................................7
1.1 Check List ......................................................................................................................................................................................7
CHAPTER 2. INSTALLING THE BRIDGE.............................................................................................................8
2.1 Hardware Installation......................................................................................................................................................................8
2.2 Pre-installation Requirements ........................................................................................................................................................8
2.3 General Rules ................................................................................................................................................................................9
2.4 Connecting the Bridge....................................................................................................................................................................9
2.5 Connecting the RJ-11 / RJ-45 Ports.............................................................................................................................................10
CHAPTER 3. HARDWARE DESCRIPTION........................................................................................................ 12
Page 7
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
6
3.1 Front Panel...................................................................................................................................................................................12
3.2 Front Indicators ............................................................................................................................................................................13
3.3 Rear Panel...................................................................................................................................................................................14
3.4 Side Panel....................................................................................................................................................................................15
CHAPTER 4. FIRMWARE DESCRIPTION.........................................................................................................17
APPENDIX A: CABLE REQUIREMENTS...........................................................................................................18
APPENDIX B: PRODUCT SPECIFICATION....................................................................................................... 21
APPENDIX C: 4 BAND VDSL ELECTRICAL CHARACTERISTICS.................................................................... 23
APPENDIX D: TROUBLESHOOTING................................................................................................................24
APPENDIX E: COMPLIANCE AND SAFETY INFORMATION............................................................................29
WARRANTY....................................................................................................................................................... 32
CHINESE SJ/T 11364-2006................................................................................................................................33
Page 8
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
7
CHAPTER 1.
UNPACKING INFORMATION
1.1 Check List
Carefully unpack the package and check its contents against the checklist.
Package Contents
• VDSL 4-Band Bridge (NVF-200LS for CO side / NVF-200R ver.S for CPE side)
• 1 x AC to DC 5V or 12V Power Adapter
• 4 x rubber foot
• 1 x CD User’s Manual
• 1 x RJ-45 cable
• 1 x RJ-11 cable
Note1:
Please inform your dealer immediately for any missing or damaged parts.
If possible, retain the carton including the original packing materials.
Use them to repack the unit in case there is a need to return for repair.
Note2:
1. Do not use sub-standard power supply. Before connecting the power supply to the device, be sure to check
compliance with specifications. The NVF-200LS/R ver.S of the power supply use DC 5-12V/1A.
2. Power supply included in package is commercial-grade. Do not use in harsh environments.
Page 9
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
8
Chapter 2. Installing the Bridge
2.1 Hardware Installation
This chapter describes how to install the bridge and establishes network connections and may install the bridge on any
level surface (e.g. a table or shelf). However, please take note of the following minimum site requirements before one
begin. Stick the 4 rubber feet at the bottom to avoid scratches.
2.2 Pre-installation Requirements
Before you start the actual hardware installation, make sure you can provide the right operating environment, including
power requirements, sufficient physical space, and proximity to other network devices that are to be connected.
Verify the following installation requirements:
• Power requirements: DC 5-12V / 1A or above
• The bridge should be located in a cool dry place, with at least 10cm/4in of space at the front and back for
ventilation.
• Place the bridge away from direct sunlight, heat sources, or areas with a high amount of electromagnetic
interference.
• Check if the network cables and connectors needed for installation are available.
• Do Not install phone lines strapped together with AC power lines, or telephone office line with voice signal.
• Avoid installing this device with radio amplifying station nearby or transformer station nearby.
• Please note NVF-200 internal splitter, can pass through voice spectrum is 0KHz ~ 630KHz.
Page 10
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
9
2.3 General Rules
Before making any connections to the bridge, please note the following rules:
• Ethernet Port (RJ-45)
All network connections to the bridge Ethernet port must be made using Category 5 UTP for 100Mbps,
Category 3, 4 UTP for 10Mbps.
No more than 100 meters of cabling may be use between the MUX or HUB and an end node.
• VDSL Port (RJ-11)
All Home network connections to the RJ-11port must use 24~26 gauge with twisted pair phone wiring.
We do not recommend the use of the telephone line 24 gauge below or 26 gauge above.
2.4 Connecting the Bridge
The bridge has one Ethernet port which support connection to Ethernet operation. The devices attached to these ports
must support auto-negotiation or 10Base-T OR 100Base-TX unless they will always operate at half duplex. Use any of
the Ethernet ports to connect to devices such as NIC, Switch, bridge or router.
Note:
1.The RJ11 Line port is used to connect to the wall RJ-11 modular socket (outlet) that is connected to VDSL 4-Band
CPE bridge side (Point to point solution).
2.The RJ11 Phone port of the bridge can be connected to a telephone for making calls.
Page 11
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
10
2.5 Connecting the RJ-11 / RJ-45 Ports
1. The bridge’s RJ-11 ports supports max distance 1.9km at 5M/5M or max rate 25M/25M symmetrical and distances
up to 800m data service across existing phone wiring, without interfering with standard voice transmissions,
easy-to-use which do not require installation of additional wiring. Every RJ-11 modular phone jack in the home can
become a port on the LAN. Networking devices can be installed on a single telephone wire that can span within
1.9km or 800m (depends on speed) between the two farthest points. (Figure 2.1)

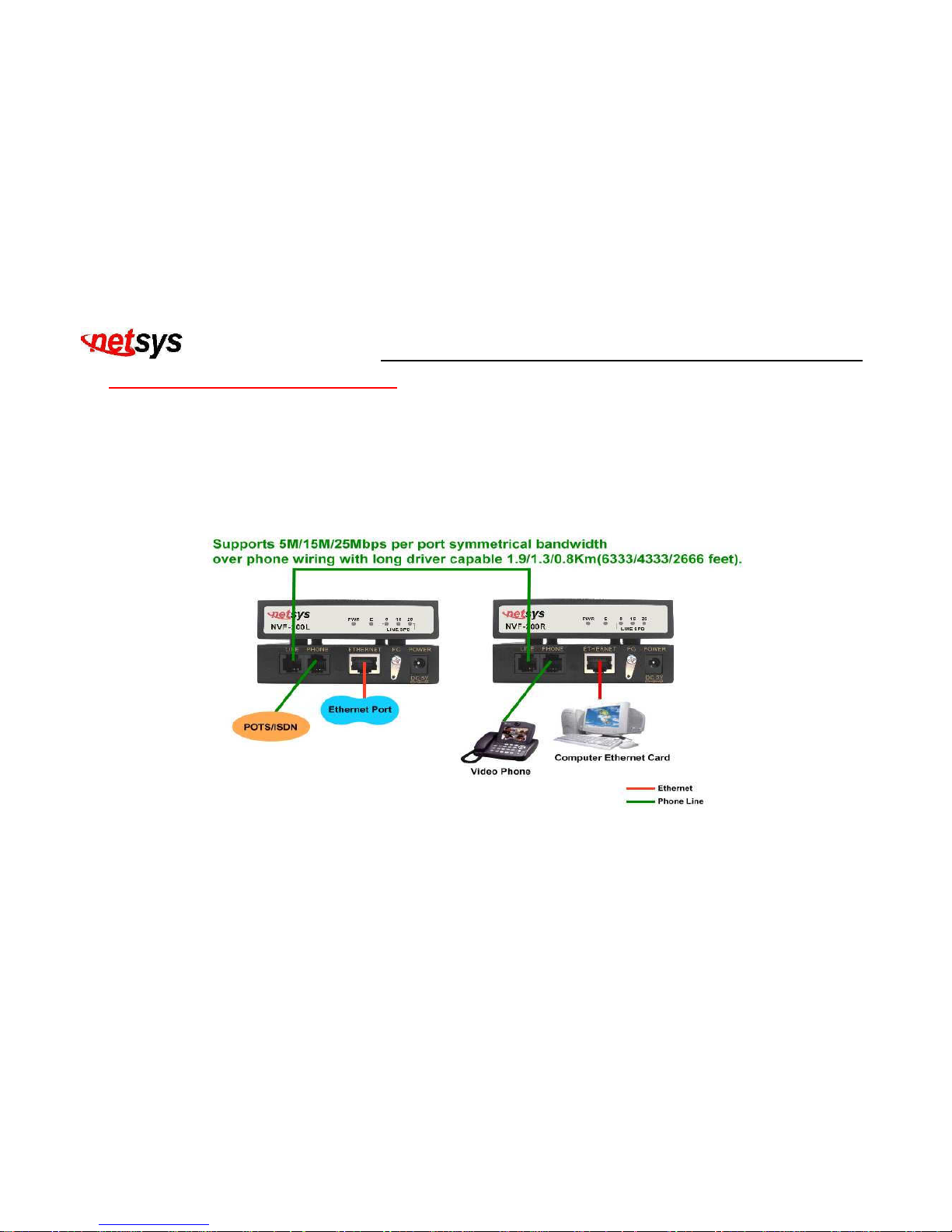

Figure 2.1 VDSL Point-to-Point application
Page 12
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
11
2. NVF-200LS/R bridge has an embedded splitter between every VDSL side (Line) and POTS (Phone) side. It permits
one to deliver broadband service on the same lines as Plain Old Telephone Service (POTS), PBX, ISDN traffic and
VDSL Signal.
3. When inserting a RJ-11 plug, make sure the tab on the plug clicks into position to ensure that it is properly seated.
4. Do not plug a RJ-11 phone jack connector into the Ethernet port (RJ-45 port). This may damage the bridge. Instead,
use only twisted-pair cables with RJ-45 connectors that conform to Ethernet standard.
Notes:
1. Be sure each twisted-pair cable (RJ-45) does not exceed 100 meters (333 feet).
2. RJ-11 port use 24 ~ 26 gauge with twisted pair phone wiring.
3. We advise using Category 3 ~7 cables for Cable bridge or Router connections to avoid any confusion or
inconvenience in the future when you attached to high bandwidth devices.
4. Be sure phone cable has been installed before NVF-200LS and NVF-200R ver.S powered on.
Page 13
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
12
Chapter 3. Hardware Description
This section describes the important parts of the bridge. It features the front panel, side panel and rear connectors.
NVF-200LS/R ver.S Outward
3.1 Front Panel
The figure shows the front panel. (Figure 3.1)

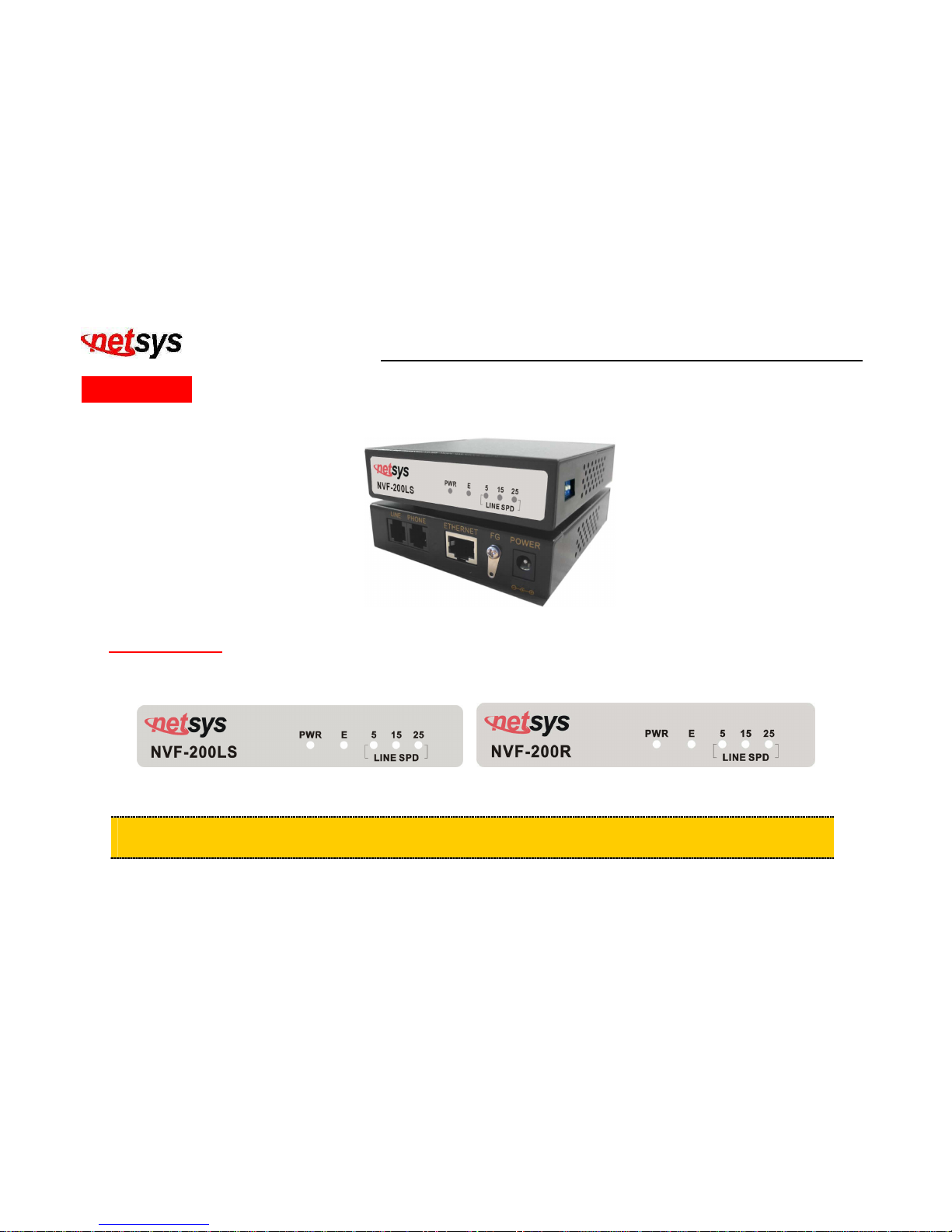

Figure 3.1 Front Panel
Tip:
At a quick glance of the front panel, it is easy to determine if the CO or CPE bridge has power, if it has
signal from its Ethernet RJ-45 port and if there is phone line signal on RJ-11 port.
Page 14
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
13
3.2 Front Indicators
The bridge has Five LED indicators. The following Table shows the description. (Table 3-1)
Table 3-1 LED Indicators Description and Operation
LED Color Status Descriptions
On The device is receiving the power and functioning properly.
PWR
(Power LED)
Green
Off The device is not ready or has malfunctioned.
On The device has a good Ethernet connection.
Blinking The device is sending or receiving data.
E
(Ethernet LED)
Green
Off The LAN is not connected.
On VDSL is in good linkage at 5Mbps data rate.
5
(VDSL LED)
Green
Off The VDSL connection is down.
On VDSL is in good linkage at 15Mbps data rate.
15
(VDSL LED)
Green
Off The VDSL connection is down.
On VDSL is in good linkage at 25Mbps data rate.
25
(VDSL LED)
Green
Off The VDSL connection is down.
Page 15
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
14
3.3 Rear Panel

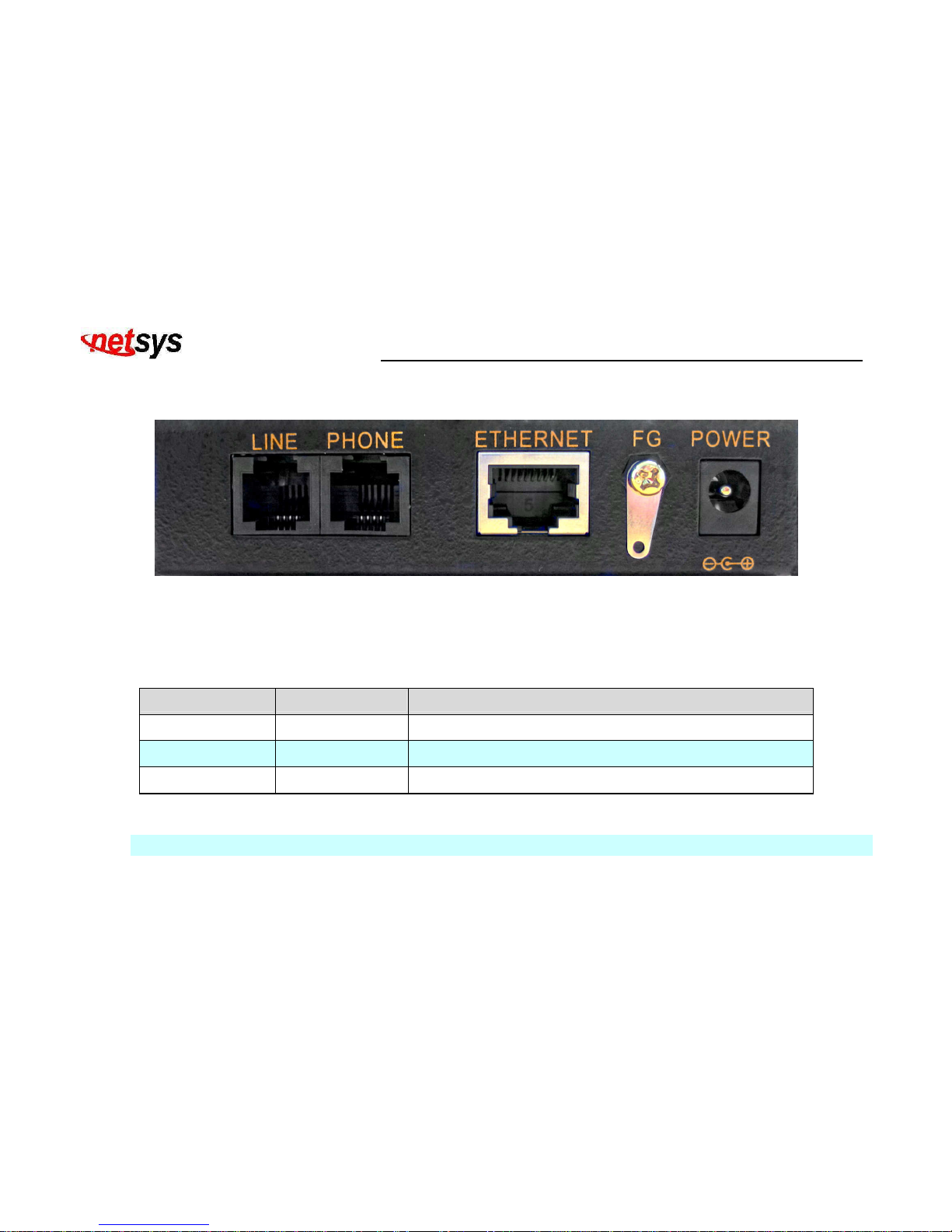

The following figure shows the rear connectors. (Figure 3.2)
Figure 3.2 Rear connectors
And the table shows the description. (Table 3-2)
Table 3-2 Description of the bridge rear connectors
Connectors Type Description
Line RJ-11 For connecting to the VDSL bridge.
Phone RJ-11 For connecting to the telephone or Fax, ISDN bridge
Ethernet RJ-45 For connecting to a Ethernet equipped device
Note:
If it is needed to connect to the ISDN bridge, please refer to Appendix C for further details.
Page 16
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
15
3.4 Side Panel

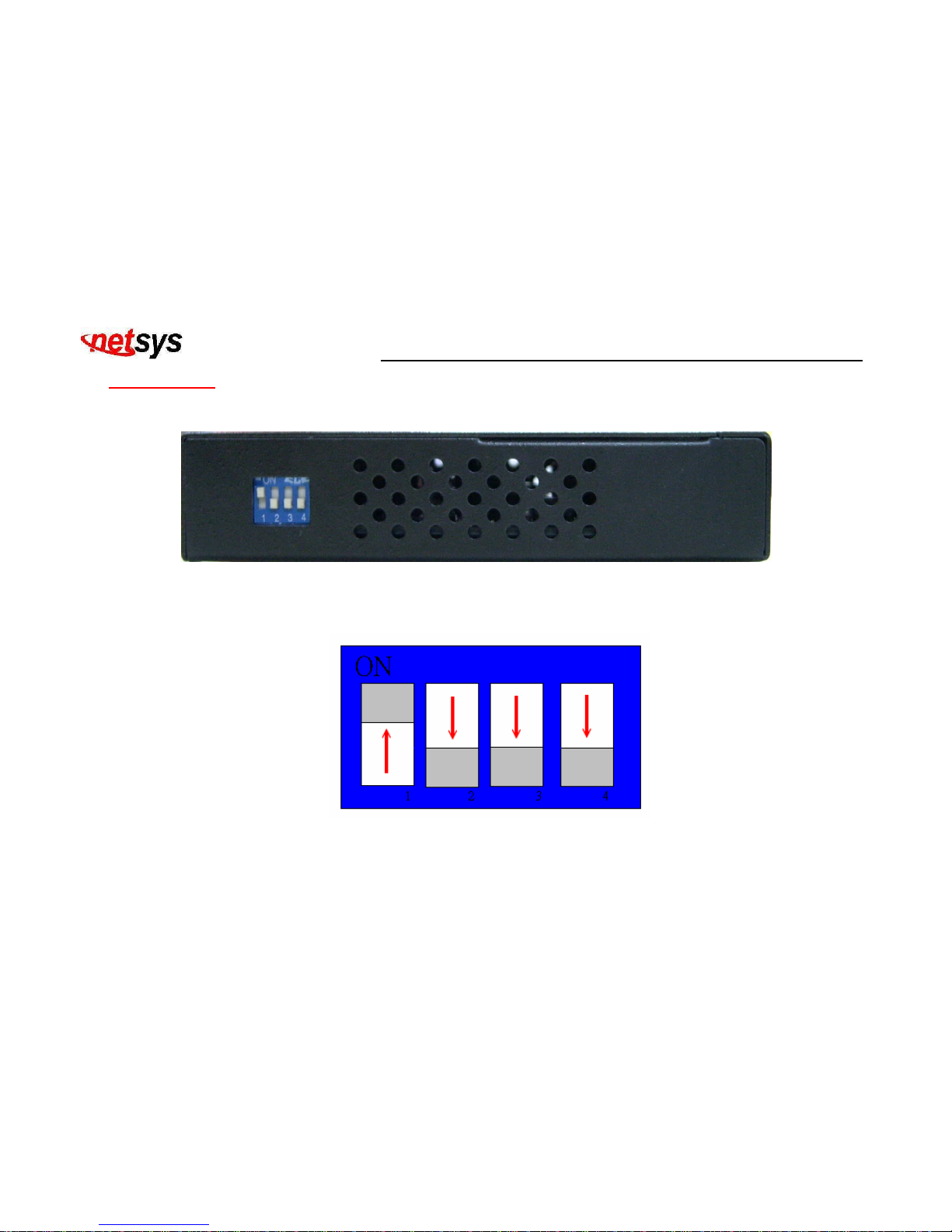

The following figure shows the DIP switch connection. (Figure 3.3)
Figure 3.3 Side panel
At quick glance, it is easy to see that the DIP switch pin 1 is switch ON where it is in auto-speed and that is also the
default mode. (Figure 3.4)
Figure 3.4 DIP switch setting
Page 17
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
16
To set the data speed to 25Mbps simply switch ON the pin 2 while the other pins are switch OFF. To change it to
15Mbps, switch ON the pin 3 while the other pins are switch OFF, for 5Mbps switch on the pin 4 while other are switch OFF.
Remember that no two pins can be activated at the same time or it will result in error and for data speed of 5Mbps. Table
shows the summary of DIP switch configuration. (
Table 3-3)
Table 3-3 DIP Switch Configuration
Speed mode Pin 1 Pin 2 Pin 3 Pin 4
Auto speed On Off Off Off
25Mbps Off On Off Off
15Mbps Off Off On Off
5Mbps Off Off Off On
Page 18
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
17
Chapter 4. Firmware Description
Auto and manual data speed selector description:
NVF-200LS/R is a 4band VDSL solution which supports real plug & play and can do auto and manual selection of the
data speed, the setting of the data speed depends on the phone cable length limit, they can support 5M/15M/25M
symmetrical data service but depends on installation environment. If NVF-200LS try to link at 25Mbps data speed but
fails to do so then NVF-200LS data speed must be lower due to the limitation of the phone cable length. If the cable
length is unsure, then auto selection of the data speed at the default setting is recommended. Power must be unplug
before changing of data speed then powered on and wait for VDSL to link again at the correct data speed function.
Speed mode limitation:
1. 5M/5M mode within 1.9km (6333 ft.)
2. 15M/15M mode within 1.3km (4333 ft.)
3. 25M/25M mode within 800m (2666 ft.)
Tip:
With the above phone cable limit based on without PBX noise.
Note1:
We recommend phone cable that must meet Cat. 3 standard or above and without clustering, otherwise the above
guarantee will be void.
Note2:
The performance data above is for reference only, the actual distance will vary on the quality of the copper wire and
environment factors. We recommend using 24~26 gauge and Cat. 3 standard or above phone wiring.
Page 19
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
18
Appendix A: Cable Requirements
A.1 Ethernet Cable
A CAT 3, 4 or 5 UTP (unshielded twisted pair) cable is typically used to connect the Ethernet device to the modem. A
10Base-T cable often consists of four pairs of wires, two of which are used for transmission. The connector at the end of the
10Base-T cable is referred to as an RJ-45 connector and it consists of eight pins. The Ethernet standard uses pins 1, 2, 3
and 6 for data transmission purposes. (Table A-1)
Table A-1 RJ-45 Ethernet Connector Pin Assignments
MDI MDI-X
PIN #
Signal
Media Dependant
interface
Signal
Media Dependant
interface-cross
1 TX+ Transmit Data + RX+ Receive Data +
2 TX- Transmit Data - RX- Receive Data 3 RX+ Receive Data + TX+ Transmit Data +
4 -- Unused -- Unused
5 -- Unused -- Unused
6 RX- Receive Data - TX- Transmit Data 7 -- Unused -- Unused
8 -- Unused -- Unused

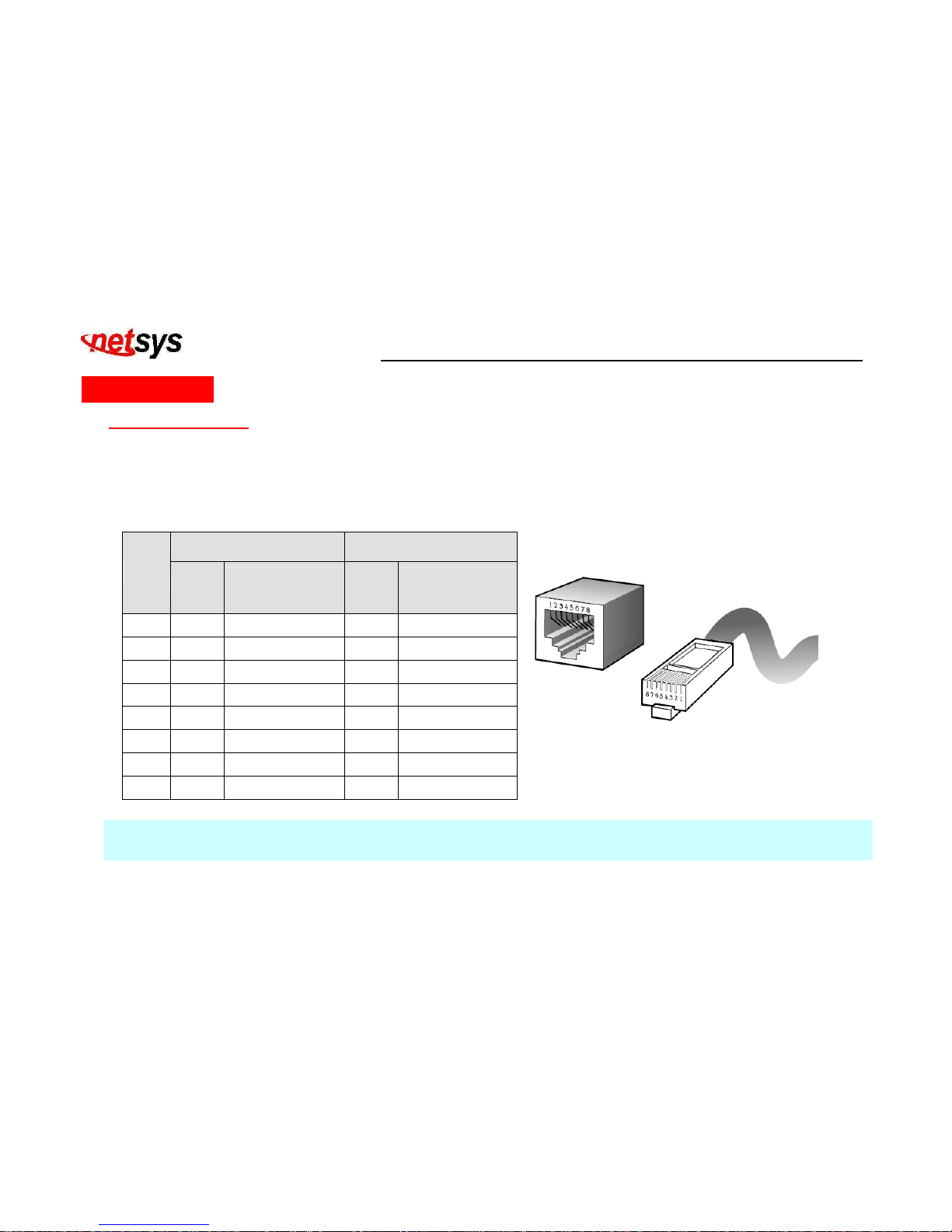

Figure A-1 Standard RJ-45 repectacle/connector
Note:
Please make sure your connected cables are with same pin assignment as above table before deploying the cables into your
network.
Page 20
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
19

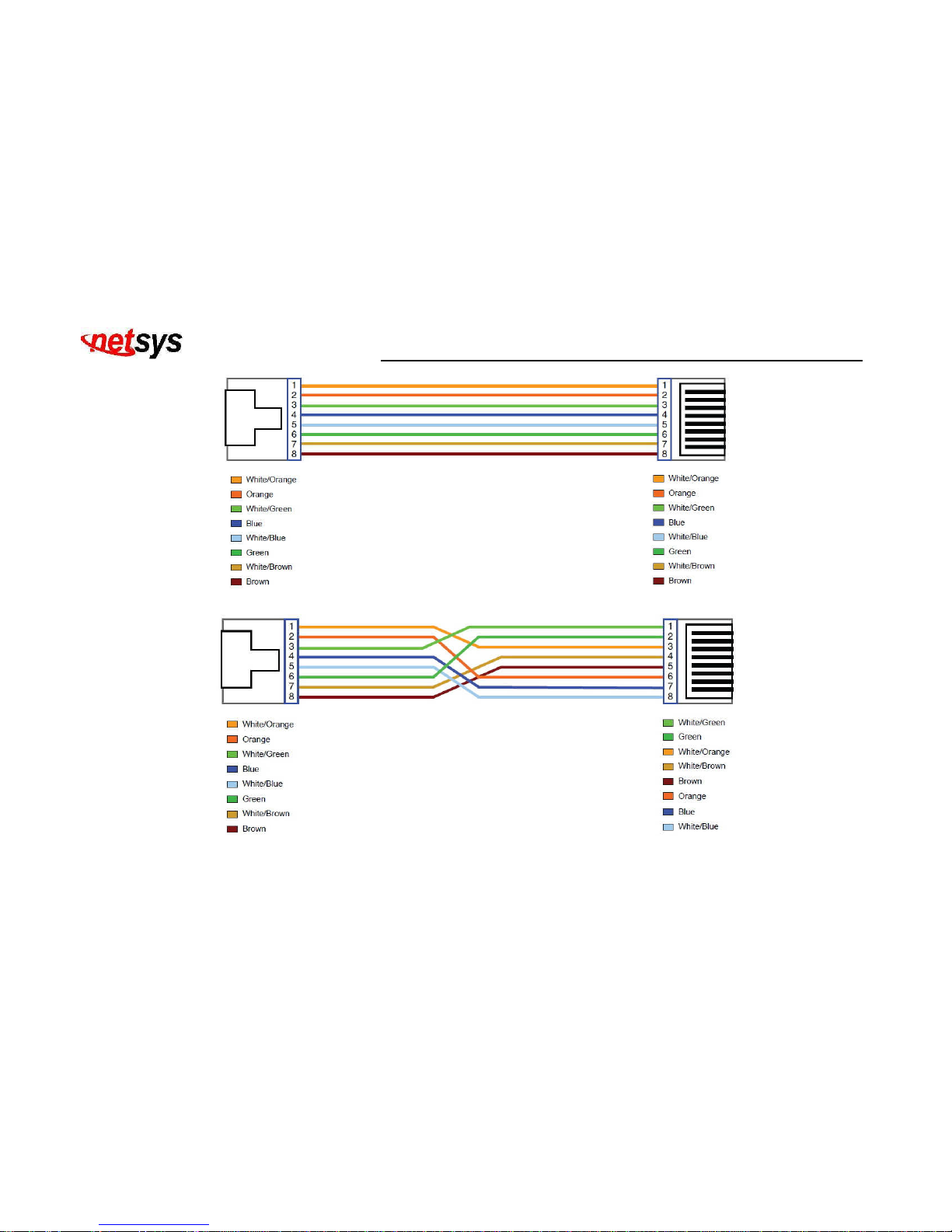

Figure A-2 Pin Assignments and Wiring for an RJ-45 Straight-Through Cable
Figure A-3 Pin Assignments and Wiring for an RJ-45 Crossover Cable
Page 21
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
20
A.2 Telephone wire
Standard telephone wire of any gauge or type-flat, twisted or quad is used to connect the Modem to the telephone network. A
telephone cable typically consists of three pairs of wires, one of which is used for transmission. The connector at the end of
the telephone cable is called an RJ-11 connector and it consists of six pins. POTS (plain old telephone services) use pins 3

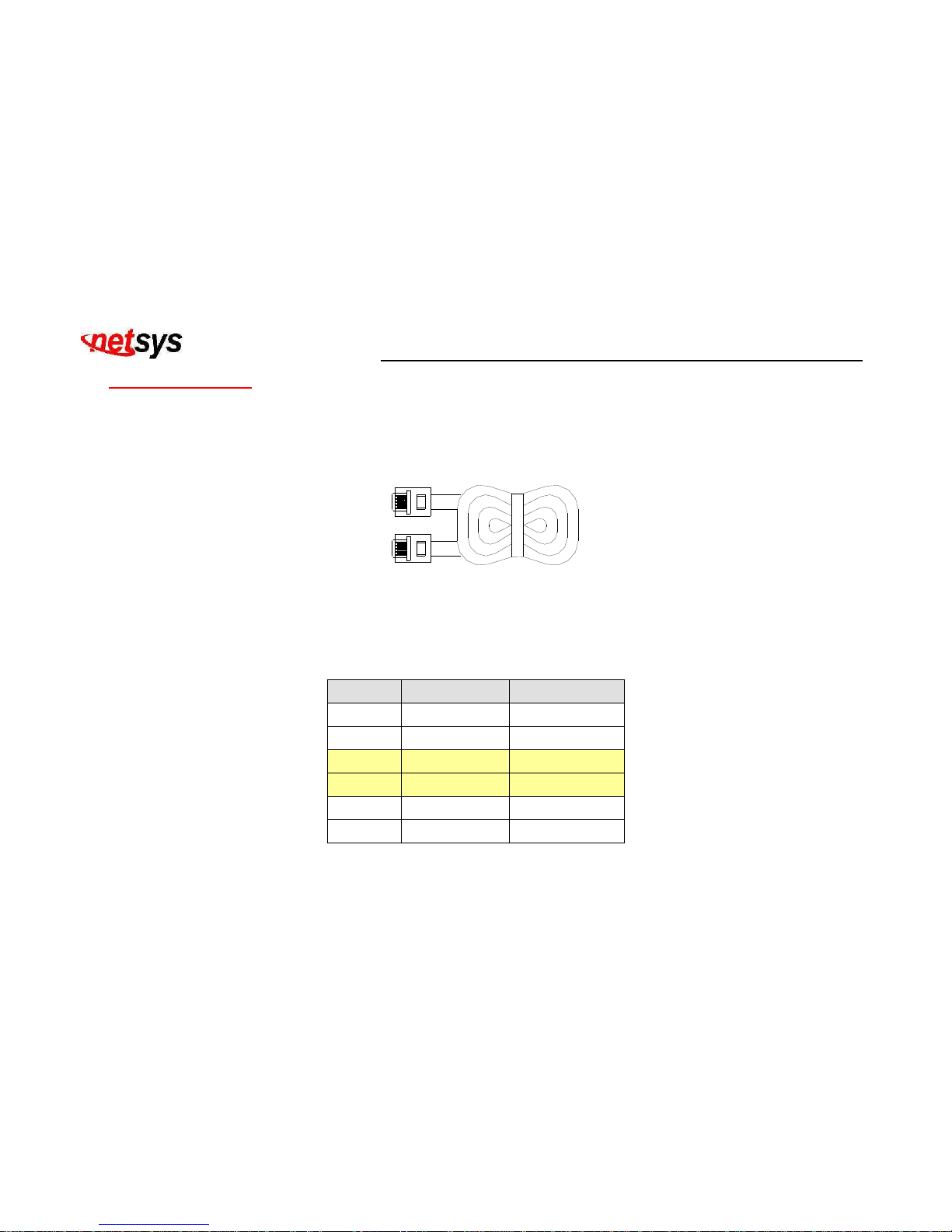

and 4 for voice transmission. A telephone cable is shown below. (Figure A-4)
A
B
Figure A-4 Telephone cable
The A and B connectors on the rear of the Modem are RJ-11 connectors. These connectors are wired identically. The RJ-11
connectors have six positions, two of which are wired. The Modem uses the center two pins. The pin out assignment for
these connectors is presented below. (Table A-2)
Table A-2 RJ-11 Pin out Assignments
Pin# MNEMONIC FUNCTION
1 NC Unused
2 NC Unused
3 TIP POTS
4 RING POTS
5 NC Unused
6 NC Unused_
Page 22
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
21
Appendix B: Product Specification
Key Features & Benefits
• Max speed at 5M/5M with distance up to 1.9km(6333ft), Max speed at 15M/15M with distance up to 1.3km(4333ft),
Max speed at 25M/25M with distance up to 800m(2666ft)
• Supports 1 * RJ-11 connector for Ethernet over VDSL
• Supports 1 * RJ-11 connector for telephone/PBX connection
• Supports 1 * RJ-45 port for 10/100Mbps Ethernet with Auto MDI/MDIX
• Supports 1* Dip switch(NVF-200LS only) for speed mode selection
• Supports Auto/5/15/25Mbps speed mode and full duplex for VDSL port
• Supports long packet size up to 1536 bytes
• Supports POTS/ISDN voice pass
• Supports PBO(Power Back Off) function for NVF-200R
• Supports 4wires phone set pass through
• Voice and Data work on the same telephone line
• Spectral compatibility with xDSL, ISDN (2B1Q/4B3T)
• Supports flow control IEEE802.3x for Full Duplex & Back Pressure for Half Duplex
• Supports Surge protection
• Provides Power LED and LED indication Link/Active Status for Ethernet port and Link/Speed for VDSL port
• Plug & Play, mini size and metal case design
• External Power Adapter: Input: AC 85~240Volts/50~60Hz Output: DC 5-12V/1A
• EMI certified by CE, FCC Class B, and VCCI Class B
• Safety compliant EN60950-1
Page 23
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
22
Product Specification
Standard:
IEEE802.3 standard
IEEE802.3u standard
Compliant with ETSI, ITU & ANSI standards
Interface:
1 * RJ-45 10/100Mbps Ethernet port
1 * RJ-11 connector for EoVDSL
1 * RJ-11 connector for telephone connection
Cable Connections:
RJ-45 (Ethernet): Category 3, 4, 5 UTP/STP
RJ-11 (EoVDSL): Twisted Pair phone wire
LED indication:
Power
Link/Active Status for Ethernet port
Link/Speed for VDSL port
VDSL Frequency Spectrum:
NVF-200LS Transmitter: 900 kHz ~ 3.9MHz Receiver: 4MHz & 7.9MHz
NVF-200R ver.S Transmitter: 4MHz ~ 7.9MHz Receiver: 900 kHz ~ 3.9MHz
POTS/ISDN pass filter Spectrum:
0 ~ 630kHz
Power Consumption:
NVF-200LS (LT): 2.15W
NVF-200R ver.S (NT): 2.75W
Operating Temperature:
0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature:
-20°C ~ 70°C (-4°F ~158°F)
Humidity:
10% to 90% (non-condensing)
Weight:
About 0.68kgs
Dimensions:
95 x 110 x 24 mm (3.74" x 4.33" x 0.94”)
Page 24
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
23
Appendix C: 4 Band VDSL Electrical Characteristics
Parameter Min. Typ. Max. Unit
Transmit 0.9 3.9 MHz
Spectrum
Receive 4 7.9 MHz
Transmit -70 -61.5 dBm/Hz
PSD Level
Receive -70 -60 dBm/Hz
Noise Margin 6 dB
Transmit 27 31 35 dB
5Mbps Link Margin
Receive 27 31 35 dB
Transmit 36 38 40 dB
15Mbps Link Margin
Receive 36 38 40 dB
Transmit 41 43 45 dB
25Mbps Link Margin
Receive 41 43 45 dB
Page 25
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
24
Appendix D: Troubleshooting
Diagnosing the Bridge’s Indicators
The bridge can be easily monitored through its comprehensive panel indicators. These indicators assist the network
manager in identifying problems the hub may encounter. This section describes common problems you may encounter
and possible solutions.
1. Symptom:
POWER indicator does not light up (green) after power on.
Cause:
Defective External power supply
Solution:
Check the power plug by plugging in another that is functioning properly. Check the power cord with
another device. If these measures fail to resolve the problem, have the unit power supply replaced
by a qualified distributor.
Note:
Don’t use other AC to DC power adapter
2.
Symptom:
Link indicator does not light up (green) after making a connection.
Cause:
Network interface (ex. a network adapter card on the attached device), network cable, or switch port
is defective.
Solution:
2.1 Power off and re-power on the VDSL bridge.
2.2 Verify that the switch and attached device are power on.
2.3 Be sure the cable is plugged into both the switch and corresponding device.
2.4 Verify that the proper cable type is used and its length does not exceed specified limits.
2.5 Check the bridge on the attached device and cable connections for possible defects.
2.6 Make sure that the phone wire must be connected between NVF-200LS and NVF-200Rver.S
first, when both are to be power on.
2.7 Replace the defective bridge or cable if necessary.
Page 26
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
25
3. Symptom:
VDSL Link cannot be established.
Cause:
VDSL speed mode setting failure or phone cable length is over the specification limit of the speed
mode.
Solution:
3.1 Please make sure that the phone wire must be connected between NVF-200LS and NVF-200R
ver.S when both are power on. NVF-200LS will do link speed function depending on speed
mode setting and phone wire length, therefore if NVF-200LS can’t detect NVF-200R ver.S over
phone wire while both power on, this will cause the link to fail.
3.2 Please check phone cable must be 24 gauge with twisted pair and without rust, and the length
is not over 1.9km.
3.3 Please check the correct Dip Switch setting.
Note:
Phone cable must meet CAT 3 standard or above and without clustering, otherwise will cause more
cross talk issue to reduce DSL power driver.
4. Symptom:
VDSL speed mode LED is always flashing
Cause:
VDSL speed mode link is at the limit of phone cable length
Solution:
Please change speed mode through Dip switch.
Note:
Don’t use phone cable that is without twisted pair and under 0.4mm (26 Gauge) diameter.
5. Symptom:
We tested with a regular S0 bus from an NTBA - data works, but ISDN telephone does not.
Page 27
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
26
Solution:

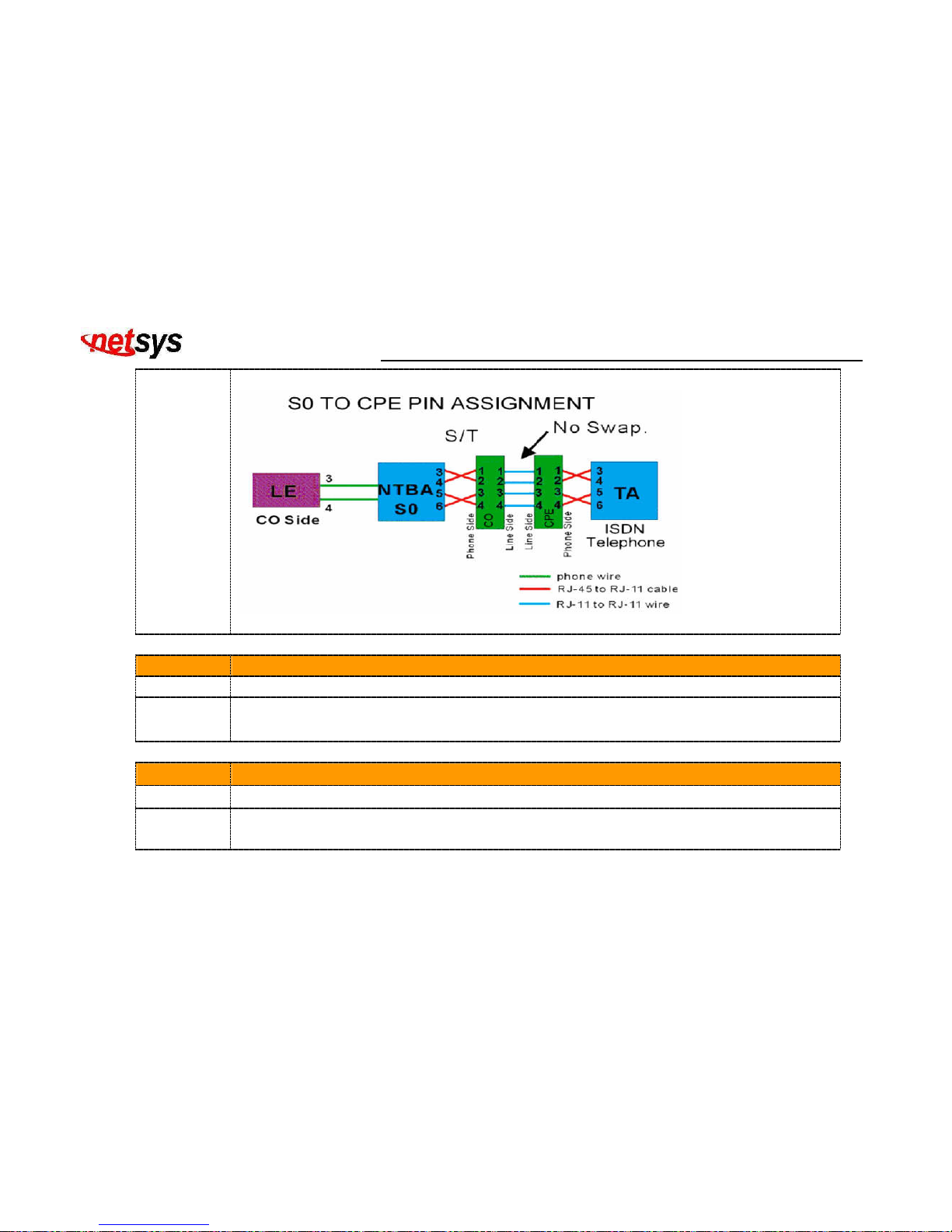

You must connect according to the following chart if you want to connect CO and CPE with NTBA.
6. Symptom:
VDSL line is at link margin.
Cause:
When the VDSL line is linking between 2 speeds at 5/15Mbps or 15/25Mbps.
Solution:
Fixed the speed to 5Mbps when it is linking between 5/15Mbps or fixed the speed to 15Mbps when it
is linking between 15/25Mbps.
7. Symptom:
VDSL flickers at 25Mbps when multicast streams.
Cause:
Power level is too high and noise immunity is weak.
Solution:
Fixed the speed to 15Mbps, since 15Mbps is ideal for multicast streaming while 25Mbps is for
transferring large data file at high speed.
Page 28
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
27
System Diagnostics
Power and Cooling Problems
If the POWER indicator does not turn on when the power cord is plugged in, you may have a problem with the power
outlet, power cord, or internal power supply as explained in the previous section. However, if the unit power is off after
running for a while, check for loose power connections, power losses or surges at the power outlet, and verify that the
fan on back of the unit is unobstructed and running prior to shutdown. If you still cannot isolate the problem, then the
internal power supply may be defective. In this case, please contact your local dealer.
Installation
Verify that all system components have been properly installed. If one or more components appear to be
malfunctioning (e.g. the power cord or network cabling), test them in an alternate environment where you are sure that
all the other components are functioning properly.
Transmission Mode
The default method of selecting the transmission mode for RJ-45 ports is 10/100 Mbps ETHERNET, for RJ-11 port are
5/15/25Mbps VDSL. Therefore, if the Link signal is disrupted (e.g. by unplugging the network cable and plugging it
back in again, or by resetting the power), the port will try to reestablish communications with the attached device via
auto-negotiation. If auto-negotiation fails, then communications are set to half duplex by default. Based on this type of
industry-standard connection policy, if you are using a full-duplex device that does not support auto-negotiation,
communications can be easily lost (i.e. reset to the wrong mode) whenever the attached device is reset or experiences
a power fluctuation. The best way to resolve this problem is to upgrade these devices to a version that support
Ethernet and VDSL.
Page 29
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
28
Physical Configuration
If problems occur after altering the network configuration, restore the original connections, and try to track the problem
down by implementing the new changes, one step at a time. Ensure that cable distances and other physical aspects of
the installation do not exceed recommendations.
System Integrity
As a last resort verify the switch integrity with a power-on reset. Turn the power to the switch off and then on several
times. If the problem still persists and you have completed all the preceding diagnoses, then contact your dealer.
Page 30
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
29
Appendix E: Compliance and Safety Information
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a computing device, pursuant to Part 15 of FCC
rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. The equipment and the receiver should be connected to outlets on separate circuits.
4. Consult the dealer or an experienced radio/television technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
If this telephone equipment causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will
notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe
it is necessary.
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the
Page 31
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
30
proper functioning of your equipment. If they do, you will be notified in advance in order for you to make necessary
modifications to maintain uninterrupted service.
This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to
state tariffs.
Important Safety Instructions
Caution: The direct plug-in wall transformer serves as the main product for disconnecting. The socket outlet shall be
installed near the product and be readily accessible.
Caution: Use only the power supply included with this product. In the event the power supply is lost or damaged:In the
United States, use only with CSA certified or UL listed Class 2 power supply, rated 5-12Vdc 1A or above.
IN Europe, use only with CE certified power supply, rated 5-12Vdc 1A or above.
Do not use this equipment near water, for example in a wet basement.
Avoid using a telephone during an electrical storm. There may be a remote risk of electrical shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leaking area.
If you experience trouble with this unit, please contact customer service of your dealer immediately.
DO NOT DISASSEMBLE THIS EQUIPMENT. It does not contain any user serviceable components.
Page 32
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
31
FCC Warning
This equipment has been tested to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment can
generate, use, and radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at owner’s
expense.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference in which case
the user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Page 33
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
32
Warranty
The original owner that the product delivered in this package will be free from defects in material and workmanship for one
year parts after purchase.
There will be a minimal charge to replace consumable components, such as fuses, power transformers, and mechanical
cooling devices. The warranty will not apply to any products which have been subjected to any misuse, neglect or
accidental damage, or which contain defects which are in any way attributable to improper installation or to alteration or
repairs made or performed by any person not under control of the original owner.
The above warranty is in lieu of any other warranty, whether express, implied, or statutory, including but not limited to any
warranty of merchantability, fitness for a particular purpose or any warranty arising out of any proposal, specification or
sample. We shall not be liable for incidental or consequential damages. We neither assume nor authorize any person to
assume for it any other liability.
WARNING:
1.DO NOT TEAR OFF OR REMOVE THE WARRANTY STICKER AS SHOWN, OR THE WARRANTY IS VOID.
2. WARRANTY VOID IF USE COMMERCIAL-GRADE POWER SUPPLY IS USED AT INDUSTRIAL ENVIRONMENTS.
Page 34
NVF-200LS/R ver.S 4 Band VDSL CO/CPE Bridge USER’S MANUAL Ver. B.4
33
Chinese SJ/T 11364-2006
有 毒 有 害 物 质 或 元 素
部件名称
铅(Pb) 汞(Hg) 镉(Cd) 六价铬[Cr(VI)] 多溴联苯(PBB) 多溴二苯醚(PBDE)
结构壳体 ○ ○ ○ ○ ○ ○
电路组 ○ ○ ○ ○ ○ ○
电源供应器 ○ ○ ○ ○ ○ ○
线材 ○ ○ ○ ○ ○ ○
包装及配件 ○ ○ ○ ○ ○ ○
○：表示该有毒物质在该部件所有均质材料中的含量均在 SJ/T 11364/2006 标准规定的限量要求以下。
╳：表示该有毒物质至少在该部件的某依均质材料中的含量超出 SJ/T 11364-2006 标准规定的限量要求。
上述规范仅适用於中国法律
Loading...
