NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Trademarks

NETSYS is a trademark of National Enhance Technology Corp. Other brand and product names are registered trademarks or trademarks of their respective holders.

Legal Disclaimer The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the device, National Enhance Technology Corp. hereby disclaims any and all warranties and liabilities of any kind, including without limitation warranties of non-infringement of intellectual property rights of any third party.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to make changes to the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Maximum signal rate derived from IEEE Standard specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Netsys does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. Make sure you follow in line with the environmental conditions to use this product.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Foreword: VDSL2 Router solution

Attention:

Be sure to read this manual carefully before using this product. Especially Legal Disclaimer, Statement of Conditions and Safety Warnings.

Netsys' NV-720S is a managed wireless VDSL2 router that leverages the extraordinary bandwidth promise of VDSL2 technology and compliant with the IEEE 802.11b/g/n standard. NV-720S also supports one-touch Wi-Fi Protected Setup (WPS) with the push button that only takes a few seconds to setup a secured wireless network.

In recent years, the market for wireless communications has enjoyed tremendous growth. Wireless technology now reaches or is capable of reaching virtually every location on the surface of the earth. Hundreds of millions of people exchange information every day via wireless communication products. Anyone can bring a built-in WLAN client smart phone, tablet or notebook into a meeting room for a conference without laying a clot of LAN cable or drilling holes everywhere. Wireless LAN enables high mobility so WLAN users can simultaneously access all LAN facilities just like on a wired LAN as well as Internet access. The NV-720S is equipped with a wireless LAN interface compliant with the standard IEEE 802.11b/g/n protocol. To boost its performance even further, You can finally smoothly enjoy a wide range of apps on your smart phone, tablet or smart TV.

(*). The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

Caution:

The NV-720S is for indoor applications only. This product does not have waterproof protection, please do not use in outdoor applications.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Safety Warnings

For your safety, be sure to read and follow all warning notices and instructions before using the device.

 DO NOT open the device or unit. Opening or removing the cover may expose you to dangerous high voltage points or other

risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information.

 Use ONLY the dedicated power supply for your device. Connect the power to the right supply voltage (110V AC used for

North America and 230V AC used for Europe. NV-720S supports 12 VDC power input).

 Place connecting cables carefully so that no one will step on them or stumble over them. DO NOT allow anything to rest on

the power cord and do NOT locate the product where anyone can work on the power cord.

 DO NOT install nor use your device during a thunderstorm. There may be a remote risk of electric shock from lightning.  DO NOT expose your device to dampness, dust or corrosive liquids.  DO NOT use this product near water, for example, in a wet basement or near a swimming pool.  Connect ONLY suitable accessories to the device.  Make sure to connect the cables to the correct ports.  DO NOT obstruct the device ventilation slots, as insufficient air flow may harm your device.  DO NOT place items on the device.  DO NOT use the device for outdoor applications directly, and make sure all the connections are indoors or have waterproof

protection place.

 Be careful when unplugging the power, because it may produce sparks.  Keep the device and all its parts and accessories out of the reach of children.  Clean the device using a soft and dry cloth rather than liquid or atomizers. Power off the equipment before cleaning it.  This product is recyclable. Dispose of it properly.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

TABLE OF CONTENTS

COPYRIGHT.............................................................................................................................................................1

FOREWORD: VDSL2 ROUTER SOLUTION ...........................................................................................................2

SAFETY WARNINGS ...............................................................................................................................................3

CHAPTER 1. UNPACKING INFORMATION ............................................................................................................7

1.1 Check List ......................................................................................................................................................................................7

CHAPTER 2. INSTALLING THE ROUTER..............................................................................................................8

2.1 Hardware Installation......................................................................................................................................................................8

2.2 Pre-installation Requirements ........................................................................................................................................................8

2.3 General Rules ................................................................................................................................................................................9

2.4 Connecting the Router .................................................................................................................................................................10

2.5 Connecting the RJ-11 / RJ-45 Ports............................................................................................................................................. 11

2.6 VDSL2 Application........................................................................................................................................................................12

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

CHAPTER 3. HARDWARE DESCRIPTION...........................................................................................................16

3.1 Front Panel...................................................................................................................................................................................17

3.2 Front Indicators ............................................................................................................................................................................17

3.3 Rear Panel...................................................................................................................................................................................19

CHAPTER 4. CONFIGURING THE NV-720S VIA WEB BROWSER.....................................................................22

4.1 BASIC Setup...............................................................................................................................................................................23

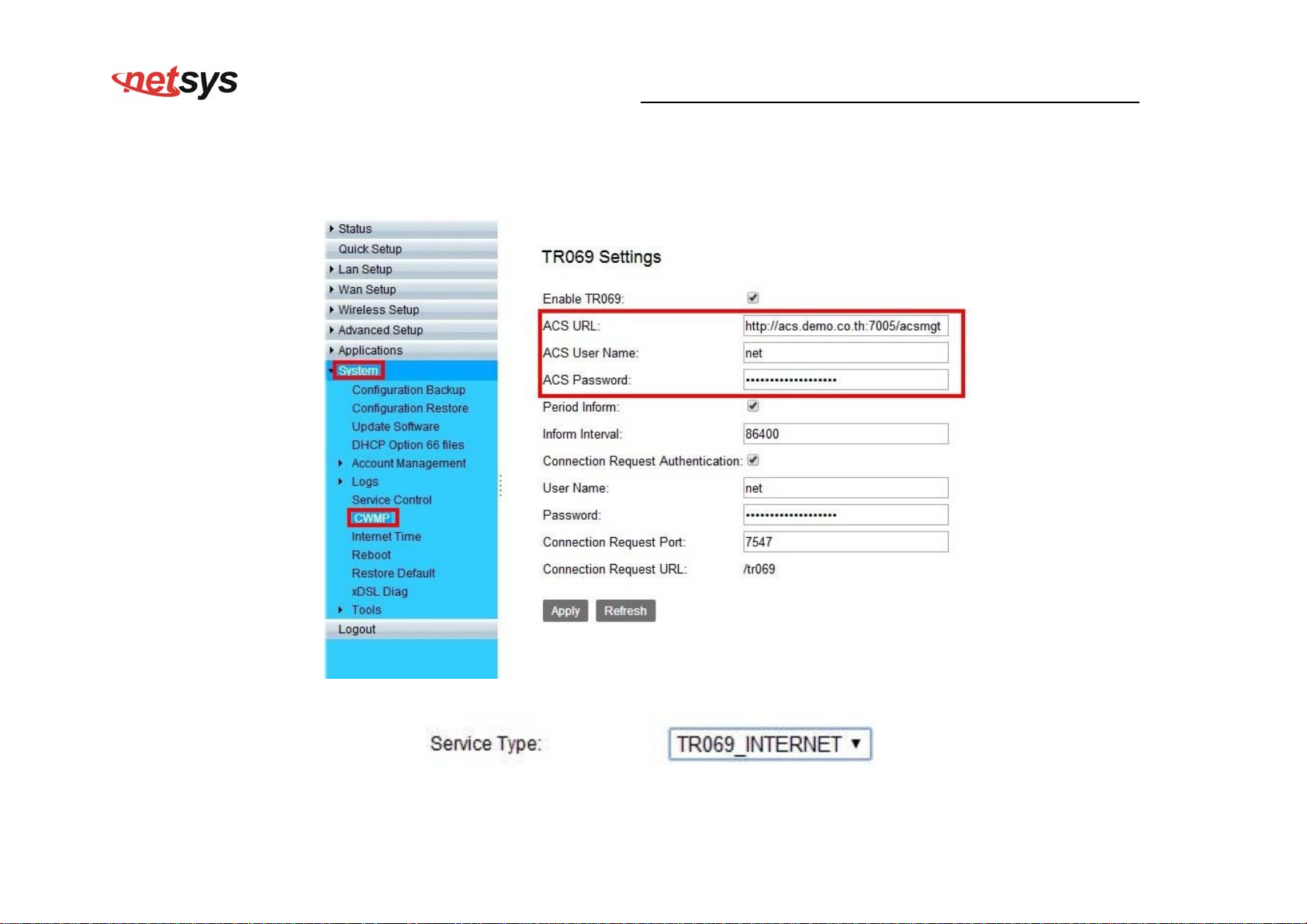

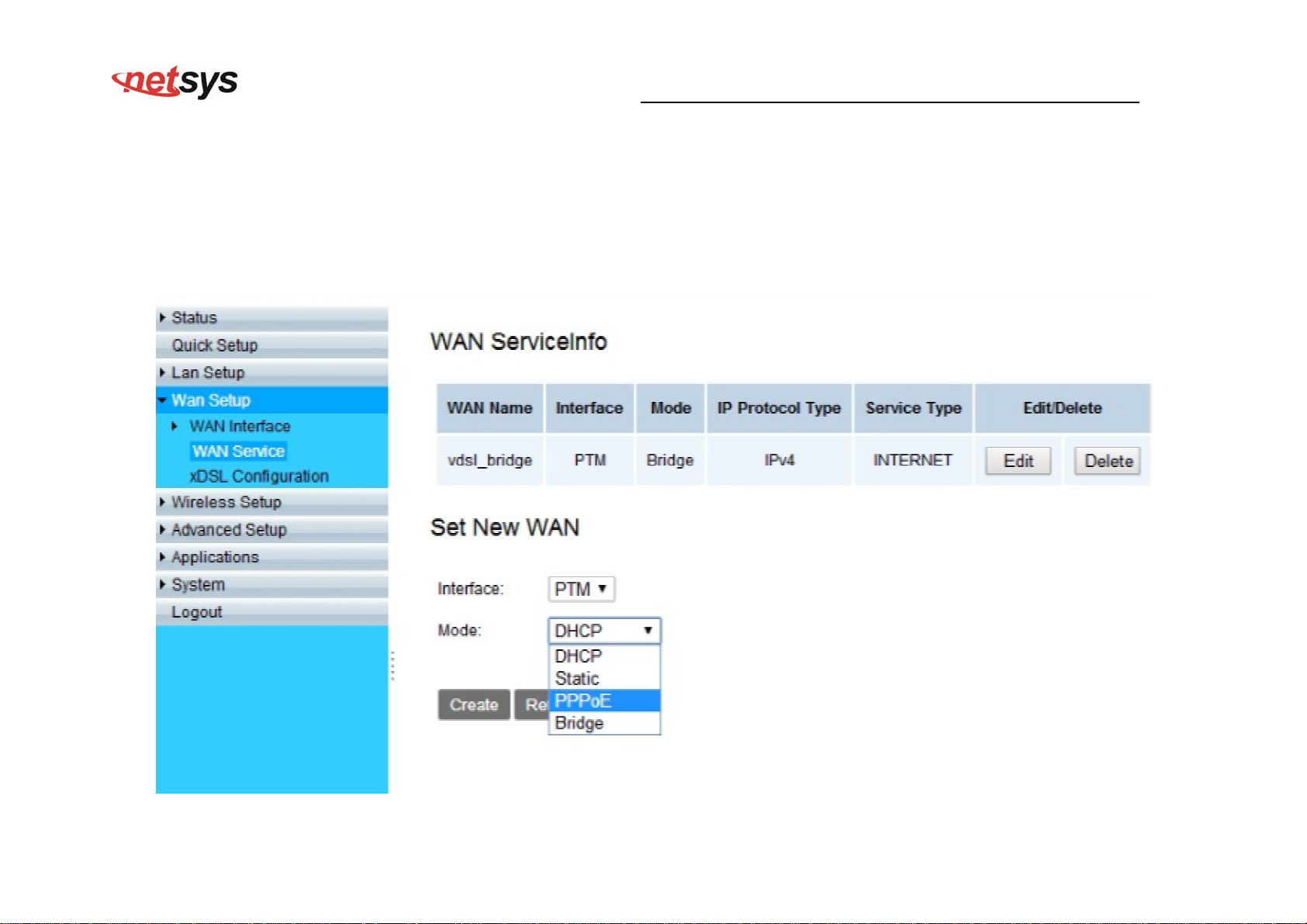

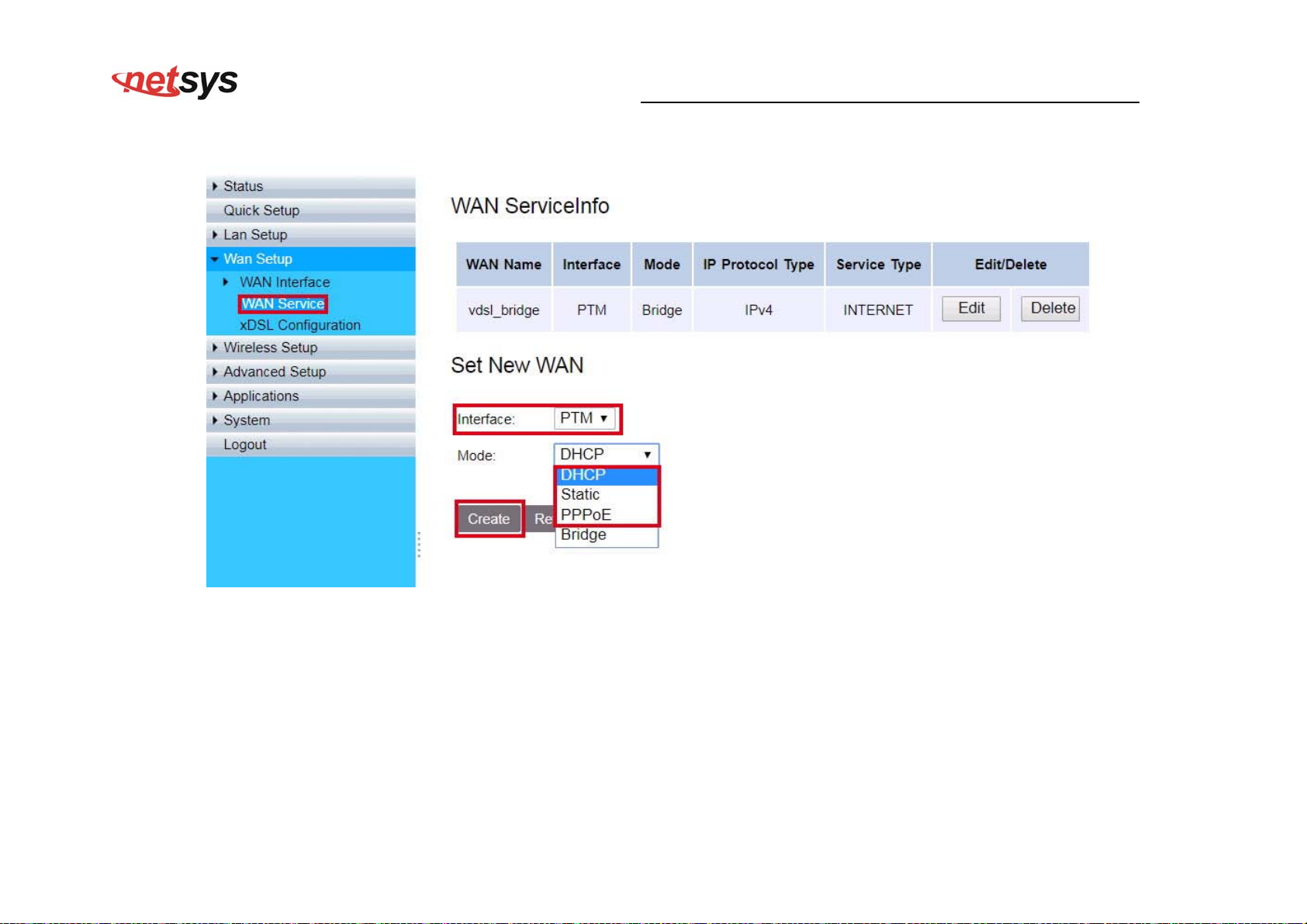

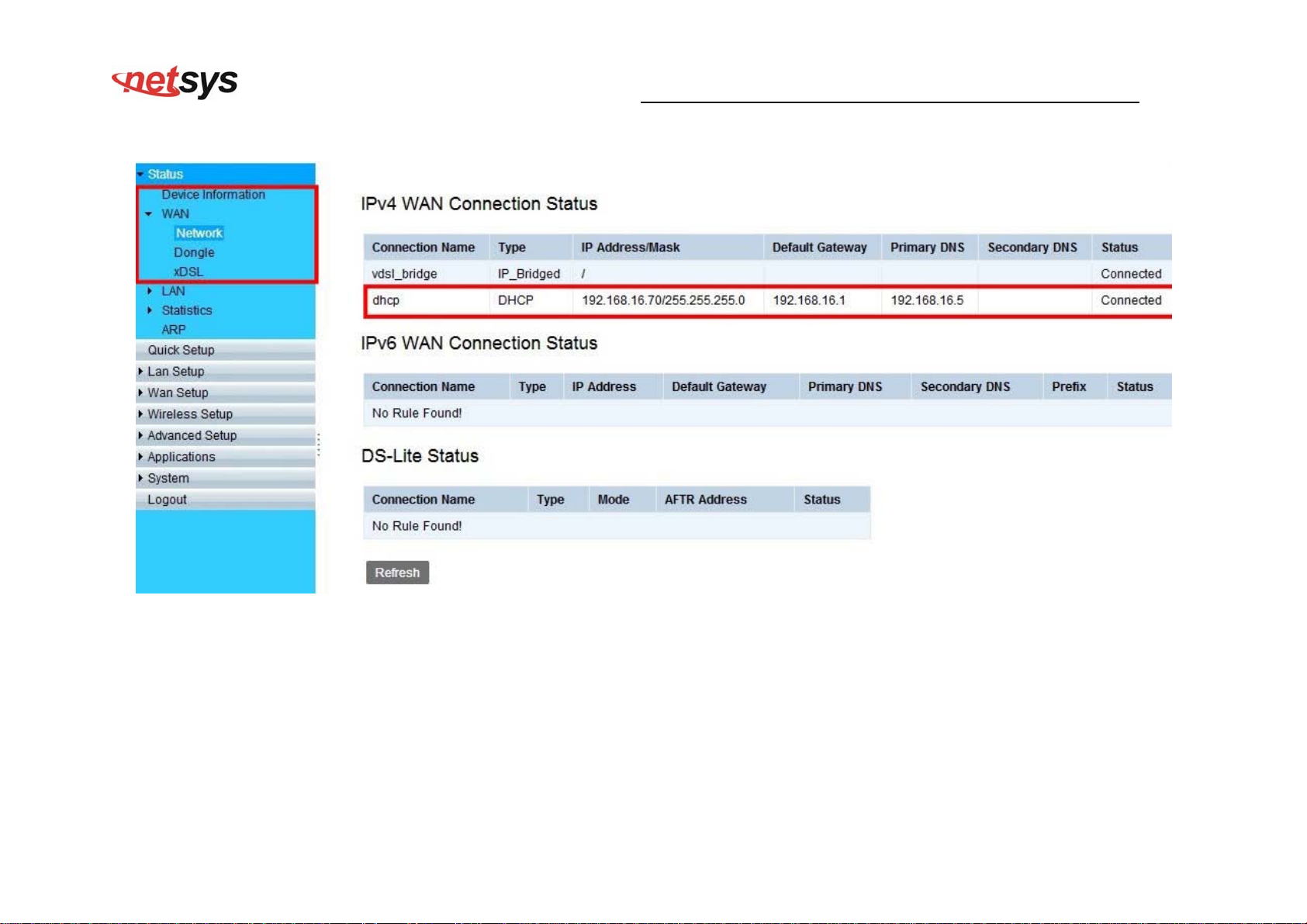

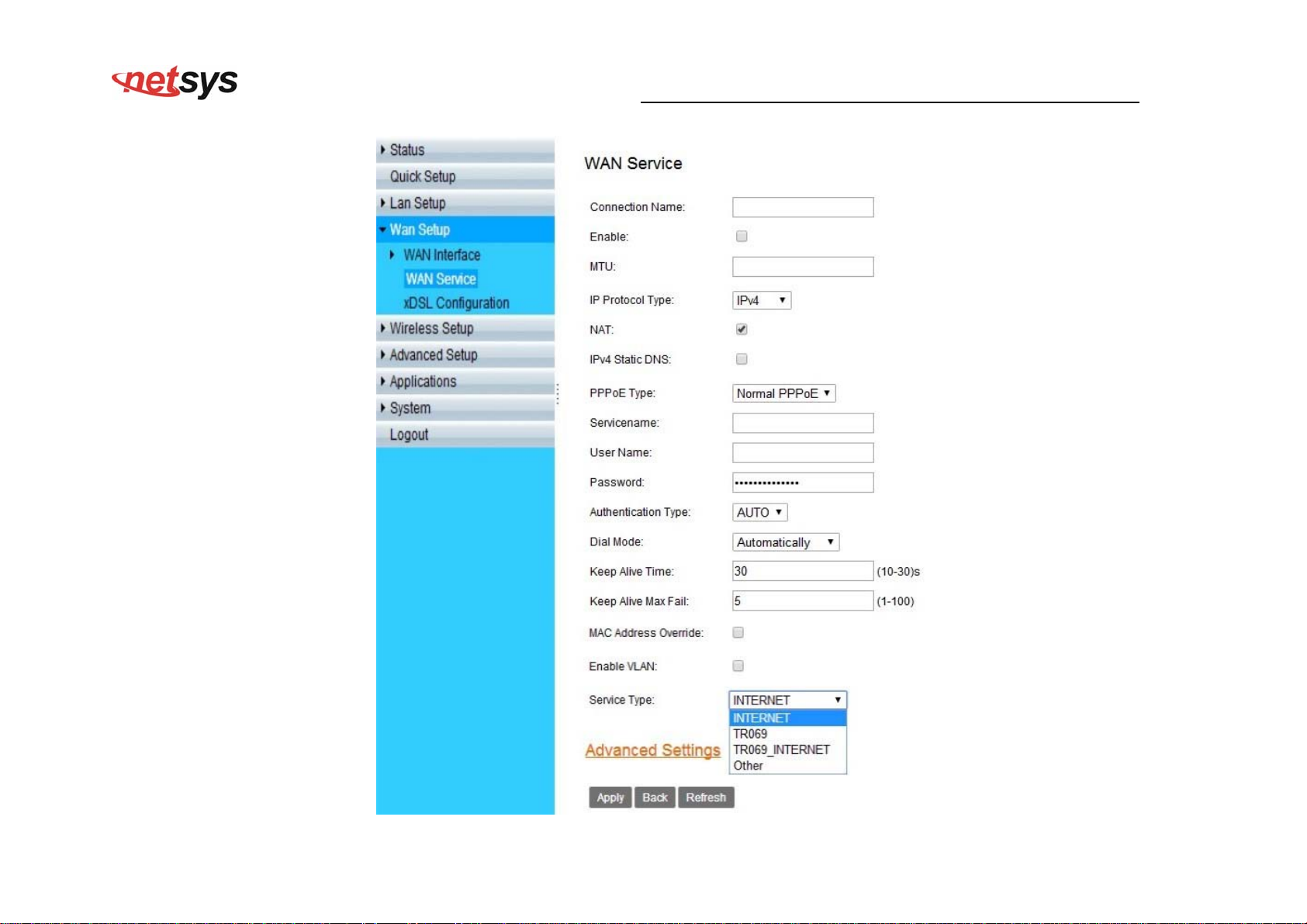

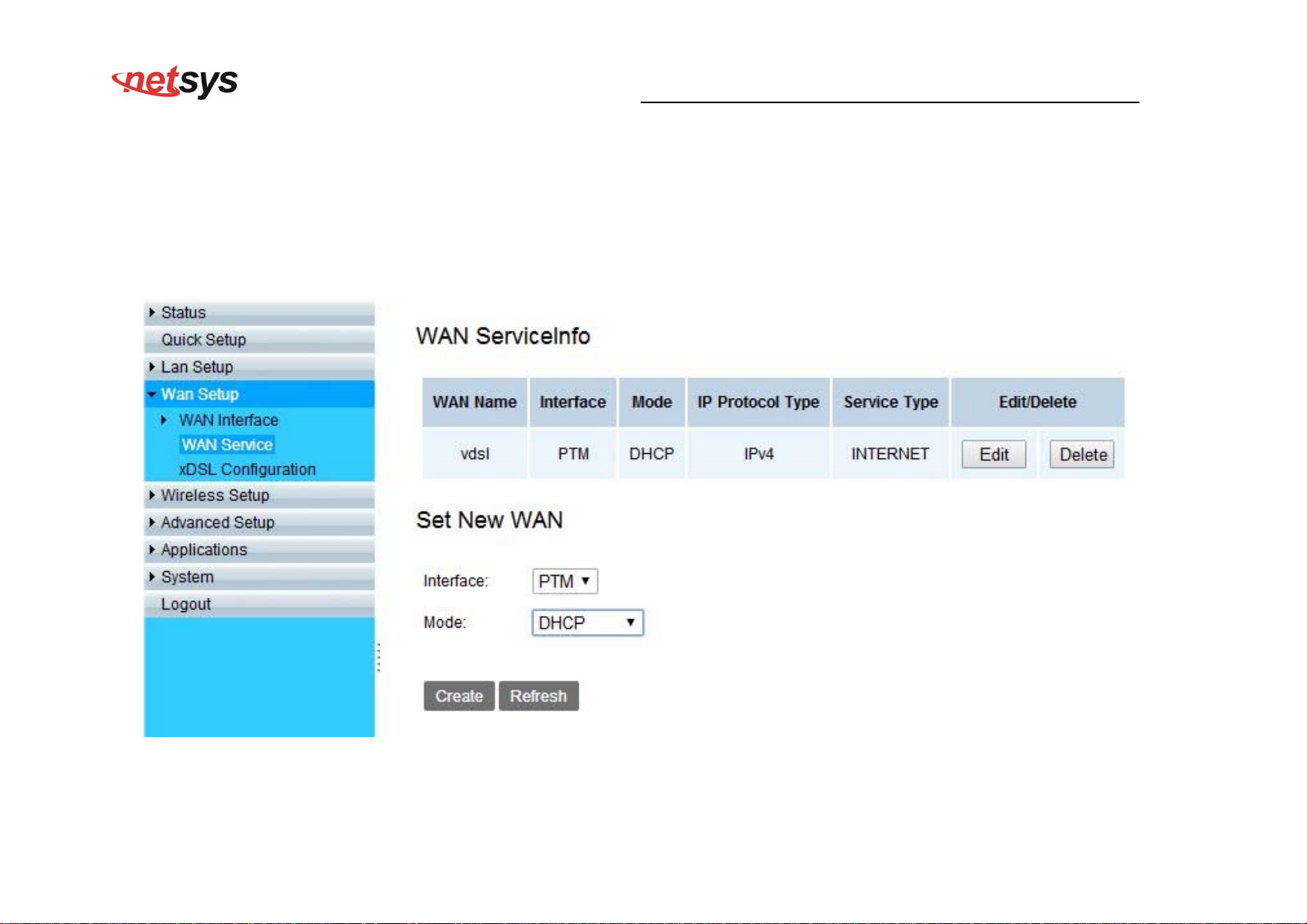

4.2 WAN/TR069 Setup......................................................................................................................................................................30

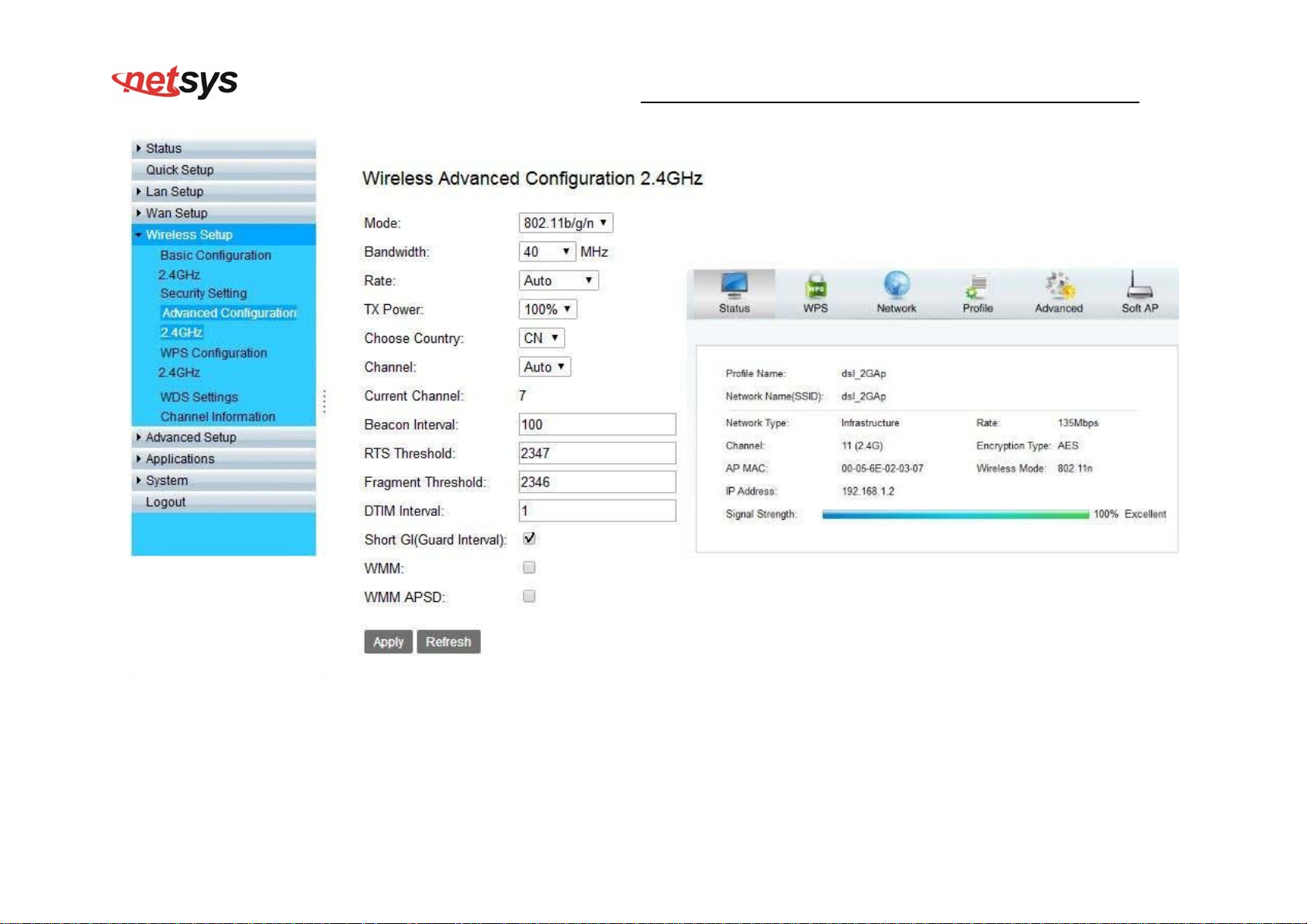

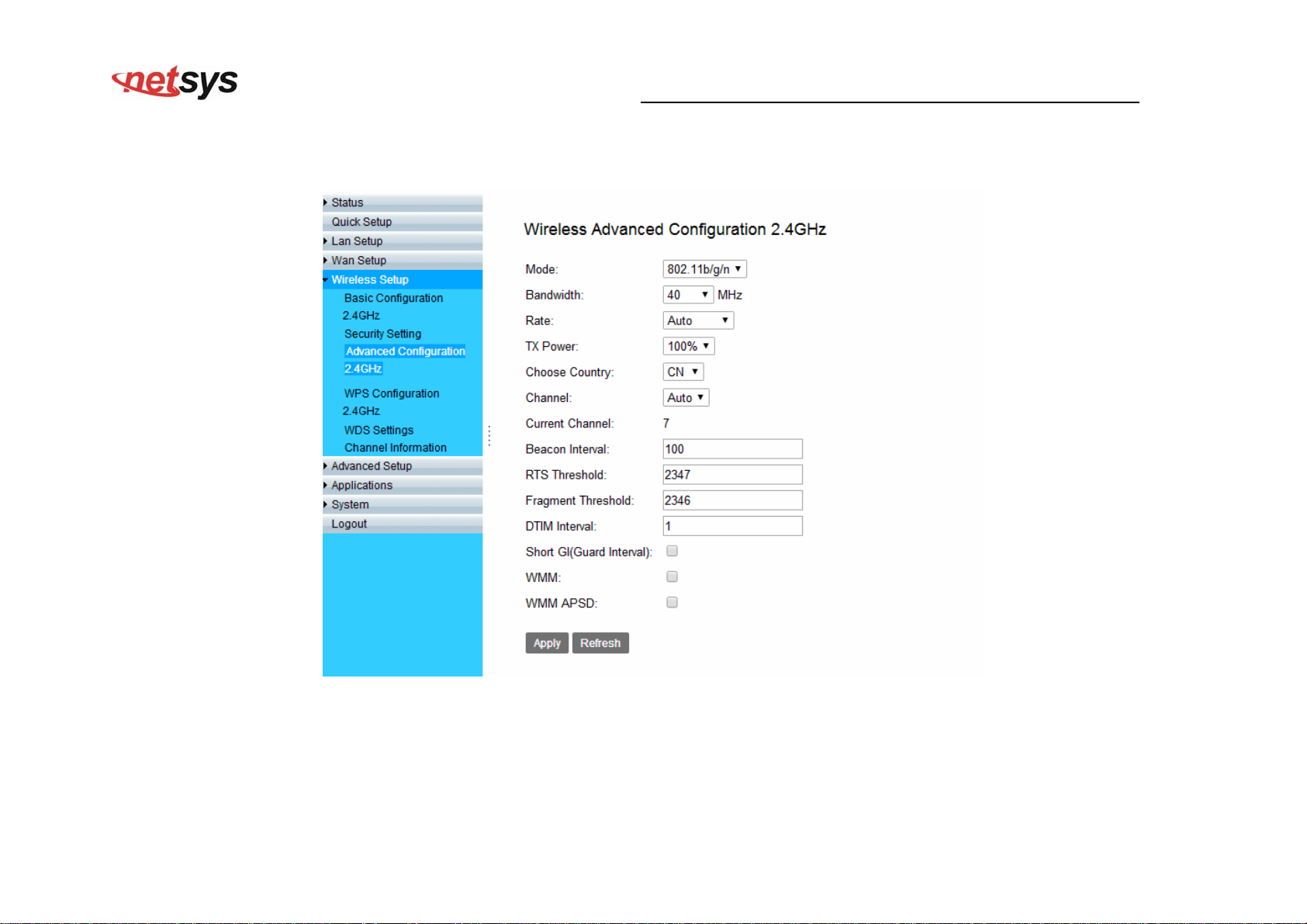

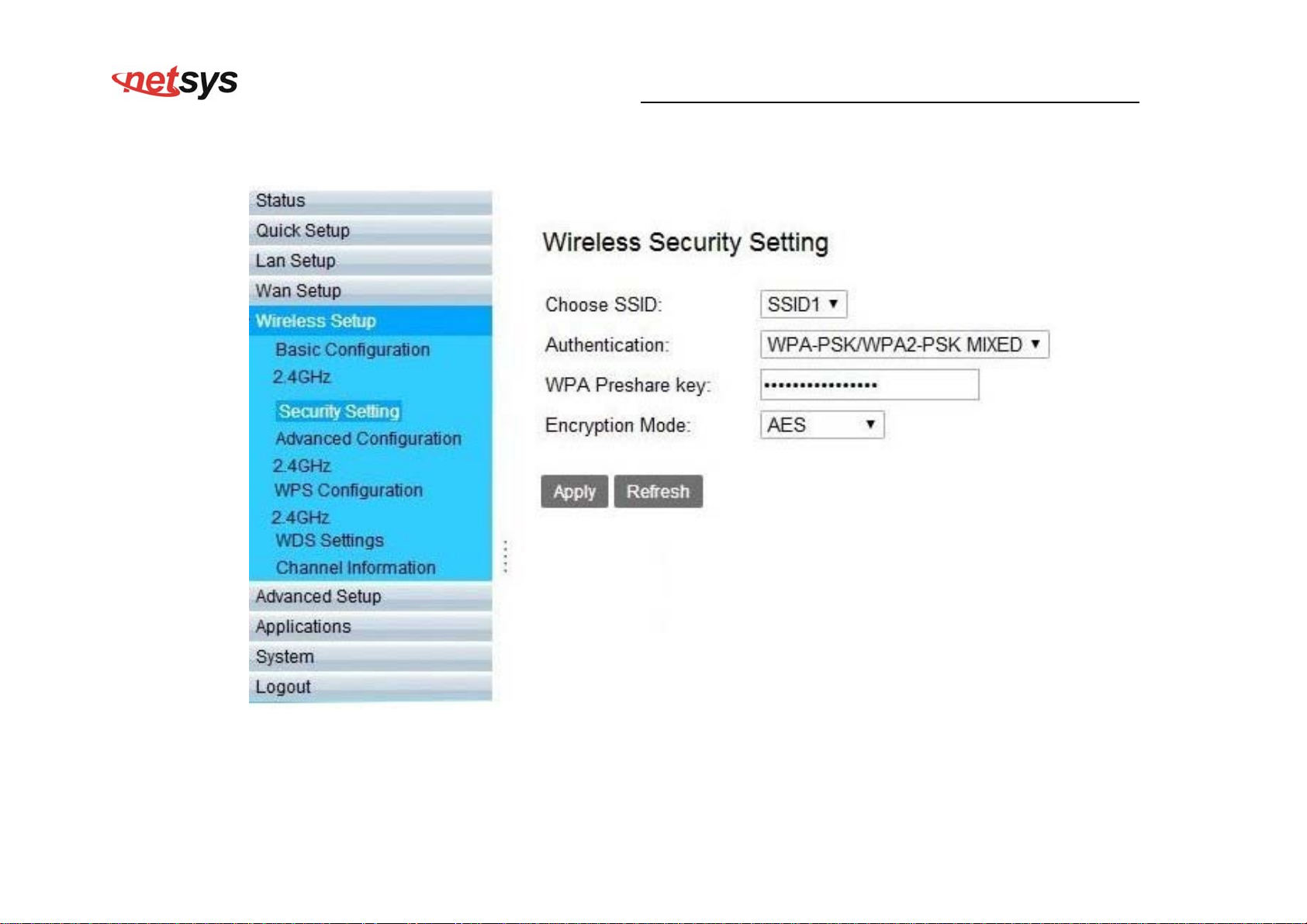

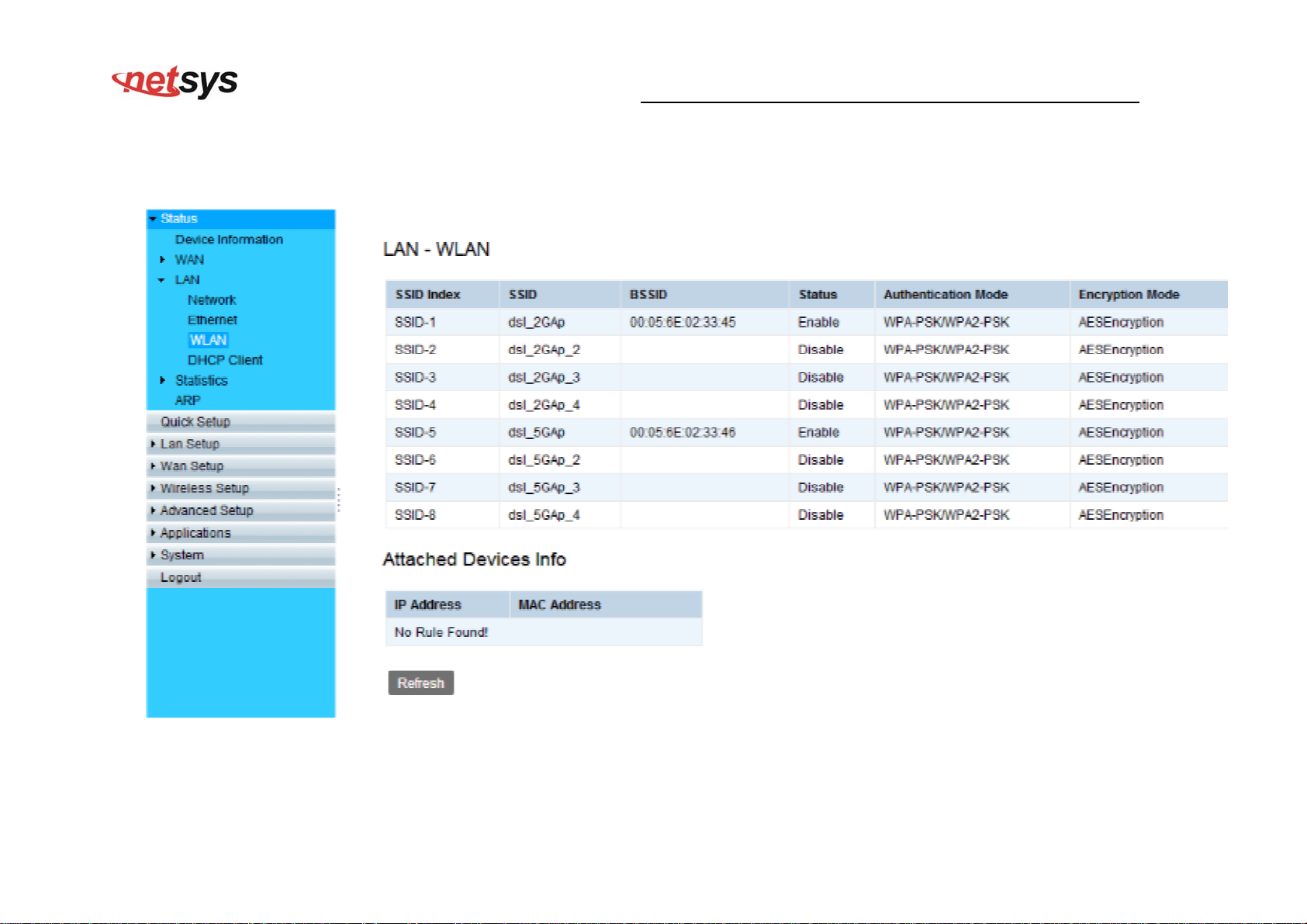

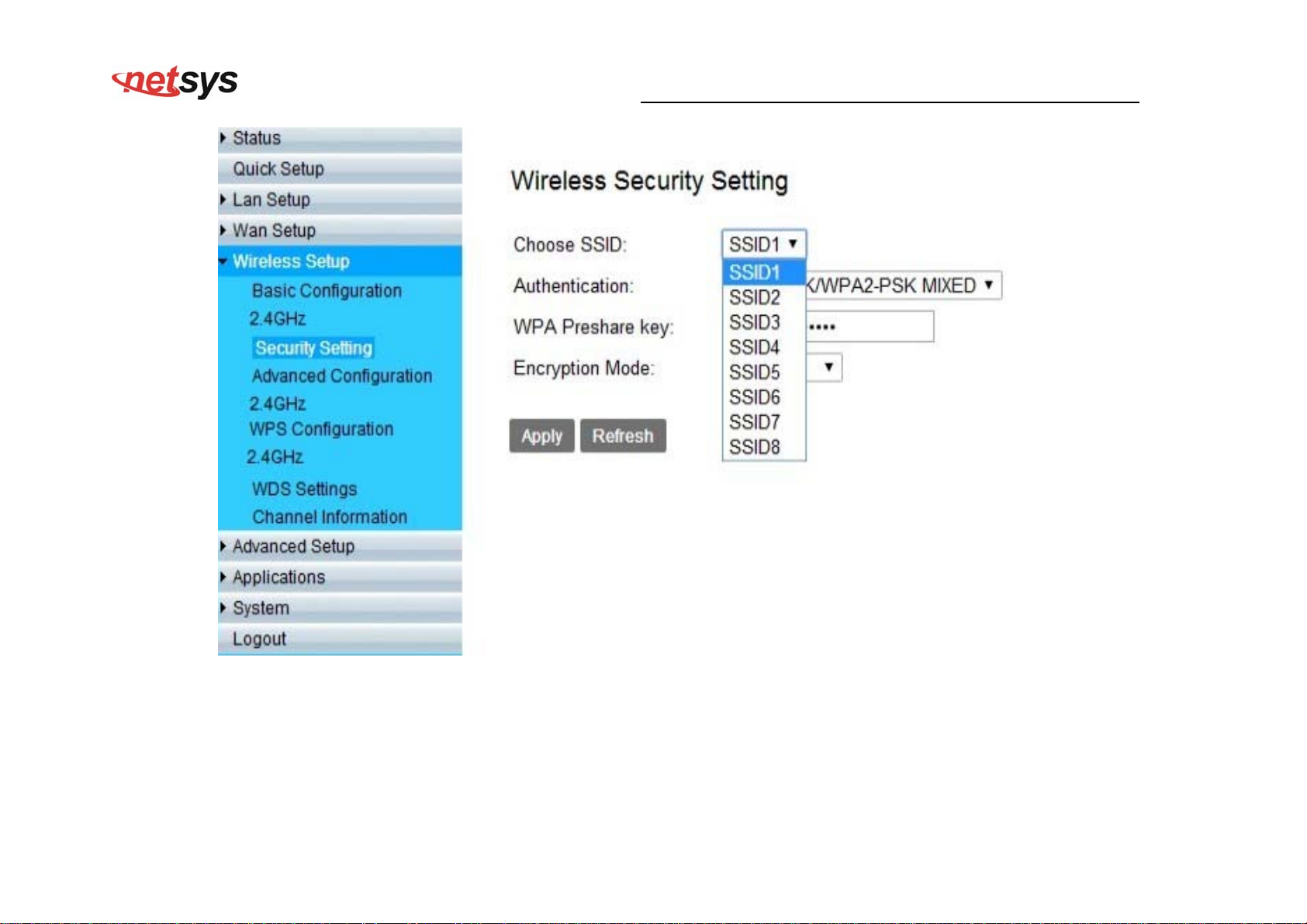

4.3 Wi-Fi Setup..................................................................................................................................................................................35

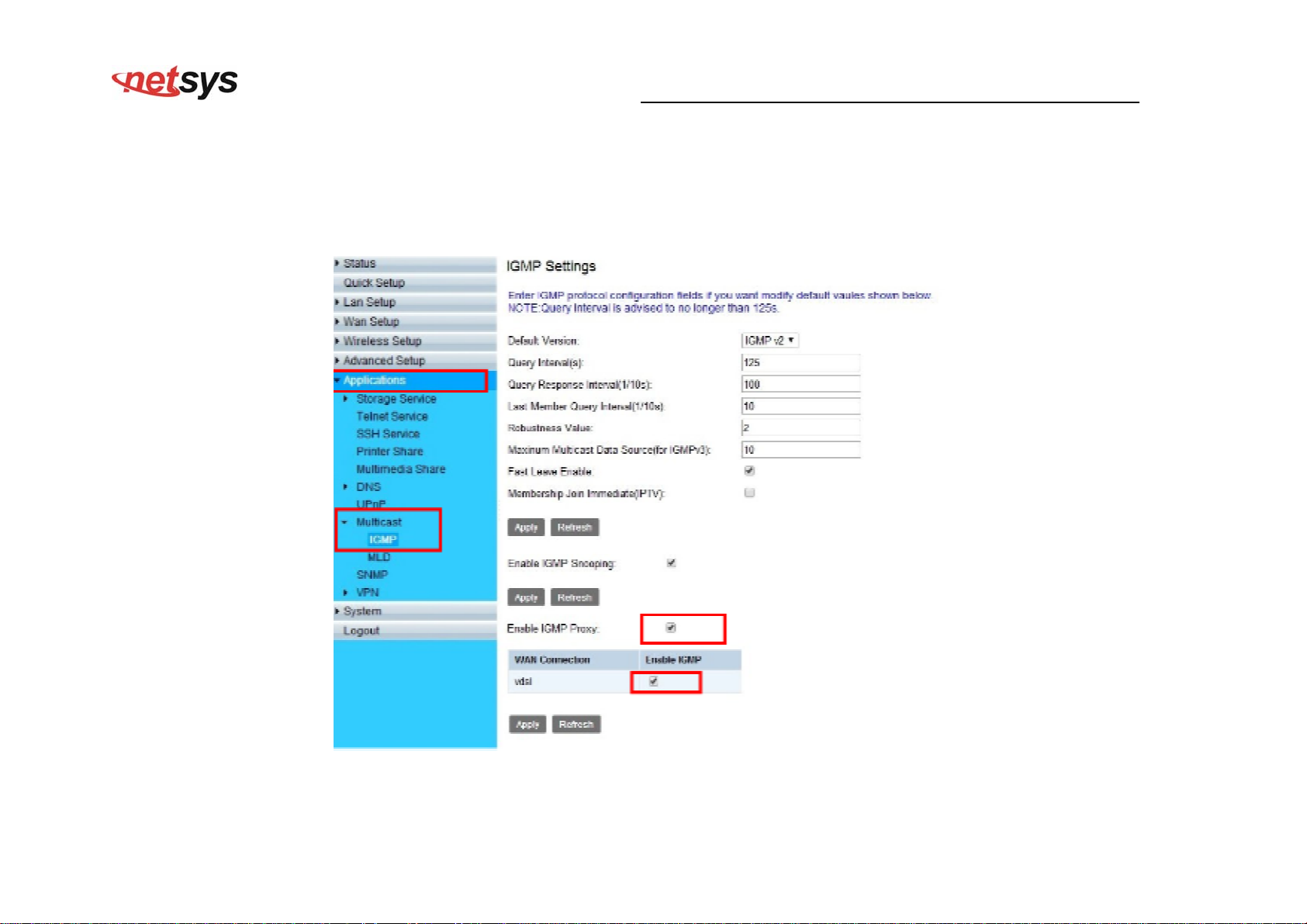

4.4 IGMP setup..................................................................................................................................................................................42

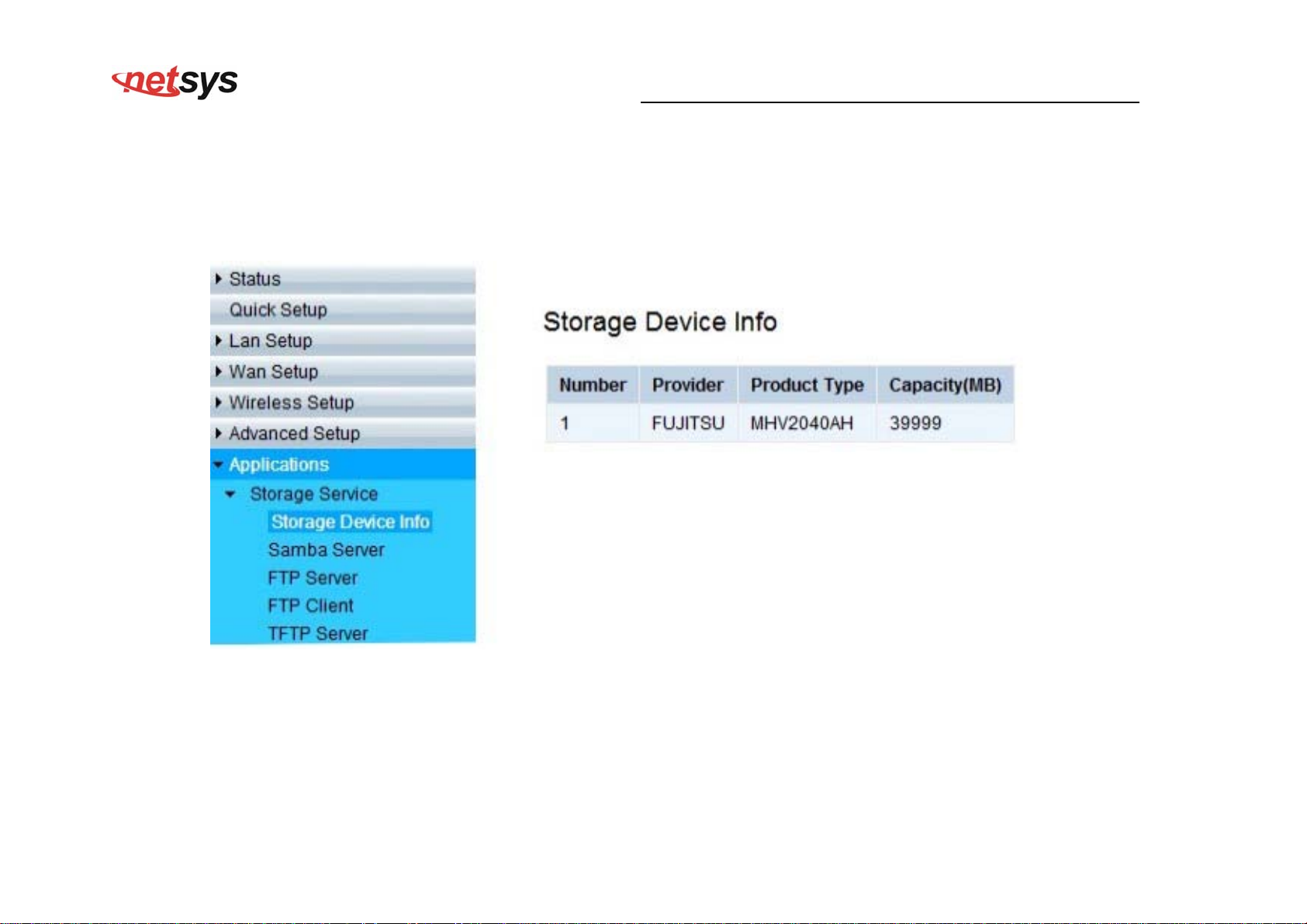

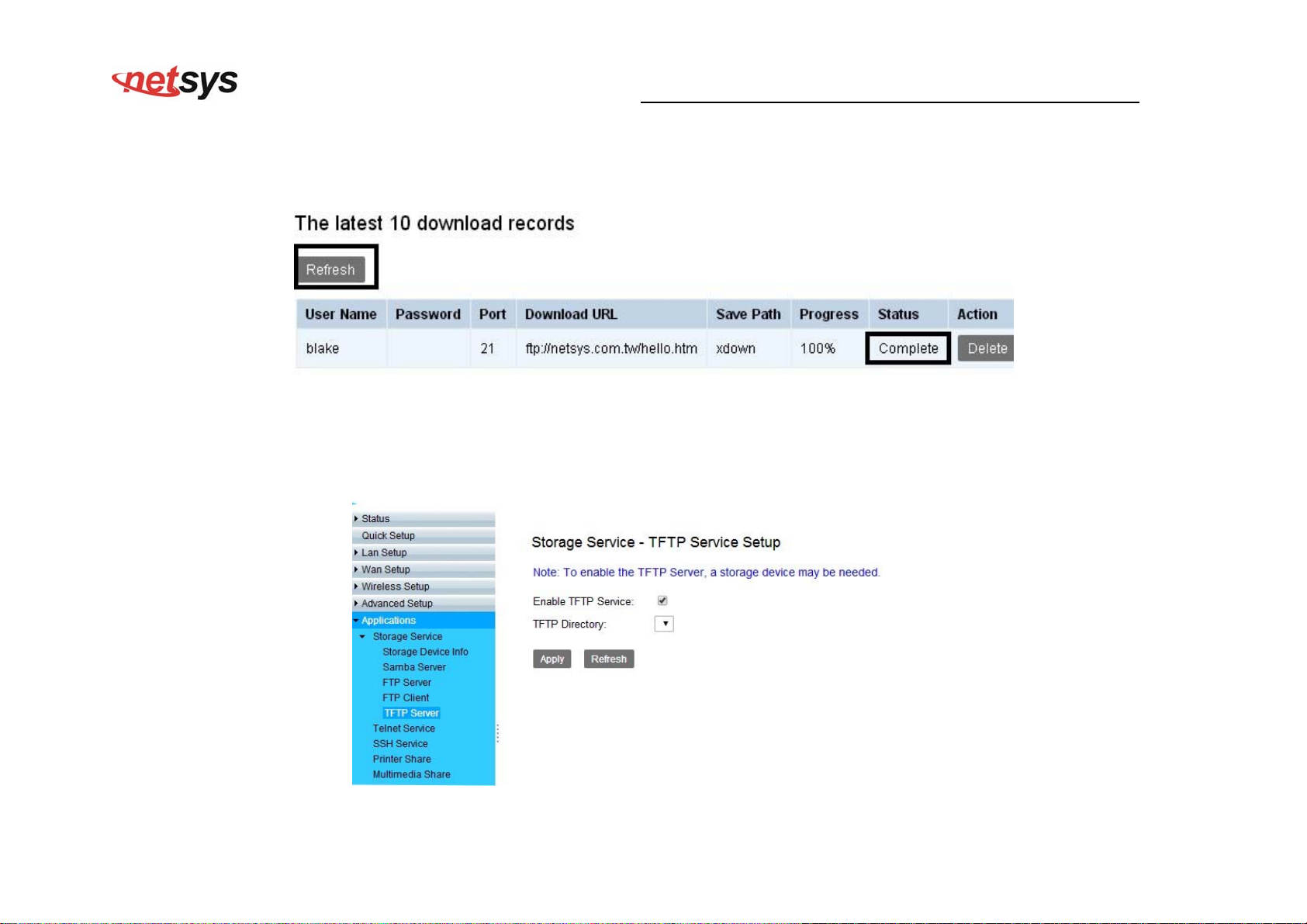

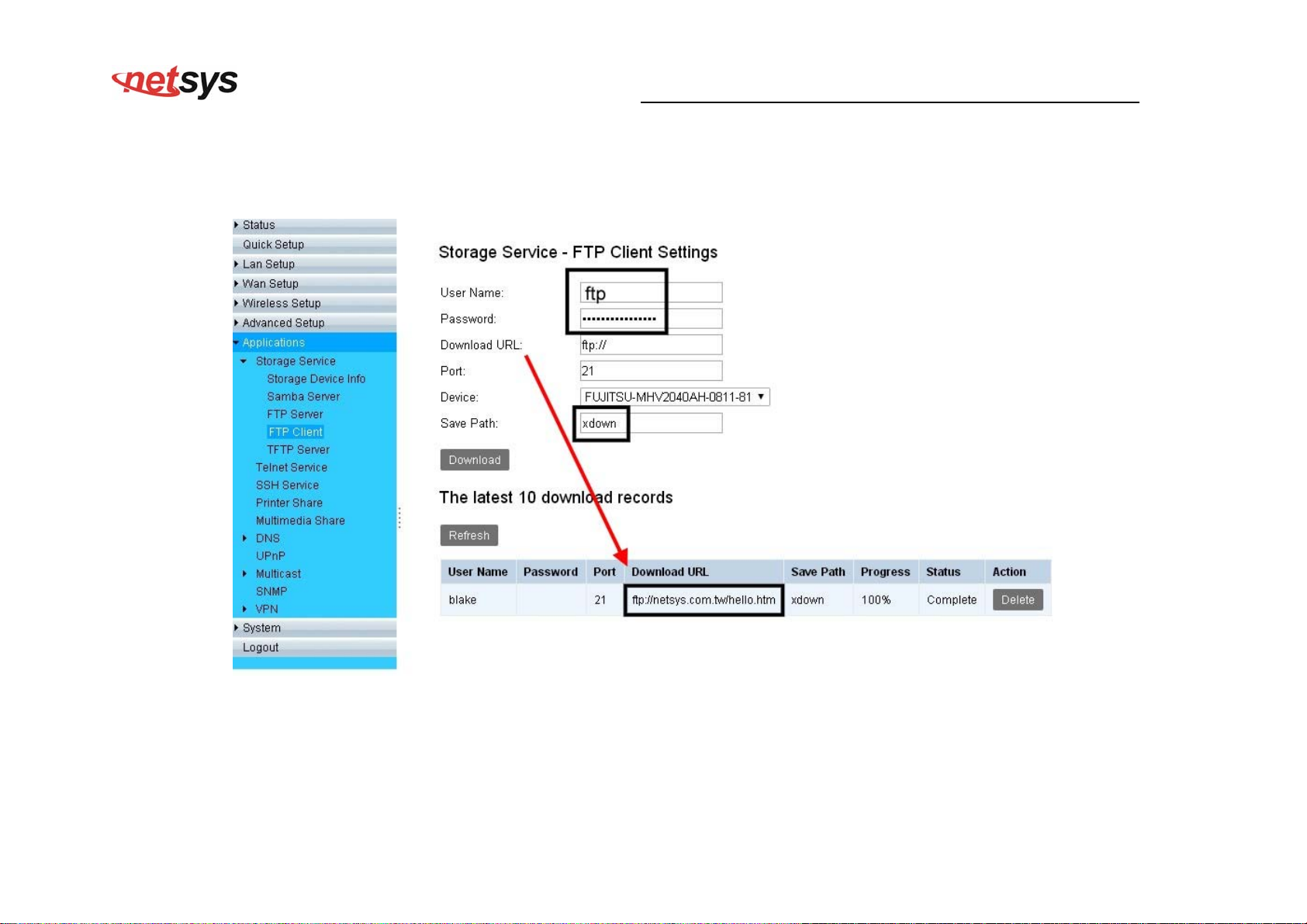

4.5 USB setup...................................................................................................................................................................................43

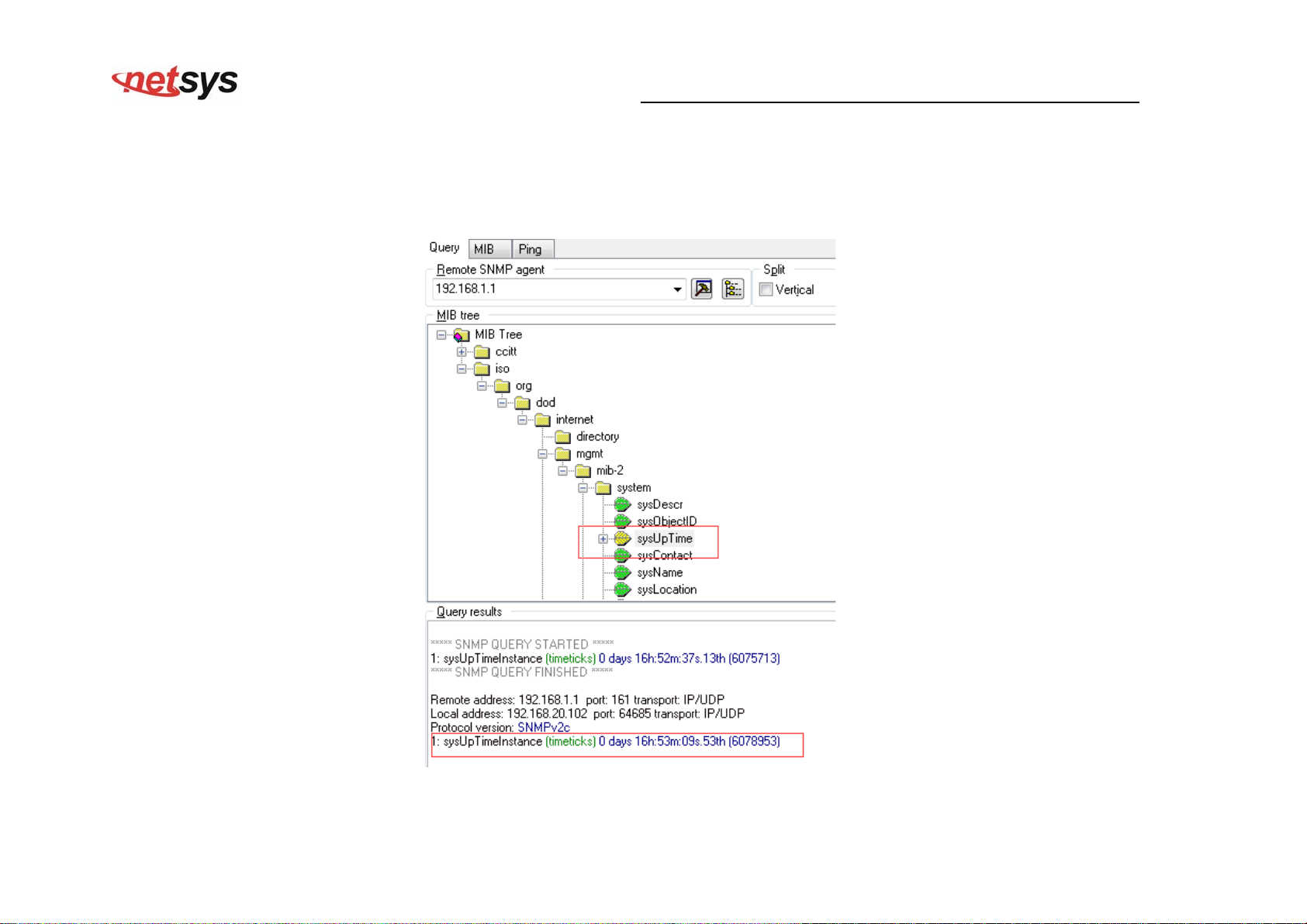

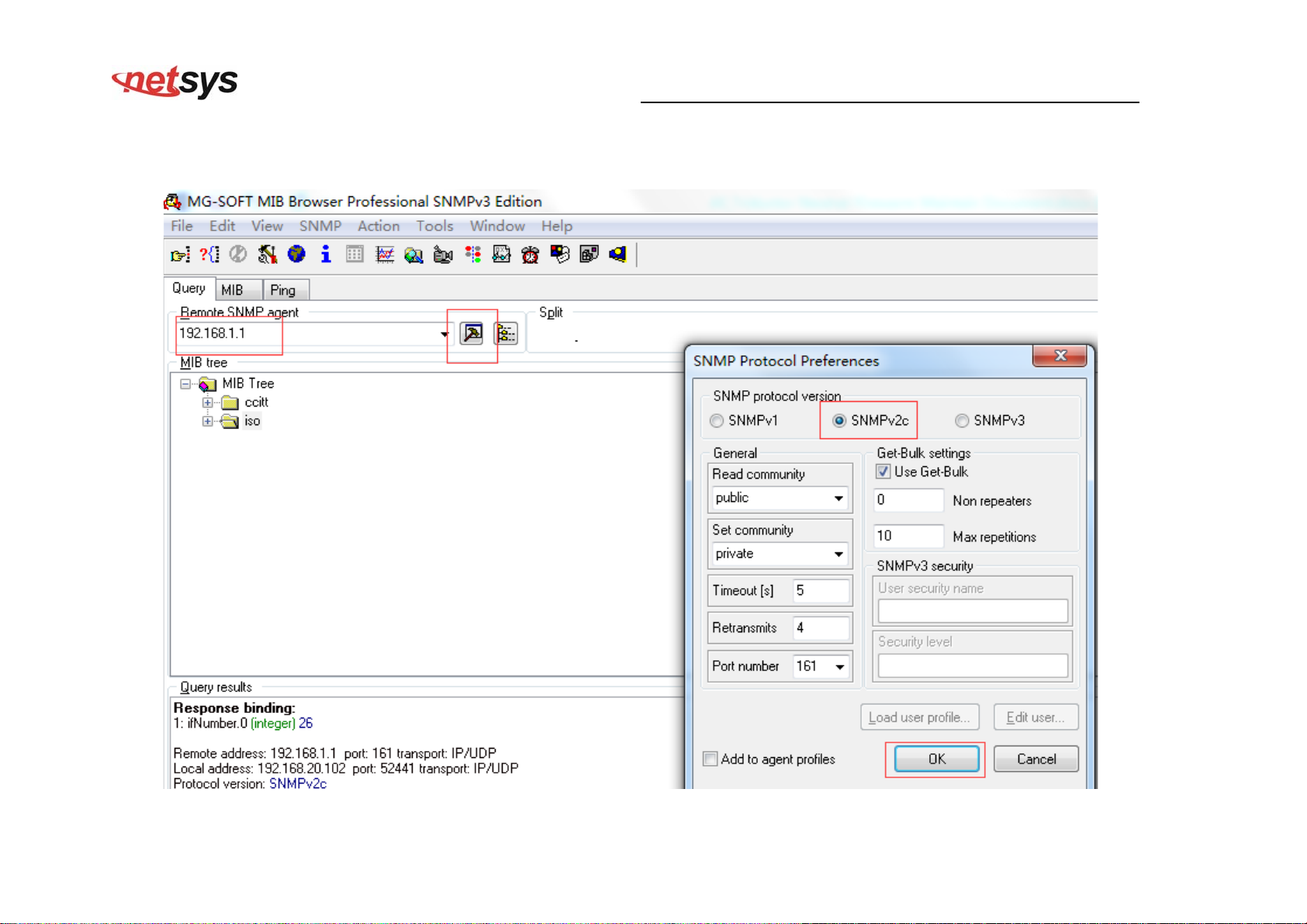

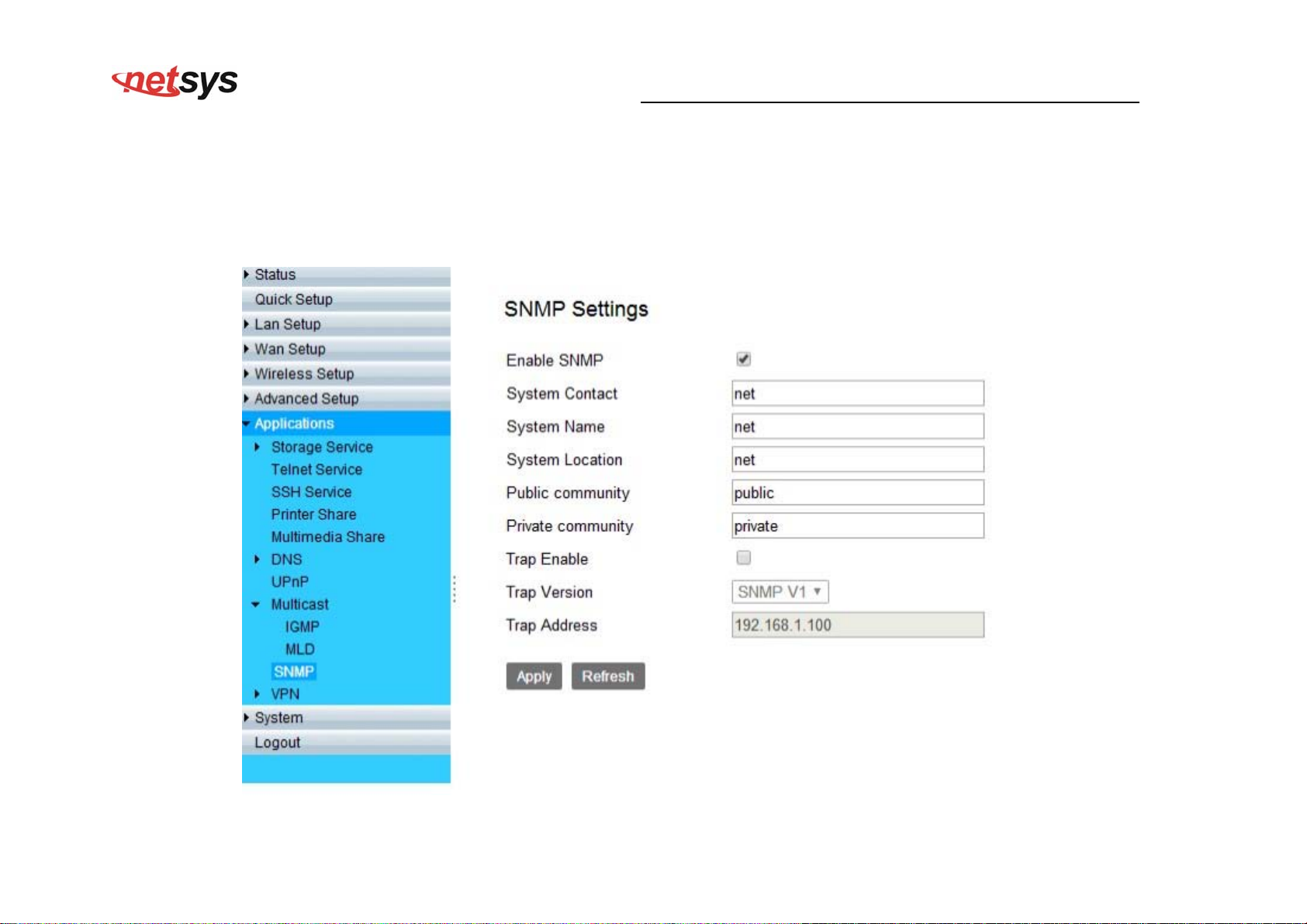

4.6 SNMP SETUP..............................................................................................................................................................................47

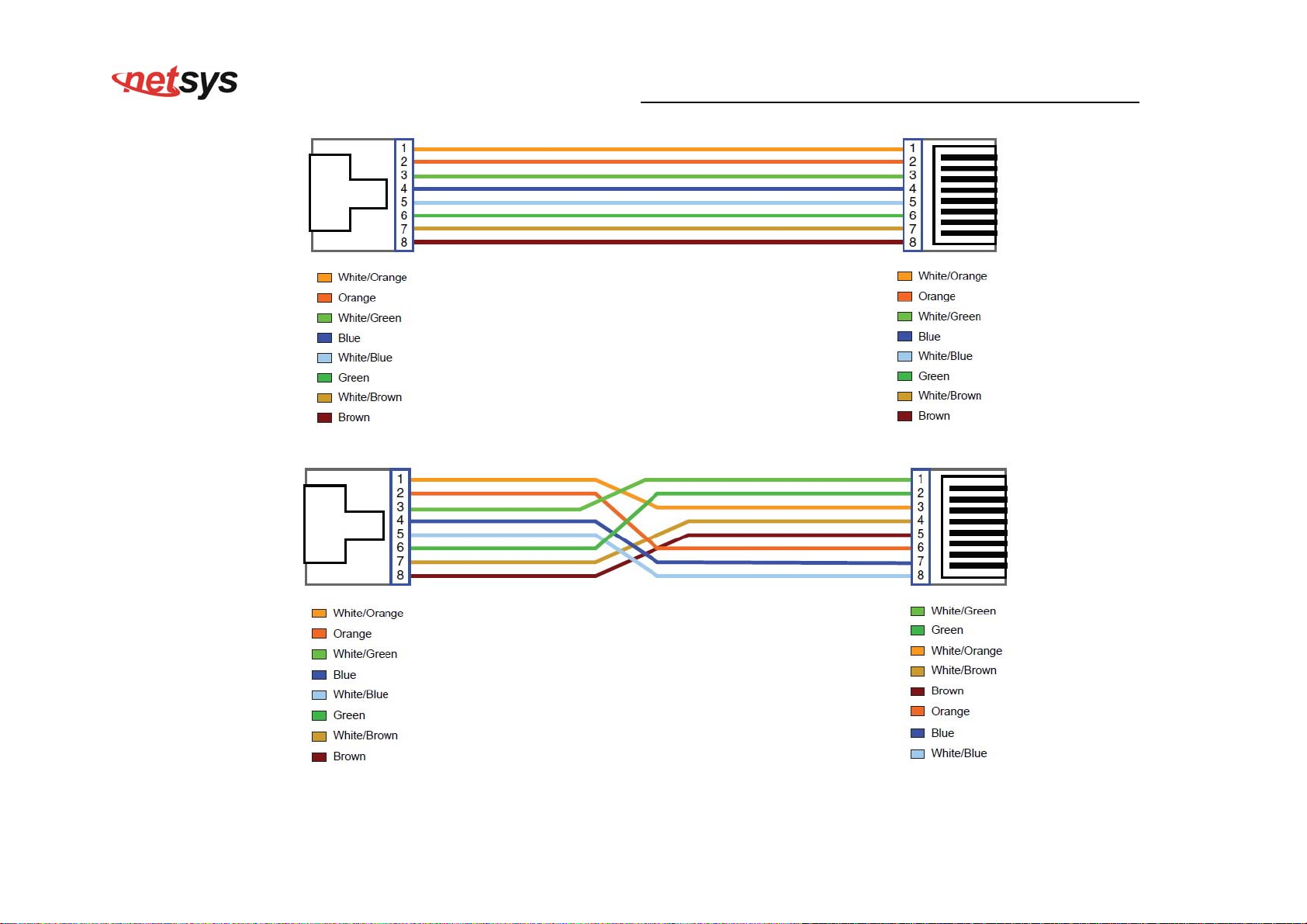

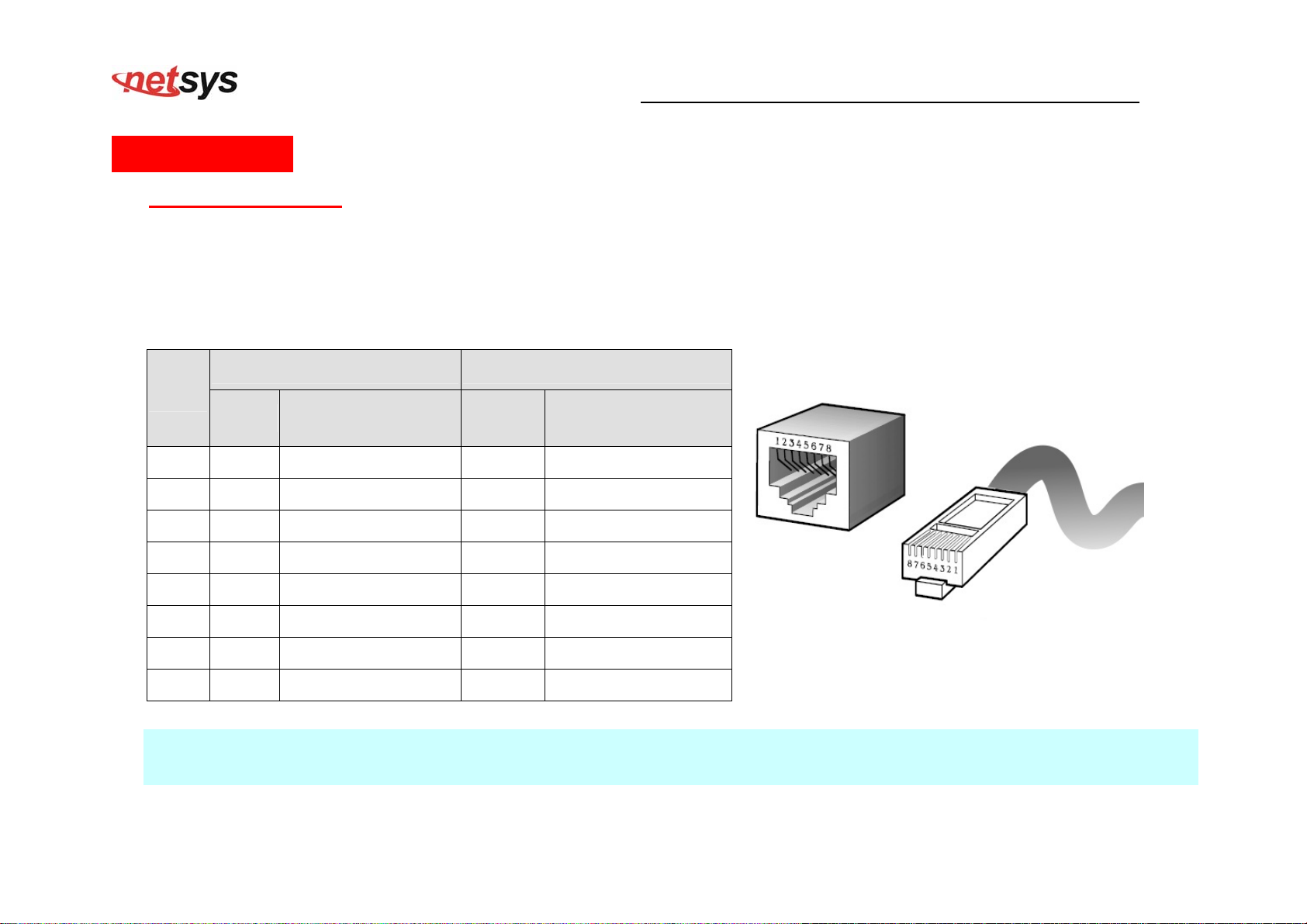

APPENDIX A: CABLE REQUIREMENTS...............................................................................................................50

APPENDIX B: PRODUCT SPECIFICATION..........................................................................................................53

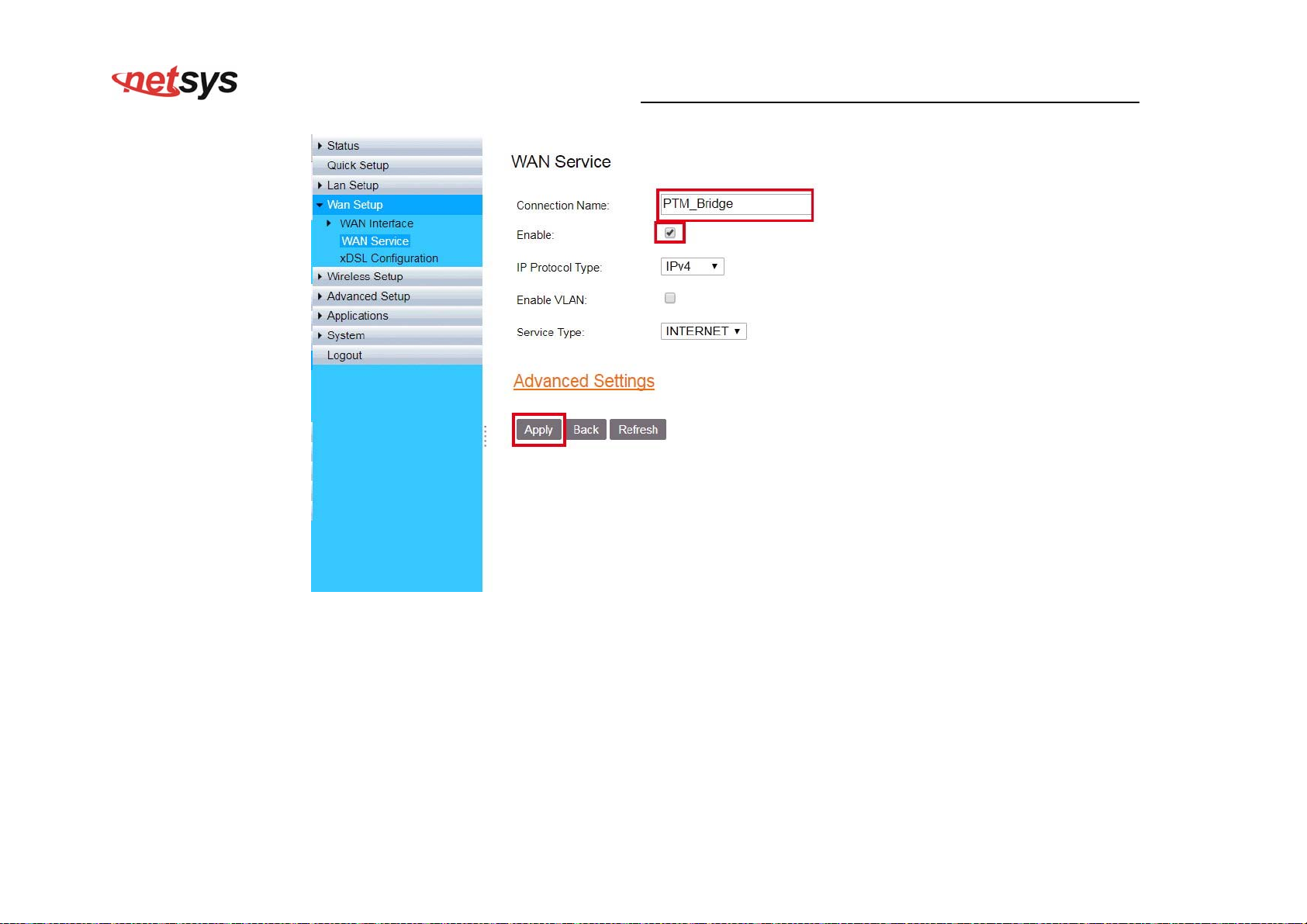

APPENDIX C: ROUTER/BRIDGED MODE SELECT ............................................................................................57

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

APPENDIX D: TROUBLESHOOTING....................................................................................................................64

APPENDIX E: COMPLIANCE INFORMATION ......................................................................................................73

WARRANTY............................................................................................................................................................76

CHINESE SJ/T 11364-2014....................................................................................................................................77

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Chapter 1.

1.1 Check List

Thank you for choosing Netsys NV-720S Before installing the router, please verify the contents inside the package.

Package Contents:

1 x Managed VDSL2 CPE router

Notes:

1. Please inform your dealer immediately for any missing or damaged parts. If possible, retain the carton including the

Unpacking Information

1 x QR code for user’s

manual hyperlink.

Accessory Kit : 1 x Ethernet Cable, 1 x Phone wire , 1 x

DC12V Power Adapter

original packing materials. Use them to repack the unit in case there is a need to return for repair.

2. If the product has any issue, please contact your local vendor.

3. Do not use sub-standard power supply. Before connecting the power supply to the device, be sure to check compliance with the specifications. The NV-720S uses a DC12V/1A power supply.

4. The power supply included in the package is commercial-grade. Do not use in industrial-grade applications.

5. Please look for the QR code on the bottom of the product, the user can launch the QR code scanning program to scan and download the user’s manual electronic format file. Above QR code icon is for reference.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Chapter 2.

Installing the Router

2.1 Hardware Installation

This chapter describes how to install the router and establish the network connections. The NV-720S may be installed on any level surface (e.g. a table or shelf). However, please take note of the following minimum site requirements before you begin. The NV-720S has pre-installed two rubber feet and 2 x 2dBi external Antennas (2.4 GHz).

2.2 Pre-installation Requirements

Before you start the actual hardware installation, make sure you can provide the right operating environment, including power requirements, sufficient physical space, and proximity to other network devices that are to be connected.

Verify the following installation requirements:

• Power requirements: DC 12 V / 1A

• The router should be located in a cool dry place, with at least 10cm/4in of space at the front and back for

ventilation.

• Place the router away from direct sunlight, heat sources, or areas with a high amount of electromagnetic interference.

• Check if the network cables and connectors needed for installation are available.

• Do not install phone lines strapped together with A

• Avoid installing this device with radio amplifying stations nearby or transformer stations nearby.

• Please note that the voice spectrum allowed by the NV-720S internal splitter is 0 KHz ~ 120 KHz.

C power lines, or telephone office line with voice signal.

2.3 General Rules

Before making any connections to the router, please note the following rules:

• Ethernet Port (RJ-45)

• V

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

All network connections to the router Ethernet ports must be made using Category 5 UTP or above for 100 Mbps, Category 3, 4 UTP for 10Mbps. No more than 100 meters of cabling may be used between the MUX or HUB and an end node.

DSL2 Port (RJ-11)

All network connections to the RJ-11port must use 24~26 gauge with twisted pair phone wiring. We do not recommend the use of the telephone line 28 gauge or above. The RJ-11 connectors have six positions, two of which are wired. The router uses the center two pins. The

pin out assignment for these connectors is presented below. Please note that the line port is no polarity, therefore user can reverse the two wires of the phone cable when installed.

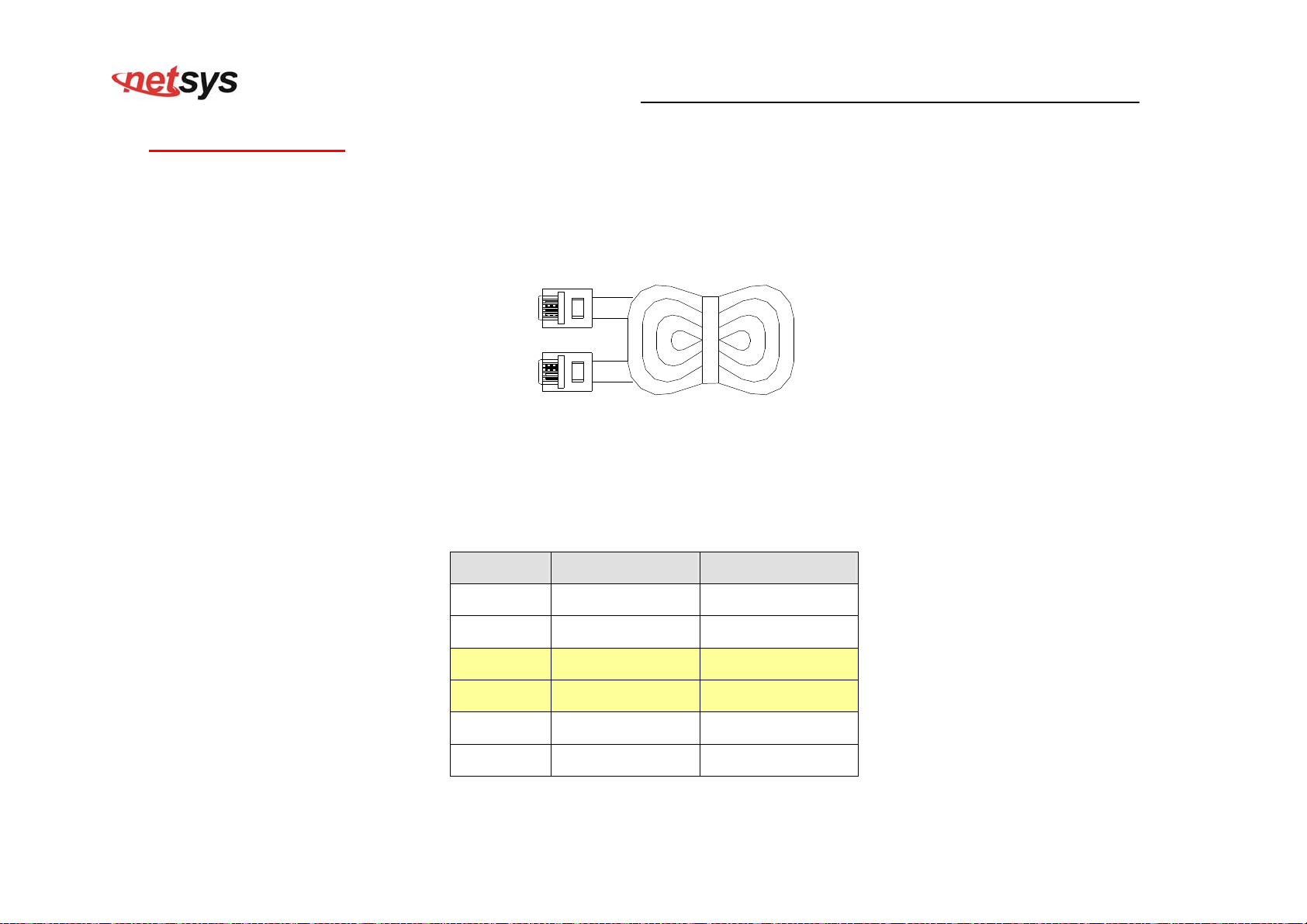

RJ-11 Pin out Assignments

Pin# MNEMONIC FUNCTION

1 NC Unused 2 NC Unused

3 DSL Used 4 DSL Used

5 NC Unused 6 NC Unused

2.4 Connecting the Router

The router has four Ethernet ports which support connection to Ethernet operation. The devices attached to these ports must support auto-negotiation /10Base-T / 100Base-TX unless they will always operate at half duplex. Use any of the Ethernet ports to connect devices such as Monitor systems, Servers, Switches, bridges or routers.

Notes:

1. The (RJ11) Line port is used to connect the telephone that is connected to VDSL2 CO and CPE router (Point-to-point solution).

2. The Slave device (CPE) must be connected to the Master device (CO) through the telephone wire. The Slave cannot be connected to another Slave, and the Master cannot be connected to another Master.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

2.5 Connecting the RJ-11 / RJ-45 Ports

 The line port has 1 connector: RJ-11 . It is used to connect with NV-700L (CO) using a single pair phone cable to NV-720S (CPE)

bridge side (point to point solution). (Figure 2.1).

Figure 2.1 NV-720S line ports straight connection

 When inserting a RJ-11 plug, make sure the tab on th

clicks into position to ensure that it is properly seated.

 Do not

port (RJ-45 port). This may damage the router. Instead, use only twisted-pair cables with RJ-45 connectors that conform to Ethernet standard.

Notes:

plug a RJ-11 phone jack connector into the Ethernet

e plug

1. Be sure each twisted-pair cable (RJ-45 Ethernet cable)

does not exceed 100 meters (333 feet).

2. We advise using Category 5~7 UTP/STP cables for

making Bridge or Router connections to avoid any confusion or inconvenience in the future when you attach high bandwidth devices.

3. Use 24 ~ 26 gauge twisted pair phone wiring, we do not

recommend 28 gauge or above.

4. Be sure phone wire has been installed before the

NV-720S boot.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

2.6 VDSL2 Application

The router’s line port supports up to 3km for data service across existing phone wiring. It is easy-to-use and do not requires installation of additional wiring. Every modular phone jack in the home can become a port on the LAN. Networking devices can be installed on a single telephone wire that can be installed within a suitable distance. (Figure 2.2)

Figure 2.2 NV-720S applications

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Figure 2.2.1 VDSL2 applications

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

 2.6.1 Connect the NV-700L /NV-802S and the NV-720S t

o the Line

The objective for VDSL2 is to pass high speed data over a twisted pair cable. In the setup, connect NV-700L/NV-802S to NV-720S through phone wire (24~26 AWG) or line simulator or any other hardware representation of a cable network, with or without noise injection and crosstalk simulations.

 2.6.2 Connect the NV-700L/NV-802S and the NV-720S to

LAN Devices

In the setup, usually an Ethernet tester serves as a representation of the LAN side as well as a representation of the WAN side.

 2.6.3 Run Demos and Tests

The Ethernet tester may send data downstream as well as upstream. It also receives the data in order to check the integrity of the data transmission. Different data rates can be tested under different line conditions.

 2.6.4 Wireless Basics

n recent years, the market for wireless communications has enjoyed tremendous growth. Wireless technology now reaches or is capable of reaching virtually every location on the surface of the earth. Hundreds of millions of people exchange information every day via wireless communication products. Anyone can bring a built-in WLAN client Smartphone, tablet or notebook into a meeting room for a conference without laying a clot of LAN cable or drilling holes everywhere. Wireless LAN enables high mobility so WLAN users can simultaneously access all LAN facilities just like on a wired LAN as well as Internet access. The NV-720S is equipped with a wireless LAN interface compliant with the standard IEEE 802.11 protocol. To boost its performance even further, You can finally smoothly enjoy a wide range of apps on your smart phone, tablet or smart TV.

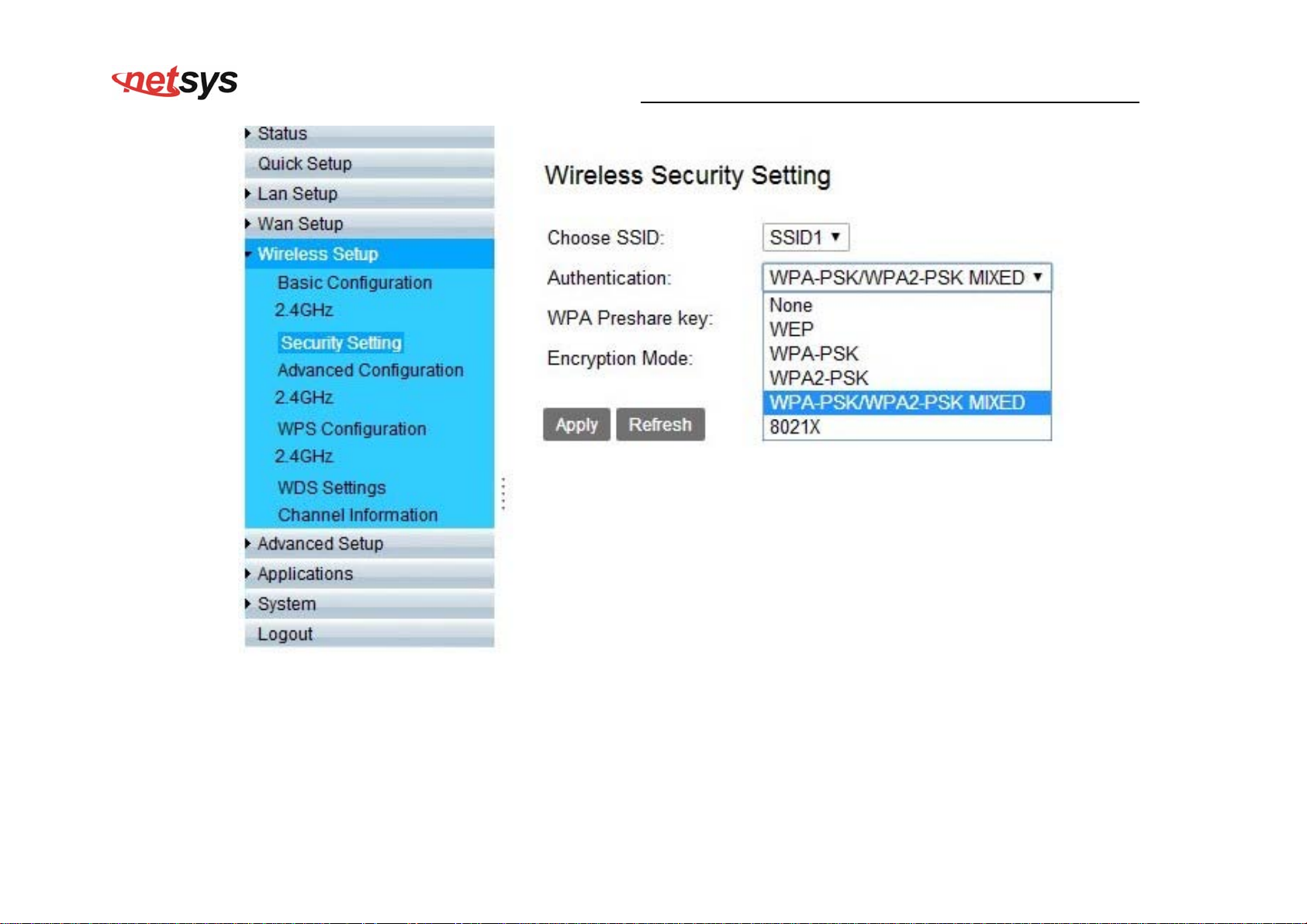

 What is WEP?

Wired Equivalent Privacy (WEP) is an easily broken security algorithm for IEEE 802.11 wireless networks. Introduced as part of the original 802.11 standard ratified in September 1999, its intention was to provide data confidentiality comparable to that of a traditional wired network. WEP, recognizable by the key of 10 or 26 hexadecimal digits, was at one time widely in use and was often the first security choice presented to users by router configuration tools.

 What is WPA?

Wi-Fi Protected Access (WPA) and Wi-Fi Protected Access II (WPA2) are two security protocols and security certification programs developed by the Wi-Fi Alliance to secure wireless computer networks. The Alliance defined these in response to serious weaknesses researchers had found in the previous system, WEP (Wired Equivalent Privacy).

WPA (sometimes referred to as the draft IEEE 802.11i standard) became available in 2003. The Wi-Fi Alliance intended it as an intermediate measure in anticipation of the availability of the more secure and complex WPA2. WPA2 became available in 2004 and is common shorthand for the full IEEE 802.11i (or IEEE 802.11i-2004) standard.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

A flaw in a feature added to Wi-Fi, called Wi-Fi Protected Setup, allows WPA and WPA2 security to be bypassed and effectively broken in many situations. WPA and WPA2 security implemented without using the Wi-Fi Protected Setup feature are unaffected by the security vulnerability.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Chapter 3.

This section describes the important parts of the wireless VDSL2 router. It features the front and rear panel.

Hardware Description

Wireless Router Outward

3.1 Front Panel

The front panel provides a simple interface monitoring of the router. (Figure 3.1) shows the front panel of the NV-720S

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Figure 3.1 NV-720S Front Panel

3.2 Front Indicators

The wireless router has Nine LED indicators. The following Table shows the description. (Table 3-1)

Table 3-1 LED Indicators Description and Operation

LED Color Status Descriptions

PWR

Green

(Power LED)

WLAN

Green

(Wireless LED)

USB Green

On(Steady) When the router is powered on, and in ready state. Off When the router is powered off On(Steady) Wireless access point is ready.

Blinking Data is being transmitted through WLAN Off On(Steady) The device has a good USB connection

Off The device is not ready or has malfunctioned

Wireless access point is off or has malfunctioned.

Notes:

LED Color Status Descriptions

On(Steady) The device has a good Ethernet connection.

E1 ~ E4 (Ethernet LED)

LINK (VDSL2 LED)

WPS Green

Green

Blinking Off The LAN is not connected or has malfunctioned. On(Steady) The Internet or network connection is up.

Fast Blinking The device is sending or receiving data. Off The Internet or network connection is down. On(Steady) The WPS connection is ready. Off The WPS is not available, or WPS is not enabled or initialized

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

The device is sending or receiving data via the corresponding LAN port.

1. It is normal for the connection between two Routers to take up to 3 minutes, due to NV-700L/NV-720S to establish a link mechanism in auto-negotiation, that detects and calculates CO and CPE both PBO and PSD level, noise levels and other arguments for getting a better connection.

2. Every time the user presses the WPS button, there will be two minutes of time to detect the available equipment. If the WPS function does not detect the device, the WPS light will turn off.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

3.3 Rear Panel

The rear panel provides the physical connectors connected to the power adapter and any other network device. (Figure 3.2) shows the rear panel of the NV-720S.

Figure 3.2 Rear Panel

And the table shows the description. (Table 3-2)

Table 3-2 Description of the router rear connectors

Connectors Type Description

The reset button allows users to reboot the VDSL2 or load the default

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Reset Reset Button

Power DC Power Jack

Line RJ-11 For connecting to a VDSL2 device. USB USB2.0 Type A For connecting to the USB dongle.

Ethernet

RJ-45 For connecting an Ethernet equipped device.

(E1-E4)

WPS

WPS Button

WLAN ON/OFF

settings.

Press and hold for 1-5 seconds: Reboot the VDSL2 Router Press over 5 seconds: Load the default settings

External Power Adapter: Input: AC 85~240Volts/50~60Hz

Output: DC 12V/1A

Press this button over 5 seconds to make a network connection through WPS (WPS function is only supported on windows 7 or above operating systems). Press this button 1~5 seconds to make switch on/off the WLAN. Every time the user presses the WPS button, there will be two minutes of time to detect the available equipment.

Before installing power and device, please read and follow these essentials:

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

 Use separate paths to route wiring for power and devices. If power and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

Note:

Do not run signal or communications wiring and power wiring through the same wire conduit. To avoid interference, wires with different signal characteristics should be routed separately.

 You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb

is that wiring sharing similar electrical characteristics can be bundled together.

 You should separate input wiring from output wiring.  We recommend that you mark all equipment in the wiring system.  The maximum wireless data transfer rate is derived from IEEE Standard 802.11b/g/n specifications. Actual data transfer rate

will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Chapter 4.

The NV-720S provides a built-in HTML based management interface that allows configuration of the NV-720S via Internet Browser. Best viewed using Chrome or Firefox browsers.

In order to use the web browser to configure the device, you may need to allow:

Launch your web browser and input the IP address 192.168.1.1 (NV-720S) in the Web page.

Following section user can find default username and password.

Configuring the NV-720S via Web Browser

• Web browser pop-up windows from your device. Web po SP2 or above.

• Java Scripts. (Enabled by default)

• Java permissions. (Enabled by default)

p-up blocking is enabled by default in windows XP

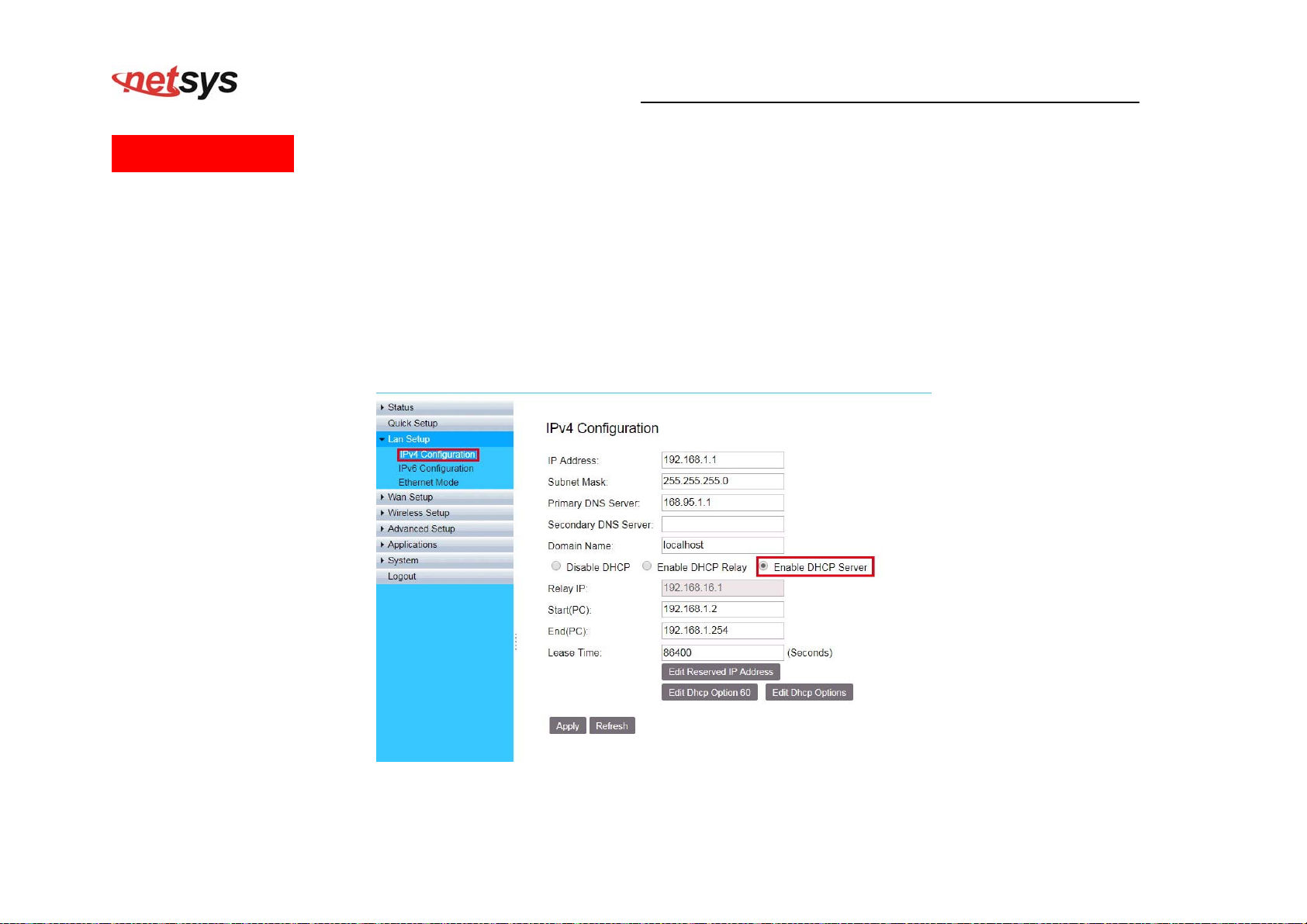

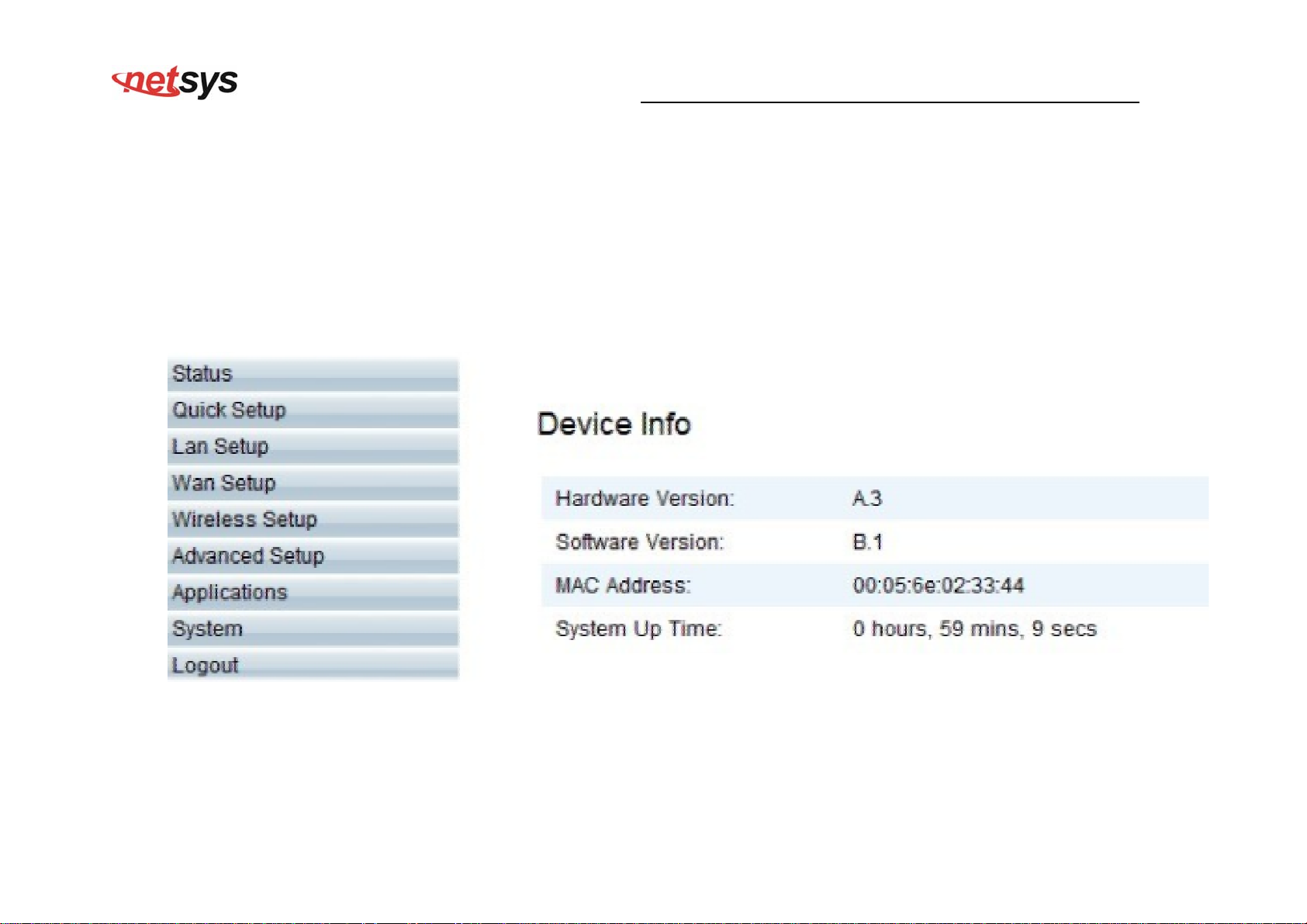

4.1 BASIC Setup

The IP address is 192.168.1.1 , username and password are admin.

NV-720S ADSL2+/VDSL2 Wi-Fi USER’S MANUAL Ver. A.2

Figure 4.1 Login Password

+ 54 hidden pages

Netsys NV-720S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
