ADSL2+/VDSL2 Modem Router

’

Page 2

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Trademarks

NETSYS is a trademark of National Enhance Technology Corp. Other brand and product names are registered trademarks or trademarks of their respective holders.

Legal Disclaimer The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the device, National Enhance Technology Corp. hereby disclaims any and all warranties and liabilities of any kind, including without limitation warranties of non-infringement of intellectual property rights of any third party.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to make changes to the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Maximum signal rate derived from IEEE Standard specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Netsys does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. Make sure you follow in line with the environmental conditions to use this product.

Page 3

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Foreword: VDSL2 Router solution

Attention:

Be sure to read this manual carefully before using this product. Especially Legal Disclaimer, Statement of Conditions and Safety Warnings.

Netsys' NV-720R is a management of the VDSL2 CPE router that leverages the extraordinary bandwidth promise of VDSL2 (max. 100Mbps symmetric) technology, the next step in the delivery of new high-speed Internet applications in commercial environments. Quick, easy, economical to install and maintain, the NV-720R works over existing copper wire infrastructure. NV-720R is a CPE (Customer Premise Equipment) device. And compitable with the NV-802S(8Ports VDSL2 IP DSLAM) and NV-700L (VDSL2 CO Router). Netsys NV-720R will allow operators worldwide to compete with cable andsatellite operators by offering services such as HDTV, VOD, videoconferencing, high speed Internet access and advanced voice services including VoIP, over a standard copper telephone cable.Netsys NV-720R is seen by many operators as an ideal accompaniment to a FTTP rollout, where for instance fiber optic is supplied direct to an apartment block and from there copper cable is used to supply residents with high-speed VDSL2.

Caution:

The NV-720R is for indoor applications only. This product does not have waterproof protection, please do not use in outdoor applications.

Page 4

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Safety Warnings

For your safety, be sure to read and follow all warning notices and instructions before using the device.

 DO NOT open the device or unit. Opening or removing the cover may expose you to dangerous high voltage points or other

risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information.

 Use ONLY the dedicated power supply for your device. Connect the power to the right supply voltage (110V AC used for

North America and 230V AC used for Europe. NV-720R supports 12 VDC power input).

 Place connecting cables carefully so that no one will step on them or stumble over them. DO NOT allow anything to rest on

the power cord and do NOT locate the product where anyone can work on the power cord.

 DO NOT install nor use your device during a thunderstorm. There may be a remote risk of electric shock from lightning.  DO NOT expose your device to dampness, dust or corrosive liquids.  DO NOT use this product near water, for example, in a wet basement or near a swimming pool.  Connect ONLY suitable accessories to the device.  Make sure to connect the cables to the correct ports.  DO NOT obstruct the device ventilation slots, as insufficient air flow may harm your device.  DO NOT place items on the device.  DO NOT use the device for outdoor applications directly, and make sure all the connections are indoors or have waterproof

protection place.

 Be careful when unplugging the power, because it may produce sparks.  Keep the device and all its parts and accessories out of the reach of children.  Clean the device using a soft and dry cloth rather than liquid or atomizers. Power off the equipment before cleaning it.  This product is recyclable. Dispose of it properly.

Page 5

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Table of Contents

COPYRIGHT...............................................................................................................................................................................................................................................1

SAFETY WARNINGS..................................................................................................................................................................................................................................3

1.1 C

HECK LIST

..........................................................................................................................................................................................................................................6

CHAPTER 2. INSTALLING THE ROUTER...............................................................................................................................................................................................7

2.1 H

ARDWARE INSTALLATION

2.2 PRE-

INSTALLATION REQUIREMENTS

2.3 G

ENERAL RULES

2.4 C

ONNECTING THE ROUTER

2.5 C

ONNECTING THE

RJ-11 / RJ-45 P

ORTS

................................................................................................................................................................................................10

2.6 VDSL2 A

PPLICATION

CHAPTER 3. HARDWARE DESCRIPTION...........................................................................................................................................................................................13

3.1 F

RONT PANEL

3.2 F

RONT INDICATORS

3.3 R

EAR PANEL

CHAPTER 4. CONFIGURE THE NV-720R VIA WEB BROWSER........................................................................................................................................................18

4.1 BASIC S

ETUP

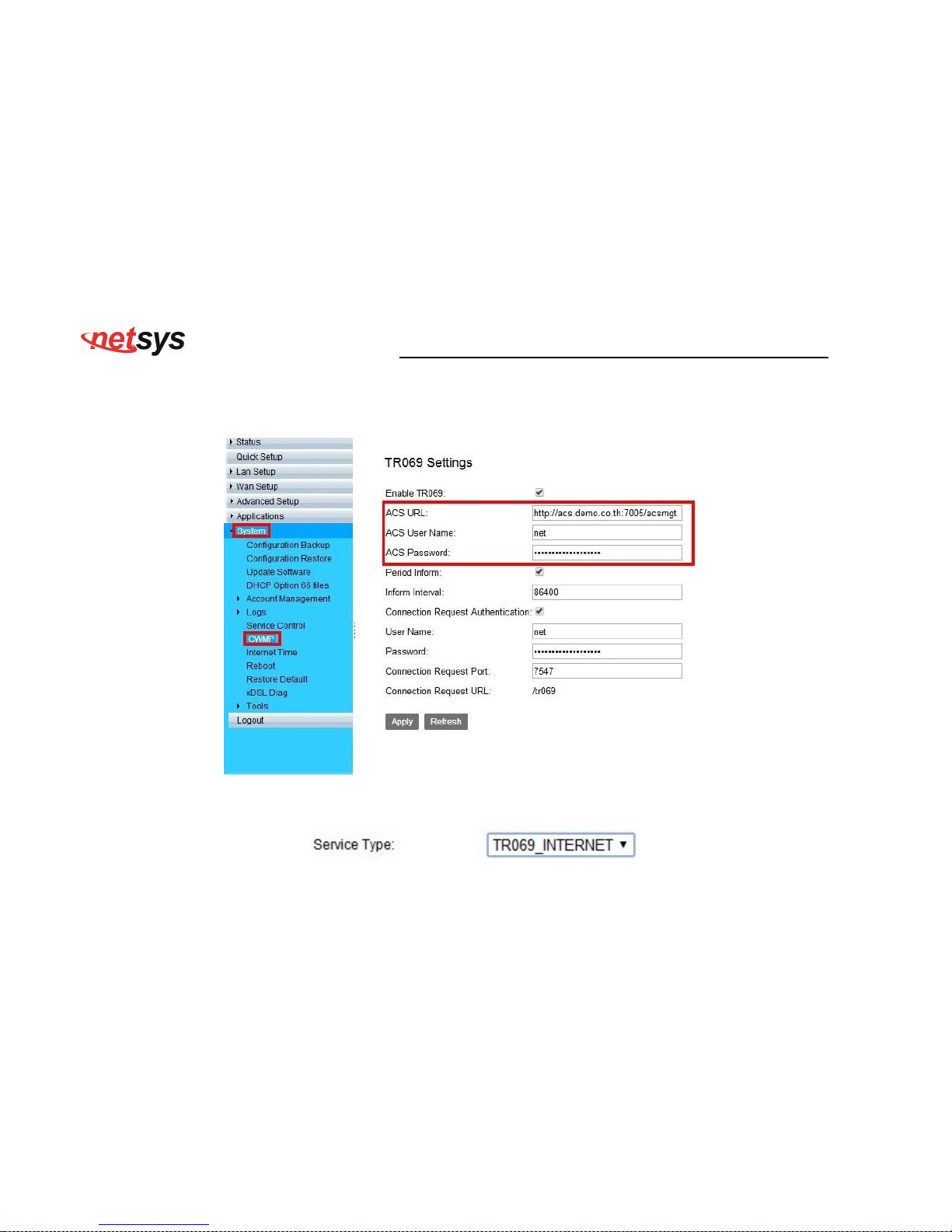

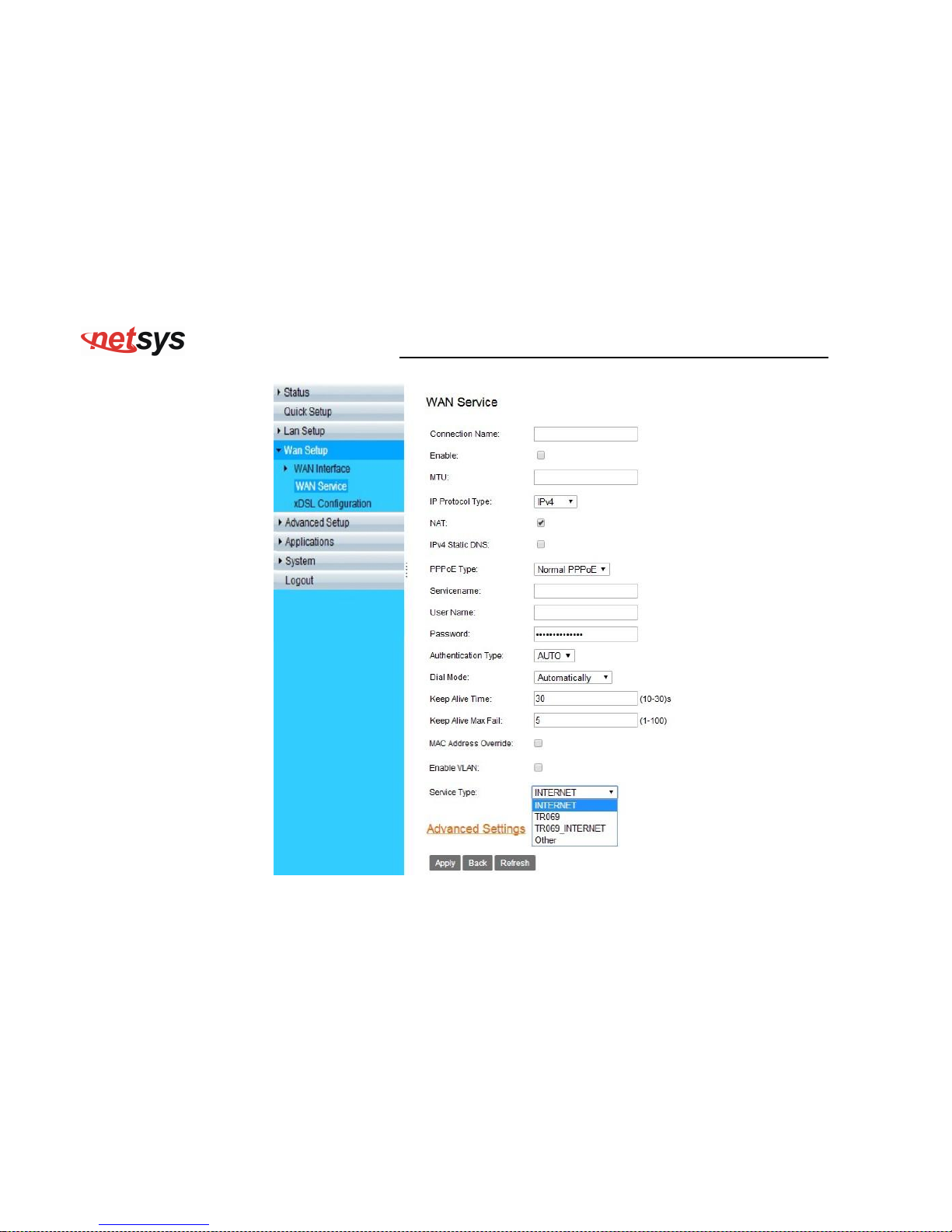

4.2 WAN/TR069 S

ETUP

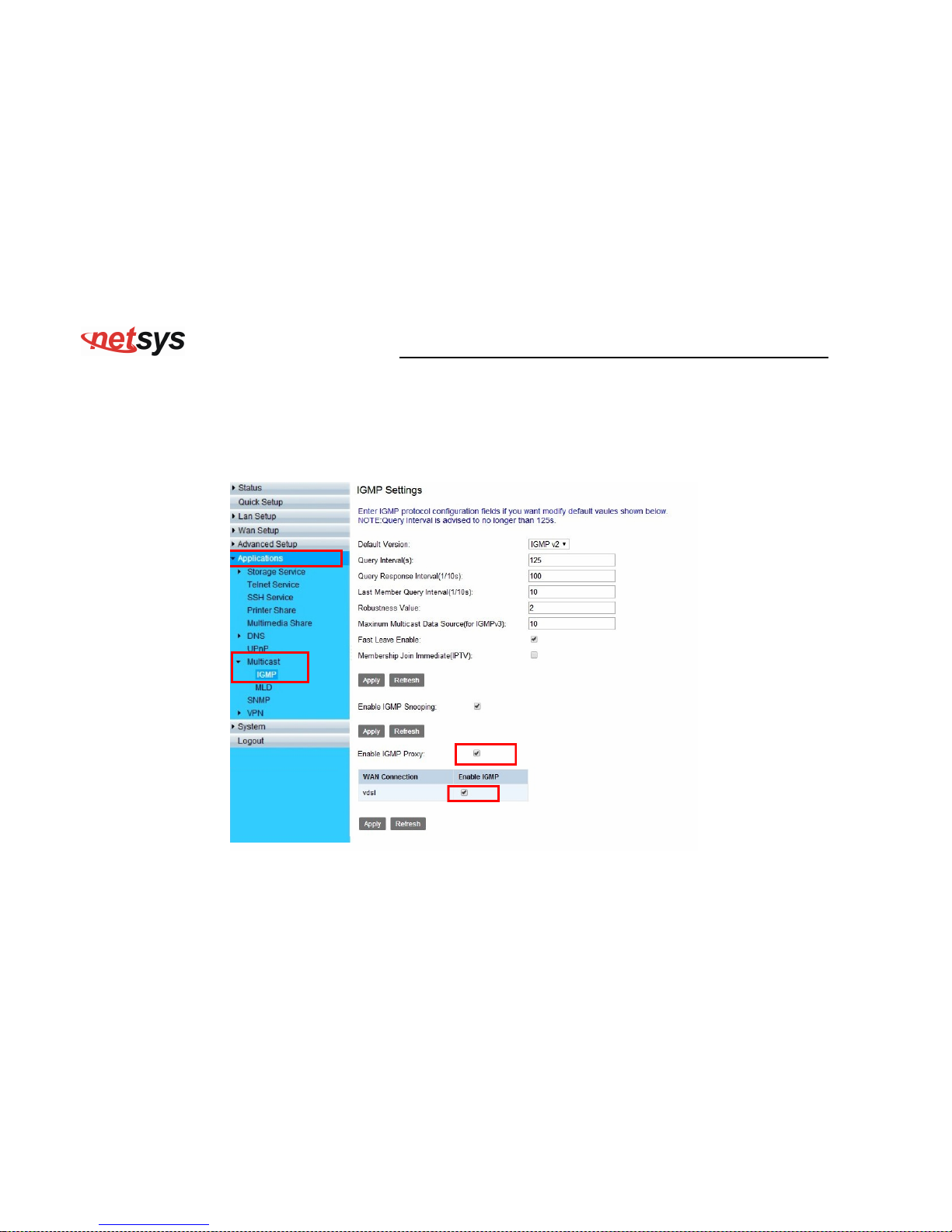

4.3 IGMP

SETUP

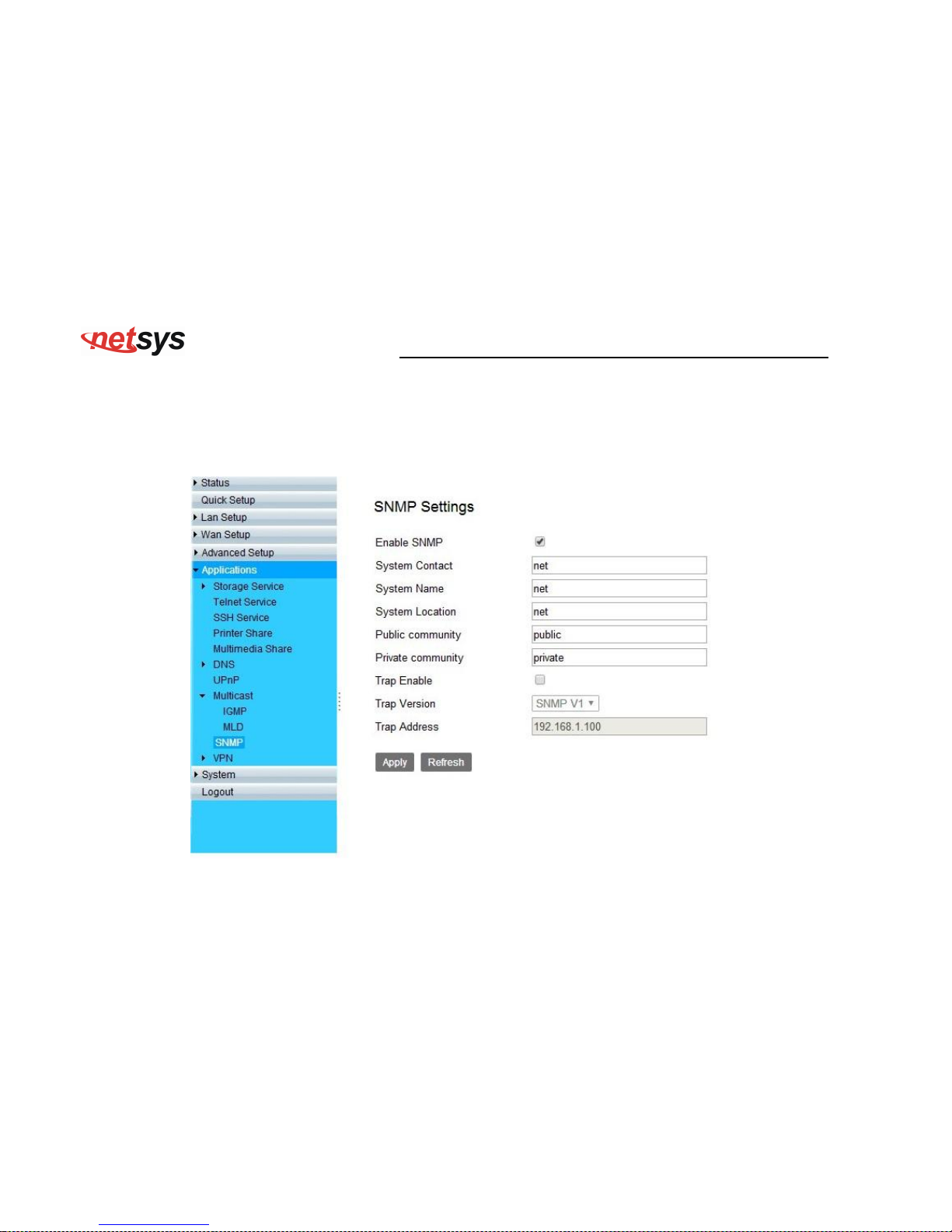

4.4 SNMP

SETUP

Page 6

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

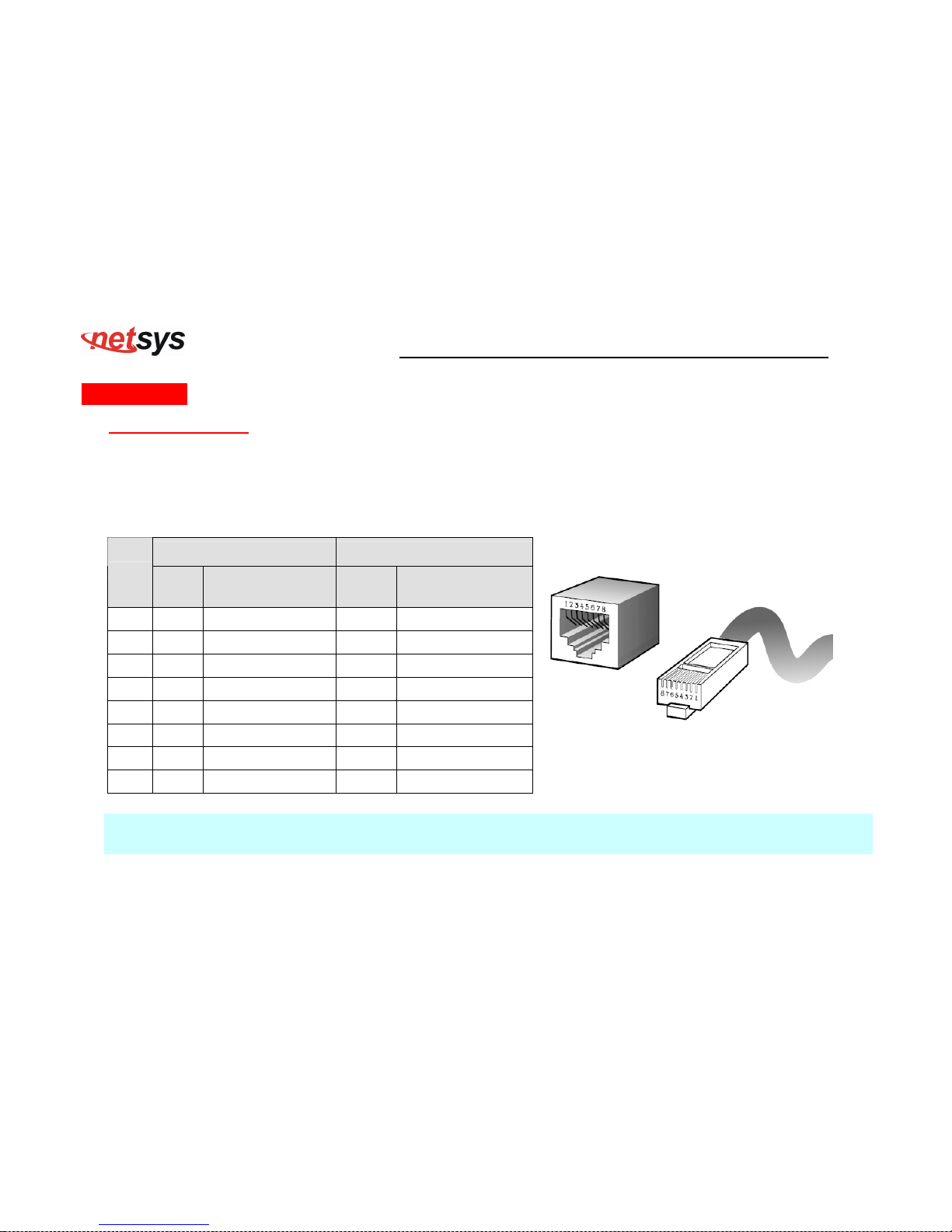

APPENDIX A: CABLE REQUIREMENTS..............................................................................................................................................................................................39

APPENDIX B: PRODUCT SPECIFICATION..........................................................................................................................................................................................42

APPENDIX C: ROUTER MODE SELECT..............................................................................................................................................................................................45

APPENDIX D: TROUBLESHOOTING....................................................................................................................................................................................................52

APPENDIX E: COMPLIANCE INFORMATION....................................................................................................................................................................................60

WARRANTY..............................................................................................................................................................................................................................................63

CHINESE SJ/T 11364-2014.....................................................................................................................................................................................................................64

Page 7

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Chapter 1.

Unpacking Information

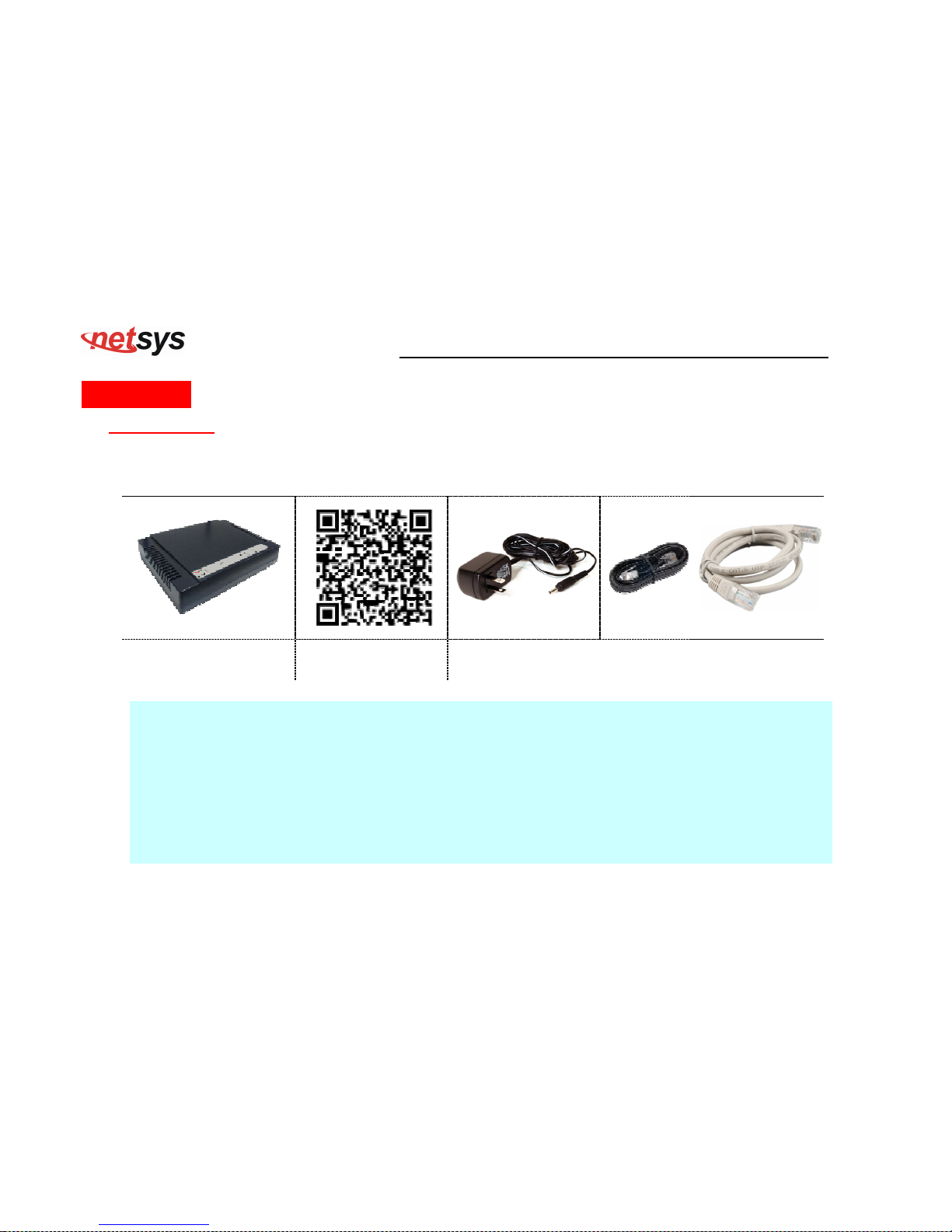

1.1 Check List

Carefully unpack the package and check its contents against the checklist.

Package Contents:

1 x Managed VDSL2 CPE router

1 x QR code for user’s

manual hyperlink.

Accessory Kit : 1 x Ehternet Cable, 1 x Phone wire , 1 x

DC12V Power Adapter

Notes:

1. Please inform your dealer immediately for any missing or damaged parts. If possible, retain the carton including the original packing materials. Use them to repack the unit in case there is a need to return for repair.

2. If the product has any issue, please contact your local vendor.

3. Do not use sub-standard power supply. Before connecting the power supply to the device, be sure to check

compliance with the specifications. The NV-720R uses a DC12V/1A power supply.

4. The power supply included in the package is commercial-grade. Do not use in industrial-grade applications.

5. Please look for the QR code on the bottom of the product, the user can launch the QR code scanning program to

scan and download the user’s manual electronic format file. Above QR code icon is for reference.

Page 8

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Chapter 2.

Installing the Router

2.1 Hardware Installation

This chapter describes how to install the router, and establish the network connections. The NV-720R may be installed on any level surface (e.g. a table or shelf). However, please take note of the following minimum site requirements before you begin. The NV-720R has 2 pre-installed rubber feet.

2.2 Pre-installation Requirements

Before you start the actual hardware installation, make sure you can provide the right operating environment, including power requirements, sufficient physical space, and proximity to other network devices that are to be connected.

Verify the following installation requirements:

• Power requirements: DC 12 V / 1A

• The router should be located in a cool dry place, with at least 10cm/4in of space at the front and back for

ventilation.

• Place the router away from direct sunlight, heat sources, or areas with a high amount of electromagnetic interference.

• Check if the network cables and connectors needed for installation are available.

• Do not install phone lines strapped together with AC power lines, or telephone office line with voice signal.

• Avoid installing this device with radio amplifying stations nearby or transformer stations nearby.

• Please note that the voice spectrum allowed by the NV-720R internal splitter is 0 KHz ~ 120 KHz.

Page 9

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

2.3 General Rules

Before making any connections to the router, please note the following rules:

• Ethernet Port (RJ-45)

All network connections to the router Ethernet port must be made using Category 5 UTP/STP or above for 100 Mbps, Category 3, 4 UTP for 10Mbps. No more than 100 meters of cabling may be use between the MUX or HUB and an end node.

• VDSL2 Port (RJ-11)

All network connections to the RJ-11port must use 24~26 gauge with twisted pair phone wiring. We do not recommend the use of the telephone line 28 gauge or above. The RJ-11 connectors have six positions, two of which are wired. The router uses the center two pins. The

pin out assignment for these connectors is presented below.

Please note that the line port is no polarity, therefore user can reverse the two wires of the phone cable

when installed.

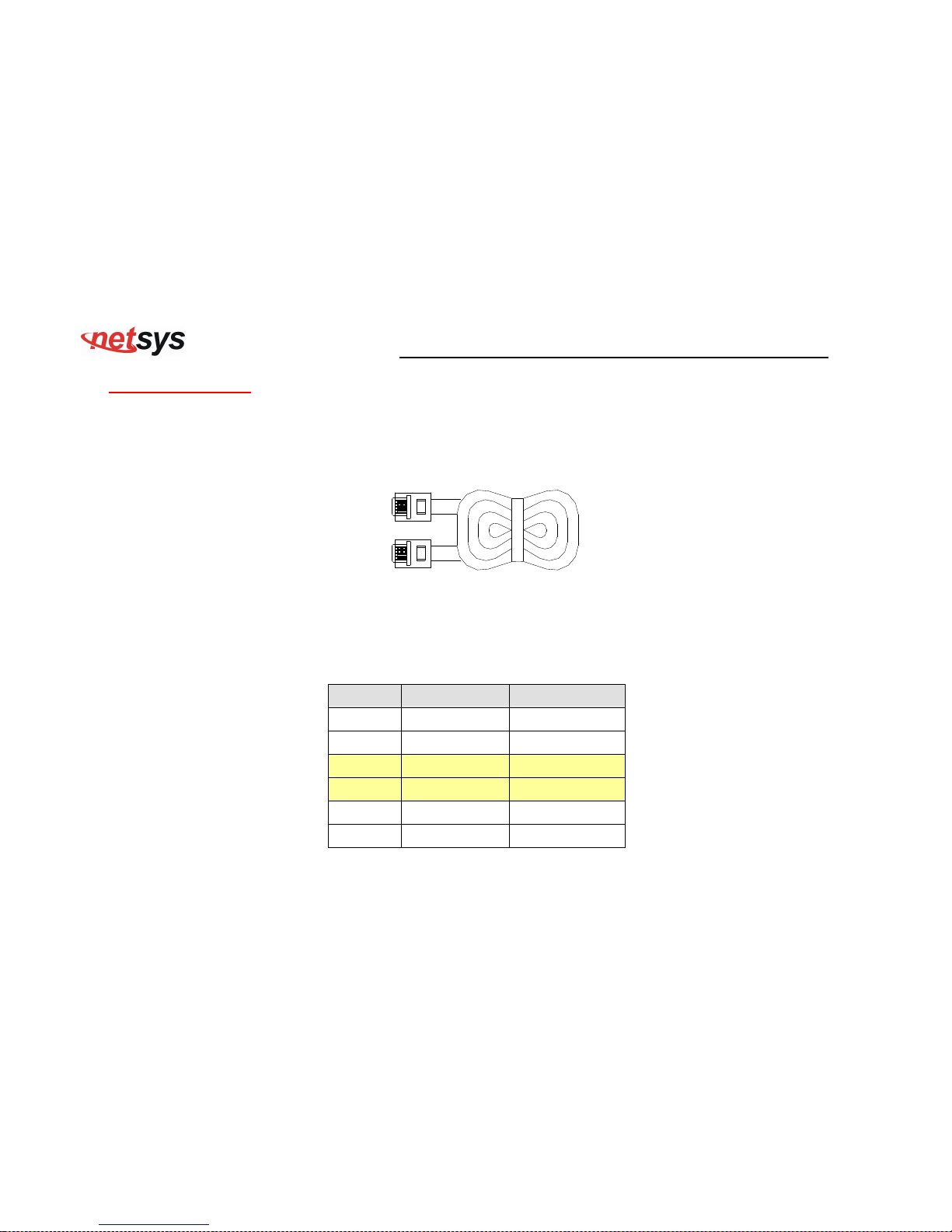

RJ-11 Pin out Assignments

Pin# MNEMONIC FUNCTION

1 NC Unused 2 NC Unused

3 DSL Used 4 DSL Used

5 NC Unused 6 NC Unused

Page 10

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

2.4 Connecting the Router

The router has four Ethernet ports which support connection to Ethernet operation. The devices attached to these ports must support auto-negotiation /10Base-T / 100Base-TX unless they will always operate at half duplex. Use any of the Ethernet ports to connect devices such as Monitor systems, Servers, Switches, bridges or routers.

Notes:

1. The (RJ11) Line port is used to connect the telephone that is connected to VDSL2 CO and CPE router (Point-to-point solution).

2. The Slave device (CPE) must be connected to the Master device (CO) through the telephone wire. The Slave cannot be connected to another Slave, and the Master cannot be connected to another Master.

Page 11

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

2.5 Connecting the RJ-11 / RJ-45 Ports

 The line port has 1 connector: RJ-11. It is used to connect with NV-700L(CO) using a single pair phone cable to NV-720R(CPE)

bridge side (point to point solution). (Figure 2.1)

 When inserting a RJ-11 plug, make sure the tab on the plug

clicks into position to ensure that it is properly seated.

 Do not plug a RJ-11 phone jack connector into the Ethernet

port (RJ-45 port). This may damage the router. Instead, use only twisted-pair cables with RJ-45 connectors that conform to Ethernet standard.

Notes:

Be sure each twisted-pair cable (RJ-45 Ethernet cable) does not exceed 100 meters (333 feet).

We advise using Category 5~7 UTP/STP cables for making Bridge or Router connections to avoid any confusion or inconvenience in the future when you attach high bandwidth devices.

Use 24 ~ 26 gauge twisted pair phone wiring, we do not recommend 28 gauge or above.

Be sure phone wire has been installed before the NV-720R boot.

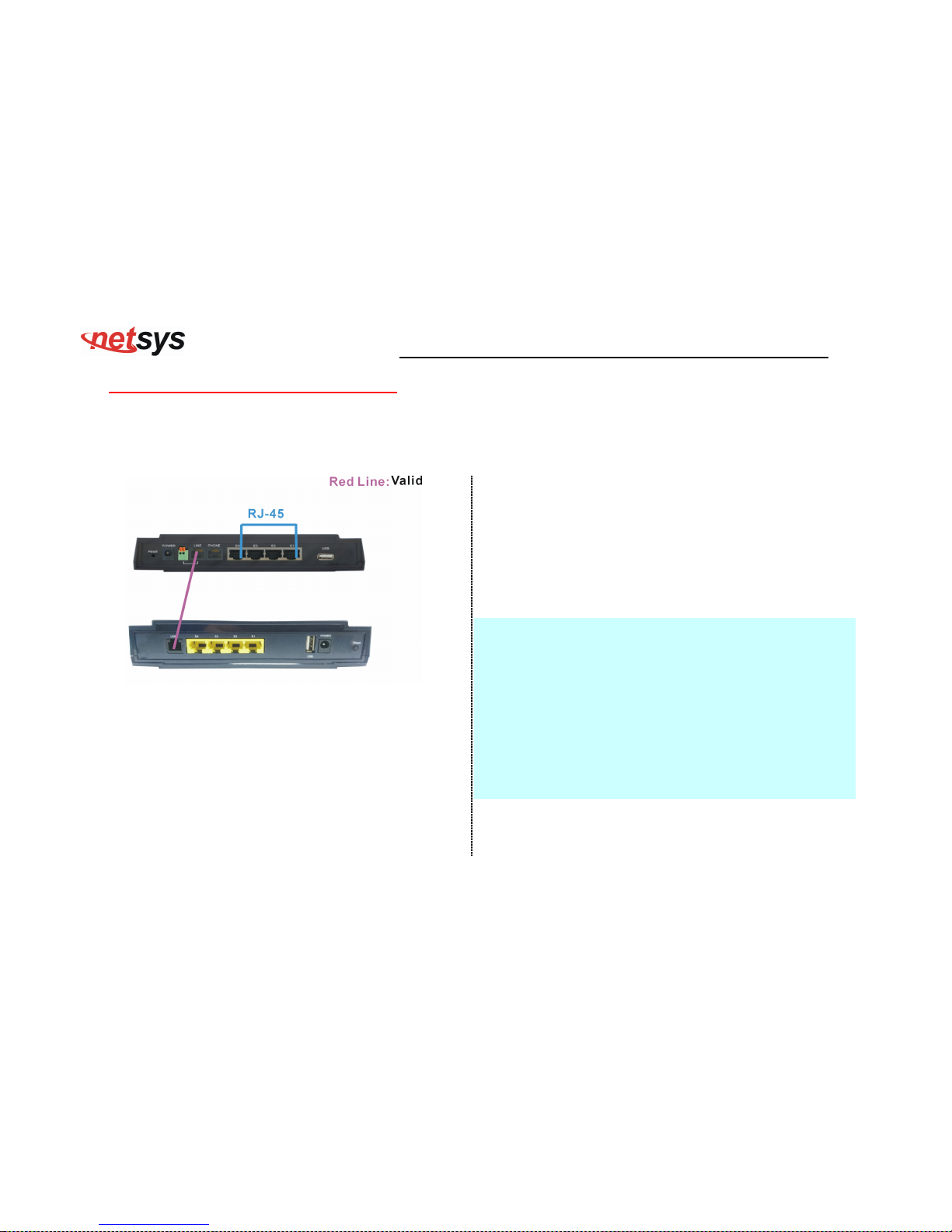

Figure 2.1 NV-720R line ports straight connection

Page 12

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

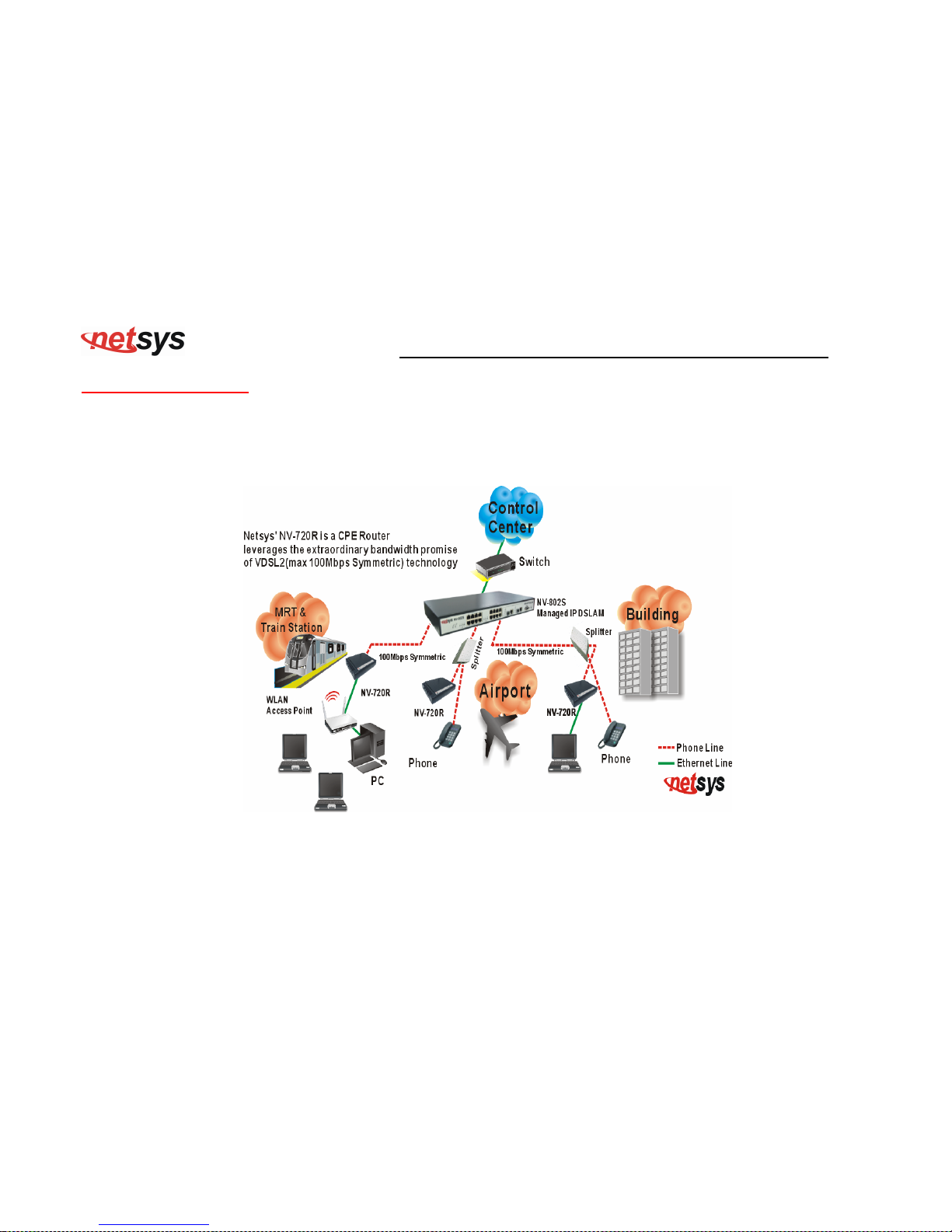

2.6 VDSL2 Application

The router’s line port supports up to 3km for data service across existing phone wiring. It is easy-to-use and do not requires installation of additional wiring. Every modular phone jack in the home can become a port on the LAN. Networking devices can be installed on a single telephone wire that can be installed within a suitable distance. (

Figure 2.2)

Figure 2.2 NV-720R application

Page 13

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

 2.6.1 Connect the NV-802S and the NV-720R to the Line

The objective for VDSL2 is to pass high speed data over a twisted pair cable. In the setup, connect NV-802S to NV-720R through phone wire(24~26 AWG) or line simulator or any other hardware representation of a cable network, with or without noise injection and crosstalk simulations.

 2.6.2 Connect the NV-802S and the NV-720R to LAN Devices

In the setup, usually an Ethernet tester serves as a representation of the LAN side as well as a representation of the WAN side.

 2.6.3 Run Demos and Tests

The Ethernet tester may send data downstream as well as upstream. It also receives the data in order to check the integrity of the data transmission. Different data rates can be tested under different line conditions.

Page 14

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Chapter 3.

Hardware Description

This section describes the important parts of the vdsl2 router. It features the front panel and rear panel.

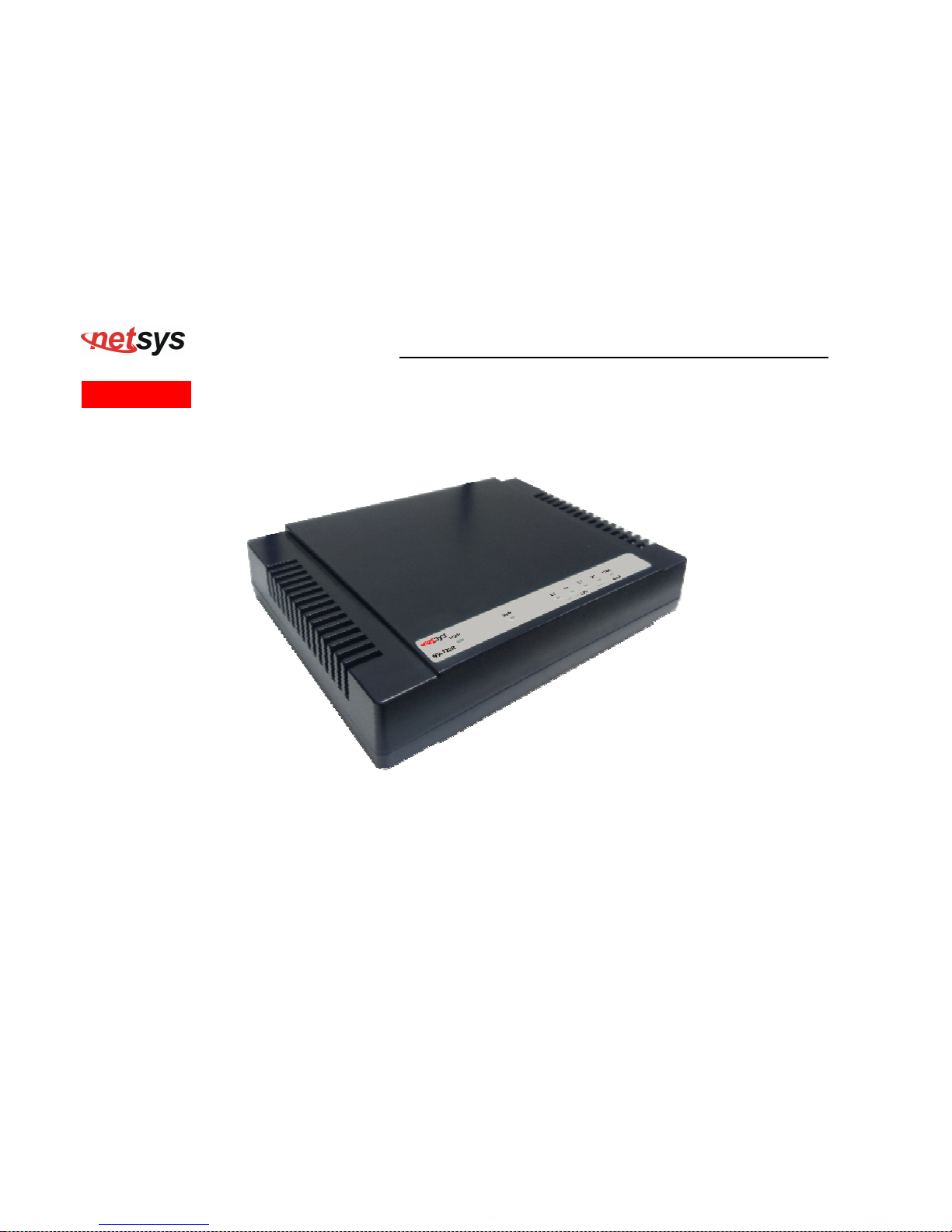

NV-720R Outward

Page 15

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

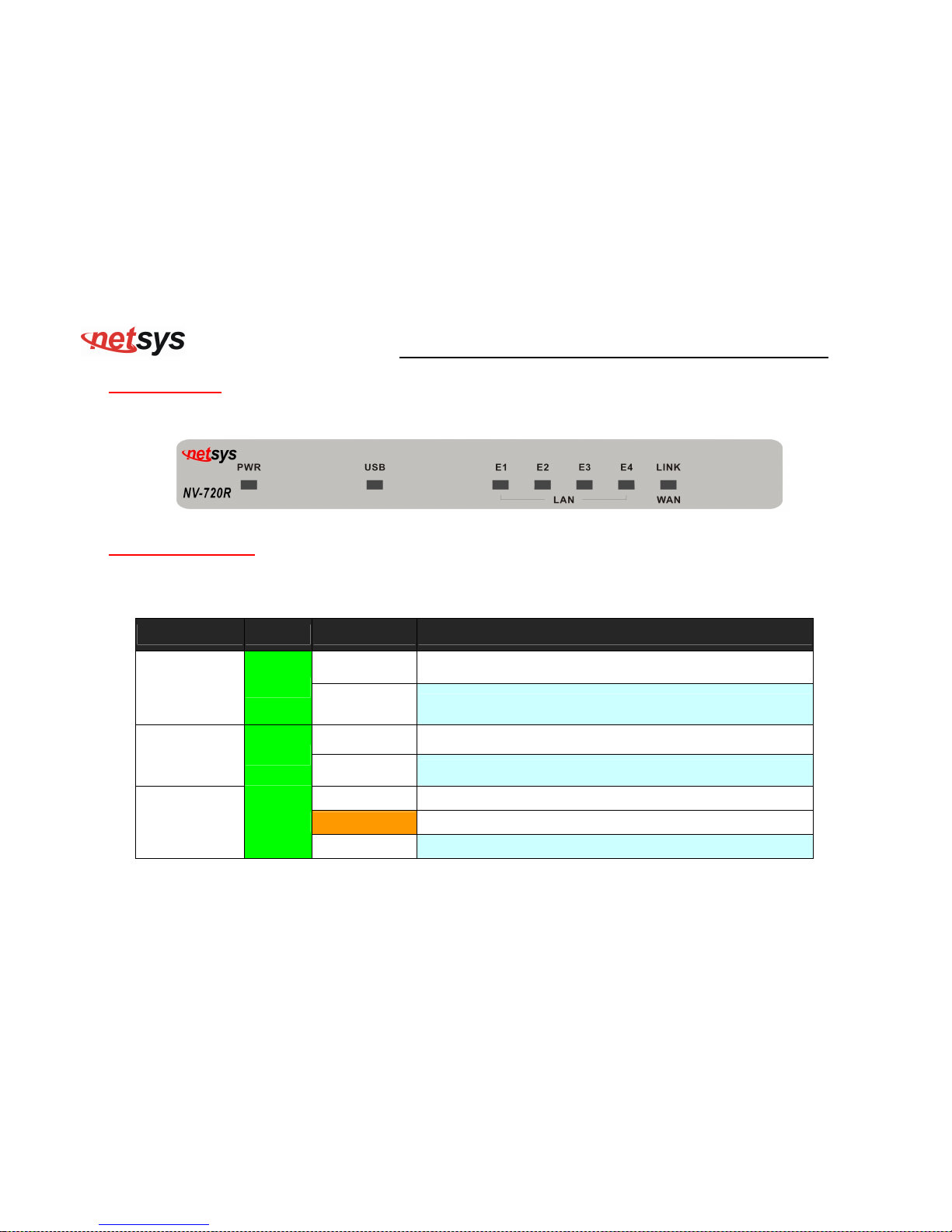

3.1 Front Panel

The figure shows the front panel. (Figure 3.1)

Figure 3.1 Front Panel(NV-720R)

3.2 Front Indicators

The router has Seven LED indicators. The following Table shows the description. (Table 3-1)

Table 3-1 LED Indicators Description and Operation

LED Color Status Descriptions

On(Steady) Lights to indicate that the VDSL2 router had power

PWR (Power LED)

Green

Off The device is not ready or has malfunctioned.

On (Steady) The device has a good USB connection

USB Green

Off The device is not ready or has malfunctioned. On(Steady) The device has a good Ethernet connection.

Blinking The device is sending or receiving data.

E1 ~ E4 (Ethernet LED)

Green

Off The LAN is not connected or has malfunctioned.

Page 16

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

LED Color Status Descriptions

On(Steady) The Internet or network connection is up. Fast Blinking The device is sending or receiving data.

LINK (VDSL2 LED)

Green

Off The Internet or network connection is down.

Note:

It is normal for the connection between two Routers to take up to 3 minutes, due to NV-700L/NV-720R to establish a link mechanism in auto-negotiation, with detects and calculates CO and CPE both PBO and PSD level, noise levels and other arguments for getting a better connection.

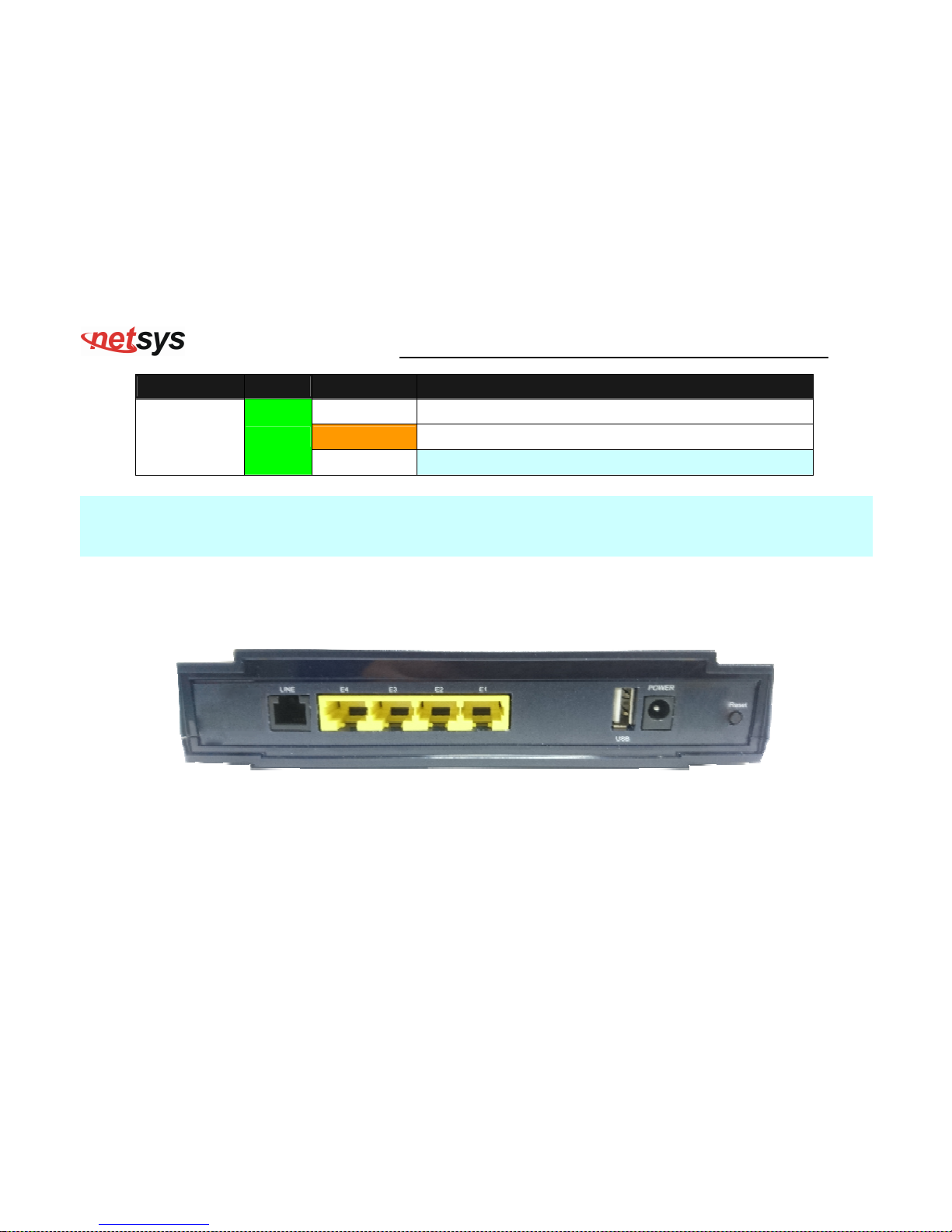

3.3 Rear Panel

The following figure shows the rear panel. (Figure 3.2)

Figure 3.2 Rear Panel

Page 17

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

And the table shows the description. (

Table 3-2)

Table 3-2 Description of the router rear connectors

Connectors Type Description

Reset Tact switch Button

The reset buttons allows users to reboot the VDSL2 or load the default settings.

Press and hold for 1-5 seconds: Reboot the VDSL2 Router Press over 5 seconds: Load the default settings

Power DC Power Jack

External Power Adapter: Input: AC 85~240Volts/50~60Hz

Output: DC 12V/1A

Line RJ-11 For connecting to a VDSL2 device. USB USB2.0 Type A For connecting to the USB dongle.

Ethernet (E1-E4)

RJ-45 For connecting to an Ethernet equipped device.

Page 18

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Before user installed power and device, please read and follow these essentials:



Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point.

Note:

Do not run signal or communications wiring and power wiring through the same wire conduit. To avoid interference, wires with different signal characteristics should be routed separately.



You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring sharing similar electrical characteristics can be bundled together.



You should separate input wiring from output wiring.



We recommend that you mark all equipment in the wiring system.

Page 19

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Chapter 4.

Configure the NV-720R Via Web Browser

The NV-720R provides a built-in HTML based management interface that allows configuration of the NV-720R via Internet Browser. Best viewed using Chrome or Firefox browsers.

In order to use the web browser to configure the device, you may need to allow:

• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in windows XP SP2 or above.

• Java Scripts. (Enabled by default)

• Java permissions. (Enabled by default)

Launch your web browser and input the IP address 192.168.16.254 (NV-720R) in the Web page.

Following section user can find default username and password.

Page 20

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

4.1 BASIC Setup

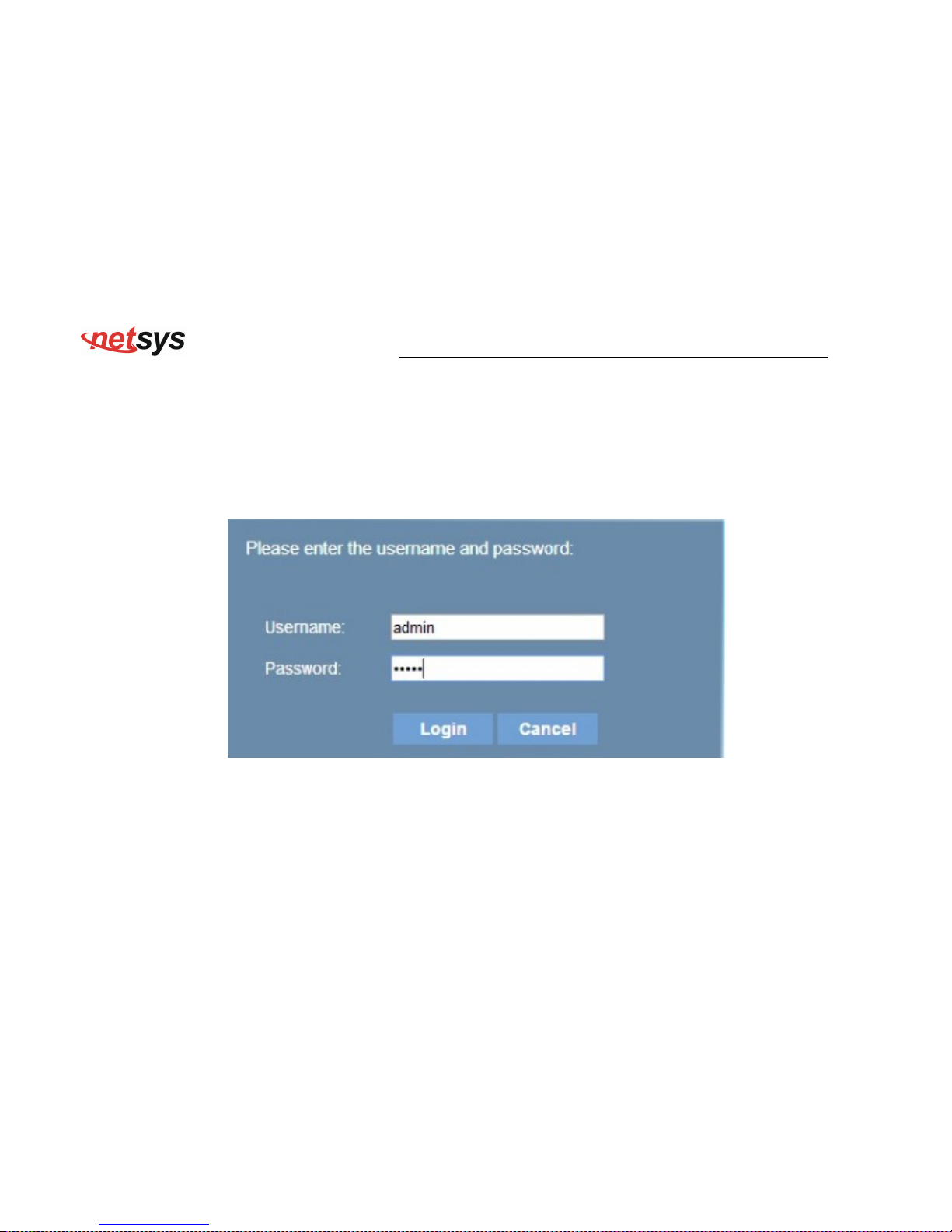

The IP address is 192.168.16.254 , username and password are admin.

Figure 4.1 Login Password

Page 21

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Display status

The status page displays some information. When the device is running.

For example:

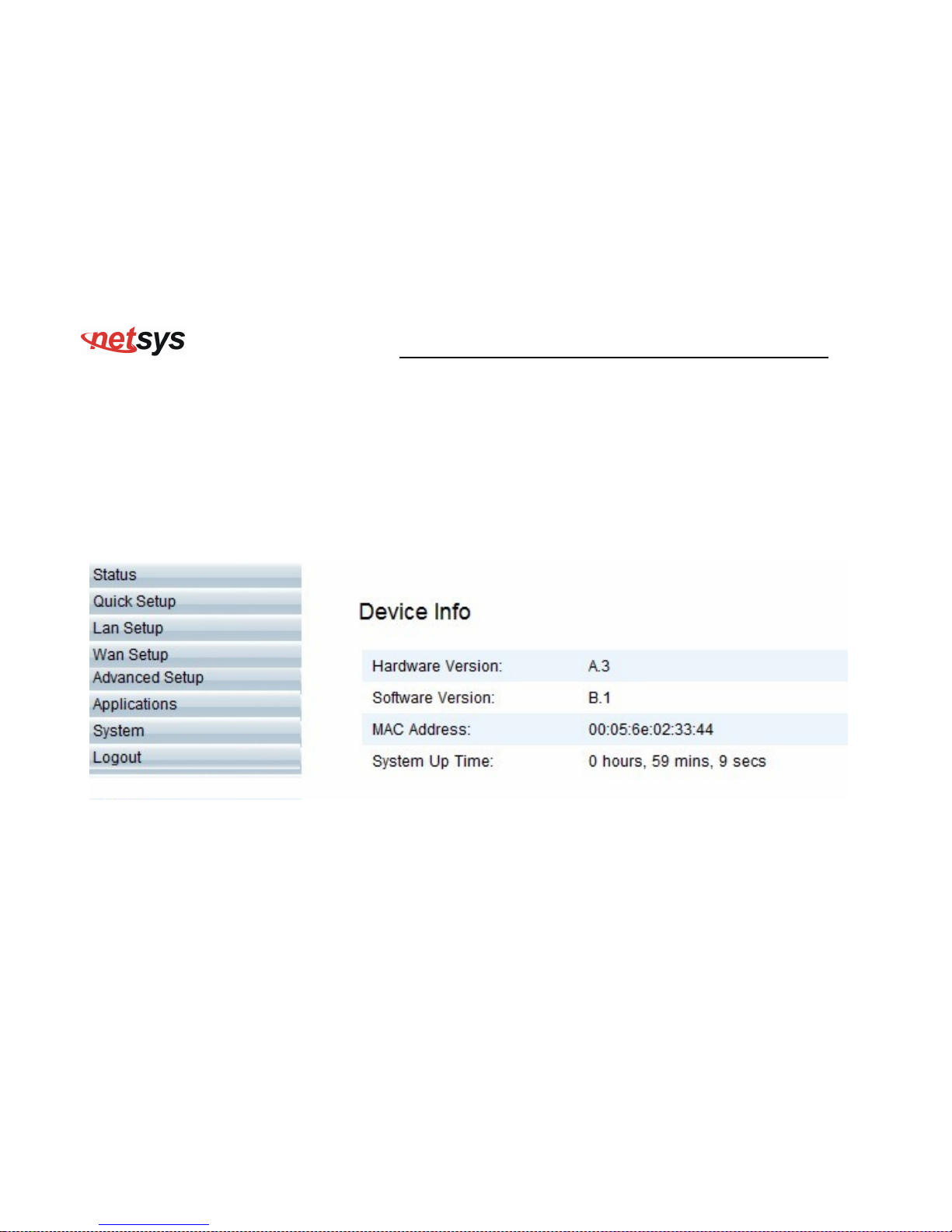

Device Information:

Page 22

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

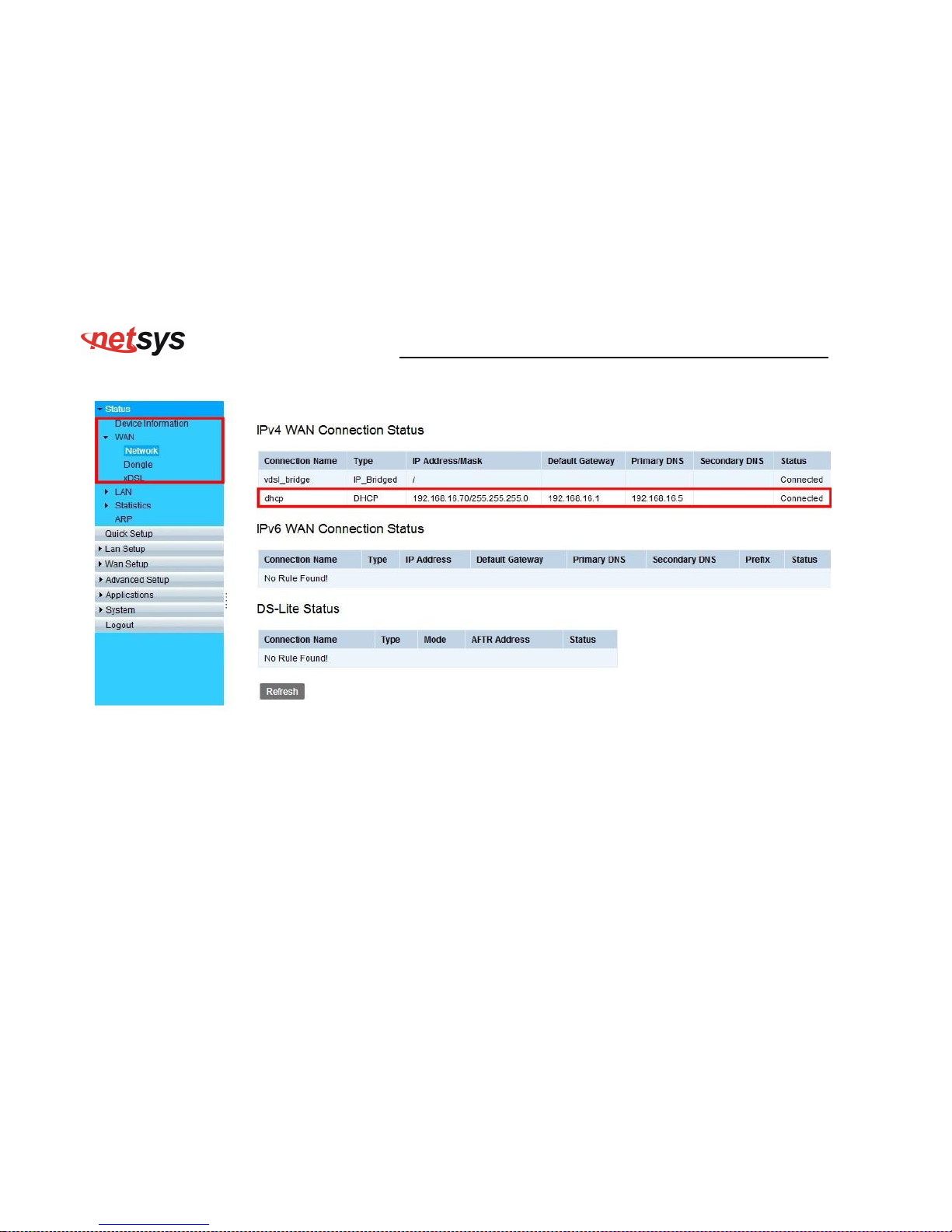

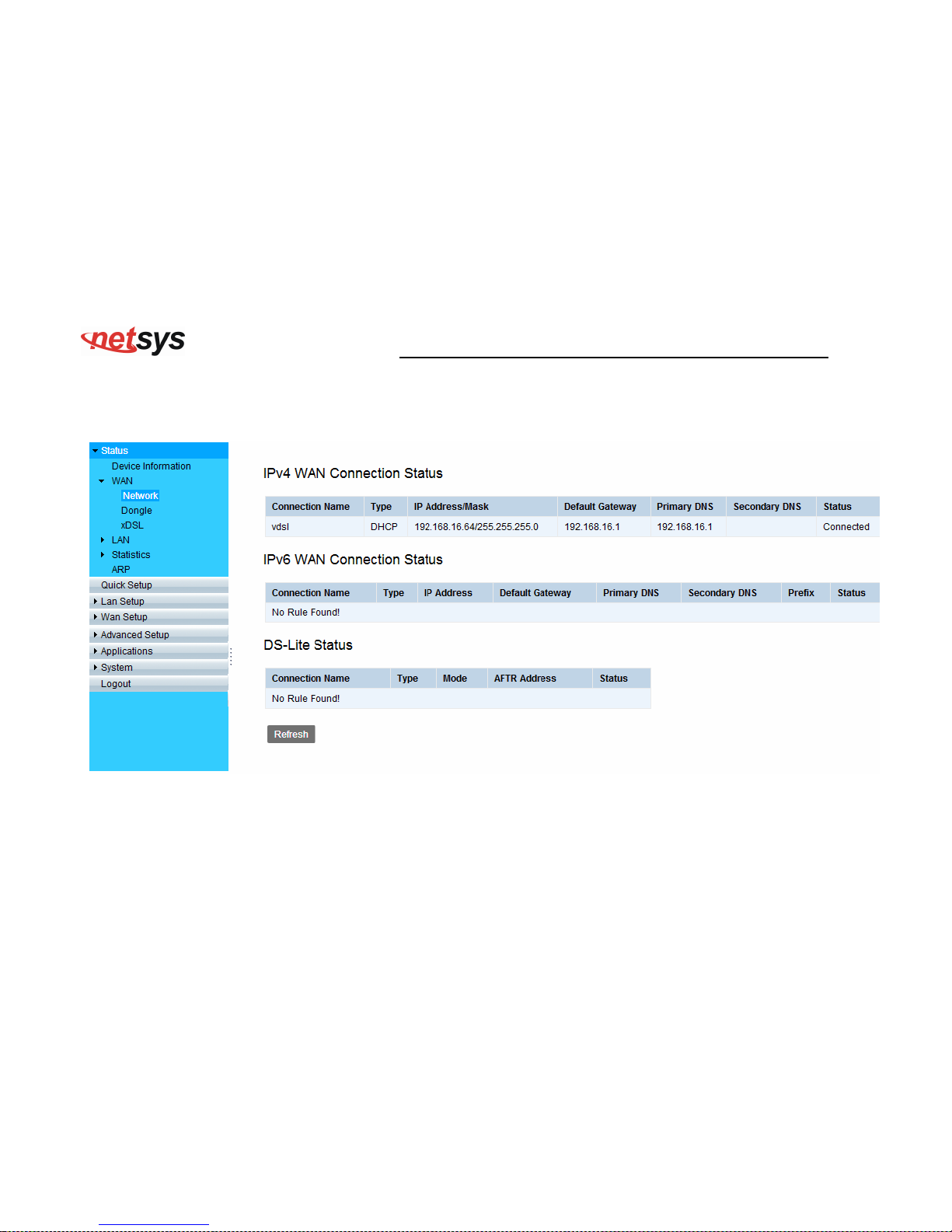

WAN->Network:

Page 23

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

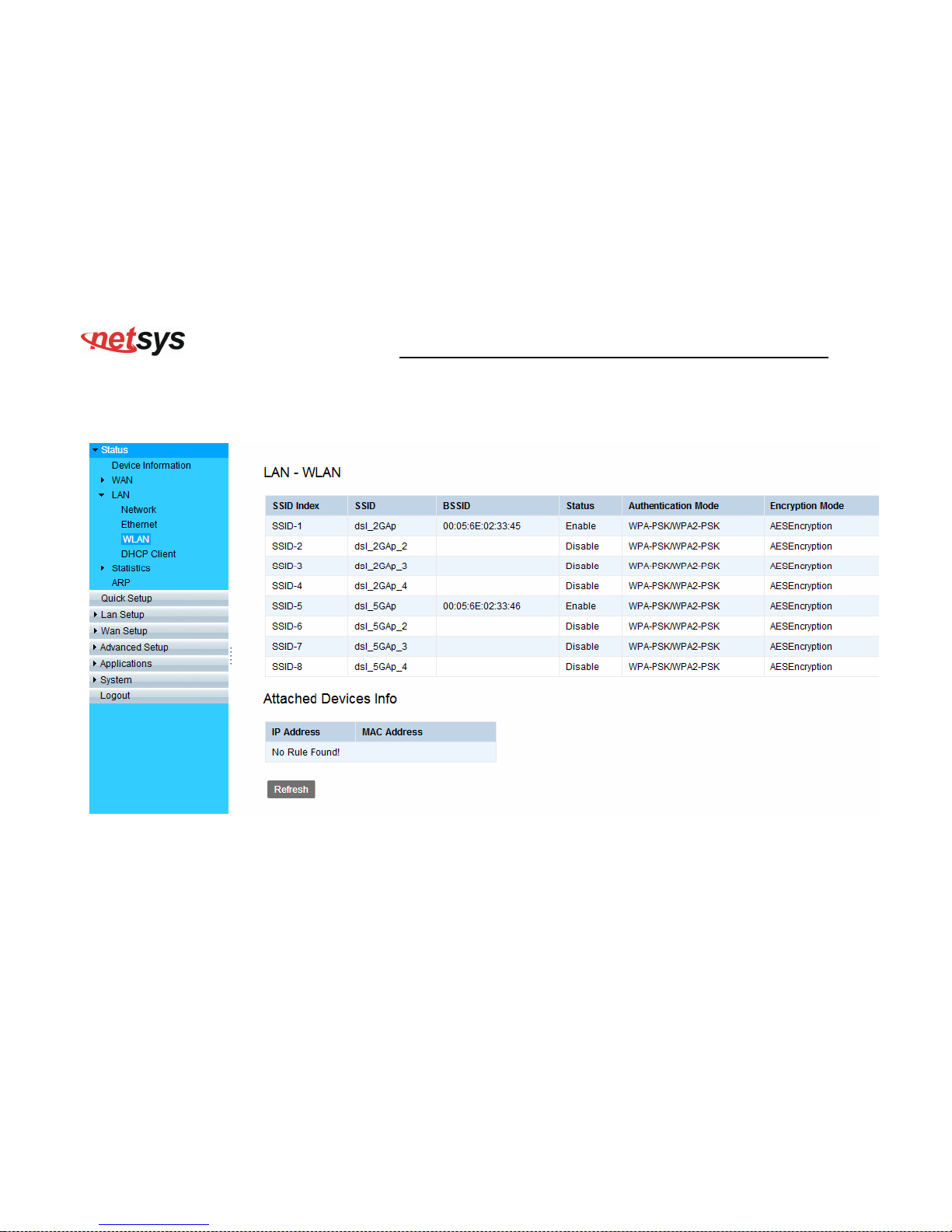

LAN->Network:

Page 24

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

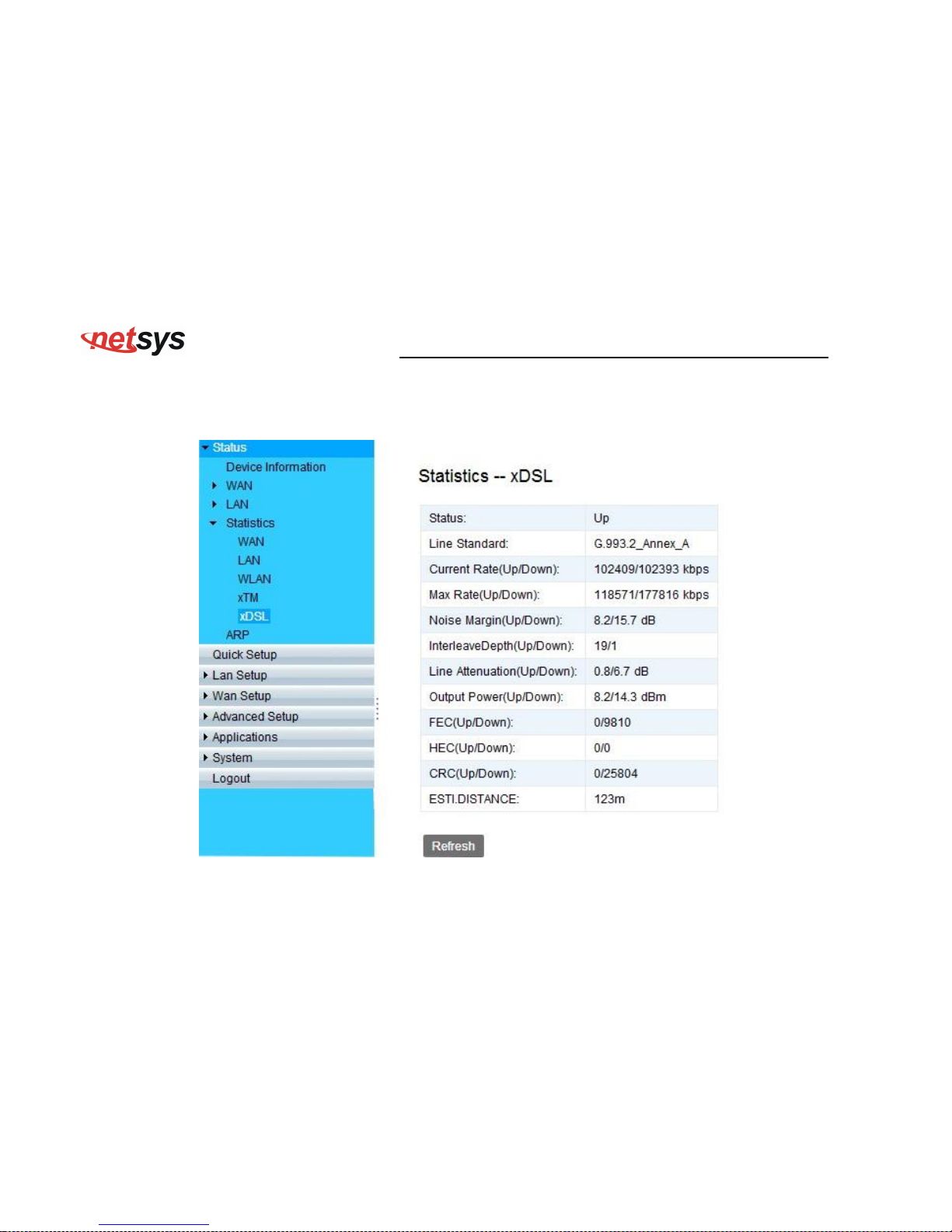

Statistics->xDSL:

Page 25

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

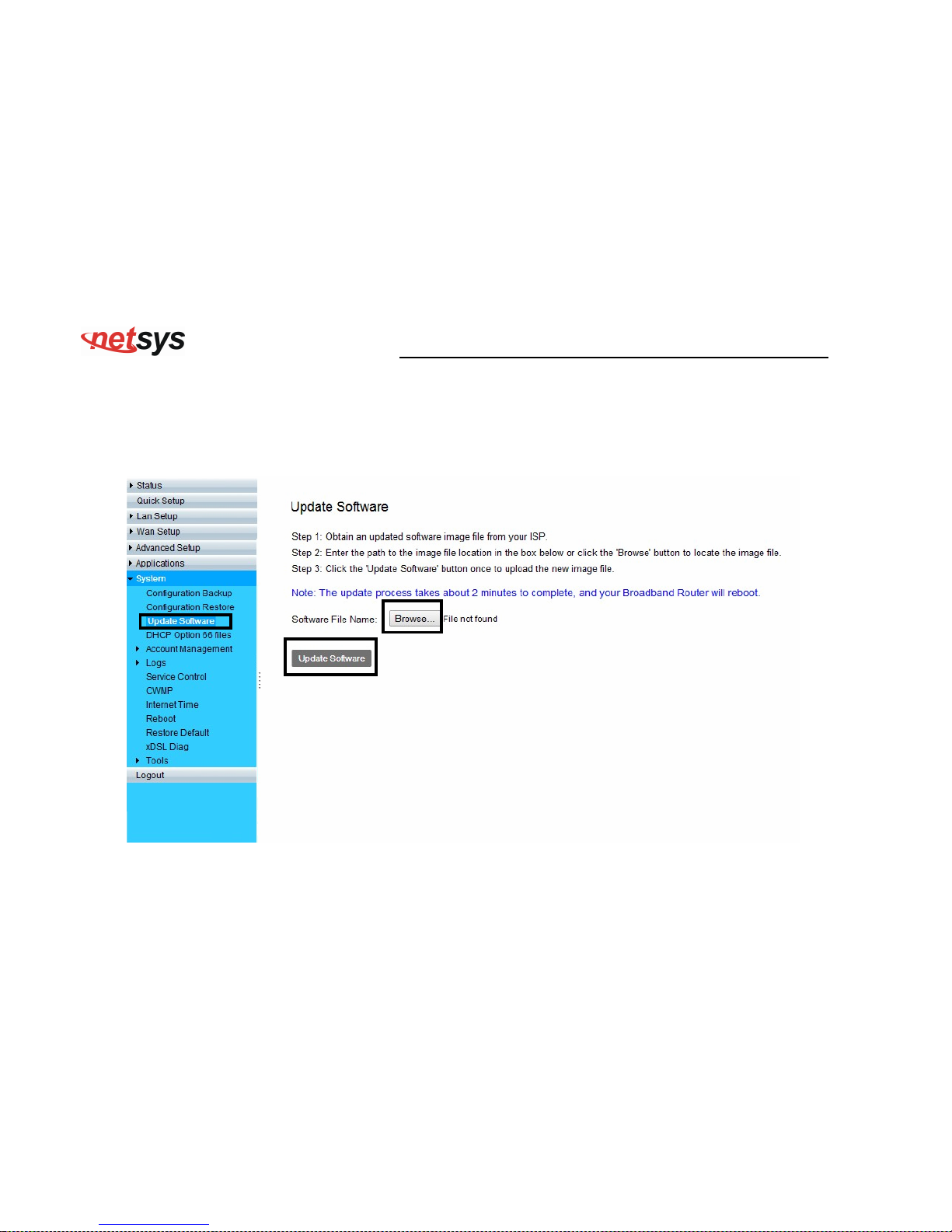

upgrade software

Select “Management”->”upgrade software” Choose the newest Firmware file and do upgrading

Page 26

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

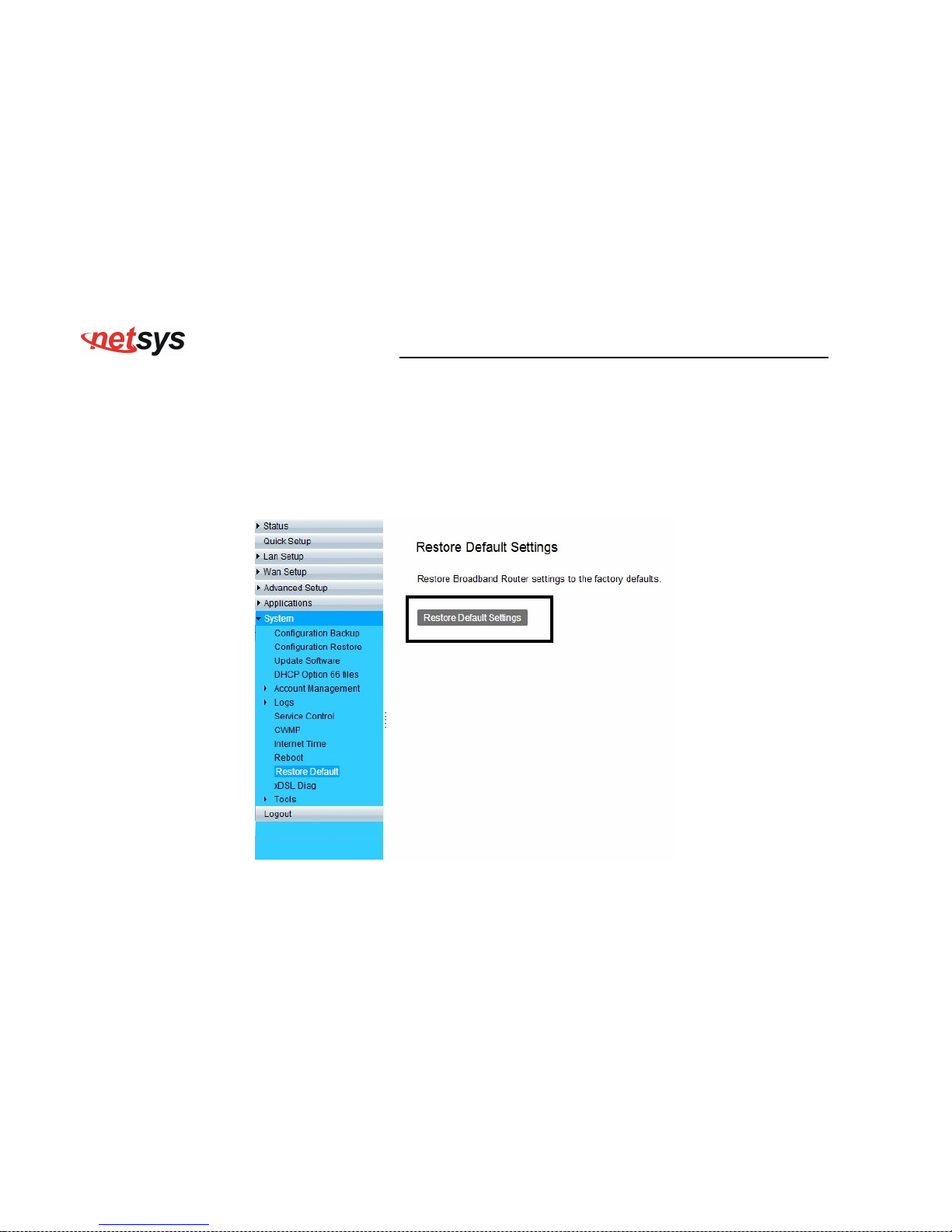

Restore Default Settings

Select “Management”->”Settings” ->”Restore Default” If Click “Restore Default Settings”, the device will reboot in 10 seconds.

Warning: The settings will restore the factory defaults expect WAN connection and TR069 Settings.

Page 27

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

4.2 WAN/TR069 Setup

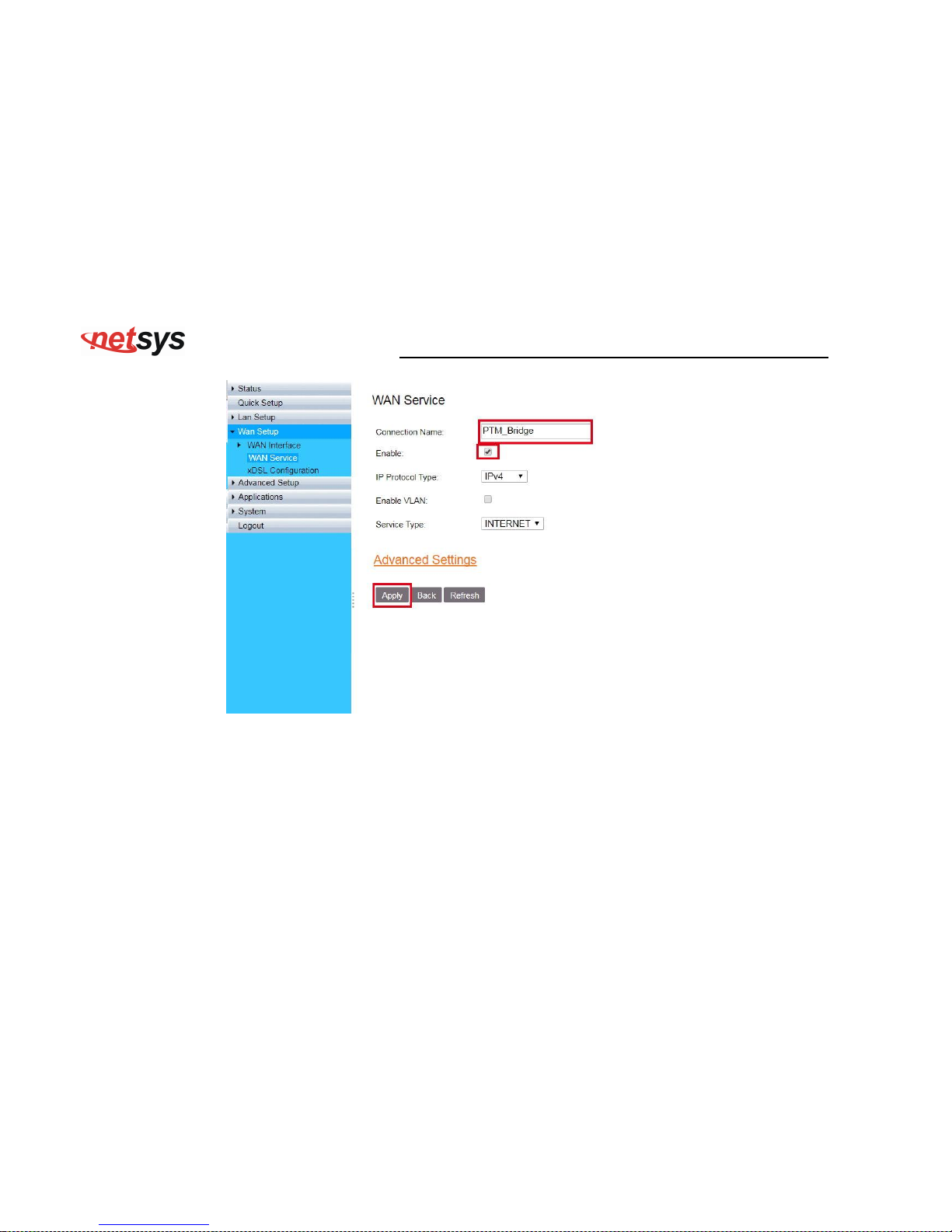

Create ATM+BRIDGE WAN Connection

WAN Service page, HGW has three mode: ATM/PTM/ETH, each compare ADSL/VDSL/GE_WAN, according different network to setup. For example, below pic is ATM mode

Page 28

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

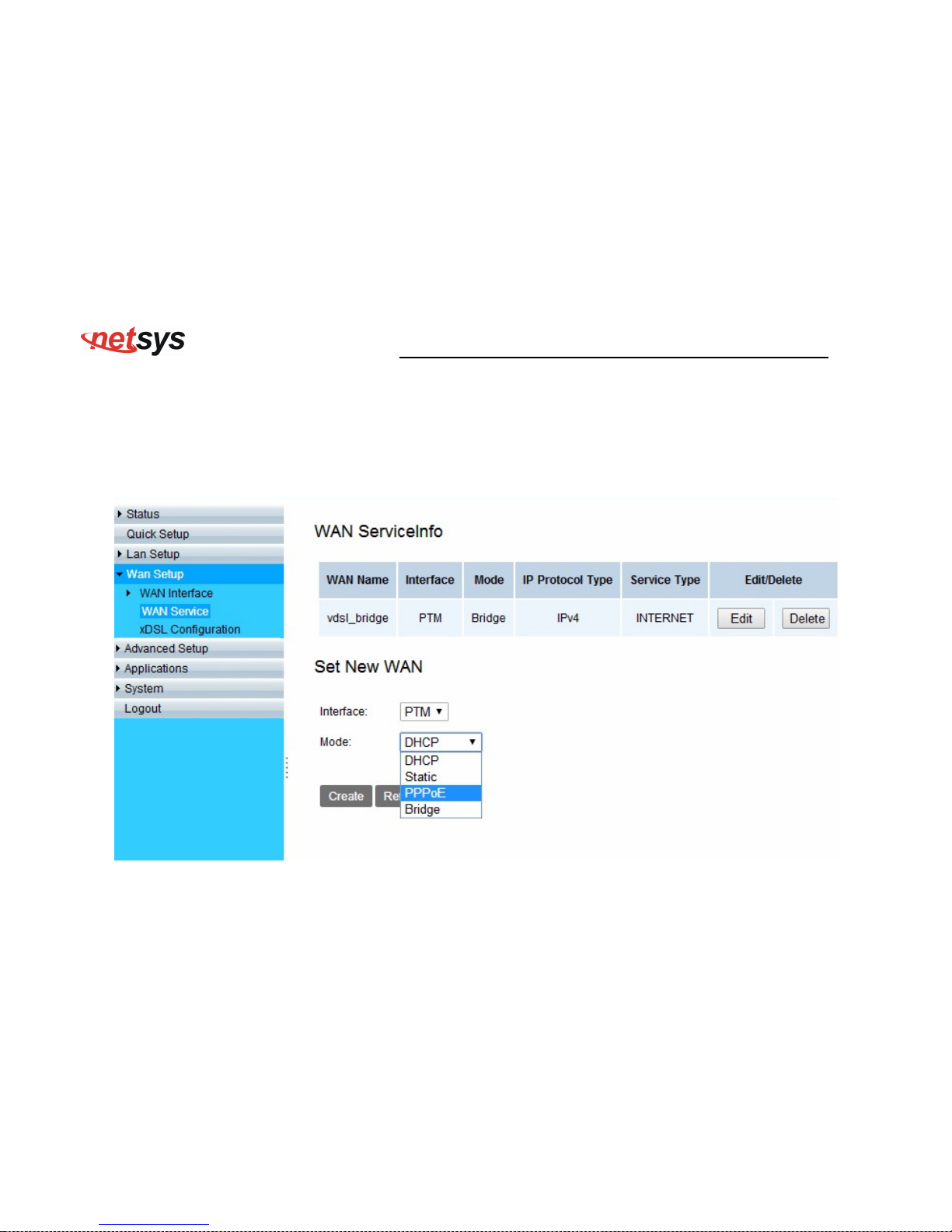

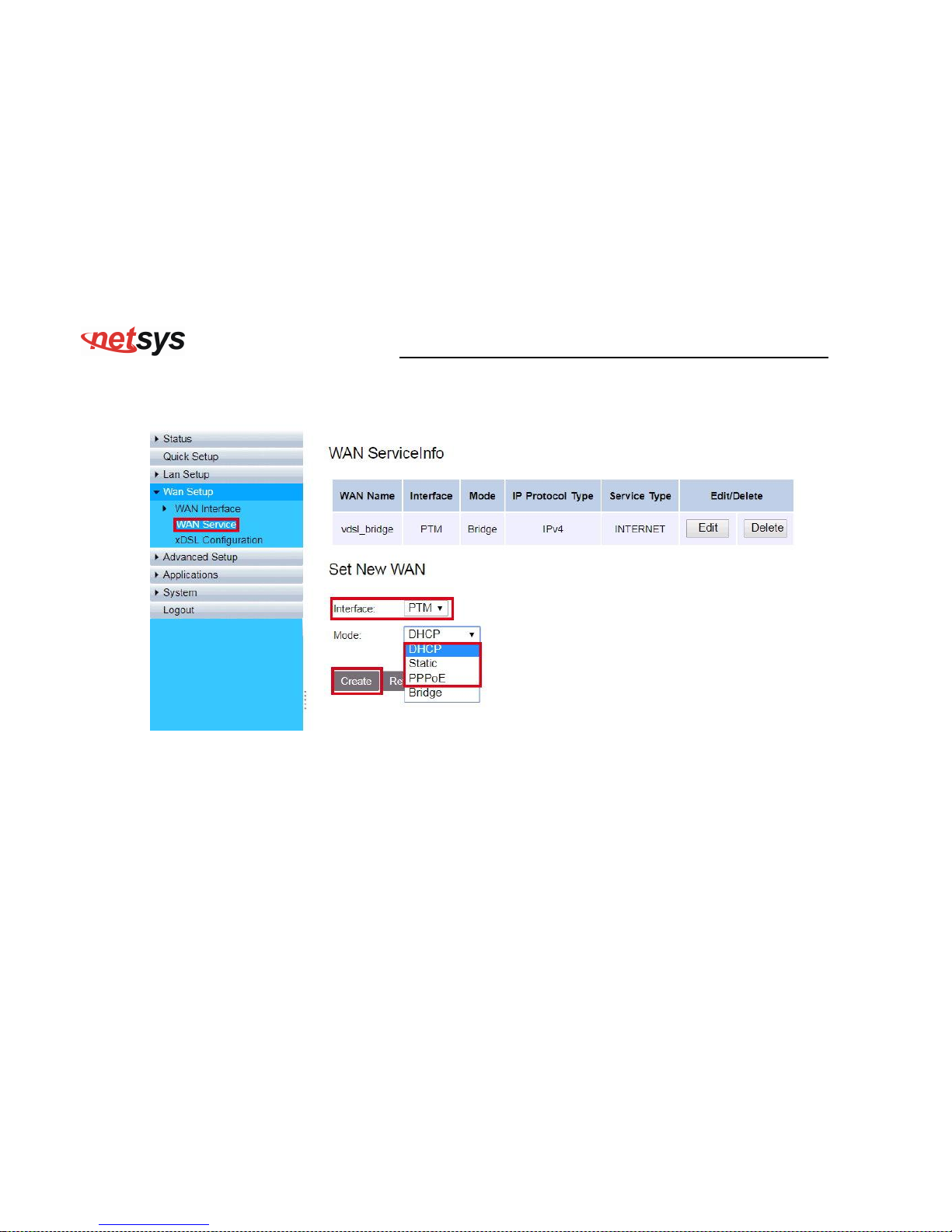

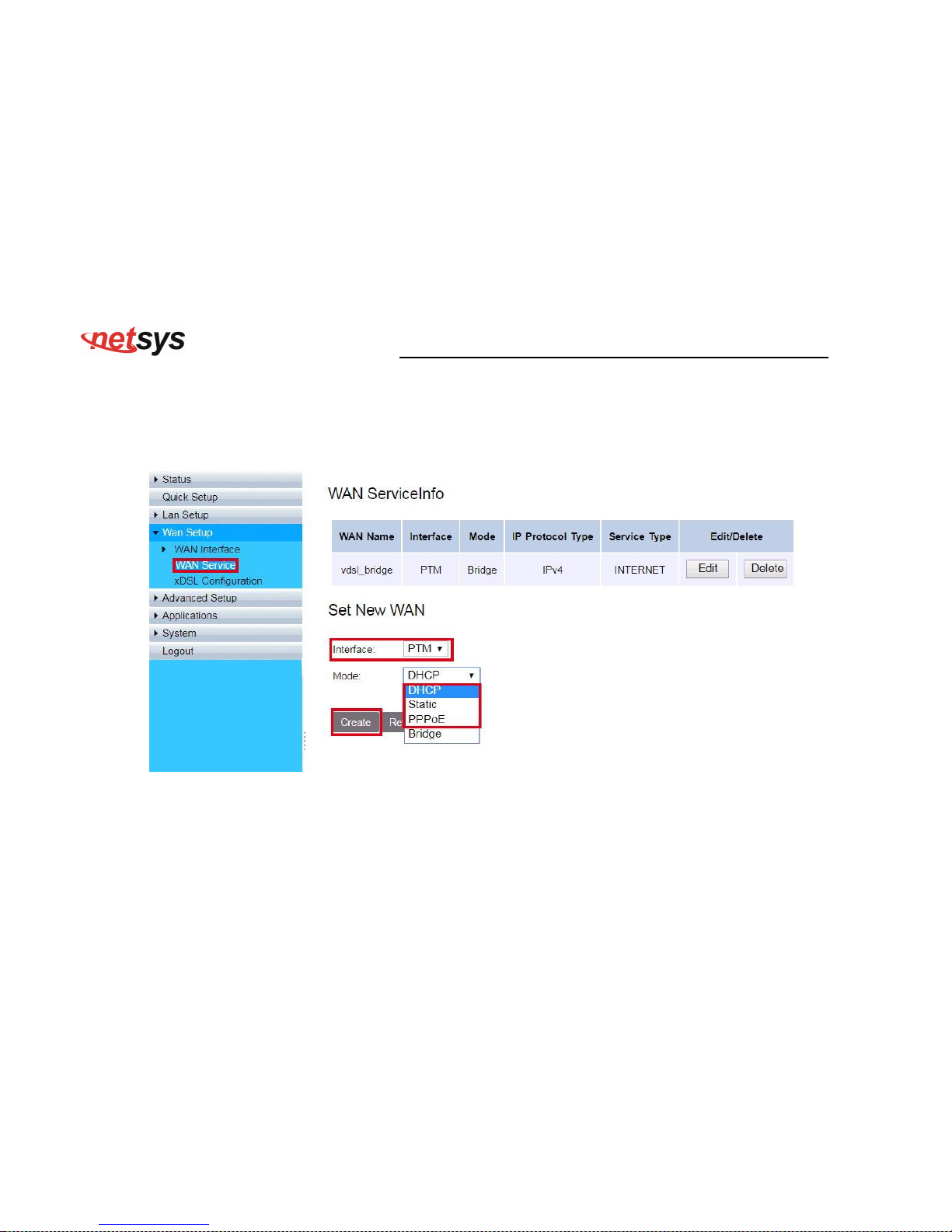

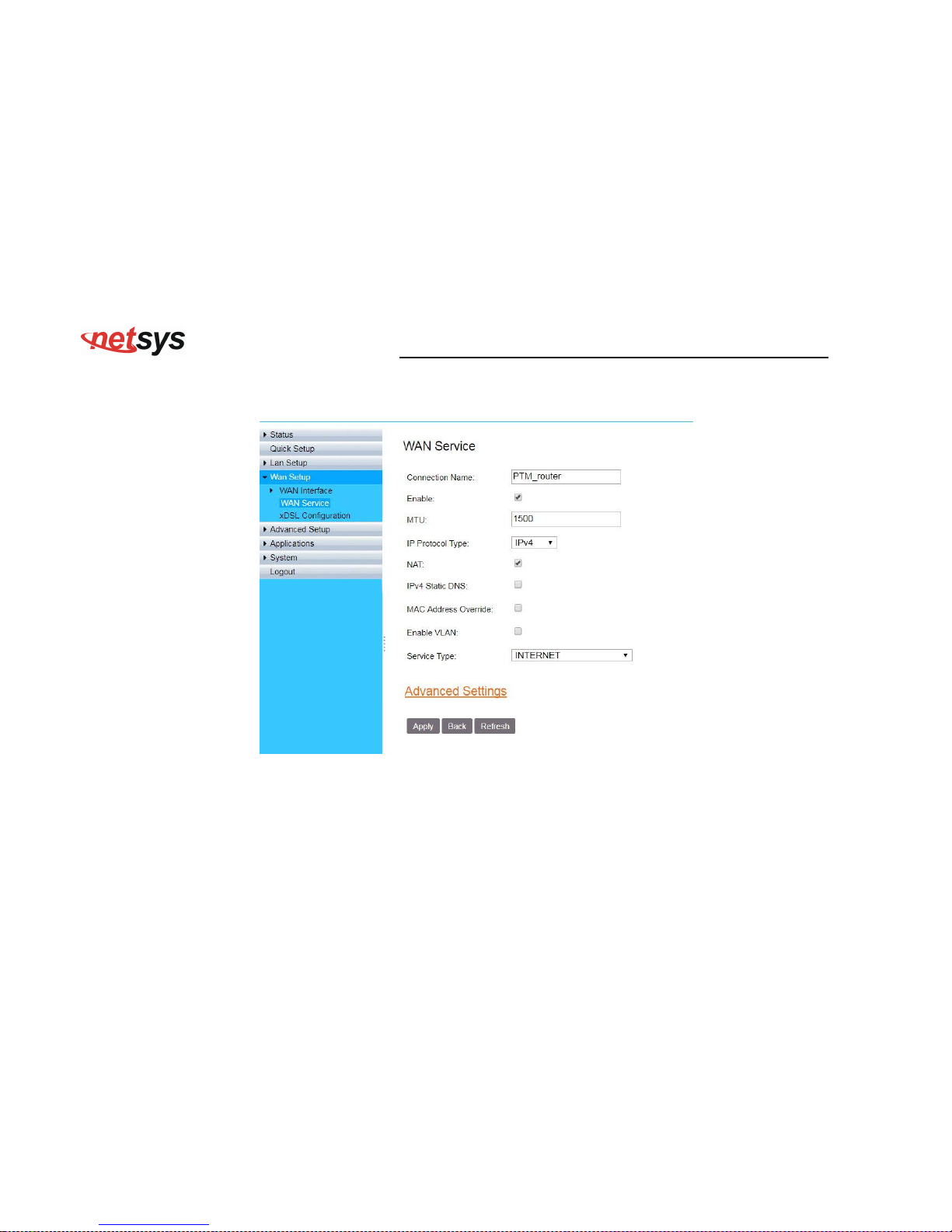

Create PTM +PPPoE WAN Router Connection

WAN Service page, DSL mode chooses PTM, select Route+PPPoE, setup PPPoE user account and password, choose Service Type is TR069_Internet, this WAN Connection can suffer internet and can use TR069.

Page 29

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Page 30

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Page 31

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Create TR-069 Connection

A: In Management/CWMP page setup ACS URL/Username/PasswordTR-069 and basic information.

B: Confirm WAN Connection setting, Service TypeincludeTR-069 type

Page 32

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

4.3 IGMP setup

According to the WAN setting, if you want to test IGMP function on Router mode, you only need to enable IGMP function

basic on the WAN SETUP.

Page 33

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

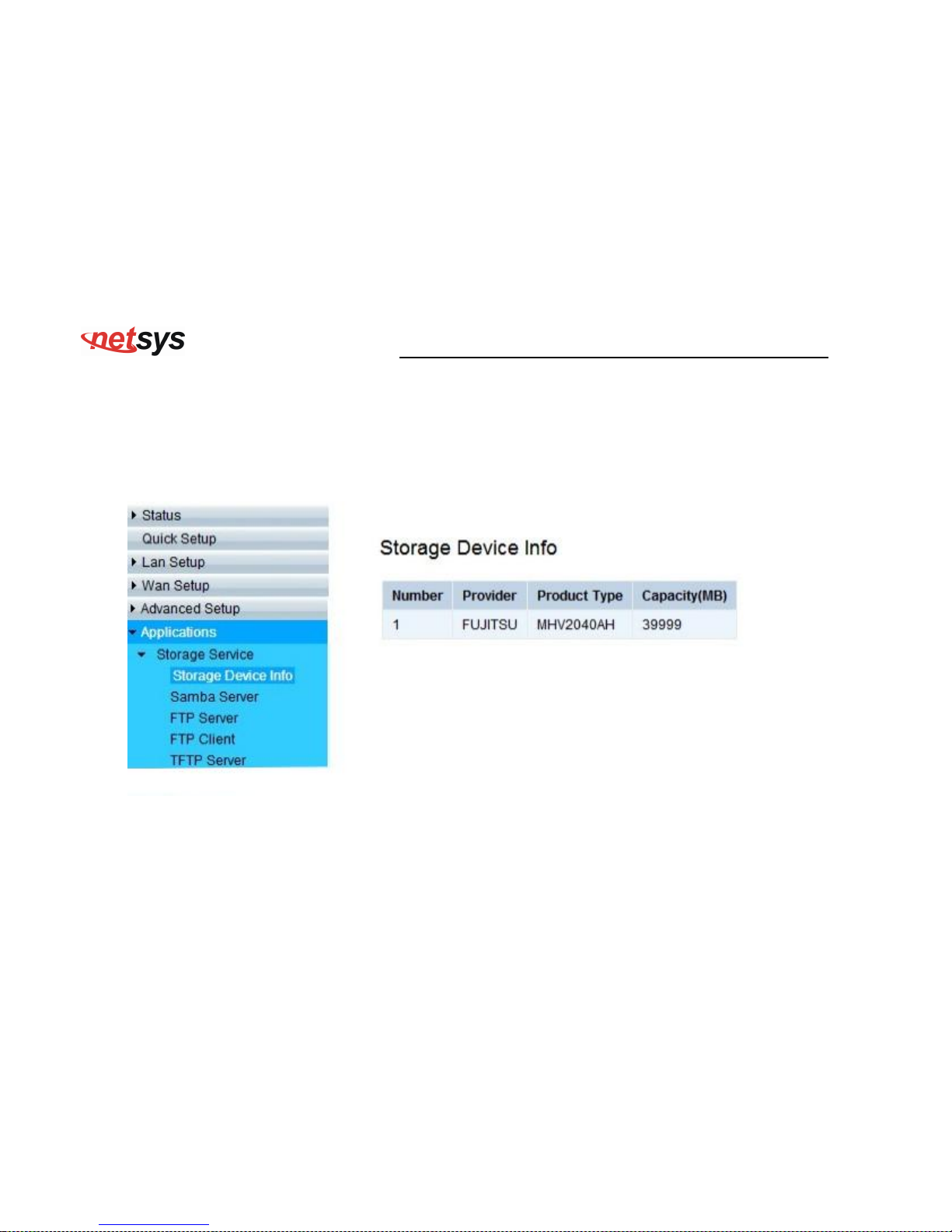

USB setup

Insert a U disk into the USB interface, then login 192.168.16.254,select “Application”->” Storage Service”->”Storage

Device Info”. Confirm the system has mounted the U disk.

Page 34

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

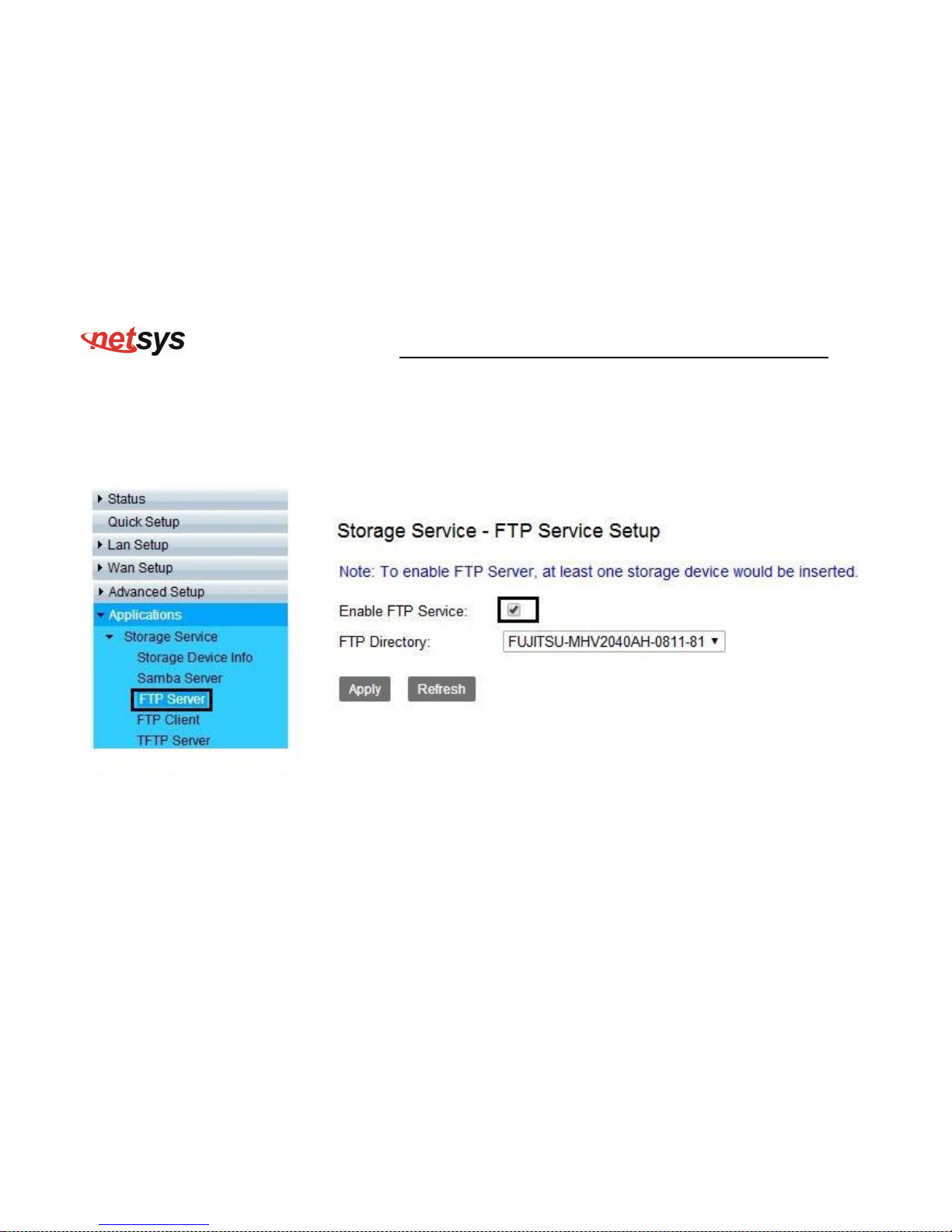

FTP Server

Below is picture for how to enable FTP Server function.

Page 35

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

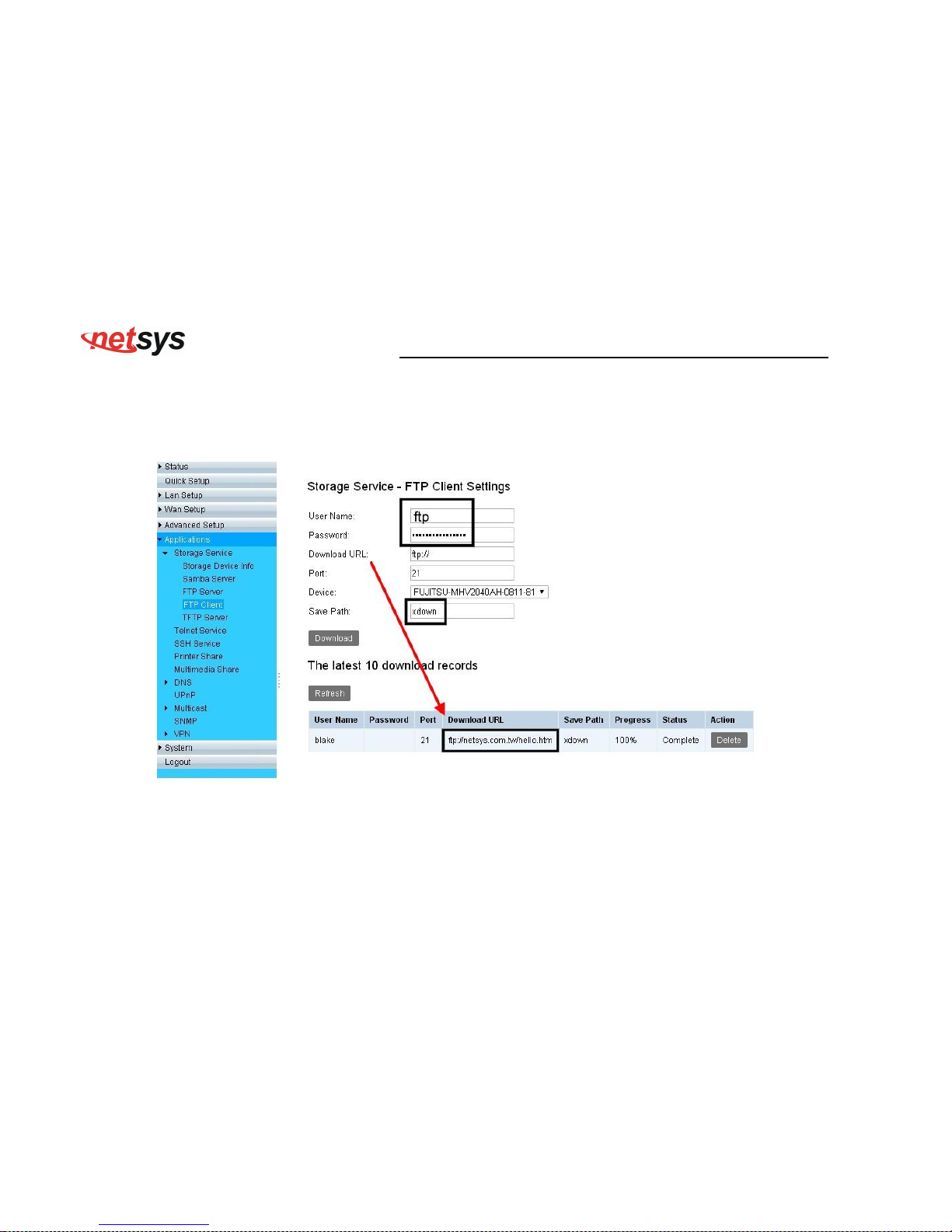

FTP Client

Below is picture for how to enable FTP Client function. Input FTP Client Settings, then chick “Download”

Page 36

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

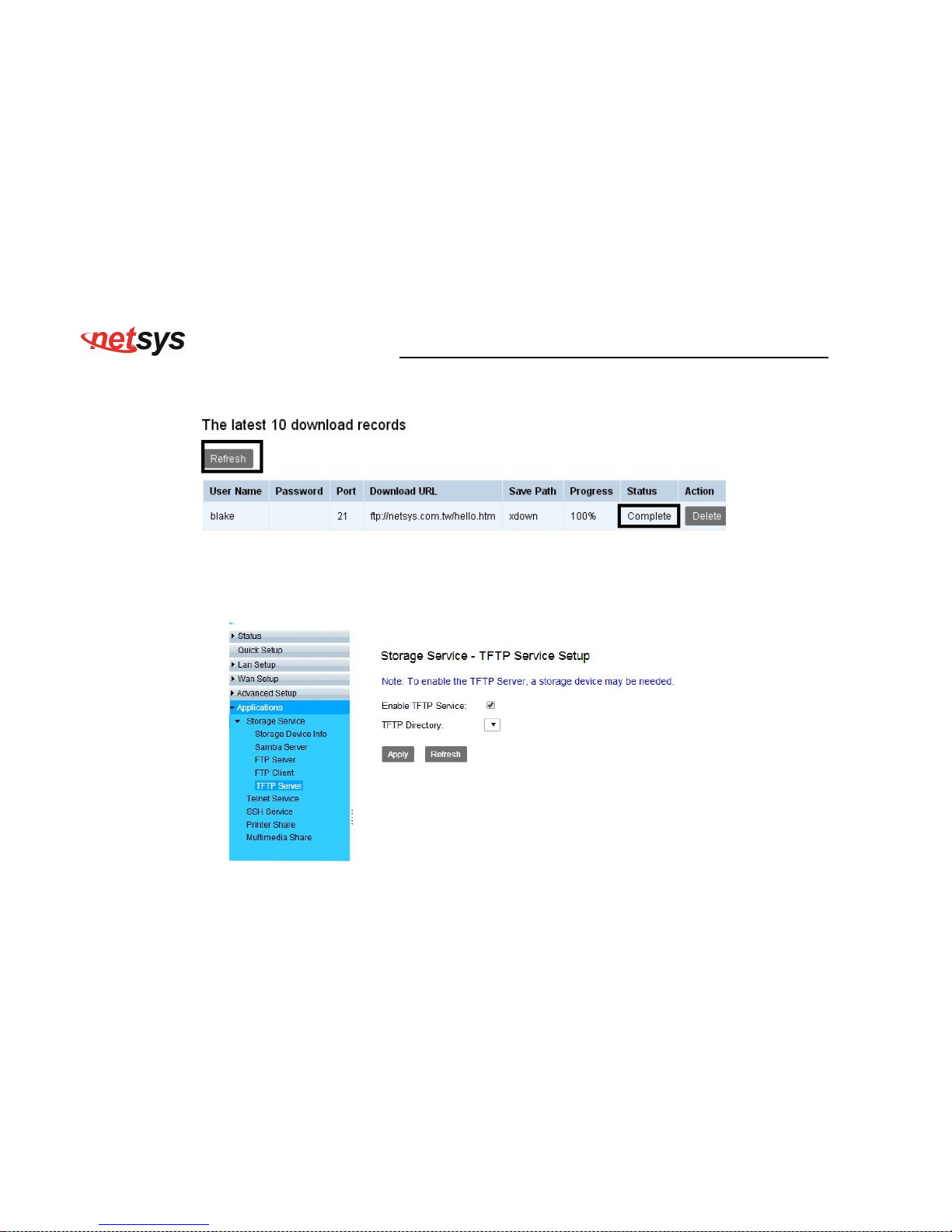

Click “Refresh”, Make sure the status is complete.

TFTP Server

Below is picture for how to enable TFTP Server function.

Page 37

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

4.4 SNMP setup

Below is picture for how to enable SNMP function, device support SNMP V1/V2.

Page 38

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

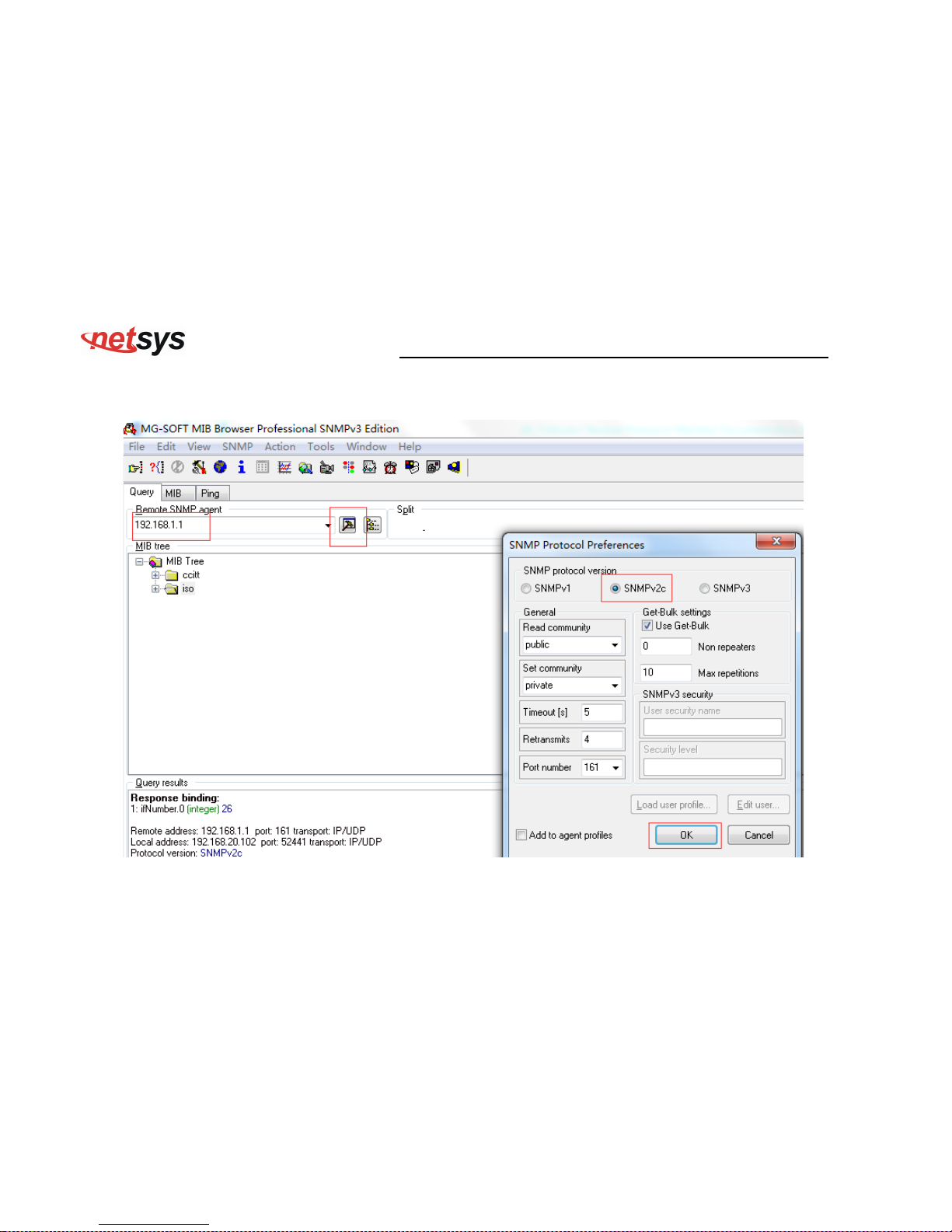

Download “MG-SOFT MIB Browser”. below is picture for how to use the software. Connect Remote SNMP agant.

Page 39

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

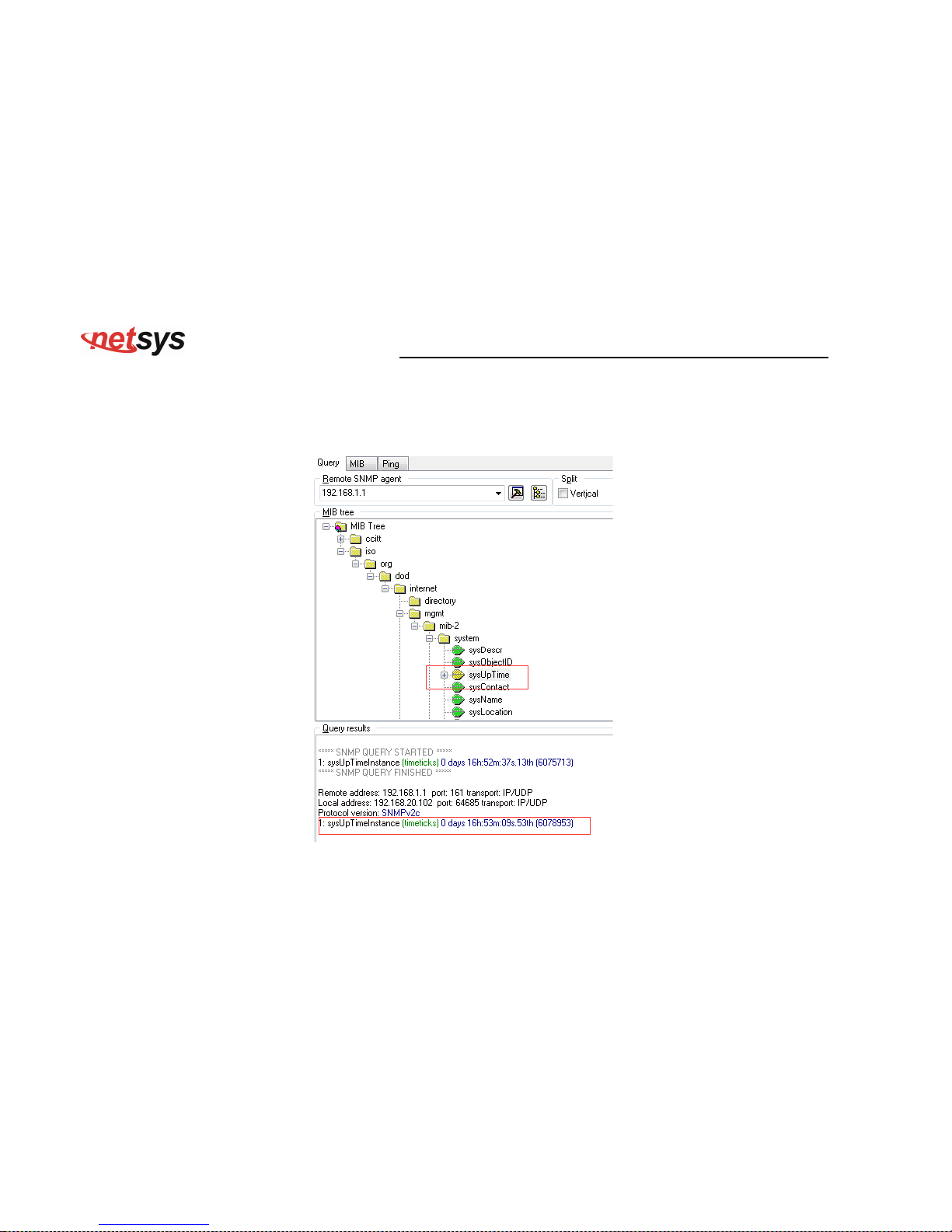

Select OID:1.3.6.1.2.1.1.3 System Up Time

Page 40

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Appendix A: Cable Requirements

A.1 Ethernet Cable

A CAT 3~7 UTP (unshielded twisted pair) cable is typically used to connect the Ethernet device to the router. A 10Base-T cable often consists of four pairs of wires, two of which are used for transmission. The connector at the end of the 10Base-T cable is referred to as an RJ-45 connector and it consists of eight pins. The Ethernet standard uses pins 1, 2, 3 and 6 for data transmission purposes. (Table A-1)

Table A-1 RJ-45 Ethernet Connector Pin Assignments

MDI MDI-X

PIN #

Signal

Media Dependant interface

Signal

Media Dependant

interface-cross 1 TX+ Transmit Data + RX+ Receive Data + 2 TX- Transmit Data - RX- Receive Data 3 RX+ Receive Data + TX+ Transmit Data + 4 -- Unused -- Unused 5 -- Unused -- Unused 6 RX- Receive Data - TX- Transmit Data 7 -- Unused -- Unused 8 -- Unused -- Unused

Figure A-1 Standard RJ-45 repectacle/connector

Note:

Please make sure your connected cables have the same pin assignment as the table above before deploying the cables into your network.

Page 41

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

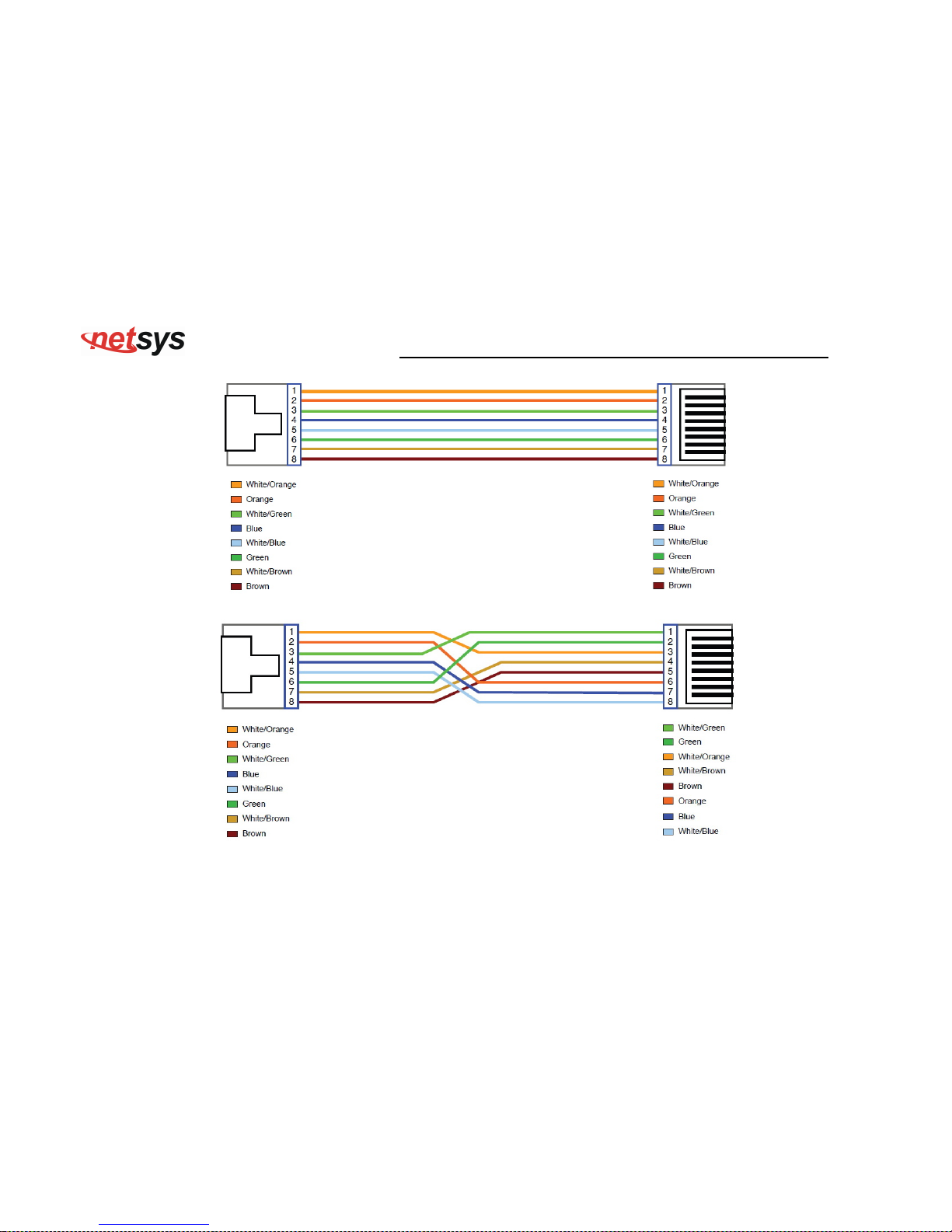

Figure A-2 Pin Assignments and Wiring for an RJ-45 Straight-Through Cable

Figure A-3 Pin Assignments and Wiring for an RJ-45 Crossover Cable

Page 42

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

A.2 Telephone wire

Standard telephone wire of any gauge or type-flat, twisted or quad is used to connect the Modem to the telephone network. A telephone cable typically consists of three pairs of wires, one of which is used for transmission. The connector at the end of the telephone cable is called an RJ-11 connector and it consists of six pins. POTS (plain old telephone services) use pins 3 and 4 for voice transmission. A telephone cable is shown below. (Figure A-4)

Figure A-4 Telephone cable

The A and B connectors on the rear of the Modem are RJ-11 connectors. These connectors are wired identically. The RJ-11 connectors have six positions, two of which are wired. The Modem uses the center two pins. The pin out assignment for these connectors is presented below. (Table A-2)

Table A-2 RJ-11 Pin out Assignments

Pin# MNEMONIC FUNCTION

1 NC Unused 2 NC Unused

3 TIP POTS 4 RING POTS

5 NC Unused 6 NC Unused

Page 43

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Appendix B:

Product Specification

Key Features & Benefits

 Adopts ARM Cortex A9 dual-core processor  Supports G.993.5 Vectoring and ADSL2+  Supports G.998.4 G.INP  Supports Dying Gasp  Support ATM and PTM transmission mode auto detection ( ADSL backward compatible)  Supports high bandwidth up to 100Mbps symmetric over line ports  Support 997, 998 band plan with Annex A / Annex B selection by web  Support 8a, 8b, 8c, 8d, 12a, 12b, 17a, 17b, and 30a band profile with auto follow-up CO side  Support Annex A / Annex B selection by web  Support ATM-TC,ATM and AAL5 (ATM Flow Throughout / OAM Cell Filter and Forwarding / AAL5 SAR:PVC / ATM Traffic Class /

ATM PVC Shaping / ATM PVC Scheduling)

 Supports ATM Total Upstream Priority Queues  Support uPnP/PPPoE/PPPoATM/IPv4/IPv6/NAT/NAPT  Support static routing for IPv4 and IPv6 forwarding  Support Firewall functions contains Packet filtering, DMZ, Mac Address based filtering, Parental Control, Application based

filtering

 Support DHCP Server/DHCP Relay/DHCP Client/DHCPv6 Client/DHCPv6 Server/DNS/DNS Proxy or Relay/DNSv6 Proxy or

Relay/NTP Client/HTTP1.1 server

 Support Multicast IP table/IGMP v3 Proxy and Snooping

Page 44

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

 Supports IEEE 802.1q VLAN tagging  Support IEEE 802.1p VLAN Priority and mapping to DSCP  Support 8 queue MFC/DSCP both type QoS  Supports HTTP/HTTPS web management  Support SSL / SSH security  Support remote management and monitor  Support configuration backup and restore  Provides surge protection for Line port  Supports jumbo frame up to 1536 bytes  Support Router & Switch(Bridged) mode selection  Supports Dual Firmware Image Backup  Supports SNMP v2  Supports TR-069

Note:

1. Features and specifications in this manual are subject to change without prior notice.

2. (*) Firmware upgradeable for future enhancement.

Product Specification

Standard:

IEEE802.3/802.3u standards ITU-T G992.1/G992.3/G992.5/G993.1/ G993.2/ G993.5/G997.1/G998.4 standards

Page 45

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Physical Interface:

4 x RJ-45 10/100 Mbps Ethernet port 1 x RJ-11 connector for VDSL2 line port 1 x Reset Button for resetting to factory default 1 x USB2.0 for connecting USB dongle

Flow control:

Full duplex: IEEE 802.3x Half duplex: Back pressure

LED Indicators:

1 x Power LED 4 x Link/Active Status for Ethernet port 1 x Link LED for VDSL2 port 1 x USB LED

Switch method: Store and forward Typical Power Consumption: 3 W

Power Input: Input Voltage: 12 VDC (Commerical-grade power adapter) EMC:

EMI Compliant: FCC EMS Compliant: CE mark

Operating Temperature:

0°C ~ 50°C (32°F ~ 122°F) Fanless, free air cooling

Storage Temperature: -20°C ~ 70°C (-4°F ~158°F) Humidity: 10% to 90% (non-condensing) Weight: About 0.4 kgs

Dimensions: 184 x 146 x 40 mm ( 7.2" x 5.74" x 1.57”) Chipsets: Triductor

Page 46

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Appendix C:

Router Mode select

This appendix describes how to select the router mode, The NV-720R default mode is switch(bridged mode), please refer to the following steps to select the router mode or switch mode.

 Select the Router mode:

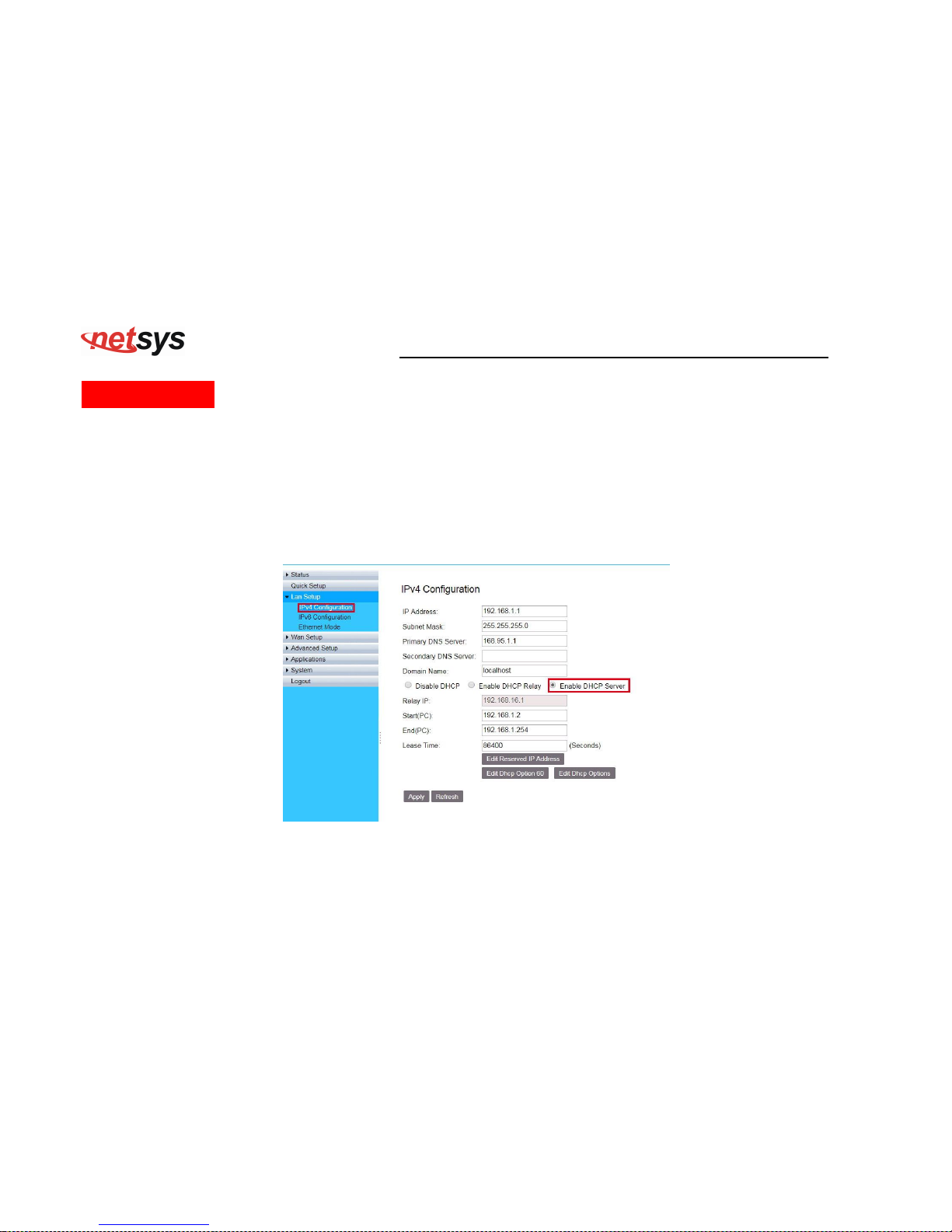

1. To configure the router mode settings, click the IPv4 Configuration link (LAN Setup) on the left navigation bar. Then select the “Server" at the DHCP Mode, and click Apply at any time during configuration to save the information that you have entered. A screen is displayed as shown in Figure C.1

Figure C-1 DHCP Server

Page 47

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

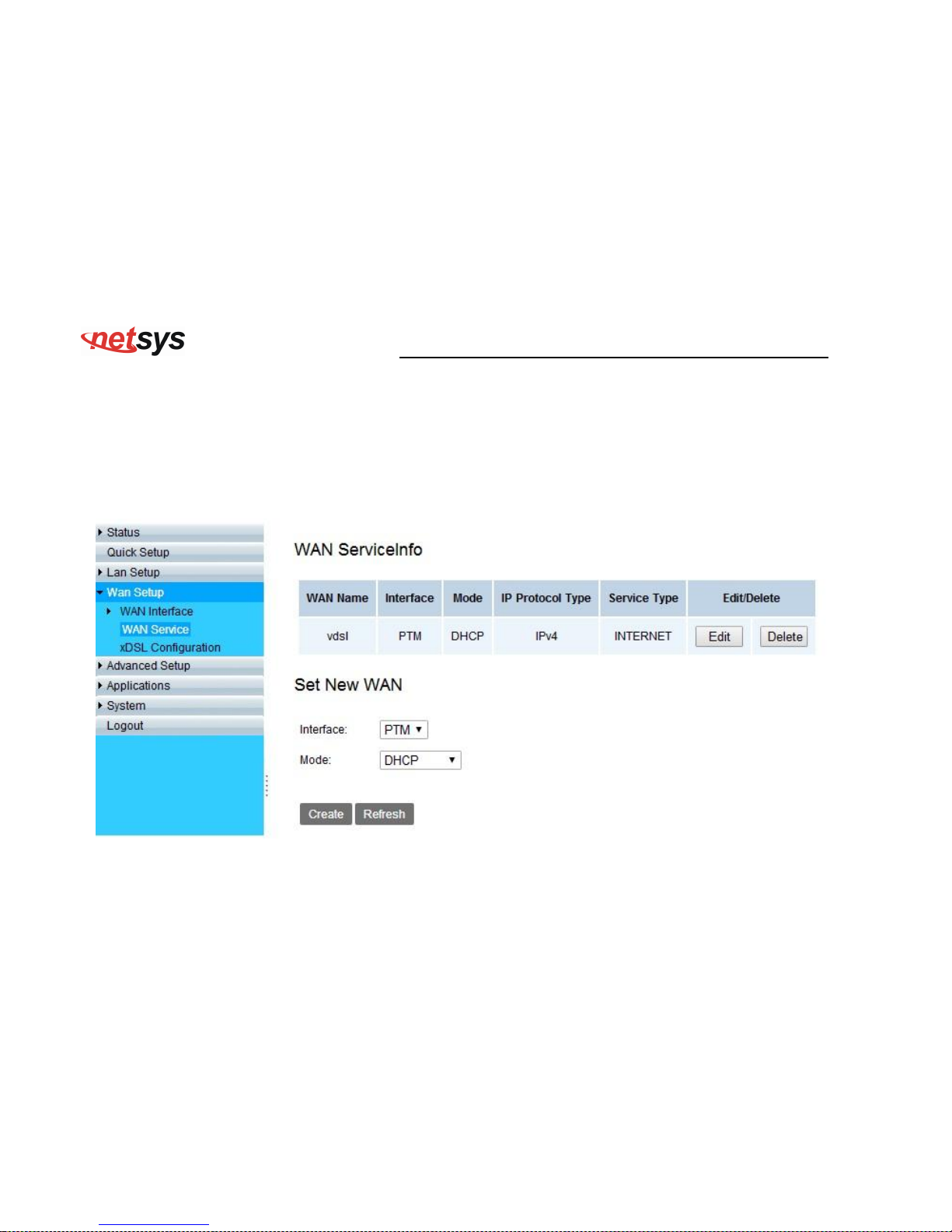

2. Click the WAN Service link (WAN Setup) on the left navigation bar to specify the WAN Setup. Please Select as the DHCP Mode.

Figure C-2 WAN Setup

Page 48

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

3. Please refer to the section 4.2 to configure the wan type, the user can setup the Dynamic IP Address, Static IP Address, PPPoE mode.

Figure C-3 Config WAN Type

 Click Apply for applying the changes.  Click Back to exit from this page without saving the changes. 

Page 49

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

 Select the Bridged mode:

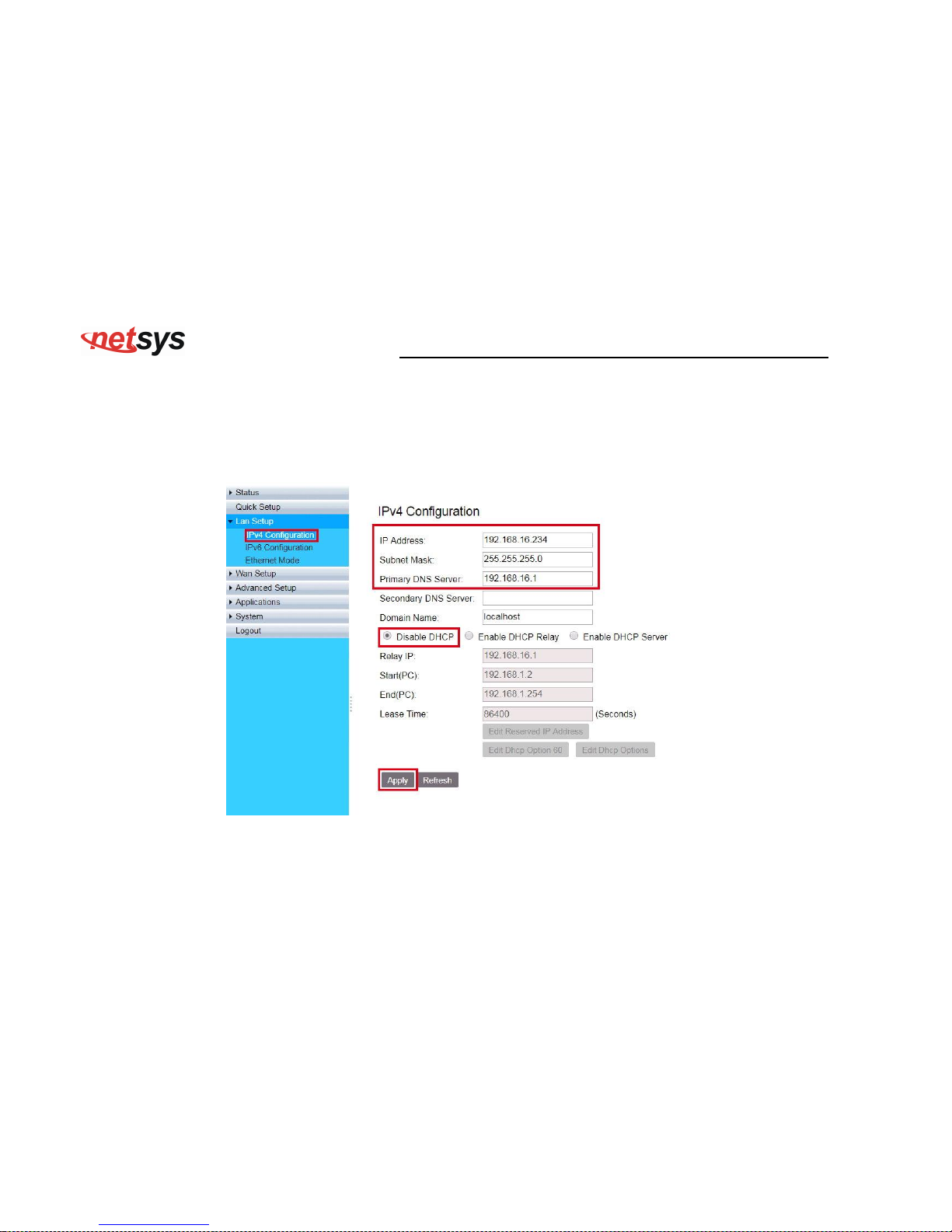

1. To configure the bridged mode settings, click the IPv4 Configuration link (LAN Setup) on the left navigation bar. And click Apply at any time during configuration to save the information that you have entered. A screen is displayed as shown in Figure C.4

Figure C-4 DHCP Mode – Disable

Page 50

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

2. Click the WAN Service link (WAN Setup) on the left navigation bar to specify the WAN setup. A screen is displayed as shown in

Figure C.5

Page 51

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Page 52

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Figure C-5 WAN Setup

Page 53

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Appendix D:

Troubleshooting

Diagnosing the Router’s Indicators

The router can be easily monitored through its comprehensive panel indicators. These indicators assist the network manager in identifying problems the hub may encounter. This section describes common problems you may encounter and possible solutions.

1. Symptom: POWER indicator does not light up (green) after power on.

Cause: Defective External power supply

Solution:

Check the power plug by plugging in another that is functioning properly. Check the power cord with another device. Check the terminal block make sure to fasten the power cord. If these measures fail to resolve the problem, have the unit power supply replaced by a qualified distributor.

Note: Please refer to power status table to check power input status. Section 3.3

2. Symptom: Link indicator does not light up (green) after making a connection.

Cause:

Network interface (ex. a network adapter card on the attached device), network cable, or switch port is defective.

Solution:

2.1 Power off and re-power on the VDSL2 router.

2.2 Verify that the switch and attached device are power on.

2.3 Be sure the cable is plugged into both the switch and corresponding device.

2.4 Verify that the proper cable type is used and its length does not exceed specified limits.

2.5 Check the router on the attached device and cable connections for possible defects.

2.6 Make sure that the phone wire must be connecting NV-720R first, when powered on.

2.7 Replace the defective router or cable if necessary.

Page 54

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

3. Symptom: VDSL Link cannot be established.

Cause: VDSL setting failure or phone cable length is over the specification limit.

Solution:

3.1 Please make sure that the phone wire must be connected between CO side and NV-720R (CPE) when both are power on. CO side will do link speed function depending on phone wire length, therefore if CO side can’t detect NV-720R (CPE) over phone wire while both power on, this will cause the link to fail.

3.2 Please check phone wire, we recommend use 24-26 gauge with twisted pair and without rust.

3.3 Please reinsert power when change cable length or link time over 3 minutes.

Note:

Phone wire must meet CAT 3 standard or above and without clustering, otherwise will cause more cross talk issue to reduce DSL power driver.

4. Question: What is VDSL2? (Only reference)

Answer:

Very-high-speed digital subscriber line 2 (VDSL2) is an access technology that exploits the existing infrastructure of copper wires that were originally deployed for traditional telephone service. It can be deployed from central offices, from fiber-optic connected cabinets located near the customer premises, or within buildings. It was defined in standard ITU-T G.993.2 finalized in 2005. VDSL2 was the newest and most advanced standard of digital subscriber line (DSL) broadband wireline communications. Designed to support the wide deployment of triple play services such as voice, video, data, high definition television (HDTV) and interactive gaming, VDSL2 was intended to enable operators and carriers to gradually, flexibly, and cost-efficiently upgrade existing xDSL infrastructure.

Page 55

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

The protocol was standardized in the International Telecommunication Union telecommunications sector (ITU-T) as Recommendation G.993.2. It was announced as finalized on 27 May 2005,[1] and first published on 17 February 2006. Several corrections and amendments were published in 2007 through 2011.

VDSL2 is an enhancement to very-high-bitrate digital subscriber line (VDSL), Recommendation G.993.1. It permits the transmission of asymmetric and symmetric aggregate data rates up to 200 Mbit/s downstream and upstream on twisted pairs using a bandwidth up to 30 MHz.

VDSL2 deteriorates quickly from a theoretical maximum of 250 Mbit/s at source to 100 Mbit/s at 0.5 km (1,600 ft) and 50 Mbit/s at 1 km (3,300 ft), but degrades at a much slower rate from there, and still outperforms VDSL. Starting from 1.6 km (1 mi) its performance is equal to ADSL2+.

ADSL-like long reach performance is one of the key advantages of VDSL2. LR-VDSL2 enabled systems are capable of supporting speeds of around 1–4 Mbit/s (downstream) over distances of 4–5 km (2.5–3 miles), gradually increasing the bit rate up to symmetric 100 Mbit/s as loop-length shortens. This means that VDSL2-based systems, unlike VDSL1 systems, are not limited to short local loops or MTU/MDUs only, but can also be used for medium range applications.

5. Question: What is SNR(Signal-to-Noise)? (Only reference)

Answer:

Signal-to-noise ratio (often abbreviated SNR or S/N) is a measure used in science and engineering that compares the level of a desired signal to the level of background noise. It is defined as the ratio

Page 56

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

of signal power to the noise power. A ratio higher than 1:1 indicates more signal than noise. While SNR is commonly quoted for electrical signals, it can be applied to any form of signal (such as isotope levels in an ice core or biochemical signaling between cells). The ratio is usually measured in decibels(dB) The signal-to-noise ratio, the bandwidth, and the channel capacity of a communication channel are connected by the Shannon–Hartley theorem. In digital communications, the SNR will probably cause a reduction in data speed because of frequent errors that require the source (transmitting) computer or terminal to resend some packets of data. SNR measures the quality of a transmission channel over a network channel. The greater the ratio, the easier it is to identify and subsequently isolate and eliminate the source of noise.

6. Symptom:

Connected the CO Router with CPE Router within 300 meters RJ-11 phone cable got only less than 10 Mbit/s.

Cause:

Some testing program which is base on TCP/IP protocol such as FTP, Iperf, NetIQ, the bandwidth of testing outcome will be limited by TCP window size.

Solution:

We recommend to test VDSL2 bandwidth best by Smartbit equipment, if you don't have Smartbit, we recommend test that by IPERF program, and TCP window size must be settled max. 64k, the parameter as iperf –c server IP address –i 1 –t 50 –w 65535 for client side.

7. Question:

I just bought a Netsys NV-720R

to replace my Quest DSL modem for my home. I was told any VDSL2

modem would replace and give me higher communication speeds. It doesn’t get me internet when hooked up. All lights come on but no Link light. Is this the complete wrong application for this unit?

Page 57

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Answer:

Re: Please note NV-720R is a remote side(CPE side), it must be connected to the CO side to work.

Tone mode, Band profile and band plan setting must be compatible to each other if not access error will show when applied. Please deactivate and activate once the setting has been changed.

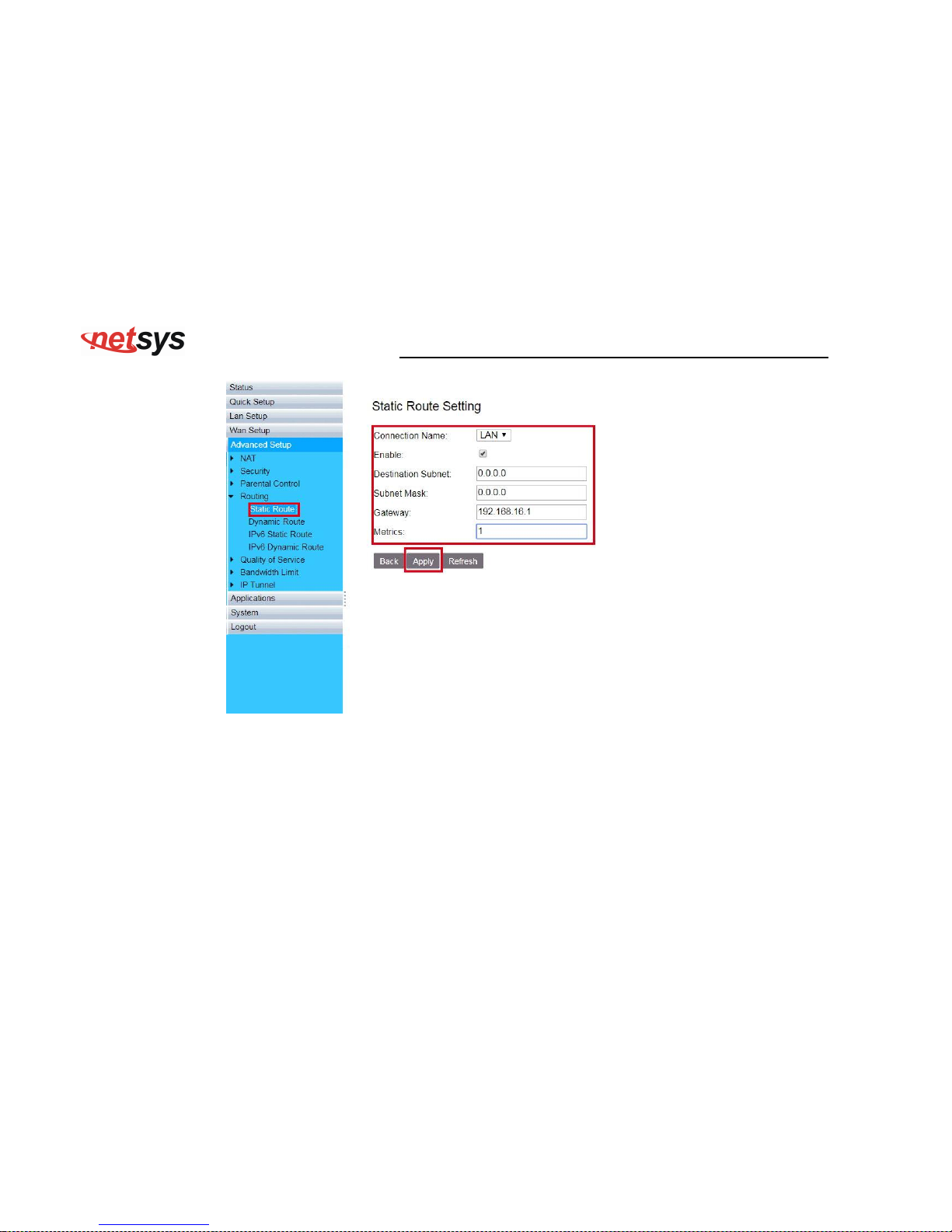

8. Question:

We need to set up a default gateway on a NV-720 pair which are in Bridge mode, as they want to manage the units from a different network.

Answer:

When the application is used within the LAN, the switch(bridged) mode is not necessary to set up a gateway .However, if the application crosses various network segments (LAN to WAN or WAN to LAN), you must set up a gateway to connect different network segment. Regarding how to configure a default gateway at switch(bridged) mode for crossing various network segments . Configuration gateway example from static routing: Destination LAN IP: 0-0-0-0 Subnet Mask: 0-0-0-0 Gateway: 255-255-255-0

Note: Static Routing functionality is used to define the connected Gateway between the LAN and

WAN.

9. Question: Is it possible to use ADSL2 IP DSLAM with the NV-720R?

Answer:

NV-720R support the ADSL backward compatible, therefore the NV-720R can connect to ADSL2 IP DSLAM(Annex B).

Page 58

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

10. Question: What can I do if I forgot my password.

Answer:

If you forgot your password, you must reset your router. Unfortunately this process will change all your

settings back to the factory defaults.

To reset the router, locate the reset on the rear panel of the unit.

With the router powered on, use a paperclip to hold the button down for over 5 seconds. Release the button and the router will go through its reboot process. The default ip is 192.168.16.254. When logging in, the default username and password both are “admin”.

11. Question: What is the maximum Ethernet frame MTU for these routers?

Answer: NV-720R maximum Ethernet frame MTU is 1536 bytes(Jumbo Frame).

Page 59

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

System Diagnostics

Power and Cooling Problems

If the POWER indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply as explained in the previous section. However, if the unit power is off after running for a while, check for loose power connections, power losses or surges at the power outlet. If you still cannot isolate the problem, then the internal power supply may be defective. In this case, please contact your local dealer.

Installation

Verify that all system components have been properly installed. If one or more components appear to be malfunctioning (e.g. the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly.

Transmission Mode

The default method of selecting the transmission mode for RJ-45 ports is 10/100 Mbps ETHERNET, for RJ-11 port are auto-negotiation VDSL. Therefore, if the Link signal is disrupted (e.g. by unplugging the network cable and plugging it back in again, or by resetting the power), the port will try to reestablish communications with the attached device via auto-negotiation. If auto-negotiation fails, then communications are set to half duplex by default. Based on this type of commercial-standard connection policy, if you are using a full-duplex device that does not support auto-negotiation, communications can be easily lost (i.e. reset to the wrong mode) whenever the attached device is reset or experiences a power fluctuation. The best way to resolve this problem is to upgrade these devices to a version that support Ethernet and VDSL.

Page 60

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Physical Configuration

If problems occur after altering the network configuration, restore the original connections, and try to track the problem down by implementing the new changes, one step at a time. Ensure that cable distances and other physical aspects of the installation do not exceed recommendations.

System Integrity

As a last resort verify the switch integrity with a power-on reset. Turn the power to the switch off and then on several times. If the problem still persists and you have completed all the preceding diagnoses, then contact your dealer.

Page 61

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Appendix E:

Compliance Information

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a computing device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. The equipment and the receiver should be connected to outlets on separate circuits.

4. Consult the dealer or an experienced radio/television technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

If this telephone equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

Page 62

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance in order for you to make necessary modifications to maintain uninterrupted service.

This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.

FCC Warning

This equipment has been tested to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment can

generate, use, and radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at owner’s expense.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference in which

case the user may be required to take adequate measures.

Page 63

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Page 64

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Warranty

The original product that the owner delivered in this package will be free from defects in material and workmanship for one year parts after purchase.

There will be a minimal charge to replace consumable components, such as fuses, power transformers, and mechanical cooling devices. The warranty will not apply to any products which have been subjected to any misuse, neglect or accidental damage, or which contain defects which are in any way attributable to improper installation or to alteration or repairs made or performed by any person not under control of the original owner.

The above warranty is in lieu of any other warranty, whether express, implied, or statutory, including but not limited to any warranty of merchantability, fitness for a particular purpose or any warranty arising out of any proposal, specification or sample. We shall not be liable for incidental or consequential damages. We neither assume nor authorize any person to assume for it any other liability.

WARNING:

1.DO NOT TEAR OFF OR REMOVE THE WARRANTY STICKER AS SHOWN, OR THE WARRANTY IS VOID.

2.WARRANTY VOID IF USE COMMERCIAL-GRADE POWER ADAPTER IS USED AT HARSH ENVIRONMENTS.

Page 65

NV-720R ADSL2+/ VDSL2 Modem Router USER’S MANUAL Ver. A.2

Chinese SJ/T 11364-2014

有毒有害物质或元素

部件名称

铅(Pb) 汞(Hg) 镉(Cd) 六价铬[Cr(VI)] 多溴联苯(PBB) 多溴二苯醚(PBDE)

结构壳体 ○ ○ ○ ○ ○ ○

电路组 ○ ○ ○ ○ ○ ○

包装及配件 ○ ○ ○ ○ ○ ○

○：表示该有毒物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。 ╳：表示该有毒物质至少在该部件的某依均质材料中的含量超出 GB/T 26572 标准规定的限量要求。

上述规范仅适用於中国法律
