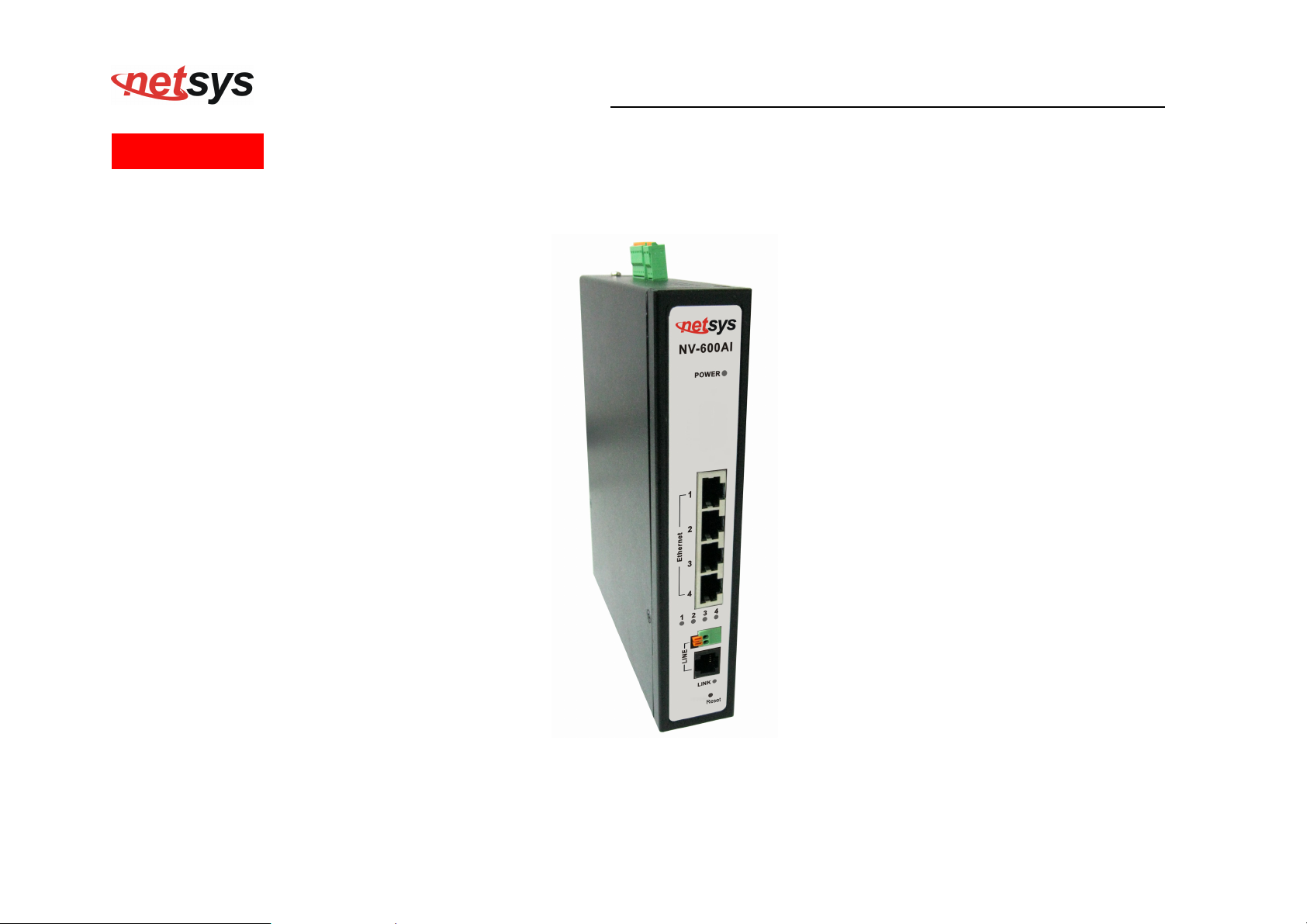

netsys NV-600AI User Manual

N

V

-

6

0

0

A

I

NV-600AI Industrial VDSL2 CPE Router with Enhanced Management USER’S MANUAL Ver. A5

N

V

-

6

0

0

A

I

I

I

I

n

n

n

d

d

d

u

u

u

s

s

s

t

t

t

r

r

r

N

V

-

6

0

0

A

i

a

l

A

D

S

L

2

+

/

V

i

a

l

A

D

S

L

2

i

a

l

A

D

S

L

2

+

+

/

/

V

V

D

D

D

I

S

S

S

L

L

L

2

2

2

R

R

R

o

o

o

u

u

u

t

t

t

e

e

e

r

r

r

U

S

E

R

’

S

M

A

N

U

A

L

U

S

E

R

’

S

M

A

N

U

U

S

E

R

’

S

M

A

N

2

0

U

A

A

L

L

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Copyright

Copyright © 2012 by National Enhance Technology Corp. All rights reserved.

Trademarks

NETSYS is a trademark of National Enhance Technology Corp.

Other brand and product names are registered trademarks or trademarks of their respective holders.

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect

to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the

device, National Enhance Technology Corp. hereby disclaims any and all warranties and liabilities of any kind, including without

limitation warranties of non-infringement of intellectual property rights of any third party.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to make changes to

the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or

application of the product(s) or circuit layout(s) described herein.

Maximum signal rate derived from IEEE Standard specifications. Actual data throughput will vary. Network conditions and

environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual

data throughput rate. Netsys does not warrant that the hardware will work properly in all environments and applications, and makes

no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for

a particular purpose. Make sure you follow in line with the environmental conditions to use this product.

1

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Foreword: Industrial-grade VDSL2 CPE Router solution

Attention:

Be sure to read this manual carefully before using this product. Especially Legal Disclaimer, Statement
of Conditions and Safety Warnings.

Netsys' NV-600AI is an industrial VDSL2 CPE router with enhanced management that leverages the extraordinary bandwidth

promise of VDSL2 (max. 100Mbps Symmetric) technology, the next step in the delivery of new high-speed Internet applications in

industrial environments. In addition to using a DIN-Rail design that is quick, easy and economical to install and maintain, it offers

high-performance broadband/multimedia services to industrial environments such as Factories, MRT, Train stations, Ticket vending

machines, Parking systems, Monitoring systems and point to point applications. NV-600AI is a CPE (Customer Premise Equipment)

device.

Netsys NV600AI is seen by many operators as an ideal accompaniment to a FTTP rollout, where for instance fiber optic is supplied

direct to an apartment block and from there copper cable is used to supply residents with high-speed VDSL2.

Caution:

The NV-600AI is industrial-grade applications. This product does not have waterproof protection.

2

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Safety Warnings

For your safety, be sure to read and follow all warning notices and instructions before using the device.

 DO NOT open the device or unit. Opening or removing the cover may expose you to dangerous high voltage points or other

risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information.

 Use ONLY the dedicated power supply for your device. Connect the power to the right supply voltage (110V AC used for

North America and 230V AC used for Europe. NV-600AI supports 12 to 48 VDC dual power input(Redundant power)).

 Place connecting cables carefully so that no one will step on them or stumble over them. DO NOT allow anything to rest on

the power cord and do NOT locate the product where anyone can work on the power cord.

 DO NOT install nor use your device during a thunderstorm. There may be a remote risk of electric shock from lightning.

 DO NOT expose your device to dampness, dust or corrosive liquids.

 DO NOT use this product near water, for example, in a wet basement or near a swimming pool.

 Connect ONLY suitable accessories to the device.

 Make sure to connect the cables to the correct ports.

 DO NOT obstruct the device ventilation slots, as insufficient air flow may harm your device.

 DO NOT place items on the device.

 DO NOT use the device for outdoor applications directly, and make sure all the connections are indoors or have waterproof

protection place.

 Be careful when unplugging the power, because it may produce sparks.

 Keep the device and all its parts and accessories out of the reach of children.

 Clean the device using a soft and dry cloth rather than liquid or atomizers. Power off the equipment before cleaning it.

 This product is recyclable. Dispose of it properly.

3

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

TABLE OF CONTENTS

COPYRIGHT ........................................................................................................................................................ 1

FOREWORD: INDUSTRIAL-GRADE VDSL2 CPE ROUTER SOLUTION ............................................................ 2

SAFETY WARNINGS ........................................................................................................................................... 3

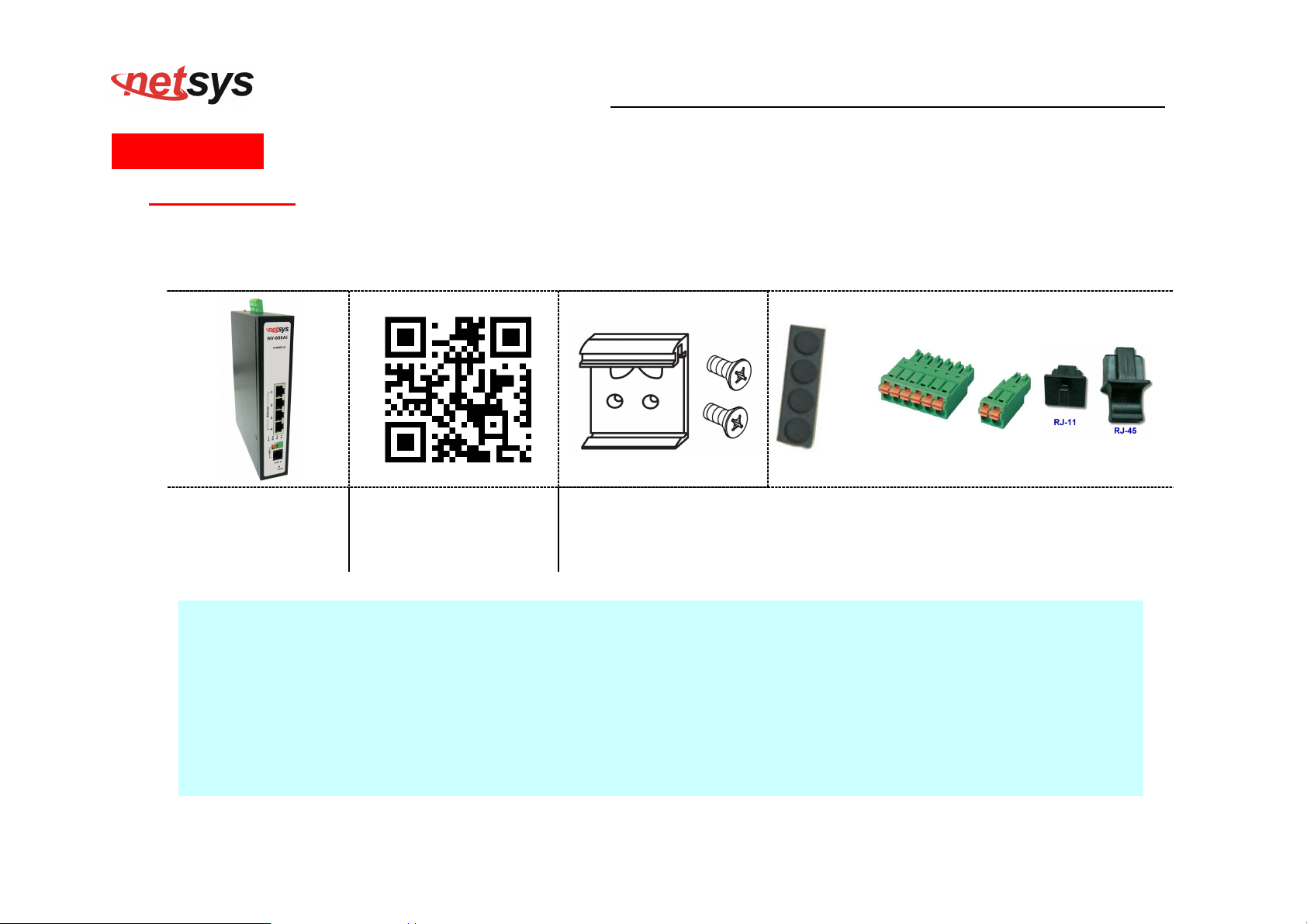

1.1 Check List .................................................................................................................................................................................... 10

CHAPTER 2. INSTALLING THE ROUTER ........................................................................................................ 11

2.1 Hardware Installation.................................................................................................................................................................... 11

2.2 Pre-installation Requirements ...................................................................................................................................................... 11

2.3 General Rules .............................................................................................................................................................................. 12

2.4 Connecting the Router ................................................................................................................................................................. 13

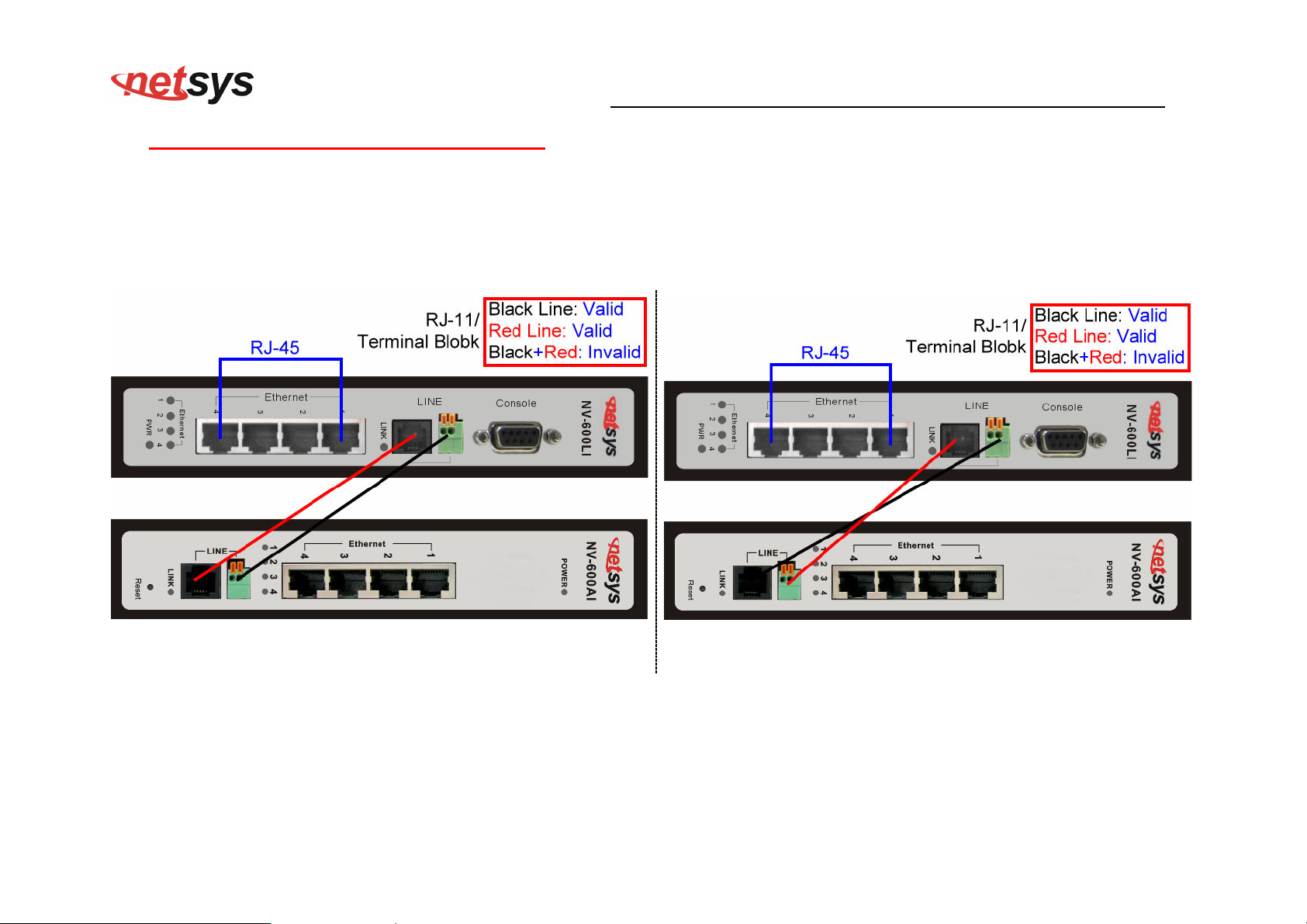

2.5 Connecting the RJ-11 / RJ-45 Ports ............................................................................................................................................. 14

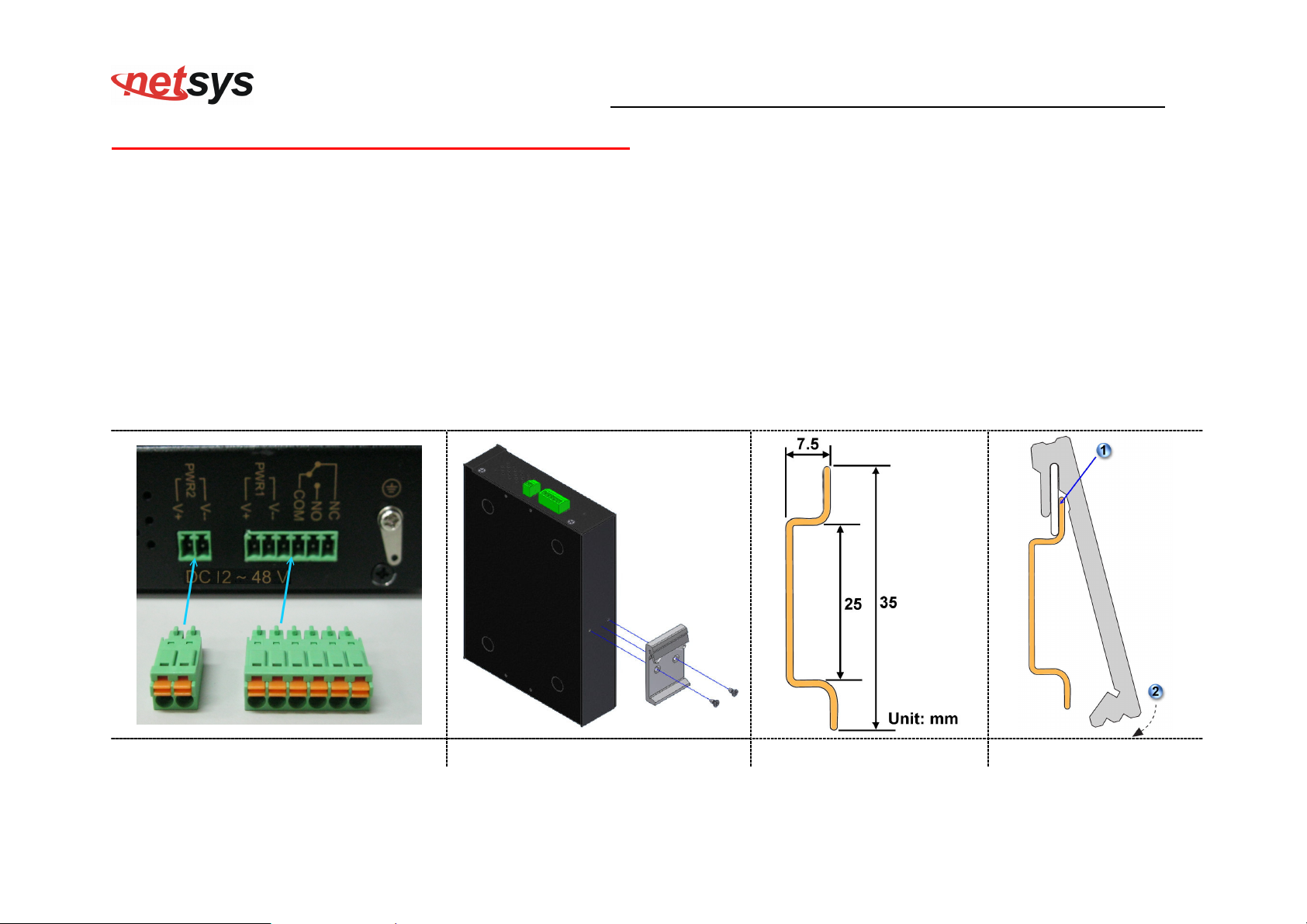

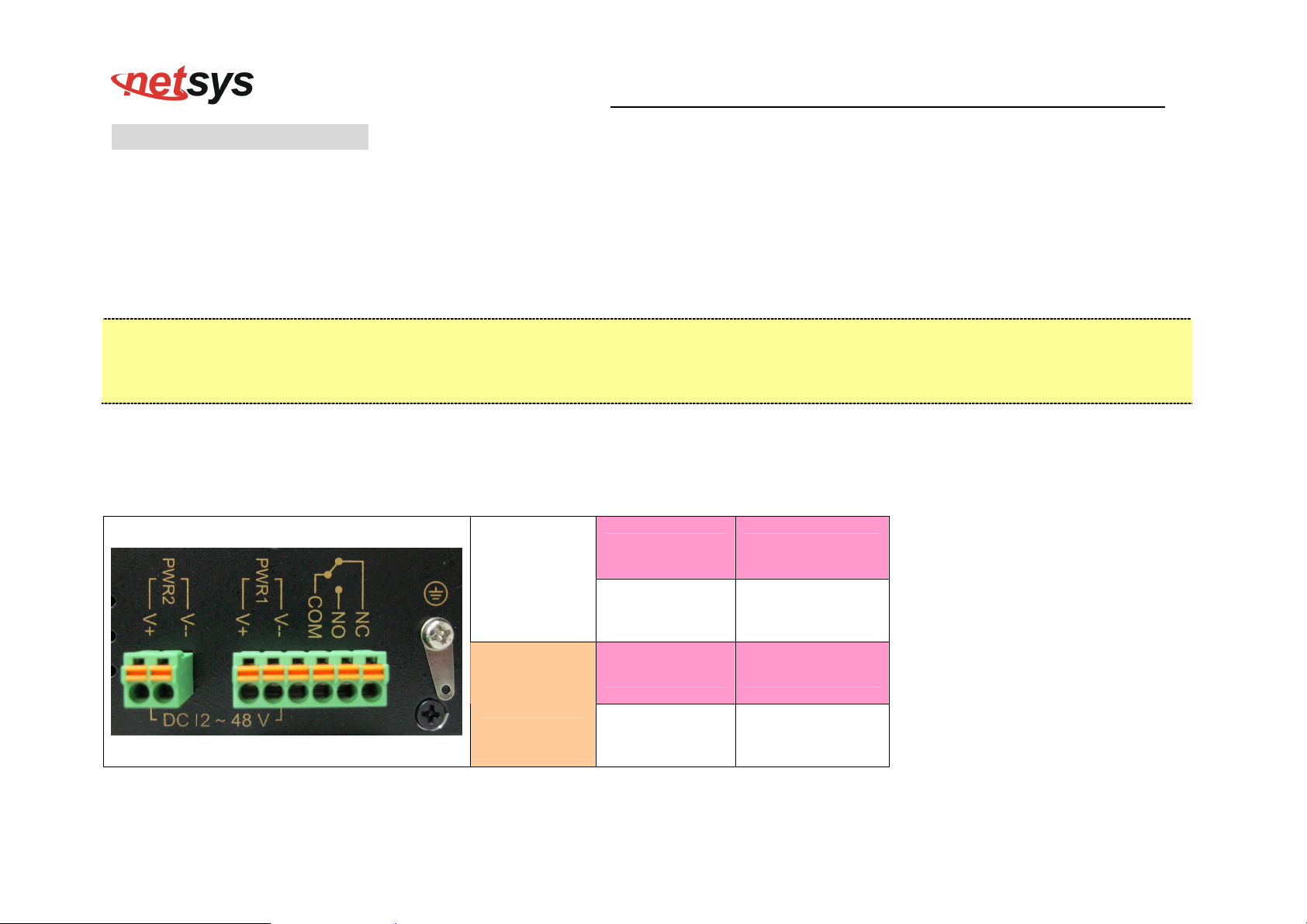

2.6 Terminal Block and DIN-Rail mount installation......................................................................................................................16

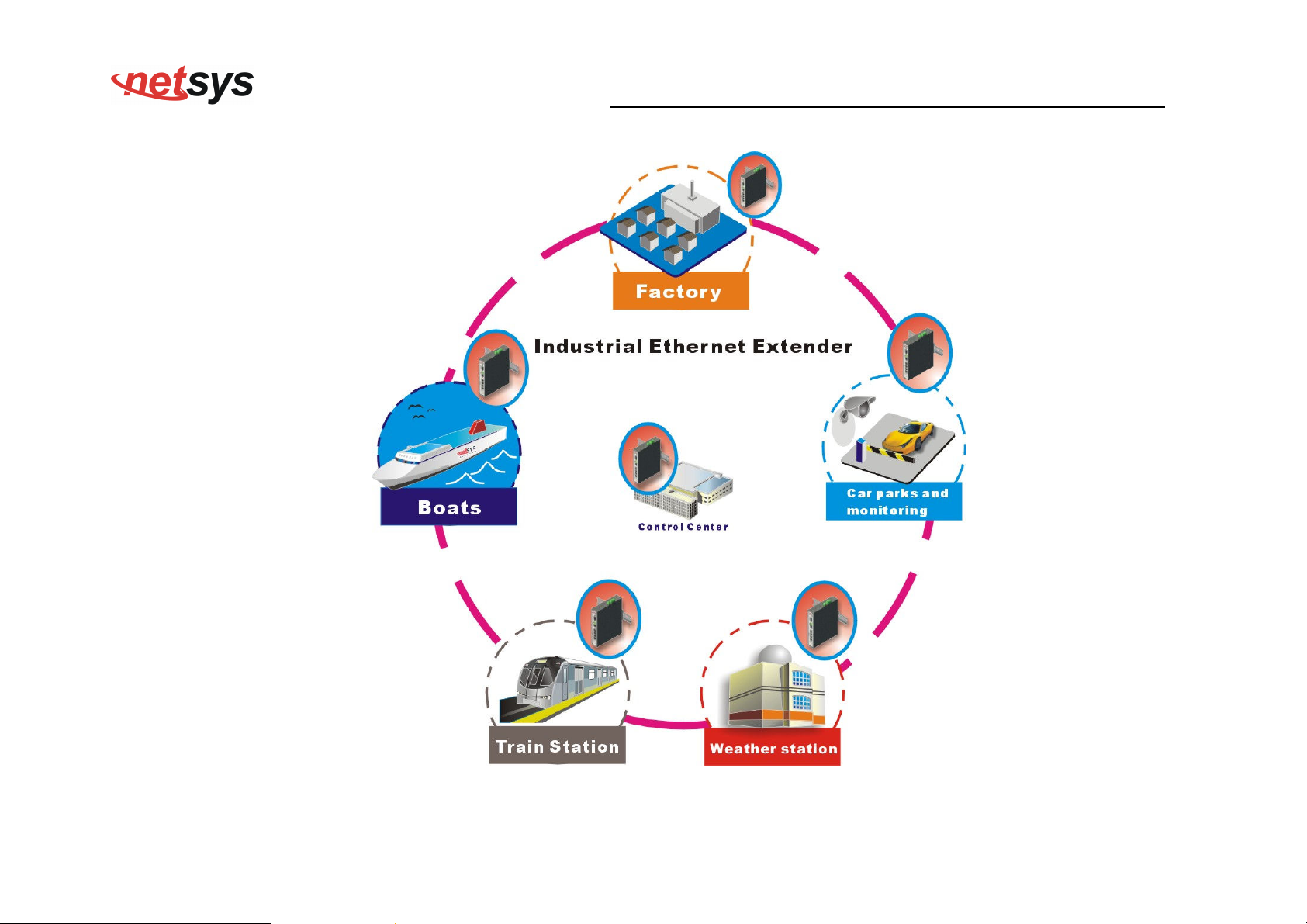

2.7 Industrial VDSL2 Application ....................................................................................................................................................17

4

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

CHAPTER 3. HARDWARE DESCRIPTION........................................................................................................ 20

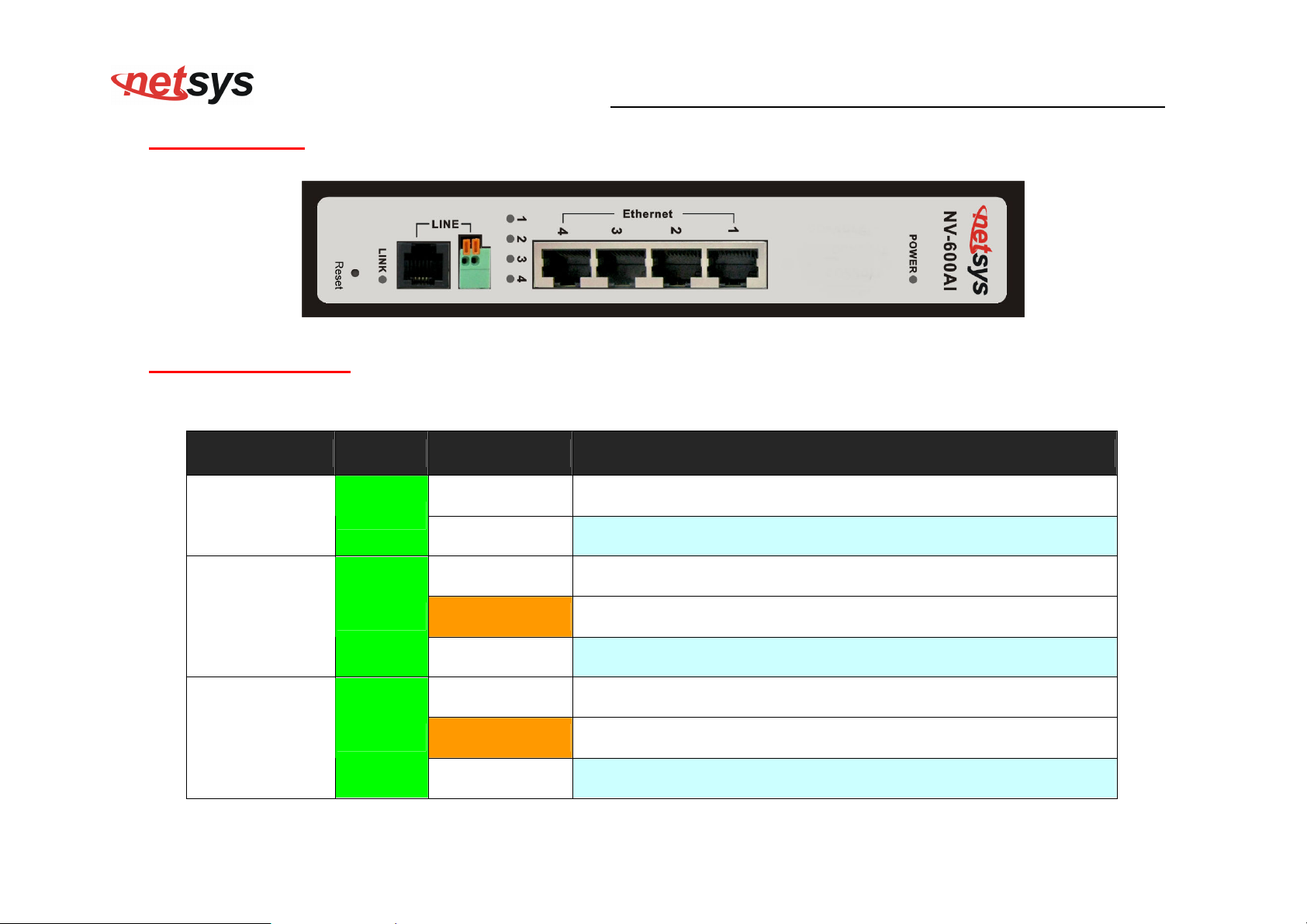

3.1 Front Panel................................................................................................................................................................................... 21

3.2 Front Indicators ............................................................................................................................................................................ 21

3.3 Rear Panel................................................................................................................................................................................... 23

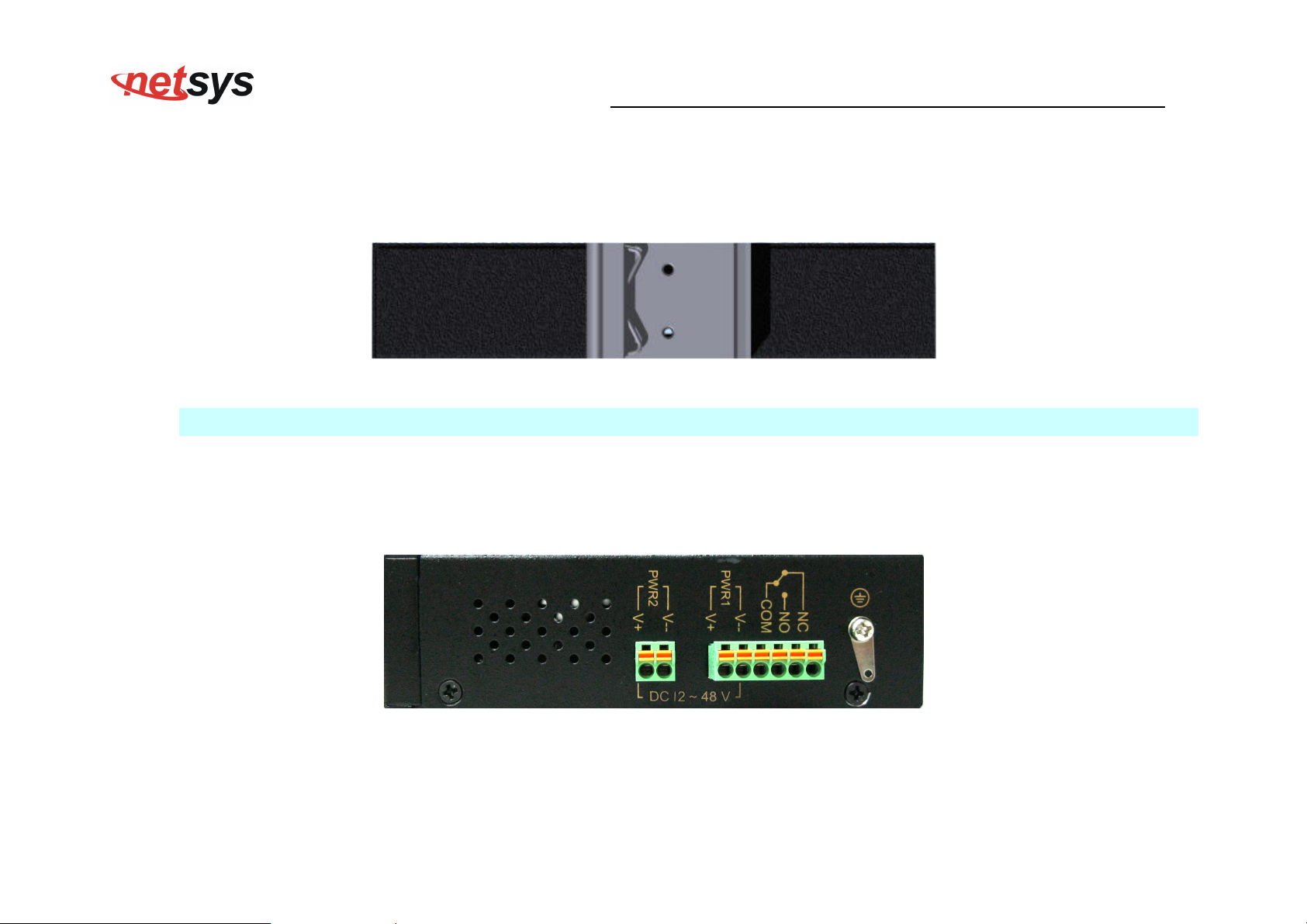

3.4 Side Panel ................................................................................................................................................................................... 23

CHAPTER 4. CONFIGURE THE NV-600AI VIA WEB BROWSER ..................................................................... 28

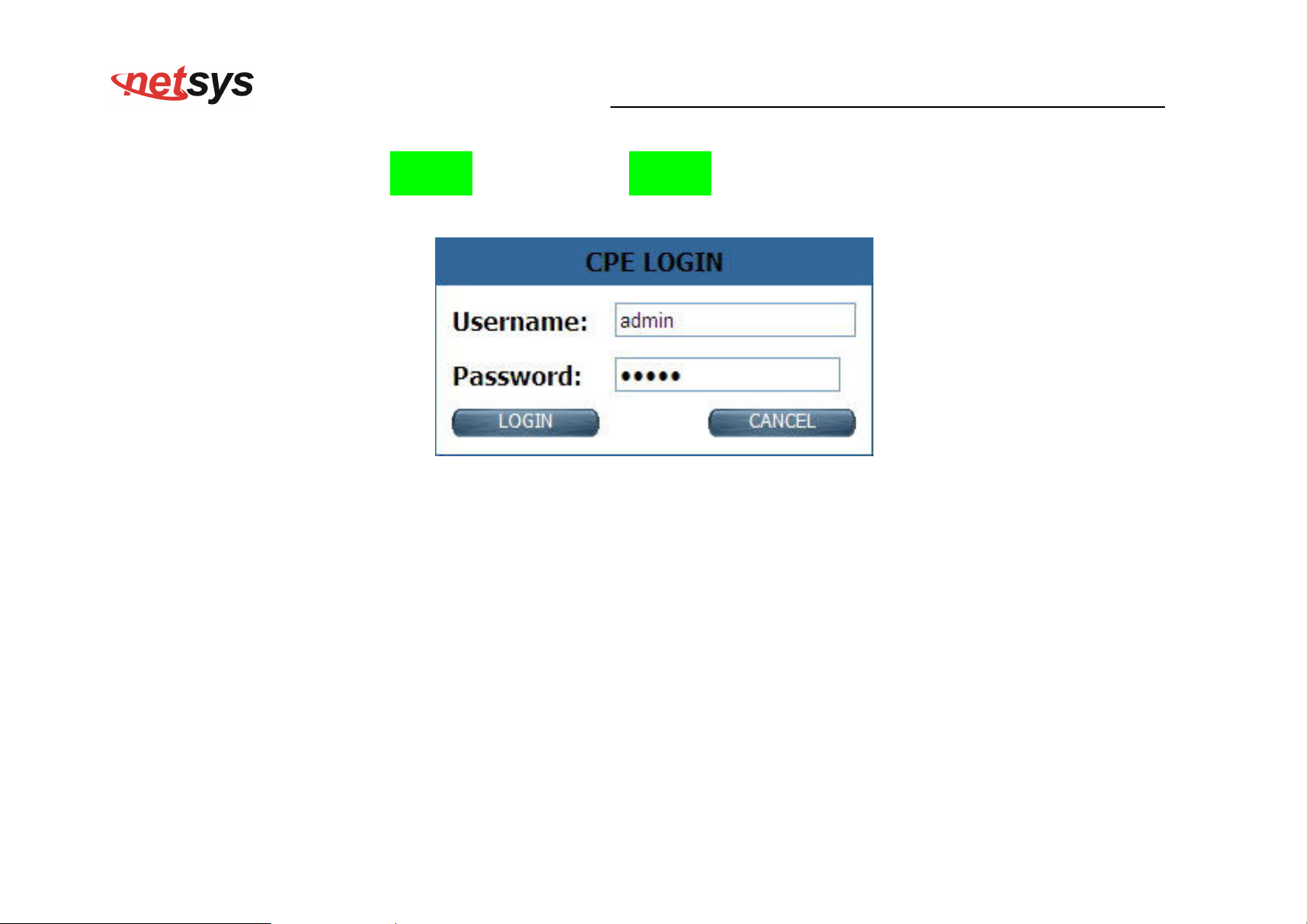

4.1 Login ........................................................................................................................................................................................... 29

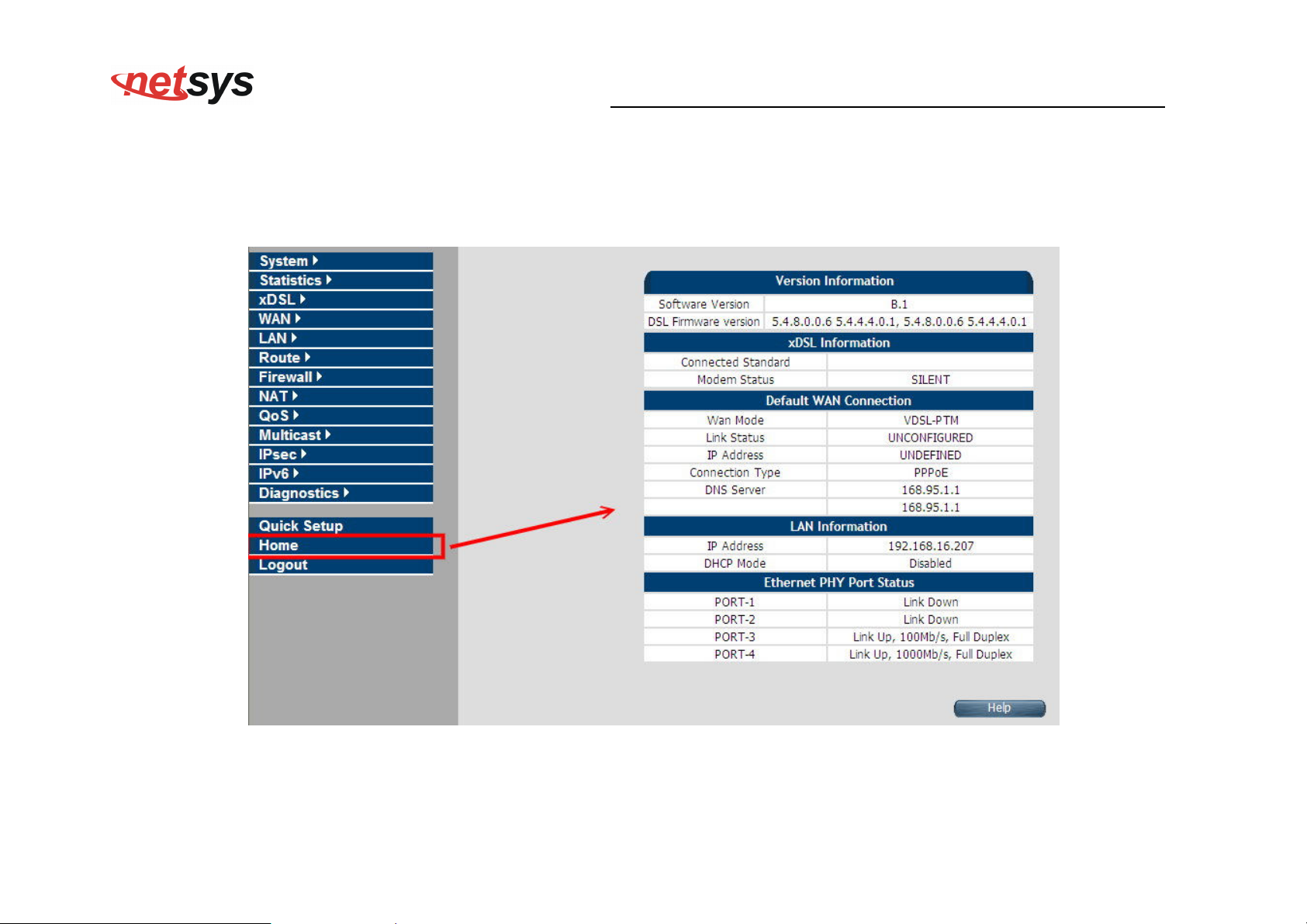

4.1.1 Home..................................................................................................................................................................................... 30

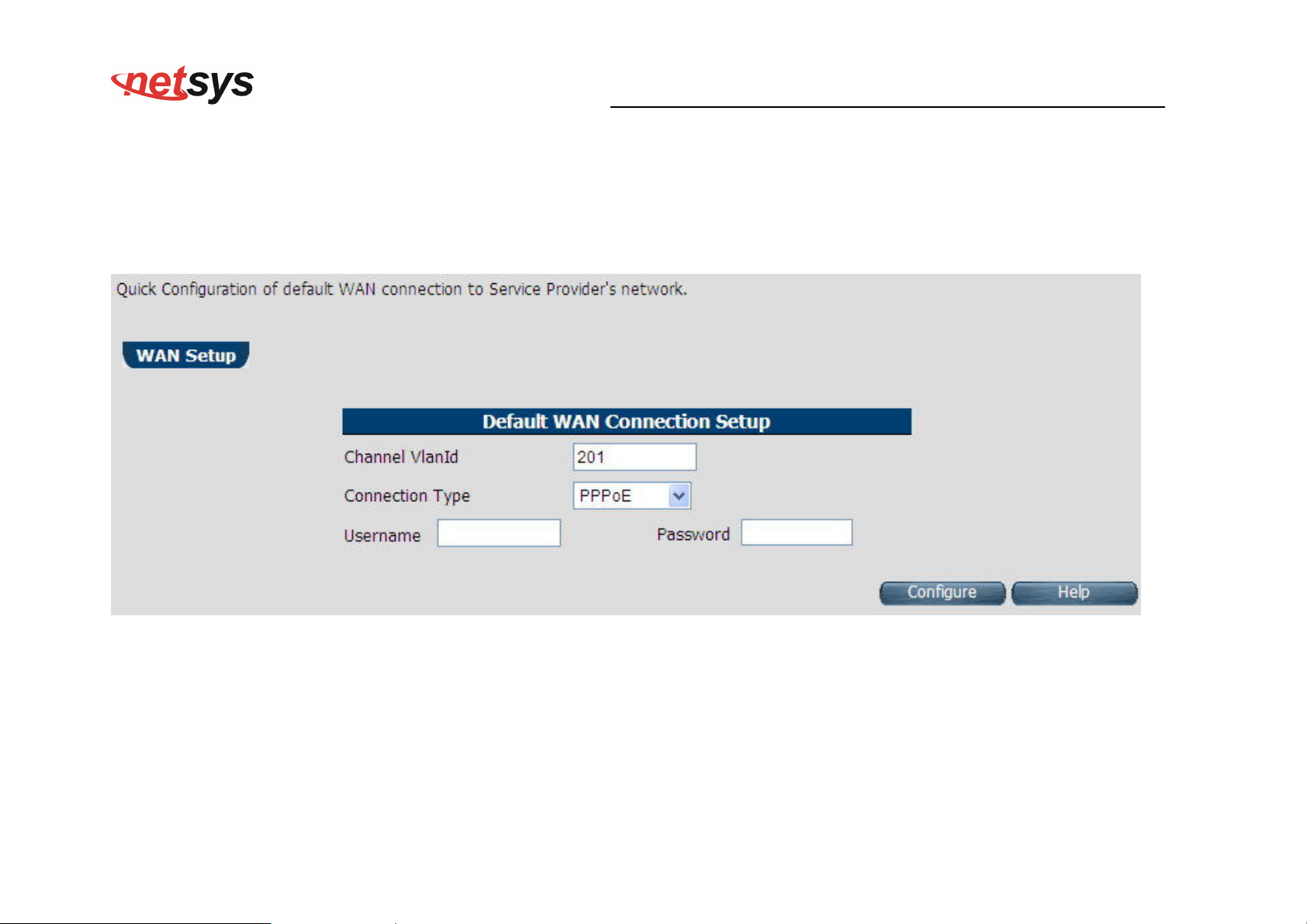

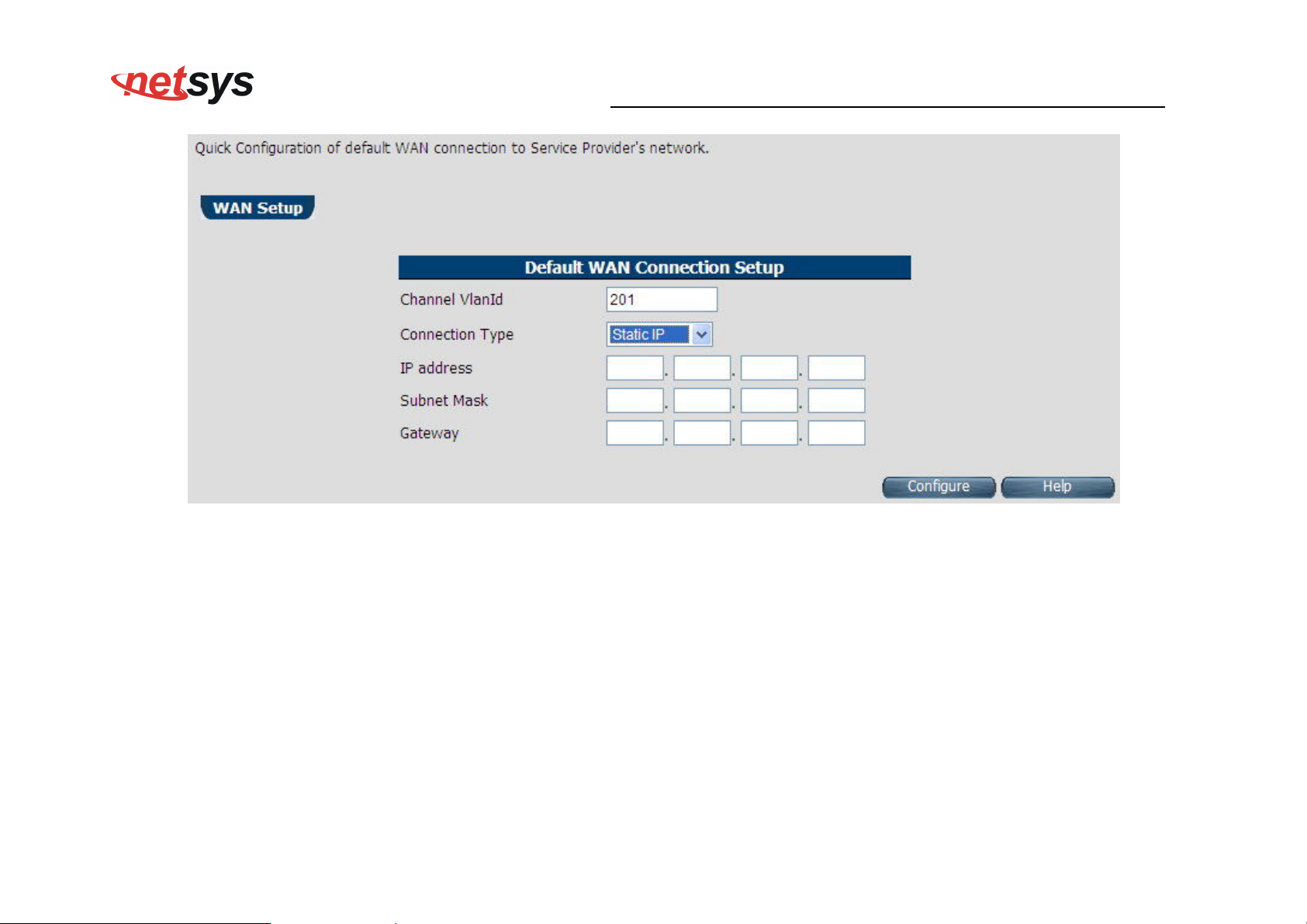

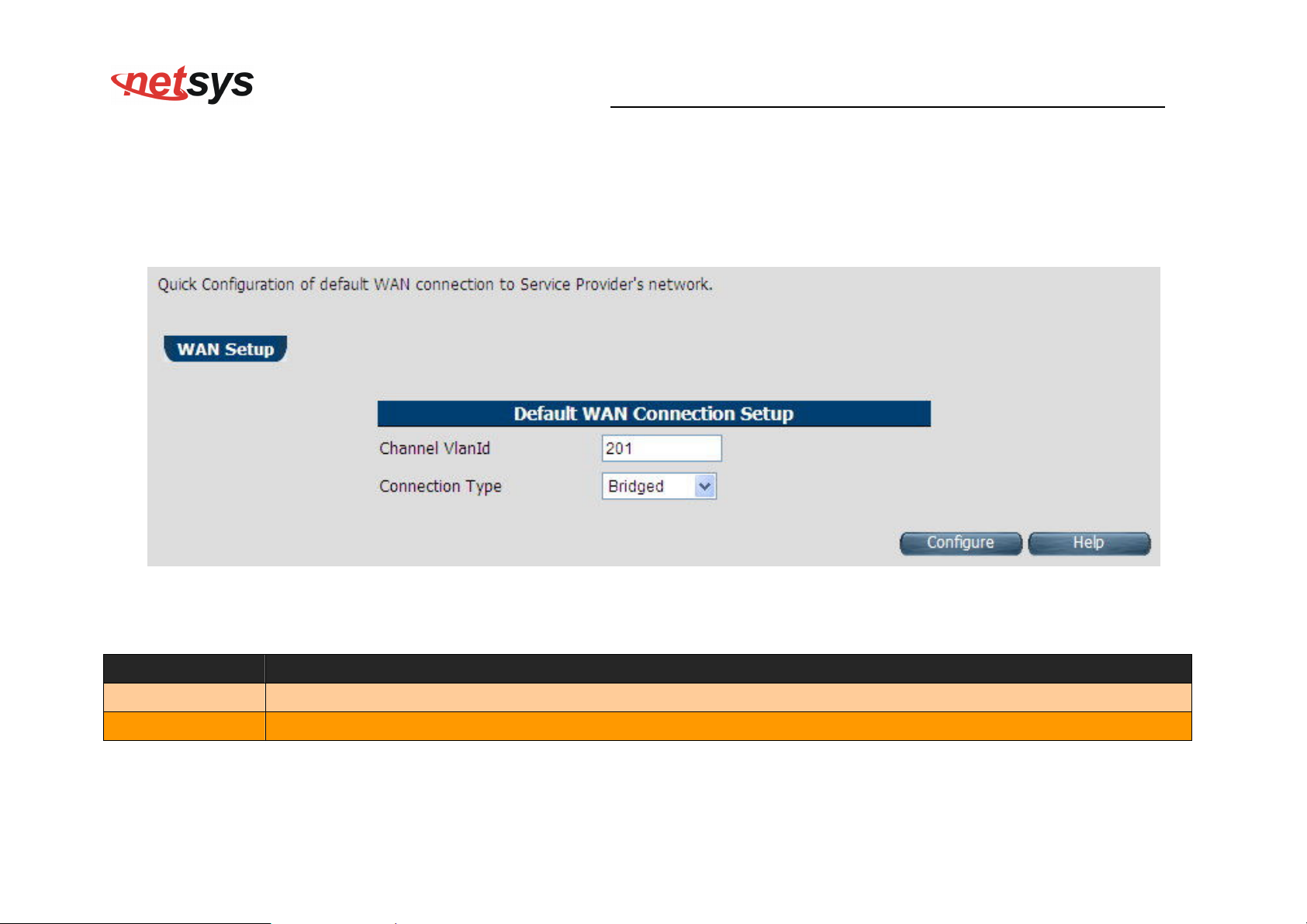

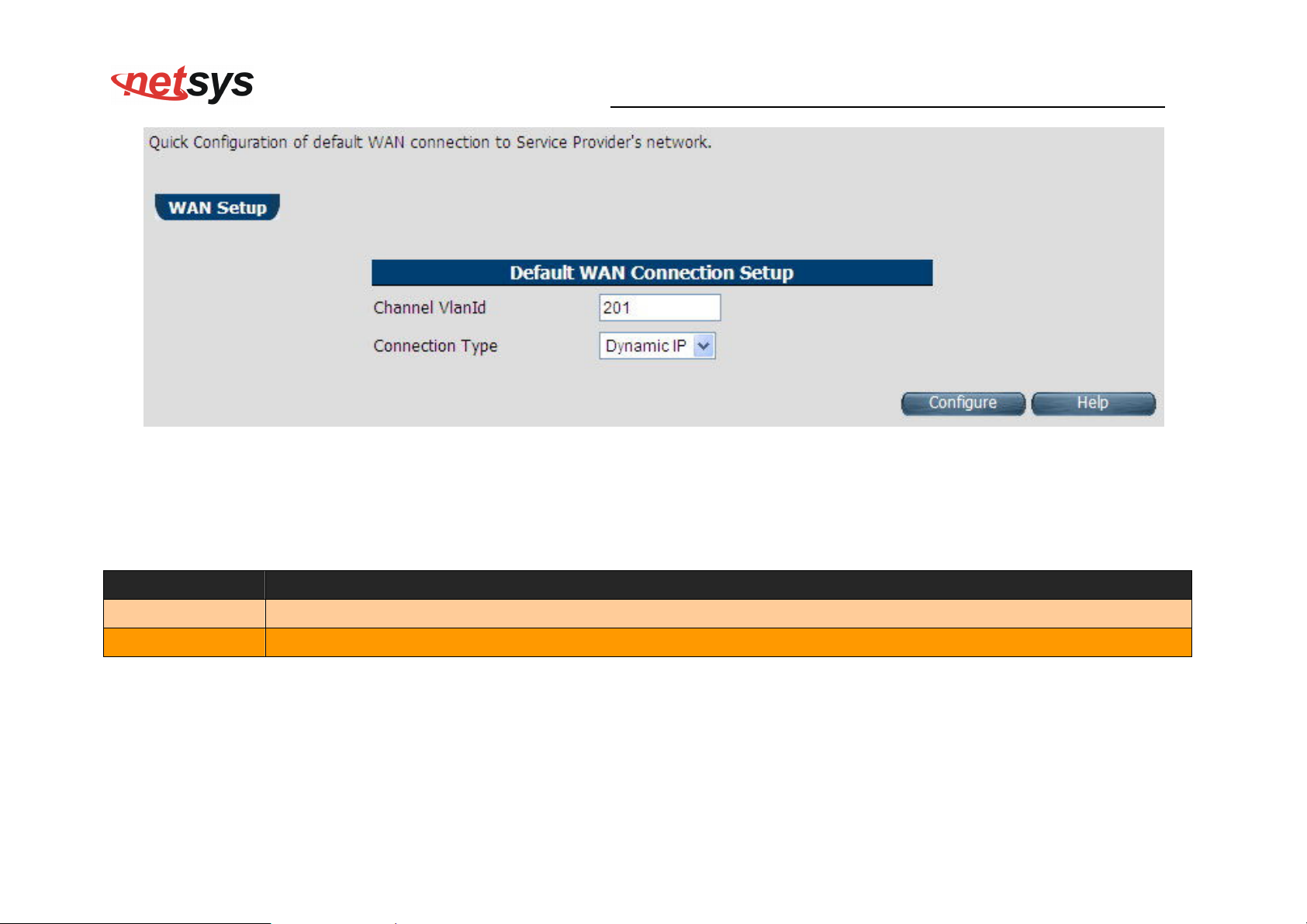

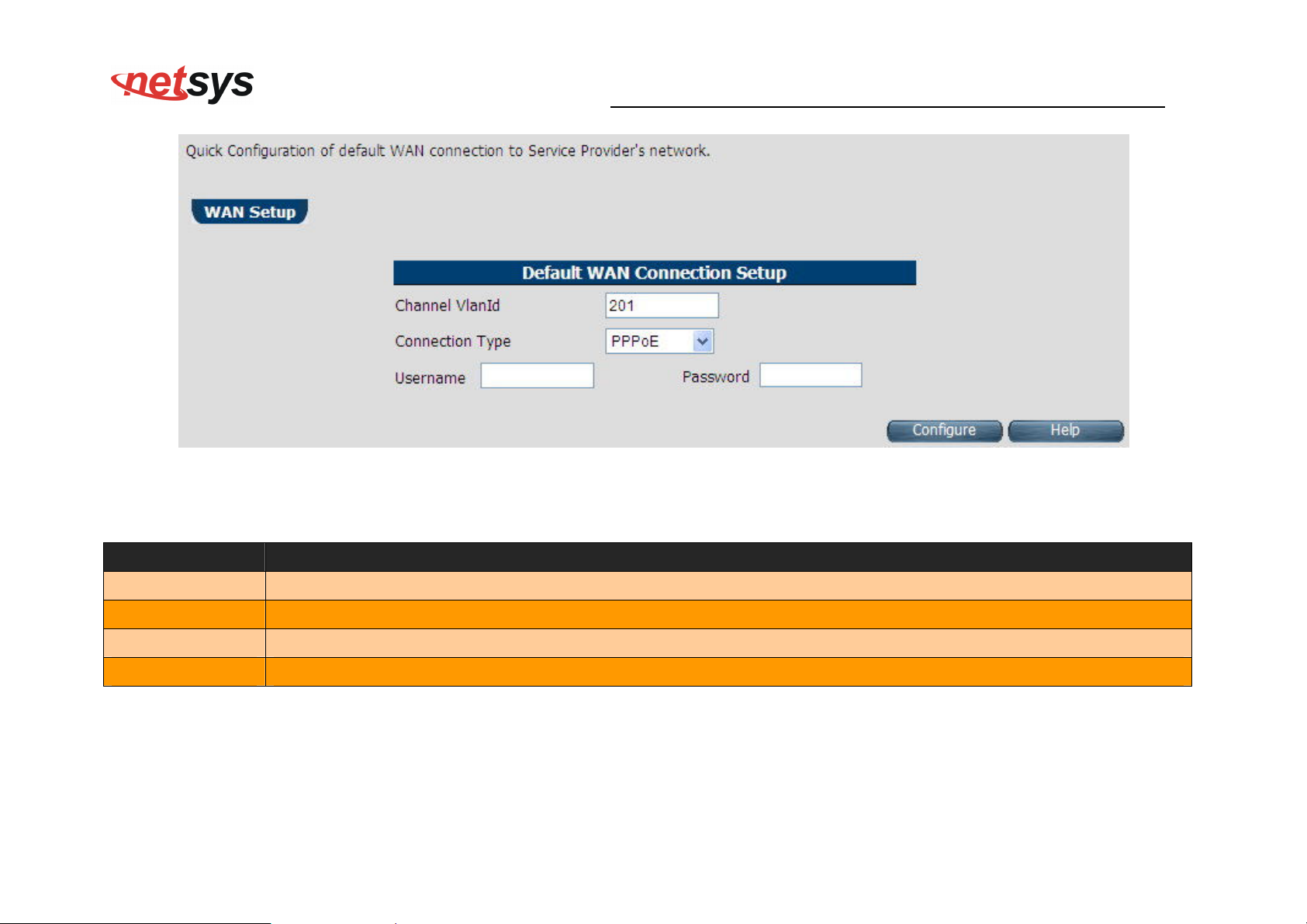

4.1.2 Quick Setup.......................................................................................................................................................................... 32

4.2 Select the Menu Level................................................................................................................................................................ 38

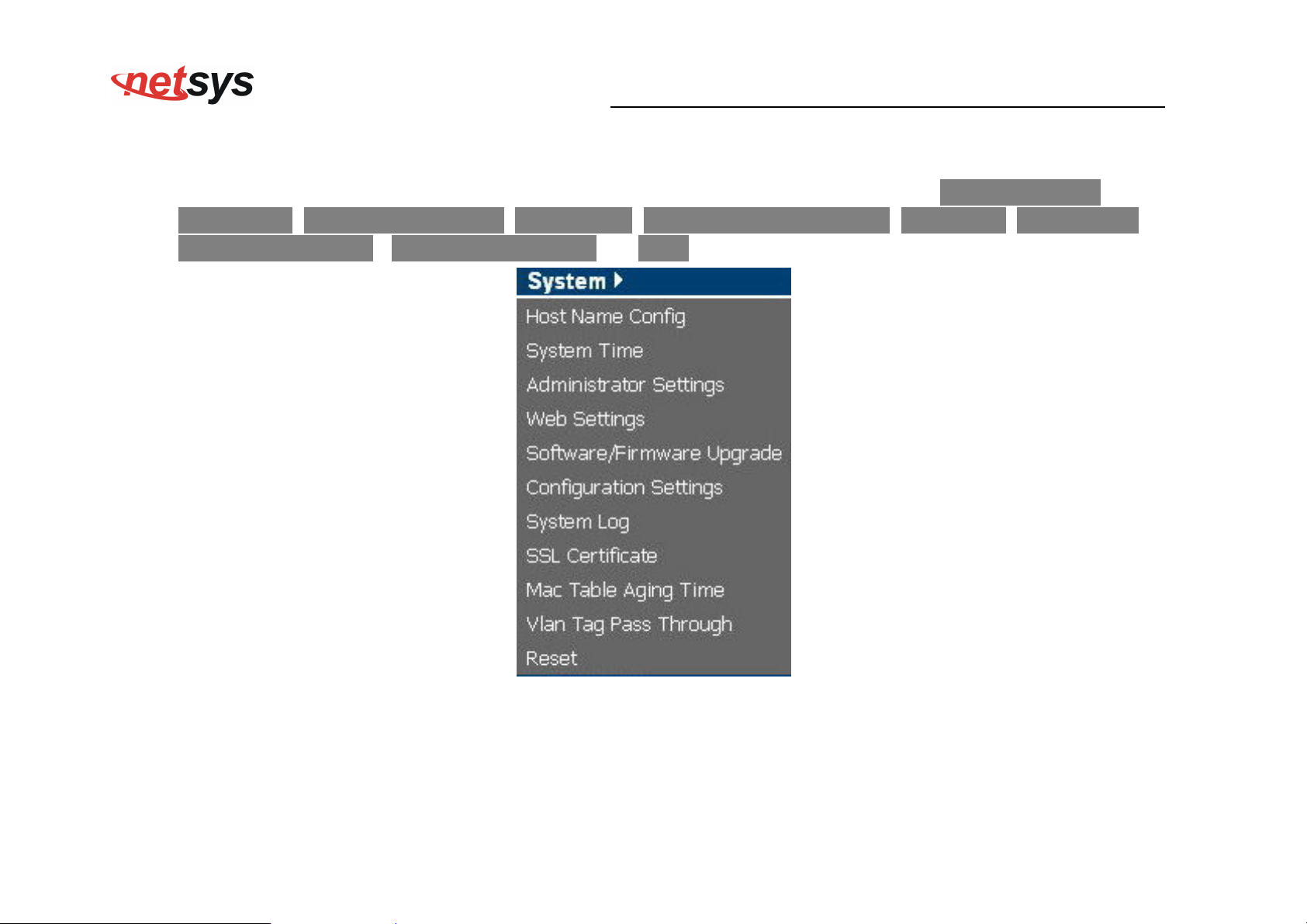

4.3 Select “SYSTEM” ....................................................................................................................................................................... 39

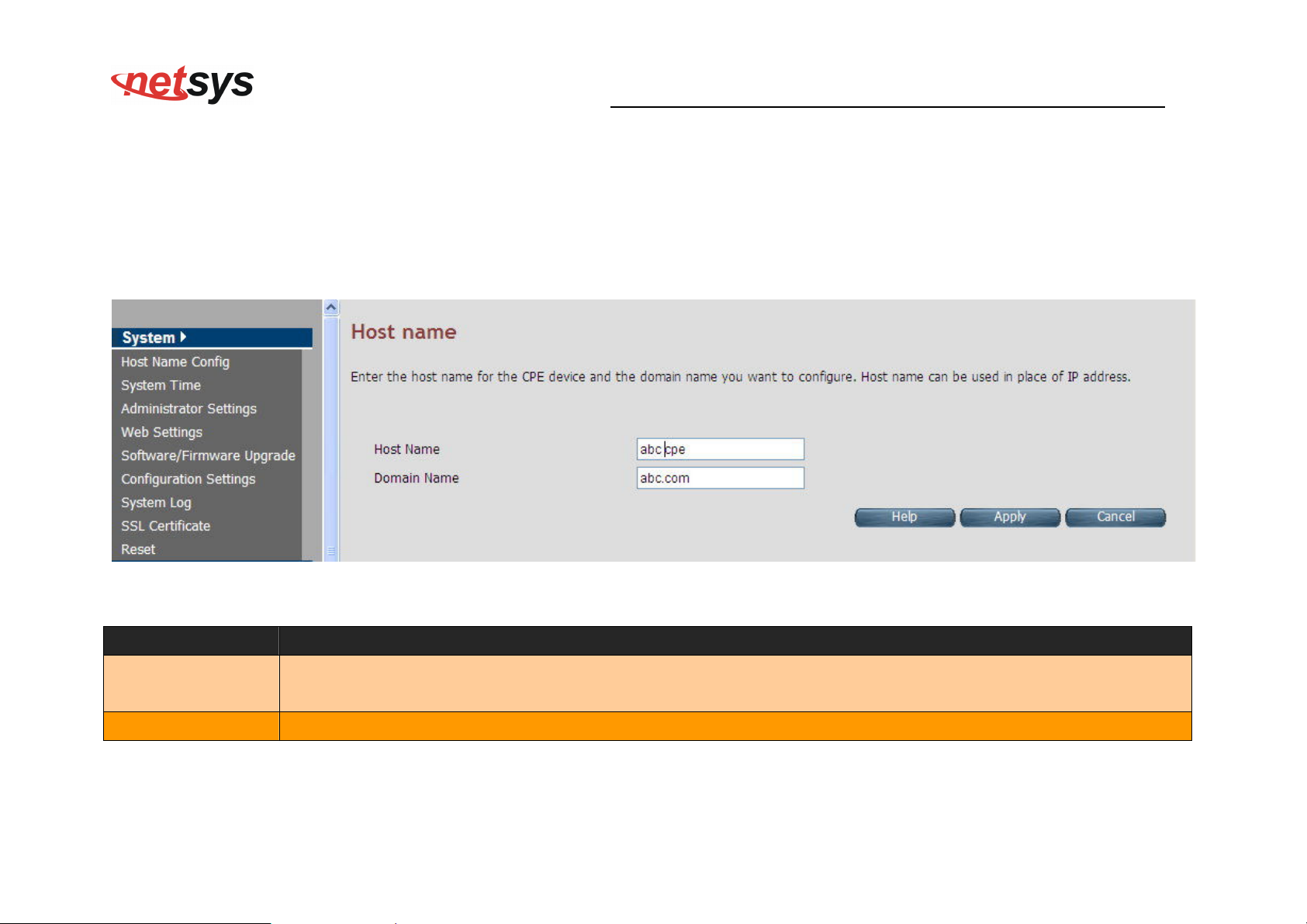

4.3.1 Host Name Config ................................................................................................................................................................. 40

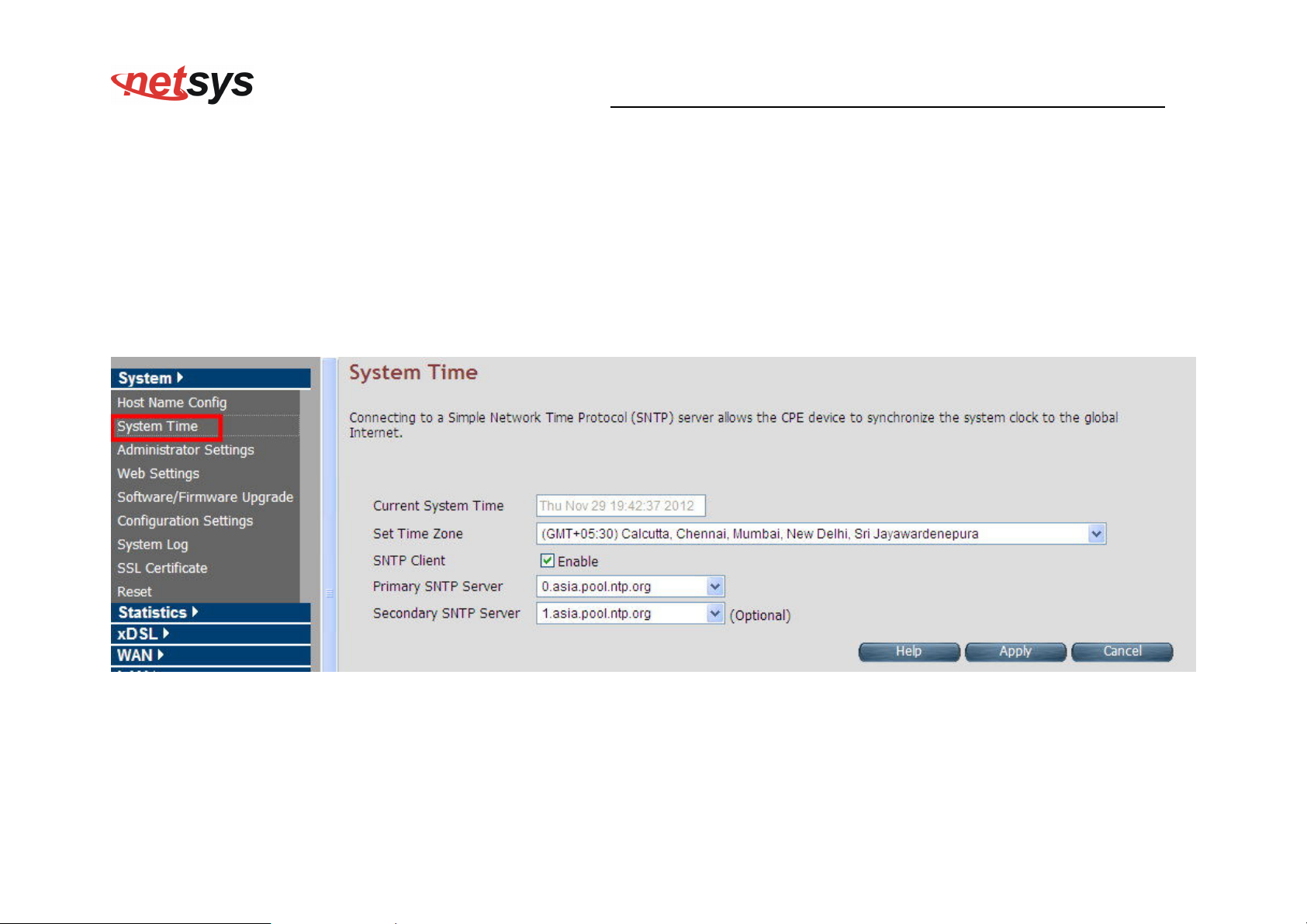

4.3.2 System Time.......................................................................................................................................................................... 41

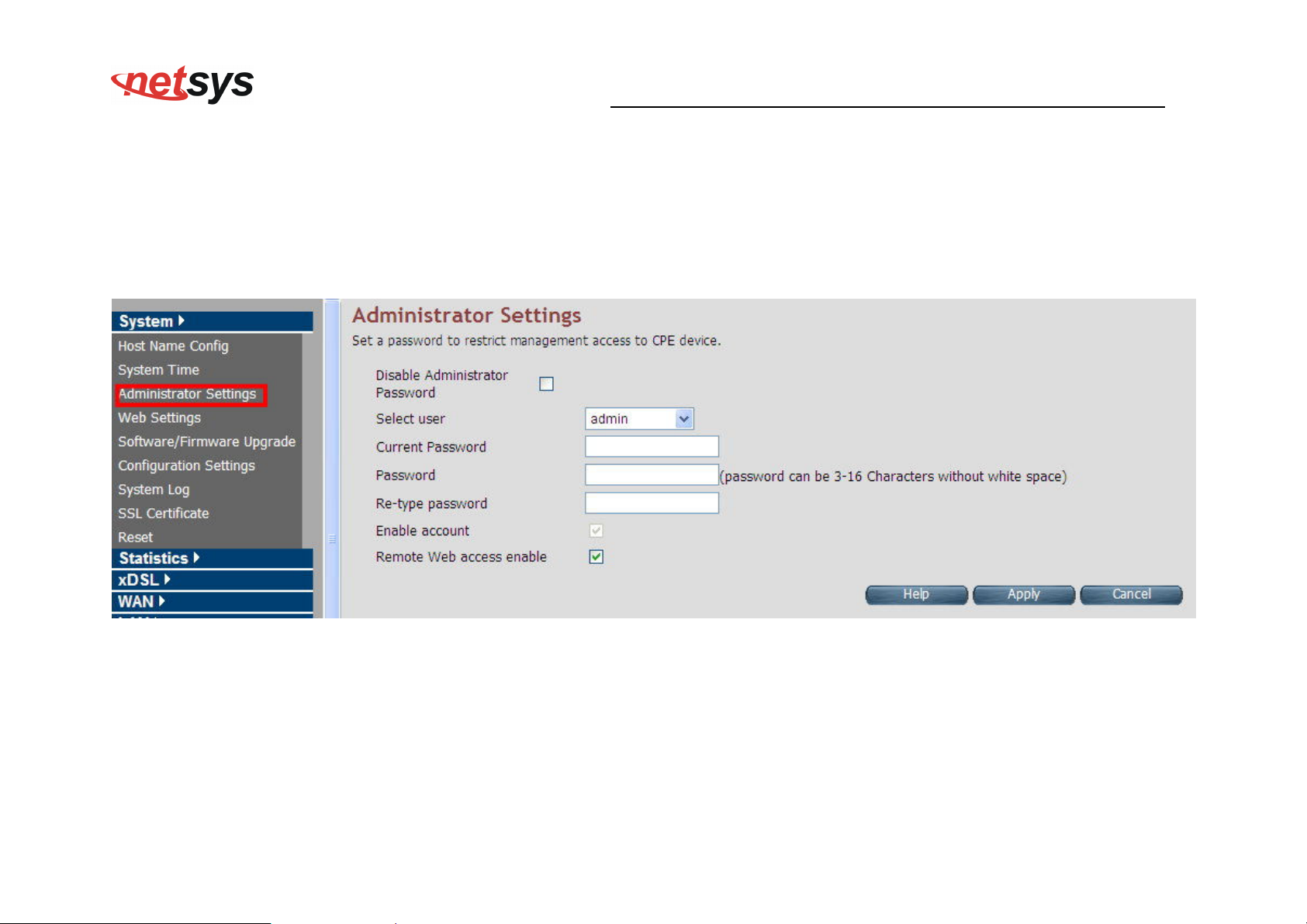

4.3.3 Administrator Settings............................................................................................................................................................ 43

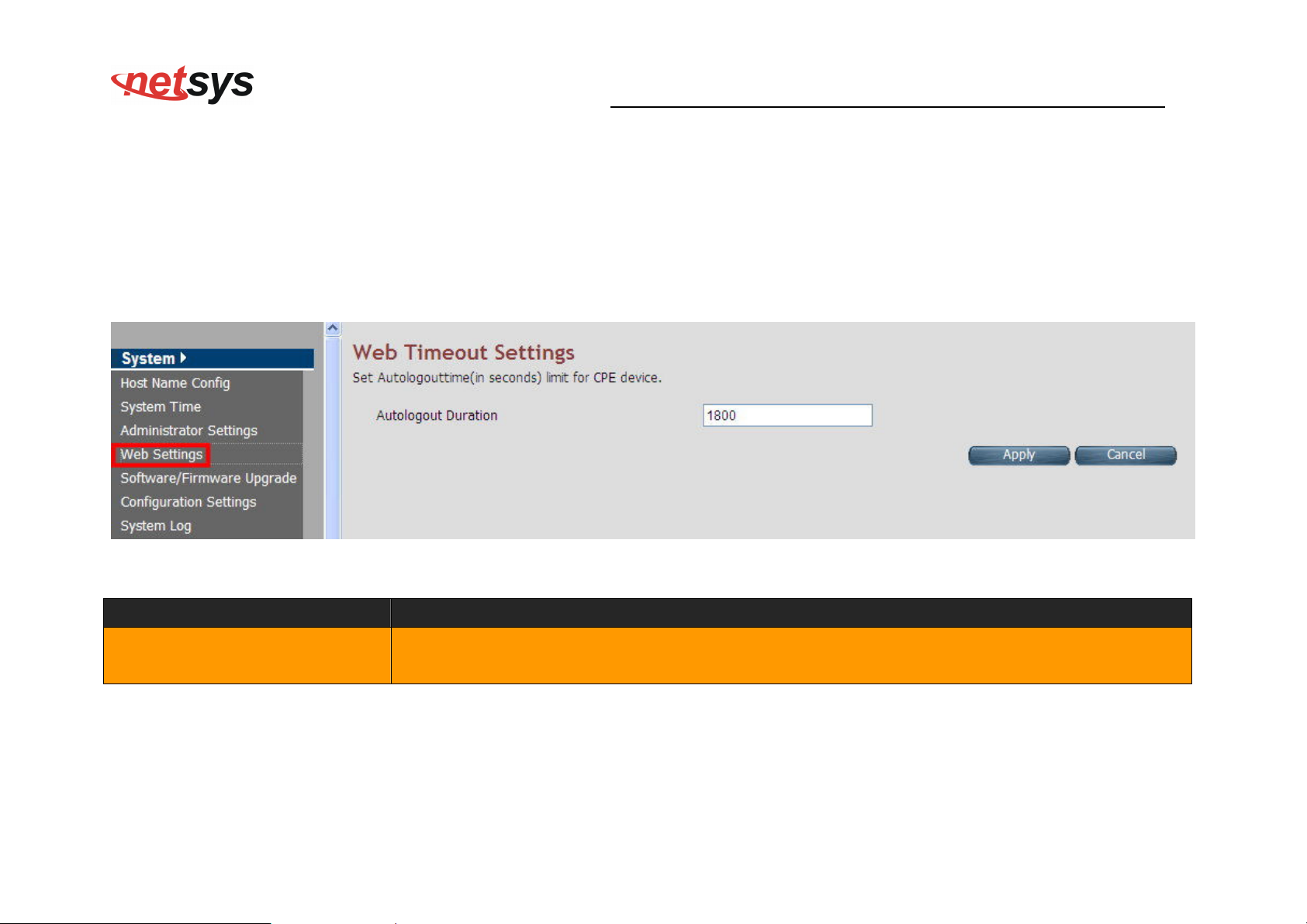

4.3.4 Web Settings ........................................................................................................................................................................ 45

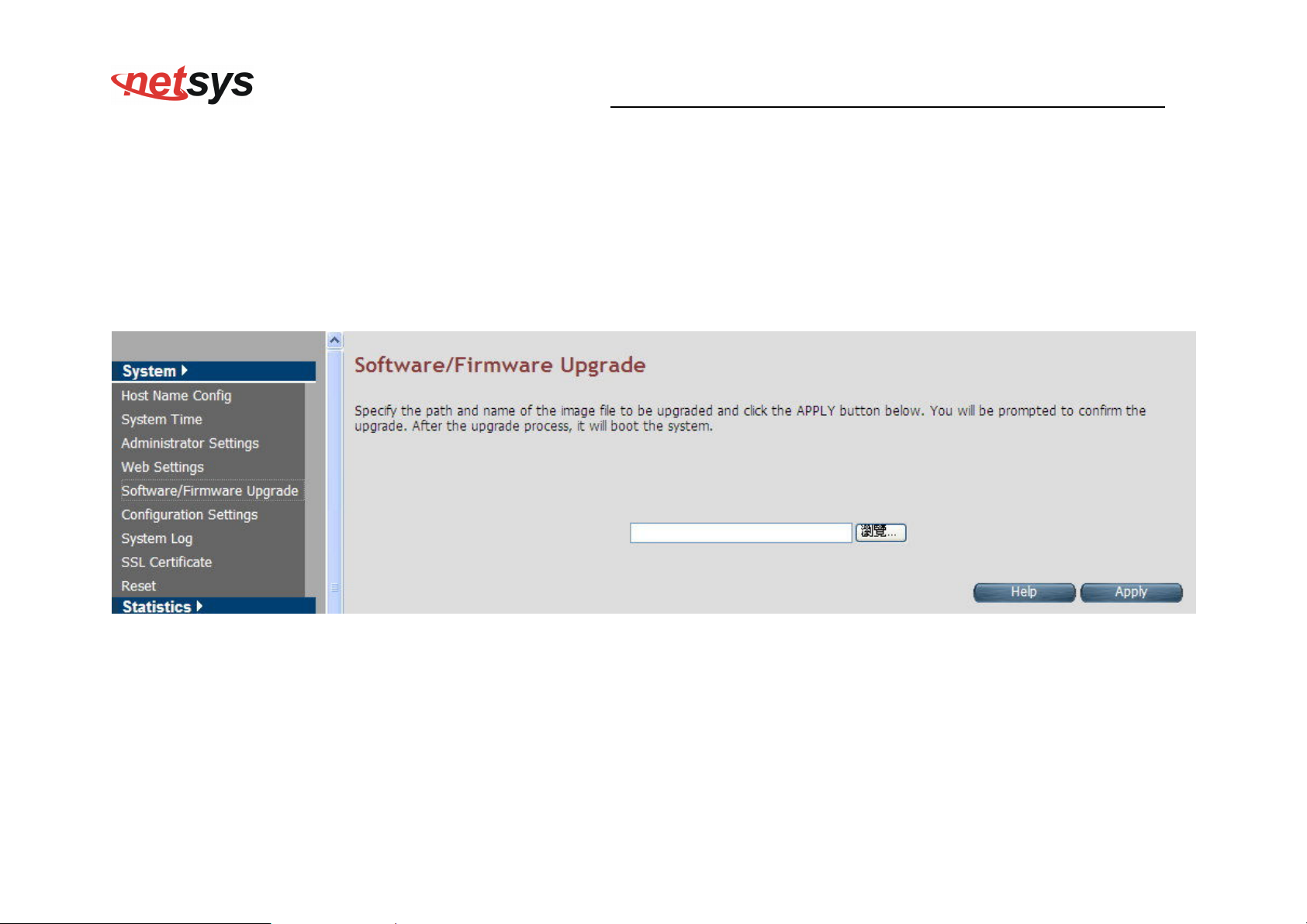

4.3.5 Software/Firmware Upgrade ............................................................................................................................................... 46

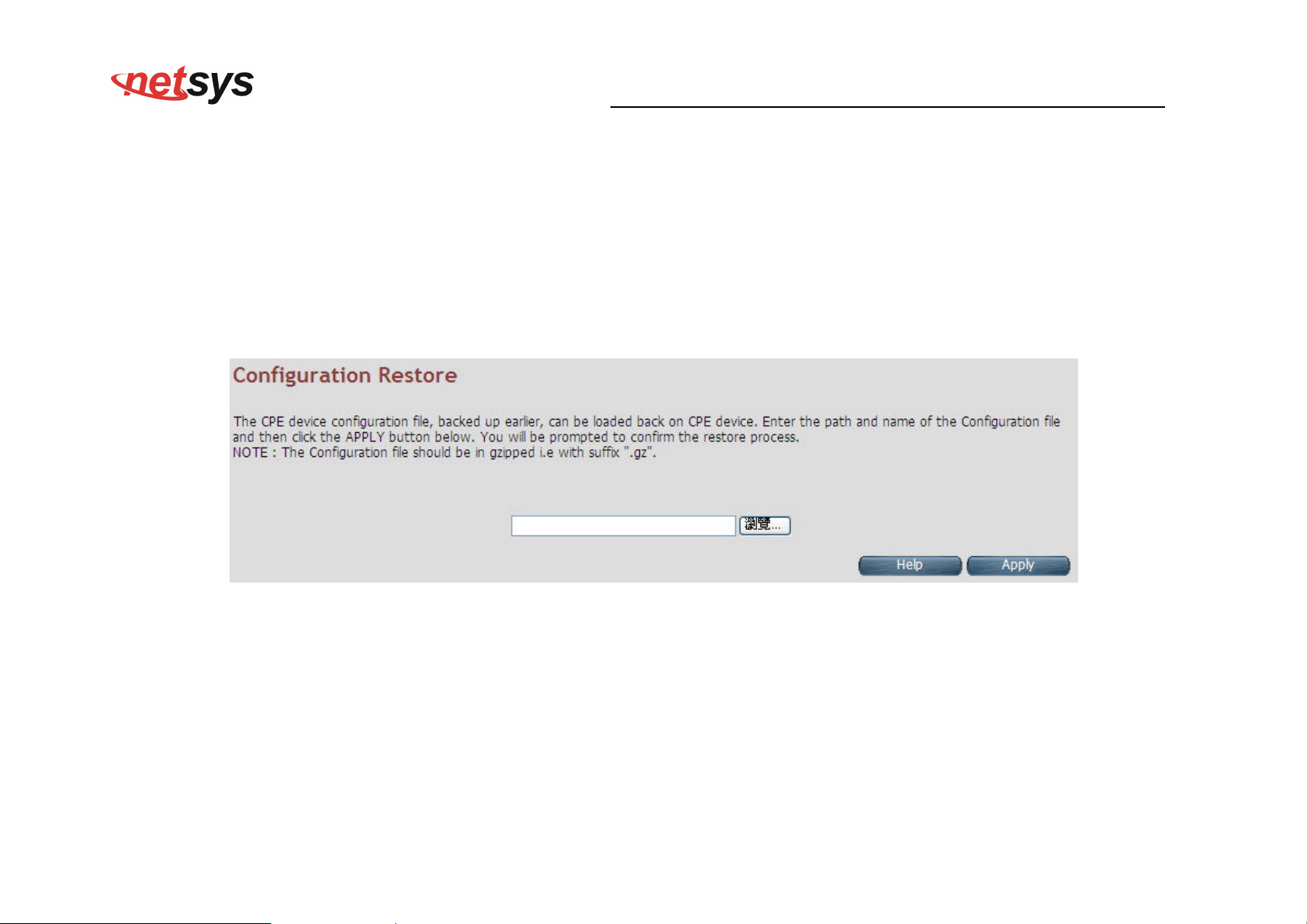

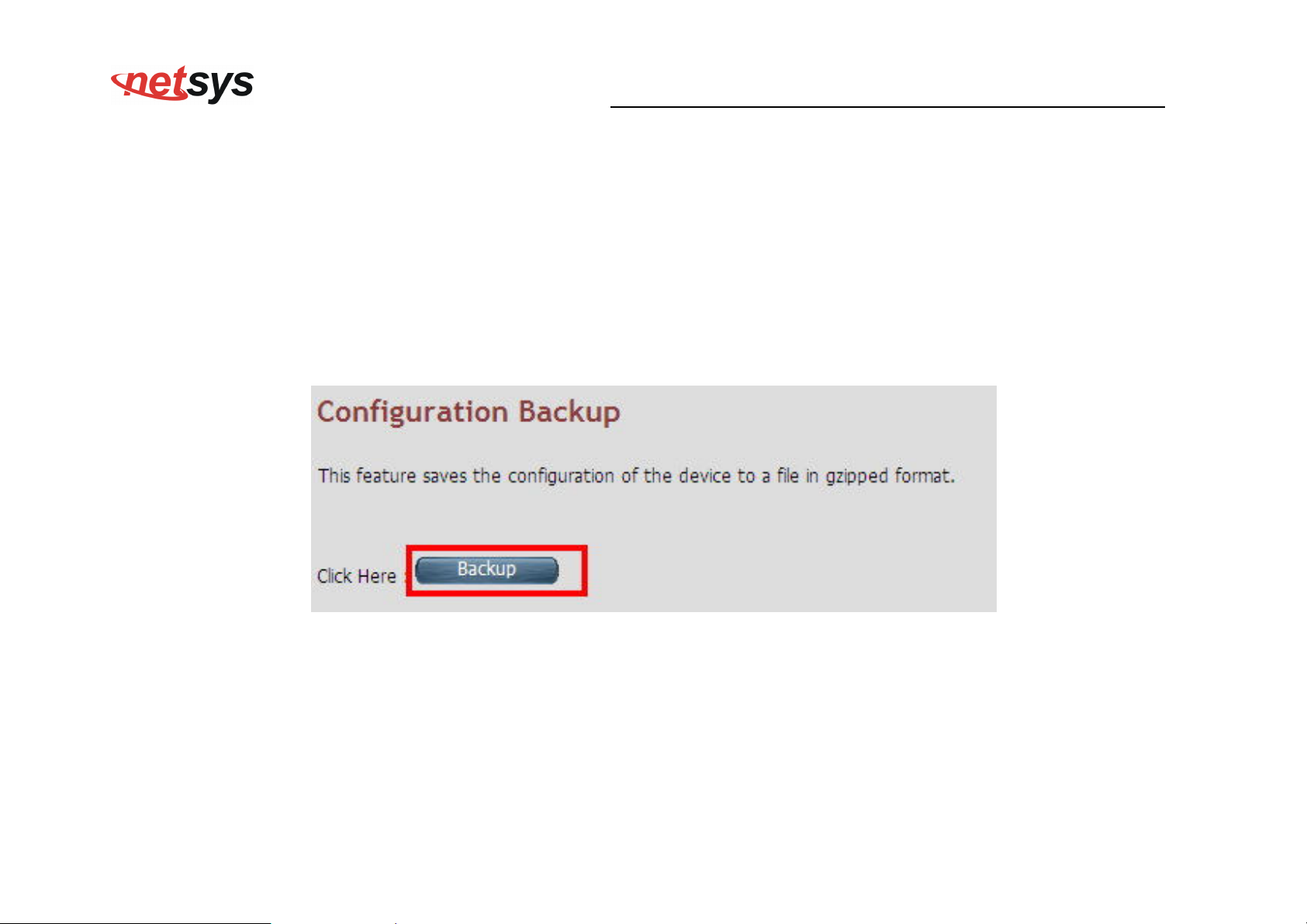

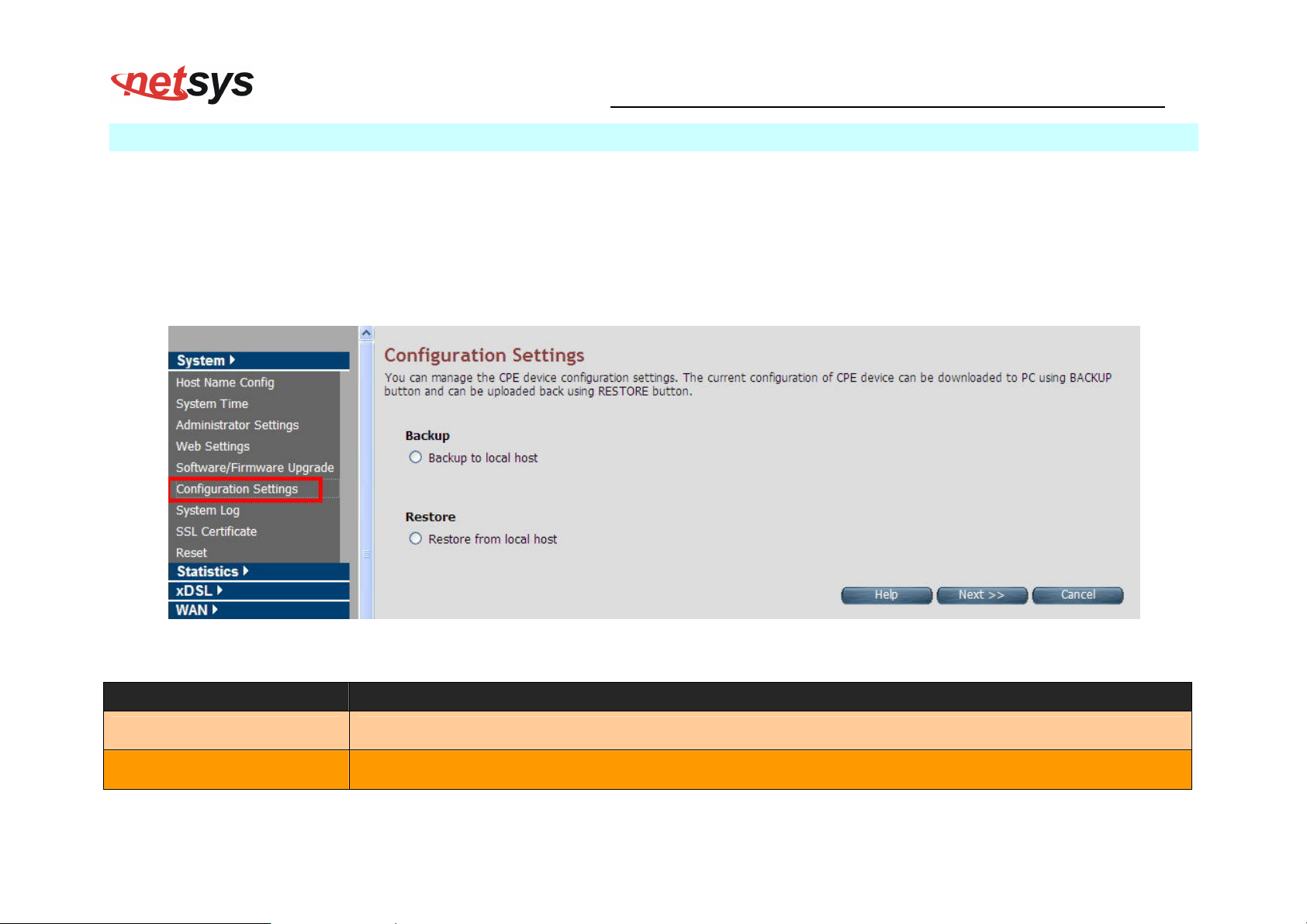

4.3.6 Configuration Settings ........................................................................................................................................................ 47

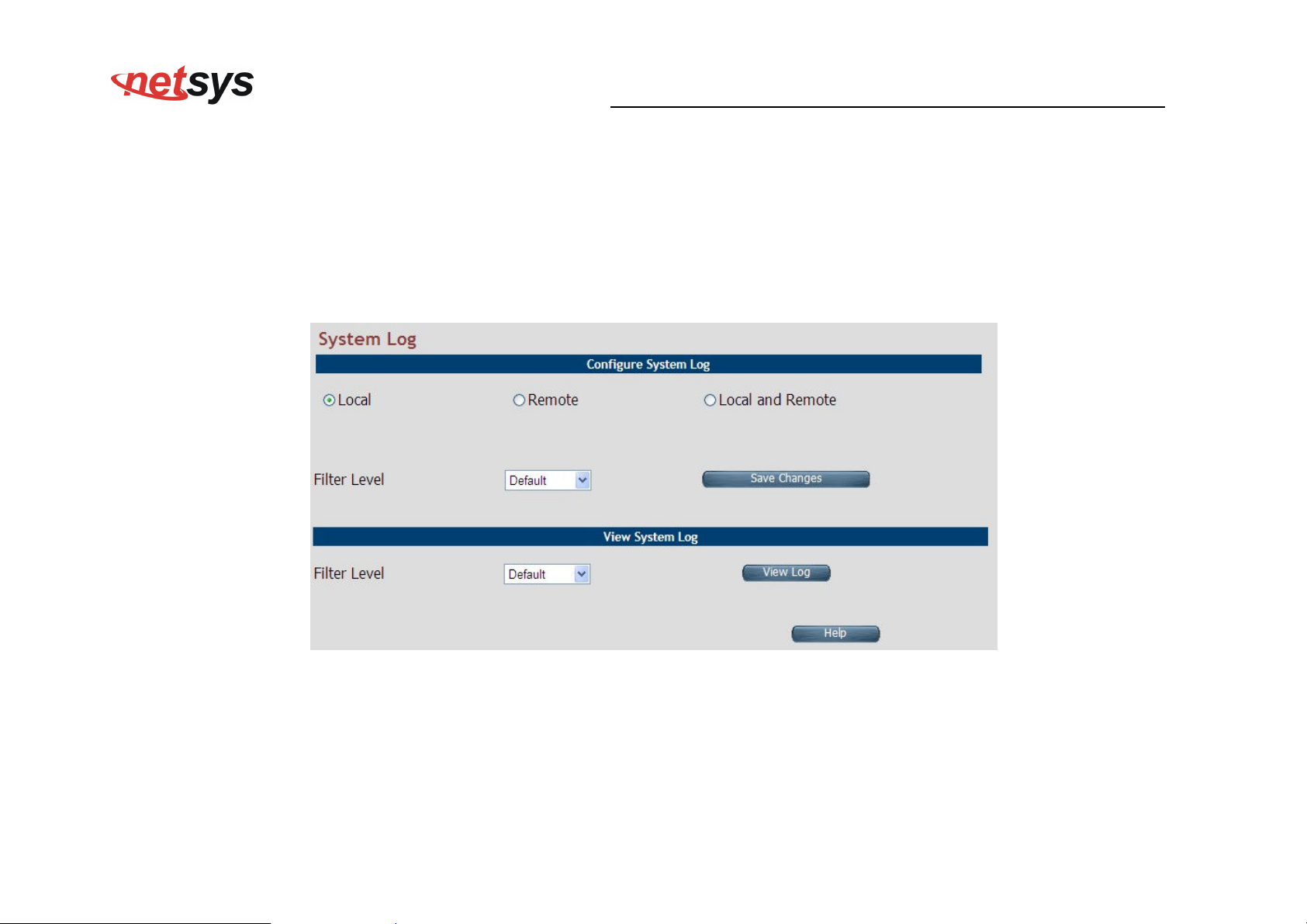

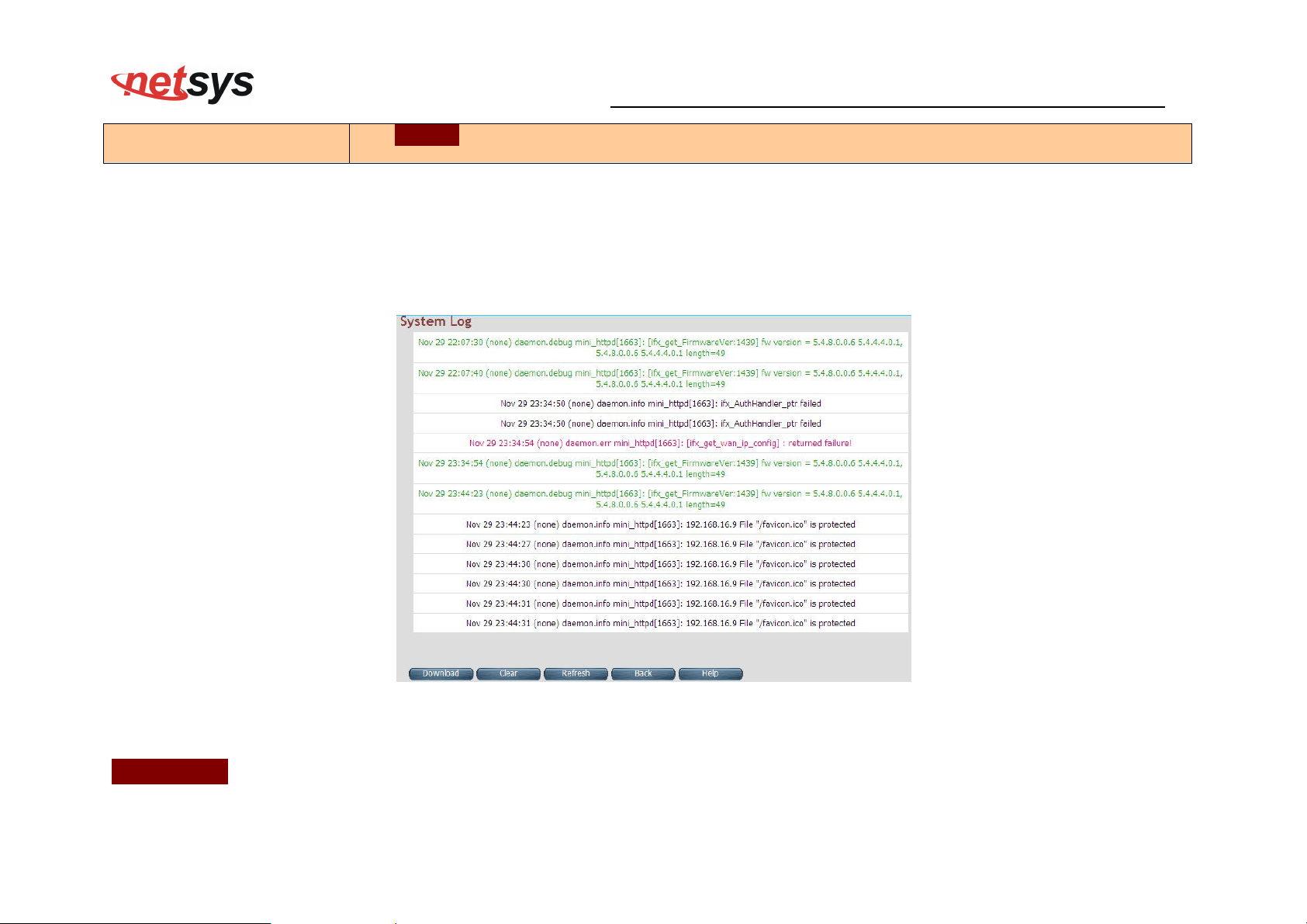

4.3.7 System Log .......................................................................................................................................................................... 50

5

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

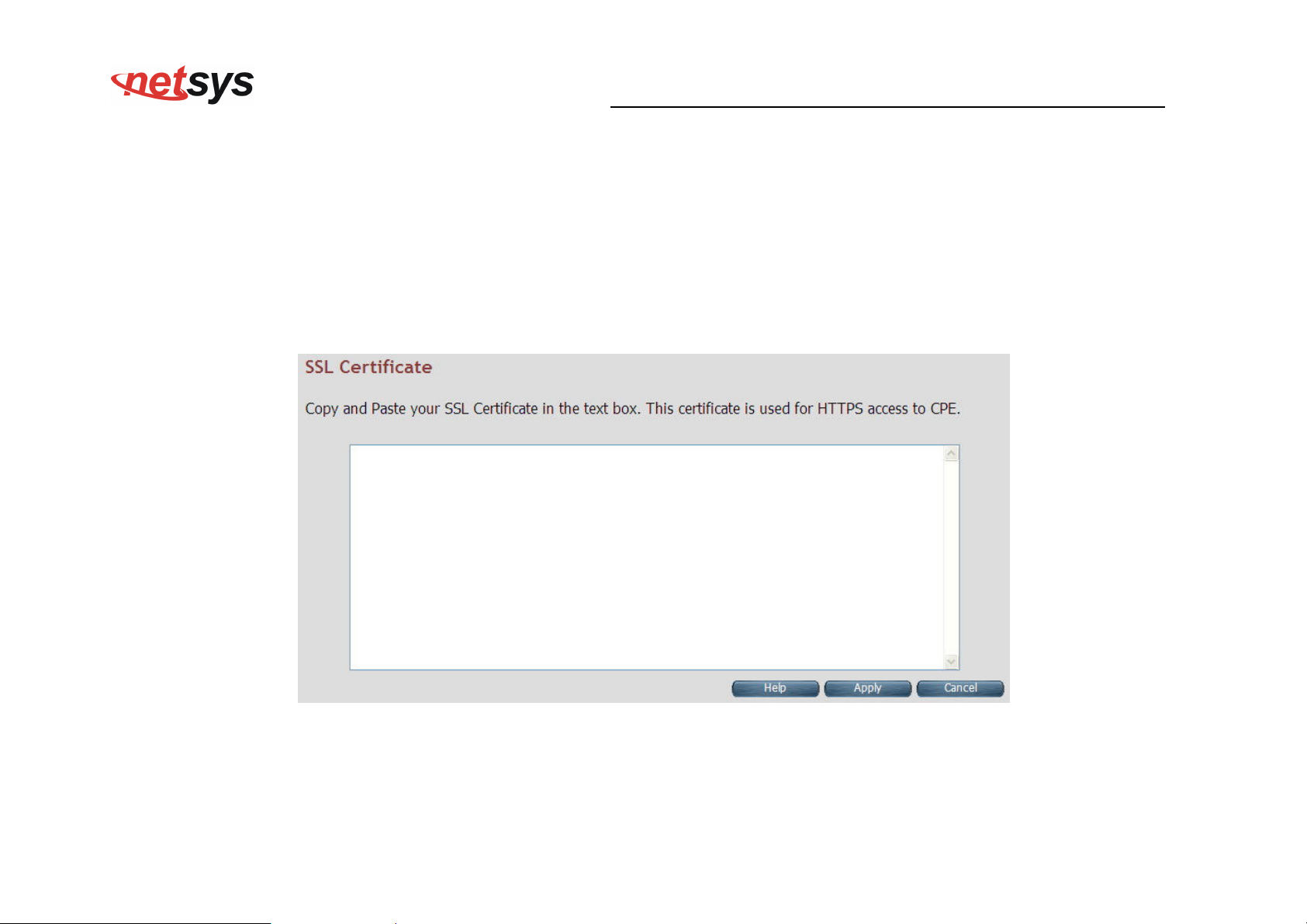

4.3.8 SSL Certificate ..................................................................................................................................................................... 53

4.3.9 Mac Table Aging Time......................................................................................................................................................... 54

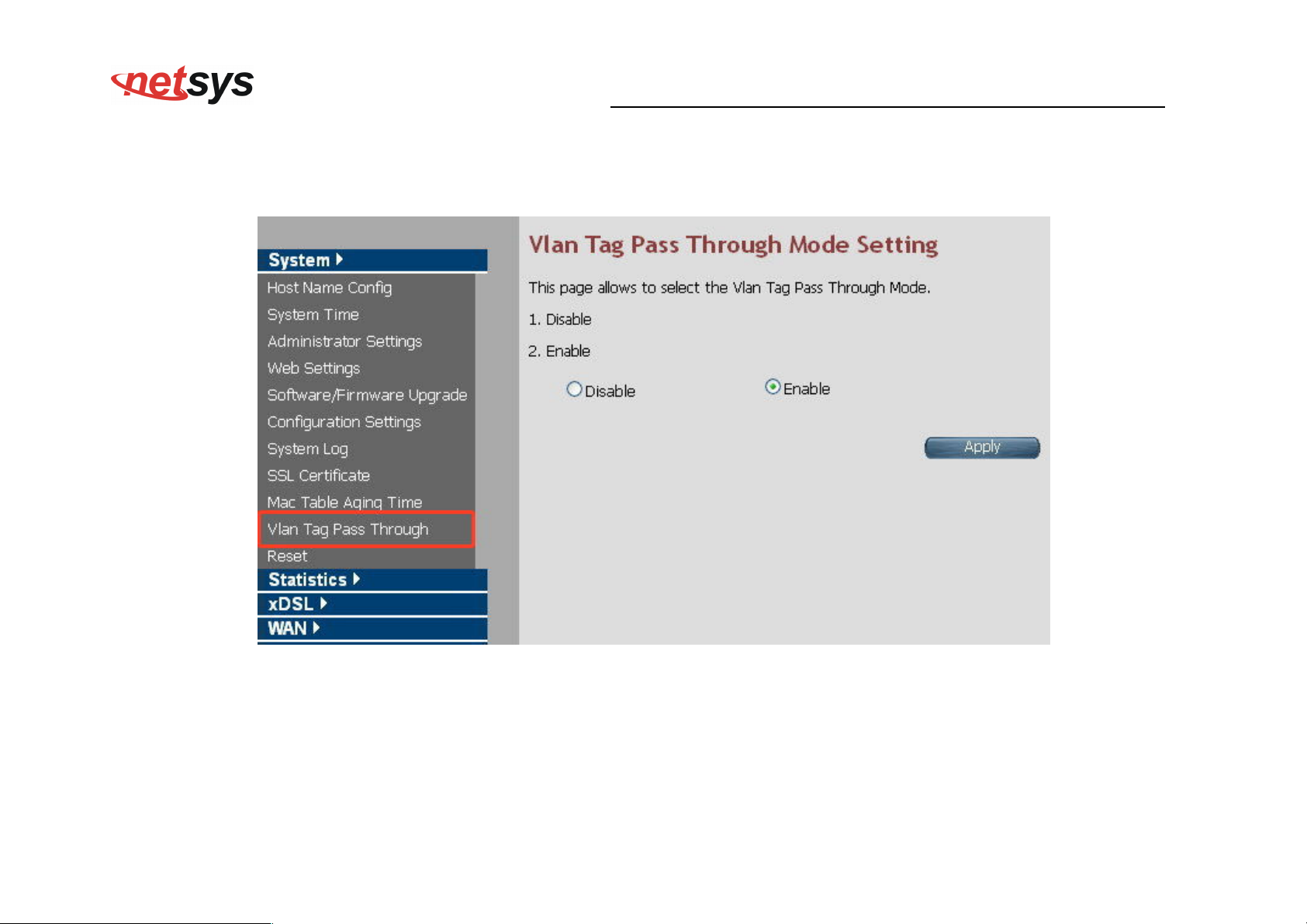

4.3.10 Vlan Tag Pass Through Mode Setting..............................................................................................................................55

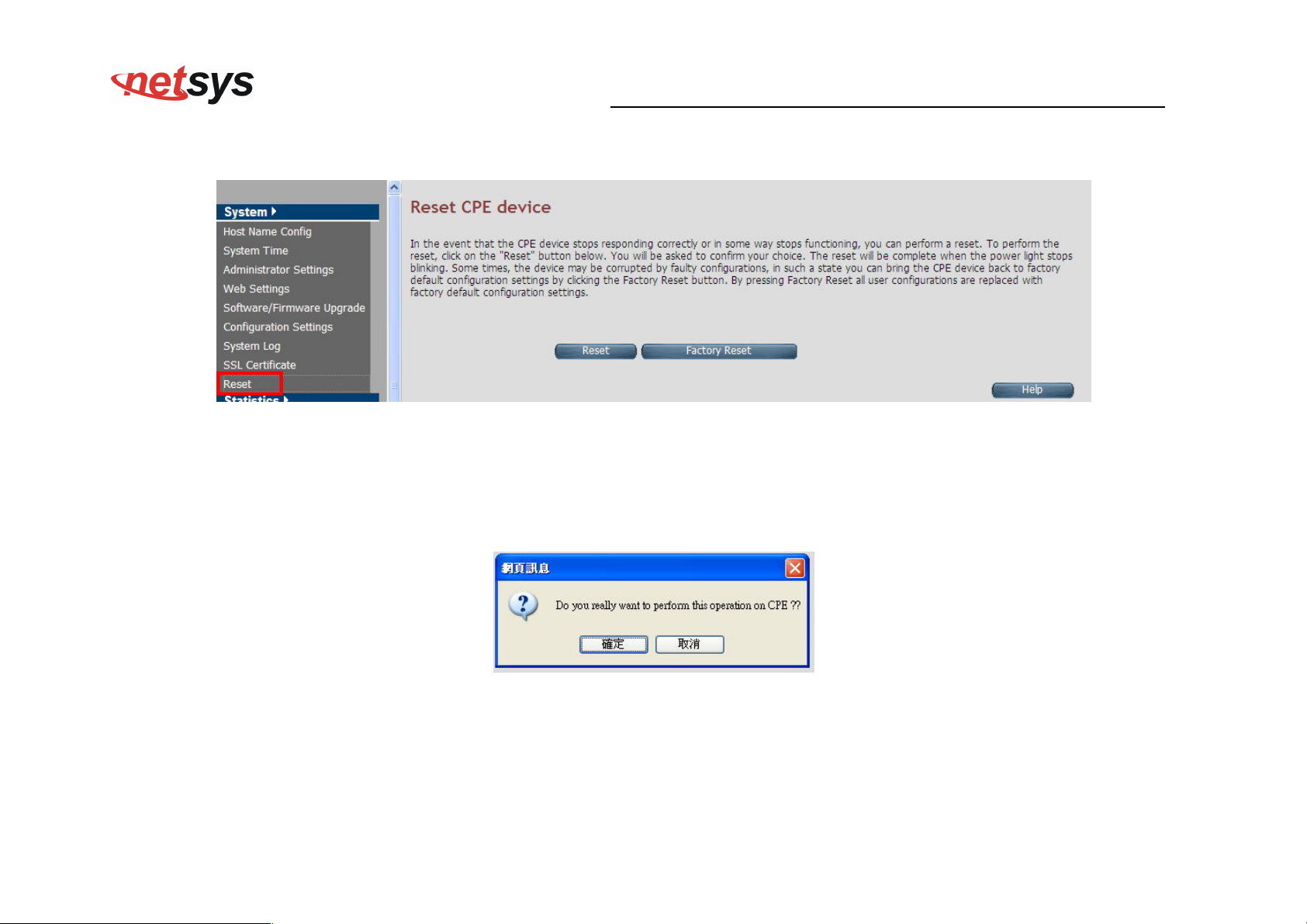

4.3.11 Reset................................................................................................................................................................................... 56

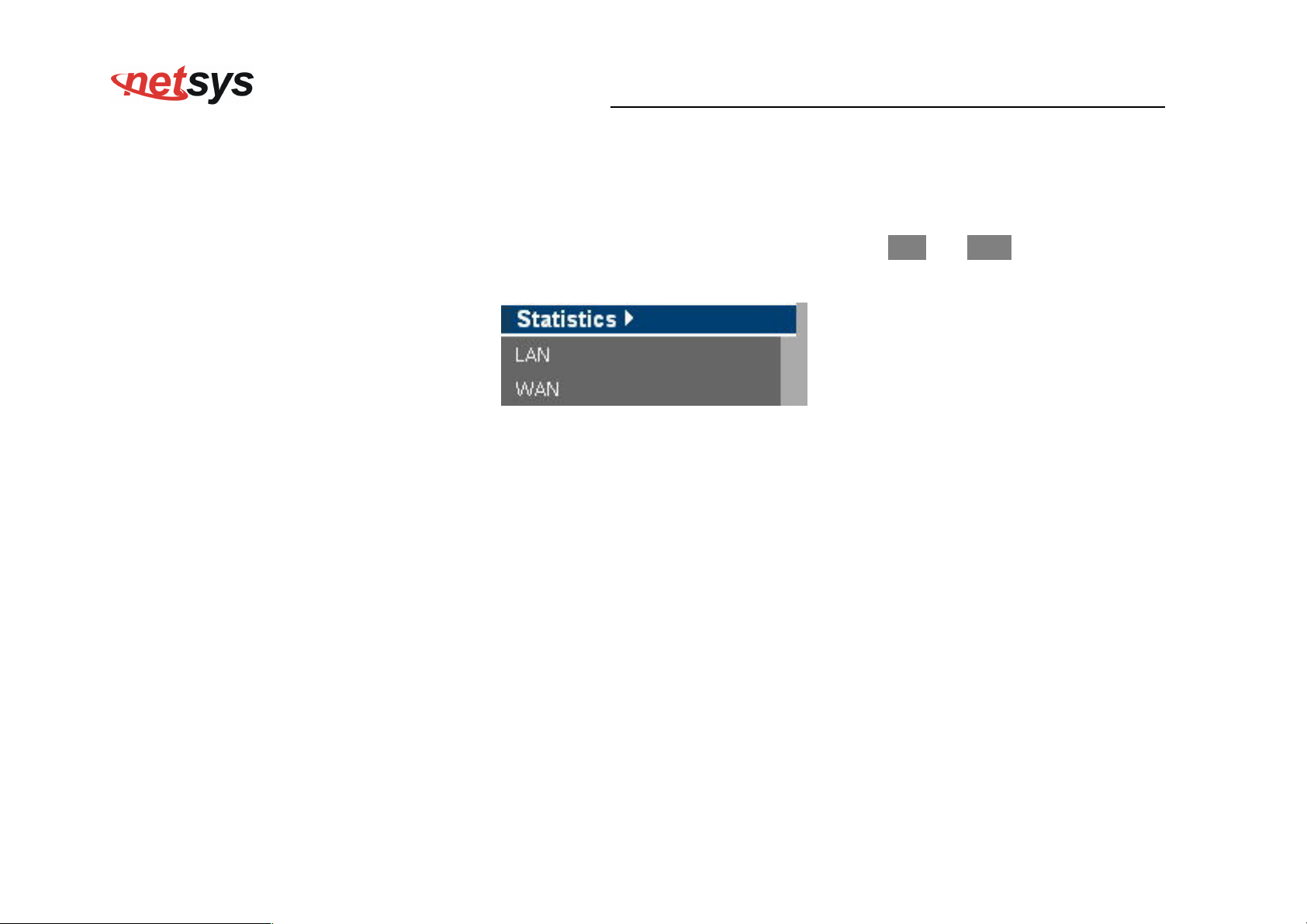

4.4 Select “Statistics” ...................................................................................................................................................................... 57

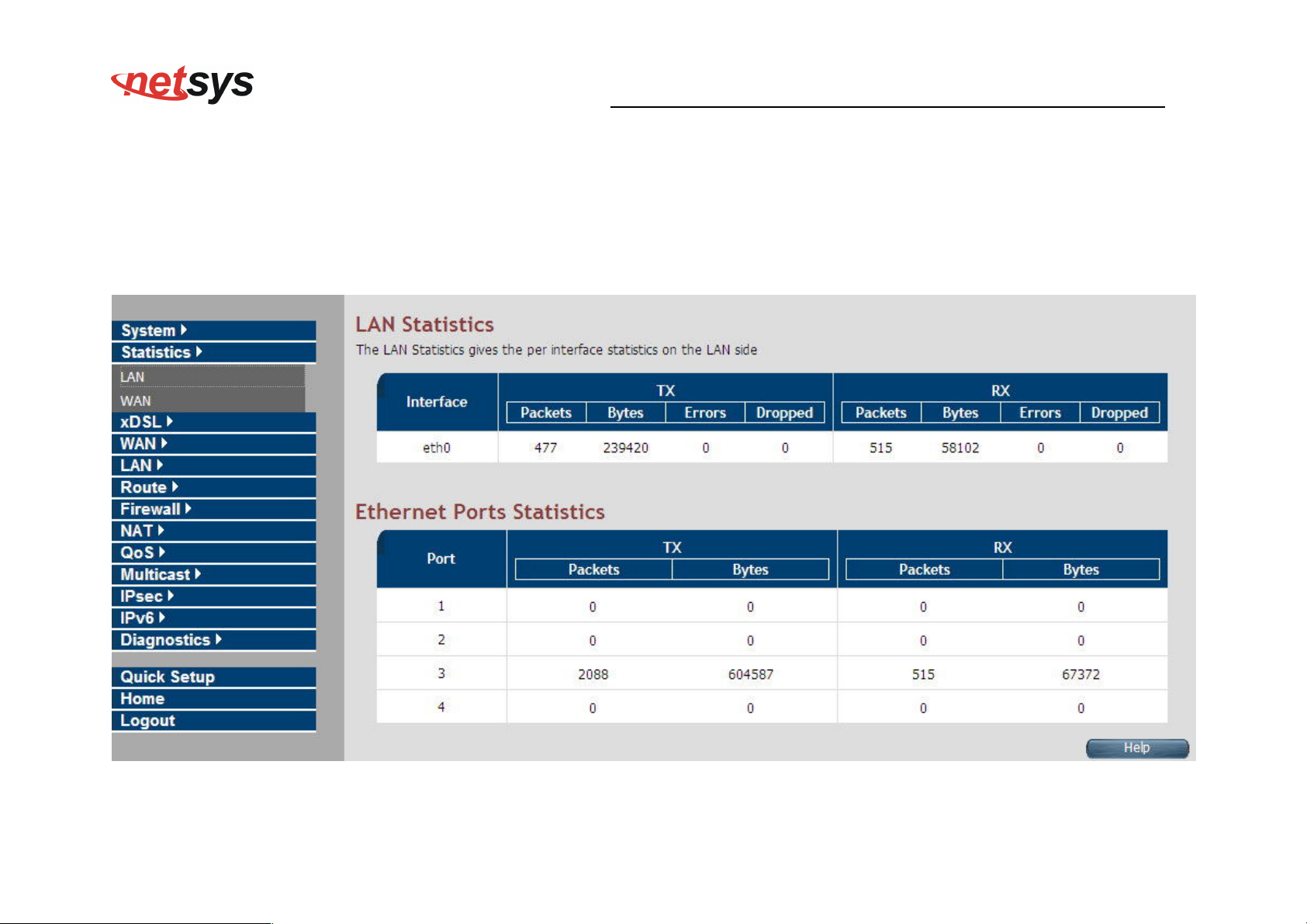

4.4.1 LAN ....................................................................................................................................................................................... 58

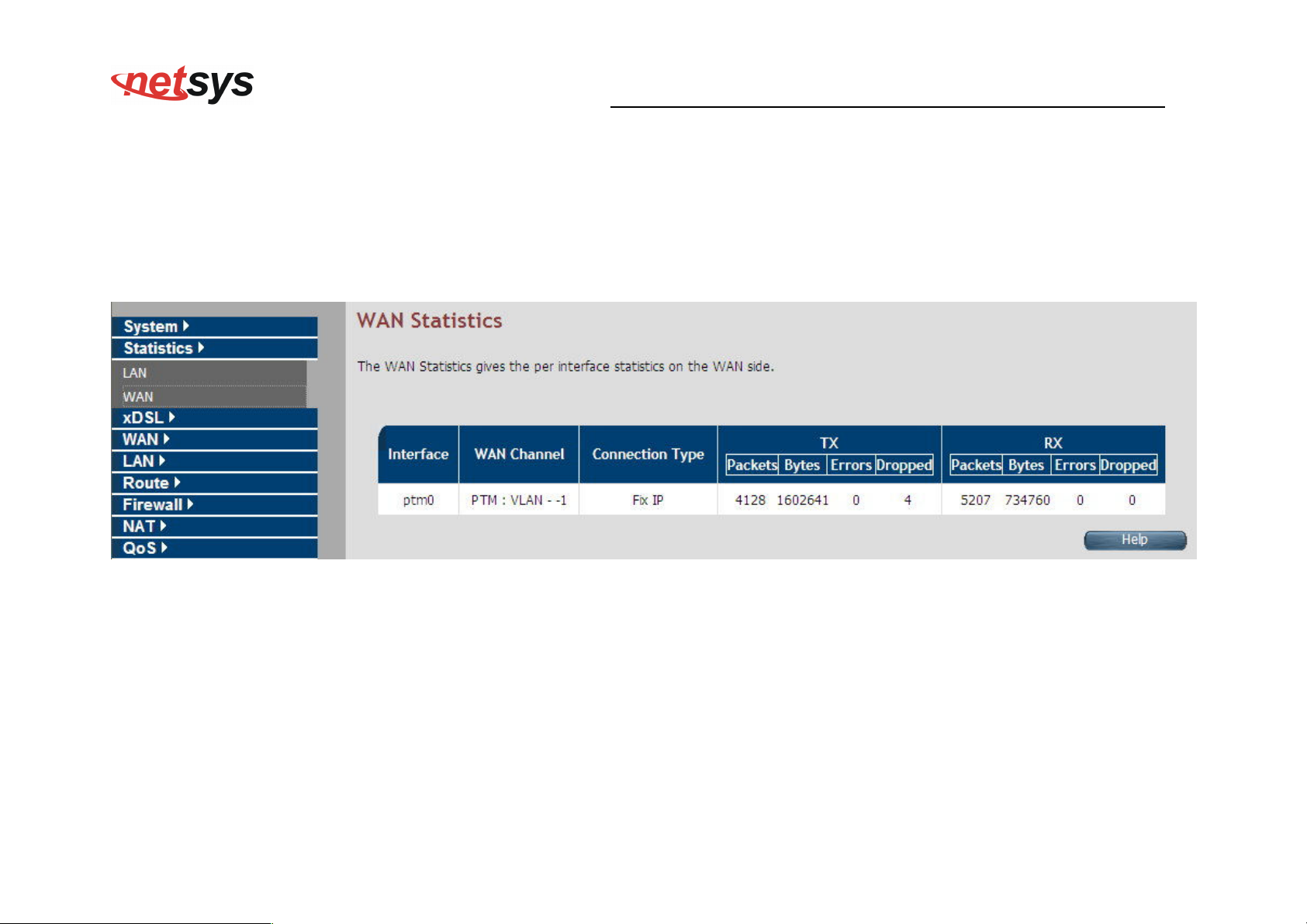

4.4.2 WAN ...................................................................................................................................................................................... 60

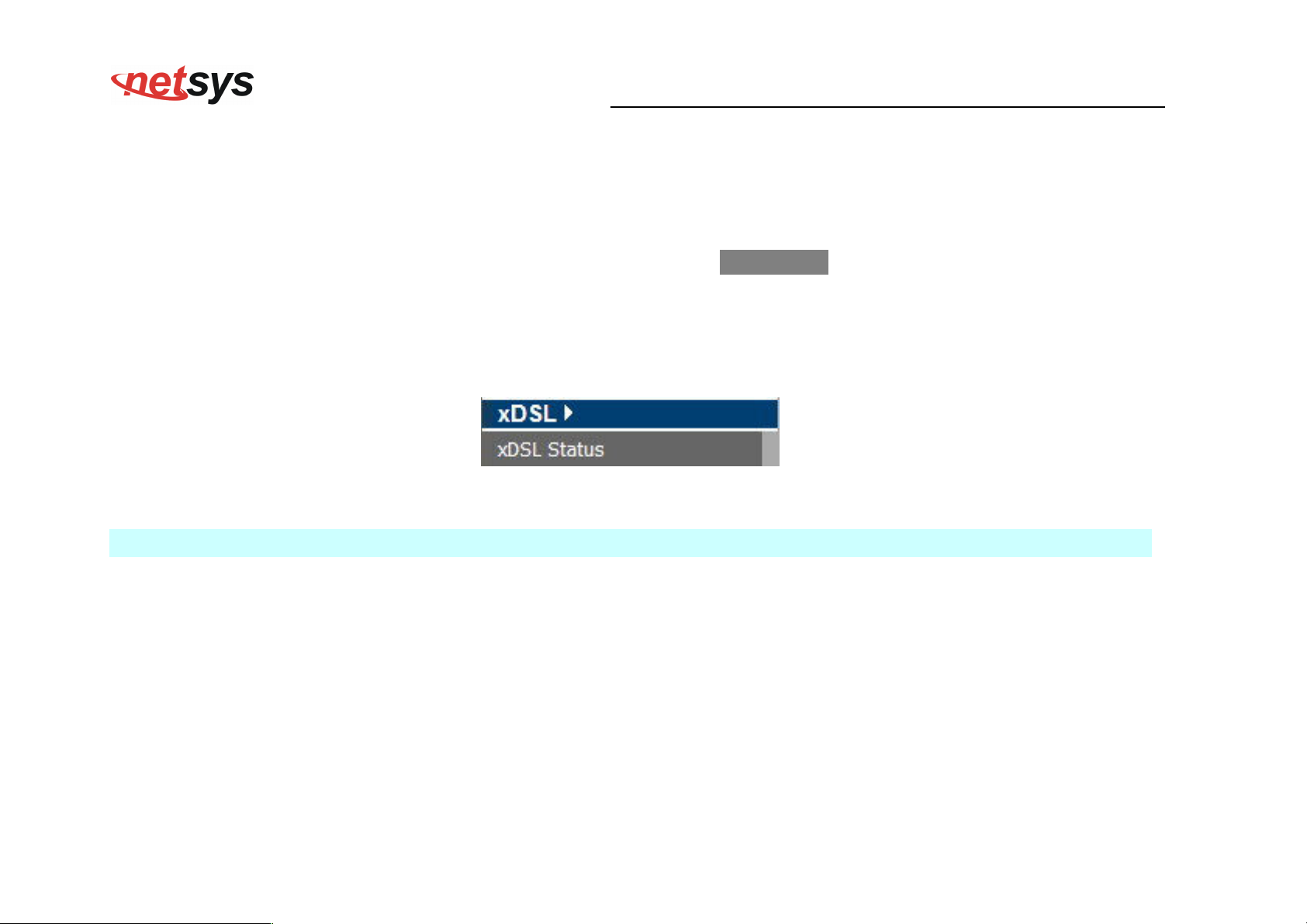

4.5 Select “xDSL”............................................................................................................................................................................. 62

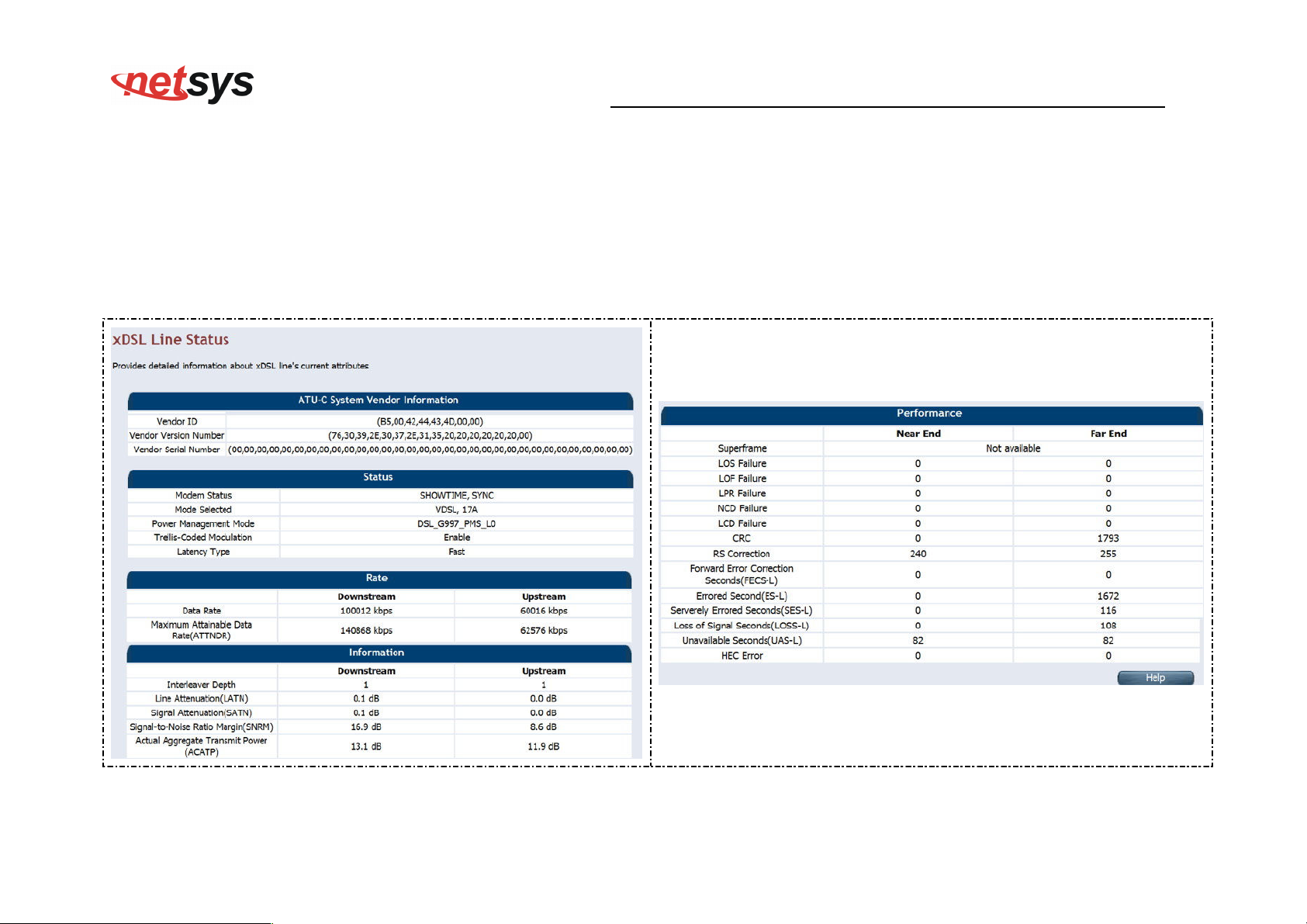

4.5.1 xDSL Status.......................................................................................................................................................................... 63

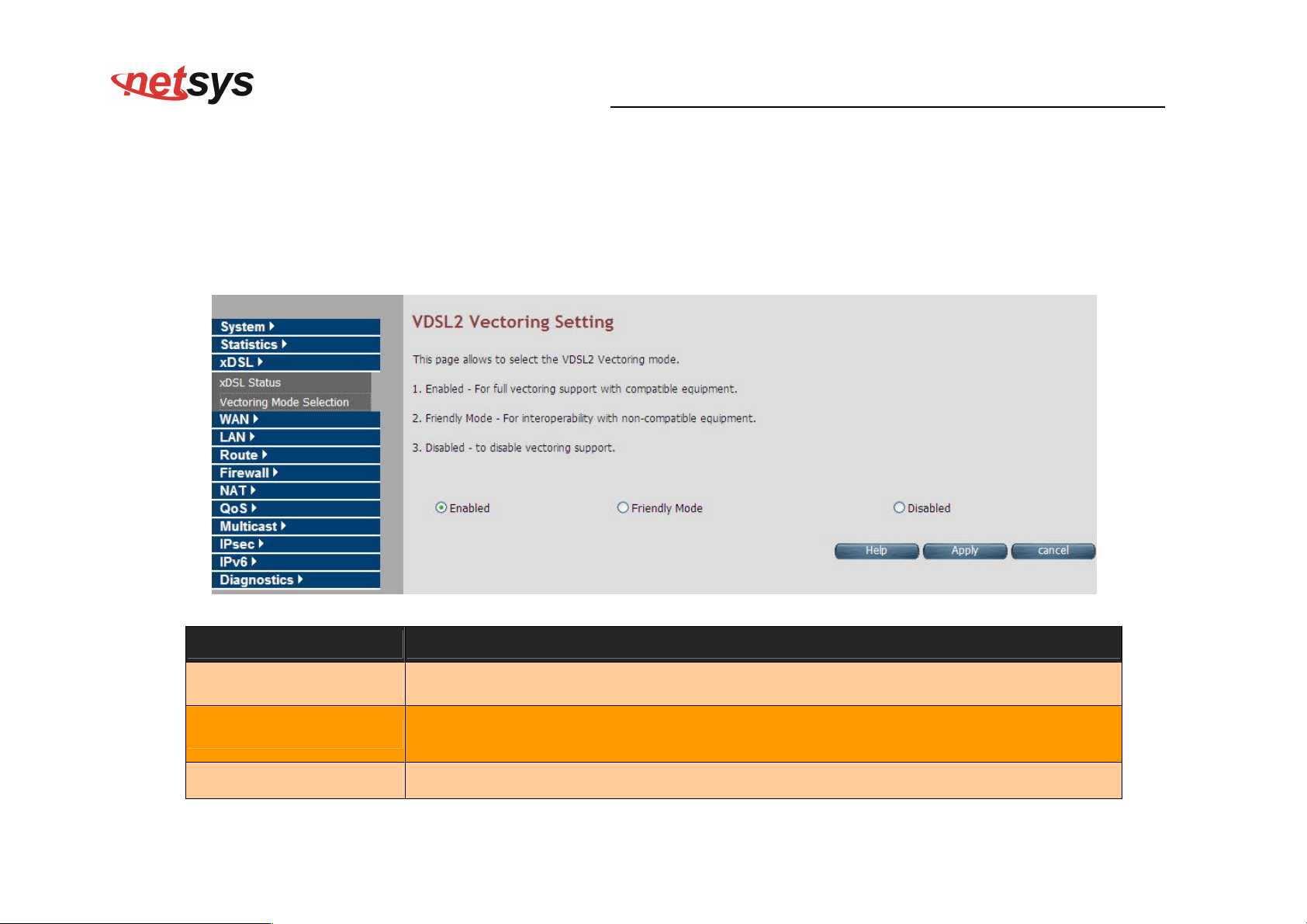

4.5.2 Vectoring Mode selection....................................................................................................................................................65

About vectoring function(Reference only): ...................................................................................................................................66

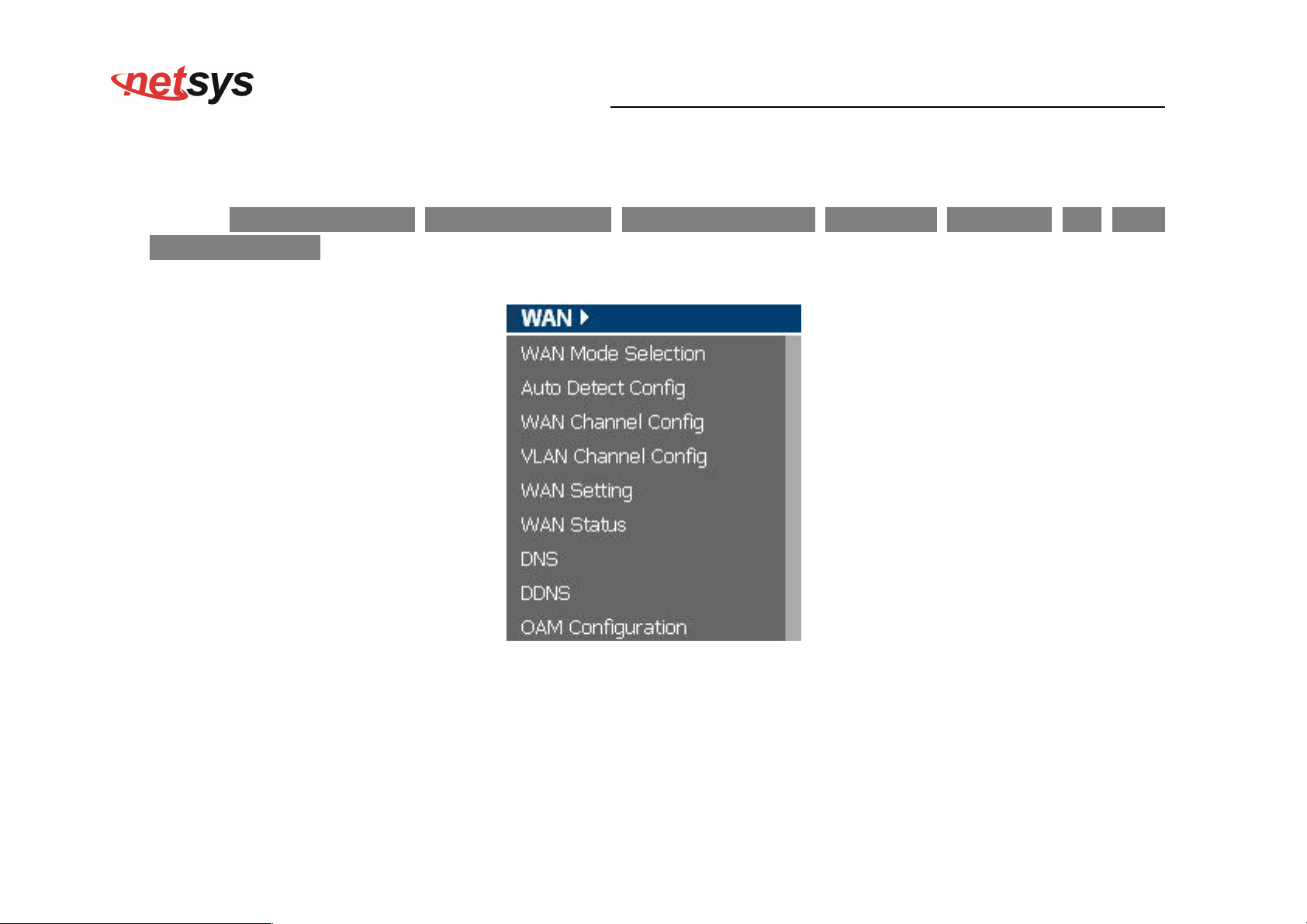

4.6 Select “WAN”.............................................................................................................................................................................. 67

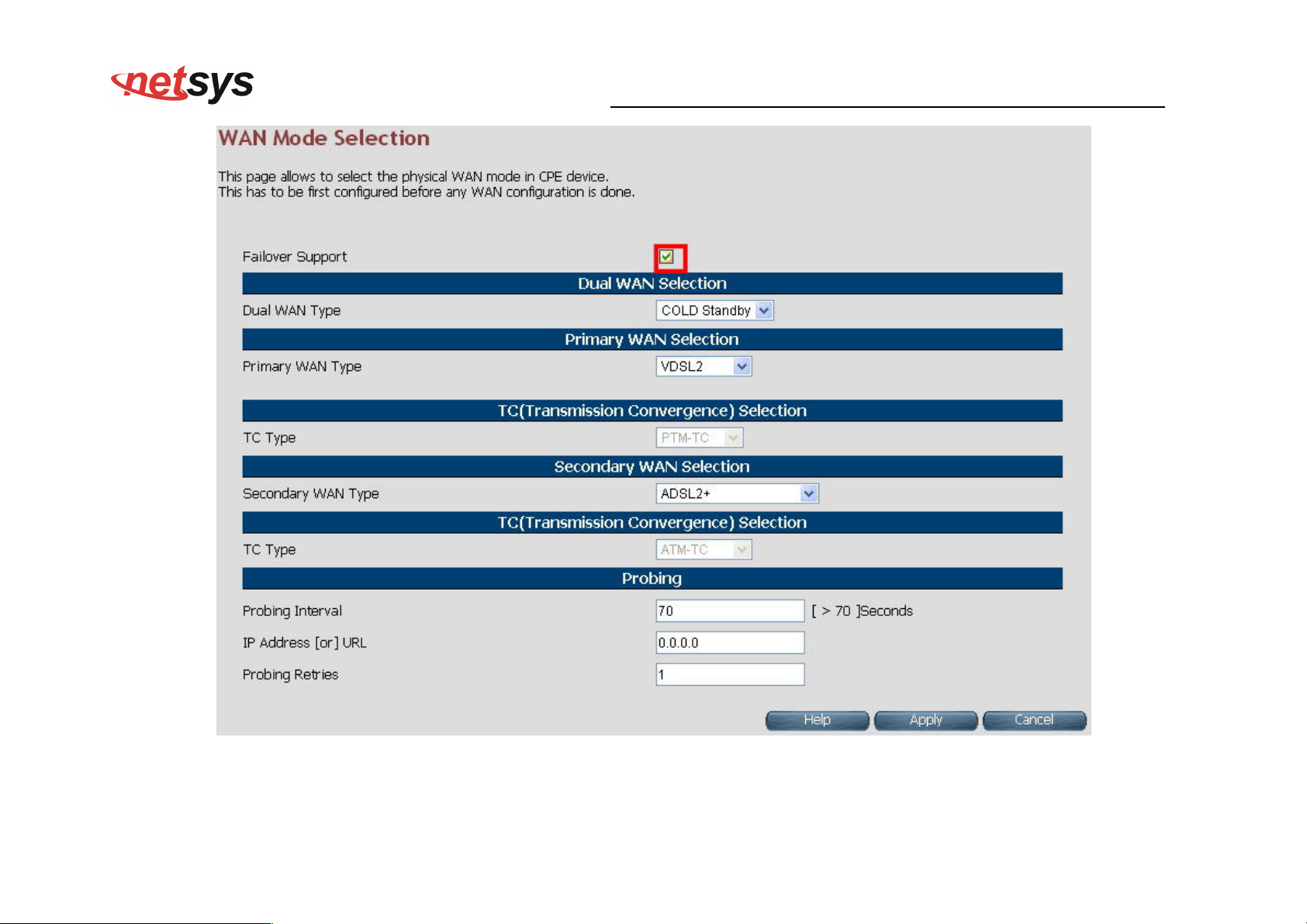

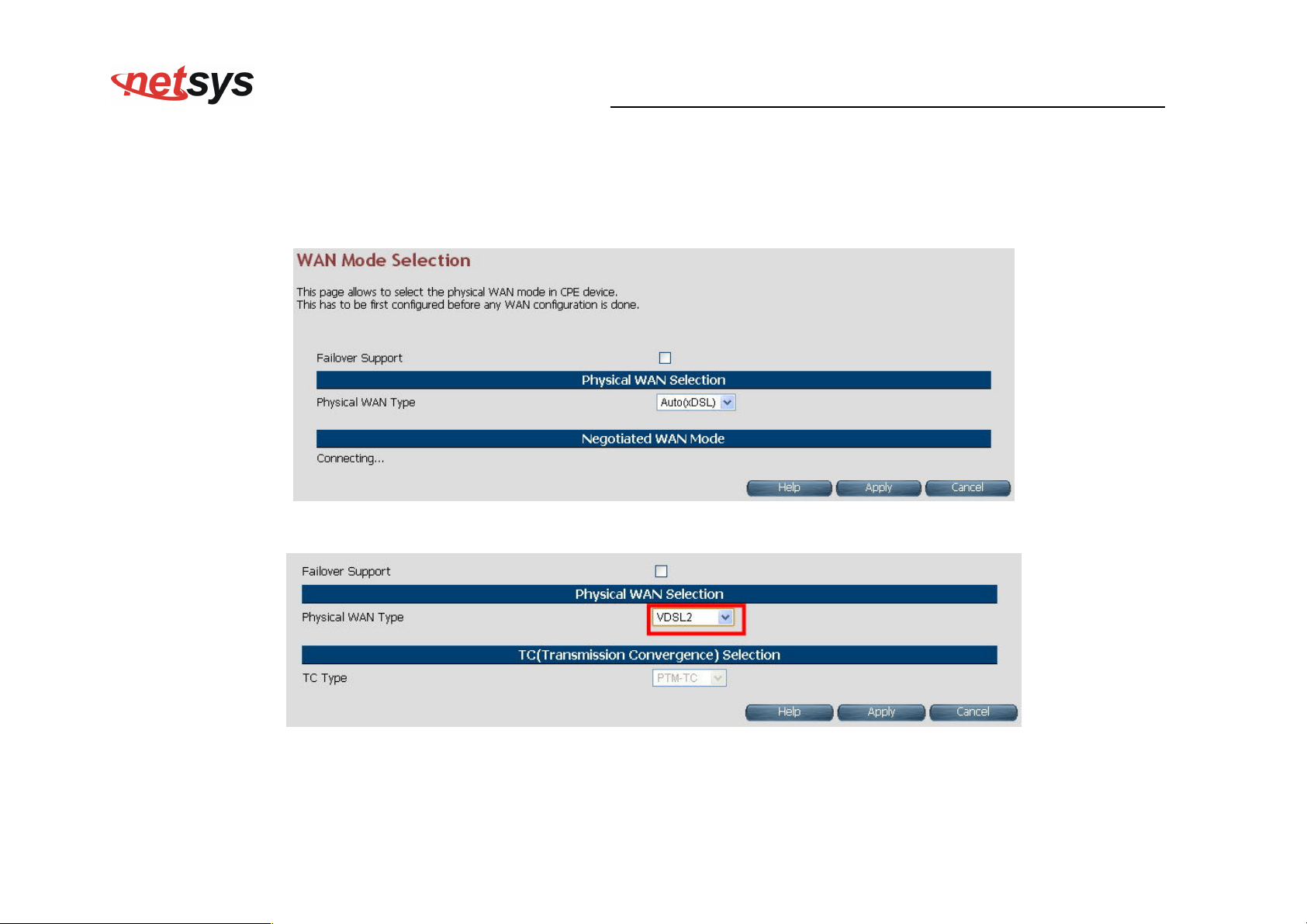

4.6.1 WAN Mode Selection........................................................................................................................................................... 68

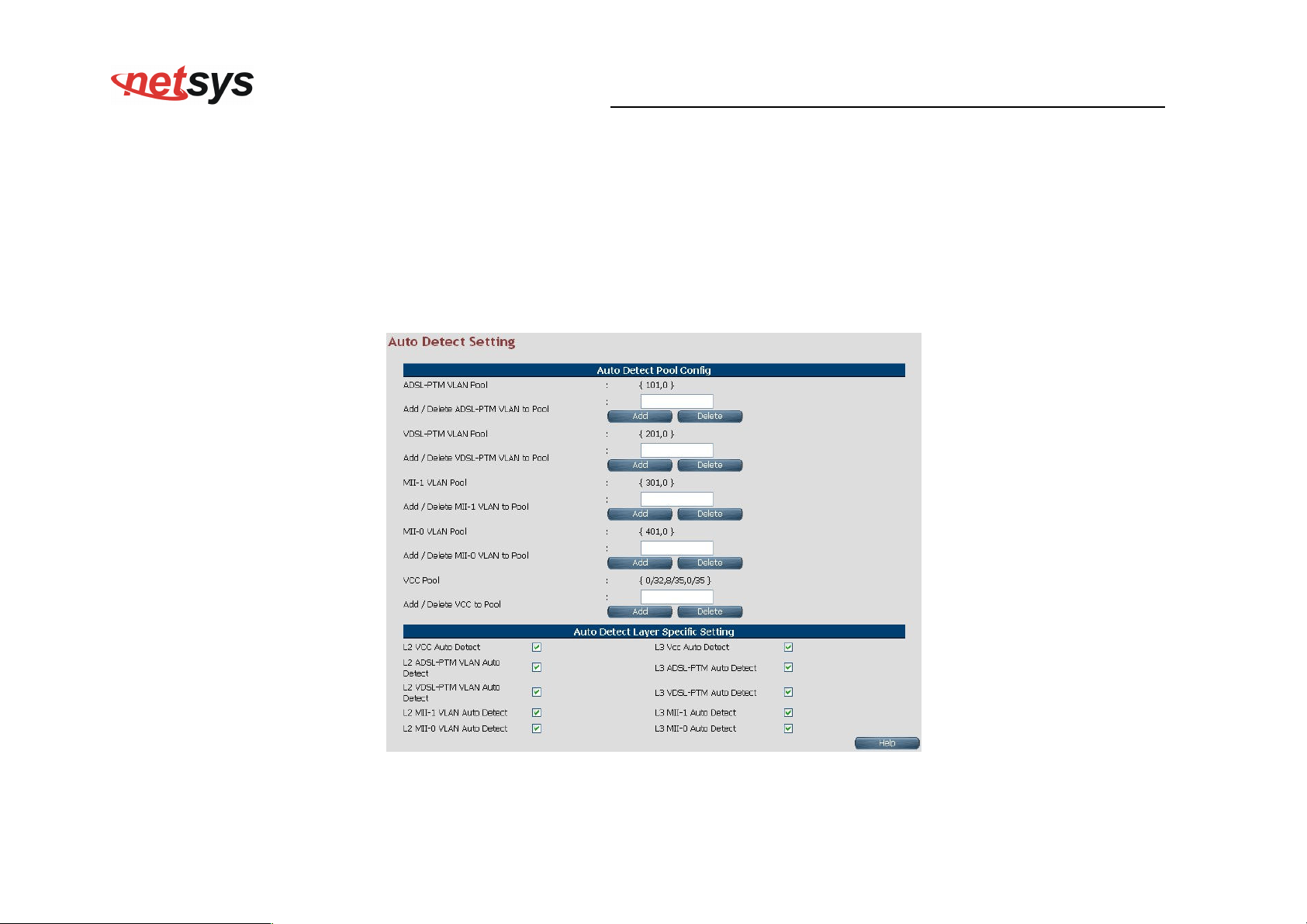

4.6.2 Auto Detect Setting ............................................................................................................................................................. 72

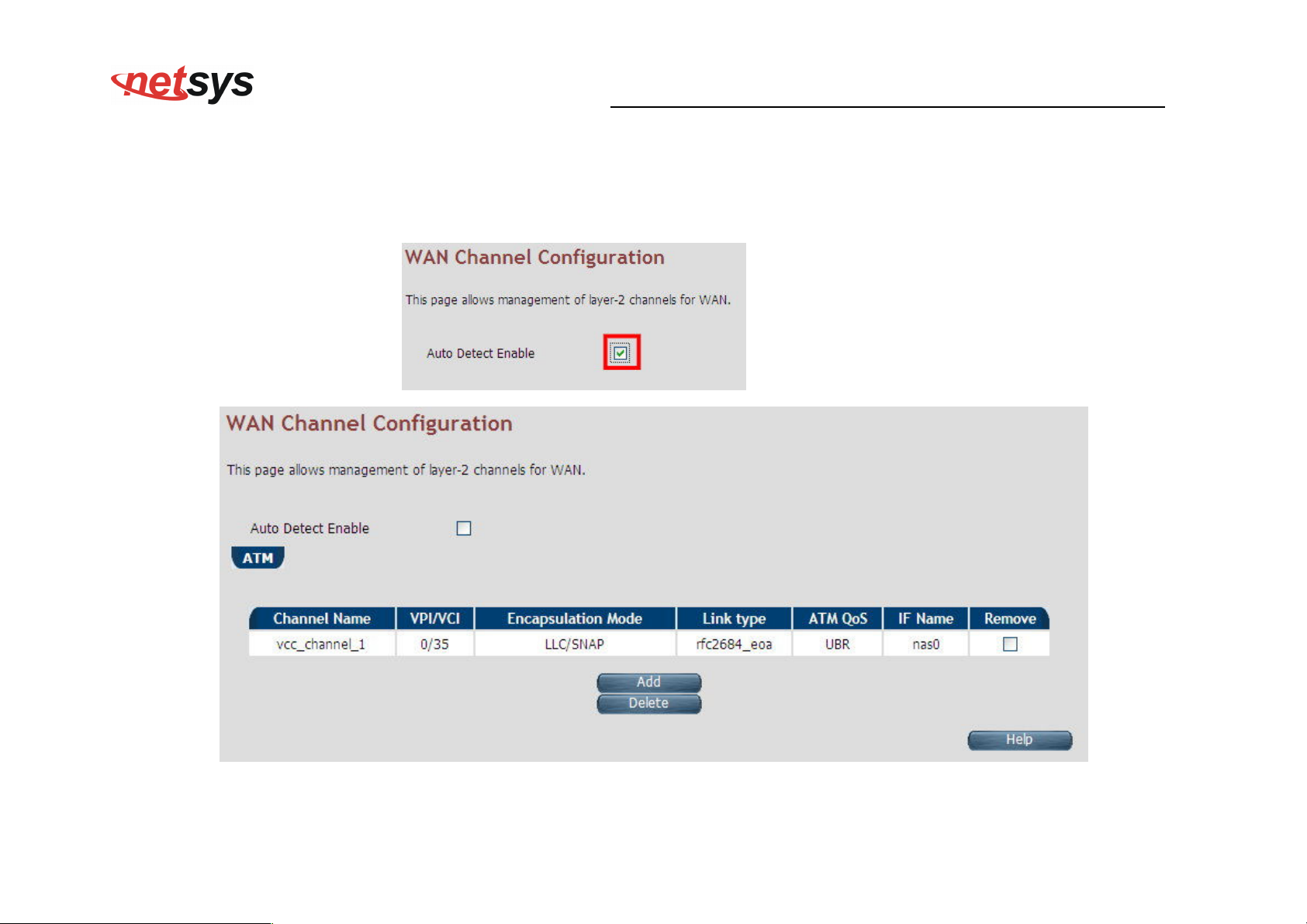

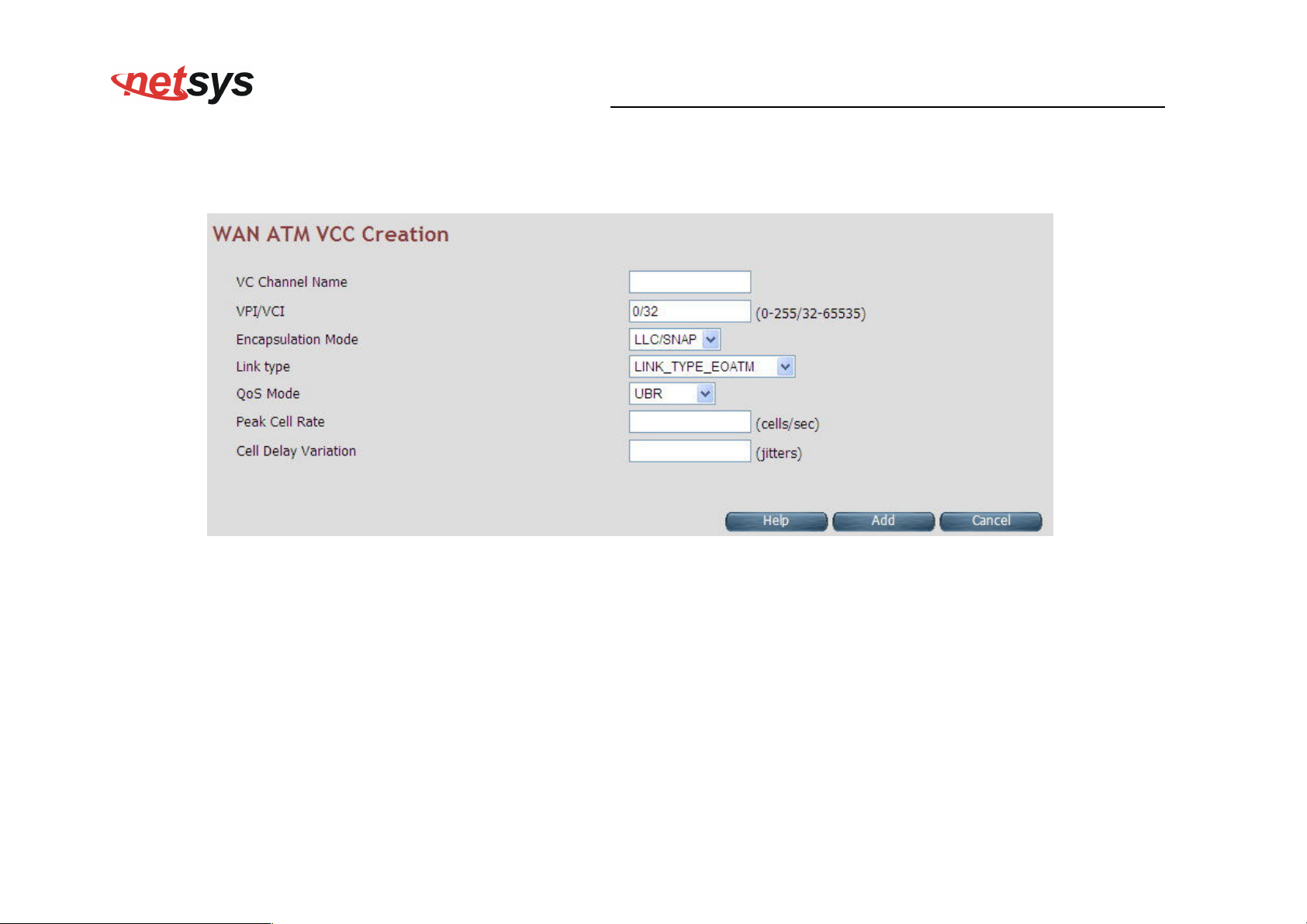

4.6.3 WAN Channel Config........................................................................................................................................................... 75

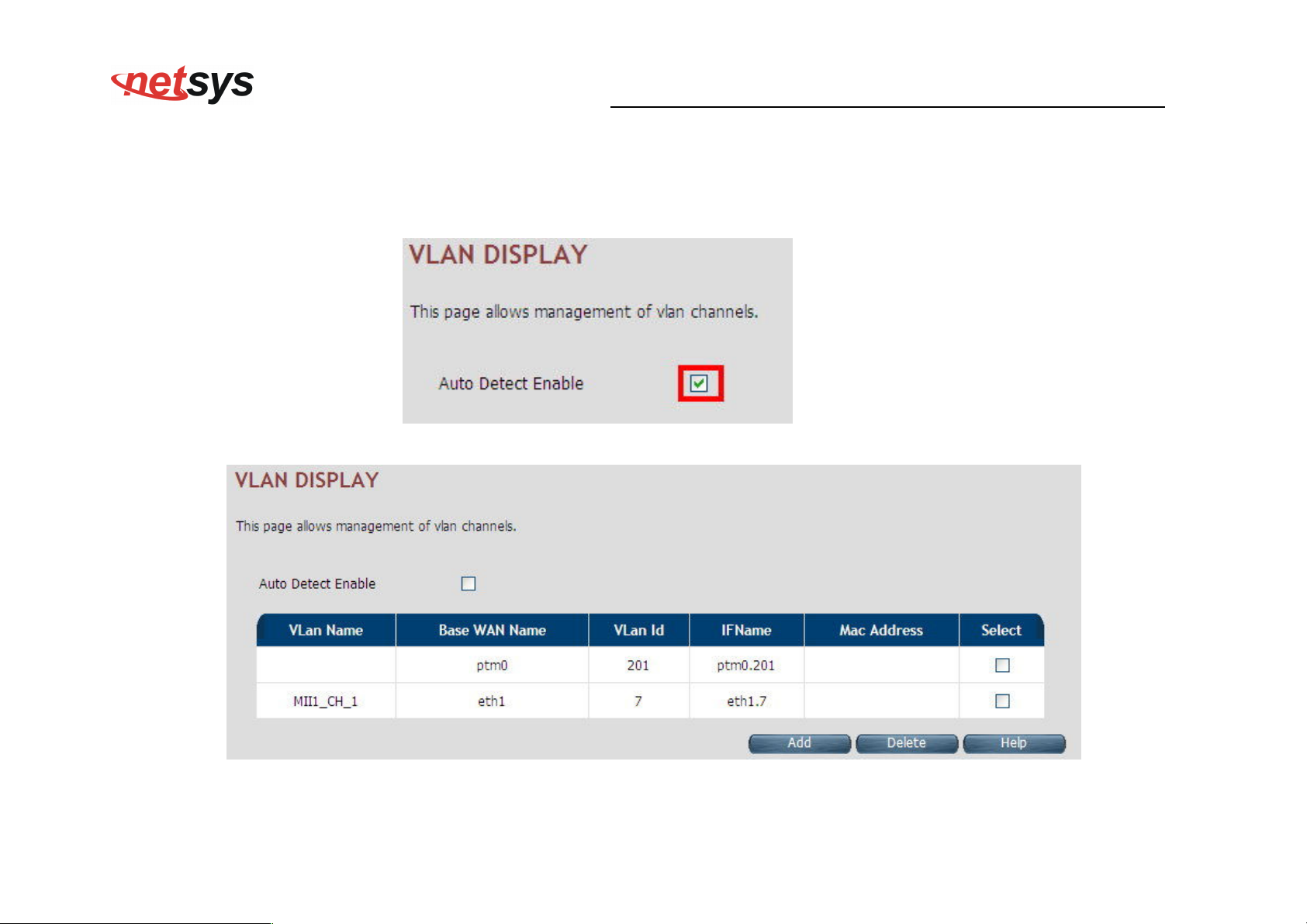

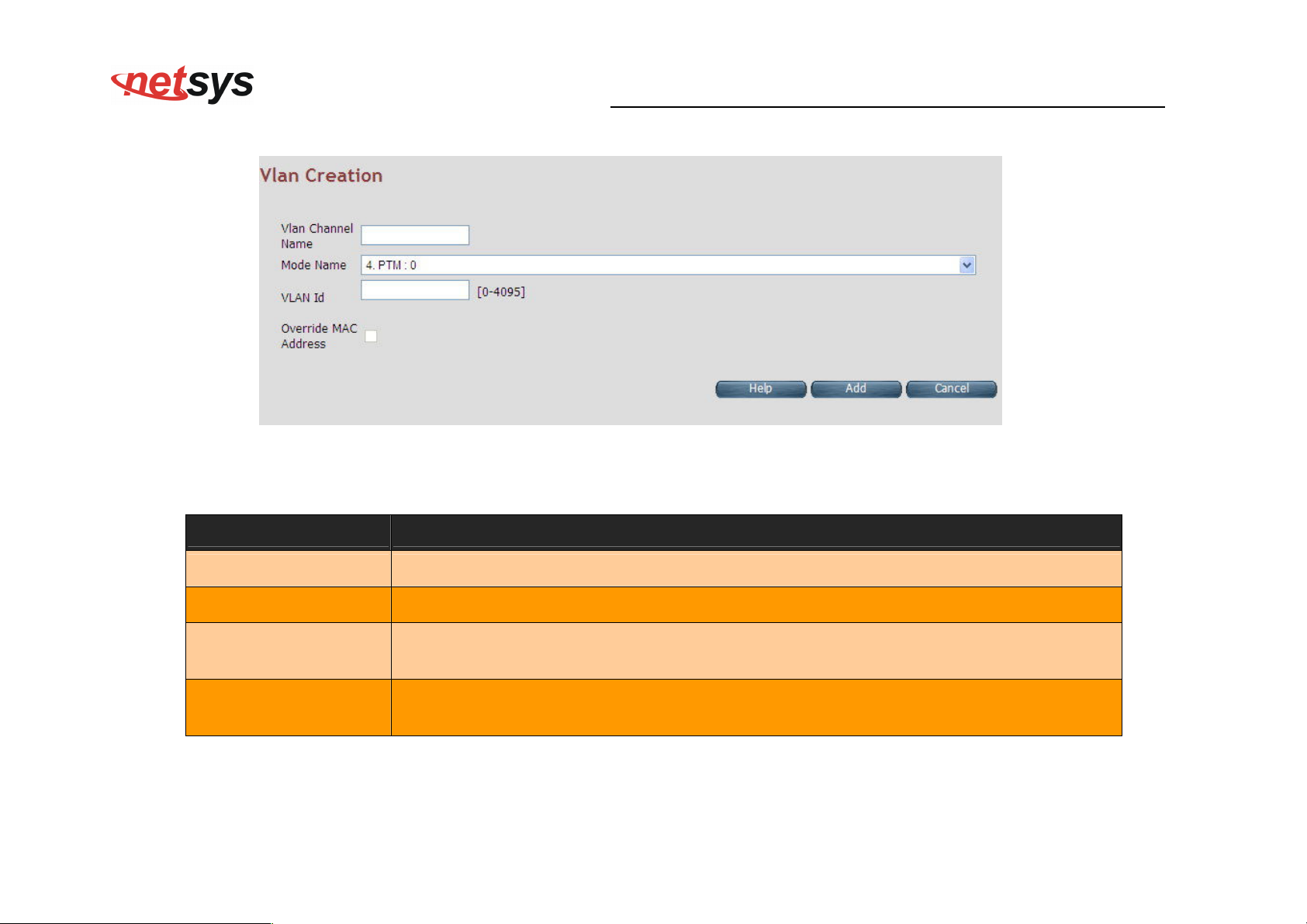

4.6.4 VLAN Channel confg ........................................................................................................................................................... 79

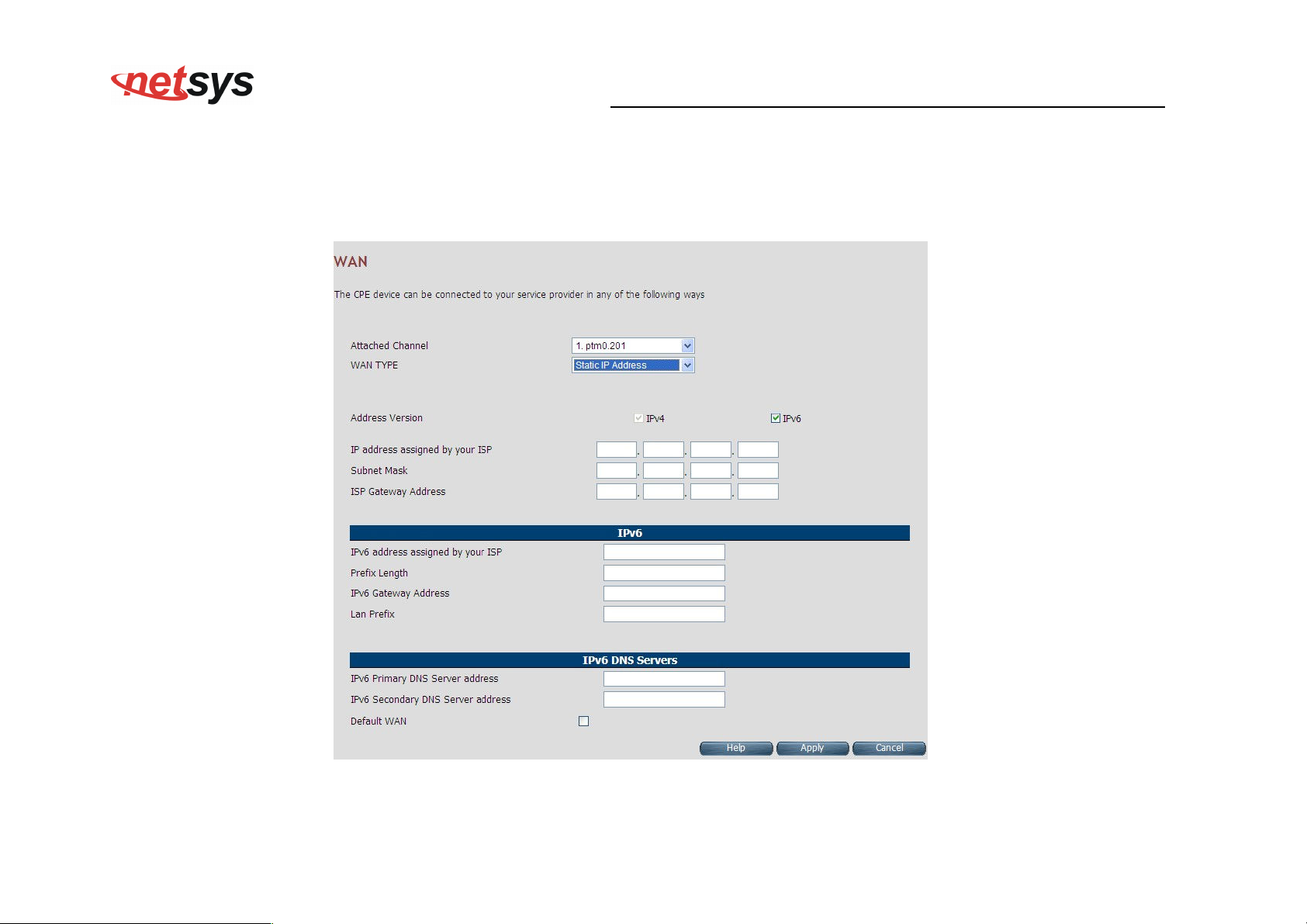

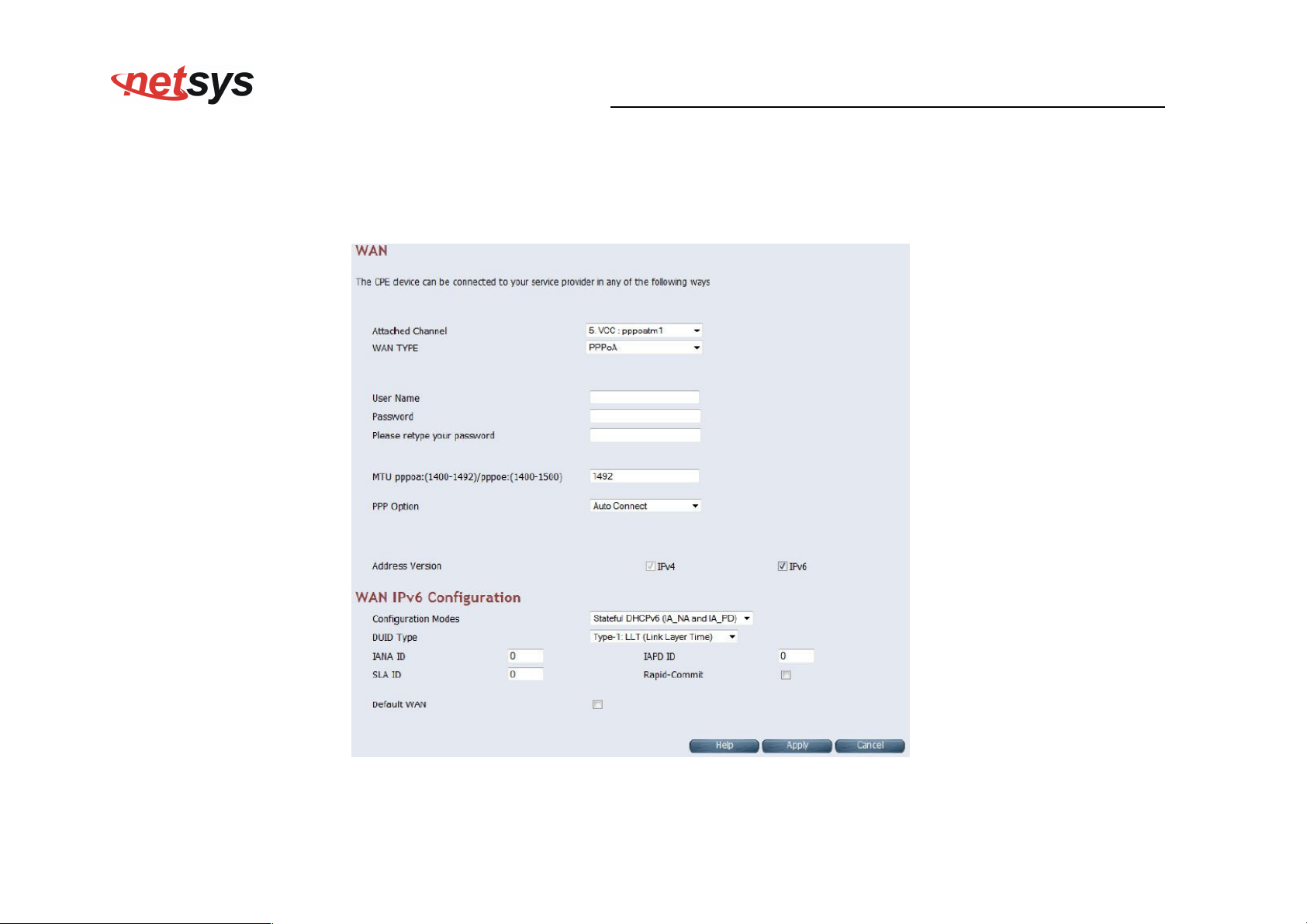

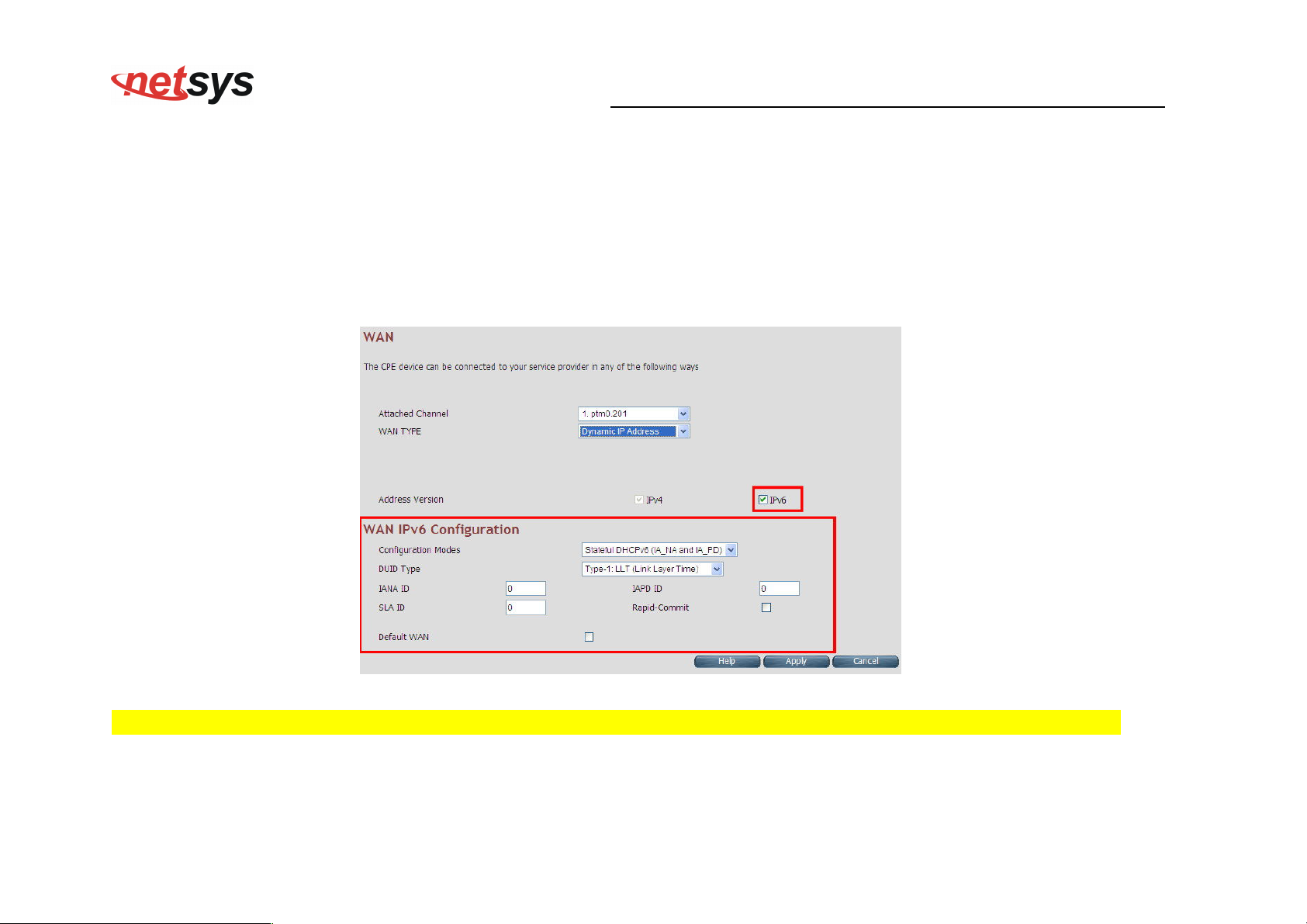

4.6.5 WAN Setting ......................................................................................................................................................................... 82

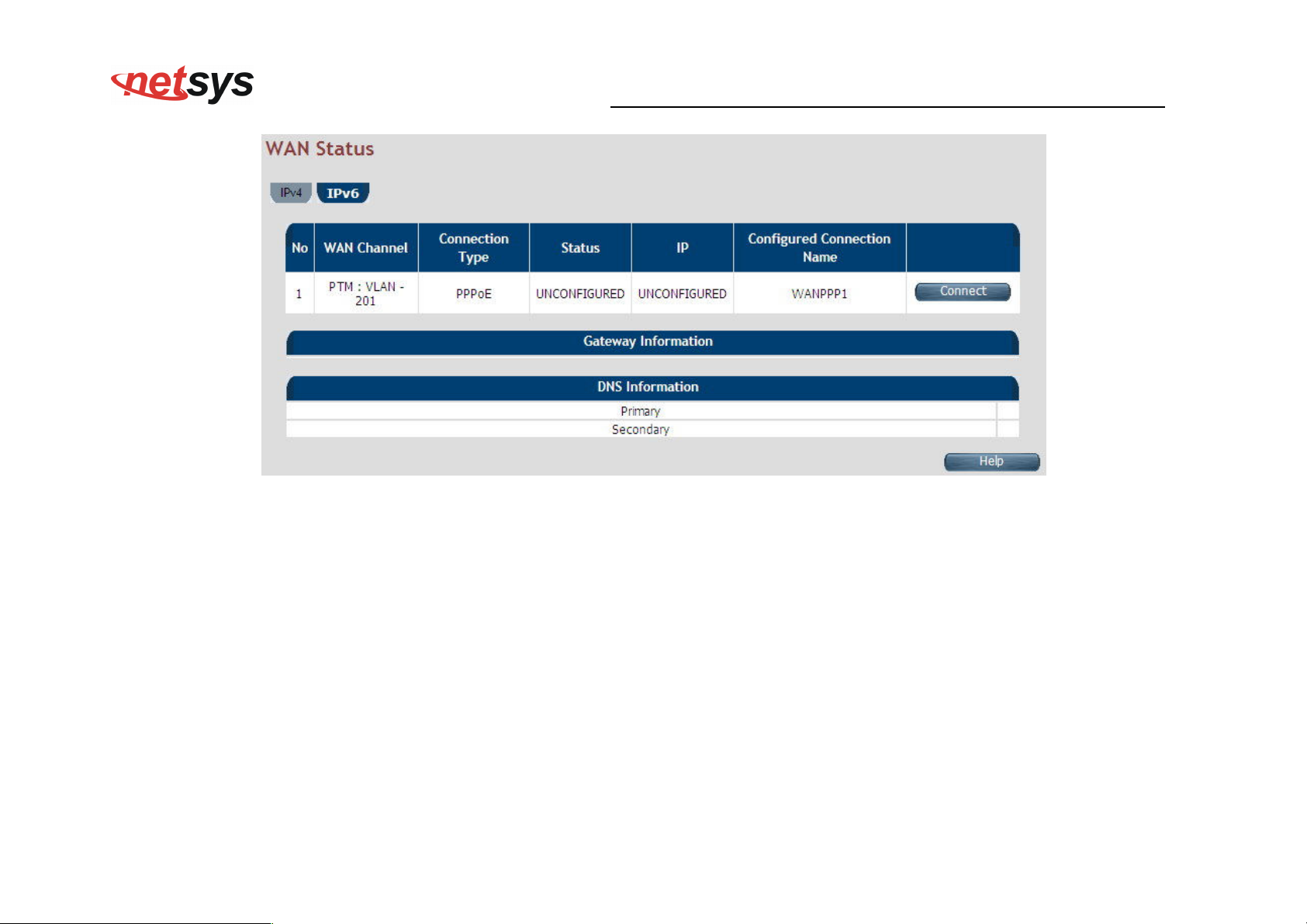

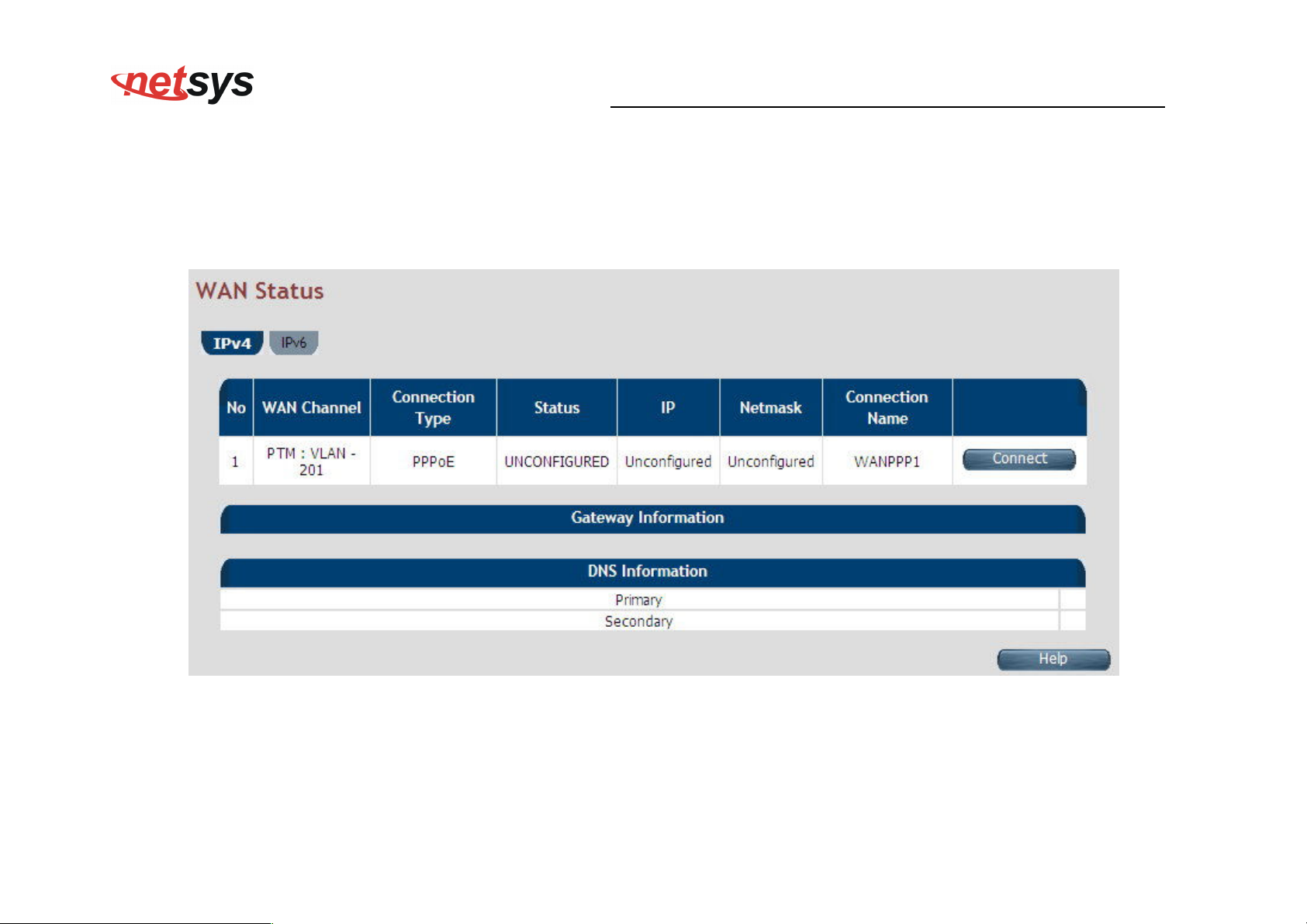

4.6.6 WAN Status........................................................................................................................................................................... 96

4.6.7 DNS ..................................................................................................................................................................................... 100

4.6.8 DDNS .................................................................................................................................................................................. 102

4.6.9 OAM Configuration............................................................................................................................................................ 104

6

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.7 Select “LAN”............................................................................................................................................................................. 108

4.7.1 LAN ARP List ..................................................................................................................................................................... 109

4.7.2 LAN Settings ...................................................................................................................................................................... 110

4.7.3 UPnP Devices List ............................................................................................................................................................. 120

4.7.4 LAN Switch Port Setting.................................................................................................................................................... 122

4.7.5 LAN Port Status ................................................................................................................................................................. 123

4.8 Select “Route” .......................................................................................................................................................................... 125

4.8.1 Static Routing..................................................................................................................................................................... 126

4.8.2 RIP Support ........................................................................................................................................................................ 129

4.8.3 Routing Table List.............................................................................................................................................................. 132

4.9 Select “Firewall”....................................................................................................................................................................... 135

4.9.1 Firewall Setting .................................................................................................................................................................. 136

4.9.2 IPv6 Firewall Setting.......................................................................................................................................................... 137

4.9.3 Packet Filtering .................................................................................................................................................................. 139

4.9.4 URL Filtering ...................................................................................................................................................................... 153

4.9.5 Parental Control................................................................................................................................................................. 155

4.9.6 Application Server Settings .............................................................................................................................................. 157

4.9.7 Access Control List (ACL) ................................................................................................................................................ 159

4.10 NAT ..........................................................................................................................................................................................161

4.10.1 NAT Settings .................................................................................................................................................................. 162

4.10.2 Virtual Server................................................................................................................................................................. 163

4.10.3 Port Triggering .............................................................................................................................................................. 167

7

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.10.4 DMZ ................................................................................................................................................................................ 171

4.11 QoS.......................................................................................................................................................................................... 173

4.11.1 QoS Settings ..................................................................................................................................................................174

4.11.2 Queue Config ................................................................................................................................................................... 176

4.11.3 Class Config ..................................................................................................................................................................... 180

4.12 Multicast.................................................................................................................................................................................. 186

4.12.1 Proxy Settings.................................................................................................................................................................. 187

4.12.2 Snooping Settings ........................................................................................................................................................... 189

4.12.3 Advanced Settings........................................................................................................................................................... 190

4.13 IPsec........................................................................................................................................................................................ 192

4.13.1 Tunnel Mode..................................................................................................................................................................... 192

4.14 IPv6.......................................................................................................................................................................................... 195

4.14.1 IPv6 Setting ...................................................................................................................................................................... 196

4.14.2 6RD Configuration ........................................................................................................................................................... 198

4.14.3 DS-Lite Configuration...................................................................................................................................................... 200

4.15 Diagnostics............................................................................................................................................................................. 202

4.15.1 Diagnostic Test Suite....................................................................................................................................................... 203

4.16 SNMP....................................................................................................................................................................................... 205

4.16.1 SNMP Options.................................................................................................................................................................. 206

4.16.2 SNMPv3 Settings ............................................................................................................................................................. 208

8

4.16.3 Add v3 user ...................................................................................................................................................................... 209

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

APPENDIX A: CABLE REQUIREMENTS ..........................................................................................................211

APPENDIX B: PRODUCT SPECIFICATION..................................................................................................... 214

APPENDIX C: ROUTER/BRIDGED MODE SELECT........................................................................................ 218

APPENDIX D: NV-600LI/NV-600AI COMPATIBILITY TABLE.......................................................................... 223

APPENDIX E: IP-30 PROTECTION OF METAL CASE.................................................................................. 225

APPENDIX F: TROUBLESHOOTING............................................................................................................... 227

APPENDIX G: COMPLIANCE INFORMATION ................................................................................................. 235

WARRANTY ..................................................................................................................................................... 238

CHINESE SJ/T 11364-2014 ............................................................................................................................. 239

9

VDSL2

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Chapter 1. Unpacking Information

1.1 Check List

Thank you for choosing Netsys NV-600AI. Before installing the router, please verify the contents inside the package.

Package Contents:

1 x Industrial

1 x QR code for user’s

Accessory Kit : 1 x DIN-Rail mounting plate, 2 x screws, 4 x Feet,

CPE router

Notes:

1. Please inform your dealer immediately for any missing or damaged parts. If possible, retain the carton including the

original packing materials. Use them to repack the unit in case there is a need to return for repair.

2. If the product has any issue, please contact your local distributor.

3. Please use the provided protective caps for unused ports.

4. Please look for the QR code on the bottom of the product, the user can launch the QR code scanning program to

scan and download the user’s manual electronic format file. Above QR code icon is for reference.

5. Power Input: This model supports 12~48V DC power adapters with recommended 17 Watts or above.

manual hyperlink.

Protective caps (RJ-11*1, RJ-45*3), 1 x 6pin Terminal Block, 1 x 2pin

Terminal Block

10

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Chapter 2. Installing the Router

2.1 Hardware Installation

This chapter describes how to install the router and establish the network connections. The NV-600AI may be installed

on any level surface (e.g. a table or DIN RAIL). However, please take note of the following minimum site requirements

before you begin.

2.2 Pre-installation Requirements

Before you start the actual hardware installation, make sure you can provide the right operating environment, including

power requirements, sufficient physical space, and proximity to other network devices that are to be connected.

Verify the following installation requirements:

• Power requirements: DC 12 to 48VDC redundant power.

• The router should be located in a cool dry place, with at least 10cm/4in of space at the front and back for

ventilation.

• Place the router away from direct sunlight, heat sources, or areas with a high amount of electromagnetic

interference.

• Check if the network cables and connectors needed for installation are available.

• Do Not install phone lines strapped together with AC power lines, or telephone office line with voice signal.

• Avoid installing this device with radio amplifying stations nearby or transformer stations nearby.

11

2.3 General Rules

Before making any connections to the router, please note the following rules:

• Ethernet Port (RJ-45)

• VDSL2 Port (RJ-11)

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

All network connections to the router Ethernet port must be made using Category 5 UTP/STP or above for

100 Mbps, Category 3, 4 UTP for 10Mbps.

No more than 100 meters of cabling may be use between the MUX or HUB and an end node.

All network connections to the RJ-11port must use 24~26 gauge with twisted pair phone wiring.

We do not recommend the use of the telephone line 28 gauge or above.

The RJ-11 connectors have six positions, two of which are wired. The router uses the center two pins. The

pin out assignment for these connectors is presented below.

Please note that the line port is no polarity, therefore user can reverse the two wires of the phone cable

when installed.

RJ-11 Pin out Assignments

Pin# MNEMONIC FUNCTION

1 NC Unused

2 NC Unused

3 DSL Used

4 DSL Used

5 NC Unused

6 NC Unused_

12

2.4 Connecting the Router

The router has four Ethernet port which support connection to Ethernet operation. The devices attached to these ports

must support auto-negotiation /10Base-T / 100Base-TX / 1000Base-TX unless they will always operate at half duplex.

Use any of the Ethernet ports to connect to devices such as Monitor system, Server, Switch, bridge or router.

Notes:

1. The (RJ11/Terminal Block) Line port is used to connect the telephone that is connected to VDSL2 CO and CPE

router (Point-to-point solution).

2. Use the provided protective caps for unused ports to avoid dust intrusion.

3. The Slave device (CPE) must be connected to the Master device (CO) through the telephone wire. The Slave

cannot be connected to another Slave, and the Master cannot be connected to another Master.

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

13

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

2.5 Connecting the RJ-11 / RJ-45 Ports

 The line port has 2 connectors: RJ-11 and terminal block. It is used to connect with NV-600LI(CO) using a single pair phone

cable to NV-600AI(CPE) bridge side (point to point solution). Take note that NV-600AI line port cannot be used at the same time.

Either RJ-11 port is connected or terminal block is connected using a straight connection (Figure 2.5.1) or cross-over

connection(Figure 2.5.2)

Figure 2.5.1 NV-600LI/AI line ports straight connection

Figure 2.5.2 NV-600LI/AI line ports straight connection

 When inserting a RJ-11 plug, make sure the tab on the plug clicks into position to ensure that it is properly seated.
 Do not plug a RJ-11 phone jack connector into the Ethernet port (RJ-45 port). This may damage the router. Instead, use only

twisted-pair cables with RJ-45 connectors that conform to Ethernet standard.

14

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Notes:

1. Be sure each twisted-pair cable (RJ-45 Ethernet cable) does not exceed 100 meters (333 feet).

2. We advise using Category 5~7 UTP/STP cables for making Bridge or Router connections to avoid any

confusion or inconvenience in the future when you attach high bandwidth devices.

3. Use 24 ~ 26 gauge twisted pair phone wiring, we do not recommend 28 gauge or above.

4. Be sure phone wire has been installed before NV-600AI boot.

15

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

2.6 Terminal Block and DIN-Rail mount installation

This section describes how to install the Terminal Block and DIN-Rail to the router, if you do not install the DIN-Rail, please paste

the 4 rubber feet at the bottom of the hulled to avoid scratches of metal housing.

 Take out the “2pin / 6pin terminal block” from inside the accessory kit, and install to the router properly. (Figure 2.6.1)
 Please refer to install the DIN-RAIL as following step:

1. Install the DIN-Rail mounting plate to the NV-600AI. (Figure 2.6.2)

2. Please use the suitable DIN-Rail to install, please refer to the dimensions of the DIN-Rail.(Figure 2.6.3)

3. Insert the top of the DIN-Rail into the top slots on the DIN-Rail mounting plate and the DIN-Rail mounting plate will snap into

place. (Figure 2.6.4)

Figure 2.6.1 Figure 2.6.2 Figure 2.6.3 Figure 2.6.4

16

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

2.7 Industrial VDSL2 Application

The router’s line port supports 100Mbps/0.3km for data service across existing phone wiring. It is easy-to-use which do not require

installation of additional wiring. Every modular phone jack in the home can become a port on the LAN. Networking devices can be

installed on a single telephone wire that can installation within suitable distance (depends on speed) (Figure 2.7)

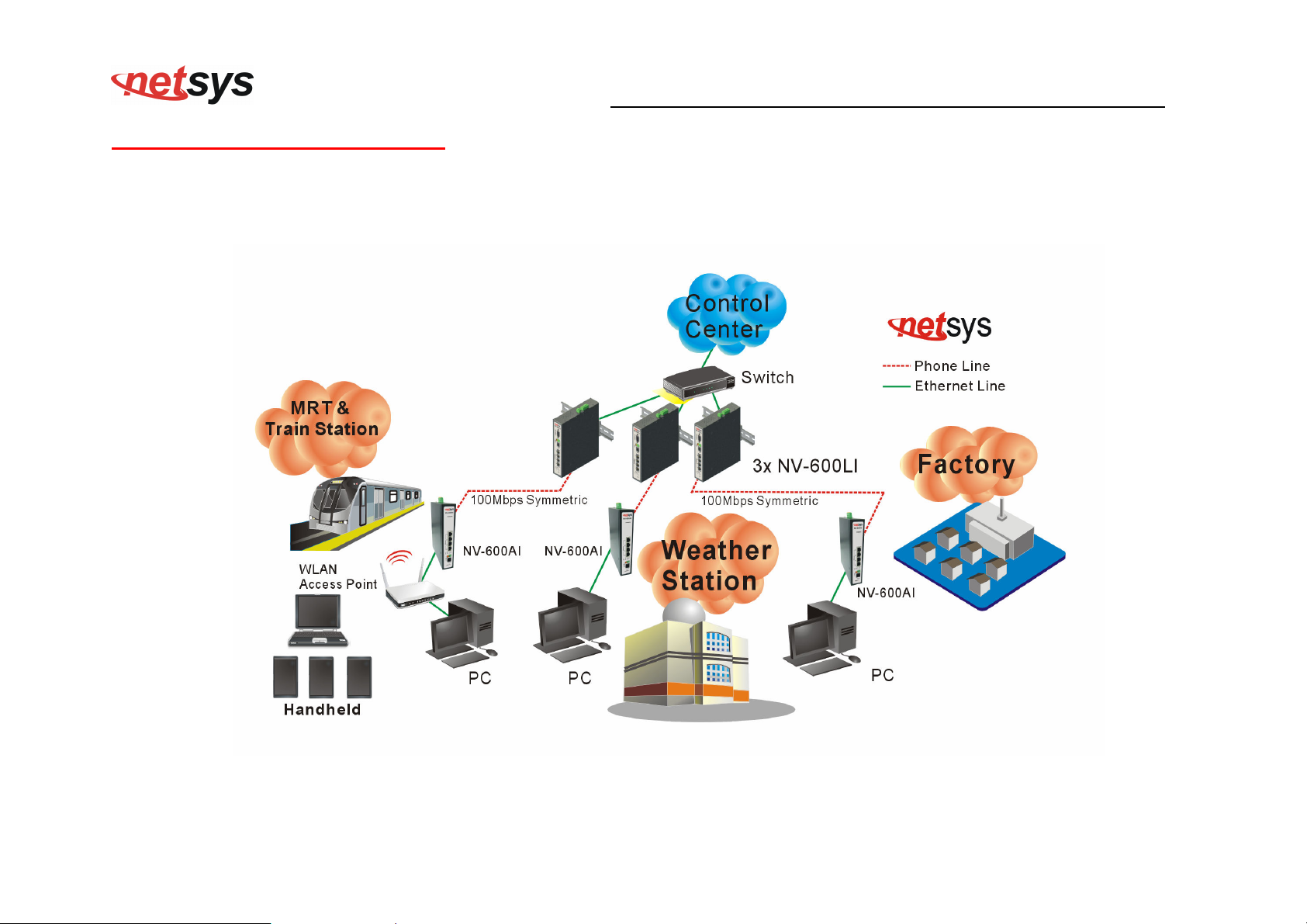

Figure 2.7 NV-600LI/AI application

17

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Figure 2.7.1 NV-600LI/AI industrial-grade application

18

 2.7.1 Connect the NV-600LI and the NV-600AI to the Line

The objective for VDSL2 is to pass high speed data over a twisted pair cable. In the setup, connect NV-600LI to NV-600AI

through phone wire(24~26 AWG) or line simulator or any other hardware representation of a cable network, with or without noise

injection and crosstalk simulations.

 2.7.2 Connect the NV-600LI and the NV-600AI to LAN Devices

In the setup, usually an Ethernet tester serves as a representation of the LAN side as well as a representation of the WAN side.

 2.7.3 Run Demos and Tests

The Ethernet tester may send data downstream as well as upstream. It also receives the data in order to check the integrity of

the data transmission. Different data rates can be tested under different line conditions.

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

19

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Chapter 3. Hardware Description

This section describes the important parts of the vdsl2 router. It features the front panel and rear panel.

NV-600AI Outward

20

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

3.1 Front Panel

The figure shows the front panel. (Figure 3.1)

Figure 3.1 Front Panel(NV-600AI)

3.2 Front Indicators

The router has Six LED indicators. The following Table shows the description. (Table 3-1)

Table 3-1 LED Indicators Description and Operation

LED Color Status Descriptions

POWER

On(Steady) Lights to indicate that the VDSL2 router had power

Green

(Power LED)

Off The device is not ready or has malfunctioned.

On(Steady) The device has a good Ethernet connection.

1 ~ 4

Green

Blinking The device is sending or receiving data.

(Ethernet LED)

Off The LAN is not connected or has malfunctioned.

On(Steady) The Internet or network connection is up.

LINK

Green

Fast Blinking The device is sending or receiving data.

(VDSL2 LED)

Slow Blinking The Internet or network connection is down.

21

Connectors Type Description

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Table 3-2 Description of the router connectors

The reset button allows users to reboot the VDSL2 or load the default

Reset Reset Button

Line RJ-11/Terminal Block

Gigabit Ethernet

RJ-45 For connecting an Ethernet equipped device.

(E1-E4)

Link (WAN) RJ-11/Terminal Block

Note:

It is normal for the connection between two Routers to take up to 3 minutes, due to NV-600LI/AI to establish a link mechanism in

auto-negotiation, that detects and calculates CO and CPE both PBO and PSD level, noise levels and other arguments for getting a

better connection.

settings.

Press and hold for 1-5 seconds: Reboot the VDSL2 Router

Press over 5 seconds: Load the default settings

For connecting to a VDSL2 device. (Do not use RJ11 and Terminal

Block at the same time.)

Allows data communication between the router and the VDSL2

network. (Do not use RJ11 and Terminal Block at the same time.)

22

3.3 Rear Panel

The following figure shows the rear panel. (Figure 3.3)

Note:

Please refer to the section 2.6 to install DIN RAIL.

3.4 Side Panel

The following figure shows the side. (Figure 3.4)

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Figure 3.3 Rear Panel

Figure 3.4 Rear connectors

The following description introduce Dual power and Relay Contact.

23

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

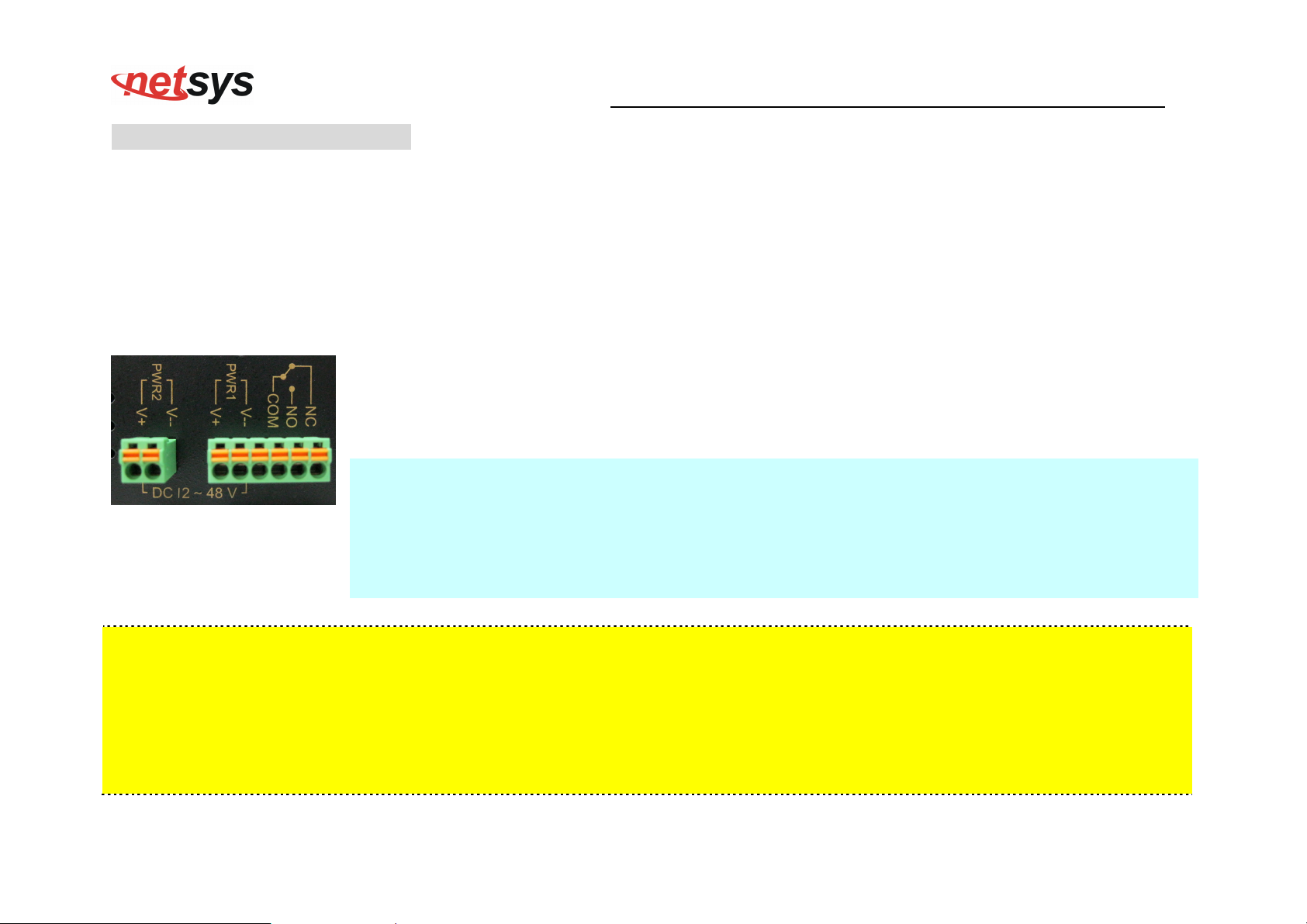

Wiring the dual Power Inputs

The NV-600LI/AI has two sets of power inputs, power 1 and power 2, which are located on the NV-600AI’s side panel. Power 1 pins

are the bottom two contacts of the upper 6-contact terminal block and power 2 pins are the only two contacts on the lower 2-contact

terminal block.

STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals, respectively.

STEP 2: Place the DC wires into terminal block connector: Push the orange switch of the terminal block

with a small flat-blade screwdriver, then the DC wires insert the orange button below of the circle hole,

and release the small flat-blade screwdriver.

STEP 3: Insert the plastic terminal block connector prongs into the terminal block receptor, which is

located on the NV-600AI’s side panel.

Attention:

1. Please note that the negative DC wire must connect into the V- terminal, positive DC wire must

connect V+terminal. If contrary to the location of the wiring, NV-600AI will enable Reverse Polarity

Protection function automatically. DC power will not be able to directly through the machine.

2. Please note that if the DC power current exceeds 3A, NV-600AI will enable Overload Current

Protection function automatically. DC power will not be able to directly through the machine.

Safety Caution!

1. Be sure to disconnect the power when installing(uninstalling) the terminal block and power cable.

2. Please note that the user can use 12~48VDC dual power input(Redundant Power). Do not exceed DC 48V.

3. Be sure to disconnect the power before installing and/or wiring your NV-600AI router.

4. Please calculate the maximum possible current in each power wire and common wire. Observe all electrical codes

dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring
could overheat, causing serious damage to your equipment.

24

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Power Input Status

The following Table shows the examples of the power input status. (Table 3-4)

Table 3-4

Example 1 Example 2 Example 3

Power

Item

Power 1

Power 2

Default

Polarity

–
+
–

+

Power
Input1

12V

–

12V

+

24V

–

24V

+

Output

State1

OFF

ON

Power
Input2

12V

–

12V

+

No

Power

Output

State2

ON

OFF

Power
Input1

12V

+

12V

–

24V

–

24V

+

Output

State1

Protection

ON

Example 4 Example 5 Example 6

Power
Input2

12V

+

12V

–

No

Power

Output

State2

Protection

OFF

Power
Input1

48V

–

48V

+

48V

–

48V

+

Output

State1

ON

ON

Power
Input2

No

Power

48V

–

48V

+

Output

State2

OFF

ON

Power

Item

Power 1

Power 2

Default

Polarity

–
+
–
+

Power
Input1

12V

–

12V

+

60V

–

60V

+

Output

State1

Malfunction

Malfunction

Power
Input2

12V

–

12V

+

No

Power

Output

State2

Malfunction

Malfunction

Power
Input1

12V

–

12V

+

No

Power

Output

State1

ON

OFF

Power
Input2

Output

State2

Power
Input1

12V– 48V
12V+
60V– 48V
60V+

Malfunction

48V

Malfunction

48V

–
+
+
–

Output

State1

ON

Protection

Power
Input2

No

Power

48V

+

48V

–

Output

State2

OFF

Protection

Notes:

1. State 1 always happens before State 2.

2. Protection means enable Reverse Polarity Protection function.

3. Please note that if use different DC voltage, higher voltage will feeding to NV-600LI or NV-600AI.

4. Please note that the warranty is void if DC 48V power input is exceeded.

25

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Wiring the Relay Contact

The NV-600AI has a set of relay outputs. The relay contact uses two of the terminal block’s contacts located on the NV-600AI’s side

panel. Refer to the following table shows how to connect the wires to the terminal block connector. In this section, we illustrate the

meaning of the two contacts used to connect the relay contact.

Fault Tip:

The relay contacts of the 6-pin terminal block connector are used to detect user-configured events. The three wires attached to the

fault contacts form an open circuit when a user-configured event is triggered. If a user-configured event does not occur, the fault

circuit remains closed. The relay output has current carrying capacity of 1 A @ 24 VDC.

The following Table shows the Relay circuit and power status. (Table 3-5)

Table 3-5 Relay Circuit Status and Power ON/OFF Status.

COM & NC Open Circuit

Power ON

COM & NO Short Circuit

COM & NC Short Circuit

Power OFF

COM & NO Open Circuit

26

Grounding the NV-600AI

NV-600AI is designed to enhance EMS performance by grounding. NV-600AI come with metal DIN-Rail brackets for grounding the

switches. For optimal EMS performance, connection of the right of the NV-600AI side panel ground lug to the grounding point.

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Before user installed power and device, please read and follow these essentials:



Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the
wires are perpendicular at the intersection point.

Note:

Do not run signal or communications wiring and power wiring through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.



You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb
is that wiring sharing similar electrical characteristics can be bundled together.



You should separate input wiring from output wiring.



We recommend that you mark all equipment in the wiring system.

27

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Chapter 4.

The NV-600AI provides a built-in HTML based management interface that allows configuration of the NV-600AI via

Internet Browser. Best viewed using Chrome or Firefox browsers.

In order to use the web browser to configure the device, you may need to allow:

• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in windows XP

• Java Scripts. (Enabled by default)

• Java permissions. (Enabled by default)

Launch your web browser and input the IP address 192.168.16.249 (NV-600LI) or 192.168.16.254 (NV-600AI) in the

Web page.

Configure the NV-600AI Via Web Browser

SP2 or above.

28

4.1 Login

The default username is “admin“ and password is “admin“, too. The password is changeable in Administrator

Settings.

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Figure 4.1 Login Password

29

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.1.1 Home

After successful login using the username admin, the home page of NV-600AI is loaded in web browser for NV-600AI. Uesr can aslo

click the “Home” on the left navigation bar. The home page displays the information screen as shown in Figure 4.1.1

Figure 4.1.1 Home Information

30

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in Home page

Field Description

Version Information

Software Version Shows the current version of NV-600AI Software loaded on the device.

DSL Firmware version Shows the current version of xDSL firmware loaded on the device. Applicable only for DSL platforms.

xDSL Information

Connected Standard The DSL Standard which is being used currently between DSL CPE and DSLAM.

Modem Status Displays the status of the physical xDSL Line in terms of the modem and mode selected.

Default WAN Connection

Wan Mode Current WAN mode being used in CPE.

Link Status Shows the status of default WAN connection.

IP Address Shows the IP address of default WAN connection.

Connection Type Shows the Connection Type information of default WAN connection.

DNS Server Shows the primary and secondary DNS servers configured in default WAN connection.

LAN information

Shows the IP address of LAN interface of CPE. This IP address to be used for accessing the CPE device

IP Address

from LAN side e.g. Web UI or UPnP sessions.

DHCP Mode Shows the DHCP Mode on LAN interface of CPE device.

Ethernet PHY Port Status

PORT-1 ~PORT-4 Shows the status of first to fourth ethernet port of CPE device.

31

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.1.2 Quick Setup

The Quick Setup is located on the left side of the screen. Quick Setup provides a simple and easy step for applying minimal

configuration to CPE device, for making it ready to use. The CPE Quick Setup window is displayed as shown in Figure 4.1.2.

Click on Quick Setup to view and configure the following connections.

Figure 4.1.2 Quick Setup

32

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

 WAN Setup

When the user clicks on Quick Setup, the WAN Setup tab is displayed as shown in Figure 4.1.2.1. The WAN Setupenables the user

to configure the default WAN connection. The user has to supply fields and the CPE device will take all necessary actions to ensure

the default WAN is configured. In case, the WAN connection is already existing in CPE device, the same gets re-created with newly

supplied attributes from the user. The default WAN Setup configuration shows the Bridged status.

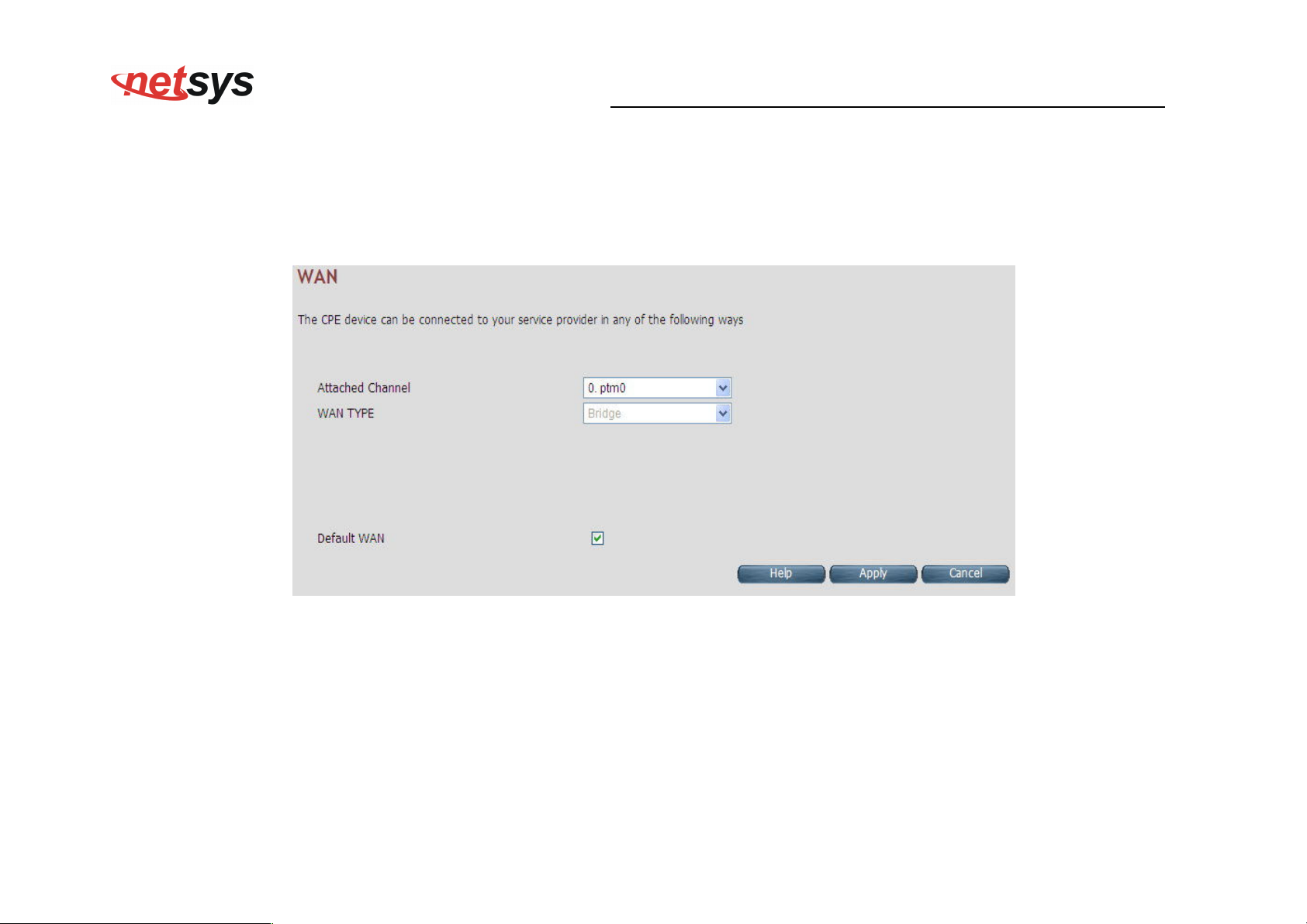

Figure 4.1.2.1 WAN setup Bridged

The screen contains the following details:

Fields in Home page

Field Description

Channel VlanId Specify VLAN Id. Reserved or internally used VLANs that can not be configured in Quick WAN Setup are listed.

Connection Type

Specify the Connection Type from the dropdown. Available options are Bridged, Dynamic and Static.

 Click Configure to configure the default WAN connection setup.

33

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

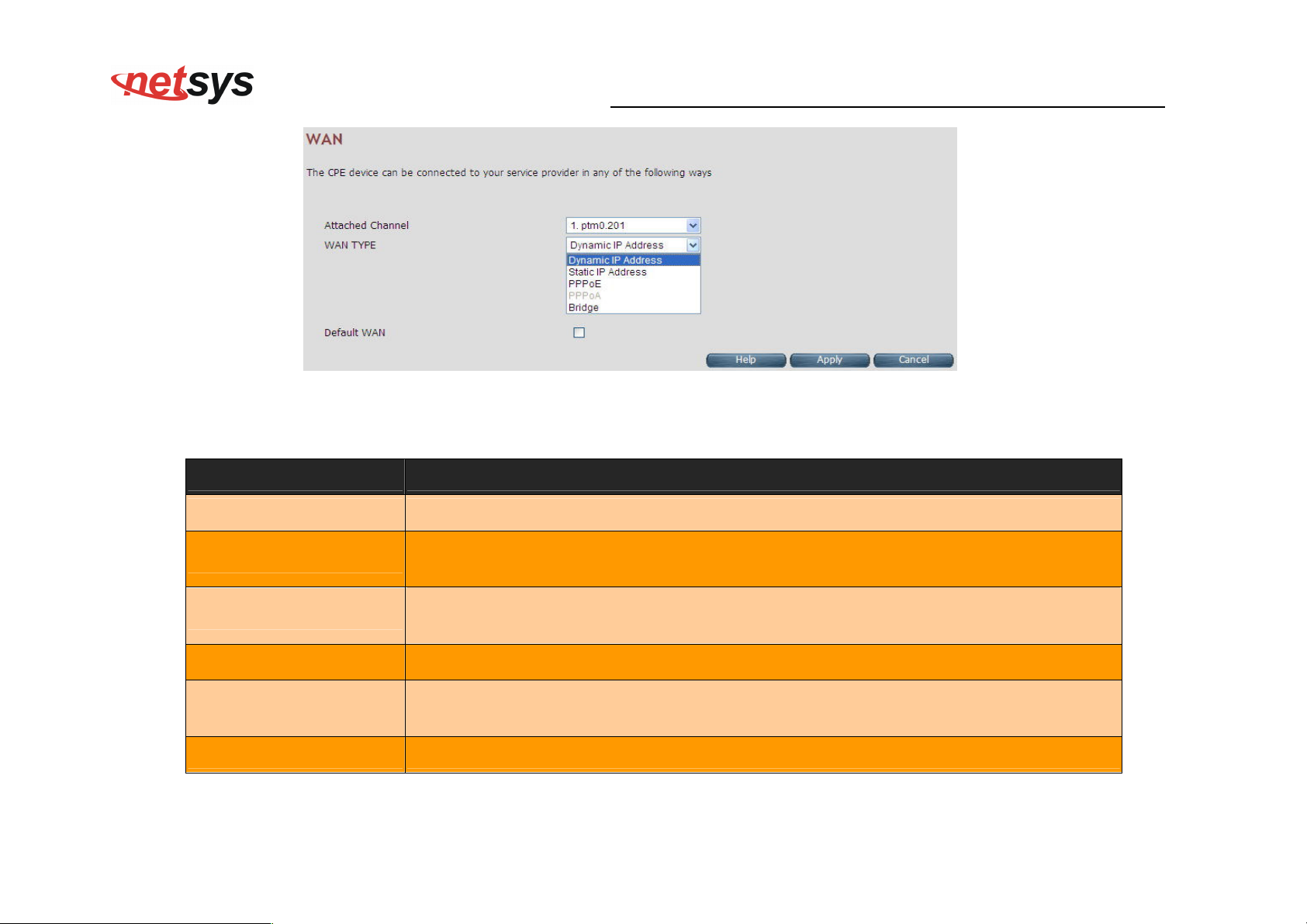

Figure 4.1.2.2 WAN setup Dynamic IP

Fields in WAN setup Dynamic IP

Field Description

Channel VlanId Specify VLAN ID.

Connection Type Specify the Connection Type from the dropdown.

 Click Configure to configure the selected WAN connection setup.

34

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in WAN setup PPPoE

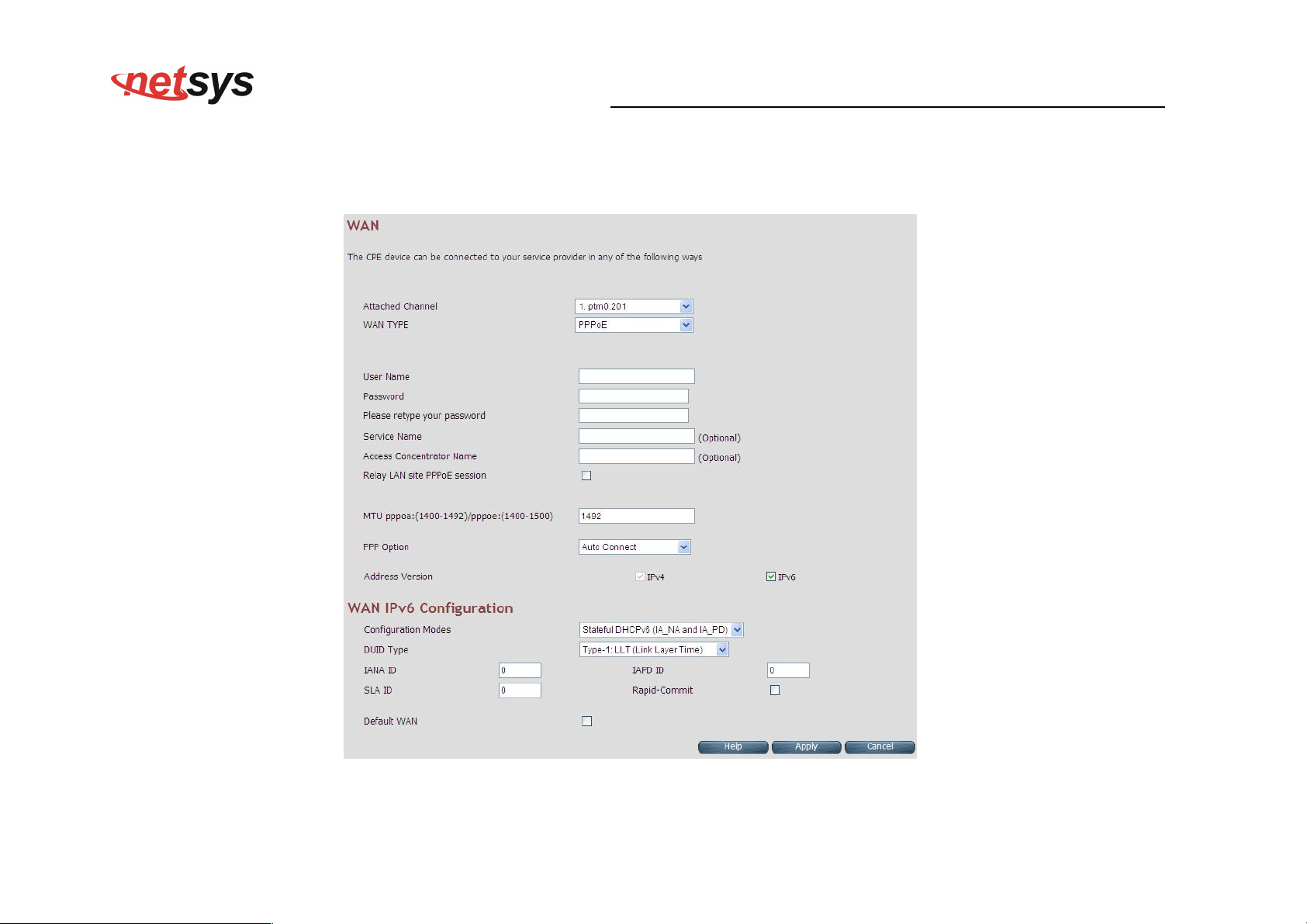

Figure 4.1.2.3 WAN setup PPPoE

Field Description

Channel VlanId Specify VLAN Id.

Connection Type Specify the Connection Type from the dropdown.

Username Enter a valid Username.

Password Enter a valid Password.

 Click Configure to configure the selected WAN connection setup.

35

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Figure 4.1.2.4 WAN setup Static IP

The screen contains the following details:

36

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in WAN setup Static IP

Field Description

Channel VlanId Specify VLAN Id.

Connection Type Specify the Connection Type from the dropdown.

IP Address Specify the IP Address of NV-600AI CPE’s WAN link.

Subnet Mask Specify the Subnet Mask of NV-600AI CPE’s WAN link.

Gateway Specify the Gateway address of the NV-600AI CPE’s WAN.

 Click Configure to configure the selected WAN connection setup.

Note:

When WAN mode is other than ATM, the corresponding web pages will be available in WAN setup. Those web pages will not ask

user for fields like ATM VCC etc.

37

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.2 Select the Menu Level

There is an easy Setup for end users at the setup of NV-600AI with SYSTEM, Statistics, xDSL, WAN, LAN, Route,

FIREWALL, NAT, QoS , Multicast, Ipsec , IPv6, Diagonstics, Quick Setup, Home, Logout for more detail

configurations.

Figure 4.2 Select the Menu Level (NV-600AI)

38

4.3 Select “SYSTEM”

Select the “SYSTEM”. The menu below will be used frequently. It includes the sub-menus of Host Name Config、

System Time、Administrator Settings、Web Settings、Software/Firmware Upgrade、System Log、SSL Certificat、

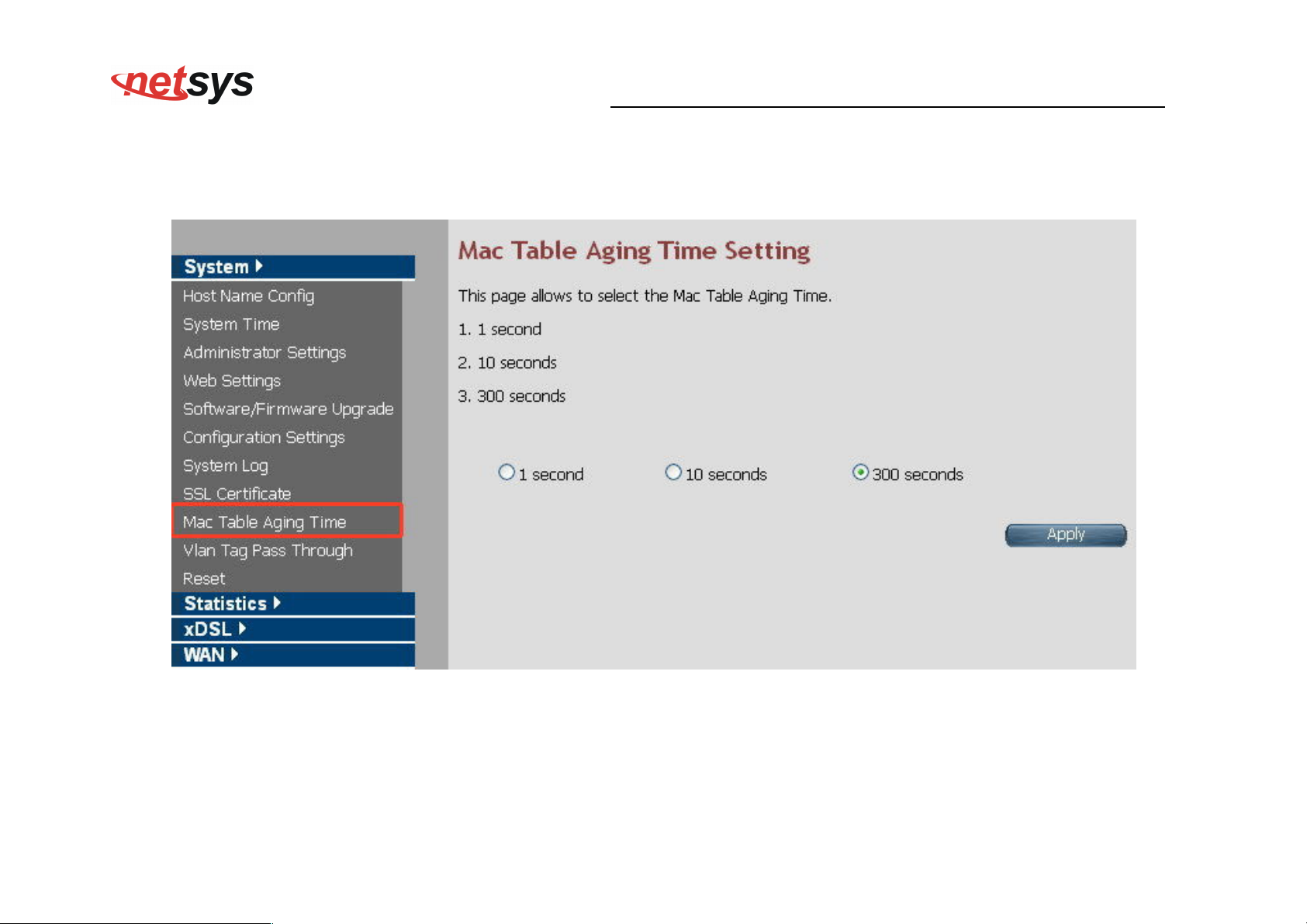

Mac Table Aging Time、Vlan Tag Pass Through and Reset. A screen is displayed as shown in Figure 4.3

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Figure 4.3 System Setup

39

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.3.1 Host Name Config

To configure the host name of NV-600AI, you have to enter host and domain name. Click the Host Name Config link (System >

Host Name Config) on the left navigation bar. A screen is displayed as shown in Figure 4.3.1.

Figure 4.3.1 Host Name Config

Fields in Host Name Config

Field Description

Enter the host name of the VDSL2 CPE. This is used to address VDSL2 CPE, by using this name instead of

Host Name

typing the IP address. Maximun Characters: 60.

Domain Name Enter the domain name of the VDSL2 CPE. Maximun Characters: 60.

 Click Apply at any time during configuration to save the information that you have entered.

40

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

 Click Cancel to exit from this page without saving the changes.

4.3.2 System Time

You can set System Time by connecting to a Simple Network Time Protocol (SNTP) server allows the Modem to synchronize the

system clock to the global Internet. The synchronized clock in the Modem is used to record the security log and control client filtering.

This page provides the time zone selection and NTP (Network Time Protocol) configuration. Click the System Time link (System >

System Time) on the left navigation bar and a screen is displayed as shown in Figure 4.3.2.

Figure 4.3.2 System Time Configuration

41

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in System Time

Field Description

Current System Time Current Time in System shown in Day, Date and Time of day.

Set Time Zone Select the time zone form the list of worldwide time zones in pull-down options.

SNTP Client Tick on Check box, if SNTP client has to be enabled.

Fields in System Time(Cont’d)

Field Description

Primary SNTP Server Main NTP Server to be selected form dropdown list.

Secondary SNTP Server Backup NTP Server (optional).

 Click Apply at any time during configuration to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

Note:

Static Routing functionality is used to define the connected Gateway between the LAN and WAN. For example,

if we want to activate the Network Time Protocol (NTP) service, and we have to define the Gateway connected

to NTP server in the WAN. Please refer to “static routing” for your reference.

42

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.3.3 Administrator Settings

To change the password for the administrator, click the Administrator Settings link (System > AdministratorSettings) in the left

navigation bar. A screen is displayed as shown in Figure 4.3.3. This page allows the user to change the login password.

Figure 4.3.3 Administrator Settings

43

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in AdministratorSettings

Field Description

Disable Administrator Password Select this to disable the web prompts for user login password.

Select User

Current Password The user should specify the current login password.

Password

Select user type.The available options are Admin and support_user.

The user should specify the new password desired. The password should be at least 3

characters and not more than 16 characters in length without a white space.

Fields in AdministratorSettings (Cont’d)

Field Description

Re-type Password The user should re-type the new password entered in previous field.

Enable Account To enable the user account login.

Remote Web Access Enable To enable web access from WAN side.

 Click Apply at any time during configuration to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

44

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.3.4 Web Settings

This page shows the details of Web login timeout settings for the CPE device in seconds. Click the Web Settings link (System >

Web Settings) on the left navigation bar and a screen is displayed as shown in Figure 4.3.4

Figure 4.3.4 Web Settings

Fields in Web Settings

Field Description

This is logout duration after which the web session is automatically log-out. The unit is in

Autologout Duration

seconds.

 Click Apply at any time during configuration to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

45

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.3.5 Software/Firmware Upgrade

To update the system firmware, click the Software/Firmware Upgrade link (System > Software/Firmware Upgrade) on the

left navigation bar. A screen displays the current version of NV-600AI Software running on the device as shown in Figure 4.3.5

Figure 4.3.5 Software/Firmware Upgrade

 Click Browse to specify the software image file from host, to be upgraded in system.
 Click Apply to start the software upgrade process.

Note:

46

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Regarding the software current version that you can click home on the left navigation bar to view.

4.3.6 Configuration Settings

To manage the configuration of the system, click the Configuration Settings link (System > Configuration Settings) on the

left navigation bar. This page allows users to backup the current configuration of CPE to host PC or restore the previously

backed-up configuration in host PC to CPE as displayed in Figure 4.3.6

Figure 4.3.6 Configuration Settings

Fields in Configuration Settings

Field Description

Backup to local host This will backup the current active configuration of CPE in Host machine.

Restore from local host This will load the user supplied configuration to CPE from Host machine.

47

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

 Click Next to start the firmware upgrade process.
 Click Cancel to exit from this page without saving the changes.

 Backup Current Active Configuration

As mentioned before this option allows user to backup the current active configuration running in router system. This is very helpful,

when a user wants to backup the current working configuration of router for rollbacks, if required in future. It is recommended that

before any complex nature of configuration is done by user the current active configuration should be backed up in host machine.

The Local Host Configuration backup are shown in Figure 4.3.6.1

Figure 4.3.6.1 Configuration Backup

When you click Backup button as shown in Figure 4.3.6.1, it will backup the config settings of CPE in connected PC from where

Web UI is being accessed.

48

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

 Restore Previous Backed-up Configuration

As mentioned before this option allows user to restore the earlier backed up configuration in router system. This operation is handy

for restoring the system to last backed-up configuration mode. The Local Host Configuration restore are shown in Figure 4.3.6.2. The

system will go for reboot after configuration is restored. When CPE boots up it will be running with newly applied configuration.

Figure 4.3.6.2 Configuration Restore

 Click Apply button to restore the config settings.

49

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.3.7 System Log

To view the logs produced in system, click the System Log link (System > System Log) on the left navigation bar. A screen is

displayed as shown in Figure 4.3.7

Figure 4.3.7 System Log

This page allows to manage logging options in CPE device.

 If "Local" is selected, the events are logged locally in the system.
 If "Remote" is selected, the messages are logged to a remote server.

50

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

 If "Local and Remote" option is selected, messages are logged locally in the system as well as to the remote server.

The events pertaining to the priority equal to or higher to the selected level will be logged. "Default" level logs all events.

For viewing system log, the events corresponding to the priority level equal to or higher than the selected level will be displayed here.

The screen contains the following details: Fields in System Log

Field Description

Select the mode of log. The possible options are:

Configure System Log

 Local Mode: The log text is displayed in web browser itself.
 Remote Mode: Specify the IP address and UDP port number for log transfer using syslog.
 Local and Remote Mode: This supports both options mentioned above.

The user can apply one of the following filters to record logging above the specified level. Click on
<SAVE CHANGES> button for applying the log level selection.

 Default: The default pre-selected levels of logs are recorded.
 Debug: Debug and above levels of logs are recorded.
 Info:: Informative and above level of logs are recorded.

Filter Level

 Notice: Notice type and above level of logs are recorded.
 Warning: Warning type and above levels of logs are recorded.
 Error: Error type and above levels of logs are recorded.
 Critical: Critical type and above levels of logs are recorded.
 Alert: Alert type and above level of logs are recorded.
 Emerg: Emergency type of log information is recorded.

The user can apply one of the following filters to view specific logs of certain level:

 Default: The default pre-selected levels of logs are viewed.
 Debug: Debug and above levels of logs are viewed.
 Info: Informative and above level of logs are viewed.

View System Log

 Notice: Notice type and above level of logs are viewed.
 Warning: Warning type and above levels of logs are viewed.
 Error: Error type and above levels of logs are viewed.
 Critical: Critical type and above levels of logs are viewed.
 Alert: Alert type and above level of logs are viewed.

51

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

 Emerg: Emergency type of log information is viewed.

 Click Save Changes to configure the system log settings.
 Click View Log to fetch the logs in browser.

When you click View log button, a screen is displayed as shown in Figure 4.3.7.1. This screen is an example of system log of default

level as shown in the browser.

Figure 4.3.7.1 View System Log

For the ease of readability, the log messages of different levels are using different colors.

For example: all the debug messages are shown in green colored text.

52

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

 Click Download to save the file in Host Computer.
 Click Clear to clear the log from the system.
 Click Refresh to get the recent log.
 Click Back to go back to System Log page.

4.3.8 SSL Certificate

To install a SSL Certificate for SSL tunnel, click the SSL Certificate link (System > SSL Certificate) on the left navigation bar. A

screen is displayed as shown in Figure 4.3.8

Figure 4.3.8 SSL Certificate

 Click Apply to install the entered certificate.
 Click Cancel for cancel the installation of entered certificate.

53

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.3.9 Mac Table Aging Time

Click the Mac Table Aging Time on the left navigation bar. This page allows users to select the Mac Table Aging Time in Figure

4.3.9. The default of Mac Table is 300 seconds.

Figure 4.3.9 Mac Table Aging Time

◆ Click Apply button to select Mac Table Aging Time setting.Click Apply button to select Mac Table Aging Time setting.

54

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.3.10 Vlan Tag Pass Through Mode Setting

Click the Vlan Tag Pass Through on the left navigation bar. This page allows users to select the Vlan Tag Pass Through Mode in

Figure 4.3.10

Figure 4.3.10 Vlan Tag Pass Through Mode

◆ Click Apply button to select Vlan Tag Pass Through Mode.

55

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.3.11 Reset

To reboot the system, click Reset link (System > Reset) on the left navigation bar. A screen is displayed as shown in Figure 4.3.11

Figure 4.3.11 Reset

 Click Reset to reboot the system. This does not change the configurations existing in system.
 Click Factory Reset to reset the device configuration to factory defaults configuration. This operation will result in saving the

current configuration and reverted back to factory shipped configuration.

When Reset or Factory Reset is clicked, a confirmation message is displayed as shown in Figure 4.3.11.1

Figure 4.3.11.1 Reset Confirmation Message

 Click Ok to perform the operation on CPE.

◆ Click cancel to exit from this page.

56

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.4 Select “Statistics”

Select the “Statistics” link on left navigation menu. The menu below includes the sub-menus of LAN and WAN. A screen is displayed

as shown in Figure 4.4.

Figure 4.4 Statistics in the left navigator bar

57

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.4.1 LAN

To get the LAN Statistics, click the LAN link (Statistics > LAN) on the left navigation bar. A screen is displayed as shown in Figure

4.4.1

Figure 4.4.1 Dynamic IP Configuration

58

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in LAN Statistics:

Field Description

Interface Name of LAN Interface (e.g. eth0, usb0 etc.)

Transmit Counters:
 Total packets transmitted from this interface.

TX

RX

 Total bytes transmitted form this interface.
 Total Error packets on this interface.
 Total Dropped packets on this interface.

Receive Counters:

 Total packets received from this interface.
 Total bytes received form this interface.
 Total Errorneous packets on this interface.
 Total Dropped packets on this interface.

59

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.4.2 WAN

To get WAN Statistics, click the WAN link (Statistics > WAN) on the left navigation bar. A screen is displayed as shown in Figure

4.4.2

Figure 4.4.2 IP Settings Configuration

The screen contains the following details:

60

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in WAN Statistics:

Field Description

Interface

Name of WAN Interface.

WAN Channel Information about WAN Channel such as VCC or WAN-ethernet channel.

Connection Type

Type of WAN Connection.

Fields in WAN Statistics (cont’d):

Field Description

Transmit Counters for WAN interface:
 Total packets transmitted from this interface.

TX

 Total bytes transmitted form this interface.
 Total Errorneous packets transmitted on this interface.
 Total Dropped packets transmitted on this interface.

Receive Counters for WAN interface:
 Total packets received from this interface.

RX

 Total bytes received form this interface.
 Total Errorneous packets received on this interface.
 Total Dropped packets on this interface.

61

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.5 Select “xDSL”

You can view the xDSL link on the left navigation bar of the CPE Home page. This web page is available only on DSL

platforms. Select the “xDSL”. The menu below includes the sub-menus of xDSL Status. A screen is displayed as shown in

Figure 4.5.

Figure 4.5 Select xDSL

Note:

These options help to monitor and configure the DSL physical parameters in the device.

62

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.5.1 xDSL Status

To view the xDSL Status, click the xDSL Status link (xDSL > xDSL Status) on the left navigation bar. A screen is displayed as

shown in Figure 4.5.1

63

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Figure 4.5.1 xDSL Status

The screen contains the following details:

Fields in xDSL Status:

Field Description

ATU-C System Vendor Information

Displays the Vendor ID, Version Number and the Serial Number of the

ATU-C (DSLAM).

Displays the status of the physical xDSL Line in terms of the modem,

Status

mode selected, Trellis-Coded Modulation and the Latency Type

Rate Displays the data rate and the maximum attainable data rate

Displays the information about the xDSL line, in terms of Line

Information

Attenuation, Signal Attenuation, Signal to Noise Ratio and other such

parameters

Performance Displays the performance figures of the physical xDSL line

64

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.5.2 Vectoring Mode selection

For viewing the vectoring mode, click the Vectoring Mode Selection link (xDSL > Vectoring Mode Selection) on the left navigation

bar. A screen is displayed as shown in Figure 4.5.2

Fields in Vectoring Mode Selection

Field Description

Enabled

Enable VDSL2 Full Vectoring mode (Default setting), it will auto follow the CO side
vectoring configuration.

Enable VDSL2 Vectoring-Friendly mode, it will auto follow the CO side vectoring

Friendly Mode

configuration.

Disabled Disable VDSL2 Vectoring feature.

65

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Notes:

1. NV-600AI vdsl2 vectoring technology default setting is enabled.

2. If user would like to use vectoring technology, NV-600AI and IP DSLAM both need support vectoring technology and need both

enabled. NV-600AI will auto follow the IP DSLAM vectoring technology to configure.

3. Vectoring technology does not support point to point applications.

About vectoring function(Reference only):

Vectoring is a transmission method that employs the coordination of line signals for reduction of crosstalk levels and improvement of

performance. It is based on the concept of noise cancellation, much like noise-cancelling headphones. The ITU-T G.993.5 standard,

"Self-FEXT cancellation (vectoring) for use with VDSL2 transceivers" (2010), also known as G.vector, describes vectoring for VDSL2.

The scope of Recommendation ITU-T G.993.5 is specifically limited to the self-FEXT (far-end crosstalk) cancellation in the

downstream and upstream directions. The far end crosstalk (FEXT) generated by a group of near-end transceivers and interfering

with the far-end transceivers of that same group is cancelled. This cancellation takes place between VDSL2 transceivers, not

necessarily of the same profile.

66

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6 Select “WAN”

You can view WAN link on the left navigation bar for WAN related settings. Select the “NAT”. The menu below includes the

sub-menus of WAN Mode Selection, WAN Channel Config, VLAN Channel Config, WAN Setting, WAN Status, DNS, DDNS,

and OAM Configuration. A screen is displayed as shown in Figure 4.6.

Figure 4.6 WAN options

67

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6.1

WAN Mode Selection

To configure the WAN Mode Setting, click the WAN Mode Selection (WAN > WAN Mode Selection) on the left navigation bar.

A screen is displayed as shown in Figure 4.6.1

Figure 4.6.1 WAN Mode Setting(Seleted Auto)

Figure 4.6.1.1 WAN Mode Setting(Seleted ADSL2+ / VDSL2)

68

ADSL2+, VDSL2, xDSL (Auto), WAN

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in WAN Mode Setting:

Field Description

Failover Support Select this checkbox to enable Dual WAN support.

Primary WAN Selection

Choose the WAN type from the drop down list. For multi-WAN mode supported CPE

Physical WAN Type

image the dropdown will present following options -

Ethernet over MII-0, WAN Ethernet over MII-1, 3G WAN and LTE WAN.

TC (Transmission Convergence) Selection

Choose the Transmission Convergence from the drop down list - 1). ATM-TC or

TC Type

2).PTM-TC or 3). Auto. This field is displayed, only if ADSL2+ or xDSL is chosen as the

WAN type.

When you enable the Failover Support in the WAN Mode Selection page, a screen is displayed as shown in Figure 4.6.1.2

69

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Figure 4.6.1.1 WAN Mode Selection (with Failover Dual WAN Support)

70

Enter the periodic interval (in seconds) for which the router will probe the WAN connection

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in WAN Mode Setting:

Field Description

Fallover Support Select this checkbox to enable Dual WAN support.

Dual WAN Selection (on selective platforms)

Dual WAN Type Choose from drop down list to start dual WAN in 'Hot Standby' or 'Cold Standby' mode.

Primary WAN Selection

Primary WAN Type

TC (Transmission Convergence) Selection

TC Type

Secondary WAN Selection

Secondary WAN Type

Probing

Choose the WAN type from the drop down list. This would act as Primary WAN mode
when Failover support is selected.

Choose the Transmission Convergence from the drop down list. This would be TC for
ADSL/VDSL Primary WAN Type.

Choose the WAN type from the drop down list. This would act as Secondary WAN mode.
When WAN Connectivity fails on the primary WAN mode, this would become the active
WAN Mode.

Probing Interval

IP Address (or) URL

Probing Retries Enter the number of probing retries after which a WAN shall be declared down.

to determine the status.
Enter the URL or IP address which the router will use to periodically test the WAN
connection status.

 Click Apply at any time during configuration to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

71

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6.2

Auto Detect Setting

Auto detect feature is a fully automatic way to find and configure VC channel or VLAN channel for active WAN PHY of the device and

WAN protocol for the same (either PPPoE/DHCP).

User has to provide pool of VC channels or VLAN channels which will be probed one by one sequentially and upon successful

detection of a channel, WAN protocol probing will be done and configured in the device.

To configure the Auto Detect Config, click Auto Detect Config (WAN > Auto Detect Config) on the left navigation bar. A

screen is displayed as shown in Figure 4.6.2

Figure 4.6.2 Port Mapping Configuration

72

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in Auto detect Config:

Field Description

ADSL-PTM VLAN Pool This displays the current configured VLAN pool for autodetect in ADSL-PTM WAN mode.

Add/Delete ADSL-PTM VLAN to Pool Add or delete VLAN to ADSL-PTM VLAN pool.

VDSL-PTM VLAN Pool This displays the current configured VLAN pool for autodetect in VDSL-PTM WAN mode.

Add/Delete VDSL-PTM VLAN to Pool Add or delete VLAN to VDSL-PTM VLAN pool.

MII-1 VLAN Pool This displays the current configured VLAN pool for autodetect in MII-1 WAN mode.

Add/Delete MII-1 VLAN to Pool Add or delete VLAN to MII-1 VLAN pool.

MII-0 VLAN Pool This displays the current configured VLAN pool for auto-detect in MII-0 WAN mode.

Add/Delete MII-0 VLAN to Pool Add or delete VLAN to MII-0 VLAN pool.

VCC Pool This displays the current configured VCC pool for auto-detect in ADSL-ATM WAN mode.

Add/Delete VC to Pool Add or delete VCC to ADSL-ATM VCC pool.

L2 VCC Auto Detect Select this to enable VCC auto detection from the specified pool for ADSL-ATM WAN mode

L2 ADSL - PTM VLAN Auto Detect Select this to enable VLAN auto detection from the specified pool for ADSL - PTM WAN mode.

L2 VDSL - PTM VLAN Auto Detect Select this to enable VLAN auto detection from the specified pool for VDSL - PTM WAN mode.

73

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in Auto detect Config(cont’d):

Field Description

L2 MII-1 VLAN Auto Detect

L2 MII-0 VLAN Auto Detect

L3 VCC Auto Detect

L3 ADSL - PTM VLAN Auto Detect

L3 VDSL - PTM VLAN Auto Detect

L3 MII-1 VLAN Auto Detect

L3 MII-0 VLAN Auto Detect

Select this to enable VLAN auto detection from the specified pool for MII-1 WAN mode.

Select this to enable VLAN auto detection from the specified pool for MII-0 WAN mode.

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in ADSL-ATM WAN mode.

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in ADSL-PTM WAN mode.

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in VDSL-PTM WAN mode.

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in MII-1 WAN mode.

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in MII-0 WAN mode.

74

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6.3

WAN Channel Config

To configure the WAN Channel Config, click the WAN Channel Config (WAN > WAN Channel Config) on the left navigation

bar. A screen is displayed as shown in Figure 4.6.3.

Figure 4.6.3

Figure 4.6.3.1 WAN Channel Config (Auto Detecting does not check the checkbox)

75

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in WAN Channel Config:

Field Description

ATM

The ATM based WAN channels are configured through the ATM tab.

Auto Detect Enable To enable Auto Detect.

Channel Name User specified VCC Name.

VPI/VCI Virtual Path Identifier and Virtual Channel Identifier.

Encapsulation Mode Encapsulation Mode for this VCC from dropdown - LLC/SNAP or VCMux mode.

Link type Shows AAL5 Link type for ATM VCC (values such as EoATM, IPoATM, PPPoATM).

ATM QoS Quality of Service for ATM VCC

IF Name ATM Channel interface name in system.

Remove Select this option to delete an ATM channel.

76

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

When you click Add inside the WAN Channel-ATM tab, a screen is displayed as shown in Figure 4.6.3.2

Figure 4.6.3.2 WAN Channel Config - ATM VCC Creation

77

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in WAN Channel Config:

Field Description

VC Channel Name User specified VCC Name.

VCI/VPI Virtual Path Identifier and Virtual Channel Identifier

Encapsulation Mode Encapsulation Mode for this VCC from dropdown - LLC/SNAP or VCMux mode.

Link type

Select AAL5 Link type for ATM VCC (possible values such as EoATM, IPoATM,

PPPoATM).

Quality of Service for ATM VCC. Available options are UBR, CBR, rt-VBR, nrt-VBR

QoS Mode

and UBR+.

Peak Cell Rate Peak Cell Rate specified in cells/second.

Cell Delay Variation Cell Delay Variation specified in terms of jitters.

 Click Add to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

78

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6.4

VLAN Channel confg

To configure the VLAN Channel Config, click the VLAN Channel Config (WAN > VLAN Channel Config) on the left

navigation bar. A screen is displayed as shown in Figure 4.6.4.

Figure 4.6.4

Figure 4.6.4.1 VLAN Channel Config Display(Auto Detecting does not check the checkbox)

79

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in VLAN Display:

Field Description

Auto Detect Enable To enable Auto Detect.

VLAN Name User specified VLAN Channel name.

Base WAN Name Displays the L2 interface names over which VLAN Channel has been configured.

VLAN id

VLAN identifier in range of 7- 4095. VLAN Identifiers (1 - 6) are internally used in

system for special purpose and are not available to user for configuration.

IF Name VLAN interface name.

MAC Address MAC address of VLAN interface name.

Select Select this option to delete a specific VLAN channel.

 Click Add to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

80

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

When you click Add button inside the VLAN Channel Config page, a screen is displayed as shown in Figure 4.6.4.2

Figure 4.6.4.2 VLAN Channel Config - Add

The screen contains the following details:

Fields in VLAN Creation:

Field Description

VLAN Channel Name User specified VLAN Channel name.

Mode Name List of L2 interfaces over which VLAN Channels can be configured.

VLAN identifier in range of (7 - 4095). VLAN Identifiers(1 - 6) are internally used in

VLAN Id

system for special purpose and are not available to user for configuration.

Override MAC

Address

This is an option to configure MAC address by overriding physical MAC address. In

the current release, this option is not available to user for configuration.

 Click Add to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

81

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6.5 WAN Setting

To configure the WAN interface, click the WAN Setting link (WAN > WAN Setting) on the left navigation bar and a screen is

displayed as shown in Figure 4.6.5.

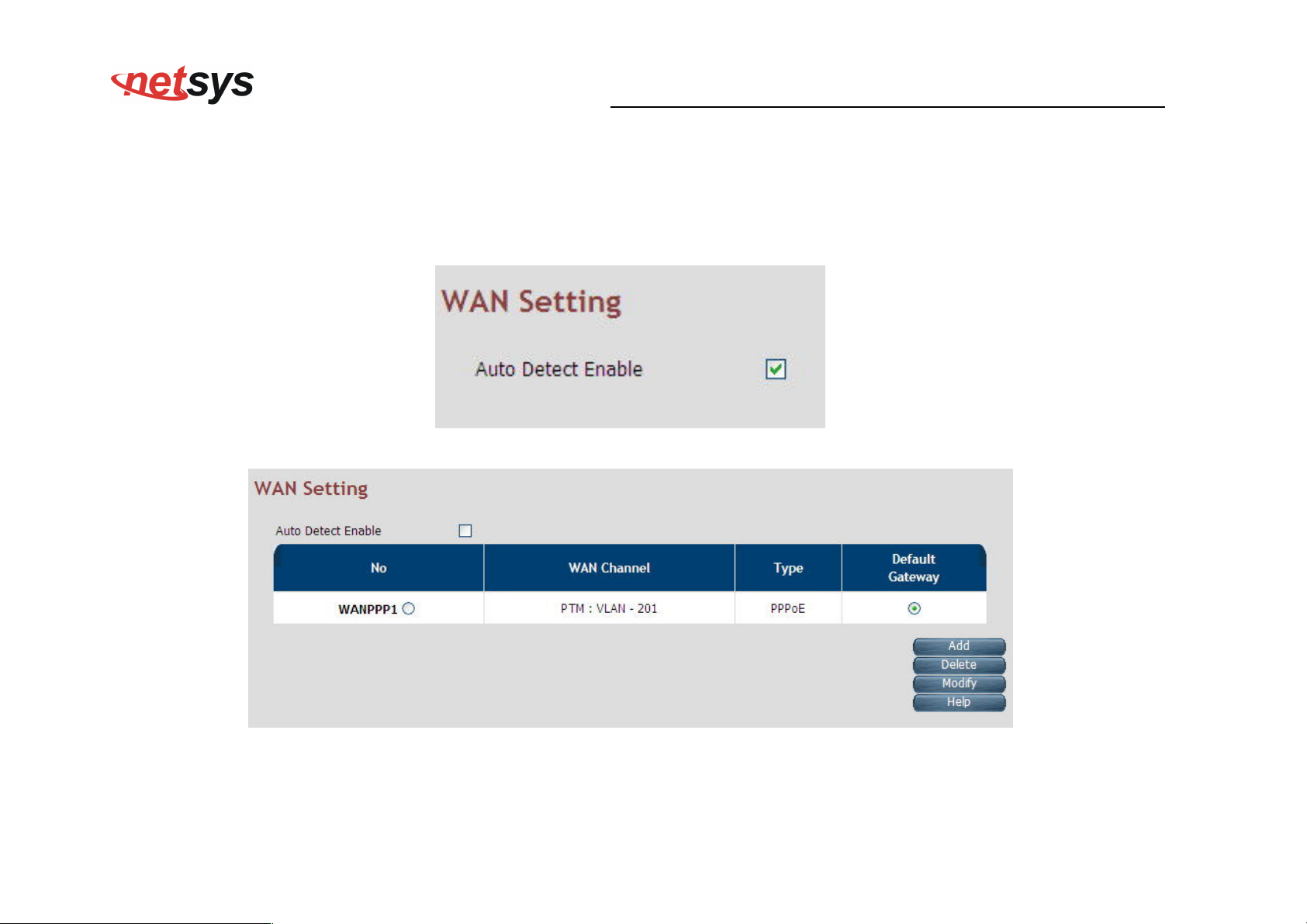

Figure 4.6.5 WAN Setting - Auto Detect Enable

Figure 4.6.5.1 WAN Setting

82

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The NV-600AI can support up to maximum 16 WAN connections in system. When a hardware based QoS is enabled in system, it

limits the number of VCCs to 8 only for ATM based WAN. For creating a new WAN connection, click Add in the WAN setting page.

Please follow the rest of the steps for creating the WAN connection.

The last column named DEFAULT GATEWAY allows to select the WAN for relevant WAN mode setting in WAN setting web page.

When the user clicks any of the radio button, he will be asked to confirm the same. If the user clicks OK, the default gateway will be

configured on the selected WAN connection, otherwise the changes will not be applied.

The screen contains the following details:

Fields in WAN Settings:

Field Description

Auto Detect Enable To enable Auto Detect.

WAN Number

The configured WAN are referred through auto-assigned names in form

WANIP<No.> or WANPPP<No.> where <No.> start from 0.

WAN Channel Provides information of layer-2 WAN channel configured.

Type Provides information about type of WAN such as PPPoE or DHCP or Bridged etc.

This option is present in only IAD models, where VoIP is supported. this is default

Default VoIP Interface

interface for VoIP packets.

This option allows to configure default route in system. The chosen WAN will be

Default Gateway

used for default route.

When you click Add / Modify button in WAN Settings web page, a screen is displayed as shown in Figure 4.6.5.2

83

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Figure 4.6.5.2 WAN Settings – Apply – Step1

The screen contains the following details:

Fields in WAN Settings – Apply – Step1:

Field Description

Attached Channel Select the WAN Channel (e.g. PVC) from drop-down, being configured as WAN.

Dynamic IP Address

To get your IP Address from your service provider (means NV-600AI is DHCP client

on WAN) click Apply.

To enter the WAN interface IP Address of NV-600AI enable this field and click

Static IP Address

Apply.

PPPoE

Point-to-Point Protocol over Ethernet used for connecting to the ISP, click Apply.

Point-to-Point Protocol over ATM used for connecting to the ISP, click Apply. This

PPPoA

setting is applicable only for ATM WAN mode.

Bridge

To configure the WAN of bridged type, select this field and click Apply.

84

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

 Click Apply at any time during configuration to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

4.6.5.1 Dynamic IP Address

To configure the WAN interface of DHCP IP type, select Dynamic IP Address option. A screen is displayed as shown in

Figure 4.6.5.3

Figure 4.6.5.3 Dynamic IP Address

Please Enable IPv6 to set the WAN IPv6 Configuration. Select IPv6 Setting(IPv6 > IPv6 setting) on the left navigation bar.

85

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6.5.2 Static IP Address

To configure the WAN interface to use a static IP address, select the option Static IP Address in the WAN Settings screen. A

screen is displayed as shown in Figure 4.6.5.4

Figure 4.6.5.4 WAN Static IP

86

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in Static IP:

Field Description

Address Version

IP address assigned by your ISP To specify the IP Address of NV-600AI CPE’s WAN link.

Subnet Mask To specify the Subnet Mask of NV-600AI CPE’s WAN link.

ISP Gateway Address To specify the Gateway address of the NV-600AI CPE’s WAN.

IPv6

IPv6 address assigned by your ISP This is the static IP address for the WAN interface.

Prefix Length This is the prefix length of the IPv6 address.

IPv6 Gateway Address This is the default gateway.

LAN Prefix This is the prefix used to auto-configure LAN side hosts.

IPv6 DNS Servers

IPv6 Primary DNS Server Address This is the primary DNS server.

IPv6 Secondary DNS Server Address This is the secondary DNS server.

This option allows to configure default route for relevant WAN mode of this WAN

Default WAN

connection.

 Click Apply at any time during configuration to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

87

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6.5.3 PPPoE

To configure the WAN interface to use PPPoE, choose the option PPPoE. A screen is displayed as shown in Figure 4.6.5.5

Figure 4.6.5.5 WAN PPPoE creation

88

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in PPPoE WAN:

Field Description

User Name To enter a username for PPPoE session used for authentication in B-RAS.

Password To enter a password for PPPoE session used for authentication in B-RAS.

Please retype your password To enter the same password again to reconfirm.

Service Name PPP Service Name (optional).

Access Concentrator Name PPP Access concentrator Name (optional).

Relay LAN site PPPoE Session

This feature allows to enable/disable a PPPoE relay session. PPPoE relay also called
PPPoE Passthrough.

Choose the option form the drop down list. The available options are, Auto Connect,

PPP Option

Dial-On-Demand and Manual Connect.

Address Version This option allows configurability of IPv4 and/or IPv6 stack on per WAN interface.

89

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in PPPoE WAN (WAN IPv6 Configuration):

Field Description

This option allows to select following modes of IPv6 configuration:

Configuration Modes

DUID Type

IANA ID

IAPD ID

SLA ID

Rapid-commit

 Stateful DHCPv6(IA_NA and IA_PD)
 SLAAC (Address Configuration) with DHCPv6 (IA_PD)

This option allows to configure different DUID (DHCP Unique Identifier) types:

 "Type-1: LLT (Link Layer Time)
 "Type-2: EN (Enterprise Number)
 "Type-3: LL (Link Layer)

IANA option represents IPv6 address and parameters related to the same being accepted by

DHCPv6 clients. IANA is the Identity Association for Non- Temporary Addresses option. This

Identifier to be configured when Stateful DHCPv6 configuration mode is selected.

IAPD options represent one or more IPv6 prefix and parameters related to it. IAPD is the Identity

Association for Prefix Delegation. This identifier to be configured in both Stateful DHCPv6 or

SLAAC+DHCPv6 configuration modes.

This parameter is called Site Level Aggregation Identifier. This identifier is used to configure the

subnet for DHCPv6 client configuration.

This declaration enables DHCPv6-client to request the DHCPv-server to perform a Rapid

Commit. Handshaking will happen with two DHCPv6 messages.

Default WAN This option allows to configure default route for relevant WAN mode of this WAN connection.

 Click Apply at any time during configuration to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

90

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6.5.4 PPPoA

The PPP-over-ATM (PPPoA) mode is valid only for ATM based WAN. To configure the WAN interface to use PPPoA, select

the PPPoA option. A screen is displayed as shown in Figure 4.6.5.6

Figure 4.6.5.6 WAN PPPoA creation

91

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in PPPoA WAN:

Field Description

User Name To enter the username to be used in the PPPoA session.

Password To enter the corresponding password for the specified username.

Please retype your password To enter the password again to reconfirm.

Dial on Demand

Maximum Idle Time

Address Version

This feature allows to automatically re-connect to the service provider once the

connection was lost. The checkbox can be enabled or disabled for this feature.

Specifies how long the connection may remain idle before the PPPoA connection

gets automatically disconnected. The Idle Timeout is specified in seconds.

For PPPoA, the only supported IP addressing is IPv4 currently. The IPv6 for PPPoA

is not available in this version of NV-600AI.

92

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in PPPoA WAN IPv6 Configuration:

Field Description

This option allows to select following modes of IPv6 configuration:

Configuration Modes

DUID Type

IANA ID

IAPD ID

SLA ID

Rapid-commit

 Stateful DHCPv6(IA_NA and IA_PD)
 SLAAC (Address Configuration) with DHCPv6 (IA_PD)

This option allows to configure different DUID (DHCP Unique Identifier) types:

 "Type-1: LLT (Link Layer Time)
 "Type-2: EN (Enterprise Number)
 "Type-3: LL (Link Layer)

IANA option represents IPv6 address and parameters related to the same being accepted by

DHCPv6 clients. IANA is the Identity Association for Non- Temporary Addresses option. This

Identifier to be configured when Stateful DHCPv6 configuration mode is selected.

IAPD options represent one or more IPv6 prefix and parameters related to it. IAPD is the

Identity Association for Prefix Delegation. This identifier to be configured in both Stateful

DHCPv6 or SLAAC+DHCPv6 configuration modes.

This parameter is called Site Level Aggregation Identifier. This identifier is used to configure

the subnet for DHCPv6 client configuration.

This declaration enables DHCPv6-client to request the DHCPv-server to perform a Rapid

Commit. Handshaking will happen with two DHCPv6 messages.

Default WAN This option allows to configure default route for relevant WAN mode of this WAN connection.

 Click Apply at any time during configuration to save the information that you have entered.

93

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

 Click Cancel to exit from this page without saving the changes.

4.6.5.5 Bridge

The option Bridge enables the bridge mode, which is a common connection method used for xDSL modem. Select this option on

WAN Settings page and click Next. A screen is displayed as shown in Figure 4.6.5.7

Figure 4.6.5.7 Bridge WAN Setting

94

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

The screen contains the following details:

Fields in Bridge Configuration:

Field Description

Default WAN

This option allows to configure default route for relevant WAN mode of this WAN

connection.

 Click Apply at any time during configuration to save the information that you have entered.
 Click Cancel to exit from this page without saving the changes.

4.6.5.6 Delete

This option allows to delete the selected configured WAN connection. This makes WAN connections free to re-choose the type of

protocol and other parameters configuration.

 Click Cancel to exit from this page without saving the changes.

 Click Apply for deleting the WAN connection.

95

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

4.6.6 WAN Status

To display the status report of VCCs, click the WAN Status link (WAN > WAN Status) on the left navigation bar. A screen id

displayed as shown in Figure 4.6.6

Figure 4.6.6 WAN Status

The screen contains the following details:

96

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in WAN Status:

Field Description

IPv4/IPv6 Choose the appropriate tab to view the status.

WAN Channel

For the currently configured WAN interface, this gives the layer-2 WAN channel

information (such as ATM VCC).

Connection Type The type of the connection mode in which NV-600AI is configured.

Status Displays the connection status of the WAN.

IP Displays the IP address in use.

Netmask Displays the netmask in use.

Configured Connection Name Displays the configured connection name.

Gateway Information Provides information about the gateway.

DNS Information Provides information about the primary and secondary DNS.

The control buttons shown against few WAN are explained below.

97

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Fields in Control Fields displayed in WAN Status Screen:

Field Description

Connect

This button appears only for PPPoA and PPPoE type of WAN links. On clicking this button, it tries

to establish PPP link.

This button too appears only for PPPoA and PPPoE type of WAN links. On clicking this button, it

Disconnect

brings down the PPP link.

This button appears only for DHCP type of WAN links. On clicking this button, it tries to establish

Renew

renew the current lease.

This button appears only for DHCP type of WAN links. On clicking this button, it tries to release the

Release

current lease.

When you click on the IPv6 tab in the WAN Status page, a screen is displayed as shown in Figure 4.6.6.1

98

NV-600AI Industrial ADSL2+/VDSL2 Router USER’S MANUAL Ver. A5

Figure 4.6.6.1 WAN Status IPv6 Tab

The screen contains the details as described in table of “Fields in WAN Status”.

99
