NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Trademarks

NETSYS is a trademark of National Enhance Technology Corp.

Other brand and product names are registered trademarks or trademarks of their respective holders.

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect

to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the

device, National Enhance Technology Corp. hereby disclaims any and all warranties and liabilities of any kind, including without

limitation warranties of non-infringement of intellectual property rights of any third party.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to make changes to

the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or

application of the product(s) or circuit layout(s) described herein.

Maximum signal rate derived from IEEE Standard specifications. Actual data throughput will vary. Network conditions and

environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual

data throughput rate. Netsys does not warrant that the hardware will work properly in all environments and applications, and makes

no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for

a particular purpose. Make sure you follow in line with the environmental conditions to use this product.

Page 3

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Foreword: VDSL2 Router solution

Attention:

Be sure to read this manual carefully before using this product. Especially Legal Disclaimer, Statement of Conditions and Safety Warnings.

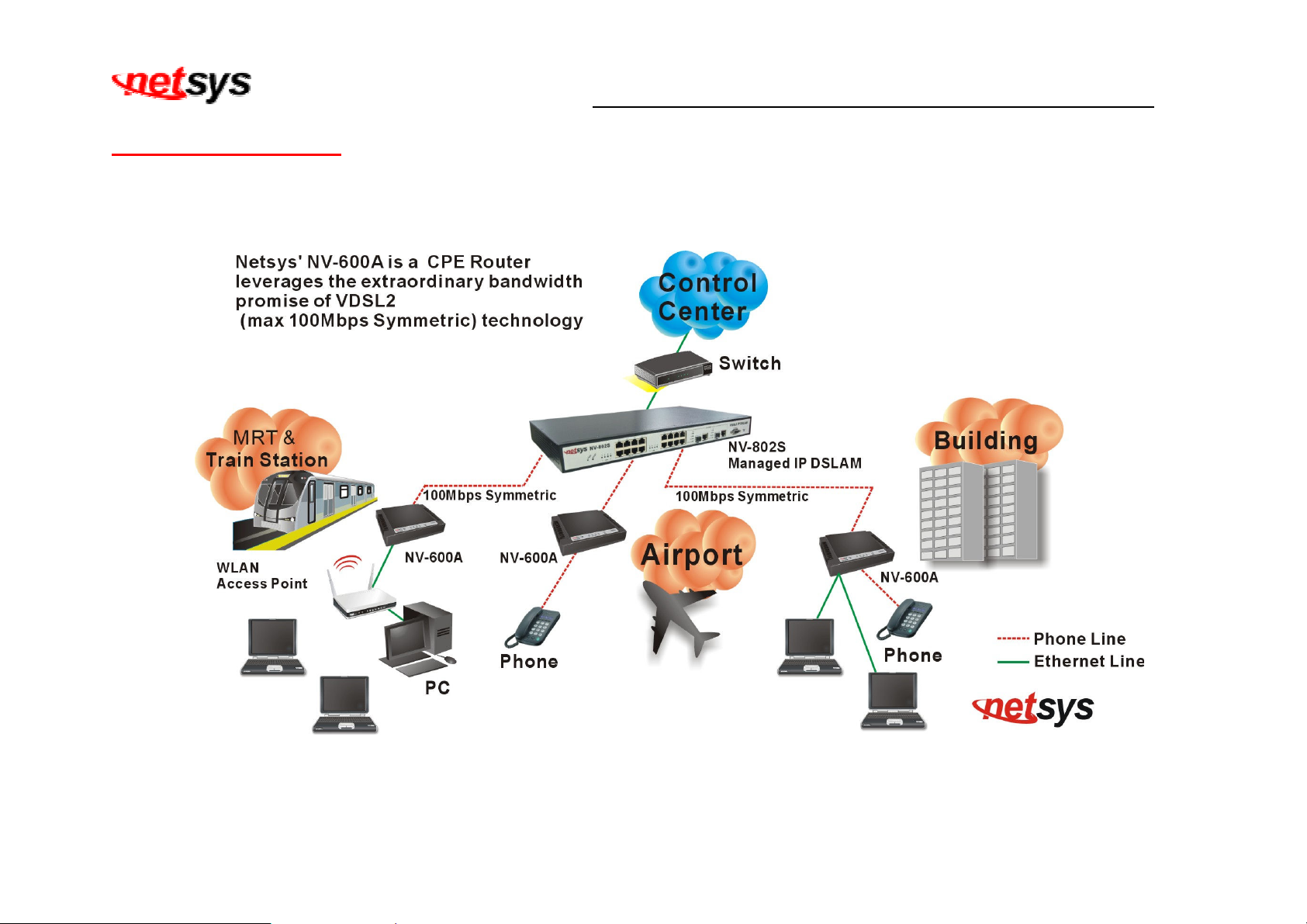

Netsys' NV-600A is a management of the VDSL2 CPE router that leverages the extraordinary bandwidth promise of VDSL2 (max. 100Mbps symmetric) technology, the next step in the delivery of new high-speed Internet applications in commercial environments. Quick, easy, economical to install and maintain, the NV-600A works over existing copper wire infrastructure. NV-600A is a CPE

(Customer Premise Equipment) device. And compitable with the NV-802S(8Ports VDSL2 IP DSLAM) and NV-600L (VDSL2 CO

Router).

Netsys NV-600A will allow operators worldwide to compete with cable andsatellite operators by offering services such as HDTV, VOD, videoconferencing, high speed Internet access and advanced voice services including VoIP, over a standard copper telephone cable.Netsys NV600A is seen by many operators as an ideal accompaniment to a FTTP rollout, where for instance fiber optic is supplied direct to an apartment block and from there copper cable is used to supply residents with high-speed VDSL2.

Caution:

The NV-600A is for indoor applications only. This product does not have waterproof protection, please do not use in outdoor applications.

Page 4

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Safety Warnings

For your safety, be sure to read and follow all warning notices and instructions before using the device.

 DO NOT open the device or unit. Opening or removing the cover may expose you to dangerous high voltage points or other

risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information.

 Use ONLY the dedicated power supply for your device. Connect the power to the right supply voltage (110V AC used for

North America and 230V AC used for Europe. NV-600A supports 12 VDC power input).

 Place connecting cables carefully so that no one will step on them or stumble over them. DO NOT allow anything to rest on

the power cord and do NOT locate the product where anyone can work on the power cord.

 DO NOT install nor use your device during a thunderstorm. There may be a remote risk of electric shock from lightning.

 DO NOT expose your device to dampness, dust or corrosive liquids.

 DO NOT use this product near water, for example, in a wet basement or near a swimming pool.

 Connect ONLY suitable accessories to the device.

 Make sure to connect the cables to the correct ports.

 DO NOT obstruct the device ventilation slots, as insufficient air flow may harm your device.

 DO NOT place items on the device.

 DO NOT use the device for outdoor applications directly, and make sure all the connections are indoors or have waterproof

protection place.

 Be careful when unplugging the power, because it may produce sparks.

 Keep the device and all its parts and accessories out of the reach of children.

 Clean the device using a soft and dry cloth rather than liquid or atomizers. Power off the equipment before cleaning it.

 This product is recyclable. Dispose of it properly.

Page 5

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Table of Contents

COPYRIGHT .....................................................................................................................................................................................................................................1

FOREWORD: VDSL2 ROUTER SOLUTION....................................................................................................................................................................................2

SAFETY WARNINGS........................................................................................................................................................................................................................3

1.1 C

HECK LIST

CHAPTER 2. INSTALLING THE ROUTER.....................................................................................................................................................................................10

2.1 H

ARDWARE INSTALLATION

2.2 PRE-

2.3 G

2.4 C

2.5 C

2.6 VDSL2 A

CHAPTER 3. HARDWARE DESCRIPTION ...................................................................................................................................................................................16

3.1 F

3.2 F

INSTALLATION REQUIREMENTS

ENERAL RULES

ONNECTING THE ROUTER

ONNECTING THE

RONT PANEL

RONT INDICATORS

..............................................................................................................................................................................................................................9

..........................................................................................................................................................................................10

RJ-11 / RJ-45 P

PPLICATION

ORTS

..................................................................................................................................................................................13

3.3 R

EAR PANEL

CHAPTER 4. CONFIGURE THE NV-600A VIA WEB BROWSER .................................................................................................................................................21

4.1 L

OGIN

4.1.1 Home .............................................................................................................................................................................................................................23

Page 6

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.1.2 Quick Setup ...................................................................................................................................................................................................................25

4.2 S

ELECT THE MENU LEVEL

4.3 S

ELECT

“SYSTEM” ................................................................................................................................................................................................................32

4.3.1 Host Name Config .........................................................................................................................................................................................................33

4.3.2 System Time..................................................................................................................................................................................................................34

4.3.3 Administrator Settings ...................................................................................................................................................................................................36

4.3.4 Web Settings .................................................................................................................................................................................................................38

4.3.5 Software/Firmware Upgrade .........................................................................................................................................................................................39

4.3.6 Configuration Settings ...................................................................................................................................................................................................40

4.3.7 System Log....................................................................................................................................................................................................................43

4.3.8 SSL Certificate...............................................................................................................................................................................................................46

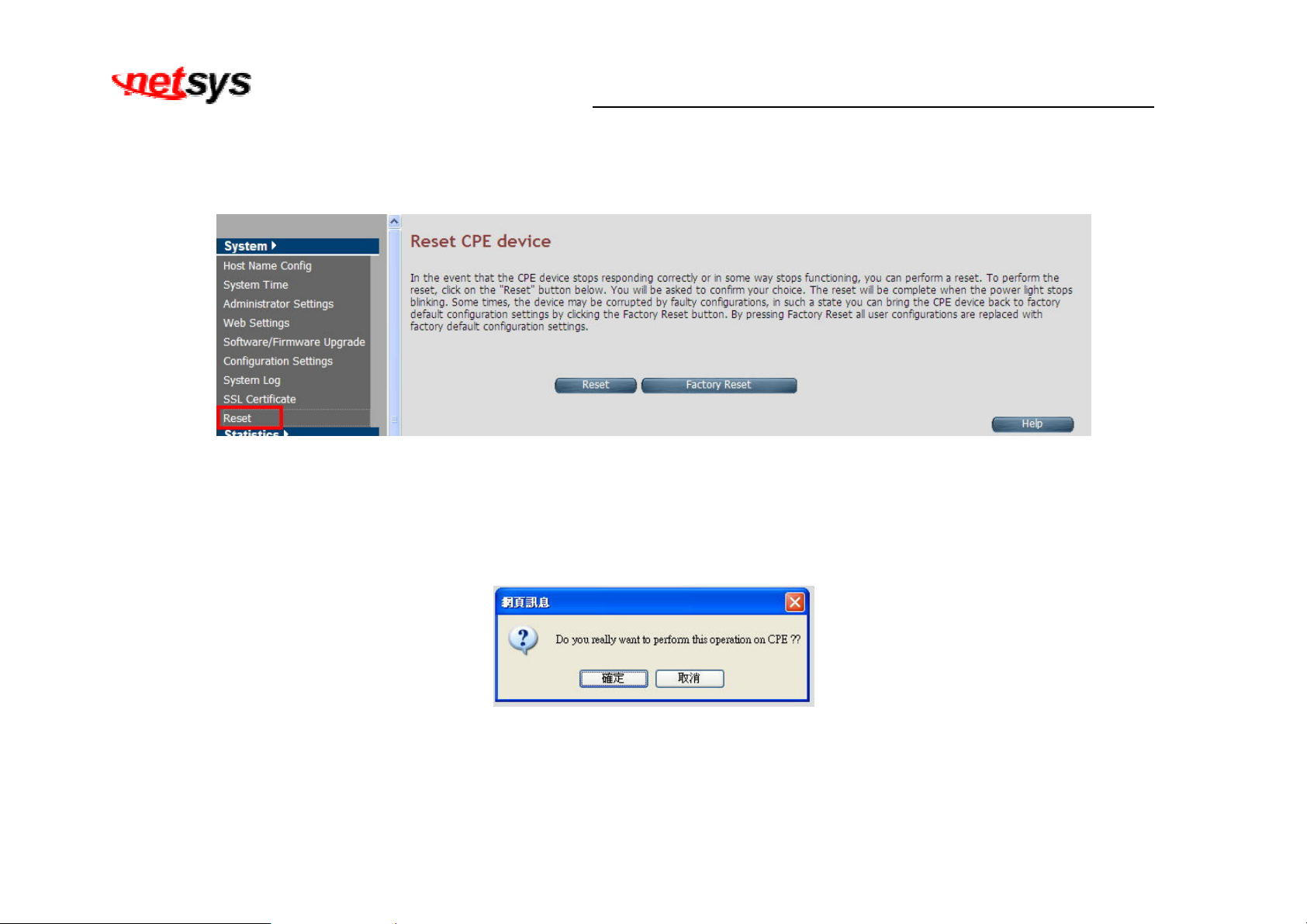

4.3.9 Reset .............................................................................................................................................................................................................................47

4.4 S

ELECT “STATISTICS

4.4.1 LAN................................................................................................................................................................................................................................49

4.4.2 WAN ..............................................................................................................................................................................................................................51

4.5 S

ELECT “X

4.5.1 xDSL Status...................................................................................................................................................................................................................54

4.5.2 Vectoring Mode selection ..............................................................................................................................................................................................56

4.6 S

ELECT

4.6.1 WAN Mode Selection ....................................................................................................................................................................................................59

DSL” ......................................................................................................................................................................................................................53

“WAN”.......................................................................................................................................................................................................................57

”...............................................................................................................................................................................................................48

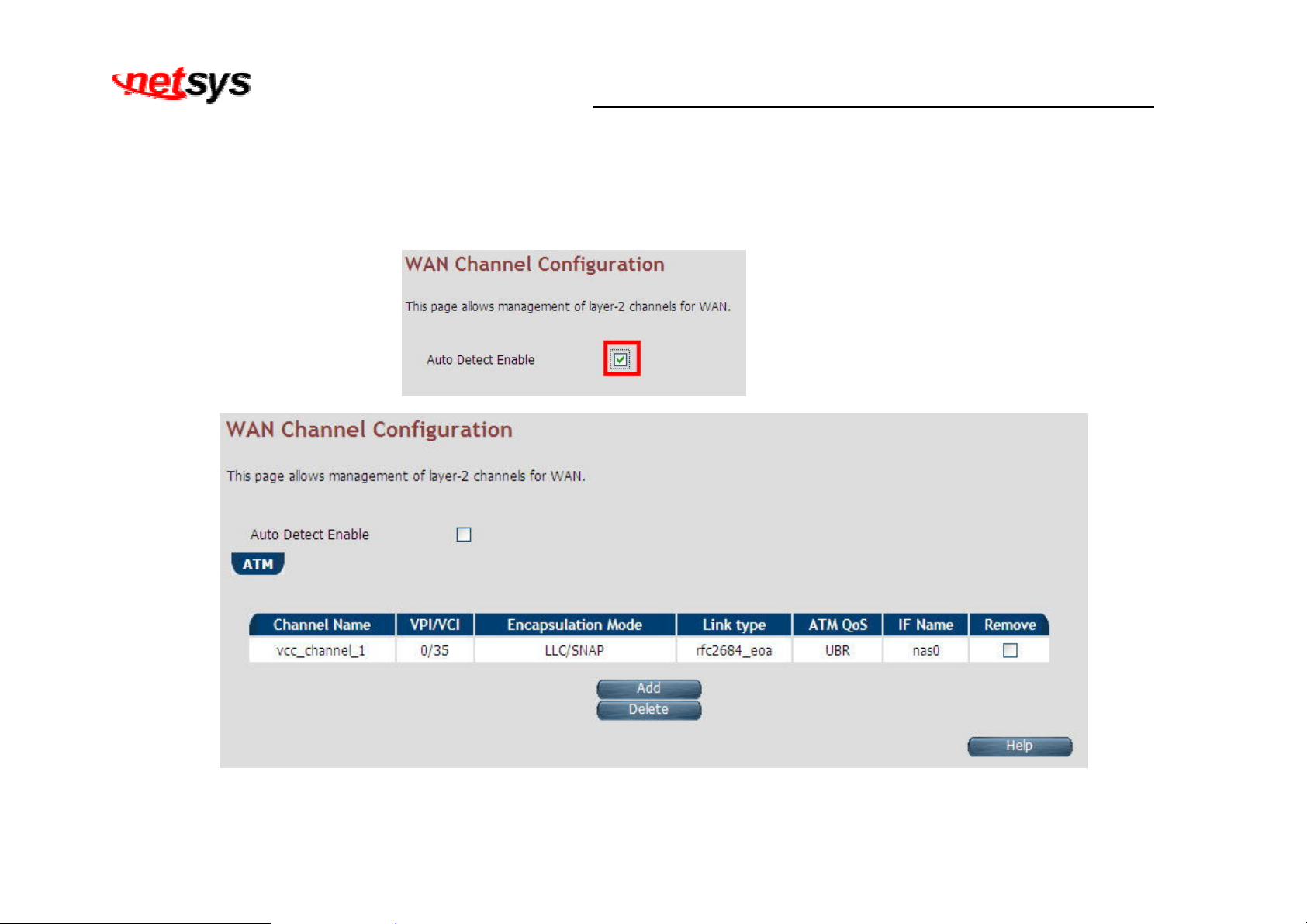

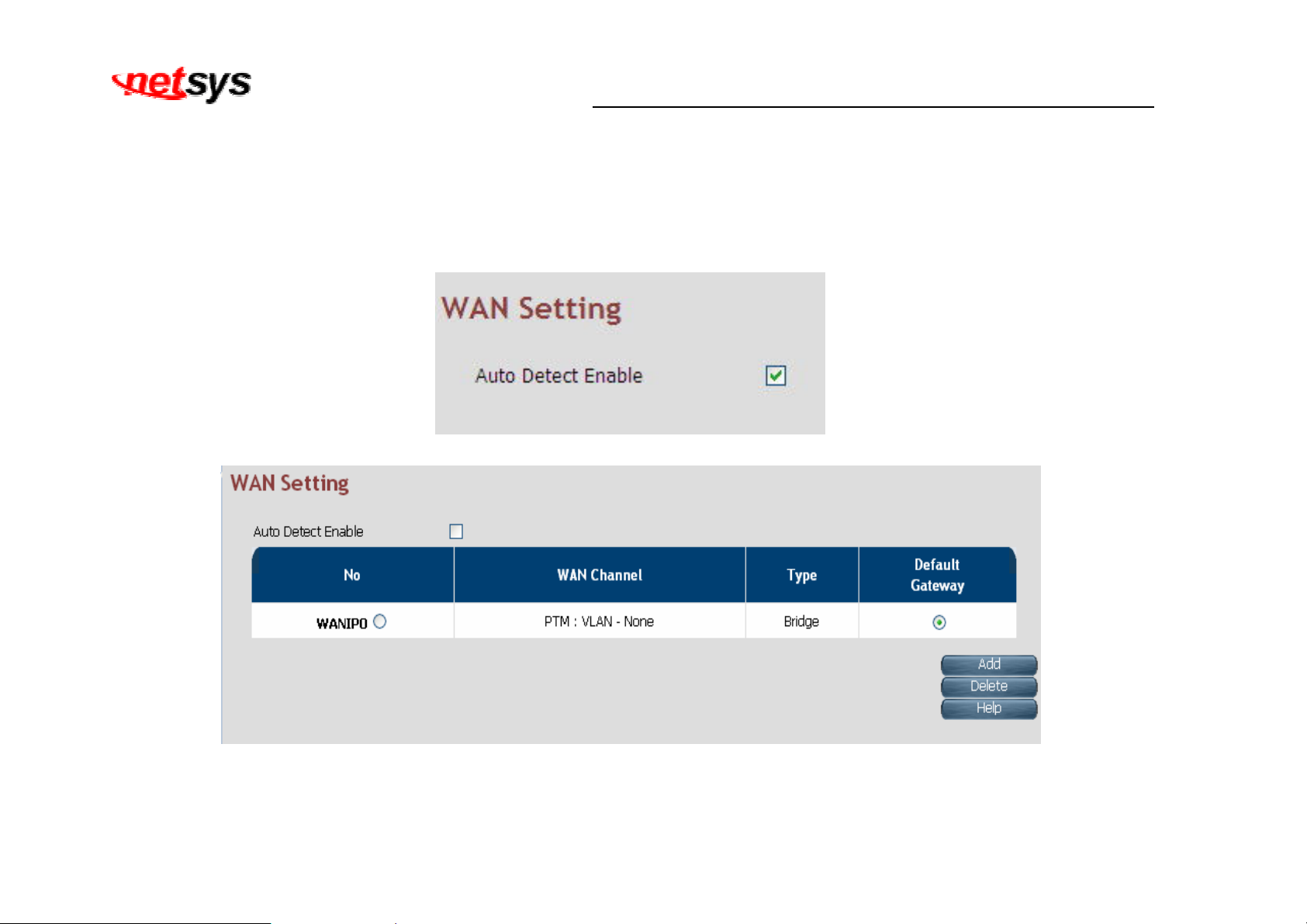

4.6.2 Auto Detect Setting .......................................................................................................................................................................................................61

4.6.3 WAN Channel Config ....................................................................................................................................................................................................64

4.6.4 VLAN Channel confg .....................................................................................................................................................................................................68

4.6.5 WAN Setting ..................................................................................................................................................................................................................71

Page 7

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.6 WAN Status ...................................................................................................................................................................................................................85

4.6.7 DNS ...............................................................................................................................................................................................................................89

4.6.8 DDNS ............................................................................................................................................................................................................................91

4.6.9 OAM Configuration ........................................................................................................................................................................................................93

4.7 S

ELECT

“LAN” ........................................................................................................................................................................................................................97

4.7.1 LAN ARP List.................................................................................................................................................................................................................98

4.7.2 LAN Settings..................................................................................................................................................................................................................99

4.7.3 UPnP Devices List.......................................................................................................................................................................................................109

4.7.4 LAN Switch Port Setting ..............................................................................................................................................................................................110

4.7.5 LAN Port Status........................................................................................................................................................................................................... 111

4.7.6 VLAN Settings .............................................................................................................................................................................................................112

4.8 S

ELECT “ROUTE

4.8.1 Static Routing ..............................................................................................................................................................................................................115

4.8.2 RIP Support .................................................................................................................................................................................................................118

4.8.3 Routing Table List ........................................................................................................................................................................................................121

4.9 S

ELECT “FIREWALL

4.9.1 Firewall Setting ............................................................................................................................................................................................................125

4.9.2 IPv6 Firewall Setting....................................................................................................................................................................................................126

4.9.3 Packet Filtering............................................................................................................................................................................................................128

4.9.4 URL Filtering................................................................................................................................................................................................................142

4.9.5 Parental Control...........................................................................................................................................................................................................144

4.9.6 Application Server Settings .........................................................................................................................................................................................146

4.9.7 Access Control List (ACL) ...........................................................................................................................................................................................148

4.10 NAT ...................................................................................................................................................................................................................................150

Page 8

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.10.1 NAT Settings ...........................................................................................................................................................................................................151

4.10.2 Virtual Server ..........................................................................................................................................................................................................152

4.10.3 Port Triggering ........................................................................................................................................................................................................156

4.10.4 DMZ ........................................................................................................................................................................................................................160

4.11 QOS ...................................................................................................................................................................................................................................162

4.11.1 QoS Settings..............................................................................................................................................................................................................163

4.11.2 Queue Config.............................................................................................................................................................................................................165

4.11.3 Class Config ..............................................................................................................................................................................................................169

4.12 M

ULTICAST

4.12.1 Proxy Settings ...........................................................................................................................................................................................................176

4.12.2 Snooping Settings .....................................................................................................................................................................................................178

4.12.3 Advanced Settings.....................................................................................................................................................................................................180

4.13 IP

4.14 IPV6 ...................................................................................................................................................................................................................................186

SEC

4.13.1 Tunnel Mode ..............................................................................................................................................................................................................183

4.14.1 IPv6 Setting ...............................................................................................................................................................................................................187

4.14.2 6RD Configuration .....................................................................................................................................................................................................189

4.14.3 DS-Lite Configuration ................................................................................................................................................................................................191

4.15 D

IAGNOSTICS

4.15.1 Diagnostic Test Suite .................................................................................................................................................................................................194

APPENDIX A: CABLE REQUIREMENTS.....................................................................................................................................................................................196

APPENDIX B: PRODUCT SPECIFICATION ................................................................................................................................................................................199

APPENDIX C: ROUTER MODE SELECT ....................................................................................................................................................................................202

Page 9

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

APPENDIX D: NV-600L & NV-600A/W COMPATIBILITY TABLE .................................................................................................................................................205

APPENDIX E: TROUBLESHOOTING ..........................................................................................................................................................................................207

APPENDIX F: COMPLIANCE INFORMATION.............................................................................................................................................................................215

WARRANTY..................................................................................................................................................................................................................................218

CHINESE SJ/T 11364-2006 ..........................................................................................................................................................................................................219

Page 10

Chapter 1. Unpacking Information

1.1 Check List

Carefully unpack the package and check its contents against the checklist.

Package Contents:

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

1 x Managed VDSL2 CPE

router

Notes:

1. Please inform your dealer immediately for any missing or damaged parts. If possible, retain the carton including the

original packing materials. Use them to repack the unit in case there is a need to return for repair.

2. If the product has any issue, please contact your local vendor.

3. Do not use sub-standard power supply. Before connecting the power supply to the device, be sure to check

compliance with the specifications. The NV-600A uses a DC12V/1A power supply.

4. The power supply included in the package is commercial-grade. Do not use in industrial-grade applications.

5. Please look for the QR code on the bottom of the product, the user can launch the QR code scanning program to

scan and download the user’s manual electronic format file. Above QR code icon is for reference.

1 x QR code for user’s

manual hyperlink.

Accessory Kit : 1 x Ehternet Cable, 1 x Phone wire , 1 x

DC12V Power Adapter

Page 11

Chapter 2. Installing the Router

2.1 Hardware Installation

This chapter describes how to install the router, and establish the network connections. The NV-600A may be installed

on any level surface (e.g. a table or shelf). However, please take note of the following minimum site requirements

before you begin. The NV-600A has 2 pre-installed rubber feet.

2.2 Pre-installation Requirements

Before you start the actual hardware installation, make sure you can provide the right operating environment, including

power requirements, sufficient physical space, and proximity to other network devices that are to be connected.

Verify the following installation requirements:

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

• Power requirements: DC 12 V / 1A

• The router should be located in a cool dry place, with at least 10cm/4in of space at the front and back for

ventilation.

• Place the router away from direct sunlight, heat sources, or areas with a high amount of electromagnetic

interference.

• Check if the network cables and connectors needed for installation are available.

• Do not install phone lines strapped together with AC power lines, or telephone office line with voice signal.

• Avoid installing this device with radio amplifying stations nearby or transformer stations nearby.

• Please note that the voice spectrum allowed by the NV-600A internal splitter is 0 KHz ~ 120 KHz.

Page 12

2.3 General Rules

Before making any connections to the router, please note the following rules:

• Ethernet Port (RJ-45)

• VDSL2 Port (RJ-11)

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

All network connections to the router Ethernet port must be made using Category 5 UTP/STP or above for

100 Mbps, Category 3, 4 UTP for 10Mbps.

No more than 100 meters of cabling may be use between the MUX or HUB and an end node.

All network connections to the RJ-11port must use 24~26 gauge with twisted pair phone wiring.

We do not recommend the use of the telephone line 28 gauge or above.

The RJ-11 connectors have six positions, two of which are wired. The router uses the center two pins. The

pin out assignment for these connectors is presented below.

Please note that the line port is no polarity, therefore user can reverse the two wires of the phone cable

when installed.

RJ-11 Pin out Assignments

Pin# MNEMONIC FUNCTION

1 NC Unused

2 NC Unused

3 DSL Used

4 DSL Used

5 NC Unused

6 NC Unused_

Page 13

2.4 Connecting the Router

The router has four Ethernet ports which support connection to Ethernet operation. The devices attached to these

ports must support auto-negotiation /10Base-T / 100Base-TX / 1000Base-TX unless they will always operate at half

duplex. Use any of the Ethernet ports to connect devices such as Monitor systems, Servers, Switches, bridges or

routers.

Notes:

1. The (RJ11/Terminal Block) Line port is used to connect the telephone that is connected to VDSL2 CO and CPE

router (Point-to-point solution).

2. The Slave device (CPE) must be connected to the Master device (CO) through the telephone wire. The Slave

cannot be connected to another Slave, and the Master cannot be connected to another Master.

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Page 14

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

2.5 Connecting the RJ-11 / RJ-45 Ports

 The line port has 2 connectors: RJ-11 and terminal block. It is used to connect with NV-600L(CO) using a single pair phone

cable to NV-600A(CPE) bridge side (point to point solution). Take note that NV-600A line port cannot be used at the same time.

Either RJ-11 port is connected or terminal block is connected using a straight connection (Figure 2.4) or cross-over

connection(Figure 2.5)

 When inserting a RJ-11 plug, make sure the tab on the plug

clicks into position to ensure that it is properly seated.

 Do not plug a RJ-11 phone jack connector into the Ethernet

port (RJ-45 port). This may damage the router. Instead, use

only twisted-pair cables with RJ-45 connectors that conform

to Ethernet standard.

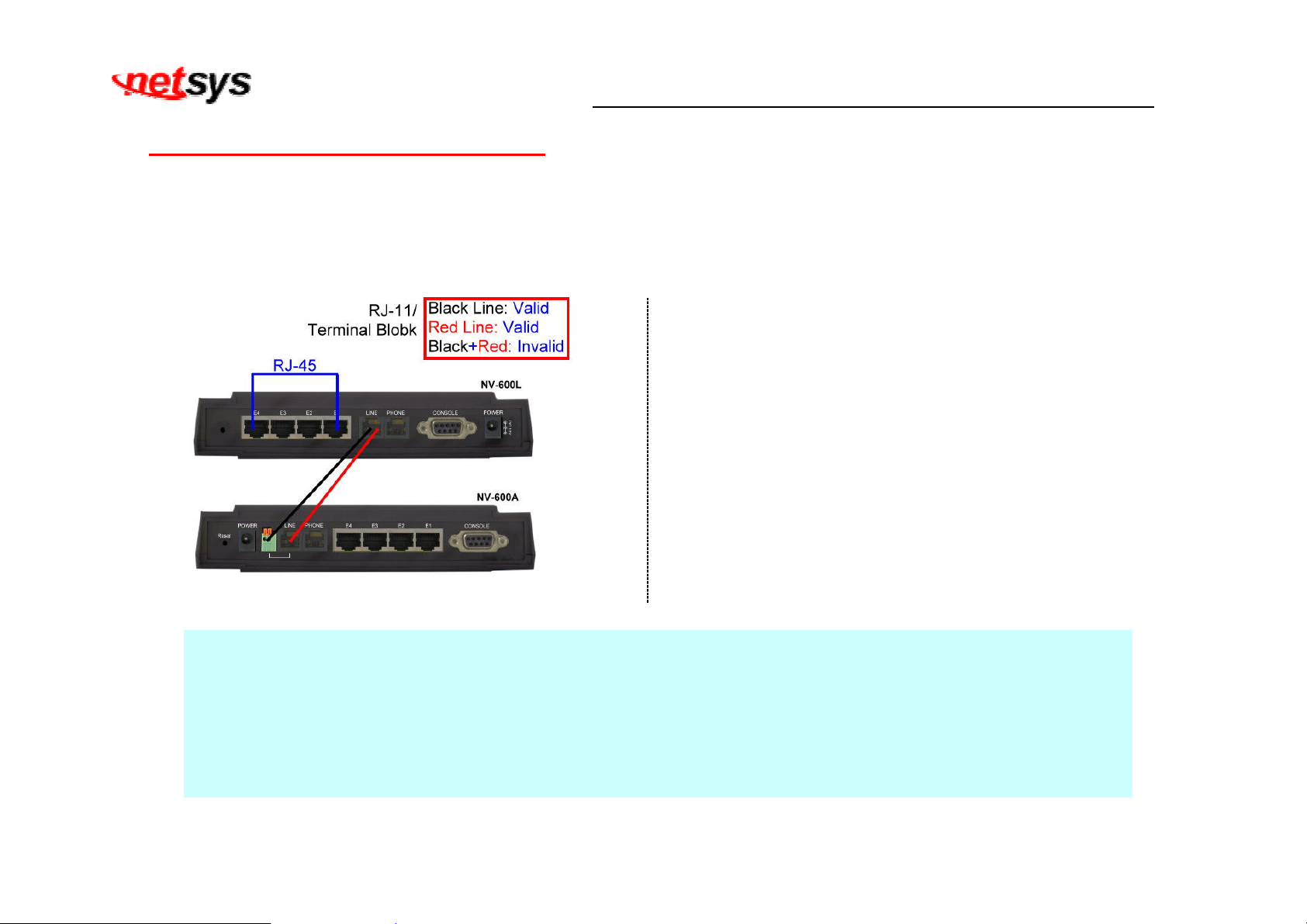

Figure 2.1 NV-600A line ports straight connection

Notes:

1. Be sure each twisted-pair cable (RJ-45 ethernet cable) does not exceed 100 meters (333 feet).

2. We advise using Category 5~7 UTP/STP cables for Cable bridge or Router connections to avoid any confusion

or inconvenience in the future when you attached to high bandwidth devices.

3. RJ-11 (VDSL2 Line port) use 24 ~ 26 gauge with twisted pair phone wiring, we do not recommend 28 gauge or

above.

4. Be sure phone wire has been installed before the NV-600A boot.

Page 15

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

2.6 VDSL2 Application

The router’s line port supports 100Mbps/0.3km for data service across existing phone wiring. It is easy-to-use which do not require

installation of additional wiring. Every modular phone jack in the home can become a port on the LAN. Networking devices can be

installed on a single telephone wire that can installation within suitable distance (depends on speed) (Figure 2.2)

Figure 2.2 NV-600A application

Page 16

 2.6.1 Connect the NV-600L and the NV-600A to the Line

The objective for VDSL2 is to pass high speed data over a twisted pair cable. In the setup, connect NV-600L to NV-600A through

phone wire(24~26 AWG) or line simulator or any other hardware representation of a cable network, with or without noise

injection and crosstalk simulations.

 2.6.2 Connect the NV-600L and the NV-600A to LAN Devices

In the setup, usually an Ethernet tester serves as a representation of the LAN side as well as a representation of the WAN side.

 2.6.3 Run Demos and Tests

The Ethernet tester may send data downstream as well as upstream. It also receives the data in order to check the integrity of

the data transmission. Different data rates can be tested under different line conditions.

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Page 17

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Chapter 3. Hardware Description

This section describes the important parts of the vdsl2 router. It features the front panel and rear panel.

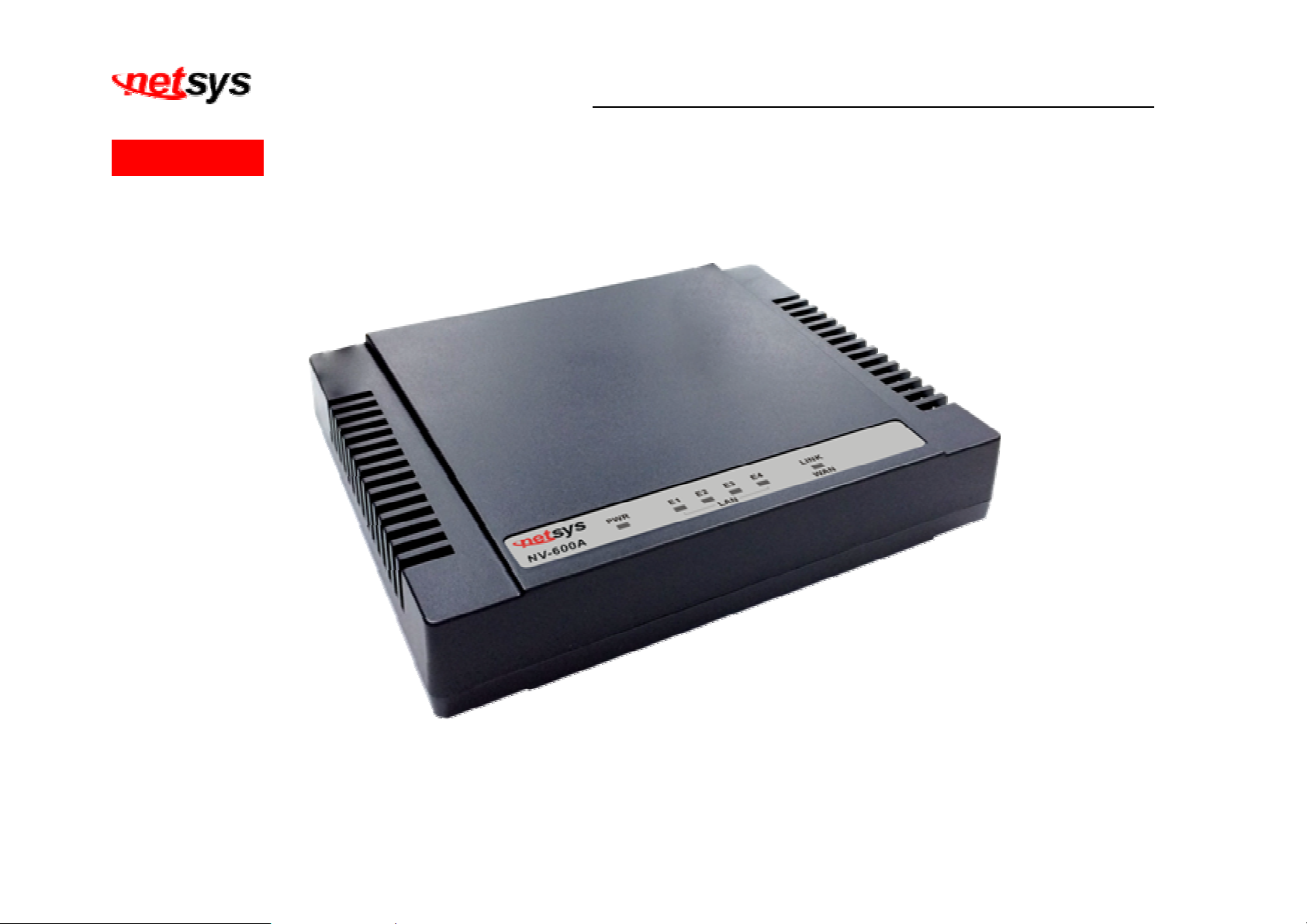

NV-600A Outward

Page 18

3.1 Front Panel

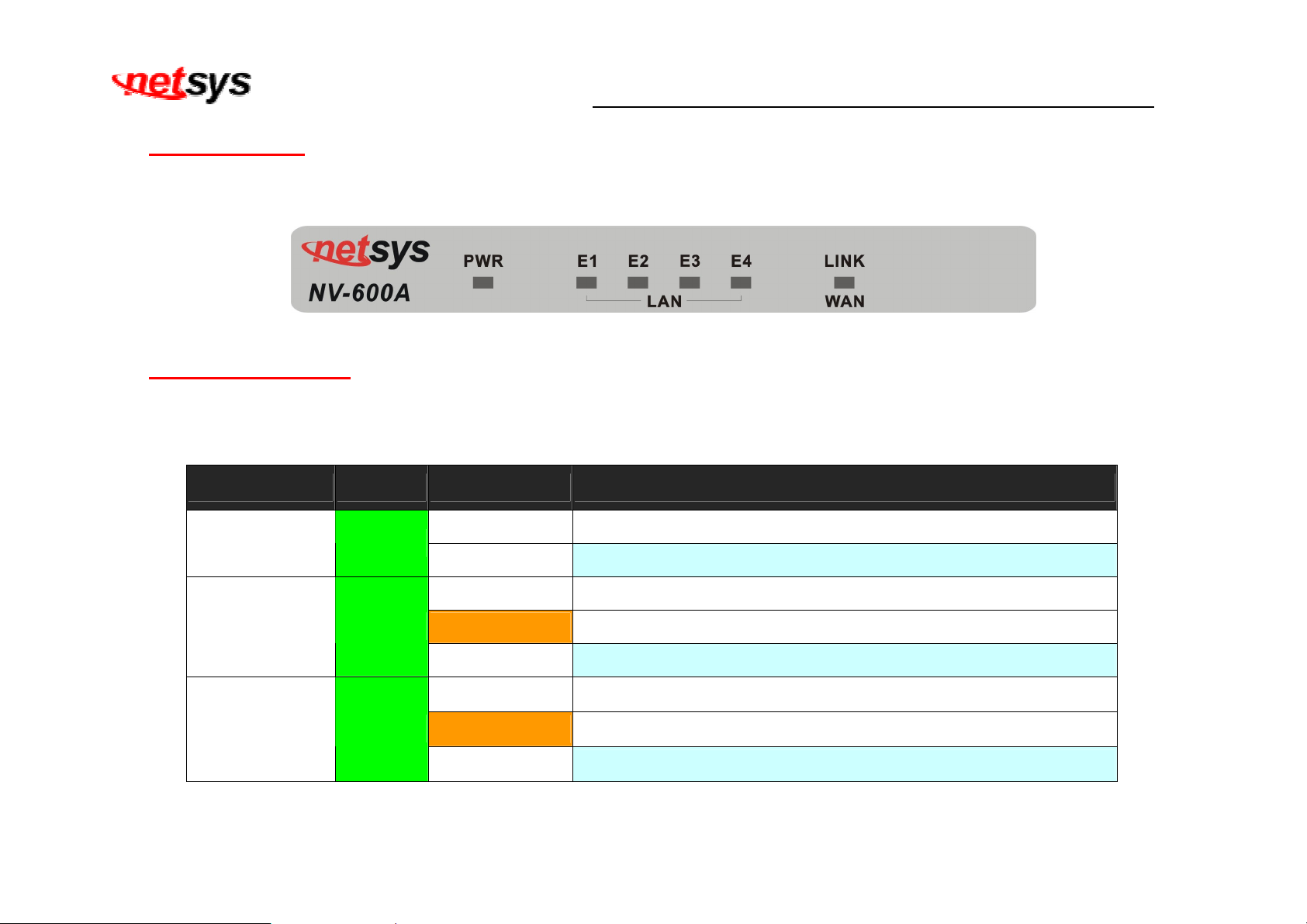

The figure shows the front panel. (Figure 3.1)

3.2 Front Indicators

The router has Six LED indicators. The following Table shows the description. (Table 3-1)

LED Color Status Descriptions

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Figure 3.1 Front Panel(NV-600A)

Table 3-1 LED Indicators Description and Operation

PWR

On(Steady) Lights to indicate that the VDSL2 router had power

Green

(Power LED)

Off The device is not ready or has malfunctioned.

On(Steady) The device has a good Ethernet connection.

E1 ~ E4

Green

Blinking The device is sending or receiving data.

(Ethernet LED)

Off The LAN is not connected or has malfunctioned.

On(Steady) The Internet or network connection is up.

LINK

Green

Fast Blinking The device is sending or receiving data.

(VDSL2 LED)

Slow Blinking The Internet or network connection is down.

Page 19

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Note:

It is normal for the connection between two Routers to take up to 3 minutes, due to NV-600L/A to establish a link mechanism in

auto-negotiation, with detects and calculates CO and CPE both PBO and PSD level, noise levels and other arguments for getting a

better connection.

3.3 Rear Panel

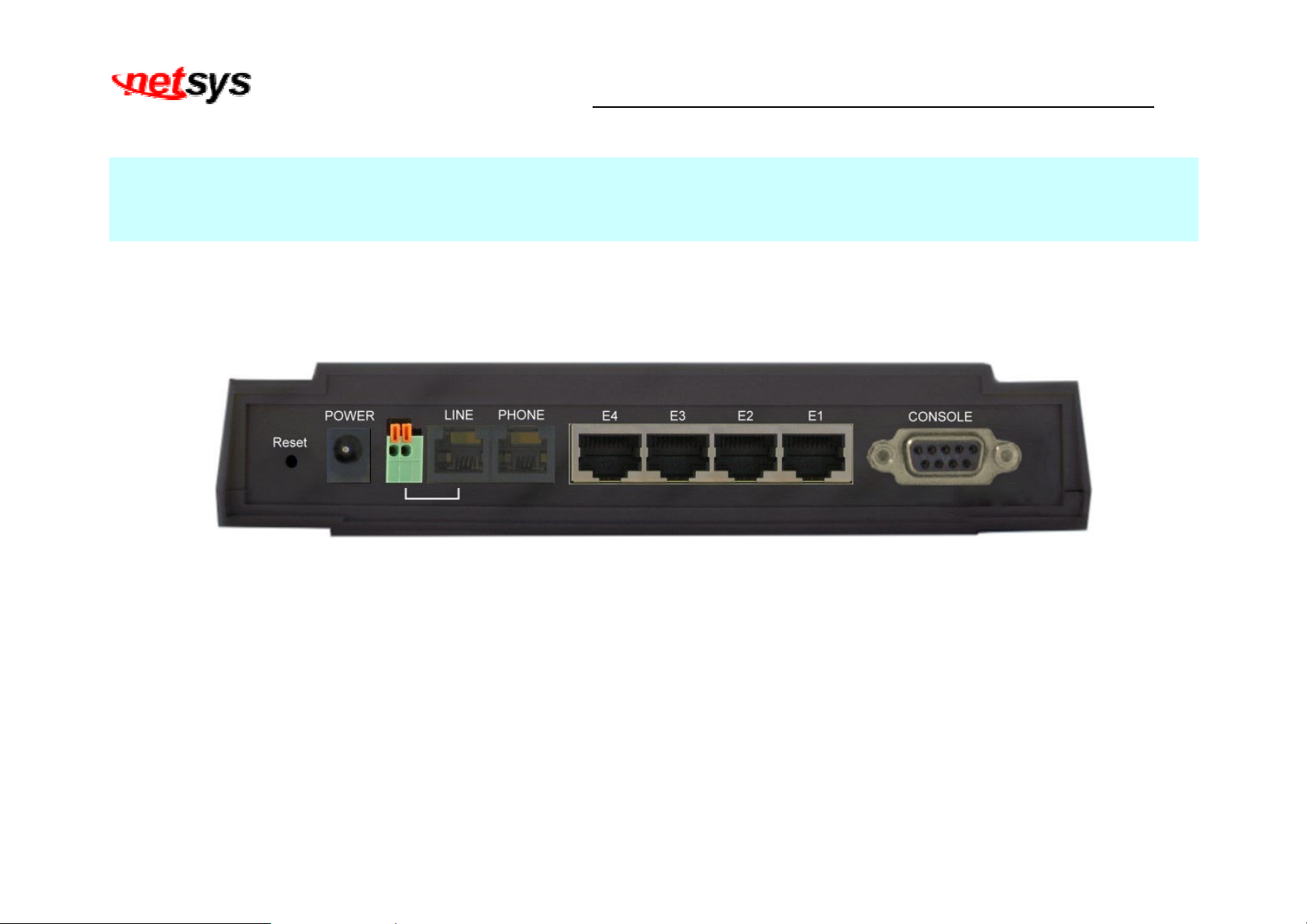

The following figure shows the rear panel. (Figure 3.2)

Figure 3.2 Rear Panel

Page 20

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

And the table shows the description. (Table 3-2)

Table 3-2 Description of the router rear connectors

Connectors Type Description

The reset buttons allows users to reboot the VDSL2 or load the default

Reset Tact switch Button

settings.

Press and hold for 1-5 seconds: Reboot the VDSL2 Router

Press over 5 seconds: Load the default settings

External Power Adapter: Input: AC 85~240Volts/50~60Hz

Power DC Power Jack

Output: DC 12V/1A

For connecting to a VDSL2 device. (Do not use RJ11 and Terminal

Line RJ-11/Terminal Block

Block at the same time.)

Phone RJ-11 For connecting to the POTS equipment or ISDN router

Gigabit Ethernet

RJ-45 For connecting to an Ethernet equipped device.

(E1-E4)

For connecting a VDSL2 bridge. (Do not use RJ11 and Terminal Block

Link (WAN) RJ-11/Terminal Block

at the same time.)

CONSOLE RS-232 For connecting a PC with RS-232 serial port over a D-SUB Cable

Page 21

Before user installed power and device, please read and follow these essentials:



Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point.

Note:

Do not run signal or communications wiring and power wiring through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.



You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring sharing similar electrical characteristics can be bundled together.



You should separate input wiring from output wiring.



We recommend that you mark all equipment in the wiring system.

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Page 22

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Chapter 4.

The NV-600A provides a built-in HTML based management interface that allow user configure the NV-600A via Internet

Browser. Best viewed at using the Chrome or Firefox.

In order to use the web browser to configure the device, you may need to allow:

• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in windows XP

• Java Scripts. (Enabled by default)

• Java permissions. (Enabled by default)

Launch your web browser and input the IP address 192.168.16.254 (NV-600A) in the Web page.

Following section user can find default username and password.

Configure the NV-600A Via Web Browser

SP2 or above.

Page 23

4.1 Login

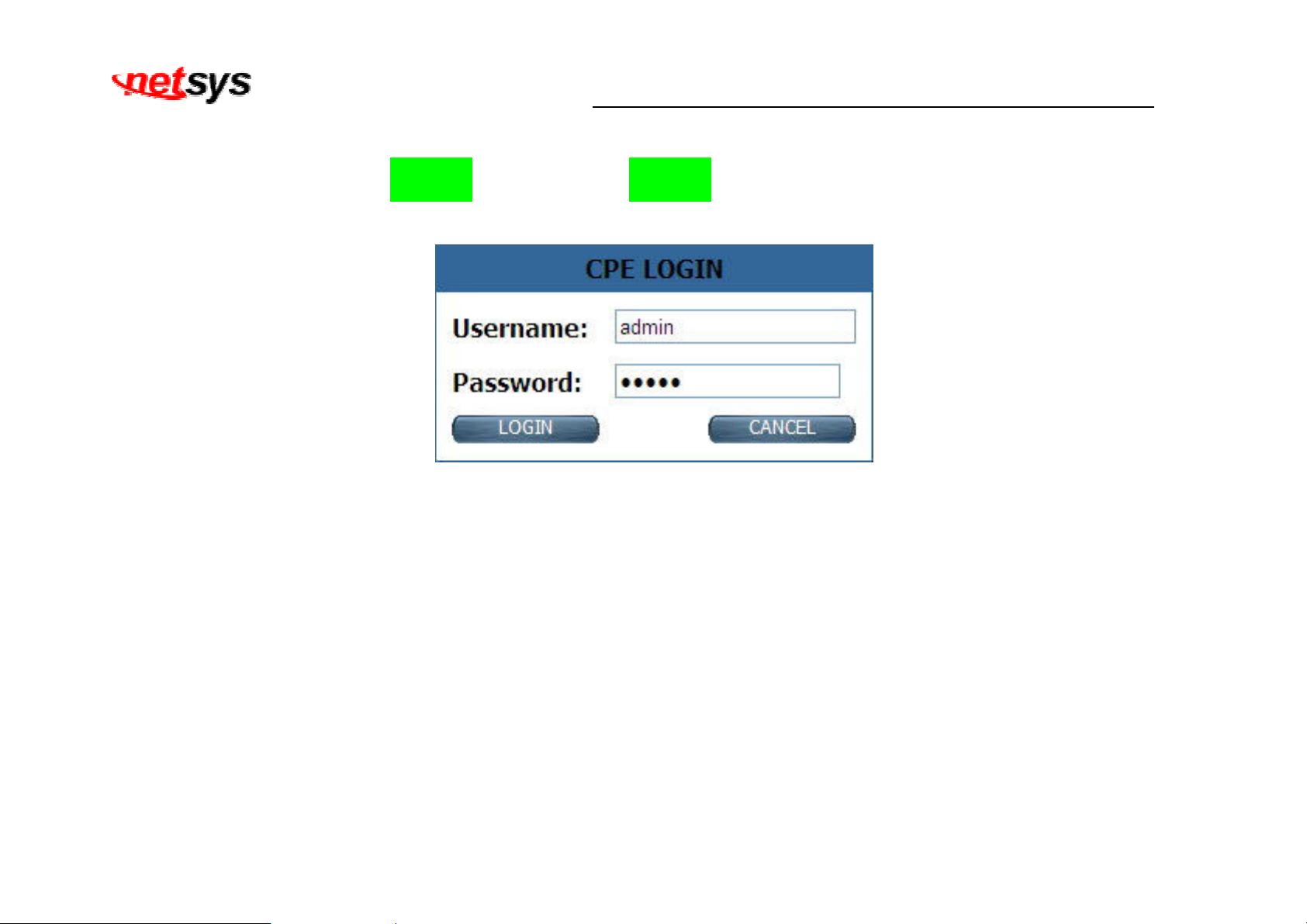

The default username is “admin“ and password is “admin“, too. The password is changeable in Administrator

Settings. It is advisable to change the administrator password for the security of your network.

Figure 4.1 Login Password

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Page 24

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.1.1 Home

After successful login using the username admin, the home page of NV-600A is loaded in web browser for NV-600A. Uesr can aslo

click the “Home” on the left navigation bar. The home page displays the information screen as shown in Figure 4.1.1

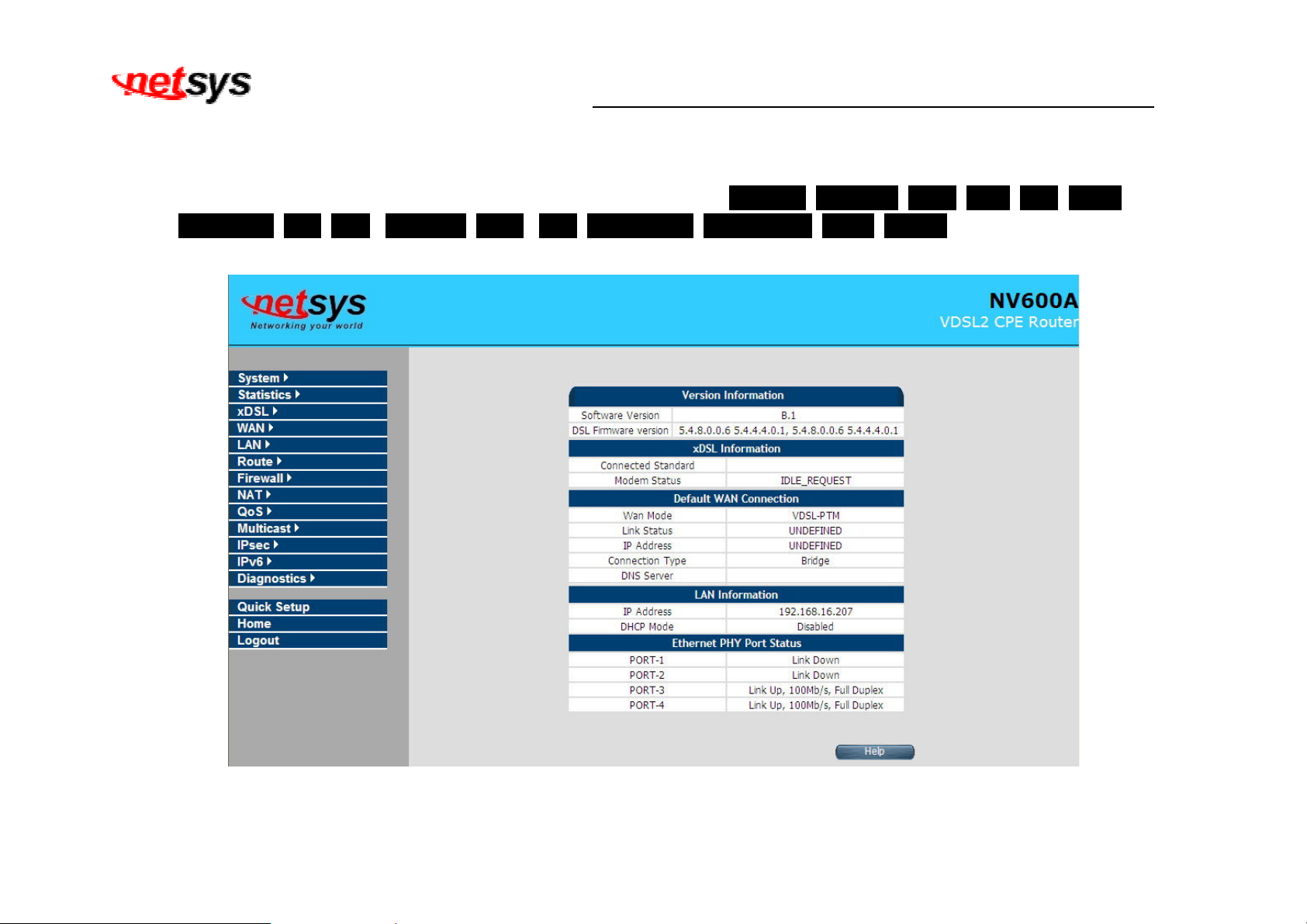

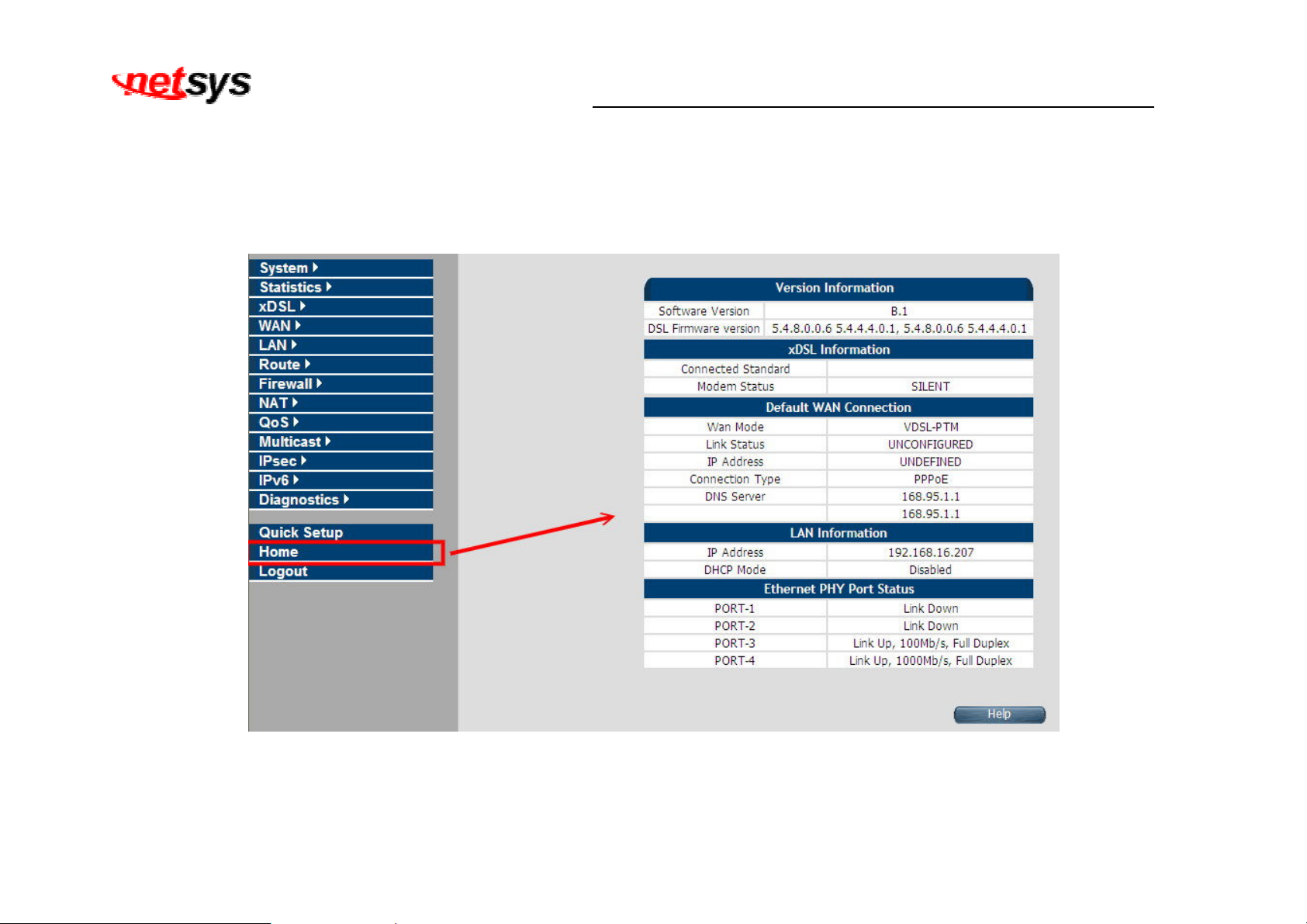

Figure 4.1.1 Home Information

Page 25

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in Home page

Field Description

Version Information

Software Version Shows the current version of NV-600A Software loaded on the device.

DSL Firmware version Shows the current version of xDSL firmware loaded on the device. Applicable only for DSL platforms.

xDSL Information

Connected Standard The DSL Standard which is being used currently between DSL CPE and DSLAM.

Modem Status Displays the status of the physical xDSL Line in terms of the modem and mode selected.

Default WAN Connection

Wan Mode Current WAN mode being used in CPE.

Link Status Shows the status of default WAN connection.

IP Address Shows the IP address of default WAN connection.

Connection Type Shows the Connection Type information of default WAN connection.

DNS Server Shows the primary and secondary DNS servers configured in default WAN connection.

LAN information

Shows the IP address of LAN interface of CPE. This IP address to be used for accessing the CPE device

IP Address

from LAN side e.g. Web UI, TELNET or UPnP sessions.

DHCP Mode Shows the DHCP Mode on LAN interface of CPE device.

Ethernet PHY Port Status

PORT-1 ~PORT-4 Shows the status of first to fourth ethernet port of CPE device.

Page 26

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.1.2 Quick Setup

The Quick Setup is located on the left side of the screen. Quick Setup provides a simple and easy step for applying minimal

configuration to CPE device, for making it ready to use. The CPE Quick Setup window is displayed as shown in Figure 4.1.2.

Click on Quick Setup to view and configure the following connections.

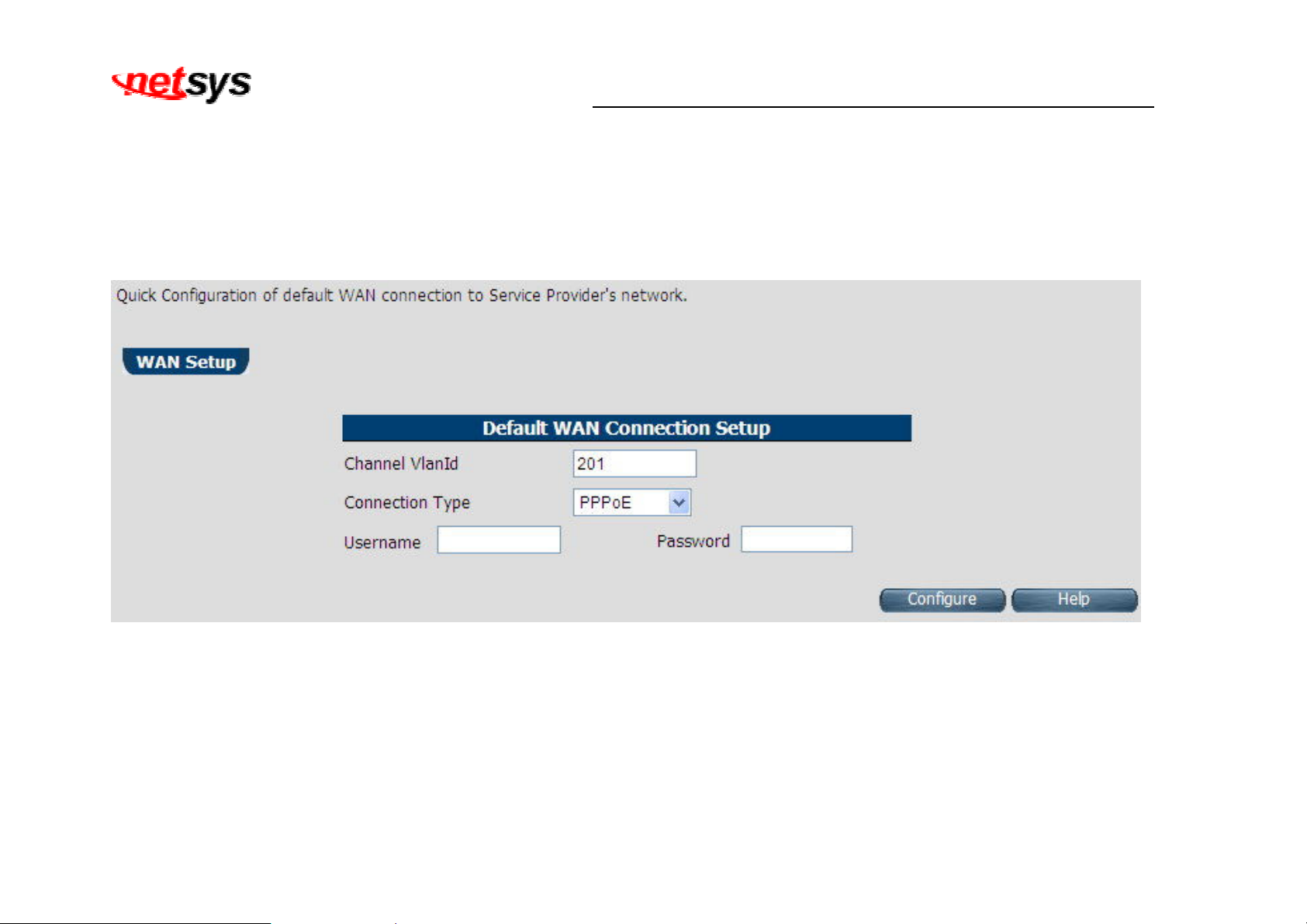

Figure 4.1.2 Quick Setup

 WAN Setup

When the user clicks on Quick Setup, the WAN Setup tab is displayed as shown in Figure 4.1.2.1. The WAN Setupenables the user

to configure the default WAN connection. The user has to supply fields and the CPE device will take all necessary actions to ensure

the default WAN is configured. In case, the WAN connection is already existing in CPE device, the same gets re-created with newly

supplied attributes from the user. The default WAN Setup configuration shows the Bridged status.

Page 27

The screen contains the following details:

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

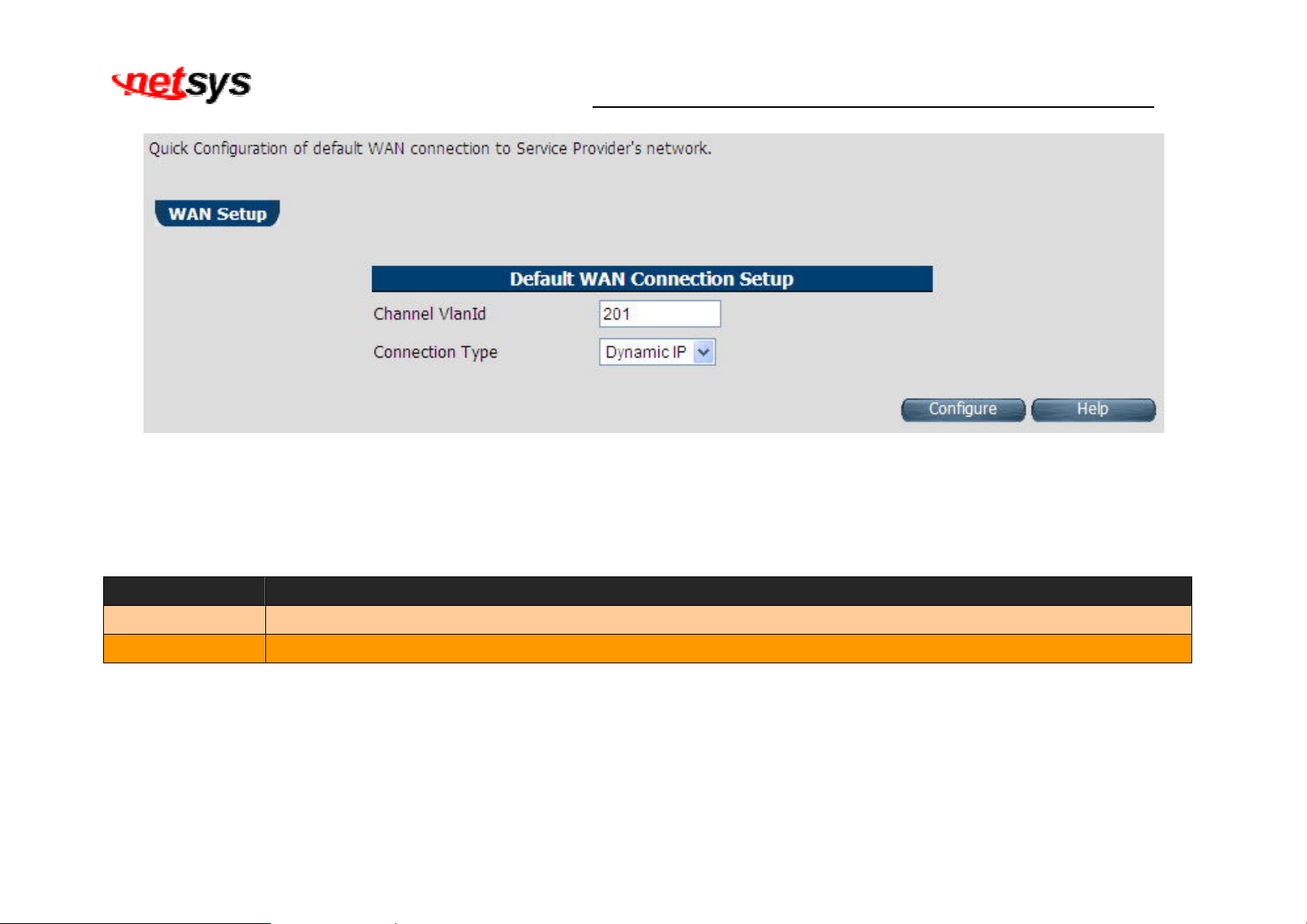

Figure 4.1.2.1 WAN setup Bridged

Fields in Home page

Field Description

Channel VlanId Specify VLAN Id. Reserved or internally used VLANs that can not be configured in Quick WAN Setup are listed.

Connection Type

Specify the Connection Type from the dropdown. Available options are Bridged, Dynamic and Static.

 Click Configure to configure the default WAN connection setup.

Page 28

The screen contains the following details:

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Figure 4.1.2.2 WAN setup Dynamic IP

Fields in WAN setup Dynamic IP

Field Description

Channel VlanId Specify VLAN ID.

Connection Type Specify the Connection Type from the dropdown.

 Click Configure to configure the selected WAN connection setup.

Page 29

The screen contains the following details:

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

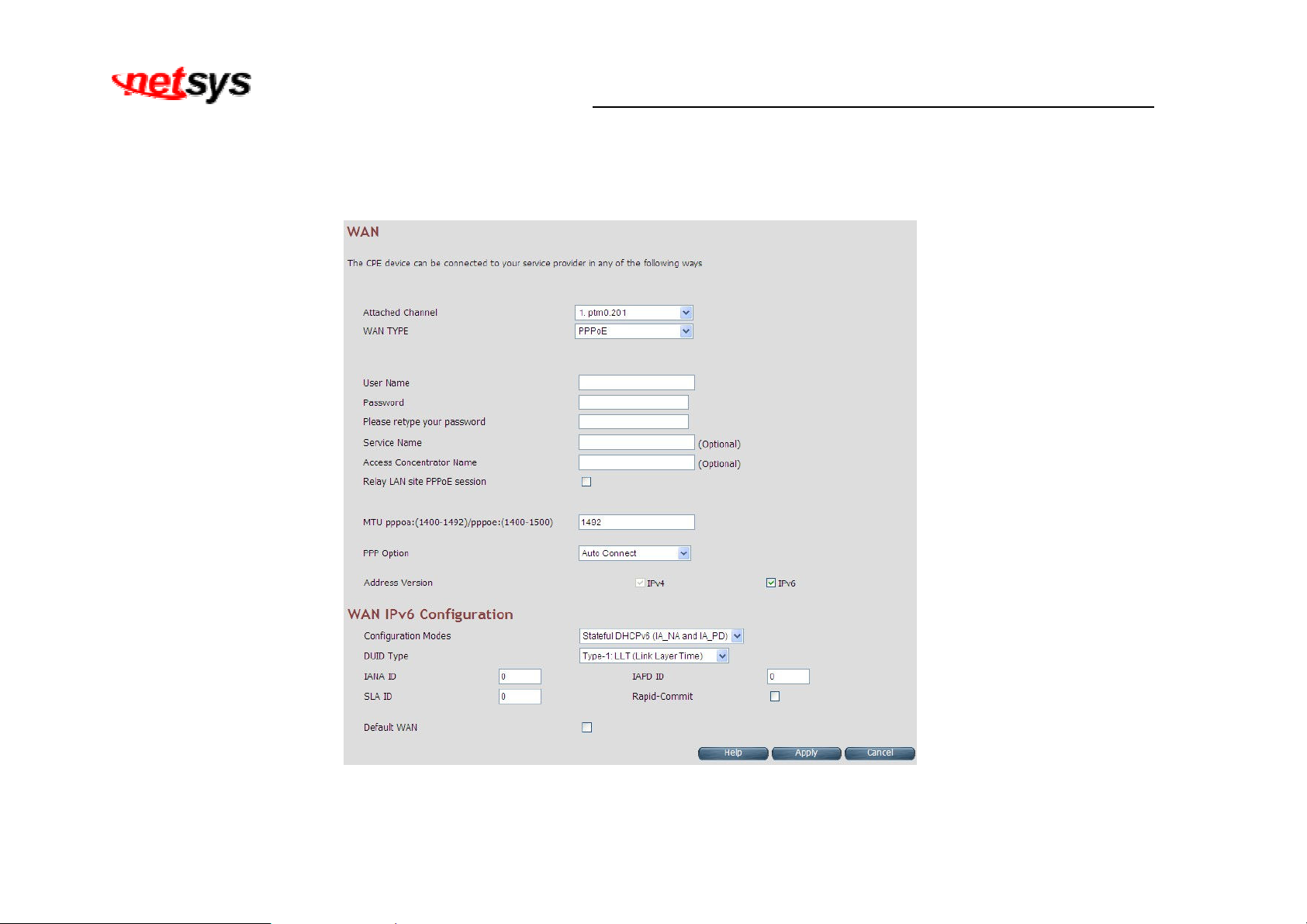

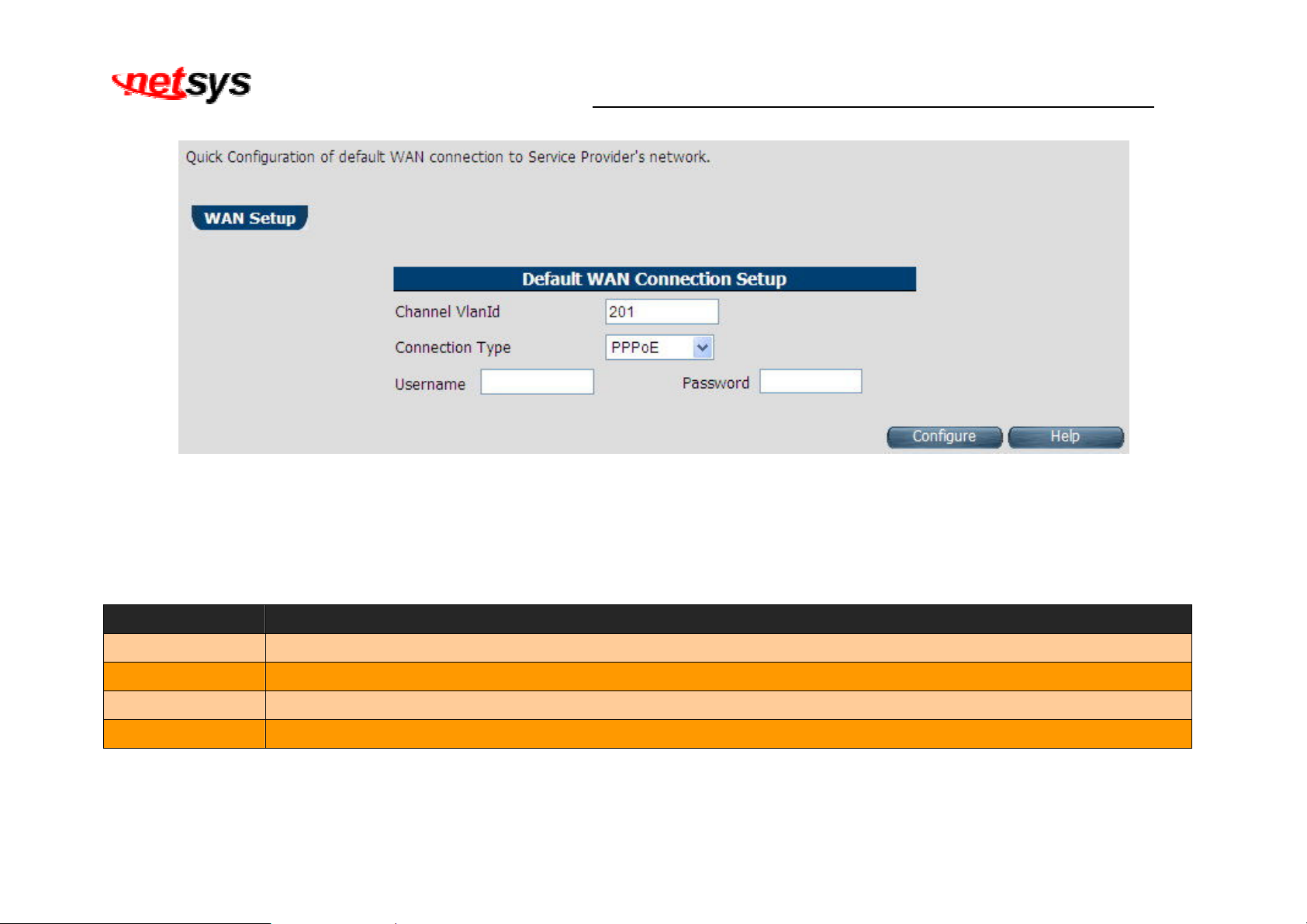

Figure 4.1.2.3 WAN setup PPPoE

Fields in WAN setup PPPoE

Field Description

Channel VlanId Specify VLAN ID.

Connection Type Specify the Connection Type from the dropdown.

Username Enter a valid Username.

Password Enter a valid Password.

Page 30

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

 Click Configure to configure the selected WAN connection setup.

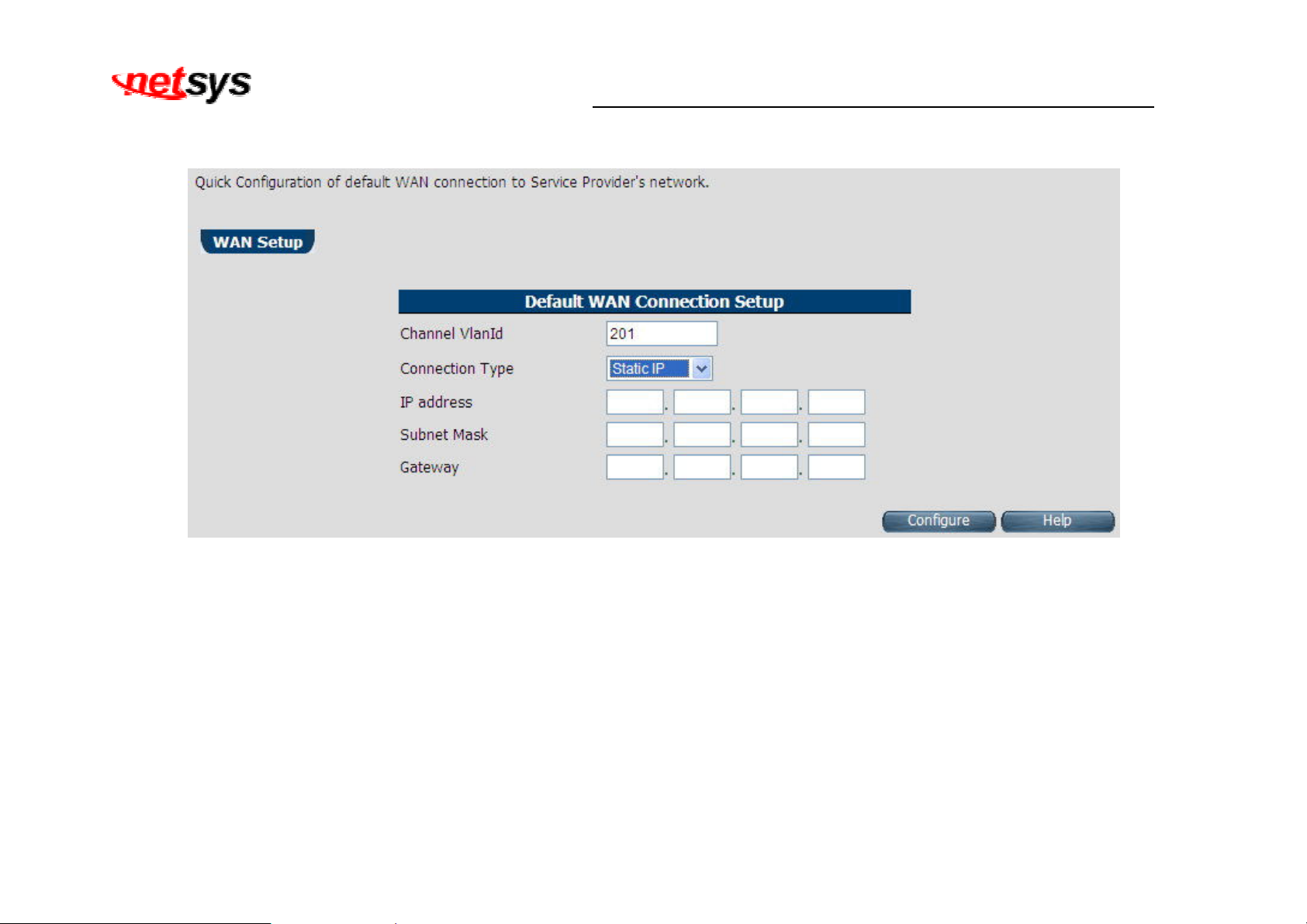

Figure 4.1.2.4 WAN setup Static IP

The screen contains the following details:

Page 31

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Fields in WAN setup Static IP

Field Description

Channel VlanId Specify VLAN ID.

Connection Type Specify the Connection Type from the dropdown.

IP Address Specify the IP Address of NV-600A CPE’s WAN link.

Subnet Mask Specify the Subnet Mask of NV-600A CPE’s WAN link.

Gateway Specify the Gateway address of the NV-600A CPE’s WAN.

 Click Configure to configure the selected WAN connection setup.

Note:

When WAN mode is other than ATM, the corresponding web pages will be available in WAN setup. Those web pages will not ask

user for fields like ATM VCC etc.

Page 32

4.2 Select the Menu Level

There is an easy Setup for end users at the setup of NV-600A with SYSTEM, Statistics, xDSL, WAN, LAN, Route,

FIREWALL, NAT, QoS , Multicast, Ipsec , IPv6, Diagonstics, Quick Setup, Home, Logout for more detail

configurations.

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Figure 4.2 Select the Menu Level (NV-600A)

Page 33

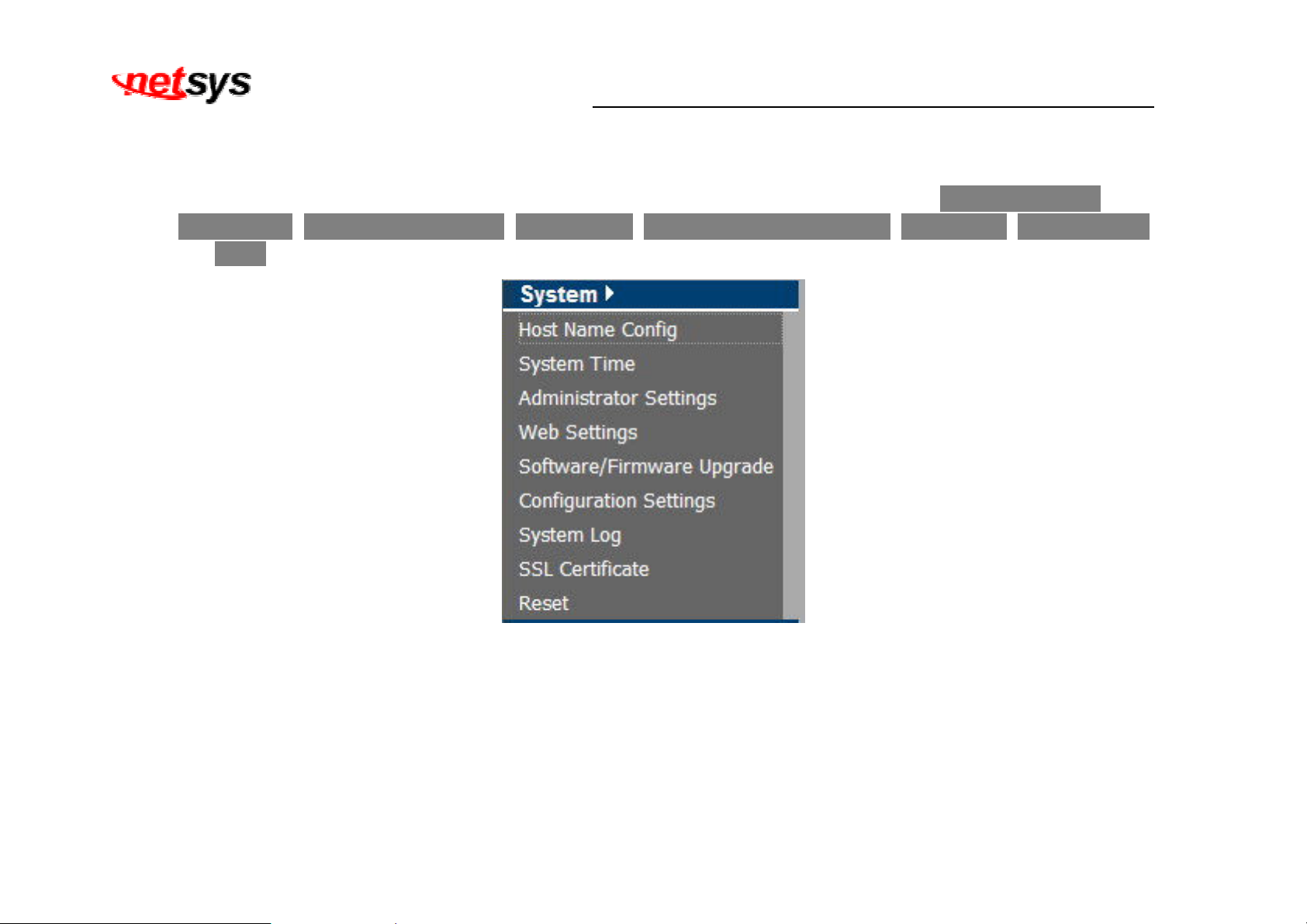

4.3 Select “SYSTEM”

Select the “SYSTEM”. The menu below will be used frequently. It includes the sub-menus of Host Name Config、

System Time、Administrator Settings、Web Settings、Software/Firmware Upgrade、System Log、SSL Certificate

and Reset. A screen is displayed as shown in Figure 4.3

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Figure 4.3 System Setup

Page 34

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

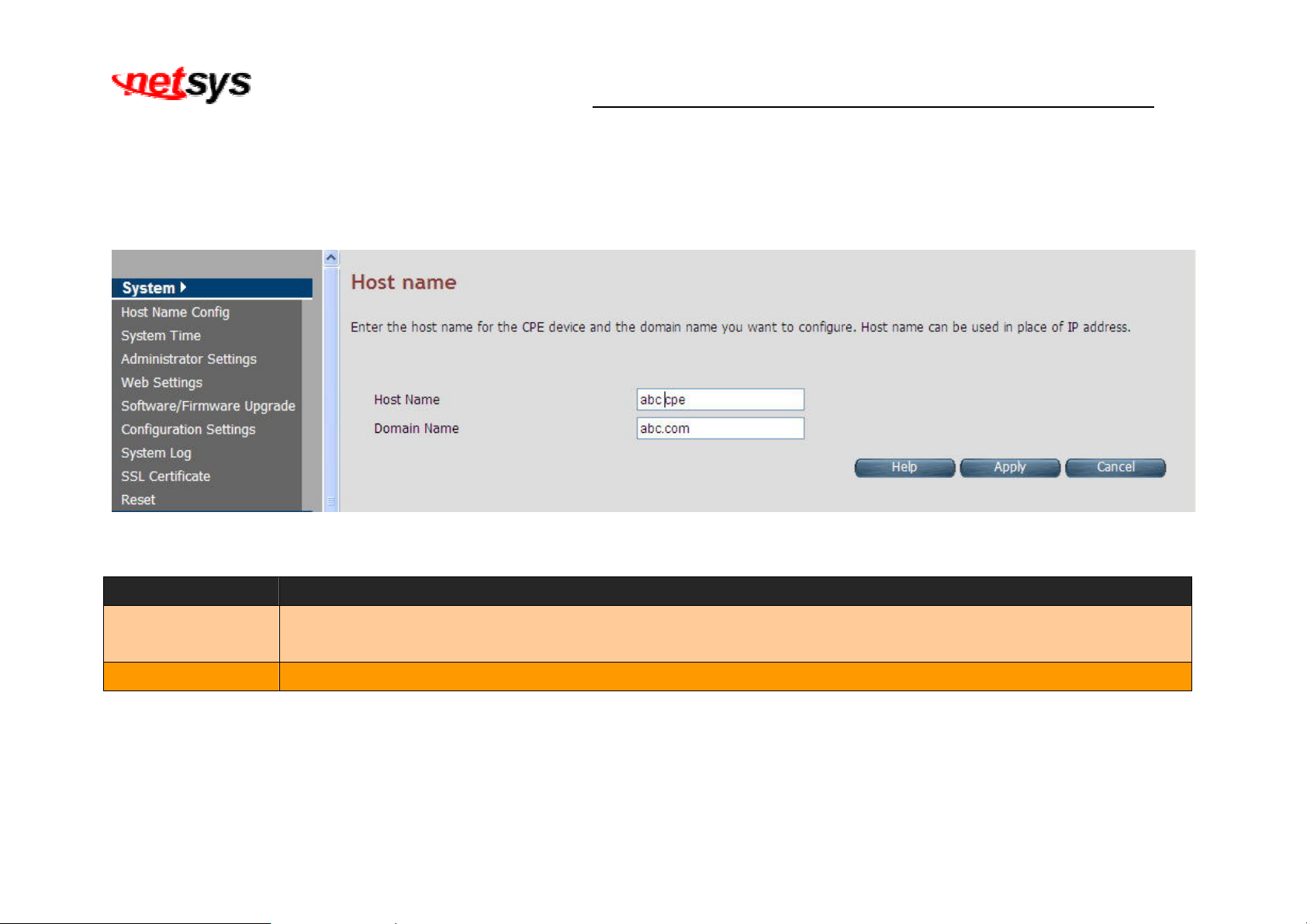

4.3.1 Host Name Config

To configure the host name of NV-600A, you have to enter host and domain name. Click the Host Name Config link (System > Host

Name Config) on the left navigation bar. A screen is displayed as shown in Figure 4.3.1.

Figure 4.3.1 Host Name Config

Fields in Host Name Config

Field Description

Enter the host name of the VDSL2 CPE. This is used to address VDSL2 CPE, by using this name instead of

Host Name

typing the IP address. Maximun Characters: 60.

Domain Name Enter the domain name of the VDSL2 CPE. Maximun Characters: 60.

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Page 35

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

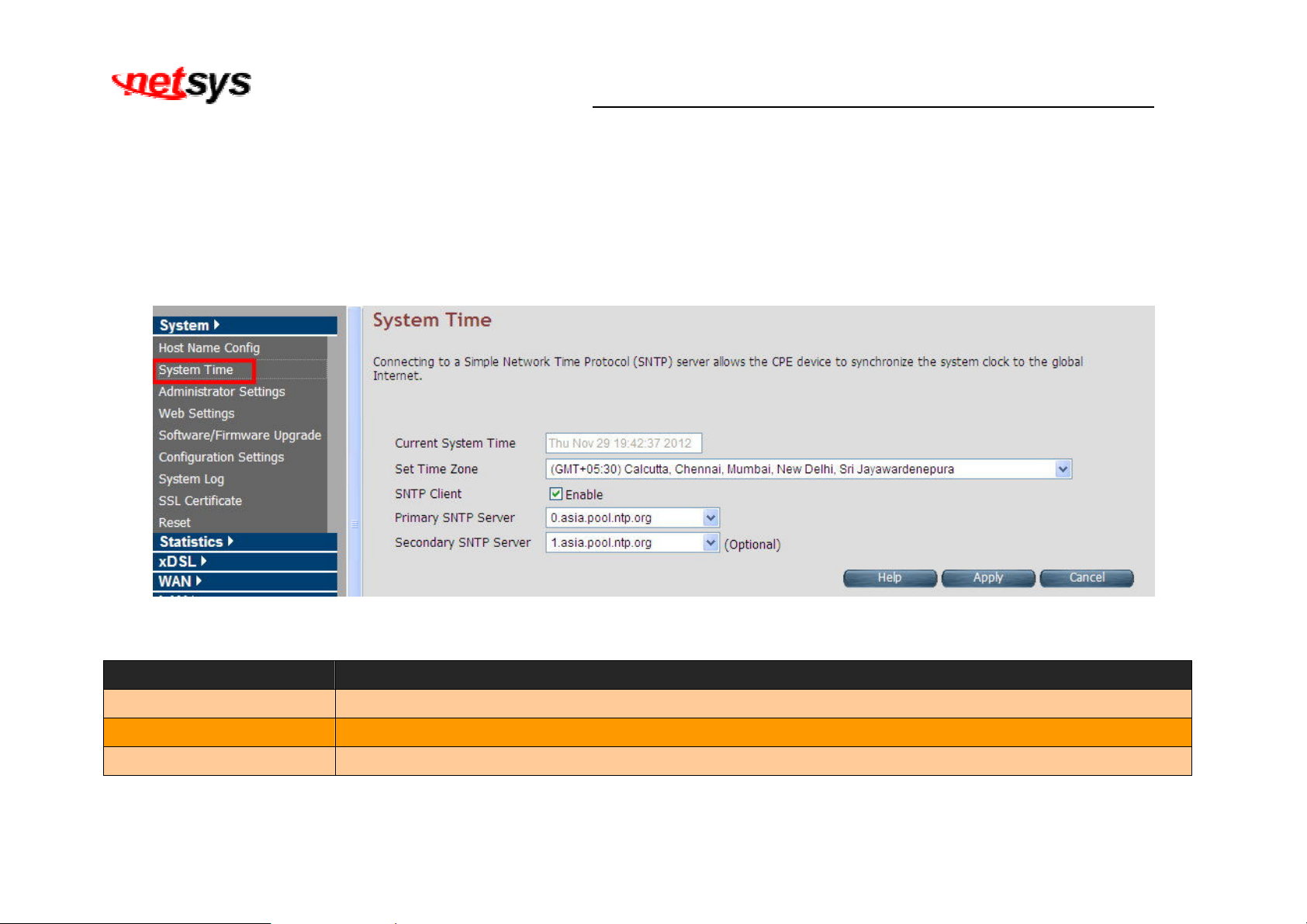

4.3.2 System Time

You can set System Time by connecting to a Simple Network Time Protocol (SNTP) server allows the Modem to synchronize the

system clock to the global Internet. The synchronized clock in the Modem is used to record the security log and control client filtering.

This page provides the time zone selection and NTP (Network Time Protocol) configuration. Click the System Time link (System >

System Time) on the left navigation bar and a screen is displayed as shown in Figure 4.3.2.

Figure 4.3.2 System Time Configuration

Fields in System Time

Field Description

Current System Time Current Time in System shown in Day, Date and Time of day.

Set Time Zone Select the time zone form the list of worldwide time zones in pull-down options.

SNTP Client Tick on Check box, if SNTP client has to be enabled.

Page 36

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Fields in System Time(Cont’d)

Field Description

Primary SNTP Server Main NTP Server to be selected form dropdown list.

Secondary SNTP Server Backup NTP Server (optional).

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Note:

Static Routing functionality is used to define the connected Gateway between the LAN and WAN. For example,

if we want to activate the Network Time Protocol (NTP) service, and we have to define the Gateway connected

to NTP server in the WAN. Please refer to “static routing” for your reference.

Page 37

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.3.3 Administrator Settings

To change the password for the administrator, click the Administrator Settings link (System > AdministratorSettings) in the left

navigation bar. A screen is displayed as shown in Figure 4.3.3. This page allows the user to change the login password.

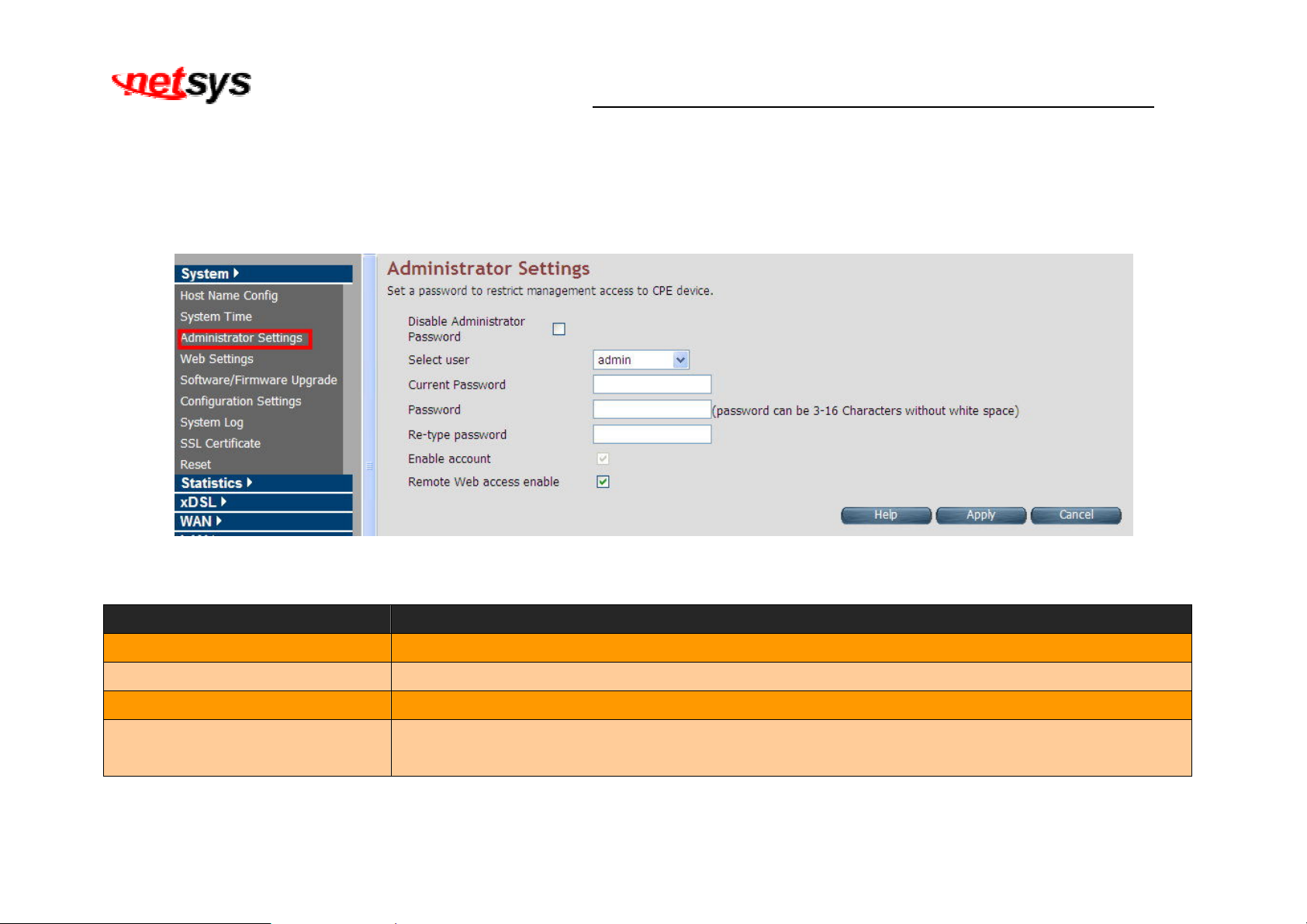

Figure 4.3.3 Administrator Settings

Fields in AdministratorSettings

Field Description

Disable Administrator Password Select this to disable the web prompts for user login password.

Select User

Select user type.The available options are Admin and support_user.

Current Password The user should specify the current login password.

The user should specify the new password desired. The password should be at least 3

Password

characters and not more than 16 characters in length without a white space.

Page 38

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Fields in AdministratorSettings (Cont’d)

Field Description

Re-type Password The user should re-type the new password entered in previous field.

Enable Account To enable the user account login.

Remote Web Access Enable To enable web access from WAN side.

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Page 39

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.3.4 Web Settings

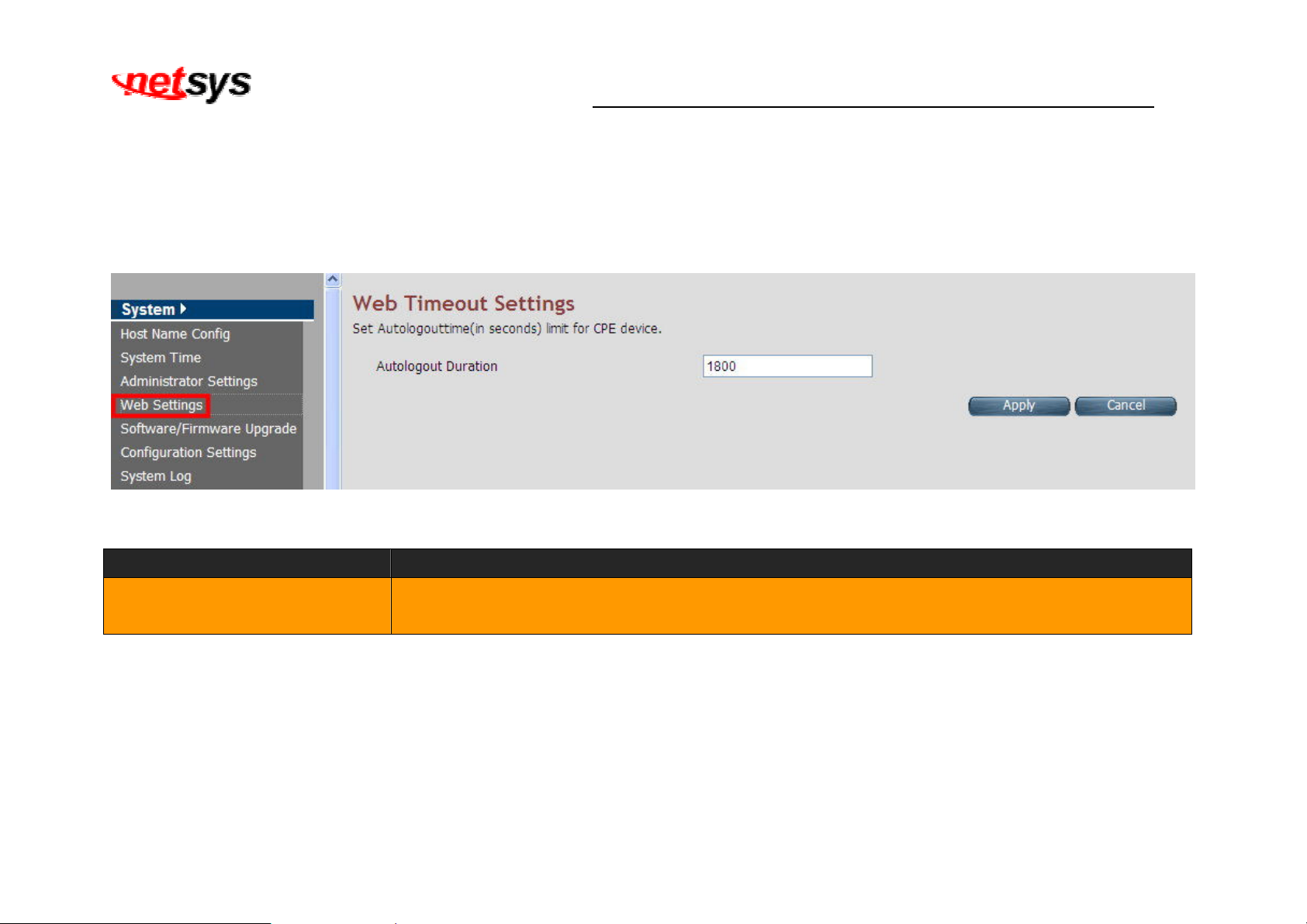

This page shows the details of Web login timeout settings for the CPE device in seconds. Click the Web Settings link (System >

Web Settings) on the left navigation bar and a screen is displayed as shown in Figure 4.3.4

Figure 4.3.4 Web Settings

Fields in Web Settings

Field Description

This is logout duration after which the web session is automatically log-out. The unit is in

Autologout Duration

seconds.

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Page 40

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.3.5 Software/Firmware Upgrade

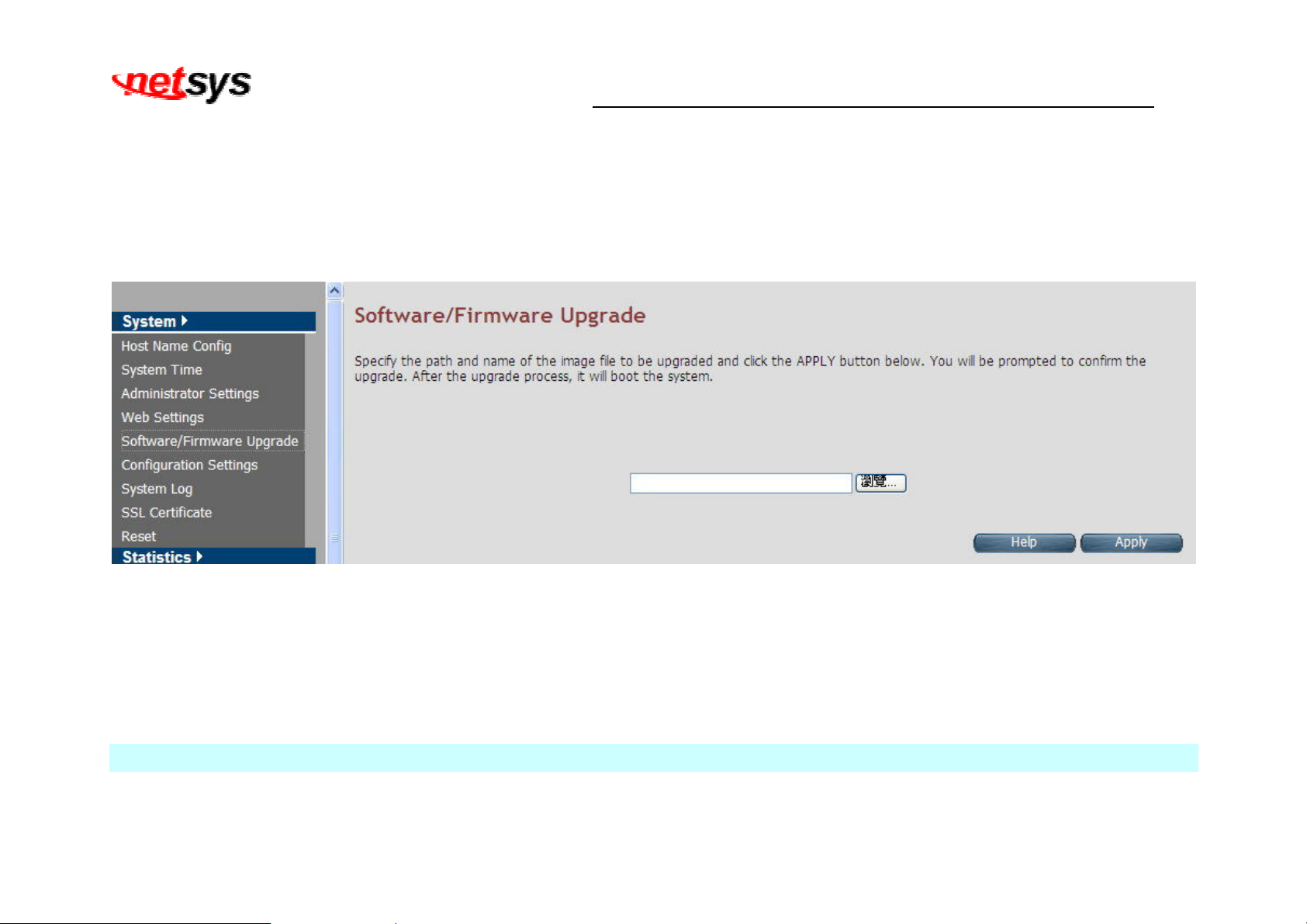

To update the system firmware, click the Software/Firmware Upgrade link (System > Software/Firmware Upgrade) on the

left navigation bar. A screen displays the current version of NV-600A Software running on the device as shown in Figure 4.3.5

Figure 4.3.5 Software/Firmware Upgrade

 Click Browse to specify the software image file from host, to be upgraded in system.  Click Apply to start the software upgrade process.

Note:

You can click Home on the left navigation bar to view the current software version.

Page 41

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.3.6 Configuration Settings

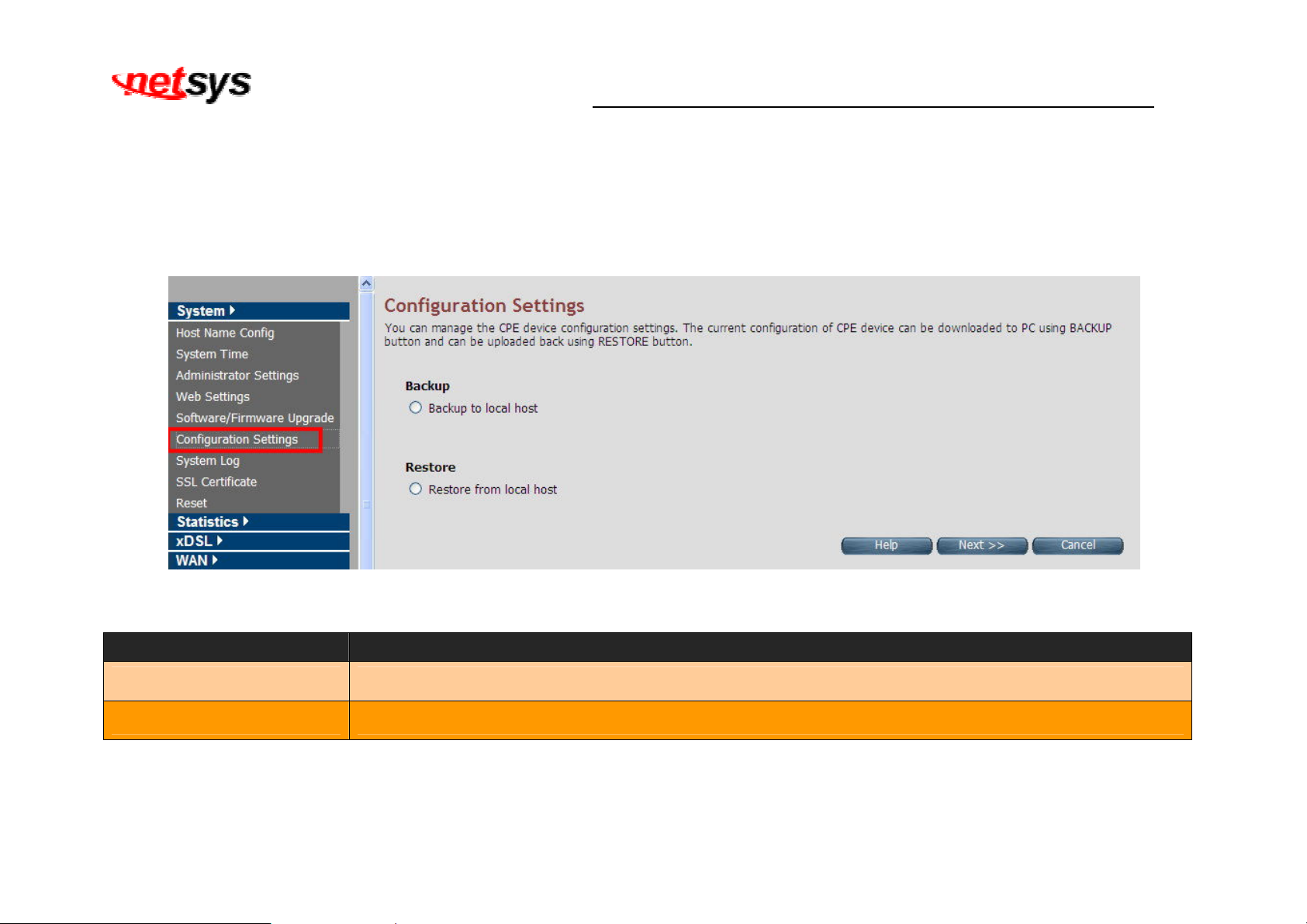

To manage the configuration of the system, click the Configuration Settings link (System > Configuration Settings) on the

left navigation bar. This page allows users to backup the current configuration of CPE to host PC or restore the previously

backed-up configuration in host PC to CPE as displayed in Figure 4.3.6

Figure 4.3.6 Configuration Settings

Fields in Configuration Settings

Field Description

Backup to local host This will backup the current active configuration of CPE in Host machine.

Restore from local host This will load the user supplied configuration to CPE from Host machine.

 Click Next to start the firmware upgrade process.  Click Cancel to exit from this page without saving the changes.

Page 42

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

 Backup Current Active Configuration

As mentioned before this option allows user to backup the current active configuration running in router system. This is very helpful,

when a user wants to backup the current working configuration of router for rollbacks, if required in future. It is recommended that

before any complex nature of configuration is done by user the current active configuration should be backed up in host machine.

The Local Host Configuration backup are shown in Figure 4.3.6.1

Figure 4.3.6.1 Configuration Backup

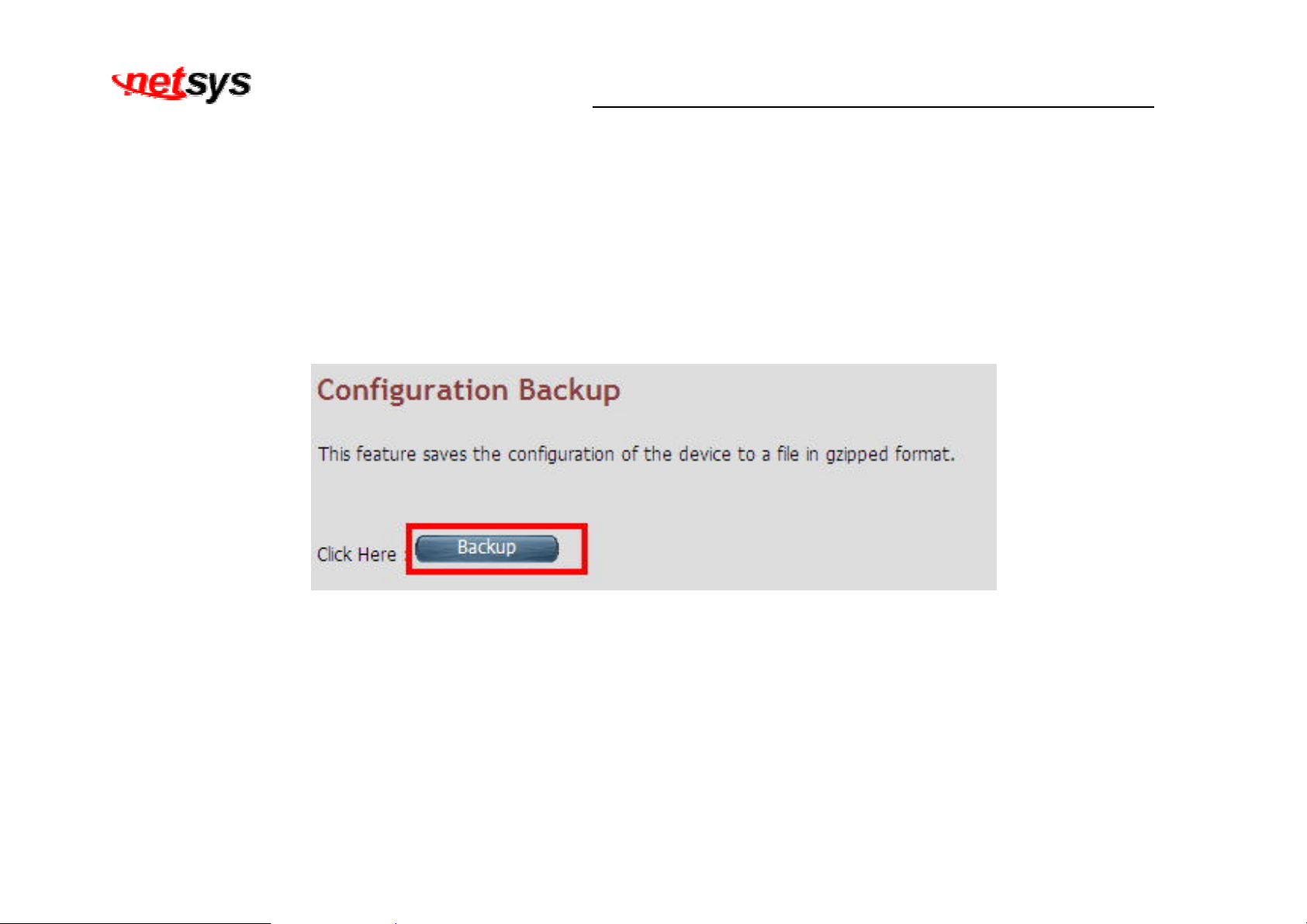

When you click Backup button as shown in Figure 4.3.6.1, it will backup the config settings of CPE in connected PC from where

Web UI is being accessed.

Page 43

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

 Restore Previous Backed-up Configuration

As mentioned before this option allows user to restore the earlier backed up configuration in router system. This operation is handy

for restoring the system to last backed-up configuration mode. The Local Host Configuration restore are shown in Figure 4.3.6.2. The

system will go for reboot after configuration is restored. When CPE boots up it will be running with newly applied configuration.

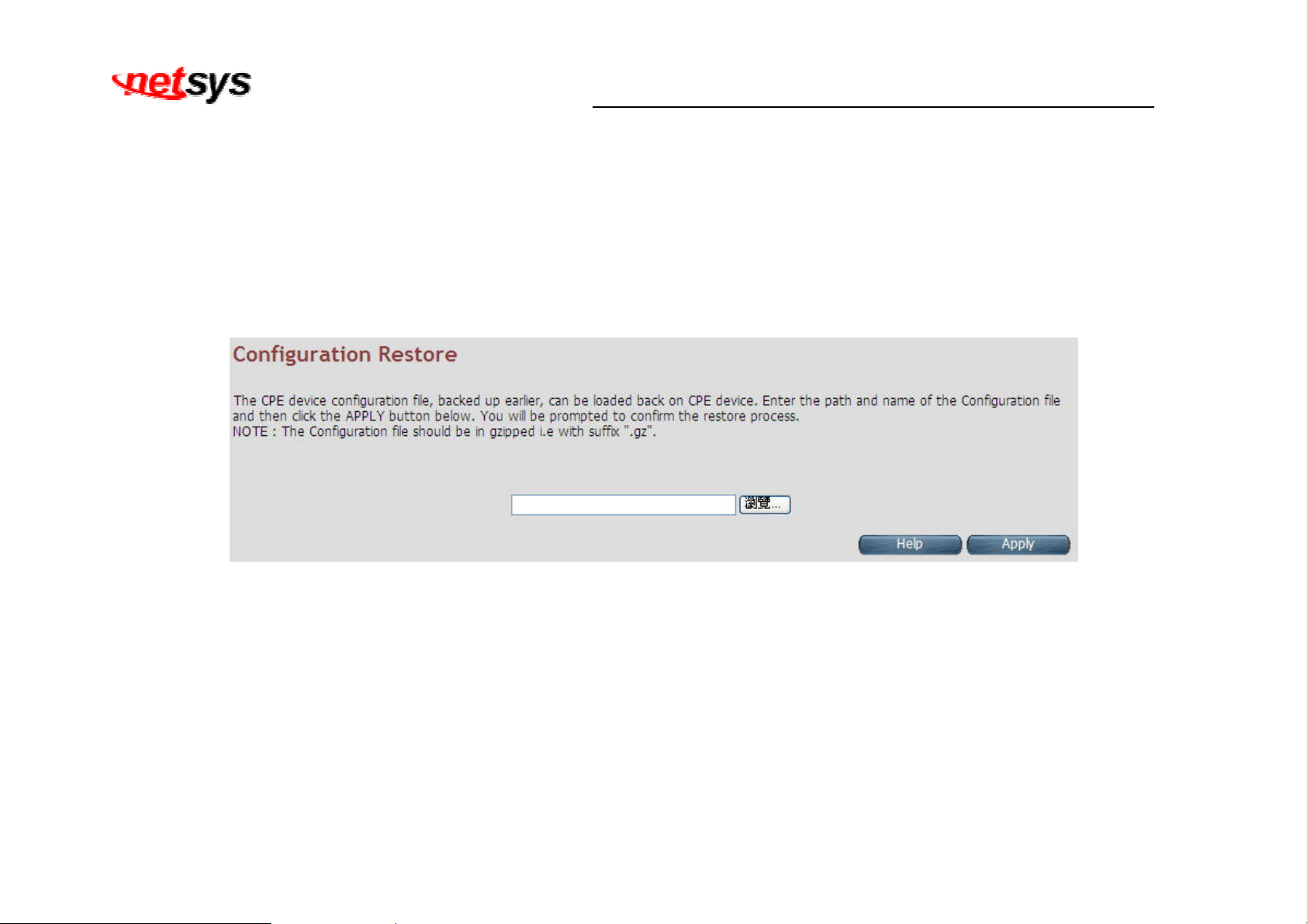

Figure 4.3.6.2 Configuration Restore

 Click Apply button to restore the config settings.

Page 44

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.3.7 System Log

To view the logs produced in system, click the System Log link (System > System Log) on the left navigation bar. A screen is

displayed as shown in Figure 4.3.7

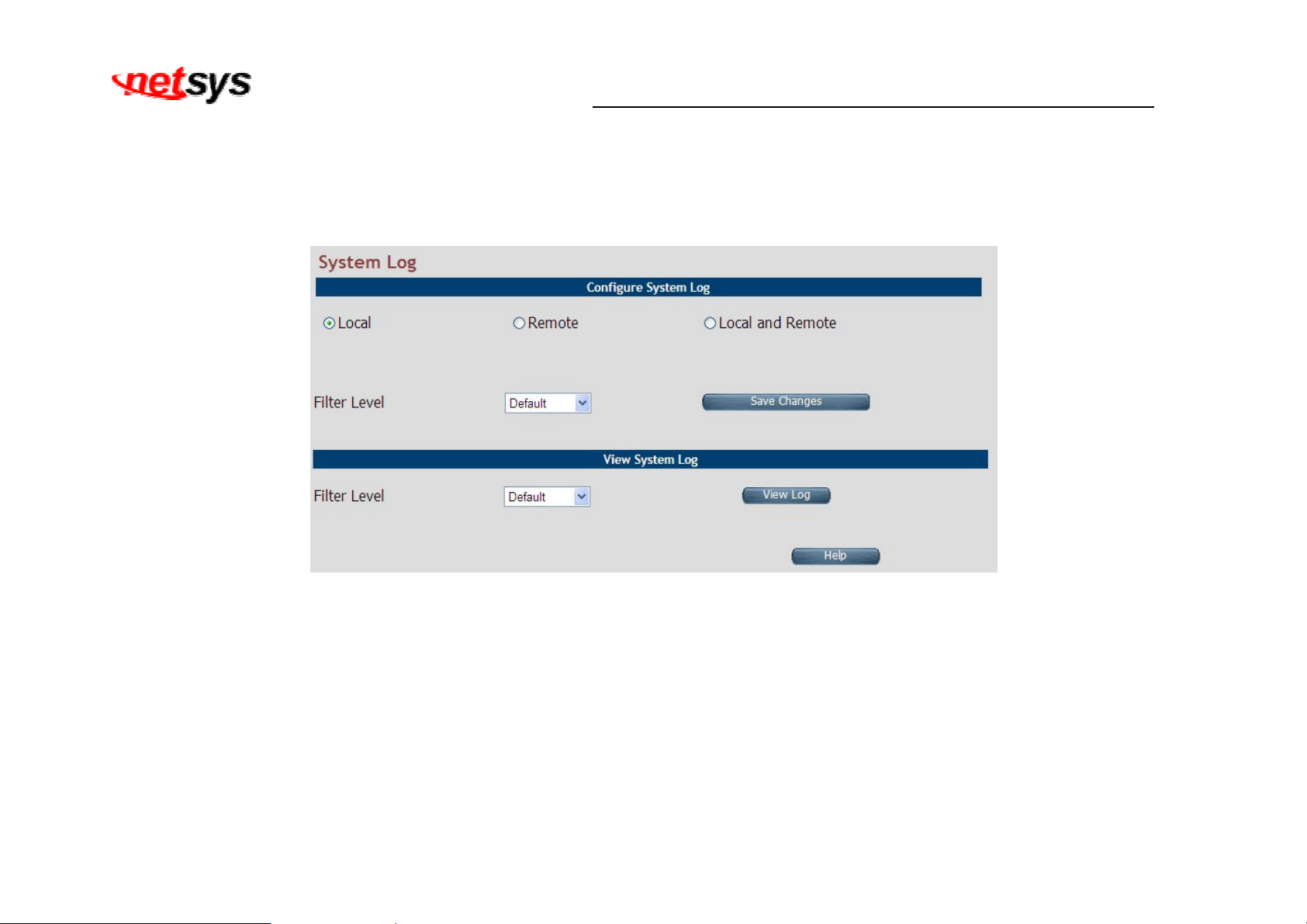

Figure 4.3.7 System Log

This page allows to manage logging options in CPE device.

 If "Local" is selected, the events are logged locally in the system.  If "Remote" is selected, the messages are logged to a remote server.  If "Local and Remote" option is selected, messages are logged locally in the system as well as to the remote server.

The events pertaining to the priority equal to or higher to the selected level will be logged. "Default" level logs all events.

For viewing system log, the events corresponding to the priority level equal to or higher than the selected level will be displayed here.

Page 45

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details: Fields in System Log

Field Description

Select the mode of log. The possible options are:

Configure System Log

 Local Mode: The log text is displayed in web browser itself.  Remote Mode: Specify the IP address and UDP port number for log transfer using syslog.  Local and Remote Mode: This supports both options mentioned above.

The user can apply one of the following filters to record logging above the specified level. Click on <SAVE CHANGES> button for applying the log level selection.

 Default: The default pre-selected levels of logs are recorded.  Debug: Debug and above levels of logs are recorded.  Info:: Informative and above level of logs are recorded.

Filter Level

 Notice: Notice type and above level of logs are recorded.  Warning: Warning type and above levels of logs are recorded.  Error: Error type and above levels of logs are recorded.  Critical: Critical type and above levels of logs are recorded.  Alert: Alert type and above level of logs are recorded.  Emerg: Emergency type of log information is recorded.

The user can apply one of the following filters to view specific logs of certain level:

 Default: The default pre-selected levels of logs are viewed.  Debug: Debug and above levels of logs are viewed.  Info: Informative and above level of logs are viewed.

View System Log

 Notice: Notice type and above level of logs are viewed.  Warning: Warning type and above levels of logs are viewed.  Error: Error type and above levels of logs are viewed.  Critical: Critical type and above levels of logs are viewed.  Alert: Alert type and above level of logs are viewed.  Emerg: Emergency type of log information is viewed.

 Click Save Changes to configure the system log settings.  Click View Log to fetch the logs in browser.

Page 46

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

When you click View log button, a screen is displayed as shown in Figure 4.3.7.1. This screen is an example of system log of default

level as shown in the browser.

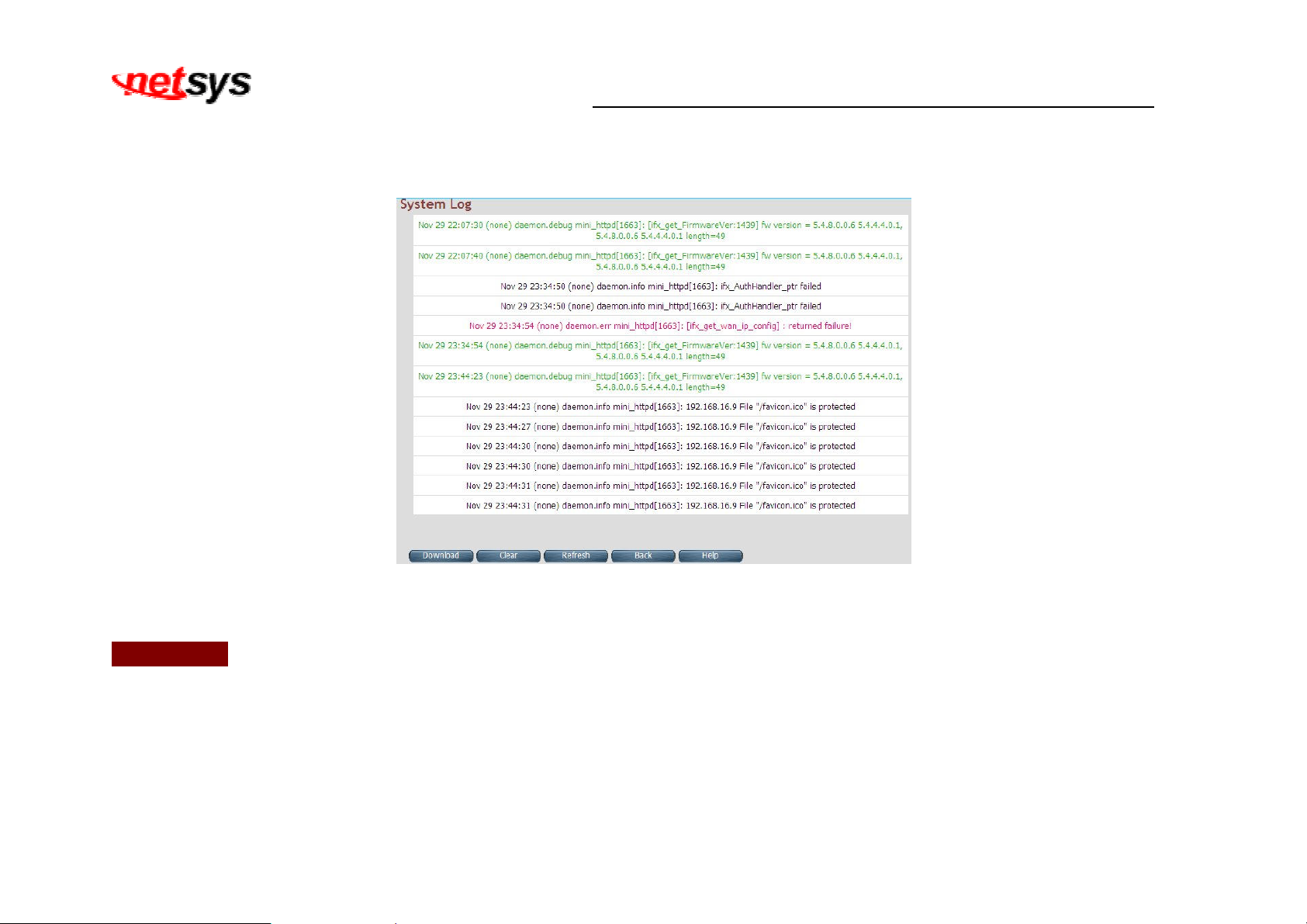

Figure 4.3.7.1 View System Log

For the ease of readability, the log messages of different levels are using different colors.

For example: all the debug messages are shown in green colored text.

 Click Download to save the file in Host Computer.  Click Clear to clear the log from the system.  Click Refresh to get the recent log.  Click Back to go back to System Log page.

Page 47

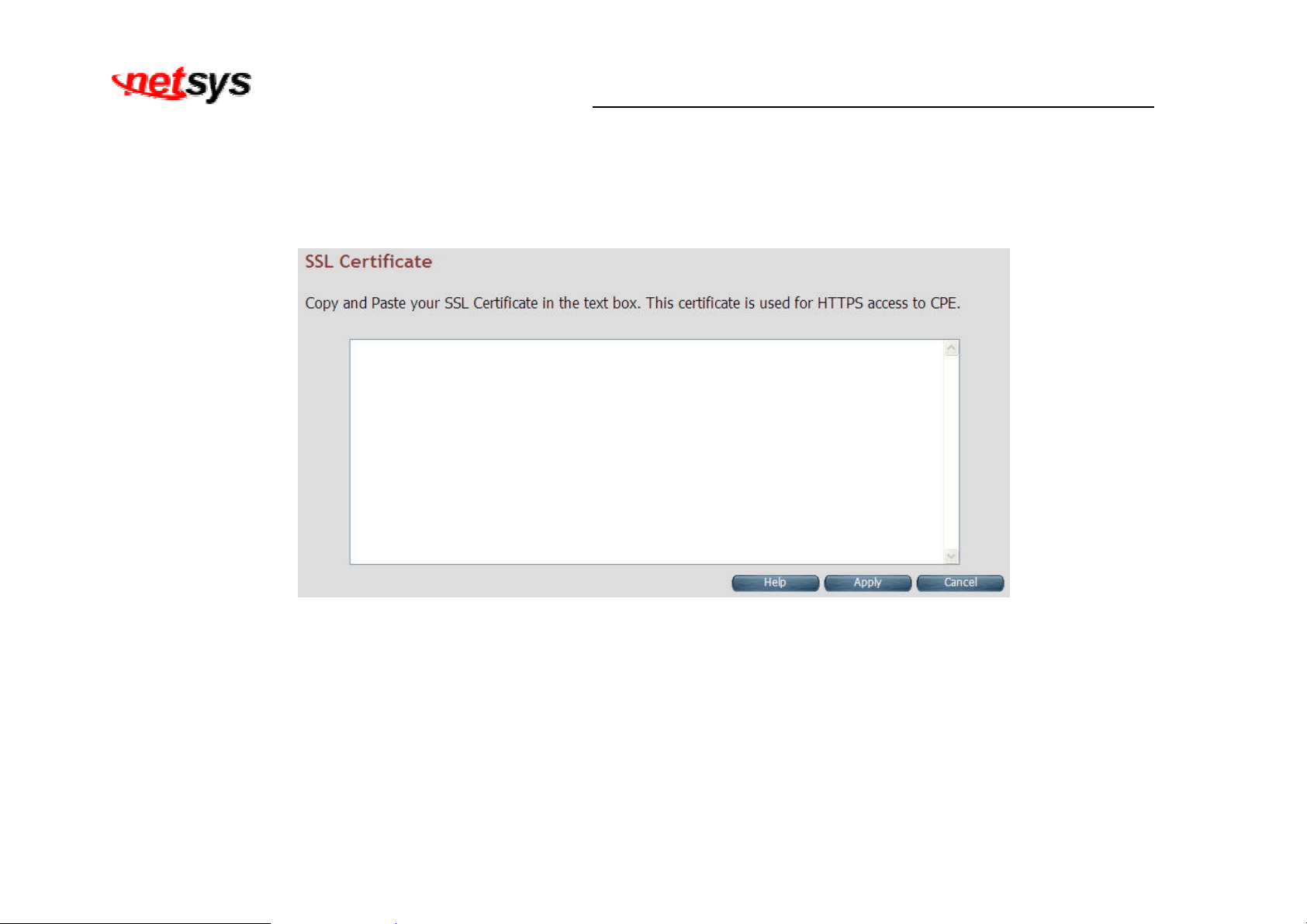

4.3.8 SSL Certificate

To install a SSL Certificate for SSL tunnel, click the SSL Certificate link (System > SSL Certificate) on the left navigation bar. A

screen is displayed as shown in Figure 4.3.8

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Figure 4.3.8 SSL Certificate

 Click Apply to install the entered certificate.  Click Cancel for cancel the installation of entered certificate.

Page 48

4.3.9 Reset

To reboot the system, click Reset link (System > Reset) on the left navigation bar. A screen is displayed as shown in Figure 4.3.9

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Figure 4.3.9 Reset

 Click Reset to reboot the system. This does not change the configurations existing in system.  Click Factory Reset to reset the device configuration to factory defaults configuration. This operation will result in saving the

current configuration and reverted back to factory shipped configuration.

When Reset or Factory Reset is clicked, a confirmation message is displayed as shown in Figure 4.3.9.1

Figure 4.3.9.1 Reset Confirmation Message

 Click Ok to perform the operation on CPE.  Click cancel to exit from this page.

Page 49

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.4 Select “Statistics”

Select the “Statistics” link on left navigation menu. The menu below includes the sub-menus of LAN and WAN. A screen is displayed

as shown in Figure 4.4.

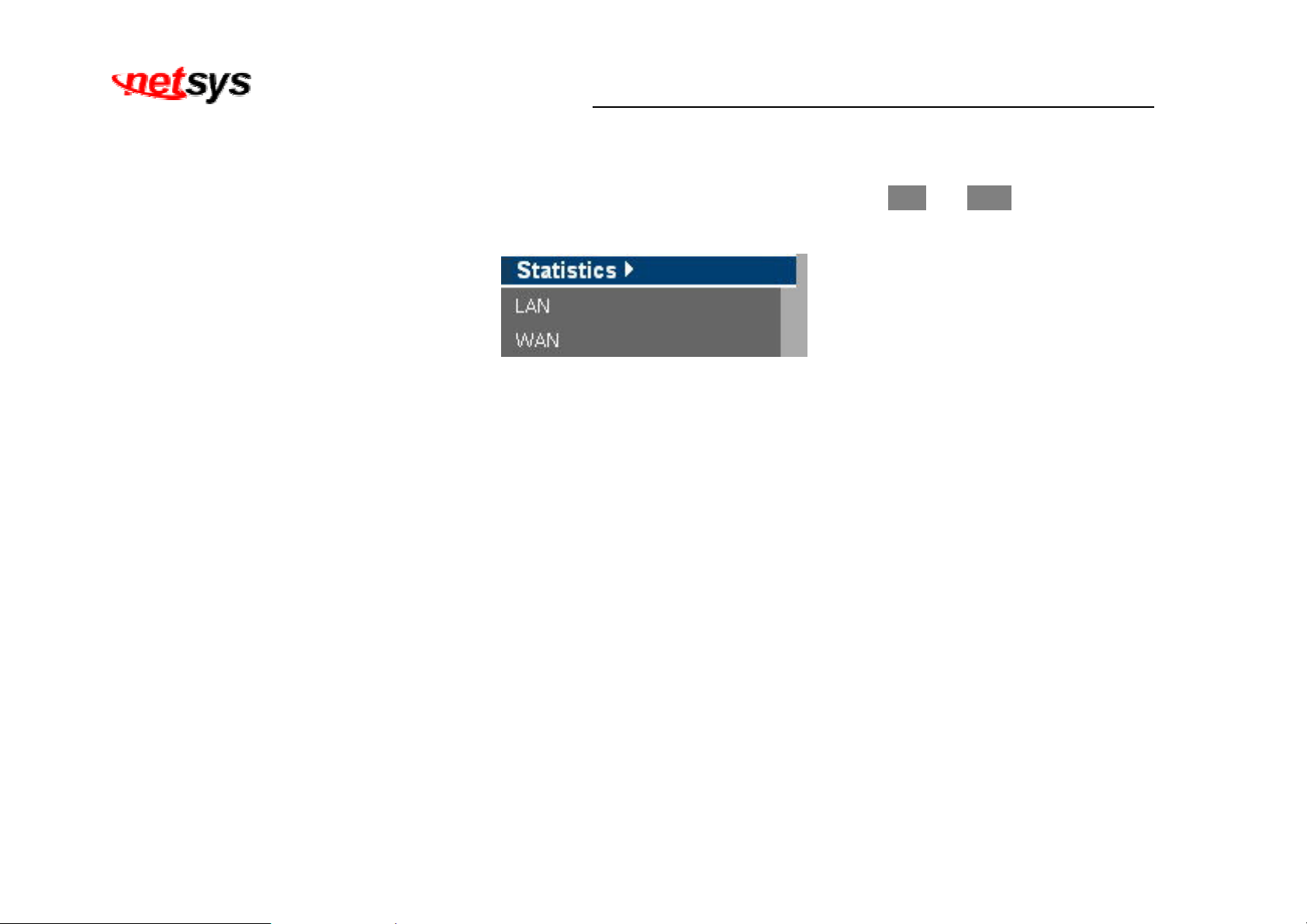

Figure 4.4 Statistics in the left navigator bar

Page 50

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.4.1 LAN

To get the LAN Statistics, click the LAN link (Statistics > LAN) on the left navigation bar. A screen is displayed as shown in Figure

4.4.1

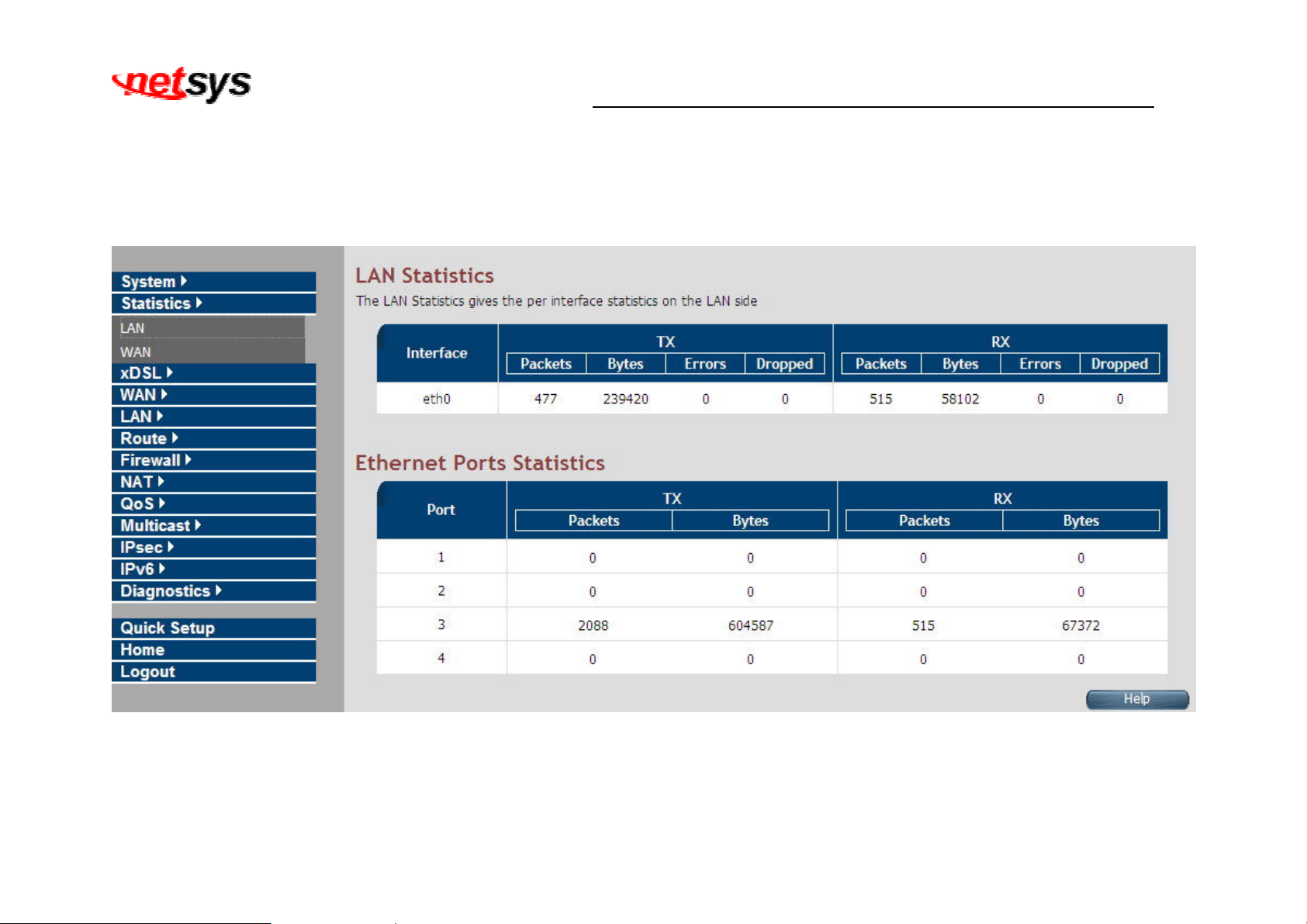

Figure 4.4.1 LAN Statistics

Page 51

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in LAN Statistics:

Field Description

Interface Name of LAN Interface (e.g. eth0, usb0 etc.)

Transmit Counters:  Total packets transmitted from this interface.

 Total bytes transmitted form this interface.  Total Error packets on this interface.  Total Dropped packets on this interface.

Receive Counters:

 Total packets received from this interface.  Total bytes received form this interface.  Total Errorneous packets on this interface.  Total Dropped packets on this interface.

Page 52

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

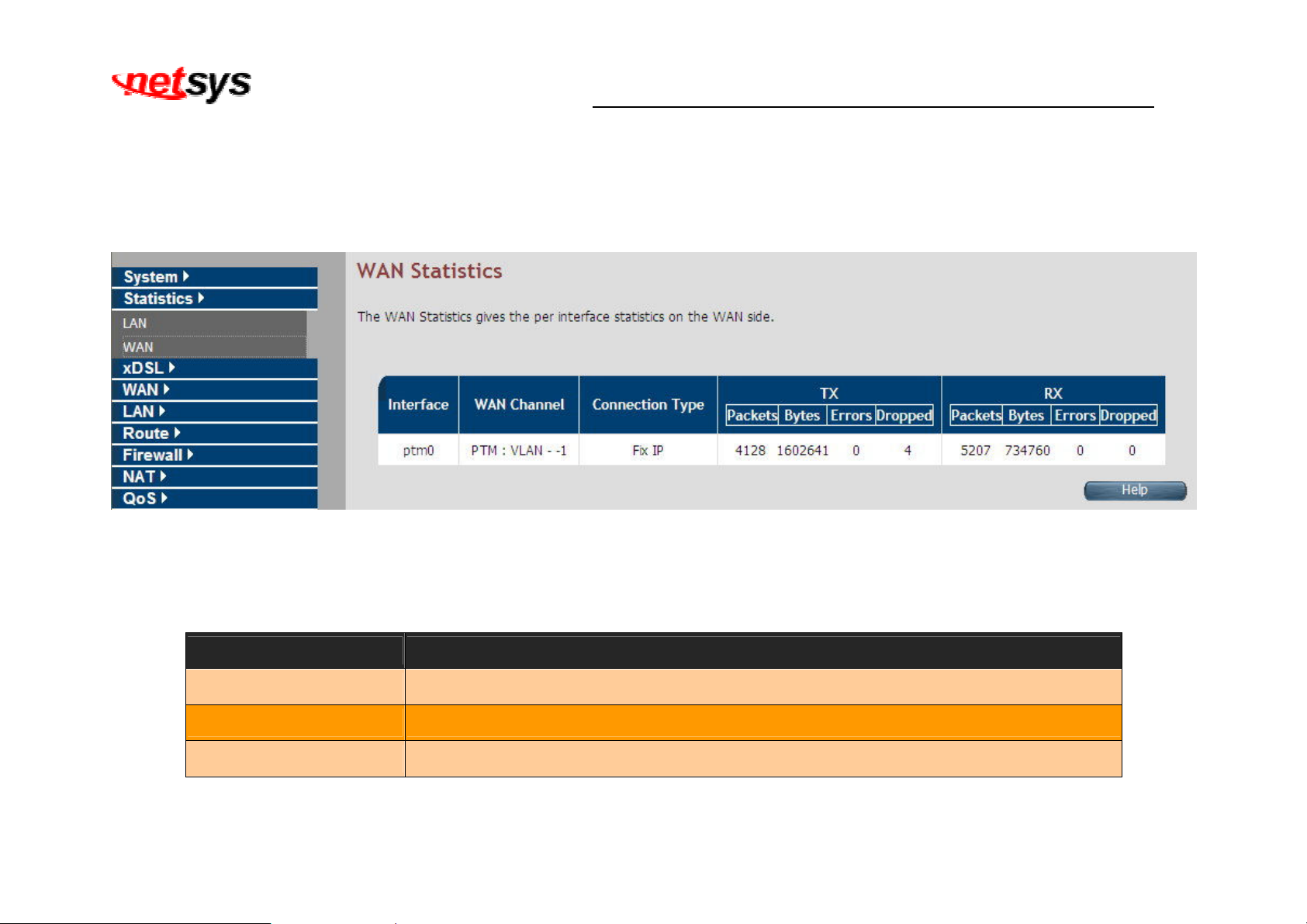

4.4.2 WAN

To get WAN Statistics, click the WAN link (Statistics > WAN) on the left navigation bar. A screen is displayed as shown in Figure

4.4.2

Figure 4.4.2 WAN Statistics

The screen contains the following details:

Fields in WAN Statistics:

Field Description

Interface

Name of WAN Interface.

WAN Channel Information about WAN Channel such as VCC or WAN-ethernet channel.

Connection Type

Type of WAN Connection.

Page 53

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Fields in WAN Statistics (cont’d):

Field Description

Transmit Counters for WAN interface:  Total packets transmitted from this interface.

 Total bytes transmitted form this interface.  Total Errorneous packets transmitted on this interface.  Total Dropped packets transmitted on this interface.

Receive Counters for WAN interface:  Total packets received from this interface.

 Total bytes received form this interface.  Total Errorneous packets received on this interface.  Total Dropped packets on this interface.

Page 54

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.5 Select “xDSL”

You can view the xDSL link on the left navigation bar of the CPE Home page. This web page is available only on DSL

platforms. Select the “xDSL”. The menu below includes the sub-menus of xDSL Status. A screen is displayed as shown in

Figure 4.5.

Figure 4.5 Select xDSL

Note:

These options help to monitor and configure the DSL physical parameters in the device.

Page 55

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

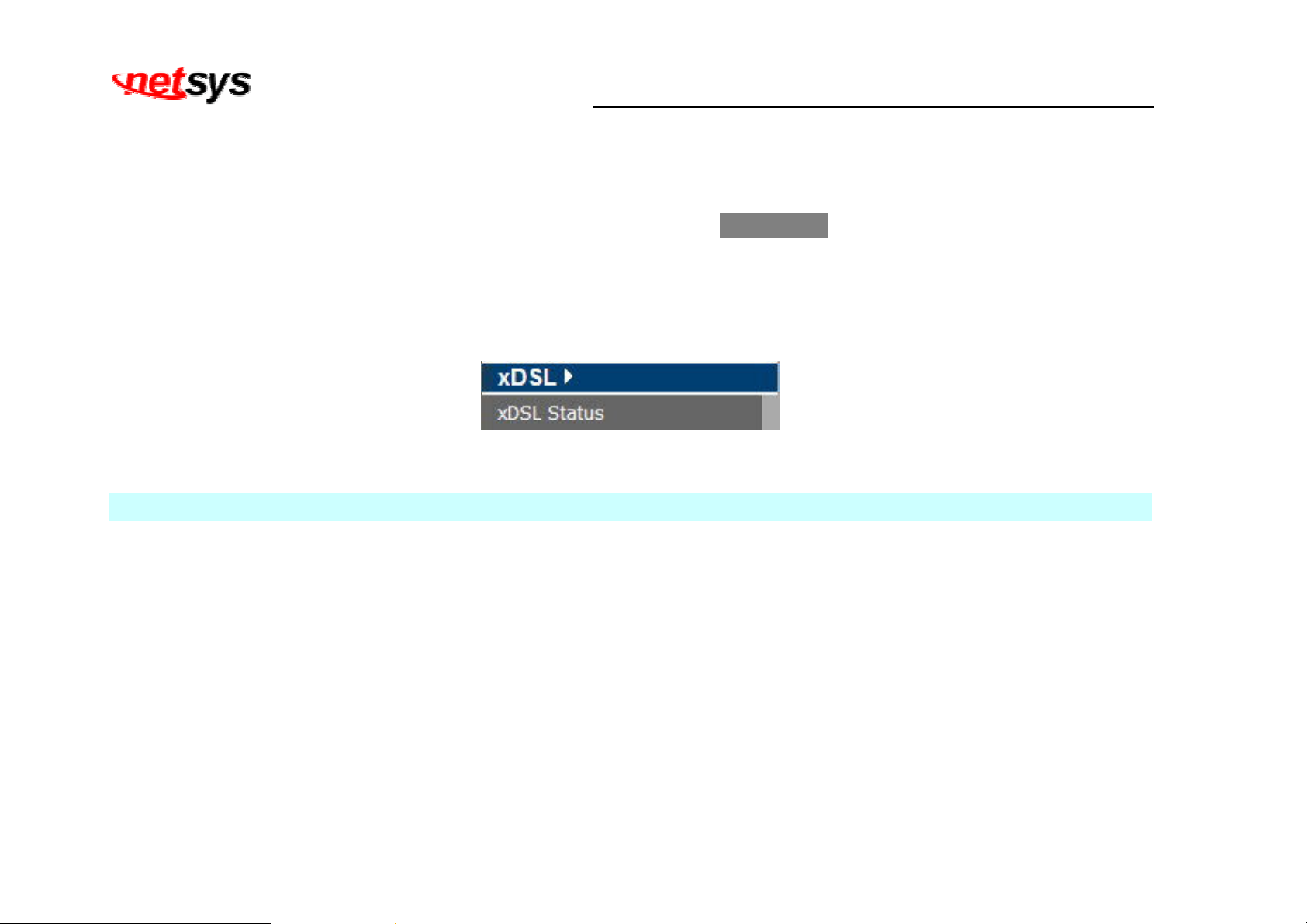

4.5.1 xDSL Status

To view the xDSL Status, click the xDSL Status link (xDSL > xDSL Status) on the left navigation bar. A screen is displayed as

shown in Figure 4.5.1

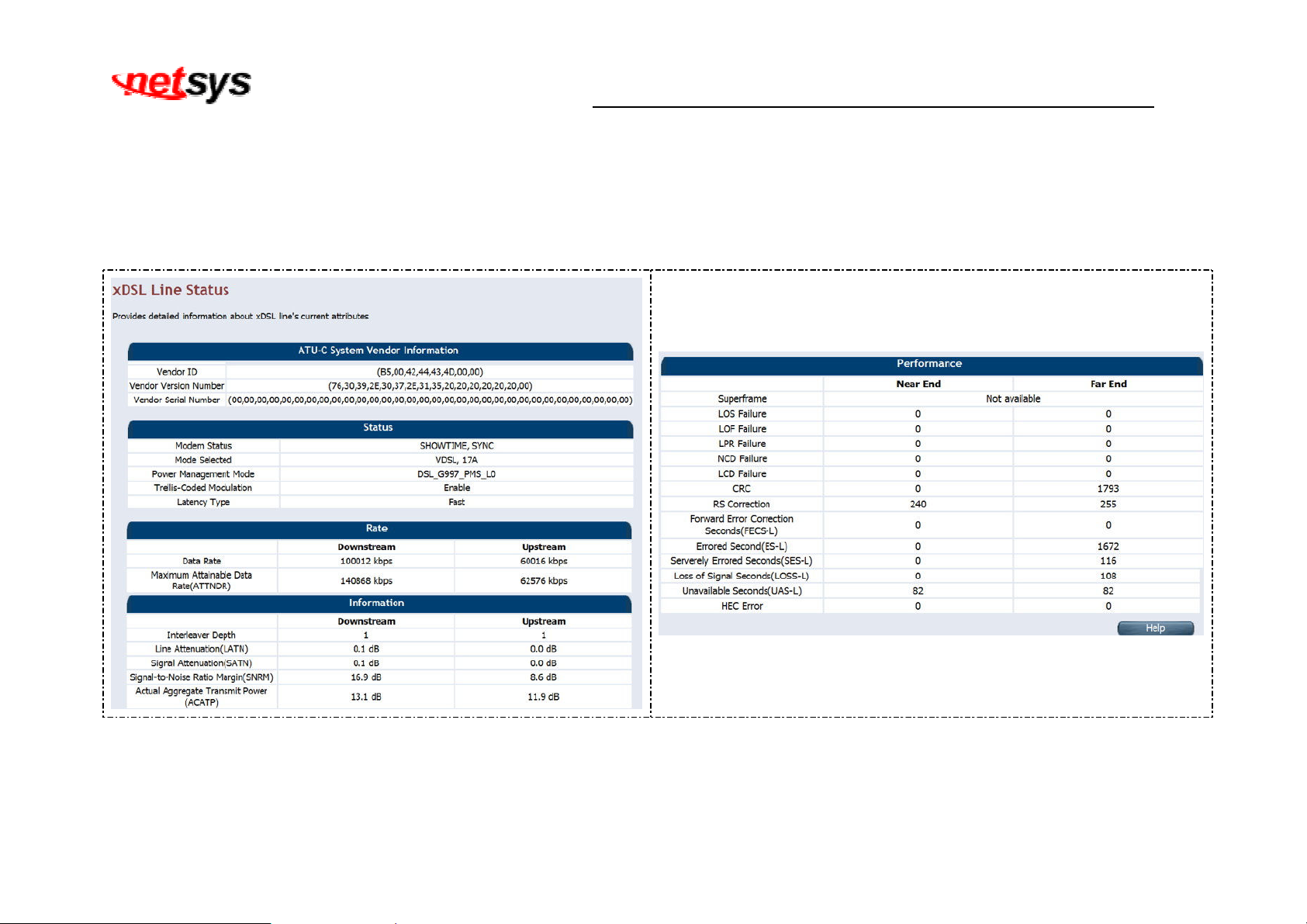

Figure 4.5.1 xDSL Status

Page 56

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in xDSL Status:

Field Description

ATU-C System Vendor Information

Displays the Vendor ID, Version Number and the Serial Number of the

ATU-C (DSLAM).

Displays the status of the physical xDSL Line in terms of the modem,

Status

mode selected, Trellis-Coded Modulation and the Latency Type

Rate Displays the data rate and the maximum attainable data rate

Displays the information about the xDSL line, in terms of Line

Information

Attenuation, Signal Attenuation, Signal to Noise Ratio and other such

parameters

Performance Displays the performance figures of the physical xDSL line

Page 57

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.5.2 Vectoring Mode selection

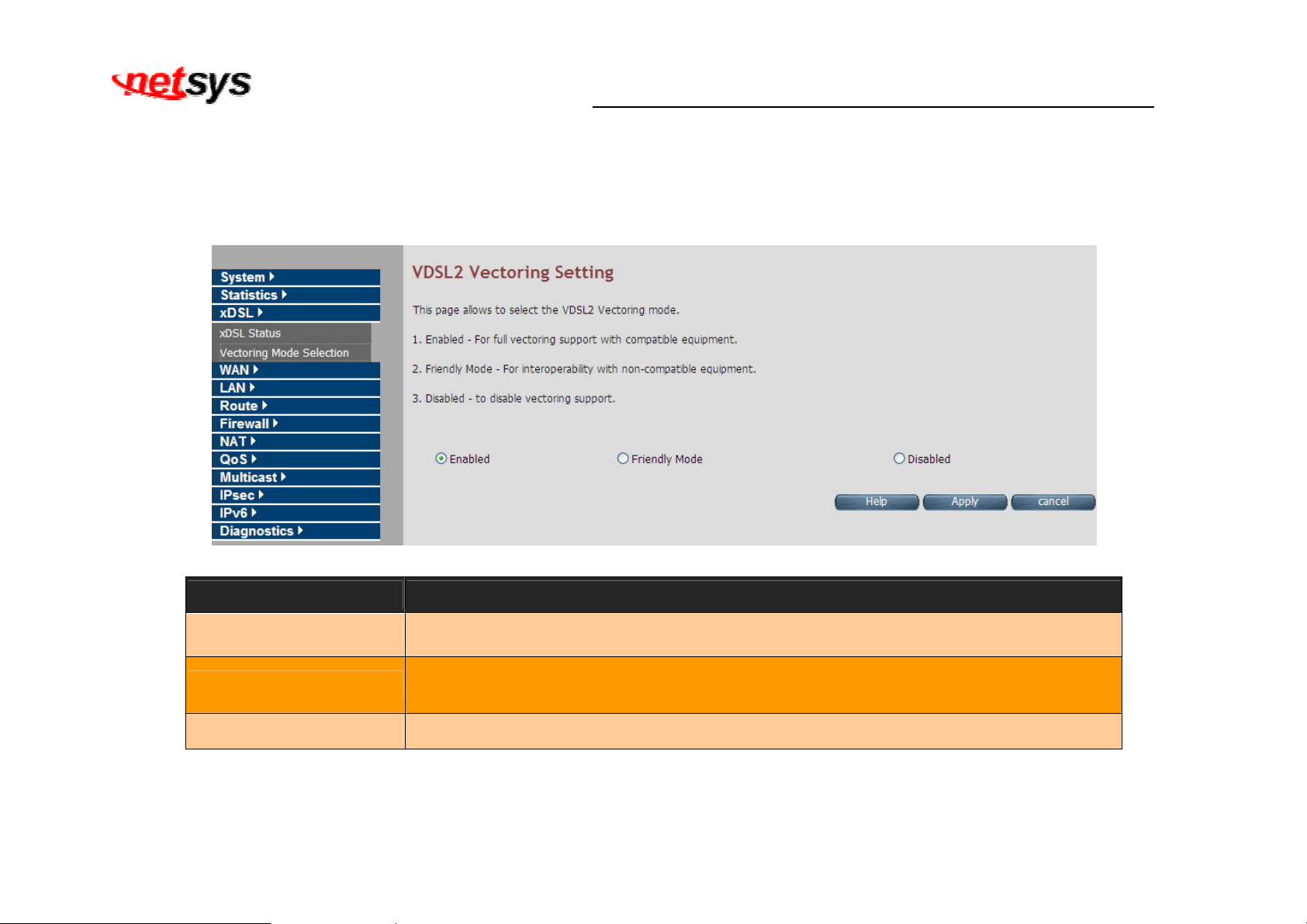

For viewing the vectoring mode, click the Vectoring Mode Selection link (xDSL > Vectoring Mode Selection) on the left navigation

bar. A screen is displayed as shown in Figure 4.5.2

Fields in Vectoring Mode Selection

Field Description

Enabled

Enable VDSL2 Full Vectoring mode (Default setting), it will auto follow the CO side vectoring configuration.

Enable VDSL2 Vectoring-Friendly mode, it will auto follow the CO side vectoring

Friendly Mode

configuration.

Disabled Disable VDSL2 Vectoring feature.

Page 58

Notes:

1. NV-600A vdsl2 vectoring technology default setting is enabled.

2. Vectoring technology is mainly used in intensive line equipment, such as 24-Port VDSL2 IP DSLAM.

3. If user would like to use NV-600A vectoring technology, NV-600A and IP DSLAM both need support vectoring technology

features and need both enabled. The NV-600A will auto follow the IP DSLAM vectoring technology configuration.

4. Vectoring technology does not support point to point applications.

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

About vectoring function(Reference only):

Vectoring is a transmission method that employs the coordination of line signals for reduction of crosstalk levels and improvement of

performance. It is based on the concept of noise cancellation, much like noise-cancelling headphones. The ITU-T G.993.5 standard,

"Self-FEXT cancellation (vectoring) for use with VDSL2 transceivers" (2010), also known as G.vector, describes vectoring for VDSL2.

The scope of Recommendation ITU-T G.993.5 is specifically limited to the self-FEXT (far-end crosstalk) cancellation in the

downstream and upstream directions. The far end crosstalk (FEXT) generated by a group of near-end transceivers and interfering

with the far-end transceivers of that same group is cancelled. This cancellation takes place between VDSL2 transceivers, not

necessarily of the same profile.

Page 59

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6 Select “WAN”

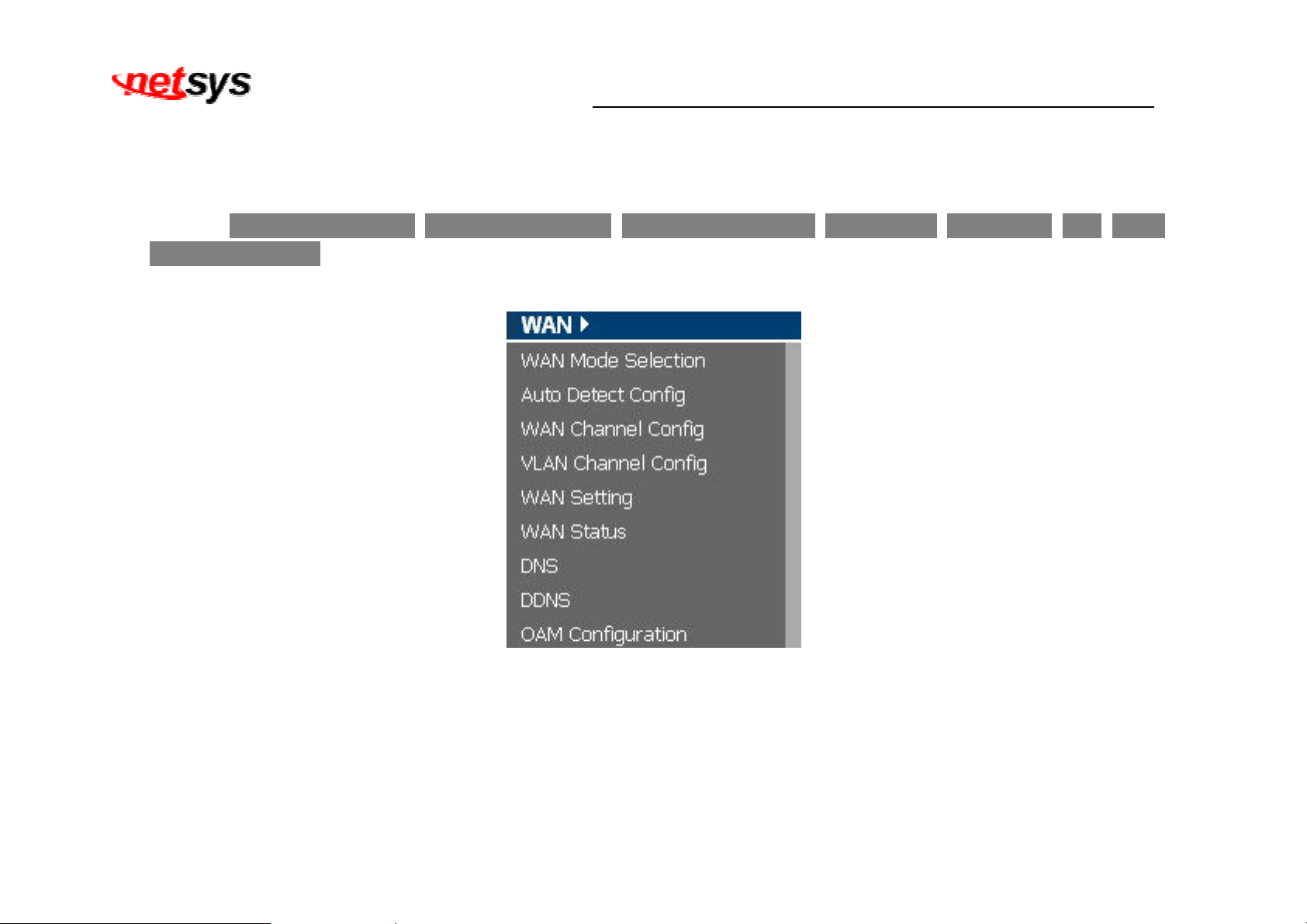

You can view WAN link on the left navigation bar for WAN related settings. Select the “NAT”. The menu below includes the

sub-menus of WAN Mode Selection, WAN Channel Config, VLAN Channel Config, WAN Setting, WAN Status, DNS, DDNS,

and OAM Configuration. A screen is displayed as shown in Figure 4.6.

Figure 4.6 WAN options

Page 60

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.1

WAN Mode Selection

To configure the WAN Mode Setting, click the WAN Mode Selection (WAN > WAN Mode Selection) on the left navigation bar.

A screen is displayed as shown in Figure 4.6.1

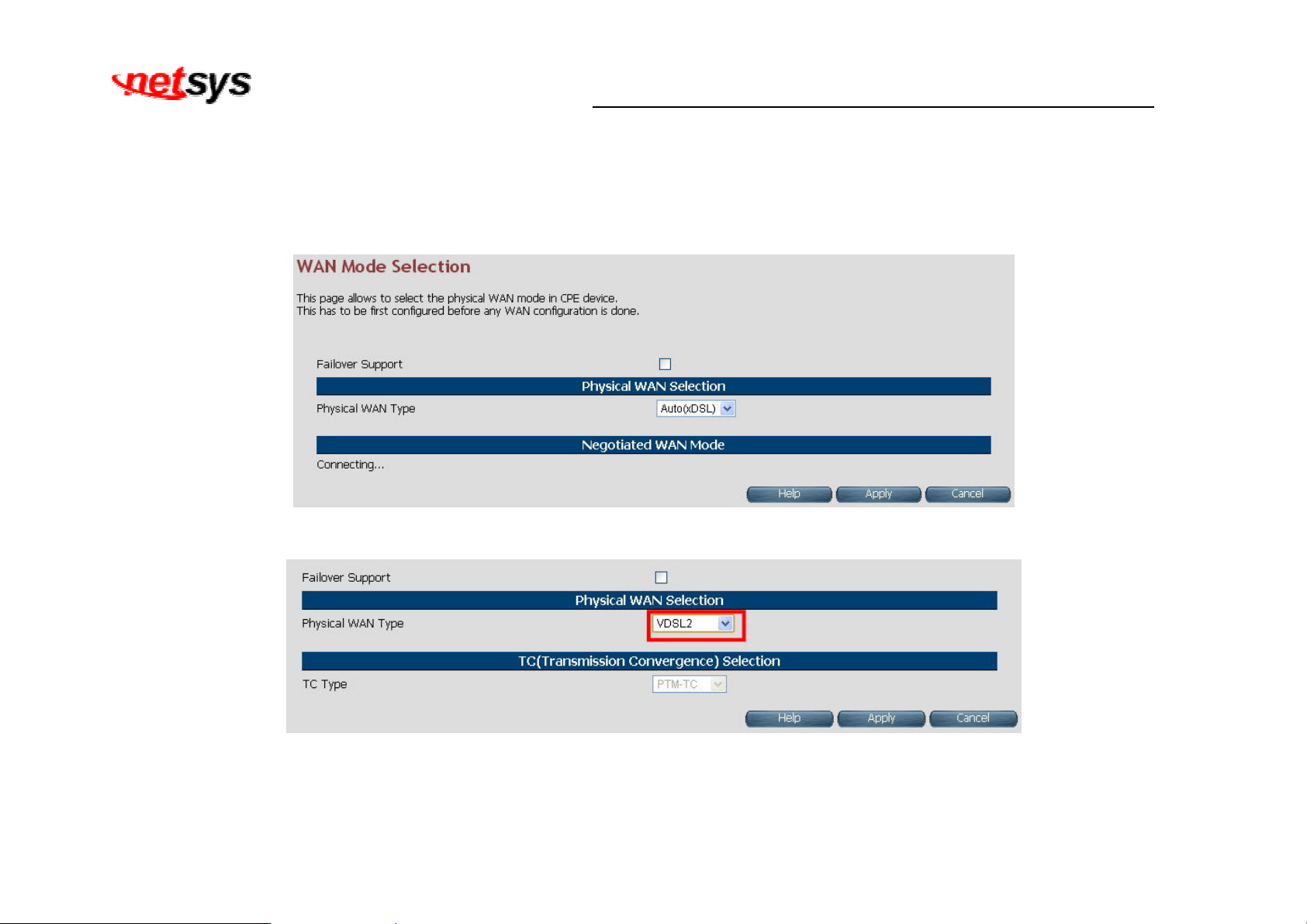

Figure 4.6.1 WAN Mode Setting(Seleted Auto)

Figure 4.6.1.1 WAN Mode Setting(Seleted ADSL2+ / VDSL2)

Page 61

ADSL2+, VDSL2, xDSL (Auto), WAN

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in WAN Mode Setting:

Field Description

Failover Support Select this checkbox to enable Dual WAN support.

Primary WAN Selection

Choose the WAN type from the drop down list. For multi-WAN mode supported CPE

Physical WAN Type

image the dropdown will present following options -

Ethernet over MII-0, WAN Ethernet over MII-1, 3G WAN and LTE WAN.

TC (Transmission Convergence) Selection

Choose the Transmission Convergence from the drop down list - 1). ATM-TC or

TC Type

2).PTM-TC or 3). Auto. This field is displayed, only if ADSL2+ or xDSL is chosen as the

WAN type.

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Note:

If user would like to use ADSL to connect NV-600A, please select ADSL item of Physical WAN Type, and confirm the TC type itme is

ATM-TC.

Page 62

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.2

Auto Detect Setting

Auto detect feature is a fully automatic way to find and configure VC channel or VLAN channel for active WAN PHY of the device and

WAN protocol for the same (either PPPoE/DHCP).

User has to provide pool of VC channels or VLAN channels which will be probed one by one sequentially and upon successful

detection of a channel, WAN protocol probing will be done and configured in the device.

To configure the Auto Detect Config, click Auto Detect Config (WAN > Auto Detect Config) on the left navigation bar. A

screen is displayed as shown in Figure 4.6.2

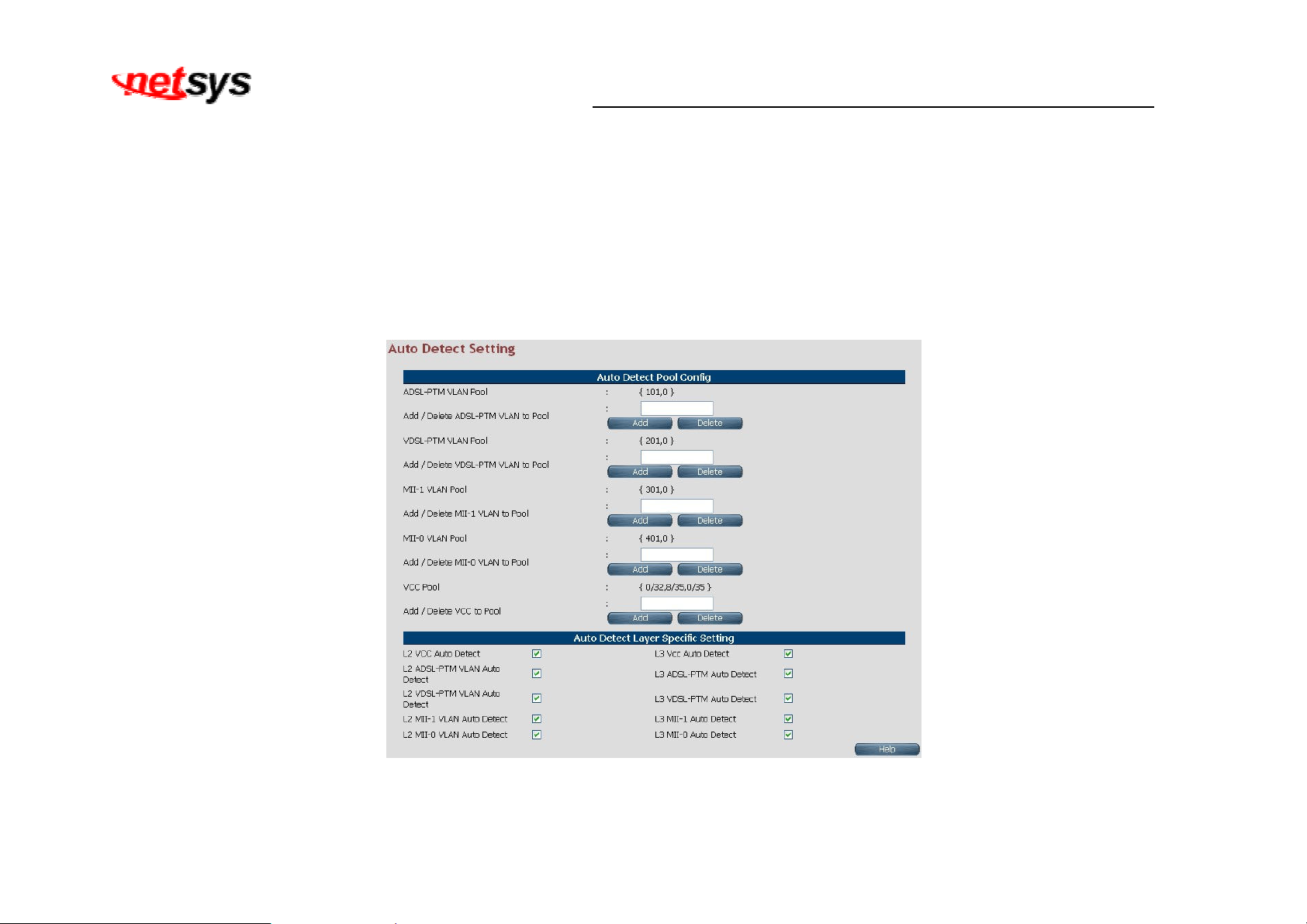

Figure 4.6.2 Port Mapping Configuration

Page 63

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in Auto detect Config:

Field Description

ADSL-PTM VLAN Pool This displays the current configured VLAN pool for autodetect in ADSL-PTM WAN mode.

Add/Delete ADSL-PTM VLAN to Pool Add or delete VLAN to ADSL-PTM VLAN pool.

VDSL-PTM VLAN Pool This displays the current configured VLAN pool for autodetect in VDSL-PTM WAN mode.

Add/Delete VDSL-PTM VLAN to Pool Add or delete VLAN to VDSL-PTM VLAN pool.

MII-1 VLAN Pool This displays the current configured VLAN pool for autodetect in MII-1 WAN mode.

Add/Delete MII-1 VLAN to Pool Add or delete VLAN to MII-1 VLAN pool.

MII-0 VLAN Pool This displays the current configured VLAN pool for auto-detect in MII-0 WAN mode.

Add/Delete MII-0 VLAN to Pool Add or delete VLAN to MII-0 VLAN pool.

VCC Pool This displays the current configured VCC pool for auto-detect in ADSL-ATM WAN mode.

Add/Delete VC to Pool Add or delete VCC to ADSL-ATM VCC pool.

L2 VCC Auto Detect Select this to enable VCC auto detection from the specified pool for ADSL-ATM WAN mode

L2 ADSL - PTM VLAN Auto Detect Select this to enable VLAN auto detection from the specified pool for ADSL - PTM WAN mode.

L2 VDSL - PTM VLAN Auto Detect Select this to enable VLAN auto detection from the specified pool for VDSL - PTM WAN mode.

Page 64

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Fields in Auto detect Config(cont’d):

Field Description

L2 MII-1 VLAN Auto Detect Select this to enable VLAN auto detection from the specified pool for MII-1 WAN mode.

L2 MII-0 VLAN Auto Detect Select this to enable VLAN auto detection from the specified pool for MII-0 WAN mode.

L3 VCC Auto Detect

L3 ADSL - PTM VLAN Auto Detect

L3 VDSL - PTM VLAN Auto Detect

L3 MII-1 VLAN Auto Detect

L3 MII-0 VLAN Auto Detect

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in ADSL-ATM

WAN mode.

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in ADSL-PTM

WAN mode.

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in VDSL-PTM

WAN mode.

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in MII-1 WAN

mode.

Select this to enable WAN auto detection (in sequence of PPPoE/DHCP) in MII-0 WAN

mode.

Page 65

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.3

WAN Channel Config

To configure the WAN Channel Config, click the WAN Channel Config (WAN > WAN Channel Config) on the left navigation

bar. A screen is displayed as shown in Figure 4.6.3.

Figure 4.6.3

Figure 4.6.3.1 WAN Channel Config (Auto Detecting does not check the checkbox)

Page 66

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in WAN Channel Config:

Field Description

ATM

The ATM based WAN channels are configured through the ATM tab.

Auto Detect Enable To enable Auto Detect.

Channel Name User specified VCC Name.

VPI/VCI Virtual Path Identifier and Virtual Channel Identifier.

Encapsulation Mode Encapsulation Mode for this VCC from dropdown - LLC/SNAP or VCMux mode.

Link type Shows AAL5 Link type for ATM VCC (values such as EoATM, IPoATM, PPPoATM).

ATM QoS Quality of Service for ATM VCC

IF Name ATM Channel interface name in system.

Remove Select this option to delete an ATM channel.

Page 67

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

When you click Add inside the WAN Channel-ATM tab, a screen is displayed as shown in Figure 4.6.3.2

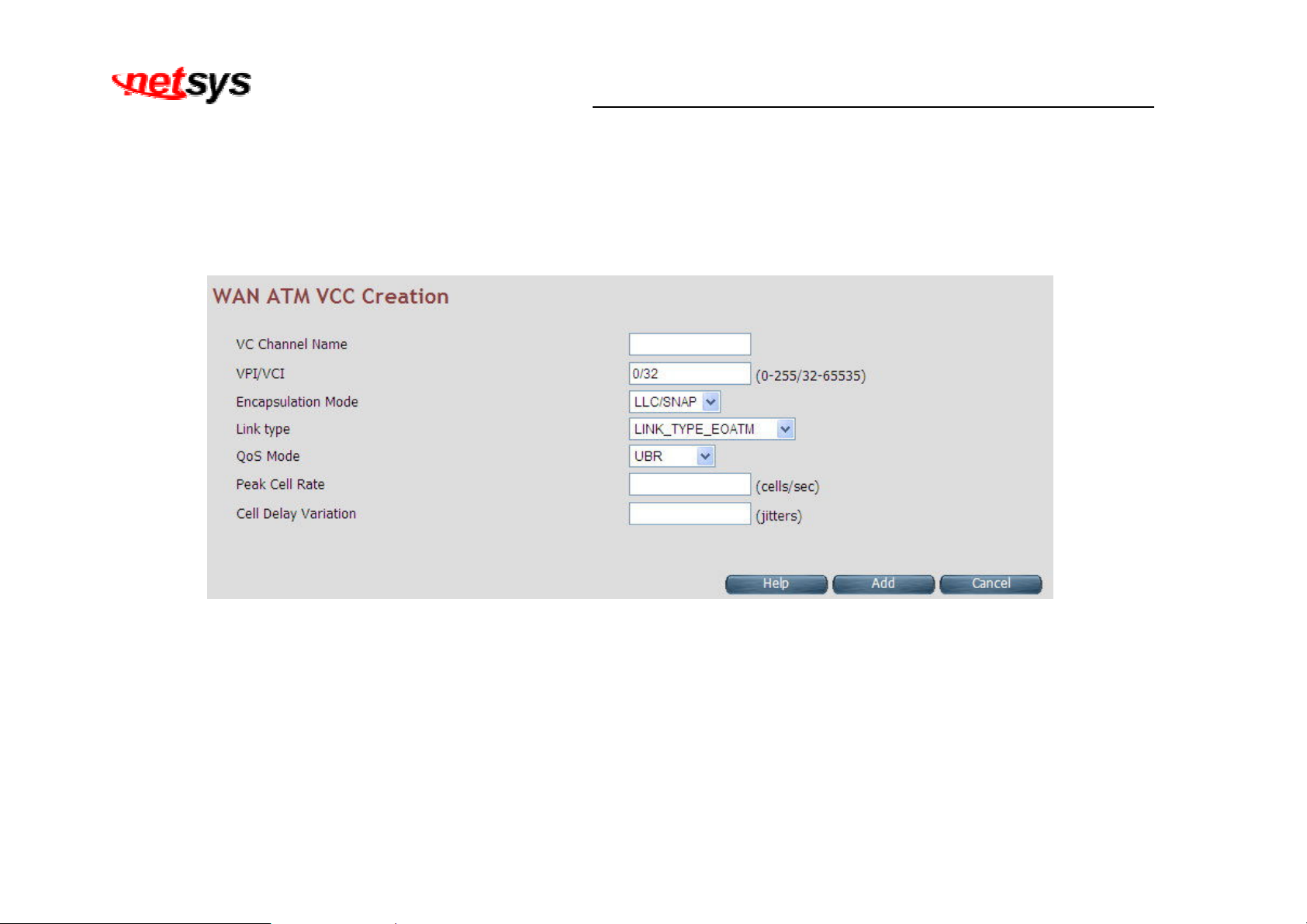

Figure 4.6.3.2 WAN Channel Config - ATM VCC Creation

The screen contains the following details:

Page 68

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Fields in WAN Channel Config:

Field Description

VC Channel Name User specified VCC Name.

VCI/VPI Virtual Path Identifier and Virtual Channel Identifier

Encapsulation Mode Encapsulation Mode for this VCC from dropdown - LLC/SNAP or VCMux mode.

Link type

Select AAL5 Link type for ATM VCC (possible values such as EoATM, IPoATM,

PPPoATM).

Quality of Service for ATM VCC. Available options are UBR, CBR, rt-VBR, nrt-VBR

QoS Mode

and UBR+.

Peak Cell Rate Peak Cell Rate specified in cells/second.

Cell Delay Variation Cell Delay Variation specified in terms of jitters.

 Click Add to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Page 69

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.4

VLAN Channel confg

To configure the VLAN Channel Config, click the VLAN Channel Config (WAN > VLAN Channel Config) on the left

navigation bar. A screen is displayed as shown in Figure 4.6.4.

Figure 4.6.4

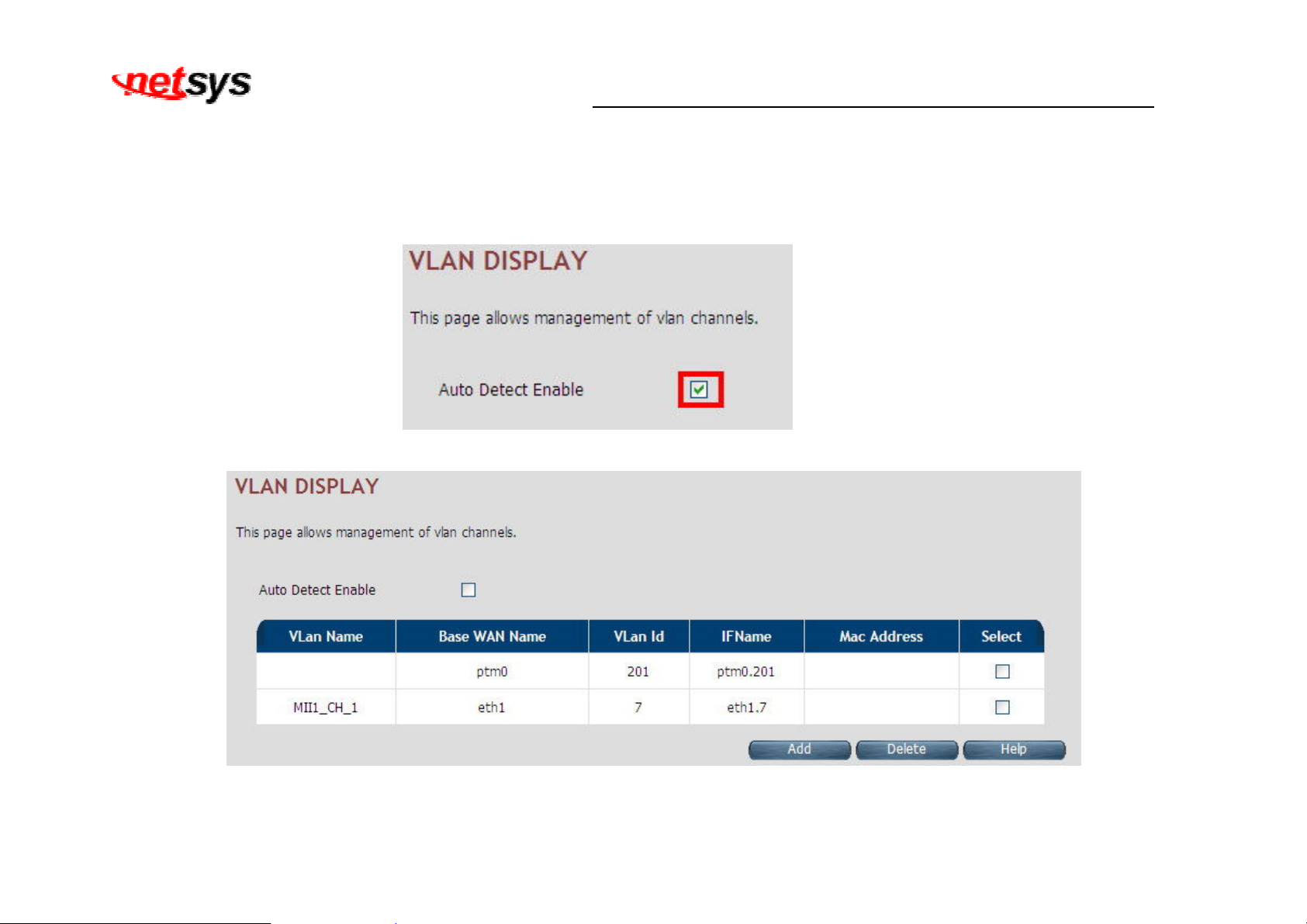

Figure 4.6.4.1 VLAN Channel Config Display(Auto Detecting does not check the checkbox)

Page 70

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in VLAN Display:

Field Description

Auto Detect Enable To enable Auto Detect.

VLAN Name User specified VLAN Channel name.

Base WAN Name Displays the L2 interface names over which VLAN Channel has been configured.

VLAN id

VLAN identifier in range of 7- 4095. VLAN Identifiers (1 - 6) are internally used in

system for special purpose and are not available to user for configuration.

IF Name VLAN interface name.

MAC Address MAC address of VLAN interface name.

Select Select this option to delete a specific VLAN channel.

 Click Add to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

When you click Add button inside the VLAN Channel Config page, a screen is displayed as shown in Figure 4.6.4.2

Page 71

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

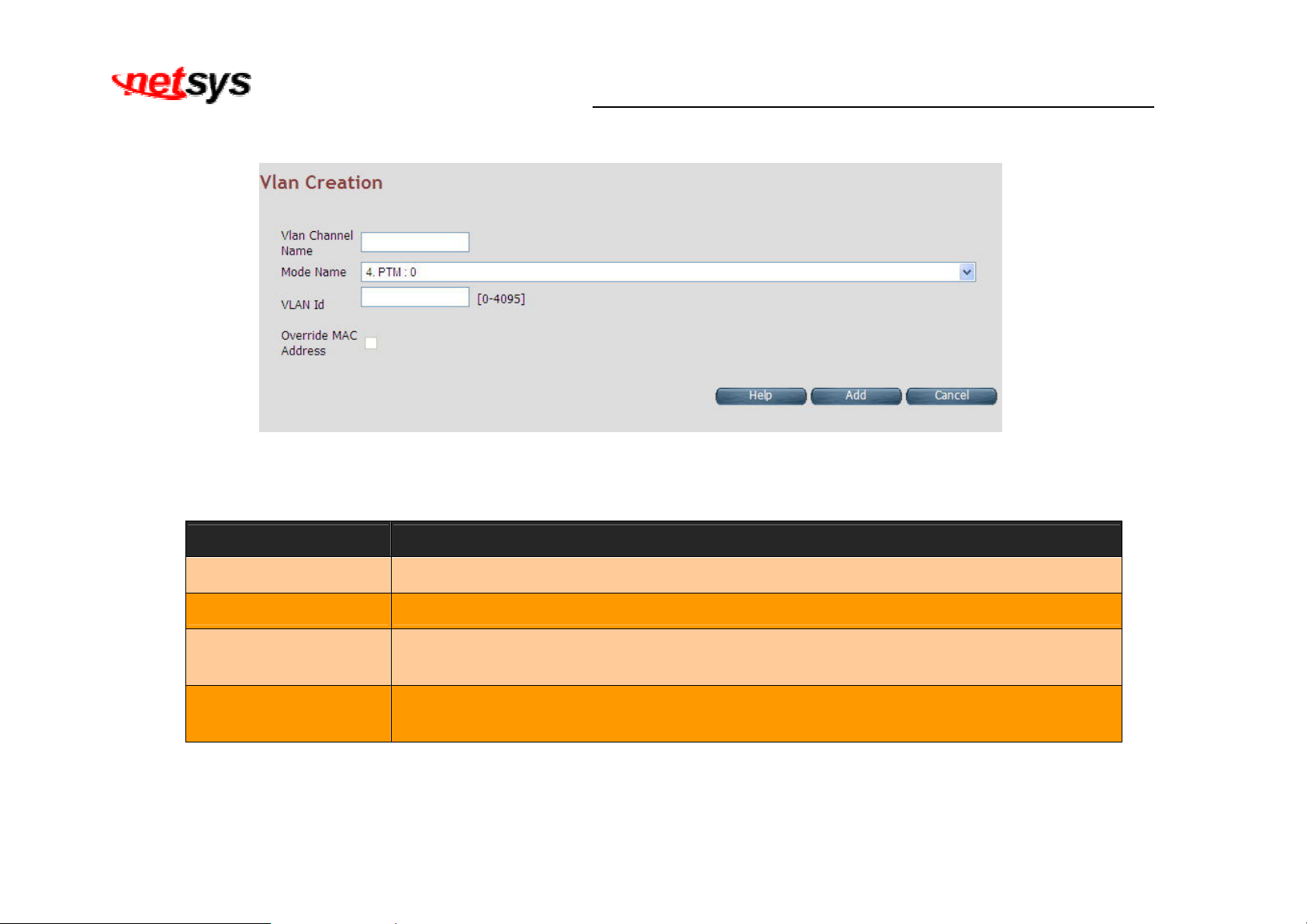

Figure 4.6.4.2 VLAN Channel Config - Add

The screen contains the following details:

Fields in VLAN Creation:

Field Description

VLAN Channel Name User specified VLAN Channel name.

Mode Name List of L2 interfaces over which VLAN Channels can be configured.

VLAN identifier in range of (7 - 4095). VLAN Identifiers(1 - 6) are internally used in

VLAN Id

system for special purpose and are not available to user for configuration.

Override MAC

Address

This is an option to configure MAC address by overriding physical MAC address. In

the current release, this option is not available to user for configuration.

 Click Add to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Page 72

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.5 WAN Setting

To configure the WAN interface, click the WAN Setting link (WAN > WAN Setting) on the left navigation bar and a screen is

displayed as shown in Figure 4.6.5.

Figure 4.6.5 WAN Setting - Auto Detect Enable

Figure 4.6.5.1 WAN Setting

Page 73

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The NV-600A can support up to maximum 16 WAN connections in system. When a hardware based QoS is enabled in system, it

limits the number of VCCs to 8 only for ATM based WAN. For creating a new WAN connection, click Add in the WAN setting page.

Please follow the rest of the steps for creating the WAN connection.

The last column named DEFAULT GATEWAY allows to select the WAN for relevant WAN mode setting in WAN setting web page.

When the user clicks any of the radio button, he will be asked to confirm the same. If the user clicks Apply, the default gateway will

be configured on the selected WAN connection, otherwise the changes will not be applied.

The screen contains the following details:

Fields in WAN Settings:

Field Description

Auto Detect Enable To enable Auto Detect.

WAN Number

The configured WAN are referred through auto-assigned names in form

WANIP<No.> or WANPPP<No.> where <No.> start from 0.

WAN Channel Provides information of layer-2 WAN channel configured.

Type Provides information about type of WAN such as PPPoE or DHCP or Bridged etc.

This option is present in only IAD models, where VoIP is supported. this is default

Default VoIP Interface

interface for VoIP packets.

This option allows to configure default route in system. The chosen WAN will be

Default Gateway

used for default route.

When you click Add button in WAN Settings web page, a screen is displayed as shown in Figure 4.6.5.2

Page 74

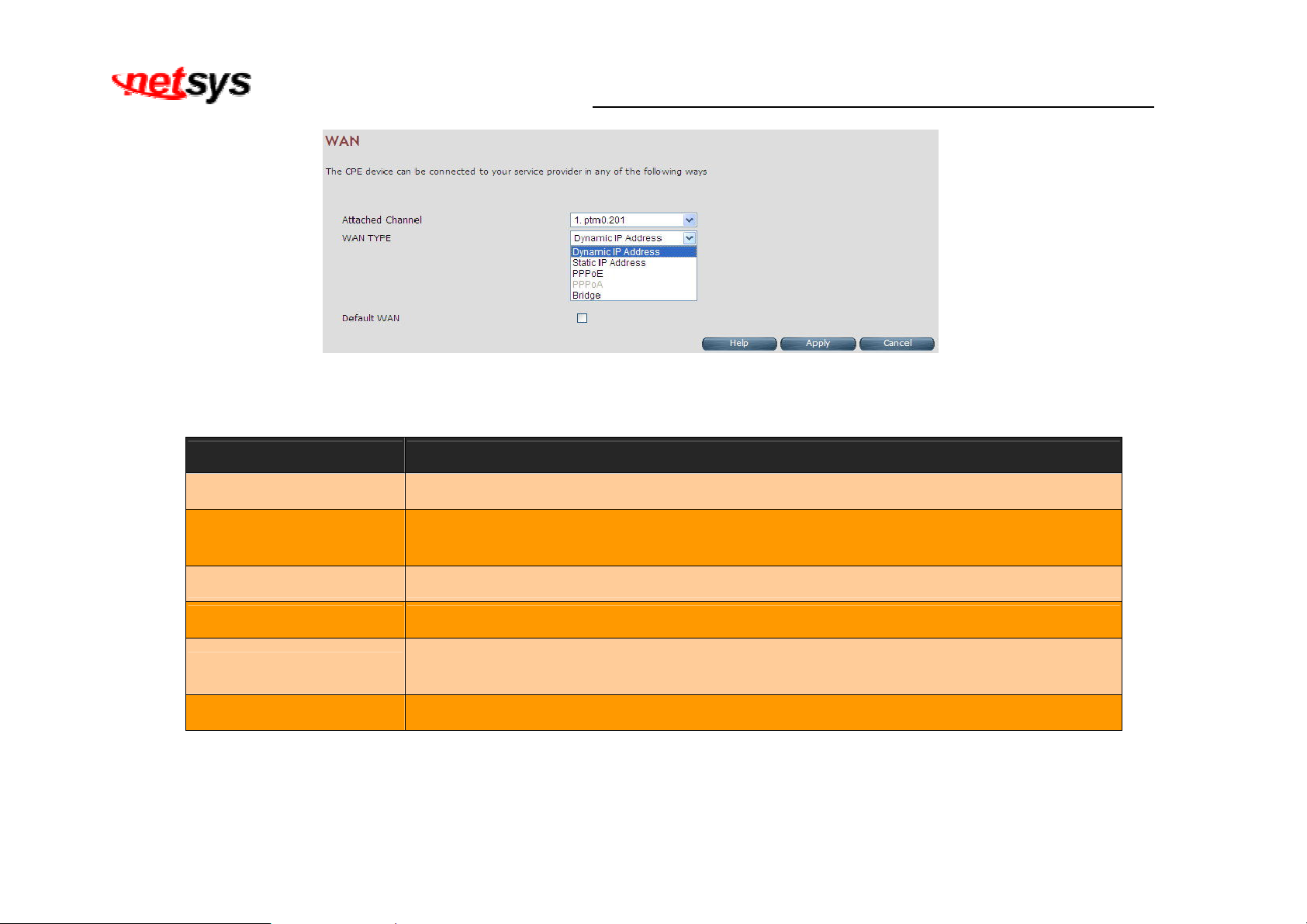

Figure 4.6.5.2 WAN Settings – Apply – Step1

The screen contains the following details:

Fields in WAN Settings – Apply – Step1:

Field Description

Attached Channel Select the WAN Channel (e.g. PVC) from drop-down, being configured as WAN.

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Dynamic IP Address

To get your IP Address from your service provider (means NV-600A is DHCP client

on WAN) click Apply.

Static IP Address

PPPoE

To enter the WAN interface IP Address of NV-600A enable this field and click Apply.

Point-to-Point Protocol over Ethernet used for connecting to the ISP, click Apply.

Point-to-Point Protocol over ATM used for connecting to the ISP, click Apply. This

PPPoA

setting is applicable only for ATM WAN mode.

Bridge

To configure the WAN of bridged type, select this field and click Apply.

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Page 75

4.6.5.1 Dynamic IP Address

To configure the WAN interface of DHCP IP type, select Dynamic IP Address option. A screen is displayed as shown in

Figure 4.6.5.3

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

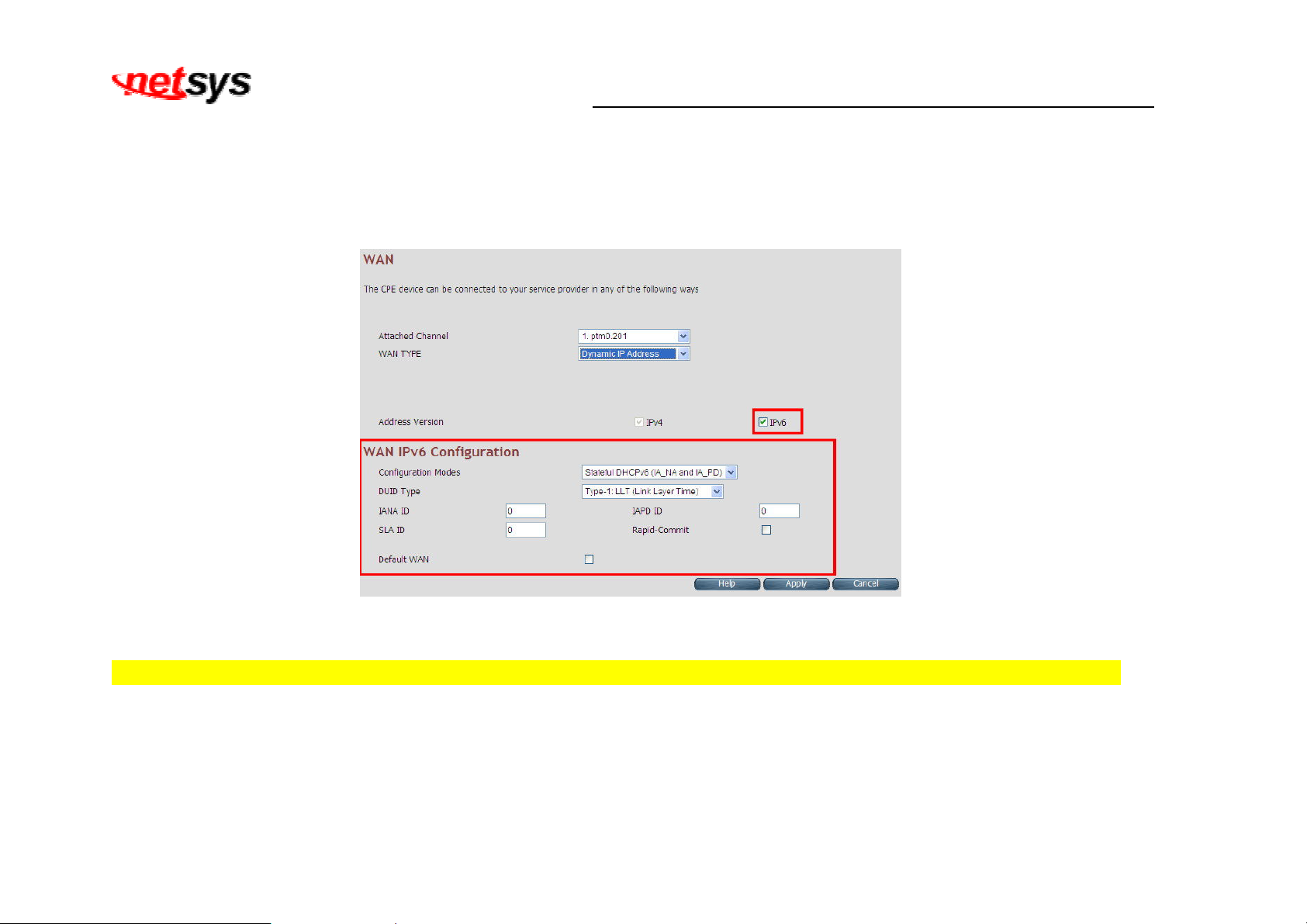

Figure 4.6.5.3 Dynamic IP Address

Please Enable IPv6 to set the WAN IPv6 Configuration. Select IPv6 Setting(IPv6 > IPv6 setting) on the left navigation bar.

Page 76

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.5.2 Static IP Address

To configure the WAN interface to use a static IP address, select the option Static IP Address in the WAN Settings screen. A

screen is displayed as shown in Figure 4.6.5.4

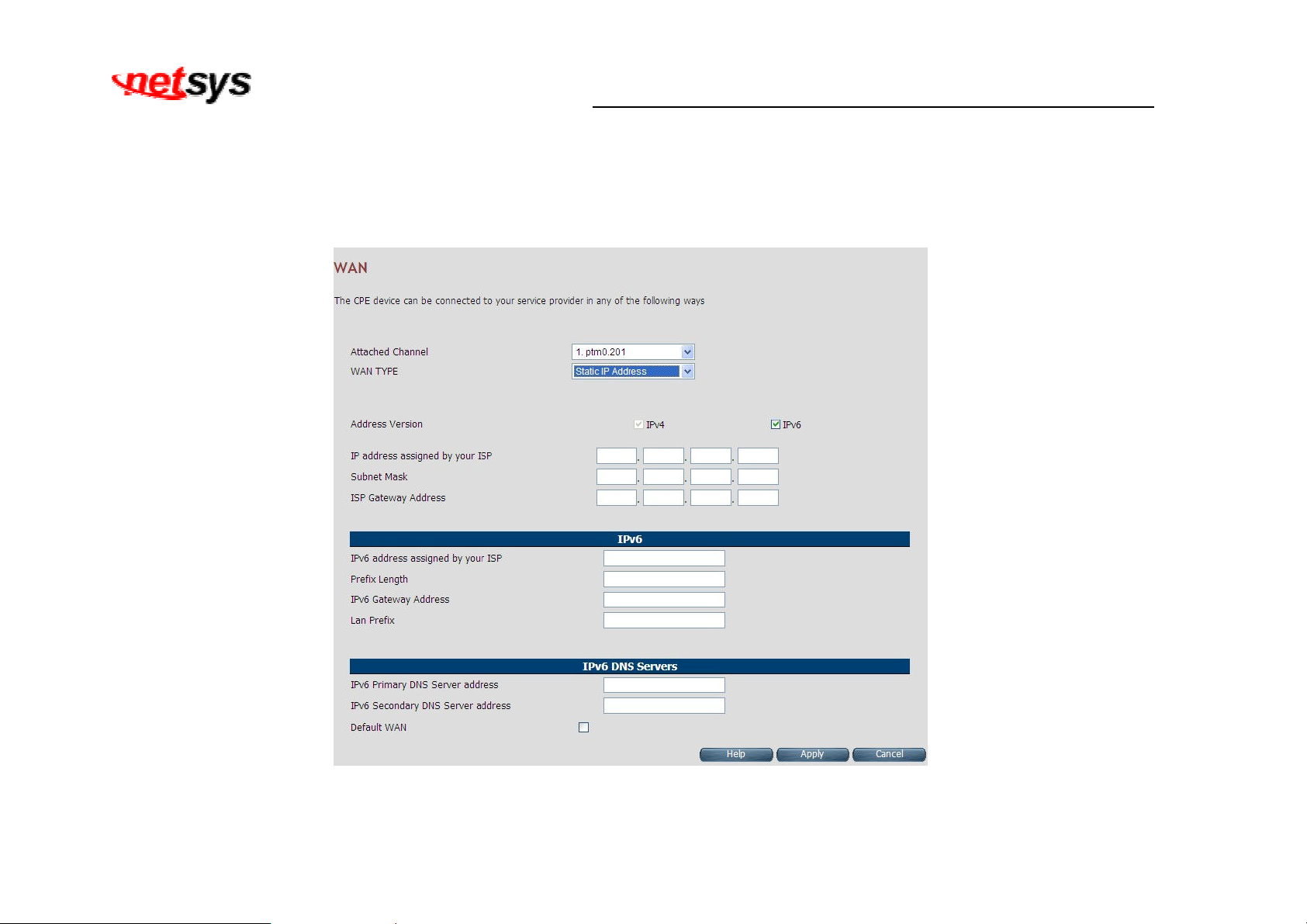

Figure 4.6.5.4 WAN Static IP

Page 77

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in Static IP:

Field Description

Address Version

IP address assigned by your ISP To specify the IP Address of NV-600A CPE’s WAN link.

Subnet Mask To specify the Subnet Mask of NV-600A CPE’s WAN link.

ISP Gateway Address To specify the Gateway address of the NV-600A CPE’s WAN.

IPv6

IPv6 address assigned by your ISP This is the static IP address for the WAN interface.

Prefix Length This is the prefix length of the IPv6 address.

IPv6 Gateway Address This is the default gateway.

LAN Prefix This is the prefix used to auto-configure LAN side hosts.

IPv6 DNS Servers

IPv6 Primary DNS Server Address This is the primary DNS server.

IPv6 Secondary DNS Server Address This is the secondary DNS server.

This option allows to configure default route for relevant WAN mode of this WAN

Default WAN

connection.

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Page 78

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.5.3 PPPoE

To configure the WAN interface to use PPPoE, choose the option PPPoE. A screen is displayed as shown in Figure 4.6.5.5

Figure 4.6.5.5 WAN PPPoE creation

Page 79

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in PPPoE WAN:

Field Description

User Name To enter a username for PPPoE session used for authentication in B-RAS.

Password To enter a password for PPPoE session used for authentication in B-RAS.

Please retype your password To enter the same password again to reconfirm.

Service Name PPP Service Name (optional).

Access Concentrator Name PPP Access concentrator Name (optional).

Relay LAN site PPPoE Session

This feature allows to enable/disable a PPPoE relay session. PPPoE relay also called PPPoE Passthrough.

Choose the option form the drop down list. The available options are, Auto Connect,

PPP Option

Dial-On-Demand and Manual Connect.

Address Version This option allows configurability of IPv4 and/or IPv6 stack on per WAN interface.

Page 80

Fields in PPPoE WAN (WAN IPv6 Configuration):

Field Description

This option allows to select following modes of IPv6 configuration:

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Configuration Modes

DUID Type

IANA ID

IAPD ID

SLA ID

Rapid-commit

 Stateful DHCPv6(IA_NA and IA_PD)  SLAAC (Address Configuration) with DHCPv6 (IA_PD)

This option allows to configure different DUID (DHCP Unique Identifier) types:

 "Type-1: LLT (Link Layer Time)  "Type-2: EN (Enterprise Number)  "Type-3: LL (Link Layer)

IANA option represents IPv6 address and parameters related to the same being accepted by

DHCPv6 clients. IANA is the Identity Association for Non- Temporary Addresses option. This

Identifier to be configured when Stateful DHCPv6 configuration mode is selected.

IAPD options represent one or more IPv6 prefix and parameters related to it. IAPD is the Identity

Association for Prefix Delegation. This identifier to be configured in both Stateful DHCPv6 or

SLAAC+DHCPv6 configuration modes.

This parameter is called Site Level Aggregation Identifier. This identifier is used to configure the

subnet for DHCPv6 client configuration.

This declaration enables DHCPv6-client to request the DHCPv-server to perform a Rapid

Commit. Handshaking will happen with two DHCPv6 messages.

Default WAN This option allows to configure default route for relevant WAN mode of this WAN connection.

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Page 81

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.5.4 PPPoA

The PPP-over-ATM (PPPoA) mode is valid only for ATM based WAN. To configure the WAN interface to use PPPoA, select

the option PPPoA option. A screen is displayed as shown in Figure 4.6.5.6

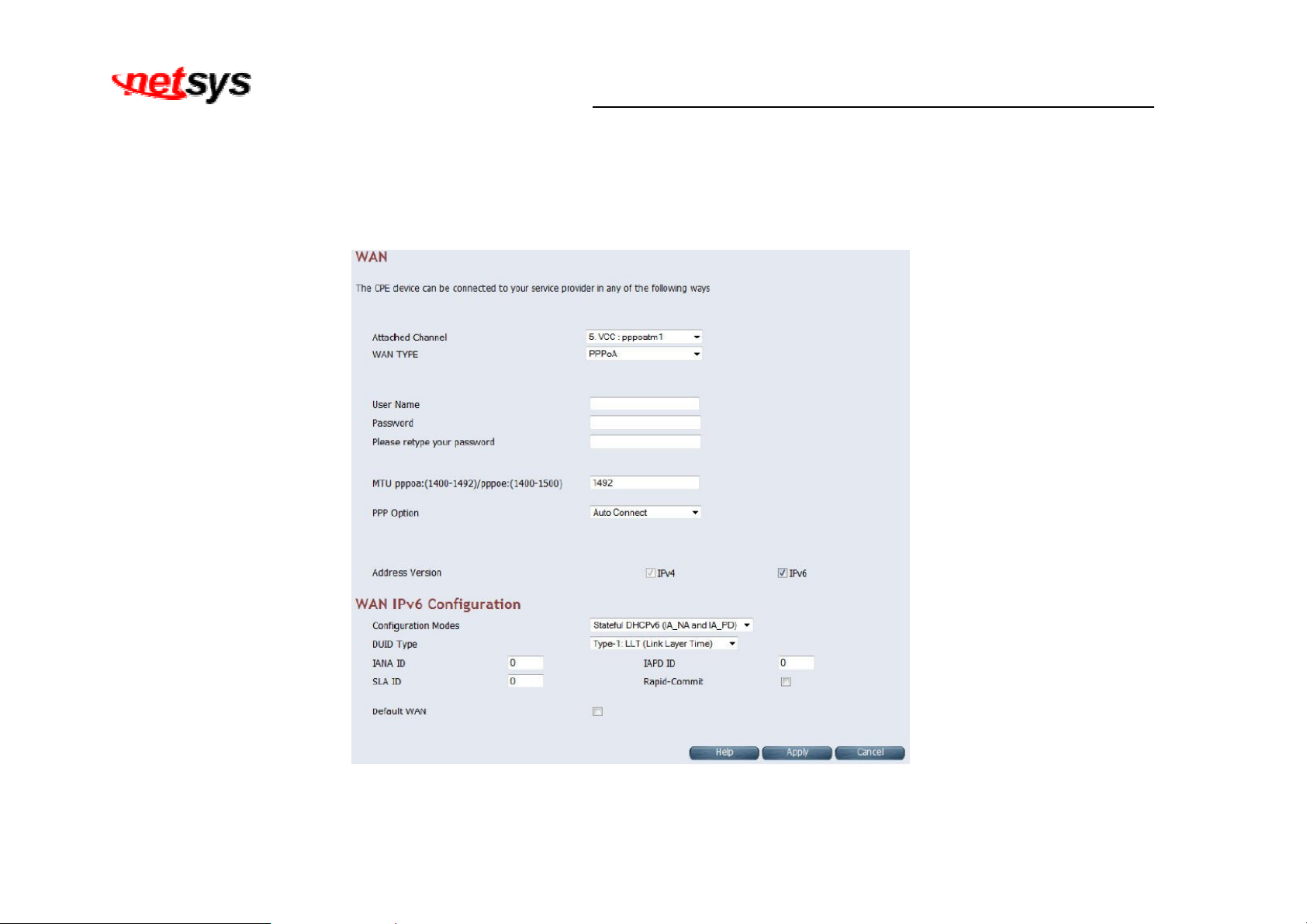

Figure 4.6.5.6 WAN PPPoA creation

Page 82

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in PPPoA WAN:

Field Description

User Name To enter the username to be used in the PPPoA session.

Password To enter the corresponding password for the specified username.

Please retype your password To enter the password again to reconfirm.

Dial on Demand

Maximum Idle Time

Address Version

This feature allows to automatically re-connect to the service provider once the

connection was lost. The checkbox can be enabled or disabled for this feature.

Specifies how long the connection may remain idle before the PPPoA connection

gets automatically disconnected. The Idle Timeout is specified in seconds.

For PPPoA, the only supported IP addressing is IPv4 currently. The IPv6 for PPPoA

is not available in this version of NV-600A.

Page 83

Fields in PPPoA WAN IPv6 Configuration:

Field Description

This option allows to select following modes of IPv6 configuration:

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Configuration Modes

DUID Type

IANA ID

IAPD ID

SLA ID

Rapid-commit

 Stateful DHCPv6(IA_NA and IA_PD)  SLAAC (Address Configuration) with DHCPv6 (IA_PD)

This option allows to configure different DUID (DHCP Unique Identifier) types:

 "Type-1: LLT (Link Layer Time)  "Type-2: EN (Enterprise Number)  "Type-3: LL (Link Layer)

IANA option represents IPv6 address and parameters related to the same being accepted by

DHCPv6 clients. IANA is the Identity Association for Non- Temporary Addresses option. This

Identifier to be configured when Stateful DHCPv6 configuration mode is selected.

IAPD options represent one or more IPv6 prefix and parameters related to it. IAPD is the

Identity Association for Prefix Delegation. This identifier to be configured in both Stateful

DHCPv6 or SLAAC+DHCPv6 configuration modes.

This parameter is called Site Level Aggregation Identifier. This identifier is used to configure

the subnet for DHCPv6 client configuration.

This declaration enables DHCPv6-client to request the DHCPv-server to perform a Rapid

Commit. Handshaking will happen with two DHCPv6 messages.

Default WAN This option allows to configure default route for relevant WAN mode of this WAN connection.

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

Page 84

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.5.5 Bridge

The option Bridge enables the bridge mode, which is a common connection method used for xDSL modem. Select this option on

WAN Settings page and click Next. A screen is displayed as shown in Figure 4.6.5.7

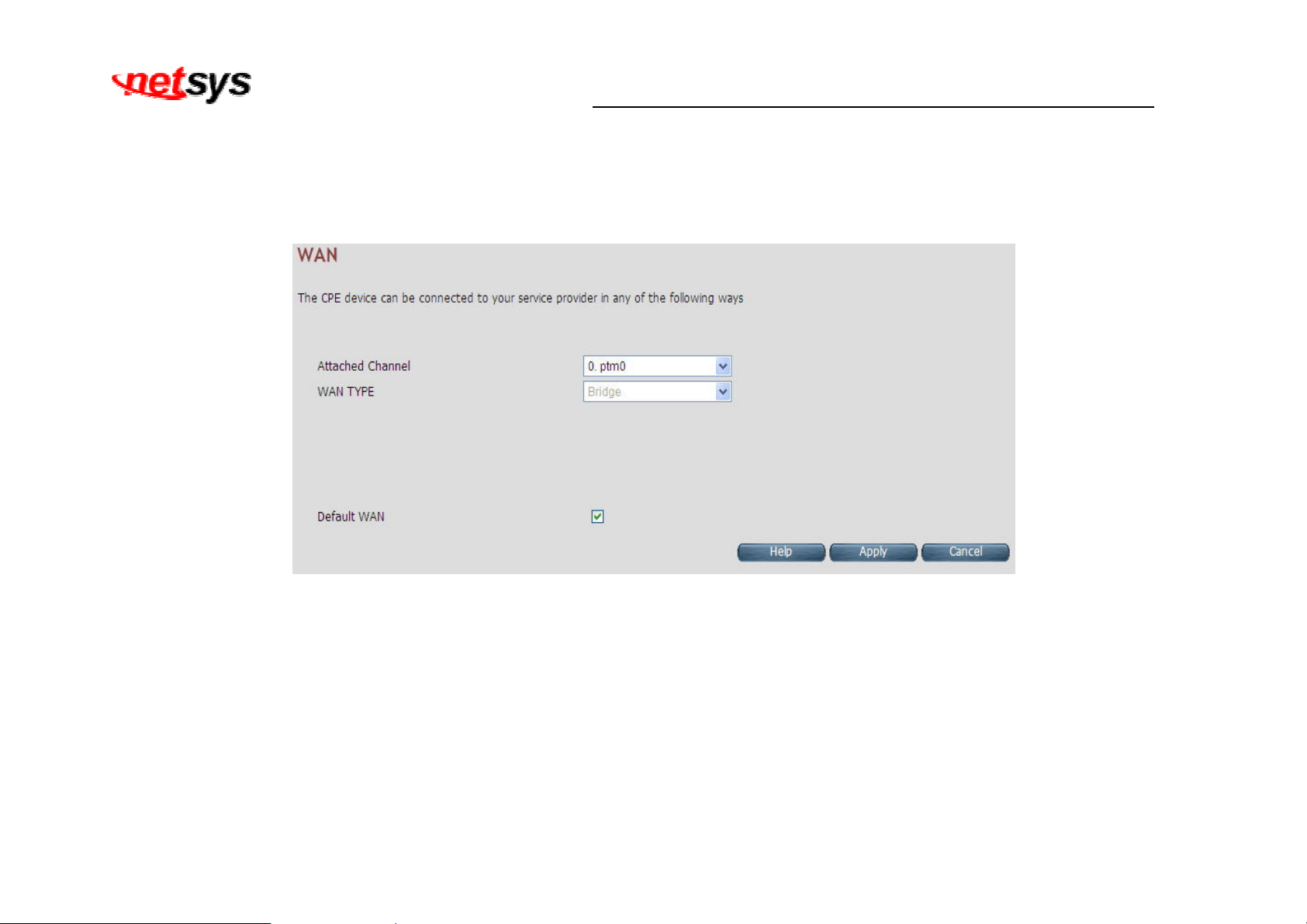

Figure 4.6.5.7 Bridge WAN Setting

The screen contains the following details:

Page 85

Fields in Bridge Configuration:

Field Description

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Default WAN

This option allows to configure default route for relevant WAN mode of this WAN

connection.

 Click Apply at any time during configuration to save the information that you have entered.  Click Cancel to exit from this page without saving the changes.

4.6.5.6 Delete

This option allows to delete the selected configured WAN connection. This makes WAN connections free to re-choose the type of

protocol and other parameters configuration.

 Click Cancel to exit from this page without saving the changes.

 Click Apply for deleting the WAN connection.

Page 86

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.6 WAN Status

To display the status report of VCCs, click the WAN Status link (WAN > WAN Status) on the left navigation bar. A screen id

displayed as shown in Figure 4.6.6

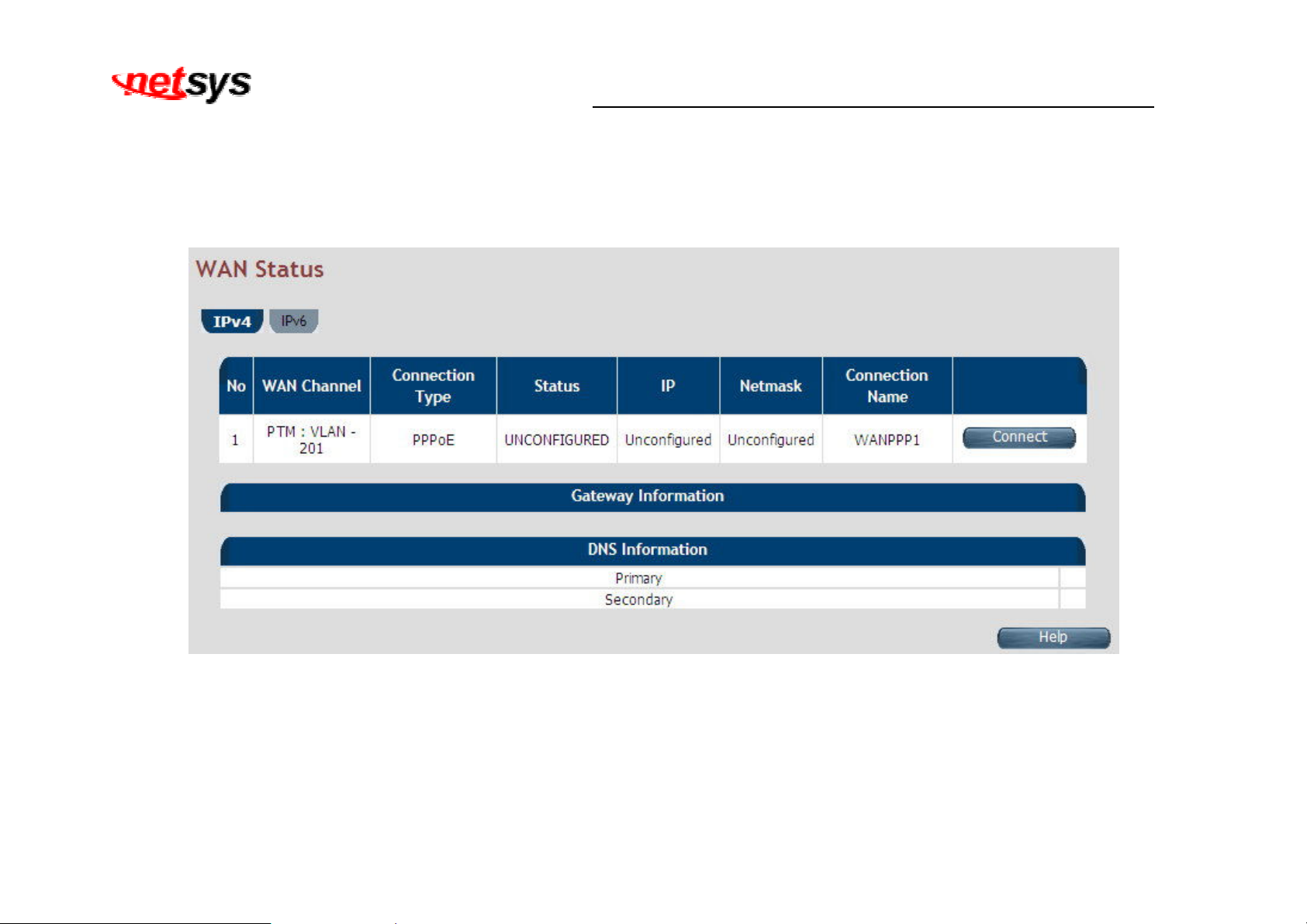

Figure 4.6.6 WAN Status

Page 87

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in WAN Status:

Field Description

IPv4/IPv6 Choose the appropriate tab to view the status.

WAN Channel

For the currently configured WAN interface, this gives the layer-2 WAN channel

information (such as ATM VCC).

Connection Type The type of the connection mode in which NV-600A is configured.

Status Displays the connection status of the WAN.

IP Displays the IP address in use.

Netmask Displays the netmask in use.

Configured Connection Name Displays the configured connection name.

Gateway Information Provides information about the gateway.

DNS Information Provides information about the primary and secondary DNS.

Page 88

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The control buttons shown against few WAN are explained below.

Fields in Control Fields displayed in WAN Status Screen:

Field Description

Connect

This button appears only for PPPoA and PPPoE type of WAN links. On clicking this button, it tries

to establish PPP link.

This button too appears only for PPPoA and PPPoE type of WAN links. On clicking this button, it

Disconnect

brings down the PPP link.

This button appears only for DHCP type of WAN links. On clicking this button, it tries to establish

Renew

renew the current lease.

This button appears only for DHCP type of WAN links. On clicking this button, it tries to release the

Release

current lease.

When you click on the IPv6 tab in the WAN Status page, a screen is displayed as shown in Figure 4.6.6.1

Page 89

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

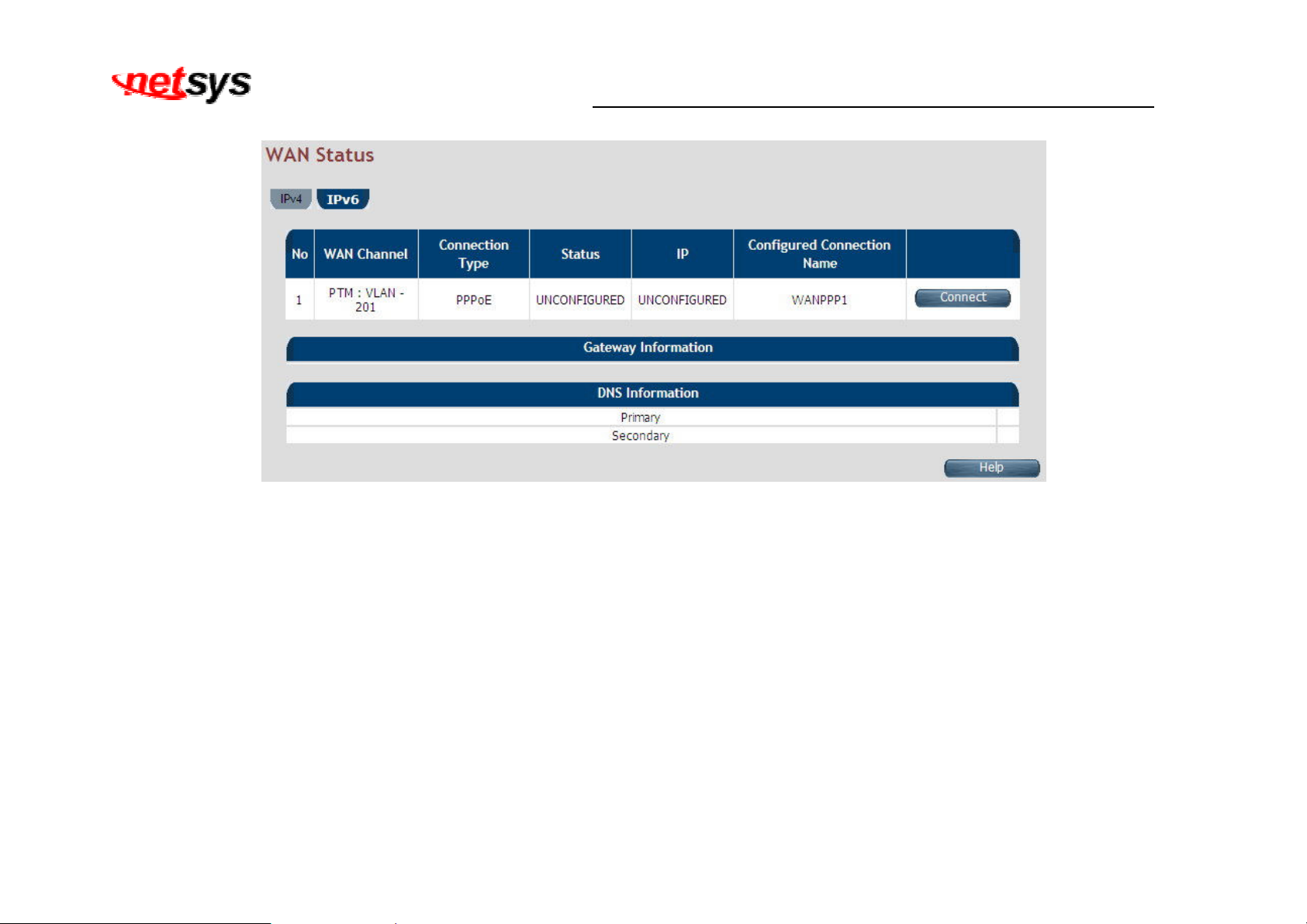

Figure 4.6.6.1 WAN Status IPv6 Tab

The screen contains the details as described in table of “Fields in WAN Status”.

Page 90

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.7 DNS

To configure the Domain Name Server (DNS) address, click the DNS link (WAN > DNS) on the left navigation bar. A screen is

displayed as shown in Figure 4.6.7. For statically configured WAN, it is mandatory to configure DNS addresses through this page.

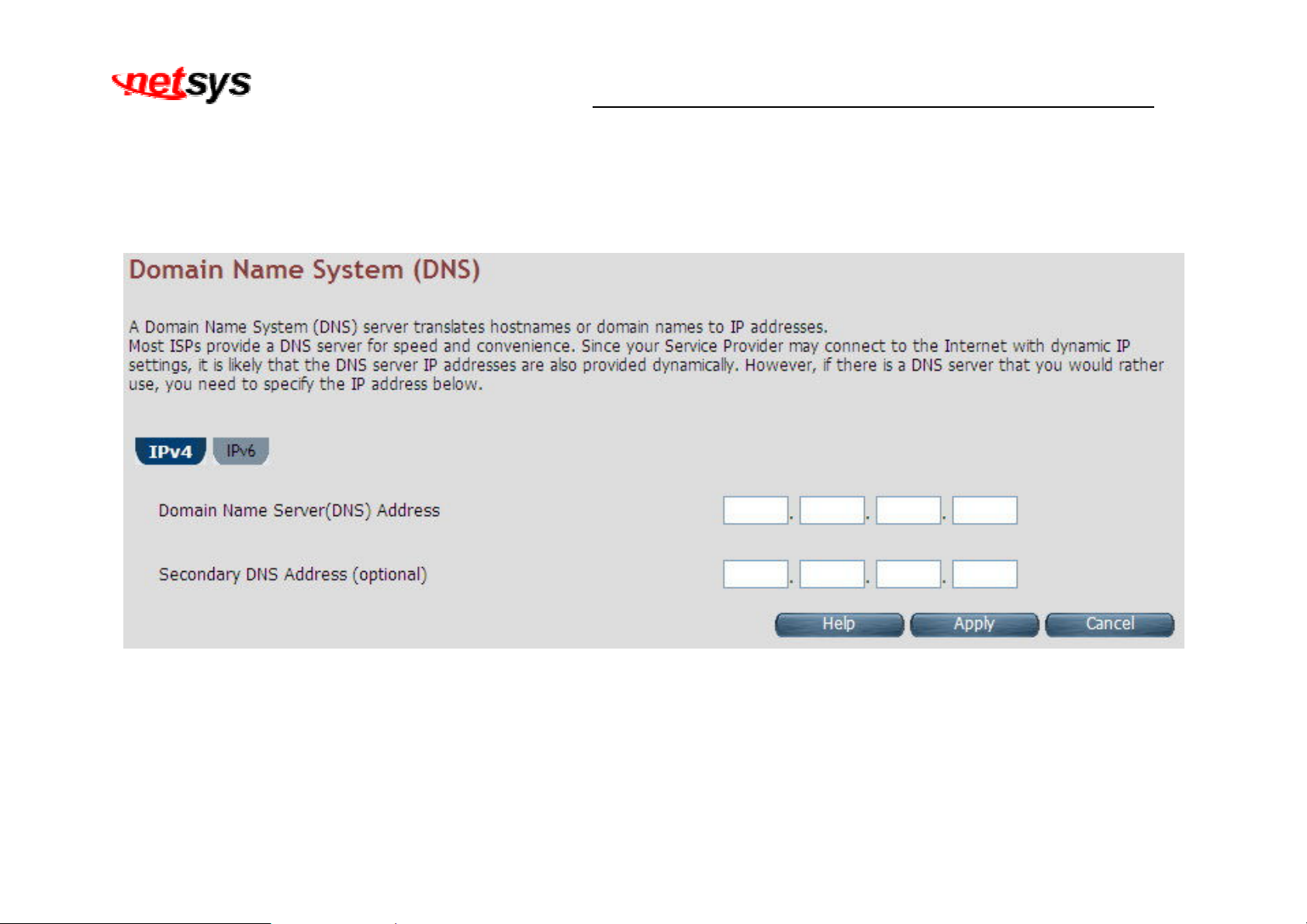

Figure 4.6.7 DNS Configuration

The screen contains the following details:

Page 91

Fields in DNS:

Field Description

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

IPv4/IPv6

Select the appropriate tab to configure IPv4 or IPv6. IPv6 support is currently not

available for DNS configuration.

Domain Name Server (DNS) Address Enter the DNS address of the primary DNS server.

Enter the address of the secondary DNS server, if available. It is an optional

Secondary DNS Address (optional)

parameter.

 Click Cancel to exit from this page without saving the changes.

 Click Apply for deleting the WAN connection.

Page 92

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.8 DDNS

The Dynamic DNS is useful for getting a FQDN URL registered for a dynamic IP address to a DNS service provider. The NV-600A

software integrates support for three Dynamic DNS service providers:

•

dhs • dyndns

•

dyns

The user needs to register first with a chosen DNS Service provider. The registered information needs to be configured in DDNS

settings web page. To configure thee registered information in DDNS settings page, click the DDNS link (WAN > DDNS) on the left

navigation bar. A screen is displayed as shown in Figure 4.6.8

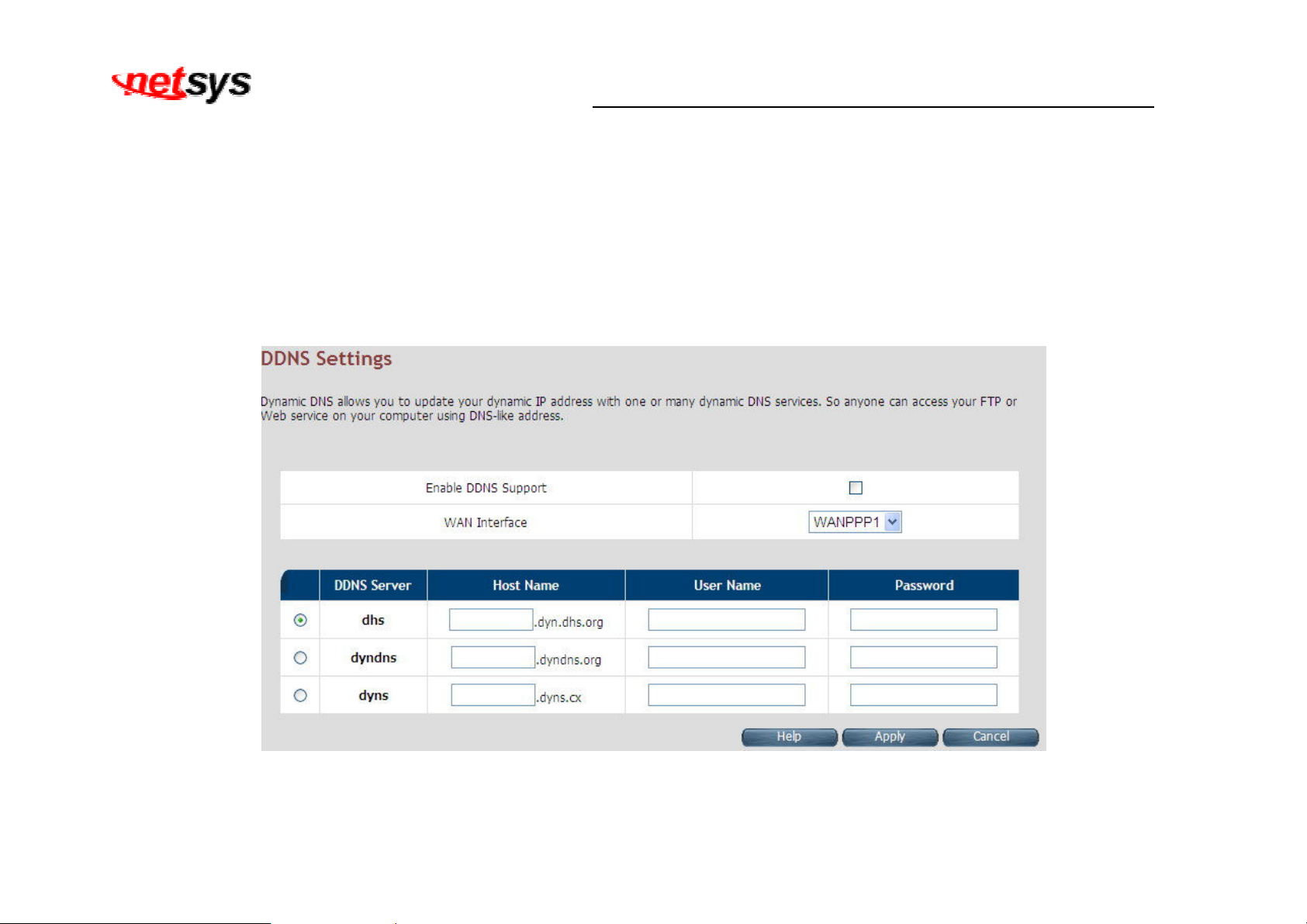

Figure 4.6.8 DDNS Settings

Page 93

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

The screen contains the following details:

Fields in DDNS:

Field Description

Enable DDNS support Check box to enable DDNS support in CPE.

WAN Interface

WAN Interface name from dropdown for DDNS resolution. The DDNS agent running in CPE

keeps track of changes in IP address of chosen WAN and informs DNS service provider.

DDNS Server Dynamic DNS Server Provider.

Host name registered with DDNS Service provider. This is part of FQDN used for accessing

Host Name

the host.

User Name Registered user name with DDNS service provider.

Password Registered password with DDNS service provider.

 Click Apply for applying the DDNS changes into system.

 Click Cancel to exit from this page without saving the changes.

Page 94

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.6.9 OAM Configuration

This page provides ATM F5 based OAM test. Hence the settings are valid only for ATM based WAN. To configure the ADSL OAM

settings, click the OAM Configuration link (WAN > OAM Configuration) on the left navigation bar. This release supports only F5

type of OAM tests as shown in Figure 4.6.9

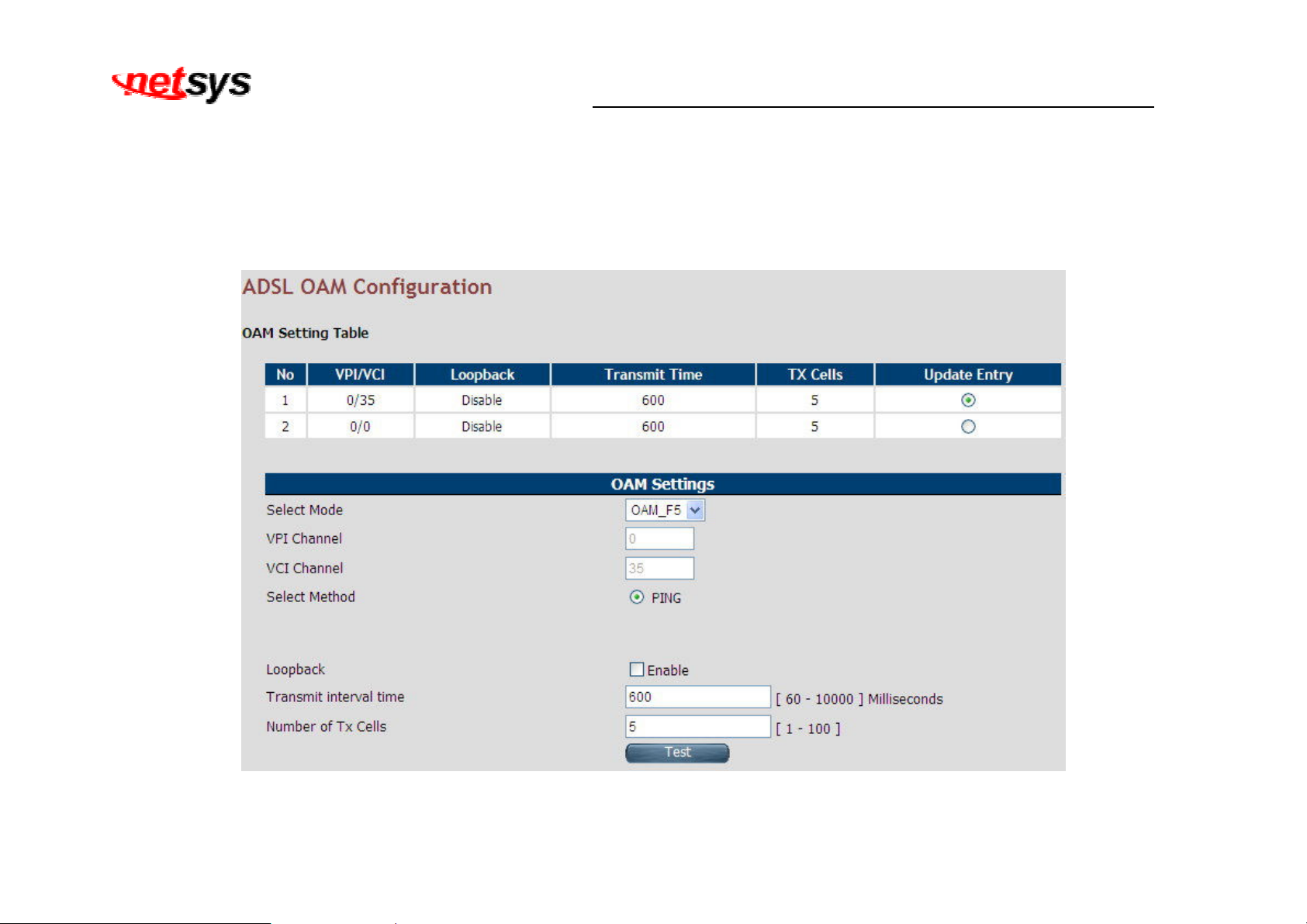

Figure 4.6.9 ADSL OAM F5 Test

Page 95

The screen contains the following details:

Fields in ADSL OAM F5 Test page:

Field Description

This table displays all active connections with following OAM parameters information:

 No: Number  VPI: Virtual Path Identifier

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

OAM F5 Setting Table

 VCI: Virtual Connection Identifier  Loopback: Enabled or Disabled  Transmit Time: actual value in milliseconds  Tx Cells: No of cells to be transmitted  Update Entry:

OAM Settings

Select Mode OAM_F5

VPI Channel Displays the selected VPI channel of the OAM F5 Setting Table.

VCI Channel Displays the selected VCI channel of the OAM F5 Setting Table.

F5 Loopback Used to enable/disable F5 Loopback.

F5 Transmit Interval time Configures the time (in ms) for the interval to send F5 loopback cells.

Number of Tx cells Count to total number of transmitted ATM cells.

 Click Test to view the OAM F5 results.

Page 96

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

When you test the OAM Configuration, the F5 result is displayed as shown in Figure 4.6.9.1 and this may be a failure or successful

OAM F5 result.

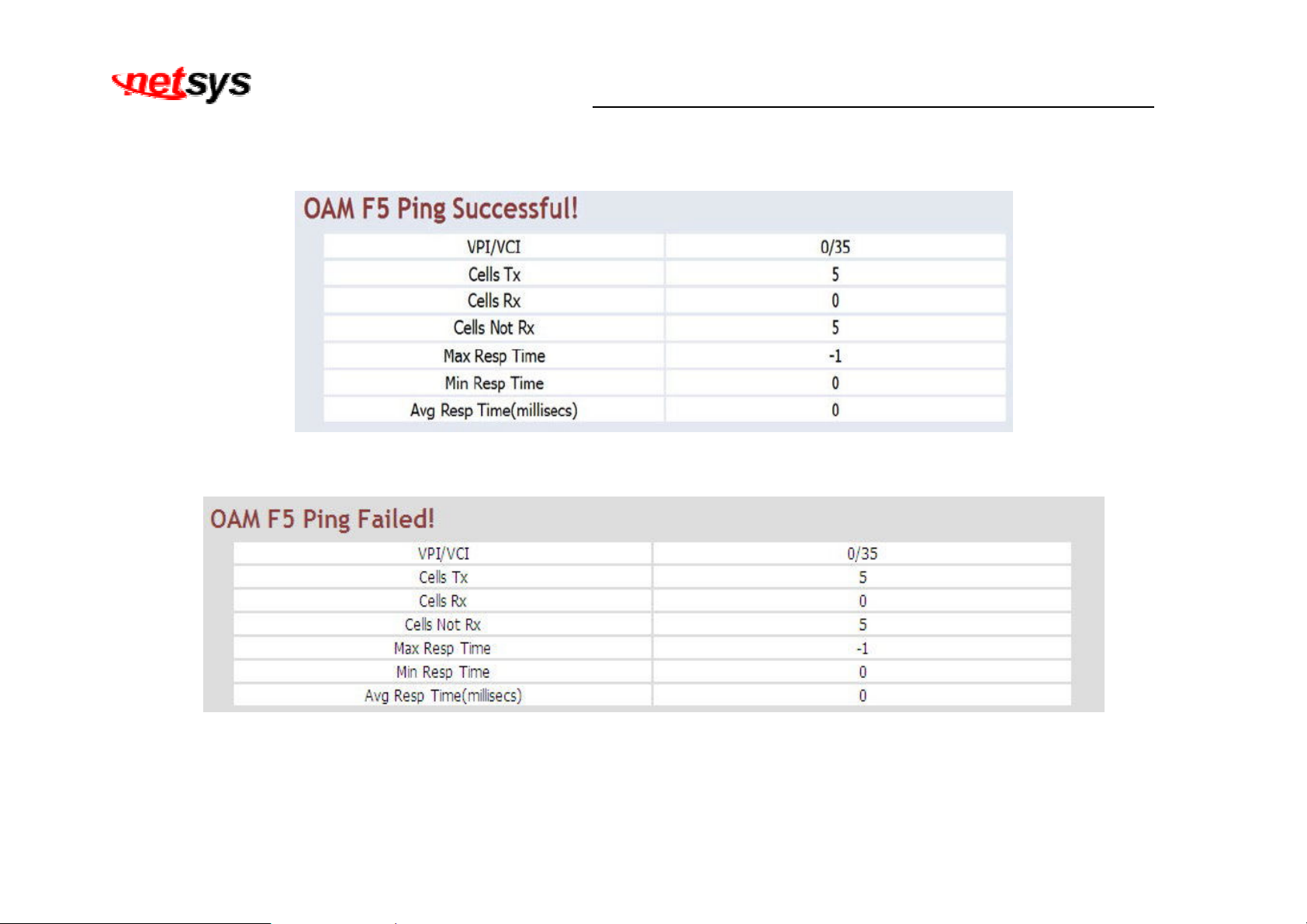

Figure 4.6.9.1 Tset Successful

Figure 4.6.9.2 Test Failed

The screen contains the following details:

Page 97

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

Fields in ADSL OAM F5 Test Page:

Field Description

VPI/VCI Displays the selected VPI/VCI channel of the OAM F5 Setting Table.

Cells Tx Count of total number of transmitted ATM cells.

Cells Rx Count of total number of received ATM cells.

Cells not Rx Count of total number of not received ATM cells.

Max Resp Time Displays the maximum response time in milliseconds.

Min Resp Time Displays the minimum response time in milliseconds.

Avg Resp Time (milisecs) Displays the average response time in milliseconds.

Page 98

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.7 Select “LAN”

When connecting the NV-600A to a new control PC, one may want to go through the following steps in order to make the IP address

previously set by ifconfig in the console or on some later occasion, one may want to change it again without using the console, then

the menu below will be helpful. In order to set the IP address, click on “LAN Settings”. You can view LAN in the left navigation bar for

LAN related settings.

Select the “LAN”. The menu below includes the sub-menus of LAN ARP List, LAN Settings, UPnP Devices, LAN Switch

Port Setting, LAN Port Status, VLAN Settings. A screen is displayed as shown in Figure 4.7.

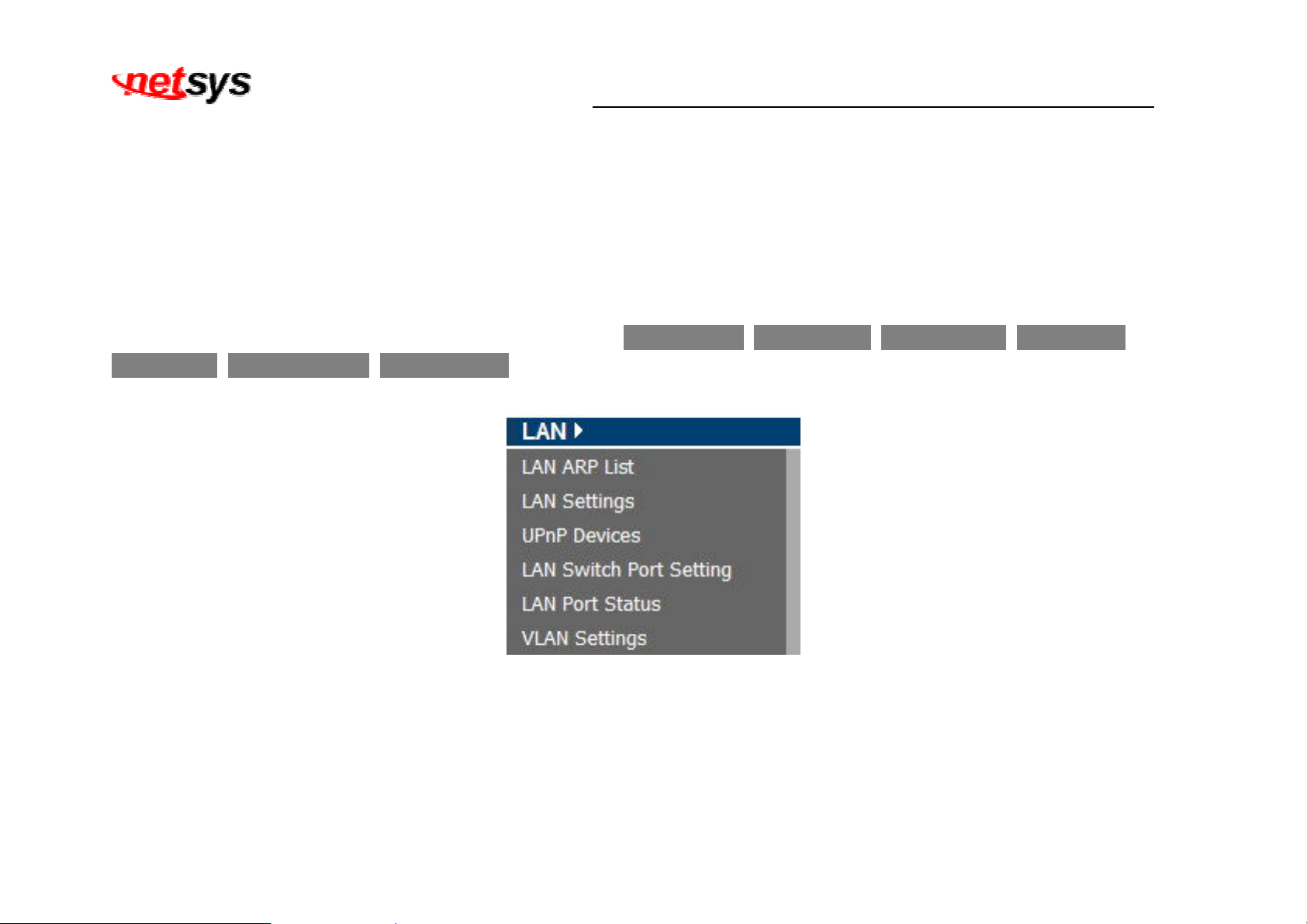

Figure 4.7 LAN options

Page 99

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.7.1

LAN ARP List

To view the ARP entries list that is currently present in CPE, click the LAN ARP List link (LAN > LAN ARP List) on the left

navigation bar. A screen is displayed as shown in Figure 4.7.1

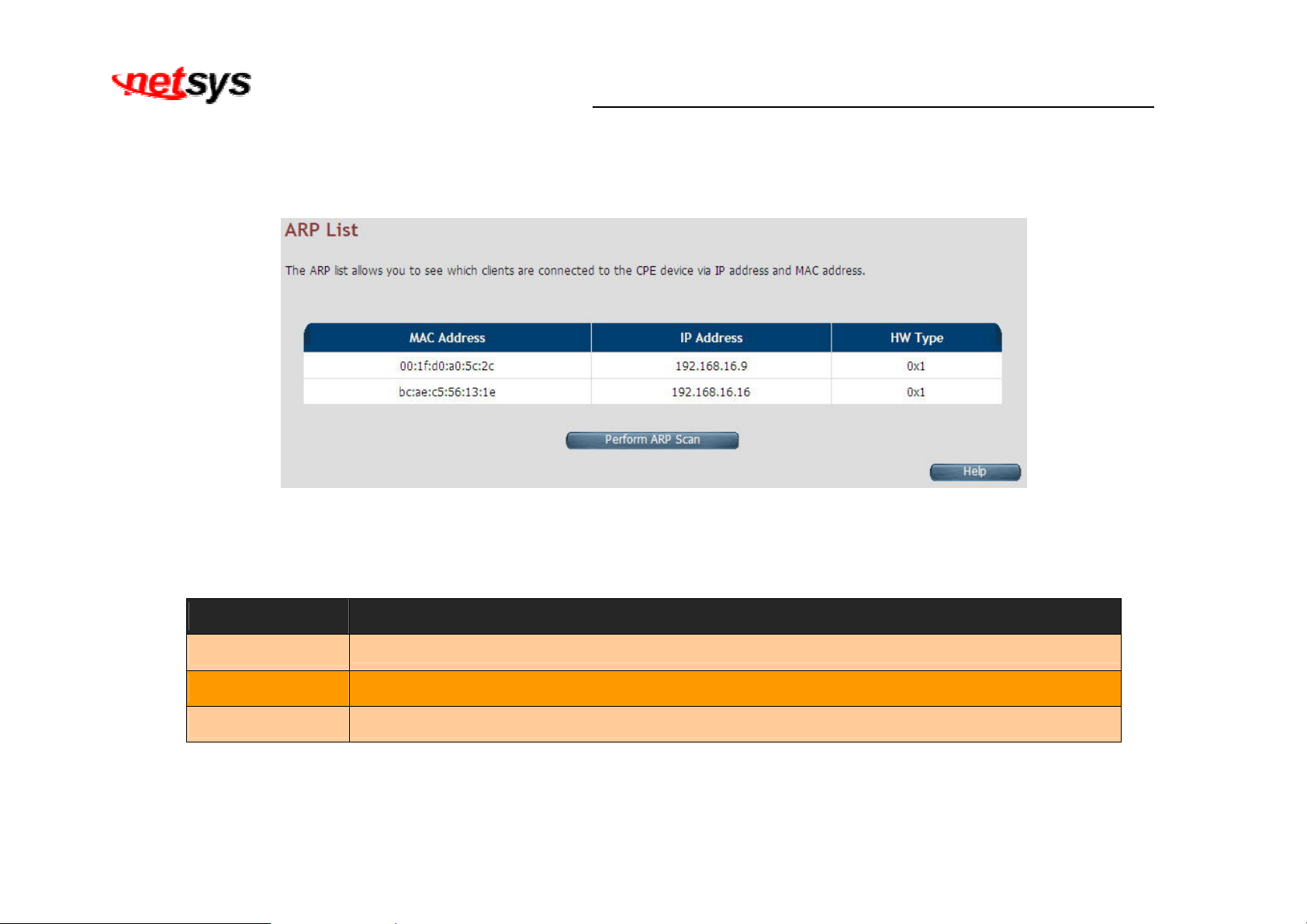

Figure 4.7.1 ARP List

The screen contains the following details:

Fields in LAN ARP List:

Field Description

MAC Address

MAC Address of next hop node from ARP entry.

IP Address IP Address of node from ARP entry.

HW Type Hardware Type for ARP entry. 0x1 corresponds to IEEE 802.3 ethernet based interface.

 Click Perform ARP Scan to ensure the ARP entries connected to the CPE.

Page 100

NV-600A Managed VDSL2 CPE Router USER’S MANUAL Ver. A6

4.7.2 LAN Settings

To configure the LAN interface, click the LAN Settings link (LAN > LAN Settings) on the left navigation bar. In case the Secondary

level subnet Range checkbox is checked, some additional data and options will be on display. A screen is displayed (DHCP Server

mode) as shown in Figure 4.7.2.

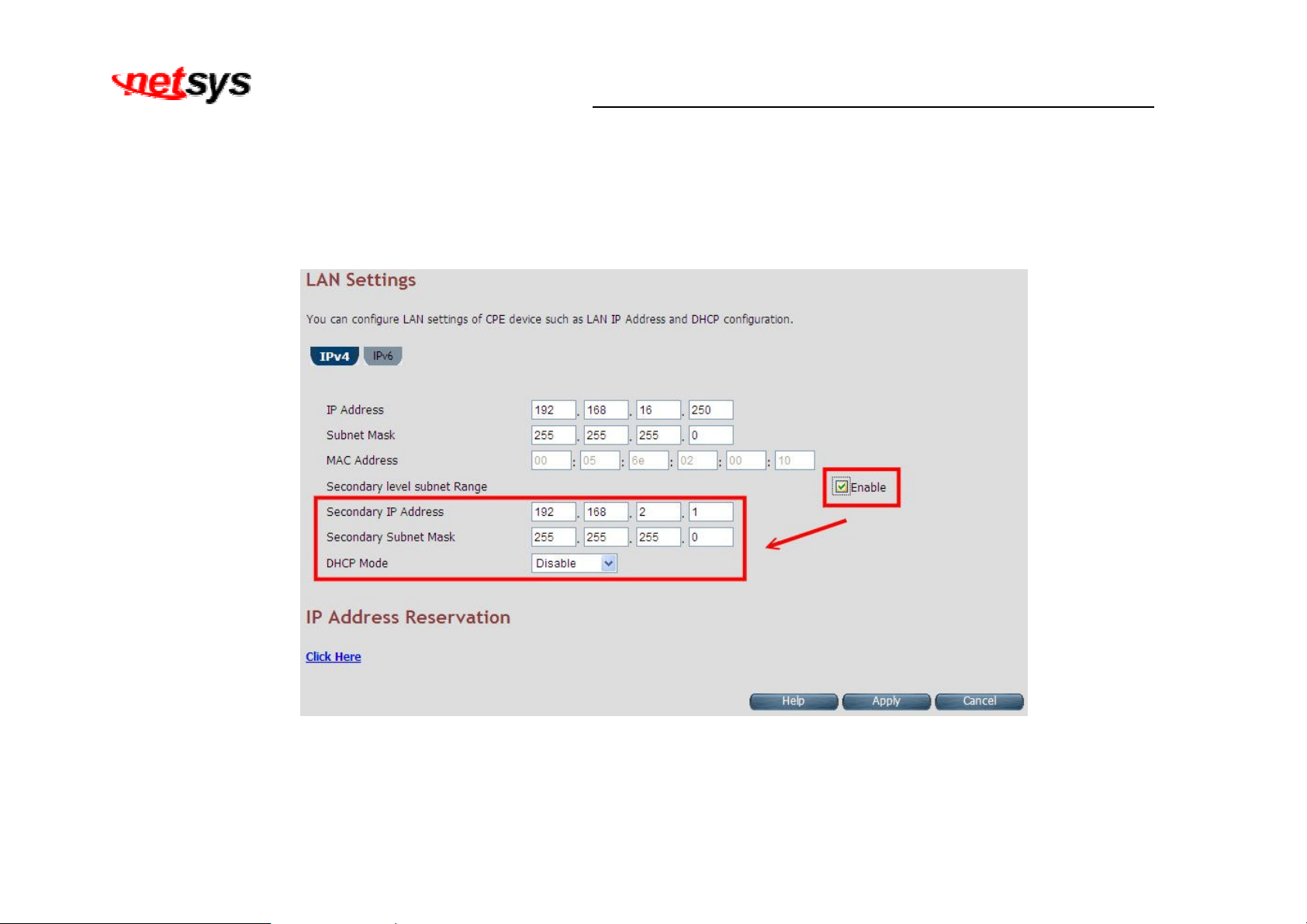

Figure 4.7.2 LAN Settings – DHCP Server
