NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Copyright
Copyright © 2012 by National Enhance Technology Corp. All rights reserved.
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED TO THEIR RESPECTIVE COMPANIES.
Safety Warnings
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
Caution:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
NC-22BC is compliance outdoor applications. This product have IP-66 waterproof protection.
1
Page 3
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Table of Contents
Copyright............................................................................................................................................................1
Safety Warnings.................................................................................................................................................1
Foreword ............................................................................................................................................................4
Chapter 1. Package Contents ...........................................................................................................................5
Chapter 2. Product Specifications....................................................................................................................6
Chapter 3. Product Installation.......................................................................................................................10
3.1 Monitor Settings................................................................................................................................................................. 10
3.2 Hardware Installation......................................................................................................................................................... 11
3.3 IP Assignment .................................................................................................................................................................... 16
3.4 Install ActiveX Control....................................................................................................................................................... 21
Chapter 4. Live Video ......................................................................................................................................27
Chapter 5. Camera Configuration ...................................................................................................................35
5.1. System ............................................................................................................................................................................... 36
5.2. Network.............................................................................................................................................................................. 42
5.3. A / V Setting ....................................................................................................................................................................... 67
5.4. Event List ........................................................................................................................................................................... 80
Chapter 6. Network Configuration ..................................................................................................................93
2
Page 4
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Chapter 7. I/O Configuration ...........................................................................................................................95
Chapter 8. Factory Default ..............................................................................................................................99
Chapter 9. Universal Password ....................................................................................................................100
Appendix A. Micro SD Card Compatibility (Optional) .................................................................................104
Appendix B: Compliance Information ..........................................................................................................105
Warranty .........................................................................................................................................................108
Chinese SJ/T 11364-2006 ..............................................................................................................................109
3
Page 5
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Foreword
NC-22BC is a 1 / 2.7” 2 Mega-Pixel CMOS sensor IP camera with a built-in web server. The user can view real-time video via IE
browser. It supports H.264 and M-JPEG video compression, providing smooth and high video quality. The video can be stored in
Micro SD card and playback remotely. With a user friendly interface, it is an easy-to-use IP camera for security applications.

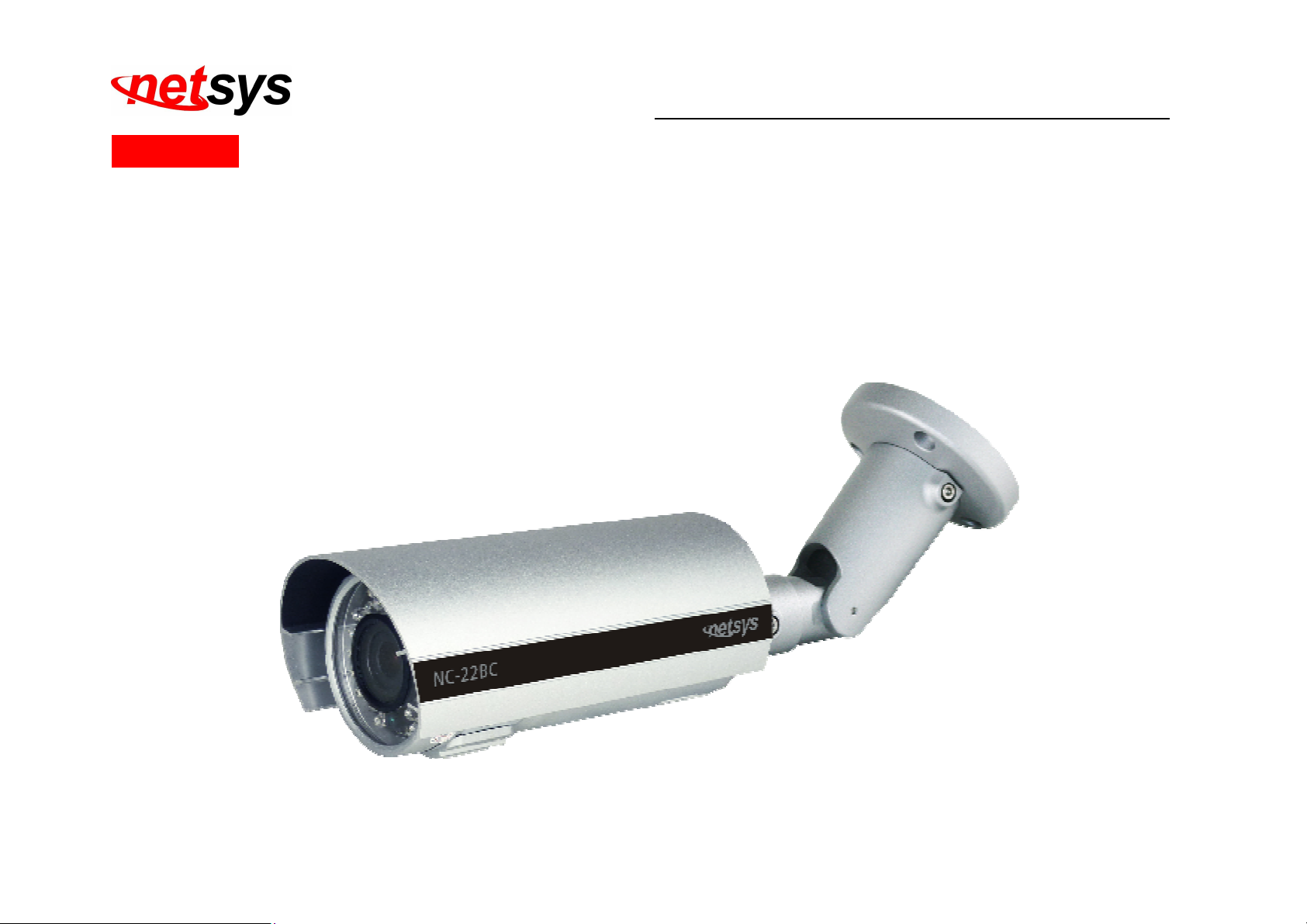

Outward
4
Page 6
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

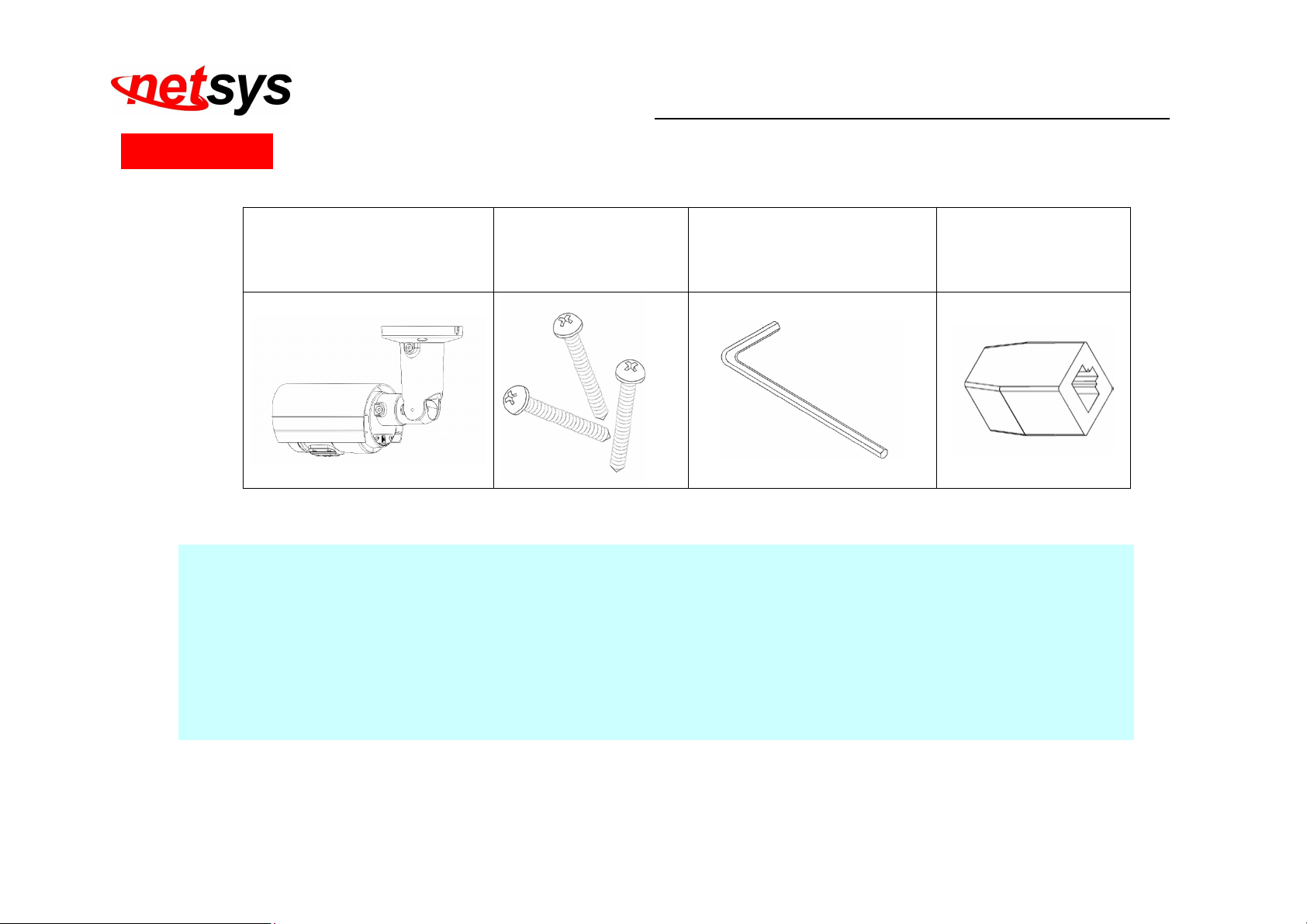

Chapter 1. Package Contents
IP Camera Screws Hex Wrench
RJ45 Female to
Female connector
Notes:
1. Please inform your dealer immediately for any missing or damaged parts. If possible, retain the carton including
the original packing materials. Use them to repack the unit in case there is a need to return for repair.
2. If the product has any issue, please contact your local vendor.
3. The power supply included in the package is commercial-grade. Do not use in industrial-grade applications.
4. Please look for the QR code on the bottom of the product, the user can launch the QR code scanning program to
scan and download the user’s manual electronic format file.
5. This product can be used with PoE products, NV-202P is recommended.
5
Page 7
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Chapter 2.
Product Specifications
Main Features
Full HD 1080P Real Time
External Vari-focal Lens Adjustment
3D+2D Digital Noise Reduction
Digital Wide Dynamic Range
Power over Ethernet Available
Day & Night Switch Time Control Manually
IR LED Built in in 25M Available
Mechanism IR Cut Filter Available
H.264/ M-JPEG Compression
Micro SD Card Backup (Optional)
2-way Audio
Video Output
IP-66
Cable Management
Supports for iOS/ Android / OS X / Windows
SDK for Software Integration
Free Bundle 36 Ch Recording Software
6
Page 8
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Hardware
CPU Multimedia SoC
RAM 256MB
Flash ROM 16MB
Image sensor 1 / 2.7” 2 Megapixel CMOS Sensor
Color : 0.05 Lux (AGC ON)
Sensitivity
B / W: 0.01 Lux (AGC ON)
Lens Type Vari-focal Lens 3-10.5 mm @ F1.4
View Angle
34.89°~106.72°(H), 19.38°~61.26°(V)
ICR Mechanism IR cut Filter
I/O 1 DI/ 1 DO
Power over Ethernet Yes
Video Output Yes
G.711(64K) and G.726(32K,24K) audio compression
Input : 3.5mm phone jack
Audio
Output: 3.5mm phone jack
Support 2-way.
DC 12V Max: 2.76W(IR Off); 4.80W(IR On)
Power Consumption
PoE Max: 3.84W(IR Off); 6.72W(IR On)
Operating Temperature -10°C ~ 50°C
7
Page 9
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

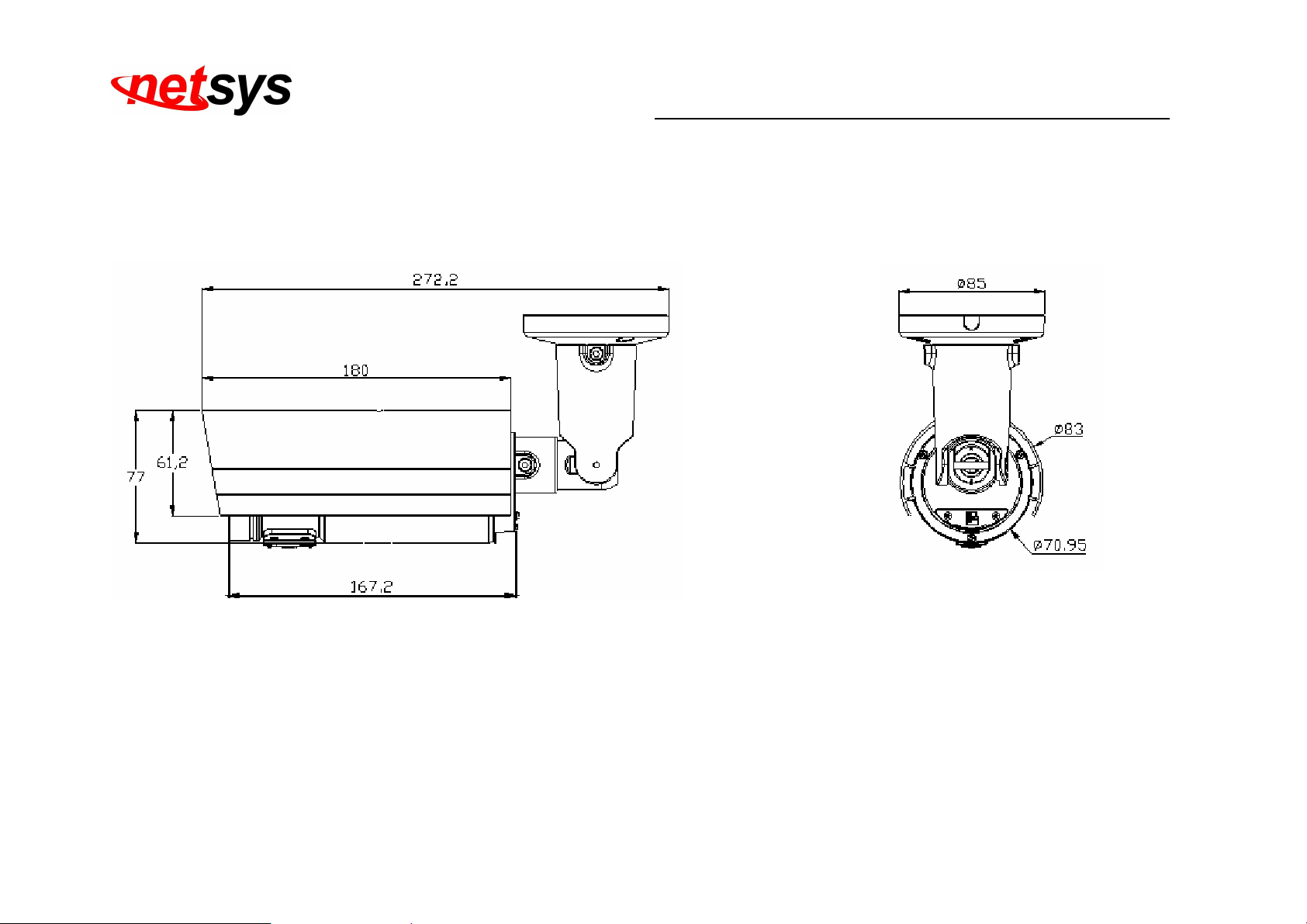

Dimensions
83mm (∅) x 180mm (H)
Weight 1350g
IR LEDs
LEDs 35 units, 850nM
IR distance 25M
Network
Ethernet 10/ 100 Base-T
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/
Network Protocol
IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
System
1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 320x240@30fps,
Video Resolution
176x144@30fps

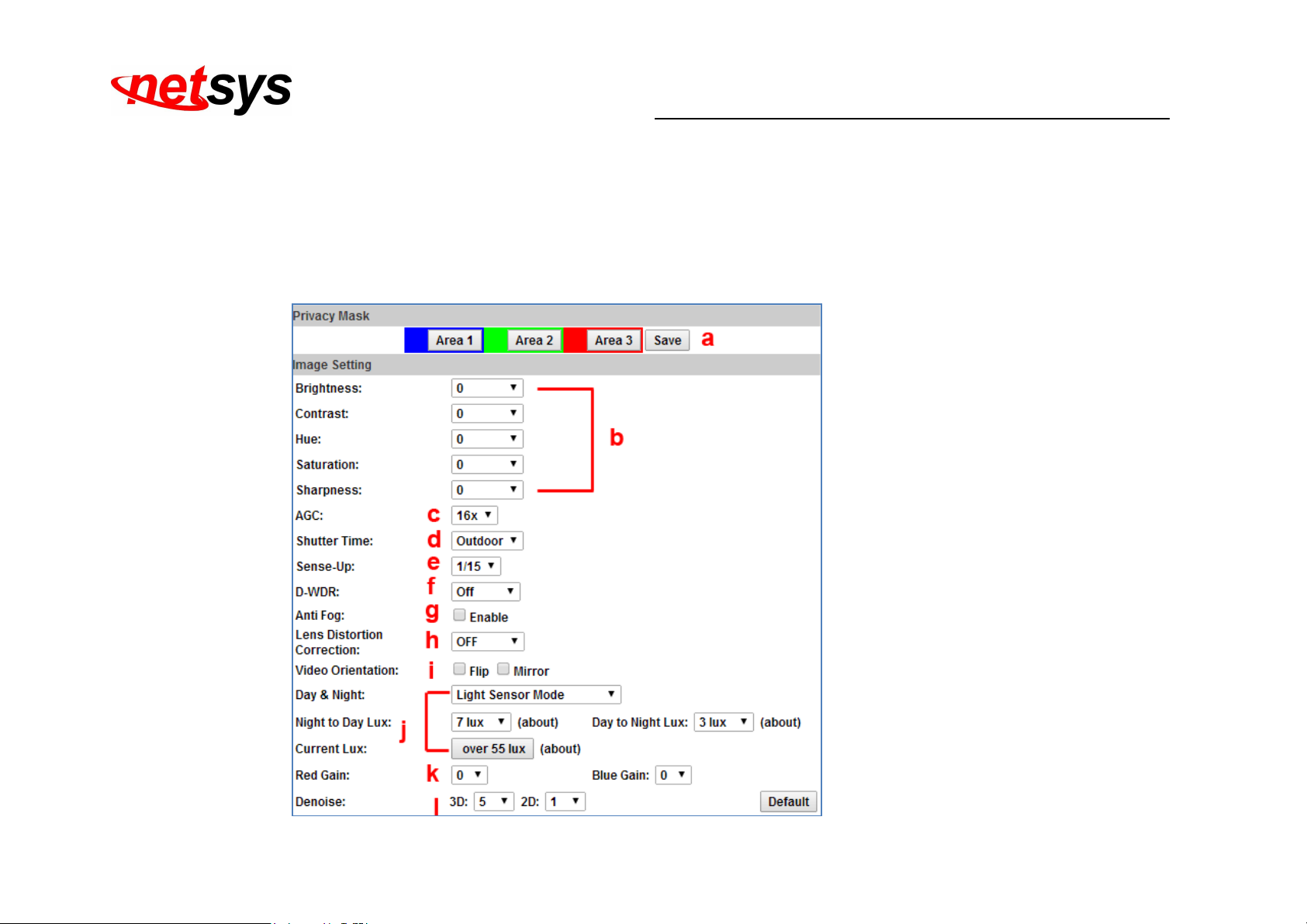

Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Shutter Time, Sense-Up,
Video Adjust
D-WDR, Anti Fog, Lens Distortion Correction, Flip, Mirror, Day&Night Adjustable, Red
Gain and Blue Gain, Denoise
Triple Streaming Yes
Image Snapshot Yes
Full Screen Monitoring Yes
Privacy Mask Yes, 3 different areas
Compression Format H.264/ M-JPEG
8
Page 10
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Video Bitrates Adjust CBR, CVBR
Motion Detection Yes, 3 different areas
Triggered Action Mail, FTP, Save to SD card, DO, SAMBA
Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X
Security
port-based authentication for network protection, QoS/DSCP
Firmware Upgrade HTTP mode, can be upgraded remotely
Simultaneous Connection Up to 10
Micro SD card management (Optional)
Recording Trigger Motion Detection, IP check, Network break down (wire only),Schedule, DI
Video Format AVI, JPEG
Video Playback Yes
Delete Files Yes
Web browsing requirement
Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above
OS
Browser: Chrome, Safari, Firefox
Mobile support iOS 4.3 or above, Android 1.6 or above
Intel Dual Core 2.53G
Hardware Suggested
RAM: 1G
Graphic card: 128MB
Note: **
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION.
9
Page 11
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Chapter 3. Product Installation
3.1 Monitor Settings

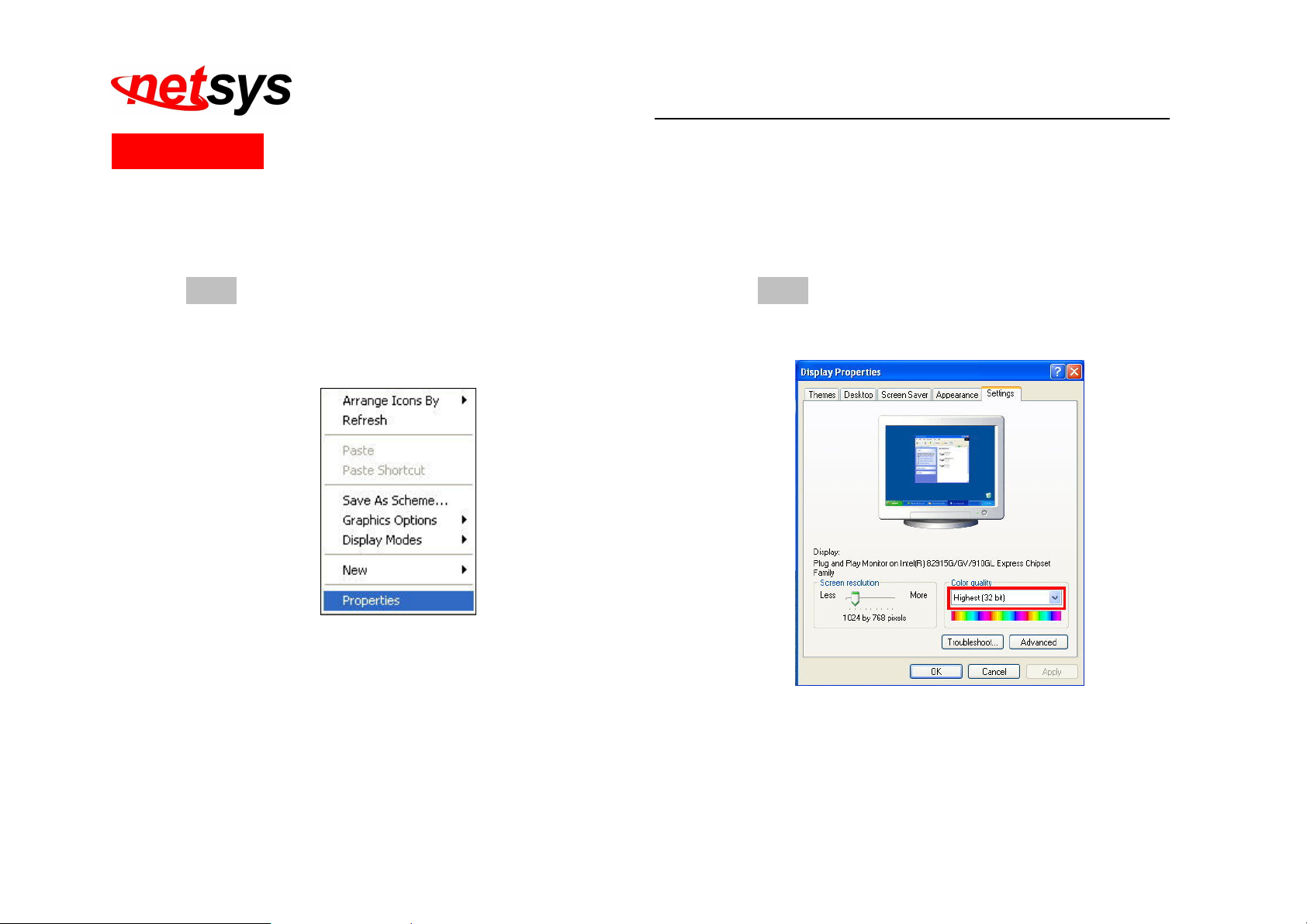

Step1 Right-Click on the desktop. Select Properties Step2 Change color quality to highest (32bit).
.
10
Page 12
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
3.2 Hardware Installation
11
Page 13
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

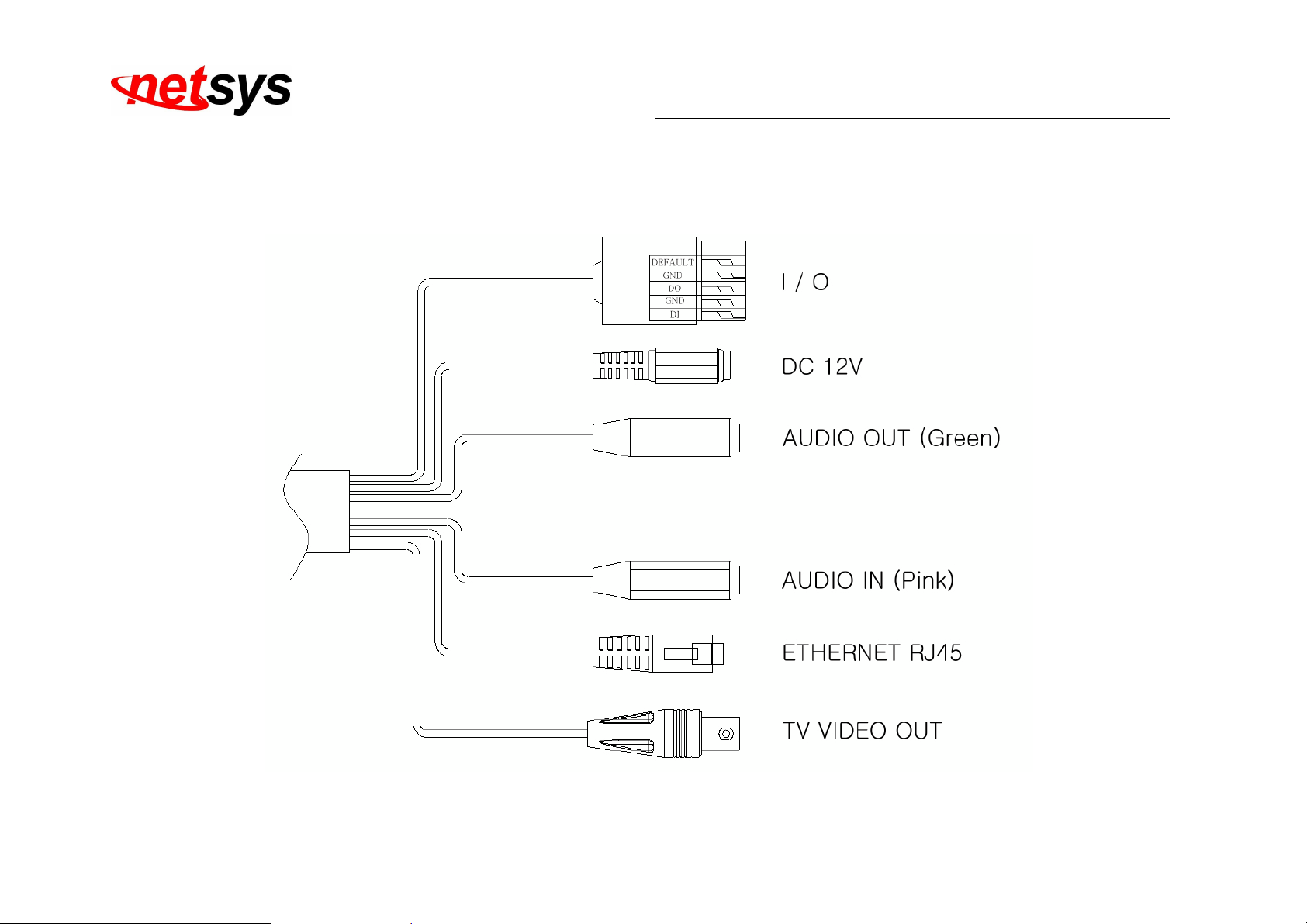

1. Connectors Instruction
The Cable and connectors are as below. Connect power adaptor first, then connect the IP Camera to PC or network, and
set up the network configurations according to the network environment.
12
Page 14
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

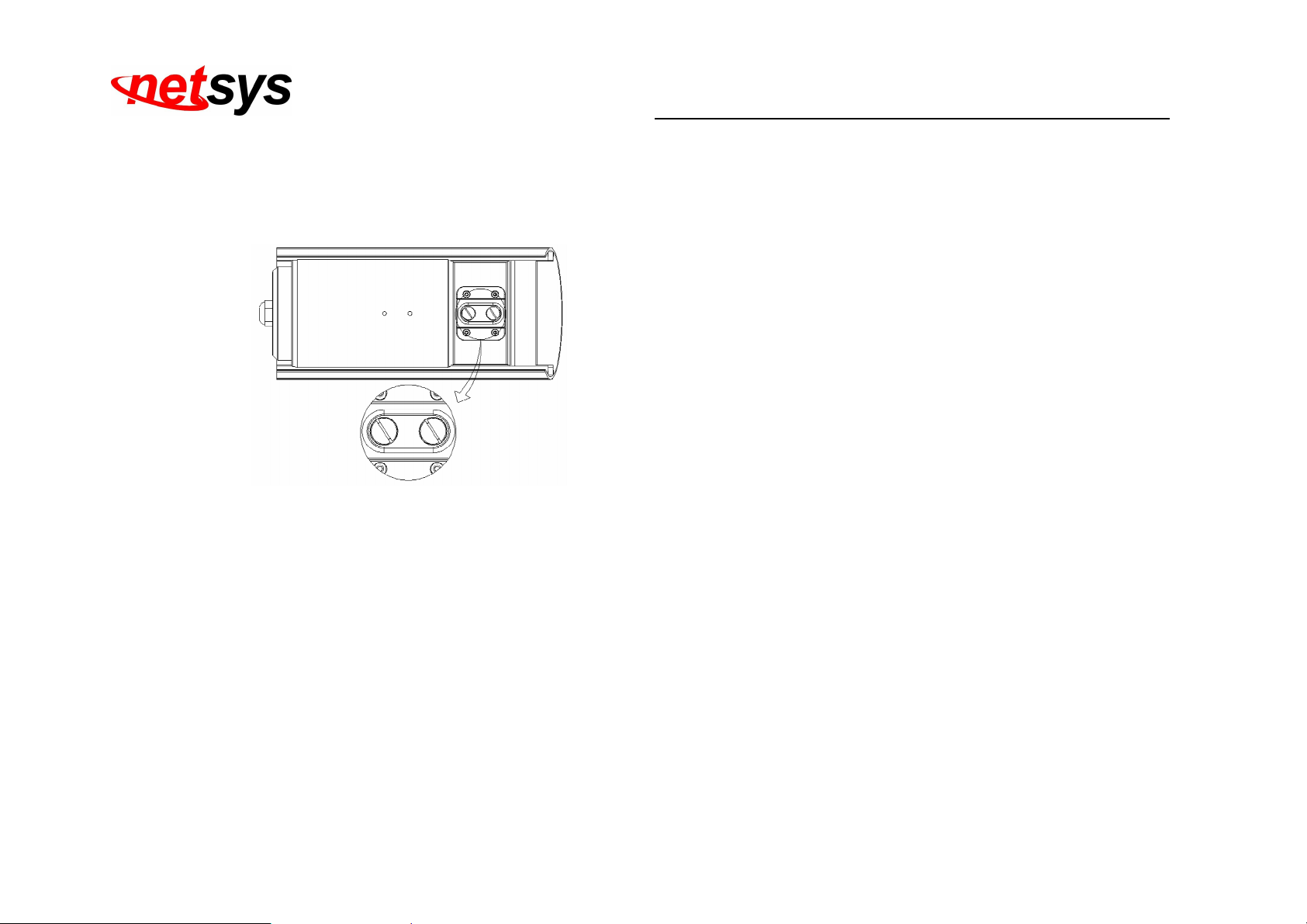

2. Adjust ZOOM and FOCUS
Adjust the ZOOM first and then FOCUS as following picture to complete the adjustment.

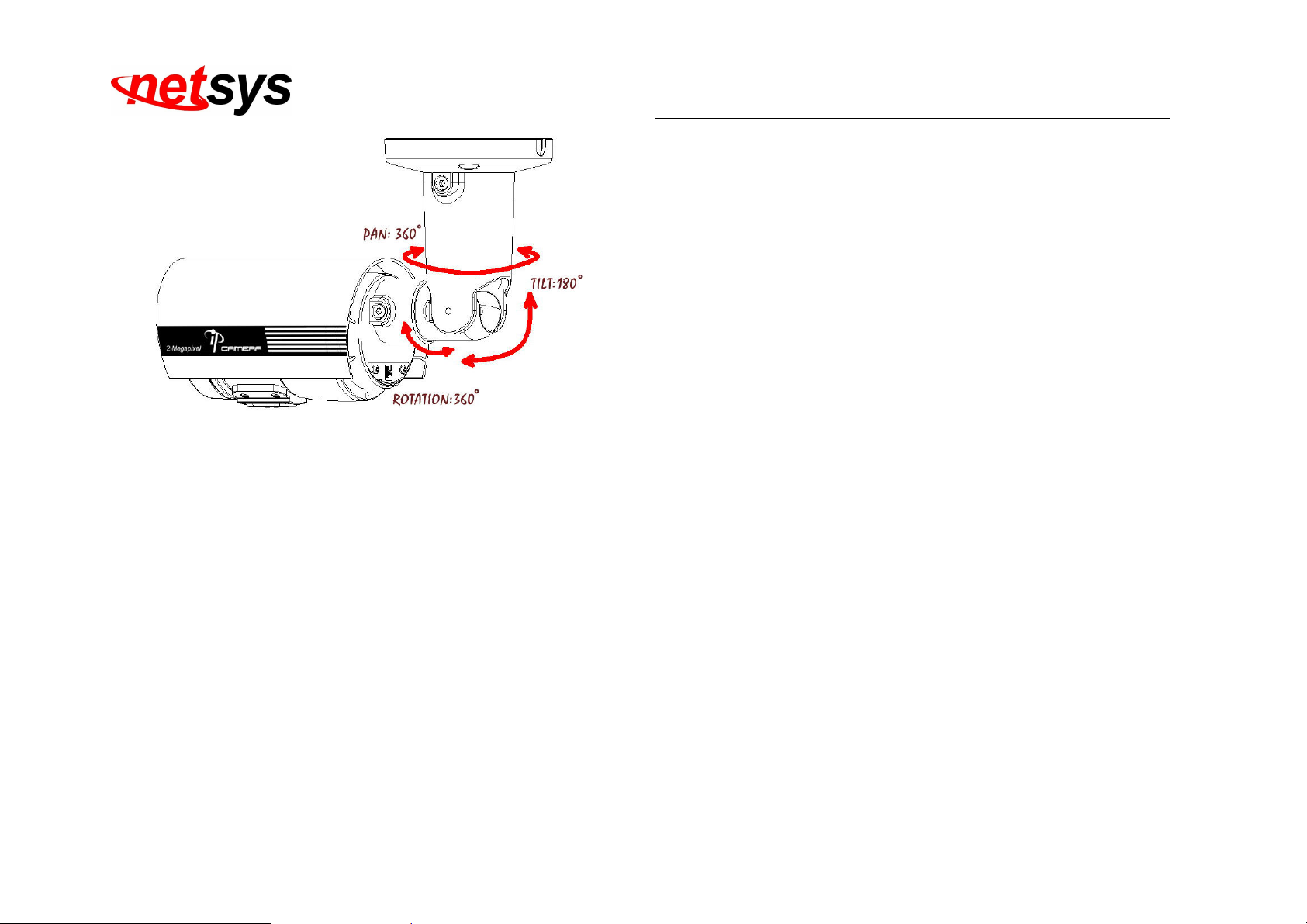

3. 3-Axis Bracket
Use the 3-Axis bracket to adjust the camera to appropriate angle, then turn and tighten the screw to fix it.
13
Page 15
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
4.
PoE ( Power Over Ethernet)(Optional) 802.3af, 15.4W / 802.3at 30W Max.
*NV-202P is recommended
Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure. It enables power to be
provided to a network device, such as an IP phone or a network camera, using the same cable as that used for network
connection. It eliminates the need for power outlets at the camera locations and enables easier application of uninterruptible
power supplies (UPS) to ensure 24 hours a day, 7 days a week operation. NV-202P supports IEEE802.3af / IEEE 802.3at
standard. (Figure 3.1)
14
Page 16
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

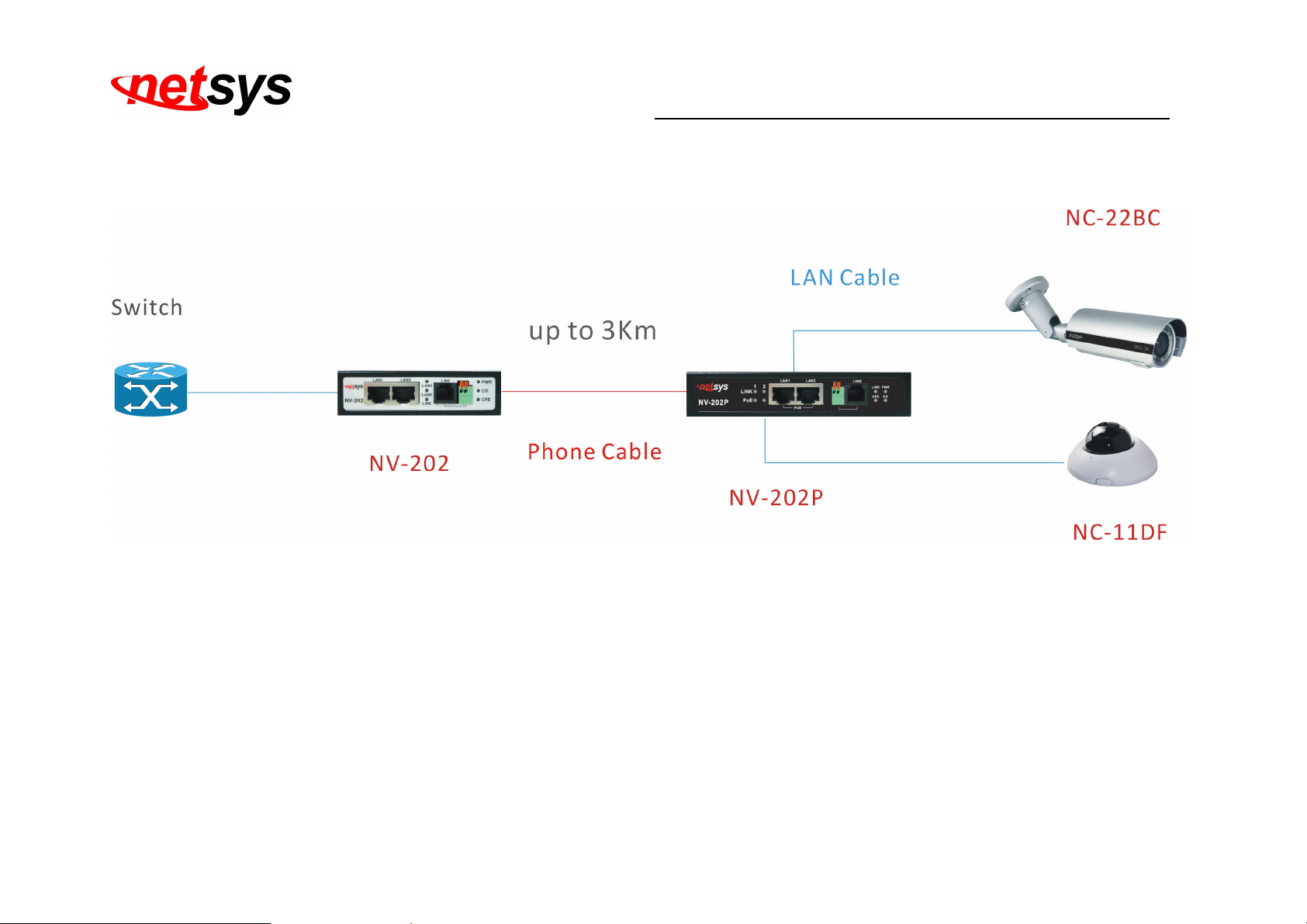

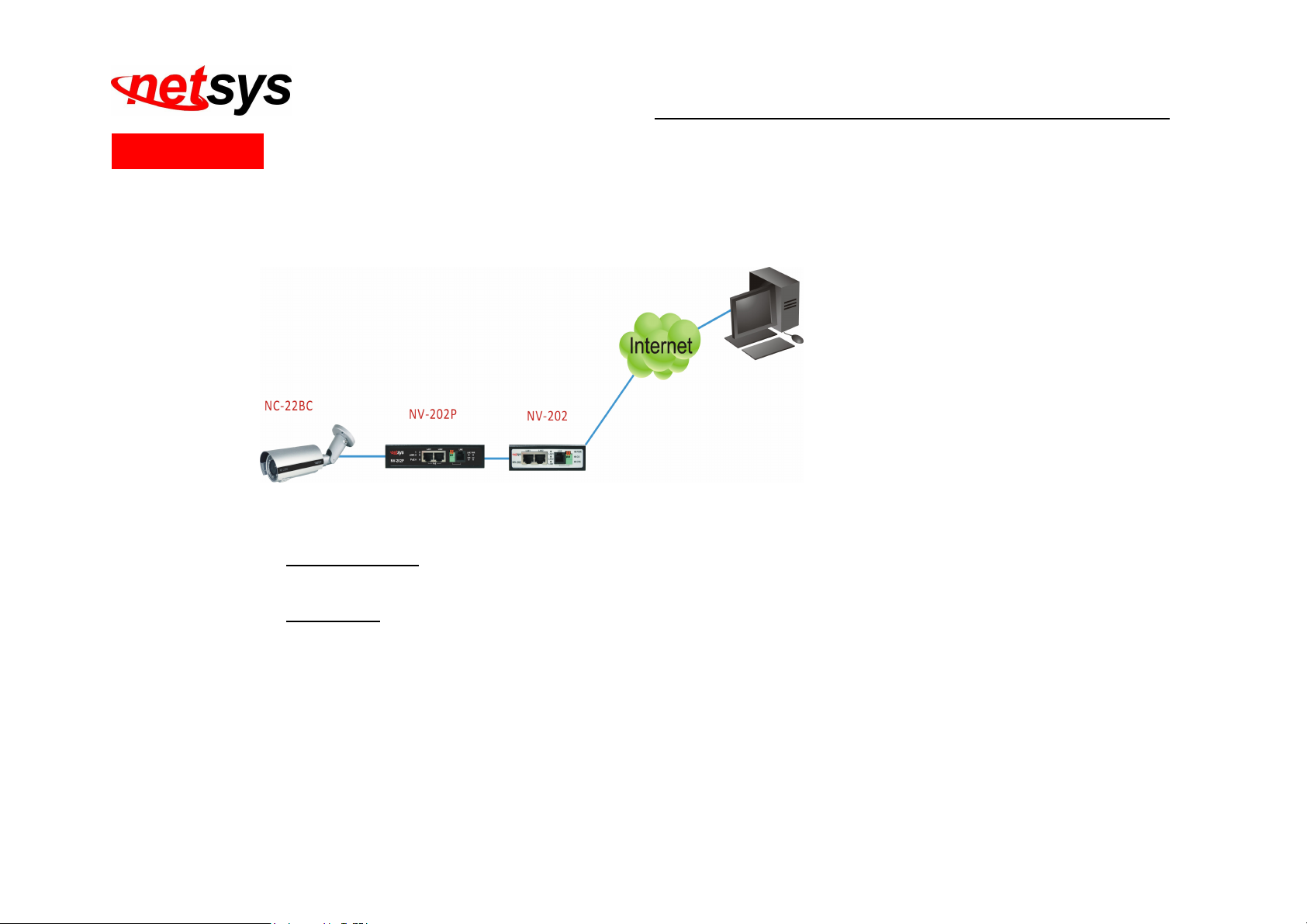

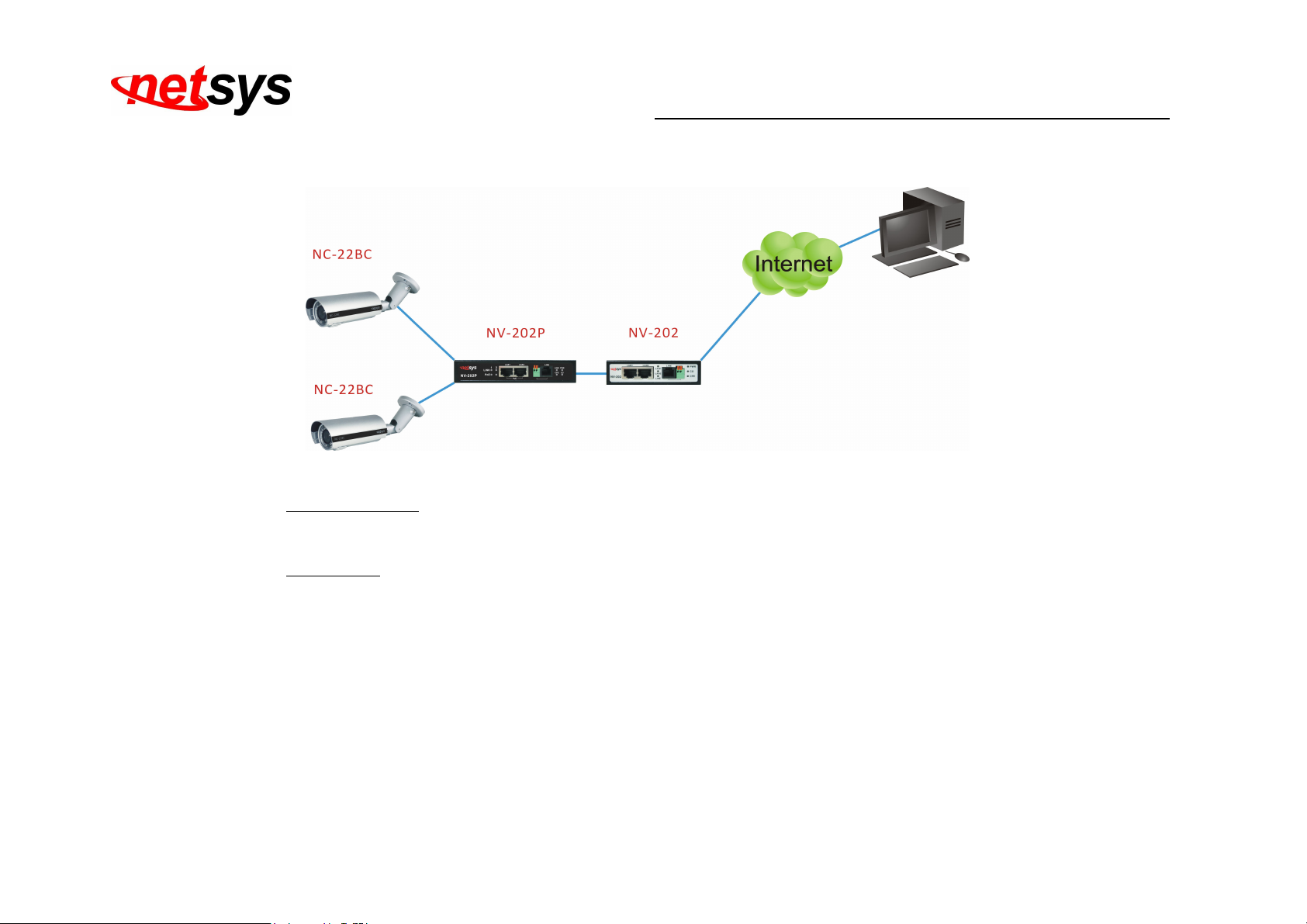

Figure 3.1 NV-202P KIT and IP-Camera applications
15
Page 17
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
3.3 IP Assignment
1. Use the software IP Installer to assign the IP address of the IP Camera. The software is in the software CD attached
to the product’s package.
2. IP installer supports two languages:
a. IPInstallerCht.exe：Chinese version
b. IPInstallerEng.exe：English version
3. There are 3 kinds of IP configuration.
a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)
4. Execute IP Installer

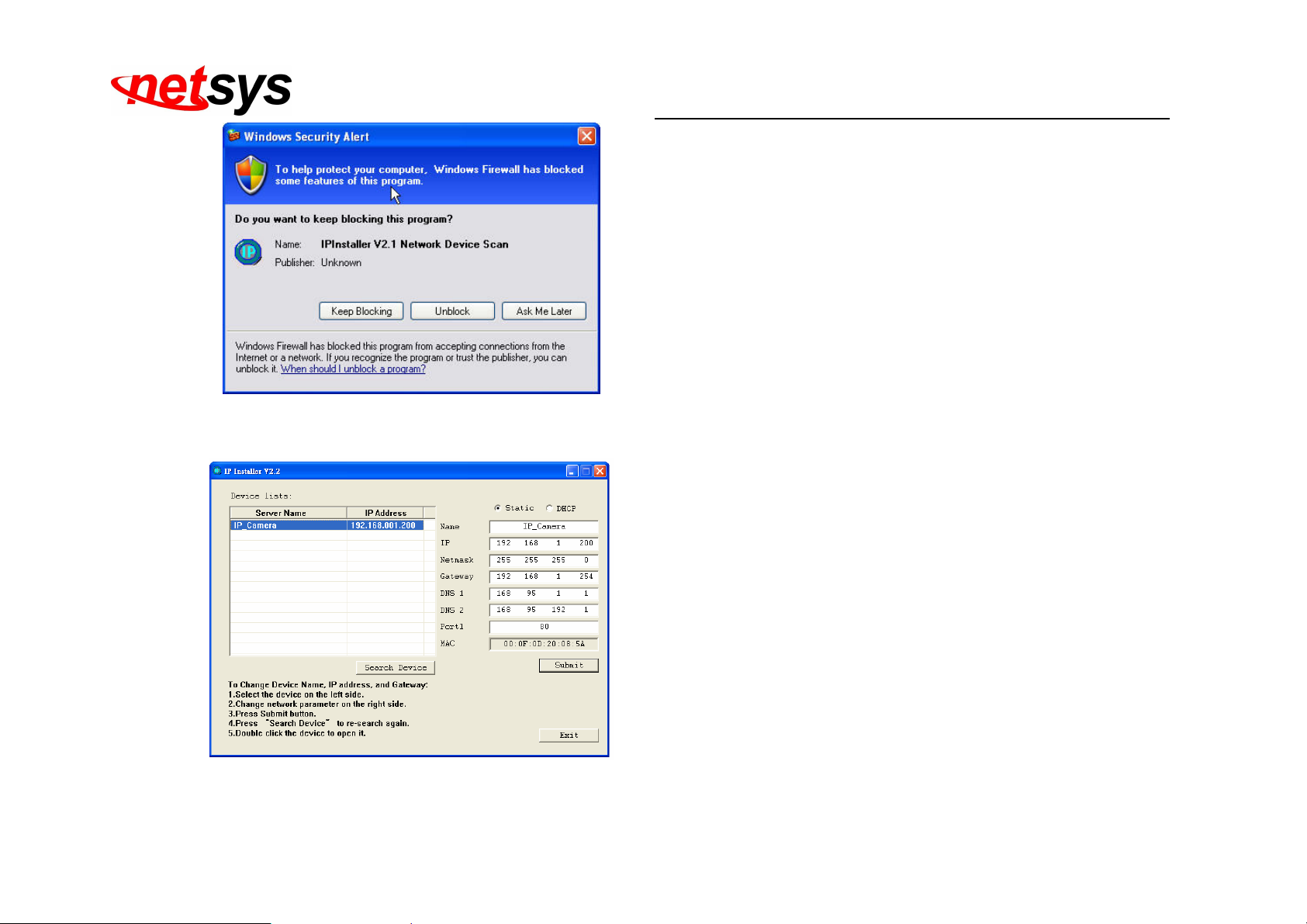

5. For Windows XP SP2 users, it may popup the following message box. Click Unblock.
16
Page 18
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
6. IP Installer configuration:
17
Page 19
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
7. IP Installer will search for all the IP Cameras connected on the LAN. The user can click Search Device to search
again.
8. Click one of the IP Cameras listed on the left side. The network configuration of this IP camera will be shown on the
right side. You can change the name of the IP Camera to your preference (e.g.: Office, warehouse). Change the

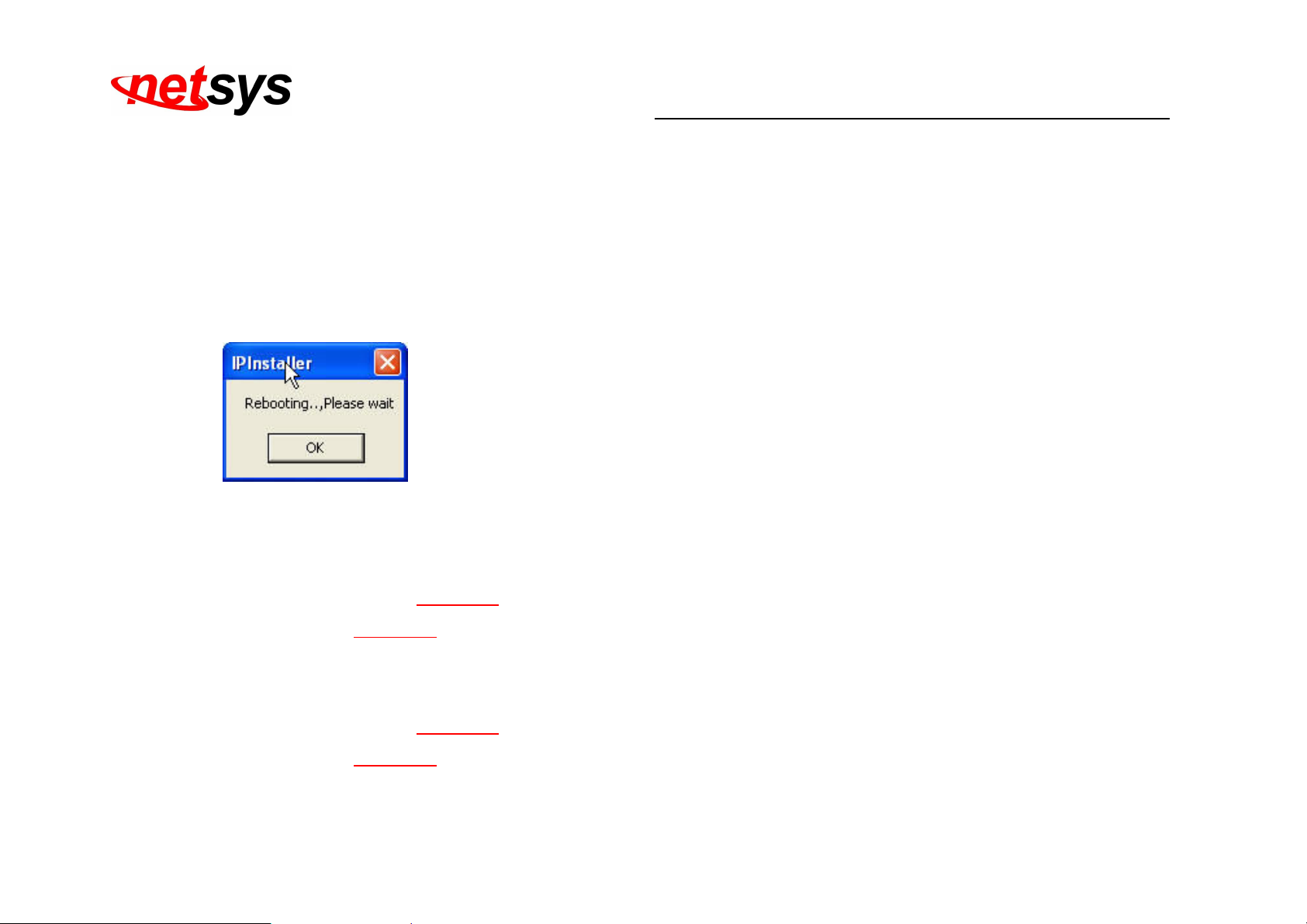

parameters and click Submit, then click OK, it will apply the changes and reboot the device.
9. Please make sure the subnet of the PC IP address and the IP Camera IP address are the same.
The same Subnet:
IP Camera IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP Camera IP address: 192.168.2.200
PC IP address: 192.168.1.100
18
Page 20
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

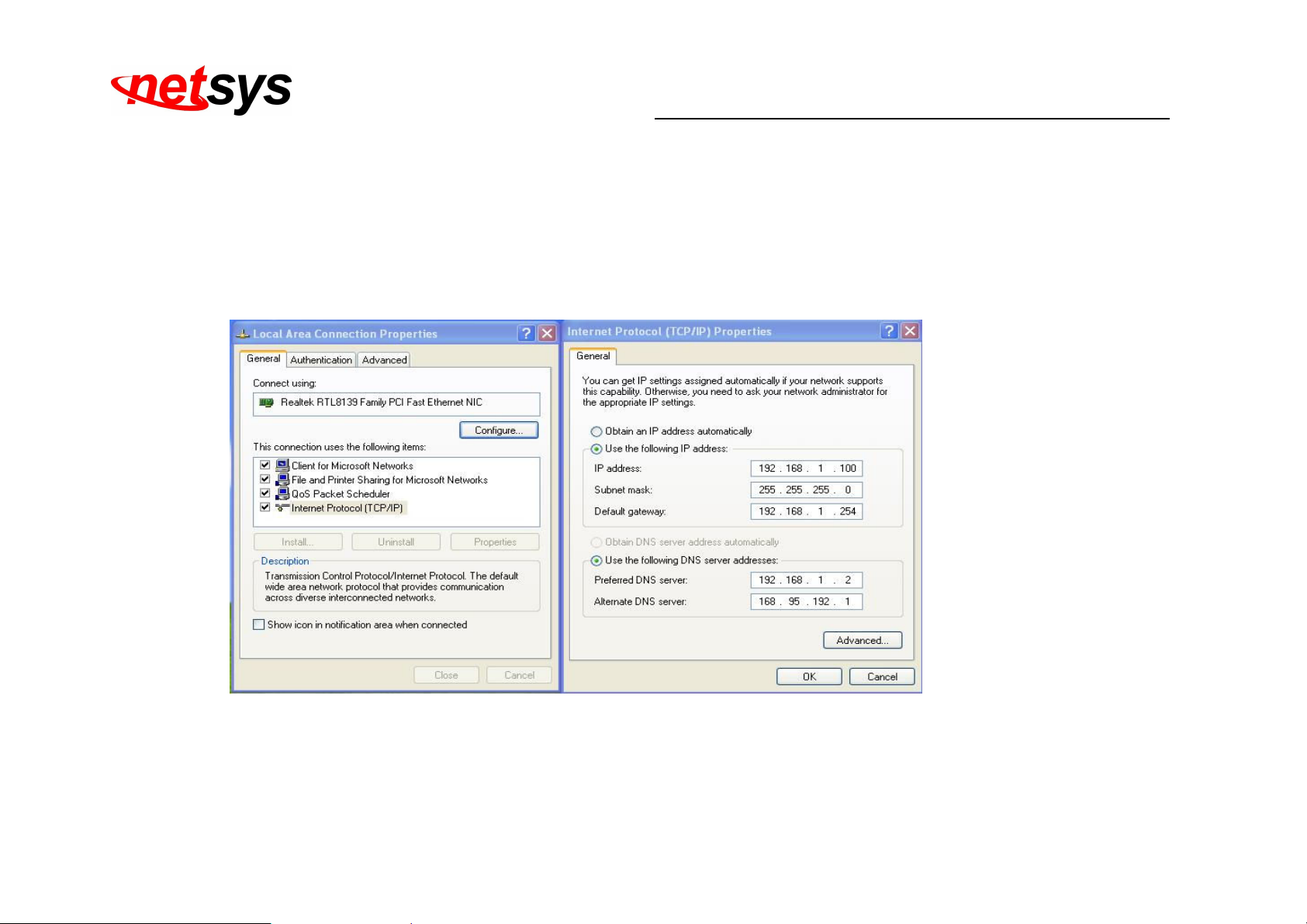

To Change the PC IP address:
Control PanelNetwork ConnectionsLocal Area Connection PropertiesInternet Protocol (TCP/IP) Properties
Make sure your IP Camera and PC are int the same Subnet. If not, change the IP Camera subnet or the PC IP subnet
accordingly.

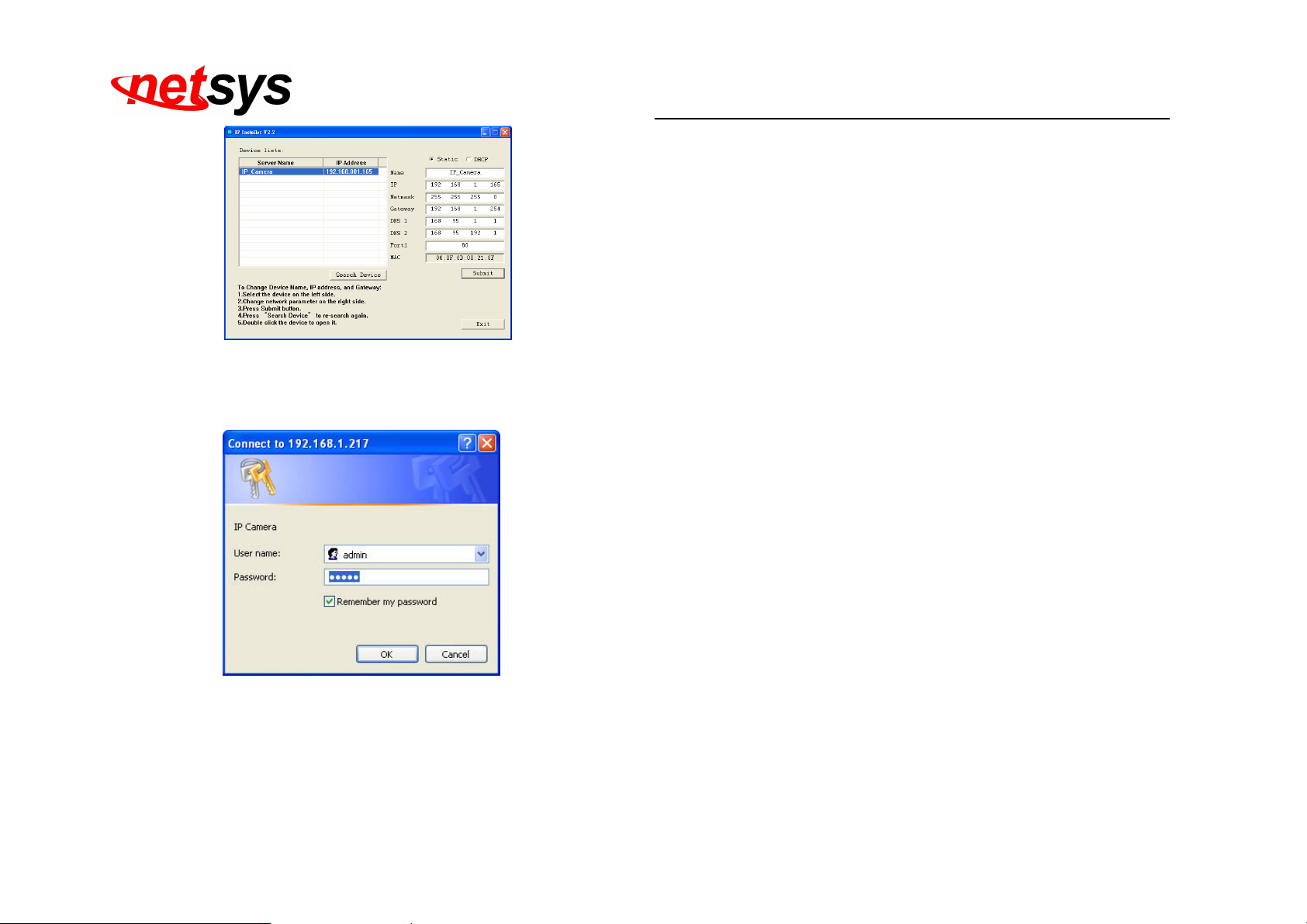

10. A quick way to access remote monitoring is to left-click the mouse twice, on a selected IP Camera, listed on Device
list of IP Installer. An IE browser will be opened.
19
Page 21
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

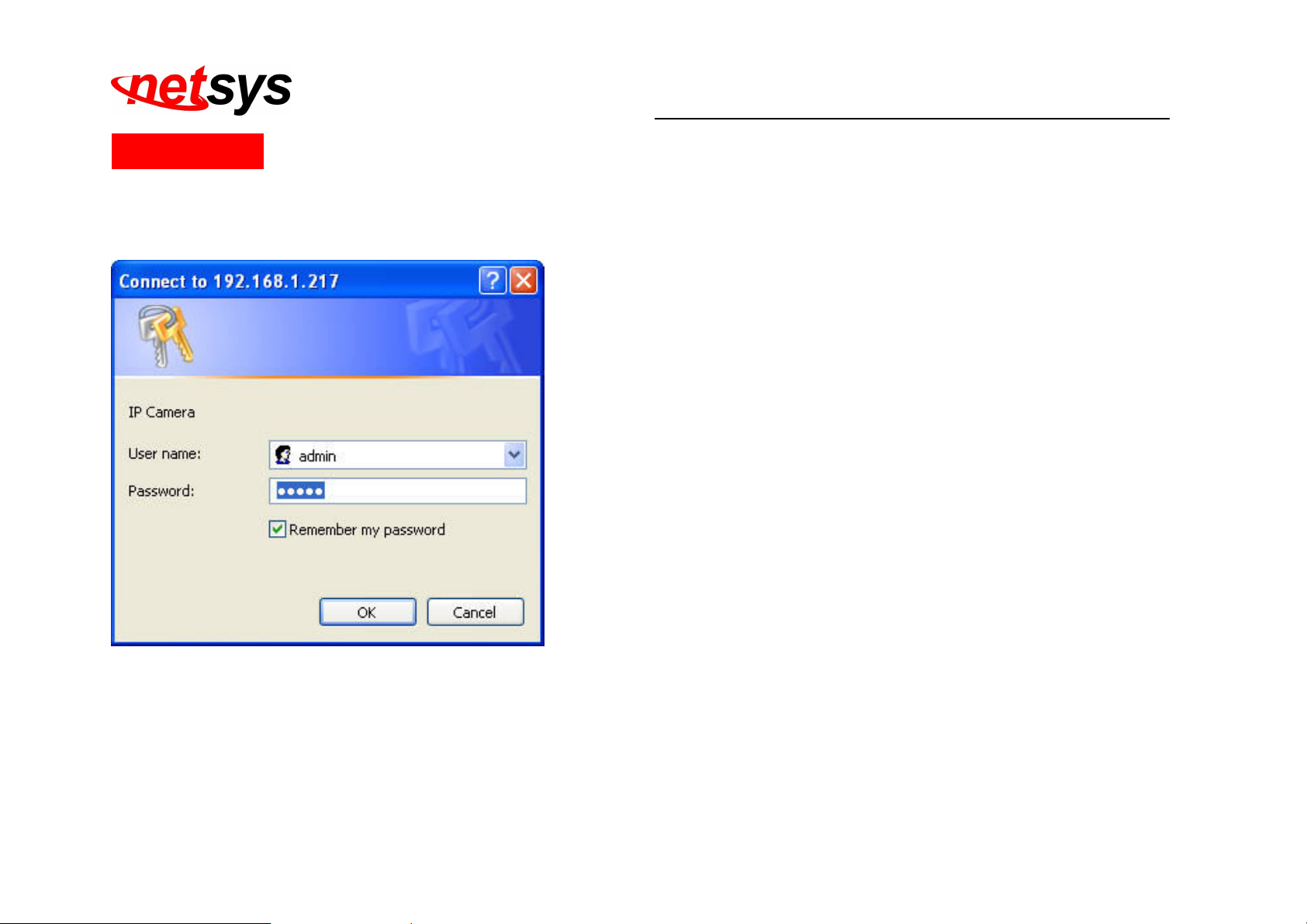

11. Then, key-in the default user name: admin and password: admin.
20
Page 22
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

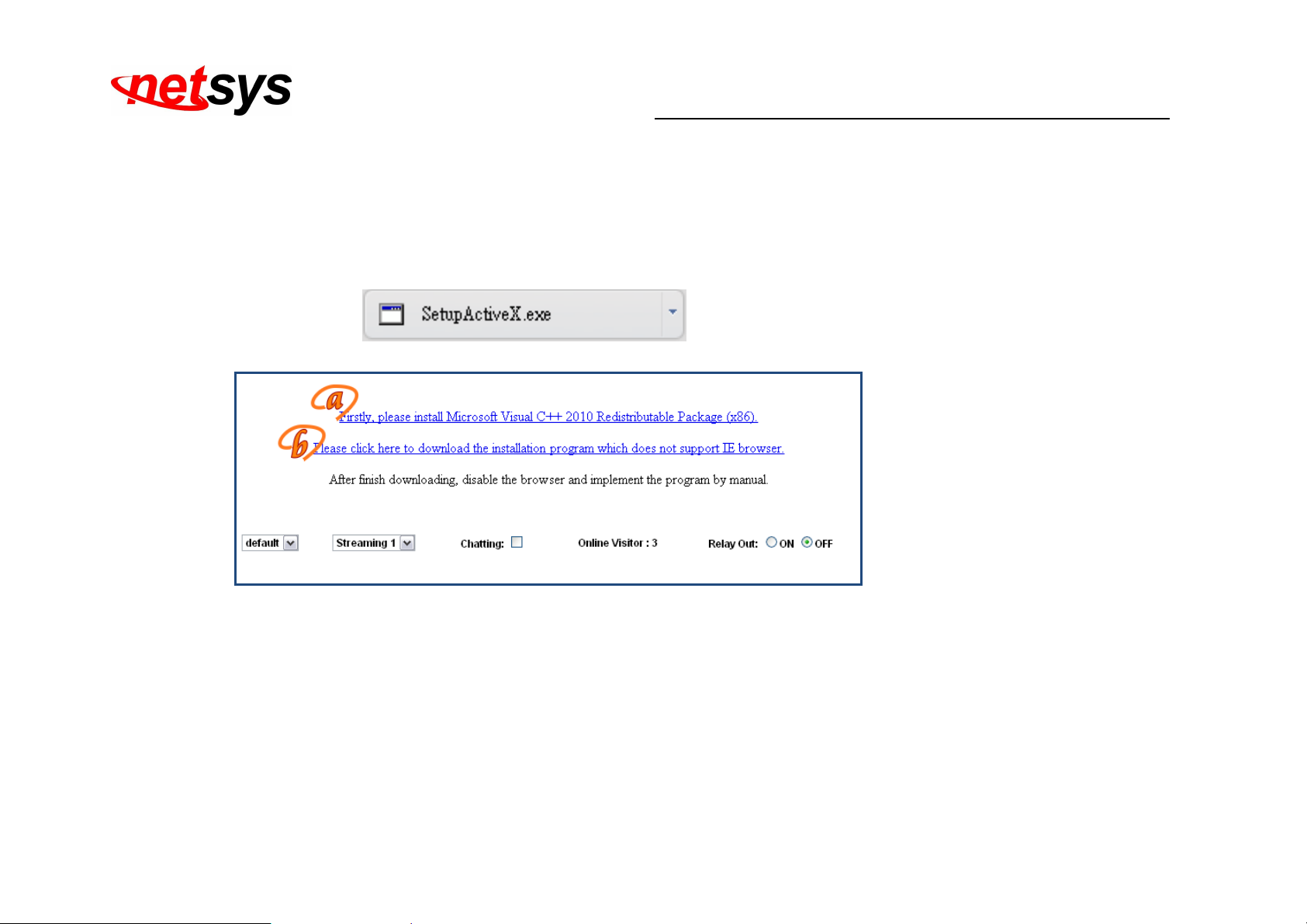

3.4 Install ActiveX Control
1. For users of IE 6.0 or above:

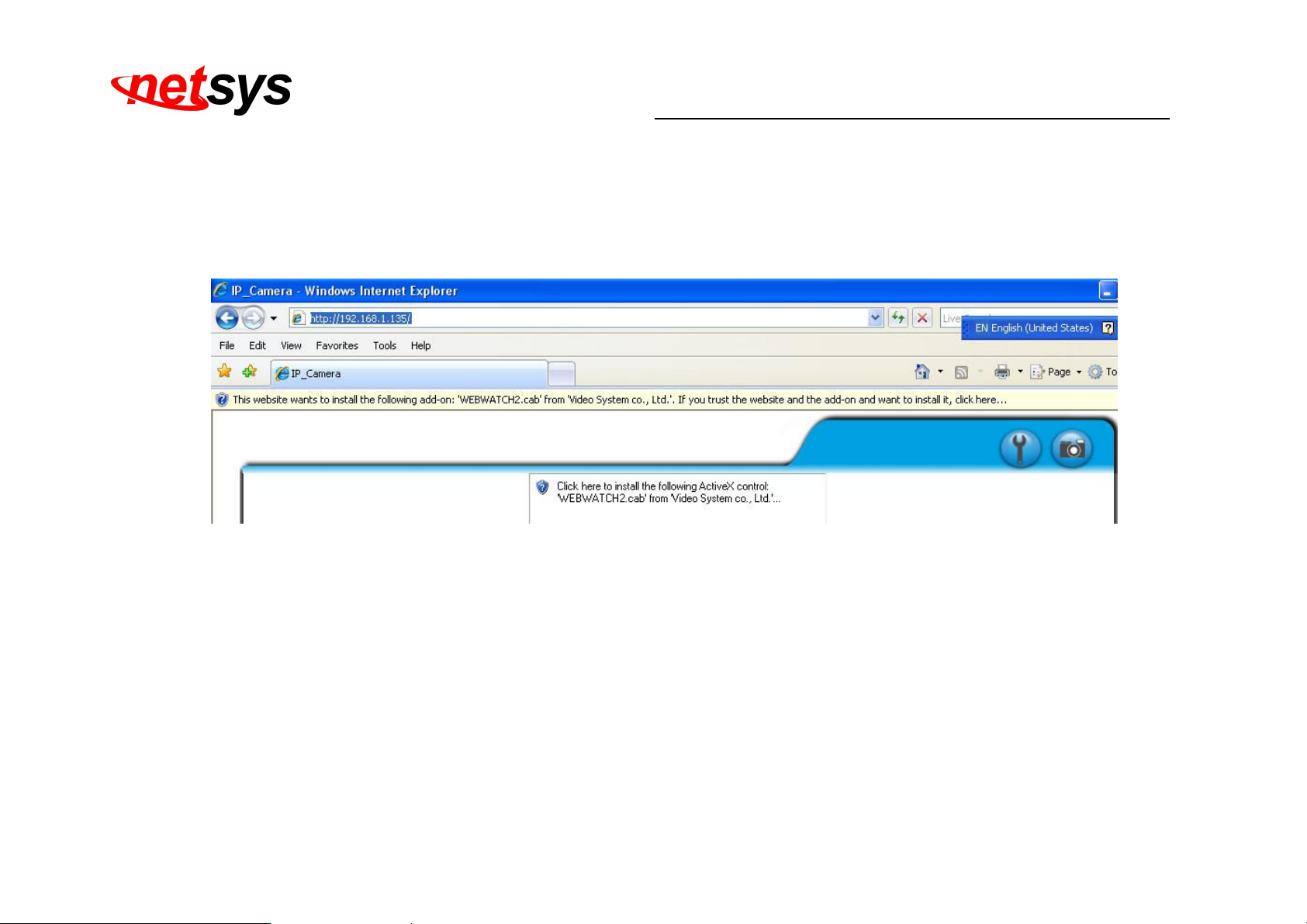

When viewing the camera video for the first time via IE, the browser will ask you to install the ActiveX component.

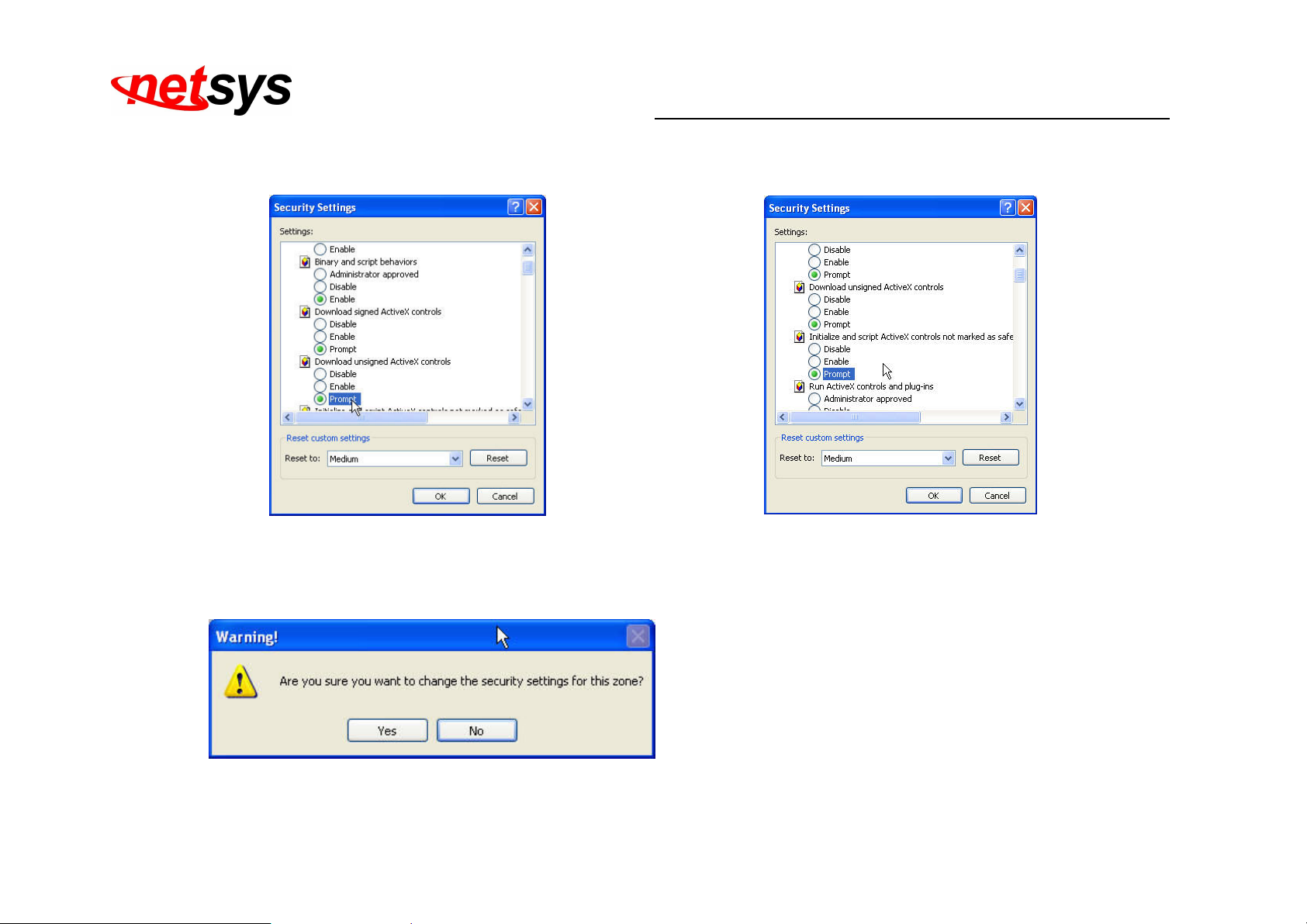

1. If the installation failed, please check the security settings in the IE browser.

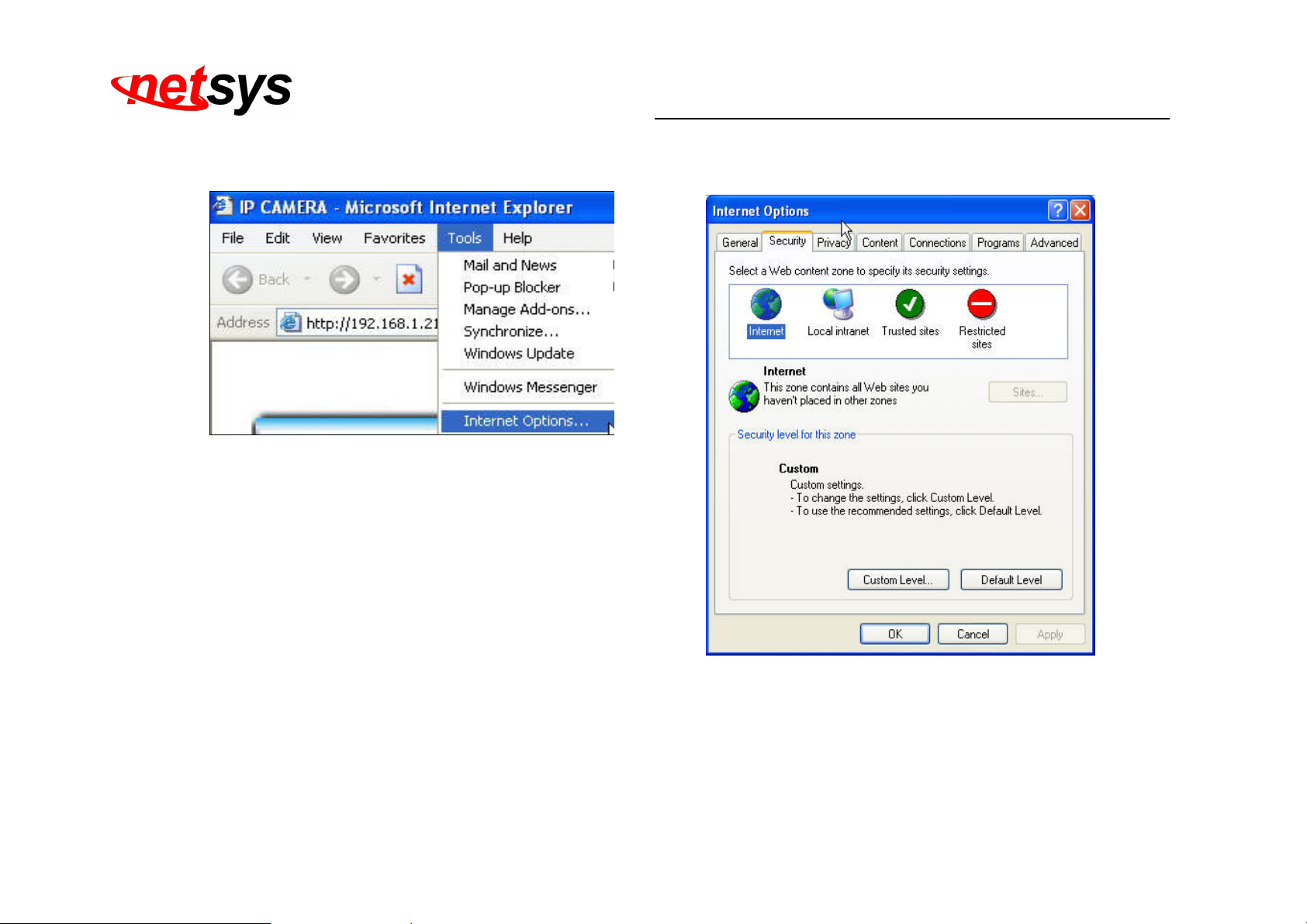

a. IE Tools Internet Options… Security Tab Custom Level… Security Settings Download unsigned
ActiveX controls Select Enable or Prompt.
b. IE Tools Internet Options… Security Tab Custom Level… Initialize and script ActiveX controls not
marked as safe Select Enable or Prompt.
21
Page 23
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
1
2
22
Page 24
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
3
5
4
When popup the following dialogue box, click “Yes”.
23
Page 25
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

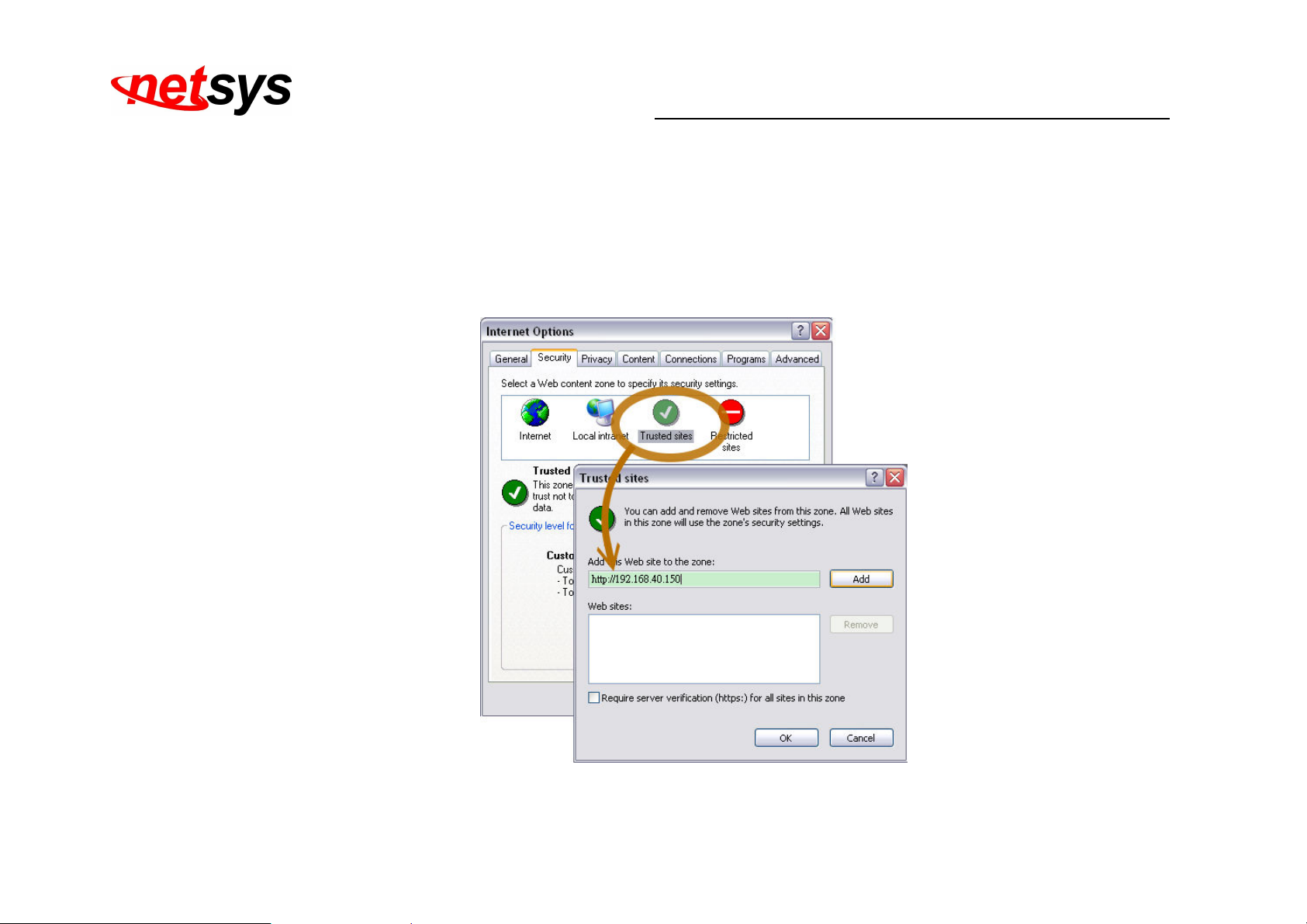

2. You can choose another way:
Go to: IE→Tools → Internet Options… → Security Tab → Trusted sites → Add the IP address and click OK.
In the site list you can key one single IP address or a LAN address. For example, if you add 192.168.21.*, all the IP
address under 21.* on the LAN will be regarded as trusted sites.
24
Page 26
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
2. To Non-IE Web Browser Users
If you use Firefox or Google chrome to access the IP camera but fails to watch the live video, please follow the
steps to install necessary tools:
(The following pictures are based on chrome.)

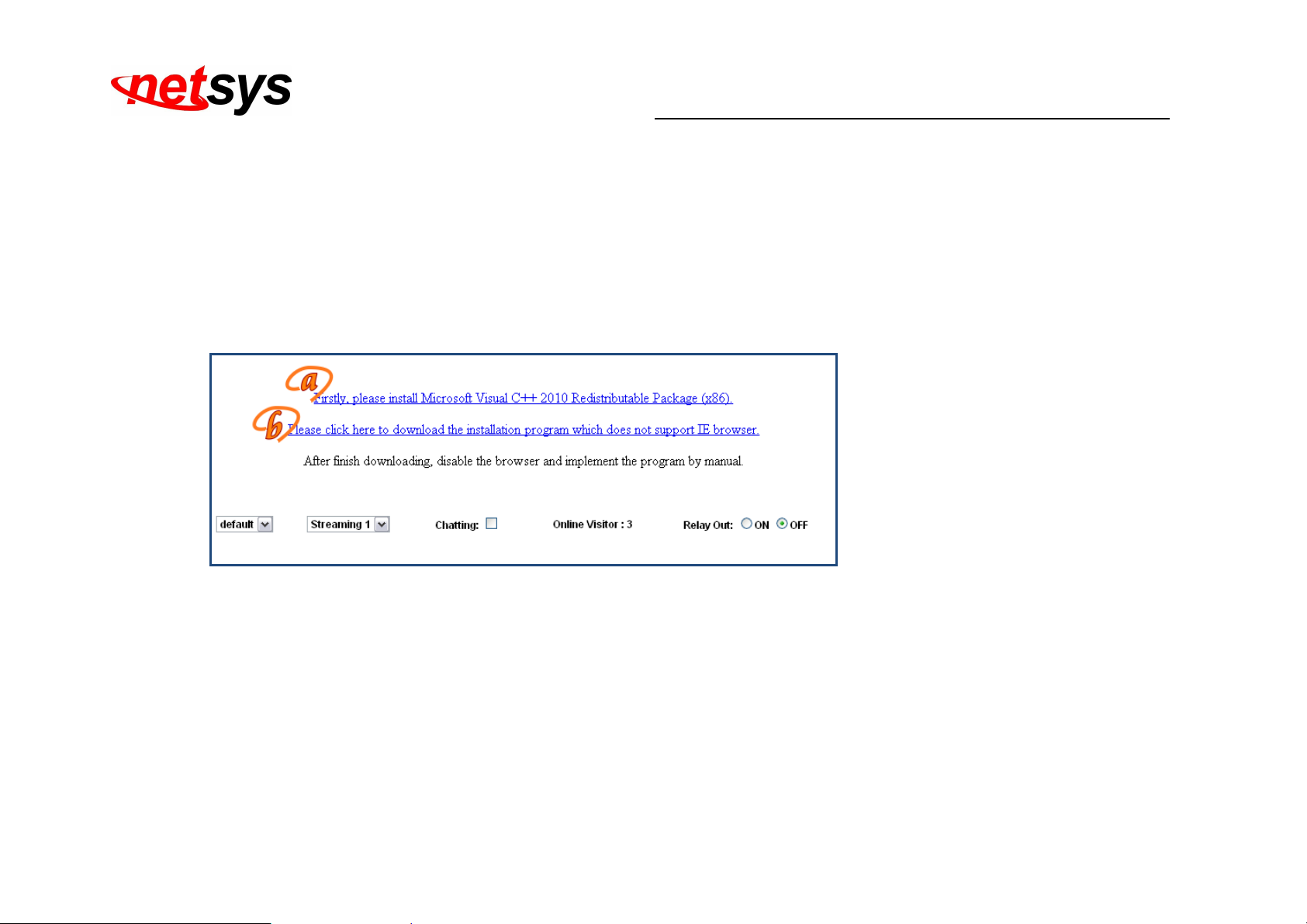

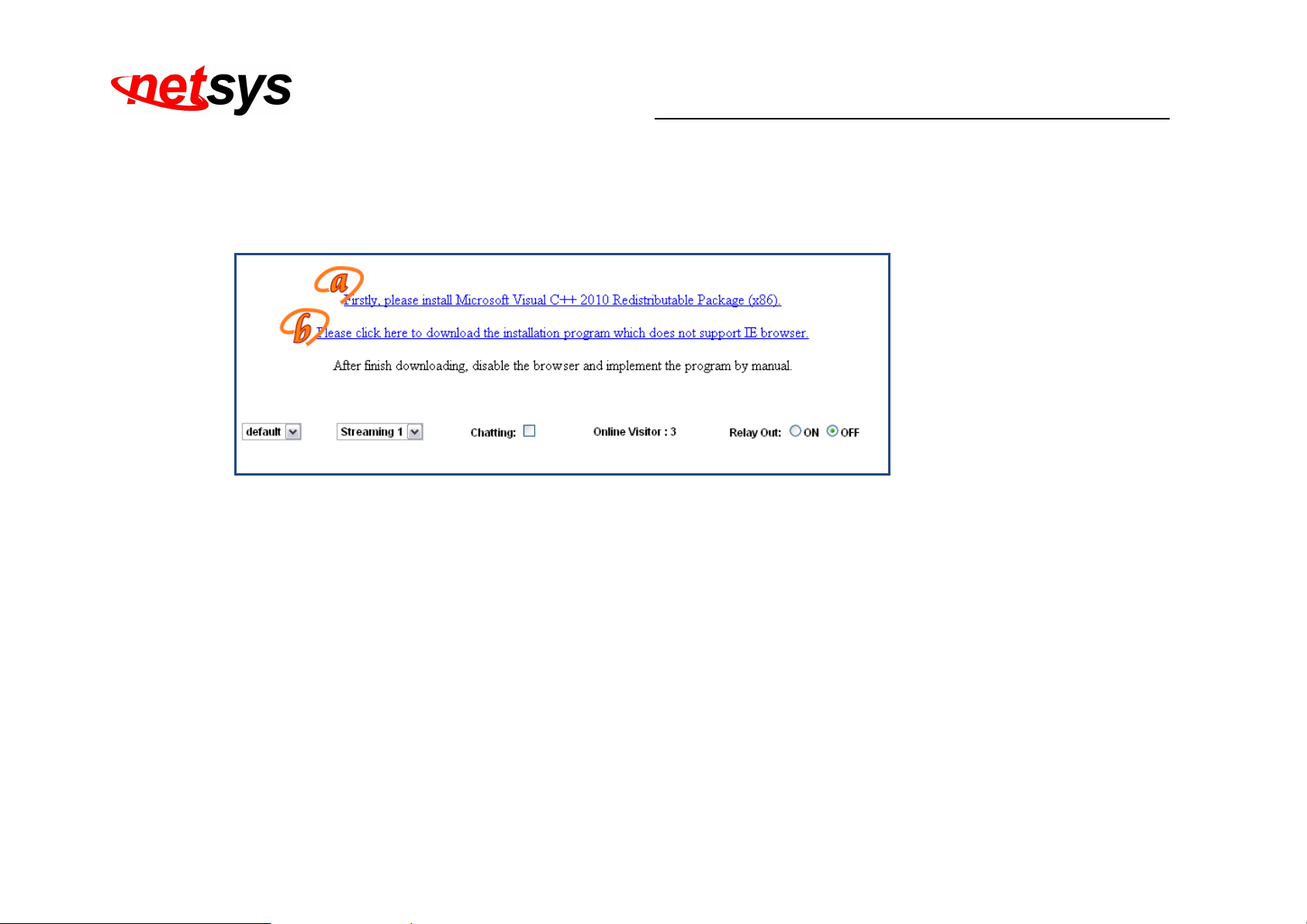

a. You may see the prompt message as the picture below. Click the link:

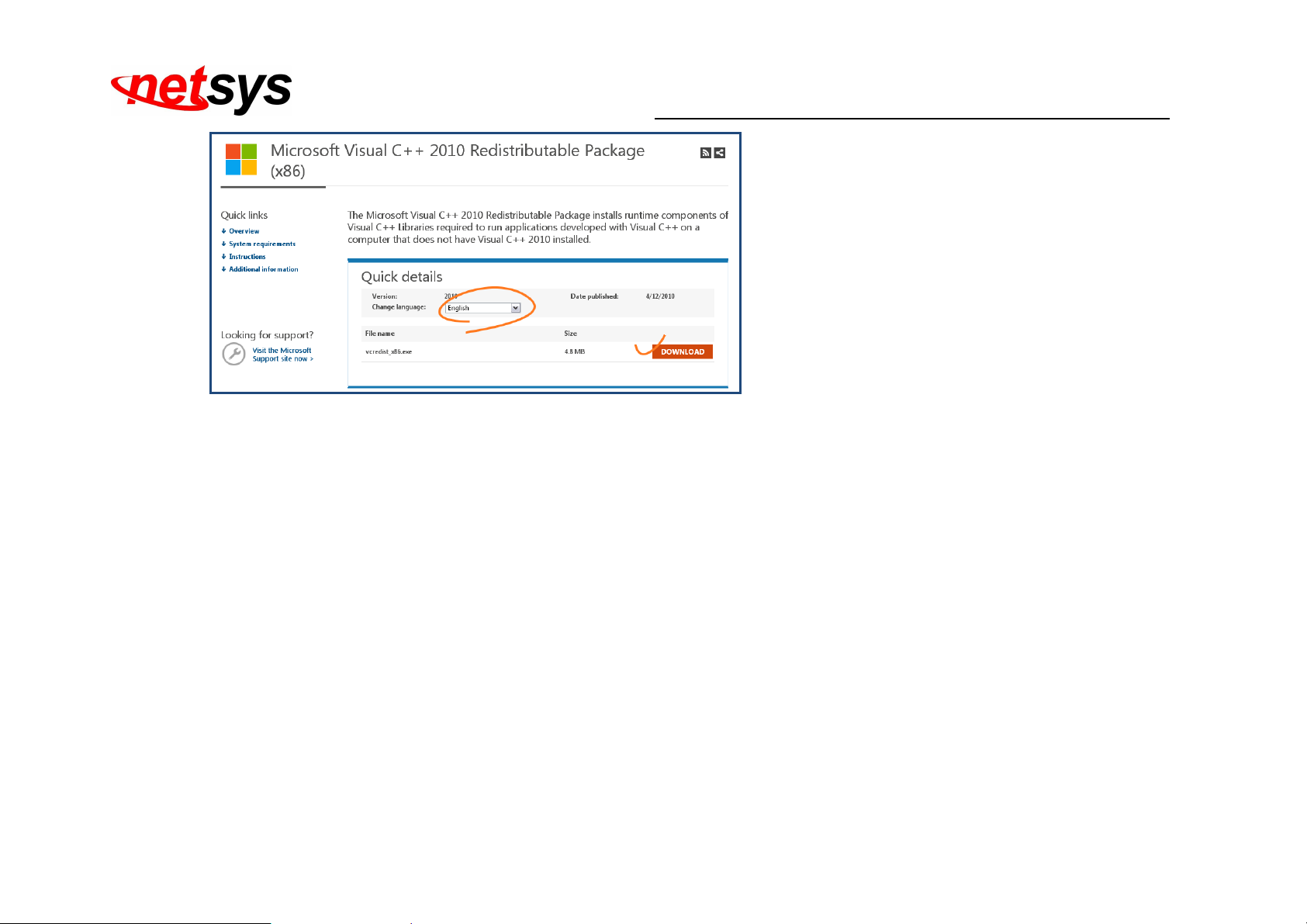

Firstly, please install Microsoft Visual C++ 2010 Redistributable Package (x86).
The link will conduct you to the Microsoft official site where you can download the tools. Please select the
language and click download.
25
Page 27
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

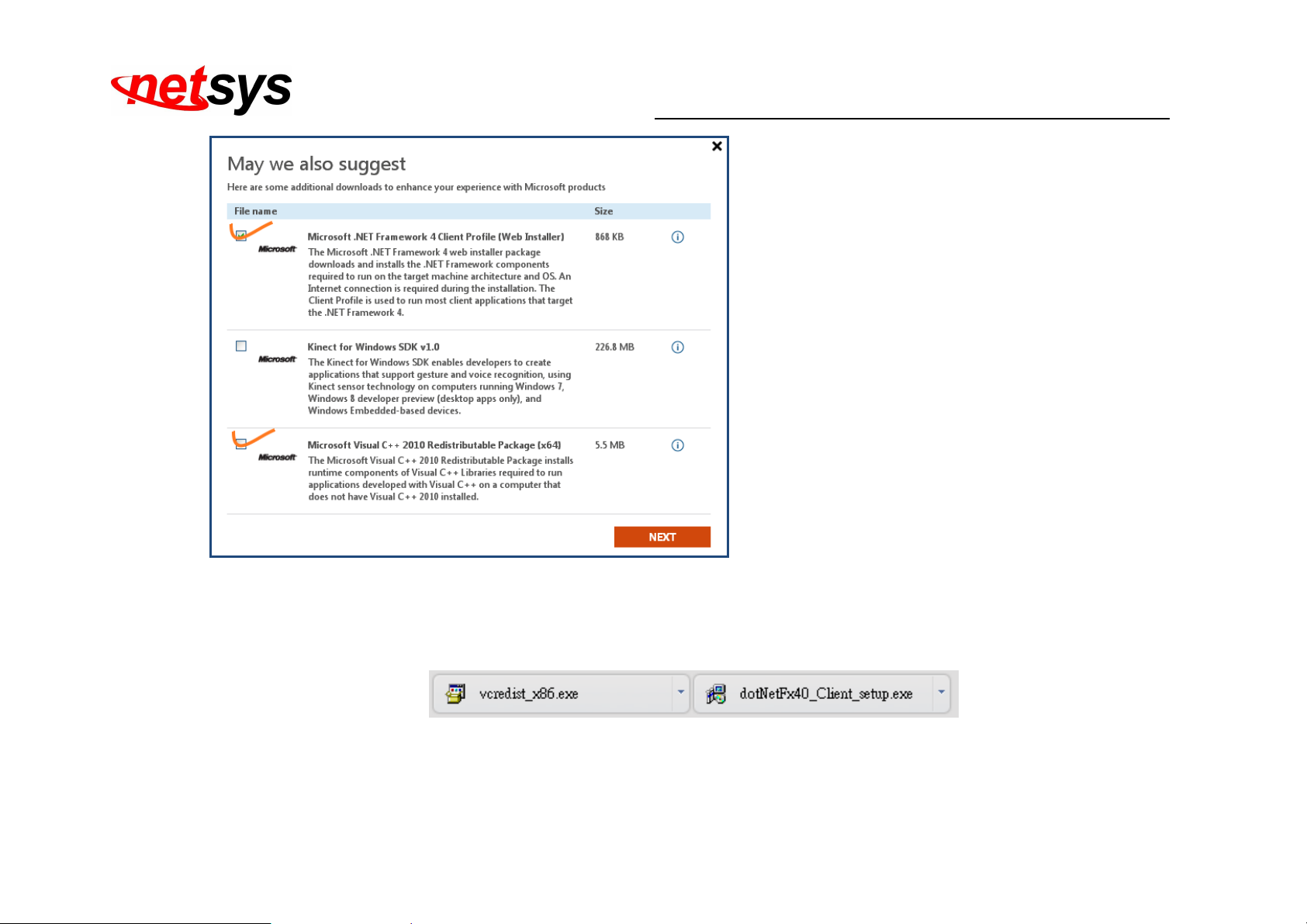

In the pop-up window, please tick the first and the third file as the picture below. Click Next to download both
Microsoft .NET Framework 4 Client Profile (Web Installer) and Microsoft Visual C++ 2010 Redistributable
Package (x64).
26
Page 28
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
After finishing downloading, execute the two files respectively to install them. The windows may ask you to reboot
the PC when the installation is finished.
27
Page 29
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
b. Then, click the second link Please click here to download the installation program which does not
support IE browser to download Setup ActiveX.
After finishing downloading, execute the files to install ActiveX. Then restart the browser.
c. If you execute the steps above but still cannot see live video normally, please try the following solution:

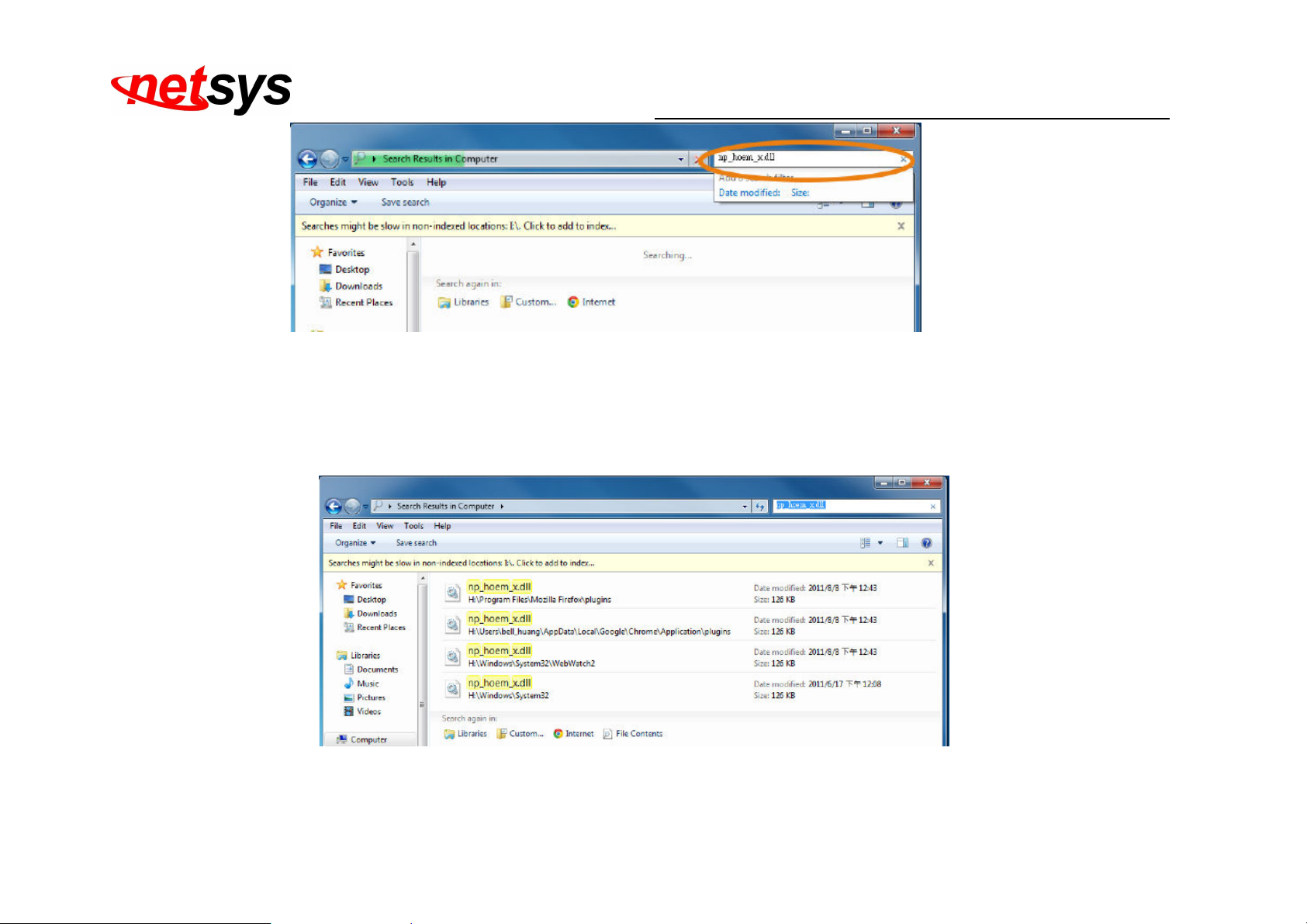

Search for the file np_hoem_x.dll in your system disk. For Windows XP users, please go to Start → Search →
Search for All files and folders and key-in np_hoem_x.dll. For Windows 7 users, please use the search bar on
the top-right of the Windows Explorer.
28
Page 30
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Delete all the files named np_hoem_x.dll. They're the ActiveX control tools installed in your computer, but the
old version of ActiveX might not be compatible with the new version of the browser. Therefore, they need to be
deleted in order to install the latest ActiveX control.
29
Page 31
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Start your web browser, and repeat the step 2-b: Download the installation program which does not
support IE browser to download and install ActiveX.
30
Page 32
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Chapter 4. Live Video
Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user
name: admin and password: admin.
31
Page 33
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

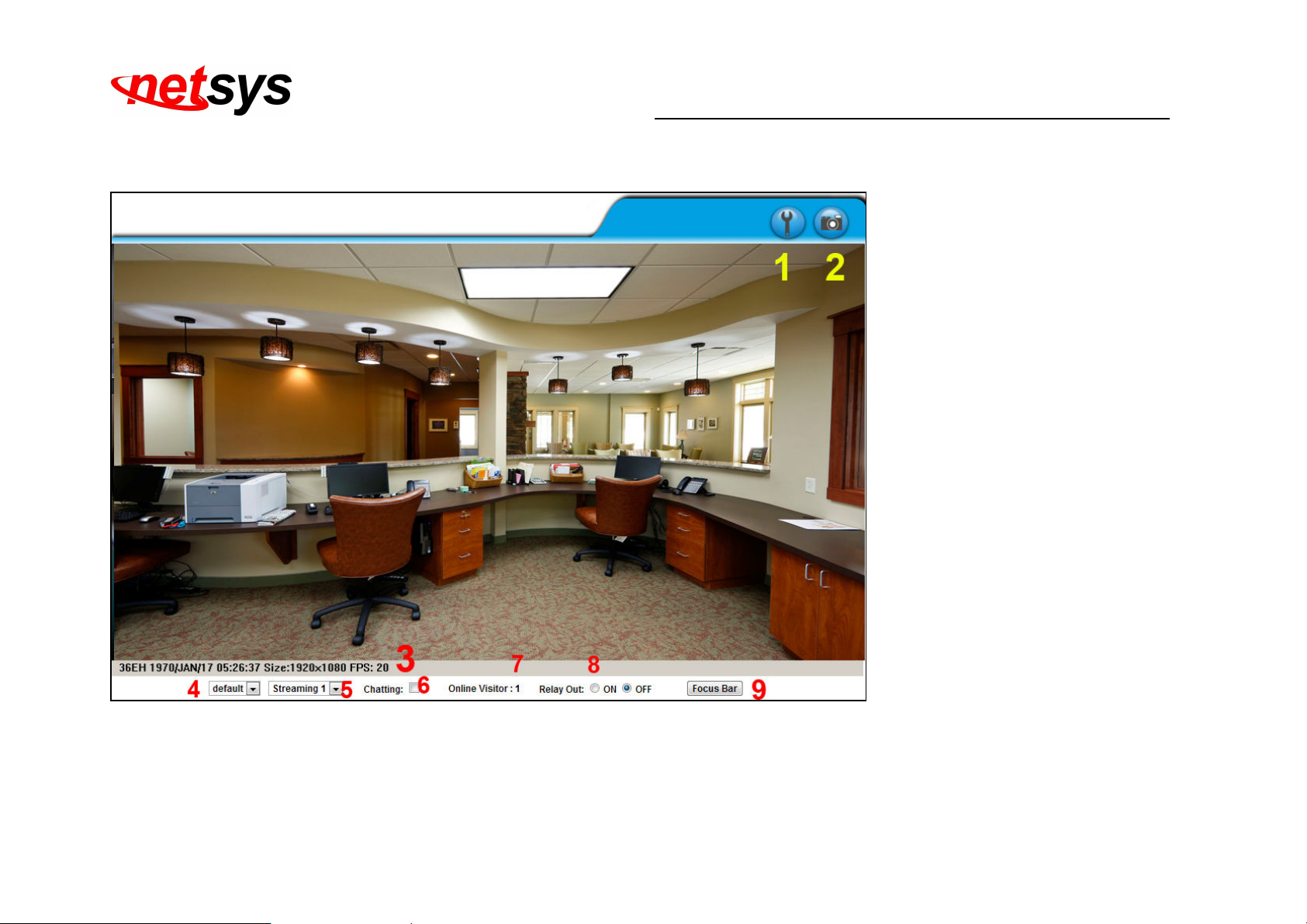

When the IP Camera is successfully connected it shows the following interface.
32
Page 34
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
1. Get into the administration page.
2. Video Snapshot.
3. Show the system time, video resolution, and video refreshing rate.
4. Adjust image: 1/2x, 1x, 2x.
5. Streaming source: If the streaming 2 is closed, this function will not be displayed.

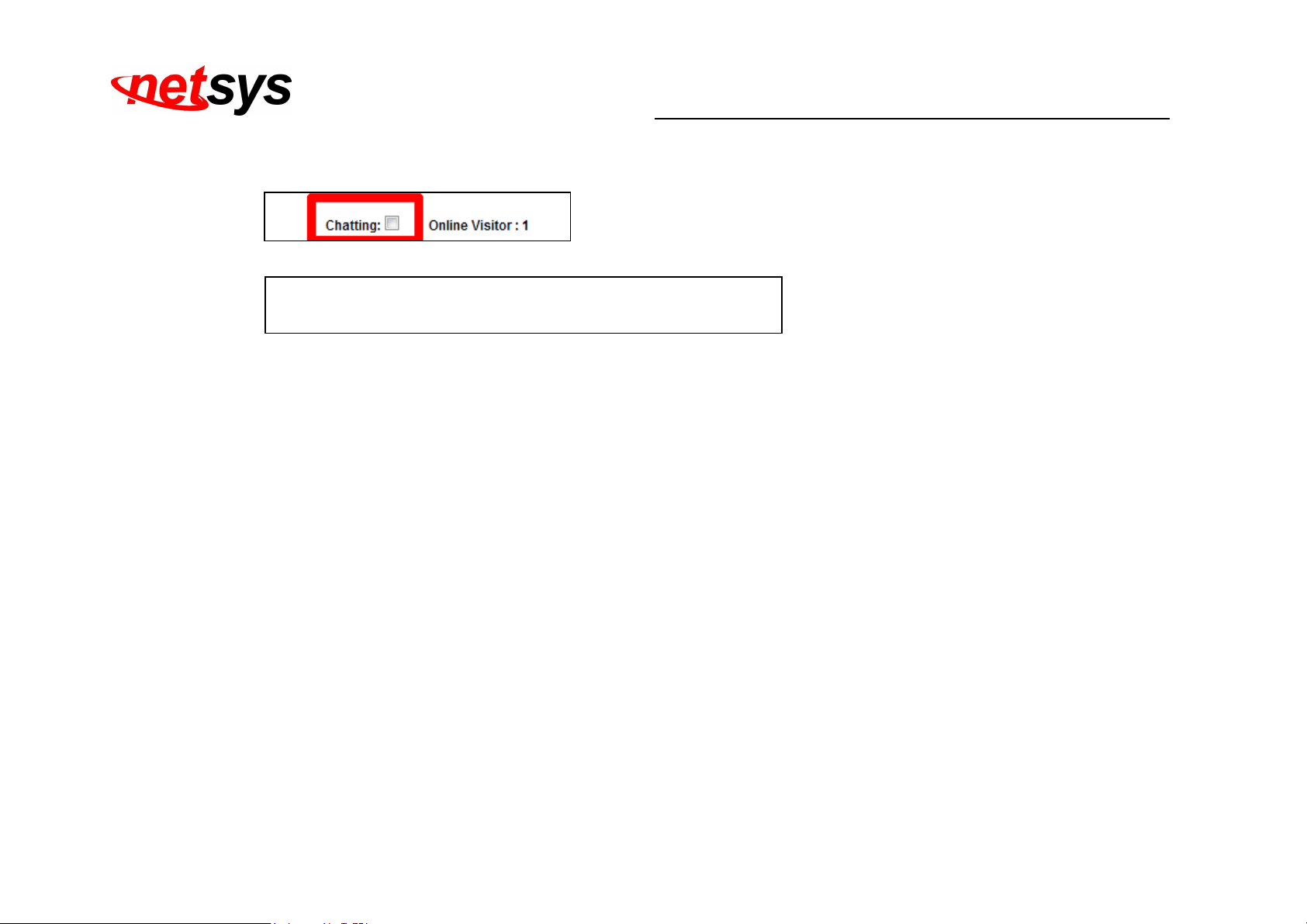

6. Tick on Chatting for enabling two-way audio.
7. Shows how many people are connected to this IP camera.

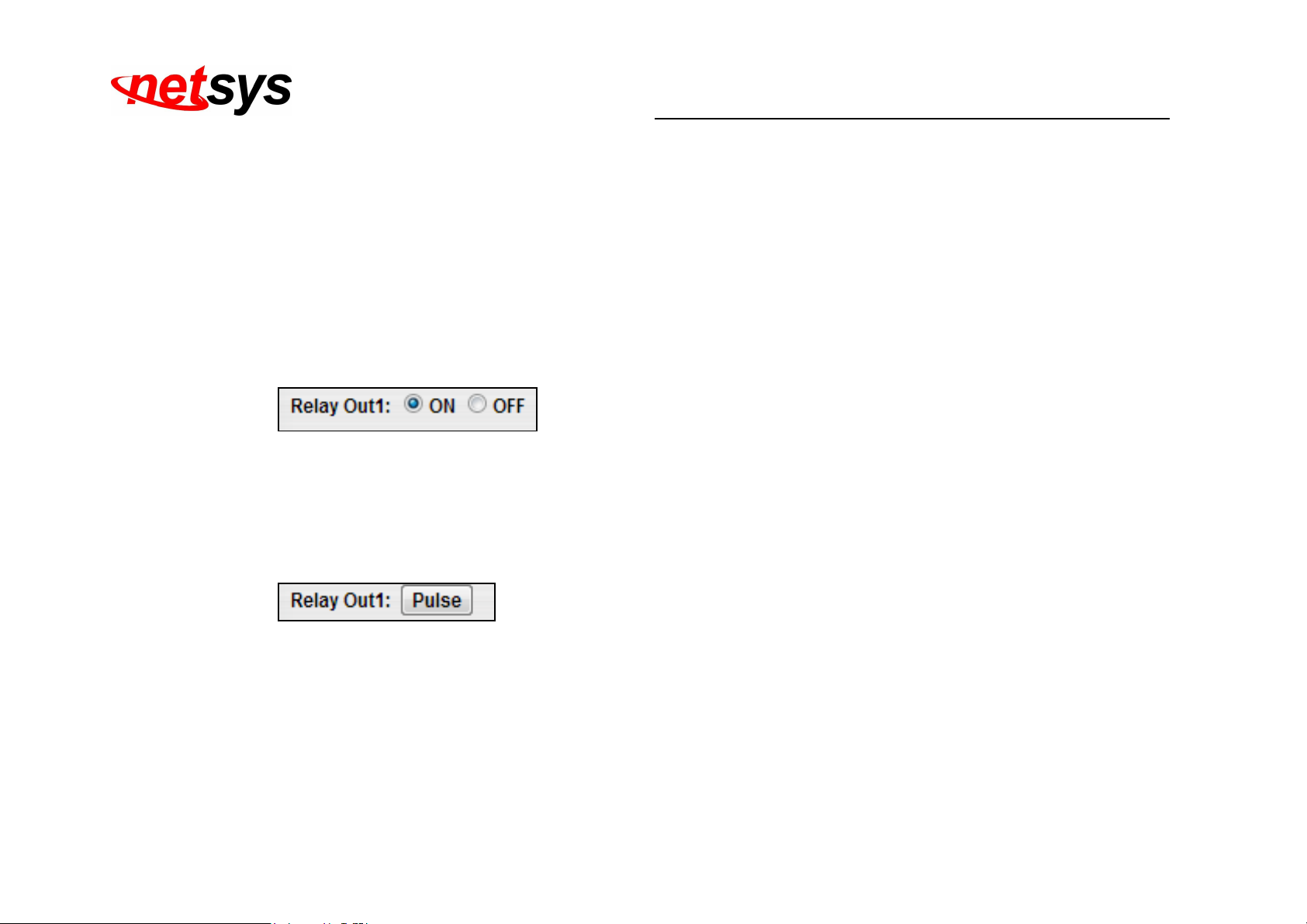

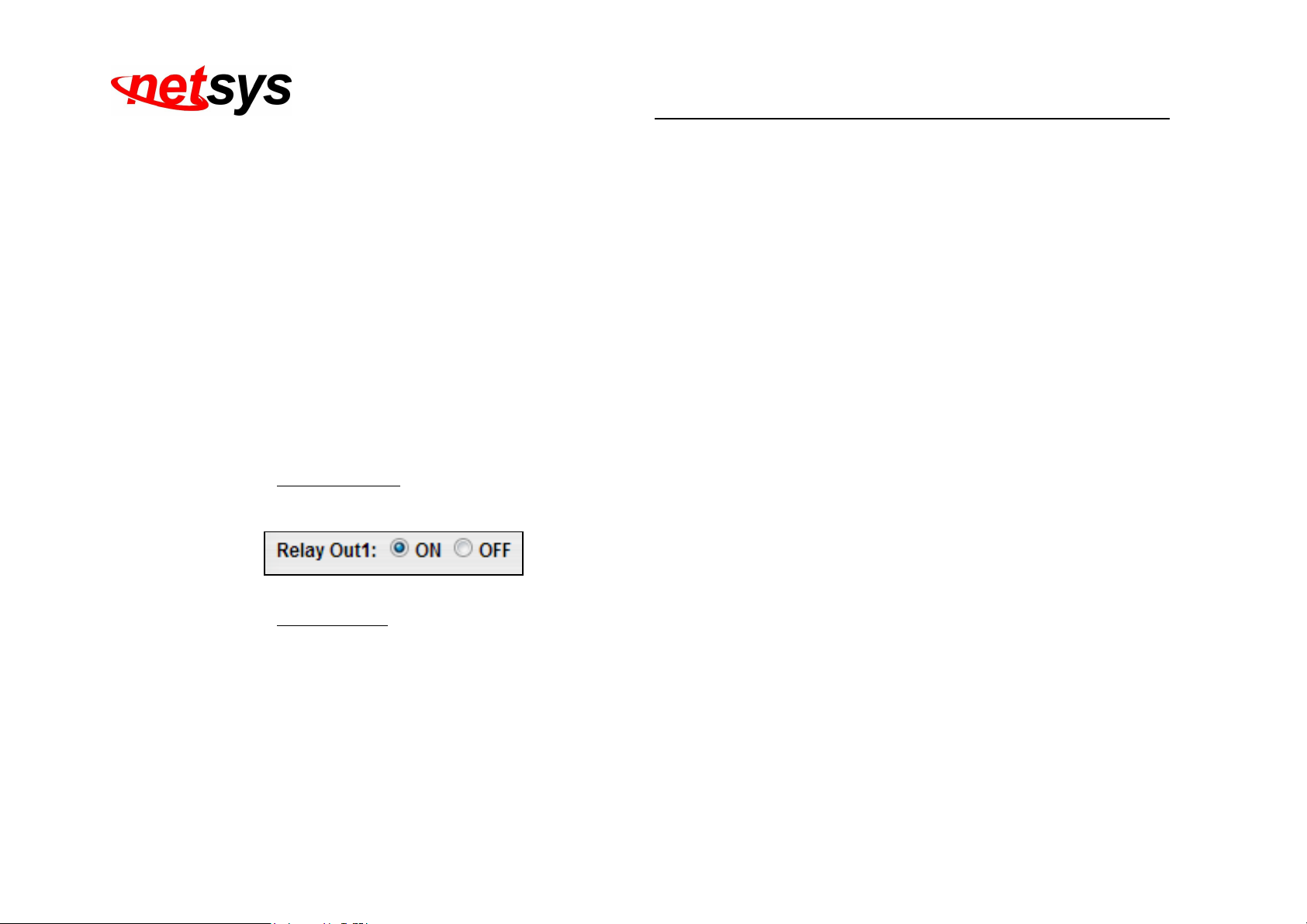

8. Control the relay output connected to this camera.
9. Focus bar: It will display a focus bar in the top-left corner, on the live video image for 3 minutes. The bar will be displayed as
full if the camera is totally focused towards the objective.
Double-clicking on the video will change the view to full screen mode. Press Esc or double-click the video again for changing
back to normal mode.

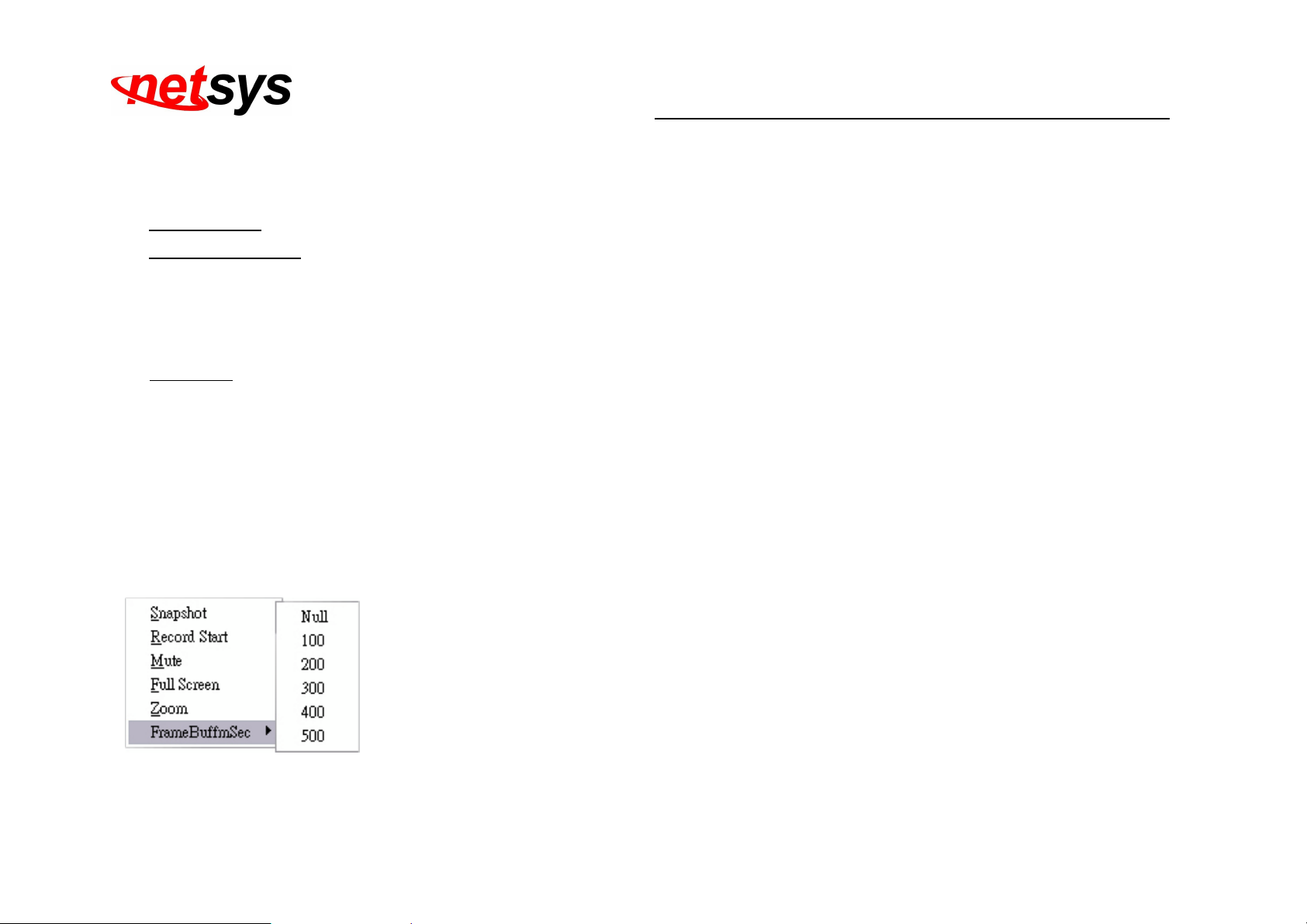

Right-Click the mouse on the video, it will show a pop-up menu.
33
Page 35
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
1. Snapshot: Save a JPEG picture.
2. Record Start: Record the video in the local PC. It will ask where to save the video. To stop recording, right-click again and
Select Record Stop.
(The video format is AVI. Use Microsoft Media Player to play the recorded file.)
3. Mute: Turn-off the audio. Click again to turn on it.
4. Full Screen: Full-screen mode.

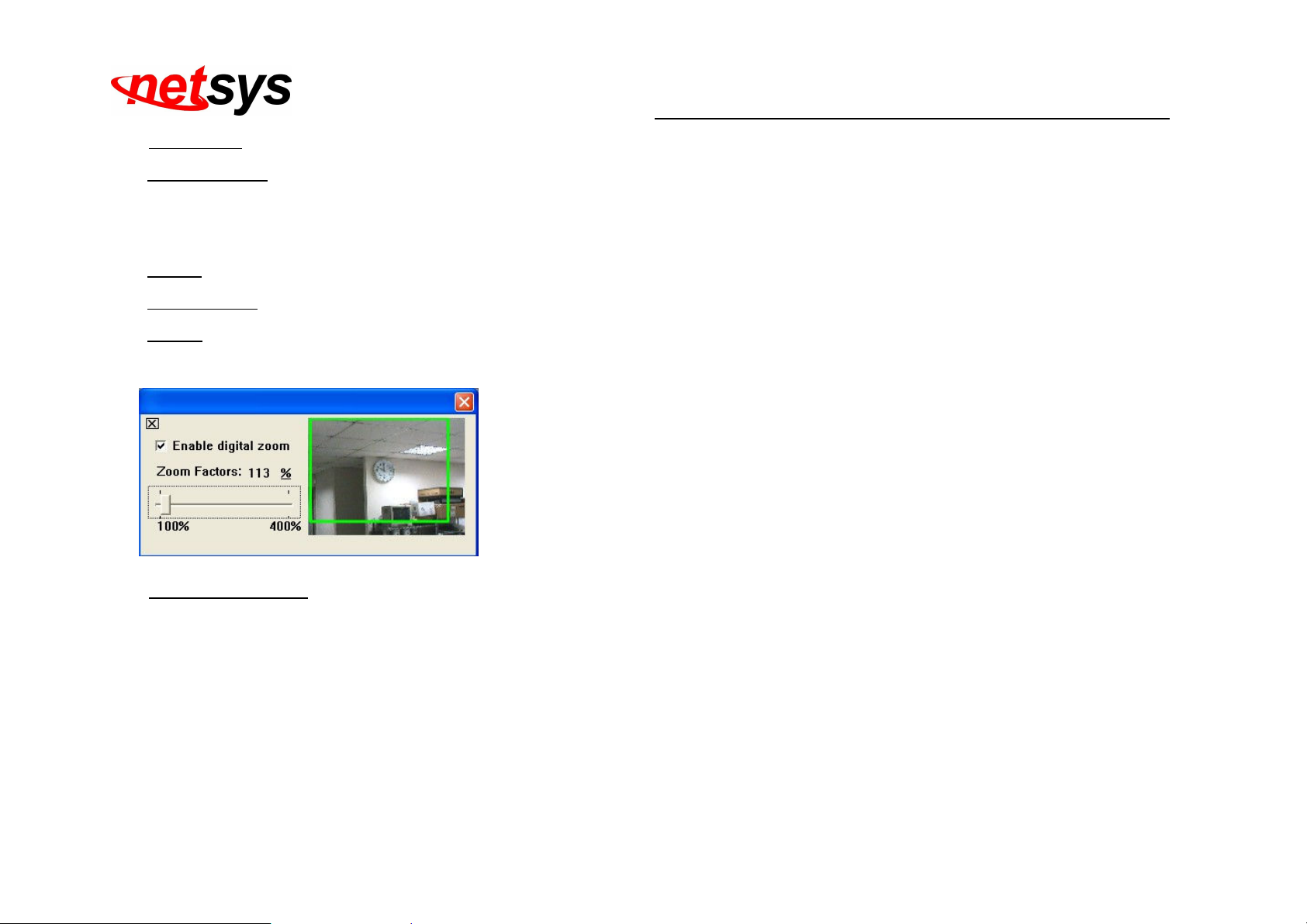

5. Zoom: Enable the zoom-in and zoom-out functions. First, select Enable digital zoom option within the pop-up dialogue
box and then drag and drop the bar to adjust the zoom factors.
6. Frame Buffm Sec: This function builds a temporary buffm to accumulate several video frames. This function can make
video smooth-going when the Network speed is slow and lag. If you select 100, the camera plays video 100 mSec after
receiving images from camera. The slower the Network is the bigger value should be selected. The available values are:
NULL, 100, 200, 300, 400, and 500. The default value is null.
34
Page 36
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

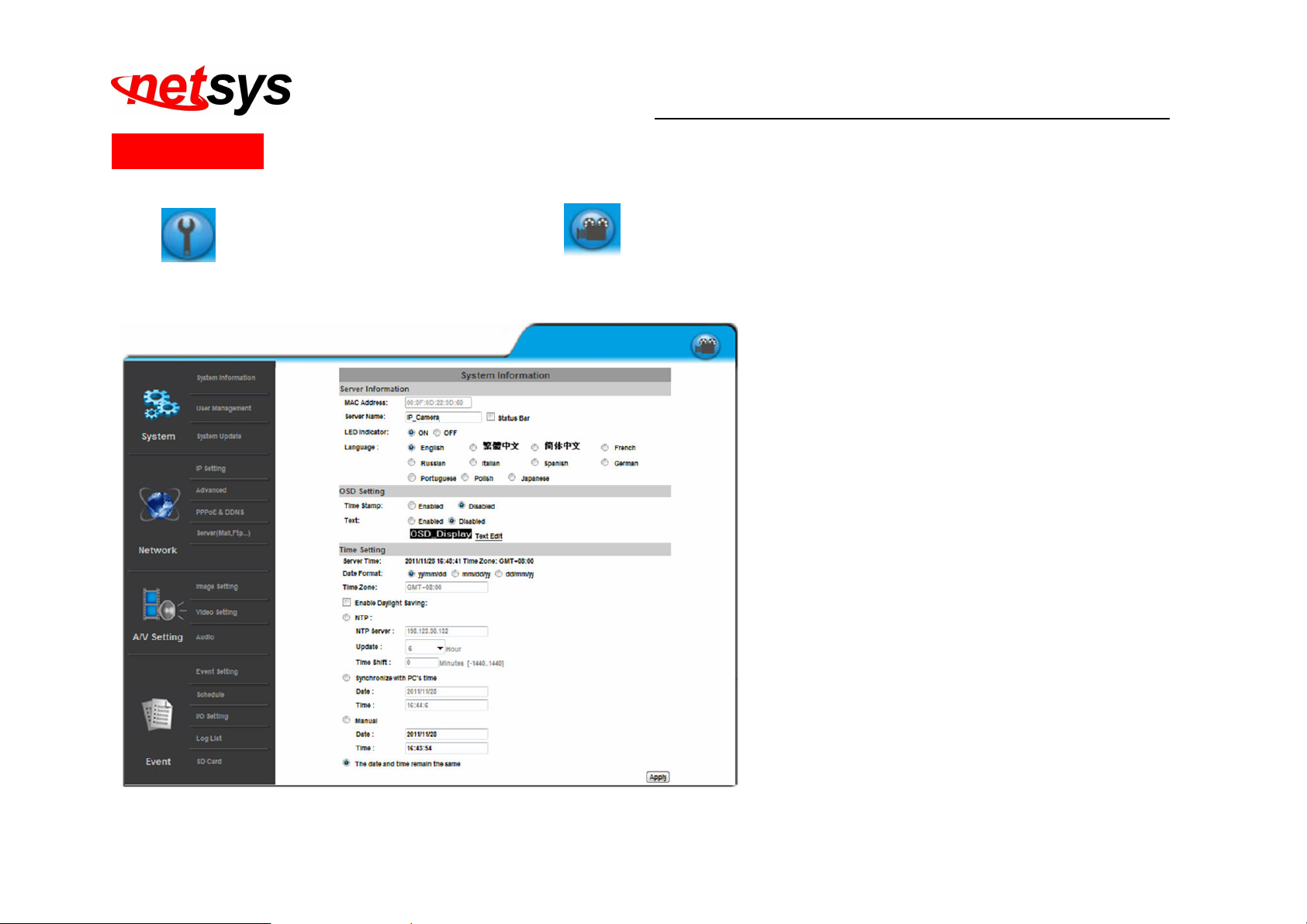

Chapter 5. Camera Configuration
Click to get into the administration page. Click to go back to the live video page.
35
Page 37
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
5.1. System
I. System Information
a. Server Information: Set up the camera name, select language, and set up the camera time.
1. Server Name: This is the Camera name. This name will be shown on the IP Installer.

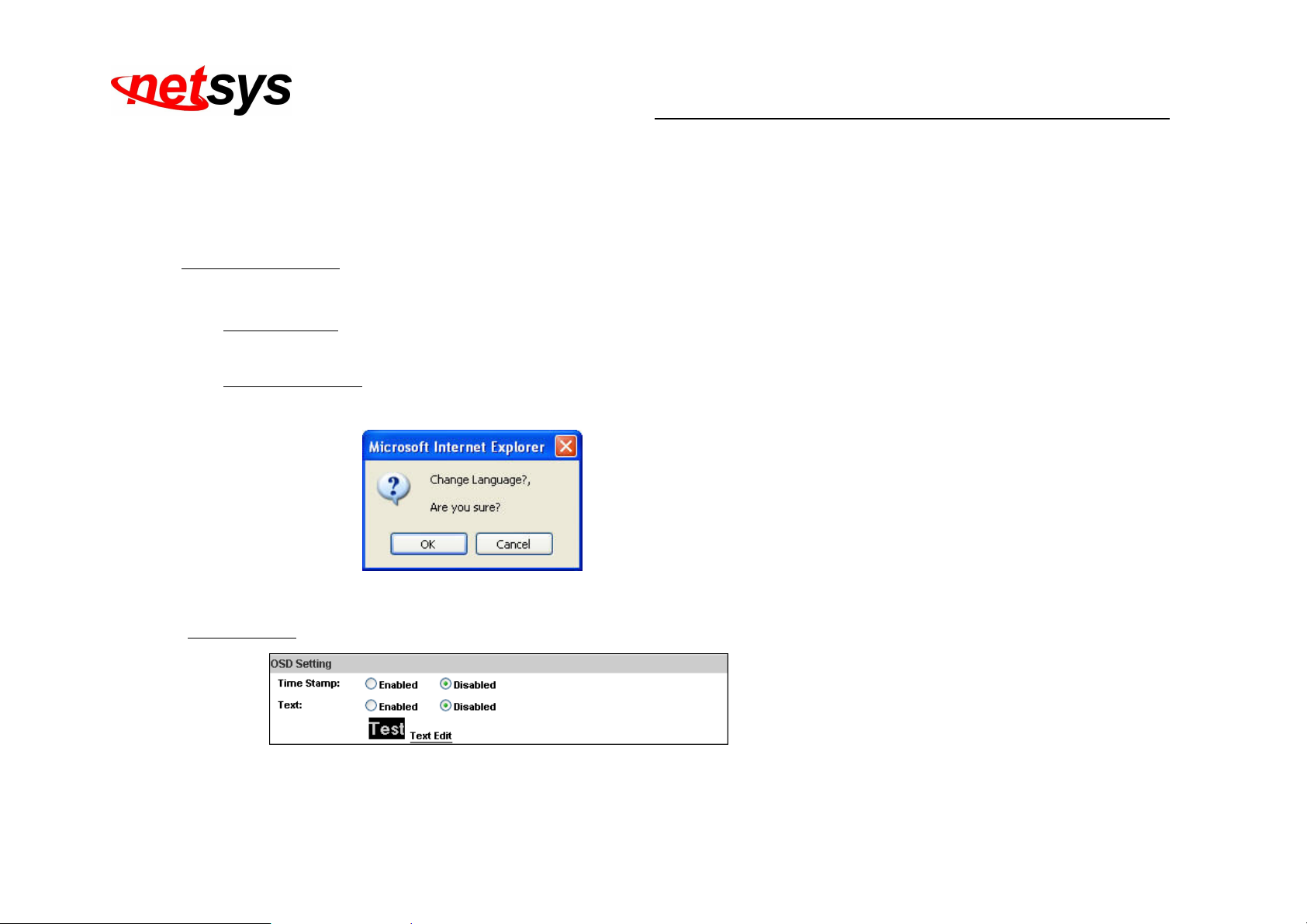

2. Select language: English, Traditional Chinese, and Simplified Chinese can be selected. When it changes, it will show
the following dialogue box to confirm the language changing.
b. OSD Setting: Select a position where the date & time stamp / text are shown on the screen.
36
Page 38
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

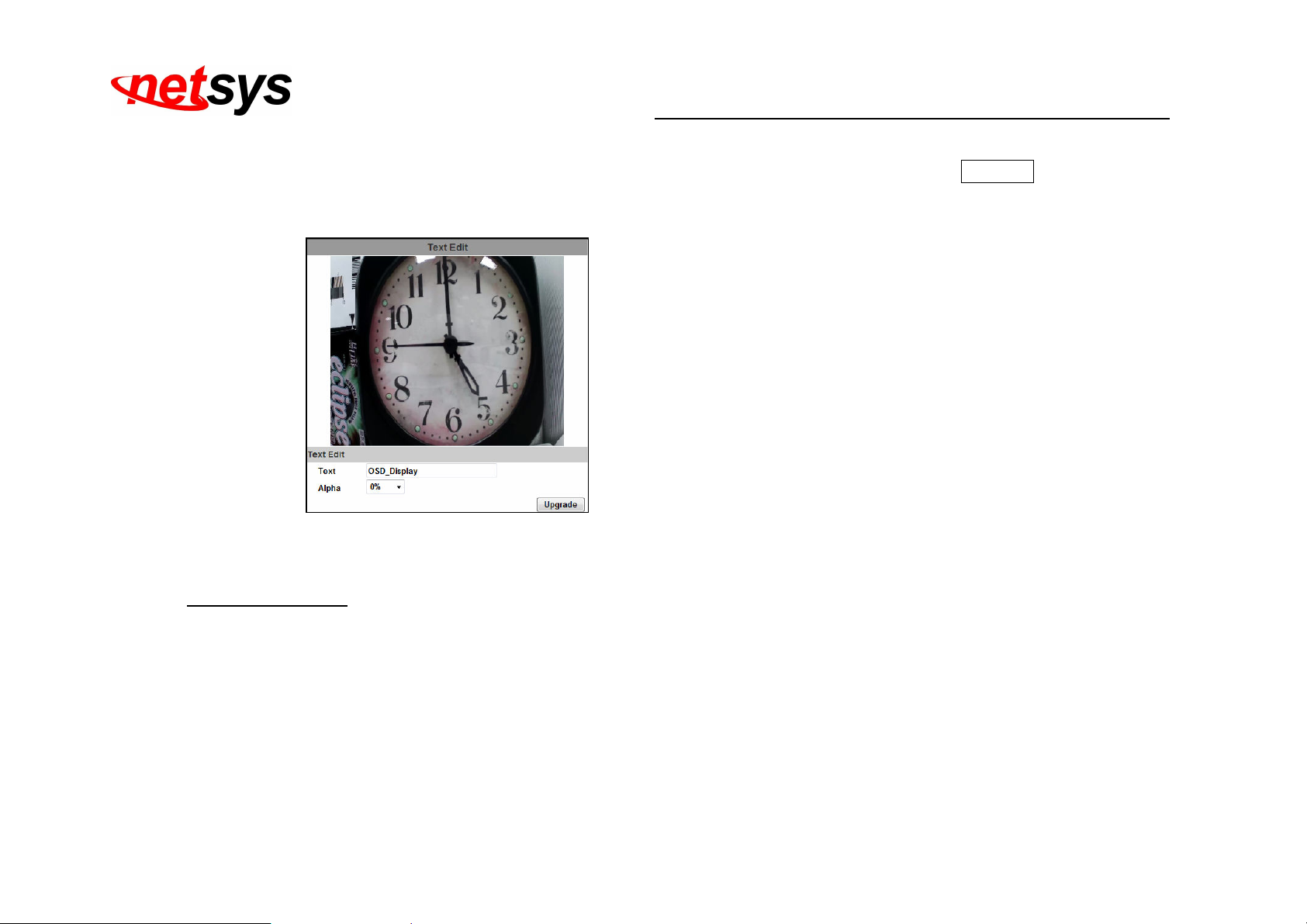

Moreover, click Text Edit for changing the OSD content, including text size and alpha. Finally, click the Upgrade button to keep the
settings.

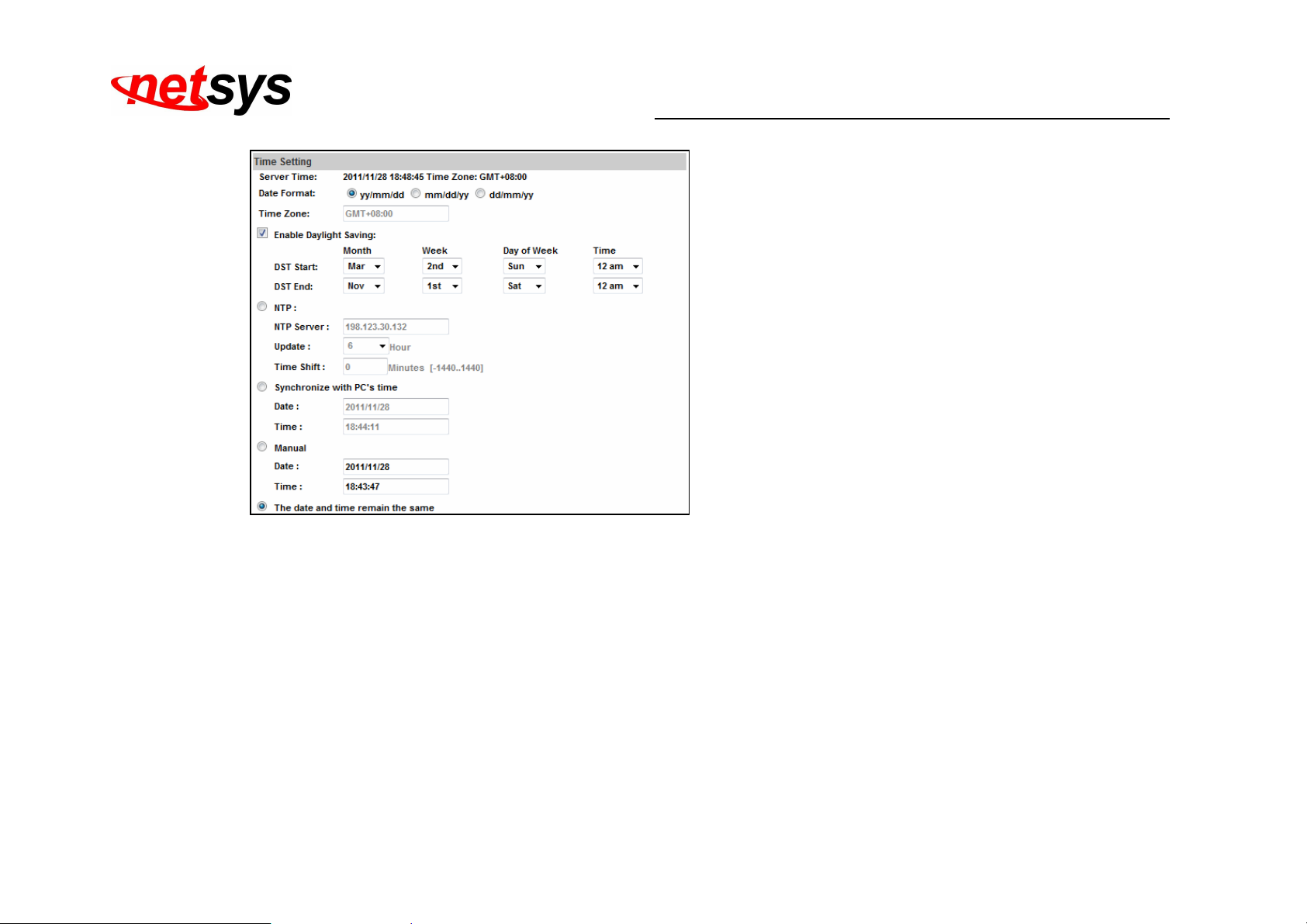

c. Server time setting: Select between the options NTP, Synchronize with PC’s time, Manual, The date and time remain
the same for setting the time.
37
Page 39

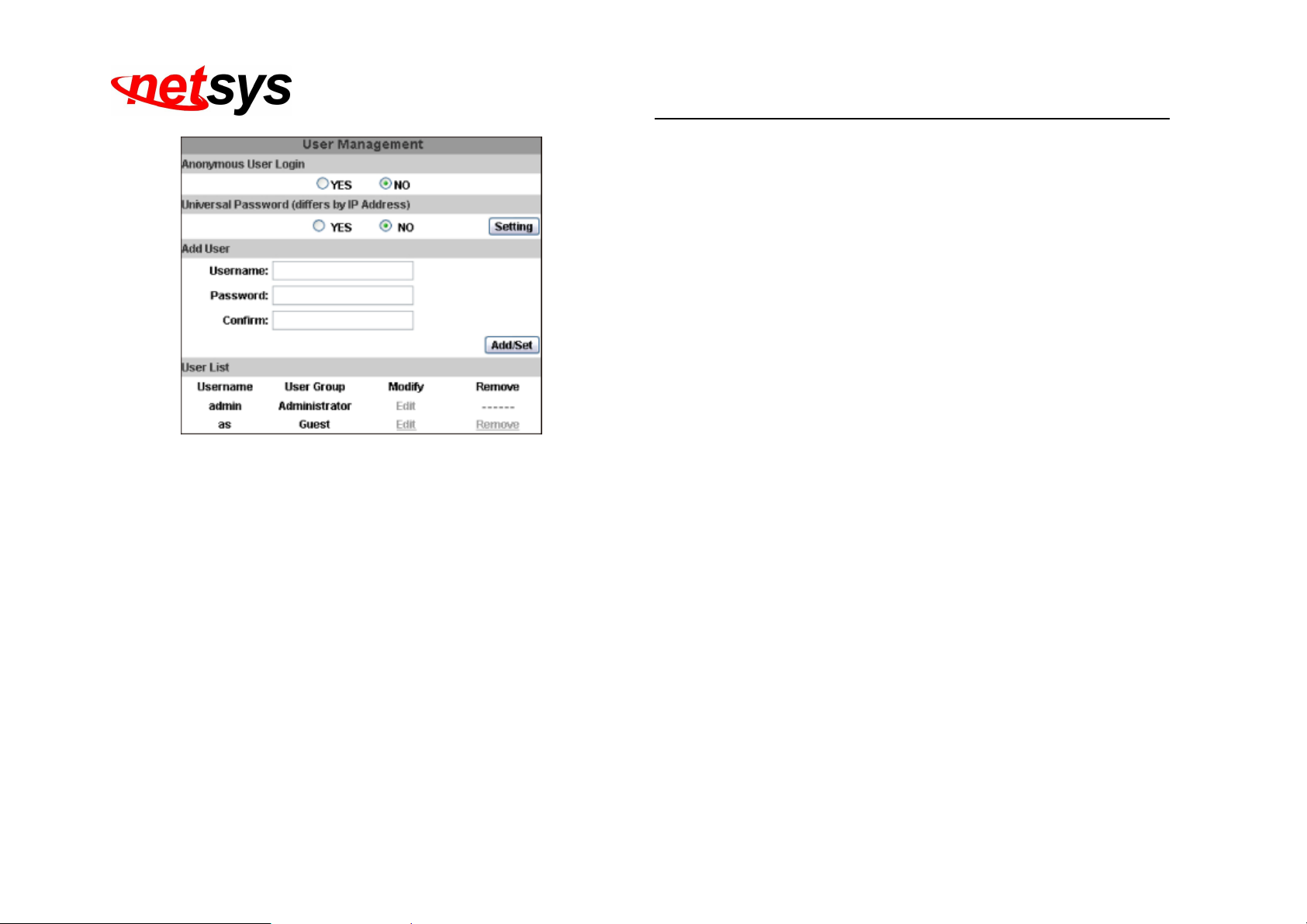

II. User Management
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
The IP Camera supports three different users: administrator, general, and anonymous user.
38
Page 40
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
a. Anonymous User Login:
Select Yes for allowing everybody to watch live video without username and password. However, if you try to enter the
configuration page the camera will ask you to key-in the username and password.
Select No for requiring a username and login to access the camera.
39
Page 41
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
b. Universal Password:
Select Yes for allowing login to this IP Cam by universal password. Please refer to Universal Password chapter for
more explanations. Select No for disabling universal password.
c. Add user
Type the user name and password, then click Add/Set. The guest user can only browse live video page and is not allowed
to enter the configuration page.

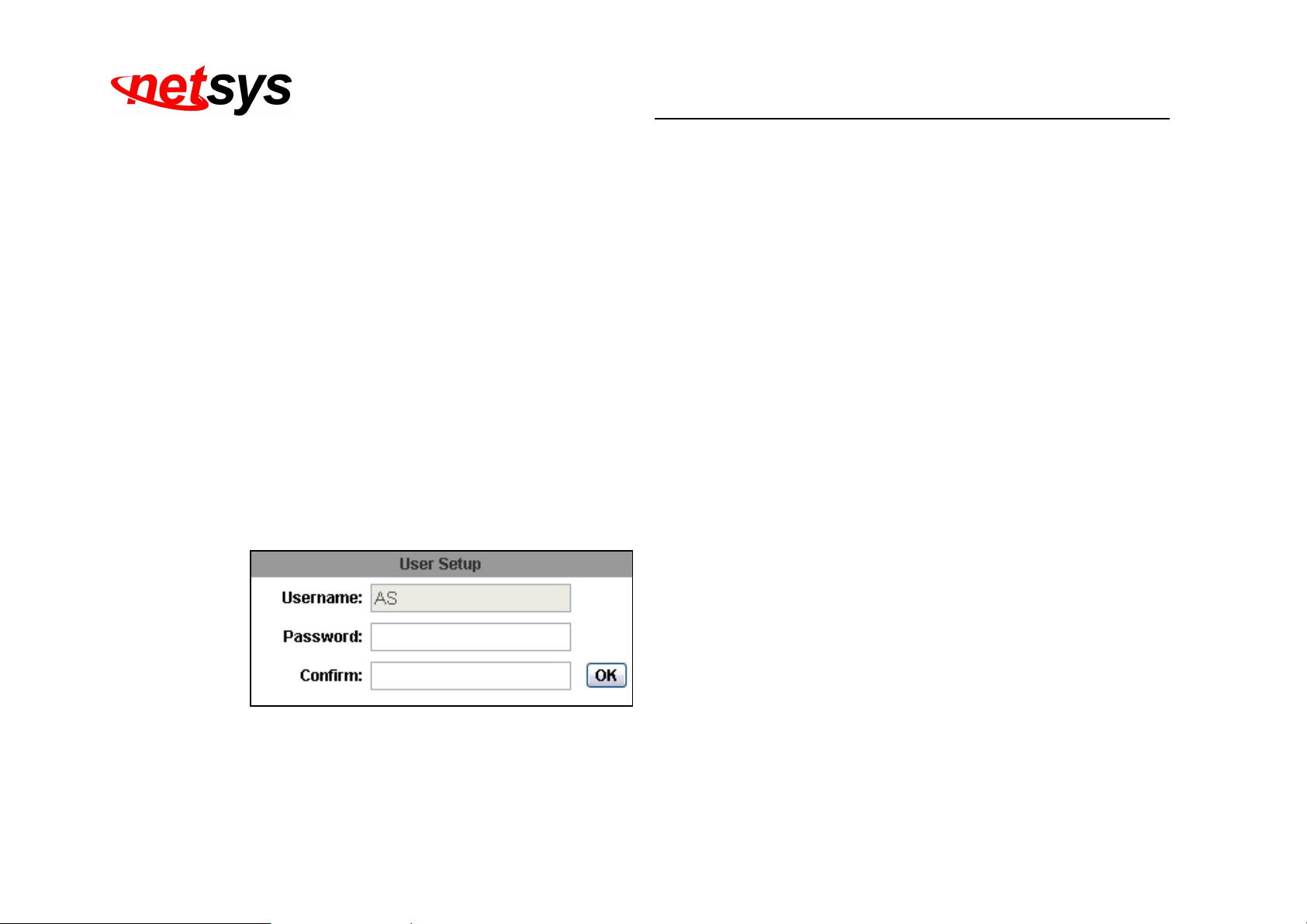

d. Click “edit” or “delete” in the user list to modify them. The system will ask you to key-in the password in the
pop-up window before you edit the user information.
40
Page 42
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

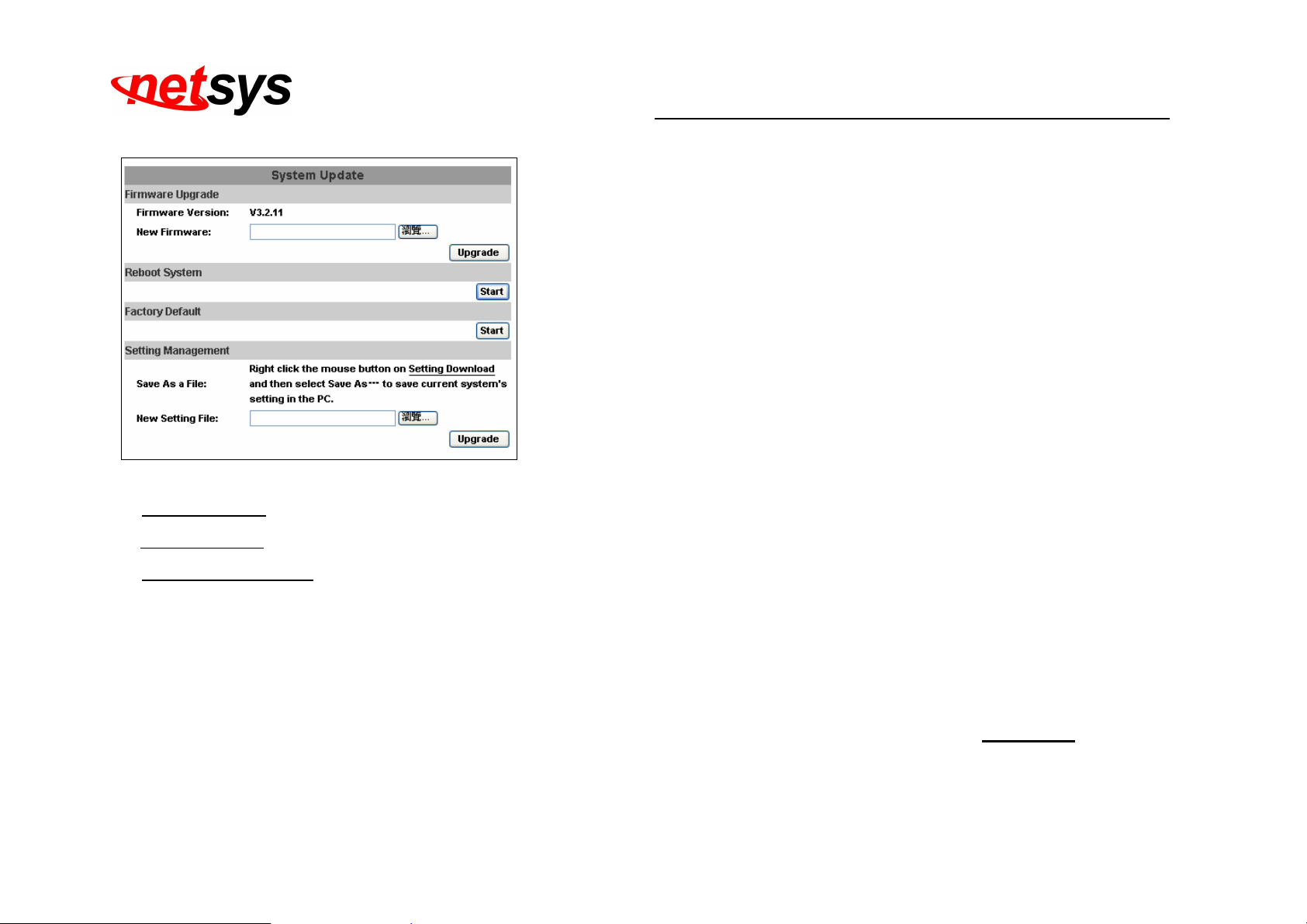

III. System update
a. To update the firmware online, click Browse… to select the firmware. Then click Upgrade to proceed.
b. Reboot system: re-start the IP camera
c. Factory default: delete all the settings of this IP camera.
d. Setting Management: The user can download the current settings to PC, or upgrade from previous saved settings.
1. Settings download:
Right-click the mouse button on Setting Download Select Save AS… to save current IP Camera settings in PC
Select saving directory Save
2. Upgrade from previous settings
Browse search previous settings open upgrade Settings update confirm click index.html. for returning
to the main page
41
Page 43
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
5.2. Network
Advanced IP Settings

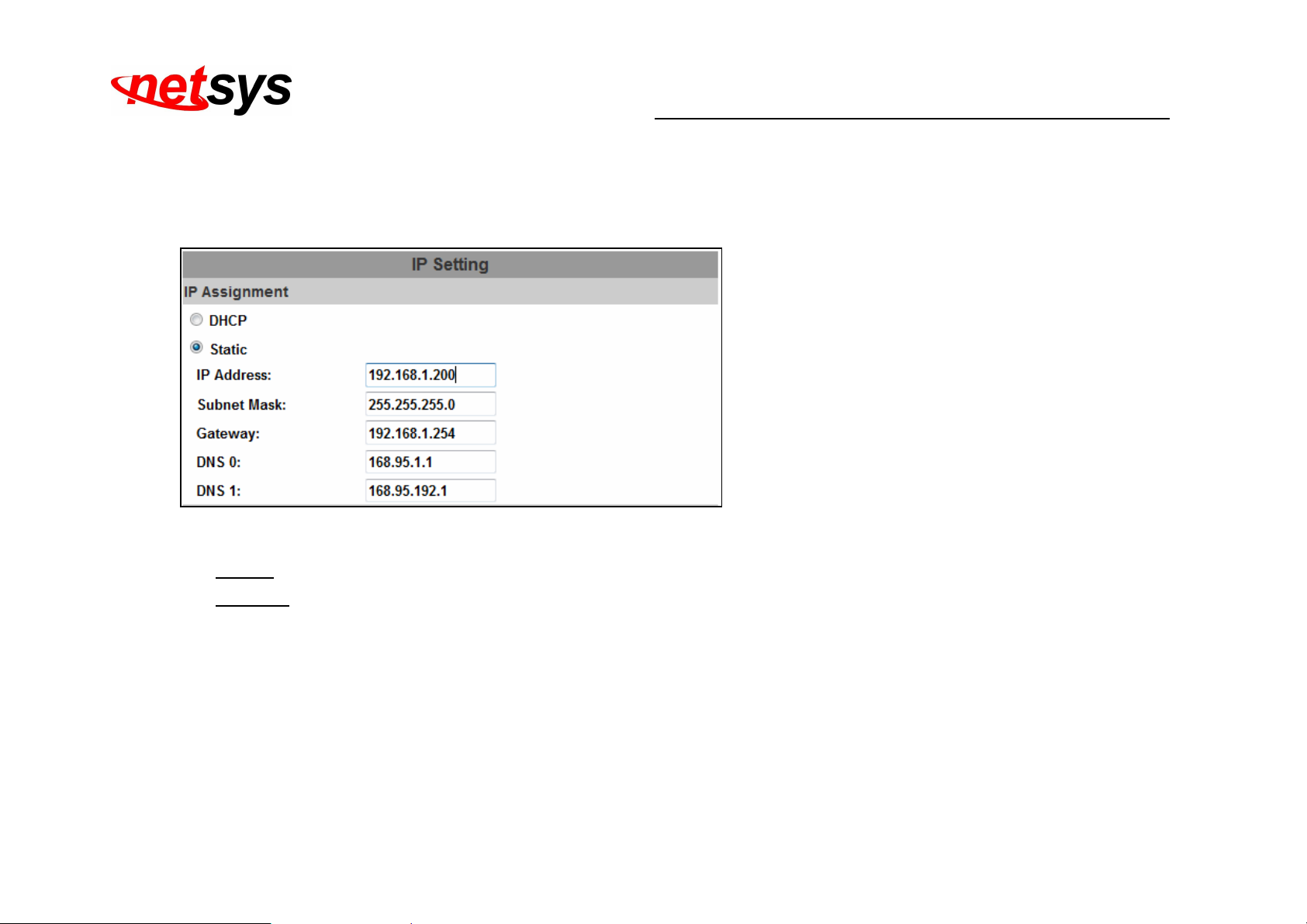

The IP Camera supports DHCP and static IP
a. DHCP: The IP Camera will get all the network parameters automatically.
b. Static IP: Type-in the IP address subnet mask, gateway, and DNS.
42
Page 44
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

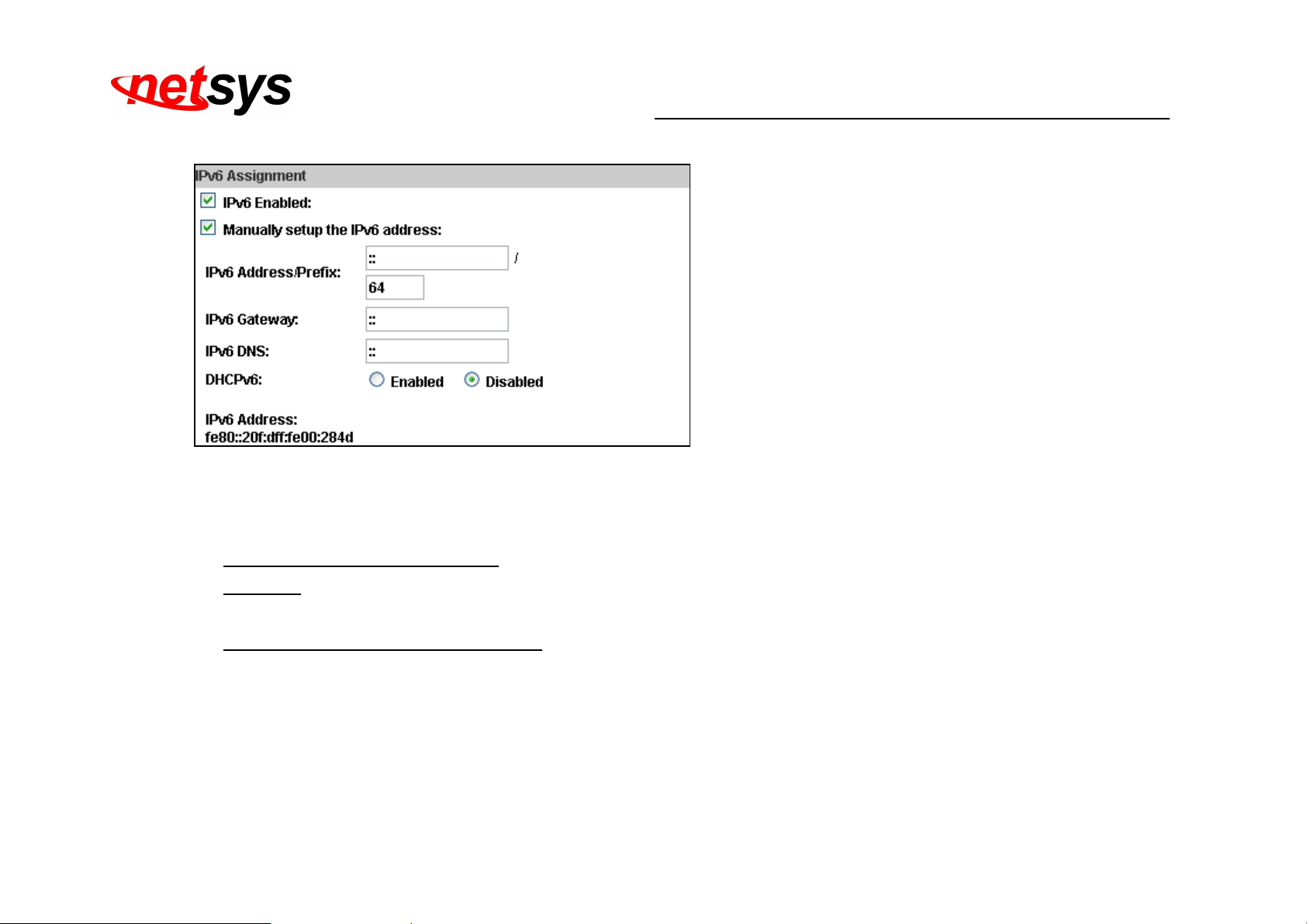

IPv6 Assignment
By enabling DHCPv6 you can configure the following IPv6 address settings:
Manually setup the IPv6 address: Key-in the Address, Gateway, and DNS.
DHCPv6: If you have a DHCPv6 server, enable it to assign the IPv6 automatically. The assigned IP address will be
displayed beside the column.
Automatically generated IPv6 Address: Indicates a virtual IPv6 address generated automatically by the IP camera.
This virtual IPv6 address cannot be used on WAN.

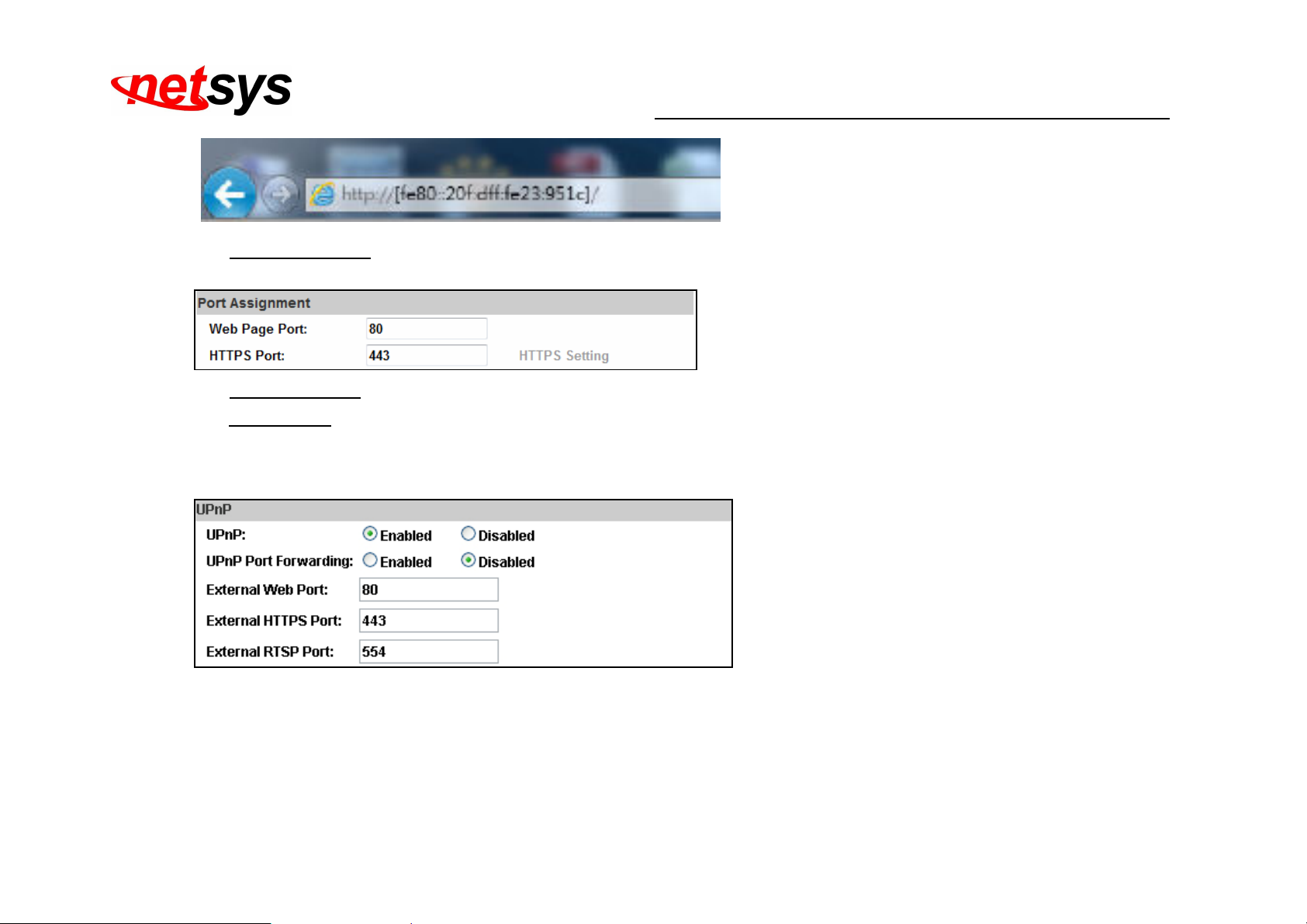

To use IPv6 address to access the IP camera, open the web browser, and key-in the [IPv6 address] in the address bar.
The [ ] parentheses mark is necessary
43
Page 45
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
a. Port Assignment: The user might need to assign a different port to avoid conflicts when setting up the IP.
b. Web Page Port: setup the web page connecting port and video transmitting port (Default: 80)
c. HTTPs Port: setup the https port(Default: 443)
UPnP
This IP camera supports UPnP, if this service is enabled on your computer, the camera will automatically be detected and a new icon
will be added to My Network Places.
44
Page 46
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
UPnP Port Forwarding：Enable UPnP Port Forwarding for accessing the IP Camera from the Internet; this option allows the IP
Camera to open ports on the router automatically so that video streams can be sent out from a LAN. There are three
external ports for being set: Web Port, Http Port and RTSP port. To utilize of this feature, make sure that your router
supports UPnP and is activated.
Note: UPnP must be enabled on your computer.
**Please follow the procedure to activate UPnP:
Approach 1
1. Open the Control Panel from the Start Menu
2. Select Add/Remove Programs
3. Select Add/Remove Windows Components and open Networking Services section
4. Click Details and select UPnP to setup the service
5. The IP device icon will be added to My Network Places
6. The user may double click the IP device icon to access IE browser
Approach 2

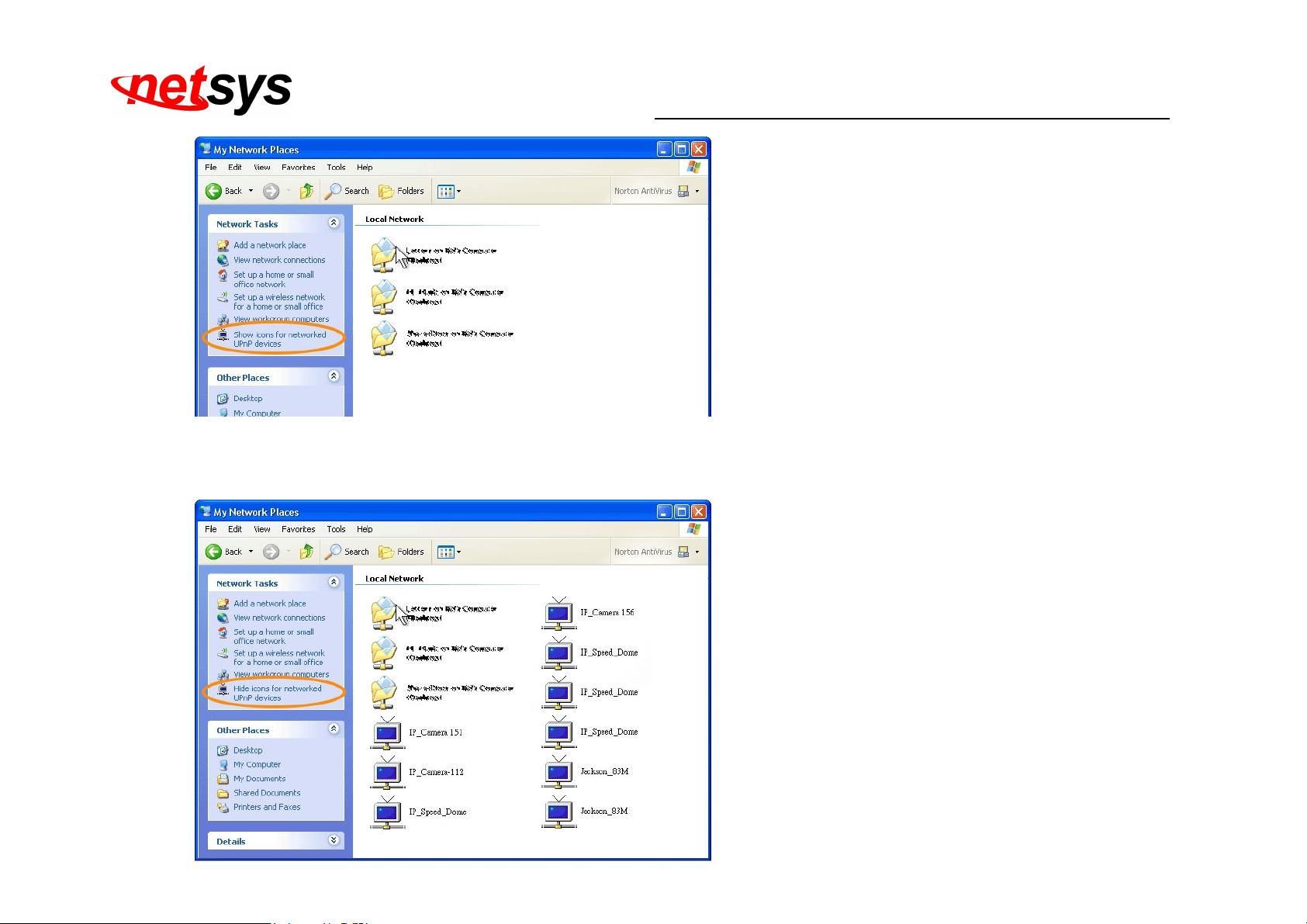

1. Open My Network Space.
2. Click Show icons for networked UPnP devices in the tasks column on the left of the page.
3. Windows might ask your confirmation for enabling the components. Click Yes.
45
Page 47
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
4. Now the IP device is displayed under the LAN. Double-click the icon to access the camera via web browser. To
disable the UPnP, click Hide icons for networked UPnP devices in the tasks column.
46
Page 48
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

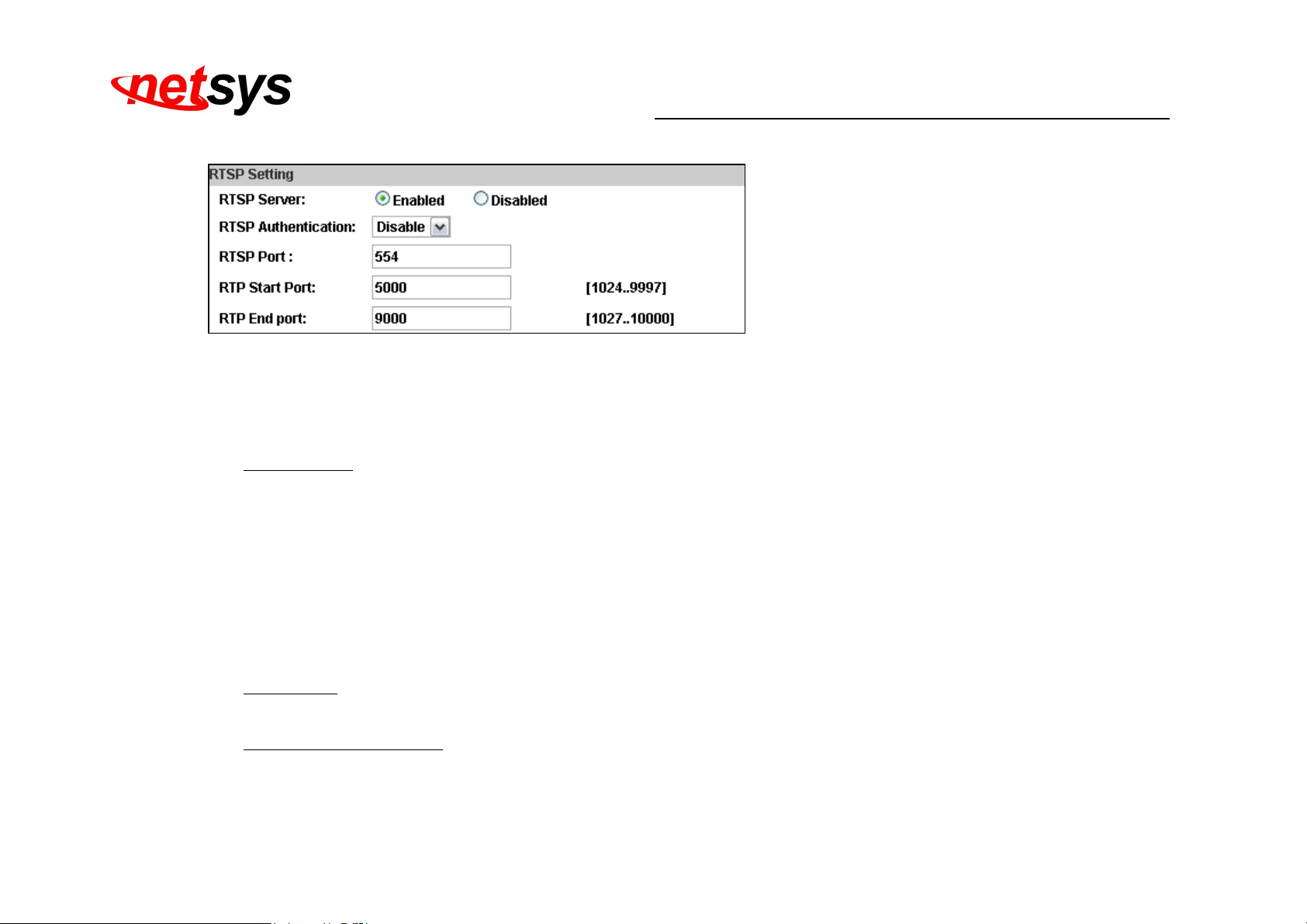

RTSP setting
If you have a media player that supports RTSP protocol, you can use it to receive video streaming from the IP camera. The RTSP
address can be set for two streamings respectively.
1. RTSP Server: enable or disable
Disable means everyone who knows your camera IP Address can link to your camera via RTSP. No username and password
are required.
Under Basic and Digest authentication mode, the camera asks for a username and password before allows access.
The password is transmitted as a clear text under basic mode, which provides a lower level of security than under digest mode.
Make sure your media player supports the authentication schemes.
2. RTSP Port: setup port for RTSP transmitting (Default: 554)
3. RTP Start and End Port: in RTSP mode, you can use TCP and UDP for connecting. TCP connection uses RTSP
Port (554). UDP connection uses RTP Start and End Port
47
Page 49
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

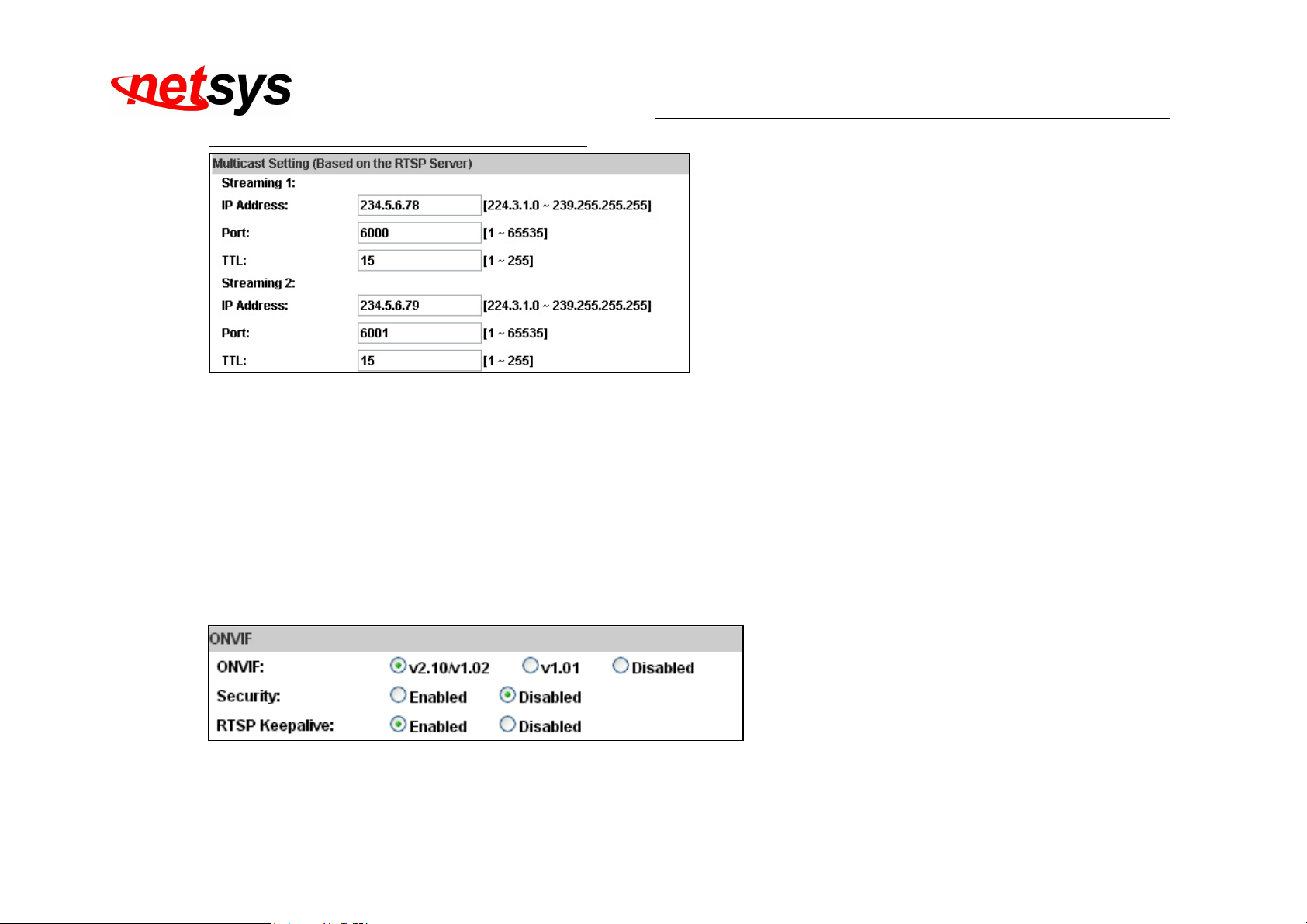

Multicast Setting (Based on the RTSP Server)
Multicast is a bandwidth conservation technology. This function allows several users to share the same packet sent from the
IP camera.
For using Multicast, appoint here an IP Address and port. TTL means the life time of packet, the larger the value is,
the more users can receive the packet.
For using Multicast, be sure to enable the function Force Multicast RTP via RTSP in your media player. Then key
in the RTSP path of your camera: rtsp ://( IP address)/ to receive the multicast.
ONVIF
48
Page 50
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
1. Choose your ONVIF version and settings
Under ONVIF connection, the video will be transmitted by RTSP. Be sure to enable the RTSP server in IP setting, otherwise
the IP Camera will not be able to receive the video via ONVIF.
2. Security
By selecting Disable, the username and password are not required for accessing the camera via ONVIF. By selecting Enable
the username and password are necessary.
3. RTSP Keepalive:
When the function is enabled, the camera checks once in a while if the user who is connected to the camera via ONVIF is still
connected. If the connection has been broken the camera will stop transmitting video to the user

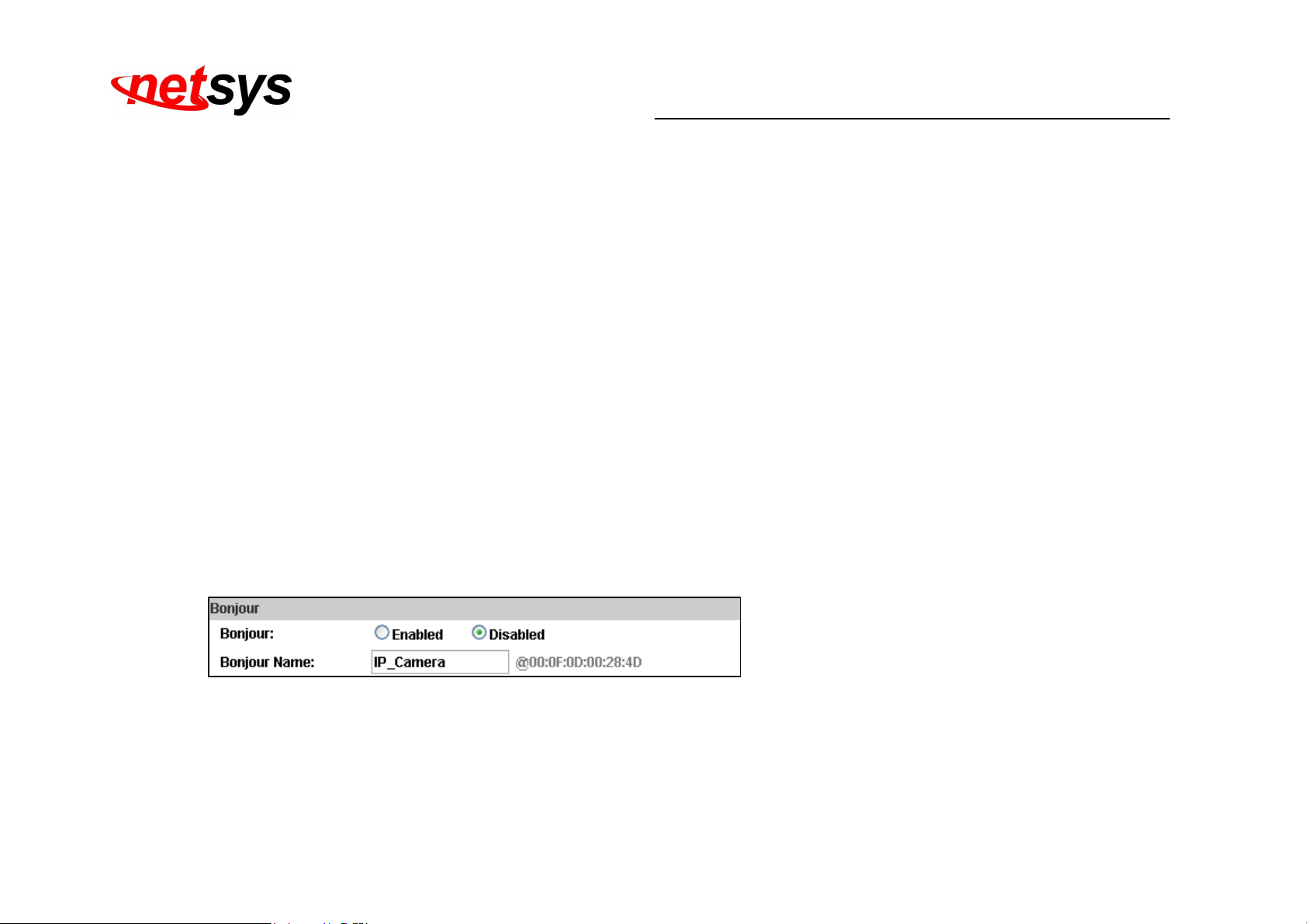

Bonjour

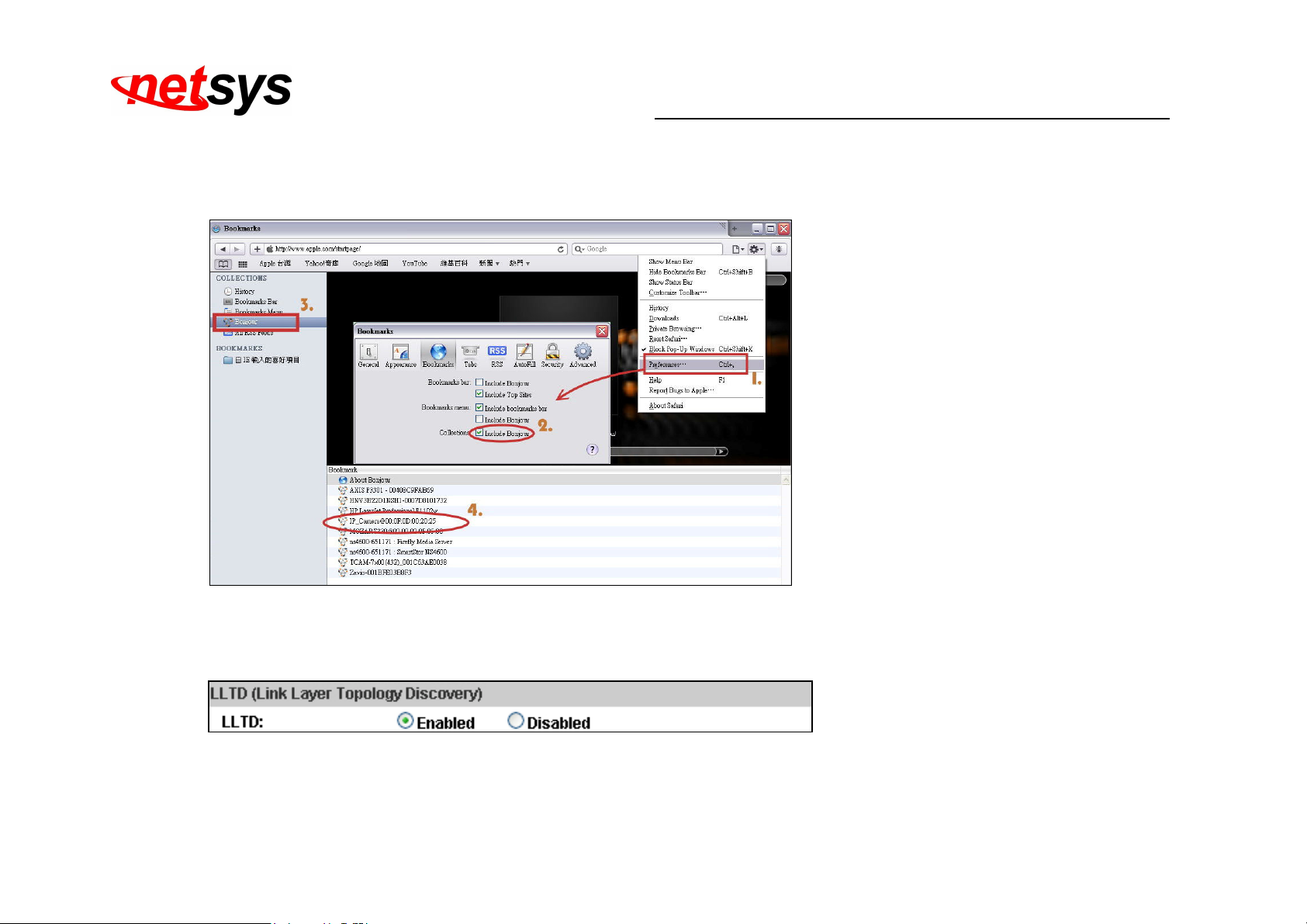

This function allows Apple systems to connect to this IP camera. On Bonjour Name key-in the name here
The web browser Safari also has a Bonjour function. Tick Include Bonjour in the bookmark setting, for the IP camera to
appear under the bonjour category. Click the icon to connect to the IP camera
49
Page 51
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
The Bonjour function on Safari browser doesn't support HTTPS protocol. If on the camera you select https, the camera will
appear on Safari's bookmarks but it cannot be accessed
Take as a reference the following image:
LLTD
50
Page 52
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

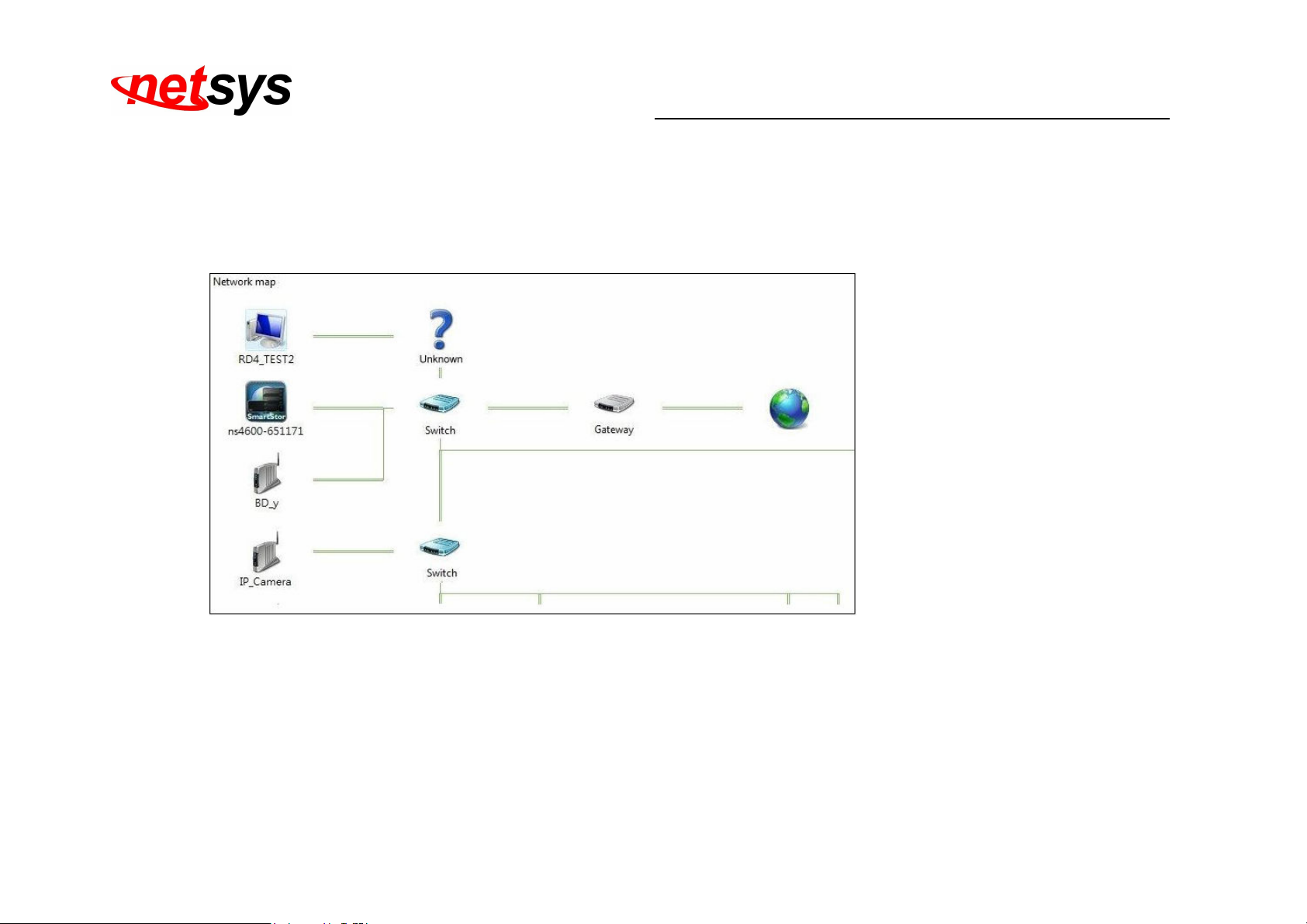

If your PC supports LLTD, enable this function for allowing checking the connection status, properties, and device location (IP
address) in the network map.
If the computer is running Windows Vista or Windows 7, you can find LLTD through the path:
Control Panel → Network and Internet → Network and Sharing Center → Click See full map
II. Advanced

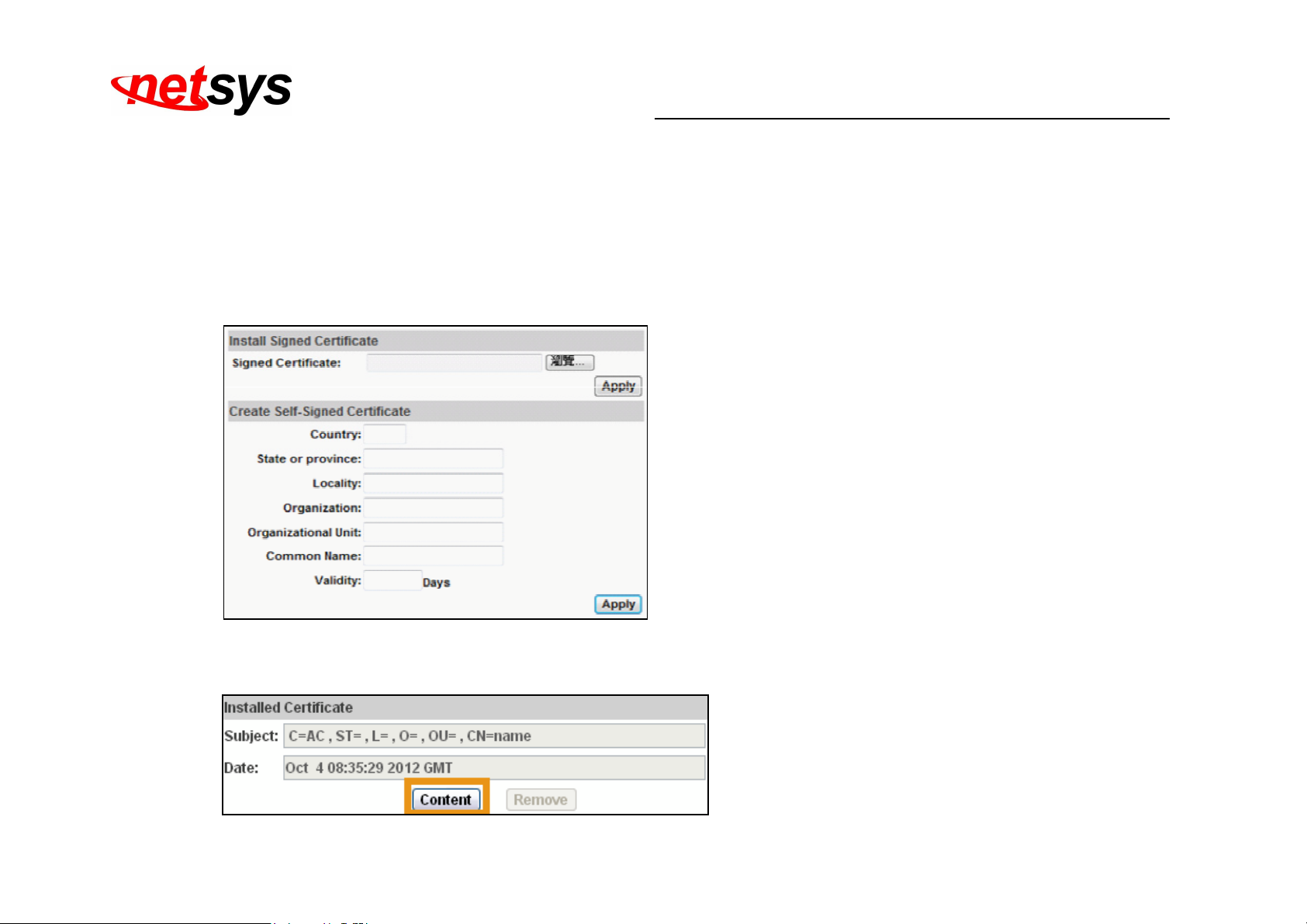

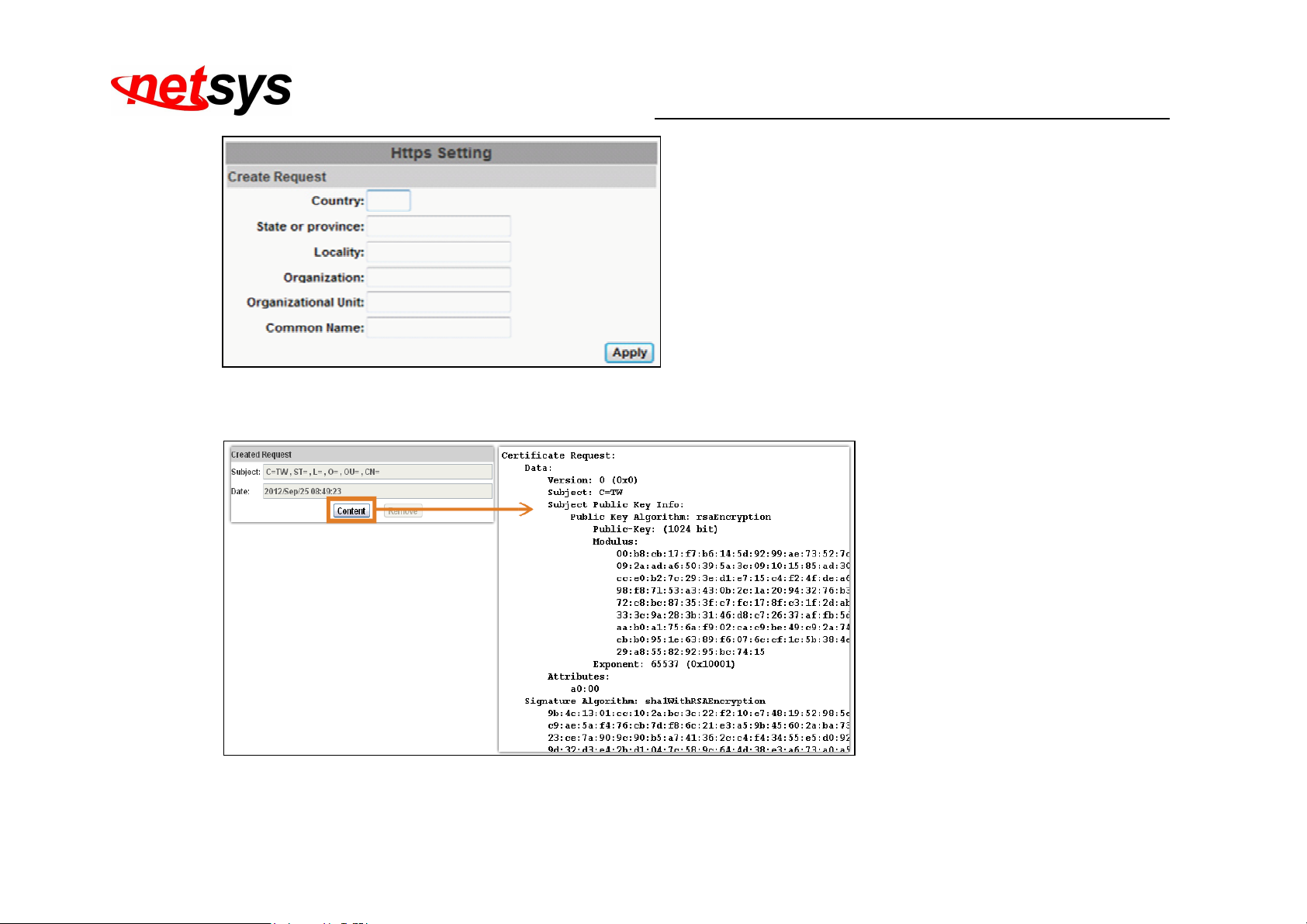

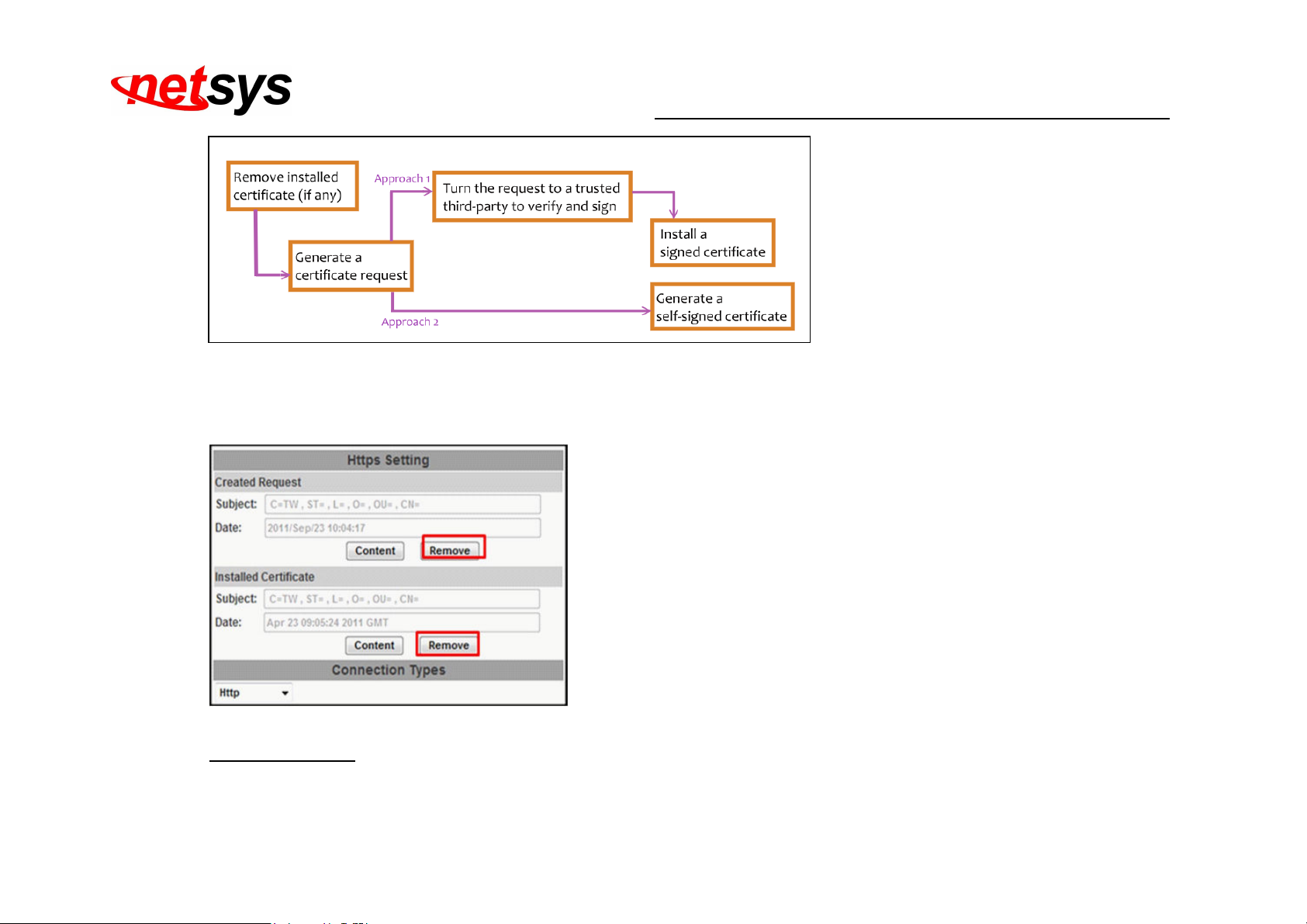

a. Https (Hypertext Transfer Protocol Secure
When the users access cameras via Https protocol, the transmitted information will be encrypted, increasing the
security level.
51
Page 53
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

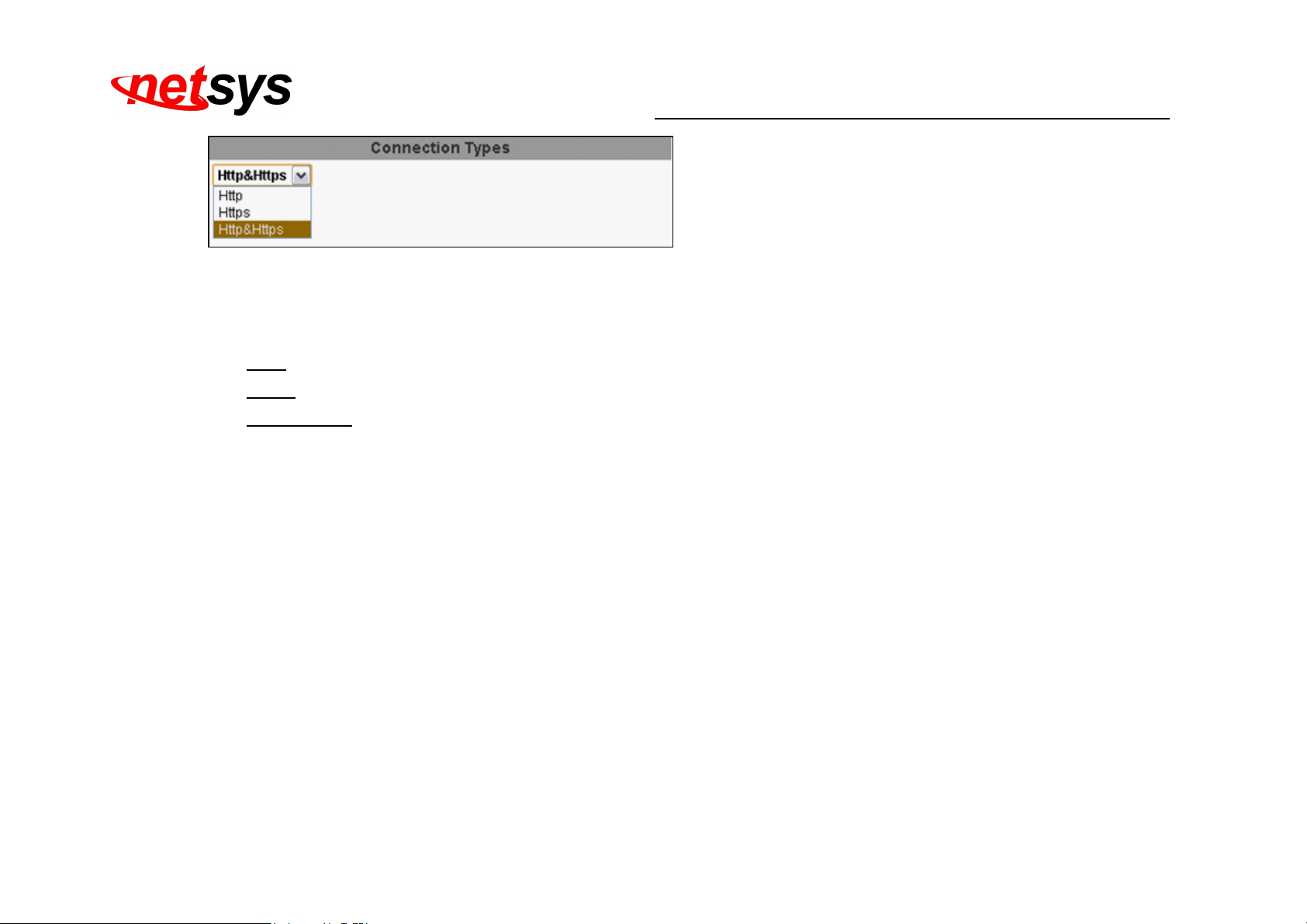

Select the connection type:
Http: the user can access the camera via the Http path but cannot access it via the Https path.
Https: the user can access the camera via the Https path but cannot access it via the Http path.
Http & Https: Both the Http and Https path can be used to access the camera. When you change the connection
type settings, it may cause connection error or disconnection error if you switch the protocol directly. Therefore,
Http & Https mode is necessary.
If you want to change from Http to Https, please switch to Http & Https mode first, and then switch to Https mode and
vice versa.
The Https protocol has a verifying mechanism. When the user access a website via Https, the browser will check the
certificate of that domain and verify its trustiness and security.
Certificate generation process:
52
Page 54
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Remove the existing certificate: Before you generate a new certificate, please remove the installed one. Select the Http
connection type and click Remove. If a dialog box pops up to ask you to confirm, click Yes.
Created Request: Fill-in the following form and click apply.
53
Page 55
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
After generating a certificate request, if you choose to turn it and verified by a trusted third-party, click Content and
copy all the request content.
According to the certificate source, there are two ways to install the certificate:
54
Page 56
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
If you had sent the certificate request for signing and receiving a signed certificate, click browse and find the
certificate file in your computer. Click Apply to install it.
If you choose to generate a self-signed certificate, fill-in the following forms and set the validity day, click Apply to
finish installed it.
After finishing the installation, click on Content to call out and check the certificate content
55
Page 57
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

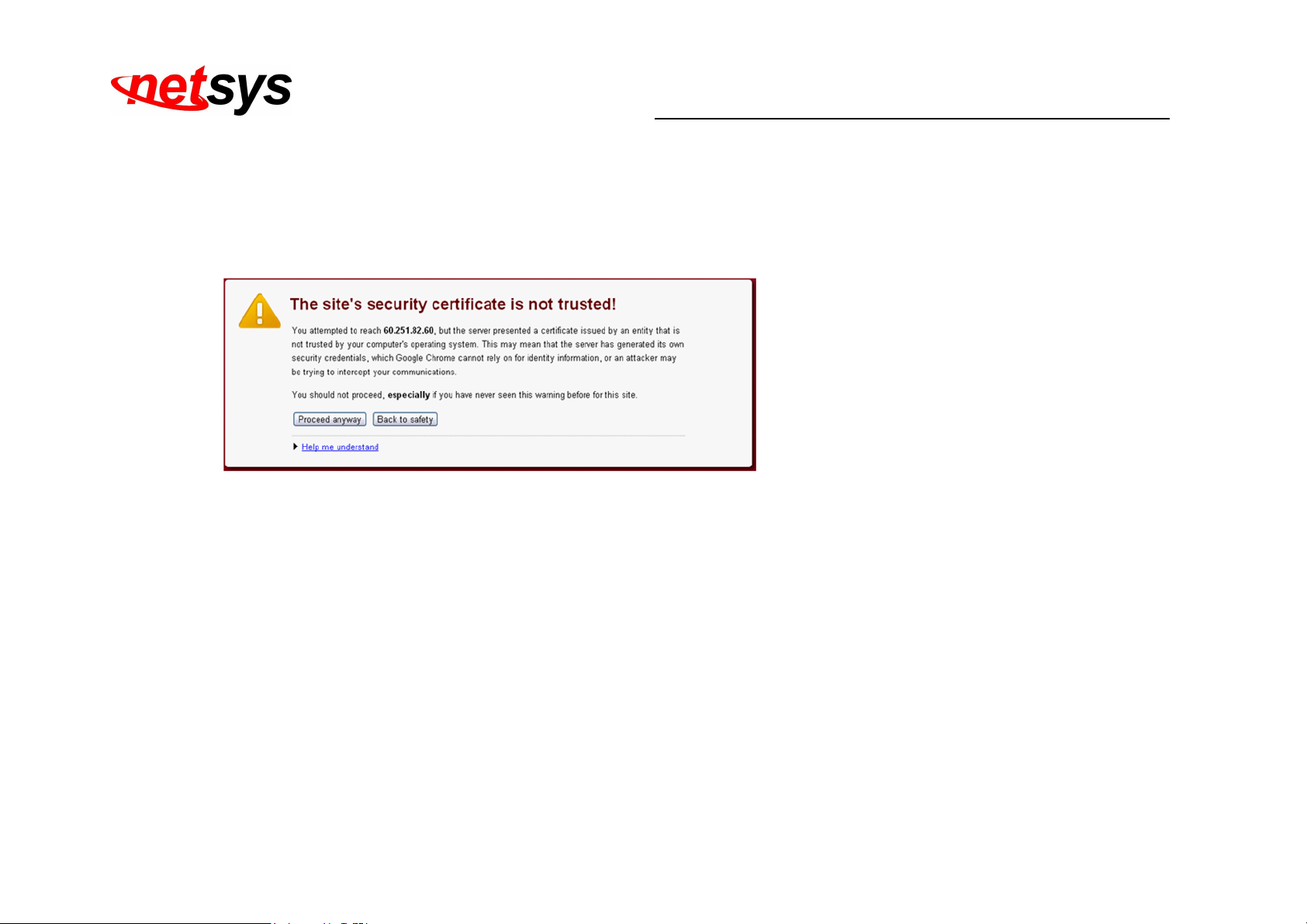

To use Https to access the camera, open your browser, and key-in https:// (IP address)/ in the address bar. Now your
data will be transmitted via encrypted communications. The browser will check your certificate status. It might show
the following warning message:
Meaning that certificate is self-signed or signed by a distrusted institution. Click Proceed anyway for continuing to the
camera page.

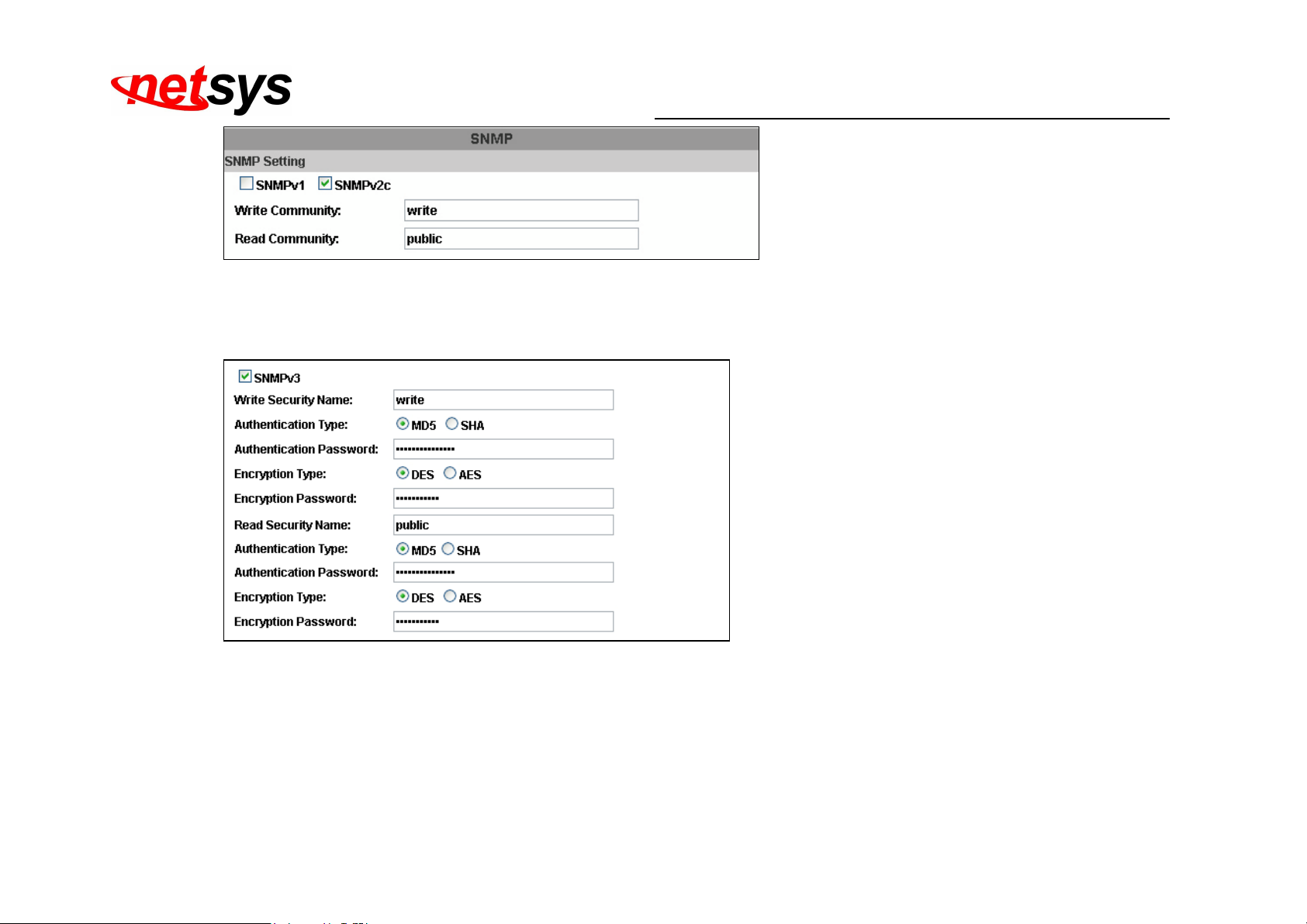

b. SNMP (Simple Network Management Protocol)
1.
SNMPv1 or SNMPv2: write the name of both Write Community and Read Community.
56
Page 58
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
2. SNMPv3: Set the Security Name, Authentication Type, Authentication Password, Encryption Type, Encryption
Password of Write mode and Read mode
3.

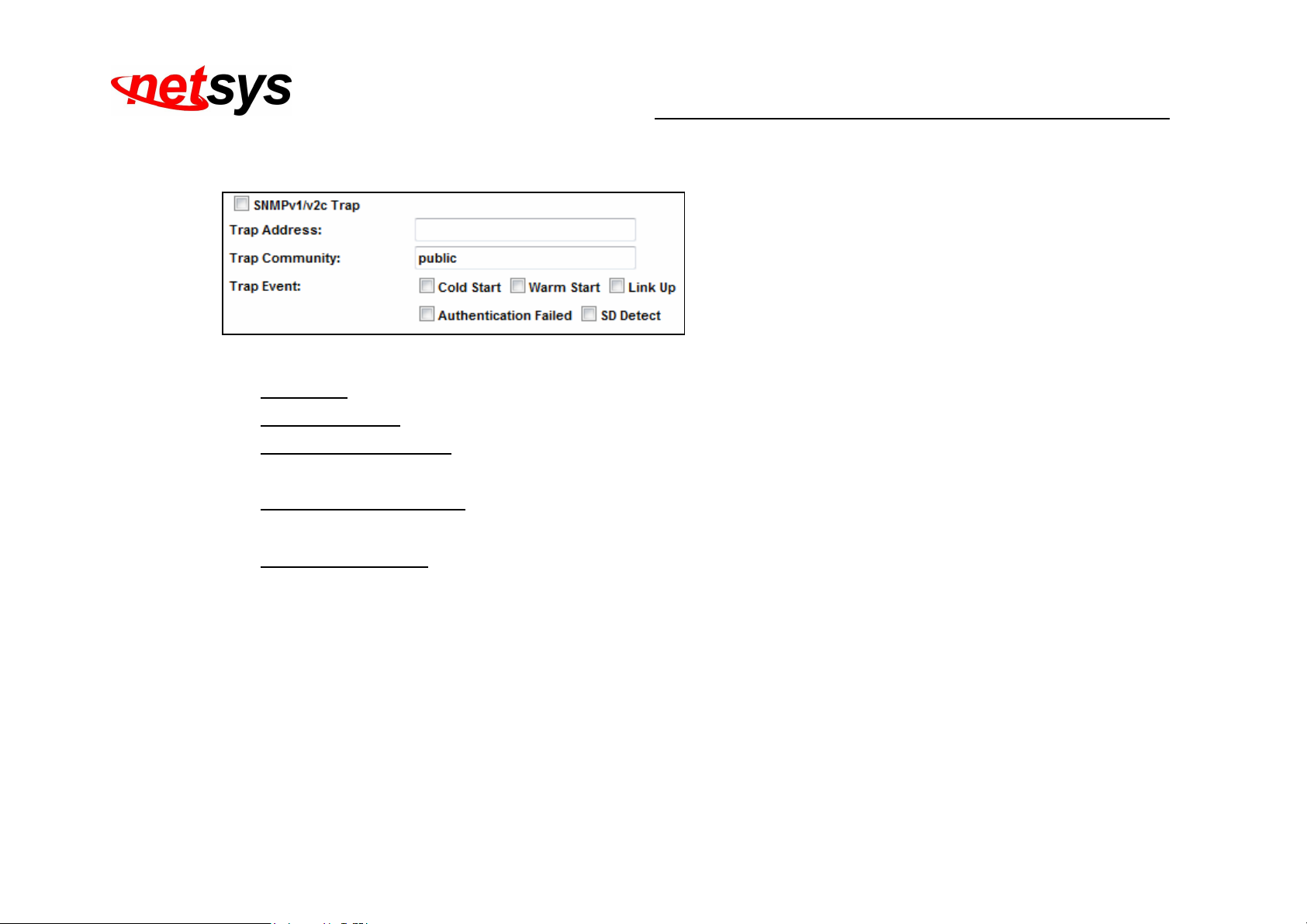

Enable SNMPv1/SNMPv2 Trap for detecting the Trap server
57
Page 59
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Please set what event needs to be detected.
Cold Start: The camera starts up or reboots.
Setting changed: The SNMP settings have been changed.
Network Disconnected: The network connection was broken down (The camera will send trap messages after the
network is connected again).
V3 Authentication Failed: A SNMPv3 user account tries to get authentication but failed.(Due to incorrect password
or community)
SD Insert / Remove: A Micro SD card is inserted or removed.

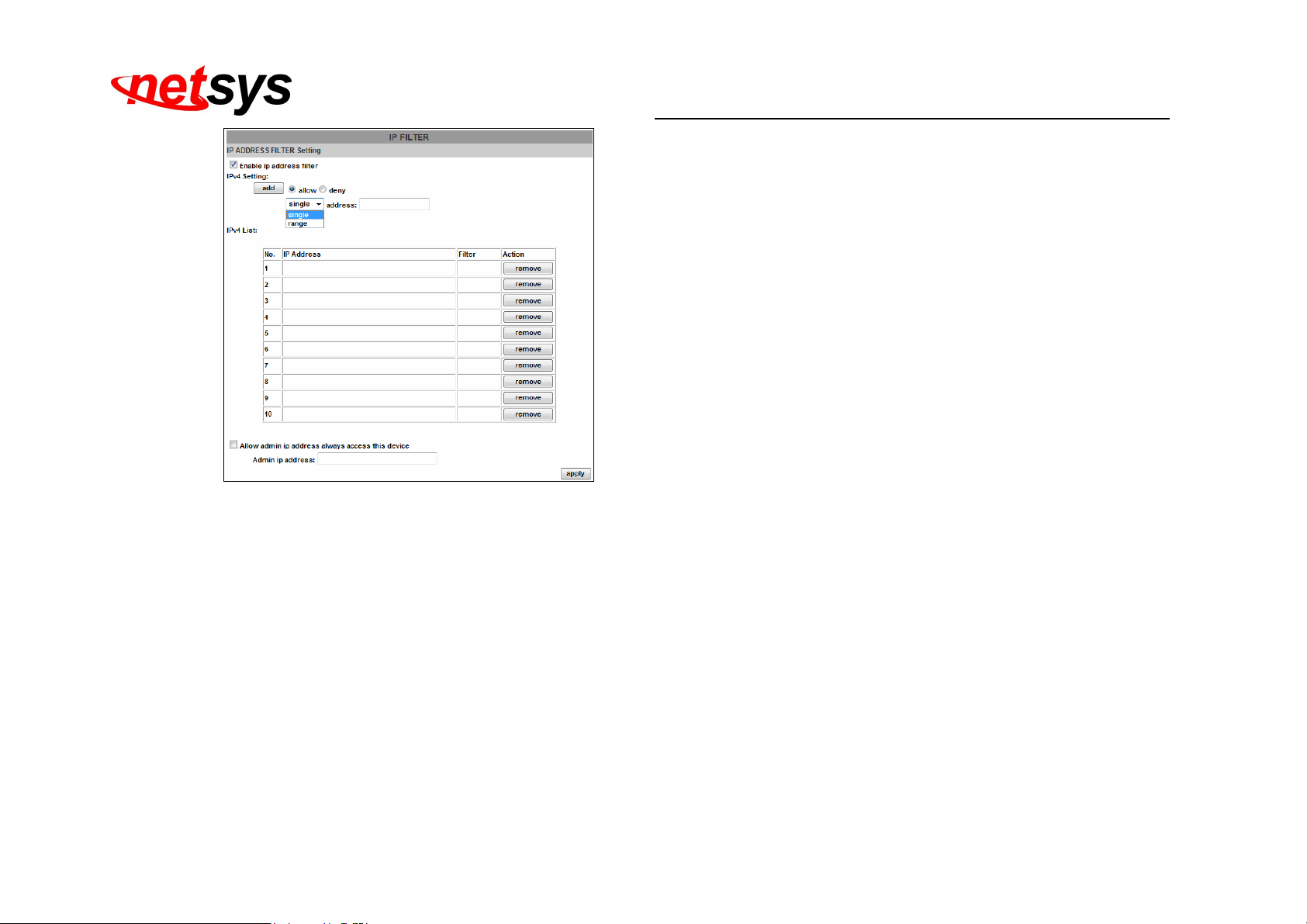

c. Access list:
Enable IP address filter for setting the IP addresses which allows or denies this camera. There are two options:
single and range.
58
Page 60
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
d. QoS/DSCP(Quality of Server/Differentiated Services Code-point):
DSCP specifies a simple mechanism for classifying and managing network traffic; and provide QoS on IP networks.
DSCP is a 6-bit in the IP header for packet classification purpose. Please define it for Live Stream, Event / Alarm
and Management
59
Page 61
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

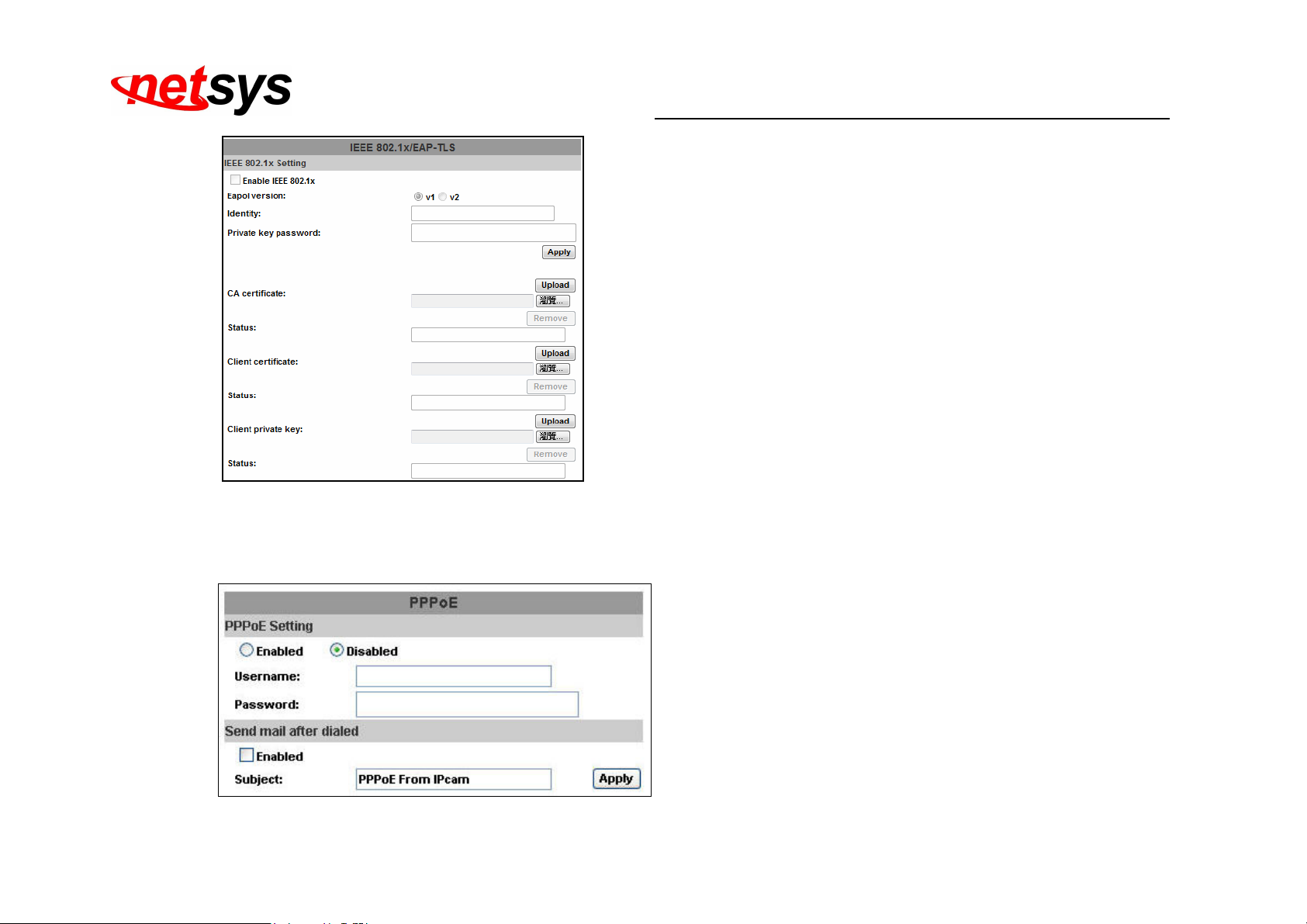

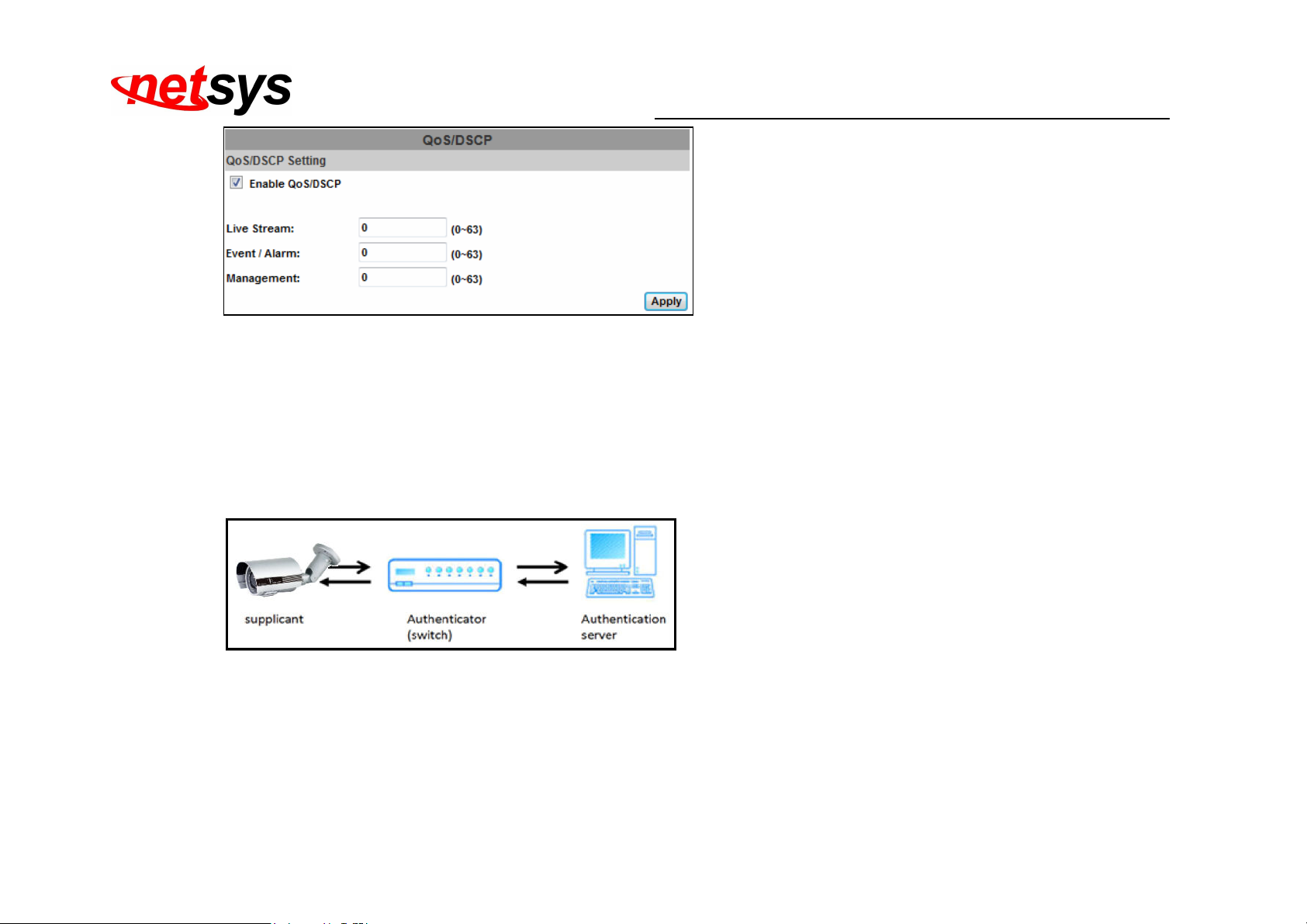

e. IEEE 802.1x:
IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to
a device on a LAN or WLAN.
The EAPOL protocol support service identification and optional point to point encryption over the local LAN segment.
Please check what version of the authenticator and authentication server is supported. This camera supports
EAP-TLS method. Please enter the ID, password issued by the CA, then upload related certificates.
60
Page 62
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
III. PPPoE & DDNS
61
Page 63
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
a. PPPoE: Select Enabled to use PPPoE. Key-in the the Username and password for ADSL connection.
Send mail after dialed: When connected to the internet, the camera will send a mail to a specific mail account.

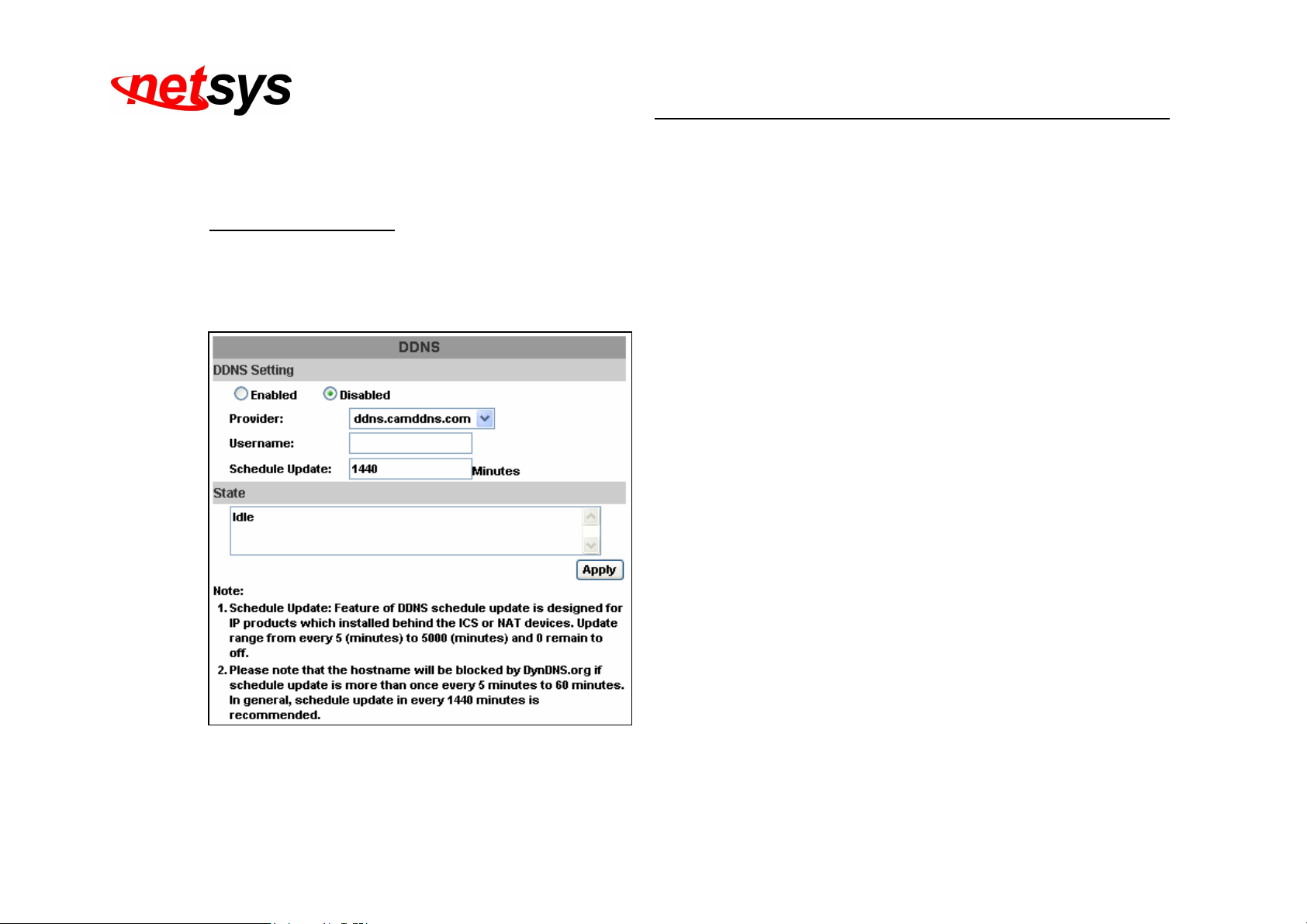

b. DDNS (camddns example):
62
Page 64
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
1. Enable this service.
2. Key-in the username.
3. IP schedule update. Default: 5 minutes.
4. Click Apply.
DDNS Status
1. Updating: Information update
2. Idle: Stop service.
3. DDNS registration successful, can now log by http://<username>.ddns.camddns.com: Register
successfully.
4. Update Failed, the name is already registered: The user name has already been used. Please change it.
5. Update Failed; please check your internet connection: Network connection failed.
6. Update Failed, please check the account information you provided: The server, user name, and password
may be wrong.

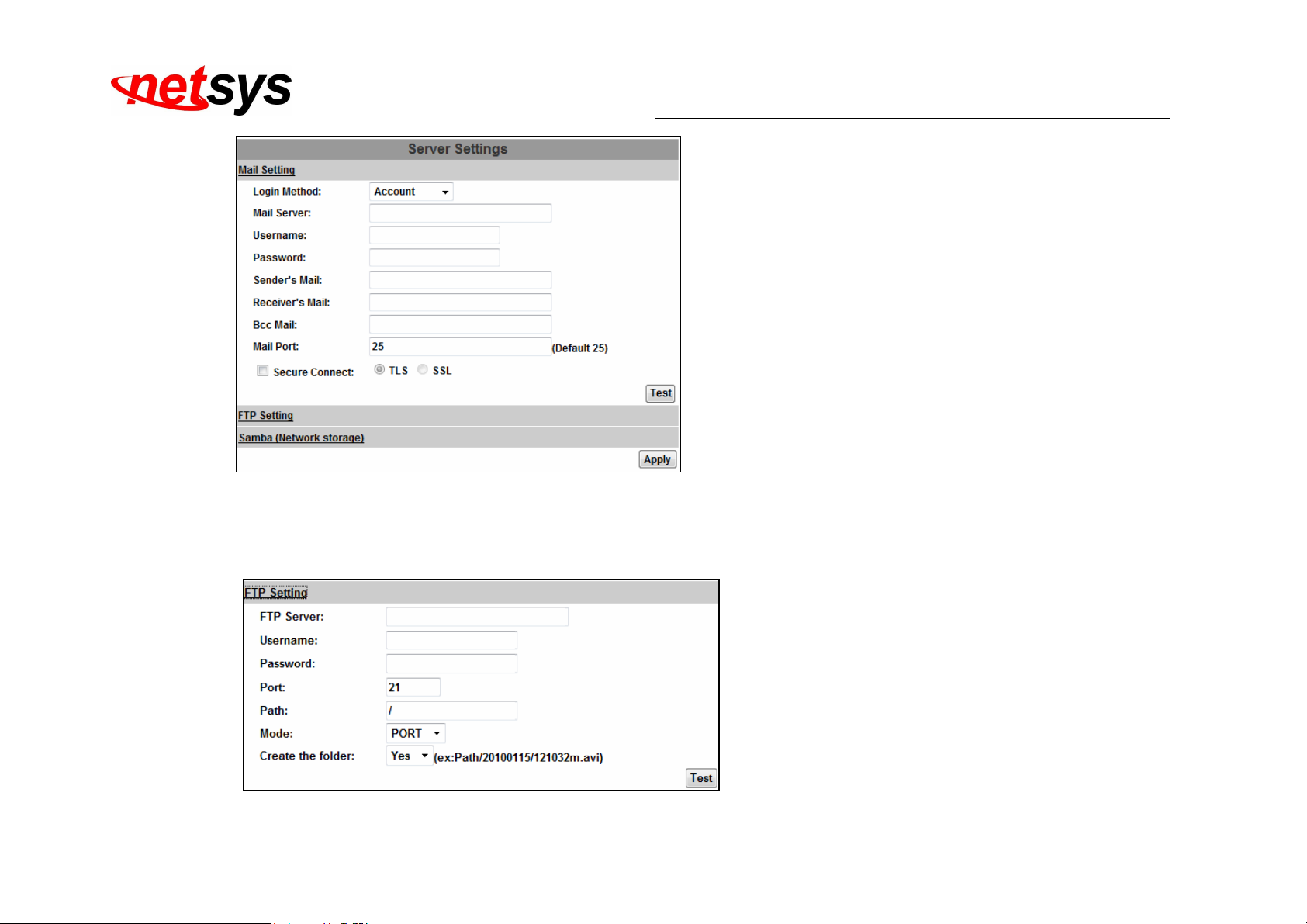

IV. Server settings
There are three server types available: Email, FTP and SAMBA. Select the item for display detailed configuration
options. You can configure either one or all of them.
To send out the video via mail of FTP, please set up the configuration first.
63
Page 65
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
FTP
To send out the video via mail of FTP, please set up the configuration.
64
Page 66
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

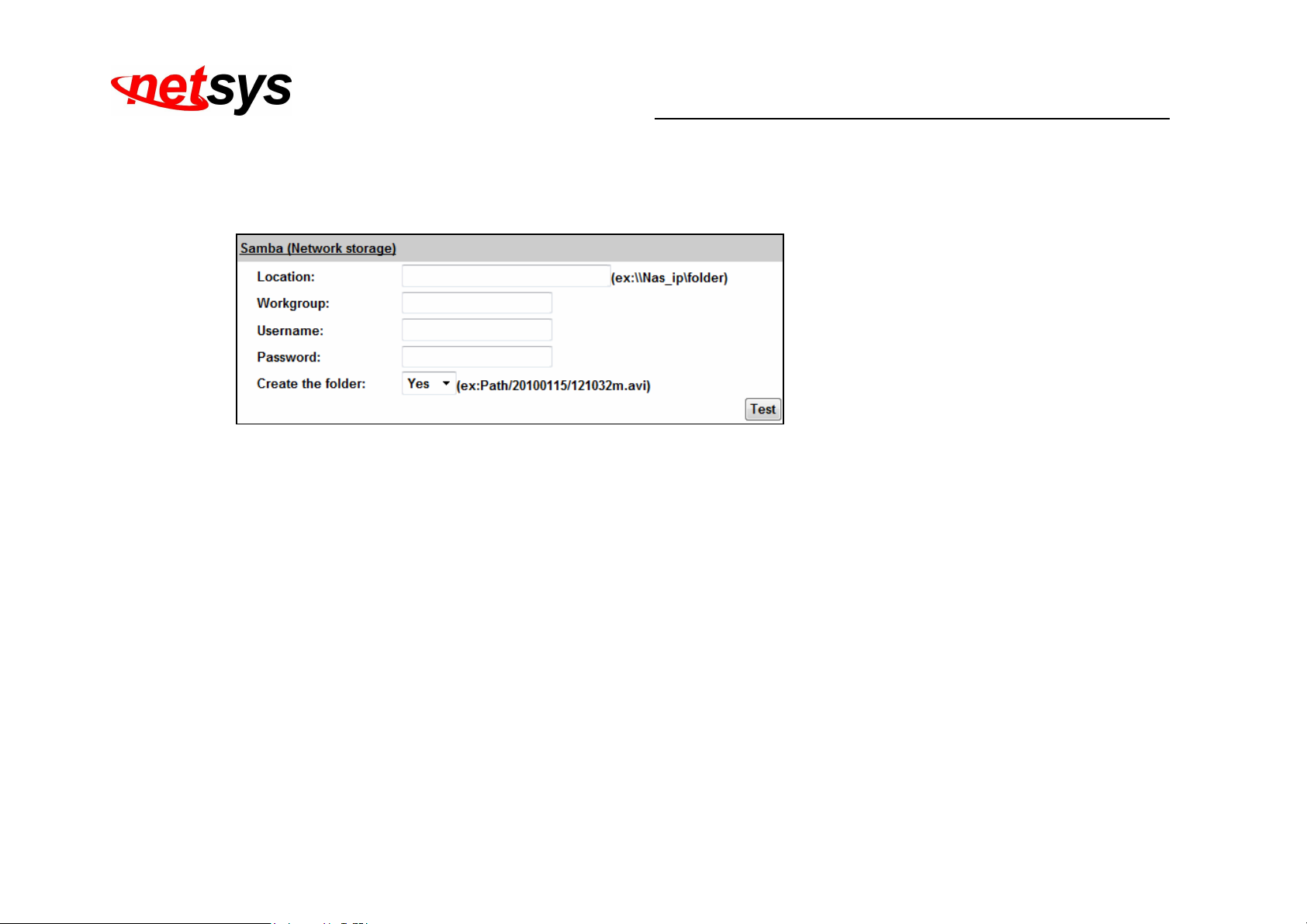

Samba
Select this option to send the media files via a neighbor network when an event is triggered.
Click Apply to save the setting, then use Test button to test the server connection. A message box will tell you OK!
if it works, and a test document will be created in the location.

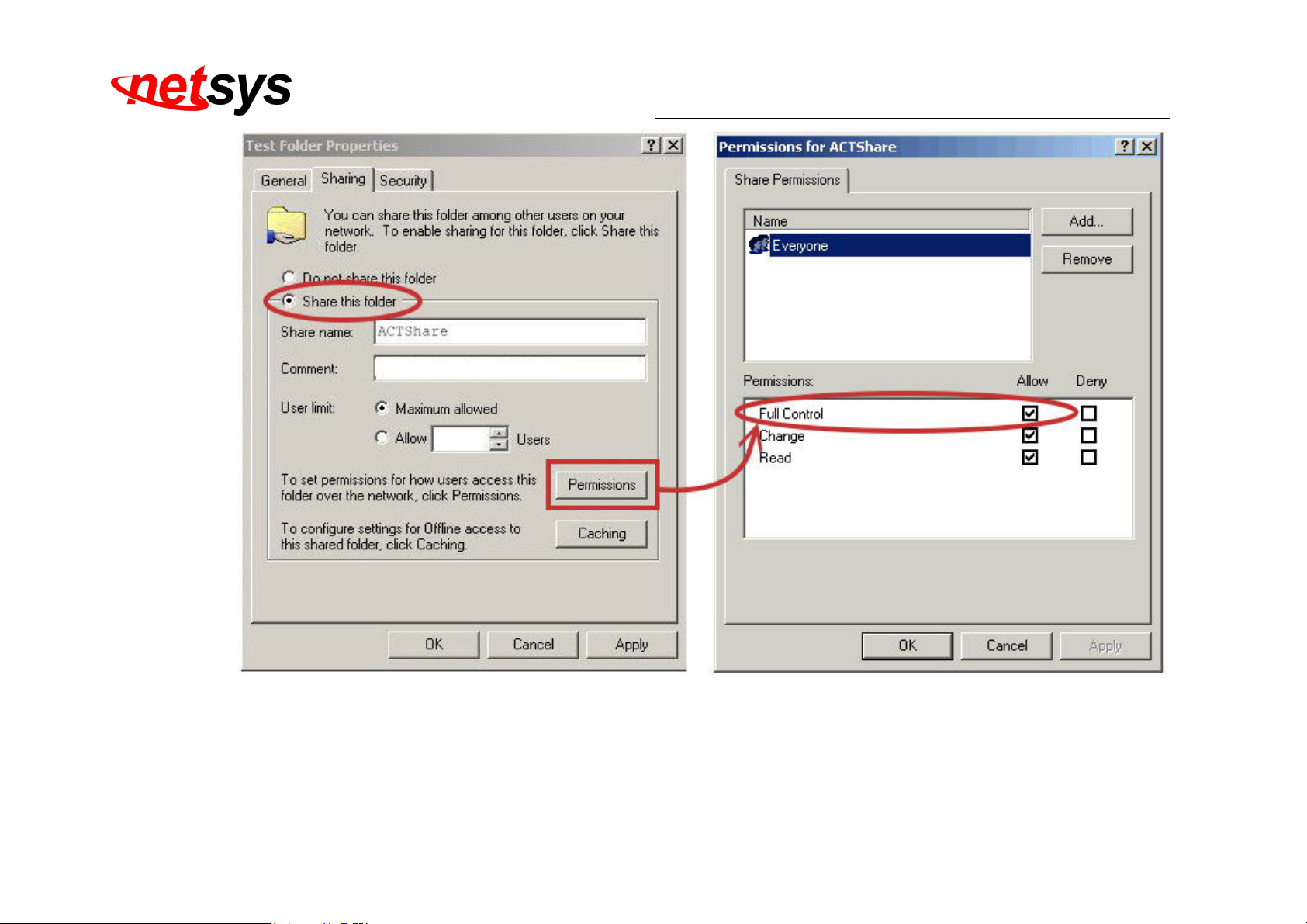

If the test failed, check the sharing setting of your location folder. The folder properties must be shared and the
permissions must be Full Control as the picture.
65
Page 67
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
66
Page 68
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
5.3. A / V Setting
1. Image Setting
Please refer to the details below for image settings:
67
Page 69
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
a. For security and privacy purposes, there are three areas that can be set up for privacy. Click the Area button
first, and then drag an area on the above image. Remember to save your settings. The masked area will not be
shown on both live view and recording image.
b. Brightness, Contrast, Hue, Saturation, Sharpness can be adjusted here. The available values are: -4, -3, -2, -1,
0, 1, 2, 3, 4.
c. AGC: The sensitivity of the camera can be adjusted to the environmental lighting. By enabling this function the
camera will get brighter images on low light, but the level of noise may also increase. The available values are:
16x, 24x, 32x, 48x, 64x.
d. Shutter Time: Choose the location of your camera or a fixed shutter time. The shorter the shutter time is the
less light the camera receives and the image becomes darker.
Note: When you select a number in Shutter Time, the shutter time will vary in a range and be controlled by
camera automatically. The following table shows the shutter time options and corresponding range.
68
Page 70
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Option
Shutter
Time Range (sec.)
Out
door
1/33000 ~ Selected number in
Sense
-up
P
AL:
1/100 ~ Selected number in
Sense
-up
1/30
1/33
000 ~ 1/30
1/50
1/33
000 ~ 1/50
1/60
1/33
000 ~ 1/60
1/100
1/33
000 ~ 1/100
1/125
1/33
000 ~ 1/125
1/250
1/33
00
0 ~ 1/250
1/500
1/33
000 ~ 1/500
1/1000
1/33
000 ~ 1/1000
1/33
000
1/33
000
Indoor
NTSC: 1/120 ~ Selected number in Sense-up
* Sense-up options: 1/30, 1/15, 1/10, 1/5
e. Sense-Up: This function increases the sensitivity of camera to get brighter image at night. The smaller the
value you select, the slower the shutter speed becomes so that the image will get brighter, and moving subjects
might be blurred.
f. D-WDR: This function enables the camera to reduce the contrast in the view to avoid dark zones as a result of
over and under exposure. The available values are: OFF, 1, 2, 3, 4, 5, 6, 7, 8.
g. Anti Fog: Improve the image clarity on environments presenting high levels of fog or smoke.
69
Page 71
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
h. Lens Distortion Correction: Straight the curves in the borders of the image caused by the lens angles. The
available values are: OFF, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10.
i. Video Orientation: Flip or mirror the image.
j. Day & Night: The camera can detect the light level of the environment. If you choose Light Sensor Mode, the
image will be turned black and white at night in order to keep a clear image. To set light sensor mode, appoint a
Lux standard for switching D/N.
The current Lux value is provided as a reference. Under Times Mode the switch time of Color / Black and white
will be according to the given time.
You can also control it by choosing Color or B/W.
k. Red / Blue gain: Set the values for Red / Blue gain. The available values are: -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5.
l. Denoise: This function is able to filter the noise and blur from the image and show a clearer view. You can set
the values for 2D and 3D filters. The available values are: OFF, 1, 2, 3, 4, 5, 6, 7, 8, 9.
70
Page 72
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

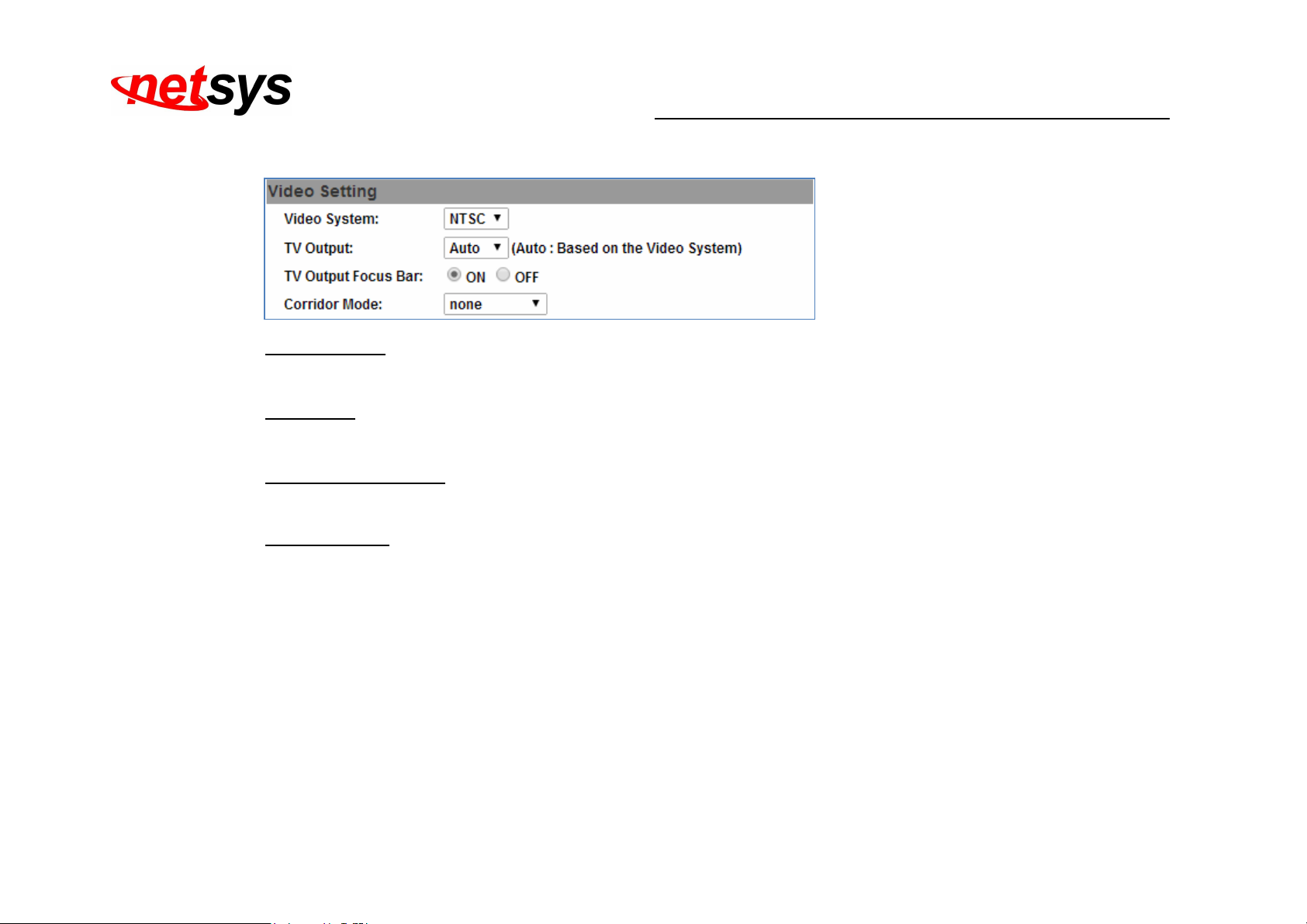

2. Video Setting
Video System: NTSC or PAL
TV Output: Auto, NTSC or PAL
TV Output Focus Bar: Auto, NTSC or PAL
Corridor Mode: 90 degrees, 270 degrees or none.
Notes:
Video Output should be used for Live View only. For recording please use the standard RJ54 output.
Analog cameras are not designed for High Resolution images.
On Corridor Mode please take note of the lens’ position. If Corridor Mode is set as none the relation of the
image and the camera would be as the following:
71
Page 73
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Corridor mode: None
Image Position
0 degrees
90 degrees
270 degrees
72
Page 74
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Image Position
If Corridor Mode is set as 90 degrees or 270 degrees the
relation of the image and the camera would be as the
following:
90 degrees
Corridor Mode: 90 or 270 degrees
270 degrees
0 degrees
73
Page 75
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

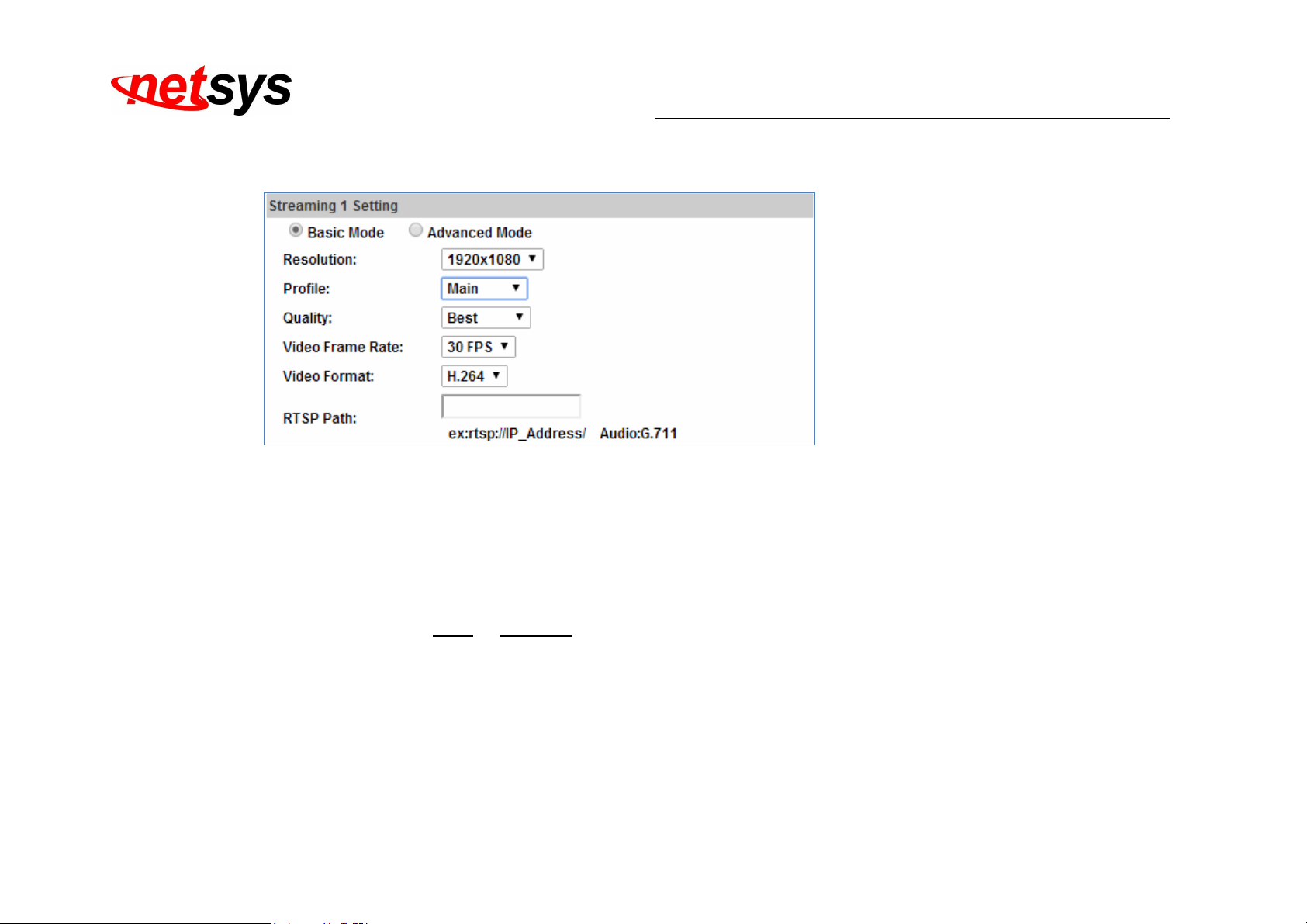

a. Streaming 1 & 2 Basic Mode
1. Resolution:
1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 320x240@30fps, 176x144@30fps
2. Profile
Chose between Main or Baseline
3. Quality
There are 5 levels:
Best/ High/ Standard/ Medium/ Low
74
Page 76
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
4. The higher the quality is, the bigger the file size is. Not good for internet transmission.
Video Frame Rate (5~30 FPS): The video refreshing rate per second.
5. Video Format: H.264 or JPEG
6. RTSP Path: RTSP output name

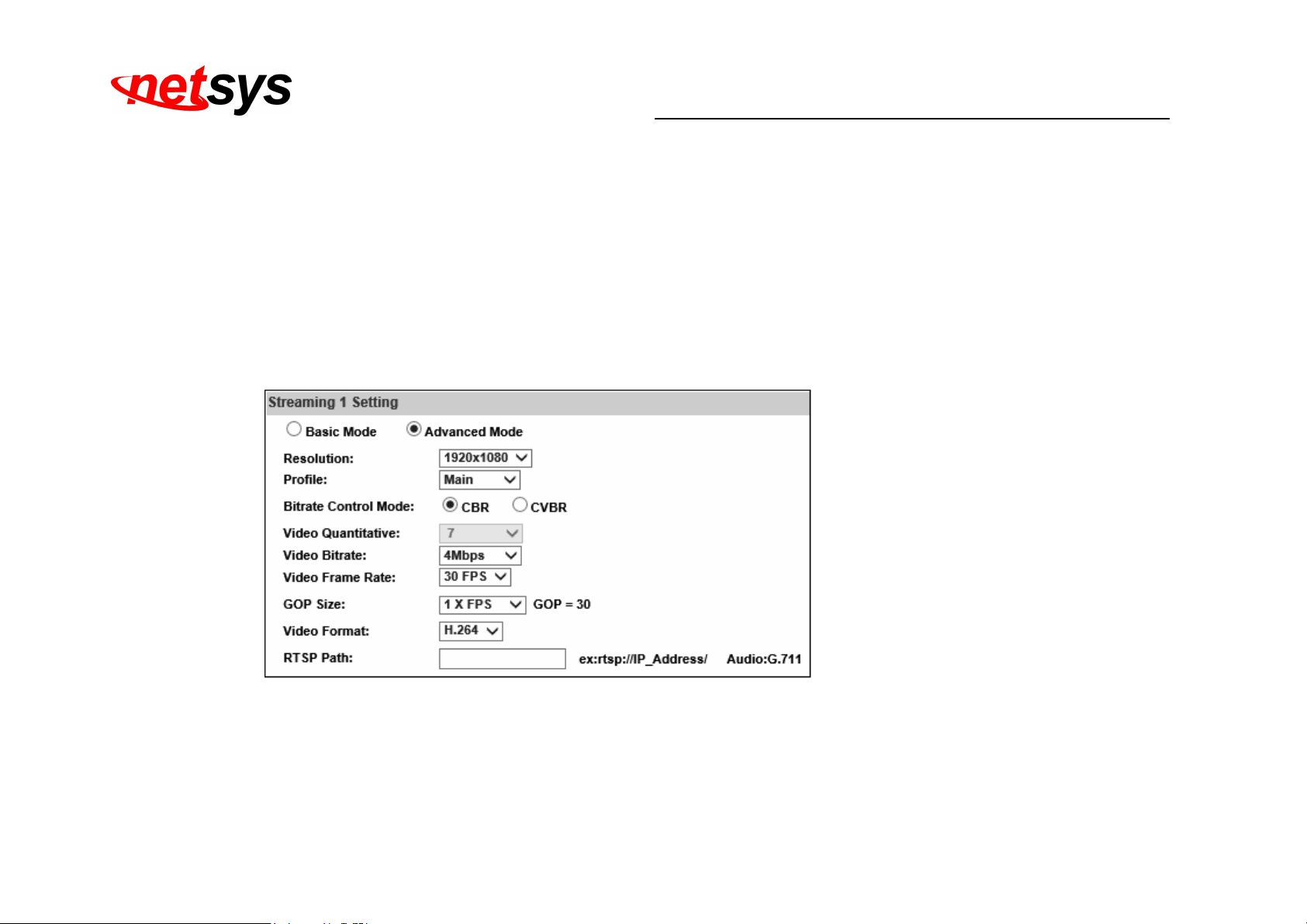

b. Streaming 1 & 2 Advanced Mode
75
Page 77
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
1. Resolution
1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 320x240@30fps, 176x144@30fps
2. Profile
Chose between Main or Baseline
3. Bitrate Control Mode
There are CBR (Constant Bit Rate) and VBR (Variable Bit Rate)
CBR: 32Kbps~8Mbps (the higher the CBR is, the better the video quality is)
VBR: Quantitative 1(Low) ~10(High): the higher the compression rate, the lower the picture quality is; vise
versa. The balance between CVBR and network bandwidth will affect the picture quality. Select the VBR rate
to avoid picture breaking up or lagging.
4. Video Frame Rate (5~30 FPS): The video refreshing rate per second.
5. GOP Size (1, 1/2, 2) X FPS: "Group of Pictures". The higher the GOP is, the better the quality is.
76
Page 78
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
6. Video Format: H.264 or JPEG
7. RTSP Path: RTSP output connecting path

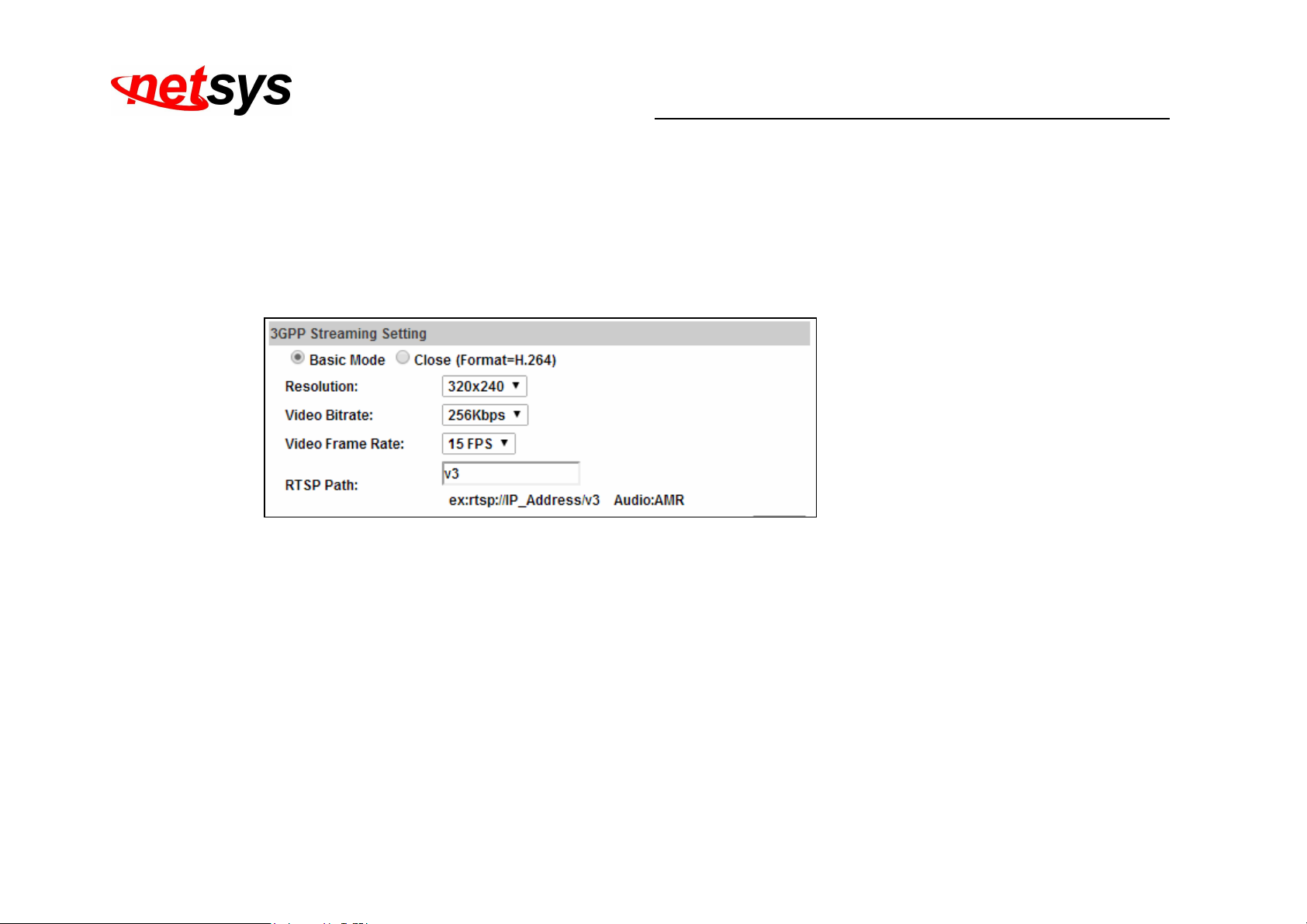

c. 3GPP Streaming mode:
1. Resolution:
640x480@15fps, 320x240@15fps, 176x144@15fps
2. Video Bitrate:
32Kbps~1Mbps (the higher Video Bitrate is, the better the video quality is)
77
Page 79
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
3. Video Frame Rate
The video refreshing rate per second.
4. RTSP Path: RTSP output name
3. Audio
The IP Camera supports 2-way audio. The user can send audio from the IP Camera built-in microphone to the
remote PC; the user can also send audio from remote PC to IP Camera’s external speaker.
a. Audio from IP camera built-in microphone to local PC: select Enable to start this function and select the audio
type.
78
Page 80
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
b. Audio from local PC to IP Camera: Check chatting in the browsing page.
The Audio will not be smooth when the SD card is recording.
Note: When both Chatting and Speaker Out are selected, the built-in microphone may be automatically shut
down to avoid echoing effects. If you wish to keep the two-way audio option active, select Line out in the Audio
option, this way, the built-in microphone function will be enabled.
79
Page 81
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
5.4. Event List
The IP Camera provides multiple event settings.
1. Event Setting

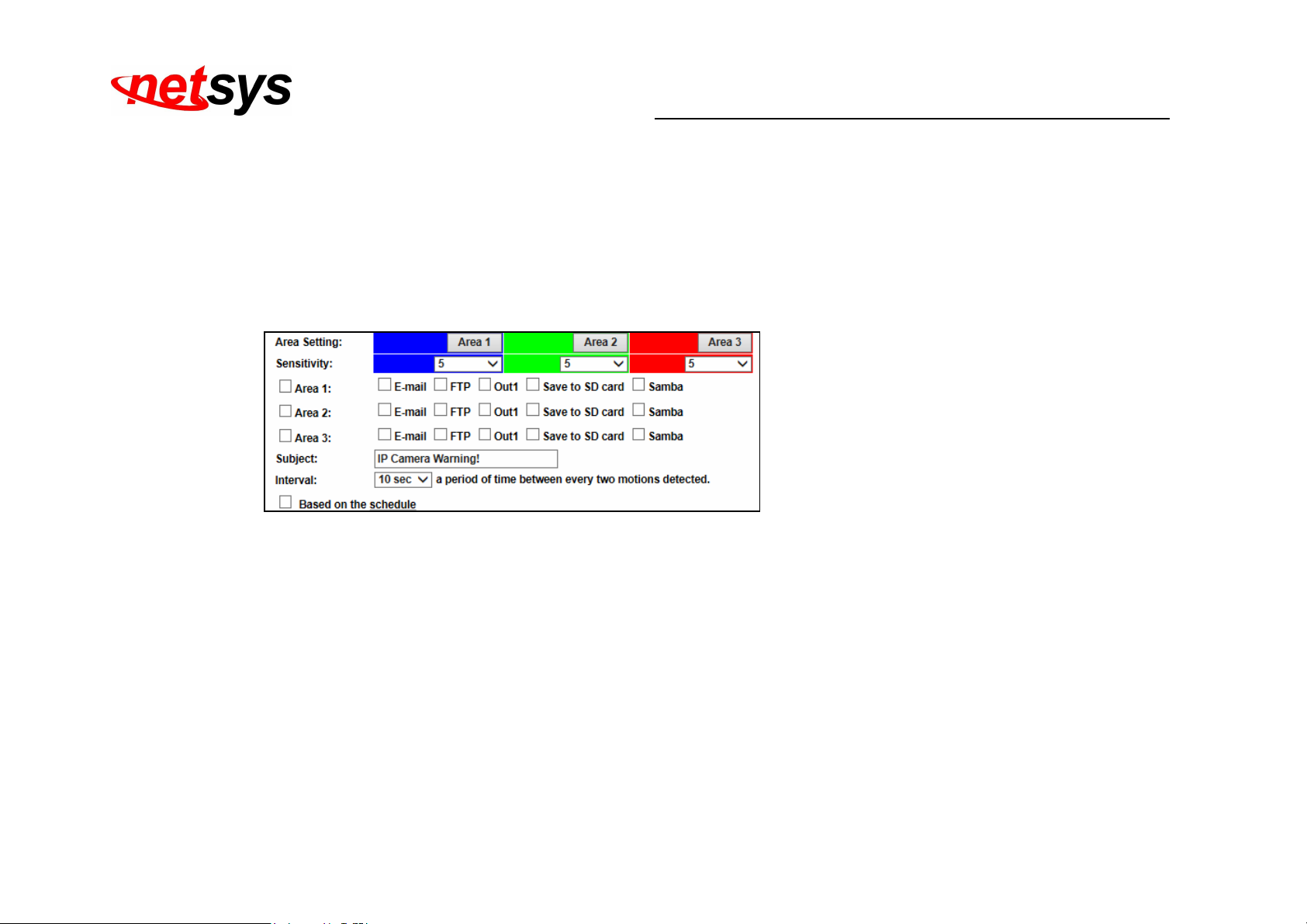

a. Motion Detection
To enable motion detection, tick Area 1/2/3. Click Area 1/2/3 in Area Setting, and draw an area on the preview
screen. When motion is detected in the area, the word Motion! will be displayed on the live screen. The camera
will send video or snapshot to specific mail addresses, trigger the output device, or save video to FTP/ Micro SD
card/ Samba.
By selecting save to SD card, the video or snapshot will be saved to the Micro SD card. Also, by ticking E-mail/
FTP/ Samba on the Log option, the motion detection log will be sent to E-mail/ FTP/ Samba simultaneously.
80
Page 82
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
• Interval: For example, when selecting "10 sec", once the motion is detected and the action is triggered, it
cannot be triggered again within 10 seconds.
• Based on the schedule: When the option box is ticked, only during the selected schedule time the motion
detection is enabled.

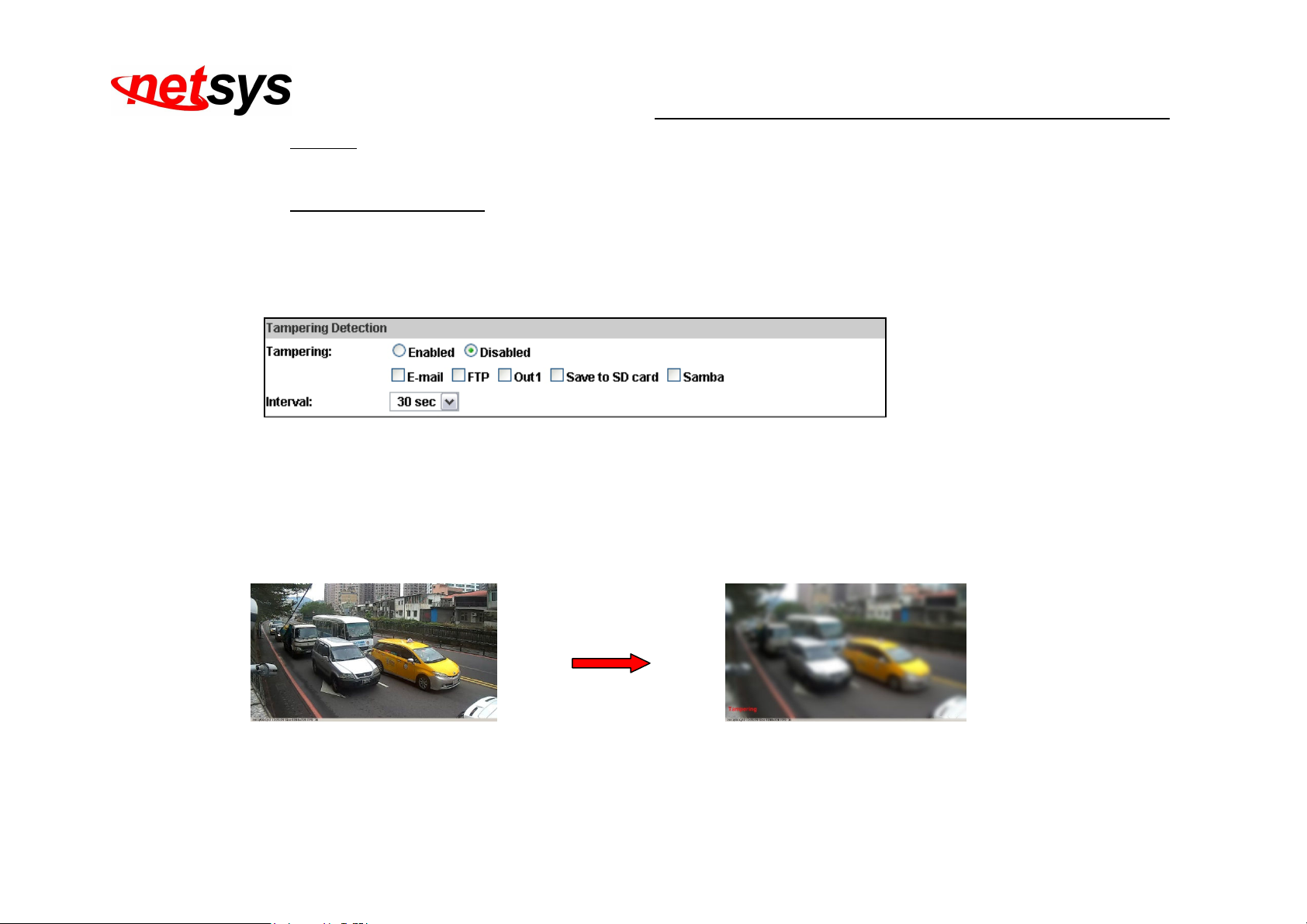

b. Tampering Detection
When the camera view is covered, moved, hit by strong light, or out of focus, the tampering detection will be
triggered, and send snapshots to mail/FTP/Samba/SD card, or trigger the external alarm. For example:
Before Tampering Detection Tampering Triggered (Defocused)
81
Page 83
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

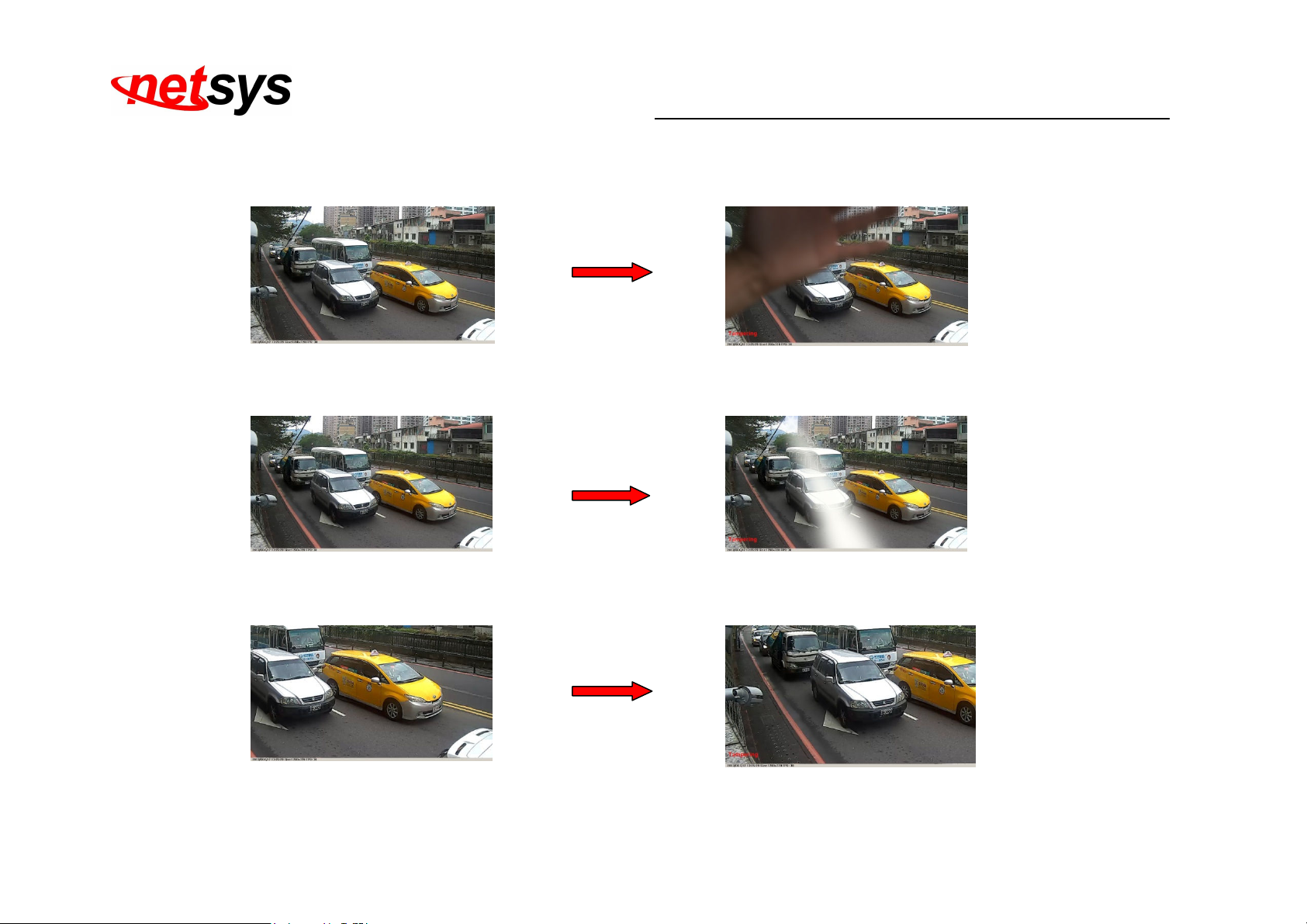

Before Tampering Detection Tampering Triggered (Lens Covered)
Before Tampering Detection Tampering Triggered (Glare)
Before Tampering Detection Tampering Triggered (Camera Moved)
82
Page 84
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

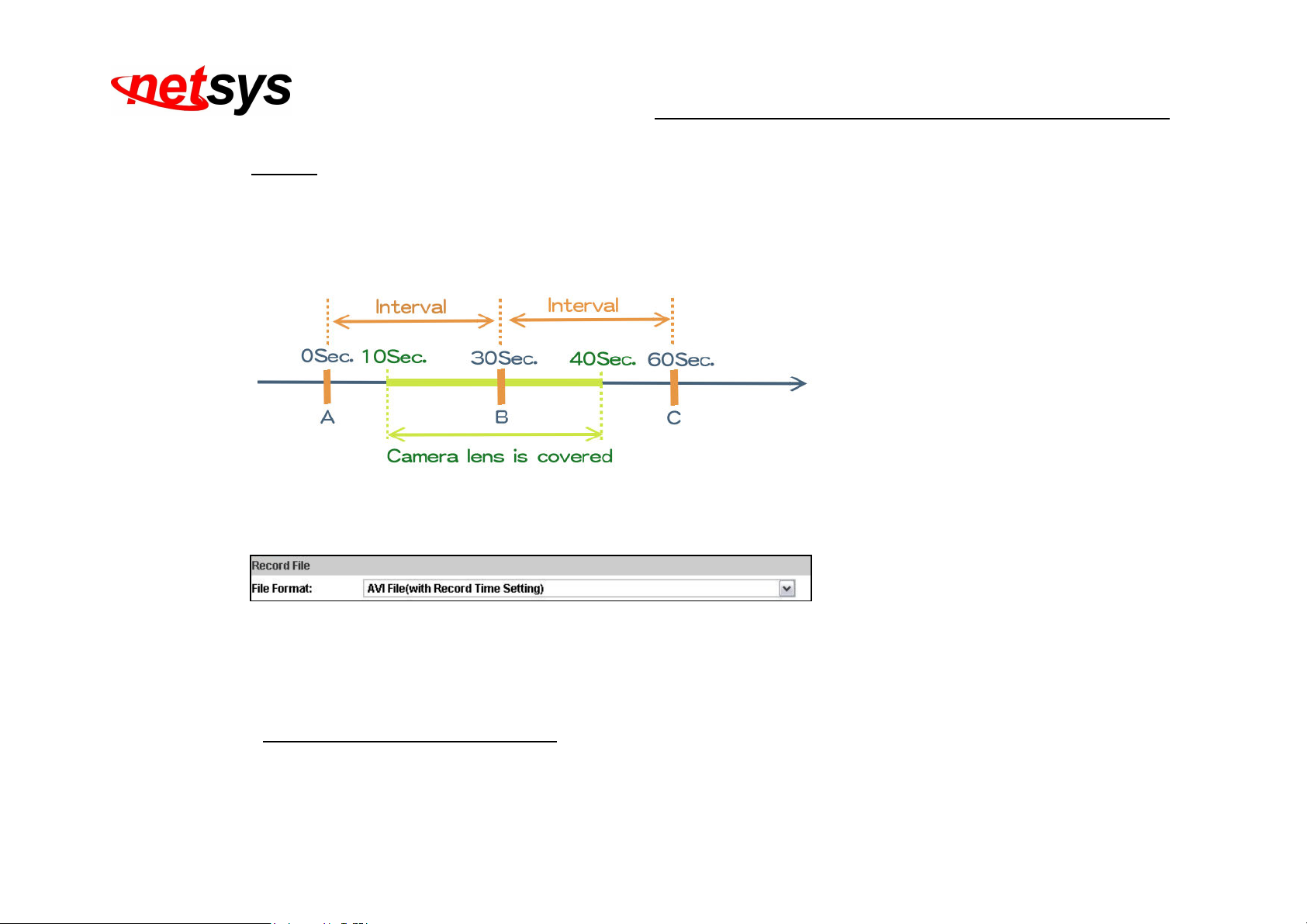

Interval: The tampering detecting interval. Take the diagram below as example. The interval is set for 30 second;
the camera lens is covered during 10 - 40 sec. At time point B, the camera compares the view with time point A,
and sends an alarm when it founds that the lens is covered. At time point C, the camera compares the view with
time point B, and sends an alarm when it founds that the lens is uncovered.
c. Record File
When an event occurs, the IP camera will record a video clip or take snapshot, and then send to mail/ FTP/ Samba.
Select the file format to be saved.
• AVI File (with Record Time Setting): Save AVI video file. The video length is according to the value set in Record
Time Setting.
83
Page 85
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
• JPEG Files (with Record Time Setting): This option is enabled when selecting JPEG video format in streaming 1
on Video Setting, this option can be enabled. Select this option to save several JPEG picture files. The
successive picture files cover a period of time according to the value set in Record Time Setting.
• JPEG File (Single File with Interval Setting): Save a single JPEG picture file when the event occurs.

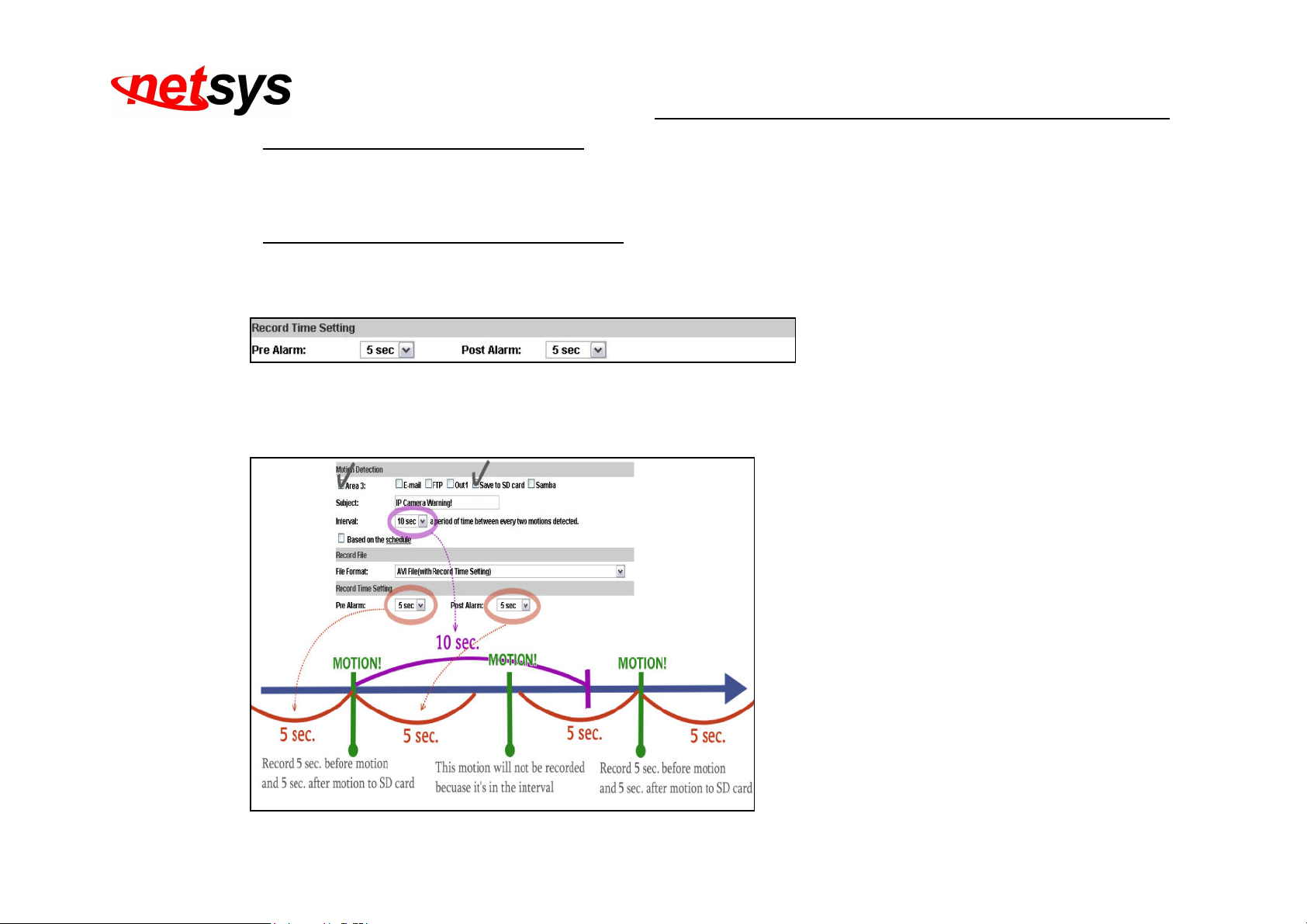

d. Record Time Setting
When an event occurs, the IP camera can record a video clip or take a snapshot, and then send it via mail/ FTP/
Samba. Select the video recording length before and after the event is detected.
84
Page 86
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
e. Network Dis-connected:
The IP Camera will scan the network. The image will be record to the SD card after the IP Camera detects network
dis-connected, if set Save to SD card.

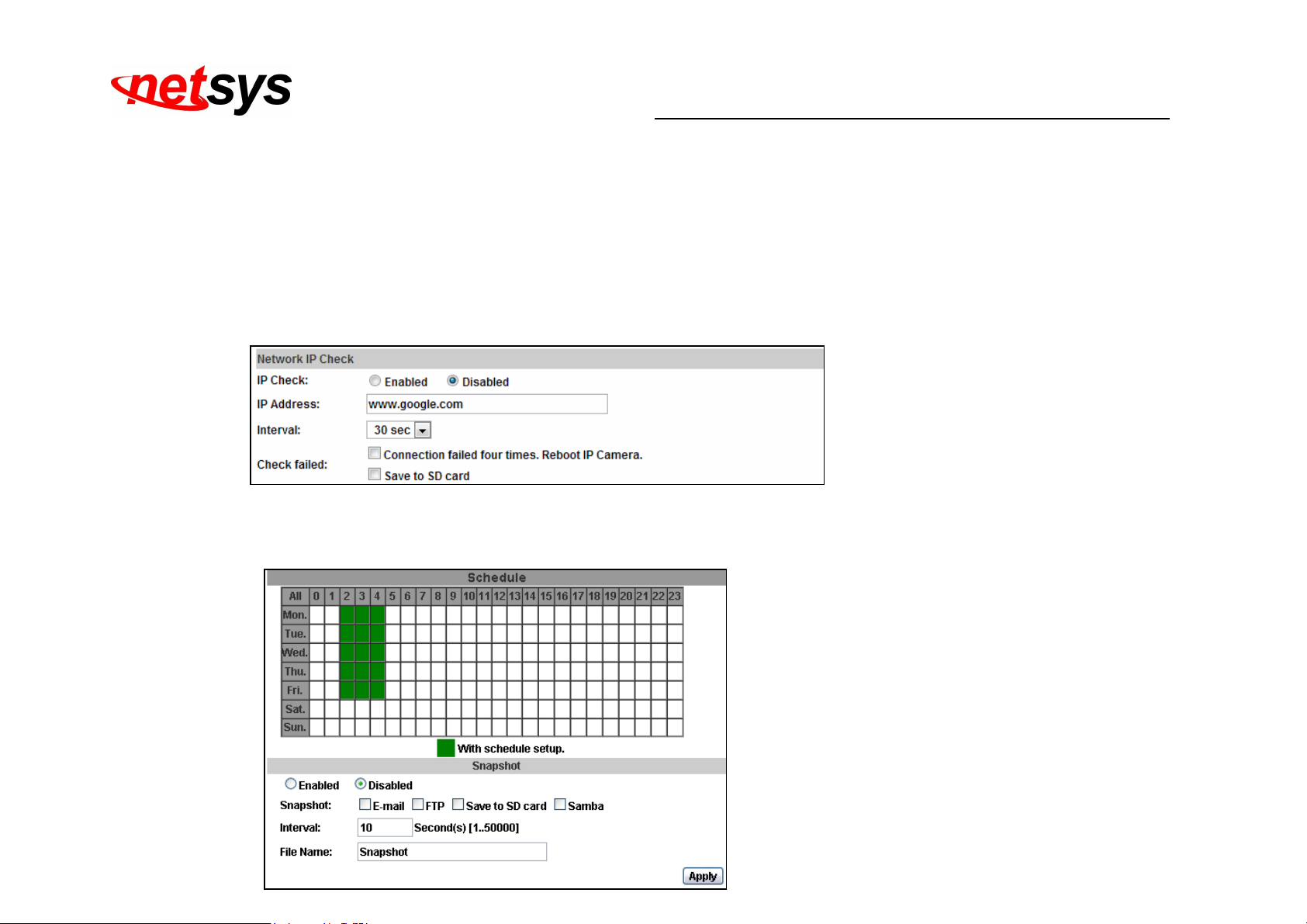

f. Network IP check:
After enabling IP Check, the IP camera can check if the network server is connecting. If the IP camera checking
failed, the image will be recorded into the SD card.
2. Schedule
85
Page 87
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
a. Schedule: After completing the schedule setup, the camera data will be recorded according to the schedule setup.
b. Snapshot: After enabling the snapshot function; the user can select the storage position of the snapshot file, the
interval time of the snapshot and the reserved file name of the snapshot.
c. Interval: The interval between two snapshots.

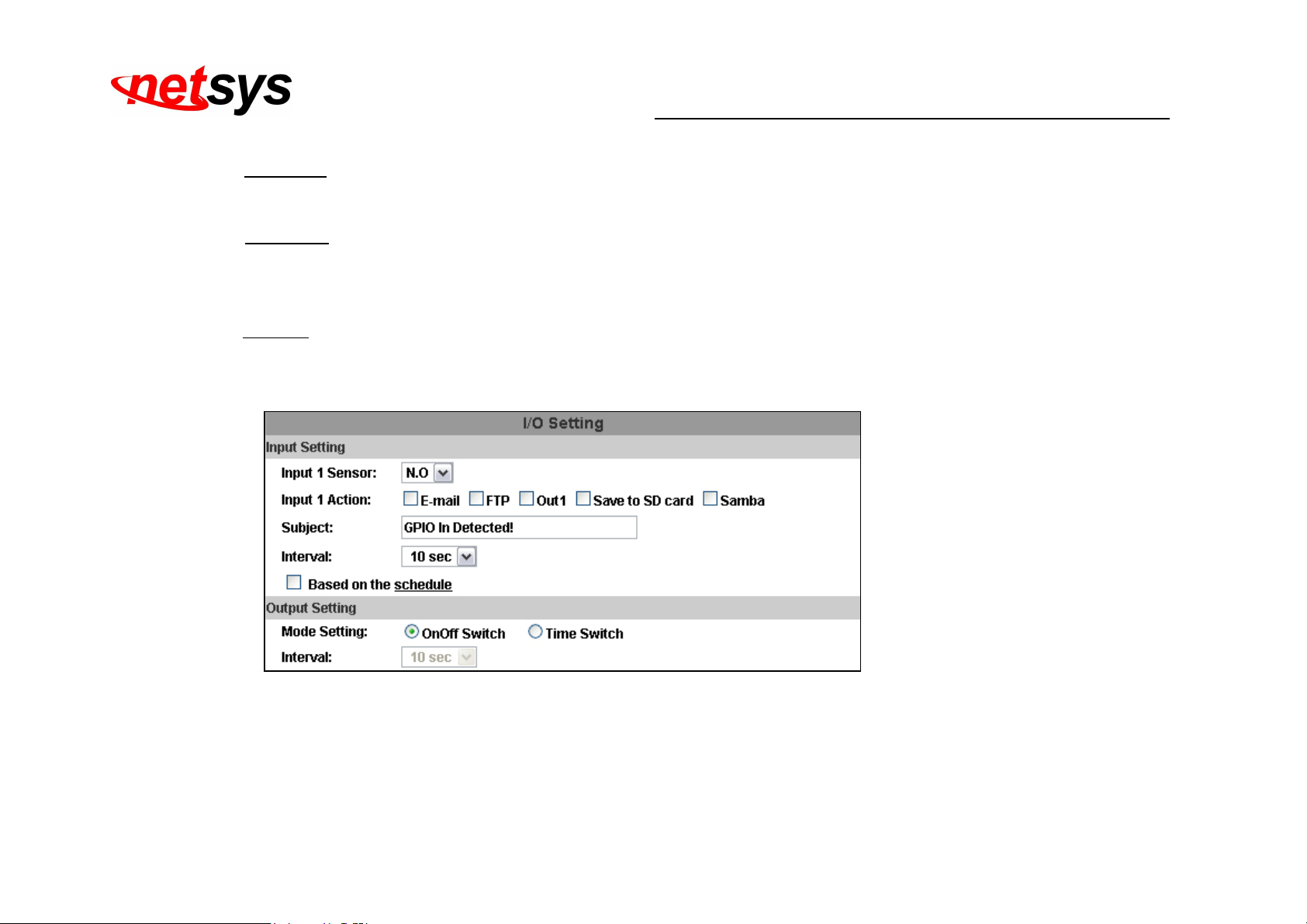

3. I/O Setting
a. Input Setting:
The IP Cam supports input and output. When the input condition is triggered the camera will trigger the relay;
send video to mail addresses or /FTP server / SAMBA.
86
Page 88
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
• Interval:
For example, when selecting 10 sec, once the motion is detected and the action is triggered, it cannot be
triggered again within 10 seconds.
• Based on the schedule:
Only when the option box is ticked, the selected schedule time for I/O is enabled. For example, if the 11th hour of
Monday has not been colored in the schedule table, then no action will be triggered even if the camera detects
input signal during 11:00~12:00 on Monday.
b. Output Setting:
The output mode affects the DO or relay out duration.
• ON/Off Switch: The camera triggers the external device and lasts for 10 seconds. You can turn off the alarm
manually by clicking off at the right bottom of the live video page.
• Time Switch: The camera triggers the external device and lasts for certain time according to the internal setting,
and the user is not allowed to break off the alarm manually.
87
Page 89

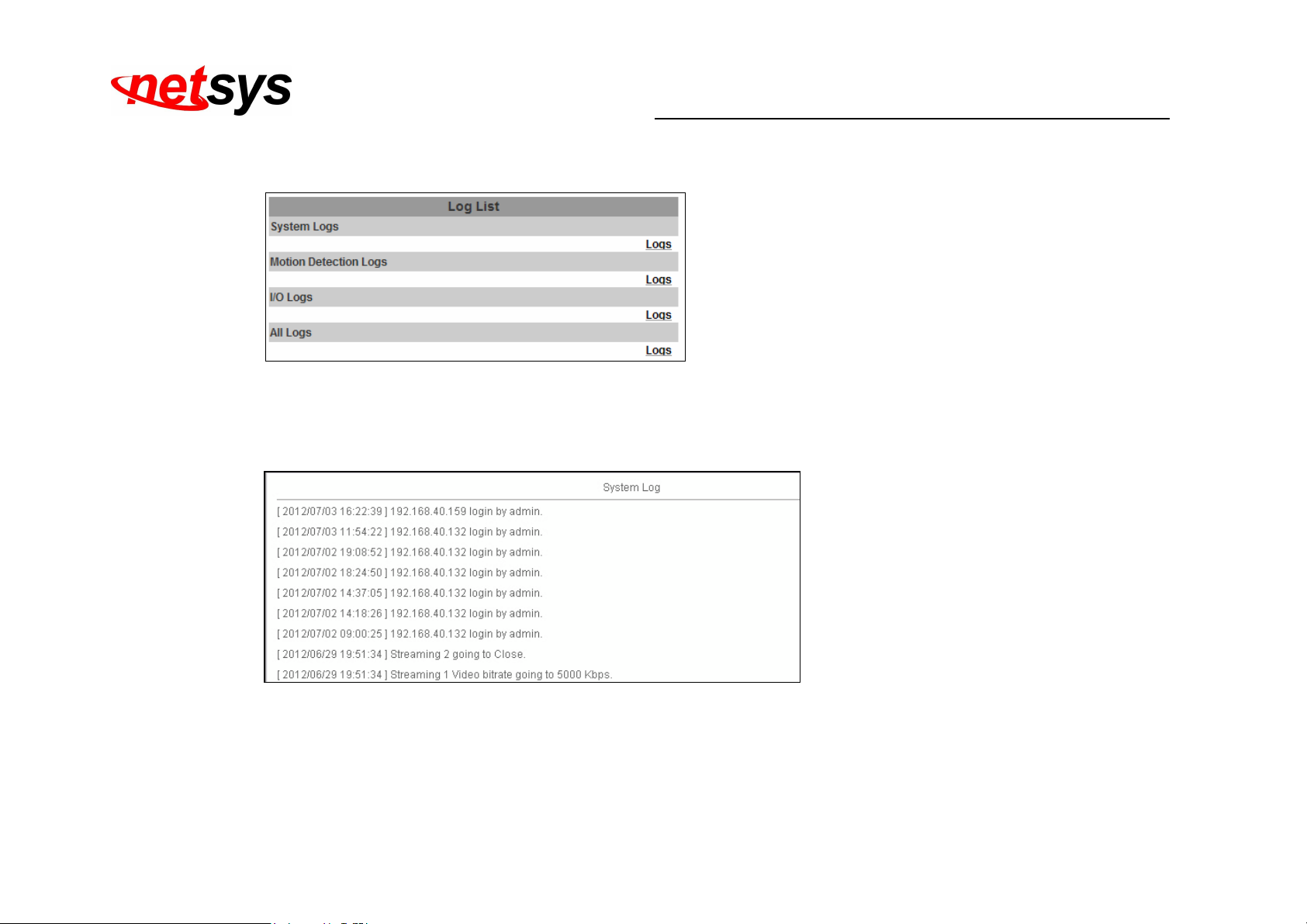

4. Log List
Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
data due to power failure.
88
Page 90
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

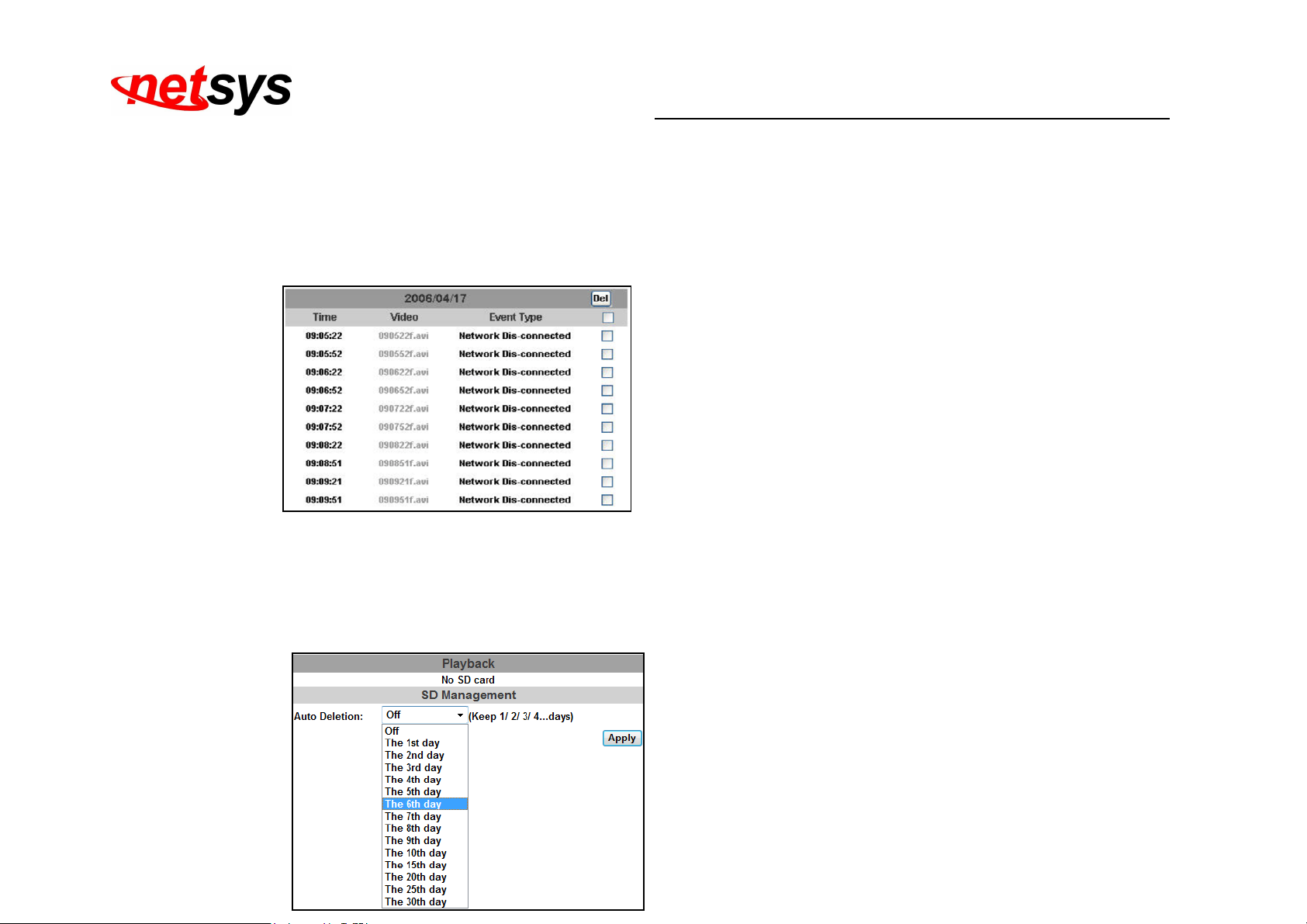

5. Micro SD Card
a. Playback
Insert the Micro SD card before using it. Make sure t o push the Micro SD card completely into the slot.
Click the date listed on this page for showing the video list. The video format is AVI. Click the video to start
Microsoft Media Player to play it. To delete the video, check it, and then click Del.
b. SD Management
When choosing The 1st day the recoding file will be kept for one day.
The oldest file will be deleted if the Micro SD card is full.
89
Page 91
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Note：The use of the M i cr o SD card will s l i g ht l y affect the operation of the IP Camera, such as affecting
the frame rate of the video.
c. Copy to PC
You can insert the Micro SD card to the PC and read the files directly, or use FlashGet instead to download
the files from the IP camera. (In this way you do not need to pull out the Micro SD card from the camera.)
For using FlashGet to download image and video data from the

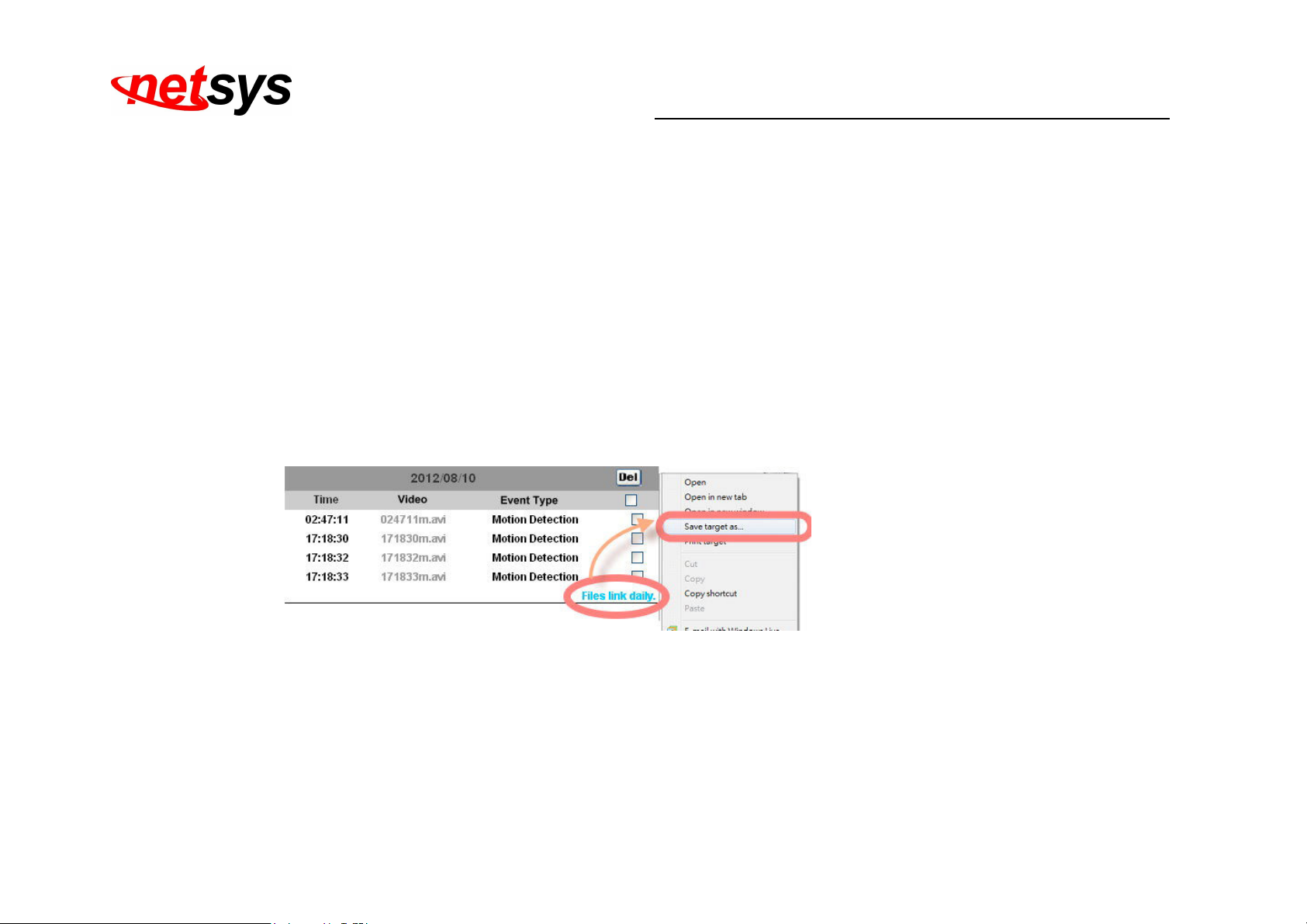

(i) Enter data list and right-click Files link daily, select save target as… then save the link list to PC.
Micro SD card, please follow the steps:

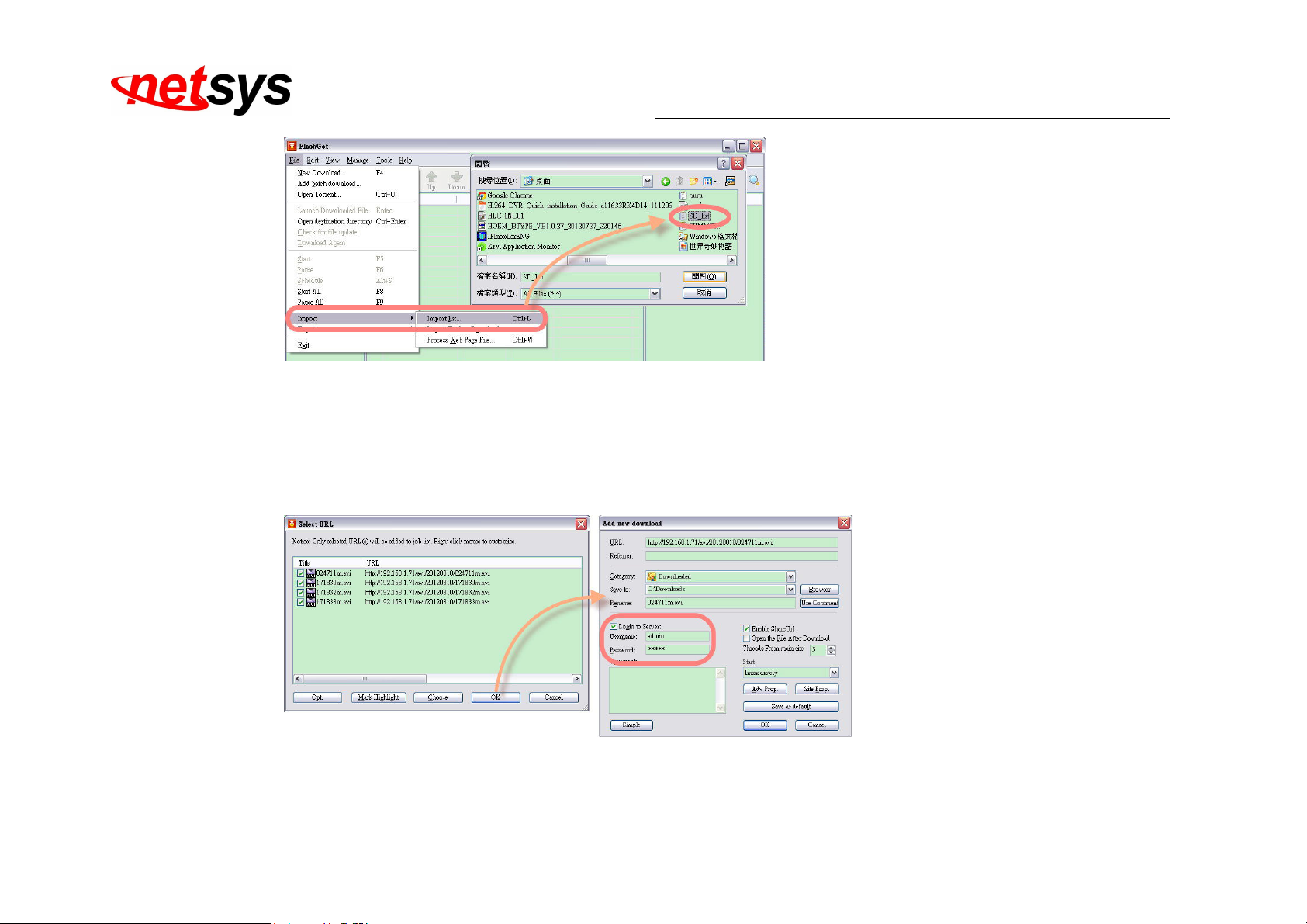

(ii) Open FlashGet, select File → Import → Import list, and find the link list file you just saved. The file name
may be called SD_list.
90
Page 92
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2

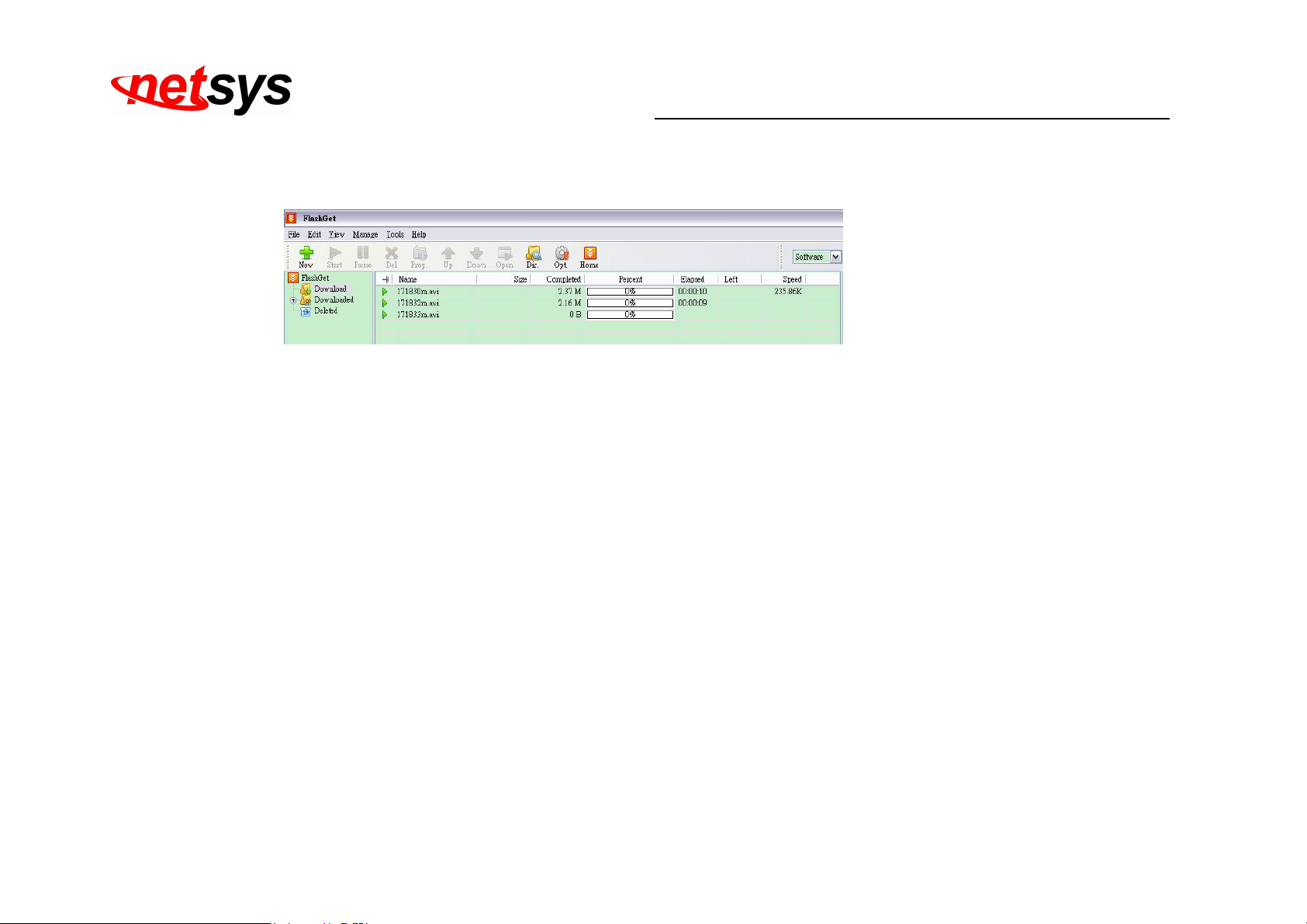

(iii) FlashGet will show you the link list, and you can tick the files you want to copy to your PC. Give the
directory path in the new download window, and remember to enable Login to Server: key in the IP Camera
username and password.
91
Page 93
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
(iv) Click OK to start download.
FlashGet is a free software that can be downloaded from FlashGet official website. The example above is
based on FlashGet ver.1.9.6.
92
Page 94
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Chapter 6. Network Configuration
I. Configuration 1:
a. Internet Access: NV-202 and NV-202P(Ethernet Extender)
b. IP address: One real IP or one dynamic IP
c. Only the IP Camera is connected to the internet.
d. For fixed real IP, set up the IP into IP Camera. For dynamic IP, start PPPoE.
93
Page 95
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
II. Configuration 2:
a. Internet Access: NV-202 and NV-202P(Ethernet Extender)
b. IP address: More than one real IP or one dynamic IP
c. IP Camera and PC connect to the internet
d. For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start PPPoE.
94
Page 96
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Chapter 7. I/O Configuration

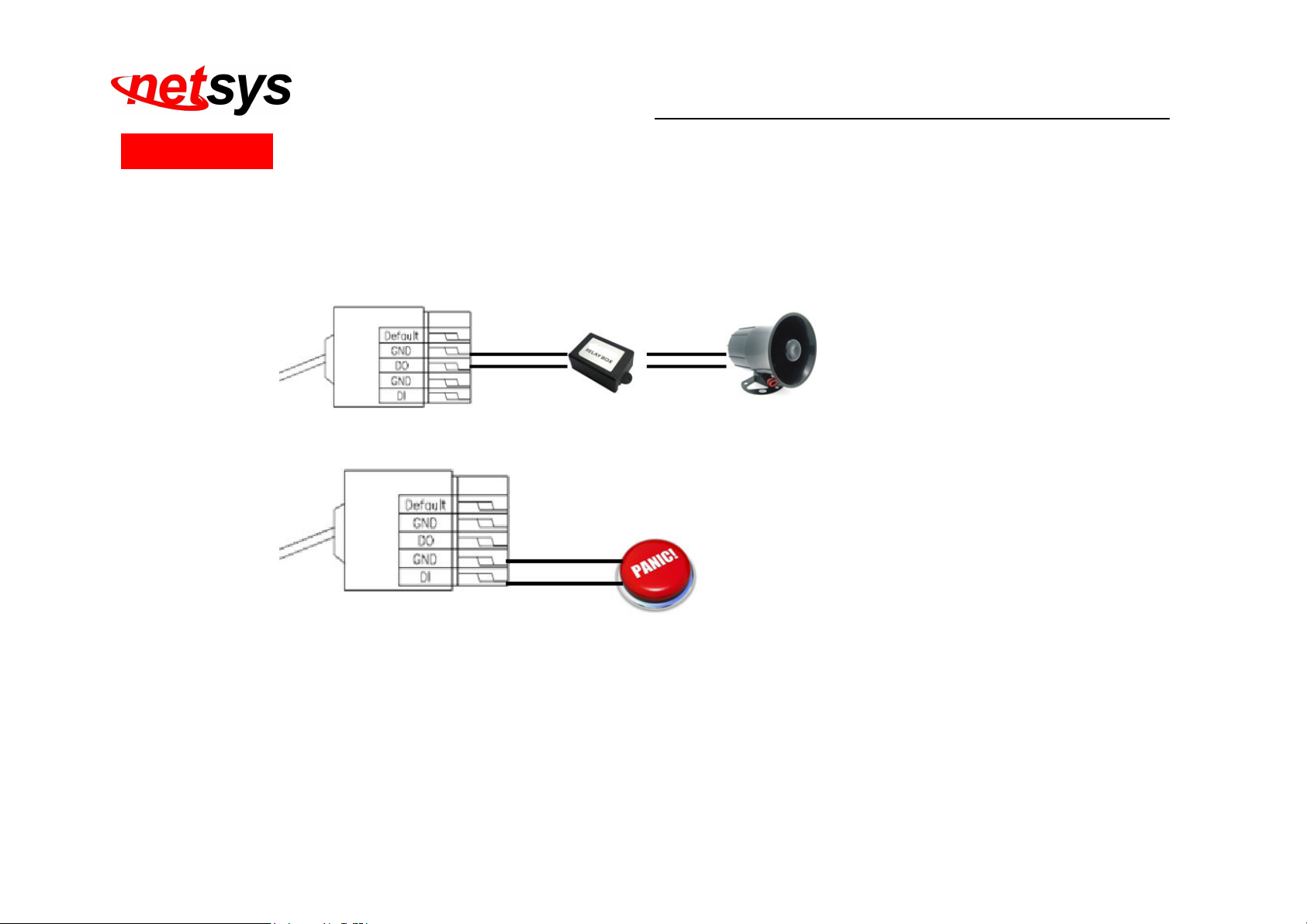

1. I/O Connection
a. Connect the GND & DO pin to the external relay (buzzer) device.
b. Connect the GND & DI pin to the external trigger device.

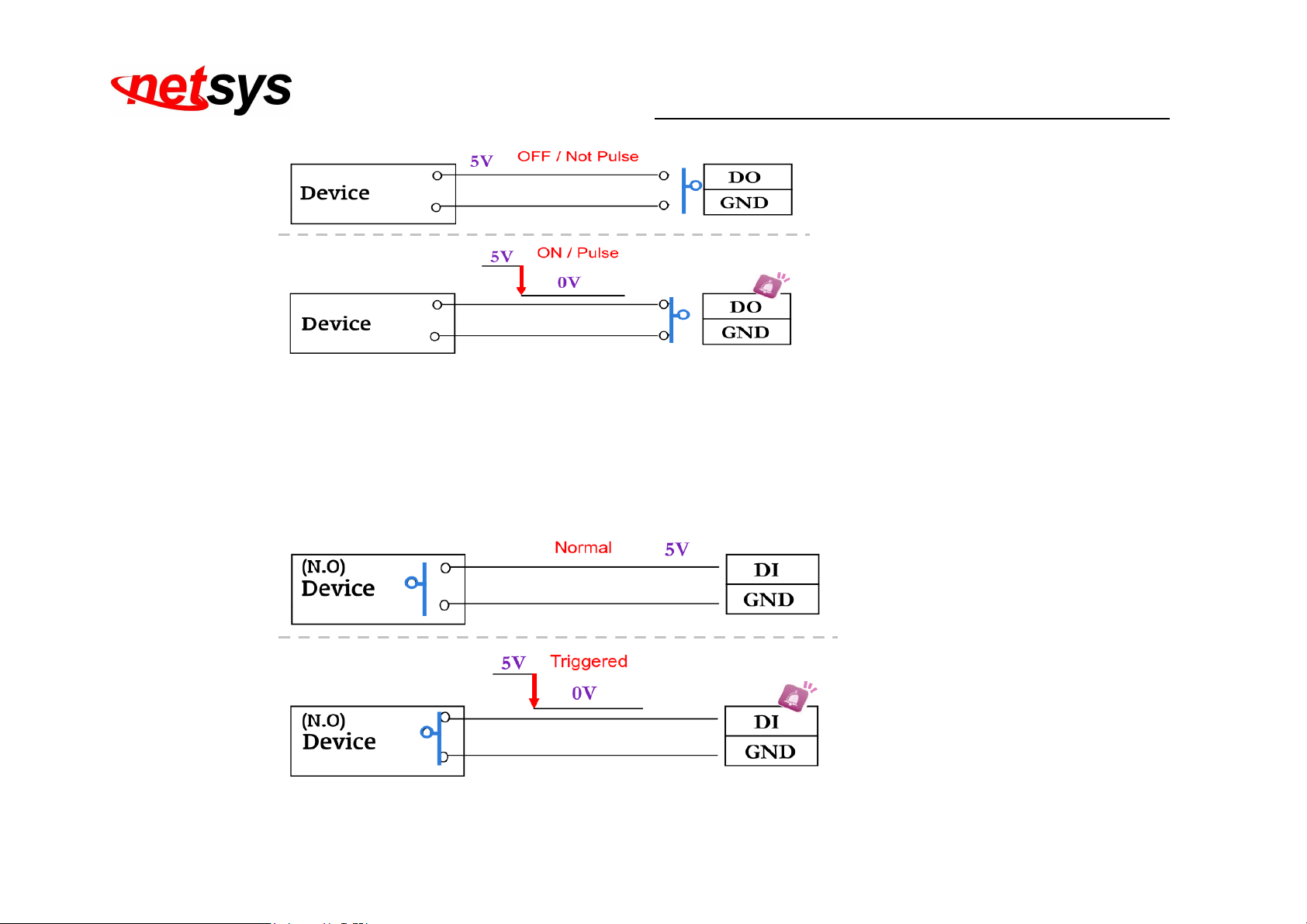

When no event occurs, DO output is 5V (DO and GND are disconnected). As soon as the camera detects an
event it will trigger and external alarm, DO output is 0V (DO and GND are connected)
95
Page 97
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
If you select N.O on Input sensor setting, when the switch contacts are opened, the camera input alarm will
be triggered and will execute the action user has set, for example, send a snapshot to E-mail address.
If you select N.C in Input sensor setting, when the switch contacts are closed, the camera input alarm will be
triggered and will execute the action user has set, for example, send a snapshot to E-mail address.
96
Page 98
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
c. I/O PIN definition
GND (Ground): Initial state is LOW
DO (Digital Output): DC 5V
DI (Digital Input): Max. 50mA, DC 5V
2. I/O Setup

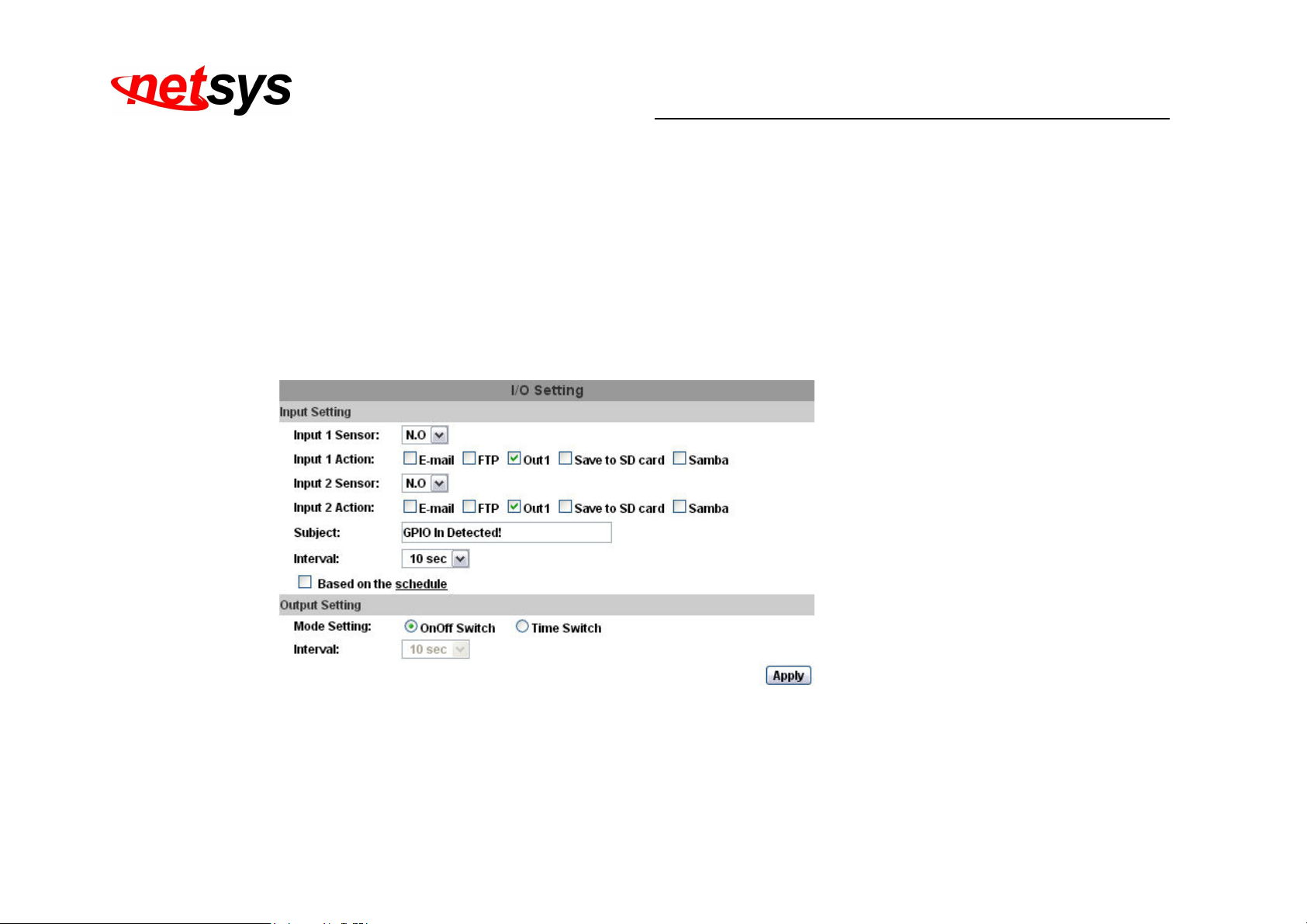

a. Click I/O Setting from the system setup page via IE, and check Out1 to enable I/O signal
97
Page 99
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
b. Output Test
After the external input and output hardware is installed, you can use the Relay Out bottom on the live video
page to test if DO / Relay Out works.
i. On Off Switch mode:
Clicking ON will trigger the external output device for 10 seconds. For example, your alarm buzzer will
continuously ring for 10 seconds. After 10 seconds the buzzer stops ringing, or you can manually break off
the output signal by clicking OFF
ii. Time Switch mode:
Click Pulse, the camera will trigger the external output device for several seconds; the duration length is
according to the interval setting in Output Setting.
98
Page 100
NC-22BC 2 Megapixels IR IP Camera User’s Manual Ver.A2
Chapter 8. Factory Default
If you forget your password, please follow the steps to set back the IP Camera to its factory default state.
• Remove the power and Ethernet cable.

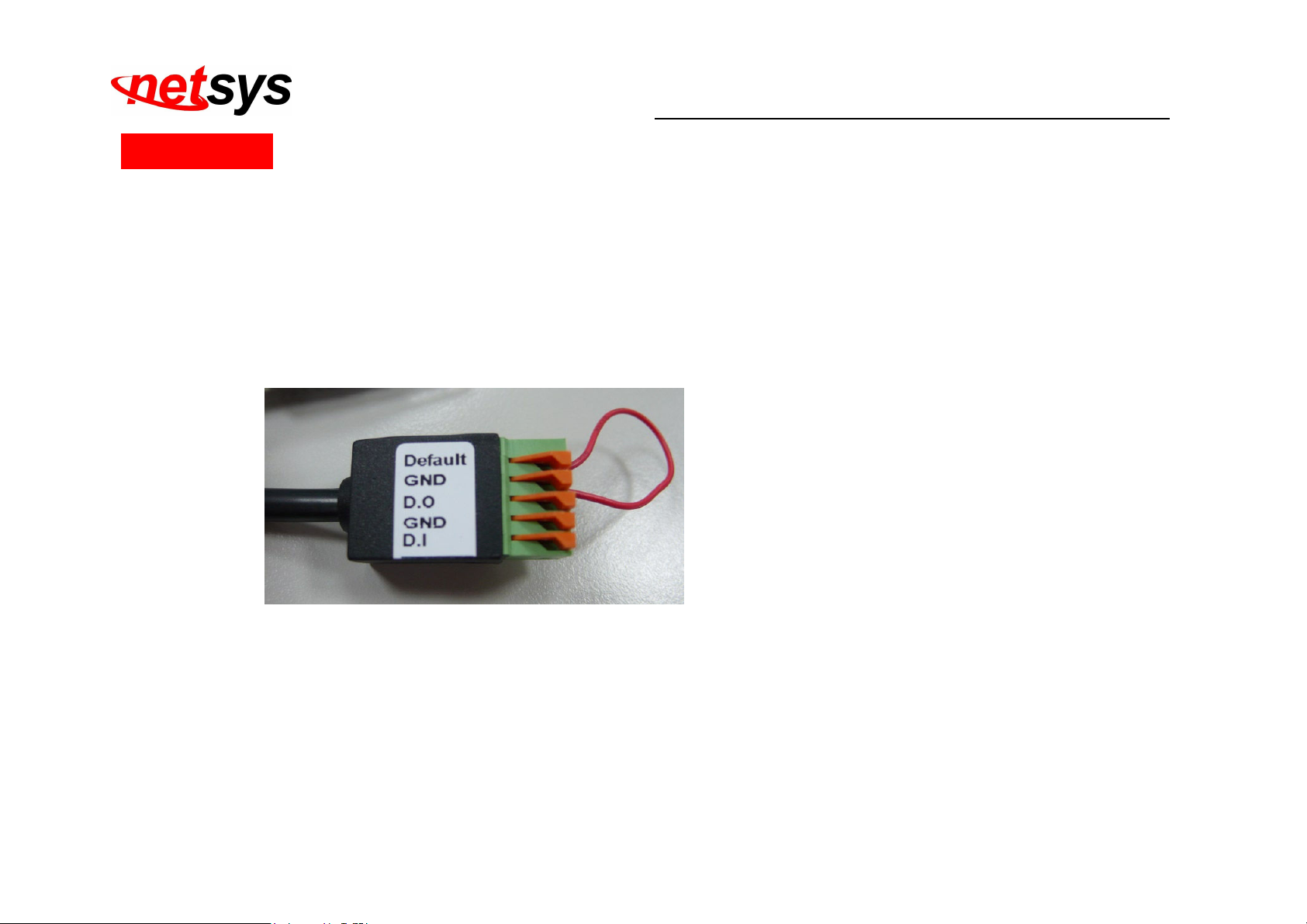

• Take an electronic wire, plug one side of the wire into Default and the other side into GND on the terminal block
as the picture below
• Connect the power back to the camera. It will take around 30 seconds to boot the camera.
• Remove the wire and plug-in the Ethernet cable after the camera finishes booting.
• Re-login the camera using the default IP (http://192.168.1.200), and user name: admin, password: admin.
99
Loading...
