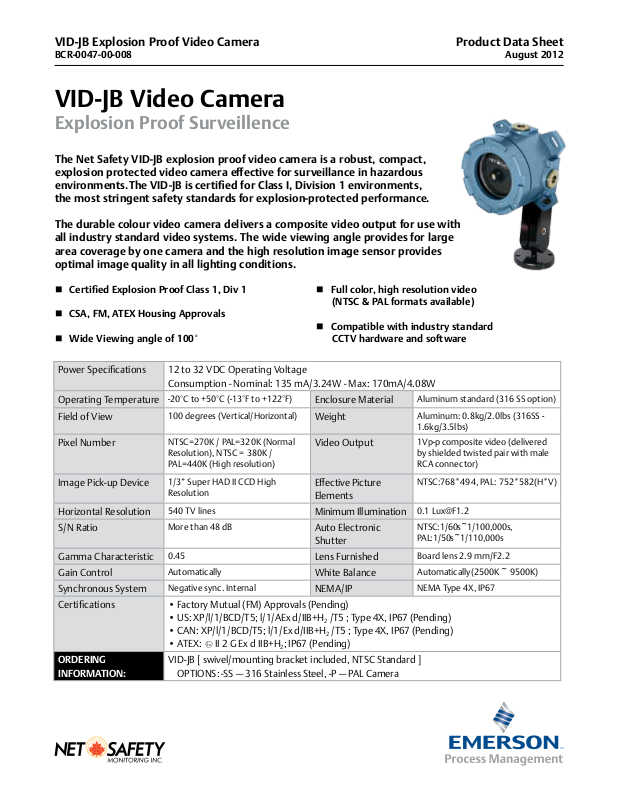

VID-JB Explosion Proof Video Camera
PMS - Uncoated
PMS - Coated
PMS
BCR-0047-00-008
VID-JB Video Camera
Explosion Proof Surveillence
The Net Safety VID-JB explosion proof video camera is a robust, compact,
explosion protected video camera effective for surveillance in hazardous
environments.The VID-JB is certified for Class I, Division 1 environments,
the most stringent safety standards for explosion-protected performance.
The durable colour video camera delivers a composite video output for use with
all industry standard video systems. The wide viewing angle provides for large
area coverage by one camera and the high resolution image sensor provides
optimal image quality in all lighting conditions.
Product Data Sheet
August 2012
Certified Explosion Proof Class 1, Div 1
Full color, high resolution video
(NTSC & PAL formats available)
CSA, FM, ATEX Housing Approvals
Compatible with industry standard
Wide Viewing angle of 100°
CCTV hardware and software
Power Specifications 12 to 32 VDC Operating Voltage
Consumption - Nominal: 135 mA/3.24W - Max: 170mA/4.08W
Operating Temperature
Field of View
Pixel Number
Image Pick-up Device
Horizontal Resolution
S/N Ratio
-20°C to +50°C (-13°F to +122°F)
100 degrees (Vertical/Horizontal)
NTSC=270K / PAL=320K (Normal
Resolution), NTSC = 380K /
PAL=440K (High resolution)
1/3” Super HAD II CCD High
Resolution
540 TV lines
More than 48 dB
Enclosure Material
Weight
Video Output
Effective Picture
Elements
Minimum Illumination
Auto Electronic
Shutter
Gamma Characteristic
Gain Control
Synchronous System
0.45
Automatically
Negative sync. Internal
Lens Furnished
White Balance
NEMA/IP
Certifications • Factory Mutual (FM) Approvals (Pending)
• US: XP/l/1/BCD/T5; l/1/AEx d/IIB+H2 /T5 ; Type 4X, IP67 (Pending)
• CAN: XP/l/1/BCD/T5; l/1/Ex d/IIB+H2 /T5 ; Type 4X, IP67 (Pending)
• ATEX: II 2 G Ex d IIB+H2; IP67 (Pending)
ORDERING
INFORMATION:
VID-JB [ swivel/mounting bracket included, NTSC Standard ]
OPTIONS: -SS — 316 Stainless Steel, -P — PAL Camera
Aluminum standard (316 SS option)
Aluminum: 0.8kg/2.0lbs (316SS -
1.6kg/3.5lbs)
1Vp-p composite video (delivered
by shielded twisted pair with male
RCA connector)
NTSC:768*494, PAL: 752*582(H*V)
0.1 Lux@F1.2
NTSC:1/60s~1/100,000s,
PAL:1/50s~1/110,000s
Board lens 2.9 mm/F2.2
Automatically(2500K ~ 9500K)
NEMA Type 4X, IP67
VID-JB Explosion Proof Video Camera
PMS - Uncoated
PMS - Coated
PMS
BCR-0047-00-008
Product Data Sheet
August 2012
HEADQUARTERS:
FLAME AND GAS DETECTION
Emerson Process Management
Net Safety Monitoring Inc.
2721 Hopewell Place NE
Calgary, Alberta, Canada T1Y 7J7
T +1 (403) 219 0688
T 1 866 FIREGAS
F +1 (403) 219 0694
www.net-safety.com
©2012 Emerson Process Management. All rights reserved.
Emerson Process Management, Rosemount Analytical, and Net Safety Monitoring are marks of Emerson Process Management group of
companies. All other marks are the property of their respective owners.
The contents of this publication are presented for information purposes only, and while effort has been made to ensure their accuracy, they
are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or
applicability. All sales are governed by our terms and conditions, which are available on request. We reserve the right to modify or improve the
designs or specifications of our products at any time without notice.
∞
Please refer to manuals for complete specifications.
