IEEE 802.11n Wireless Series
Wireless 11n 2T2R Router
Wireless 11n 2T2R Router
User Manual
Version 2.1
Date: December 6, 2010
Wireless 11n 2T2R Router
FCC Certifications
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2
Wireless 11n 2T2R Router
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022
class B for ITE, the essential protection requirement of Council Directive 2004/108/EC on the
approximation of the laws of the Member States relating to electromagnetic compatibility and
R&TTE Directive 1999/5/EC to meet the regulation of the radio equipment and
telecommunications terminal equipment.
Company has an on-going policy of upgrading its products and it may be possible that information
in this document is not up-to-date. Please check with your local distributors for the latest
information. No part of this document can be copied or reproduced in any form without written
consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2011, All Rights Reserved.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
3
Wireless 11n 2T2R Router
Contents
Unpacking Information························································································ 5
Chapter 1 Introduction to the Wireless Router ····················································· 6
1.1 General Description ········································································· 6
1.2 Key Features·················································································· 6
1.3 The Front Panel ·············································································· 8
1.4 The Rear Panel··············································································· 9
Chapter 2 Installation and Basic Configuration····················································10
2.1 Operation Mode ·············································································10
2.2 Connect This Router to Your Network·················································10
2.3 Configure the IP Address of Your Computer·········································11
Chapter 3 Web-Based Management·································································14
3.1 Start the Web-Based Management Interface········································14
3.2 The Graphic User Interface ······························································15

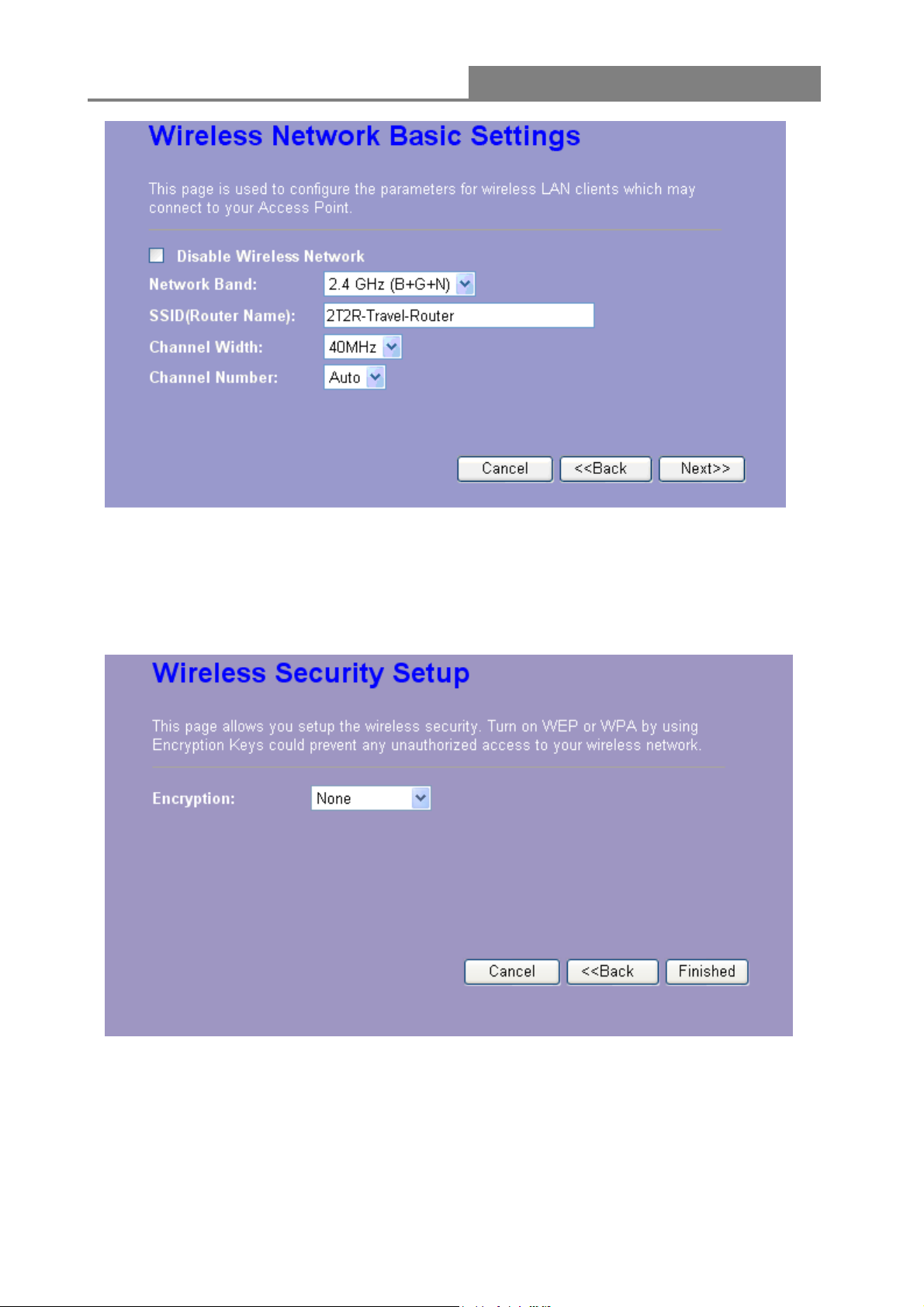

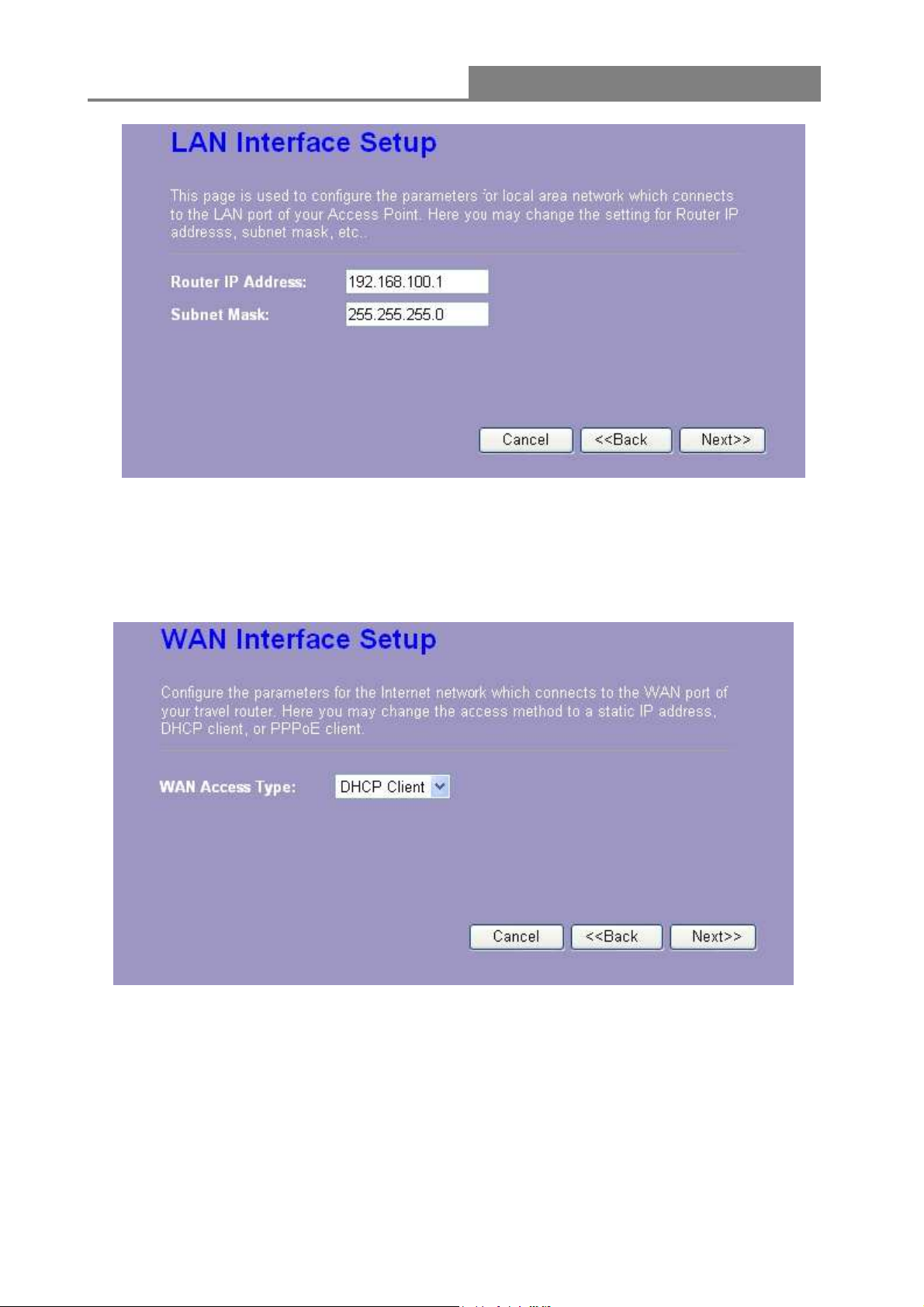

3.3 Setup Wizard·················································································18
3.4 Wireless ·······················································································21
3.4.1 Basic Settings ··············································································21

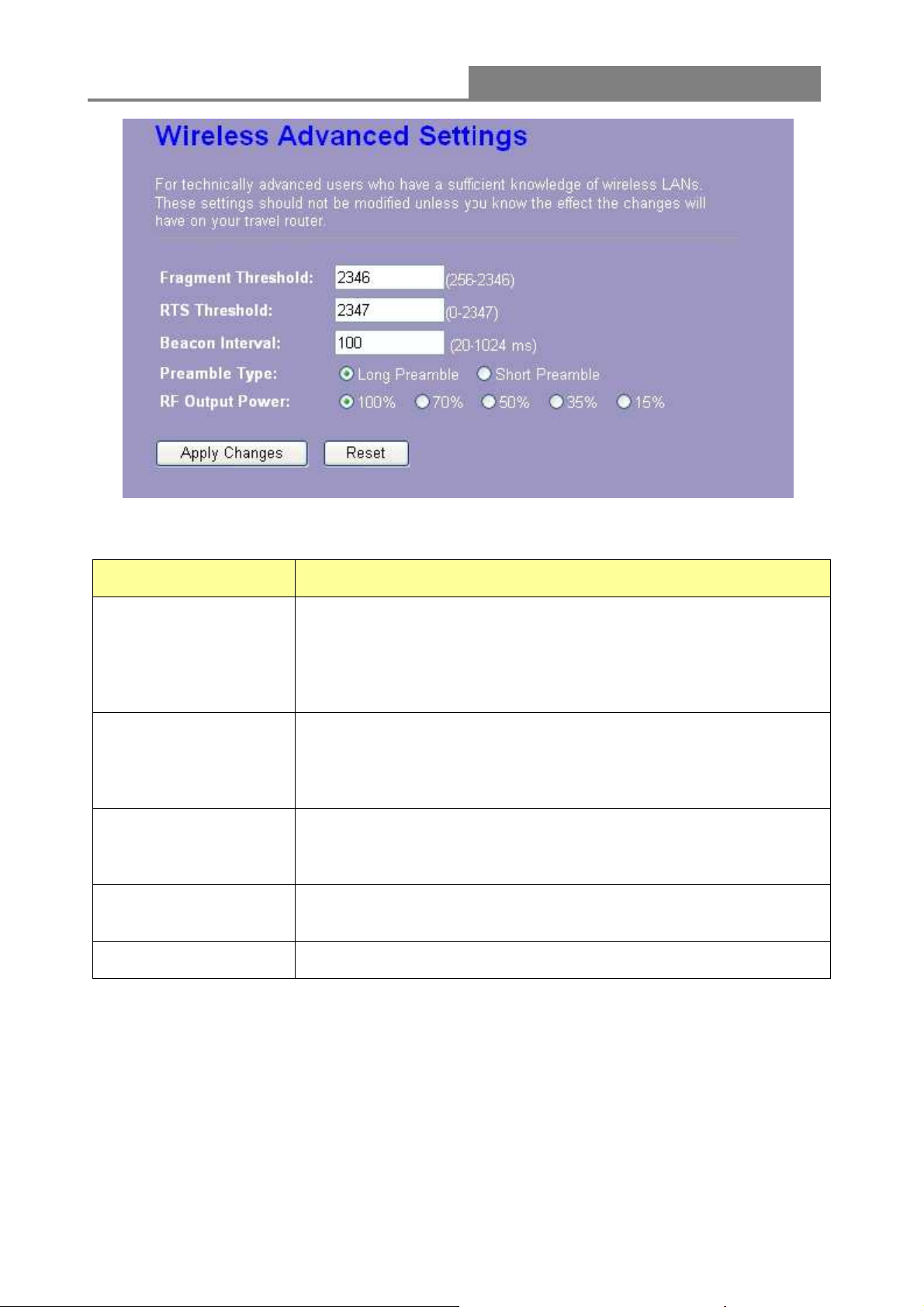

3.4.2 Advanced Settings ········································································23

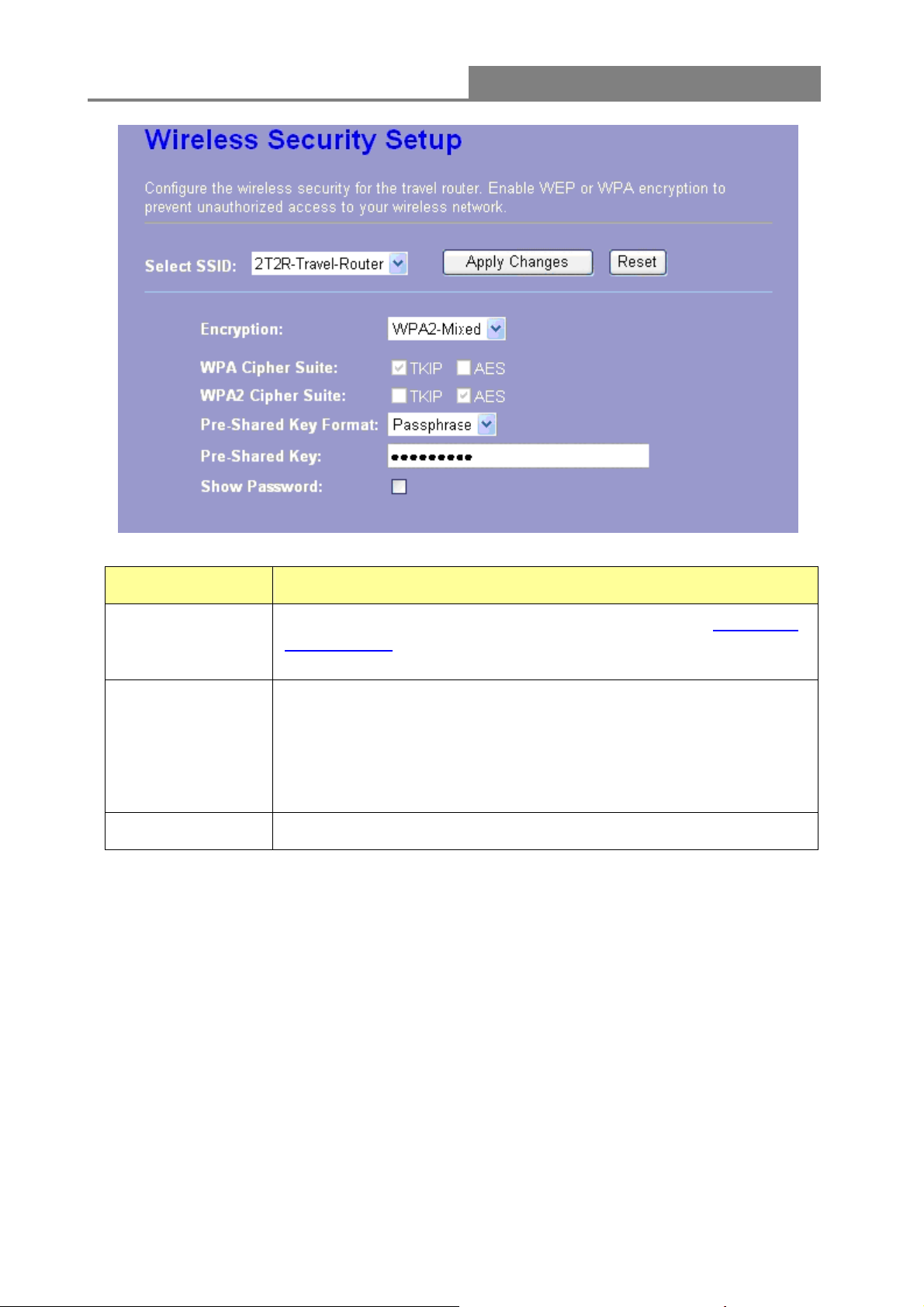

3.4.3 Security·······················································································24
3.4.4 Access Control·············································································30
3.4.5 Wireless Site Survey······································································30
3.4.6 WPS Settings···············································································34
3.5 TCP/IP Settings··············································································36

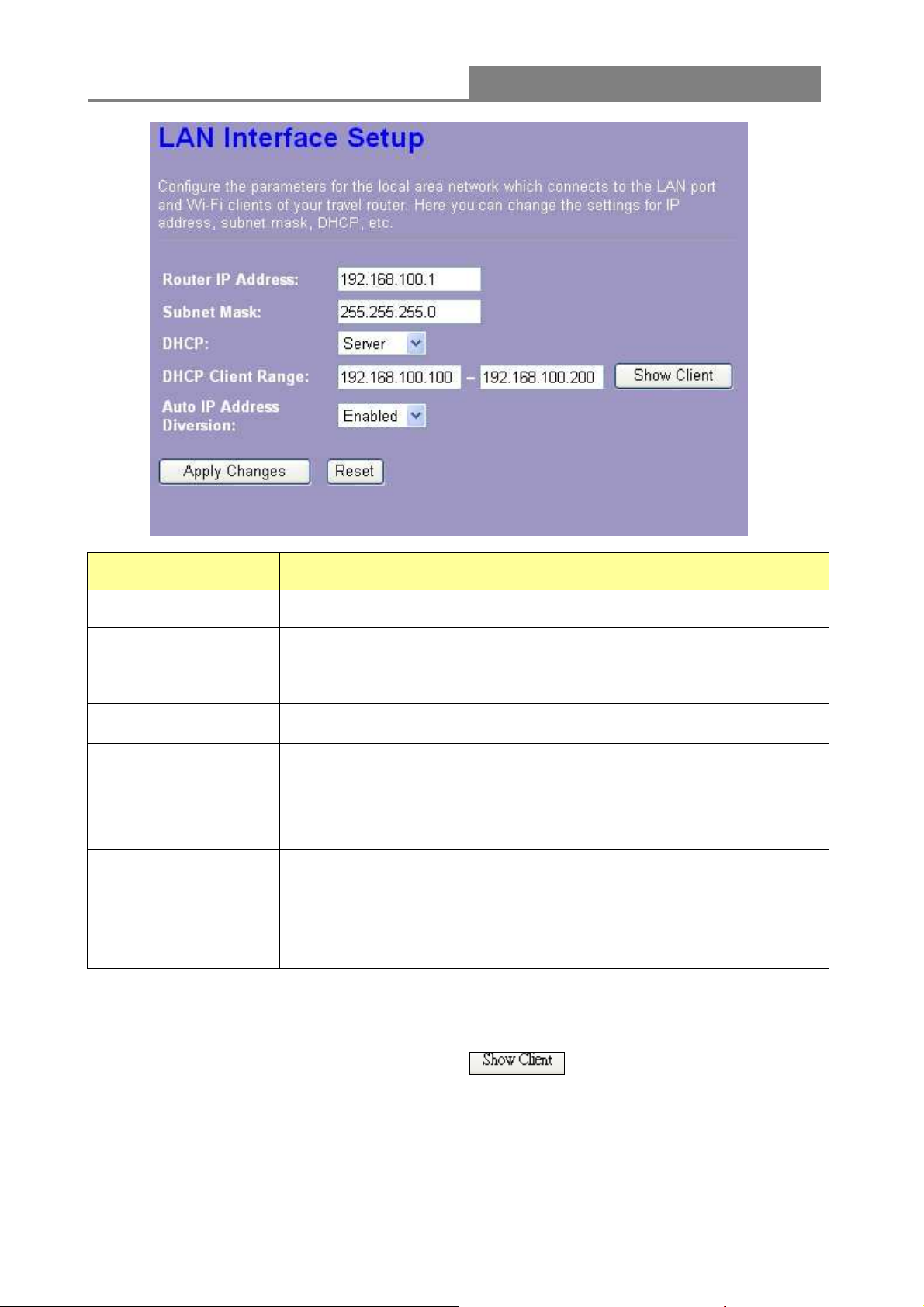

3.5.1 LAN Interface Setup ······································································36

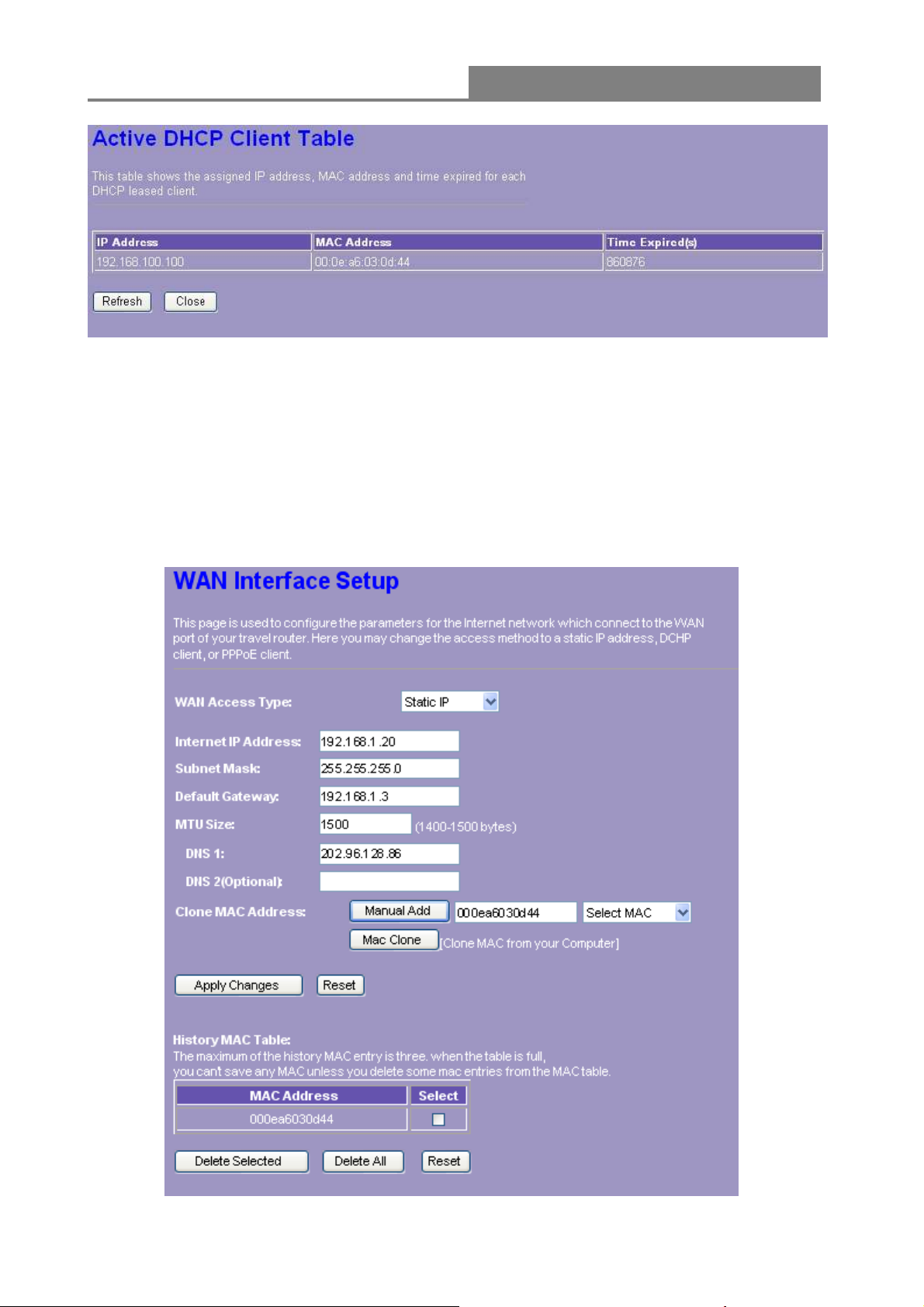

3.5.2 WAN Interface Setup·····································································38
3.6 Firewall Settings·············································································42
MAC Filtering·················································································42
3.7 Management ·················································································43

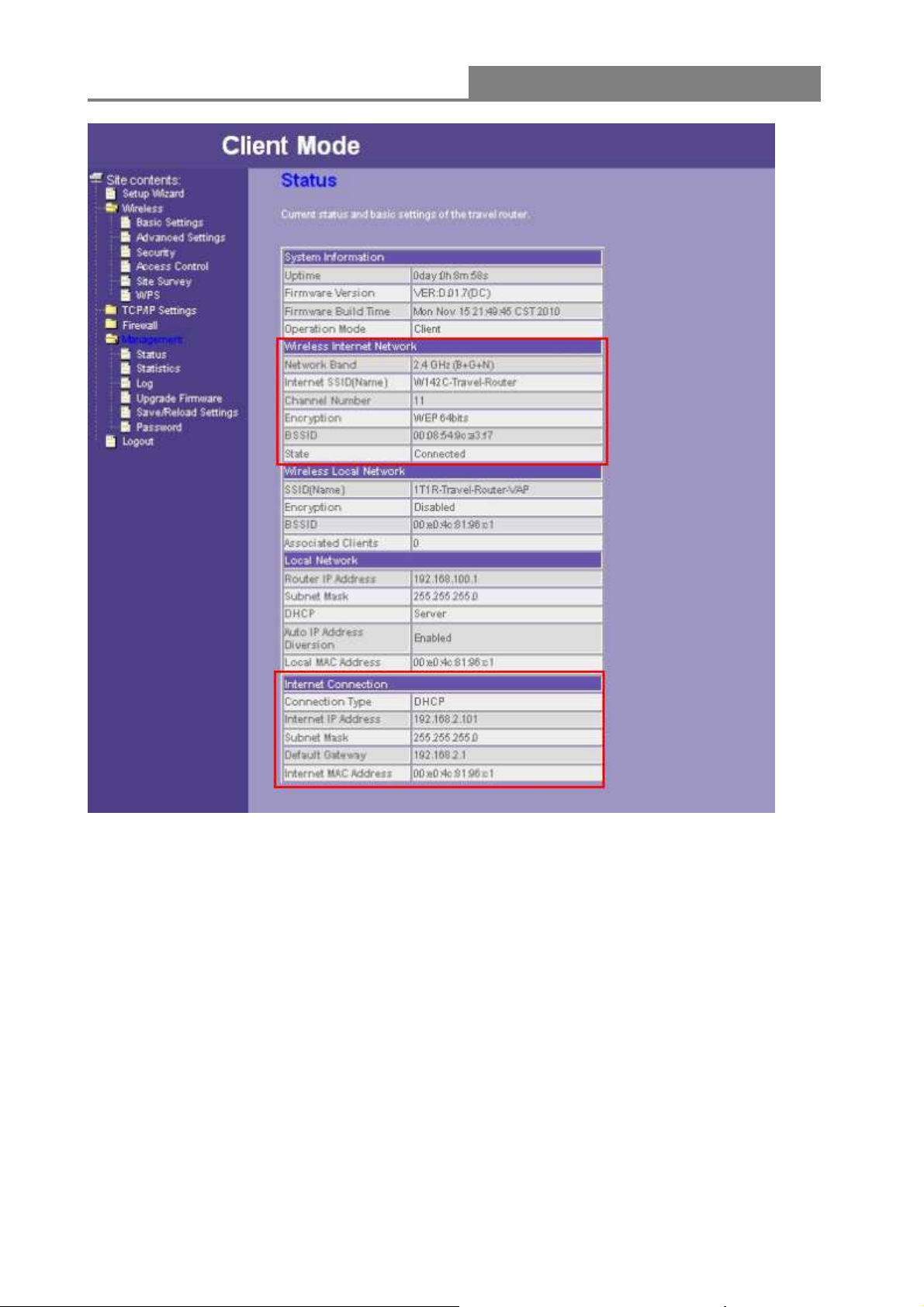

3.7.1 Status·························································································43
3.7.2 Statistics······················································································43
3.7.3 Log ····························································································44
3.7.4 Upgrade Firmware ········································································45
3.7.5 Save/Reload Setting······································································46
3.7.6 Password ····················································································46
3.7.7 Logout ························································································47
Appendix A: Product Specifications ······································································48
Appendix B: Glossary························································································49
4
Wireless 11n 2T2R Router
Unpacking Information
Thank you for purchasing the product. Before you start, please check all the contents of this
package.
The product package should include the following:
1. One Wireless Router
2. One AC adapter
3. One CD
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
Conventions
The router mentioned in this guide stands for IEEE 802.11n Wireless 2T2R Router without any
explanation.
5
Wireless 11n 2T2R Router
Chapter 1 Introduction to the Wireless Router
1.1 General Description
This is a wireless router with 2T2R MIMO technology, providing an excellent network solution for
home, SOHO and hotspot users. It complies with standards IEEE 802.11n with data rate up to 300
Mbps, and IEEE 802.11b/g with maximum data rate of 54 Mbps. It can also interoperate with all
the 11/54 Mbps wireless (802.11b/g) products.
The router allows multiple users to share one broadband connection, as well as secures your
private network. LAN users can share files, printers, or playing network games all at a blazing
speed in a large area.
As to information security, this router supports up-to-date security encryption, such as WPA, WPA2,
open shared key, and pair-wise key authentication services, ensuring you the best encryption
types. What’s more, this router supports energy efficient Ethernet and saves power consumption,
prefering a cost-effective network connection.
1.2 Key Features
Comply with IEEE 802.11n and IEEE802.11b/g wireless standards
2.4GHz frequency band and 2T2R
High speed transfer rate up to 300Mbps
Support auto-MDI/MDI-X, backpressure and flow control
Support Wireless access control by MAC address (deny or accept)
Support wireless encryption for WEP, WPA-PSK, WPA2-PSK and WPA2-Mixed
Support WAN Access Type: Static IP, DHCP Client, PPPoE
Support IEEE802.3az Energy Efficient Ethernet
Provide one WPS/Reset button
Provide one slide switch to control AP/Router/Client mode
Support WPS in AP and client mode.
Support WMM funcion.
Support Multiple APs(up to 4 AP SSID(including primary)) in Router and AP mode.
Support Firewall security with MAC filtering.
Support NAT IP Sharing
6
Supports DHCP server to provide clients auto IP addresses assignment
Supports Statistics, VPN Pass-through, System Log
Support universal repeater mode (one wlan interface used as AP and client concurrently) in
Client Operation Mode
Wireless 11n 2T2R Router
7
Wireless 11n 2T2R Router
1.3 The Front Panel
The front panel of the Wireless Router:
Name Status Indication
PWR
Blink green one time System reboot
WPS
WLAN
WAN /
LAN
Green Power on
Dark Power off
Blink green WPS connecting
Dark System stability
Off The wireless function is disabled.
Flashing The wireless function is enabled.
Flashing fast Sending or receiving data over wireless.
Off
On
Flashing Sending or receiving data over corresponding port.
There is no device linked to the corresponding port or
the connection is dropping off.
There are devices linked to the corresponding ports but
no data transmitted or received.
8
Wireless 11n 2T2R Router
1.4 The Rear Panel
The rear panel of the Wireless Router is shown below.
LAN: Through this port, you can connect the router to your PCs and the other Ethernet
network devices.
WAN: This WAN port is where you will connect the cable/DSL Modem, or Ethernet.
DC IN:
Plug the circle end of the USB cable firmly into the rear panel of the router, and put the other
end into an electric service outlet, then the system is ready.
WPS/Reset Button:
Click this button for once it means to start PBC configuration method, in which users can
easy setup WPS connection.
If you push the button for more than 5 seconds and then release it, the system will return to
factory default setting. In the meantime, system rewrites flash to default value and then
system reboot. Approximately 60 seconds later, the whole system parameters have returned
to factory default value. If the process has been interrupted by any reason(like power off), the
system will fail. Before perform the process, please ensure a safe operating environment!
Antenna: The function of the antenna is to enhance the wireless signal and expand the range
of signal.
Warning：：：： Incomplete factory setting recovery procedure will cause the Wireless Router
malfunction！If you are unfortunately in this situation, do not try to repair it by
yourself. Consult your local distributor for help!
9
Wireless 11n 2T2R Router
Chapter 2 Installation and Basic Configuration
This chapter will guide you steps by steps to install and configure the Wireless Router. We
suggest you go over the whole chapter first and then do more advanced operation.
2.1 Operation Mode
In this device, there are three modes for your selection:
AP mode
Router mode
Client mode
Different mode functions different. You can glide the slide switch on the left side of the device to
the left hand side (AP mode), middle (Router mode) or right hand side (Client mode) to choose
the mode you want.
Before installation, please choose an operation mode first and then go on other configurations.
2.2 Connect This Router to Your Network
Steps to build up the network:
1. Connect the phone line from the wall socket to the line-in port on the ADSL modem, or the
coaxial cable to the line-in port on the cable modem.
2. A---Router Mode: Connect the ADSL or cable modem to the Ethernet WAN port on the
back of the Wireless Router by using the UTP cable.
B---AP Mode: Connect a router to one of the two ports on the back of this device by using
the UTP cable.
C---Client Mode: Go to steps 3 directly.
3. Plug-in the USB cable to the modem and turn on the power. Install the Ethernet card into the
computer by referring to the User Guide that came with the card.
4. Connect the computer to the Wireless Router by using standard twisted-pair Ethernet cable
from the computer’s Ethernet card to a 10/100Mbps Ethernet LAN port on the back of the
Wireless Router. (In AP/Client mode both the ports can be used as LAN ports)
5. Plug the USB cable (mini-USB cable) into the router port and put the other end into an
electric service outlet (recommend output value: 5V/1A DC).
10
Wireless 11n 2T2R Router
2.3 Configure the IP Address of Your Computer
In order to communicate with this Wireless Router, you have to configure the IP address of your
computer to make it compatible with the device.
Note: The router supports DHCP server and it is enabled as default. Users who configure his IP
address as “Obtain an IP address automatically” may skip the following IP configuration
instruction.
1. The default network setting of the device:
IP address: 192.168.100.1
Subnet Mask: 255.255.255.0
DHCP Server: enable
2. In the following TCP/IP configuration guide, the IP address “192.168.100.2” is assumed to
be your IP address if you want to specify IP addresses manually. Please DO NOT choose
“192.168.100.1” as the IP address, for the IP address “192.168.100.1“has been set as the
default IP for this device.
3. The following TCP/IP configuration guide uses windows XP as the presumed operation
system.
Procedures to configure IP addresses for your computer:
1. If you are in Classic Start menu view, click Start > Settings > Network Connections.
If you are in Start menu view, click Start > Control Panel > Network Connections.
11
2. Right-click Local Area Connection item and click Properties.
Wireless 11n 2T2R Router
3. Choose Internet Protocol (TCP/IP) and click Properties.
12
4.
You may choose Obtain an IP address automatically (recommend) to get an IP address
automatically. Or you can choose Use the following IP address to specify an IP address
Wireless 11n 2T2R Router
manually. Please click the OK button after your configuration.
13
Wireless 11n 2T2R Router
Chapter 3 Web-Based Management
3.1 Start the Web-Based Management Interface
The device uses Web as the management interface. You can use a browser to access the
management interface easily. Please follow the steps listed below.
1. Open the Internet Web browser.
2. Type 192.168.100.1 into the URL Web address location and press Enter.
3. The Login window appears.
- Enter admin in the User Name location (default value).
- Enter admin in the Password location (default value).
- Click OK button.
14
Wireless 11n 2T2R Router
3.2 The Graphic User Interface
After the password authorization, the information page shows up as the home page of the graphic
user interface. You may click the menu link on left column of the window to get access to each
configuration page.
Router Mode:
15
AP Mode:
Wireless 11n 2T2R Router
16
Client Mode:
Wireless 11n 2T2R Router
17
Wireless 11n 2T2R Router
3.3 Setup Wizard
If you are using the router for the first time, please follow the procedures of the setup wizard to do
a step-by-step configuration.
Note: The configurations in AP, Router and Client modes are almost the same. The following
guide mainly introduces this device under the Router mode environment. Users want to do
management in AP/Client mode please refer to the Router mode. The following instruction makes
an overall introduction to the Setup Wizard
1. Click “Setup Wizard” on the left menu link, and then click the “Next” button to proceed.
2.
Click “Next” button, the “LAN Interface Setup” pops out.
18
3. Click “Next” button, the “WAN Interface Setup” pops out. Or you can click “Back/Cancel” for any
Wireless 11n 2T2R Router
changing. You may get those parameters from your ISP. WAN Access Type: Static IP, DHCP
Client and PPPoE.
4. Click “Next” button, the “Wireless Network Basic Settings” pops out.
19
Wireless 11n 2T2R Router
5. Click “Next” button, the “Wireless Security Setup” pops out.
Having finished these steps, you can use the router to surf the Internet. If you need more detailed
information, please refer to the following instruction.
20
Wireless 11n 2T2R Router
3.4 Wireless
In Client mode, the Wireless interface default support universal repeater (one wlan interface used
as AP and client concurrently) function; you can set wireless client mode connect Access Point,
and then the Virtual AP mode can sharing IP to Wireless Clients.
3.4.1 Basic Settings
You can set up the configuration of your Wireless basic settings and monitor the Wireless Clients
associate with your router.
Items Information
Disable Wireless
Network
Network Band
Multiple AP
21
Mark the checkbox to disable the Wireless Network.
We provide six
GHz (N), 2.4GHz (B+G), 2.4 GHz (G+N), 2.4 GHz (B+G+N).
Click the drop list, you may select one type of network band.
The button is to show and update the wireless settings
for Multiple APs. Click this button to do more configurations.
Note: This function only support in Router & AP mode, not support in
Client mode.
modes for your selection: 2.4GHz (B), 2.4 GHz (G), 2.4
contains USA(FCC), Canada(IC), Europe(ETSI), Spain, France,
Wireless Mode
Wireless 11n 2T2R Router
In the drop list, there are two types of wireless mode: “AP” and “Client”.
You may select one type for your configuration.
Note: This fuction only support in AP mode.
SSID
Channel Width
Channel Number
Country
Broadcast SSID
Associated Client
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
1. Multiple APs
Service set identifier (SSID) for the name of the wireless network. In
Client Mode, this SSID is used for setting Virtual AP's name.
Select 20MHz or 40MHz (40MHz only support in 11n mode) as the
wireless channel frequency.
Select a channel for the wireless network of this device.
It
Japan(MKK) for your selection.
If you enable "Broadcast SSID", every wireless station located within
the coverage of this wireless router can discover this wireless router
easily. If you are building a public wireless network, enabling this feature
is recommended. Disabling "Broadcast SSID" can be more safe.

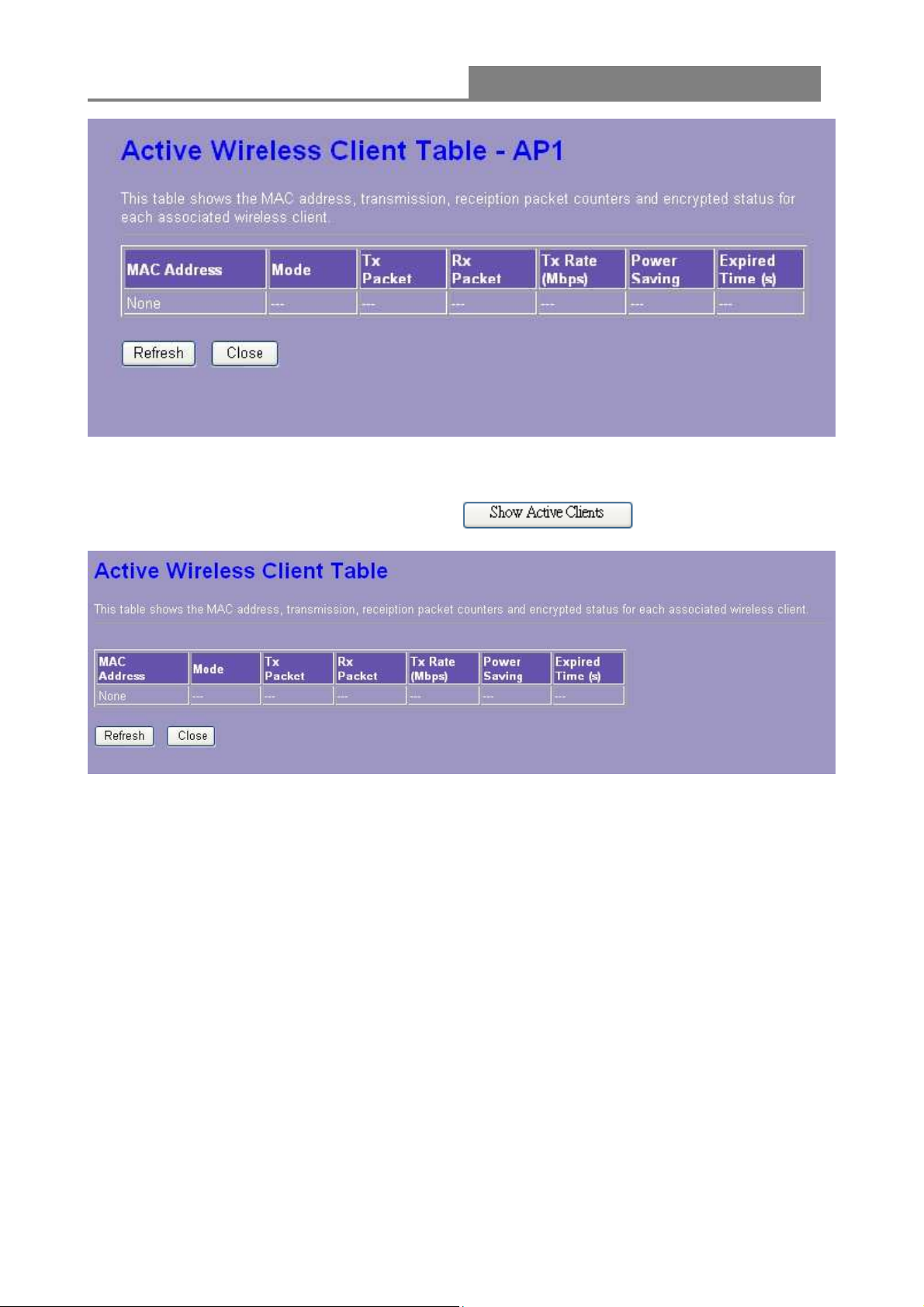

Click "Show Active Clients" button, then an "Active Wireless Client
Table" will pop up. You can see the status of all active wireless stations
that are connecting to the access point.
This is the window that pops up after clicking the button.
Click “Enable” to activate this AP, and then click the button “Show”, “Active Wireless Client Table –
AP1” window pops up as the following:
22
2. Active Wireless Client Table
This is the window that pops up after clicking the button.
Wireless 11n 2T2R Router
3.4.2 Advanced Settings
You can set advanced wireless LAN parameters for this router. We recommend not changing
these parameters unless you know what changes will be on this router.
23
Wireless 11n 2T2R Router
Items Information
This value should remain at its default setting of 2346. If you
experience a high packet error rate, you may slightly increase your
Fragment Threshold
RTS Threshold
Beacon Interval
Preamble Type
RF Output Power
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
fragmentation threshold within the value range of 256 to 2346.
Setting the fragmentation threshold too low may result in poor
performance.
Request To Send threshold. This value should remain at its default
setting of 2347. If you encounter inconsistent data flow, only minor
modifications to the value range between 0 and 2347 are
recommended.
Beacons are packets sent by an access point to synchronize a
wireless network. Specify a beacon interval value. Default (100ms)
is recommended.
The length of CRC blocks in the frames during the wireless
communication.
Select the signal strength for the wireless network.
3.4.3 Security
The Security function protects your wireless network from invasion. We provide WEP and WPA
encryption to secure your wireless network. Please select “Disable”, “WEP”, “WPA-PSK”,
“WPA2-PSK”, or “WPA2-Mixed” in the drop list. If you select “Disable”, any data will be transmitted
without encryption and any station can access the router.
24
Wireless 11n 2T2R Router
Items Information
Please choose a SSID you have set for this router in the Wireless >
Select SSID
Encryption
Show Password
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
1. Security Mode – Disable
Select “Disable” means to access your wireless network without any encryption.
Basic Settings from the drop-down list. The SSID will be shown on
the wireless network for recognizing.
There are 5 modes for you to select: Disable, WEP, WPA-PSK,
WPA2-PSK and WPA2-Mixed. Please refer to the following
description.
Note: WEP & TKIP unsupported in 11n Mode, It's only support in 11g
mode. WPA2-Mixed Encryption unsupported in Client mode.
Select to show the password or not.
25
2. Security Mode -- WEP
Wireless 11n 2T2R Router
Items Information
Please choose a SSID you have set for this router in the Wireless >
Select SSID
Encryption
Authentication
Key Length
Key Format
1
ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers
26
Basic Settings from the drop-down list. The SSID will be shown on the
wireless network for recognizing.
Select a security encryption mode for this router.
There provide three options for selecting: Open System, Shared Key,
Auto.
Select “64-bit” or “128-bit” as the key encryption length.
Select “ASCII1” or “Hex2” to setup the key value.
Wireless 11n 2T2R Router
Encryption Key
Show Password
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
3. Security Mode – WPA / WPA 2-PSK
Enter the key according to the key format you select.
Select to show the password or not.
from 0-127.
2
Hexadecimal digits consist of the numbers 0-9 and the letters A-F.
27
Items Information
Select SSID
Wireless 11n 2T2R Router
Please choose a SSID you have set for this router by clicking
“Wireless > Basic Settings” from the drop-down list. The SSID will be
shown on the wireless network for your recognition.
Encryption
WPA/WPA2 Cipher
Suite
Pre-Shared Key
Format
Pre-Shared Key
Show Password
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
4. Security Mode – WPA2-Mixed
Select a security encryption mode for this router.
WPA Cipher Suite: the default setting is TKIP.
WPA2 Cipher Suite: the defaulting setting is AES
To decide the format, select “Passphrase” or “Hex” in the drop list.
Enter the “Pre-shared Key” according to the pre-shared key format
you select. This is the shared secret between AP and STA. This field
must be filled with character longer than 8 and less than 64 lengths.
Select to show the password or not.
Items Information
Please choose a SSID you have set for this router by clicking
Select SSID
Encryption
28
“Wireless > Basic Settings” from the drop-down list. The SSID
will be shown on the wireless network for your recognition.
Select a security encryption mode for this router.
Wireless 11n 2T2R Router
WPA / WPA2 Cipher Suite
Pre-Shared Key Format
Pre-Shared Key
Show Password
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
The Cipher Suite is mixed (TKIP and AES).
To decide the format, select “Passphrase” or “Hex” in the drop
list.
Enter the “Pre-shared Key” according to the pre-shared key
format you select. This field must be filled with character longer
than 8 and less than 64 lengths.
Select to show the password or not.
29
Wireless 11n 2T2R Router
3.4.4 Access Control
To restrict the station access authentication of the clients, you can set up the control list in this
page.
Items Information
Wireless Access
Control Mode
MAC Address &
Comment
Current Access
Control list
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
Click the drop list to choose the access control mode. You may select
“Allow listed” to give those MAC addresses access to this device or select
“Deny Listed” to ban it or select “Disable”.
Fill in the MAC address that you wish to control, and give a definition to it.
List the MAC Access Control settings you have added before. Click on the
list to change configuration. To Delete the station on the list, mark the
check box in the select item and click the “Delete Selected”. If you want to
delete all stations on the list, click “Delete All” to remove all of them.
3.4.5 Wireless Site Survey (only in AP mode and Client mode)
If you are under the Wireless Client mode, click Wireless > Wireless Site Survey in the menu
links to display the screen as shown below.
1. The following page which provides tool to scan the wireless network pops out.
30
Wireless 11n 2T2R Router
2. Click the “Site Survey” button can scan nearby Router and AP. This page shows the
available wireless networks information. When you use this device as a station (STA), you
may connect to other AP.
31
3. Select one of the networks existing in the list of the site survey table and then click “Next”
button, then the following page pops out.
Wireless 11n 2T2R Router
4. In this page, you can input the selected AP’s password, then click “connect ” button to start
connection with wireless network.
5. In connection process, the following page pops out. Please waiting for the connection result.
32
6. When connection is successful, the following page pops up.
Wireless 11n 2T2R Router
7. You can go back to the Management > Status page and confirm the connection’s states.
33
Wireless 11n 2T2R Router
3.4.6 WPS Settings
The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the
security setup and management of Wi-Fi networks. This router supports the configuration setup
using PIN configuration method or PBC configuration method through an internal or external
registrar.
34
Wireless 11n 2T2R Router
Items Information
Disable WPS
WPS Status
Self-PIN Number
Push Button
Configuration
Current Key Info
Click this checkbox to undo WPS.
You cannot manually select the items here. The WPS Status will change
from “UnConfigured” to “Configured” after you enable WPS function and
setup a wireless security key for this device.
If you use this device as a client, you can use this code when trying to
connect this device to other AP by using the PIN method.
Push Button Communication (PBC) method uses a simple action of
pushing a button on both the AP and the new STA to reach the function
of easy setup WPS connection. You can simply click the
button in this GUI page or click the WPS button under the case of the
router. After click on the button, please run the client’s WPS and push
the PBC button within 2 minutes.
This field displays the current key information you configured.
Personal Identification Number (PIN) method. Users have to fill in the
Client PIN
Number
*Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
35
PIN code of enrollee device and click the button to make
communication between the AP and the enrollee device. After click on
the button, please run the client’s WPS and push the PIN button within 2
minutes.
If you are under the Wireless Client mode, the interface is different.
Click Wireless > WPS in the menu links to display the screen as shown below.
In this page you can connect your device to other networks by using PIN or PBC methods
Wireless 11n 2T2R Router
.
Items Information
Disable WPS
Self-PIN Number
PIN Configuration
Push Button Configuration
Mark to disable the WPS, and clear to enable.
If you use this device as a client, you can use this code
when trying to connect this device to other AP by using
the PIN method.
After the AP or router you share has fill in your self-pin
number and click the button in this GUI page
at this moment you can click the button in 2
minutes to establish the connection.
You can simply click the button (or the WPS
button) together with the AP or router you want share in 2
minutes for connection.
3.5 TCP/IP Settings
3.5.1 LAN Interface Setup
To set up the configuration of LAN interface, private IP of your router LAN port and subnet mask
for your LAN segment.
36
Wireless 11n 2T2R Router
Items Information
Router IP Address
Subnet Mask
DHCP
DHCP Client Range
Auto IP Address
Diversion
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
The IP of your Router LAN port (default 192.168.100.1).
Subnet Mask of you LAN (default 255.255.255.0). All devices on the
network must have the same subnet mask to communicate on the
network.
DHCP stands for Dynamic Host Configuration Protocol. It is a
protocol for assigning dynamic IP addresses “automatically”.
This field asks you to specify the DHCP Client IP address range
(default 100~200). You can also click the “Show Client” button to list
those connected DHCP clients.
Note: In Router/Client mode, DHCP Server default setting is enabled,
however in AP mode, DHCP Server default setting is disabled.
Click the drop list, you may select “Enabled” to divert the IP Address
automatically or select “Disabled” to ban it. Besides, click “Enabled”
this feature, the system will auto judge whether the WAN and LAN IP
is conflict or not. If there are conflicts, the LAN IP and LAN DHCP
Range will auto jump to next subnet for avoiding conflicts.
Note: The feature supports in Router and Client modes
Active DHCP Client List
This is the window that pops up after clicking the button. It shows the information
of IP address, MAC address and expire time of the DHCP clients that have connected with this
device.
37
Wireless 11n 2T2R Router
3.5.2 WAN Interface Setup
This page allows users to configure those parameters for connecting to Internet. You may
select the Internet connection type from the drop list besides “WAN Access Type” and configure
the parameters for each mode. There are three modes for your selection: Static, DHCP and
PPPoE.
(Router mode and Client mode Display)
38
ybe you
save the MAC Address, you can click 'Manual Add' button
is
MAC address from
Items Information
Wireless 11n 2T2R Router
WAN Access Type
Internet IP Address
Subnet Mask
Default Gateway
MTU Size
Clone MAC Address
Select the mode to access the WAN as Static, DHCP Client or
PPPoE.
The IP address that provided by your Internet Service Provider
(ISP).
The Subnet Mask provided by your Internet Service Provider
(ISP).
The Default Gateway that provided by your Internet Service
Provider (ISP).
To Enable the Maximum Transmission Unit of router setup. Any
packet over this number will be chopped up into suitable size
before sending. Larger number will enhance the transmission
performance.
Enter the MTU number in the blank to set the limitation.
There are two ways to clone MAC address.
One way is directory input MAC address in text box. Ma
need to
and add it to “History MAC Table” for easily backup; another
click 'MAC Clone' button, then it will copy the
your network card in the computer.
Note: The 'History MAC Table' can save maximum three MAC
Addresses.
To Delete the MAC Address you add before, mark the check box
History MAC Table
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
1. Static Mode (fixed IP)
in the select item on the right hand and click the “Delete
Selected”. If you want to delete all the MAC Addresses, click
“Delete All” to remove all of them.
39
The DNS server
Enter the DNS
Items Information
Wireless 11n 2T2R Router
Internet IP Address, Subnet
Mask and Default Gateway
MTU Size
DNS 1~2
2. DHCP (Automatic Configuration)
Fill in the IP address, Subnet Mask and Default Gateway
that provided by your Internet Service Provider (ISP).
To Enable the Maximum Transmission Unit of router
setup. Any packet over this number will be chopped up
into suitable size before sending. Larger number will
enhance the transmission performance.
Enter the MTU number in the blank to set the limitation
(default 1500 bytes).
To specify the Domain Name System (DNS). The DNS
server translates domain names into IP addresses. Enter
the DNS provided by your ISP in DNS 1 and DNS 2.
40
Items Information
To Enable the Maximum Transmission Unit of Router setup.
Any packet over this number will be chopped up into suitable
size before sending. Larger number will enhance the
MTU Size
Attain DNS
Automatically
Set DNS Manually
transmission performance.
Enter your MTU number in the text-box to set the limitation
(default 1492 bytes).
If your DNS provide by ISP is dynamic, choose “Attain DNS
automatically.
To specify the Domain Name System (DNS).
translates domain names into IP addresses.
provided by your ISP in DNS 1 and DNS 2.
3. PPPoE (ADSL)
Items Information
Wireless 11n 2T2R Router
User Name&Password
MTU Size
Attain DNS Automatically
Set DNS Manually
Fill in the User Name and password that provided by your ISP.
To Enable the Maximum Transmission Unit of router setup.
Any packet over this number will be chopped up into suitable
size before sending. Larger number will enhance the
transmission performance.
Enter your MTU number in the text-box to set the limitation
(default 1452 bytes).
If your DNS provided by ISP is dynamic, choose “Attain DNS
automatically.
To specify the Domain Name System (DNS). The DNS server
translates domain names into IP addresses. Enter the DNS
provided by your ISP in DNS 1 and DNS 2.
41
Wireless 11n 2T2R Router
3.6 Firewall Settings
MAC Filtering
The Wireless Router could filter the outgoing packets for security or management consideration.
(Router mode and Client mode Display)
Items Information
Enable MAC Filtering
MAC Address
Comment
Current Filter Table
Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
Mark to enable the configuration, and clear to disable.
Fill in the MAC address of wireless stations you want to
forbid to access the Internet through the Gateway.
Input any text to describe this mapping.
Lists the MAC Filter Settings you have added before. To
delete the settings on the list, click the check box in the
select item and click the “Delete Selected”. If you want to
delete all the MAC addresses, click “Delete All” to
remove all of them.
42
Wireless 11n 2T2R Router
3.7 Management
3.7.1 Status
This information page shows the current status and basic settings of this device. You could check
if the parameters match your configuration.
3.7.2 Statistics
This page shows users the information of data transfer, and monitors the status of this router
including receiving and sending packets. To see the latest report, click button.
43
3.7.3 Log
Wireless 11n 2T2R Router
This System Log page shows the information of the current activities on the router. To enable
system log function:
1. Mark the “Enable Log” checkbox.
2. To see all information of the system, select the “system all” checkbox.
To see wireless information only, select the “wireless” checkbox.
3. Click the button to activate. You could also click the button to
refresh the log information or click the button to clean the log table.
44
Wireless 11n 2T2R Router
3.7.4 Upgrade Firmware
Sometimes a new firmware may be issued to upgrade the system of this device. You could
upgrade the firmware you got in this page. To upgrade the firmware, please click the
button, locate the firmware in your computer and then click the button to execute.
45
3.7.5 Save/Reload Setting
The Save/Reload Setting page allows users to save and upload the configuration settings of the
device or restore the factory default configuration.
Wireless 11n 2T2R Router
Items Information
Save Settings to File
Load Settings from File
Reset Settings to Default
3.7.6 Password
To set up the Administrator Account information, enter the Username, New password, and reenter
the password on the text box. Don’t forget to click the to save the configuration.
Click the button to save the currently configure
settings.
Click to select the file that you save, and then
click to start to update the system configuration
settings. Please wait until it is complete.
Click to start to load default settings.
46
3.7.7 Logout
Click Apply Change then you will save the settings and log off the management interface.
Wireless 11n 2T2R Router
47
Wireless 11n 2T2R Router
Appendix A: Product Specifications
Standard
Interface
Antenna
(W142B/W142D only)
WAN Connection
Cable Connections
Transmission Mode
Security
Network Data Rate
Receiver Sensitivity
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE
802.3u
LAN: One 10/100Mbps RJ-45 port
WAN: One 10/100Mbps RJ-45 port
One WPS/RESET button
One slide switch to control AP/Router/Client mode
One USB DC JACK
Antenna type: Dipole
Antenna connector type: Fixed
Antenna standard: 1.2dBi
Ethernet 10/100 Mbps
RJ-45 (10BASE-T): Category 3,4,5 UTP
RJ-45 (100BASE-TX): Category 5 UTP
Auto-Negotiation (Full-duplex, Half-duplex)
64/128-bit WEP, WPA-PSK, WPA2-PSK, WPA2-Mixed
802.11b: 1,2,5.5, and 11Mbps
802.11g: 6,9,12,18,24,36,48 and 54Mbps
802.11n: up to 300Mbps
802.11n Typical -68 dBm
802.11g Typical -73 dBm
802.11b Typical -84 dBm
Transmit Power
LED indications
Channel
Range Coverage
Temperature
Humidity
Certification
16dBm typically @ 802.11b
14dBm typically @ 802.11g
13dBm typically @ 802.11n
1*WAN, 1*LAN, 1*WLAN, 1*WPS, 1*PWR
USA 11, Europe 13, Japan 14
Indoor 35~100 meters
Outdoor 100~300 meters
Operating: 0°C ~ 40°C (32°~104°F)
Storage: -20°C ~ 70°C (-4°~158°F)
Operating: 10% ~ 90% RH, non-condensing
Storage: 5%~90% RH, non-condensing
FCC, CE, VCCI Class B
48
Wireless 11n 2T2R Router
Appendix B: Glossary
802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) was formed to help accelerate the IEEE 802.11n development process and promote a
technology specification for interoperability of next-generation wireless local area networking
(WLAN) products.
DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the
TCP/IP parameters for the all the PC(s) that are connected to a DHCP server
DNS (Domain Name System) – An Internet Service that translates the names of websites into
IP addresses.
Domain Name - A descriptive name for an address or group of addresses on the Internet.
DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over
existing traditional phone lines.
ISP (Internet Service Provider) - A company that provides access to the Internet.
MTU (Maximum Transmission Unit) - The size in bytes of the largest packet that can be
transmitted.
NAT (Network Address Translation) - NAT technology translates IP addresses of a local area
network to a different IP address for the Internet.
PPPoE (Point to Point Protocol over Ethernet) - PPPoE is a protocol for connecting remote
hosts to the Internet over an always-on connection by simulating a dial-up connection.
SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name.
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group
promoting interoperability among 802.11b devices.
WLAN (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
Wireless 11n 2T2R Router
50
61NB-W142C0+217
Loading...
