Digital Notepad
Get to Know Digital Notepad
Power/Sleep
Front Light
Button (Hold/Press)
LED
Micro SD card Slot
Audio Jack (Limited Model)
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Micro USB Port
Reset
Lets Get Started
Charge Your Digital Notepad
Use the included micro USB cable to charge
your Digital Notepad e USB device or with
any micro USB wall adapter (not included)
Power On
Hold the power button for 3 seconds to turn
on or turn off your Digital Notepad.
Environmental Requirements
Operating ambient temperature: 32° to 113° F (0° to 45° C)
Nonoperating temperature: 14° to 122° F (−10° to 50° C)
Controls and Navigation
From the Main Menu:
Press the Note, Reader, Calendar, and Tools
applications to access them.
When in Note or Reader App:
Swipe Down from the Top of your screen to
access the control toolbar to go back to the
main menu.
When in Reader App:
Swipe the screen left and right in order to turn
pages backwards and forwards.
The Stylus
Using the Stylus
Write and Draw with the tip of the Stylus.
Markings are all pressure sensitive.
The“Eraser”head removes stylus strokes
and markings with a single tap.
Connecting to Wi-Fi
Digital Notepad-1234-5G
Digital Notepad- 4G
Digital Notepad- 1
Digital Notepad- 2
Digital Notepad- 3
connected
Touch the Settings icon in the top right toolbar
Toggle Wi-Fi Switch On
Touch Wi-Fi Bar to select your Wireless network

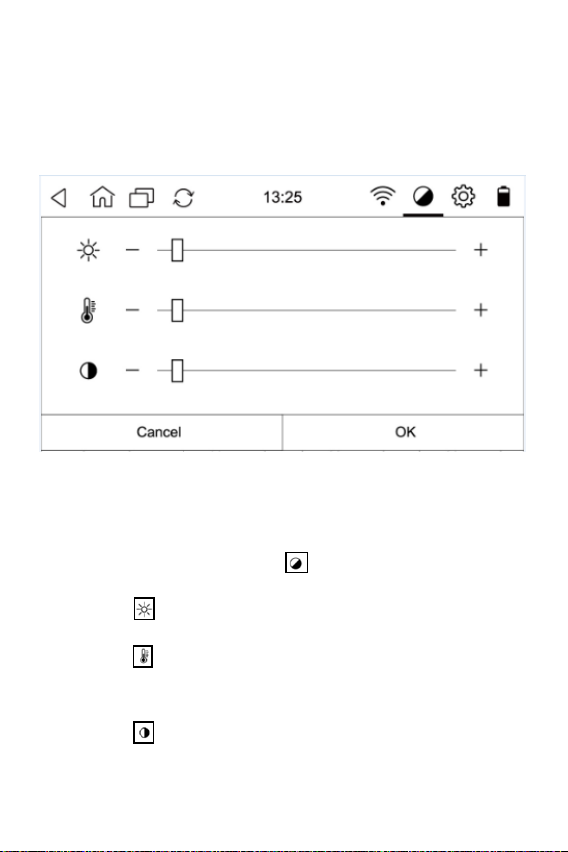

Front Light Adjustment
Touch the display icon in the top right toolbar
Slide to adjust brightness.
Slide to adjust color temperature (warm or cold
glow)
Slide to adjust contrast
Certificates of the device
This device complies with the FCC Rules. Operation is subject to
the following two conditions; (1)this device may not cause harmful
interference, and (2)this device must accept any interference
received, including interference that may cause undesired
operation. Note: Change or Modifications that are not expressly
approved by the manufacturer could void the user's authority to
operate the equipment. The Products have been tested and found
to comply with the limits for a Class B digital device or external
switching power supply, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. The
Products generate, use and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If a Product does cause harmful
interference to radio or television reception, which can be
determined by turning the Product off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the Product. The device meets the FCC Radio Frequency
Emission Guidelines and is certified with the FCC as the FCC ID
number found on the back of the device.
This device complies with the requirement of EU Directive.
Compliance with the above directives is certified by CE mark on
the device.
Certificates of the device
Device Model
FCC/IC 1g SAR Limit
Device Model
Highest Reported Body (0 cm Gap) Value
SAR Limits
This device has been tested and meets applicable limits for Radio
Frequency (RF) exposure.
The frequency and maximum transmitted power in EU are listed as
bellows:2412 - 2472 MHz: 19.01dBm
Transfer Rate 802.11b:up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 72.2 Mbps
The exposure standards for wireless devices employ a unit of
measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC/IC is 1.6W/kg. The SAR limit recommended
by the Council of the European Union is 2.0W/kg. This device’s
maximum SAR value is well below the FCC/IC and EU limits with
specific measurements shown in the below table.
Highest Reported Body SAR Value
E60QR2
E60QR2 2.0 0.96
1.6 1.11
EU 10g SAR Limit
Looking for more Information?
Go http://www.teamucinc.com to know more
about your Digital Notepad.
© 2018 , The Company All rights reserved. The
product logos are trademarks or registered
trademarks of the company or its affiliates.
Warranty
The company warrants to the original end user customer that its
The company -branded products are free from defects in material
and workmanship. Any claim alleging that any product fails to
conform to the foregoing warranty may be made only by the
customer who purchased such product and only while such
customer owns such product. Subject to the conditions and
limitations set forth below, The company will, at its option, either
repair or replace any part of its products that prove defective by
reason of improper workmanship or materials. Repaired parts or
replacement products will be provided by The company on an
exchange basis, and will be either new or recertified. All recertified
products have been tested to ensure that they are functionally
equivalent to new products.
This limited warranty covers only repair, replacement, refunds or
credit for defective The company- branded products. The
company is not liable for, and does not cover under warranty, any
damages or losses of any kind whatsoever resulting from loss of,
damage to, or corruption of, content or data or any costs
associated with determining the source of system problems or
removing, servicing or installing The company products. This
warranty excludes third party software, connected equipment or
stored data. The company is therefore not liable for any losses or
damage attributable to third party software, connected equipment
or stored data.
This limited warranty does not cover any damage to the product
that results from improper installation, accident, abuse, misuse,
natural disaster, insufficient or excessive electrical supply,
abnormal mechanical or environmental conditions, or any
unauthorized disassembly, repair or modification. This limited
warranty shall not apply if: (i) the product was not used in
accordance with any accompanying instructions, or (ii) the
product was not used for its intended function. This limited
warranty also does not apply to any product on which the original
identification information has been altered, obliterated or removed,
that has not been handled or packaged correctly, that has been
sold as second-hand or that has been resold contrary to U.S. and
other applicable export regulations.
