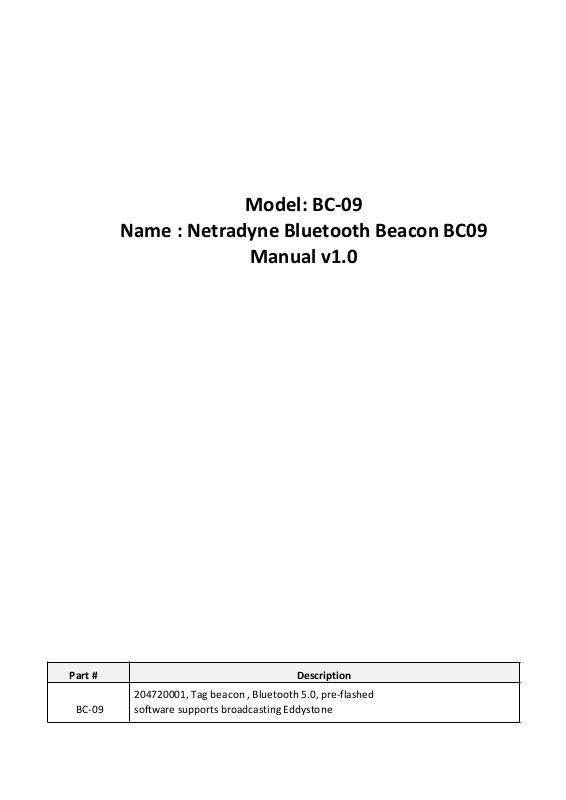

Model: BC-09
Name : Netradyne Bluetooth Beacon BC09
Manual v1.0
Part # Description
204720001, Tag beacon , Bluetooth 5.0, pre-flashed
BC-09 software supports broadcasting Eddystone
The Beacon BC-09 is a new generation beacon that loaded Bluetooth 5.0 hardware platform, and
- Unique MAC address (ITU)
Item
Case
Battery
Operation
Transmission
Transmission
Antenna
Size
advertises Eddystone data every few seconds
The beacon BC-09 is not meant for configuration by the user and it comes from preconfigured with
Eddystone UID broadcasting for driver login feature
FEATURE
- Advertising Eddystone UID data
- Bluetooth 5.0 chipset nRF52 series
- Included 1pc CR2032 coin battery replaceable
- The max. 50 meters advertising distance
- Weatherproof housing with key-chain hole
BC-09 Tag Beacon
APPLICATION
- Driver Identification & Login
- Activity monitoring
ACCESSORY
- None
ACTIVATE BC-09
- Take out the plastic battery sheet from BC-09 Tag beacon to activate device.
CERTIFICATION
- FCC Regulation (FCC Part 15.)
ELECTRONIC PARAMETER
Value Remarks
Color white Other colors can be customized
Model 1 x CR2032 1pc CR2032 coin battery, 3.0V
Voltage 1.8-3.6V DC
Current 5.3mA (peak current) Tested at 0dBm transmission power
Range 50 meters Maximum
50ohm On board / PCB Antenna
32x23x 3.3 mm Null
PARAMETER SETTING
random
(10 bytes)
random
(6 bytes)
-59 (0xC5)
6 (0dBm)
9(900mS)
random, it is MAC address of beacon actually.
PLUS
yes (it is configuration mode)
custom
available
available
available
available
available
Each BC-09 tag beacon has been pre-configured in the factory before the shipment. Here below is given
the main parameters and default settings.
Type Item Default Settings
Instance ID @UID
Eddystone Namespace ID @UID
URL
Measured Power
Radio Tx power
Adv. Interval
Base
Parameters
Beacon ID
Beacon Name
Connectable
Password
Reset factory
Power off
Extra
Function
Modify password
Remove password
Update firmware
DECLARATION
The contents of this datasheet are subject to change without prior notice for further improvement.
Netradyne team reserves the right to explain all the terms of this datasheet.
FCC Caution：
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
