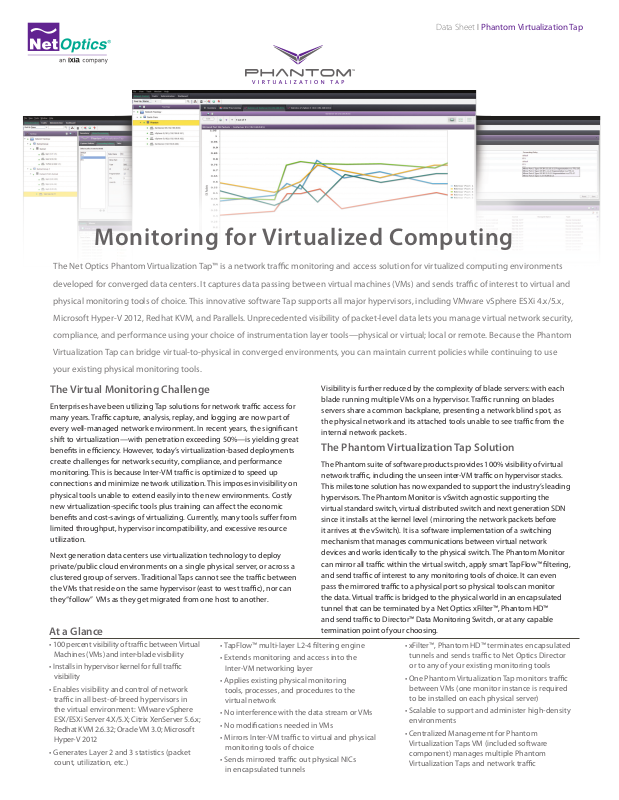

Data Sheet I Phantom Virtualization Tap
Monitoring for Virtualized Computing
The Net Optics Phantom Virtualization Tap™ is a network trac monitoring and access solution for virtualized computing environments
developed for converged data centers. It captures data passing between virtual machines (VMs) and sends trac of interest to virtual and
physical monitoring tools of choice. This innovative software Tap supports all major hypervisors, including VMware vSphere ESXi 4.x/5.x,
Microsoft Hyper-V 2012, Redhat KVM, and Parallels. Unprecedented visibility of packet-level data lets you manage virtual network security,
compliance, and performance using your choice of instrumentation layer tools—physical or virtual; local or remote. Because the Phantom
Virtualization Tap can bridge virtual-to-physical in converged environments, you can maintain current policies while continuing to use
your existing physical monitoring tools.
The Virtual Monitoring Challenge
Enterprises have been utilizing Tap solutions for network trac access for
many years. Trac capture, analysis, replay, and logging are now part of
every well-managed network environment. In recent years, the signicant
shift to virtualization—with penetration exceeding 50%—is yielding great
benets in eciency. However, today’s virtualization-based deployments
create challenges for network security, compliance, and performance
monitoring. This is because Inter-VM trac is optimized to speed up
connections and minimize network utilization. This imposes invisibility on
physical tools unable to extend easily into the new environments. Costly
new virtualization-specic tools plus training can aect the economic
benets and cost-savings of virtualizing. Currently, many tools suer from
limited throughput, hypervisor incompatibility, and excessive resource
utilization.
Next generation data centers use virtualization technology to deploy
private/public cloud environments on a single physical server, or across a
clustered group of servers. Traditional Taps cannot see the trac between
the VMs that reside on the same hypervisor (east to west trac), nor can
they “follow” VMs as they get migrated from one host to another.
At a Glance
• 100 percent visibility of trac between Virtual
Machines (VMs) and inter-blade visibility
• Installs in hypervisor kernel for full trac
visibility
• Enables visibility and control of network
trac in all best-of-breed hypervisors in
the virtual environment: VMware vSphere
ESX/ESXi Server 4.X/5.X; Citrix XenServer 5.6.x;
Redhat KVM 2.6.32; Oracle VM 3.0; Microsoft
Hyper-V 2012
• Generates Layer 2 and 3 statistics (packet
count, utilization, etc.)
• TapFlow™ multi-layer L2-4 ltering engine
• Extends monitoring and access into the
Inter-VM networking layer
• Applies existing physical monitoring
tools, processes, and procedures to the
virtual network
• No interference with the data stream or VMs
• No modications needed in VMs
• Mirrors Inter-VM trac to virtual and physical
monitoring tools of choice
• Sends mirrored trac out physical NICs
in encapsulated tunnels
Visibility is further reduced by the complexity of blade servers: with each
blade running multiple VMs on a hypervisor. Trac running on blades
servers share a common backplane, presenting a network blind spot, as
the physical network and its attached tools unable to see trac from the
internal network packets.
The Phantom Virtualization Tap Solution
The Phantom suite of software products provides 100% visibility of virtual
network trac, including the unseen inter-VM trac on hypervisor stacks.
This milestone solution has now expanded to support the industry’s leading
hypervisors. The Phantom Monitor is vSwitch agnostic supporting the
virtual standard switch, virtual distributed switch and next generation SDN
since it installs at the kernel level ( mirroring the network packets before
it arrives at the vSwitch). It is a software implementation of a switching
mechanism that manages communications between virtual network
devices and works identically to the physical switch. The Phantom Monitor
can mirror all trac within the virtual switch, apply smart TapFlow™ ltering,
and send trac of interest to any monitoring tools of choice. It can even
pass the mirrored trac to a physical port so physical tools can monitor
the data. Virtual trac is bridged to the physical world in an encapsulated
tunnel that can be terminated by a Net Optics xFilter™, Phantom HD™
and send trac to Director™ Data Monitoring Switch, or at any capable
termination point of your choosing.
• xFilter™, Phantom HD™ terminates encapsulated
tunnels and sends trac to Net Optics Director
or to any of your existing monitoring tools
• One Phantom Virtualization Tap monitors trac
between VMs (one monitor instance is required
to be installed on each physical server)
• Scalable to support and administer high-density
environments
• Centralized Management for Phantom
Virtualization Taps VM (included software
component) manages multiple Phantom
Virtualization Taps and network trac
Data Sheet I Phantom Virtualization Tap
Monitoring for Virtualized Computing
Flexible Installation Options
The Phantom Virtualization Tap is engineered to integrate seamlessly with, and forward trac to Net Optics family of Director switches. To oer optimal exibility
and further extend your installation options, the Phantom Virtualization Tap is available in various bundles of Net Optics software and Director-series hardware. The
Tap is oered both as an add-on to the existing Net Optics monitoring infrastructure, and as a software-only standalone solution.
Red Hat KVM
Citrix
MS Hyper V
Phantom
Monitor™
VMware ESXi
GRE Tunnel
Centralized Management
Platform
Phantom HD™
GRE Terminator
Spyke™
Monitoring Tool
Centralized Management Web Console
vm 1 vm 2 vm 3
vSwitch
Hypervisor
LAN/WAN
Unique Capabilities
The Phantom Virtualization Tap provides these unique capabilities to the virtual computing environment:
• A multi-hypervisor solution that performs network monitoring at the hypervisor kernel level providing full view of the trac owing between VMs, regardless of
their current physical locations
• Implemented at the kernel; delivers the ability to dierentiate between specic VM instances in replicated environments, and keep monitoring and logging the
VMs even as they are moved between hypervisors (dierent physical servers or locations)
• The industry’s only integrated solution for converged (virtual and physical) environments. Fully hypervisor-agnostic and virtual switch-agnostic, the Phantom
Virtualization Tap works seamlessly with Net Optics’ Director series of data monitoring switches
• Centralized Management—a unied network management tool —provides an easy-to-use, Web-based GUI interface
System Requirements
VMware vSphere ESX/ESXi Server 4.X/5.X; Microsoft
Hyper-V 2012; Citrix XenServer 5.6.x; Redhat KVM 2.6.x,
Oracle VM 3.0, and Parallels Cloud Server 6.0
Phantom Manager for Phantom Virtualization Taps
VM: Management and reporting engine that runs in a
VM.
Phantom Monitor: A Phantom Monitor is installed
in each hypervisor. The Phantom monitor has two
components: a Phantom Monitor Control VM and a
Phantom Monitor Module, which is a hypervisor kernel.
Network Connectivity
Phantom Manager for Phantom Virtualization Taps VM
virtual appliance must be accessible via HTTPS to access
the application interface.
DNS and NTP services should be available for all
components.
TCP 443 and 8443 must be available between Phantom
Manager for Phantom Virtualization Taps and Phantom
Monitor Control VMs.
TCP 902 must be available between Phantom Manager
for Phantom Virtualization Taps and the Hypervisor
hosts.
Net Optics® is a registered trademark of Net Optics, Inc. Copyright 1996-2014 Net Optics, Inc. All rights reserved. Additional company and product names
may be trademarks or registered trademarks of the individual companies and are respectfully acknowledged. 815-0026-001 PUBPTAPD Rev E 12/13
Disk Storage
10 GB free space (minimum)
Web Browser
Internet Explorer 6 or later, Firefox 2 or later, Safari 4.x or later
Virtual Appliance System Requirements
Compressed size of Virtual Appliances:
Phantom Manager for Phantom Virtualization Taps VM:
Approximately 1.2 GB
Phantom Monitor Control VM:
Approximately 1.3 GB
Uncompressed size of system:
Phantom Manager for Phantom Virtualization Taps VM:
16.0 GB
Phantom Monitor Control VM: 4.0 GB
Memory Size:
Phantom Manager for Phantom Virtualization Taps VM:
256 MB (No more than 2GB)
Phantom Monitor Control VM: 385 MB
(No more than 385 MB)
Part Numbers
PT-DC-25 Phantom DC Starter
Phantom Tap software and license:
2 Phantom Manager + 25 Monitors perpetual license
PT-DC-50 Phantom DC Standard
Phantom Tap software and license:
5 Phantom Manager + 50 Monitors perpetual
license
PT-DC-100 Phantom DC Extreme
Phantom Tap software and license: Unlimited number
of Phantom Manager + 100 Monitors perpetual
license
PT-01-Custom Phantom Virtualization Tap
1 Phantom Manager + 1 Monitor, One Year License
5303 Betsy Ross Drive
Santa Clara, CA 95054
Tel: +1 (408) 737-7777
www.netoptics.com
