Page 1
Installation Guide for
Fiber Taps
800-0146-001 CPUBTPLCSLMU Rev. E, 5/12
Page 2
Page 3
Contents
Introduction .....................................................1
Key Features ....................................................2
About This Guide ................................................3
Unpacking and Inspection ..........................................4
Product Diagram .................................................4
Connecting to the Network .........................................5
Connecting to the Monitoring Device .................................6
Fiber Tap
Specications ...................................................7
Labels .........................................................8
Limitations on Warranty and Liability ...............................10
Page 4
Fiber Tap
PLEASE READ THESE LEGAL NOTICES CAREFULLY.
By using a Net Optics Tap you agree to the terms and conditions of usage set forth by Net Optics, Inc.
No licenses, express or implied, are granted with respect to any of the technology described in this
manual. Net Optics retains all intellectual property rights associated with the technology described in
this manual. This manual is intended to assist with installing Net Optics products into your network.
Trademarks and Copyrights
© 2012 by Net Optics, Inc. Net Optics® is a registered trademark of Net Optics, Inc. Additional company and product names may be trademarks or registered trademarks of the individual companies and
are respectfully acknowledged.
Additional Information
Net Optics, Inc. reserves the right to make changes in specications and other information contained
in this document without prior notice. Every effort has been made to ensure that the information in this
document is accurate.
Page 5
Introduction
Get total trafc visibility for monitoring and security devices by placing
Net Optics Fiber Slim Taps on critical network links. The all-optical design of the
Fiber Tap is optimized and tested for high-performance on ber networks.
Available in LC connector types for singlemode or multimode ber networks run-
ing at ATM, Gigabit and 10 GigaBit speeds.
All Optical Design
Requiring no power, Fiber Taps maintain permanent passive access ports without
introducing a point of failure or disturbing other network connections. These
passive Taps deliver full-duplex monitoring with zero impact on network trafc
around the clock.
Simply Plug It In
Full-duplex monitoring is a snap with a custom monitoring cable that sends
each side of the signal to a separate NIC on the monitoring device. All
monitoring and network cables are included with Net Optics Fiber Taps for
plug-and-play deployment.
Security and Visibility
Without an IP address, monitoring devices are isolated from the network, dramatically reducing their exposure to attacks. However, the monitoring device
connected to the Tap still sees all full-duplex trafc as if it were in-line, including
Layer 1 and Layer 2 errors.
Fiber Tap
1
Page 6
Key Features
Passive, Secure Technology
• Provides passive access without data stream interference or introducing a
point of failure
• All-optical design is optimized and tested for ber networks
• Permanent in-line installation without affecting network performance
• Passes all full-duplex trafc (including errors) from all layers for
comprehensive troubleshooting
• No IP address is needed for the Tap or monitoring device, enhancing
monitoring security
• Completely transparent to the network and requires no power
• Fully RoHS compliant
Ease of Use
• Front-mounted connectors make installation and operation quick and easy
• Connectors are perfectly angled to reduce cable strain
• Optional 19-inch rack frames hold up to 8 Taps, depending on model
purchased
• Compatible with all major manufacturers’ monitoring devices, including
protocol analyzers, probes, and intrusion detection systems
Unsurpassed Support
In the event that you require our assistance, our world-class technical support
is available to help you.
Fiber Tap
Support is available 24x7 for customers with a Premium Service Plan, and
from 7:00 a.m. to 5:30 p.m. PST, Monday through Friday, for all other customers.
If, at any time, you have questions, please feel free to contact us by using one
of the following methods:
• Phone: (408) 737-7777
• Email: ts-support@netoptics.com
• Customer Portal: http://customer.netoptics.com/portal
2
Page 7
About This Guide
Please read this guide before attempting to install the Fiber Tap. This guide
covers the following models:
Part Number Description
TP-50SXn*-LCSLM GigaBit Multimode LC Fiber Slim Tap (SX) 50um
TP-SXn*-LCSLM GigaBit Multimode LC Fiber Slim Tap (SX)
TP-LXn*-LCSLM GigaBit Singlemode LC Fiber Slim Tap (LX)
TP-50SRn*-LCSLM 10 GigaBit Multimode LC Fiber Slim Tap (SR) 50um
TP-SRn*-LCSLM 10 GigaBit Multimode LC Fiber Slim Tap (SR)
TP-LRn*-LCSLM 10 GigaBit Singlemode LC Fiber Slim Tap (LR)
TP-ERn*-LCSLM 10 GigaBit Singlemode LC Fiber Slim Tap (ER) 1550um
* The letter “n” is the split ratio where 5 is 50/50, 4 is 60/40, 3 is 70/30, 2 is
80/20, and 1 is 90/10.
Fiber Tap
3
Page 8
Unpacking and Inspection
Carefully unpack the Fiber Tap and check for damaged or missing parts. The
Fiber Tap ships with the following:
• Fiber Tap
• Test report
• Installation Guide
You may have also ordered a panel for rack mounting and an extended warranty. Carefully check the packing slip against parts received. If any part is
missing or damaged, contact the Net Optics Customer Service Department
immediately.

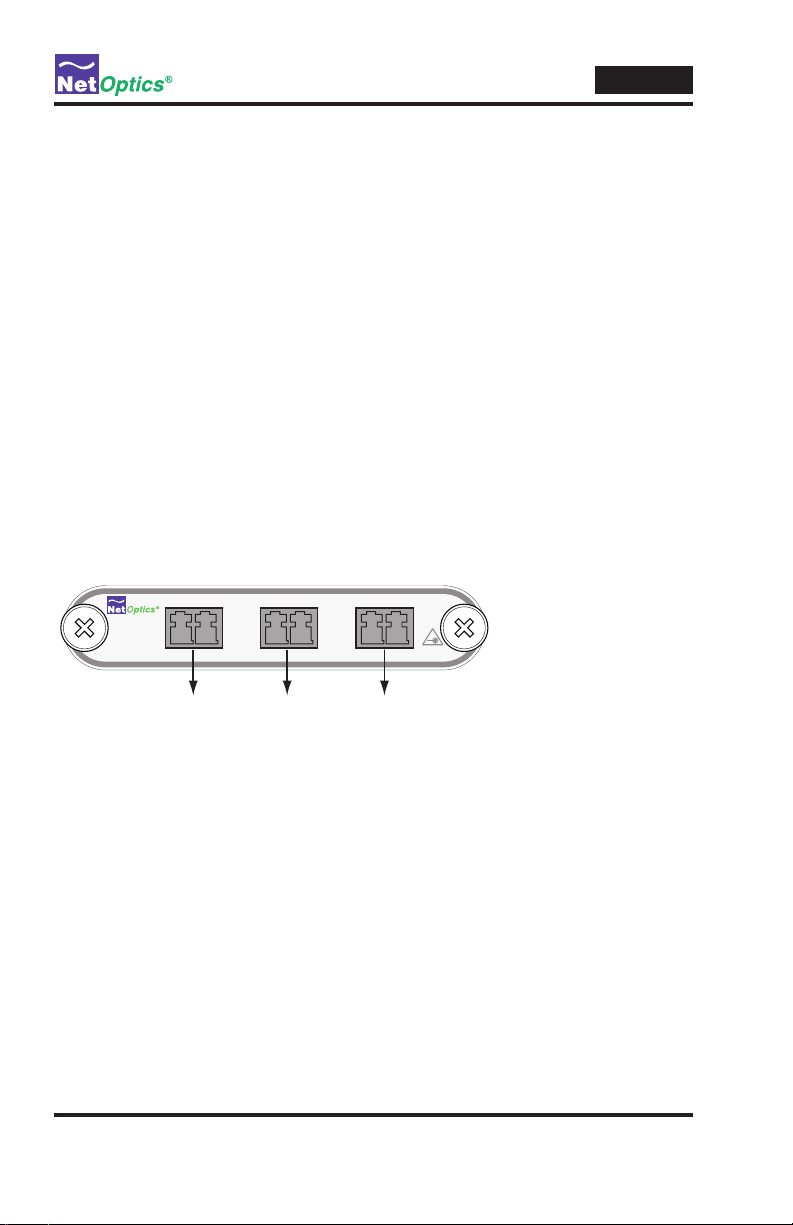

Product Diagram
Figure 1: Front Panel LC Models
Fiber Tap
Splitter TapSplitter Tap
www.netoptics.com
A B AA BB
OUT OUT OUT OUTIN IN
Network A Network B Monitor
A and B
4
LASER
CAUTION!
Page 9
Fiber Tap

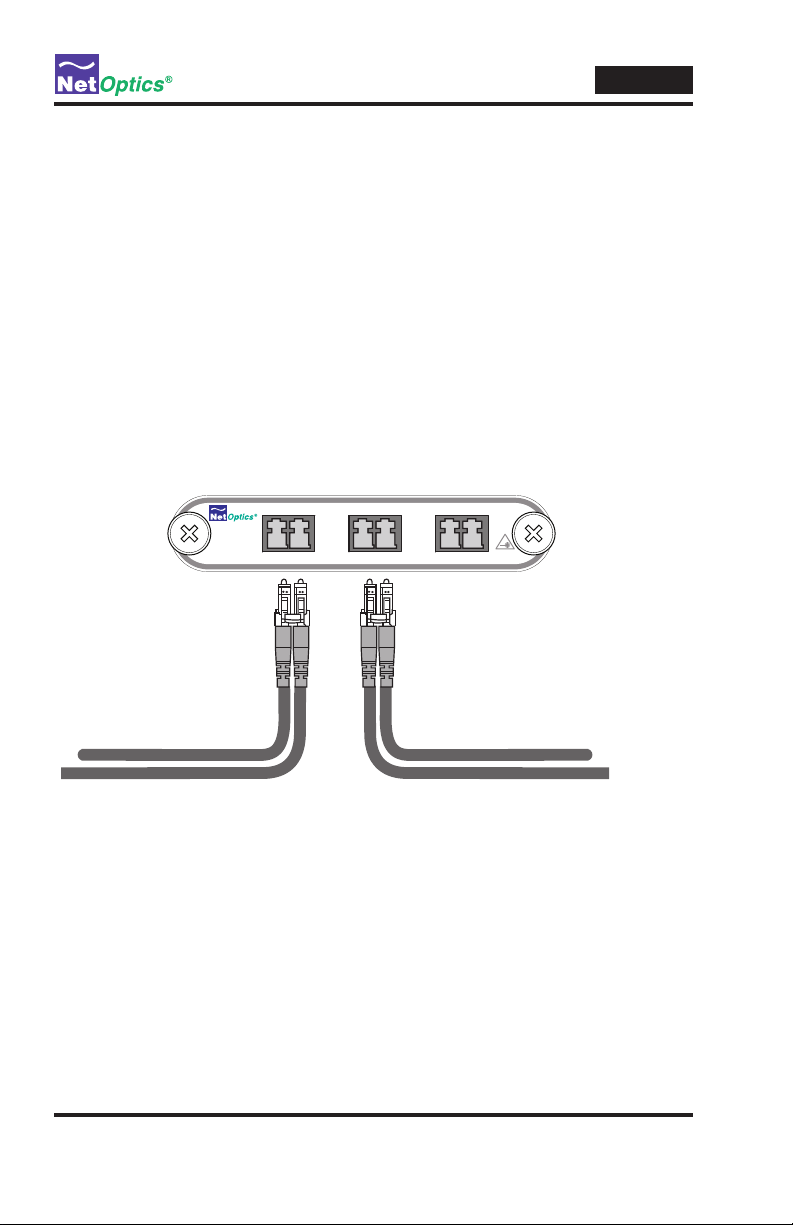

Connecting to the Network
1. Connect Network Port A to the appropriate network device using a Duplex
LC cable.
2. Connect Network Port B to the appropriate network device using a Duplex
LC cable.
3. Verify that the Tap Network Ports are cabled in-line between two devices.
Note: ________________________________________________________________
The use of Singlemode (8.5μm), Multimode (50μm or 62.5μm), or LC cabling
is determined by the model purchased.
______________________________________________________________________
Splitter TapSplitter Tap
www.netoptics.com
A B AA BB
OUT OUT OUT OUTIN IN
To Network Device
Figure 3: Connecting to the Network
LASER
CAUTION!
To Network Device
5
Page 10
Fiber Tap

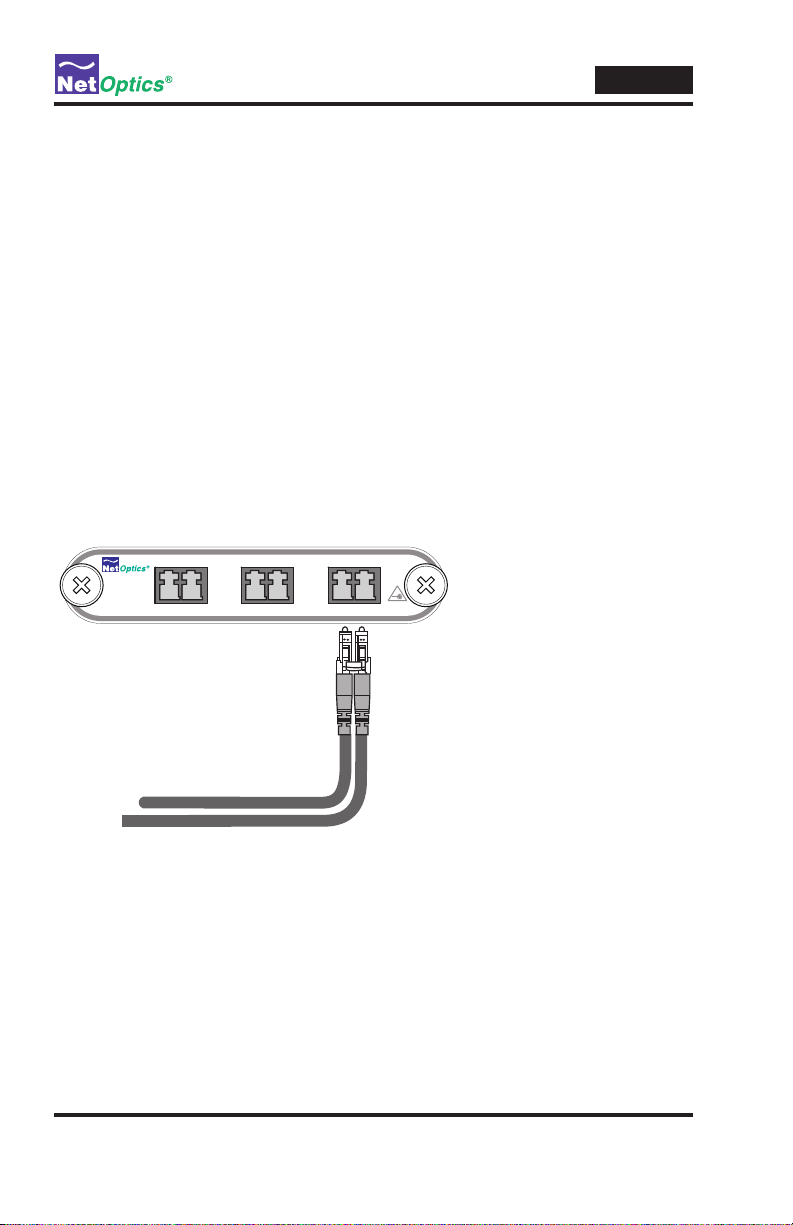

Connecting to the Monitoring Device
1. Connect to the Monitor Port using the included custom LC analyzer cable.
2. Connect one side of the twin-duplex ber cable into a RX port on the
monitoring device to view one side of the full-duplex link.
3. Connect the other side of the twin-duplex ber cable into another RX port
on the monitoring device to view the other side of the full-duplex link.
4. Verify that the Tap Monitor Port is cabled to the monitoring device.
Note: ________________________________________________________________
The connectors on the twin-duplex side of the custom analyzer cable contain
RX connections only. The empty TX sides are present to eliminate cabling
errors and should also be connected to the monitoring device.
______________________________________________________________________
Splitter TapSplitter Tap
www.netoptics.com
A B AA BB
OUT OUT OUT OUTIN IN
LASER
CAUTION!
To Monitoring Device
Figure 4: Connecting the Monitoring Device (LC model shown)
6
Page 11
Specications
Splitter Specications
Fiber Type:
Corning Multimode 62.5/125µm, wavelength 850nm
Corning Multimode 50/125µm, wavelength 850nm
Fiber Tap
Split Ratio
Network Port
Insertion Loss
50/50 ≤ 4.5 dB ≤ 4.5 dB
80/20 ≤ 1.8 dB ≤ 8.1 dB
70/30 ≤ 2.4 dB ≤ 6.3 dB
60/40 ≤ 3.1 dB ≤ 5.1 dB
90/10 ≤ 1.3 dB ≤ 11.5 dB
Fiber Type:
Corning Singlemode 8.5/125µm, wavelength 1310nm
Corning Singlemode 8.5/125µm, wavelength 1550nm
Split Ratio
Network Port
Insertion Loss
50/50 ≤ 3.7 dB ≤ 3.7 dB
80/20 ≤ 1.3 dB ≤ 8.0 dB
70/30 ≤ 2.0 dB ≤ 6.1 dB
60/40 ≤ 2.8 dB ≤ 4.8 dB
90/10 ≤ 0.8 dB ≤ 12.0 dB
Environment
Operating Temperature: 0˚C to 40˚C
Storage Temperature: -10˚C to 70˚C
Relative Humidity: 10% min, 95% max, non-condensing
Mechanical
LC Model Dimensions: 0.8” high x 5.5” deep x 4” wide
Connectors
(1) Duplex LC connector (monitor port)
(2) Duplex LC connectors (network ports)
Certications
Fully RoHS compliant
Monitor Port
Insertion Loss
Monitor Port
Insertion Loss
7
Page 12
Labels
Fiber Tap

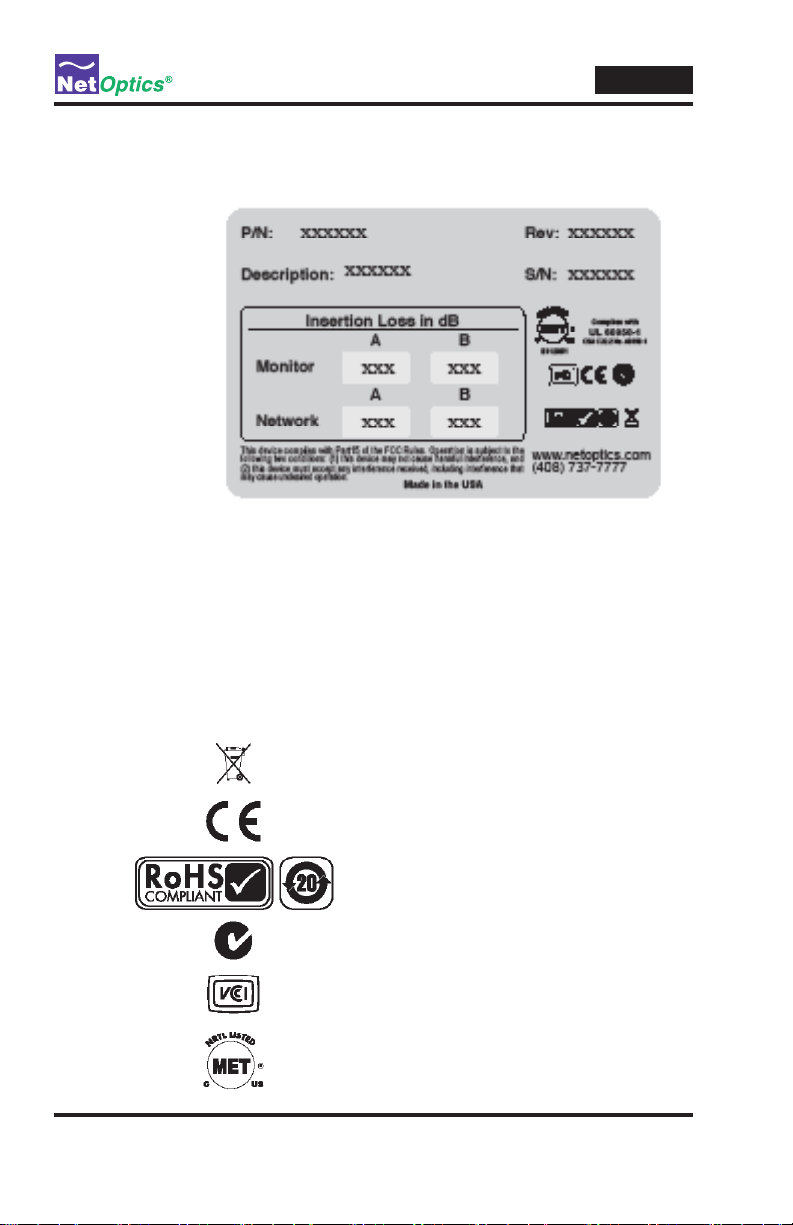

The product label shown here can be found on the top cover of the Tap.
The label displays the following information pertaining to the particular unit:
P/N: Part number (model number)
Rev: Revision level
Description: Model description
S/N: Serial number
Insertion Loss in dB: Light insertion loss measured at each port
The symbols are as follows:
Indicates WEEE compliance
Indicates CE compliance
Indicates RoHS compliance
Indicates C-Tick compliance
Indicates VCCI compliance
Indicates MET compliance (U.S.A. safety)
8
Page 13
Fiber Tap

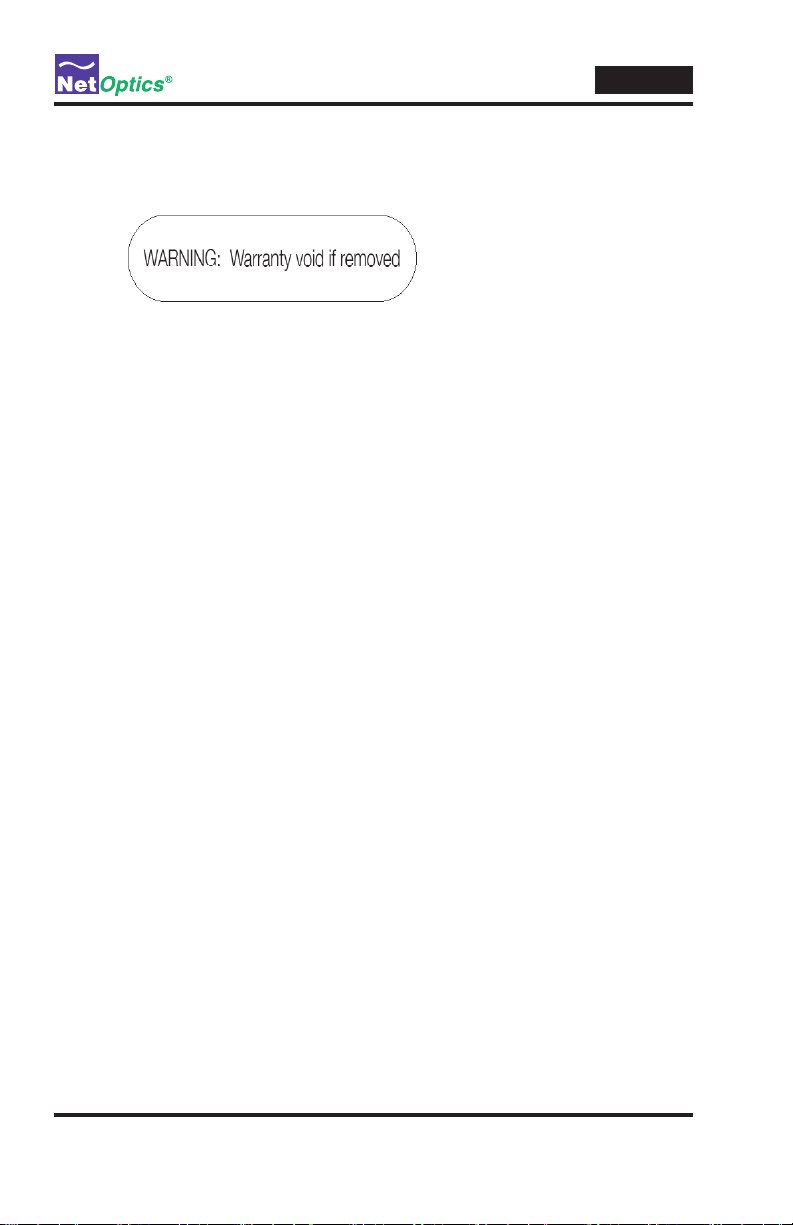

In addition, the label shown here prevent you from taking the cover off of the
unit without voiding your warranty. You should not take the cover off because
there are no user-serviceable parts inside.
9
Page 14
Fiber Tap
Limitations on Warranty and Liability
Net Optics offers a limited warranty for all its products. IN NO EVENT SHALL NET OPTICS, INC.
BE LIABLE FOR ANY DAMAGES INCURRED BY THE USE OF THE PRODUCTS (INCLUDING BOTH HARDWARE AND SOFTWARE) DESCRIBED IN THIS MANUAL, OR BY ANY
DEFECT OR INACCURACY IN THIS MANUAL ITSELF. THIS INCLUDES BUT IS NOT LIMITED TO LOST PROFITS, LOST SAVINGS, AND ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT, even if Net
Optics has been advised of the possibility of such damages. Some states do not allow the exclusion
or limitation of implied warranties or liability for incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
Net Optics, Inc. warrants this Tap to be in good working order for a period of ONE YEAR from the
date of purchase from Net Optics or an authorized Net Optics reseller.
Should the unit fail anytime during the said ONE YEAR period, Net Optics will, at its discretion,
repair or replace the product. This warranty is limited to defects in workmanship and materials and
does not cover damage from accident, disaster, misuse, abuse or unauthorized modications.
If you have a problem and require service, please call the number listed at the end of this section and
speak with our technical service personnel. They may provide you with an RMA number, which must
accompany any returned product. Return the product in its original shipping container (or equivalent)
insured and with proof of purchase.
Additional Information
Net Optics, Inc. reserves the right to make changes in specications and other information contained
in this document without prior notice. Every effort has been made to ensure that the information in
this document is accurate. Net Optics is not responsible for typographical errors.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF
ALL OTHERS, EXPRESS OR IMPLIED. No Net Optics reseller, agent, or employee is authorized
to make any modication, extension, or addition to this warranty.
Net Optics is always open to any comments or suggestions you may have about its products and/or
this manual.
Send correspondence to
Net Optics, Inc.
5303 Betsy Ross Drive
Santa Clara, CA 95054 USA
Telephone: +1 (408) 737-7777
Fax: +1 (408) 745-7719
Email: info@netoptics.com/Internet: www.netoptics.com
All Rights Reserved. Printed in the U.S.A. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language,
in any form, by any means, without prior written consent of Net Optics, Inc., with the following
exceptions: Any person is authorized to store documentation on a single computer for personal use
only and that the documentation contains Net Optics’ copyright notice.
