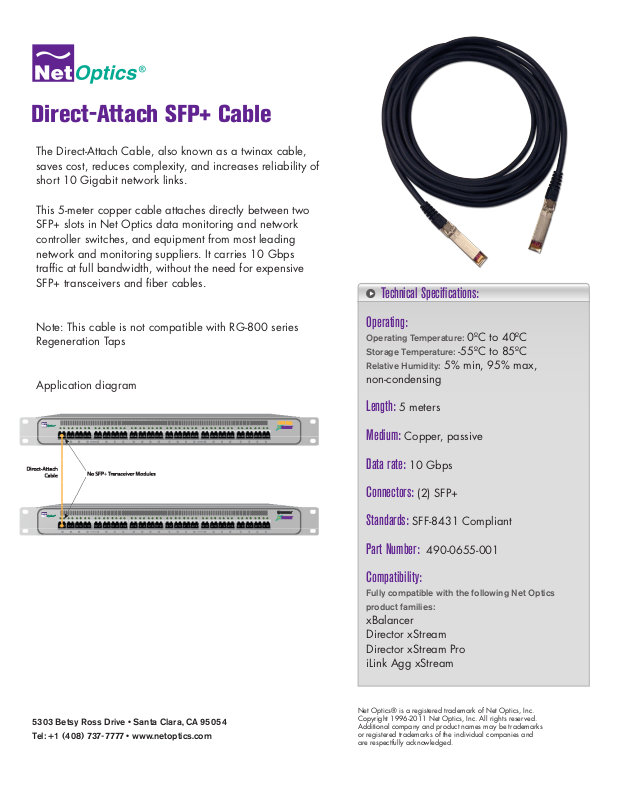

Net Optics Direct-Attach SFP+ Cable User Manual

Direct-Attach SFP+ Cable

The Direct-Attach Cable, also known as a twinax cable,
saves cost, reduces complexity, and increases reliability of
short 10 Gigabit network links.

This 5-meter copper cable attaches directly between two
SFP+ slots in Net Optics data monitoring and network
controller switches, and equipment from most leading
network and monitoring suppliers. It carries 10 Gbps
traffic at full bandwidth, without the need for expensive
SFP+ transceivers and fiber cables.

▶

Technical Specifications:

Note: This cable is not compatible with RG-800 series
Regeneration Taps

Application diagram

Operating:

Operating Temperature: 0ºC to 40ºC
Storage Temperature: -55ºC to 85ºC
Relative Humidity: 5% min, 95% max,

non-condensing

Length: 5 meters

Medium: Copper, passive

Data rate: 10 Gbps

Connectors: (2) SFP+

Standards: SFF-8431 Compliant

Part Number: 490-0655-001

Compatibility:

Fully compatible with the following Net Optics
product families:

xBalancer
Director xStream
Director xStream Pro
iLink Agg xStream
