Netopia R6100, R6131, R6120, R6161, R6000 Reference Manual

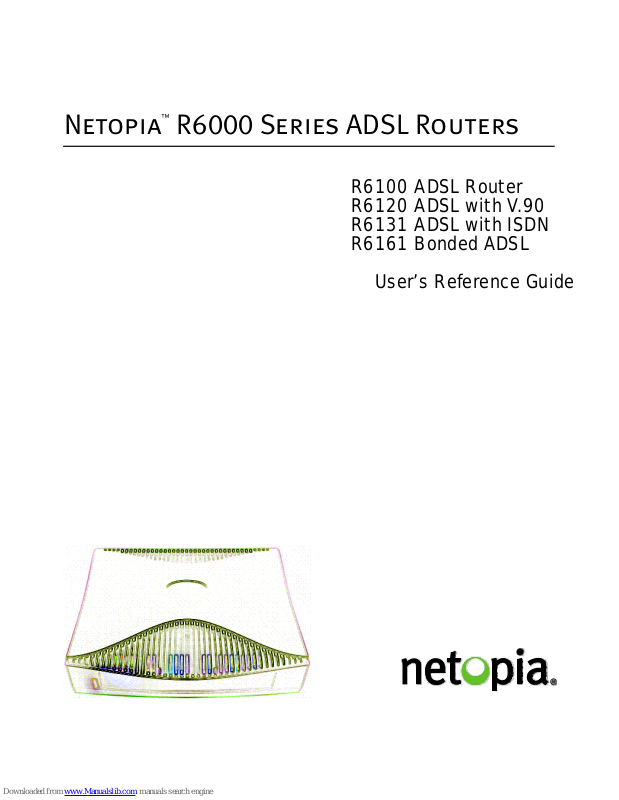

Netopia™ R6000 Series ADSL Routers

R6100 ADSL Router R6120 ADSL with V.90 R6131 ADSL with ISDN R6161 Bonded ADSL

User’s Reference Guide

This manual and any associated artwork, software, and product designs are copyrighted with all rights reserved. Under the copyright laws such materials may not be copied, in whole or part, without the prior written consent of Netopia, Inc. Under the law, copying includes translation to another language or format.

Netopia, Inc. 2470 Mariner Square Loop Alameda, CA 94501-1010 U.S.A.

Part Number

For additional copies of this electronic manual, order Netopia part number 6161077-PF-01

Printed Copies

For printed copies of this manual, order Netopia part number TER6100/Doc (P/N 6161077-00-01)

CCCCoooonnnntttteeeennnnttttss

Welcome to the Netopia R6000 Series ADSL Router designed to be your single source for information about your Netopia R6000 Series ADSL Router: R6100, R6120, R6131, or R6161. It is intended to be viewed on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been designed to present the maximum information in the minimum space on your screen. You can keep this document open while you perform any of the procedures described and ﬁnd useful information about the procedure you are performing.

This Table of Contents page you are viewing consists of hypertext links to the chapters and headings listed. If you are viewing this on-line, just click any link below to go to that heading.

User’s Reference Guide

. This guide is

Part I: Getting Started

Chapter 1 — Introduction..........................................................1-1

Overview....................................................................... 1-1

Features and capabilities ............................................... 1-1

How to use this guide .................................................... 1-2

Chapter 2 — Setting Up Internet Services .................................2-1

Finding an Internet service provider................................. 2-1

Unique requirements............................................ 2-2

Pricing and support.............................................. 2-2

Endorsements ..................................................... 2-2

Deciding on an ISP account............................................ 2-2

Setting up a Netopia R6000 Series account........... 2-2

Obtaining an IP address........................................ 2-2

Obtaining information from the ISP.................................. 2-3

Local LAN IP address information to obtain............ 2-3

G B

Chapter 3 — Making the Physical Connections..........................3-1

Find a location............................................................... 3-1

What you need .............................................................. 3-2

Identify the connectors and attach the cables.................. 3-3

Netopia R6000 Series ADSL Router back panel ports ...... 3-4

Netopia R6000 Series ADSL Router status lights............. 3-5

LEDs start-up sequence ....................................... 3-6

Chapter 4 — Connecting to Your Local Area Network.................4-1

Overview....................................................................... 4-1

Readying computers on your local network....................... 4-1

Connecting to an Ethernet network.................................. 4-3

iv User’s Reference Guide

Adding an external modem ............................................. 4-4

Connecting to a LocalTalk network ................................. 4-5

Chapter 5 — Sharing the Connection.........................................5-1

Conﬁguring TCP/IP on Windows 95, 98, or

2000 computers............................................................ 5-2

Dynamic conﬁguration (recommended)................... 5-2

Static conﬁguration (optional)................................ 5-3

Conﬁguring TCP/IP on Macintosh computers.................... 5-5

Dynamic conﬁguration (recommended)................... 5-5

Static conﬁguration (optional)................................ 5-6

Dynamic conﬁguration using MacIP (optional)......... 5-7

Chapter 6 — Console-Based Management.................................6-1

Connecting through a Telnet Session............................... 6-2

Conﬁguring Telnet software ................................... 6-3

Connecting a Console Cable to your Router ..................... 6-3

Navigating through the Console Screens.......................... 6-4

Navigating through the conﬁguration screens ......... 6-5

Chapter 7 — Easy Setup...........................................................7-1

Easy Setup console screens........................................... 7-1

Accessing the Easy Setup console screens............ 7-1

Quick Easy Setup connection path .................................. 7-3

ADSL Line Conﬁguration ....................................... 7-5

Easy Setup Proﬁle................................................ 7-5

IP Easy Setup ...................................................... 7-7

Easy Setup Security Conﬁguration ......................... 7-8

Part II: Advanced Configuration

Chapter 8 — WAN and System Conﬁguration .............................8-1

WAN Conﬁguration......................................................... 8-2

Line conﬁguration................................................. 8-3

Auxiliary Serial Port conﬁguration .......................... 8-7

Contents v

R6161 Multilink PPP-based Bonded ADSL

(WAN Module 2) Setup ......................................... 8-8

Delayed remote conﬁguration change toggle........... 8-9

Creating a New Connection Proﬁle................................. 8-11

RIP Proﬁle Options....................................................... 8-16

PPP Ethernet LAN Reconﬁguration................................. 8-18

Conﬁguration ..................................................... 8-18

Quick View......................................................... 8-19

The WAN Default Proﬁle................................................ 8-20

IP Parameters (Default Proﬁle) screen.................. 8-21

IPX parameters (default proﬁle) screen ................ 8-22

System Conﬁguration .................................................. 8-23

Network protocols setup..................................... 8-24

Filter sets (ﬁrewalls)........................................... 8-24

IP address serving ............................................. 8-24

Date and time.................................................... 8-24

Console conﬁguration......................................... 8-25

SNMP (Simple Network Management Protocol)..... 8-26

Security............................................................. 8-26

Upgrade feature set ........................................... 8-26

Logging ............................................................. 8-26

Installing the Syslog client .................................. 8-27

Chapter 9 — Dial Backup..........................................................9-1

WAN Conﬁguration......................................................... 9-2

Backup Conﬁguration screen................................. 9-6

IP Setup screen............................................................. 9-7

Connection Proﬁles........................................................ 9-8

Using Scheduled Connections with Backup...................... 9-8

Management/Statistics................................................ 9-11

QuickView ................................................................... 9-12

Event Logs.................................................................. 9-13

SNMP Support ............................................................ 9-13

vi User’s Reference Guide

Chapter 10 — IP Setup...........................................................10-1

IP setup...................................................................... 10-2

IP subnets......................................................... 10-5

Static routes...................................................... 10-7

IP address serving..................................................... 10-11

IP Address Pools.............................................. 10-14

DHCP NetBIOS Options..................................... 10-16

MacIP (KIP forwarding) setup ............................ 10-18

More Address Serving Options.................................... 10-19

Conﬁguring the IP Address Server options.......... 10-20

DHCP Relay Agent...................................................... 10-25

Connection Proﬁles.................................................... 10-27

Chapter 11 — Multiple Network Address Translation

(MultiNAT) .......................................................11-1

Overview..................................................................... 11-1

Features............................................................ 11-2

Enhancements................................................... 11-5

Supported trafﬁc................................................ 11-6

MultiNAT Conﬁguration................................................. 11-7

Basic conﬁguration – Easy Setup Proﬁle............... 11-7

Advanced conﬁguration – Server Lists and

Dynamic NAT...................................................... 11-8

IP setup............................................................. 11-9

Modifying map lists.......................................... 11-14

Moving maps................................................... 11-16

Adding Server Lists.................................................... 11-18

Modifying server lists ....................................... 11-21

Deleting a server ............................................. 11-23

Binding Map Lists and Server Lists............................. 11-24

IP proﬁle parameters........................................ 11-24

IP Parameters (WAN Default Proﬁle)................... 11-26

NAT Associations....................................................... 11-28

Contents vii

MultiNAT Conﬁguration Example.................................. 11-30

Firmware Upgrades and NAT....................................... 11-34

Chapter 12 — IPX Setup.........................................................12-1

IPX features ................................................................ 12-1

IPX deﬁnitions ............................................................. 12-1

Internetwork Packet Exchange (IPX) ..................... 12-1

IPX address....................................................... 12-2

Socket .............................................................. 12-2

Routing Information Protocol (RIP) ....................... 12-2

Service Advertising Protocol (SAP)....................... 12-2

NetBIOS............................................................ 12-3

IPX spooﬁng....................................................... 12-3

IPX setup screen ......................................................... 12-3

IPX routing tables ........................................................ 12-5

Chapter 13 — AppleTalk Setup................................................13-1

AppleTalk networks ...................................................... 13-1

AppleTalk protocol.............................................. 13-1

MacIP................................................................ 13-3

AURP................................................................. 13-3

Routers and seeding .......................................... 13-3

Installing AppleTalk ...................................................... 13-4

Conﬁguring AppleTalk ................................................... 13-6

EtherTalk setup.................................................. 13-6

LocalTalk setup ................................................. 13-7

AURP setup ....................................................... 13-8

Chapter 14 — Monitoring Tools...............................................14-1

Quick View status overview .......................................... 14-1

General status................................................... 14-2

Current status ................................................... 14-3

Status lights...................................................... 14-3

Statistics & Logs......................................................... 14-4

viii User’s Reference Guide

General Statistics .............................................. 14-4

Event histories ............................................................ 14-5

Routing tables............................................................. 14-7

Served IP Addresses.................................................. 14-10

System Information.................................................... 14-12

SNMP....................................................................... 14-12

The SNMP Setup screen................................... 14-13

SNMP traps..................................................... 14-14

Web-based management pages .................................. 14-16

System Information page.................................. 14-16

Event History pages ......................................... 14-17

Chapter 15 — Virtual Private Networks (VPN) .........................15-1

Overview..................................................................... 15-1

About PPTP Tunnels..................................................... 15-4

PPTP conﬁguration.............................................. 15-4

Encryption Support...................................................... 15-7

About IPsec Tunnels..................................................... 15-8

Conﬁguration ..................................................... 15-8

IP Proﬁle Parameters........................................ 15-11

Advanced IP Proﬁle Options............................... 15-12

VPN Default Answer Proﬁle......................................... 15-13

VPN QuickView .......................................................... 15-15

Dial-Up Networking for VPN......................................... 15-15

Installing Dial-Up Networking............................. 15-16

Creating a new Dial-Up Networking proﬁle .......... 15-17

Conﬁguring a Dial-Up Networking proﬁle ............. 15-17

Installing the VPN Client............................................. 15-19

Windows 95 VPN installation............................. 15-19

Windows 98 VPN installation............................. 15-19

Connecting using Dial-Up Networking................. 15-20

About ATMP Tunnels................................................... 15-20

ATMP conﬁguration........................................... 15-21

Contents ix

Allowing VPNs through a Firewall................................. 15-24

PPTP example.................................................. 15-25

ATMP example................................................. 15-28

Chapter 16 — Security ...........................................................16-1

Suggested Security Measures....................................... 16-1

User Accounts............................................................. 16-1

Dial-in Console Access................................................. 16-4

RADIUS Client Support................................................. 16-5

RADIUS client conﬁguration................................. 16-5

Warning alerts ................................................... 16-7

Enable SmartStart/SmartView/Web Server................... 16-8

Telnet Access.............................................................. 16-9

About Filters and Filter Sets.......................................... 16-9

What’s a ﬁlter and what’s a ﬁlter set?.................. 16-9

How ﬁlter sets work............................................ 16-9

How individual ﬁlters work................................. 16-11

Design guidelines............................................. 16-16

Working with IP Filters and Filter Sets.......................... 16-17

Adding a ﬁlter set............................................. 16-18

Viewing ﬁlter sets............................................. 16-22

Modifying ﬁlter sets.......................................... 16-22

Deleting a ﬁlter set........................................... 16-23

A sample IP ﬁlter set........................................ 16-23

IPX Filters.................................................................. 16-27

IPX packet ﬁlters.............................................. 16-28

IPX packet ﬁlter sets ........................................ 16-29

IPX SAP ﬁlters.................................................. 16-31

IPX SAP ﬁlter sets ............................................ 16-33

Firewall Tutorial ......................................................... 16-35

General ﬁrewall terms ...................................... 16-35

Basic IP packet components............................. 16-35

Basic protocol types......................................... 16-35

x User’s Reference Guide

Firewall design rules......................................... 16-36

Filter basics..................................................... 16-39

Example ﬁlters................................................. 16-40

Filtering on the LAN Interface...................................... 16-43

Chapter 17 — Utilities and Diagnostics...................................17-1

Ping............................................................................ 17-2

Trace Route................................................................. 17-4

Telnet client................................................................. 17-5

Disconnect Telnet console session ............................... 17-7

Factory defaults........................................................... 17-7

Transferring conﬁguration and ﬁrmware ﬁles with TFTP.... 17-8

Updating ﬁrmware .............................................. 17-8

Downloading conﬁguration ﬁles ........................... 17-9

Uploading conﬁguration ﬁles ............................. 17-10

Transferring conﬁguration and ﬁrmware ﬁles with

XMODEM................................................................... 17-10

Updating ﬁrmware ............................................ 17-11

Downloading conﬁguration ﬁles ......................... 17-12

Uploading conﬁguration ﬁles ............................. 17-12

Restarting the system................................................ 17-13

Part III: Appendixes

Appendix A — Troubleshooting..................................................A-1

Conﬁguration problems .................................................. A-1

Console connection problems ............................... A-2

Network problems................................................ A-2

How to Telnet or Console to your Router from a

Windows 9X Workstation................................................ A-3

How to reset the router to factory defaults .................... A-11

Power outages............................................................. A-11

Technical support ........................................................ A-12

How to reach us................................................. A-12

Contents xi

Appendix B — Understanding IP Addressing ..............................B-1

What is IP?.................................................................... B-1

About IP addressing....................................................... B-1

Subnets and subnet masks .................................. B-2

Example: Using subnets on a Class C IP internet.... B-3

Example: Working with a Class C subnet................ B-5

Distributing IP addresses ............................................... B-6

Technical note on subnet masking......................... B-7

Conﬁguration ....................................................... B-7

Manually distributing IP addresses ........................ B-8

Using address serving.......................................... B-9

Tips and rules for distributing IP addresses............ B-9

Nested IP subnets....................................................... B-11

Broadcasts.................................................................. B-14

Packet header types........................................... B-14

Appendix C — Binary Conversion Table......................................C-1

Appendix D — Further Reading .................................................D-1

Appendix E — Technical Speciﬁcations and Safety Information...E-1

Pinouts for Auxiliary port modem cable............................ E-1

Description.................................................................... E-2

Power requirements ............................................. E-2

Environment ........................................................ E-2

Software and protocols......................................... E-3

Agency approvals........................................................... E-4

Regulatory notices ............................................... E-4

Important safety instructions ................................ E-7

Appendix F — About ADSL........................................................F-1

Glossary..................................................................................GL-1

Index ..................................................................................Index-1

Limited Warranty and Limitation of Remedies................................1

xii User’s Reference Guide

PPPPaaaarrrrtttt IIII:::: GGGGeeeettttttttiiiinnnngggg SSSSttttaaaarrrrtttteeeedd

User’s Reference Guide

Introduction 1-1

CCCChhhhaaaapppptttteeeerrrr 11

IIIInnnnttttrrrroooodddduuuuccccttttiiiioooonn

Overview

The Netopia R6000 Series ADSL Router is a full-featured, stand-alone, multiprotocol router for connecting diverse local area networks (LANs) to the Internet and other remote networks. Once your Netopia R6000 Series ADSL Router is connected to your computer, and your account is activated by your network service provider , you will have a fast Asymmetric Digital Subscriber Line (ADSL) connection between your PC or LAN and the telephone company’s network of high-speed digital facilities. This guide covers the R6100, R6120, and R6131 ADSL routers with built-in Dial Backup capability as well as the R6161 Bonded DSL routers.

This section covers the following topics:

“Features and capabilities” on page 1-1

■

“How to use this guide” on page 1-2

■

Features and capabilities

The Netopia R6000 Series ADSL Router provides the following features:

Dial Backup to an external or internal WAN interface:

■

your own analog or ISDN modem connected to the Auxiliary port on model R6100, or an optional V.90 modem or ISDN WAN interface module upgrade card installed in the router. Either

■

upgrade card can be purchased separately. (order TER/20 for V.90 or TER/31U for ISDN-U interfaces or TER/31S for ISDN-S/T interfaces)

Alternatively, Netopia offers the R6120 ADSL Router with built-in V.90 backup and the R6131 ADSL Router with built-in ISDN backup.

Built-in secure VPN to connect remote branch ofﬁces, travelers, and remote workers

■

Built-in packet ﬁltering ﬁrewall to protect LAN resources from would-be intruders on the Internet

■

Network Address Translation (NAT) and Multiple Network Address Translation (MultiNAT), offering businesses and service providers added security, convenience, and ﬂexibility in designing their IP addressing scheme

■

IP and IPX routing for Internet and intranet connectivity

■

DHCP IP address serving (over Ethernet or a WAN link) that allows local or remote network nodes to acquire an IP address automatically and dynamically from a designated pool of available addresses

Multi-speed asymmetrical transmission to provide scalability without additional equipment investment. The

■

Netopia R6000 Series supports both G.lite and G.dmt protocols. Connection speeds for these protocols range from up to 1.5 Mbps downstream and 512 Kbps upstream for G.Lite to 8 Mbps downstream and 640Kbps upstream for G.dmt. Different DSLAMs may train at higher or lower speeds.

1-2 User’s Reference Guide

■

All digital, continuous-availability networking, eliminating dialing and providing lower, more predictable transmission costs

Connectivity to Ethernet LANs via a built-in 8-port 10Base-T hub with uplink port

■

Status lights (LEDs) for easy monitoring and troubleshooting

■

Support for console-based management over Telnet or serial cable connection Support for remote conﬁguration by your reseller, your network administrator, or technicians at Netopia,

■

Inc., via internal or external modem or IP network

■

Wall-mountable, bookshelf (side-stackable), or desktop-stackable design for efﬁcient space usage

■

Two-user license of Timbuktu Pro remote control and collaboration software for Windows and Macintosh provided free with your registration

■

Web-based management pages aid in managing your router. Internet browsers such as Netscape Navigator and Microsoft’s Internet Explorer can be used for the Web-based management pages.

AppleTalk support (available as a separate add-on AppleTalk kit, including a ﬁrmware feature set

■

enhancement and custom HD-15 dual RJ-11 PhoneNET® connector), allowing for LocalTalk-to-Ethernet routing, assigning IP addresses to Macintosh users (MacIP), IP functionality for LocalT alk users, and AURP tunneling for connectivity between remote AppleTalk networks

How to use this guide

This guide is designed to be your single source for information about your Netopia R6000 Series ADSL Router. It is intended to be viewed on-line, using the powerful features of the Adobe Acrobat Reader. The information display has been deliberately designed to present the maximum information in the minimum space on your screen. You can keep this document open while you perform any of the procedures described and ﬁnd useful information about the procedure you are performing.

If you prefer to work from hard copy rather than on-line documentation, you can also print out all of the manual, or individual sections. The pages are formatted to print on standard 8 1/2 by 11 inch paper. We recommend that you print on three-hole punched paper, so you can put the pages in a binder for future reference. For your convenience, a printed copy can be purchased from Netopia. Order part number TER6100/Doc.

This guide is organized into chapters describing the Netopia R6000 Series’s advanced features. You may want to read each chapter’s introductory section to familiarize yourself with the various features available.

Use the guide’s table of contents and index to locate informational topics.

Setting Up Internet Services 2-1

CCCChhhhaaaapppptttteeeerrrr 22

SSSSeeeettttttttiiiinnnngggg UUUUpppp IIIInnnntttteeeerrrrnnnneeeetttt SSSSeeeerrrrvvvviiiicccceeeess

This chapter describes how to obtain and set up Internet services. This section covers the following topics:

■

“Finding an Internet service provider” on page 2-1 “Deciding on an ISP account” on page 2-2

■

“Obtaining information from the ISP” on page 2-3

■

Note:

use the Netopia R6000 Series to access the Internet via the main ofﬁce in a point-to-point scenario. If you install the Netopia R6000 Series in this type of environment, refer to the following sections for speciﬁc information you must receive from the network administrator to conﬁgure the Netopia R6000 Series properly.

Some companies act as their own ISP. For example, some organizations have branch ofﬁces that can

Finding an Internet service provider

The Netopia R6000 Series ADSL Router provides its high speed asymmetric digital connection to the Internet through a Competitive Local Exchange Carrier (CLEC) -- a type of mini phone company. The CLEC uses a compatible type of switching equipment known as a Digital Subscriber Line Access Multiplexer (DSLAM) or access concentrator. The DSLAM that you connect to with your Netopia Router must be capable of handling these asymmetric connections.

If you have purchased your Netopia Router through a Netopia ISP partner, you can be sure that an account that supports ADSL connections will be available.

If your area has more than one ISP , the following considerations will help you decide which ISP is best suited for your requirements.

In determining which Internet service provider (ISP) to establish your account with, make sure that your ISP supports connections via a CLEC with a compatible DSLAM.

Use an ISP that provides Internet access through an Asymmetric Digital Subscriber Line (ADSL) and that supports the Netopia R6000 Series ADSL Router. If you would like to use an ISP that you already have a relationship with but that is not familiar with the Netopia R6000 Series, contact your distributor, or in North America call 1-800-NETOPIA. A full listing of distributors is available on the Netopia web site at www .netopia.com. Our representative can call your ISP and introduce them to the product. If necessary , we will provide them with the technical background they need to support the product.

2-2 User’s Reference Guide

Unique requirements

Make sure the ISP can meet any unique requirements you may have, such as:

■

Dynamic or static IP addressing Class C IP address

■

Custom domain name

■

Multiple e-mail addresses Web site hosting

■

Pricing and support

Compare pricing, service, and technical support service among various ISPs.

Endorsements

Consider recommendations from colleagues and reviews in publications. Netopia lists Netopia partner ISPs on our Web site at

http://www.netopia.com/equipment/partners/buspartner.html

Deciding on an ISP account

Your ISP may offer various Internet access account plans. Typically, these plans vary by usage charges and the number of host IP addresses supplied. Evaluate your networking needs and discuss them with your ISP before deciding on a plan for your network.

Setting up a Netopia R6000 Series account

Check whether your ISP has the Netopia R6000 Series on its list of supported products that have been tested with a particular conﬁguration. If the ISP does not have the Netopia R6000 Series on such a list, describe the Netopia R6000 Series in as much detail as needed, so your ISP account can be optimized. As appropriate, refer your ISP to Netopia’s Web site, www.netopia.com, for more information.

Obtaining an IP address

Typically, each network computer that requires Internet access requires its own unique IP address. If some or all network computers require simultaneous Internet access, obtain a block of IP host addresses large enough for each computer to have its own address, plus one for the Netopia R6000 Series.

Consider expected growth in your network when deciding on the number of addresses to obtain. Alternatively, you can use the Network Address Translation feature.

Network Address Translation provides Internet access to the network connected to the Netopia R6000 Series using only a single IP address. These routers translate between the internal or local area network (LAN) addresses and a single external IP address and route accordingly.

For more information on Network Address Translation, see Chapter 10, “IP Setup.”

Setting Up Internet Services 2-3

Obtaining information from the ISP

After your account is set up, your ISP may send you IP parameters for you to use on your LAN. While you may determine your own IP addressing scheme using NAT , there are a few key parameters that must come from your ISP.

Local LAN IP address information to obtain

Your ISP will need to provide you with the following information:

The default gateway IP address (same as remote IP address in most cases)

■

Local WAN IP address and subnet mask

■

Primary and secondary domain name server (DNS) IP addresses Domain name (usually the same as the ISP’s domain name unless you have registered for your own

■

individual domain name)

Note:

The default gateway, WAN address and mask, DNS, and domain name are all obtainable via WAN DHCP,

if your ISP supports it.

With Network Address Translation

If you are using NAT, you should obtain the following:

■

If you are connecting to a remote site using Network Address Translation on your router, your provider will not deﬁne the IP address information on your local LAN. You can deﬁne this information based on an IP conﬁguration that may already be in place for the existing network. Alternatively, you can use the default IP address used by the router, 192.168.1.1, with a subnet mask of 255.255.255.0.

Without Network Address Translation

If you are not using Network Address Translation, you will need to obtain all of the local LAN IP address information from your ISP.

If you are not using NAT, you should obtain:

■

The number of Ethernet IP host addresses available with your account and the ﬁrst usable IP host address in the address block

■

The Ethernet IP address for your Netopia R6000 Series The Ethernet IP subnet mask address for your Netopia R6000 Series

■

2-4 User’s Reference Guide

Making the Physical Connections 3-1

CCCChhhhaaaapppptttteeeerrrr 33

MMMMaaaakkkkiiiinnnngggg tttthhhheeee PPPPhhhhyyyyssssiiiiccccaaaallll CCCCoooonnnnnnnneeeeccccttttiiiioooonnnnss

This section tells you how to make the physical connections to your Netopia R6000 Series ADSL Router. This section covers the following topics:

■

“Find a location” on page 3-1

■

“What you need” on page 3-2

■ “Identify the connectors and attach the cables” on page 3-3

■ “Netopia R6000 Series ADSL Router back panel ports” on page 3-4

■ “Netopia R6000 Series ADSL Router status lights” on page 3-5

Find a location

When choosing a location for the Netopia Router, consider:

■ Available space and ease of installation

■ Physical layout of the building and how to best use the physical space available for connecting your Netopia

Router to the LAN

■ Available wiring and jacks

■ Distance from the point of installation to the next device (length of cable or wall wiring)

■ Ease of access to the front of the unit for conﬁguration and monitoring

■ Ease of access to the back of the unit for checking and changing cables

■ Cable length and network size limitations when expanding networks

For small networks, install the Netopia R6000 Series near one of the LANs. For large networks, you can install the Netopia R6000 Series in a wiring closet or a central network administration site.

3-2 User’s Reference Guide

What you need

Locate all items that you need for the installation. Included in your router package are:

■ The Netopia R6000 Series (R6100, R6120, R6131, or R6161) ADSL Router

■ A power brick and cord with a mini-DIN8 connector

■ A power brick-to-wall outlet adapter cord

■ Two (2) RJ45 cables

■ One (1) DSL line adapter

■ One (1) DB-9 to DB-9 console cable

■ The Netopia CD containing an Internet browser, Adobe Acrobat Reader for Windows and Macintosh, ZTerm

terminal emulator software and NCSA Telnet for Macintosh, and documentation

You will need:

■ A Windows 95, 98, 2000, or NT–based PC or a Macintosh computer with Ethernet connectivity for

conﬁguring the Netopia R6000 Series. This may be built-in Ethernet or an add-on card, with TCP/IP installed and conﬁgured. See Chapter 5, “Sharing the Connection.”

■ An ADSL wall outlet wired for a connection to a Competitive Local Exchange Carrier (CLEC) or other service

provider that supports Asymmetric Digital Subscriber Line connections.

Note: You may also need to install a low-pass telephone line ﬁlter (not included) on each of the telephones you have connected to the line on which your DSL connection is installed. These line ﬁlters are designed to prevent interference between the router and the phone set, as well as to reduce the effect of POTS generated noise on the ADSL transceiver.

Making the Physical Connections 3-3

Identify the connectors and attach the cables

Identify the connectors and switches on the back panel and attach the necessary Netopia Router cables. The ﬁgure below displays the back of the Netopia R6000 Series ADSL Router.

Netopia R6000 Series back panel

Line ports

Ethernet

Auxiliary Console Power

Line 1

Auxiliary port

Console port

Power port

Crossover switch

8 port Ethernet hub

Normal

Line 2

Uplink

1. Connect the mini-DIN8 connector from the power brick to the power port on the router. Plug the power brick into the brick-to-wall outlet adapter cord. Plug the other end of the adapter cord into an electrical outlet.

2. Connect one end of one of the RJ-45 cables to the Line 1 port and the other end to your ADSL wall outlet.

Note: You may need to use the included DSL line adapter in order to accommodate the type of phone lines in your location. Some telephone connections have the copper line cable pairs reversed, and the line adapter is supplied to compensate for this conﬁguration.

3. Connect the other RJ-45 cable to your computer’s Ethernet port and to any of the Ethernet ports on the router.

(If you are connecting the router to an existing Ethernet hub, use Ethernet port #1 on the router and set the crossover switch to the Uplink position.)

You should now have the power adapter plugged in, the Ethernet cable connected between the router and your computer, and the ADSL cable connected between the router and the ADSL wall outlet.

Connecting the R6120 or R6131 Dial Backup ports

4. Connect one end of one of the RJ-45 cables to the Line 2 port and the other end to your analog telephone (R6120) or ISDN (R6131) wall outlet.

3-4 User’s Reference Guide

Netopia R6000 Series ADSL Router back panel ports

The following table describes all the Netopia R6000 Series ADSL Router back panel ports.

Port Description

Power port A mini-DIN8 power adapter cable connection. Line ports Two telephone-style jacks labeled Line 1 and Line 2. Line 1 is for your ADSL

connection. If you have an R6120 or R6131 model, the Line 2 port is for your analog or ISDN dial backup connection.

Console port A DB-9 console port for a direct serial connection to the console screens. You

can use this if you are an experienced user. See “Connecting a Console Cable

to your Router” on page 6-3.

Auxiliary port An HD-15 auxiliary port for attaching an external modem or the optional

AppleTalk kit.

Crossover switch A crossover switch with Normal and Uplink positions. If you use Ethernet Port

#1 for a direct Ethernet connection between a computer and the router, set the switch to the Normal position. If you are connecting the router to an Ethernet hub, use Ethernet port #1 on the router and set the switch to the Uplink position.

8-port Ethernet hub Eight Ethernet jacks. You will use one of these to conﬁgure the Netopia R6000

Series. For a new installation, use the Ethernet connection. Alternatively, you can use the console connection to run console-based management using a direct serial connection. You can either connect your computer directly to any of the Ethernet ports on the router, or connect both your computer and the router to an existing Ethernet hub on your LAN.

Making the Physical Connections 3-5

Netopia R6000 Series ADSL Router status lights

The ﬁgure below represents the Netopia R6000 Series status light (LED) panel.

Netopia R6000 Series LED front panel

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16171819 20 21

Link/Receive

Power

Management

WAN 1 WAN 2 Ethernet

Ready

Channel 2

Channel 1

Console

Auxiliary

Management

Ready

Channel 1

Channel 2

Trafﬁc

Collision

The following table summarizes the meaning of the various LED states and colors:

When this happens... the LEDs...

the ADSL interface is training 2 ﬂashes yellow the ADSL interface cannot detect the DSLAM

2 is yellow

(see the Troubleshooting appendix) the ADSL interface has trained and connected to the DSLAM 2 is off (and 4 is green.)

The WAN interface is operational 3 is green. The line is unavailable 3 ﬂashes red. The WAN has carrier 4 is green. Data is transmitted or received on the WAN 4 ﬂashes yellow. Carrier is asserted 6 and 7 are green. Data is transmitted or received 6 and 7 ﬂash yellow. Data is transmitted or received by the Ethernet controller 12 ﬂashes yellow. The Ethernet interface detects a collision 13 ﬂashes red. Link is detected 14 though 21 are green. Data are received on their respective ports 14 though 21 ﬂash green. Note: 5 and 8 through 11 are unused, since the ADSL link is carried only on WAN channel 1. Also, Console

carrier (6) is ignored if the console is not conﬁgured for a remote modem.

3-6 User’s Reference Guide

LEDs start-up sequence

The WAN 1 Management status light (LED #2 in the ﬁgure above) displays the status of the Netopia R6000 Series’ attempt to connect to the DSLAM.

When the router is powered on:

■ Initially the WAN 1 Management LED and the WAN1 Channel 1 LED (LED #4 in the ﬁgure above) are dark.

■ The WAN 1 Ready LED (LED #3 in the ﬁgure above) begins to blink red as the router attempts to establish

communication with the WAN interface.

■ The WAN 1 Ready LED goes solid green once it establishes communication with the WAN interface.

■ The WAN 1 Management LED will then be either solid yellow (no signal from DSLAM) or ﬂashing yellow;

then be dark between training attempts for a total cycle time of 3 seconds; then repeat as it trains.

■ Once trained, the WAN 1 Management LED goes dark, and the WAN 1 Channel 1 LED will be solid green.

It will ﬂash yellow for trafﬁc.

Connecting to Your Local Area Network 4-1

CCCChhhhaaaapppptttteeeerrrr 44

CCCCoooonnnnnnnneeeeccccttttiiiinnnngggg ttttoooo YYYYoooouuuurrrr LLLLooooccccaaaallll AAAArrrreeeeaaaa NNNNeeeettttwwwwoooorrrrkk

This chapter describes how to physically connect the Netopia R6000 Series to your local area network (LAN). Before you proceed, make sure the Netopia R6000 Series is properly conﬁgured. You can customize the router’s conﬁguration for your particular LAN requirements using console-based management (see

“Console-Based Management” on page 6-1).

This section covers the following topics:

■ “Overview” on page 4-1

■ “Readying computers on your local network” on page 4-1

■ “Connecting to an Ethernet network” on page 4-3

■ “Adding an external modem” on page 4-4

■ “Connecting to a LocalTalk network” on page 4-5

Overview

You can connect the Netopia R6000 Series to an IP network that uses Ethernet. If you have purchased the AppleTalk feature expansion kit, you can also connect the router to a LocalTalk

network that uses PhoneNET cabling. Additionally, you can connect an external modem. See “Adding an external modem” on page 4-4.

Caution!

Before connecting the Netopia R6000 Series to any AppleTalk LANs that contain other AppleTalk routers, you should read “Routers and seeding” on page 13-3.

See the later sections in this chapter for details on how to connect the Netopia R6000 Series to different types of networks.

Readying computers on your local network

PC and Macintosh computers must have certain components installed before they can communicate through the Netopia R6000 Series. The following illustration shows the minimal requirements for a typical PC or Macintosh computer.

4-2 User’s Reference Guide

Application software

TCP/IP stack

Ethernet/EtherTalk/LocalTalk Driver

Your PC or Macintosh computer

To the Netopia R6000 Series

Application software: This is the software you use to send e-mail, browse the World Wide Web, read newsgroups, etc. These applications may require some conﬁguration. Examples include the Eudora e-mail client and the Web browsers Microsoft Internet Explorer and Netscape Navigator.

TCP/IP stack: This is the software that lets your PC or Macintosh computer communicate using Internet protocols. TCP/IP stacks must be conﬁgured with some of the same information you used to conﬁgure the Netopia R6000 Series. There are a number of TCP/IP stacks available for PC computers. Windows 95 includes a built-in TCP/IP stack. See “Conﬁguring TCP/IP on Windows 95, 98, or 2000 computers” on page 5-2. Macintosh computers use either MacTCP or Open Transport. See “Conﬁguring TCP/IP on Macintosh

computers” on page 5-5.

Ethernet: Ethernet hardware and software drivers enable your PC or Macintosh computer to communicate on the LAN.

EtherTalk and LocalTalk: These are AppleTalk protocols used over Ethernet. Once the Netopia R6000 Series is properly conﬁgured and connected to your LAN, PC and Macintosh

computers that have their required components in place will be able to connect to the Internet or other remote IP networks.

Connecting to Your Local Area Network 4-3

Connecting to an Ethernet network

The Netopia R6000 Series supports Ethernet connections through its eight Ethernet ports. The router automatically detects which Ethernet port is in use.

You can connect a standard 10Base-T Ethernet network to the Netopia R6000 Series using any of its available Ethernet ports.

Netopia R6000 Series back panel

Ethernet

Line 2

Normal

Uplink

The Netopia R6000 Series in a 10Base-T network

T o connect your 10Base-T network to the Netopia R6000 Series through an Ethernet port, use a 10Base-T cable with RJ-45 connectors.

If you have more than eight devices to connect, you can attach additional devices using another 10Base-T hub.

Auxiliary Console Power

Ethernet

Line 1

Nor-

4-4 User’s Reference Guide

If you add devices connected through a hub, connect the hub to Ethernet port number 1 on the Netopia R6000 Series ADSL Router and set the Normal/Uplink crossover switch to Uplink.

Macintosh

Ethernet

Nor-

10Base-T

Hub

Adding an external modem

You may want to add an external modem to your Auxiliary port. Obtain the special DB-25 external modem cable (TE6/DB25) either from your reseller or directly from Netopia.

Netopia R6000 Series Auxiliary port for connecting an external modem

Ethernet

By default, the Auxiliary port on your Netopia R6000 Series is enabled for remote console conﬁguration via an external asynchronous modem. This means that all you have to do is connect your modem to the Auxiliary port and conﬁgure its settings in the Line Conﬁguration screens under the WAN Conﬁguration menu.

Line 2

Normal

Uplink

Auxiliary connection port HD-15 (female)

Auxiliary Console Power

Line 1

For pinout information on the HD-15 to DB-25 modem cable, see “Pinouts for Auxiliary port modem cable,” in

Appendix E, “Technical Speciﬁcations and Safety Information.”

Connecting to Your Local Area Network 4-5

Connecting to a LocalTalk network

If you have purchased the AppleTalk feature expansion kit, you can also connect the router to an AppleTalk network that uses either Ethernet or LocalTalk. Refer to the accompanying list of optional feature set add-ons for your Netopia R6000 Series.

The AppleTalk feature expansion kit includes a dual RJ-11 PhoneNET connector that attaches to the Auxiliary port on the Netopia R6000 Series.

Netopia R6000 Series Auxiliary port for connecting to LocalTalk

Ethernet

Auxiliary Console Power

Line 1

Normal

Line 2

Uplink

Auxiliary connection port HD-15 (female)

Connect the male HD-15 end of the LocalTalk cable to the Auxiliary port on your Netopia R6000 Series. Connect the other end of the cable to your LocalTalk network. You can use only one connection on the Auxiliary port. You cannot use both the PhoneNET connector and an external modem.

If your LocalTalk network is not based on standard PhoneNET cabling, use a PhoneNET-to-LocalTalk adaptor cable (available from Farallon). Connect the adaptor cable’s RJ-11 connector to the AppleT alk cable’s PhoneNET connector. Connect the cable’s mini-DIN-3 connector to your LocalTalk network.

Be sure to observe the standard rules governing maximum cable lengths and limits on the number of nodes on a PhoneNET network. The dual RJ-11 PhoneNET connector allows insertion in the LocalT alk daisy chain or at the end. If the device is connected at the end of the daisy chain, you must install the accompanying terminator.

For detailed conﬁguration instructions see “AppleTalk Setup” on page 13-1.

4-6 User’s Reference Guide

Sharing the Connection 5-1

CCCChhhhaaaapppptttteeeerrrr 55

SSSShhhhaaaarrrriiiinnnngggg tttthhhheeee CCCCoooonnnnnnnneeeeccccttttiiiioooonn

Once you have set up your physical local area network, you will need to conﬁgure the TCP/IP stack on each client workstation connected to your Netopia R6000 Series. This chapter describes how to conﬁgure TCP/IP for both Windows-based and Macintosh computers.

This chapter explains the following topics:

■ “Conﬁguring TCP/IP on Windows 95, 98, or 2000 computers” on page 5-2

■ “Conﬁguring TCP/IP on Macintosh computers” on page 5-5

5-2 User’s Reference Guide

Conﬁguring TCP/IP on Windows 95, 98, or 2000 computers

Conﬁguring TCP/IP on a Windows computer requires the following:

■ An Ethernet card (also known as a network adapter)

■ The TCP/IP protocol must be “bound” to the adapter or card

Dynamic conﬁguration (recommended)

To conﬁgure your PC for dynamic addressing do the following:

1. Go to the Start Menu/Settings/Control Panels and double click the Network icon. From the Network components list, select the Conﬁguration tab.

2. Select TCP/IP-->Your Network Card. Then select

Properties. In the TCP/IP Properties screen, select the IP Address tab. Click “Obtain an IP Address automatically”.

3. Click on the DNS Conﬁguration tab. Click Disable DNS. DNS will be assigned by the router with DHCP.

4. Click OK in this window and the next window. When prompted, reboot the computer.

Note: You can also use these instructions to conﬁgure other computers on your network to accept IP addresses served by the Netopia R6000 Series.

Sharing the Connection 5-3

Static conﬁguration (optional)

If you are manually conﬁguring for a ﬁxed or static IP address, perform the following:

1. Go to Start Menu/Settings/Control Panels and double click the Network icon. From the Network components list, select the Conﬁguration tab.

2. Select TCP/IP-->Your Network Card. Then select Properties. In the TCP/IP Properties screen, select the IP Address tab. Click “Specify an IP Address.”

Enter the following:

IP Address: 192.168.1.2 Subnet Mask: 255.255.255.0, or for 12-user models 255.255.255.240

This address is an example of one that can be used to conﬁgure the router. Your ISP or network administrator may ask you to use a different IP address and subnet mask.

5-4 User’s Reference Guide

3. Click on the Gateway tab (shown below). Under “New gateway,” enter

192.168.1.1. Click Add. This is the Netopia R6000 Series’s pre-assigned IP address.

Click on the DNS Conﬁguration tab. Click Enable DNS. Enter the following information:

Host: Type the name you want to give to this computer.

Domain: Type your domain name. If you don't have a domain name, type your ISP's domain name; for example, netopia.com.

DNS Server Search Order: Type the

primary DNS IP address given to you by your ISP. Click

Add. Repeat this process for the secondary DNS. Domain Sufﬁx Search Order: Enter the same domain

name you entered above.

4. Click OK in this window and the next window. When prompted, reboot the computer. Note: You can also use these instructions to conﬁgure other computers on your network with manual or static

IP addresses. Be sure each computer on your network has its own IP address.

Sharing the Connection 5-5

Conﬁguring TCP/IP on Macintosh computers

The following is a quick guide to conﬁguring TCP/IP for MacOS computers. Conﬁguring TCP/IP in a Macintosh computer requires the following:

■ You must have either Open Transport or Classic Networking (MacTCP) installed.

Note: If you want to use the Dynamic Host Conﬁguration Protocol (DHCP) server built into your Netopia R6000 Series to assign IP addresses to your Macintoshes, you must be running Open Transport, standard in MacOS 8 and optional in earlier system versions. You can have your Netopia R6000 Series dynamically assign IP addresses using MacTCP; however, to do so requires that the optional AppleTalk kit be installed which can only be done after the router is conﬁgured.

■ You must have built-in Ethernet or a third-party Ethernet card and its associated drivers installed in your

Macintosh.

Dynamic conﬁguration (recommended)

The Dynamic Host Conﬁguration Protocol (DHCP), which enables dynamic addressing, is enabled by default in the router. To conﬁgure your Macintosh computer for dynamic addressing do the following:

1. Go to the Apple menu. Select Control Panels and then TCP/IP.

2. With the TCP/IP window open, go to the Edit menu and select User Mode. Choose Basic and click OK.

3. In the TCP/IP window, select “Connect via: Ethernet” and “Conﬁgure: Using DHCP Server.”

Note: You can also use these instructions to conﬁgure other computers on your network to accept IP addresses served by the Netopia R6000 Series.

5-6 User’s Reference Guide

Static conﬁguration (optional)

If you are manually conﬁguring for a ﬁxed or static IP address, perform the following:

1. Go to the Apple menu. Select Control Panels and then TCP/IP or MacTCP.

2. With the TCP/IP window open, go to the Edit menu and select User Mode. Choose Advanced and click OK.

Or, in the MacTCP window, select Ethernet and click the More button.

3. In the TCP/IP window or in the MacTCP/More window, select or type information into the ﬁelds as shown in the following table.

Option: Select/Type:

Connect via: Ethernet Conﬁgure: Manually IP Address: 192.168.1.2 Subnet mask: 255.255.255.0, or for 12-user models

255.255.255.240 Router or Gateway address: 192.168.1.1 Name server address: Enter the primary and secondary name server

addresses given to you by your ISP

Implicit Search Path: Starting domain name:

Enter your domain name; if you do not have a domain name, enter the domain name of your ISP

4. Close the TCP/IP or MacTCP control panel and save the settings.

5. If you are using MacTCP, you must restart the computer. If you are using Open Transport, you do not need to restart.

Note: You can also use these instructions to conﬁgure other computers on your network with manual or static IP addresses. Be sure each computer on your network has its own IP address.

Sharing the Connection 5-7

Dynamic conﬁguration using MacIP (optional)

If you want to use MacIP to dynamically assign IP addresses to the Macintosh computers on your network you must install the optional AppleTalk feature set kit.

Note: You cannot use MacIP dynamic conﬁguration to conﬁgure your Netopia R6000 Series ADSL Router because you must ﬁrst conﬁgure the router in order to enable AppleTalk.

Once the AppleTalk kit is installed, you can conﬁgure your Macintoshes for MacIP. To conﬁgure dynamically using MacIP, perform the following:

Using Open Transport TCP/IP

1. Go to the Apple menu. Select Control Panels and then TCP/IP.

2. With the TCP/IP window open, go to the Edit menu and select User Mode. Choose Advanced and click OK.

3. In the TCP/IP window, select or type information into the ﬁelds as shown in the following table.

TCP/IP Option: Select/ Type:

Connect via: AppleTalk (MacIP) Conﬁgure: Using MacIP server MacIP Server zone: (select available zone) Name server address: Enter the primary and secondary name server

addresses given to you by your ISP

Implicit Search Path: Starting domain name:

Enter your domain name; if you do not have a domain name, enter the domain name of your ISP

4. Close the TCP/IP control panel and save the settings. These are the only ﬁelds you need to modify in these screens.

5-8 User’s Reference Guide

Using Classic Networking (MacTCP)

1. Go to the Apple Menu. Select Control Panels and then Network.

2. In the Network window, select EtherTalk.

3. Go back to the Apple menu. Select Control Panels and then MacTCP.

4. Select EtherTalk. From the pull-down menu under EtherTalk, select an available zone; then click the More button. In the MacTCP/More window select the Server radio button. If necessary, ﬁll in the Domain Name Server

information given to you by your administrator.

5. Restart the computer.

Note: More information about conﬁguring your Macintosh computer for TCP/IP connectivity through a Netopia R6000 Series can be found in Technote NIR_026, “Open Transport and Netopia Routers,” located on the Netopia Web site.

Console-Based Management 6-1

CCCChhhhaaaapppptttteeeerrrr 66

CCCCoooonnnnssssoooolllleeee----BBBBaaaasssseeeedddd MMMMaaaannnnaaaaggggeeeemmmmeeeennnntt

Console-based management is a menu-driven interface for the capabilities built into the Netopia R6000 Series. Console-based management provides access to a wide variety of features that the router supports. You can customize these features for your individual setup. This chapter describes how to access the console-based management screens.

This section covers the following topics:

■ “Connecting through a Telnet Session” on page 6-2

■ “Connecting a Console Cable to your Router” on page 6-3

■ “Navigating through the Console Screens” on page 6-4

Console-based management screens contain seven entry points to the Netopia Router conﬁguration and monitoring features. The entry points are displayed in the Main Menu shown below:

Netopia R6100 v4.8

Easy Setup... WAN Configuration... System Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

■ The Easy Setup menus display and permit changing the values contained in the default connection proﬁle.

You can use Easy Setup to initially conﬁgure the router directly through a console session. Easy Setup menus contain up to ﬁve descendant screens for viewing or altering these values. The number

of screens depends on whether you have optional features installed.

■ The WAN Conﬁguration menu displays and permits changing your connection proﬁle(s) and default proﬁle,

creating or deleting additional connection proﬁles, and conﬁguring or reconﬁguring the manner in which you may be using the router to connect to more than one service provider or remote site.

6-2 User’s Reference Guide

■ The System Conﬁguration menus display and permit changing:

■ Network protocols setup. See “IP Setup” on page 10-1, “IPX Setup” on page 12-1, and “AppleTalk

Setup” on page 13-1.

■ Filter sets (ﬁrewalls). See “Security” on page 16-1.

■ IP address serving. See “IP address serving” on page 10-11.

■ Date and time. See “Date and time” on page 8-24.

■ Console conﬁguration. See “Connecting a Console Cable to your Router” on page 6-3.

■ SNMP (Simple Network Management Protocol). See “SNMP” on page 14-12.

■ Security. See “Security” on page 16-1.

■ Upgrade feature set. See “Upgrade feature set” on page 8-26.

■ Logging. See “Monitoring Tools” on page 14-1.

■ The Utilities & Diagnostics menus provide a selection of tools for monitoring and diagnosing the router's

behavior, as well as for updating the ﬁrmware and rebooting the system. See “Utilities and Diagnostics” on

page 17-1 for detailed information.

■ The Statistics & Logs menus display several sets of tables and device logs that show information about

your router, your network, and their history. See “Statistics & Logs” on page 14-4 for detailed information.

■ The Quick Menus screen is a shortcut entry point to the most commonly used conﬁguration menus that

are accessed through the other menu entry points.

■ The Quick View menu displays at-a-glance current real-time operating information about your router. See

“Quick View status overview” on page 14-1 for detailed information.

Connecting through a Telnet Session

Features of the Netopia R6000 Series can be conﬁgured through the console screens. Before you can access the console screens through Telnet, you must have:

■ A network connection locally to the router or IP access to the router.

Note: Alternatively, you can have a direct serial console cable connection using the provided console cable for your computer and the Console port on the back of the router. For more information on attaching the console cable, see “Connecting a Console Cable to your Router” on page 6-3.

■ Telnet software installed on the computer you will use to conﬁgure the router

Note: For detailed instructions on telnetting to the router, see Appendix A, “Troubleshooting,” for more information.

Console-Based Management 6-3

Conﬁguring Telnet software

If you are conﬁguring your router using a Telnet session, your computer must be running a Telnet software program.

■ If you connect a PC with Microsoft Windows, you can use a Windows T elnet application or simply run T elnet

from the Start menu.

■ If you connect a Macintosh computer, you can use the NCSA Telnet program supplied on the Netopia

R6000 Series CD. You install NCSA T elnet by simply dragging the application from the CD to your hard disk.

Connecting a Console Cable to your Router

You can perform all of the system conﬁguration activities for your Netopia R6000 Series through a local serial console connection using terminal emulation software, such as HyperTerminal provided with Windows 95 on the PC, or ZTerm, included on the Netopia CD, for Macintosh computers.

The Netopia R6000 Series back panel has a connector labeled “Console” for attaching the Router to a computer via the serial port on the computer. This connection lets you use the computer to conﬁgure and monitor the Netopia R6000 Series via the console screens.

Ethernet

Normal

Uplink

Line 2

Auxiliary Console Power

Line 1

Console connection port DB-9 (male)

To connect the Netopia R6000 Series to your computer for serial console communication, use the supplied console cable connector.

■ If you connect a PC with Microsoft Windows 95, 98, 2000, or NT, you can use the HyperTerminal

application bundled with the operating system.

■ If you connect a Macintosh computer, you can use the ZTerm terminal emulation program on the supplied

Netopia R6000 Series CD.

6-4 User’s Reference Guide

Launch your terminal emulation software and conﬁgure the communications software for the values shown in the table below. These are the default communication parameters that the Netopia R6000 Series uses.

Parameter Suggested Value

Terminal type PC: ANSI-BBS

Mac: ANSI, VT-100, or VT-200

Data bits 8 Parity None Stop bits 1 Speed 57600 bits per second Flow Control None Note: The router ﬁrmware contains an autobaud detection feature. If you are at any

screen on the serial console, you can change your baud rate and press Return (HyperTerminal for the PC requires a disconnect). The new baud rate is displayed at the bottom of the screen.

Navigating through the Console Screens

Use your keyboard to navigate the Netopia R6000 Series’s conﬁguration screens, enter and edit information, and make choices. The following table lists the keys to use to navigate through the console screens.

To... Use These Keys...

Move through selectable items in a screen or pop-up menu Up, Down, Left, and Right Arrow Set a change to a selected item or open a pop-up menu of

options for a selected item like entering an upgrade key Change a toggle value (Yes/No, On/Off) Tab Restore an entry or toggle value to its previous value Esc Move one item up Up arrow or Control + K Move one item down Down arrow or Control + O Display a dump of the device event log Control + E Display a dump of the WAN event log Control + F Refresh the screen Control + L Go to topmost selectable item <

Return or Enter

Go to bottom right selectable item >

You can connect to the Netopia R6000 Series’s system conﬁguration screens in either of two ways:

■ By using Telnet with the Router’s Ethernet port IP address

Console-Based Management 6-5

■ Through the console port, using a local terminal (see “Connecting a Console Cable to your Router” on

page 6-3)

You can also retrieve the Netopia R6000 Series’s conﬁguration information and remotely set its parameters using the Simple Network Management Protocol (see “SNMP” on page 14-12).

Open a Telnet connection to the router’s IP address; for example, “192.168.1.1.” The console screen will open to the Main Menu, similar to the screen shown below:

Netopia R6100 v4.8

Easy Setup... WAN Configuration... System Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

Navigating through the conﬁguration screens

To help you ﬁnd your way to particular screens, some sections in this guide begin with a graphical path guide similar to the following example:

Main

This particular path guide shows how to get to the Network Protocols Setup screens. The path guide represents these steps:

1. Beginning in the Main Menu, select System Conﬁguration and press Return. The System Conﬁguration screen appears.

System

Configuration

Network Protocols

Setup

IP Setup

2. Select Network Protocols and press Return. The Network Protocols screen appears.

3. Select IP Setup and press Return. The IP Setup screen appears.

To go back in this sequence of screens, use the Escape key.

6-6 User’s Reference Guide

Easy Setup 7-1

CCCChhhhaaaapppptttteeeerrrr 77

EEEEaaaassssyyyy SSSSeeeettttuuuupp

This chapter describes how to use the Easy Setup console screens on your Netopia R6000 Series ADSL Router. After completing the Easy Setup console screens, your router will be ready to connect to the Internet or another remote site.

Easy Setup console screens

Using four Easy Setup console screens, you can:

■ Create or modify a connection proﬁle for your router for the connection to your ISP or remote location

■ Set up IP addresses and IP address serving

■ Password–protect conﬁguration access to your Netopia R6000 Series ADSL Router

Accessing the Easy Setup console screens

To access the console screens, Telnet to the Netopia Router over your Ethernet network or physically connect with a serial console cable and access the Netopia Router with a terminal emulation program. See “Connecting

through a Telnet Session” on page 6-2 or “Connecting a Console Cable to your Router” on page 6-3.

Note: Before continuing, make sure you have the information that your telephone service provider, ISP, or network administrator has given you for conﬁguring the Netopia Router.

The Netopia Router’s ﬁrst console screen, Main Menu, appears in the terminal emulation window of the attached PC or Macintosh computer when:

■ The Netopia Router is turned on

■ The computer is connected to the Netopia Router

■ Telnet or the terminal emulation software is running and conﬁgured correctly

7-2 User’s Reference Guide

A screen similar to the following Main Menu appears:

Netopia R6100 v4.8

Easy Setup... WAN Configuration... System Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

Return/Enter goes to Easy Setup -- minimal configuration. You always start from this main screen.

If you do not see the Main Menu, verify that:

■ The computer used to view the console screen has its serial port connected to the Netopia R6000 Series’s

Console port or an Ethernet connection to one of its Ethernet ports. See “Connecting a Console Cable to

your Router” on page 6-3 or “Connecting through a Telnet Session” on page 6-2.

■ Telnet or the terminal emulation software is conﬁgured for the recommended values.

■ If you are connecting via the Console port, your computer’s serial port is not being used by another device,

such as an internal modem, or an application. Turn off all other programs (other than your terminal emulation program) that may be interfering with your access to the port.

■ You have entered the correct password, if necessary . Your Netopia R6000 Series’s console access may be

password protected from a previous conﬁguration. See your system administrator to obtain the password. See Appendix A, “Troubleshooting,” for more suggestions.

Easy Setup 7-3

Quick Easy Setup connection path

Note: ADSL routers are often pre-conﬁgured for you by your service provider. If this is the case, you can skip this section. If your service provider has not pre-conﬁgured your router, follow these instructions.

This section may be all you need to do to conﬁgure your Netopia R6000 Series ADSL Router to connect to the Internet. Most ISPs will supply you with several parameter values for you to enter in the router. The ISP will provide the values shown below:

Parameter: Your value:

First screen: ADSL Line Conﬁguration

Data Link Encapsulation RFC1483 (default) or

PPP

Second screen: Connection Proﬁle 1: Easy Setup Proﬁle

Address Translation Enabled Yes (default) or No IP Addressing Numbered (default) or

Unnumbered

Local WAN IP Address (Numbered) or Remote IP Address (Unnumbered)

Local WAN IP Mask (Numbered) or Remote IP Mask (Unnumbered)

PPP Authentication (PPP only) None (default), PAP,

User Name (PAP) or Host Name (CHAP)

Password (PAP) or Secret (CHAP)

Domain Name n/a

n/a

CHAP n/a

n/a

Third screen: IP Easy Setup

Primary Domain Name Server n/a Secondary Domain Name Server n/a Default IP Gateway n/a

(If you want to record these values, you can print this page and use the spaces above.)

7-4 User’s Reference Guide

Do the following:

1. Open a Telnet session to 192.168.1.1 to bring up the Main Menu. If you don't know how to do this, see “Connecting through a Telnet Session” on page 6-2. Alternatively, you can connect the console cable and open a direct serial console connection, using a

terminal emulator program. See “Connecting a Console Cable to your Router” on page 6-3. The Main Menu appears.

Netopia R6100 v4.8

Easy Setup... WAN Configuration... System Configuration... Utilities & Diagnostics... Statistics & Logs... Quick Menus... Quick View...

2. Select the ﬁrst item on the Main Menu list, Easy Setup. Press Return to bring up the ADSL Line Conﬁguration menu screen.

ADSL Line Conﬁguration

ADSL Line Configuration

Data Link Encapsulation... RFC1483

TO MAIN MENU NEXT SCREEN

Enter Information supplied to you by your telephone company.

Easy Setup 7-5

1. Select Data Link Encapsulation and press Return. The pop-up menu will offer you the choice of PPP or RFC1483. Your selection depends on which type your ISP uses. The default is RFC1483.

Note: For non-North American users it may be necessary to specify the Virtual Path Identiﬁer (VPI) and the Virtual Channel Identiﬁer (VCI) values to be different from the defaults. To change the VCI and VPI values, you must use the ADSL Line Conﬁguration screen under the W AN Conﬁguration menu. See “Line conﬁguration” on

page 8-3 for more information.

2. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.

Easy Setup Proﬁle

The Easy Setup Proﬁle screen is where you conﬁgure the parameters that control the Netopia R6000 Series’s connection to a speciﬁc remote destination, usually your ISP or a corporate site.

On a Netopia R6000 Series ADSL Router you can add up to 15 more connection proﬁles, for a total of 16, although you can only use one at a time.

7-6 User’s Reference Guide

Connection Profile 1: Easy Setup Profile

Address Translation Enabled: Yes IP Addressing... Numbered

Local WAN IP Address: 0.0.0.0 Local WAN IP Mask: 0.0.0.0 Remote IP Address: 127.0.0.2 Remote IP Mask: 255.255.255.255

PPP Authentication... PAP Send User Name: tonyf Send Password: ******

PREVIOUS SCREEN NEXT SCREEN Enter basic information about your WAN connection with this screen.

1. To enable address translation, toggle Address Translation Enabled to Yes (the default). For more information on Network Address Translation, see Chapter 10, “IP Setup,” on page 10-1.

If you selected RFC1483 data link encapsulation in the ADSL Line Conﬁguration screen, an IP Addressing menu item appears allowing you to choose between Unnumbered and Numbered addressing. Numbered is the default for ADSL. It assigns a unique IP address to the ADSL WAN interface, as required by most ISPs’ routers. Unnumbered may be used for simpler conﬁgurations such as point-to-point short haul applications.

2. Select the editable ﬁeld labeled Local WAN IP Address. The default address is 0.0.0.0, which allows for dynamic addressing, when your ISP assigns an address

each time you connect. However, you can enter another speciﬁc address if you want to use static addressing. In that case, enter the local WAN address your ISP gave you. Press Return.

3. If you selected PPP data link encapsulation in the ADSL Line Conﬁguration screen, a PPP Authentication menu item appears. The authentication protocol and user name/password combinations you enter must be assigned or agreed to in advance between you and your ISP. Select PPP Authentication and press Return.

From the pop-up menu that appears, select the authentication method your ISP uses: PAP (Password Authentication Protocol), CHAP (Challenge Handshake Authentication Protocol), or None.

■ PAP is the most common and requires you to enter a User Name and Password in the next two ﬁelds.

■ CHAP requires you to enter a Host Name and Secret in the next two ﬁelds.

4. Press the Down arrow key until you reach NEXT SCREEN. Press Return to bring up the next screen.

Easy Setup 7-7

IP Easy Setup

The IP Easy Setup screen is where you enter information about your Netopia Router’s:

■ Ethernet IP address

■ Ethernet Subnet mask

■ Domain Name

■ Domain Name Server IP address(es)

■ Default gateway IP address

If necessary , consult with a network administrator to obtain the information you will need. For more information about setting up IP, see “IP Setup” on page 10-1.

IP Easy Setup

Ethernet IP Address: 192.168.1.1 Ethernet Subnet Mask: 255.255.255.0

Domain Name: isp.net Primary Domain Name Server: 209.3.224.21 Secondary Domain Name Server: 209.3.224.20

Default IP Gateway: 127.0.0.2 IP Address Serving: On Number of Client IP Addresses: 100

1st Client Address: 192.168.1.100

PREVIOUS SCREEN NEXT SCREEN Enter an IP address in decimal and dot form (xxx.xxx.xxx.xxx).

Set up the basic IP & IPX attributes of your Netopia in this screen.

1. Select Ethernet IP Address and enter the ﬁrst IP address from the IP address range your ISP has given you. This will be the Netopia Router’s IP address.

If Network Address Translation is enabled in the Easy Setup connection proﬁle, the Ethernet IP Address defaults to an address (192.168.1.1) within a range reserved by the Internet address administration authority for use within private networks.

Because this is a private network address, it should never be directly connected to the Internet. Using NAT for all your connection proﬁles will ensure this restriction. See “IP Setup” on page 10-1 of this guide for more information.

2. Select Ethernet Subnet Mask and enter the subnet mask your ISP has given you. The Ethernet Subnet Mask defaults to a standard class mask derived from the class of the Ethernet IP address you entered in the previous step.

3. Press the down arrow key until the editable ﬁeld labeled Domain Name is highlighted.

7-8 User’s Reference Guide

Type the Domain Name your ISP gave you. Press Return. The next ﬁeld, Primary Domain Name Server, will be highlighted.

4. Type the Primary Domain Name Server address your ISP gave you. Press Return. If your ISP gave you a secondary domain name server address, enter it in the next ﬁeld, Secondary Domain Name Server . Press Return until the next ﬁeld, Default IP Gateway, is highlighted.

5. If you do not enter a Default IP Gateway value, the router defaults to the remote IP address you entered in the Easy Setup connection proﬁle. If the Netopia Router does not recognize the destination of any IP trafﬁc, it forwards that trafﬁc to this gateway.

Do not confuse the remote IP address and the Default IP Gateway’s address with the block of local IP addresses you receive from your ISP. You use the local IP addresses for the Netopia R6000 Series’s Ethernet port and for IP clients on your local network. The remote IP address and the default gateway’s IP address should point to your ISP’s router.

6. Press the Down arrow key until you reach NEXT SCREEN. Press Return.

Easy Setup Security Conﬁguration

The Easy Setup Security Conﬁguration screen lets you password-protect your Netopia R6000 Series. Input your Write Access Name and Write Access Password with names or numbers totaling up to eleven digits.

If you password protect the console screens, you will be prompted to enter the name and password you have speciﬁed every time you log in to the console screens. Do not forget your name and password. If you do, you will be unable to access any of the conﬁguration screens.

Additional security features are available. See “Security” on page 16-1.

Easy Setup Security Configuration

It is strongly suggested that you password-protect configuration access to your Netopia. By entering a Name and Password pair here, access via serial, Telnet and Web Server will be password-protected.

Be sure to remember what you have typed here, because you will be prompted for it each time you configure this Netopia.

You can remove an existing Name and Password by clearing both fields below. Write Access Name: Write Access Password:

PREVIOUS SCREEN TO MAIN MENU RESTART DEVICE Configure a Configuration Access Name and Password here.

The ﬁnal step in conﬁguring the Easy Setup console screens is to restart the Netopia R6000 Series, so that the conﬁguration settings take effect.

1. Select RESTART DEVICE. A prompt asks you to conﬁrm your choice.

Easy Setup 7-9

2. Select CONTINUE to restart the Netopia Router and have your selections take effect.

Note: You can also restart the system at any time by using the Restart System utility (see “Restarting the

system” on page 17-13) or by turning the Netopia Router off and on with the power switch.

The Router will restart and your conﬁguration settings will be activated. You can then Exit or Quit your Telnet application.

Easy Setup is now complete.

7-10 User’s Reference Guide

PPPPaaaarrrrtttt IIIIIIII:::: AAAAddddvvvvaaaannnncccceeeedddd CCCCoooonnnnffffiiiigggguuuurrrraaaattttiiiioooonn

User’s Reference Guide

WAN and System Conﬁguration 8-1

CCCChhhhaaaapppptttteeeerrrr 88

WWWWAAAANNNN aaaannnndddd SSSSyyyysssstttteeeemmmm CCCCoooonnnnffffiiiigggguuuurrrraaaattttiiiioooonn

This chapter describes how to use the console-based management screens to access and conﬁgure advanced features of your Netopia R6000 Series ADSL Router. You can customize these features for your individual setup. These menus provide a powerful method for experienced users to set up their router’s connection proﬁles and system conﬁguration.

This section covers the following topics:

■ “WAN Conﬁguration” on page 8-2

■ “Creating a New Connection Proﬁle” on page 8-11

■ “The WAN Default Proﬁle” on page 8-20

■ “System Conﬁguration” on page 8-23

8-2 User’s Reference Guide

WAN Conﬁguration

T o conﬁgure your Wide Area Network (WAN) connection, navigate to the W AN Conﬁguration screen from the Main Menu and select WAN Conﬁguration, then WAN Setup.

Main

WAN

Configuration

WAN

Setup

The Choose Interface to Conﬁgure screen appears.

Choose Interface to Configure

ADSL (Wan Module 1) Setup... Auxiliary Serial Port Setup... Configuration Changes Reset WAN Connection: Yes

Choose Interface

to Configure

ADSL Line

Configuration

Note: The R6161 adds a second menu item ADSL (Wan Module 2) Setup.

Line conﬁguration

Select ADSL (WAN Module 1) Setup. The ADSL Line Conﬁguration screen appears.

ADSL Line Configuration

Display/Change Circuit... Add Circuit... Delete Circuit...

Data Link Encapsulation... RFC1483 RFC1483 Mode... Bridged 1483

WAN and System Conﬁguration 8-3

On ADSL WAN interfaces, the ATM connection between the router and the central ofﬁce equipment (DSLAM) is divided logically into one or more virtual circuits (VCs). A virtual circuit may be either a permanent virtual circuit (PVC) or a switched virtual circuit (SVC). Netopia Routers support PVCs.

VCs are identiﬁed by a Virtual Path Identiﬁer (VPI) and Virtual Channel Identiﬁer (VCI). A VPI is an 8-bit value between 0 and 255, inclusive, while a VCI is a 16-bit value between 0 and 65535, inclusive.

The Netopia R6000 Series supports up to eight PVCs on these interfaces.

■ Circuits support attributes in addition to their VPI and VCI values. When conﬁguring a circuit, you can

specify an optional circuit name of up to 14 characters. The circuit name is used only to identify the circuit for management purposes as a convenience to aid in selecting circuits from lists. The default circuit name is “Circuit <n>”, where <n> is some number between one and eight corresponding to the circuit’s position in the list of up to eight circuits.

■ You can also individually enable or disable a circuit without deleting it. This is useful for temporarily

removing a circuit without losing the conﬁgured attributes.

■ In order to function, each circuit must be bound to a Connection Proﬁle or to the Default Proﬁle. Among

other attributes, the proﬁle binding speciﬁes the IP addressing information for use on the circuit. Each circuit must be bound to a distinct Connection Proﬁle. You cannot bind multiple circuits to the same Connection Proﬁle. Thus it is not possible to construct point-to-multipoint meshes with ATM as is possible with Frame Relay.

Select Display/Change Circuit and press Return.

8-4 User’s Reference Guide

Choosing Display/Change Circuit (or Delete Circuit) displays a pop-up menu that allows you to select the circuit to be modiﬁed or deleted.

ADSL Line Configuration

Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.

Changing a circuit

If you want to make any changes to the circuit you select, you make them in the Change Circuit screen.

Change Circuit

Circuit Name: Circuit 1 Circuit Enabled: Yes Circuit VPI (0-255): 0 Circuit VCI (0-65535): 35 Connection Profile is Default Profile

Return accepts * ESC cancels * Left/Right moves insertion point * Del deletes.

■ Circuit Name allows you to associate a one- to fourteen-character name with the circuit. The default circuit

name is “Circuit <n>”, where <n> is some number between one and eight corresponding to the circuit’s position in the list of up to eight circuits.

WAN and System Conﬁguration 8-5

■ Circuit Enabled allows you to enable or disable the circuit, using the Tab key. The default is enabled.

■ Circuit VPI allows you to specify the Virtual Path Identiﬁer (VPI) value for the circuit. The default VPI value

for ADSL is zero (0).

■ Circuit VCI allows you to specify the Virtual Channel Identiﬁer (VCI) value for the circuit. The default VCI

value for circuits on ADSL is 35.

■ Use Connection Proﬁle and Use Default Proﬁle for Circuit are visible when there is more than one enabled

circuit. Choosing Use Connection Proﬁle presents a pop-up menu that lists all of your enabled Connection Proﬁles. Choosing a proﬁle from the list statically binds the circuit to the selected proﬁle. Choosing Use Default Proﬁle for Circuit statically binds the circuit to the Default Proﬁle. When the circuit is bound to a Connection Proﬁle, Use Connection Proﬁle displays the name of the proﬁle; when the circuit is associated with the Default Proﬁle, Use Connection Proﬁle displays Default Proﬁle.

When more than one circuit is enabled, you must explicitly statically bind each circuit to the Connection Proﬁle to be used on the circuit, or to the Default Proﬁle. To do this you use Use Connection Proﬁle or Use Default Proﬁle for Circuit.

Note: With multiple VCs you must explicitly statically bind the second (and all subsequent) VCs to a proﬁle. The ﬁrst VC will automatically statically bind according to pre-deﬁned dynamic binding rules when you add the second VC. It will revert back to dynamic binding if the number of VCs is reduced to one; for example, by deleting previously deﬁned VCs.

When the link comes up the router binds the VC dynamically to the ﬁrst suitable Connection Proﬁle or to the Default Proﬁle if there is no Connection Proﬁle conﬁgured.

• If you factory default the router, the VC binds to the Default Proﬁle.

• If you delete a Connection Proﬁle that is statically bound to a VC, the VC binding is set back to the Default

Proﬁle. If there is only one VC deﬁned, the VC dynamically binds to the ﬁrst suitable proﬁle or to the Default Proﬁle. If there are multiple VCs deﬁned, it binds to the Default Proﬁle.

• If you add a second VC, it is initialized to the Default Proﬁle, and the menu screens display the VC

Connection Proﬁle-related items, allowing you to bind to a speciﬁc Connection Proﬁle instead of the Default Proﬁle. In addition, the router statically binds the ﬁrst VC according to the rules used to select a proﬁle for dynamic binding. At this point, each proﬁle uses static binding when the link is brought up.

If there are no VCs when you add a VC -- for example, if you deleted all your previous VCs and started adding them again -- dynamic binding will occur when the link comes up. If you delete a VC, leaving only one VC, that VC resumes dynamically binding again.

■ Press Escape to return to the ADSL Line Conﬁguration screen.

■ Select Data Link Encapsulation and press Return. The pop-up menu will offer you the choice of PPP or

RFC1483. Your selection depends on which type your ISP uses. The default is RFC1483.

■ If you selected PPP as your Data Link Encapsulation method, the PPP Mode pop-up menu offers the

choice of VC Multiplexed (the default) or LLC SNAP.

■ If you selected RFC1483 as your Data Link Encapsulation method, the RFC1483 Mode pop-up menu

becomes visible. This allows you to choose between Bridged 1483 and Routed 1483, depending on

8-6 User’s Reference Guide

the type your ISP uses.

■ Press Escape to return to the Choose Interface to Conﬁgure screen. You can now specify how the Auxiliary

Serial Port is to be used by selecting Auxiliary Serial Port and pressing Return.

Adding a circuit

Choosing Add Circuit displays the Add Circuit screen.

Add Circuit

Circuit Name: Circuit 2 Circuit Enabled: Yes Circuit VPI (0-255): 0 Circuit VCI (0-65535): 0 Use Connection Profile... Default Profile

Use Default Profile for Circuit

ADD Circuit NOW CANCEL

The ﬁelds in the Add Circuit screen are the same as the ﬁelds in the Change Circuit screen described above. You can add up to seven circuits (for a total of eight) and bind them to separate Connection Proﬁles.

WAN and System Conﬁguration 8-7

Auxiliary Serial Port conﬁguration

By default, the Auxiliary Serial Port is enabled for an asynchronous modem.

Auxiliary Port Configuration

Aux Serial Port... Async Modem Data Rate (kbps)... 57.6 Aux Modem Init String: AT&F&C1&D2E0S0=1 Aux Modem Directory Number:

If the AppleTalk feature set is installed, then LocalTalk becomes the default option. You can also specify it to be Unused by selecting it from the Aux Serial Port pop-up menu.

■ For modem applications, a Data Rate pop-up menu offers a limited set of serial data rates. 57.6 is the

default setting.

■ If you have attached an external modem, you can specify an Aux Modem Init String. Consult your modem’s

documentation for the correct initialization string for your modem. If you have enabled the optional AppleTalk feature, the modem options are hidden.

■ You can enter the Aux Modem Directory Number to dial in this ﬁeld.

■ Press Escape to return to the Choose Interface to Conﬁgure screen.

8-8 User’s Reference Guide

R6161 Multilink PPP-based Bonded ADSL (WAN Module 2) Setup

The Netopia R6000 Series offers Multilink PPP-based DSL Bonding support for R6161 ADSL routers. Multilink PPP-based DSL Bonding allows your ISP to aggregate the speed of two separate DSL lines to create a single virtual pipe of higher speed. It does require two separate DSL lines, each connected to one of the two WAN interfaces on an R6161 Router. In conﬁguring the second WAN interface on the R6161, the PVCs must be deﬁned for the second WAN circuit. You access this feature in the Choose Interface to Conﬁgure screen under the WAN Setup menu.

When you select ADSL (WAN Module 2) Setup and press Return, the secondary WAN module screen appears.

ADSL Line 2 Configuration

Display/Change Circuit... Add Circuit... Delete Circuit...

Enter Information supplied to you by your telephone company.

The only conﬁguration that is allowed is the conﬁguration of PVCs. You conﬁgure the PVCs on WAN Line 2 in the same way as for WAN Line 1. See “Line conﬁguration” on page 8-3.

WAN and System Conﬁguration 8-9

Delayed remote conﬁguration change toggle

The Netopia R6000 Series supports delaying some conﬁguration changes until after the router is restarted. If your router is preconﬁgured by your service provider, or if you are not remotely conﬁguring the router, you can

leave this setting unchanged. The purpose of this feature is to defer conﬁguration changes only when remotely conﬁguring or reconﬁguring the

router to prevent premature console disconnection. When this feature is enabled, no changes to the WAN setup, datalink encapsulation, Connection Proﬁles, DLCIs, or Default Gateways will take effect until after the router is restarted. Until the router is restarted the WAN link and the routing table remain unaffected.

A single setting in the Choose Interface to Conﬁgure screen controls this feature, as shown below.

Choose Interface to Configure

CMN SDSL (Wan Module 1) Setup... Auxiliary Serial Port Setup... Configuration Changes Reset WAN Connection: Yes

8-10 User’s Reference Guide

When you toggle Conﬁguration Changes Reset WAN Connection either to Yes or No using the Tab key and press Return, a pop-up window asks you to conﬁrm your choice.

Choose Interface to Configure

+----------------------------------------------------+ +----------------------------------------------------+ | The Router must be restarted to allow this feature | | to function properly. | | Are you sure you want to do this? | | | | CANCEL CONTINUE | | | +----------------------------------------------------+

Toggling from Yes to No makes the router ready to be conﬁgured. If you toggle from No to Yes after any conﬁguration changes have been entered (and conﬁrm the reboot), your changes are committed and the router comes up using the newly created conﬁguration.

WAN and System Conﬁguration 8-11

Creating a New Connection Proﬁle

For a Netopia R6000 Series, connection proﬁles are useful for conﬁguring the connection and authentication settings for negotiating a PPP connection on the ADSL link or on an asynchronous modem attached to the Auxiliary port. If you are using the PPP data link encapsulation method, you can store your authentication information in the connection proﬁle so that your user name and password (or host name and secret) are transmitted when you attempt to connect.

Connection proﬁles deﬁne the networking protocols necessary for the router to make a remote connection. A connection proﬁle is like an address book entry describing how the router is to get to a remote site, or how to recognize and authenticate a connection. To create a new connection proﬁle, you navigate to the WAN Conﬁguration screen from the Main Menu, and select Add Connection Proﬁle.

Main

The Add Connection Proﬁle screen appears.

Add Connection Profile Profile Name: Profile 1

Profile Enabled: Yes Data Link Encapsulation... PPP

Data Link Options... IP Enabled: Yes

IP Profile Parameters... IPX Enabled: No

Interface Group... Primary

ADD PROFILE NOW CANCEL

WAN

Configuration

Add Connection

Profile

Configure a new Conn. Profile. Finished? ADD or CANCEL to exit.

On a Netopia R6000 Series ADSL Router you can add up to 15 more connection proﬁles, for a total of 16, but you can only use one at a time.

1. Select Proﬁle Name and enter a name for this connection proﬁle. It can be any name you wish. For example: the name of your ISP.

2. Toggle Proﬁle Enabled to Yes or No. The default is Yes.

8-12 User’s Reference Guide

3. Select Data Link Encapsulation and press Return. From the pop-up menu select PPP, RFC1483, ATMP, PPTP, or IPsec. If you select PPP, the Data Link Options menu item is displayed; if you select RFC1483,

the Data Link Options item is hidden. PPTP, ATMP, and IPsec options are intended for use with Virtual Private Network (VPN) proﬁles. For more information see “Virtual Private Networks (VPN)” on page 15-1.

4. If you chose PPP as your data link encapsulation method in the previous step, select Datalink Options and press Return. The Datalink Options screen appears.

Datalink (PPP/MP) Options

Data Compression... Standard LZS Send Authentication... PAP Send User Name:

Send Password: Receive User Name: Receive Password:

Maximum Packet Size: 1500

In this Screen you will configure the PPP/MP specific connection params.

Select Data Compression and press Return. The pop-up menu offers the choices of None, Ascend LZS, or Standard LZS (the default). Unless you are otherwise speciﬁcally directed, you can accept the default.

Select Send Authentication and press Return. From the pop-up menu that appears, select the authentication method your ISP uses, if any: PAP

(Password Authentication Protocol), CHAP (Challenge Handshake Authentication Protocol), or None.

■ PAP is the most common and requires you to enter a User Name and Password in the next two ﬁelds.

■ CHAP requires you to enter a Host Name and Secret in the next two ﬁelds.

You can specify user name and password for both outgoing and incoming calls. The Send User Name/Password parameters are used to specify your identity when connecting to a remote location. The Receive User Name/Password parameters are used when receiving dial-in clients such as via RAS conﬁguration.

5. You can edit the Maximum Packet Size ﬁeld, if you want packets limited to a lower value than 1500. Return to the Add Connection Proﬁle screen by pressing Escape.

WAN and System Conﬁguration 8-13

6. Select IP Proﬁle Parameters and press Return. The IP Proﬁle Parameters screen appears.

IP Profile Parameters

Address Translation Enabled: Yes IP Addressing... Numbered

NAT Map List... Easy-PAT List NAT Server List... Easy-Servers

Local WAN IP Address: 0.0.0.0 Local WAN IP Mask: 0.0.0.0 Remote IP Address: 0.0.0.0 Remote IP Mask: 0.0.0.0

Filter Set... Remove Filter Set

RIP Profile Options... Configure IP requirements for a remote network connection here.

7. Toggle or enter any IP Parameters you require and return to the Add Connection Proﬁle screen by pressing Escape. For more information, see “IP Setup” on page 10-1 and “Multiple Network Address Translation

(MultiNAT)” on page 11-1.

Note: The NAT Map List Easy-PAT List and NAT Server List Easy-Servers are the defaults and should be left unchanged unless they have been deliberately modiﬁed.

8. If you will be connecting with an IPX remote network, toggle IPX Enabled to Yes and press Return. Otherwise, accept the default No.

If you enable IPX routing, an IPX Proﬁle Parameters menu item becomes available. Select IPX Proﬁle Parameters and press Return. The IPX Proﬁle Parameters screen appears.

8-14 User’s Reference Guide

IPX Profile Parameters Remote IPX Network: 00000000

Path Delay: 10 NetBios Packet Forwarding: Off

Incoming Packet Filter Set... <<NONE>> Outgoing Packet Filter Set... <<NONE>>

Incoming SAP Filter Set... <<NONE>> Outgoing SAP Filter Set... <<NONE>>

Periodic RIP Timer: 60 Periodic SAP Timer: 60

Configure IPX requirements for a remote network connection here.

9. T oggle or enter any IPX Parameters you require and return to the Add Connection Proﬁle screen by pressing Escape. For more information, see “IPX Setup” on page 12-1.

10. Select Interface Group and press Return. From the pop-up menu select either Primary or Backup. If you select Primary , the proﬁle is applied to your primary WAN interface (the ADSL link). This would be desirable if you were creating a proﬁle to store your authentication information for a PPP connection over the ADSL link. If you select Backup, the proﬁle is applied to your backup interface, whether that is an asynchronous modem attached to the Auxiliary port or a V .90 or ISDN W AN interface module installed in the second WAN slot in the router. For more information, see “Dial Backup” on page 9-1.

11. Select ADD PROFILE NOW and press Return. Your new Connection Proﬁle will be added. If you want to view the Connection Proﬁles in your router, return to the WAN Conﬁguration screen, and

select Display/Change Connection Proﬁle. The list of Connection Proﬁles is displayed in a scrolling pop-up screen.

WAN and System Conﬁguration 8-15

WAN Configuration +-Profile Name---------------------IP Address----IPX Network-+ +------------------------------------------------------------+ | Easy Setup Profile 127.0.0.2 | | Profile 02 0.0.0.0 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | +------------------------------------------------------------+

Up/Down Arrow Keys to select, ESC to dismiss, Return/Enter to Edit.

8-16 User’s Reference Guide

RRRRIIIIPPPP PPPPrrrrooooffffiiiilllleeee OOOOppppttttiiiioooonnnnss

The Netopia R6000 Series permits conﬁguring RIP parameters through the IP Proﬁle Parameters RIP Proﬁle Parameters screen for Connection Proﬁles.

The three Routing Information Protocol (RIP) options, Receive RIP, Transmit RIP, and TX RIP Policy, are located in the RIP Proﬁle Parameters screen. To access the RIP Proﬁle Parameters screen you navigate from the Main Menu to WAN Conﬁguration, Display/Change Connection Proﬁle (or Add Connection Proﬁle), and IP Proﬁle Parameters.

Main

WAN

Configuration

Display/Change

Connection Profile

IP Profile

Parameters

You access the RIP Proﬁle Parameters screen via the RIP Proﬁle Options item on the IP Proﬁle Parameters screen.

IP Profile Parameters

Address Translation Enabled: No IP Addressing... Unnumbered

Negotiate LAN IP Addr/Mask: Yes Remote IP Address: 127.0.0.2

Remote IP Mask: 255.255.255.255 Filter Set... NetBIOS Filter

Remove Filter Set

RIP Profile Options... Configure IP requirements for a remote network connection here.

When you select RIP Proﬁle Options and press Return, the RIP Proﬁle Parameters screen appears.

WAN and System Conﬁguration 8-17

RIP Profile Parameters

Receive RIP: Both Transmit RIP: v2 (multicast)

TX RIP Policy... Poison Reverse

■ Routing Information Protocol (RIP) is needed if there are IP routers on other segments of your Ethernet

network that the Netopia R6000 Series needs to recognize. If this is the case select Receive RIP and select v1, v2, or Both from the pop-up menu. With Receive RIP set to v1, the Netopia R6000 Series’s Ethernet port will accept routing information provided by RIP packets from other routers that use the same subnet mask. Set to v2, the Netopia R6000 Series will accept routing information provided by RIP packets from other routers that use different subnet masks. Set to Both, the Netopia R6000 Series will accept information from either RIP v1 or v2 routers.

■ If you want the Netopia R6000 Series to advertise its routing table to other routers via RIP , select Transmit

RIP and select v1, v2 (broadcast), or v2 (multicast) from the pop-up menu. With T ransmit RIP v1 selected,

the Netopia R6000 Series will generate RIP packets only to other RIP v1 routers. With Transmit RIP v2 (broadcast) selected, the Netopia R6000 Series will generate RIP packets to all other hosts on the network. With Transmit RIP v2 (multicast) selected, the Netopia R6000 Series will generate RIP packets only to other routers capable of recognizing RIP v2 packets.

8-18 User’s Reference Guide

PPPPPPPPPPPP EEEEtttthhhheeeerrrrnnnneeeetttt LLLLAAAANNNN RRRReeeeccccoooonnnnffffiiiigggguuuurrrraaaattttiiiioooonn

Netopia R6000 Series Routers offer the ability for PPP to reconﬁgure the router’s Ethernet LAN when establishing an unnumbered, non-NAT connection.

This allows a central site router to supply an entire IP subnet, rather than a single IP address, for use by a Netopia router. If the applicable Connection Proﬁle speciﬁes an unnumbered, non-NA T connection and Negotiate LAN IP Addr/Mask is set to On, PPP will attempt to negotiate both an IP Address and subnet mask.

Note: Once the router has reconﬁgured the address serving pool only to conform to the negotiated subnet, you can adjust the base or extent of the pool and reboot the router. Your adjustments will not be overwritten when the connection is next renegotiated because the router only reconﬁgures the address serving pool if it lies outside the negotiated subnet.

The router does not adjust any address serving parameters other than the base and extent of the address serving pool. This allows you to otherwise conﬁgure address serving as you please using the normal address serving conﬁguration items. For example, if you disable address serving, the router will not enable address serving when it reconﬁgures the address serving pool.

CCCCoooonnnnffffiiiigggguuuurrrraaaattttiiiioooonn

T o enable PPP Ethernet LAN conﬁguration, navigate to the IP Proﬁle Parameters screen of the Connection Proﬁle you want to use. This can be either the Easy Setup Proﬁle or any other Connection Proﬁle you have added.

The IP Proﬁle Parameters screen for a Connection Proﬁle displays a Negotiate LAN IP Addr/Mask toggle:

IP Profile Parameters

Address Translation Enabled: No IP Addressing... Unnumbered

Negotiate LAN IP Addr/Mask: Yes Remote IP Address: 127.0.0.2

Remote IP Mask: 255.255.255.255 Filter Set... NetBIOS Filter

Remove Filter Set

RIP Profile Options... Configure IP requirements for a remote network connection here.

■ This toggle is visible only if the proﬁle’s Data Link Encapsulation is set to PPP, the Address Translation

Enabled toggle is set to No and IP Addressing is set to Unnumbered. The default value is No.

■ RIP Proﬁle Options is not visible if Negotiate LAN IP Addr/Mask is set to Yes and the Remote IP Mask is set

to 0.0.0.0. See “RIP Proﬁle Options” on page 8-16 for more information.

WAN and System Conﬁguration 8-19

QQQQuuuuiiiicccckkkk VVVViiiieeeeww

The Quick View screen (as shown below) displays both Primary and Secondary DNS Server addresses. This is useful because both may be served via PPP.

Quick View 8/8/2000 10:46:14 AM Default IP Gateway: 163.176.12.1 CPU Load: 6% Unused Memory: 232 KB

Primary DNS Server: 163.176.4.31 WAN Interface Group -- EN Secondary DNS Server: 163.176.4.10 Domain Name: isp.com

----------------MAC Address--------IP Address-------------------------------- Ethernet Hub: 00-00-c5-78-5d-10 192.168.1.1 Ethernet WAN1: 00-00-c5-78-5d-12 0.0.0.0

Current WAN Connection Status Profile Name----------Rate--%Use-Remote Address-----Est.-More Info------------

VPN QuickView LED Status PWR-+-----WAN1------+--CON--AUX--+---------------+--EN--+--------LEDS-------- LNK RDY CH1 CH2 LNK LNK DATA | '-'= Off 'G'= Green G - G - - Y - - | ’R’= Red ’Y’= Yellow

8-20 User’s Reference Guide

The WAN Default Proﬁle

If you are using RFC1483 datalink encapsulation, the Default Proﬁle screen controls whether or not the ADSL link will come up without an explicitly conﬁgured connection proﬁle. (PPP datalink encapsulation does not support a default proﬁle, and the corresponding menu item is unavailable.) See “Connection Proﬁles” on

page 10-27 for more information.

You access the WAN Default Proﬁle screen from the Main Menu by selecting WAN Conﬁguration and then selecting WAN Default Proﬁle.

Main

The WAN Default Proﬁle screen appears.

WAN Default Profile

Must Match a Defined Profile: No IP Enabled: Yes

IP Parameters... IPX Enabled: Yes

IPX Parameters...

WAN

Configuration

WAN Default

Profile

Return/Enter accepts * Tab toggles * ESC cancels. Configure Default WAN Connection Parameters here.

■ You can set Must Match a Deﬁned Proﬁle to Yes or No (the default). This item controls whether or not

the ADSL link will come up without an explicitly conﬁgured connection proﬁle. If your ISP is serving you a dynamic IP Address, you need not explicitly conﬁgure a connection proﬁle, and the default behavior of the router will be able to connect automatically once it is powered on.

If Must Match a Deﬁned Proﬁle is set to No, then the IP Enabled item is visible. Toggling this item to Yes (the default) or No controls whether or not IP will be supported on the ADSL link. If IP Enabled is set to Y es, the IP Parameters item becomes visible. If you select IP Parameters, the IP Parameters screen appears (see “IP Parameters (Default Proﬁle) screen” on page 8-21). This screen allows you to conﬁgure various IP parameters for ADSL connections established without an explicitly conﬁgured connection proﬁle.

WAN and System Conﬁguration 8-21

If Must Match a Deﬁned Proﬁle is set to No, then an IPX Enabled item is visible. T oggling this item to Yes or No (the default) controls whether or not IPX will be supported on the ADSL link. If IPX Enabled is set to Yes, an IPX Parameters item becomes visible. If you select IPX Parameters, the IPX Parameters screen appears (see “IPX parameters (default proﬁle) screen” on page 8-22). This screen allows you to conﬁgure various IPX parameters for ADSL connections established without an explicitly conﬁgured connection proﬁle.

IP Parameters (Default Proﬁle) screen

If you are using RFC1483 datalink encapsulation, the IP Parameters (Default Proﬁle) screen allows you to conﬁgure various IP parameters for ADSL connections established without an explicitly conﬁgured connection proﬁle:

IP Parameters (Default Profile)

Address Translation Enabled: No

Filter Set (Firewall)... Remove Filter Set

Receive RIP: Both Transmit RIP: Off

Return/Enter accepts * Tab toggles * ESC cancels.

For an ADSL link, Network Address Translation (NA T) is disabled by default in the Default Proﬁle. You can enable it by toggling Address Translation Enabled to Yes. For details on setting up IP Parameters see “IP Setup” on

page 10-1.

8-22 User’s Reference Guide

IPX parameters (default proﬁle) screen

If you are using RFC1483 datalink encapsulation, the IPX Parameters (Default Proﬁle) screen allows you to conﬁgure various IPX parameters for ADSL connections established without an explicitly conﬁgured connection proﬁle:

IPX Parameters (Default Profile)

NetBios Packet Forwarding: Off Path Delay: 10

Incoming Packet Filter Set... <<NONE>> Outgoing Packet Filter Set... <<NONE>> Incoming SAP Filter Set... <<NONE>> Outgoing SAP Filter Set... <<NONE>>

Periodic RIP Timer: 60 Periodic SAP Timer: 60

For details on setting up IPX Parameters see “IPX Setup” on page 12-1. For details on setting up Filter Sets see

“Security” on page 16-1.

WAN and System Conﬁguration 8-23

System Conﬁguration

The Netopia R6000 Series ADSL Router’s default settings may be all you need to conﬁgure your Netopia R6000 Series. Some users, however, require advanced settings or prefer manual control over the default selections. For these users, the Netopia R6000 Series provides system conﬁguration options.

To help you determine whether you need to use the system conﬁguration options, review the following requirements. If you have one or more of these needs, use the system conﬁguration options described in later chapters.

■ System conﬁguration of dynamic IP address distribution through DHCP, MacIP, or BootP

■ Greater network security through the use of ﬁlters

■ System conﬁguration of AppleTalk LAN settings

■ System conﬁguration of connections to AppleTalk networks through the Internet or any IP network, using

AURP (AppleTalk “tunneling”)

■ System conﬁguration of connection proﬁles

To access the system conﬁguration screens, select System Conﬁguration in the Main Menu, then press Return.

The System Conﬁguration menu screen appears:

System Configuration

Network Protocols Setup... Filter Sets (Firewalls)... IP Address Serving...

Date and Time... Console Configuration... SNMP (Simple Network Management Protocol)... Security... Upgrade Feature Set...

Logging... Return/Enter to configure Networking Protocols (such as TCP/IP).

Use this screen if you want options beyond Easy Setup.

8-24 User’s Reference Guide

Network protocols setup

These screens allow you to conﬁgure your network’s use of the standard networking protocols:

■ IP: Details are given in “IP Setup” on page 10-1.

■ IPX: Details are given in “IPX Setup” on page 12-1.

■ AppleTalk: Details are given in “AppleTalk Setup” on page 13-1.

Note: AppleTalk requires the optional AppleTalk feature expansion kit.

Filter sets (ﬁrewalls)

These screens allow you to conﬁgure security on your network by means of ﬁlter sets and a basic ﬁrewall.

■ Details are given in “Security” on page 16-1.

IP address serving

These screens allow you to conﬁgure IP address serving on your network by means of DHCP, WANIP , BootP, and with the optional AppleTalk kit, MacIP.

■ Details are given in “IP address serving” on page 10-11.

Date and time

You can set the system’s date and time in the Set Date and Time screen. Select Date and Time in the System Conﬁguration screen and press Return. The Set Date and Time screen

appears.

Set Date and Time

System Date Format: MM/DD/YY Current Date (MM/DD/YY): 3/16/1998

System Time Format: AM/PM Current Time: 10:29 AM or PM: AM

Follow these steps to set the system’s date and time:

WAN and System Conﬁguration 8-25

1. Select Current Date and enter the date in the appropriate format. Use one- or two-digit numbers for the month and day and the last two digits of the current year. The date’s numbers must be separated by forward slashes (/).

2. Select Current Time and enter the time in the format HH:MM, where HH is the hour (using either the 12-hour or 24-hour clock) and MM is the minutes.

3. Select AM or PM and choose AM or PM.

Console conﬁguration

You can change the default terminal communications parameters to suit your requirements. To go to the Console Conﬁguration screen, select Console Conﬁguration in the System Conﬁguration screen.

Console Configuration

Baud Rate... 57600 Hardware Flow Control: No

SET CONFIG NOW CANCEL

Follow these steps to change a parameter’s value:

1. Select the parameter you want to change.

2. Select a new value for the parameter. Return to step 1 if you want to conﬁgure another parameter.

3. Select SET CONFIG NOW to save the new parameter settings. Select CANCEL to leave the parameters unchanged and exit the Console Conﬁguration screen.

8-26 User’s Reference Guide

SNMP (Simple Network Management Protocol)

These screens allow you to monitor and conﬁgure your network by means of a standard Simple Network Management Protocol (SNMP) agent.

■ Details are given in “SNMP” on page 14-12.

Security

These screens allow you to add users and deﬁne passwords on your network.

■ Details are given in “Security” on page 16-1.

Upgrade feature set

You can upgrade your Netopia R6000 Series by adding new feature sets through the Upgrade Feature Set utility. See the release notes that came with your router or feature set upgrade, or visit the Netopia Web site at

www.netopia.com for information on new feature sets, how to obtain them, and how to install them on your Netopia R6000 Series.

Logging

You can conﬁgure a UNIX-compatible syslog client to report a number of subsets of the events entered in the router’s WAN Event History. See “WAN Event History” on page 14-6.

The Syslog client (for the PC only) is supplied as a ZIP ﬁle on the Netopia CD. Select Logging from the System Conﬁguration menu. The Logging Conﬁguration screen appears.

Logging Configuration

WAN Event Log Options Log Boot and Errors: Yes Log Line Specific: Yes Log Connections: Yes Log PPP, DHCP, CNA: Yes Log IP and IPX: Yes

Syslog Parameters Syslog Enabled: No Hostname or IP Address: Facility... Local 0

Return/Enter accepts * Tab toggles * ESC cancels.

WAN and System Conﬁguration 8-27

By default, all events are logged in the event history.

■ By toggling each event descriptor to either Yes or No, you can determine which ones are logged and which

are ignored.

■ You can enable or disable the syslog client dynamically. When enabled, it will report any appropriate and

previously unreported events.

■ You can specify the syslog server’s address either in dotted decimal format or as a DNS name of up to 63

characters.

■ You can specify the UNIX syslog Facility to use by selecting the Facility pop-up.

Installing the Syslog client

The Goodies folder on the Netopia CD contains a Syslog client daemon program that can be conﬁgured to report the WAN events you speciﬁed in the Logging Conﬁguration screen.

To install the Syslog client daemon, exit from the graphical Netopia CD program and locate the CD directory structure through your Windows desktop or through Windows Explorer. Go to the Goodies directory on the CD and locate the Sds15000.exe program. This is the Syslog daemon installer. Run the Sds15000.exe program and follow the on-screen instructions for enabling the Windows Syslog daemon.

The following screen shows a sample syslog dump of WAN events:

May 5 10:14:06 tsnext.netopia.com Link 1 down: PPP PAP failure May 5 10:14:06 tsnext.netopia.com >>Issued Speech Setup Request from our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Requested Disc. from DN: 917143652500 May 5 10:14:06 tsnext.netopia.com Received Clear Confirm for our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Link 1 down: Manual disconnect May 5 10:14:06 tsnext.netopia.com >>Issued Speech Setup Request from our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Requested Disc. from DN: 917143652500 May 5 10:14:06 tsnext.netopia.com Received Clear Confirm for our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Link 1 down: No answer May 5 10:14:06 tsnext.netopia.com --Device restarted----------------------------------------May 5 10:14:06 tsnext.netopia.com >>Received Speech Setup Ind. from DN: (not supplied) May 5 10:14:06 tsnext.netopia.com Requested Connect to our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com ASYNC: Modem carrier detected (more) Modem reports: 26400 V34 May 5 10:14:06 tsnext.netopia.com >>WAN: 56K Modem 1 activated at 115 Kbps May 5 10:14:06 tsnext.netopia.com Connect Confirmed to our DN: 5108645534 May 5 10:14:06 tsnext.netopia.com PPP: Channel 1 up, Answer Profile name: Default Profile May 5 10:14:06 tsnext.netopia.com PPP: NCP up, session 1, Channel 1 Final (fallback) negotiated auth: Local PAP , Remote NONE May 5 10:14:06 tsnext.netopia.com PPP: PAP we accepted remote, Channel 1 Remote name: guest May 5 10:14:06 tsnext.netopia.com PPP: MP negotiated, session 1 Remote EDO: 06 03 0000C5700624 0 May 5 10:14:06 tsnext.netopia.com PPP: CCP negotiated, session 1, type: Ascend LZS Local mode: 1, Remote mode: 1 May 5 10:14:06 tsnext.netopia.com PPP: BACP negotiated, session 1 Local MN: FFFFFFFF, Remote MN: 00000001 May 5 10:14:06 tsnext.netopia.com PPP: IPCP negotiated, session 1, rem: 192.168.10.100 local:

192.168.1.1 May 5 10:14:06 tsnext.netopia.com >>WAN: 56K Modem 1 deactivated May 5 10:14:06 tsnext.netopia.com Received Clear Ind. from DN: 5108645534, Cause: 0 May 5 10:14:06 tsnext.netopia.com Issued Clear Response to DN: 5108645534 May 5 10:14:06 tsnext.netopia.com Link 1 down: Remote clearing May 5 10:14:06 tsnext.netopia.com PPP: IPCP down, session 1 May 5 10:14:06 tsnext.netopia.com >>Received Speech Setup Ind. from DN: (not supplied)

8-28 User’s Reference Guide

Dial Backup 9-1

CCCChhhhaaaapppptttteeeerrrr 99

DDDDiiiiaaaallll BBBBaaaacccckkkkuuuupp

The Netopia R6000 Series offers dial backup functionality in the event of a line failure on its primary WAN link. The ﬁrmware supports backup to an external modem connected to the Auxiliary port or an internal V .90 modem via a V .90 modem W AN module or an ISDN interface via an ISDN WAN interface module in the second WAN slot.

R6120 models have integrated V.90 backup built in. R6131 models have integrated ISDN backup built in. This chapter covers the following topics:

■ WAN Conﬁguration on page 9-2

■ IP Setup screen on page 9-7

■ Connection Proﬁles on page 9-8

■ Using Scheduled Connections with Backup on page 9-8

■ Management/Statistics on page 9-11

■ QuickView on page 9-12

■ Event Logs on page 9-13

■ SNMP Support on page 9-13

The purpose of dial backup is to provide a recovery mechanism in the event that the primary connection fails. A failure can be either line loss, for example by central site switch failure or physical cable breakage, or in the case of Frame Relay (with LMI) or PPP, loss of end-to-end connectivity. Detection of one of these failures causes the router to switch from using the primary WAN port to using the Auxiliary port to which a modem has been attached or to an internal asynchronous modem or ISDN WAN module if one is installed. The port used for backup is determined by whether or not a second WAN module is installed in the router. If there is only one WAN module installed then the Auxiliary port is the backup port. If an asynchronous modem or ISDN WAN module is installed in the second slot, then that is the backup port.

In the event of a loss of primary connectivity you have the option of switching back to the primary port automatically once it has recovered its connection.

The supported backup ports are the Auxiliary port or an asynchronous V.90 modem or ISDN WAN module in Switched Asynchronous mode with PPP as the data link encapsulation.

9-2 User’s Reference Guide

WAN Conﬁguration

To conﬁgure Dial Backup, from the Main Menu select WAN Conﬁguration and then WAN Setup.

Main

Menu Setup

WAN Configuration

WAN (Wide Area Network) Setup... Display/Change Connection Profile...

Add Connection Profile... Delete Connection Profile...

Default Profile...

Backup Configuration... Frame Relay Configuration...

Frame Relay DLCI Configuration... Establish WAN Connection...

Disconnect WAN Connection...

WAN Configuration

WAN

The Choose Interface to Conﬁgure screen appears.

Choose Interface to Configure

ADSL (Wan Module 1) Setup... MODEM (Wan Module 2) Setup... Auxiliary Serial Port Setup...

Dial Backup 9-3

The router senses what type of WAN interface modules are installed in the WAN interface slots. For example, if

you have an ISDN daughter card installed in slot 2, the screen will say ISDN (Wan Module 2) Setup....

Choose the interface you want to conﬁgure for backup, either Motherboard Auxiliary Setup... or (Wan Module

2) Setup....

■ If you select Motherboard Auxiliary Setup..., the following screen appears:

Auxiliary Port Configuration

Aux Serial Port... Async Modem Data Rate (kbps)... 57.6 Aux Modem Init String: AT&F&C1&D2E0S0=1 Aux Modem Directory Number:

■ Options for the Aux Serial Port are Async Modem or Unused.

■ If you select Async Modem, you can select its Data Rate from a pop-up menu, edit the Aux Modem

Init String, if necessary, and enter the Aux Modem Directory Number to dial to connect to your ISP.

■ Press Escape twice to return to the WAN Conﬁguration screen, and select Backup Conﬁguration

(shown on page 9-6).

9-4 User’s Reference Guide

■ If you select (Wan Module 2) Setup... and have a V.90 modem card in slot 2, the following screen appears:

Internal Modem Setup

Modem Dialing Prefix: ATDT PBX Dialing Prefix: Answer on Ring Type... Any Speaker On... Until Carrier Speaker Volume... 2-Medium

Enter Information supplied to you by your telephone company.

■ You can edit the Modem Dialing Preﬁx, if necessary, add a PBX Dialing Preﬁx (such as “9” for an out-

side line), set the conditions for whether the modem will Answer on Ring Type incoming calls, adjust the conditions for when the Speaker is On, and adjust the Speaker Volume, from the pop-up menus.

■ The default Modem Dialing Preﬁx is ATDT. You can edit it if you need to.

■ You can enter a PBX Dialing Preﬁx such as “9” if you are on a PBX or Centrex phone system and must

dial a preﬁx for an outside line.

■ You may choose to selectively answer inbound calls, based on a distinctive ring pattern, using Answer

on Ring Type... This permits you to set up a party line conﬁguration where a fax machine or other

device shares the line, but uses a different telephone number and ring pattern. Supported options are:

Ring Type: Description:

Any (the default) any pattern Ring A 2.0 sec ON, 4.0 sec OFF (normal North American ring pattern) Ring B 0.8 sec ON, 0.4 sec OFF, 0.8 sec ON, 4.0 sec OFF Ring C 0.4 sec ON, 0.2 sec OFF, 0.4 sec ON, 0.2 sec OFF, 0.8 sec ON, 4.0 sec

OFF

Never the line will not answer to any ring pattern

■ You may choose when the Netopia R6000 Series’s modem connection tones are audible in the

Dial Backup 9-5

Speaker On... ﬁeld. Supported options are:

Selection: Behavior:

Never Turns off all speaker activity and hides the Speaker Volume control. Until Carrier The default. Allows call placement and handshaking tones to be heard. During Answer Same as above, but blocks dialing tones. Always Allows carrier tones to be heard, as well.

■ When the modem speaker is on, you can adjust the volume in the Speaker Volume... ﬁeld.

■ Press Escape twice to return to the WAN Conﬁguration screen, and select Backup Conﬁguration

(shown on page 9-6).

■ If you select (Wan Module 2) Setup... and have an ISDN card in slot 2, the following screen appears:

ISDN Line Configuration

Switch Type... Auto-Detect Directory Number 1:

SPID 1: Directory Number 2: SPID 2:

PBX Prefix:

Enter information supplied to you by your ISDN phone company.

The router will attempt to auto-detect all of your ISDN parameters. If it cannot do so, you can edit them manually in the ISDN Line Conﬁguration screen. You can select the Switch Type that your ISP or corporate site uses from the pop-up menu. Enter your Directory Number(s) and SPID(s) as required, and a PBX Preﬁx, such as “9” for an outside line, if you need one.

Press Escape twice to return to the WAN Conﬁguration screen, and select Backup Conﬁguration (shown on

page 9-6).

9-6 User’s Reference Guide

Backup Conﬁguration screen

This screen is used to conﬁgure the conditions under which backup will occur, if it will recover, and how the Auxiliary port is conﬁgured.

For an internal V.90 modem or an external modem connected to the Auxiliary port, the Backup Conﬁguration screen appears as follows (variations for ISDN are described below):

Backup Configuration

Backup Parameters Backup to Auxiliary Port... Automatic Requires Failure of (minutes): 1 Ping Host Name or IP Address:

Recovery to ADSL... Automatic Requires Recovery of (minutes): 1 Auto-Recovery on loss of Layer 2: No Clear Backup Call only if idle: No

Data Link Encapsulation is Async PPP

Enter Information supplied to you by your telephone company.

■ Select Backup to Auxiliary Port, Backup to Internal Modem, or Backup to ISDN and press Return. The

system automatically senses whether you have an internal modem or ISDN card installed in the second slot. If you do not, this menu item will be Auxiliary Port; if you do, this item will be Internal Modem or ISDN. A pop-up menu allows you to select Disabled, Manual, or Automatic. You enable line backup by selecting either Manual or Automatic. If you enable backup, the subsequent menu items become visible.

■ Select Requires Data Link Failure of and enter the period of time in minutes to determine how long you

want the system to wait before the backup port becomes enabled in the event of primary line failure. This allows you to be sure that the primary WAN connection is not merely brieﬂy interrupted before the router switches to backup mode. The value zero is not permitted.

■ Select Ping Host Name or IP Address and enter an IP address or resolvable DNS name that the router will

ping. This is an optional item that is particularly useful for testing if the remote end of a VPN connection has gone down. Should this address become unreachable the router will treat this as a loss of connectivity and begin the backup timer. This loss is a Layer 2 loss.

■ Select Recovery to “WAN_name” (where WAN_name is the type of WAN connection you have, e.g., ADSL)

and press Return. Choose either Manual or Automatic to determine how the system will return to the primary WAN link when it becomes available again. If you choose Automatic, the next two menu items become visible.

Note: Automatic recovery only works upon loss of primary WAN connectivity.

■ If you chose Automatic Recovery , select Requires Recovery of and enter the period of time in minutes

to determine how long you want the system to wait before the primary WAN connection is well re-estab-

Dial Backup 9-7

lished and the router switches back to it from the backup mode.

■ You can toggle Auto-Recovery on loss of Layer 2 to Yes or No (the default). This setting determines

whether the router should try to Auto-Recover when the backup is invoked because of a Layer 2 loss, for example, a no valid Connection Proﬁle. (Layer 1 is still available, and this is what recovery checks.) Use this setting with caution. Setting it to Yes may induce alternate switching between Backup and Recovery Mode. This ﬁeld will determine the recovery behavior of a Manual backup and Ping failure backup. These two failures are treated as Layer 2 failures.

Note: Backup and Recovery have resolutions of ﬁve seconds. This is how often the router evaluates the state of the connections and makes decisions.

■ Data Link Encapsulation is set to Async PPP. This ﬁeld is not editable.

IP Setup screen

The IP Setup screen now permits entry of a backup IP gateway address. This ﬁeld is always visible, even if the Default IP Gateway ﬁeld is not ﬁlled out, as in the case of a DHCP-acquired IP address and default gateway on the primary WAN interface.

IP Setup

Ethernet IP Address: 192.168.1.1 Ethernet Subnet Mask: 255.255.255.0 Define Additional Subnets...

Default IP Gateway: 0.0.0.0 Backup IP Gateway: 0.0.0.0 Primary Domain Name Server: 0.0.0.0 Secondary Domain Name Server: 0.0.0.0 Domain Name:

Receive RIP: Both Transmit RIP: Off Static Routes...

IP Address Serving... Network Address Translation (NAT)... Filter Sets...

Set up the basic IP attributes of your Netopia in this screen.

For more information on IP Setup see Chapter 10, “IP Setup.”

9-8 User’s Reference Guide

Connection Proﬁles

The line backup feature allows you to conﬁgure a complete Connection Proﬁle for the backup port, just as you do for your primary WAN connection. In this way proﬁles are associated with a particular interface. The proﬁle should reﬂect the port it is associated with. It should have switched characteristics for the backup port.

Add Connection Profile Profile Name: Backup

Profile Enabled: Yes Data Link Encapsulation is PPP

Data Link Options... IP Enabled: Yes

IP Profile Parameters... IPX Enabled: No

Interface Group... Backup Telco Options...

ADD PROFILE NOW CANCEL Return/Enter to discard changes you have made. Profile will not be added.

Configure a new Conn. Profile. Finished? ADD or CANCEL to exit.

For instructions on creating a Connection Proﬁle see Creating a New Connection Proﬁle on page 8-11. To associate this Connection Proﬁle with your backup port interface, choose Backup from the Interface Group

pop-up menu and press Return.

Using Scheduled Connections with Backup

The backup link is a PPP dial-up connection and only connects to the ISP when trafﬁc is initiated from the LAN. If you want to use the backup link to provide redundancy for services, such as a Web service that you provide to the outside world, you must force the connection to stay up. You do this by creating a scheduled connection entry that will be a permanent “forced up” connection for the backup port. The backup port will be activated upon primary WAN link failure and remain active until primary WAN link recovery.

To conﬁgure a Scheduled Connection, from the Main Menu select WAN Conﬁguration and then Scheduled Connections.

Main

Menu Connections

WAN Configuration

Scheduled

The Scheduled Connections screen appears.

Scheduled Connections

Display/Change Scheduled Connection... Add Scheduled Connection... Delete Scheduled Connection...

Return/Enter to add a Scheduled Connection. Navigate from here to add/modify/change/delete Scheduled Connections.

Dial Backup 9-9

■ Select Add Scheduled Connection and press Return. The Add Scheduled Connection screen appears.

Add Scheduled Connection

Scheduled Connection Enable: On How Often... Weekly Schedule Type... Forced Up Set Weekly Schedule... Use Connection Profile...

ADD SCHEDULED CONNECTION CANCEL Return/Enter accepts * Tab toggles * ESC cancels.

Scheduled Connections dial remote Networks on a Weekly or Once-Only basis.

■ Toggle Scheduled Connection Enable to On.

■ From the How Often pop-up menu, select Weekly and press Return.

■ From the Schedule Type pop-up menu, accept the default Forced Up and press Return.

■ Select Set Weekly Schedule, and press Return. The Set Weekly Schedule screen appears.

9-10 User’s Reference Guide

Set Weekly Schedule

Monday: Yes Tuesday: Yes Wednesday: Yes Thursday: Yes Friday: Yes Saturday: Yes Sunday: Yes

Scheduled Window Start Time: 11:27 AM or PM: AM

Scheduled Window Duration Per Day: 24:00

Return/Enter accepts * Tab toggles * ESC cancels.

■ Toggle all the days of the week to Yes, and set the Scheduled Window Duration Per Day to 24:00. This

guarantees a 24X7 connection. Press Escape to return to the Add Scheduled Connection screen.

■ Select Use Connection Proﬁle, and press Return. A screen displays all of your Connection Proﬁles. Select

the one you want to apply this scheduled connection to and press Return. Your selection becomes effective.

Now, if your primary WAN link fails, the backup link will become active and remain active until the primary link recovers.

Management/Statistics

The Statistics & Logs menu offers a Backup Management/Statistics option. To view the Backup Management/Statistics, from the Main Menu select Statistics & Logs.

Dial Backup 9-11

Main

Menu Statistics

Statistics & Logs

WAN Event History... Device Event History...

IP Routing Table... IPX Routing Table...

IPX SAP Bindery Table...

Served IP Addresses... ! Backup Management/Statistics...

General Statistics... System Information...

Statistics & Logs

Backup Management/

Select Backup Management/Statistics and press Return. Note: This option is only visible if backup is not Disabled. The Backup Management/Statistics screen appears.

9-12 User’s Reference Guide

Backup Management/Statistics

Current Port: Auxiliary Port Backup State: Backup Mode Time Since Detection: 15

FORCE RECOVERY

■ Current Port is a display-only ﬁeld that shows which port is currently in operation.

■ Backup State is a display-only ﬁeld that shows the current state of Backup or Recovery.

■ Time Since Detection is a display-only ﬁeld that is only visible if backup or recovery is in progress. It

displays the elapsed time since detection of either primary WAN line failure or re-establishment of the connection.

■ The FORCE BACKUP/FORCE RECOVER Y option is a selectable option that, depending on the current state

of backup, will force the switching of ports. If you are currently in backup mode, the option will be FORCE RECOVERY. If you are currently in normal WAN link mode, the option will be FORCE BACKUP. Selecting either one and pressing Return will force the link to switch to the other mode.

QuickView

QuickView now has an information element to indicate which port is in use.

Quick View Default IP Gateway: 0.0.0.0 CPU Load: 4% Unused Memory: 387 KB

Domain Name Server: 0.0.0.0 Current WAN Port: Auxiliary Port Domain Name: happyinternet.com

Event Logs

When a backup or recovery occurs an event is logged in the WAN Event History.

WAN Event History Current Date -- 4/17/99 10:57:12 AM

-Date-----Time-----Event------------------------------------------------------

----------------------------------SCROLL UP---------------------------------- 04/17/99 10:39:37 * Line Failure: Switching to backup port 04/17/99 10:38:51 * Line Recovery: Switching to primary port 04/17/99 10:37:42 * Line Failure: Switching to backup port 04/17/99 10:35:53 --Device restarted---------------------------------------- 04/17/99 10:04:48 --Device restarted---------------------------------------- 04/17/99 10:04:13 --Device restarted---------------------------------------- 04/17/99 08:59:01 --Device restarted---------------------------------------- 04/14/99 09:12:09 --Device restarted---------------------------------------- 04/13/99 10:31:08 --Device restarted---------------------------------------- 04/13/99 09:47:57 >>WAN: ADSL 1 deactivated 04/13/99 09:47:56 >>WAN: ADSL 1 activated at 10000 Kbps 04/13/99 09:42:07 --Device restarted---------------------------------------- 04/13/99 09:29:45 --Device restarted---------------------------------------- 04/12/99 11:29:44 --Device restarted-----------------------------------------

---------------------------------SCROLL DOWN--------------------------------- Clear History...

Dial Backup 9-13

Return/Enter on event item for details or SCROLL [UP/DOWN] item for scrolling.

SNMP Support

The router supports objects for determining the state of backup, as well as providing traps for the backup and recovery events. No objects support conﬁguration of backup or recovery.

9-14 User’s Reference Guide
