NetNearU
RAP-1
Wireless Made Easy
Revision 1.0
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equip ment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
!"Reorient or relocate the receiving antenna.
!"Increase the separation between the equipment and receiver.
!"Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Quick Start Guide
Your wireless/remote access points will include the following hardware.
Make sure you have everything you need before proceeding.
1. RAP1 device itself
2. AC to 5 Volt DC switching mode power supply
3. RJ45 Ethernet cable
!"Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing
device, pursuant to FCC Rules. In order to maintain compliance with FCC
regulations, shielded cables must be used with this equipment. Operation with nonapproved equipment or unshielded cables is likely to result in interference to radio
and TV reception. The user is cautioned that changes and modifications made to the
equipment wi thout the appr oval of manufactur er could void the use r’s authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Op eration is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Responsible Party: NetNearU
2908 Finfeather Road
Bryan, TX 77801
Telephone No. – (979) 775-3405
Fax No. – (979) 775-4393

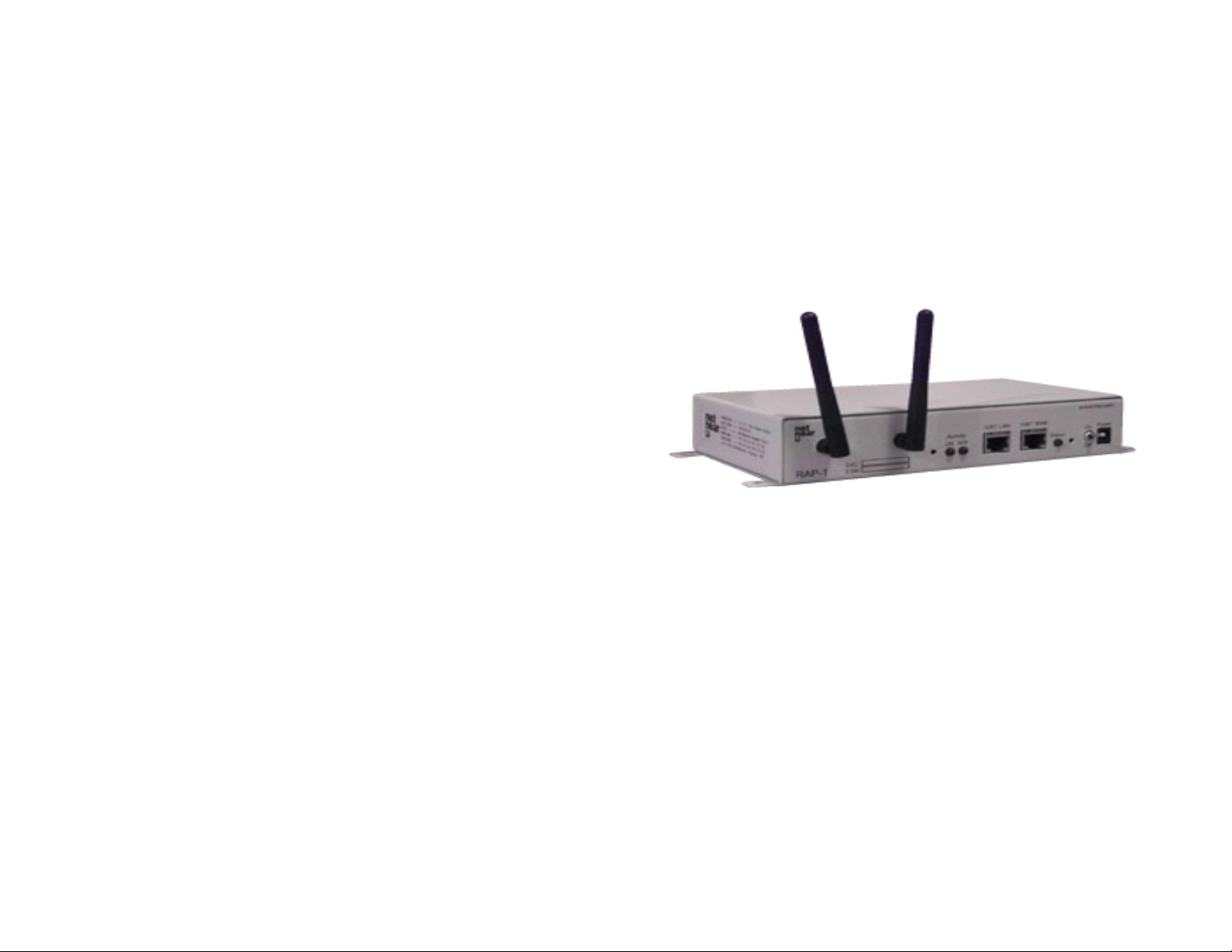

Figure 1
1. Gently rotate the antennas such that they are pointing upward and form a
“V” shape.
2. Connect the supplied power supply to the wall, and the power port to the
unit itself. (Figure 1 #3)
3. Connect one end of the supplied network cable to the Internet connection
device or port, and the other to the 10BaseT WAN port on the wireless
device. (Figure 1 #1)
**NOTE: D HCP servic e must be r unning o n the net work in ord er for the
unit to operate in default mode. If this device is to be installed in a fixed IP
address environment, please call NetNearU Customer Service at 888-4128324 for configuration assistance.
4. Flip the power switch to the “on” position to start unit. The unit takes
about 90 seconds to initialize before ready for usage. (Figure 1 #2)
Technical Specification
Processor:
Memory:
Wireless Standards:
Frequency Band:
Transmission Method:
Data Rate:
Modulation:
Output Power:
Operating Range:
WAN Port Input:
Addressing
LAN Output:
System on Chip Em bedded Pr ocess or, Pen tium C lass ru nning at 100MHz
32MB of SDRAM as m ain memory , 16MB of Fl ash as sy s tem st orage dev ice
IEEE 802.11b
2.400GHz to 2.4835GHz (depending on local regulation)
11Mbps, 5.5Mbps, 2Mbps, 1Mbps
11Mbps and 5.5Mbps CCK; 2Mbps: DQPSK; 1Mbps: DBPSK
TYP . +14dBm
100 feet to 300 feet indoor
10-Base-T Ethernet (IEEE 802.3), with DHCP or Fixed IP
(Future Option) to connect additional Wireless Access Point.
DSSS (Direct Sequence Spread Spectrum)
Operating Temperature:
Condensing
Unit Weight:
Power Requirement:
Input
Due to continuous improvement, specification is subject to change without notice.
2.3 lbs (with 5V DC power adaptor)
0 to 45 degrees Celsius, 0-90% Relative Humidity, Non-
UL approved 5V DC power source as provided, 120V AC
