Page 1
NetModule Router NB3700
User Manual for Software Version 3.8
Manual Version 1.5
NetModule AG, Switzerland
October 28, 2016
Page 2
Contents
1 Welcome to NetModule 3
2 Conformity 4
2.1 Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.4 National Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.5 Open Source Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Specifications 7
3.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.2 USB 2.0 Host Port . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.3 M12 Ethernet Connectors . . . . . . . . . . . . . . . . . . . . . . 11
3.3.4 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3.5 Digital Inputs and Outputs . . . . . . . . . . . . . . . . . . . . . 13
3.3.6 RS-232 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Installation 16
4.1 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.4 Installation of the WLAN Antennas . . . . . . . . . . . . . . . . . . . . . 17
4.5 Installation of the Local Area Network . . . . . . . . . . . . . . . . . . . 17
4.6 Installation of the Power Supply . . . . . . . . . . . . . . . . . . . . . . . 17
5 Configuration 18
5.1 First Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

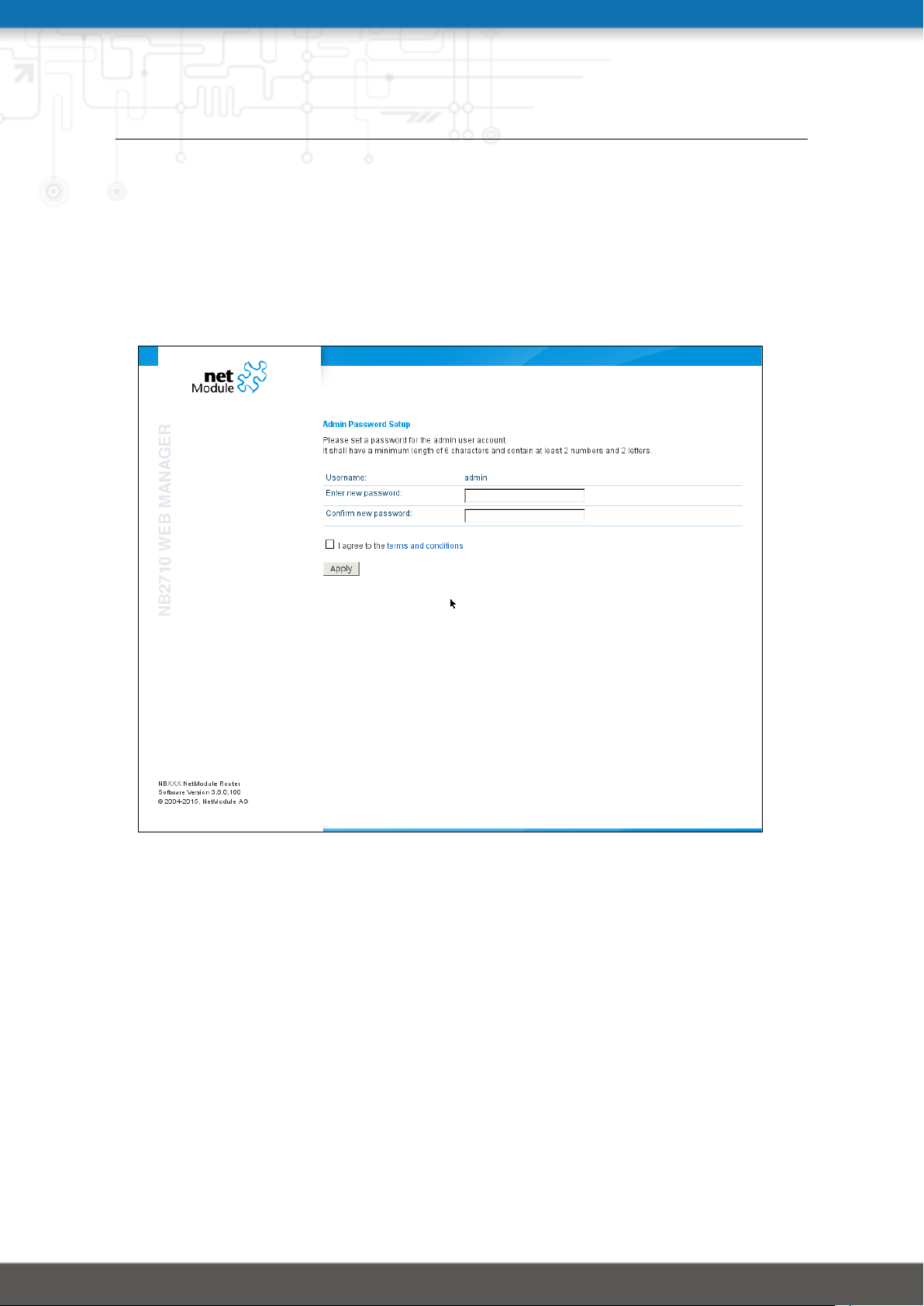

5.1.1 Initial Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1.2 Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 HOME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2
Page 3
NB3700 User Manual 3.8
5.3.1 WAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.3.2 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.3.3 Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.3.4 WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.3.5 USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.3.6 Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5.3.7 Digital I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5.3.8 GNSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
5.4 ROUTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

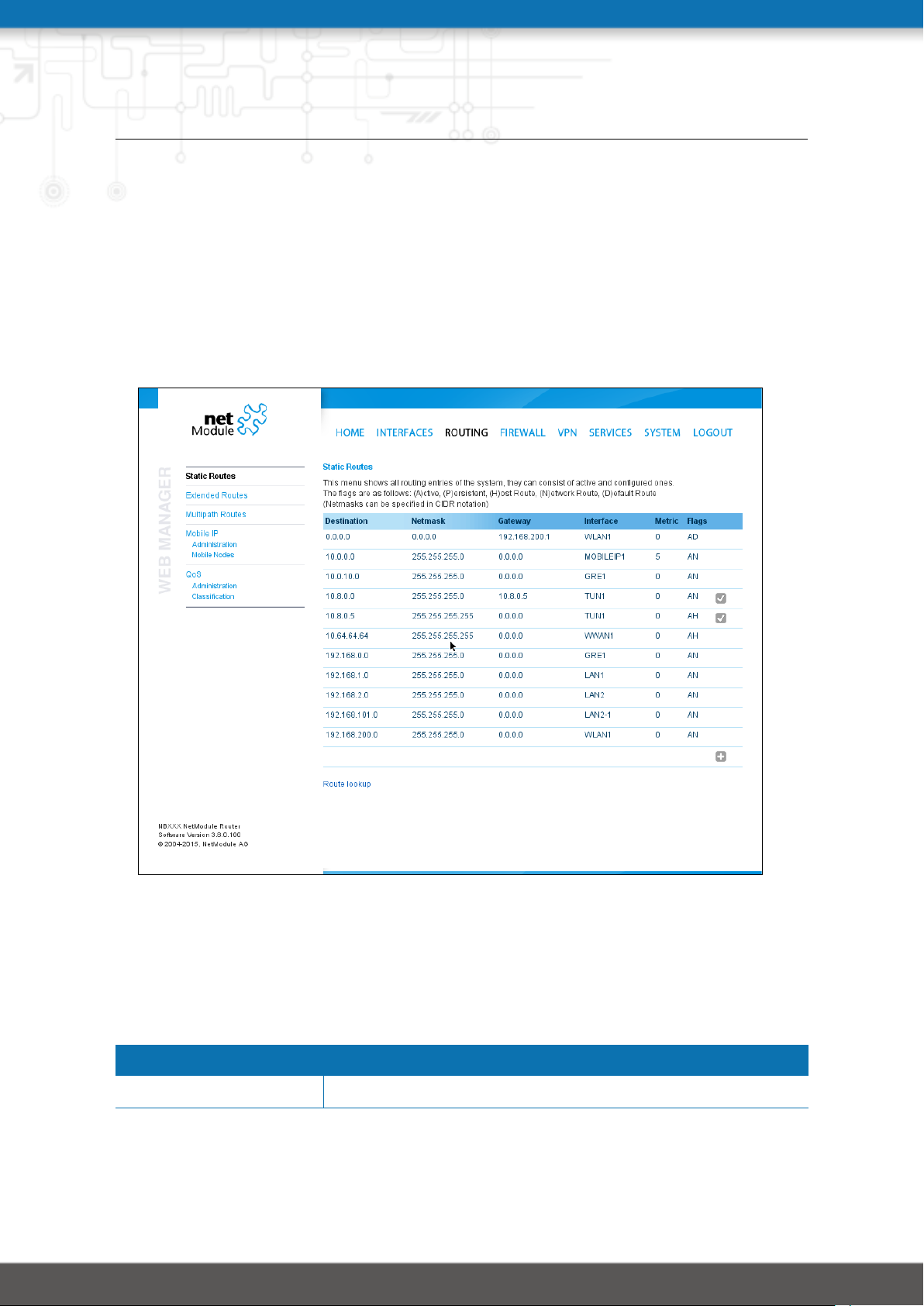

5.4.1 Static Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
5.4.2 Extended Routing . . . . . . . . . . . . . . . . . . . . . . . . . . 59
5.4.3 Multipath Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
5.4.4 Mobile IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
5.4.5 Quality Of Service . . . . . . . . . . . . . . . . . . . . . . . . . . 65
5.4.6 Multicast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
5.5.1 Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
5.5.2 Adress/Port Groups . . . . . . . . . . . . . . . . . . . . . . . . . 68
5.5.3 Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
5.5.4 NAPT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
5.6 VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
5.6.1 OpenVPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
5.6.2 IPsec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
5.6.3 PPTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
5.6.4 GRE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
5.6.5 Dial-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
5.7 SERVICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
5.7.1 SDK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
5.7.2 DHCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
5.7.3 DNS Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
5.7.4 NTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
5.7.5 DynDNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
5.7.6 E-Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
5.7.7 Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
5.7.8 SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
5.7.9 SSH/Telnet Server . . . . . . . . . . . . . . . . . . . . . . . . . . 115
5.7.10 SNMP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
5.7.11 Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
5.7.12 Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
5.7.13 Voice Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
5.8 SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
3
Page 4
5.8.1 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
5.8.2 Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
5.8.3 Software Update . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
5.8.4 Module Firmware Update . . . . . . . . . . . . . . . . . . . . . . 140
5.8.5 Software Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
5.8.6 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
5.8.7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
5.8.8 Keys and Certificates . . . . . . . . . . . . . . . . . . . . . . . . . 147
5.8.9 Licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
5.8.10 Legal Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
5.9 LOGOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
6 Command Line Interface 155
6.1 General Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
6.3 Getting Config Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . 157
6.4 Setting Config Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . 157
6.5 Getting Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . 158
6.7 Sending E-Mail or SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
6.9 Manage keys and certificates . . . . . . . . . . . . . . . . . . . . . . . . . 160
6.10 Restarting Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
6.11 Debug System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
6.14 Running Shell Commands . . . . . . . . . . . . . . . . . . . . . . . . . . 162
6.15 Working with History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
6.16 CLI-PHP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
7 Technical Support 169
8 Legal Notice 170
A Appendix 172
A.1 Abbrevations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
A.2 System Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
A.3 Factory Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
A.4 SNMP VENDOR MIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
A.5 SDK Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
4
Page 5
NB3700 User Manual 3.8
List of Figures

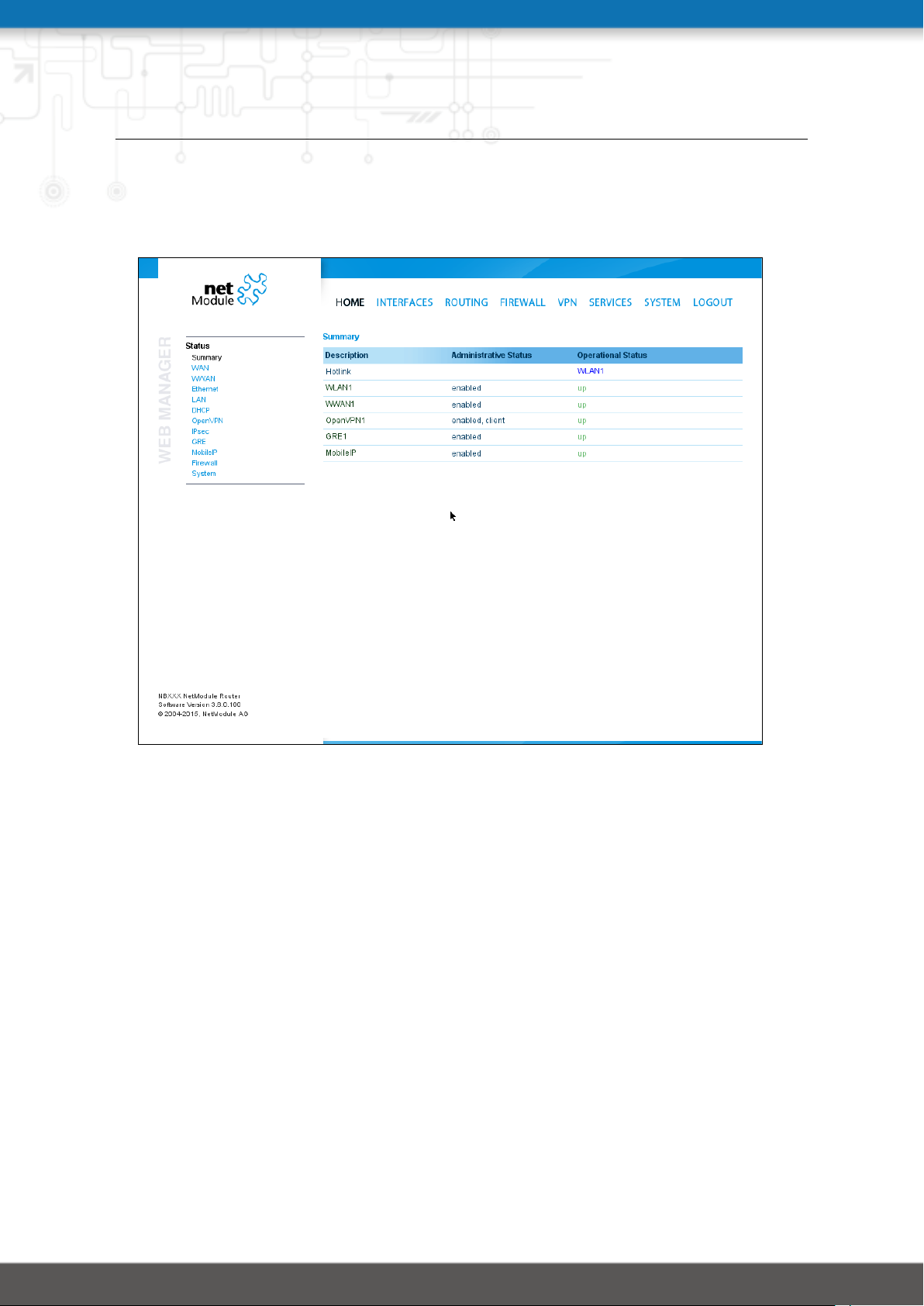

5.2 Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

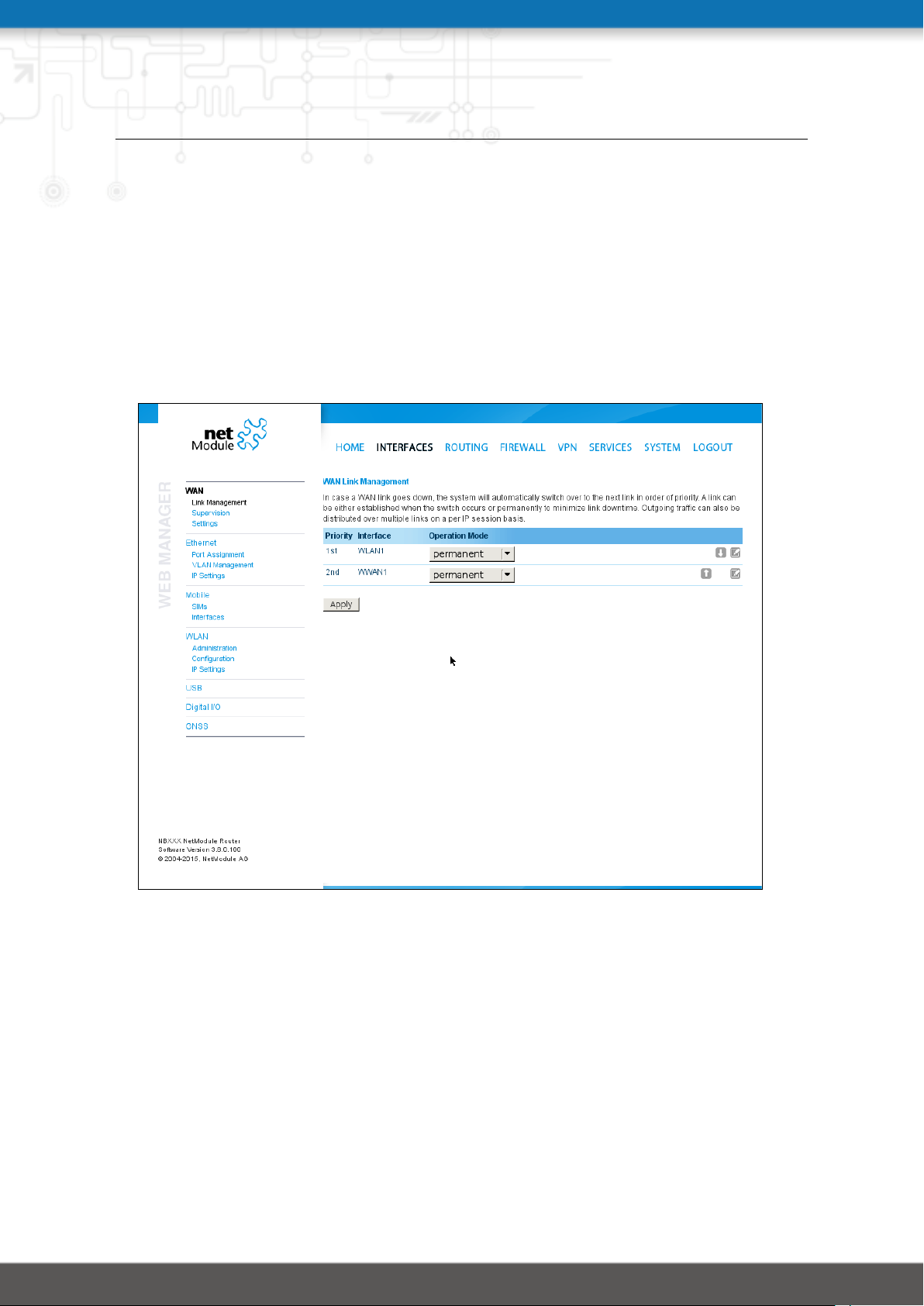

5.3 WAN Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

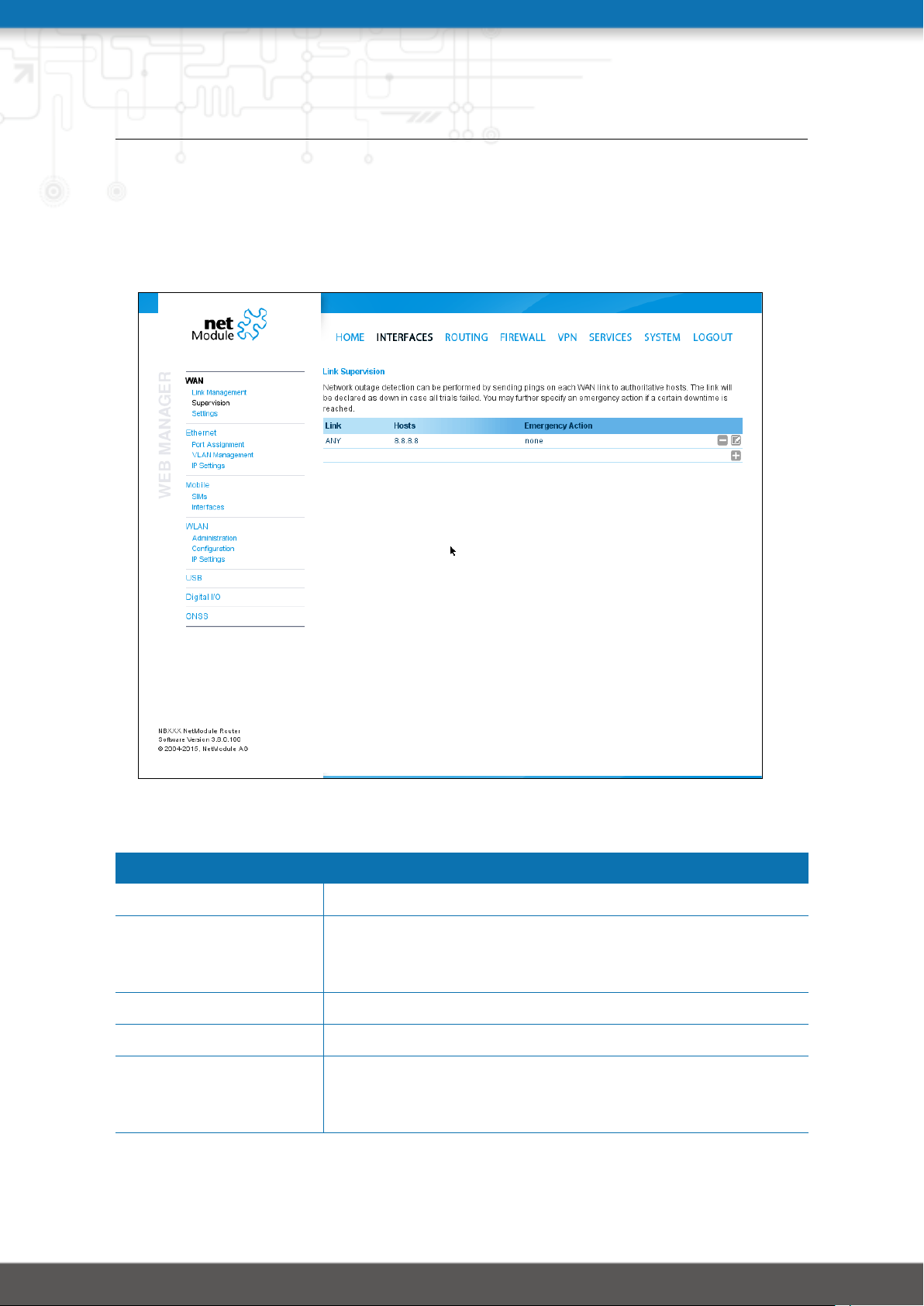

5.5 Link Supervision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

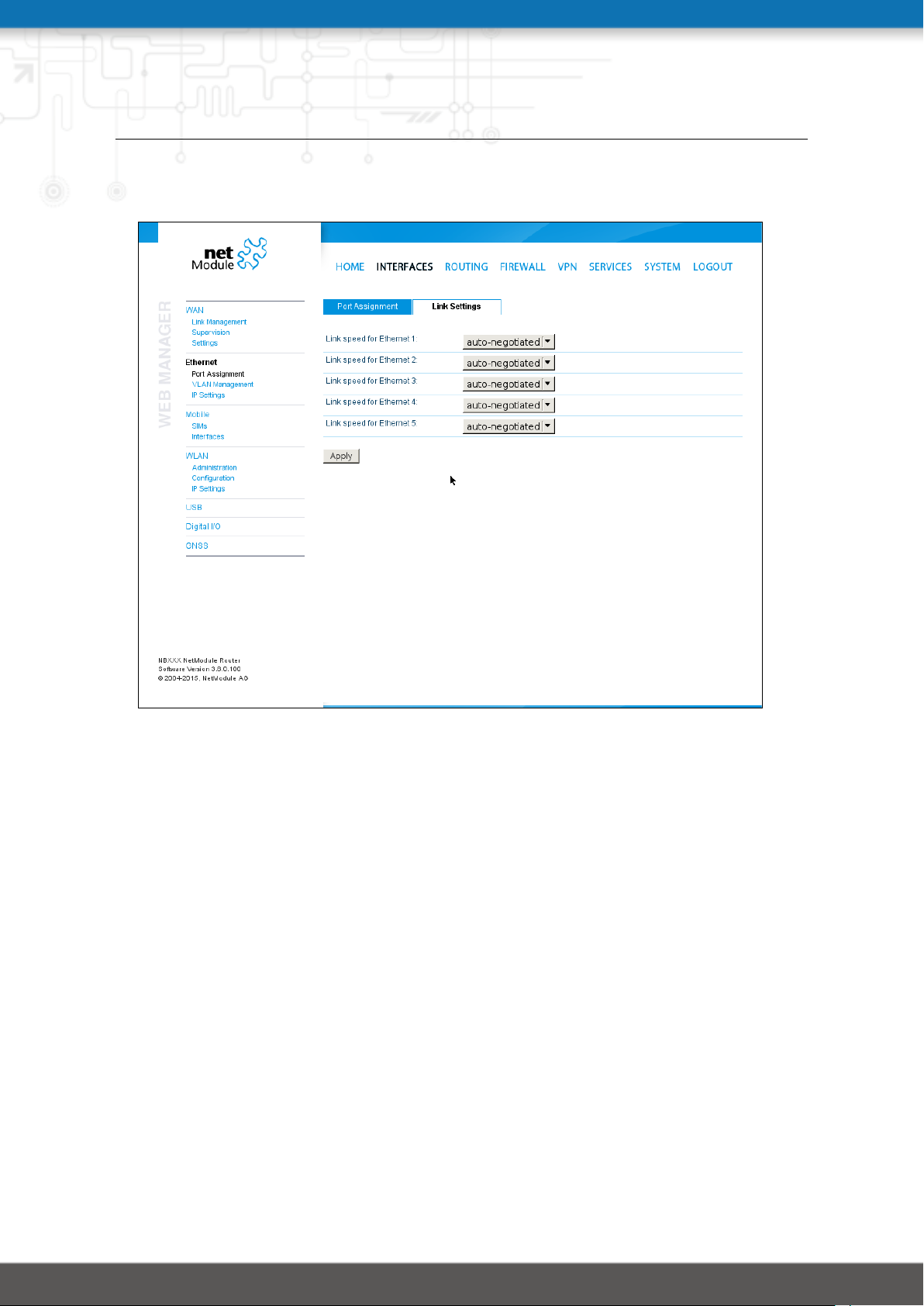

5.7 Ethernet Link Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

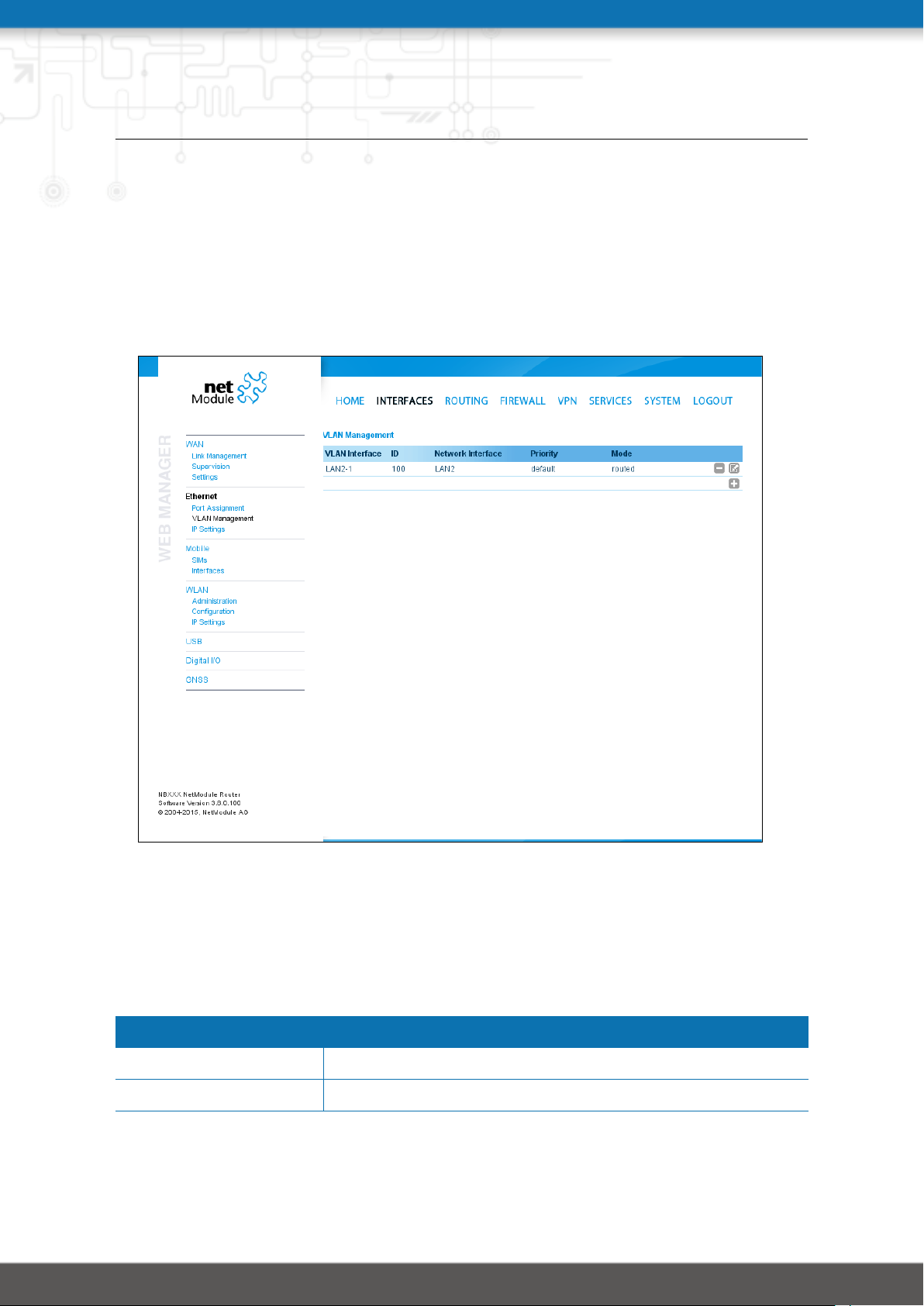

5.8 VLAN Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

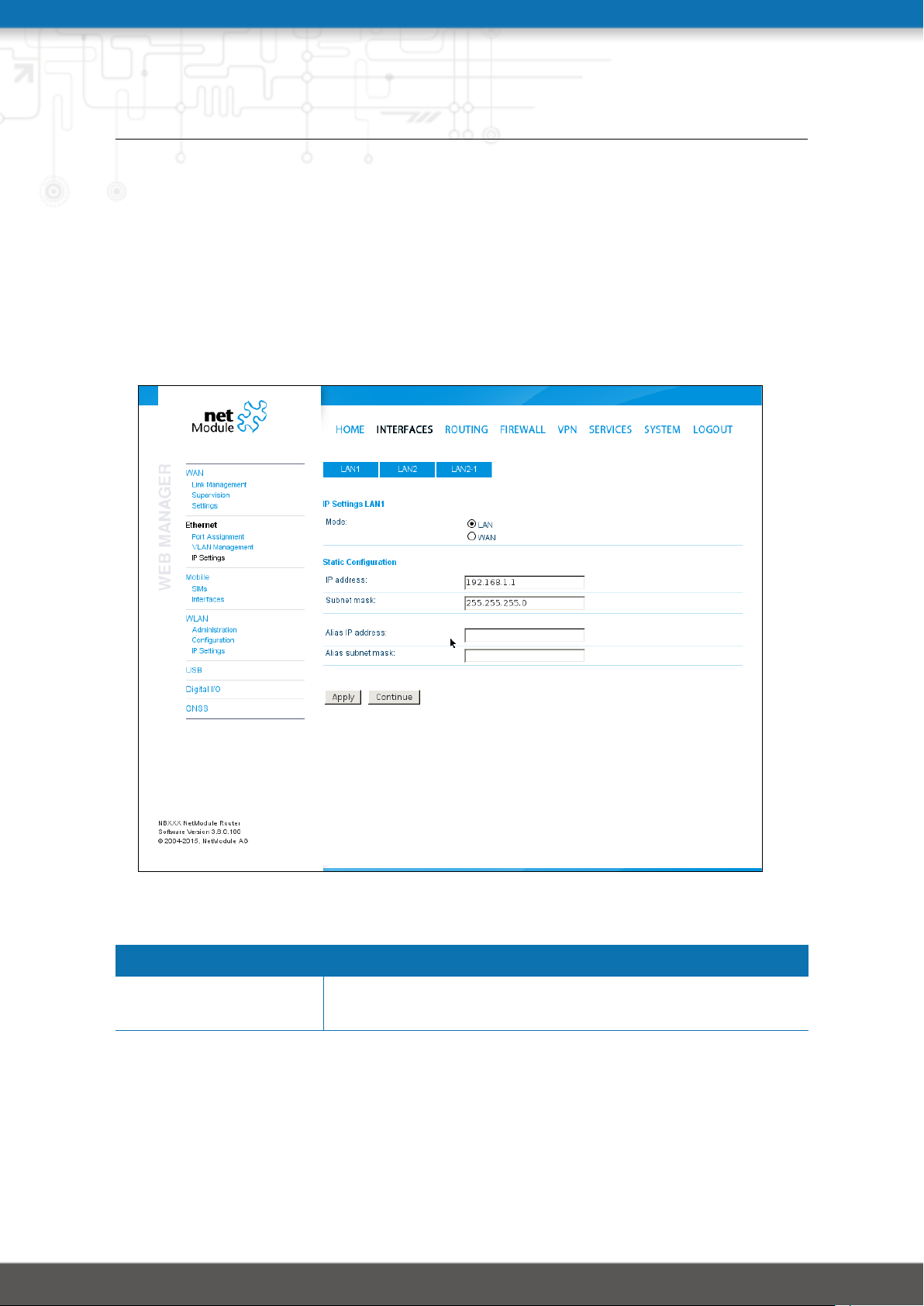

5.9 LAN IP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

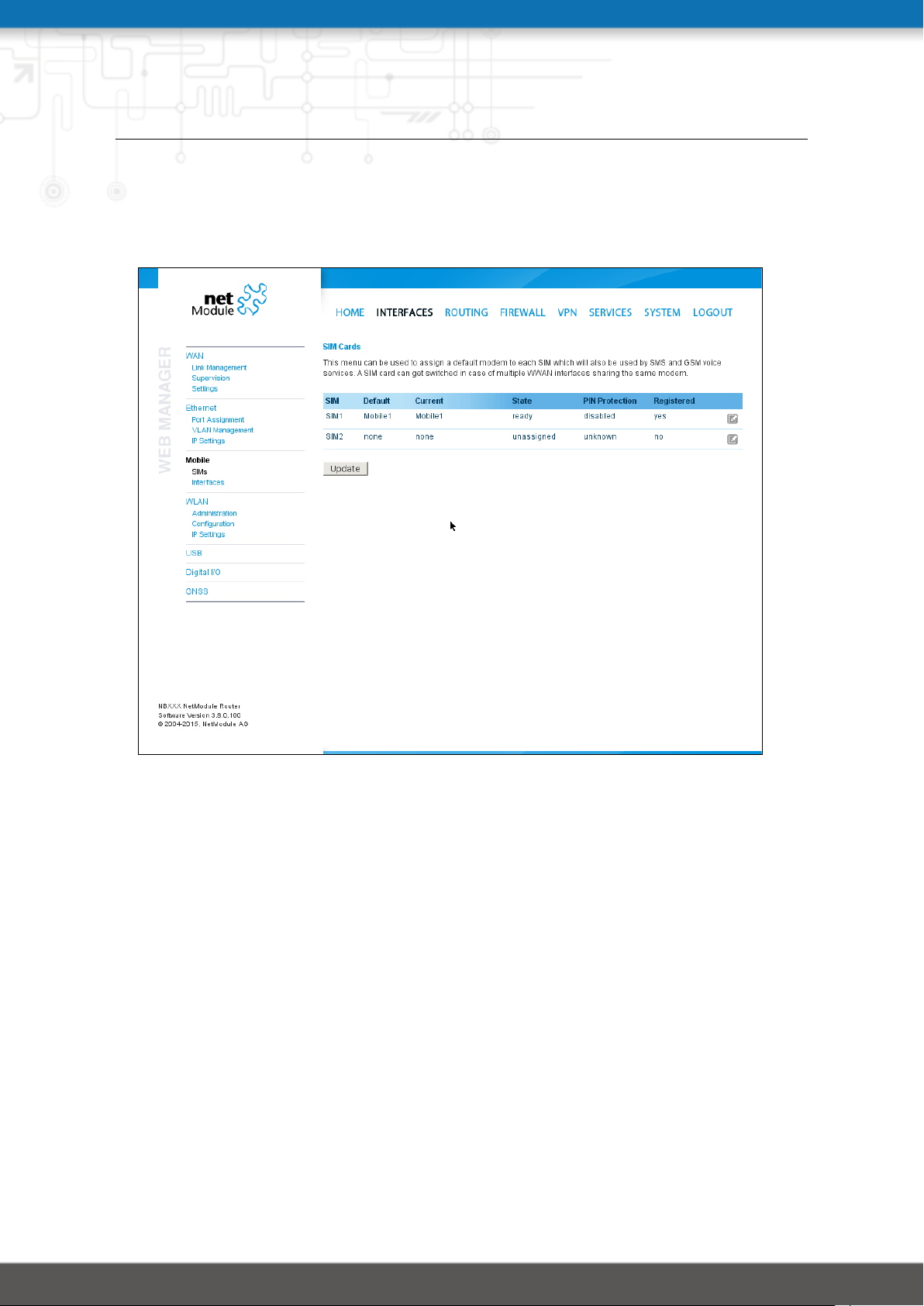

5.10 SIMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

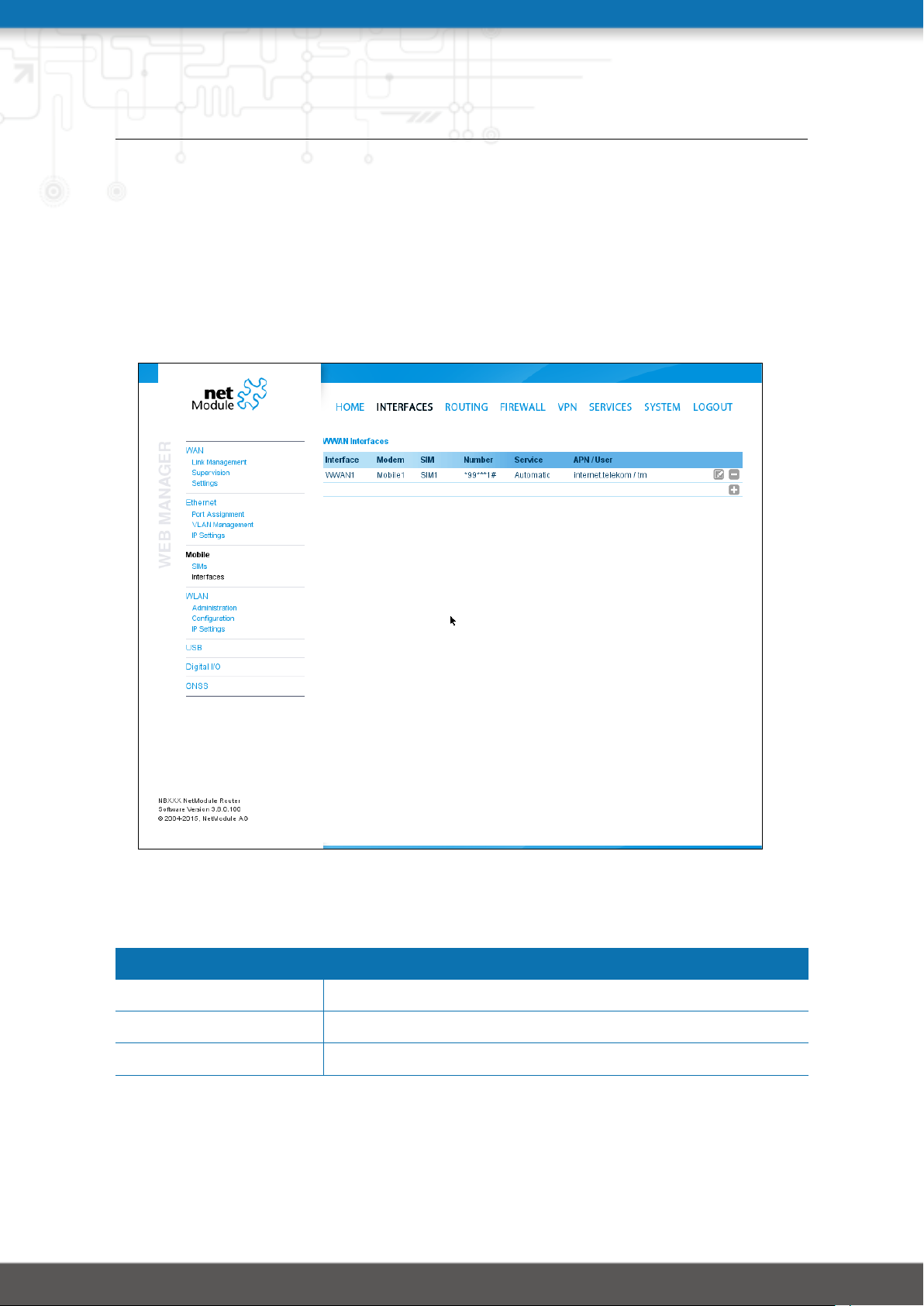

5.11 WWAN Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

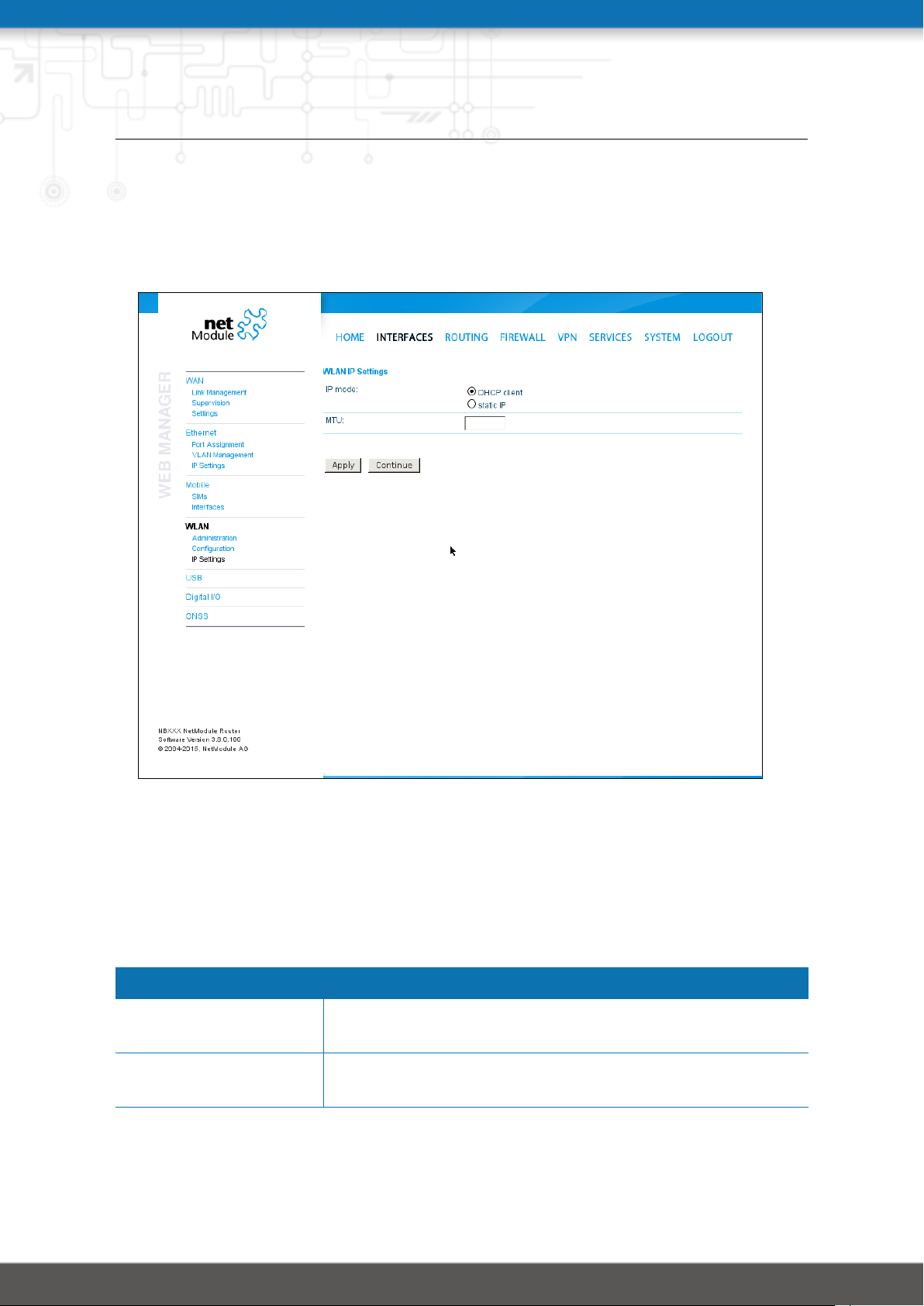

5.14 WLAN IP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

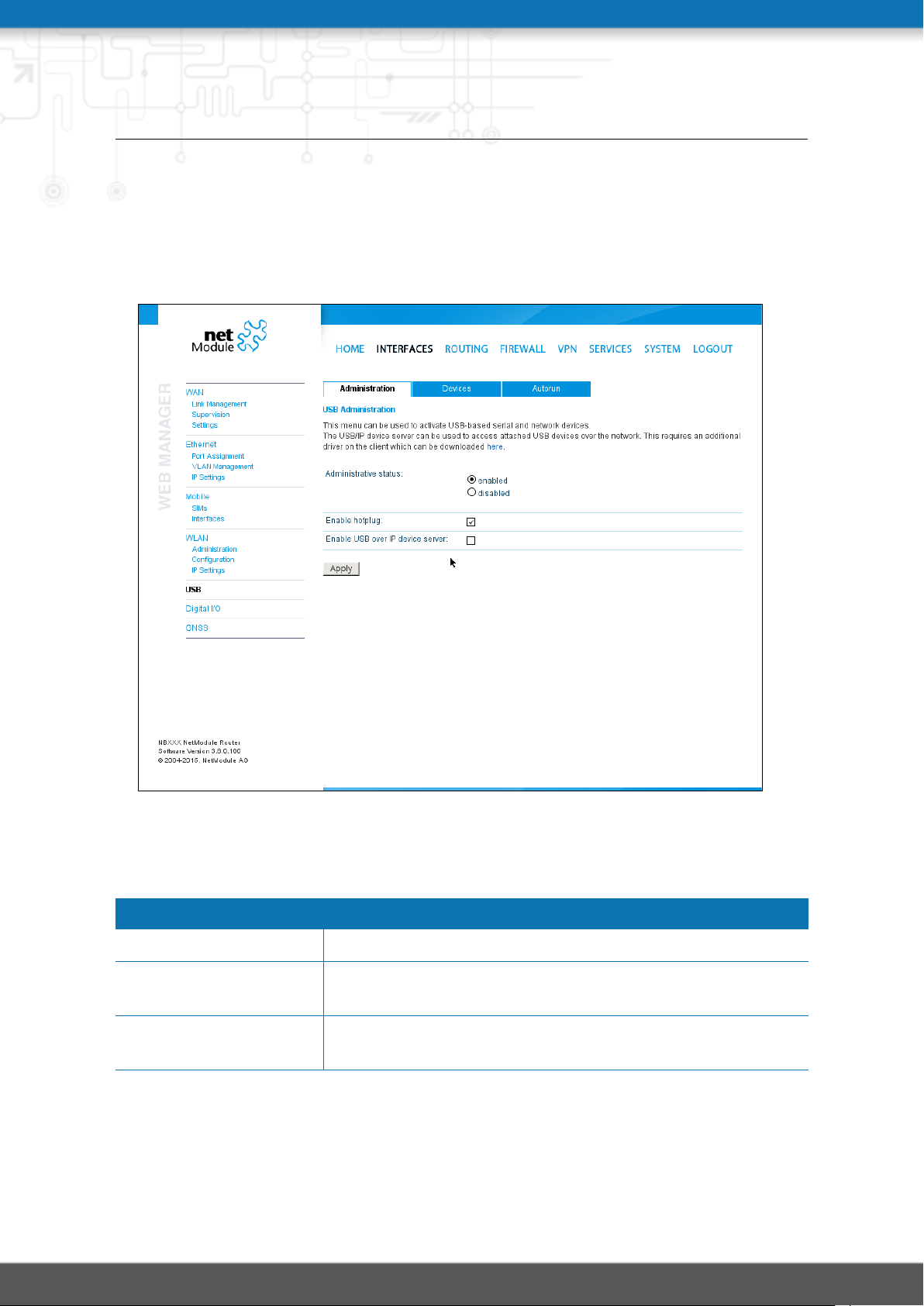

5.15 USB Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

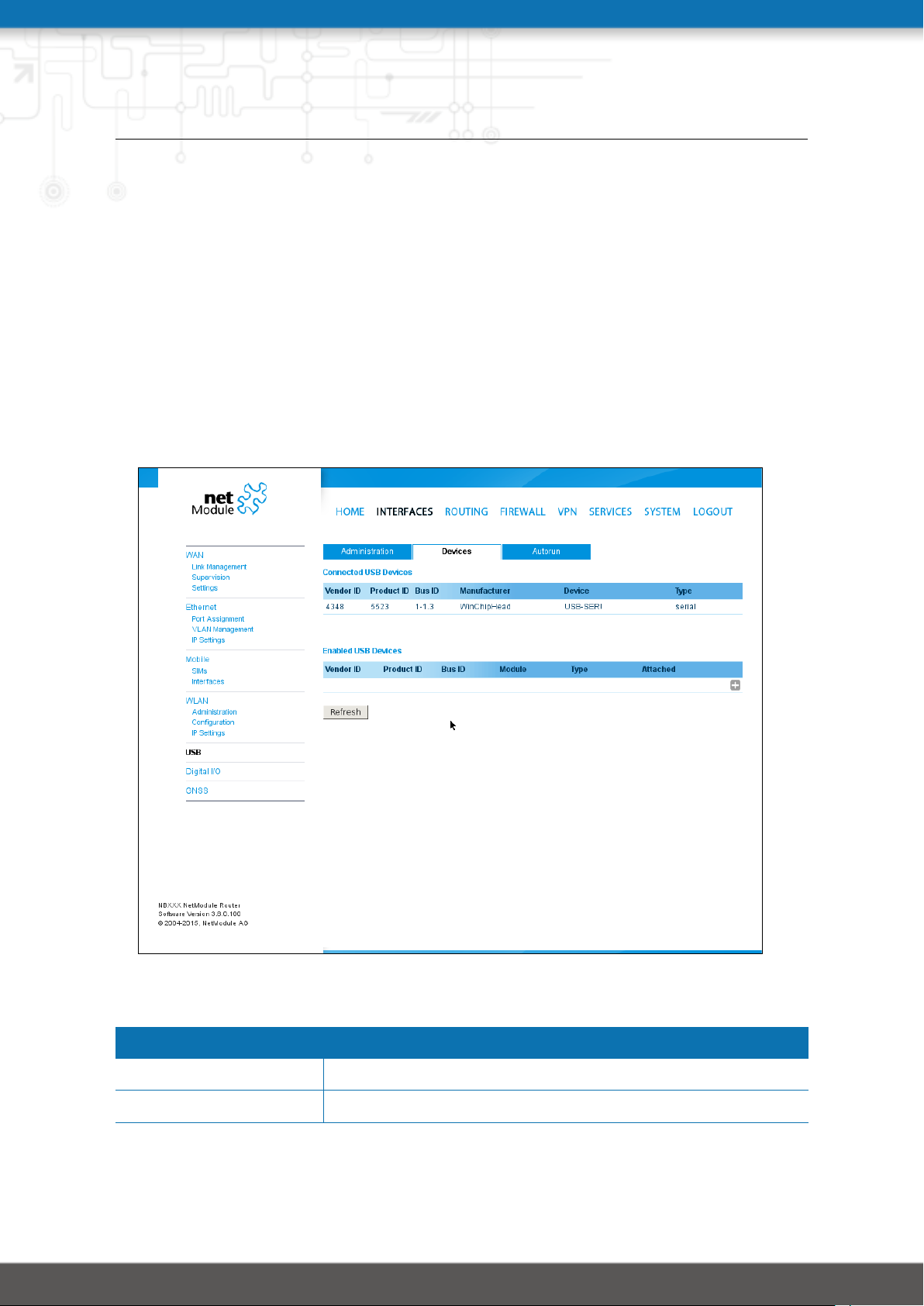

5.16 USB Device Management . . . . . . . . . . . . . . . . . . . . . . . . . . 48

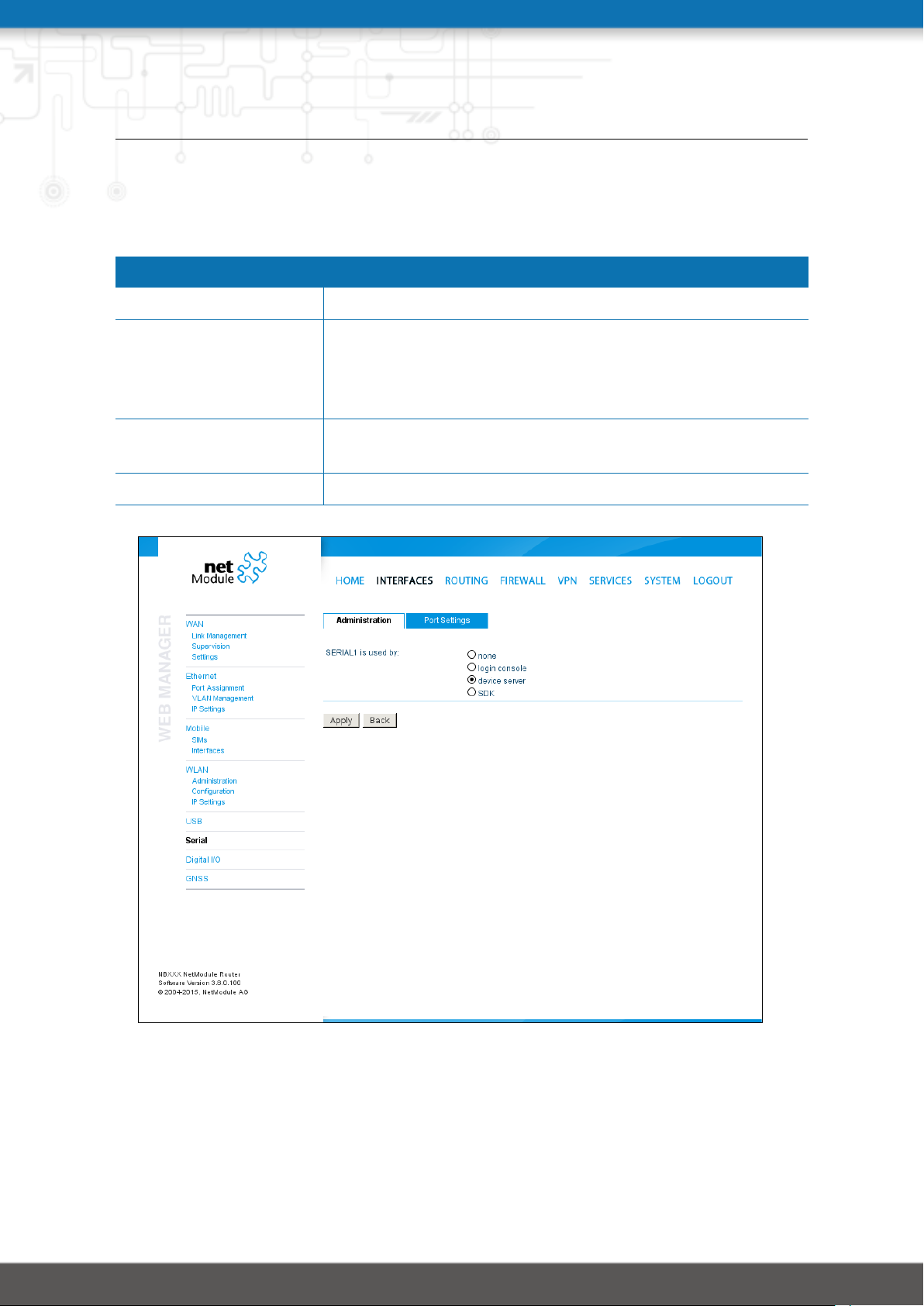

5.17 Serial Port Administration . . . . . . . . . . . . . . . . . . . . . . . . . . 50

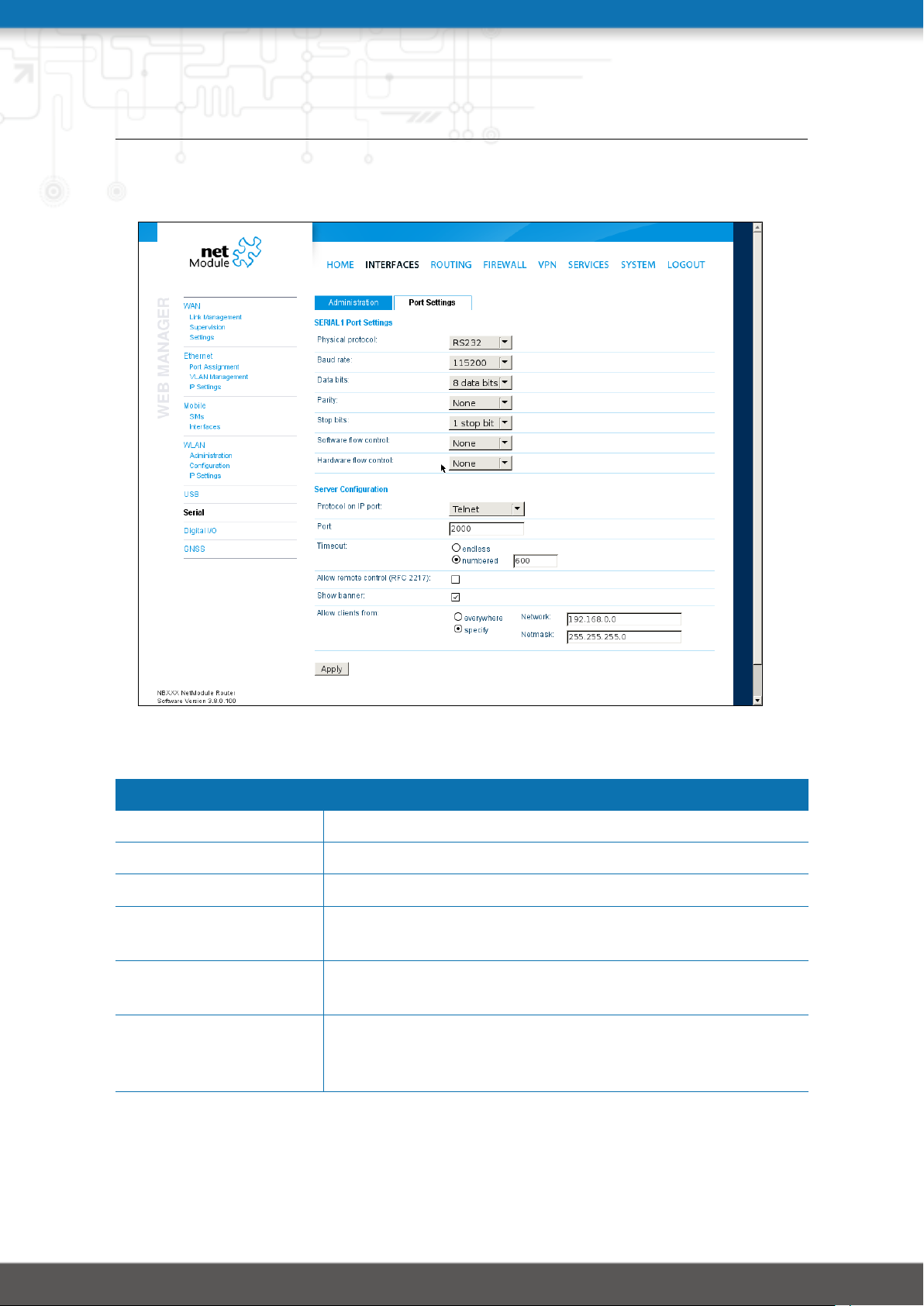

5.18 Serial Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

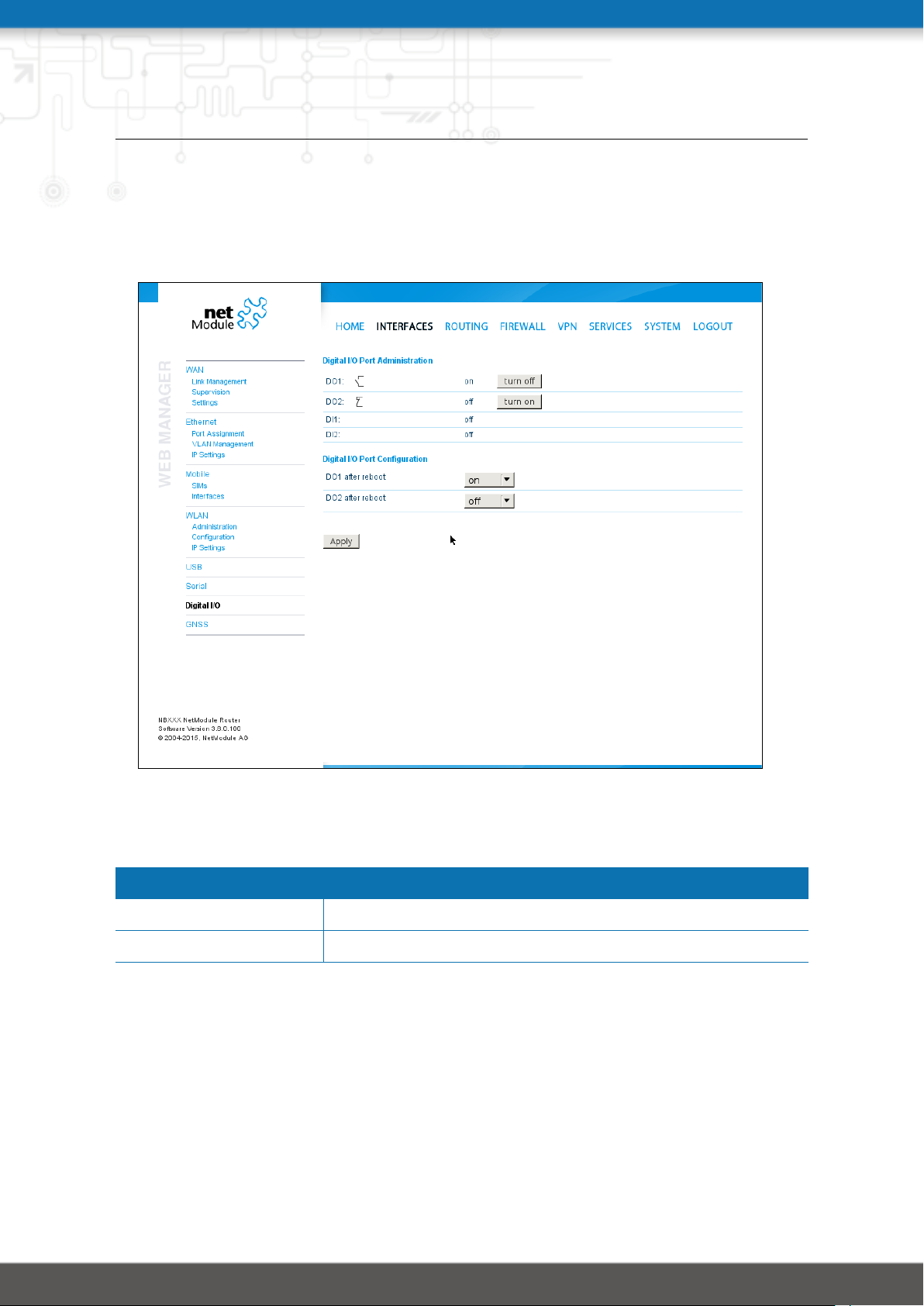

5.19 Digital I/O Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

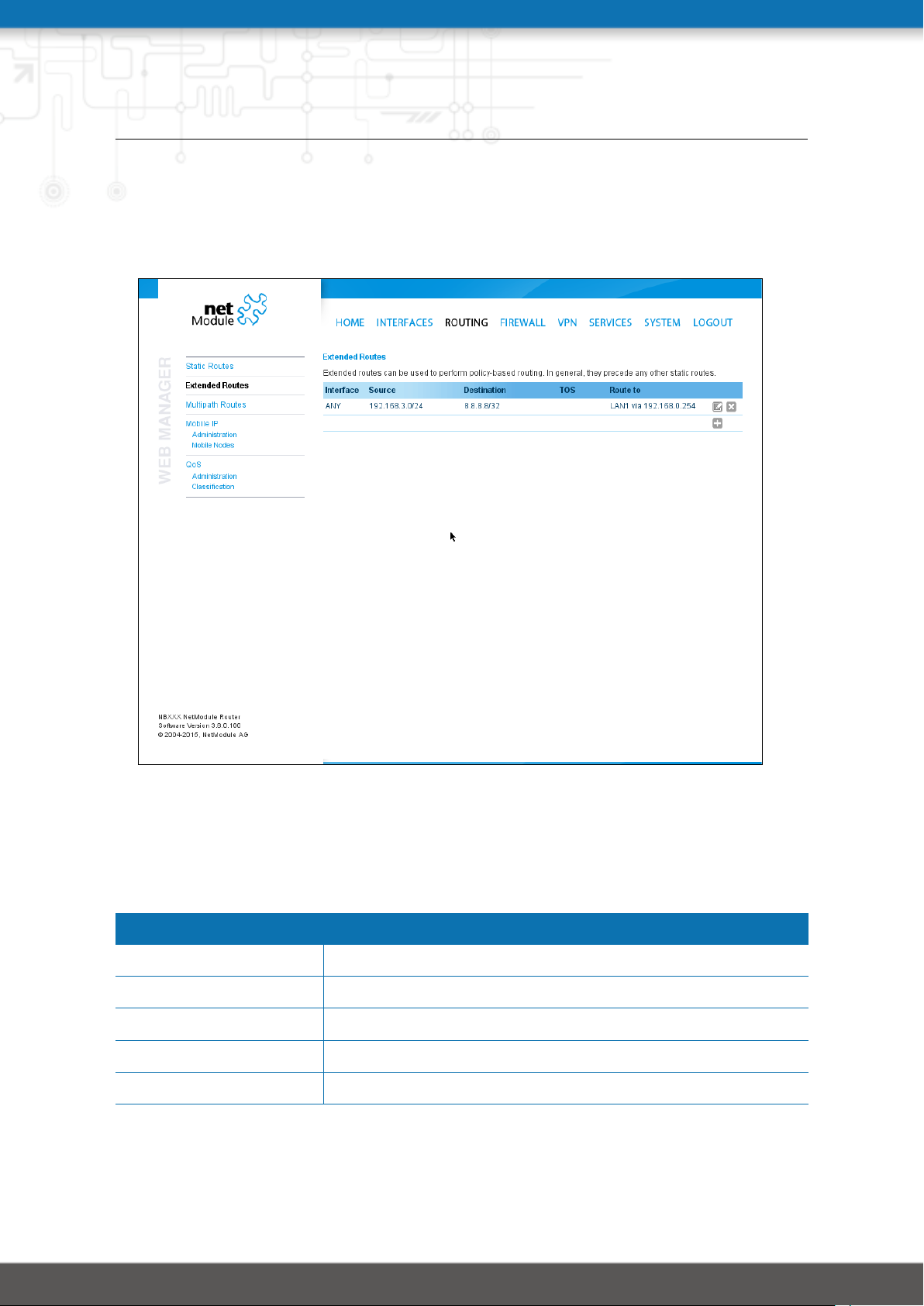

5.21 Extended Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

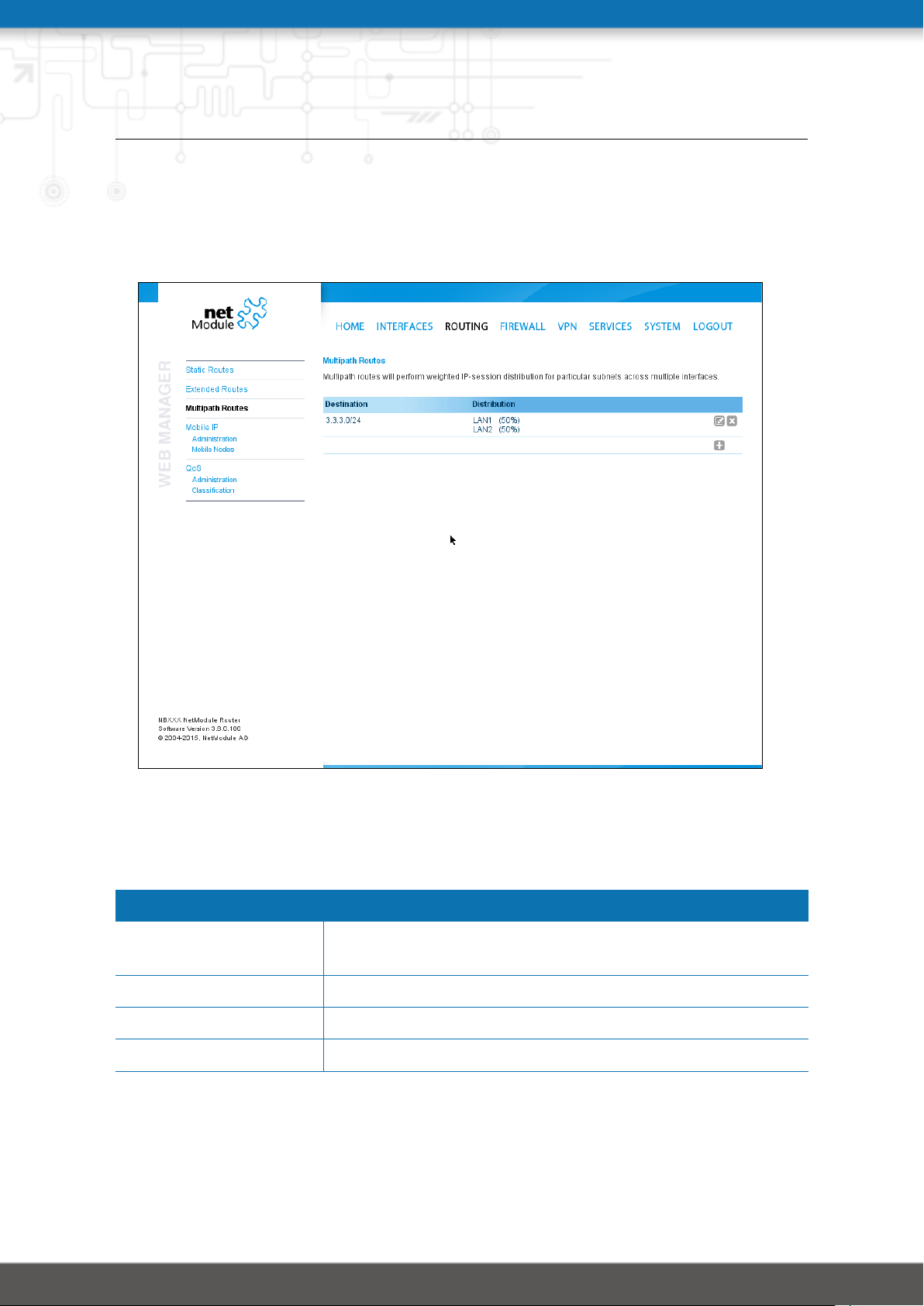

5.22 Multipath Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

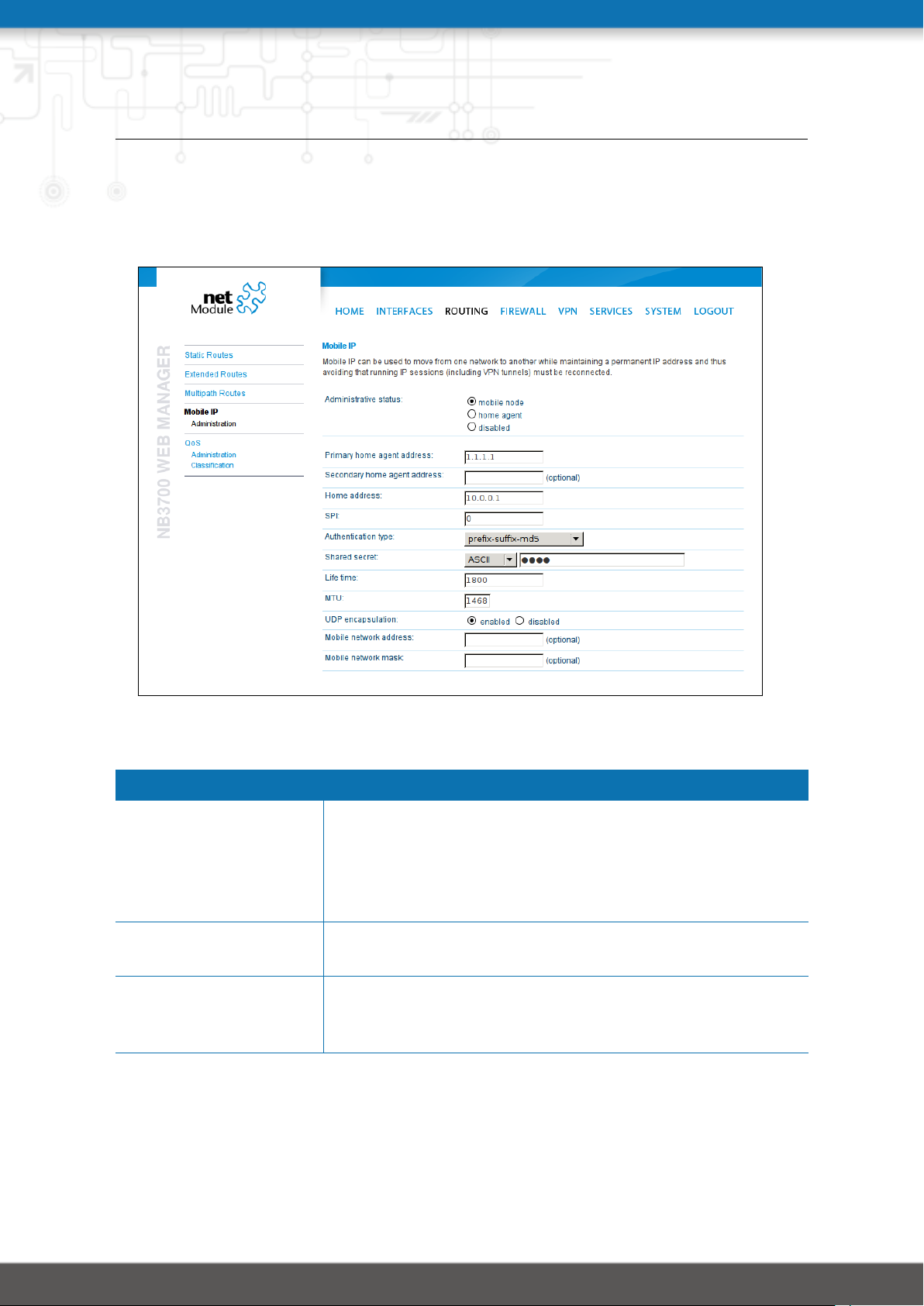

5.23 Mobile IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

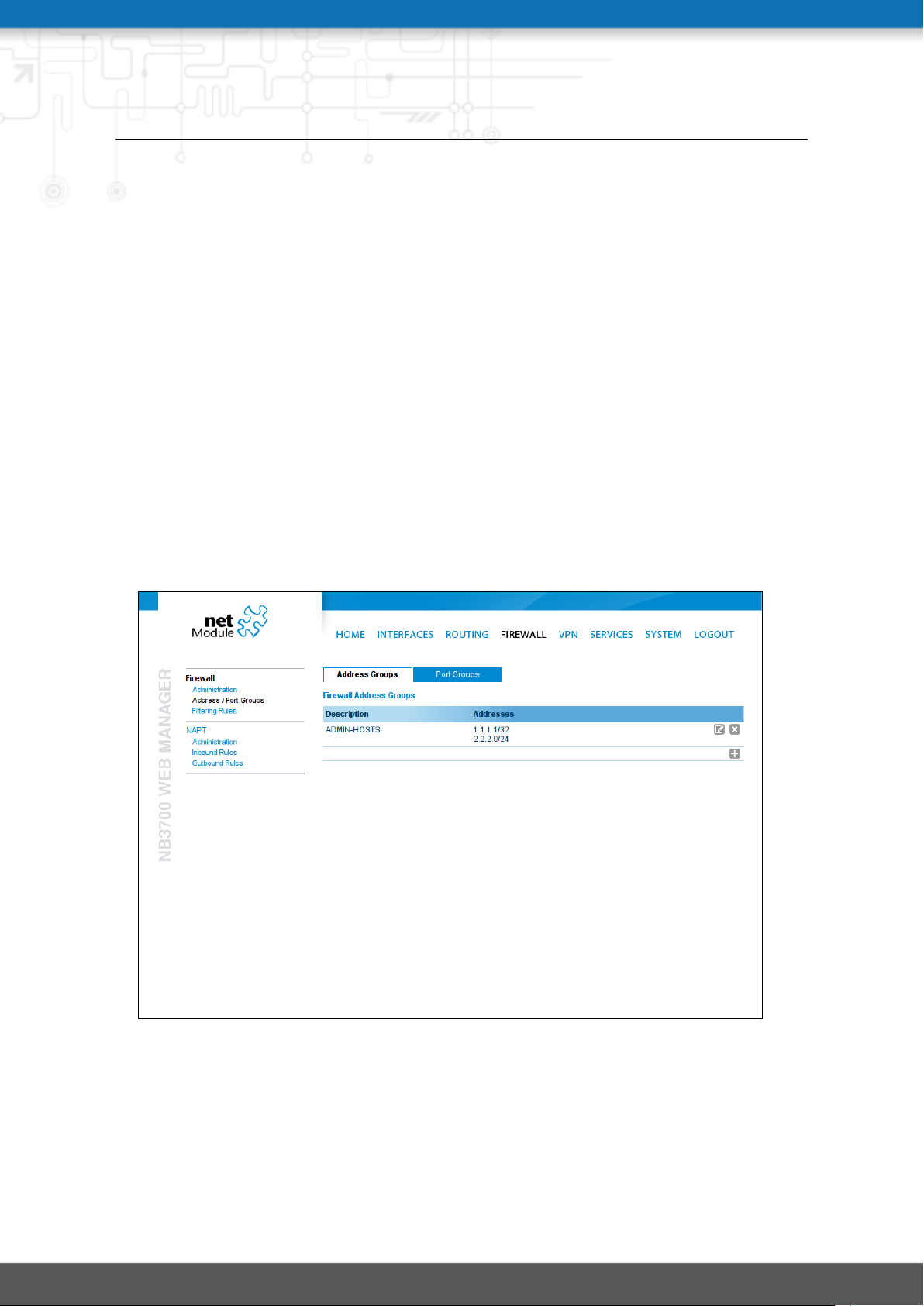

5.24 Firewall Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

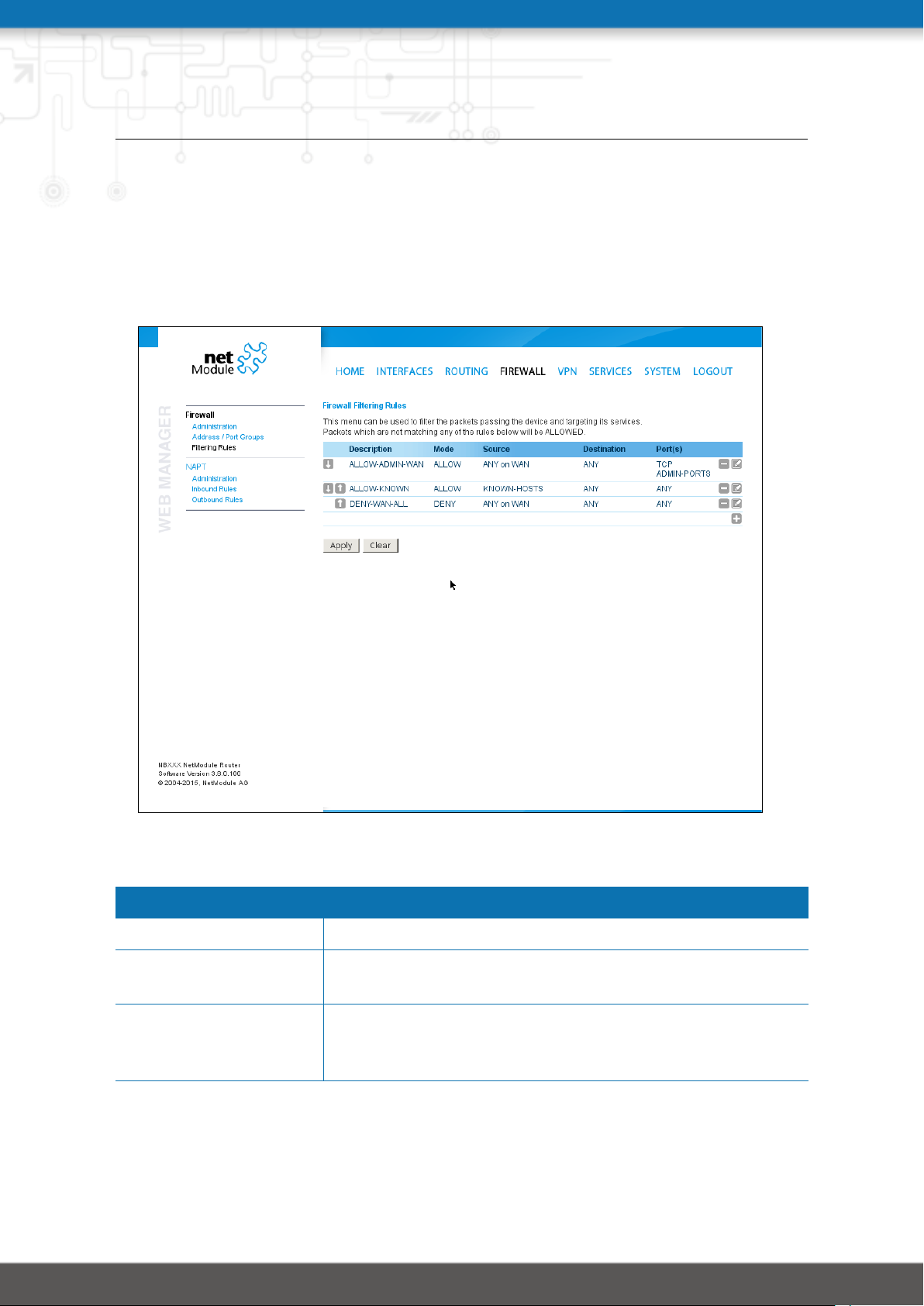

5.25 Firewall Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

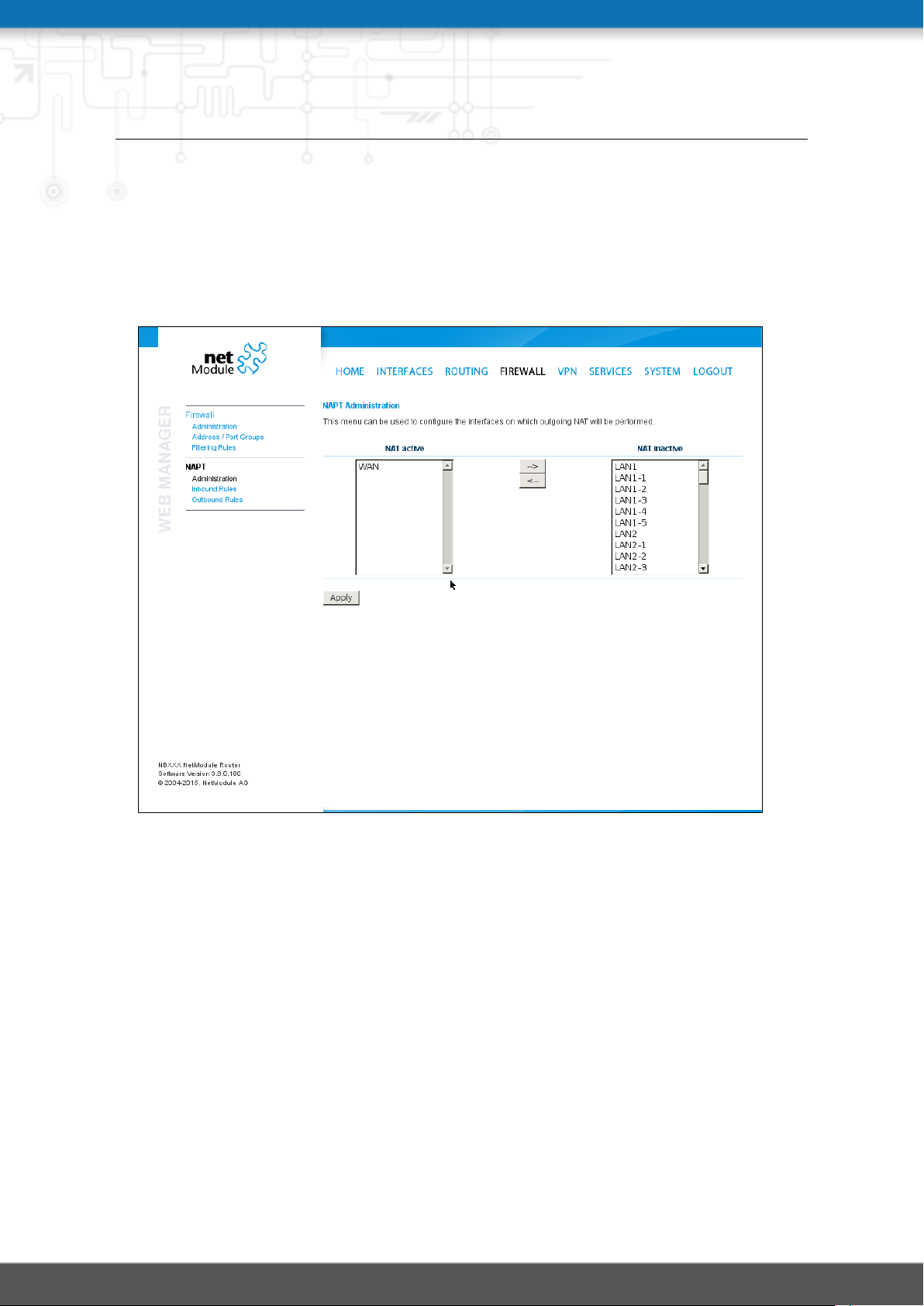

5.26 NAPT Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

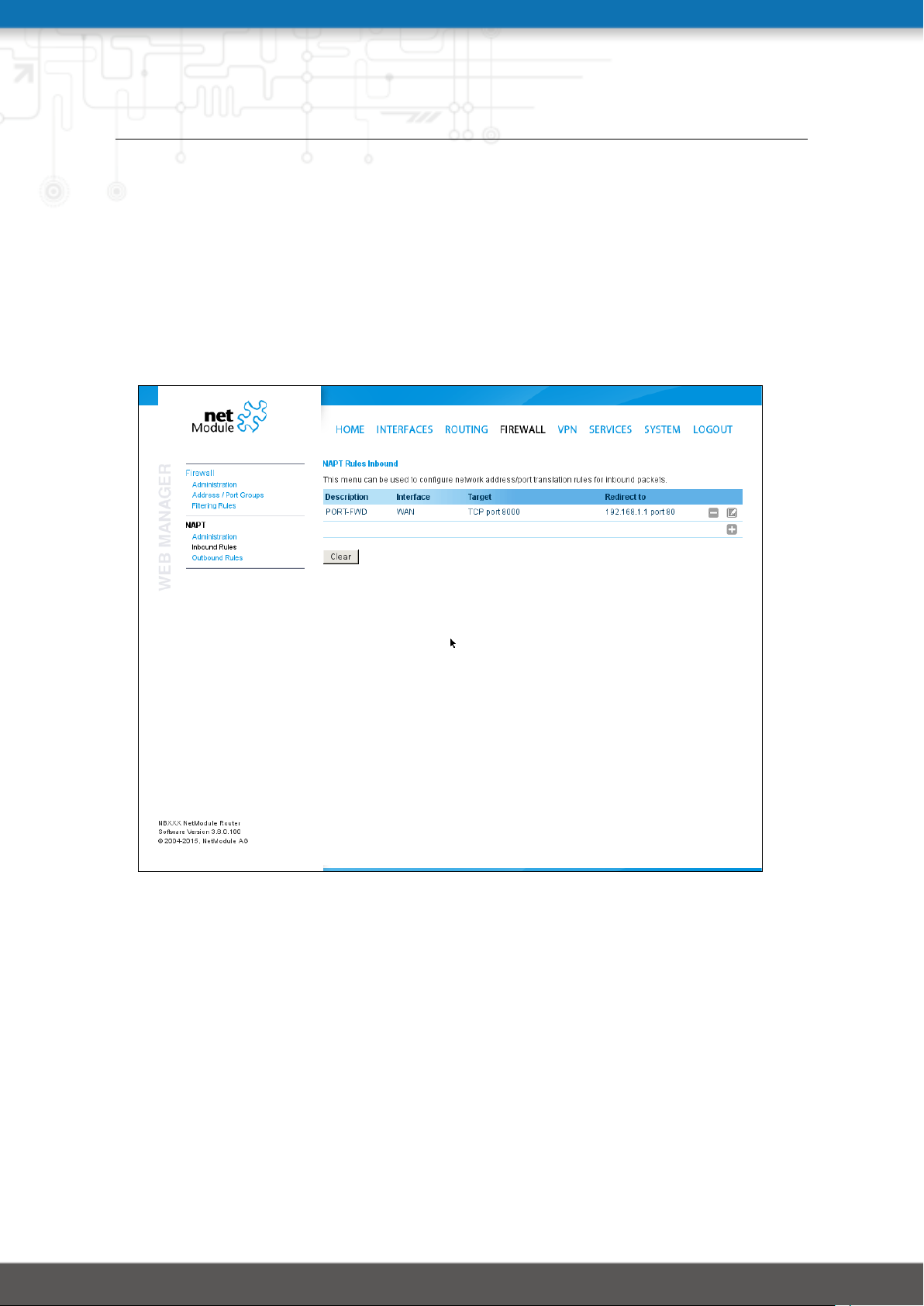

5.27 Inbound NAPT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

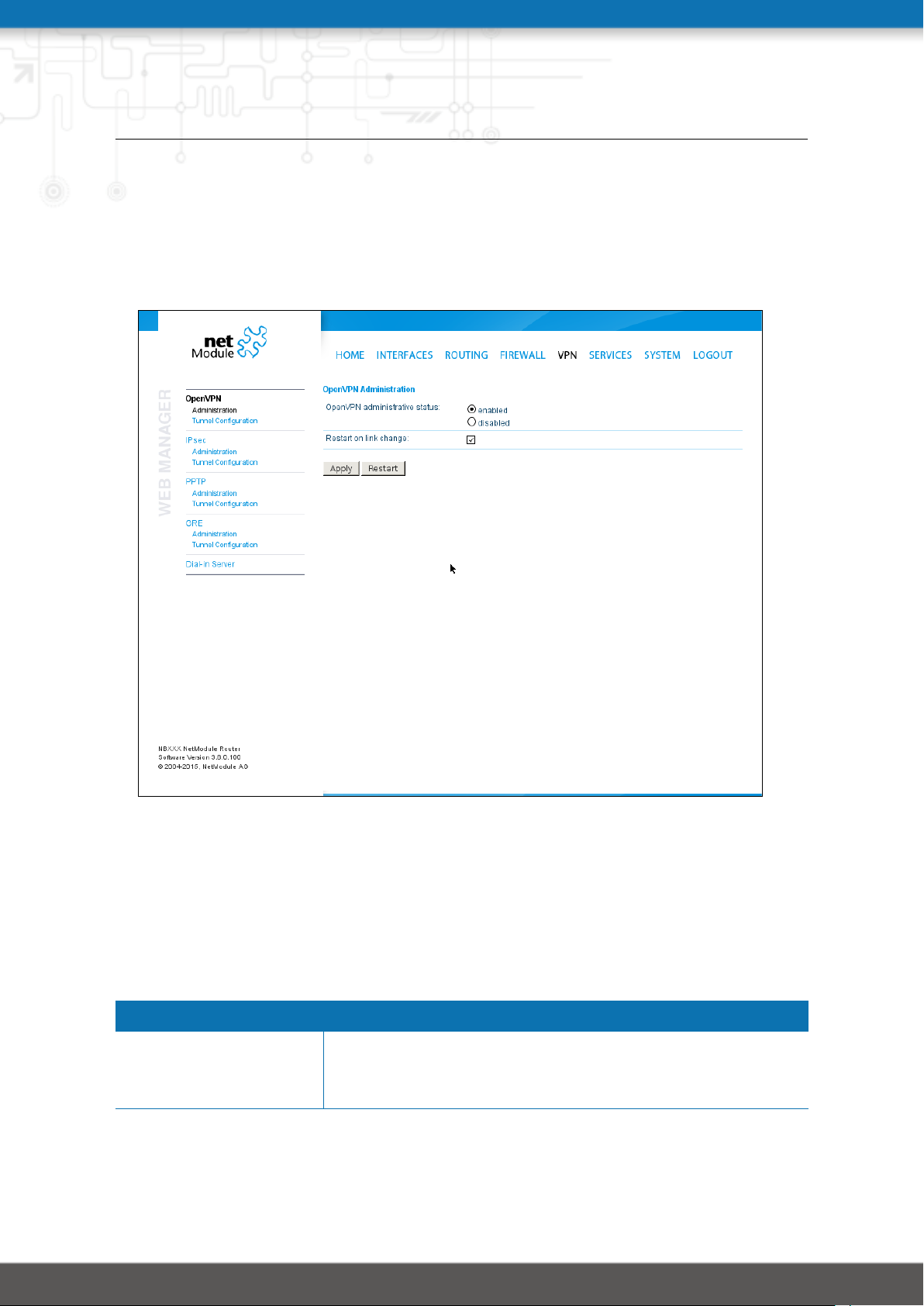

5.28 OpenVPN Administration . . . . . . . . . . . . . . . . . . . . . . . . . . 74

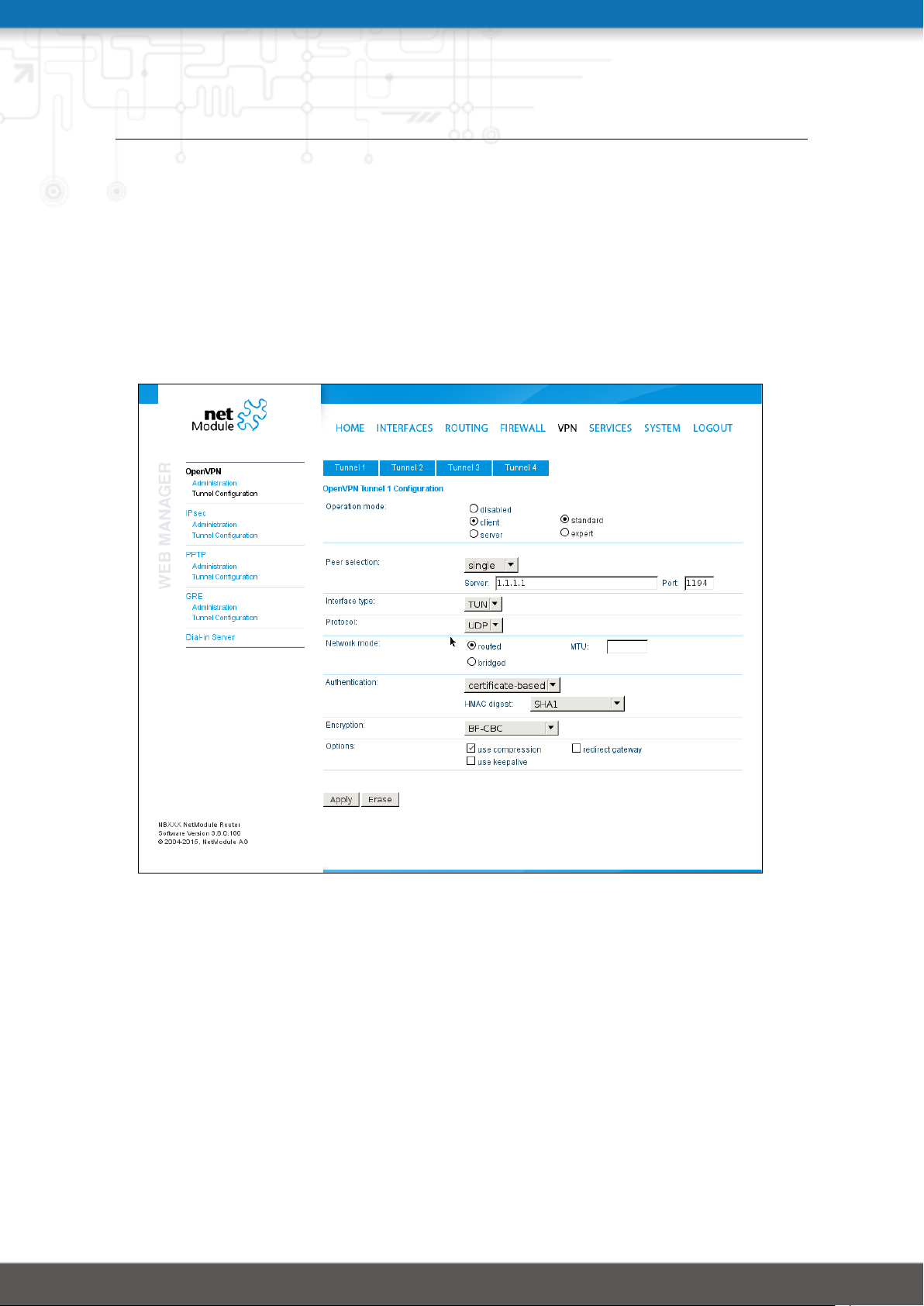

5.29 OpenVPN Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

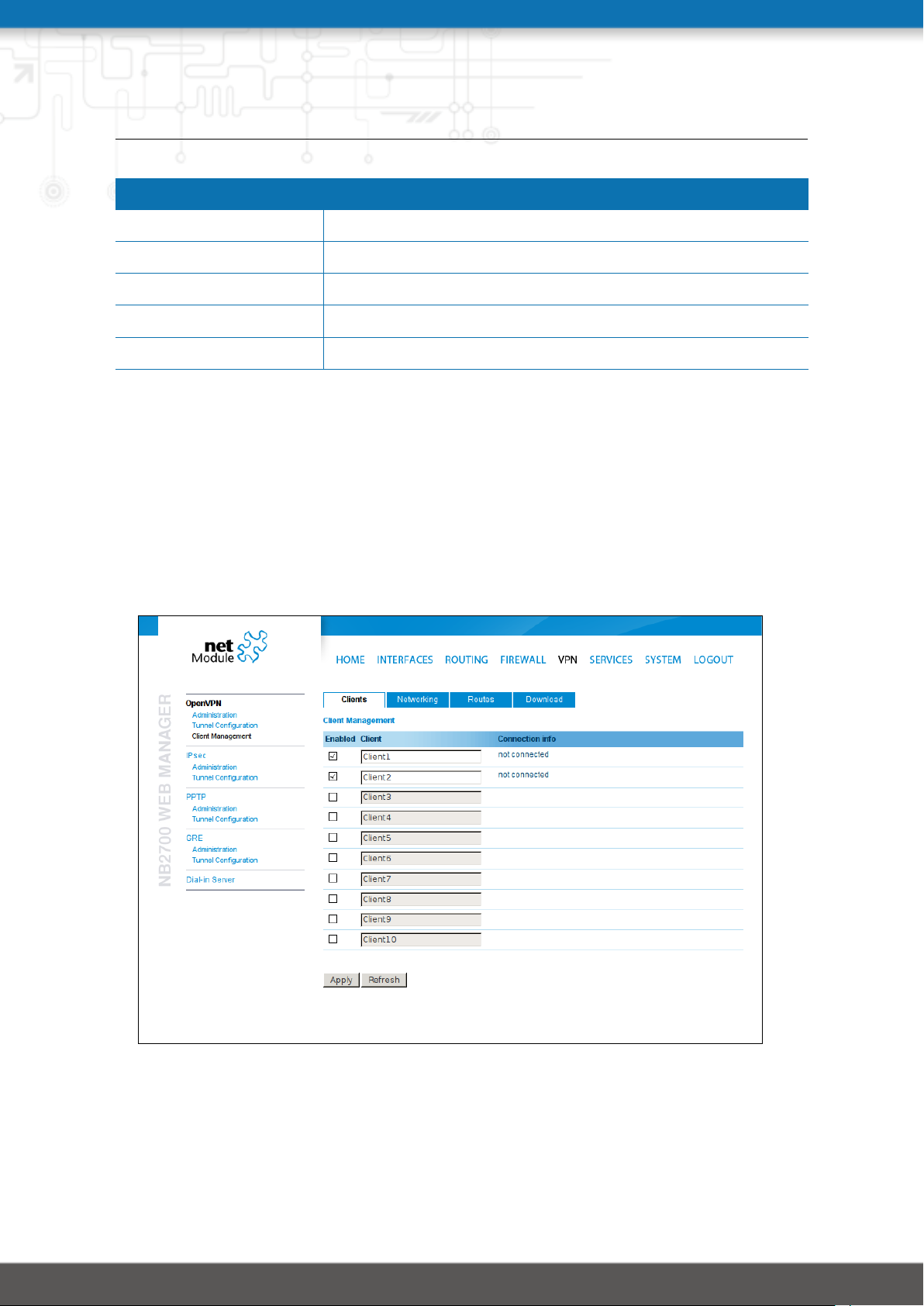

5.30 OpenVPN Client Management . . . . . . . . . . . . . . . . . . . . . . . . 78

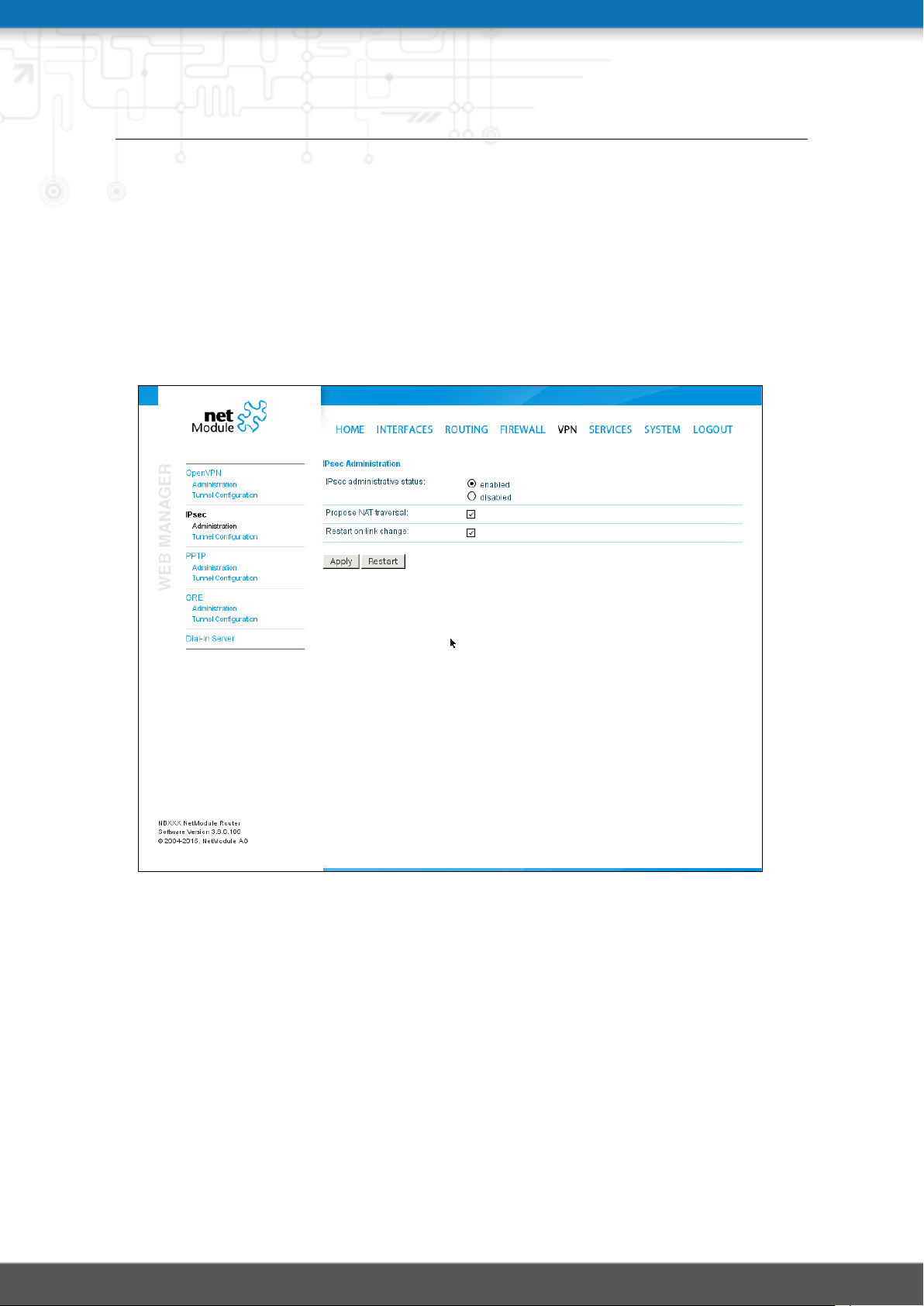

5.31 IPsec Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

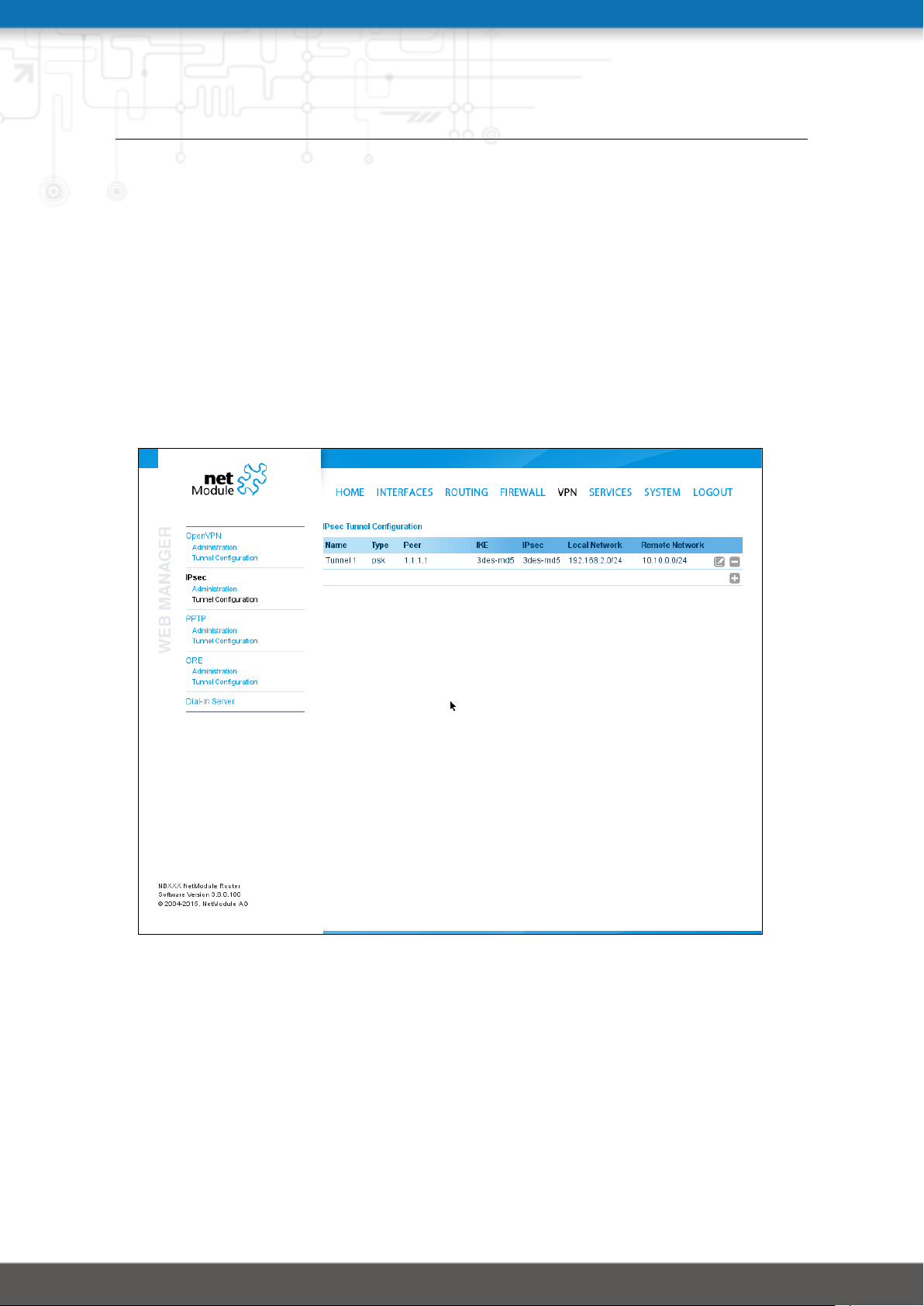

5.32 IPsec Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
5.33 PPTP Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
5
Page 6

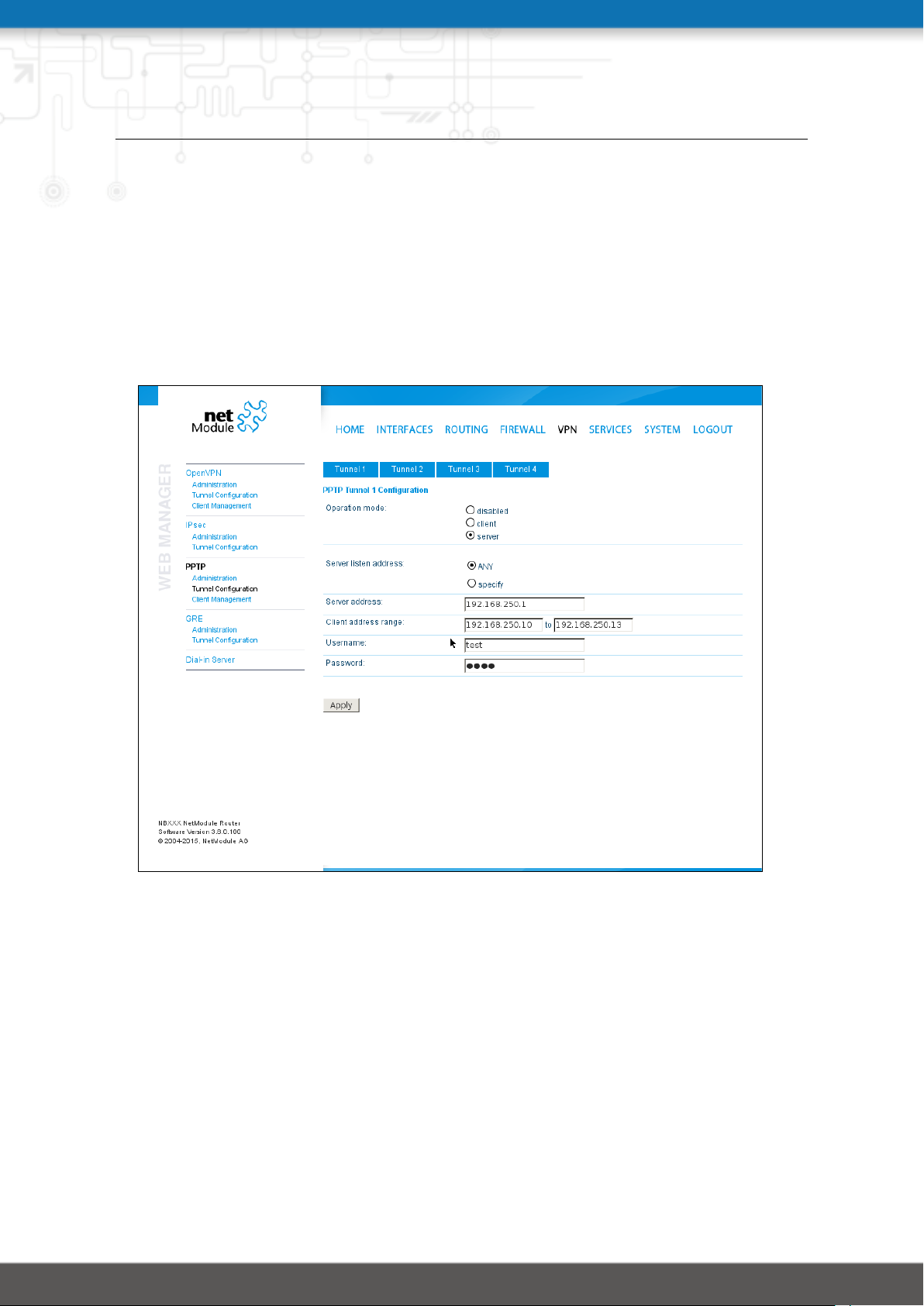

5.34 PPTP Tunnel Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 87

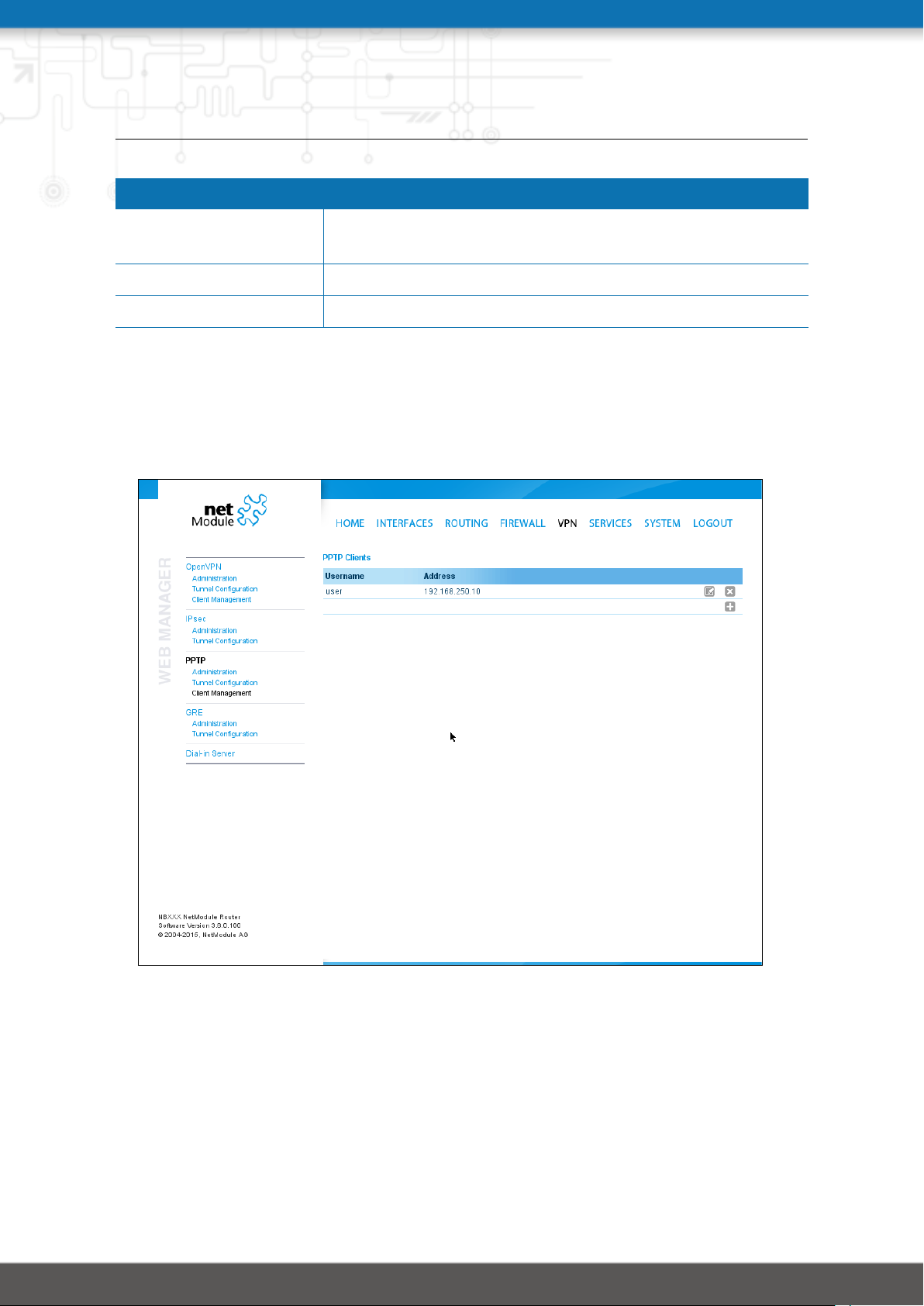

5.35 PPTP Client Management . . . . . . . . . . . . . . . . . . . . . . . . . . 88

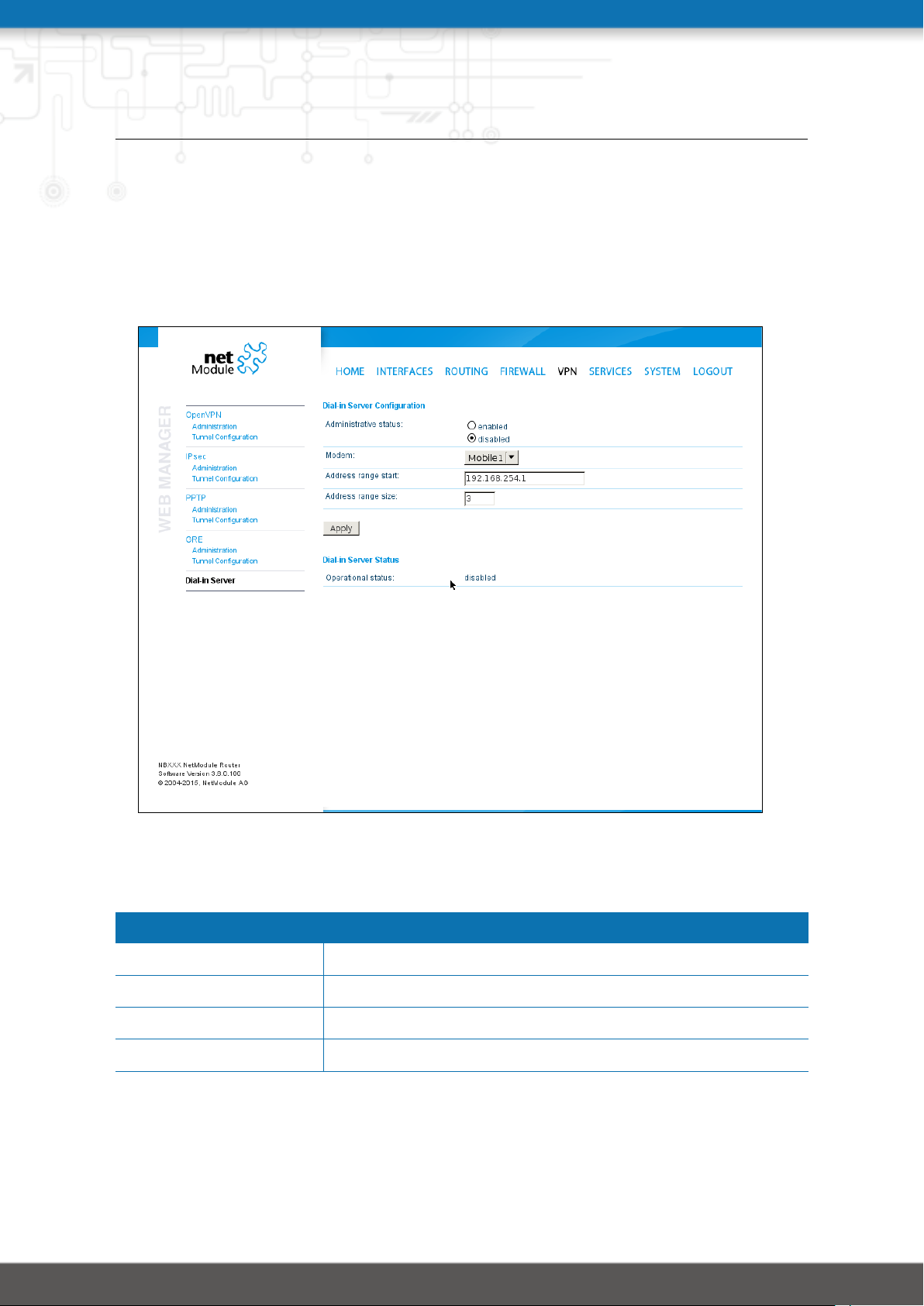

5.36 Dial-in Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
5.37 SDK Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
5.38 SDK Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
5.39 DHCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
5.40 DNS Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
5.41 NTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
5.42 Dynamic DNS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
5.43 E-Mail Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
5.45 SSH and Telnet Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
5.46 SNMP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
5.47 Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
5.48 VRRP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
5.49 Voice Gateway Administration . . . . . . . . . . . . . . . . . . . . . . . . 125
5.50 Voice Gateway Endpoint Configuration . . . . . . . . . . . . . . . . . . . 127
5.51 Voice Gateway Routing Configuration . . . . . . . . . . . . . . . . . . . . 130
5.52 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
5.54 User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
5.56 Manual File Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 141
5.58 Factory Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
5.60 Tech Support File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
5.61 Keys and certificates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
5.62 Certificate Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
5.63 Licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
List of Tables
3.1 NB3700 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 NB3700 Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 NB3700 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.4 USB 2.0 Host Port Specification . . . . . . . . . . . . . . . . . . . . . . . 11
6
Page 7
NB3700 User Manual 3.8
3.5 Ethernet Port Specification . . . . . . . . . . . . . . . . . . . . . . . . . 11

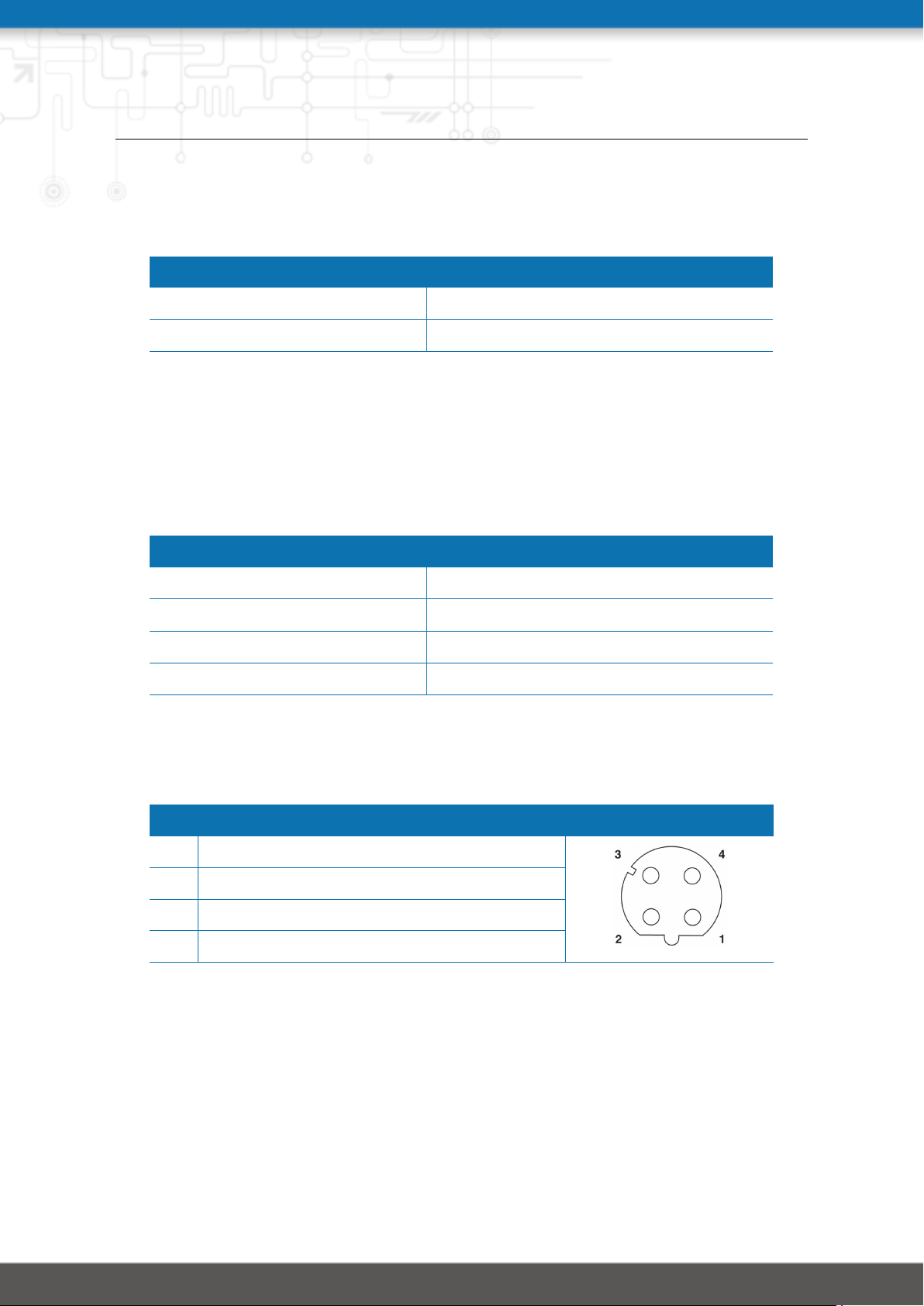

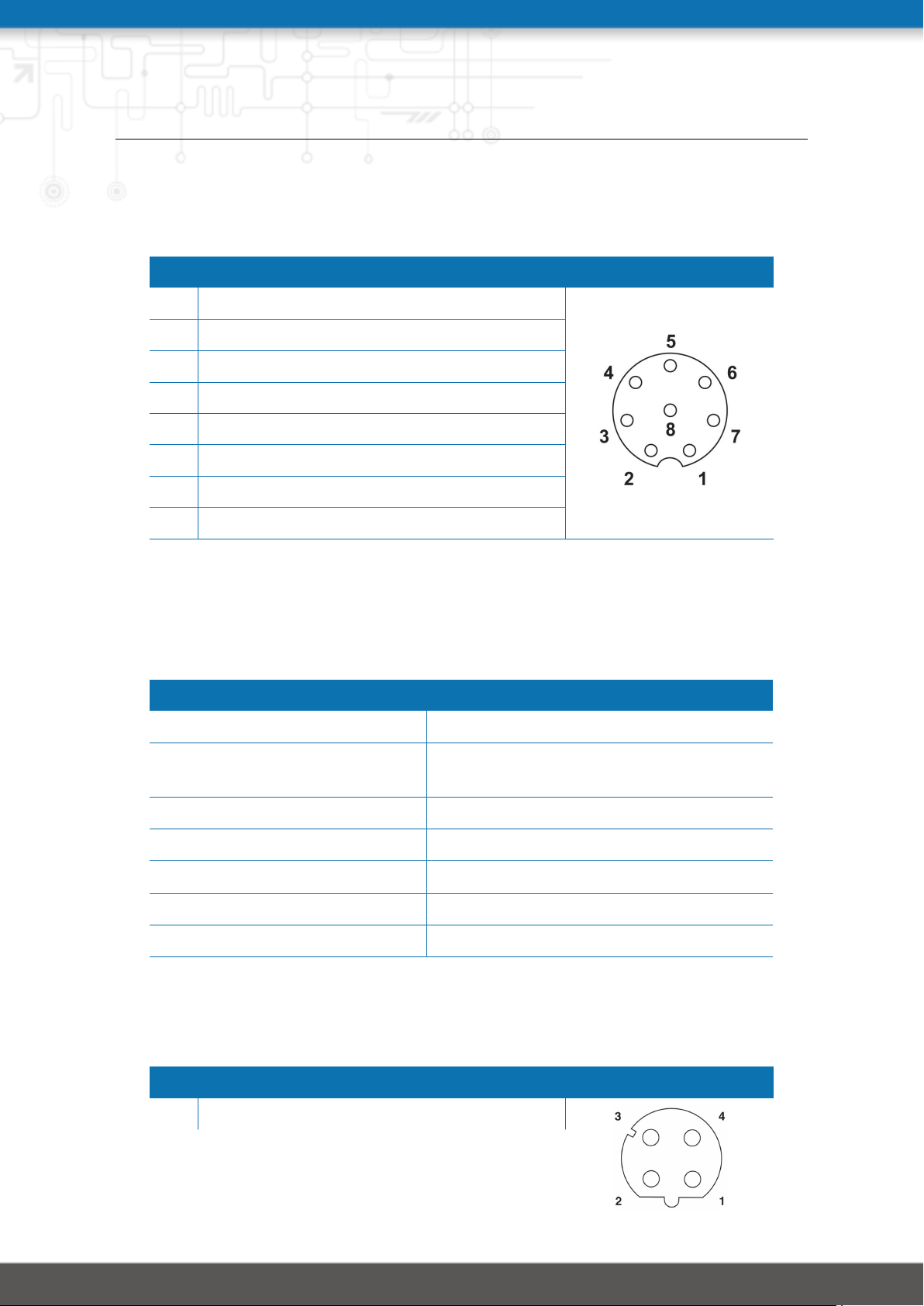

3.6 Pin Assignments of Ethernet Connectors . . . . . . . . . . . . . . . . . . 11
3.7 Power Input Specifications Variant Pa . . . . . . . . . . . . . . . . . . . 12
3.8 Power Input Specifications Variant Pb . . . . . . . . . . . . . . . . . . . 12
3.10 Isolated Digital Outputs Specification . . . . . . . . . . . . . . . . . . . . 13
3.11 Isolated Digital Inputs Specification . . . . . . . . . . . . . . . . . . . . . 13

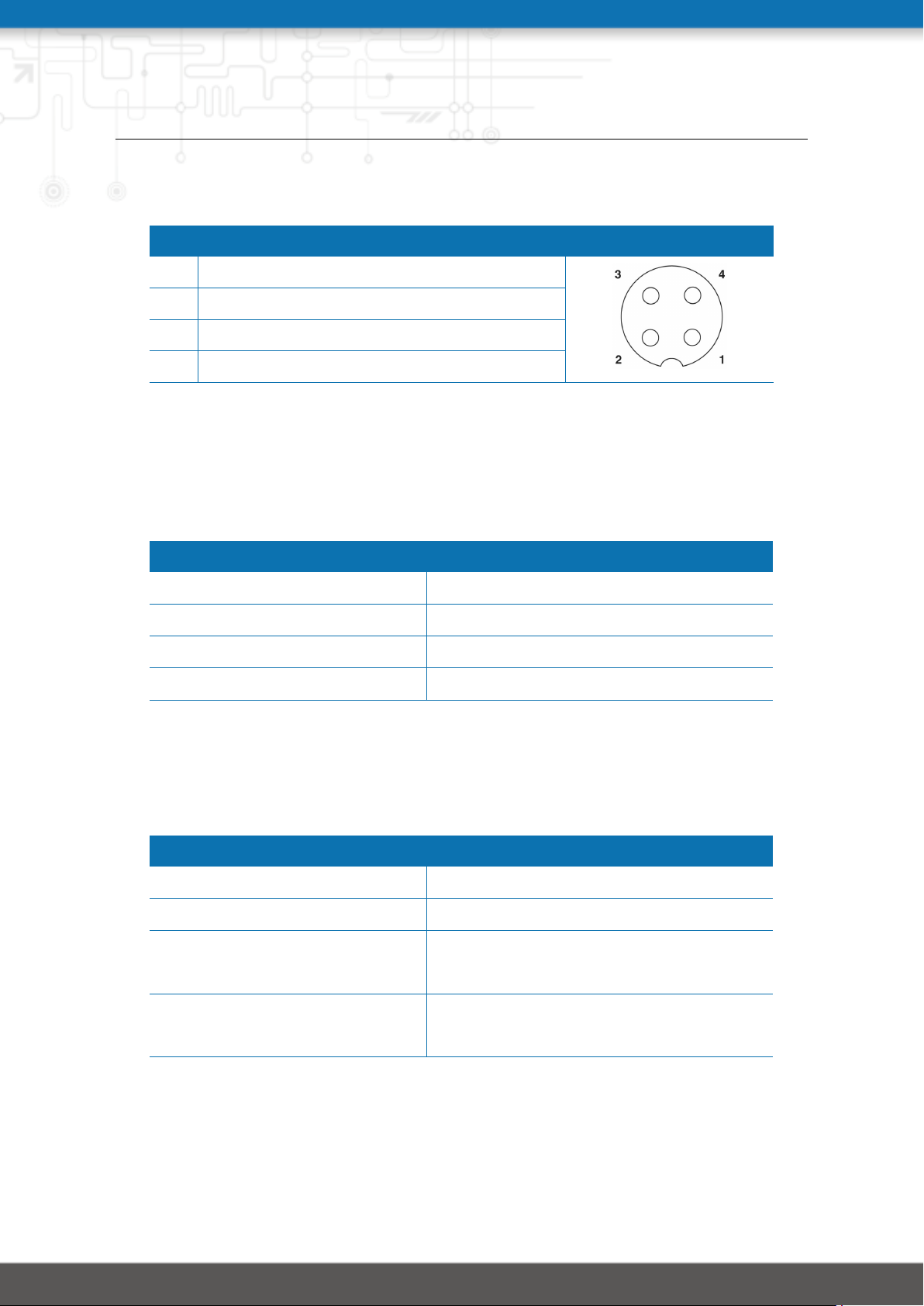

3.12 Pin Assignments of Digital Inputs and Outputs . . . . . . . . . . . . . . 14
3.13 RS-232 Port Specification . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.14 Pin Assignments of RS-232 Port . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.17 IEEE 802.11 Network Standards . . . . . . . . . . . . . . . . . . . . . . . 42
5.69 SMS Control Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
5.104Certificate Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
A.1 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
A.2 System Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
A.3 SDK Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
7
Page 8
1. Welcome to NetModule
Thank you for purchasing a NetModule Router. This document should give you an introduction to the router and its features. The following chapters describe any aspects of commissioning the device, installation procedure and provide helpful information towards configuration and maintenance.
Plese further imformation such as sample SDK script or configuration samples also in our wiki on http://wiki.netmodule.com.
8
Page 9
2. Conformity
This chapter provides general information for putting the router into operation.
2.1. Safety Instructions
NetModule routers must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments.
We would like to point out that only the original accessories, shipping with the router, must be used in order to prevent possible injury to health and damage to appliances and to ensure that all the relevant provisions have been complied with. Unauthorized mod­ifications or utilization of unapproved accessories may void the warranty. The routers must not be opened. However, it is possible to replace any pluggable SIM cards even during operation.
All circuits connected to the interfaces of the router must comply with the requirements of Safety Extra Low Voltage (SELV) circuits and have to be designed for indoor use only. Interconnections must not leave the building nor penetrate the body shell of a vehicle. Possible antenna circuits must be limited to over-voltage transient levels below 1500 Volts according to IEC 60950-1, TNV-1 circuit levels using safety approved components.
NB3700 routers shall only be used with a certified (CSA or equivalent) power supply which must have a limited and SELV circuit output. They are basically designed for indoor use. Do not expose the communication module to extreme ambient conditions and protect the communication module against dust, moisture and high temperature.
We remind the user of the duty to observe the restrictions concerning the utilization of radio devices at petrol stations, in chemical facilities or in the course of blasting works in which explosives are used. Switch off the communication module when traveling by plane.
You need to pay heightened attention when using the communication module close to personal medical devices, such as cardiac pacemakers or hearing aids. NetModule routers may also cause interference in the nearer distance of TV sets, radio receivers and personal computers.
Avoid any installation of the antenna during a lightning. Always keep a distance of more than 40 cm from the antenna in order to reduce exposure to electromagnetic fields below the legal limits. This distance applies to to antennas with higher gain.
Any Ethernet cabling must be shielded, the Ethernet section of this manual provides
λ
- and
4
λ
-antennas. Larger distances may apply
2
9
Page 10
NB3700 User Manual 3.8
more information. Devices with WLAN interface may be operated only with applicable Regulatory Domain
configured. Cellular antennas attached to the router must have an antenna gain of equal or less than
2.5 dBi. If an extension cable is used to attach the antenna, the antenna gain may be higher by the amount of cable attenuation.
We highly recommended creating a copy of a working system configuration. It can be downloaded using the Web Manager and easily applied to a newer software release afterwards as we generally guarantee backward compatibility.
2.2. Declaration of Conformity
NetModule hereby declares that under our own responsibility that the routers comply with the relevant standards following the provisions of the Council Directive 1999/5/EC. The signed version of the Declara- tions of Conformity can be found on the NetModule web page.
2.3. Waste Disposal
In accordance with the requirements of the Council Directive 2002/96/EC regarding Waste Electrical and Electronic Equipment
(WEEE), you are urged to ensure that this product will be segregated from other waste at end-of-life and delivered to the WEEE collection system in your country for proper recycling.
2.4. National Restrictions
This product may be generally used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below. Please refer to our WLAN Regulatory Database for getting further national radio interface regulations and requirements for a particular country.
10
Page 11
NB3700 User Manual 3.8
2.5. Open Source Software
We inform you that NetModule products may contain in part open-source software. We are distributing such open-source software to you under the terms of GNU General Public License (GPL)1, GNU Lesser General Public License (LGPL)2or other open­source licenses3. These licenses allow you to run, copy, distribute, study, change and improve any software covered by GPL, Lesser GPL, or other open-source licenses with­out any restrictions from us or our end user license agreement on what you may do with that software. Unless required by applicable law or agreed to in writing, software distributed under open-source licenses is distributed on an "AS IS" basis, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
To obtain the corresponding open source codes covered by these licenses, please contact our technical support at [email protected].
Acknowledgements
This product includes:
• PHP, freely available from http://www.php.net
• Software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/)
• Cryptographic software written by Eric Young ([email protected])
• Software written by Tim Hudson ([email protected])
• Software written Jean-loup Gailly and Mark Adler
• MD5 Message-Digest Algorithm by RSA Data Security, Inc.
• An implementation of the AES encryption algorithm based on code released by
Dr Brian Gladman
• Multiple-precision arithmetic code originally written by David Ireland
• Software from The FreeBSD Project (www.freebsd.org)
1
Please find the GPL text under http://www.gnu.org/licenses/gpl-2.0.txt
2
Please find the LGPL text under http://www.gnu.org/licenses/lgpl.txt.
3
Please find the license texts of OSI licenses (ISC License, MIT License, PHP License v3.0, zlib License)
under http://opensource.org/licenses
11
Page 12
3. Specifications
3.1. Features
There are several different models of NB3700 available:
Model UMTS LTE WLAN
NB3700-R (Wireline)
NB3700-W (WLAN) l
NB3700-U (UMTS) l
NB3700-UW (UMTS & WLAN) l l
NB3700-2UW (UMTS & WLAN) 2x l
NB3700-L (LTE) l l
NB3700-LW (LTE & WLAN) l l l
NB3700-2LW (LTE & WLAN) 2x 2x l
Table 3.1.: NB3700 Models
Note: All UMTS models include support for EDGE/GPRS. All LTE models include support for UMTS/EDGE/GPRS. The UMTS/LTE models can be equipped with a supplementary VOICE (-V) or GNSS (-G) option. We also offer models for CDMA 450MHz (-Ca).
All models have following basic functionality in common:
• Galvanically isolated power supply
• 5 Ethernet ports (M12)
• 1 USB 2.0 host port
• 2 digital inputs
• 2 digital outputs
• 2 SIM card slots
Due to its modular approach, the NB3700 router and its hardware components can be arbitrarily assembled according to its indented usage or application. Please contact us in case of special project requirements.
12
Page 13
NB3700 User Manual 3.8
3.2. Operating Elements
The following table describes the NB3700 status indicators. The color of the LED represents the signal quality for wireless links.
l red means low
l yellow means moderate
l green means good or excellent
Label Color State Function
Status l blinking The device is busy due to startup, software or configu-
ration update.
l on The device is ready. The captions of the top bank apply.
l on The device is ready. The captions of the bottom bank
apply.
Mob1 lll on Mobile connection 1 is up.
l blinking Mobile connection 1 is being established.
m off Mobile connection 1 is down.
Mob2 lll on Mobile connection 2 is up.
l blinking Mobile connection 2 is being established.
m off Mobile connection 2 is down.
VPN l on VPN connection is up.
m off VPN connection is down.
WLAN lll on WLAN connection is up.
l blinking WLAN connection is being established.
m off WLAN connection is down.
GNSS l on GNSS is turned on and a valid NMEA stream is avail-
able.
l blinking GNSS is searching for satellites.
m off GNSS is turned off or no valid NMEA stream is avail-
able.
Voice l on A voice call is currently active.
m off No voice call is active.
13
Page 14
NB3700 User Manual 3.8
Label Color State Function
DO1 l on Normally open output port 1 is closed.
m off Normally open output port 1 is open.
DO2 l on Normally closed output port 2 is closed.
m off Normally closed output port 2 is open.
DI1 l on Input port 1 is set.
m off Input port 1 is not set.
DI2 l on Input port 2 is set.
m off Input port 2 is not set.
Table 3.2.: NB3700 Status Indicators
14
Page 15
NB3700 User Manual 3.8
3.3. Interfaces
3.3.1. Overview
Label Panel Function
SIM 1 Front SIM 1, it can be assigned dynamically to any modem by
configuration.
SIM 2 Front SIM 2, it can be assigned dynamically to any modem by
configuration.
USB Front USB 2.0 host port, can be used as USB device server or for
software/configuration updates.
Ethernet 1-4 Front Ethernet switch ports, can be used as LAN or WAN inter-
face.
Ethernet 5 Front Additional Ethernet switch port (represents an RS232 port
for NB3700-4ES)
Front Earth protection connector, connected to the ground of the
power supply VGND. If used, connect a yellow-green marked cable with at least 6mm2copper area. Avoid corrosion and protect the screws against loosening.
Earthing is mandatory for the variant Pb (50 VDC to 136 VDC power supply).
Power Front Power supply (galvanically isolated)
Digital I/O Front Galvanically isolated digital I/O M12 connector
Mob 1 Front TNC female connector for mobile antenna 1
WLAN 1 Front TNC female connector for first WLAN antenna (main)
GPS Front TNC female connector for GPS antenna
Mob 2 Front TNC female connector for mobile antenna 2
WLAN 2 Front TNC female connector for second WLAN antenna (diver-
sity)
Reset Front Reset button, press at least 3 seconds for reboot and at least
5 second for a factory reset. The start of the factory reset is confirmed by all LEDs lighting up for a second. The button can be released then again.
Table 3.3.: NB3700 Interfaces
15
Page 16
NB3700 User Manual 3.8
3.3.2. USB 2.0 Host Port
The USB 2.0 host port has the following specification:
Feature Specification
Speed Low, Full & Hi-Speed
Current max. 500mA
Table 3.4.: USB 2.0 Host Port Specification
3.3.3. M12 Ethernet Connectors
Specification
The five Ethernet ports have the following specification:
Feature Specification
Isolation 1500 Vrms
Speed 10/100 Mbps
Mode Half- & Full-Duplex
Crossover Automatic MDI/MDI-X
Table 3.5.: Ethernet Port Specification
Pin Assignment on M12, 4 poles, D-coded female
Pin Signal Pinning
1 Tx+
2 Rx+
3 Tx−
4 Rx−
Table 3.6.: Pin Assignments of Ethernet Connectors
16
Page 17
NB3700 User Manual 3.8
3.3.4. Power Supply
Variant Pa (12 VDC to 60 VDC)
The power input has the following specifications:
Feature Specification
Power supply nominal voltages 24 VDC, 36 VDC and 48 VDC
(according to EN 50155)
Voltage range 12 VDC to 60 VDC (−15% / +5%)
Max. power consumption 15 W
Galvanic isolation yes, 1500 VDC
(according to EN 50155 & EN 60950)
Power Interruption Class S2 Sustains interruptions up to 10 ms, there
are no batteries included
Connector type M12, 4 poles, A-coded male
Table 3.7.: Power Input Specifications Variant Pa
Variant Pb (50 VDC to 136 VDC)
The power input has the following specifications:
Feature Specification
Power supply nominal voltages 72 VDC, 96 VDC and 110 VDC
(according to EN 50155)
Voltage range 50 VDC to 136 VDC (±10%)
Max. power consumption 15 W
Galvanic isolation yes, 1500 Vrms
(according to EN 50155 & EN 60950)
Power Interruption Class S2 Sustains interruptions up to 10 ms, there
are no batteries included
Connector type M12, 4 poles, A-coded male
Table 3.8.: Power Input Specifications Variant Pb
17
Page 18
NB3700 User Manual 3.8
Pin Assignment M12, 4 poles, A-coded male
Pin Signal Pinning
1 V+ (12−60 VDC or 50−136 VDC)
2 Not connected
3 VGND
4 Not connected
Table 3.9.: Pin Assignments of Power Connector
3.3.5. Digital Inputs and Outputs
Isolated Outputs
The isolated digital output ports have the following specification:
Feature Specification
Number of output ports 2
Limiting continuous current 1 A
Maximum switching voltage 60 VDC, 42 VAC ( Vrms)
Maximum switching capacity 60 W
Table 3.10.: Isolated Digital Outputs Specification
Isolated Inputs
The isolated digital input ports have the following specification:
Feature Specification
Number of inputs 2
maximum input voltage 40 VDC
Minimum voltage for level 1
(set) 7.2 VDC
Maximum voltage for level 0
(not set) 5.0 VDC
Table 3.11.: Isolated Digital Inputs Specification
18
Page 19
NB3700 User Manual 3.8
Note: A negative input voltage is not recognized.
Pin Assignment M12 8-pole A-coded female
Pin Signal Pinning
1 DI1+
2 DI1−
3 DI2+
4 DI2−
5 DO1: Dry contact relay normally open
6 DO1: Dry contact relay normally open
7 DO2: Dry contact relay normally closed
8 DO2: Dry contact relay normally closed
Table 3.12.: Pin Assignments of Digital Inputs and Outputs
3.3.6. RS-232 Port
The RS-232 port (if present)has the following specification:
Feature Specification
Protocol 3-wire RS-232: GND, TXD, RXD
Baud rate 300, 1 200, 2 400, 4 800, 9 600, 19 200,
38 400, 57 600, 115 200
Data bits 7 bit, 8 bit
Parity none, odd, even
Stop bits 1, 2
Software flow control None, XON/XOFF
Hardware flow control None
Table 3.13.: RS-232 Port Specification
Pin Assignment M12, 4 poles, D-coded female
Pin Signal Pinning
1 GND
19
Page 20
NB3700 User Manual 3.8
Pin Signal Pinning
2 RxD
3 not connected
4 TxD
Table 3.14.: Pin Assignments of RS-232 Port
20
Page 21
4. Installation
4.1. Environmental Conditions
The following precautions must be taken before installing a NB3700 router:
• Avoid direct solar radiation
• Protect the device from humidity, steam and aggressive fluids
• Guarantee sufficient circulation of air around the device
• The device is for indoor use only
Parameter Rating
Input Voltage (Variant Pa) 12 VDC to 60 VDC (−15% / +5%)
Input Voltage (Variant Pb) 50 VDC to 136 VDC (±10%)
Operating Temperature Range −25◦C to +70◦C
Humidity 0 to 95% (non-condensing)
Altitude (Variant Pa) up to 4000m
Altitude (Variant Pb) up to 2000m
Over-Voltage Category I
Pollution Degree 2
Ingress Protection Rating IP40 (with SIM and USB covers mounted)
Table 4.1.: Operating Conditions
Important: When using the Pb variant with an input voltage greather than 60 VDC, the router MUST be connected to an earth protection.
4.2. Installation of the Router
NB3700 is designed for mounting it on a worktop or wall. Please consider the safety instructions and the environmental conditions in chapter 2.
21
Page 22
NB3700 User Manual 3.8
4.3. Installation of the SIM Card
SIM cards can be inserted by sliding it into one of the designated holes on the front panel. Insert any SIM card with the sloped corner towards the device and the contacts towards to bottom side. By using a small paper clip (or similar) you will need to press it a bit until it snaps into place. For removing the SIM, you will need to push it again in the same manner. The SIM card will then rebounce and can be pulled out.
SIMs can be assigned flexibly to any modem in the system. It is also possible to switch a SIM to a different modem during operation, for instance if you want to use another provider upon a certain condition. However, a SIM switch usually takes about 10-20 seconds which can be bypassed (e.g. at bootup) if SIMs are installed reasonably. Using only a single SIM with one modem, it should be preferably placed into the SIM 1 holder. For systems which should operate two modems with two SIMs in parallel, we recommend to assign Mobile 1 to SIM 1 and Mobile 2 to SIM 2.
Further information about SIM configuration can be found in chapter 5.3.3.
4.4. Installation of the WLAN Antennas
Any WLAN antennas must be mounted to the connectors WLAN1 and WLAN2. The number of attached antennas can be configured in the software. If only one antenna is used, it must be attached to WLAN1. However, for better diversity and thus better throughput and coverage, we highly recommend using two antennas.
4.5. Installation of the Local Area Network
Up to two 10/100 Mbps Ethernet devices can be directly connected to the router, fur­ther devices can be attached via an addtional Ethernet switch. Please ensure that the connector has been plugged in properly and remains in a fixed state, you might other­wise experience sporadical link loss during operation. The Link/Act LED will lit up as soon as the device has synced. If not, it might be necessary to configure a different link setting as described in chapter 5.3.2.
4.6. Installation of the Power Supply
The router can be powered with an external source supplying between 12 VDC and 48 VDC or 50 VDC and 136 VDC respectively. It is to be used with a certified (CE or equivalent) power supply, which must have a limited and SELV circuit output. The router is now ready for getting engaged.
22
Page 23
5. Configuration
The following chapters give information about setting up the router and configuring its features as provided with system software 3.8.
5.1. First Steps
NetModule routers can be easily set up by using the HTTP-based configuration interface, called the Web Manager. It is supported by the latest web browsers (e.g. Microsoft Internet Explorer 11, Mozilla Firefox 28.0, Safari 7 and many others). Please ensure to have JavaScript turned on.
Any submitted configuration via the Web Manager will be applied immediately to the system when pressing the Apply button. When configuring subsystems which require multiple steps (for instance WLAN) you can use the Continue button to store any settings temporarily and apply them at a later time. Please note, that those settings will be neglected at logout unless applied.
You may also upload configuration files via SNMP, SSH, HTTP or USB in case you intend to deploy a larger numbers of routers. Advanced users may also use the Command Line Interface (CLI) and set configuration parameters directly.
The IP address of Ethernet1 is 192.168.1.1 and the Dynamic Host Configuration Pro­tocol (DHCP) is activated on the interface by default. The following steps need to be taken to establish your first Web Manager session:
1. Connect the Ethernet port of your computer to the Ethernet1 port of the router using a standard CAT5 cable with RJ45 (or M12) connectors.
2. If not yet activated, enable DHCP on your computer’s Ethernet interface so that an IP address can be obtained automatically from the router. This usually takes a short amount of time until your PC has received the corresponding parameters (IP address, subnet mask, default gateway, name server). You may track the progress by having a look to your network control panel and check whether your PC has correctly retrieved an IP address of the range 192.168.1.100 to 192.168.1.199.
3. Launch your favorite web browser and point it to the IP address of the router (the URL is http://192.168.1.1).
4. Please follow the instructions of the Web Manager for configuring the router. Most of the menus are self-explanatory, further details are given in the following chapters.
23
Page 24
NB3700 User Manual 3.8
5.1.1. Initial Access
In factory state you will be prompted for a new administrator password. Please choose a password which is both, easy to remember but also robust against dictionary attacks (such as one that contains numbers, letters and punctuation characters). The password shall have a minimum length of 6 characters. It shall contain a minimum of 2 numbers and 2 letters.
Figure 5.1.: Initial Login
Please note that the admin password will be also applied for the root user which can be used to access the device via the serial console, telnet, SSH or to enter the bootloader. You may also configure additional users which will only be granted to access the summary page or retrieve status information but not to set any configuration parameters.
A set of services (USB Autorun, CLI-PHP) are by default activated in factory state and will be disabled as soon as the admin password has been set. They can be enabled again afterwards in the relevant sections. Other services (SSH, Telnet, Console) can be accessed in factory state by providing an empty or no password.
24
Page 25
NB3700 User Manual 3.8
5.1.2. Recovery
Following actions might be taken in case the router has been misconfigured and cannot be reached anymore:
1. Factory Reset: You can initiate a reset back to factory settings via the Web Man­ager, by running the command factory-reset or by pressing the reset button. The latter would require a slim needle or paper clip which must be inserted into the hole to the left of the LEDs . The button must be hold pressed for up to 5 seconds until all LEDs flash up.
2. Serial Console Login: It is also possible to log into the system via the serial port. This would require a terminal emulator (such as PuTTY or HyperTerminal) and an RS232 connection (115200 8N1) attached to the serial port of your local computer. You will also see the kernel messages at bootup there.
3. Recovery Image: In severe cases we can provide a recovery image on demand which can be loaded into RAM via TFTP and executed. It offers a minimal system image for running a software update or doing other modifications. You will be provided with two files, recovery-image and recovery-dtb, which must be placed in the root directory of a TFTP server (connected via LAN1 and address 192.168.1.254). The recovery image can be launched from the boot-loader using a serial connection. You will have to stop the boot process by pressing s and enter the bootloader. You can then issue run recovery to load the image and start the system which can be accessed via HTTP/SSH/Telnet and its IP address 192.168.1.1 afterwards. This procedure can be also initiated by holding the factory reset button longer than 15 seconds.
25
Page 26
NB3700 User Manual 3.8
5.2. HOME
This page provides a status overview of enabled features and connections.
Figure 5.2.: Home
Summary
This page offers a short summary about the administrative and operational status of the router’s interfaces.
WAN
This page offers details about any enabled Wide Area Network (WAN) links (such as the IP addresses, network information, signal strength, etc.) The information about the amount of downloaded/uploaded data is stored in non-volatile memory, thus survive a reboot of the system. The counters can be reset by pressing the Reset button.
WWAN
This page shows information about modems and their network status.
26
Page 27
NB3700 User Manual 3.8
WLAN
The WLAN page offers details about the enabled WLAN interfaces when operating in access-point mode. This includes the SSID, IP and MAC address and the currently used frequency and transmit power of the interface as well as the list of associated stations.
GNSS
This page displays the position status values, such as latitude/longitude, the satellites in view and more details about the used satellites.
Ethernet
This page shows information about the Ethernet interfaces and packet statistics infor­mation.
LAN
This page shows information about the LAN interfaces plus the neighborhood informa­tion.
DHCP
This page offers details about any activated DHCP service, including a list of issued DHCP leases.
OpenVPN
This page provides information about the OpenVPN tunnel status.
IPSec
This page provides information about the IPsec tunnel status.
PPTP
This page provides information about the PPTP tunnel status.
GRE
This page provides information about the GRE tunnel status.
MobileIP
This page provides information about Mobile IP connections.
Firewall
This page offers information about any firewall rules and their matching statistics. It can be used to debug the firewall.
QoS
This page provides information about the used QoS queues.
27
Page 28
NB3700 User Manual 3.8
DynDNS
This page provides information about Dynamic DNS.
System Status
The system status page displays various details of your NB3700 router, including system details, information about mounted modules and software release information.
SDK
This section will list all webpages generated by SDK scripts.
28
Page 29
NB3700 User Manual 3.8
5.3. INTERFACES
5.3.1. WAN
Link Management
Depending on your hardware model, WAN links can be made up of either Wireless Wide Area Network (WWAN), Wireless LAN (WLAN), Ethernet or PPP over Ethernet (PPPoE) connections. Please note that each WAN link has to be configured and enabled in order to appear on this page.
Figure 5.3.: WAN Links
29
Page 30
NB3700 User Manual 3.8
In general, a link will be only dialed or declared as up if the following prerequisites are met:
Condition WWAN WLAN ETH PPPoE
Modem is registered X
Registered with valid service type X
Valid SIM state X
Sufficient signal strength X X
Client is associated X
Client is authenticated X
Valid DHCP address retrieved X X X X
Link is up and holds address X X X X
Ping check succeeded X X X X
The menu can be used further to prioritize your WAN links. The highest priority link which has been established successfully will become the so-called hotlink which holds the default route for outgoing packets.
In case a link goes down, the system will automatically switch over to the next link in the priority list. You can configure each link to be either established when the switch occurs or permanently in order to minimize link downtime.
Parameter WAN Link Priorities
1st priority The primary link which will be used whenever possible.
2nd priority The first fallback link, it can be enabled permanently or
being dialed as soon as Link 1 goes down.
3rd priority The second fallback link, it can be enabled permanently or
being dialed as soon as Link 2 goes down.
4th priority The third fallback link, it can be enabled permanently or
being dialed as soon as Link 3 goes down.
Links are being triggered periodically and put to sleep in case it was not possible to establish them within a certain amount of time. Hence it might happen that permanent links will be dialed in background and replace links with lower priority again as soon as they got established. In case of interfering links sharing the same resources (for instance in dual-SIM operation) you may define a switch-back interval after which an active hotlink is forced to go down in order to let the higher-prio link getting dialed again.
30
Page 31
NB3700 User Manual 3.8
We recommend to use the permanent operation mode for WAN links in general. How­ever, in case of time-limited mobile tariffs for instance, the switchover mode might be applicable. By using the distributed mode, it is possible to distribute outgoing traffic over multiple WAN links based on their weight ratio.
For mobile links, it is further possible to pass through the WAN address towards a local host (also called Drop-In or IP Pass-through). In particular, the first DHCP client will receive the public IP address. More or less, the system acts like a modem in such case which can be helpful in case of firewall issues. Once established, the Web Manager can be reached over port 8080 using the WAN address but still over the LAN1 interface using port 80.
Parameter WAN Link Operation Modes
disabled Link is disabled
permanent Link is being established permanently
on switchover Link is being established on switchover, it will be dialled if
previous links failed
distributed Link is member of a load distribution group
Parameter WAN Link Settings
Operation mode The operation mode of the link
Weight The weight ratio of a distributed link
Switch-back Specifies the switch-back condition of a switchover link and
the time after an active hotlink will be teared down
IP Pass-through Specifies whether the IP address of the WAN link should
be passed-through to the first DHCP client of the specified LAN interface
31
Page 32
NB3700 User Manual 3.8
WAN Settings
This page can be used to configure WAN specific settings like the Maximum Segment Size (MSS). The MSS corresponds to the largest amount of data (in bytes) that the router can handle in a single, unfragmented TCP segment. In order to avoid any negative side effects the number of bytes in the data segment and the headers must not add up to more than the number of bytes in the Maximum Transmission Unit (MTU). The MTU can be configured per each interface and corresponds to the largest packet size that can be transmitted.

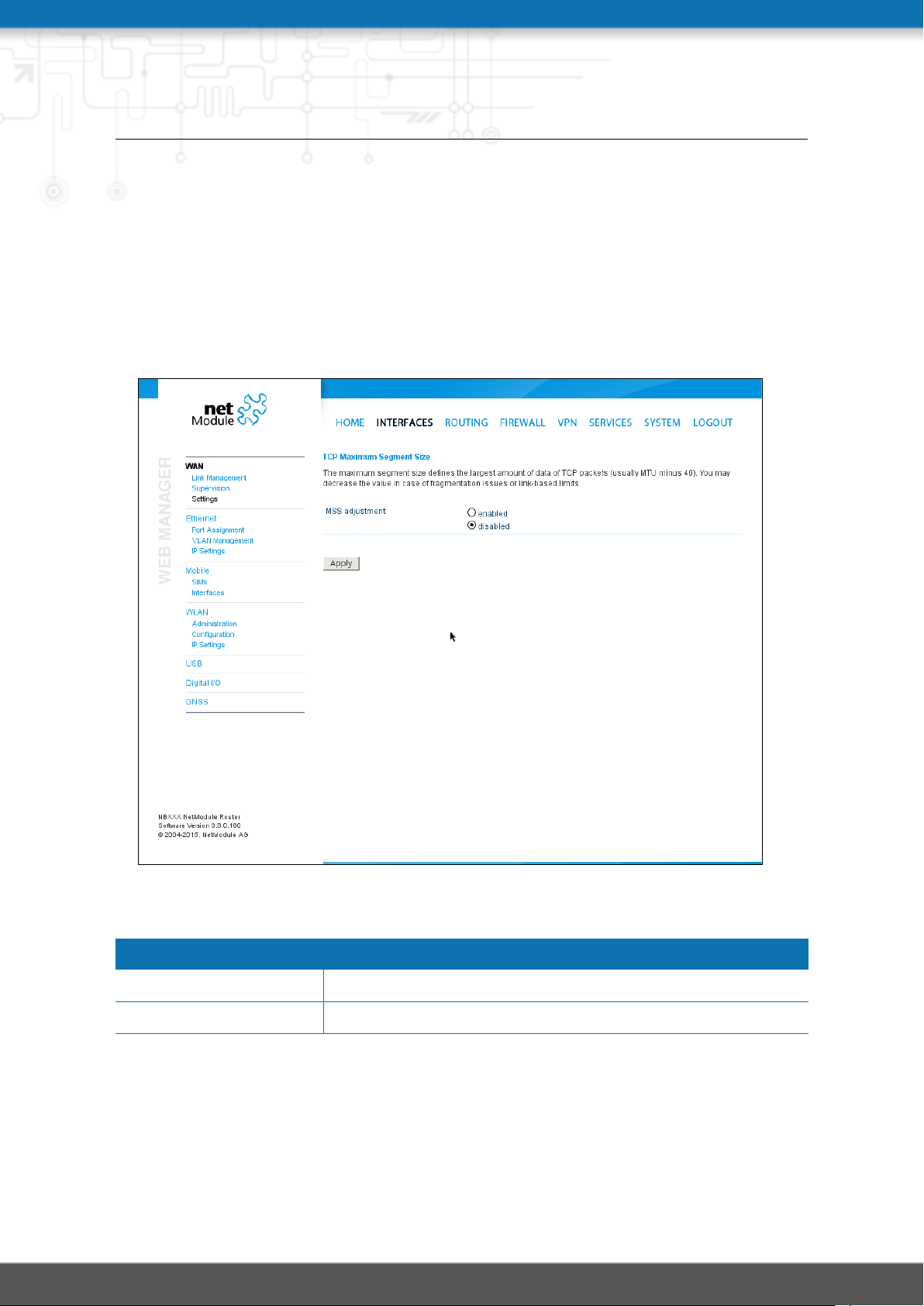

Figure 5.4.: WAN Settings
Parameter TCP MSS Settings
MSS adjustment Enable or disable MSS adjustment on WAN interfaces.
Maximum segment size Maximum number of bytes in a TCP data segment.
32
Page 33
NB3700 User Manual 3.8
Supervision
Network outage detection on a per-link basis can be performed by sending pings on each link to some authoritative hosts. A link will be declared as down in case all trials have failed and only as up if at least one host can be reached.
Figure 5.5.: Link Supervision
Parameter Supervision Settings
Link The WAN link to be monitored (can be ANY)
Mode Specifies whether the link shall only be monitored if being
up (e.g. for using a VPN tunnel) or if connectivity shall be also validated at connection establishment (default)
Primary host The primary host to be monitored
Secondary host The secondary host to be monitored (optional)
Ping timeout The amount of time in milliseconds a response for a single
ping can take, consider to increase this value in case of slow and tardy links (such as 2G connections)
33
Page 34
NB3700 User Manual 3.8
Parameter Supervision Settings
Ping interval The interval in seconds at which pings are transmitted on
each interface
Retry interval The interval in seconds at which pings are re-transmitted in
case a first ping failed
Max. number of failed trials
The maximum number of failed ping trials until the link will be declared as down
Emergency action The emergency action which should be taken after a max-
imum downtime has been reached. Using reboot would perform a reboot of the system, restart link services will restart all link-related applications including a reset of the modem.
34
Page 35
NB3700 User Manual 3.8
5.3.2. Ethernet
NB3700 routers ship with an Ethernet switch (ETH1-ETH5) which can be linked via M12 connectors.
ETH1 usually forms the LAN1 interface which should be used for LAN purposes. Other interfaces can be used to connect other LAN segments or for configuring a WAN link. The LAN10 interface will be available as soon as a pre-configured USB Ethernet device has been plugged in.
Ethernet Port Assignment

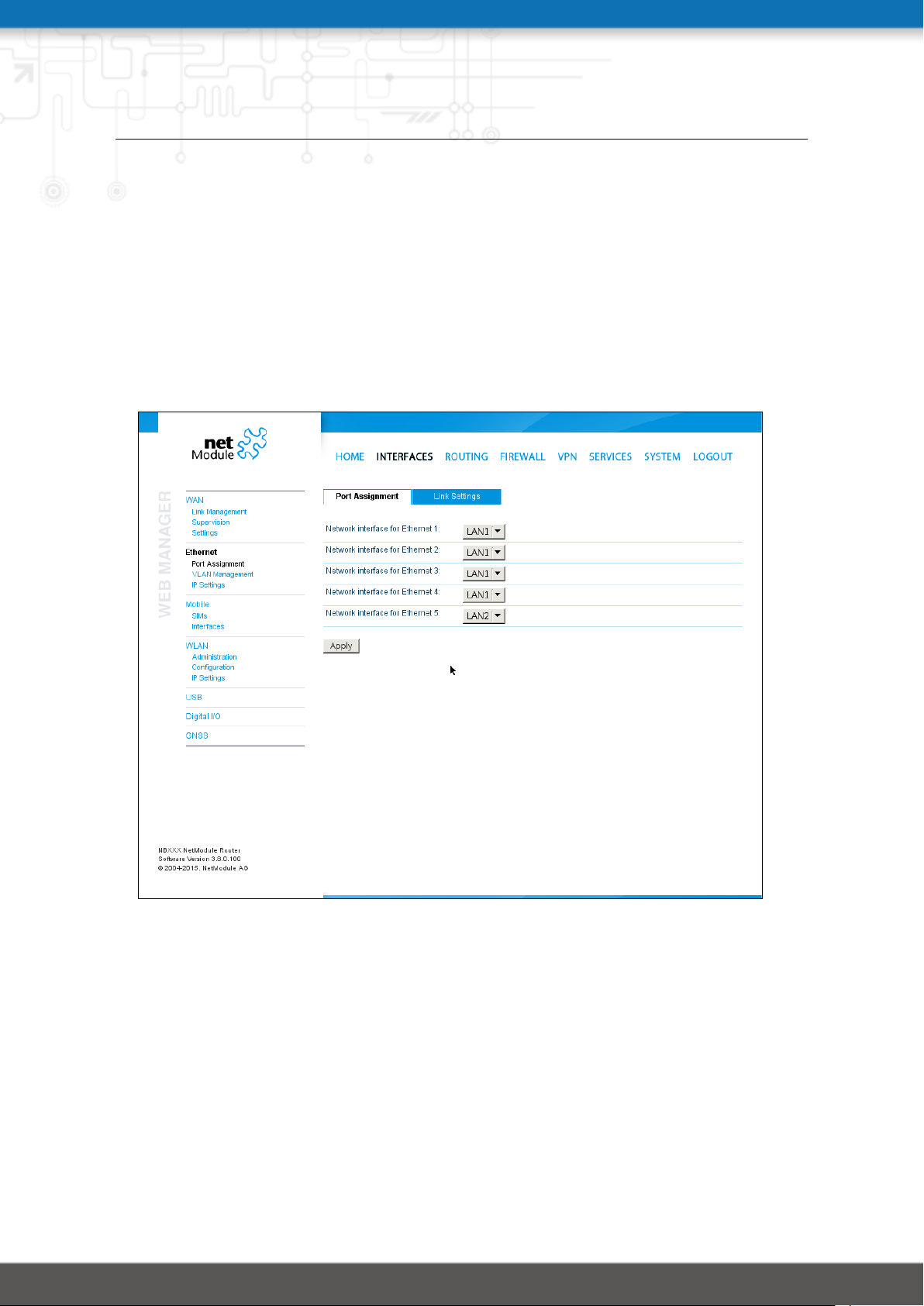

Figure 5.6.: Ethernet Ports
This menu can be used to individually assign each Ethernet port to a LAN interface, just in case you want to have different subnets per port or use one port as WAN interface. You may assign multiple ports to the same interface. Please note that on systems without an Ethernet switch, the ports will be bridged by software then and operated by running the Spanning Tree Protocol (STP).
35
Page 36
Ethernet Link Settings
NB3700 User Manual 3.8
Figure 5.7.: Ethernet Link Settings
Link negotiation can be set for each Ethernet port individually. Most devices support auto-negotiation which will configure the link speed automatically to comply with other devices in the network. In case of negotiation problems, you may assign the modes manually but it has to be ensured that all devices in the network utilize the same settings then.
36
Page 37
NB3700 User Manual 3.8
VLAN Management
NetModule routers support Virtual LAN according to IEEE 802.1Q which can be used to create virtual interfaces on top of an Ethernet interface. The VLAN protocol inserts an additional header to Ethernet frames carrying a VLAN Identifier (VLAN ID) which is used for distributing the packets to the associated virtual interface. Any untagged packets, as well as packets with an unassigned ID, will be distributed to the native interface.
Figure 5.8.: VLAN Management
In order to form a distinctive subnet, the network interface of a remote LAN host must be configured with the same VLAN ID as defined on the router. Further, 802.1P introduces a priority field which influences packet scheduling in the TCP/IP stack.
The following priority levels (from lowest to highest) exist:
Parameter VLAN Priority Levels
0 Background
1 Best Effort
37
Page 38
NB3700 User Manual 3.8
Parameter VLAN Priority Levels
2 Excellent Effort
3 Critical Applications
4 Video (< 100 ms latency and jitter)
5 Voice (< 10 ms latency and jitter)
6 Internetwork Control
7 Network Control
38
Page 39
NB3700 User Manual 3.8
IP Settings
This page can be used to configure IP addressing for your LAN/WAN Ethernet inter­faces. In addition to the primary IP address/subnet mask you may define an additional IP address alias on the interface.
Please keep in mind that the DNS servers can be set globally in the DNS server config­uration menu. But as soon as a link comes up it will use the interface-specific name­servers (e.g. the ones being retrieved over DHCP) and update the resolver configuration accordingly.
Figure 5.9.: LAN IP Configuration
Parameter LAN IP Settings
Mode Defines whether this interface is being used as LAN or WAN
interface
When running in LAN mode, the interface may be configured with the following settings:
39
Page 40
NB3700 User Manual 3.8
Parameter LAN IP Settings
IP address The IP interface address
Subnet mask The subnet mask for this interface
Alias IP address The alias IP interface address
Alias subnet mask The alias subnet mask for this interface
When running in WAN mode, the interface may be configured with the following settings:
Parameter WAN IP Settings
WAN mode The WAN operation mode, defines whether the interface
should run as DHCP client, statically configured or over PPPoE.
MTU The Maximum Transmission Unit for the interface, if pro-
vided it will specify the largest size of a packet transmitted on the interface.
When running as DHCP client, no further configuration is required because all IP-related settings (address, subnet, gateway, DNS server) will be retrieved from a DHCP server in the network. You may also define static values but caution has to be taken to assign an unique IP address as it would otherwise raise IP conflicts in the network.
PPPoE is commonly used when communicating with another WAN access device (like a DSL modem). The following settings can be applied:
Parameter PPPoE Configuration
User name PPPoE user name for authenticating at the access device
Password PPPoE password for authenticating at the access device
Service name Specifies the service name set of the access concentrator and
can be left blank unless you have multiple services on the same physical network and need to specify the one you want to connect to.
Access concentrator name
The name of the concentrator (the PPPoE client will con­nect to any access concentrator if left blank)
40
Page 41
5.3.3. Mobile
SIMs
NB3700 User Manual 3.8
Figure 5.10.: SIMs
The SIM page gives an overview about the available SIM cards, their assigned modems and the current state. Once a SIM card has been inserted, assigned to a modem and successfully unlocked, the card should remain in state ready and the network registration status should have turned to registered. If not, please double-check your PIN.
Please keep in mind that registering to a network usually takes some time and depends on signal strength and possible radio interferences. You may hit the Update button at any time in order to restart PIN unlocking and trigger another network registration attempt.
Under some circumstances (e.g. in case the modem flaps between base stations) it might be necessary to set a specific service type or assign a fixed operator. The list of operators around can be obtained by initiating a network scan (may take up to 60 seconds). Further details can be retrieved by querying the modem directly, a set of suitable commands can be provided on request.
41
Page 42
NB3700 User Manual 3.8
Configuration
A SIM card is generally assigned to a default modem but might be switched, for instance if you set up two WWAN interfaces with one modem but different SIM cards.
Close attention has to be paid when other services (such as SMS or Voice) are operating on that modem, as a SIM switch will naturally affect their operation.
The following settings can be applied:
Parameter WWAN SIM Configuration
Default modem The default modem assigned to this SIM card
Service type The service type to be used by default with this SIM card.
Remember that the link manager might change this in case of different settings. The default is to use automatic, in areas with interfering base stations you can force a specific type (e.g. 3G-only) in order to prevent any flapping between the stations around.
PIN protection Depending on the used card, it can be necessary to unlock
the SIM with a PIN code. Please check the account details associated with your purchased SIM and figure out whether it is protected with a PIN.
PIN code The PIN code for unlocking the SIM card
SMS gateway The service center number for sending short messages. It is
generally retrieved automatically from your SIM card but you may define a fix number here.
Network
This page provides information about the current network status, signal strength and the Local Area Identifier (LAI) to which the modem has been registered. An LAI is a globally unique number that identifies the country, network provider and Local Area Code (LAC, group of base stations) of any given location area. It can be used to force the modem to register to a particular mobile cell in case of competing stations.
You may further initiate a mobile network scan for getting networks in range and assign an LAI manually.
Query
This page allows you to send Hayes AT commands to the modem. Besides the 3GPP­conforming AT command-set further modem-specific commands can be applicable which we can provide on demand. Some modems also support running Unstructured Supple-
42
Page 43
NB3700 User Manual 3.8
mentary Service Data (USSD) requests, e.g. for querying the available balance of a prepaid account.
43
Page 44
NB3700 User Manual 3.8
WWAN Interfaces
This page can be used to manage your WWAN interfaces. The resulting link will pop up automatically as WAN link once an interface has been added. Please refer to chap­ter 5.3.1 for how to manage them.
The Mobile LED will be blinking during the connection establishment process and goes on as soon as the connection is up. Refer to section 5.8.7 or consult the system log files for troubleshooting the problem in case the connection did not come up.
Figure 5.11.: WWAN Interfaces
The following mobile settings are required:
Parameter WWAN Mobile Parameters
Modem The modem to be used for this WWAN interface
SIM The SIM card to be used for this WWAN interface
Service type The required service type
Please note that these settings supersede the general SIM based settings as soon as the
44
Page 45
NB3700 User Manual 3.8
link is being dialed. Generally, the connection settings are derived automatically as soon as the modem has
registered and the network provider has been found in our database. Otherwise, it will be required to configure the following settings manually:
Parameter WWAN Connection Parameters
Phone number The phone number to be dialed, for 3G+ connections this
commonly refers to be *99***1#. For circuit-switched 2G connections you can enter the fixed phone number to be dialed in international format (e.g. +41xx).
Access point name The access point name (APN) being used
Authentication The authentication scheme being used, if required this can
be PAP or/and CHAP
Username The user-name used for authentication
Password The password used for authentication
Furtheron, you may configure the following advanced settings:
Parameter WAN Advanced Parameters
Required signal strength Sets a minimum required signal strength before the connec-
tion is dialed
Home network only Determines whether the connection should only be dialed
when registered to a home network
Negotiate DNS Specifies whether the DNS negotiation should be performed
and the retrieved name-servers should be applied to the sys­tem
Call to ISDN Has to be enabled in case of 2G connections talking to an
ISDN modem
Header compression Enables or disables 3GPP header compression which may
improve TCP/IP performance over slow serial links. Has to be supported by your provider.
Data compression Enables or disables 3GPP data compression which shrinks
the size of packets to improve throughput. Has to be sup­ported by your provider.
Client address Specifies a fixed client IP address if assigned by the provider
MTU The Maximum Transmission Unit for this interface
45
Page 46
NB3700 User Manual 3.8
5.3.4. WLAN
WLAN Management
In case your router is shipping with a WLAN (or Wi-Fi) module you can operate it either as client or access point. As a client it can create an additional WAN link which for instance can be used as backup link. As access point, it can form another LAN interface which can be either bridged to an Ethernet-based LAN interface or create a self-contained IP interface which can be used for routing and to provide services (such as DHCP/DNS/NTP) in the same way like an Ethernet LAN interface does.

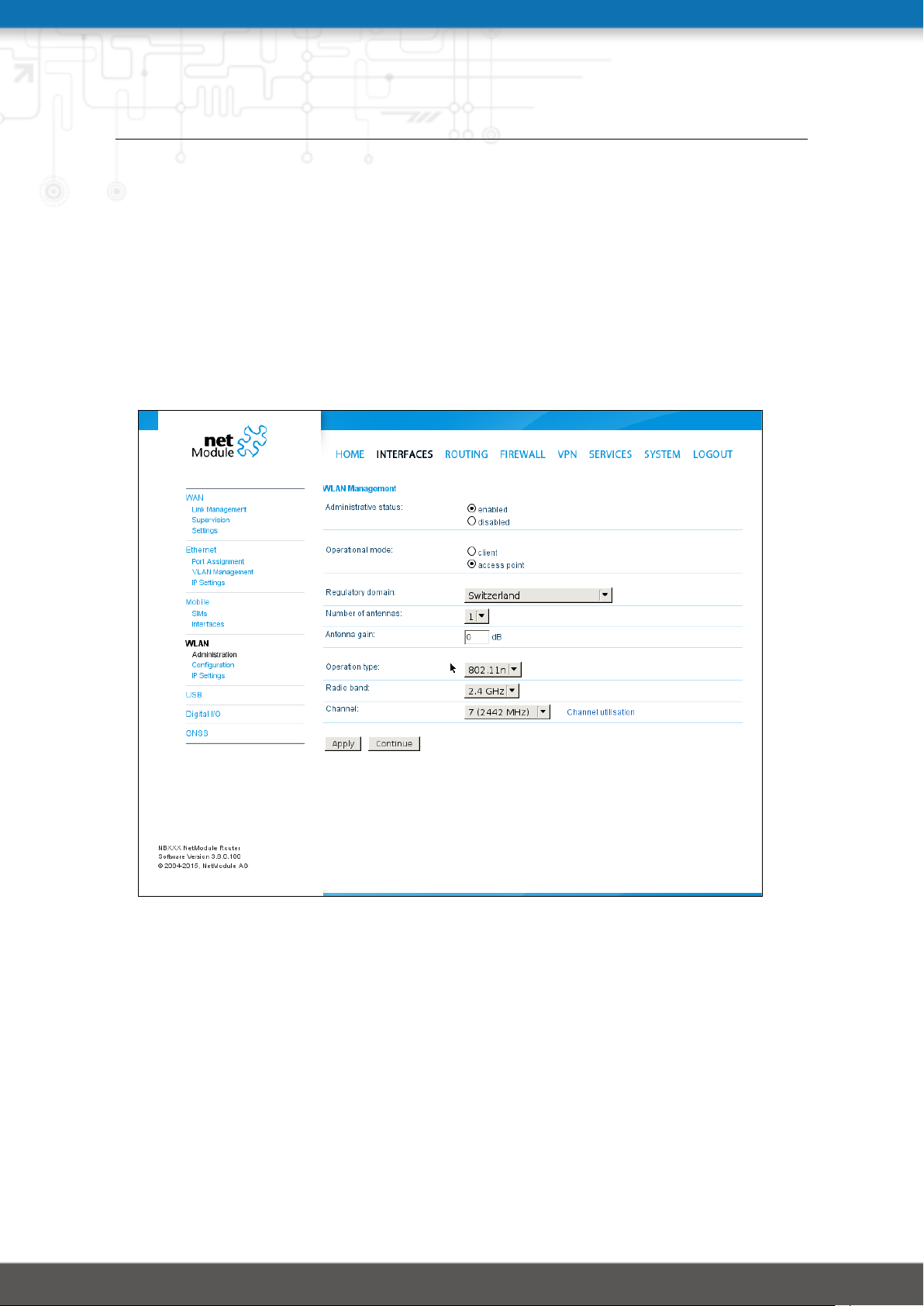

Figure 5.12.: WLAN Management
If the administrative status is set to disabled, the module will be powered off in order to reduce the overall power consumption. Regarding antennas, we generally recommend using two antennas for better coverage and throughput. A second antenna is definitely mandatory if you want to achieve higher throughput rates as in 802.11n.
A WLAN client will automatically became a WAN link and can be managed as de­scribed in chapter 5.3.1.
46
Page 47
NB3700 User Manual 3.8
Running as access point, you can further configure the following settings:
Parameter WLAN Management
Operation type Specifies the desired IEEE 802.11 operation mode
Radio band Selects the radio band to be used for connections, depending
on your module it could be 2.4 or 5 GHz
Channel Specifies the channel to be used
Available operation modes are:
Standard Frequencies Bandwidth Net Data Rate Range Indoor/Outdoor
802.11a 5 GHz 20 MHz 54 Mbit/s 35m / 120m
802.11b 2.4 GHz 20 MHz 11 Mbit/s 35m / 140m
802.11g 2.4 GHz 20 MHz 54 Mbit/s 38m / 140m
802.11n 2.4/5 GHz 20/40 MHz 150 Mbit/s 70m / 250m
Table 5.17.: IEEE 802.11 Network Standards
Prior to setting up an access point, it is always a good idea to run a network scan for getting a list of neighboring WLAN networks and then choose the less interfering channel. Please note that two adequate channels are required for getting good throughputs with
802.11n and a bandwidth of 40 MHz.
47
Page 48
NB3700 User Manual 3.8
WLAN Configuration
Running in client mode, it is possible to connect to one ore more remote access-points. The system will switch to the next network in the list in case one goes down and return to the highest-prioritized network as soon as it comes back. You can perform a WLAN network scan and pick the settings from the discovered information directly. The authentication credentials have to be obtained by the operator of the remote access point.
Running in access-point mode you can create up to 4 SSIDs with each running their own network configuration. The networks can be individually bridged to a LAN interface or operate as dedicated interface in routing-mode.

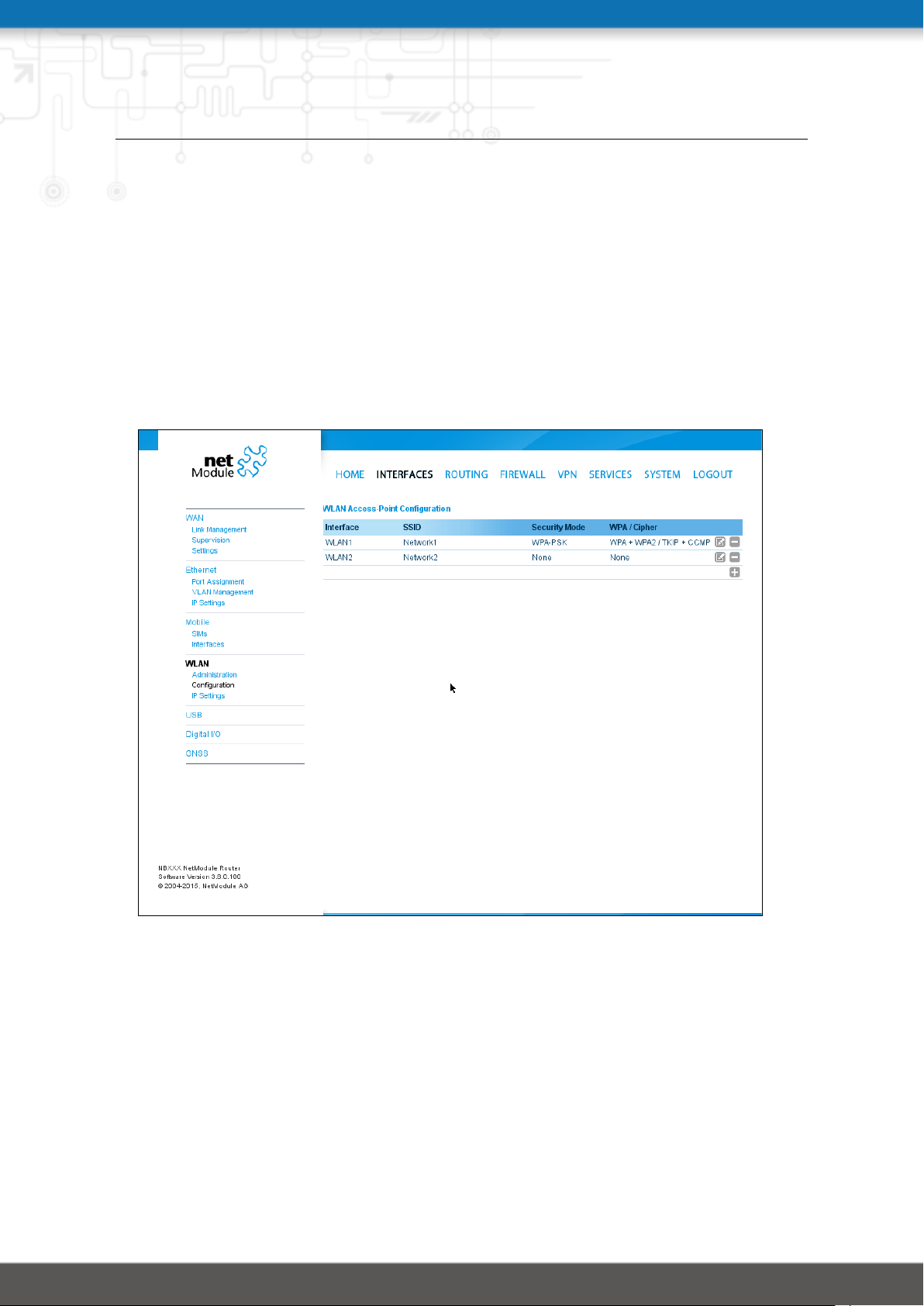

Figure 5.13.: WLAN Configuration
48
Page 49
NB3700 User Manual 3.8
This section can be used to configure security-related settings.
Parameter WLAN Configuration
SSID The network name (called SSID)
Security mode The desired security mode. WPA-PSK provides password-
based authentication, WPA-RADIUS can be used to au­thenticate against a remote RADIUS server which can be configured in chapter 5.8.2 and WPA-EAP-TLS performs authentication using keys/certificates which can be config­ured in chapter 5.8.8.
WPA/WPA2 mixed mode
WPA2 should be preferred over WPA1, running WPA/WPA2 mixed-mode offers both.
WPA cipher The WPA cipher to be used, the default is to run both
(TKIP and CCMP)
Passphrase The passphrase used for authentication with WPA-PSK,
otherwise the key passphrase for WPA-EAP-TLS
Identity The identity used for WPA-RADIUS and WPA-EAP-TLS
Parameter WLAN Security Modes
none no authentication
wep WEP
wpa-psk WPA-PSK (TKIP, CCMP) aka WPA-Personal/Enterprise
wpa-radius EAP-PEAP/MSCHAPv2 with RADIUS authentication
wpa-tls EAP-TLS with certificates
Being a shared medium, we strongly advise to secure your WLAN connection using passwords or even keys/certificates. Using WEP is nowadays discouraged.
49
Page 50
NB3700 User Manual 3.8
WLAN IP Settings
This section lets you configure the TCP/IP settings of your WLAN network. A client interface can be run over DHCP or with a statically configured address and default gateway.
Figure 5.14.: WLAN IP Configuration
The access point networks can be bridged to any LAN interface for letting WLAN clients and Ethernet hosts operate in the same subnet. However, for multiple SSIDs we strongly recommend to set up separated interfaces in routing-mode in order to avoid unwanted access and traffic between the interfaces. The corresponding DHCP server for each network can be configured in afterwards as described in chapter 5.7.2.
Parameter WLAN IP Settings
Network mode Choose whether the interface shall be operated bridged or
in routing-mode
Bridge interface If bridged, the LAN interface to which the WLAN network
should be bridged
50
Page 51
NB3700 User Manual 3.8
Parameter WLAN IP Settings
IP address / netmask In routing-mode, the IP address and netmask for this
WLAN network
51
Page 52
NB3700 User Manual 3.8
5.3.5. USB
NetModule routers ship with a standard USB host port which can be used to connect a storage, network or serial USB device. Please contact our support in order to get a list of supported devices.
Figure 5.15.: USB Administration
USB Administration
Parameter USB Administration
Administrative status Specifies whether devices shall be recognized
Enable hotplug Specifies whether device shall be recognized if plugged in
during runtime or only at bootup
Enable USB/IP device
Specifies if devices shall be exported over IP
server
52
Page 53
NB3700 User Manual 3.8
If the USB/IP device server has been enabled you can discover the mounted USB devices and attach them to the USB/IP server. Enabled devices can now be exported to a remote host. You will need an additional driver on the client for which we provide Windows or Linux drivers. Further installation instructions can be provided on demand.
Please note that some USB devices behave latency-sensitive which may raise problems when operating over a slow IP connection. Some devices may generally not work with the USB/IP driver. Please contact our support in case of compatibility issues.
USB Devices
This page show the currently connected devices and it can be used to enable a specific device based on its Vendor and Product ID. Only enabled devices will be recognized by the system and raise additional ports and interfaces.
Figure 5.16.: USB Device Management
Parameter USB Devices
Vendor ID The USB Vendor ID of the device
Product ID The USB Product ID of the device
53
Page 54
NB3700 User Manual 3.8
Parameter USB Devices
Module The USB module and type of driver to be applied for this
device
Any ID must be specified in hexadecimal notation, wildcards are supported (e.g. AB[0-1][2-3] or AB*) A USB network device will be referenced as LAN10.
USB Autorun
This feature can be used to automatically launch a shell script or perform a software/­config update as soon as an USB storage stick has been plugged in. For authentication, a file called autorun.key must exist in the root directory of a FAT16/32 formatted stick. It can be downloaded from that page and holds the SHA256 hash key of the admin password. The file can hold multiple hashes which will be processed line-by-line dur­ing authentication which can be used for setting up more systems with different admin passwords.
For new devices with an empty password the hash key
e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855
can be used. The hash keys can be generated by running the command echo -n "<admin-password>"
| sha256sum on a Linux system or an Internet hash key generator (search for "sha-256 hash calculator").
Once authentication has succeeded, the system scans for other files in the root directory which can perform the following actions:
1. For running a script: autorun.sh
2. For a configuration update: cfg-<SERIALNO>.zip (e.g. cfg-00112B000815.zip), or if not available cfg.zip
3. For a software update: sw-update.img
54
Page 55
NB3700 User Manual 3.8
5.3.6. Serial Port
This page can be used to manage your serial ports. A serial port can be used by:
Parameter Serial Port Usage
none The serial port is not used
login console The serial port is used to open a console which can be ac-
cessed with a serial terminal client from the other side. It will provide helpful bootup and kernel messages and spawns a login shell, so that users can login to the system.
device server The serial port will be exposed over a TCP/IP port and can
be used to implement a Serial/IP gateway.
SDK The serial port will be reserved for SDK scripts.
Figure 5.17.: Serial Port Administration
An RS232 serial port is optional on NB3700.
55
Page 56
NB3700 User Manual 3.8
Running a device server, the following settings can be applied:
Figure 5.18.: Serial Port Settings
Parameter Serial Settings
Physical protocol Selects the desired physical protocol on the serial port
Baud rate Specifies the baud rate run on the serial port
Data bits Specifies the number of data bits contained in each frame
Parity Specifies the parity used for every frame that is transmitted
or received
Stop bits Specifies the number of stop bits used to indicate the end
of a frame
Software flow control Defines the software flow control for the serial port, XOFF
will send a stop, XON a start character to the other end to control the rate of any incoming data
56
Page 57
NB3700 User Manual 3.8
Parameter Serial Settings
Hardware flow control You may enable RTS/CTS hardware flow control, so that
the RTS and CTS lines are used to control the flow of data
Protocol on TCP/IP You may choose the IP protocols Telnet or TCP raw for the
device server
Port The TCP port for the device server
Timeout The timeout until a client is declared as disconnected
Parameter Server Settings
Protocol on IP port Selects the desired IP protocol (TCP or Telnet)
Port Specifies the TCP port on which the server will be available
Timeout The time in seconds before the port will be disconnected if
there is no activity on it. A zero value disables this function.
Allow remote control Allow remote control (ala RFC 2217) of the serial port
Show banner Show a banner when clients connect
Stop bits Specifies the number of stop bits used to indicate the end
of a frame
Allow clients from Specifies which clients are allowed to connect to the server
Please note that the device server does not provide authentication or encryption and clients will be able connect from everywhere. Please consider to restrict access to a limited network/host or block packets by using the firewall.
57
Page 58
NB3700 User Manual 3.8
5.3.7. Digital I/O
The Digital I/O page displays the current status of the I/O ports and can be used to turn output ports on or off.
Figure 5.19.: Digital I/O Ports
You can apply the following settings:
Parameter Digital I/O Settings
DO1 after reboot Initial status of DO1 after system has booted
DO2 after reboot Initial status of DO2 after system has booted
Besides on and off you may keep the default status as the hardware has initialized it after power-up.
The digital inputs and outputs can also be monitored and controlled by SDK scripts.
58
Page 59
NB3700 User Manual 3.8
5.3.8. GNSS
Administration
The GNSS page lets you enable or disable the GNSS modules present in the system and can be used to configure the daemon that can be used to share access to receivers without contention or loss of data and to respond to queries with a format that is substantially easier to parse than the NMEA 0183 emitted directly by the GNSS device.
We are currently running the Berlios GPS daemon (version 3.15), supporting the new JSON format. Please navigate to http://gpsd.berlios.de for getting more informa­tion about how to connect any clients to the daemon remotely. The position values can also be queried by the CLI and used in SDK scripts.
Parameter GNNS Module Configuration
Administrative status Enable or disable the GNSS module
Operation mode The mode of operation, either standalone or assisted (for
A-GPS)
Antenna type The type of the connected GPS antenna, either passive or
actively 3 volt powered
Accuracy The desired accuracy in meters
Fix frame interval The amount of time to wait between fix attempts
Parameter GNNS Server Configuration
Server port The TCP port on which the daemon is listening for incoming
connections
Allow clients from Specifies where clients can connect from, can be either
everywhere or from a specific network
Clients start mode Specifies how data transferal is accomplished when a client
connects. You can specify on request which typically re­quires an R to be sent. Data will be sent instantly in case of raw mode which will provide NMEA frames or super-raw which includes the original data of the GPS receiver. If the client supports the JSON format (i.e. newer libgps is used) the json mode can be specified.
Please consider to restrict access to the server port, either by a specifying a dedicated client network or by using a firewall rule.
59
Page 60
NB3700 User Manual 3.8
Position
This pages provides further information about the satellites in view and values derived from them:
Parameter GNSS Information
Latitude The geographic coordinate specifying the north-south posi-
tion
Longitude The geographic coordinate specifying the east-west position
Altitude The height above sea level of the current location
Satellites in view The number of satellites in view as stated in GPGSV frames
Speed The horizontal and vertical speed in meter per second as
stated in GPRMC frames
Satellites used The number of satellites used for calculating the position as
stated in GPGGA frames
Dilution of precision The dilution of precision as stated in GPGSA frames
Furtheron, each satellite also comes with the following details:
Parameter GNSS Satellite Information
PRN The PRN code of the satelitte (also referred as satellite ID)
as stated in GPGSA frames
Elevation The elevation (up-down angle between the dish pointing di-
rection) in degrees as stated in GPGSV frames
Azimuth The azimuth (rotation around the vertical axis) in degrees
as stated in GPGSV frames
SNR The SNR (Signal to Noise Ratio), often referred as signal
strength
Please note that the values are shown as calculated by the daemon, their accuracy might be suggestive.
Supervision
Parameter GNNS Supervision
Administrative status Enable or disable GNSS supervision
Max. downtime The period of time without valid NMEA information after
which an emergency action will be taken
60
Page 61
NB3700 User Manual 3.8
Parameter GNNS Supervision
Emergency action The corresponding emergency action. You can either let
just restart the server which also re-initializes GPS on the module or also reset the module in severe cases. Please note that this might also have effect any running WWAN/SMS services.
61
Page 62
NB3700 User Manual 3.8
5.4. ROUTING
5.4.1. Static Routes
This menu shows all routing entries of the system. They are typically formed by an address/netmask couple (represented in IPv4 dotted decimal notation) which specify the destination of a packet. The packets can be directed to either a gateway or an interface or both. If interface is set to ANY, the system will choose the route interface automatically, depending on the best matching network configured for an interface.
Figure 5.20.: Static Routing
In general, host routes precede network routes and network routes precede default routes. Additionally, a metric can be used to determine the priority of a route, a packet will go in the direction with the lowest metric in case a destination matches multiple routes.
Netmasks can be specified in CIDR notation (i.e. /24 expands to 255.255.255.0).
Parameter Static Route Configuration
Destination The destination address of a packet
62
Page 63
NB3700 User Manual 3.8
Parameter Static Route Configuration
Netmask The subnet mask which forms, in combination with the des-
tination, the network to be addressed. A single host can be specified by a netmask of 255.255.255.255, a default route corresponds to 0.0.0.0.
Gateway The next hop which operates as gateway for this network
(can be omitted on peer-to-peer links)
Interface The network interface on which a packet will be transmitted
in order to reach the gateway or network behind it
Metric The routing metric of the interface (default 0), higher met-
rics have the effect of making a route less favorable
Flags (A)ctive, (P)ersistent, (H)ost Route, (N)etwork Route,
(D)efault Route
The flags obtain the following meanings:
Flag Description
A The route is considered active, it might be inactive if the
interface for this route is not yet up.
P The route is persistent, which means it is a configured route,
otherwise it corresponds to an interface route.
H The route is a host route, typically the netmask is set to
255.255.255.255.
N The route is a network route, consisting of an address and
netmask which forms the subnet to be addressed.
D The route is a default route, address and netmask are set
to 0.0.0.0, thus matching any packet.
Table 5.33.: Static Route Flags
63
Page 64
NB3700 User Manual 3.8
5.4.2. Extended Routing
Extended routes can be used to perform policy-based routing, they generally precede static routes.
Figure 5.21.: Extended Routing
In contrast to statis routes, extended routes can be made up, not only of a destination address/netmask, but also a source address/netmask, incoming interface and the type of service (TOS) of packets.
Parameter Extended Route Configuration
Source address The source address of a packet
Source netmask The source address of a packet
Destination address The destination address of a packet
Destination netmask The destination address of a packet
Incoming interface The interface on which the packet enters the system
64
Page 65
NB3700 User Manual 3.8
Parameter Extended Route Configuration
Type of service The TOS value within the header of the packet
Route to Specifies the target interface or gateway to where the packet
should get routed to
65
Page 66
NB3700 User Manual 3.8
5.4.3. Multipath Routes
Multipath routes will perform weighted IP-session distribution for particular subnets across multiple interfaces.
Figure 5.22.: Multipath Routes
At least two interfaces have to be defined to establish multipath routing. Additional interfaces can be added by pressing the plus sign.
Parameter Add Multipath Routes
Target network/net­mask
Defines the target network for which multipath routing shall be applied
Interface Selects the interface for one path
Weight Weight of the interface in relation to the others
NextHop Overrides the default gateway of this interface
66
Page 67
NB3700 User Manual 3.8
5.4.4. Mobile IP
Mobile IP (MIP) can be used to enable seamless switching between different kinds of WAN links (e.g. WWAN/WLAN). The mobile node hereby remains reachable via the same IP address (home address) at any time, independently of the WAN link being used. Effectively, any WAN link switch causes very small outages during switchover while keeping all IP connections alive.
Moreover, NetModule routers also support NAT-Traversal for mobile nodes running behind a firewall (performing NAT), which makes mobile nodes even there accessible from a central office via their home address, and thus, bypassing any complicated VPN setups.
The home agent accomplishes this by establishing a tunnel (similar to a VPN tunnel) between itself and the mobile node. WAN link switching works by telling the home
agent that the WAN IP address (called the care-of address in MIP terms) of the mobile node has changed. The home agent will then encapsulate packets destined to a mobile node’s home address into a tunnel packet containing the current care-of address of the mobile node as its destination address.
To prevent problems with firewalls and private IP addressing, the MIP implementation always employs reverse tunneling, which means that all traffic sent by a mobile node is relayed via the tunnel to the home agent instead of directly being conveyed to the final destination. This fact also empowers MIP to be used as a lightweight VPN replacement (without payload secrecy).
The MIP implementation supports RFCs 3344, 5177, 3024 and 3519. For applications requiring vast numbers of mobile nodes, interoperability with the Cisco 2900 Series home agent implementation has been verified. However, since NetModule routers implement a mobile node as well as a home agent, a MIP network with up to 10 mobile nodes can be implemented without requiring expensive third party routers.
67
Page 68
NB3700 User Manual 3.8
If MIP is run as a mobile node, the following settings can be configured:
Parameter Mobile IP Configuration
Primary home agent ad­dress
Secondary home agent address
Home address The permanent home address of the mobile node which can
SPI The Security Parameter Index (SPI) identifying the security
Authentication type The used authentication algorithm. This can be prefix-
Shared secret The shared secret used for authentication of the mobile
The address of the primary home agent
The address of the secondary home agent. The mobile node will try to register with this home agent, if the primary home agent is not reachable.
be used to reach the mobile router at any time
context for the mobile IP tunnel between the mobile node and the home agent. This is used to distinguish mobile nodes from each other. Therefore each mobile node needs to be assigned a unique SPI. This is a 32-bit hexadecimal value.
suffix-md5 (default for MIP) or hmac-md5.
node at the home agent. This can be either a 128-bit hex­adecimal value or a random length ASCII string.
Life time The lifetime of security associations in seconds
UDP encapsulation Specifies whether UDP encapsulation shall be used or not.
To allow NAT traversal, UDP encapsulation must be en­abled.
Mobile network address Optionally specifies a subnet which should be routed to the
mobile node. This information is forwarded via Network Mobility (NEMO) extensions to the home agent. The home agent can then automatically add IP routes to the subnet via the mobile node. Note that this feature is not sup­ported by all third party home agent implementations.
Mobile network mask The network mask for the optional routed network
68
Page 69
NB3700 User Manual 3.8
If MIP is run as a home agent, you will have to set up a home address and network mask for the home agent first. Then you will need to add the configuration for all mobile nodes which is made up of the following settings:
Figure 5.23.: Mobile IP
Parameter Mobile IP Node Configuration
SPI The Security Parameter Index (SPI) identifying the secu-
rity context for the tunnel between the mobile node and the home agent. This is used to distinguish mobile nodes from each other. Therefore each mobile node needs to be assigned a unique SPI. This is a 32-bit hexadecimal value.
Authentication type The used authentication algorithm. This can be prefix-
suffix-md5 (default for mobile IP) or hmac-md5.
Shared secret The shared secret used for authentication of the mobile
node at the home agent. This can be either a 128-bit hex­adecimal value or a random length ASCII string.
69
Page 70
NB3700 User Manual 3.8
5.4.5. Quality Of Service
NetModule routers are able to prioritize and shape certain kinds of IP traffic. This is currently limited on egress, which means that only outgoing traffic can be stipulated.
The current QoS solution is using Stochastic Fairness Queueing (SFQ) classes in com­bination with Hierarchy Token Bucket (HTB) qdiscs. Its principle of operation can be summarized as ceiling the max. throughput per link and shaping traffic by reflecting the specified queue priorities. In general, the lowest priority of a queue gets most out of the available bandwidth.
In case of demands for other class or qdisc algorithms please contact our support team in order to evaluate the best approach for your application.
QoS Administration
The administration page can be used to enable and disable QoS.
QoS Classification
The classification section can be used to define the WAN interfaces on which QoS should be active.
Parameter QoS Interface Parameters
Interface The WAN interface on which QoS should be active
Bandwidth congestion The bandwidth congestion method. In case of auto the
system will try to apply limits in a best-effort way. However, it is suggested to set fixed bandwidth limits as they also offer a way of tuning the QoS behaviour.
Downstream bandwidth The available bandwidth for incoming traffic
Upstream bandwidth The available bandwidth for outgoing traffic
When defining limits, you should consider bandwidth limits which are at least possible as most shaping and queues algorithms will not work correctly if the specified limits cannot be achieved. In particular, any WWAN interfaces operating in a mobile enviroment are suffering variable bandwidths, thus rather lower values should be used.
In case an interface has been activated, the system will automatically create the following queues:
Parameter QoS Default Queues
high A high priority queue which may hold any latency-critical
services (such as VoIP)
default A default queue which will handle all other services
70
Page 71
NB3700 User Manual 3.8
Parameter QoS Default Queues
low A low priority queue which may hold less-critical services
for which shaping is intended
Each queue can be configured as follows:
Parameter QoS Queue Parameters
Name The name of the QoS queue
Priority A numerical priority for the queue, lower values indicate
higher priorities
Bandwidth The maximum possible bandwidth for this queue
You can now configure and assign any services to each queue. The following parameters apply:
Parameter QoS Service Parameters
Interface
The QoS interface of the queue
Queue The QoS queue to which this service shall be assigned
Source Specifies a network address and netmask used to match the
source address of packets
Destination Specifies a network address and netmask used to match the
destination (target) address of packets
Protocol Specifies the protocol for packets to be matched
Type of Service Specifies the TOS/DiffServ for packets to be matched
71
Page 72
NB3700 User Manual 3.8
5.4.6. Multicast
NetModule routers ship with an IGMP proxy which is able to maintain multicast groups on a particular interface and distribute incoming multicast packets towards the down­stream interfaces on which hosts have joined the groups.
Parameter Multicast Routing Settings
Administrative status Specifies whether multicast routing is active
Incoming interface The upstream interface on which multicast groups are joined
and on which multicast packets come in
Distribute to Specifies the downstream interfaces to which multicast pack-
ets will be forwarded
72
Page 73
NB3700 User Manual 3.8
5.5. FIREWALL
5.5.1. Administration
NetModule routers use Linux’s netfilter/iptables firewall framework (see http://www.
netfilter.org for more information) which supports stateful inspection, that is, grant-
ing the same permissions for inherited connections within an IP session (e.g. FTP which builds up a control and data connection).
The administration page can be used to enable and disable firewalling. When turning it on, a shortcut can be used to generate a predefined set of rules which allow administration (over HTTP, HTTPS, SSH or TELNET) by default but block any other packets coming from the WAN interface.
5.5.2. Adress/Port Groups
This menu can be used to form address or port groups which can be later used for firewall rules in order to reduce the number of rules. If address or port groups have been referenced, packets will match if one of the configured entities apply to the packet.
Figure 5.24.: Firewall Groups
73
Page 74
NB3700 User Manual 3.8
5.5.3. Rules
In general, the firewall is set up of a range of rules which control each packet’s permis­sion to pass the router. Please note that the rules are processed by order, that means traversing the list from top to bottom until a matching rule is found. Packets which are not matching any of the rules configured will be ALLOWED.
Figure 5.25.: Firewall Rules
Parameter Firewall Rule Configuration
Description A meaningful description about the purpose of this rule
Mode Specifies whether the packets of this rule should be allowed
or denied
Source The source address of matching packets, can be any or speci-
fied by address/network. Selecting on source MAC addreses is possible as well.
74
Page 75
NB3700 User Manual 3.8
Parameter Firewall Rule Configuration
Destination The destination address of matching packets, can be any,
local (addressed to the system itself) or specified by ad­dress/network
Incoming interface The interface on which matching packets are received
Protocol The used IP protocol of matching packets (UDP, TCP or
ICMP)
Destination port(s) The destination port of matching packets, which can be
specified by a single port or a range of ports (only UD­P/TCP).
The statistics page can be used to figure out if rules have matched any packets and provides a convenient way to debug your firewall setup.
75
Page 76
NB3700 User Manual 3.8
5.5.4. NAPT
This page can be used to configure Network Address and Port Translation (NAPT) for packets traversing the system. NAPT hereby modifies IP addresses or/and TCP/UDP ports in matching IP packets. By tracking those connections, it will also automatically adjust the returning packets of an IP session.
Figure 5.26.: NAPT Administration
The administration page lets you specify the interfaces on which outgoing NAT (also called Masquerading) will be performed. NAT will hereby use the address of the selected interface and choose a random source port for outgoing connections and thus enables communication between hosts from a private local area network towards hosts on the public network.
NAPT Inbound Rules
Inbound rules can be used to modify the target section of IP packets and, for instance, forward a service or port to an internal host. By doing so, you can expose that service and make it available from the Internet. You may also establish 1:1 NAT mapping for a single host using additional outbound rules.
76
Page 77
NB3700 User Manual 3.8
Figure 5.27.: Inbound NAPT
77
Page 78
NB3700 User Manual 3.8
Please note that the specified rules are processed by order, that means, traversing the list from top to bottom until a matching rule is found. If there is no matching rule found, the packet will pass as is.
Parameter Inbound NAPT Rules
Description A meaningful description of this rule
Incoming interface The interface from which matching packets are received
Target address The destination address of matching packets (optional)
Protocol The used protocol of matching packets
Ports The used UDP/TCP port of matching packets
Redirect to The address to which matching packets shall be redirected
Redirect port The port to which matching packets will be redirected
NAPT Outbound Rules
Outbound rules will modify the source section of IP packets and can be used to establish 1:1 NAT mappings but also to redirect packets to a specific service.
Parameter Outbound NAPT Rules
Description A meaningful description of this rule
Incoming interface The outgoing interface on which matching packets are leav-
ing the router
Source address The source address of matching packets (optional)
Protocol The used protocol of matching packets
Ports The used UDP/TCP port of matching packets
Rewrite source address The address to which the source address of matching packets
shall be rewritten
Rewrite source port The port to which the source port of matching packets shall
be rewritten
78
Page 79
5.6. VPN
5.6.1. OpenVPN
OpenVPN Administration
NB3700 User Manual 3.8
Figure 5.28.: OpenVPN Administration
Tunnel Configuration
NetModule routers support one single server tunnel and up to four client tunnels. You can specify tunnel parameters either in standard configuration or upload an expert mode file which has been created in advance. Refer to chapter 5.6.1 to learn more about how to manage clients and generate the files.
Parameter OpenVPN Configuration
Operation mode Specifies whether client or server mode should be used for
this tunnel, it further specifies if tunnel shall be configured in a standard way or if an expert mode file shall be used.
79
Page 80
NB3700 User Manual 3.8
Figure 5.29.: OpenVPN Configuration
80
Page 81
NB3700 User Manual 3.8
If the tunnel is operated in client mode, the following settings can be applied:
Parameter OpenVPN Client Configuration
Peer selection Specifies how the remote peer shall be selected, besides a
single server you may configure multiple servers which can, in case of failures, either be selected sequently (i.e. failover) or randomly (i.e. load balancing)
Server The address or hostname of the remote server
Port The port of the remote server (1194 by default)
The following settings can be used to configure a tunnel:
Parameter OpenVPN Configuration
Type The device type for this tunnel which can be either TUN
(typically used for routed connections) or TAP (required for bridged networks)
Protocol The tunnel protocol to be used for the transport connection
Network mode Defines how the packets should be forwarded, which can be
either routed or bridged from/to a particular LAN interface. If required, you can also specify the maximum transfer unit for the tunnel interface.
MTU The Maximum Transmission Unit of the tunnel interface
Cipher The required cipher mechanism used for encryption
Digest The digest algorithm used for authenticating
Authentication can be done in the following ways:
Parameter OpenVPN Authentication
certificate-based Certificates and keys for authenticating the tunnel. Please
take care that the proper keys/certificates have been either uploaded or generated (see 5.8.8).
credential-based Username and password are used for authentication.
both Verifying the tunnel uses certificates and credentials.
none Tunnel is not authenticated (discouraged)
The following further options can be applied:
81
Page 82
NB3700 User Manual 3.8
Parameter OpenVPN Options
use compression Enable or disable LZO packet compression
use keepalive Can be used to send a periodic keepalive packet in order to
keep the tunnel up despite of inactivity
redirect gateway By redirecting the gateway, all packets will be directed to
the VPN tunnel. Please ensure that essential services (such as DNS or NTP servers) can be reached at the network behind the tunnel. In doubt, create an extra static route pointing to the correct interface.
allow duplicates Allow multiple clients with the same common name to con-
currently connect.
verify certs Check peer certificate against local CRL.
OpenVPN Expert Configuration (Client)
The expert configuration mode offers a straightforward way to configure a tunnel by simply uploading a zip package containing the required configuration and optionally key/certificate files. A client tunnel usually consists of the following files:
Parameter Client Expert Files
client.conf OpenVPN configuration file (see http://www.openvpn.net
for available options)
ca.crt Root certificate authority file
client.crt Certificate file
client.key Private key file
client.p12 PKCS#12 file
ta.key TLS authentication key file
Please note that you may specify arbitrary file names, however, the configuration file suffix must be .conf and all files referred in the configuration file must correspond to relative path names.
OpenVPN Expert Configuration (Server)
A server tunnel typically requires the following files:
Parameter Server Expert Files
server.conf OpenVPN configuration file
82
Page 83
NB3700 User Manual 3.8
Parameter Server Expert Files
ca.crt Root certificate authority file
server.crt Certificate file
server.key Private key file
dh1024.pem Diffie-Hellman parameters file
ccd A directory containing client-specific configuration files
Keep in mind that a certificate becomes valid once its validity time has been reached, thus an accurate system has to be set prior to creating certificates and establishing a tunnel connection. Please ensure that all NTP servers are reachable. Using host names also requires a working DNS server.
Client Management
Once you have successfully set up an OpenVPN server tunnel, you can manage and enable clients connecting to your service. Currently connected clients can be seen on this page, including the connect time and IP address. You may kick connected clients by disabling them.
Figure 5.30.: OpenVPN Client Management
In the Networking section you can specify a fixed tunnel endpoint address for each client.
83
Page 84
NB3700 User Manual 3.8
Please note that, if you intend to use a fixed address for a particular client, you would have to apply fixed addresses to the other ones as well.
You may specify the network behind the clients as well as the routes to be pushed to each client. This can be useful for routing purposes, e.g. in case you want to redirect traffic for particular networks towards the server. Routing between the clients is generally not allowed but you can enable it if desired.
Finally, you can generate and download all expert mode files for enabled clients which can be used to easily populate each client.
Operating in server mode with certificates, it is possible to block a specific client by revoking a possibly stolen client certificate (see 5.8.8);
84
Page 85
NB3700 User Manual 3.8
5.6.2. IPsec
IPsec is a protocol suite for securing IP communications by authenticating and encrypt­ing each packet of a communication session and thus establishing a secure virtual private network.
IPsec includes various cryptographic protocols and ciphers for key exchange and data encryption and can be seen as one of the strongest VPN technologies in terms of security. It uses the following mechanisms:
Mechanism Description
AH Authentication Headers (AH) provide connectionless in-
tegrity and data origin authentication for IP datagrams and ensure protection against replay attacks.
ESP Encapsulating Security Payloads (ESP) provide confiden-
tiality, data-origin authentication, connectionless integrity, an anti-replay service and limited traffic-flow confidentiality.
SA Security Associations (SA) provide a secure channel and a
bundle of algorithms that provide the parameters necessary to operate the AH and/or ESP operations. The Internet Security Association Key Management Protocol (ISAKMP) provides a framework for authenticated key exchange.
Negotating keys for encryption and authentication is generally done by the Internet Key Exchange protocol (IKE) which consists of two phases:
Phase Description
IKE phase 1 IKE authenticates the peer during this phase for setting up
an ISAKMP secure association. This can be carried out by either using main or aggressive mode. The main mode ap­proach utilizes the Diffie-Hellman key exchange and authen­tication is always encrypted with the negotiated key.The aggressive mode just uses hashes of the pre-shared key and therefore represents a less-secure mechanism which should generally be avoided as it is prone to dictionary attacks.
IKE phase 2 IKE finally negotiates IPSec SA parameters and keys and
sets up matching IPSec SAs in the peers which is required for AH/ESP later on.
85
Page 86
NB3700 User Manual 3.8
Figure 5.31.: IPsec Administration
86
Page 87
NB3700 User Manual 3.8
Administration
This page can be used to enable/disable IPsec, you may also specify whether NAT­Traversal should be used.
NAT-Traversal is mainly used for connections which traverse a path where a router modifies the IP address/port of packets. It encapsulates packets in UDP and therefore requires a slight overhead which has to be taken into account when running over small­sized MTU interfaces.
Please note that running NAT-Traversal makes IKE using UDP port 4500 rather than 500 which has to be taken into account when setting up firewall rules.
Configuration
Figure 5.32.: IPsec Configuration
General
For setting up the tunnel you will have to configure the following parameters first:
87
Page 88
NB3700 User Manual 3.8
Parameter IPsec General Settings
Remote peer IP address or host name of the remote IPsec peer. You may
specify 0.0.0.0 to act as a responder for roadwarrior clients.
DPD Status Specifies whether Dead Peer Detection (see RFC 3706) shall
be used. DPD will detect any broken IPSec connections, in particular the ISAKMP tunnel, and refresh the correspond­ing SAs (Security Associations) and SPIs (Security Payload Identifier) for a faster re-establishment of the tunnel.
Detection cycle) The delay (in seconds) between DPD keepalives that are
sent for this connection (default 30 seconds)
Failure threshold The number of unanswered DPD requests until the IPsec
peer is considered dead (the router will then try to re­establish a dead connection automatically)
IKE Authentication
NetModule routers support IKE authentication through pre-shared keys (PSK) or certifi­cates within a public key infrastructure. Extended Authentication (XAUTH) leverages RADIUS-like authentication and can be used to apply user level access control over IPSec.
Using PSK requires the following settings:
Parameter IPsec IKE Authentication Settings
PSK The pre-shared key used to authenticate at the peer
Local ID Type The type of identification for the local ID which can be a
FQDN, username@FQDN or IP address
Local ID The local ID value
Local ID Type The type of identification for the remote ID
Remote ID The remote ID value
When using certificates you would need to specify the operation mode. When run as PKI client (initiator) you can create a Certificate Signing Request (CSR) in the certificates section which needs to be submitted at your Certificate Authority and imported to the router afterwards. In PKI server mode (concentrator), the router represents the Certificate Authority and issues the certificates for remote peers. They are revokable.
Using XAUTH the following settings can be made:
88
Page 89
NB3700 User Manual 3.8
Parameter IPsec XAUTH Settings
User name The name of the XAUTH user
User password The password of the XAUTH user
Group name The group ID
Group password The group secret
IKE Proposal
This section can be used to configure the phase 1 settings:
Parameter IPsec IKE Proposal Settings
Negotiation mode Choose the desired negotiation mode. Preferably, main
mode should be used but aggressive mode might be ap­plicable when dealing with dynamic endpoint addresses.
Encryption algorithm The desired IKE encryption method (we recommend
AES256)
Authentication algo­rithm
IKE Diffie-Hellman Group
SA life time The lifetime of Security Associations
Perfect Forward Secrecy Specifies whether Perfect Forward Secrecy (PFS) should be
IPsec Proposal
This section can be used to configure the phase 2 settings:
Parameter IPsec Proposal Settings
Encapsulation mode The desired encapsulation mode (Tunnel or Transport)
IPsec protocol The desired IPsec protocol (AH or ESP)
Encryption algorithm The desired IKE encryption method (we recommend
The desired IKE authentication method (we prefer SHA1 over MD5)
The IKE Diffie-Hellman Group
used. This feature increases security as PFS avoids pene­tration of the key-exchange protocol and prevents compro­misation of previous keys.
AES256)
89
Page 90
NB3700 User Manual 3.8
Parameter IPsec Proposal Settings
Authentication algo­rithm
The desired IKE authentication method (we prefer SHA1 over MD5)
SA life time The lifetime of Security Associations
Networks
When creating Security Associations, IPsec will keep track of routed networks within the tunnel. Packets will be only transmitted when a valid SA with matching source and destination network is present. Therefore, you may need to specify the networks right and left of the endpoints by applying the following settings:
Parameter IPsec Network Settings
Local network address The address of your local area network
Local network mask The netmask of your local area network
Peer network address The address of the remote network behind the peer
Peer network mask The netmask of the remote network behind the peer
NAT address Optionally, you can apply NAT (masquerading) for packets
coming from a different local network. The NAT address must reside in the network previously specified as local net­work.
90
Page 91
NB3700 User Manual 3.8
5.6.3. PPTP
The Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks between two hosts. PPTP is easy to configure and widely deployed amongst Microsoft Dial-up networking servers. However, due to its weak encryption algorithms, it is nowadays considered insecure but it still provides a straightforward way for establishing tunnels.
Figure 5.33.: PPTP Administration
When setting up a PPTP tunnel, you would need to choose between server or client. A client tunnel requires the following parameters to be set:
Parameter PPTP Client Settings
Server address The address of the remote server
Username The user-name used for authentication
Password The password used for authentication
Setting up a server requires the following settings:
91
Page 92
NB3700 User Manual 3.8
Figure 5.34.: PPTP Tunnel Configuration
92
Page 93
NB3700 User Manual 3.8
Parameter PPTP Server Settings
Listen address Specifies on which IP address should be listened for incom-
ing client connections
Server address The server address within the tunnel
Client address range Specifies a range of IP addresses assigned to each client
PPTP Client Management
PPTP clients for a server tunnel need to be configured here. They are made up of user­name and password. A fixed IP address can be assigned to them which can be used to point any routes to a dedicated tunnel.
Figure 5.35.: PPTP Client Management
93
Page 94
NB3700 User Manual 3.8
5.6.4. GRE
The Generic Routing Encapsulation (GRE) is a tunneling protocol that can encapsulate a wide variety of network layer protocols inside virtual point-to-point links over IP. GRE is defined in RFC 1701, 1702 and 2784. It does not provide encryption nor authorization but can be used on an address-basis on top of other VPN techniques (such as IPsec) for tunneling purposes.
The following parameters are required for setting up a tunnel:
Parameter GRE Configuration
Peer address The IP address of the remote peer
Local tunnel address The local IP address of the tunnel
Local tunnel netmask The local subnet mask of the tunnel
Remote network The remote network address of the tunnel
Remote netmask The remote subnet mask of the tunnel
In general, the local tunnel address/netmask should not conflict with any other interface addresses. The remote network/netmask will result in an additional route entry in order to control which packets should be encapsulated and transferred over the tunnel.
94
Page 95
NB3700 User Manual 3.8
5.6.5. Dial-In
On this page you can configure the Dial-In server in order to establish a data connection over GSM calls. Thus, one would generally apply a required service type of 2G-only, so that the modem registers to GSM only. Naturally, a concurrent use of outgoing WWAN interfaces and Dial-In connection is not possible.
Figure 5.36.: Dial-in Server Settings
The following settings can be set:
Parameter Dial-in Server Configuration
Administrative status Specifies whether incoming calls shall be answered or not
Modem Specifies the modem on which calls can come in
Address range start Start of the IP address range assigned to incoming clients
Address range size Number of addresses for client IP address range
Besides the admin account you can configure further users in the user accounts section
95
Page 96
NB3700 User Manual 3.8
which shall be allowed to dial-in. Please note that Dial-In connections are generally discouraged. As they are implemented
as GSM voice calls, they suffer from unreliability and poor bandwidth.
96
Page 97
NB3700 User Manual 3.8
5.7. SERVICES
5.7.1. SDK
NetModule routers are shipping with a Software Development Kit (SDK) which offers a simple and fast way to implement customer-specific functions and applications. It consists of:
1. An SDK host which defines the runtime environment (a so-called sandbox), that is, controlling access to system resources (such as memory, storage and CPU) and, by doing so, catering for the right scalability
2. An interpreter language called arena, a light-weight scripting language optimized for embedded systems, which uses a syntax similar to ANSI-C but adds support for exceptions, automatic memory management and runtime polymorphism on top of that
3. A NetModule-specific Application Programming Interface (API), which ships with a comprehensive set of functions for accessing hardware interfaces (e.g. digital IO ports, GPS, external storage media, serial ports) but also for retrieving system status parameters, sending E-Mail or SMS messages or simply just to configure the router
Anyone, reasonably experienced in the C language, will find an environment that is easy to dig in. However, feel free to contact us via [email protected] and we will happily support you in finding a programming solution to your specific problem.
The Language
The arena scripting language offers a broad range of POSIX functions (like printf or open) and provides, together with tailor-made API functions, a simple platform for implementing any sort of applications to interconnect your favourite device or service with the router.
Here comes a short example:
97
Page 98
NB3700 User Manual 3.8
/* We ar e go i ng t o ea ves d rop on th e fi r st s eri a l p o rt
* and turn on li g hts via a digi t al I /O o utp u t port , * o t her wis e we 'd h a ve to send a shor t m e ssa g e . */
f o r ( a t tem p ts = 0 ; at temp ts < 3 ; at t emp t s ++) {
if ( nb _ se r ia l _re ad (" s e ria l 0 " ) == " Kno c k K nock ! " ) {
nb _ se r ia l _w r ite ( " s eri a l0 " , " Who 's t here ? " );
if ( nb _ se r ia l _r e ad (" s e ria l 0 " ) == " San t a " ) {
pri n tf (" Hu r ray !\ n" ); nb _ dio _se t ( " o ut1 ", 1) ;
}
}
}
nb _ sms _se n d (" +1 234 5 678 9 " , " N o pr e sen t s t his year : ( " )
A set of example scripts can be downloaded directly from the router, you can find a list of them in the appendix. The manual which can be obtained from the NetModule support
web page gives a detailed introduction of the language, including a description of all
available functions.
SDK API Functions
The current range of API functions can be used to implement the following features:
1. Send/Retrieve SMS
2. Send E-mail
3. Read/Write from/to serial device
4. Control digital input/output ports
5. Run TCP/UDP servers
6. Run IP/TCP/UDP clients
7. Access files of mounted media (e.g. an USB stick)
8. Retrieve status information from the system
9. Get or set configuration parameters
10. Write to syslog
11. Transfer files over HTTP/FTP
12. Perform config/software updates
13. Control the LEDs
14. Get system events, restart services or reboot system
15. Scan for networks in range
98
Page 99
NB3700 User Manual 3.8
16. Create your own web pages
17. Voice control functions
18. SNMP functions
19. CAN socket functions
20. Various network-related functions
21. Other system-related functions
The SDK API manual (which can be downloaded from the router) provides an overview but also explains all functions in detail.
Please note that some functions require the corresponding services (e.g. E-Mail, SMS) to be properly configured prior to utilizing them in the SDK.
Let’s now pay some attention to the very powerful API function nb_status. It can be used to query the router’s status values in the same manner as they can be shown with the CLI. It returns a structure of variables for a specific section (a list of available sections can be obtained by running cli status -h).
By using the dump function you can figure out the content of the returned structure:
/* d u mp c urr e nt loc ati o n */
dump ( nb _ sta tus ( " l ocat ion " ) );
The script will then generate lines like maybe these:
struct(8): {
.LOCATION_STREET = string[11]: "Bahnhofquai" .LOCATION_CITY = string[10]: "Zurich" .LOCATION_COUNTRY_CODE = string[2]: "ch" .LOCATION_COUNTRY = string[11]: "Switzerland" .LOCATION_POSTCODE = string[4]: "8001" .LOCATION_STATE = string[6]: "Zurich" .LOCATION_LATITUDE = string[9]: "47.3778058" .LOCATION_LONGITUDE = string[8]: "8.5412757"
}
In combination with the nb_config_set function, it is possible to start a re-configuration of any parts of the system upon status changes. You may query possible sections and parameters again with the CLI:
~ $ cli get -c wanlink.0 Showing configuration sections (matching ’wanlink.0’):
99
Page 100
NB3700 User Manual 3.8
wanlink.0.mode wanlink.0.name wanlink.0.prio wanlink.0.weight
Running the CLI in interactive mode, you will be also able to step through possible configuration parameters by the help of the TAB key.
100
