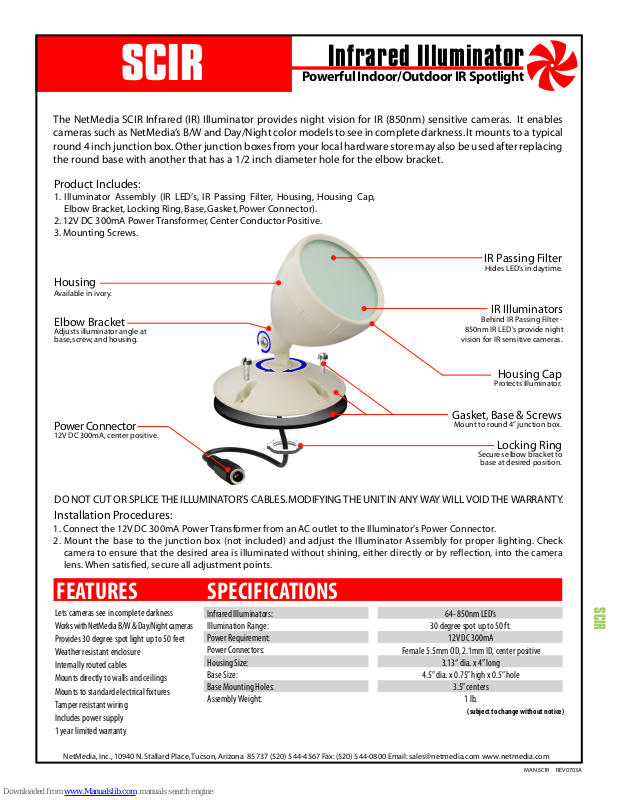

NetMedia SCIR, NM-IRJBOX, NM-ACB3, NM-CNF7080 Specifications

Infrared Illuminator

SCIR

The NetMedia SCIR Infrared (IR) Illuminator provides night vision for IR (850nm) sensitive cameras. It enables
cameras such as NetMedia’s B/W and Day/Night color models to see in complete darkness. It mounts to a typical
round 4 inch junction box
the round base with another that has a 1/2 inch diameter hole for the elbow bracket.

Product Includes:

1. Illuminator Assembly (IR LED’s, IR Passing Filter, Housing, Housing Cap,
Elbow Bracket, Locking Ring, Base, Gasket, Power Connector).

2. 12V DC 300mA Power Transformer, Center Conductor Positive.

3. Mounting Screws.

Housing

Available in ivory.

Elbow Bracket

Adjusts illuminator angle at
base, screw, and housing.

. Other junction boxes from your local hardware store may also be used after replacing

Powerful Indoor/Outdoor IR Spotlight

IR Passing Filter

Hides LED’s in daytime.

IR Illuminators

Behind IR Passing Filter -

850nm IR LED’s provide night

vision for IR sensitive cameras.

Housing Cap

Protects illuminator.

Gasket, Base & Screws

Power Connector

12V DC 300mA, center positive.

Mount to round 4” junction box.

Locking Ring

Secures elbow bracket to

base at desired position.

DO NOT CUT OR SPLICE THE ILLUMINATOR’S CABLES. MODIFYING THE UNIT IN ANY WAY WILL VOID THE WARRANTY.

Installation Procedures:

1. Connect the 12V DC 300mA Power Transformer from an AC outlet to the Illuminator’s Power Connector.

2. Mount the base to the junction box (not included) and adjust the Illuminator Assembly for proper lighting. Check
camera to ensure that the desired area is illuminated without shining, either directly or by reflection, into the camera
lens. When satisfied, secure all adjustment points.

FEATURES SPECIFICATIONS

Lets cameras see in complete darkness
Works with NetMedia B/W & Day/Night cameras
Provides 30 degree spot light up to 50 feet
Weather resistant enclosure
Internally routed cables
Mounts directly to walls and ceilings
Mounts to standard electrical fixtures
Tamper resistant wiring
Includes power supply
1 year limited warranty

Infrared Illuminators:
Illumination Range:
Power Requirement:
Power Connectors:
Housing Size:
Base Size:
Base Mounting Holes:
Assembly Weight:

64- 850nm LED’s

30 degree spot up to 50 ft.

12V DC 300mA

Female 5.5mm OD, 2.1mm ID, center positive

3.13“ dia. x 4” long

4.5” dia. x 0.75” high x 0.5” hole

3.5” centers
1 lb.

(subject to change without notice)

SCIR

NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 [phone] Fax: [phone] Email: [e-mail] www.netmedia.com

MAN-SCIR REV0703A

One Year Limited Warranty

NetMedia, Inc. warrants this product to be free from defects in materials and workmanship under
normal use and service for One Year from the date of purchase or NetMedia will repair or, at its
option, replace the defective product. Please keep your purchase receipt. In the unlikely event that
you need warranty service, call NetMedia at 1-520-544-4567 for a Return Material Authorization
(RMA) number. Then, return the product, with the RMA number clearly marked on the package, by a
traceable method with freight pre-paid and accompanied by a copy of the purchase receipt to:

Attn: Customer Service, NetMedia, Inc. 10940 N. Stallard Place, Tucson, AZ 85737-9527

No expressed or implied warranty is made for any defects in this product which result from accident,
abuse, failure to operate the product in accordance with relevant instructions, neglect, immersion in
or exposure to chemicals or liquid, extreme climate, excessive wear and tear and defect resulting
from other extraneous causes such as unauthorized disassembly, repair and or modification. Any
implied warranty arising from the sale of this product, including implied warranties of merchantabil
ity and fitness for a particular purpose, are limited to the warranty stated above. NetMedia shall not
be responsible for any loss, damages or expenses, whether direct, consequential or incidental that
arise from the use or inability to use this product. Some states do not allow limitation of incidental
or consequential damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you may have other rights, which vary from state to state.

-

Frequently Asked Questions

Q- How can I tell if the illuminator is on?

A- When powered up in the dark, there will be a visible red glow coming from the IR LED’s. You can also

test it with your IR sensitive camera and a monitor.

Q- Why do the IR LED’s have a red glow?

A- The 850nm infrared LED’s emit some slight radiation in the visible red region. These LED’s are as

“invisible” as possible while still being compatible with many IR sensitive cameras. NetMedia also
offers a 940nm illuminator (NM-IRJBOX) that gives off no red but most cameras cannot see the IR in
that range. NetMedia’s Day/Night color cameras can see with the 940nm LED’s.

Q- The illuminator is on, why doesn’t my camera see anything?

A- Make sure the camera is sensitive to IR at 850nm. NetMedia’s B/W and Day/Night color cameras will

work but most color cameras are not IR sensitive at all. Make sure the unit is properly powered. Make
sure there is actually something to see within its illumination area.

Q- How can I increase the length of the power cord?

A- The illuminator has a minimum power requirement of 12V DC 300mA. You may use another power

supply and cable but the connector needs to be just like the power plug of the included
transformer, 5.5mm outer dia., 2.1mm inner dia., center positive. Do not cut the cables coming out of
the illuminator or you will void the warranty. Do not reverse the polarity on the power jack/plug or
you will damage the illuminator and void the warranty.

SCIR

NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 [phone] Fax: [phone] Email: [e-mail] www.netmedia.com

MAN-SCIR REV0703A

Infrared Illuminator

NM-IRJBOX

The NetMedia IRJBOX Infrared (IR) Illuminator provides invisible light for IR (940nm) sensitive cameras. It
enables cameras such as NetMedia’s SC53 to see in complete darkness. The illuminator mounts in a wall with its
bracket or in a typical single gang junction (light switch) box. It is concealed behind a black cover plate insert
that allows only IR to pass. For best results, do not mount in the same junction box as the camera.

Product Includes:

1. IR Illuminator Board (IR LED’s, Power Y-Cable).

2. 12V DC 300mA Power Transformer, Center Conductor Positive.

3. Black Lens Cover Insert.

4. Mounting hardware (Bracket and Screws).

No visible light or red glow

Lens Cover

Black insert conceals

Illuminator, snaps into

Cover Plate.

Cover Plate

Not Included

IR Illuminator Board

940nm IR LED’s provide invisible light

for camera without red glow. Power

Y-Cable provides female input and

male output for 12V DC power.

Mounting Bracket

Installs in Wall Cutout.

Illuminator also mounts in

a junction box.

Wall Cutout

Not Included

Installation Procedures:

1. Connect the 12V DC 300mA Power Transformer from an AC outlet to the Illuminator’s Power Input Connector. If sharing
power through the Y-Cable, make sure there is enough current for both devices; the Illuminator requires 200mA.

2. Install Illuminator Board into Mounting Bracket or Junction Box (not included). Check camera to ensure that the desired
area is illuminated without shining, either directly or by reflection, into the camera lens.

3. Snap the Black Lens Cover into the Cover Plate (not included) by pressing all four corners in simultaneously. If necessary,
the square corners of the insert may be slightly rounded.

4. Attach the Cover Plate to Mounting Bracket or Junction Box. Silicon or similar sealant may be used as needed.

FEATURES SPECIFICATIONS

Lets cameras see in complete darkness

Works with NetMedia Day/Night color cameras

No visible red glow

Wide angle of IR dispersion

Built-in Y-Cable for sharing power

Mounts in standard electrical fixtures

Includes Mounting Bracket

Includes power supply

1 year limited warranty

NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 [phone] Fax: [phone] Email: [e-mail] www.netmedia.com

Infrared Illuminators:
Illumination Range:
Power Requirement:
Power Connectors:
Mounting Holes:
Size:
Weight:

NM-IRJBOX

64- 940nm LED’s

Up to 6 ft.

12V DC 200mA

1 Male, 1 Female 5.5mm OD, 2.1mm ID, center positive

3.8” centers

4.25” long x 1” wide x 0.2” thick

0.8 oz.

(subject to change without notice)

MAN-IRJBOX REV0703A
